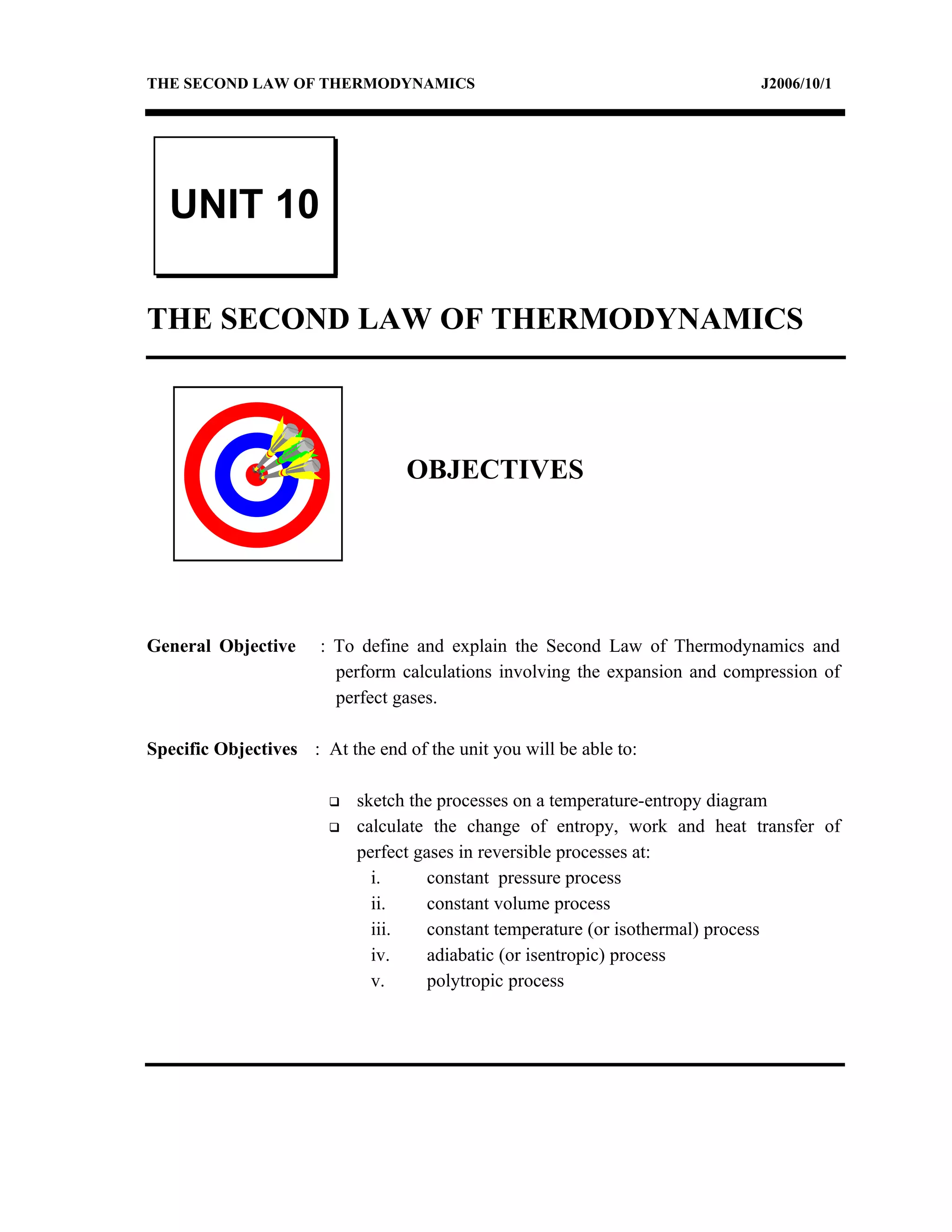

1. THE SECOND LAW OF THERMODYNAMICS J2006/10/1
UNIT 10
THE SECOND LAW OF THERMODYNAMICS
OBJECTIVES
General Objective : To define and explain the Second Law of Thermodynamics and
perform calculations involving the expansion and compression of
perfect gases.
Specific Objectives : At the end of the unit you will be able to:
 sketch the processes on a temperature-entropy diagram
 calculate the change of entropy, work and heat transfer of
perfect gases in reversible processes at:
i. constant pressure process
ii. constant volume process
iii. constant temperature (or isothermal) process
iv. adiabatic (or isentropic) process
v. polytropic process

2. THE SECOND LAW OF THERMODYNAMICS J2006/10/2
INPUT
10.0 The P-V and T-s diagram for a perfect gas
Property diagrams serve as great visual aids in the thermodynamic analysis of
processes. We have used P-V and T-s diagrams extensively in the previous unit
showing steam as a working fluid. In the second law analysis, it is very helpful to
plot the processes on diagrams which coordinate the entropy. The two diagrams
commonly used in the second law analysis are the pressure-volume and
temperature-entropy.
Fig. 10.0-1 shows a series of constant temperature lines on a P-V diagram. The
constant temperature lines, T3 > T2 > T1 are shown.
T3 > T2 > T1
P
Constant temperature lines
Figure 10.0-1 The constant temperature lines on a P-V diagram for a perfect gas
Since entropy is a property of a system, it may be used as a coordinate, with
T3
temperature as the other ordinate, in order to represent various cycles graphically. It
T2
is useful to plot lines of constant pressure and constant volume on a T-s diagram for
T
a perfect gas. Since changes of entropy are 1ofVmore direct application than the
absolute value, the zero of entropy can be chosen at any arbitrary reference
temperature and pressure.

3. THE SECOND LAW OF THERMODYNAMICS J2006/10/3

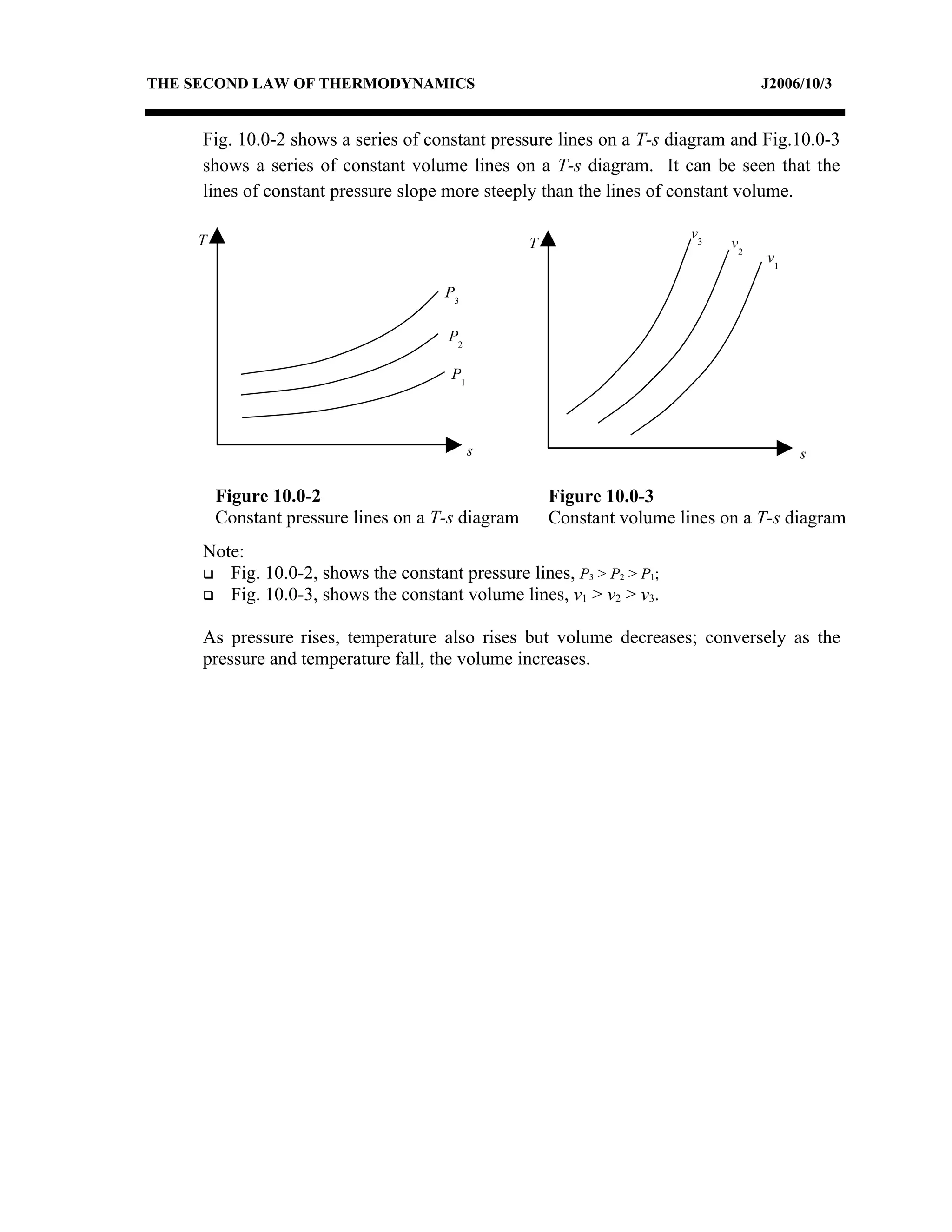

Fig. 10.0-2 shows a series of constant pressure lines on a T-s diagram and Fig.10.0-3
shows a series of constant volume lines on a T-s diagram. It can be seen that the
lines of constant pressure slope more steeply than the lines of constant volume.
T v3
T v2
v1
P3
P2
P1
s s
Figure 10.0-2 Figure 10.0-3
Constant pressure lines on a T-s diagram Constant volume lines on a T-s diagram
Note:
 Fig. 10.0-2, shows the constant pressure lines, P3 > P2 > P1;
 Fig. 10.0-3, shows the constant volume lines, v1 > v2 > v3.
As pressure rises, temperature also rises but volume decreases; conversely as the
pressure and temperature fall, the volume increases.

4. THE SECOND LAW OF THERMODYNAMICS J2006/10/4
10.1 Reversible processes on the T-s diagram for a perfect gas
The various reversible processes dealt with in Units 4 and 5 will now be considered
in relation to the T-s diagram. In the following sections of this unit, five reversible
processes on the T-s diagram for perfect gases are analysed in detail. These
processes include the:
i. constant pressure process,
ii. constant volume process,
iii. constant temperature (or isothermal) process,

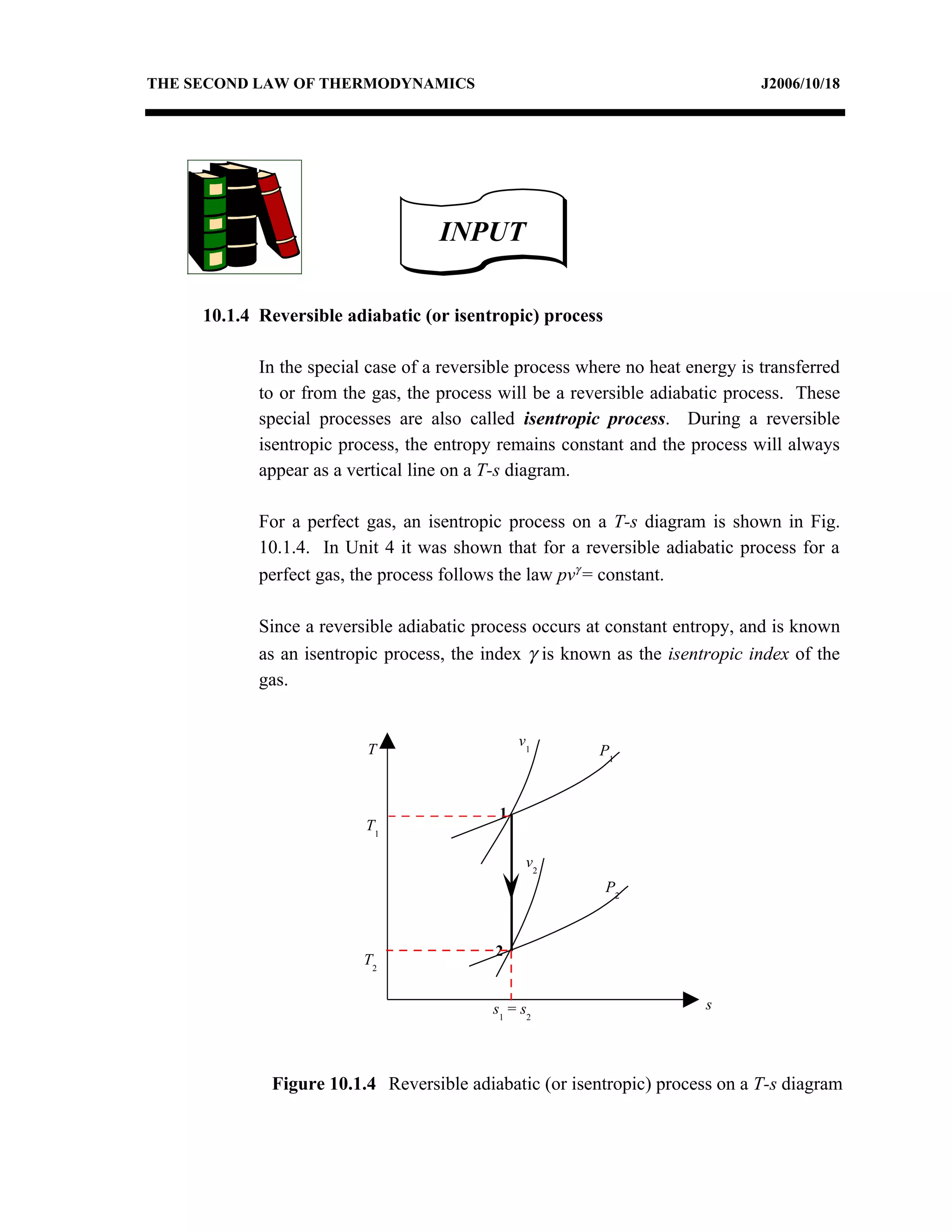

iv. adiabatic (or isentropic) process, and
v. polytropic process.

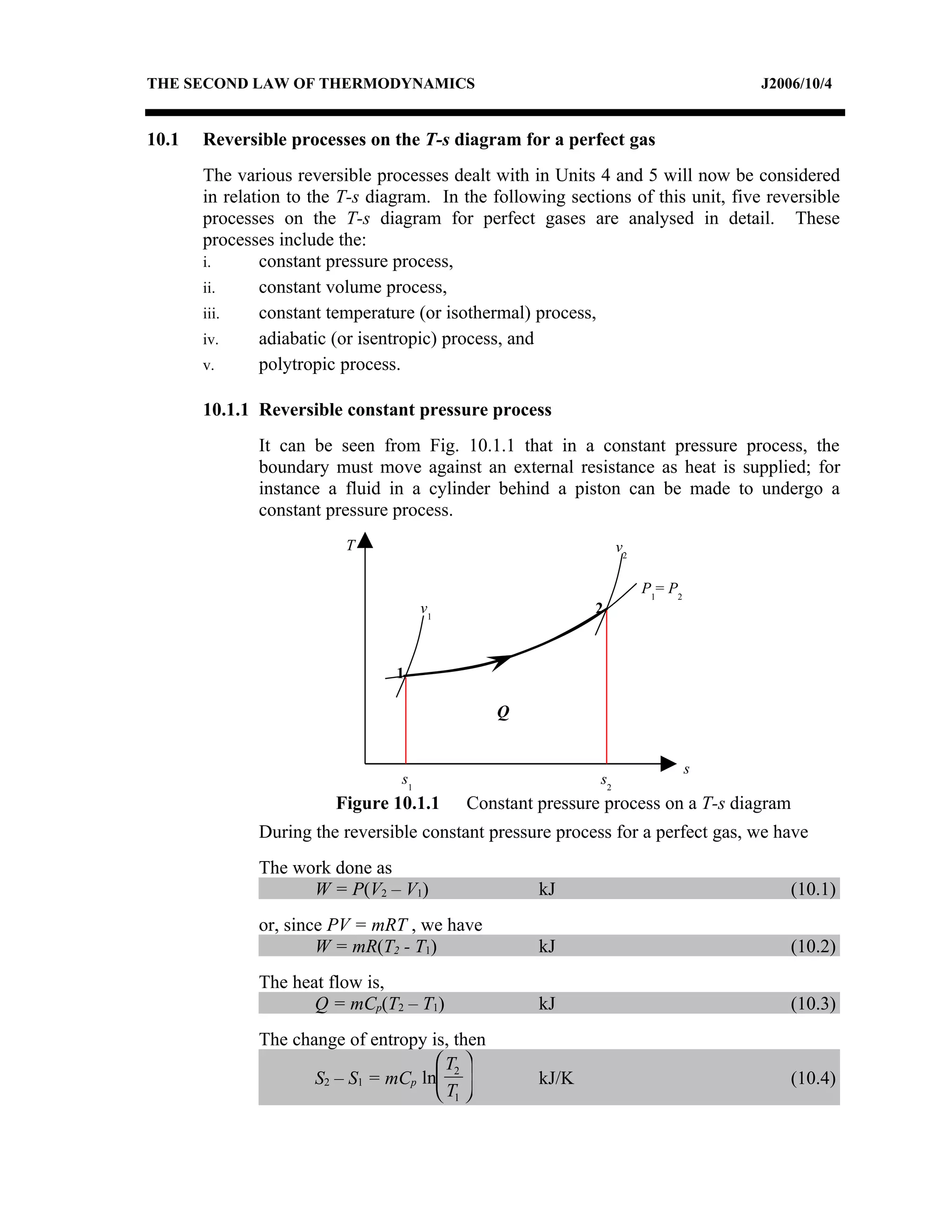

10.1.1 Reversible constant pressure process
It can be seen from Fig. 10.1.1 that in a constant pressure process, the
boundary must move against an external resistance as heat is supplied; for
instance a fluid in a cylinder behind a piston can be made to undergo a
constant pressure process.
T v2
P1= P2
v1 2
1
Q
s
s1 s2
Figure 10.1.1 Constant pressure process on a T-s diagram
During the reversible constant pressure process for a perfect gas, we have
The work done as
W = P(V2 – V1) kJ (10.1)
or, since PV = mRT , we have
W = mR(T2 - T1) kJ (10.2)
The heat flow is,
Q = mCp(T2 – T1) kJ (10.3)
The change of entropy is, then
 T2 
S2 – S1 = mCp ln  kJ/K (10.4)
 T1 

5. THE SECOND LAW OF THERMODYNAMICS J2006/10/5

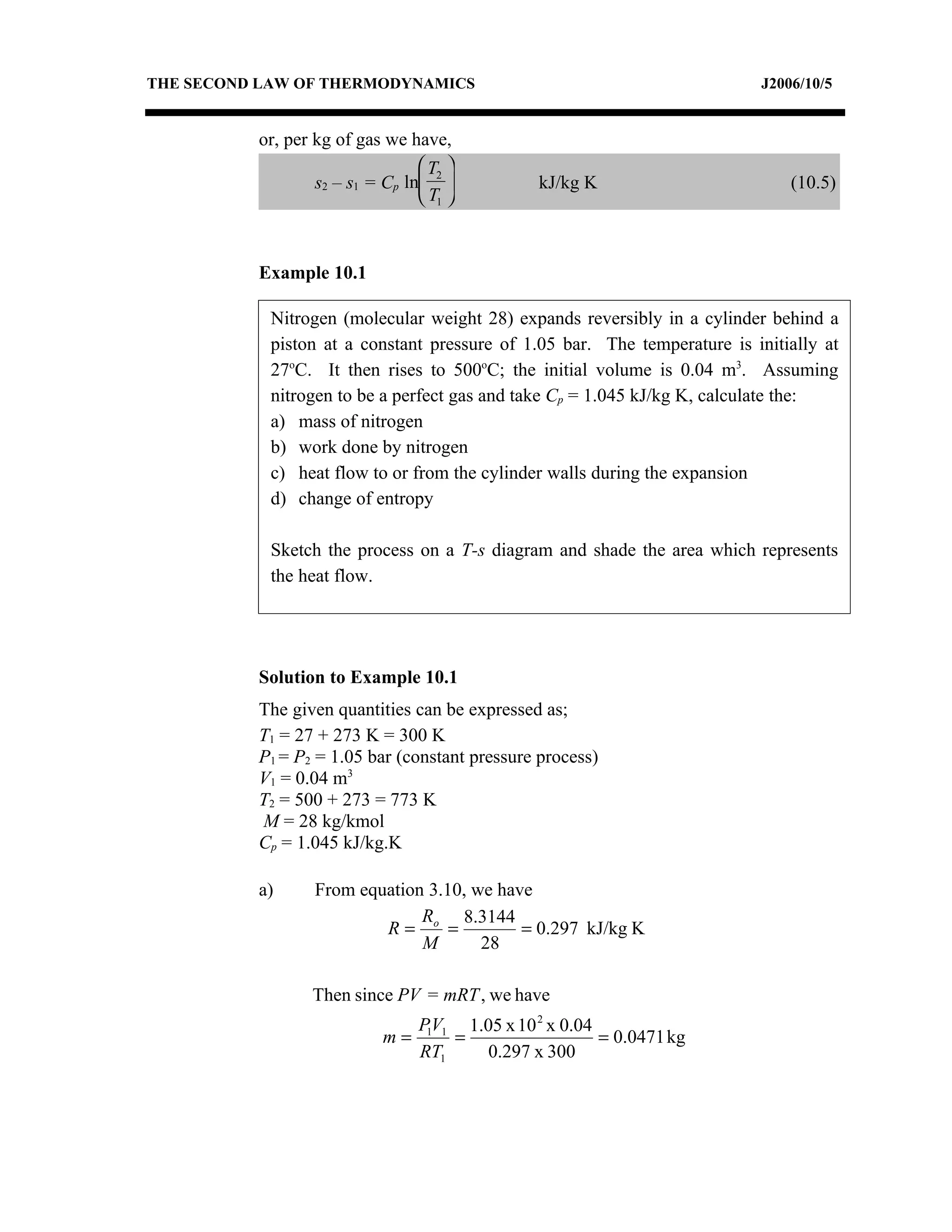

or, per kg of gas we have,
 T2 
s2 – s1 = Cp ln  kJ/kg K (10.5)
 T1 
Example 10.1
Nitrogen (molecular weight 28) expands reversibly in a cylinder behind a
piston at a constant pressure of 1.05 bar. The temperature is initially at
27oC. It then rises to 500oC; the initial volume is 0.04 m3. Assuming
nitrogen to be a perfect gas and take Cp = 1.045 kJ/kg K, calculate the:
a) mass of nitrogen
b) work done by nitrogen
c) heat flow to or from the cylinder walls during the expansion
d) change of entropy
Sketch the process on a T-s diagram and shade the area which represents
the heat flow.
Solution to Example 10.1
The given quantities can be expressed as;
T1 = 27 + 273 K = 300 K
P1 = P2 = 1.05 bar (constant pressure process)
V1 = 0.04 m3
T2 = 500 + 273 = 773 K
M = 28 kg/kmol
Cp = 1.045 kJ/kg.K
a) From equation 3.10, we have
R 8.3144
R= o = = 0.297 kJ/kg K
M 28
Then since PV = mRT , we have
P1V1 1.05 x 10 2 x 0.04
m= = = 0.0471 kg
RT1 0.297 x 300

6. THE SECOND LAW OF THERMODYNAMICS J2006/10/6

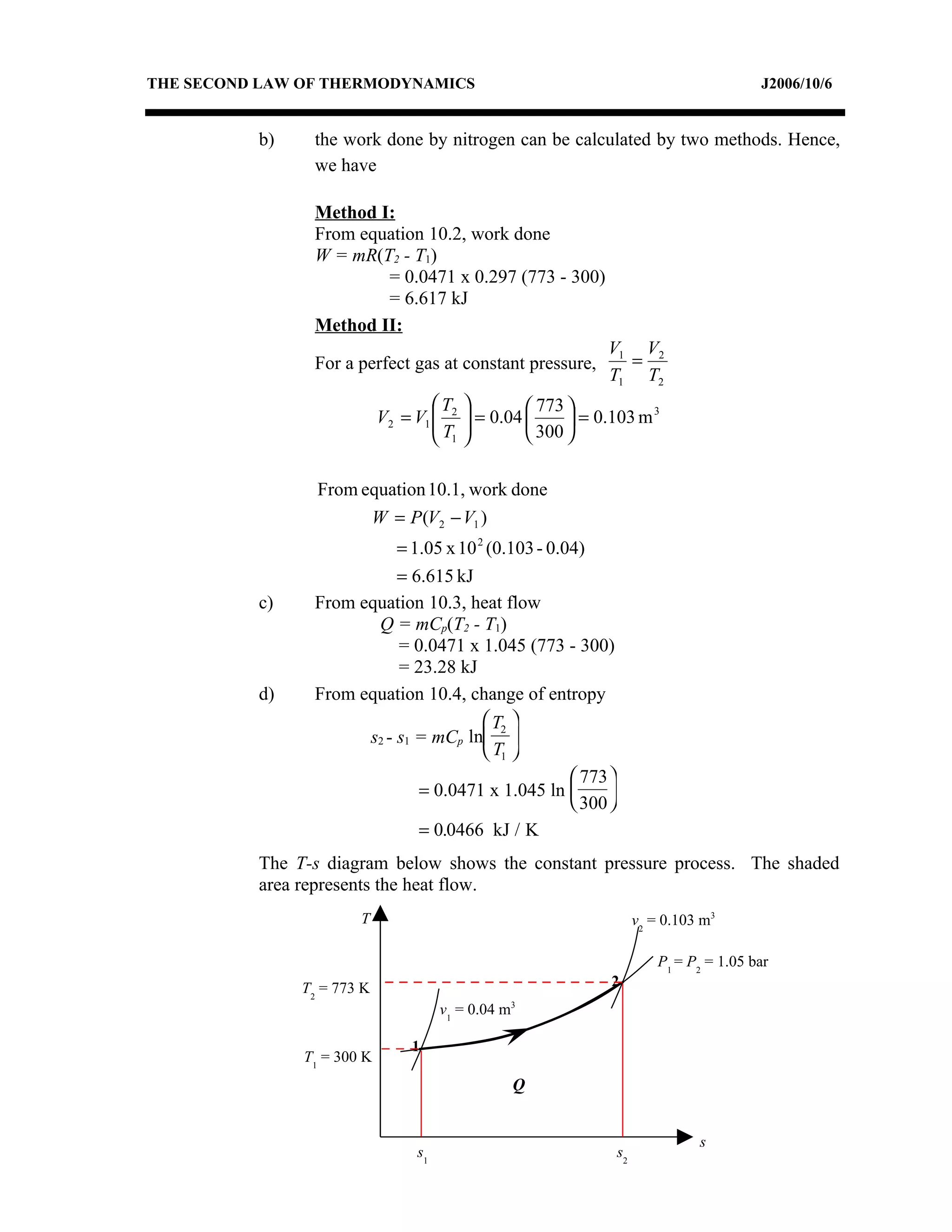

b) the work done by nitrogen can be calculated by two methods. Hence,
we have
Method I:
From equation 10.2, work done
W = mR(T2 - T1)
= 0.0471 x 0.297 (773 - 300)
= 6.617 kJ
Method II:
V1 V2
For a perfect gas at constant pressure, =
T1 T2
T 
 = 0.04 
773 
V2 = V1  2
T    = 0.103 m
3
 1   300 
From equation 10.1, work done
W = P (V2 − V1 )
= 1.05 x 10 2 (0.103 - 0.04)
= 6.615 kJ
c) From equation 10.3, heat flow
Q = mCp(T2 - T1)
= 0.0471 x 1.045 (773 - 300)
= 23.28 kJ
d) From equation 10.4, change of entropy
 T2 
s2 - s1 = mCp ln 
 T1 
 773 
= 0.0471 x 1.045 ln  
 300 
= 0.0466 kJ / K
The T-s diagram below shows the constant pressure process. The shaded
area represents the heat flow.
T v2 = 0.103 m3
P1 = P2 = 1.05 bar
T2 = 773 K 2
v1 = 0.04 m3
1
T1 = 300 K
Q
s
s1 s2

7. THE SECOND LAW OF THERMODYNAMICS J2006/10/7

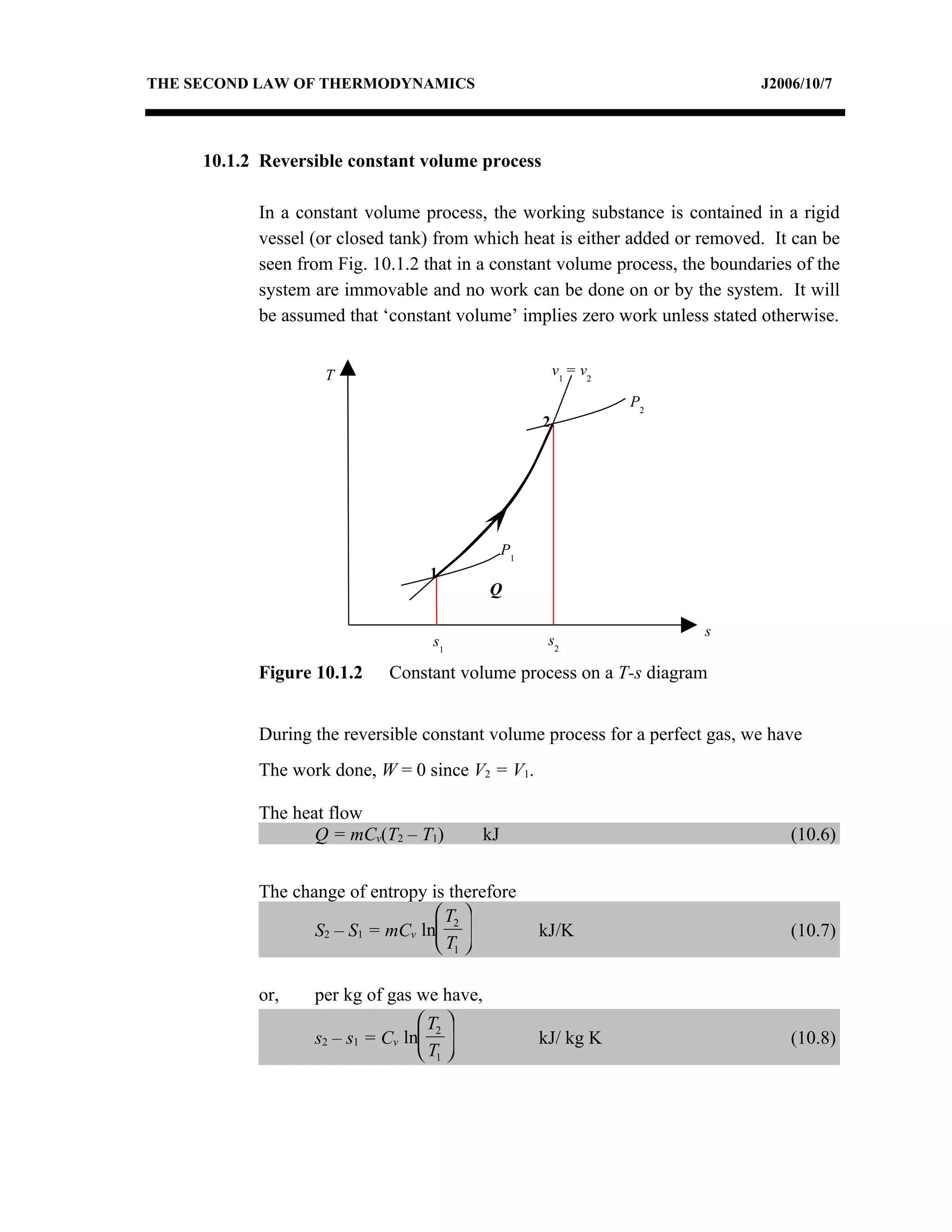

10.1.2 Reversible constant volume process
In a constant volume process, the working substance is contained in a rigid
vessel (or closed tank) from which heat is either added or removed. It can be
seen from Fig. 10.1.2 that in a constant volume process, the boundaries of the
system are immovable and no work can be done on or by the system. It will
be assumed that ‘constant volume’ implies zero work unless stated otherwise.
T v1 = v2
P2
2
P1
1
Q
s
s1 s2
Figure 10.1.2 Constant volume process on a T-s diagram
During the reversible constant volume process for a perfect gas, we have
The work done, W = 0 since V2 = V1.
The heat flow
Q = mCv(T2 – T1) kJ (10.6)
The change of entropy is therefore
 T2 
S2 – S1 = mCv ln  kJ/K (10.7)
 T1 
or, per kg of gas we have,
 T2 
s2 – s1 = Cv ln  kJ/ kg K (10.8)
 T1 

8. THE SECOND LAW OF THERMODYNAMICS J2006/10/8

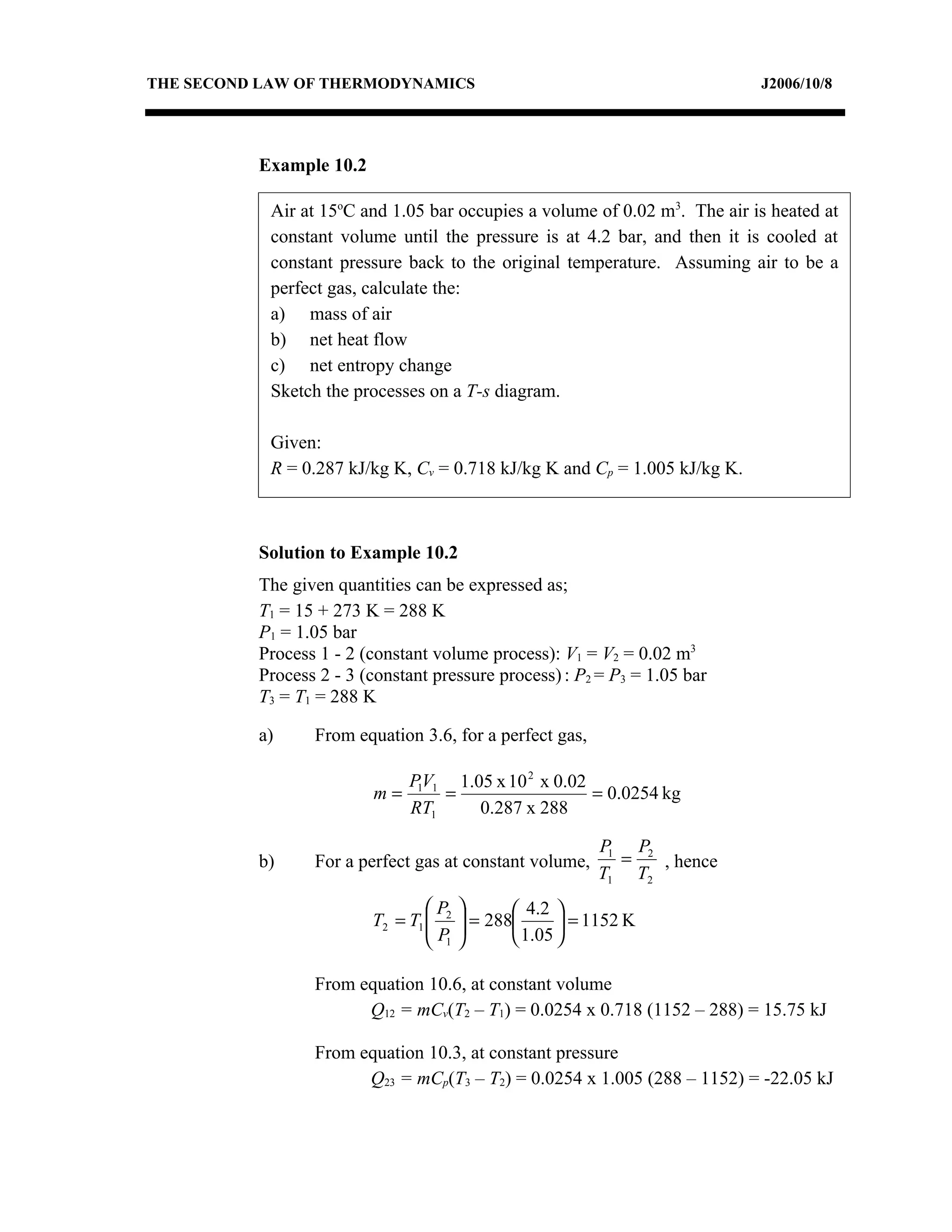

Example 10.2
Air at 15oC and 1.05 bar occupies a volume of 0.02 m3. The air is heated at
constant volume until the pressure is at 4.2 bar, and then it is cooled at
constant pressure back to the original temperature. Assuming air to be a
perfect gas, calculate the:
a) mass of air
b) net heat flow
c) net entropy change
Sketch the processes on a T-s diagram.
Given:
R = 0.287 kJ/kg K, Cv = 0.718 kJ/kg K and Cp = 1.005 kJ/kg K.
Solution to Example 10.2
The given quantities can be expressed as;
T1 = 15 + 273 K = 288 K
P1 = 1.05 bar
Process 1 - 2 (constant volume process): V1 = V2 = 0.02 m3
Process 2 - 3 (constant pressure process) : P2 = P3 = 1.05 bar
T3 = T1 = 288 K
a) From equation 3.6, for a perfect gas,
P1V1 1.05 x 10 2 x 0.02
m= = = 0.0254 kg
RT1 0.287 x 288
P1 P2
b) For a perfect gas at constant volume, = , hence
T1 T2
P   4.2 
T2 = T1  2
P  = 288
  = 1152 K
 1   1.05 
From equation 10.6, at constant volume
Q12 = mCv(T2 – T1) = 0.0254 x 0.718 (1152 – 288) = 15.75 kJ
From equation 10.3, at constant pressure
Q23 = mCp(T3 – T2) = 0.0254 x 1.005 (288 – 1152) = -22.05 kJ

9. THE SECOND LAW OF THERMODYNAMICS J2006/10/9

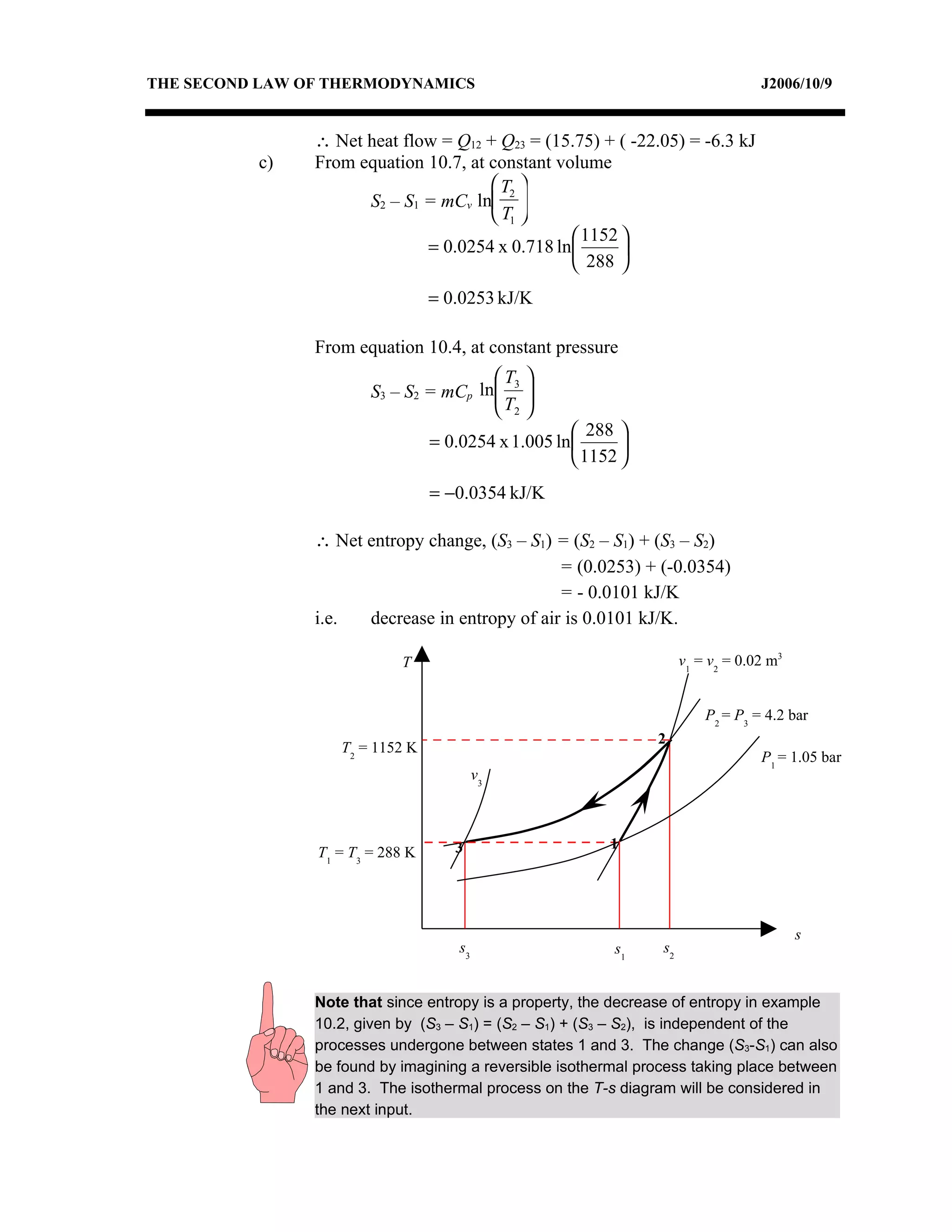

∴ Net heat flow = Q12 + Q23 = (15.75) + ( -22.05) = -6.3 kJ
c) From equation 10.7, at constant volume
 T2 
S2 – S1 = mCv ln 
 T1 
 1152 
= 0.0254 x 0.718 ln 
 288 
= 0.0253 kJ/K
From equation 10.4, at constant pressure
 T3 
S3 – S2 = mCp ln 
T 
 2
 288 
= 0.0254 x 1.005 ln 
 1152 
= −0.0354 kJ/K
∴ Net entropy change, (S3 – S1) = (S2 – S1) + (S3 – S2)
= (0.0253) + (-0.0354)
= - 0.0101 kJ/K
i.e. decrease in entropy of air is 0.0101 kJ/K.
T v1 = v2 = 0.02 m3
P2 = P3 = 4.2 bar
2
T2 = 1152 K
P1 = 1.05 bar
v3
3 1
T1 = T3 = 288 K
s
s3 s1 s2
Note that since entropy is a property, the decrease of entropy in example
10.2, given by (S3 – S1) = (S2 – S1) + (S3 – S2), is independent of the
processes undergone between states 1 and 3. The change (S3-S1) can also
be found by imagining a reversible isothermal process taking place between
1 and 3. The isothermal process on the T-s diagram will be considered in
the next input.

10. THE SECOND LAW OF THERMODYNAMICS J2006/10/10
10.1.3 Reversible constant temperature (or isothermal) process

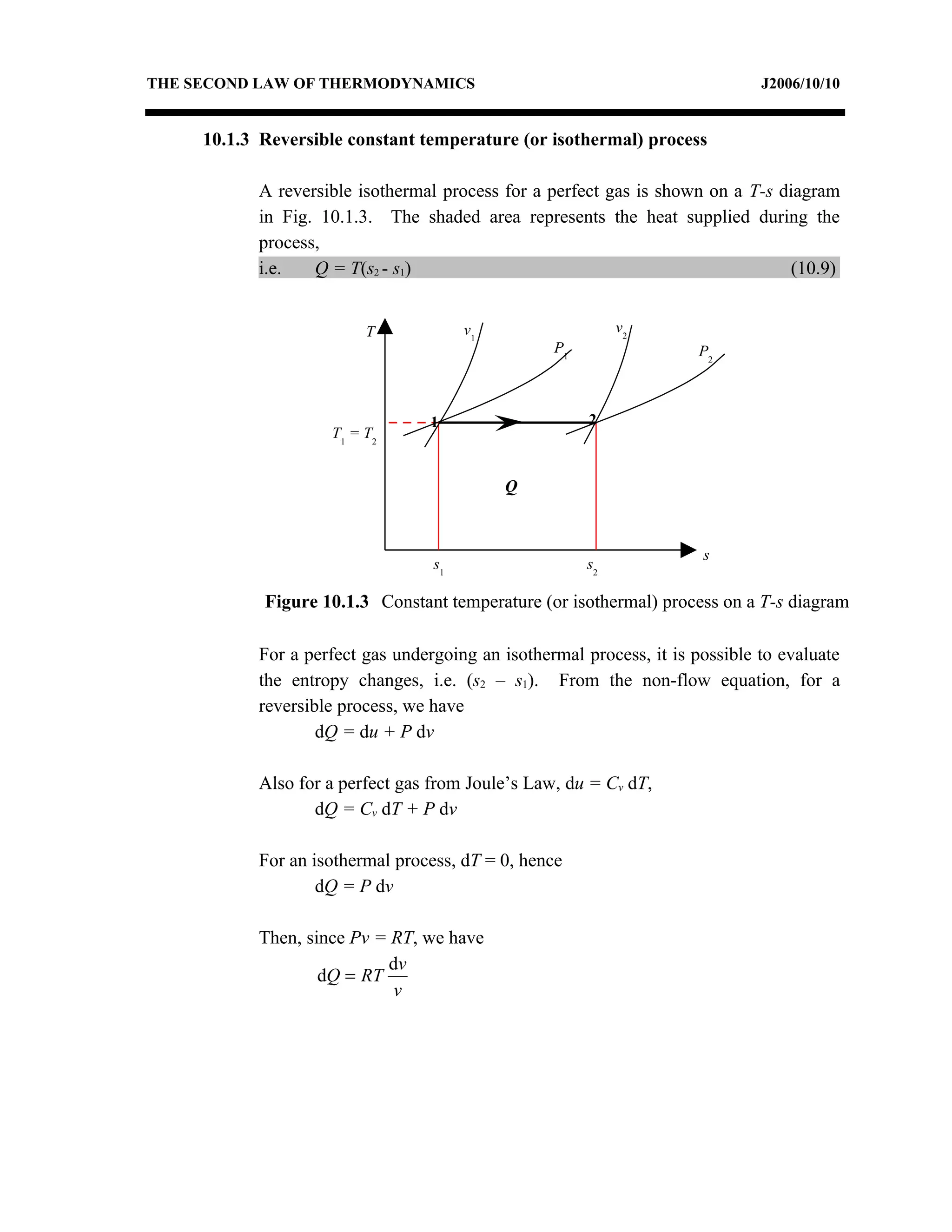

A reversible isothermal process for a perfect gas is shown on a T-s diagram
in Fig. 10.1.3. The shaded area represents the heat supplied during the
process,
i.e. Q = T(s2 - s1) (10.9)
T v1 v2
P1 P2
1 2
T1 = T2
Q
s
s1 s2
Figure 10.1.3 Constant temperature (or isothermal) process on a T-s diagram
For a perfect gas undergoing an isothermal process, it is possible to evaluate
the entropy changes, i.e. (s2 – s1). From the non-flow equation, for a
reversible process, we have
dQ = du + P dv
Also for a perfect gas from Joule’s Law, du = Cv dT,
dQ = Cv dT + P dv
For an isothermal process, dT = 0, hence
dQ = P dv
Then, since Pv = RT, we have
dv
dQ = RT
v

11. THE SECOND LAW OF THERMODYNAMICS J2006/10/11

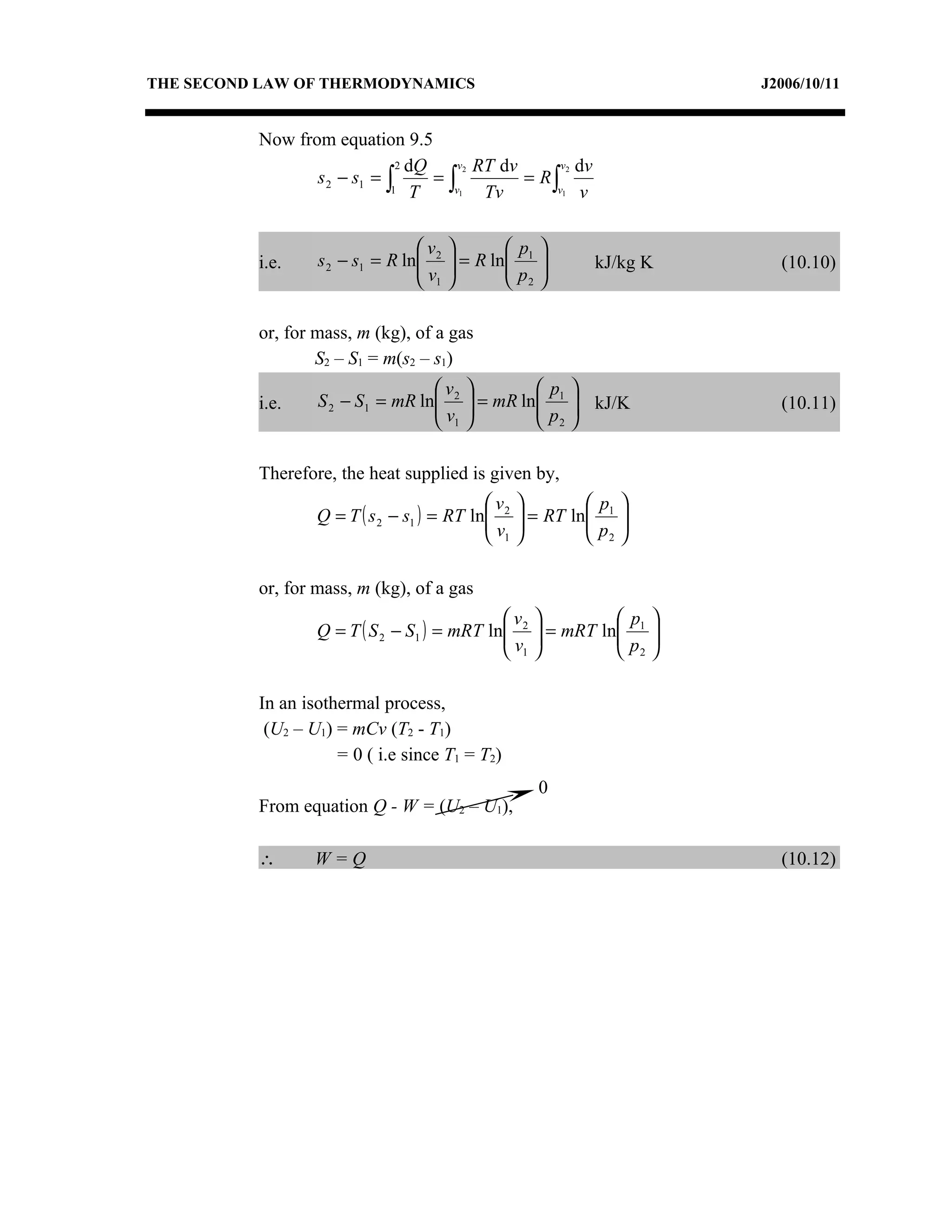

Now from equation 9.5
2 dQ v2 RT dv v2 dv
s 2 − s1 = ∫ =∫ = R∫
1 T v1 Tv v1 v
v  p 
i.e. s 2 − s1 = R ln 2
v  = R ln 1 
 p  kJ/kg K (10.10)
 1   2
or, for mass, m (kg), of a gas
S2 – S1 = m(s2 – s1)
v  p 
i.e. S 2 − S1 = mR ln 2
v  = mR ln 1  kJ/K
 p  (10.11)
 1   2
Therefore, the heat supplied is given by,
v  p 
Q = T ( s 2 − s1 ) = RT ln 2
v  = RT ln 1
 p 

 1   2 
or, for mass, m (kg), of a gas
v  p 
Q = T ( S 2 − S1 ) = mRT ln 2
v  = mRT ln 1 
 p 
 1   2
In an isothermal process,
(U2 – U1) = mCv (T2 - T1)
= 0 ( i.e since T1 = T2)
0
From equation Q - W = (U2 – U1),
∴ W=Q (10.12)

12. THE SECOND LAW OF THERMODYNAMICS J2006/10/12

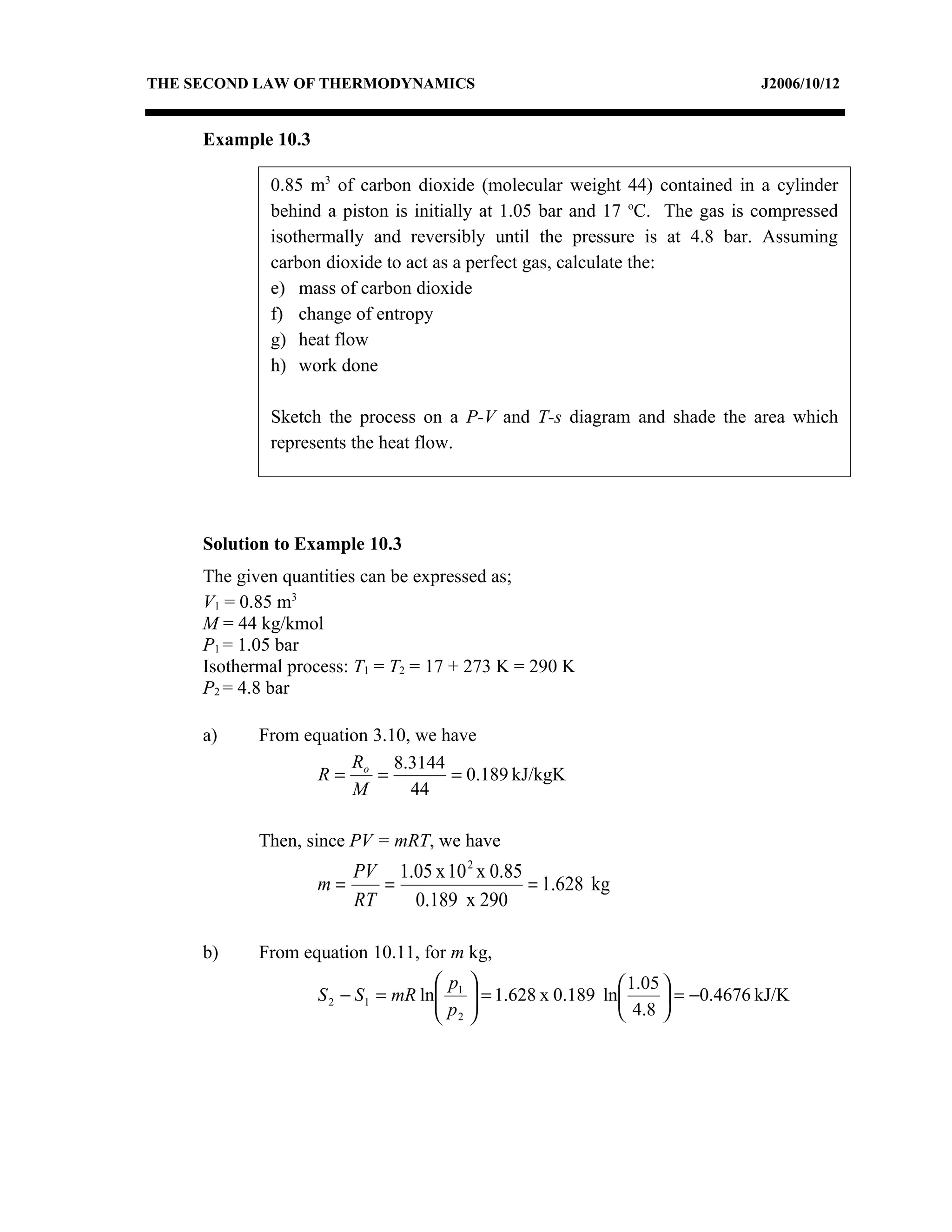

Example 10.3
0.85 m3 of carbon dioxide (molecular weight 44) contained in a cylinder
behind a piston is initially at 1.05 bar and 17 oC. The gas is compressed
isothermally and reversibly until the pressure is at 4.8 bar. Assuming
carbon dioxide to act as a perfect gas, calculate the:
e) mass of carbon dioxide
f) change of entropy
g) heat flow
h) work done
Sketch the process on a P-V and T-s diagram and shade the area which
represents the heat flow.
Solution to Example 10.3
The given quantities can be expressed as;
V1 = 0.85 m3
M = 44 kg/kmol
P1 = 1.05 bar
Isothermal process: T1 = T2 = 17 + 273 K = 290 K
P2 = 4.8 bar
a) From equation 3.10, we have
R 8.3144
R= o = = 0.189 kJ/kgK
M 44
Then, since PV = mRT, we have
PV 1.05 x 10 2 x 0.85
m= = = 1.628 kg
RT 0.189 x 290
b) From equation 10.11, for m kg,
p   1.05 
S 2 − S1 = mR ln 1  = 1.628 x 0.189 ln
p   = −0.4676 kJ/K
 2  4.8 

13. THE SECOND LAW OF THERMODYNAMICS J2006/10/13

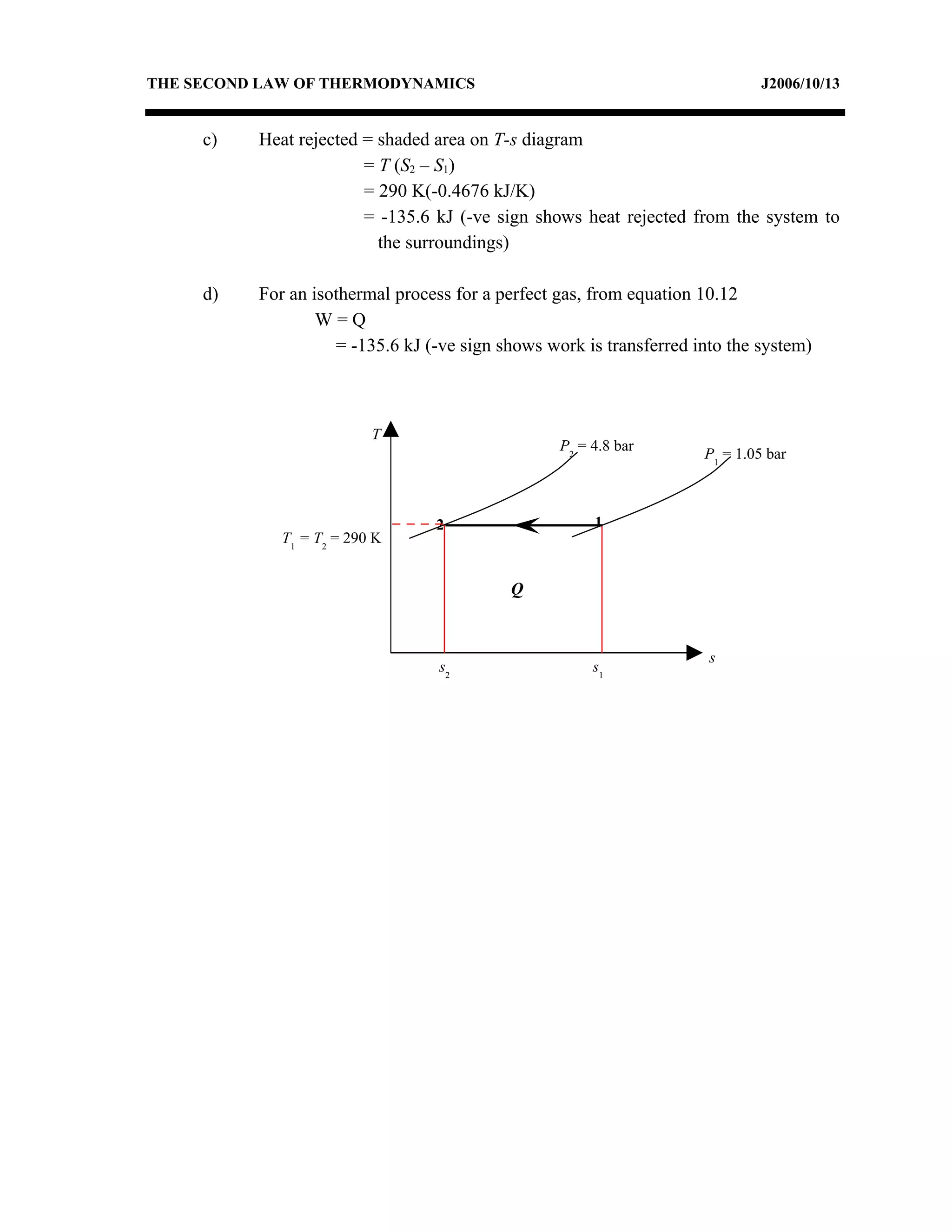

c) Heat rejected = shaded area on T-s diagram
= T (S2 – S1)
= 290 K(-0.4676 kJ/K)
= -135.6 kJ (-ve sign shows heat rejected from the system to
the surroundings)
d) For an isothermal process for a perfect gas, from equation 10.12
W=Q
= -135.6 kJ (-ve sign shows work is transferred into the system)
T
P2 = 4.8 bar
P1 = 1.05 bar
2 1
T1 = T2 = 290 K
Q
s
s2 s1

14. THE SECOND LAW OF THERMODYNAMICS J2006/10/14

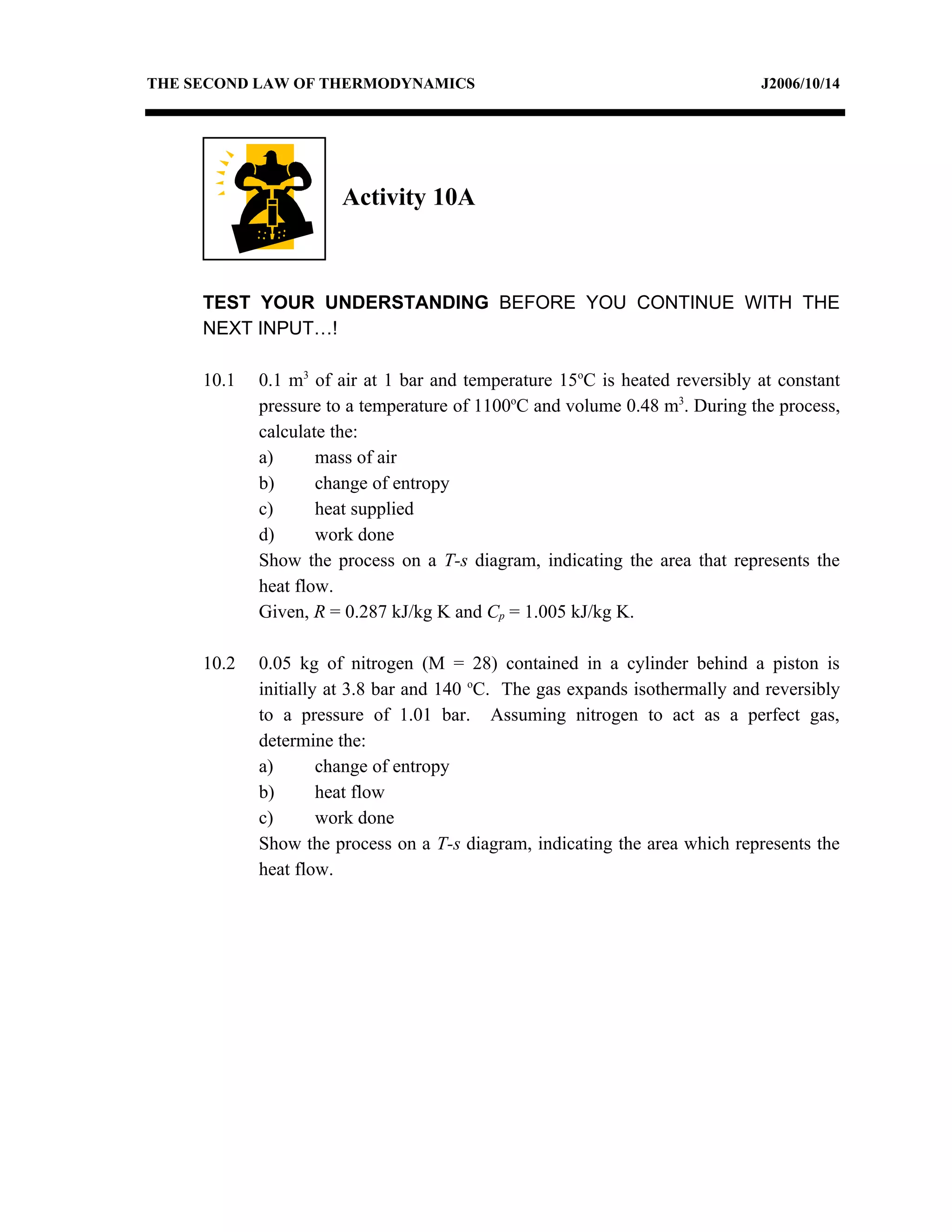

Activity 10A
TEST YOUR UNDERSTANDING BEFORE YOU CONTINUE WITH THE
NEXT INPUT…!
10.1 0.1 m3 of air at 1 bar and temperature 15oC is heated reversibly at constant
pressure to a temperature of 1100oC and volume 0.48 m3. During the process,
calculate the:
a) mass of air
b) change of entropy
c) heat supplied
d) work done
Show the process on a T-s diagram, indicating the area that represents the
heat flow.
Given, R = 0.287 kJ/kg K and Cp = 1.005 kJ/kg K.
10.2 0.05 kg of nitrogen (M = 28) contained in a cylinder behind a piston is
initially at 3.8 bar and 140 oC. The gas expands isothermally and reversibly
to a pressure of 1.01 bar. Assuming nitrogen to act as a perfect gas,
determine the:
a) change of entropy
b) heat flow
c) work done
Show the process on a T-s diagram, indicating the area which represents the
heat flow.

15. THE SECOND LAW OF THERMODYNAMICS J2006/10/15
Feedback To Activity 10A

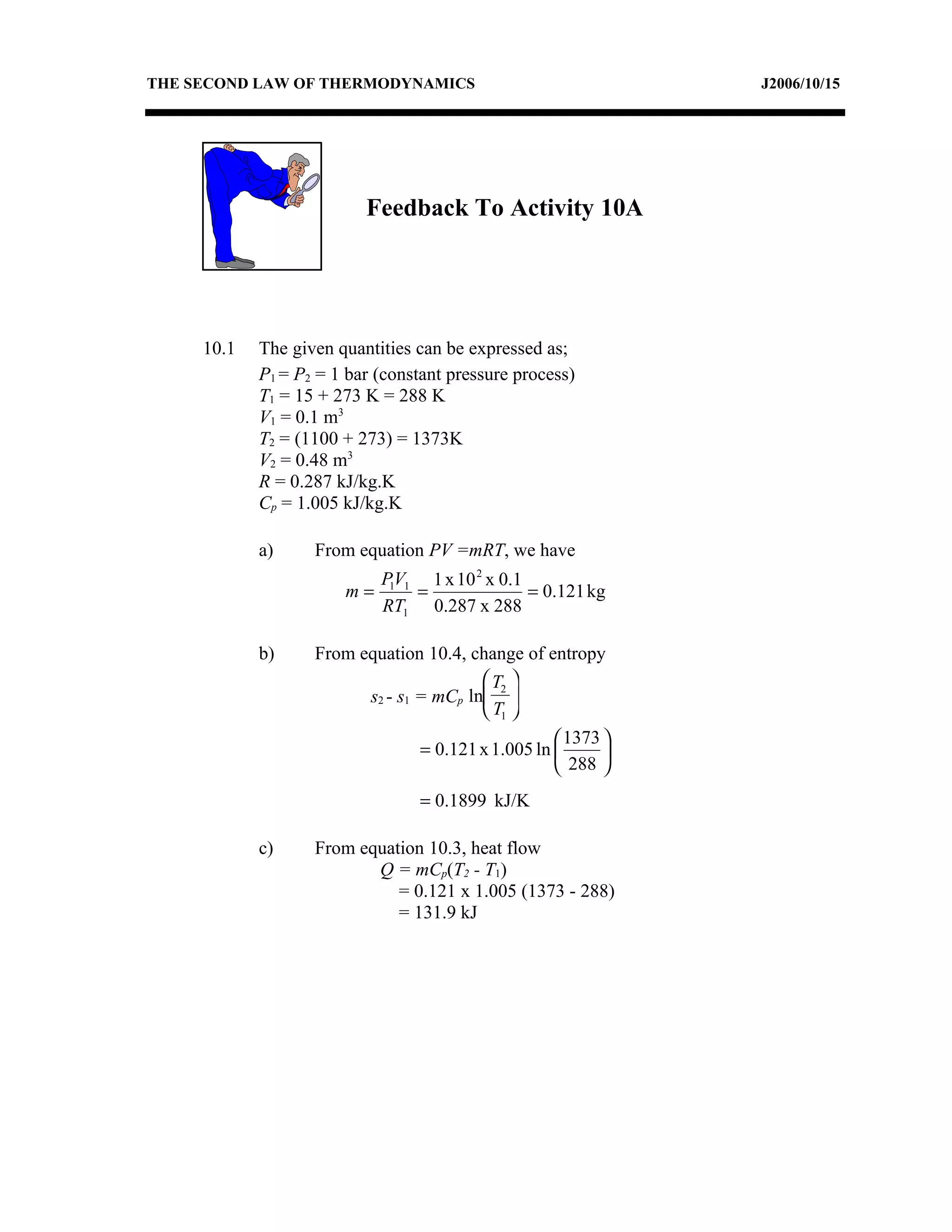

10.1 The given quantities can be expressed as;
P1 = P2 = 1 bar (constant pressure process)
T1 = 15 + 273 K = 288 K
V1 = 0.1 m3
T2 = (1100 + 273) = 1373K
V2 = 0.48 m3
R = 0.287 kJ/kg.K
Cp = 1.005 kJ/kg.K
a) From equation PV =mRT, we have
P1V1 1 x 10 2 x 0.1
m= = = 0.121 kg
RT1 0.287 x 288
b) From equation 10.4, change of entropy
 T2 
s2 - s1 = mCp ln 
 T1 
 1373 
= 0.121 x 1.005 ln  
 288 
= 0.1899 kJ/K
c) From equation 10.3, heat flow
Q = mCp(T2 - T1)
= 0.121 x 1.005 (1373 - 288)
= 131.9 kJ

16. THE SECOND LAW OF THERMODYNAMICS J2006/10/16

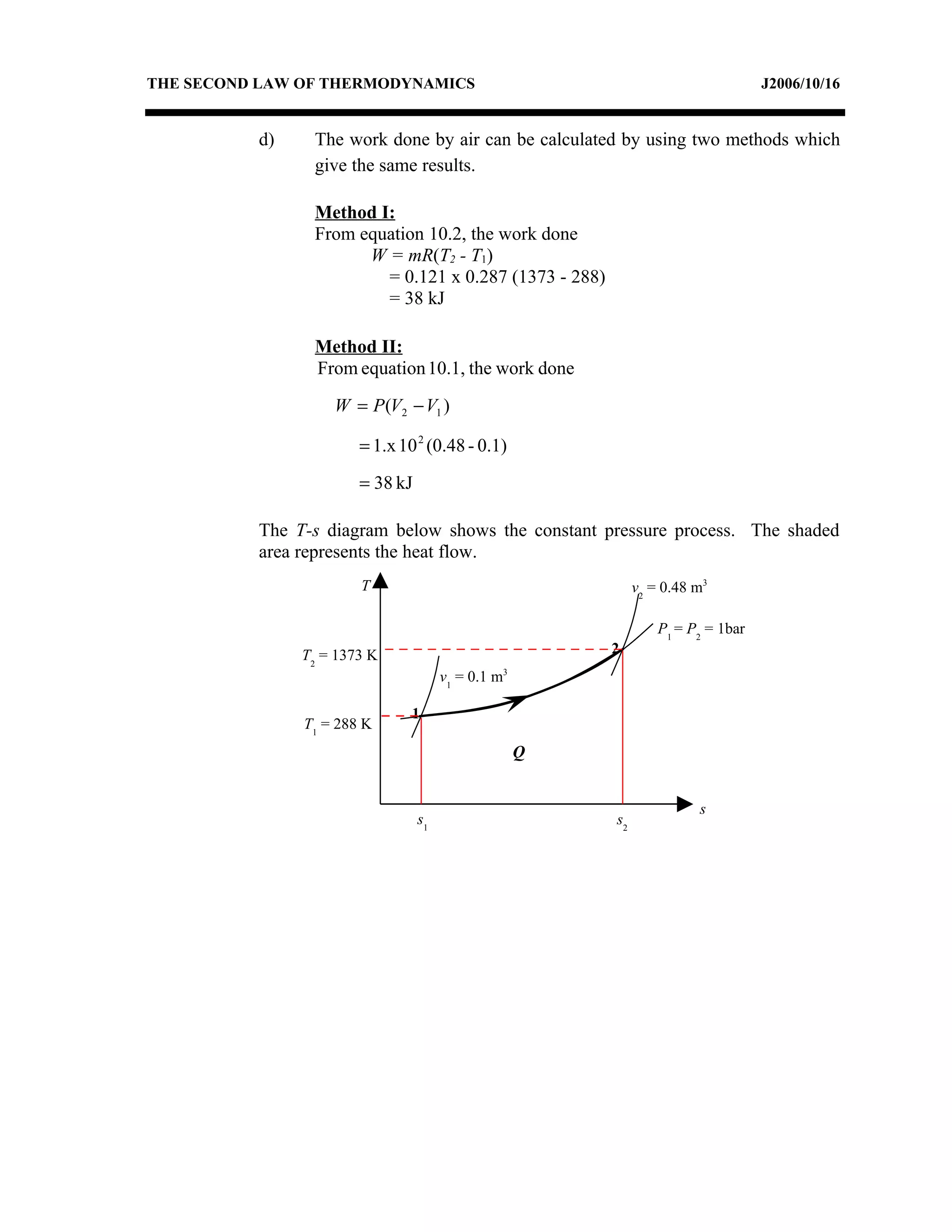

d) The work done by air can be calculated by using two methods which
give the same results.
Method I:
From equation 10.2, the work done
W = mR(T2 - T1)
= 0.121 x 0.287 (1373 - 288)
= 38 kJ
Method II:
From equation 10.1, the work done
W = P (V2 − V1 )
= 1.x 10 2 (0.48 - 0.1)
= 38 kJ
The T-s diagram below shows the constant pressure process. The shaded
area represents the heat flow.
T v2 = 0.48 m3
P1 = P2 = 1bar
T2 = 1373 K 2
3
v1 = 0.1 m
1
T1 = 288 K
Q
s
s1 s2

17. THE SECOND LAW OF THERMODYNAMICS J2006/10/17

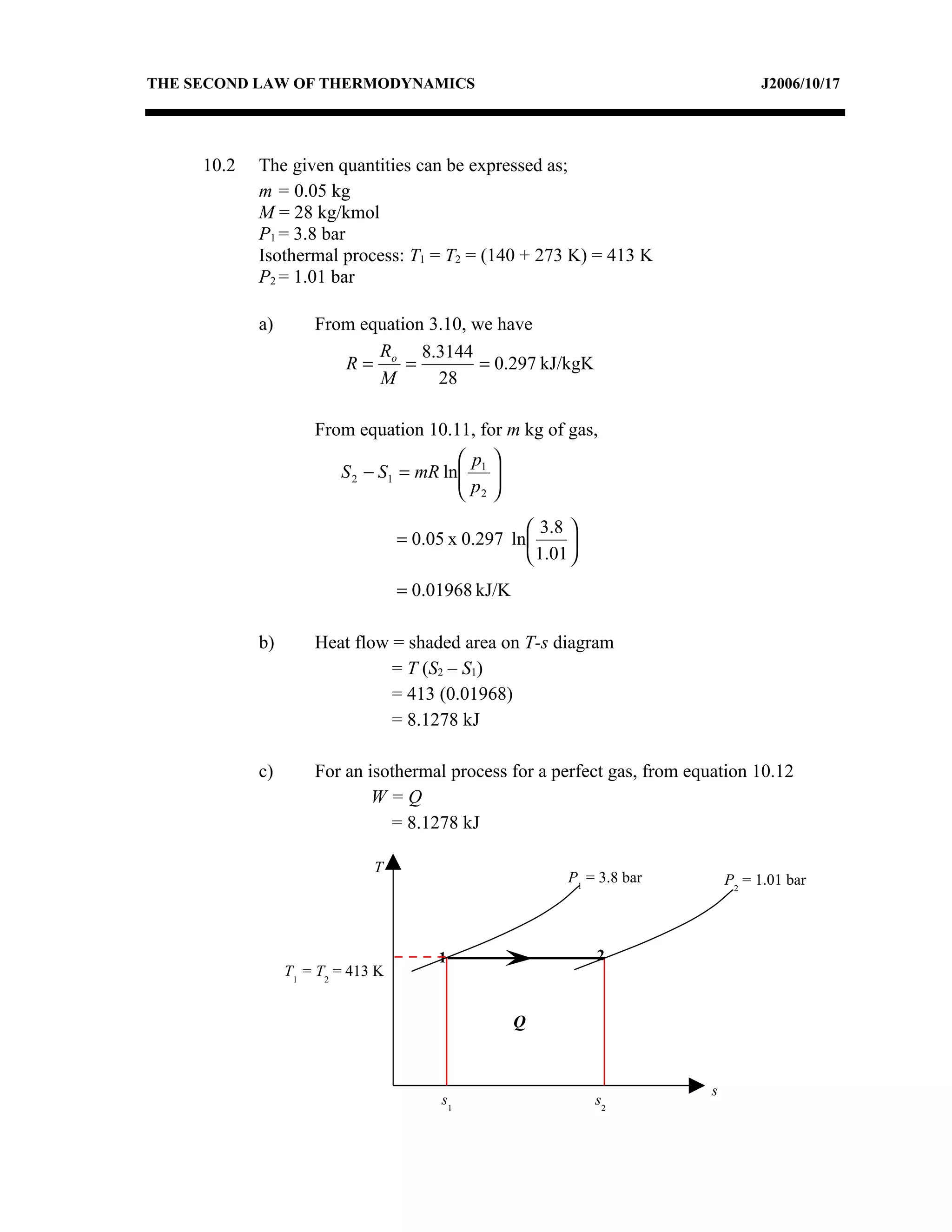

10.2 The given quantities can be expressed as;
m = 0.05 kg
M = 28 kg/kmol
P1 = 3.8 bar
Isothermal process: T1 = T2 = (140 + 273 K) = 413 K
P2 = 1.01 bar
a) From equation 3.10, we have
R 8.3144
R= o = = 0.297 kJ/kgK
M 28
From equation 10.11, for m kg of gas,
p 
S 2 − S1 = mR ln 1 
p 
 2
 3.8 
= 0.05 x 0.297 ln 
 1.01 
= 0.01968 kJ/K
b) Heat flow = shaded area on T-s diagram
= T (S2 – S1)
= 413 (0.01968)
= 8.1278 kJ
c) For an isothermal process for a perfect gas, from equation 10.12
W=Q
= 8.1278 kJ
T
P1 = 3.8 bar P2 = 1.01 bar
1 2
T1 = T2 = 413 K
Q
s
s1 s2

18. THE SECOND LAW OF THERMODYNAMICS J2006/10/18
INPUT
10.1.4 Reversible adiabatic (or isentropic) process
In the special case of a reversible process where no heat energy is transferred
to or from the gas, the process will be a reversible adiabatic process. These
special processes are also called isentropic process. During a reversible
isentropic process, the entropy remains constant and the process will always
appear as a vertical line on a T-s diagram.
For a perfect gas, an isentropic process on a T-s diagram is shown in Fig.
10.1.4. In Unit 4 it was shown that for a reversible adiabatic process for a
perfect gas, the process follows the law pvγ = constant.
Since a reversible adiabatic process occurs at constant entropy, and is known
as an isentropic process, the index γ is known as the isentropic index of the
gas.
v1
T P1
1
T1
v2
P2
2
T2
s1 = s2 s
Figure 10.1.4 Reversible adiabatic (or isentropic) process on a T-s diagram

19. THE SECOND LAW OF THERMODYNAMICS J2006/10/19

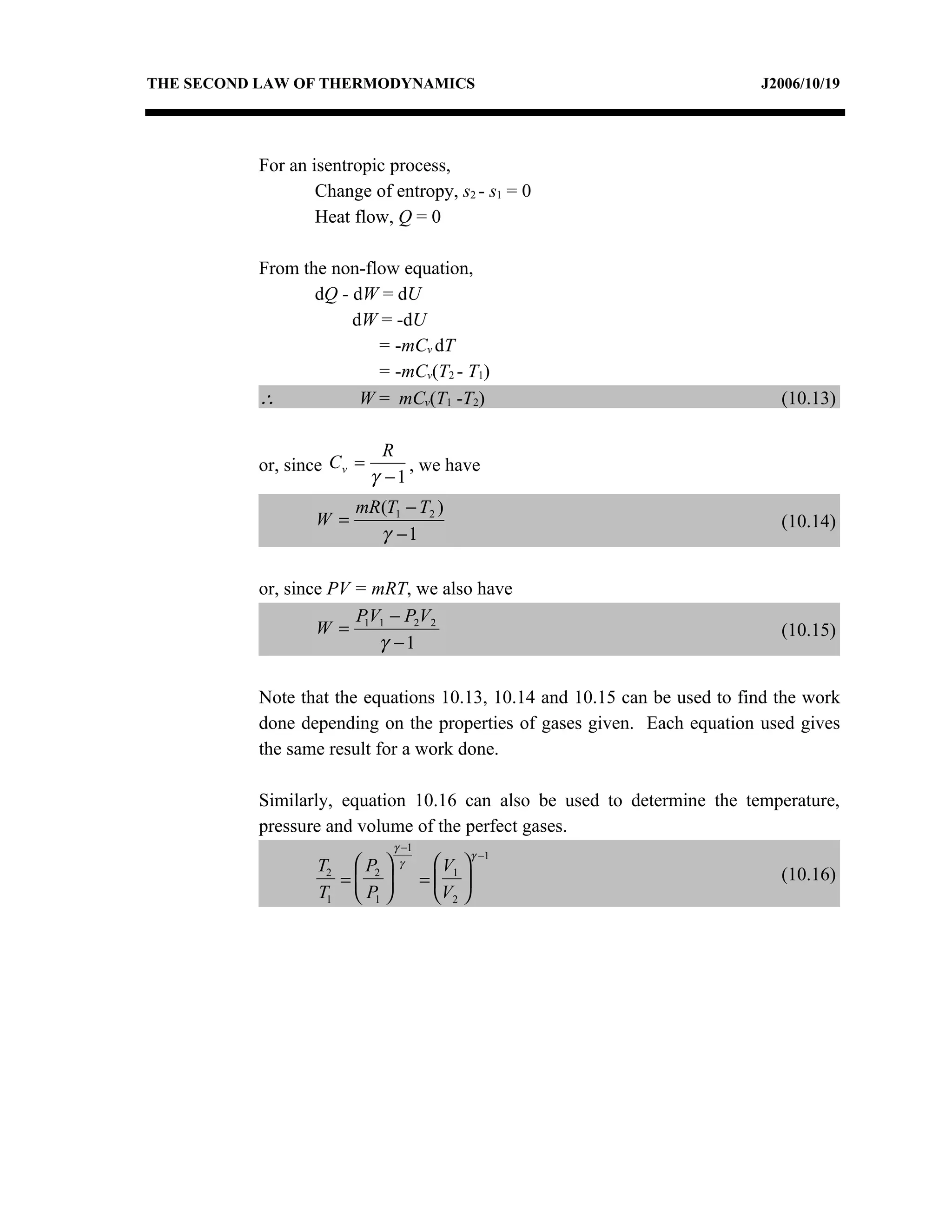

For an isentropic process,
Change of entropy, s2 - s1 = 0
Heat flow, Q = 0
From the non-flow equation,
dQ - dW = dU
dW = -dU
= -mCv dT
= -mCv(T2 - T1)
∴ W = mCv(T1 -T2) (10.13)
R
or, since C v = , we have
γ −1
mR (T1 − T2 )
W = (10.14)
γ −1
or, since PV = mRT, we also have
P V − P2V2
W = 1 1 (10.15)
γ −1
Note that the equations 10.13, 10.14 and 10.15 can be used to find the work
done depending on the properties of gases given. Each equation used gives
the same result for a work done.
Similarly, equation 10.16 can also be used to determine the temperature,
pressure and volume of the perfect gases.
γ −1
γ −1
T2  P2  γ V 
(10.16)
=  = 1
T1  P1  V2 

20. THE SECOND LAW OF THERMODYNAMICS J2006/10/20

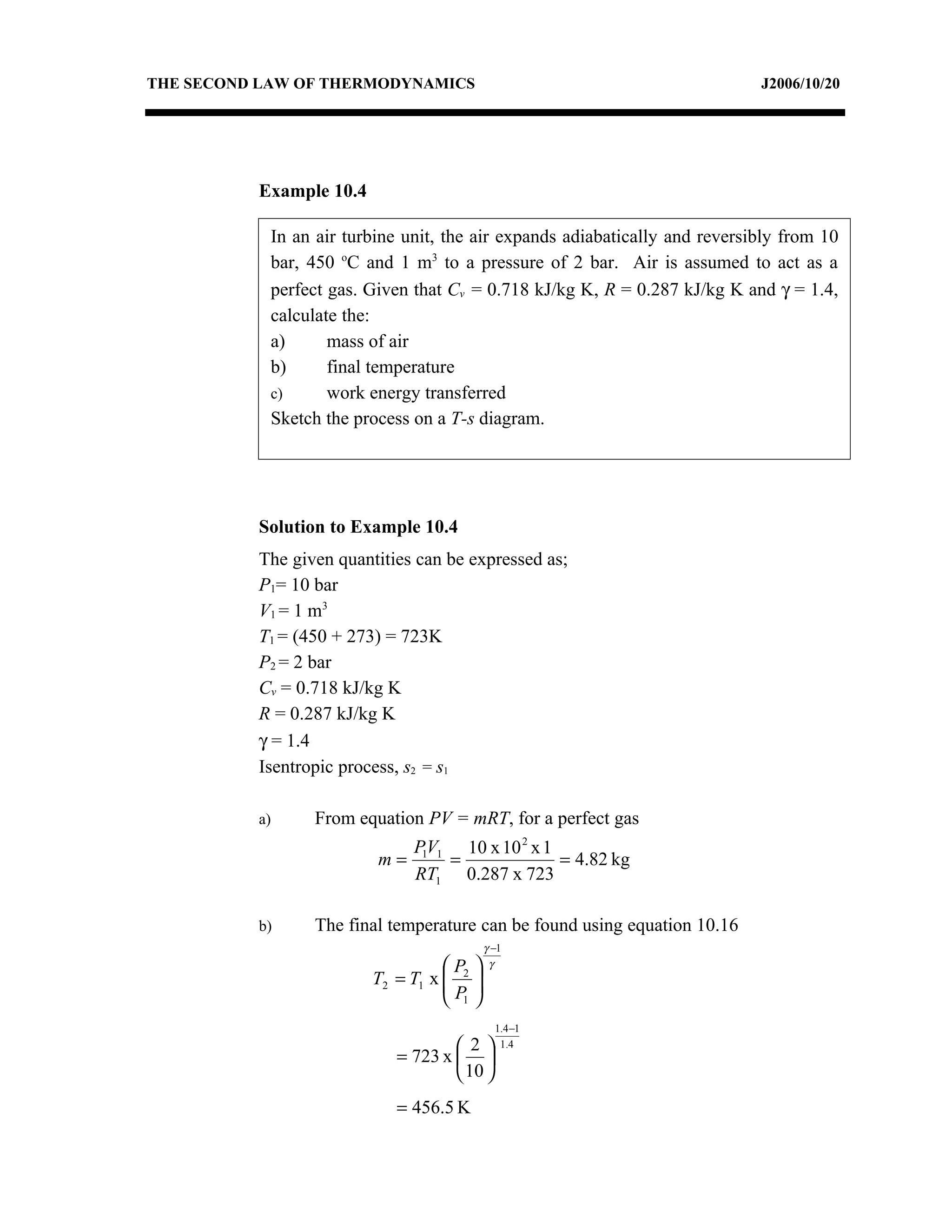

Example 10.4
In an air turbine unit, the air expands adiabatically and reversibly from 10
bar, 450 oC and 1 m3 to a pressure of 2 bar. Air is assumed to act as a
perfect gas. Given that Cv = 0.718 kJ/kg K, R = 0.287 kJ/kg K and γ = 1.4,
calculate the:
a) mass of air
b) final temperature
c) work energy transferred
Sketch the process on a T-s diagram.
Solution to Example 10.4
The given quantities can be expressed as;
P1= 10 bar
V1 = 1 m3
T1 = (450 + 273) = 723K
P2 = 2 bar
Cv = 0.718 kJ/kg K
R = 0.287 kJ/kg K
γ = 1.4
Isentropic process, s2 = s1
a) From equation PV = mRT, for a perfect gas
P1V1 10 x 10 2 x 1
m= = = 4.82 kg
RT1 0.287 x 723
b) The final temperature can be found using equation 10.16
γ −1
P  γ
T2 = T1 x  2 
P 
 1
1.4 −1
2 1.4
= 723 x  
 10 
= 456.5 K

21. THE SECOND LAW OF THERMODYNAMICS J2006/10/21

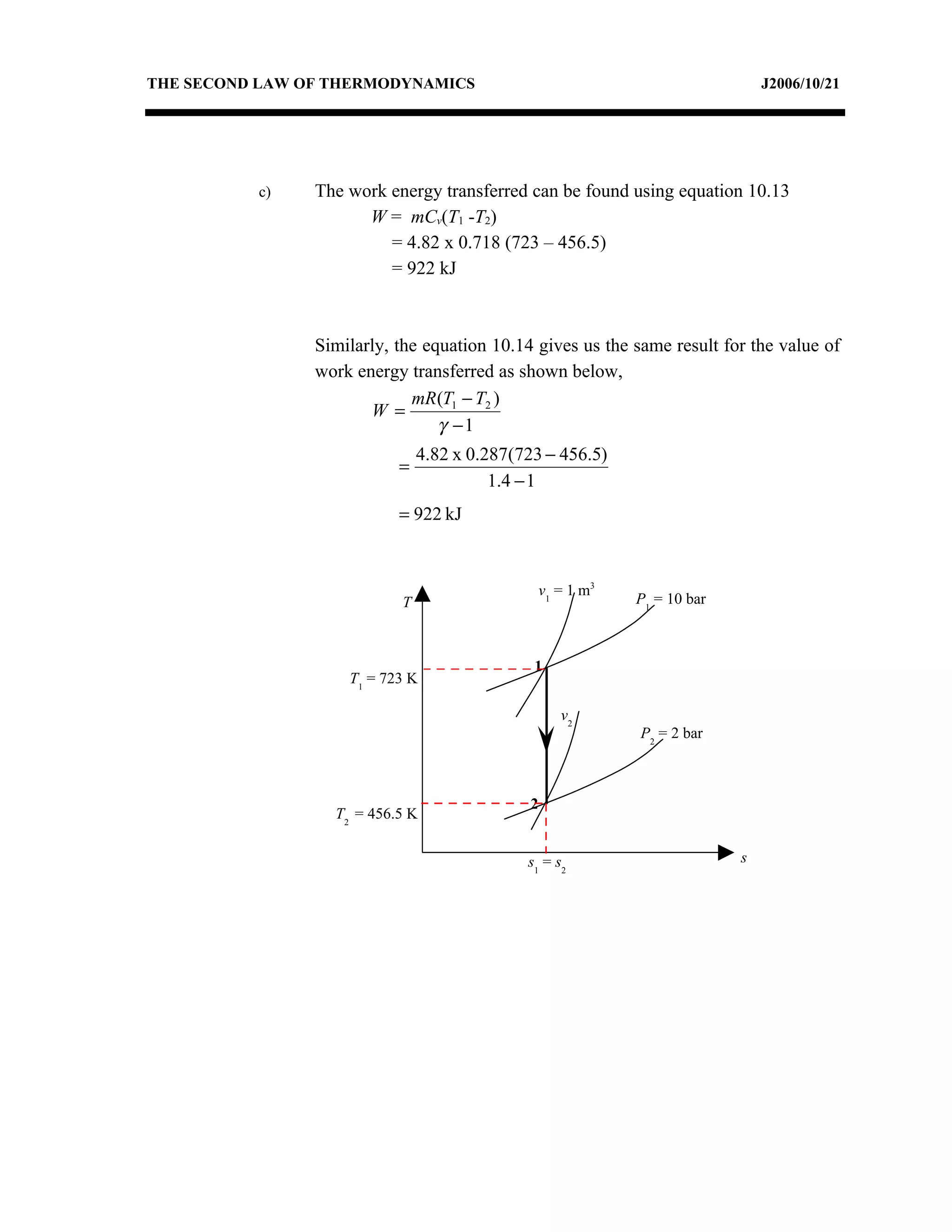

c) The work energy transferred can be found using equation 10.13
W = mCv(T1 -T2)
= 4.82 x 0.718 (723 – 456.5)
= 922 kJ
Similarly, the equation 10.14 gives us the same result for the value of
work energy transferred as shown below,
mR (T1 − T2 )
W =
γ −1
4.82 x 0.287(723 − 456.5)
=
1.4 − 1
= 922 kJ
v 1 = 1 m3
T P1 = 10 bar
1
T1 = 723 K
v2
P2 = 2 bar
2
T2 = 456.5 K
s1 = s2 s

22. THE SECOND LAW OF THERMODYNAMICS J2006/10/22

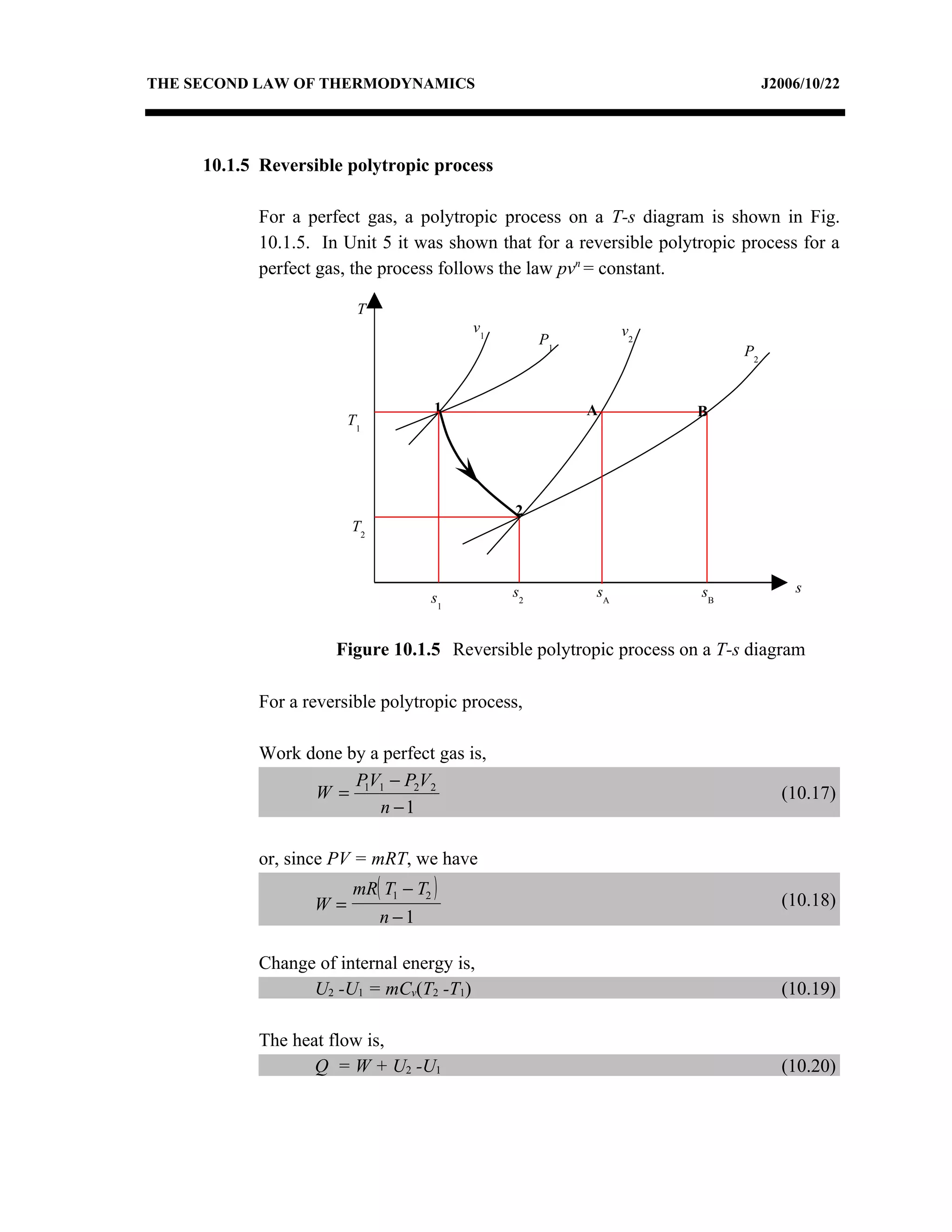

10.1.5 Reversible polytropic process
For a perfect gas, a polytropic process on a T-s diagram is shown in Fig.
10.1.5. In Unit 5 it was shown that for a reversible polytropic process for a
perfect gas, the process follows the law pvn = constant.
T
v1 v2
P1
P2
1 A B
T1
2
T2
s2 sA sB s
s1
Figure 10.1.5 Reversible polytropic process on a T-s diagram
For a reversible polytropic process,
Work done by a perfect gas is,
P V − P2V2
W = 1 1 (10.17)
n −1
or, since PV = mRT, we have
mR( T1 − T2 )
W= (10.18)
n −1
Change of internal energy is,
U2 -U1 = mCv(T2 -T1) (10.19)
The heat flow is,
Q = W + U2 -U1 (10.20)

23. THE SECOND LAW OF THERMODYNAMICS J2006/10/23

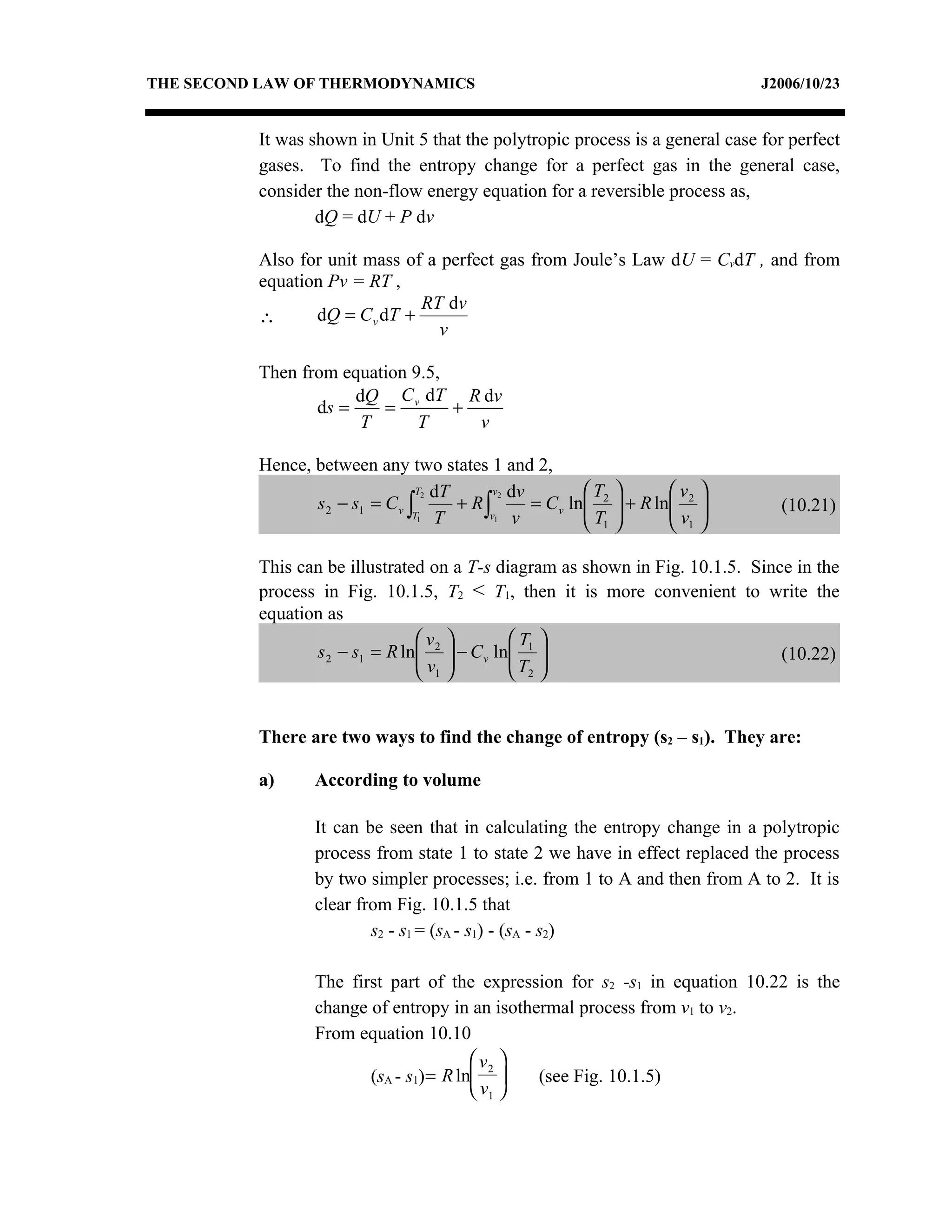

It was shown in Unit 5 that the polytropic process is a general case for perfect
gases. To find the entropy change for a perfect gas in the general case,
consider the non-flow energy equation for a reversible process as,
dQ = dU + P dv
Also for unit mass of a perfect gas from Joule’s Law dU = CvdT , and from
equation Pv = RT ,
RT dv
∴ dQ = C v dT +
v
Then from equation 9.5,
dQ C v dT R dv
ds = = +
T T v
Hence, between any two states 1 and 2,
T2 dT v2 dv T  v 
s 2 − s1 = C v ∫ + R∫ = C v ln 2
T  + R ln 2
 v 
 (10.21)
T1 T v1 v
 1   1 
This can be illustrated on a T-s diagram as shown in Fig. 10.1.5. Since in the
process in Fig. 10.1.5, T2 < T1, then it is more convenient to write the
equation as
v  T 
s 2 − s1 = R ln 2  − C v ln 1 
v  T  (10.22)
 1  2
There are two ways to find the change of entropy (s2 – s1). They are:
a) According to volume
It can be seen that in calculating the entropy change in a polytropic
process from state 1 to state 2 we have in effect replaced the process
by two simpler processes; i.e. from 1 to A and then from A to 2. It is
clear from Fig. 10.1.5 that
s2 - s1 = (sA - s1) - (sA - s2)
The first part of the expression for s2 -s1 in equation 10.22 is the
change of entropy in an isothermal process from v1 to v2.
From equation 10.10
 v2 
(sA - s1)= R ln  (see Fig. 10.1.5)
 v1 

24. THE SECOND LAW OF THERMODYNAMICS J2006/10/24

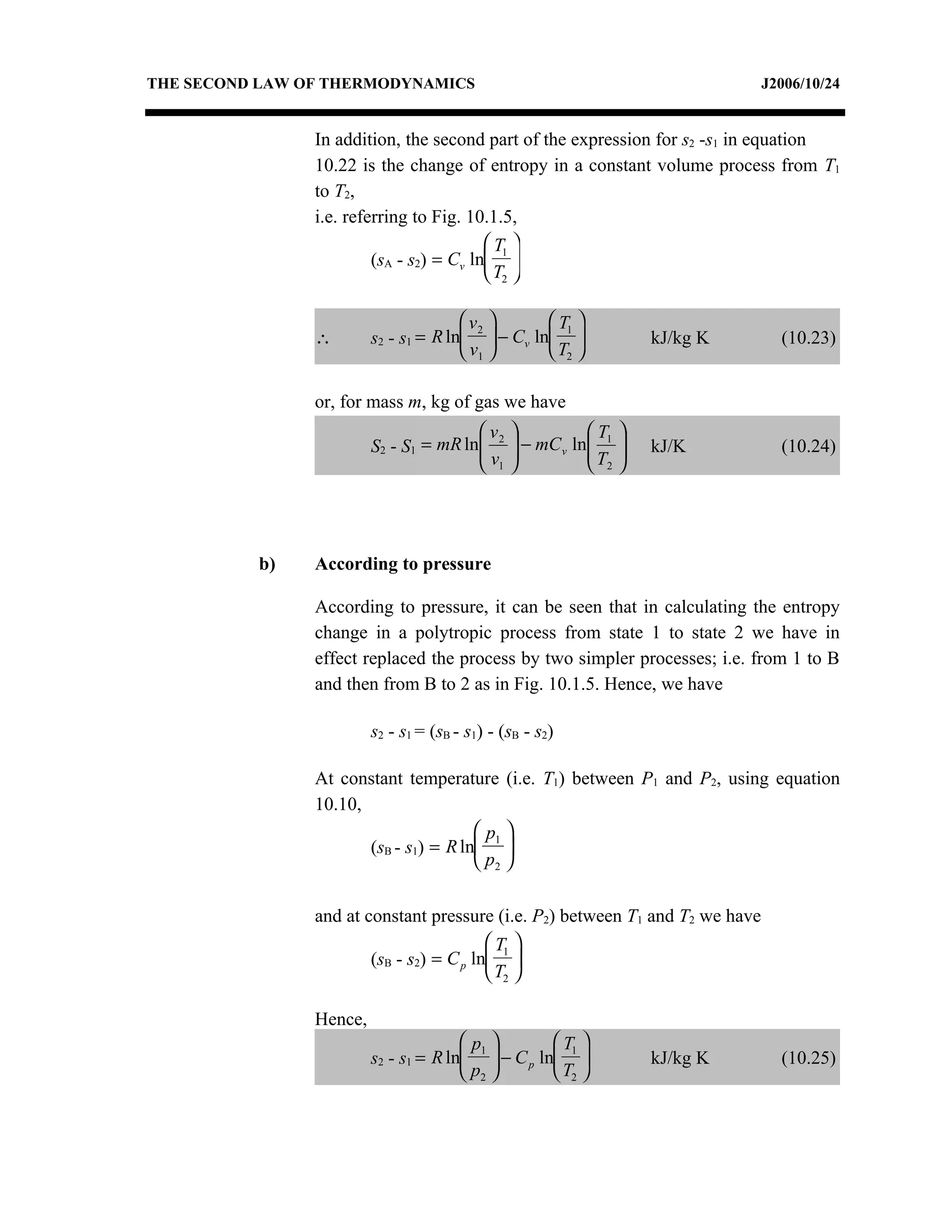

In addition, the second part of the expression for s2 -s1 in equation
10.22 is the change of entropy in a constant volume process from T1
to T2,
i.e. referring to Fig. 10.1.5,
 T1 
(sA - s2) = Cv ln 
 T2 
 v2   T1 
∴ s2 - s1 = R ln  − Cv ln  kJ/kg K (10.23)
 v1   T2 
or, for mass m, kg of gas we have
 v2  T 
S2 - S1 = mR ln
v  − mC v ln 1
 T 
 kJ/K (10.24)
 1   2 
b) According to pressure
According to pressure, it can be seen that in calculating the entropy
change in a polytropic process from state 1 to state 2 we have in
effect replaced the process by two simpler processes; i.e. from 1 to B
and then from B to 2 as in Fig. 10.1.5. Hence, we have
s2 - s1 = (sB - s1) - (sB - s2)
At constant temperature (i.e. T1) between P1 and P2, using equation
10.10,
 p1 
(sB - s1) = R ln 
 p2 
and at constant pressure (i.e. P2) between T1 and T2 we have
 T1 
(sB - s2) = C p ln 
 T2 
Hence,
 p1   T1 
s2 - s1 = R ln  − C p ln  kJ/kg K (10.25)
 p2   T2 

25. THE SECOND LAW OF THERMODYNAMICS J2006/10/25

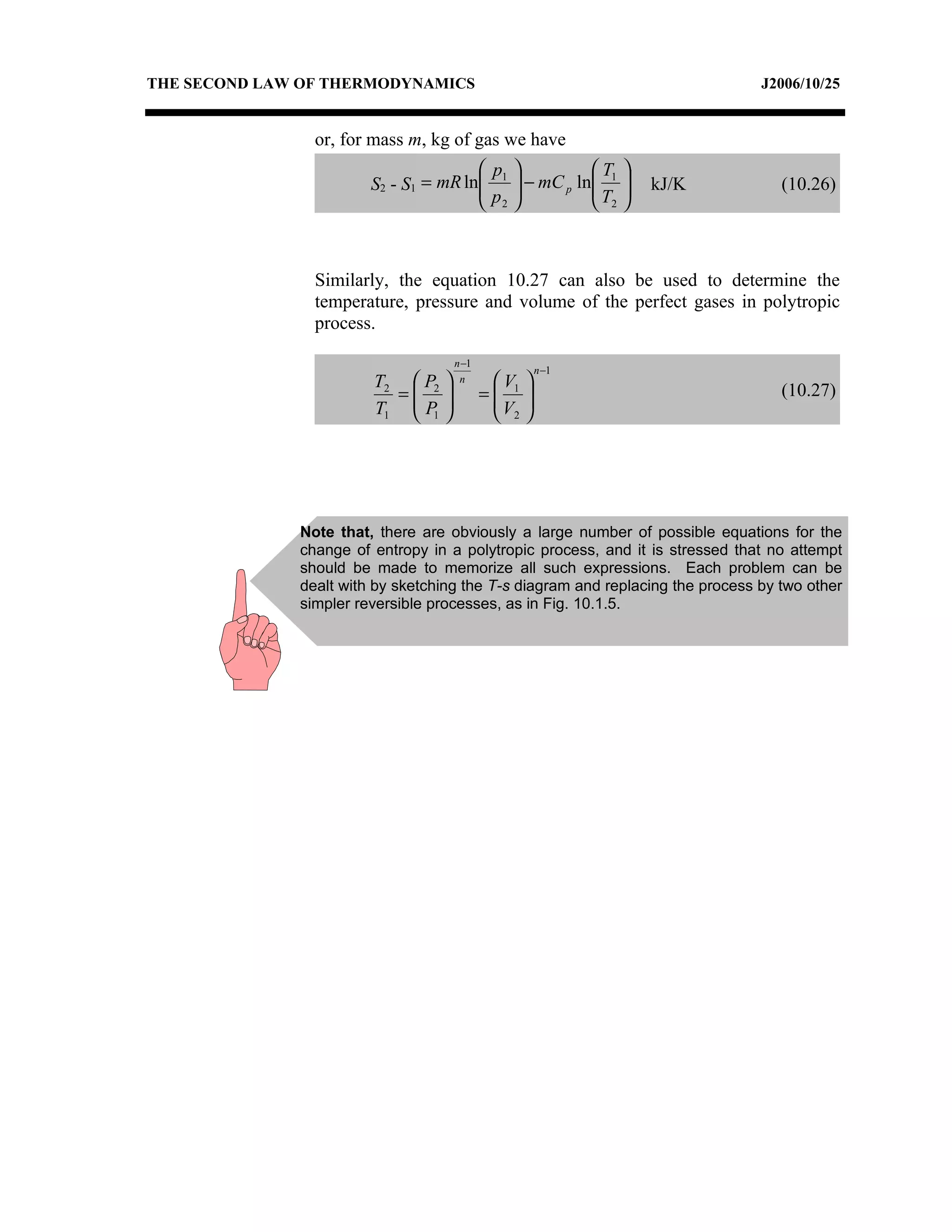

or, for mass m, kg of gas we have
 p1   T1 
S2 - S1 = mR ln  − mC p ln 
p  T  kJ/K (10.26)
 2  2
Similarly, the equation 10.27 can also be used to determine the
temperature, pressure and volume of the perfect gases in polytropic
process.
n −1
n −1
T2  P2  n V 
(10.27)
=  = 1 
T1  P1 
 
V
 2


Note that, there are obviously a large number of possible equations for the
change of entropy in a polytropic process, and it is stressed that no attempt
should be made to memorize all such expressions. Each problem can be
dealt with by sketching the T-s diagram and replacing the process by two other
simpler reversible processes, as in Fig. 10.1.5.

26. THE SECOND LAW OF THERMODYNAMICS J2006/10/26

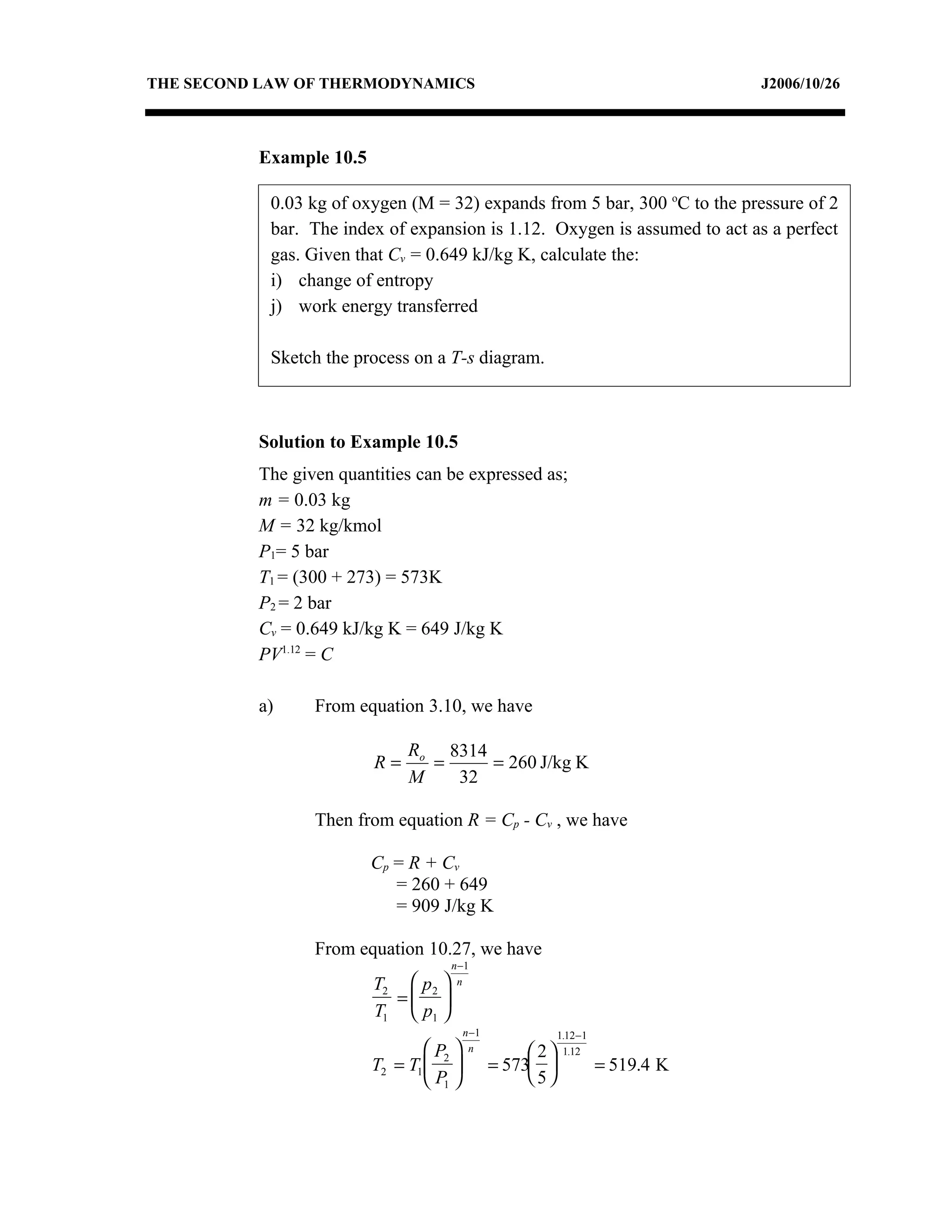

Example 10.5
0.03 kg of oxygen (M = 32) expands from 5 bar, 300 oC to the pressure of 2
bar. The index of expansion is 1.12. Oxygen is assumed to act as a perfect
gas. Given that Cv = 0.649 kJ/kg K, calculate the:
i) change of entropy
j) work energy transferred
Sketch the process on a T-s diagram.
Solution to Example 10.5
The given quantities can be expressed as;
m = 0.03 kg
M = 32 kg/kmol
P1= 5 bar
T1 = (300 + 273) = 573K
P2 = 2 bar
Cv = 0.649 kJ/kg K = 649 J/kg K
PV1.12 = C
a) From equation 3.10, we have
Ro 8314
R= = = 260 J/kg K
M 32
Then from equation R = Cp - Cv , we have
Cp = R + C v
= 260 + 649
= 909 J/kg K
From equation 10.27, we have
n −1
T2  p2  n
= 
T1  p1 
n −1 1.12−1
P  n  2 1.12
T2 = T1  2  = 573  = 519.4 K
 P1  5

27. THE SECOND LAW OF THERMODYNAMICS J2006/10/27

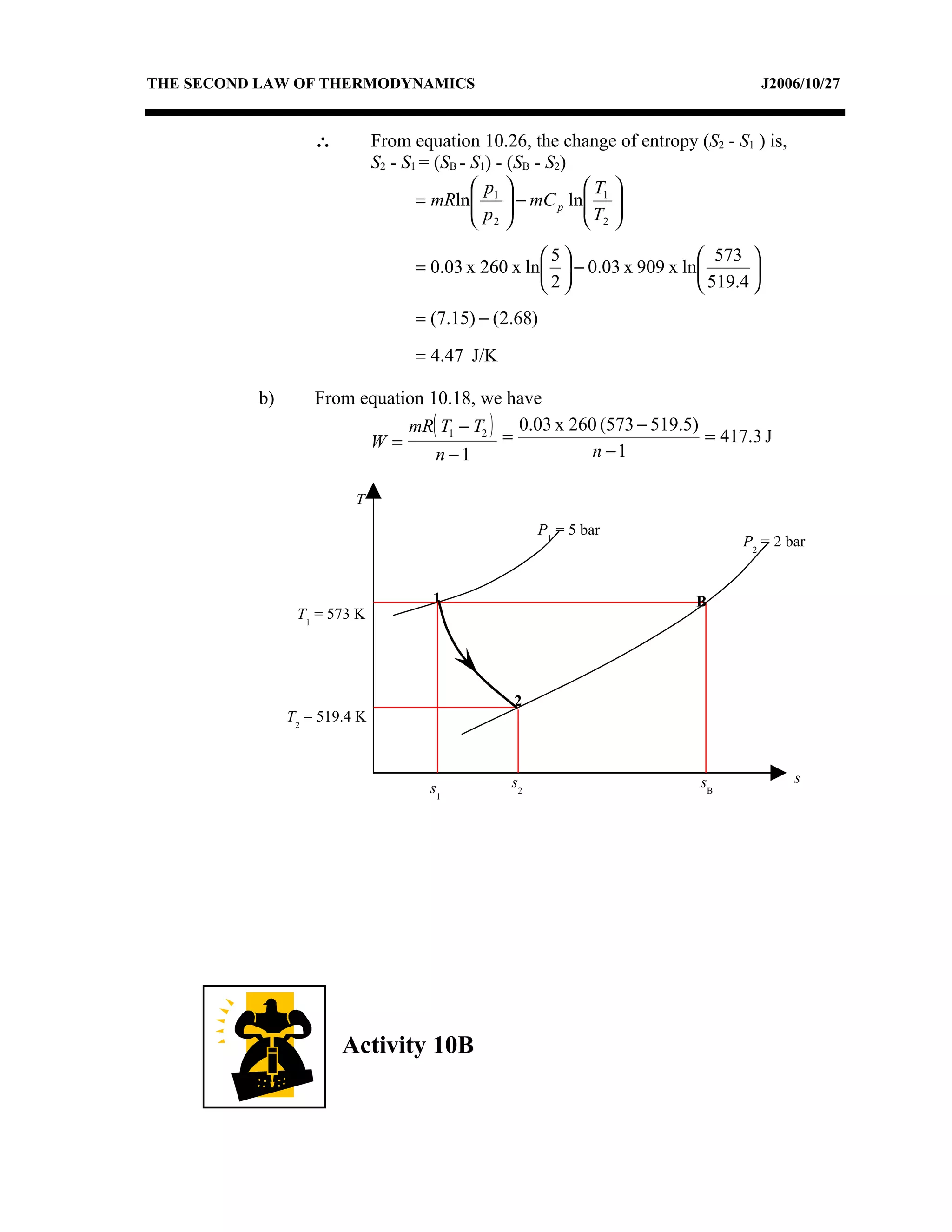

∴ From equation 10.26, the change of entropy (S2 - S1 ) is,
S2 - S1 = (SB - S1) - (SB - S2)
p  T 
= mRln 1  − mC p ln 1 
p  T 
 2  2
5  573 
= 0.03 x 260 x ln  − 0.03 x 909 x ln 
2  519.4 
= (7.15) − (2.68)
= 4.47 J/K
b) From equation 10.18, we have
mR( T1 − T2 ) 0.03 x 260 (573 − 519.5)
W= = = 417.3 J
n −1 n −1
T
P1 = 5 bar
P2 = 2 bar
1 B
T1 = 573 K
2
T2 = 519.4 K
s2 sB s
s1
Activity 10B

28. THE SECOND LAW OF THERMODYNAMICS J2006/10/28
TEST YOUR UNDERSTANDING BEFORE YOU PROCEED TO THE SELF-
ASSESSMENT…!

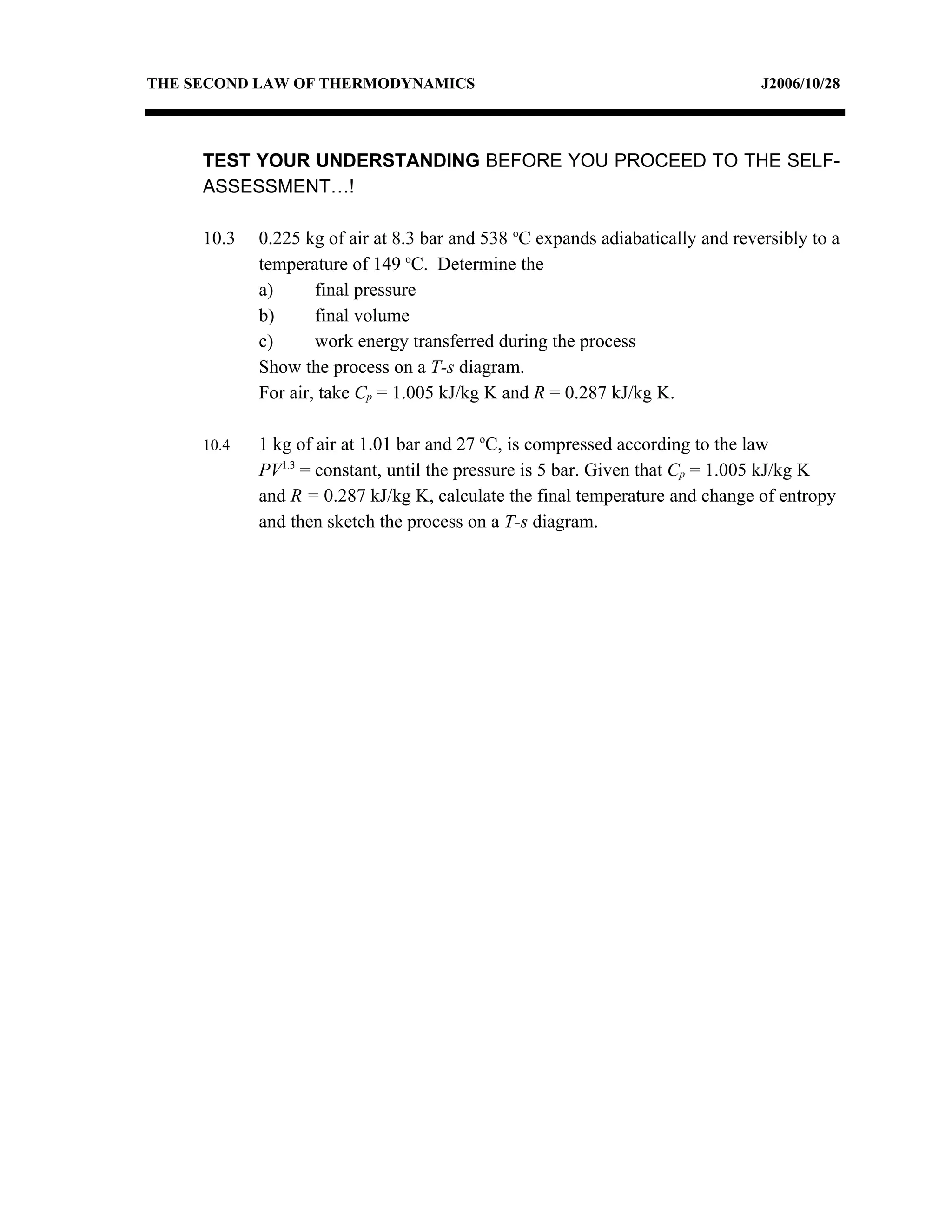

10.3 0.225 kg of air at 8.3 bar and 538 oC expands adiabatically and reversibly to a
temperature of 149 oC. Determine the
a) final pressure
b) final volume
c) work energy transferred during the process
Show the process on a T-s diagram.
For air, take Cp = 1.005 kJ/kg K and R = 0.287 kJ/kg K.
10.4 1 kg of air at 1.01 bar and 27 oC, is compressed according to the law
PV1.3 = constant, until the pressure is 5 bar. Given that Cp = 1.005 kJ/kg K
and R = 0.287 kJ/kg K, calculate the final temperature and change of entropy
and then sketch the process on a T-s diagram.

29. THE SECOND LAW OF THERMODYNAMICS J2006/10/29

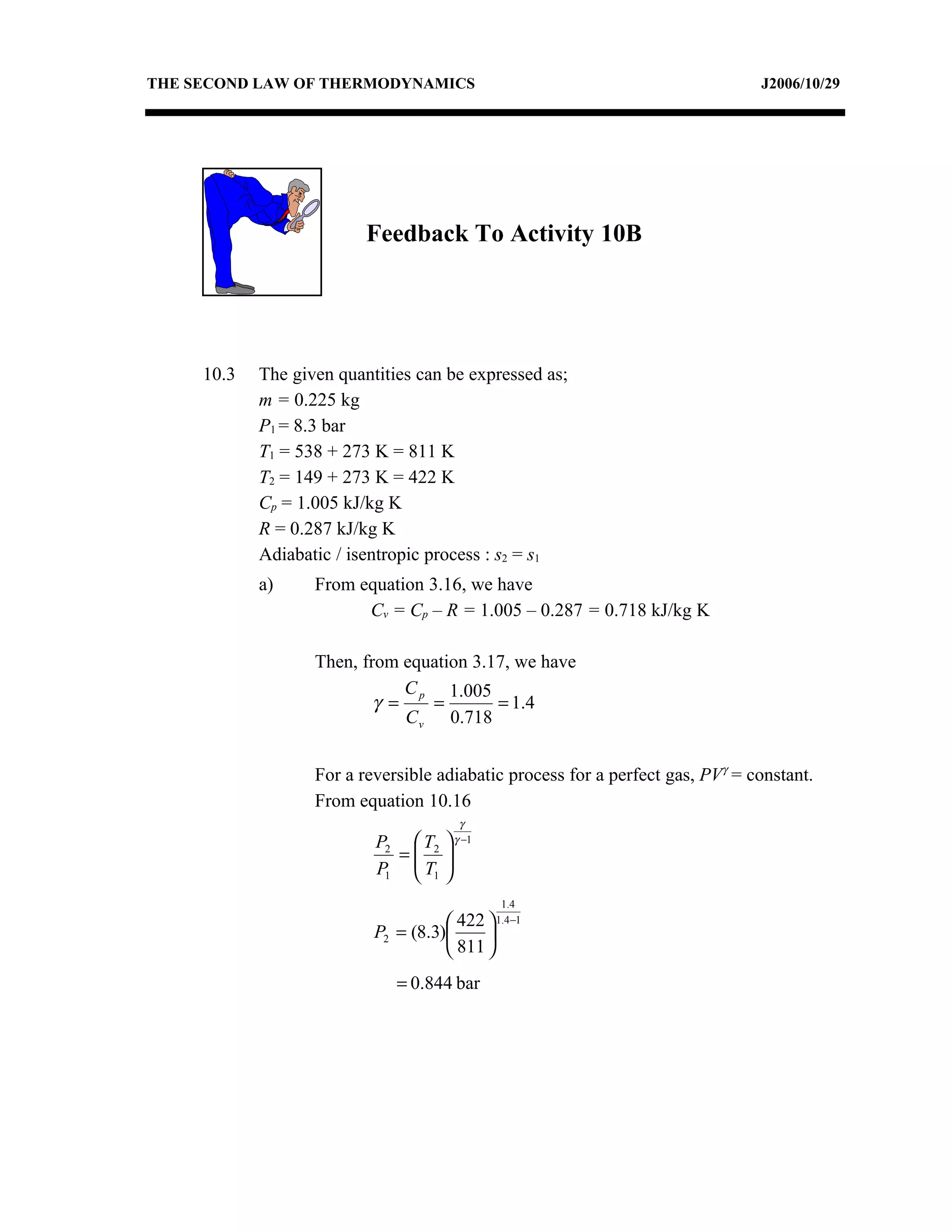

Feedback To Activity 10B
10.3 The given quantities can be expressed as;
m = 0.225 kg
P1 = 8.3 bar
T1 = 538 + 273 K = 811 K
T2 = 149 + 273 K = 422 K
Cp = 1.005 kJ/kg K
R = 0.287 kJ/kg K
Adiabatic / isentropic process : s2 = s1
a) From equation 3.16, we have
Cv = Cp – R = 1.005 – 0.287 = 0.718 kJ/kg K
Then, from equation 3.17, we have
C p 1.005
γ = = = 1.4
C v 0.718
For a reversible adiabatic process for a perfect gas, PVγ = constant.
From equation 10.16
γ
P2  T2  γ −1
= 
P1  T1 
 
1.4
 422  1.4−1
P2 = (8.3) 
 811 
= 0.844 bar

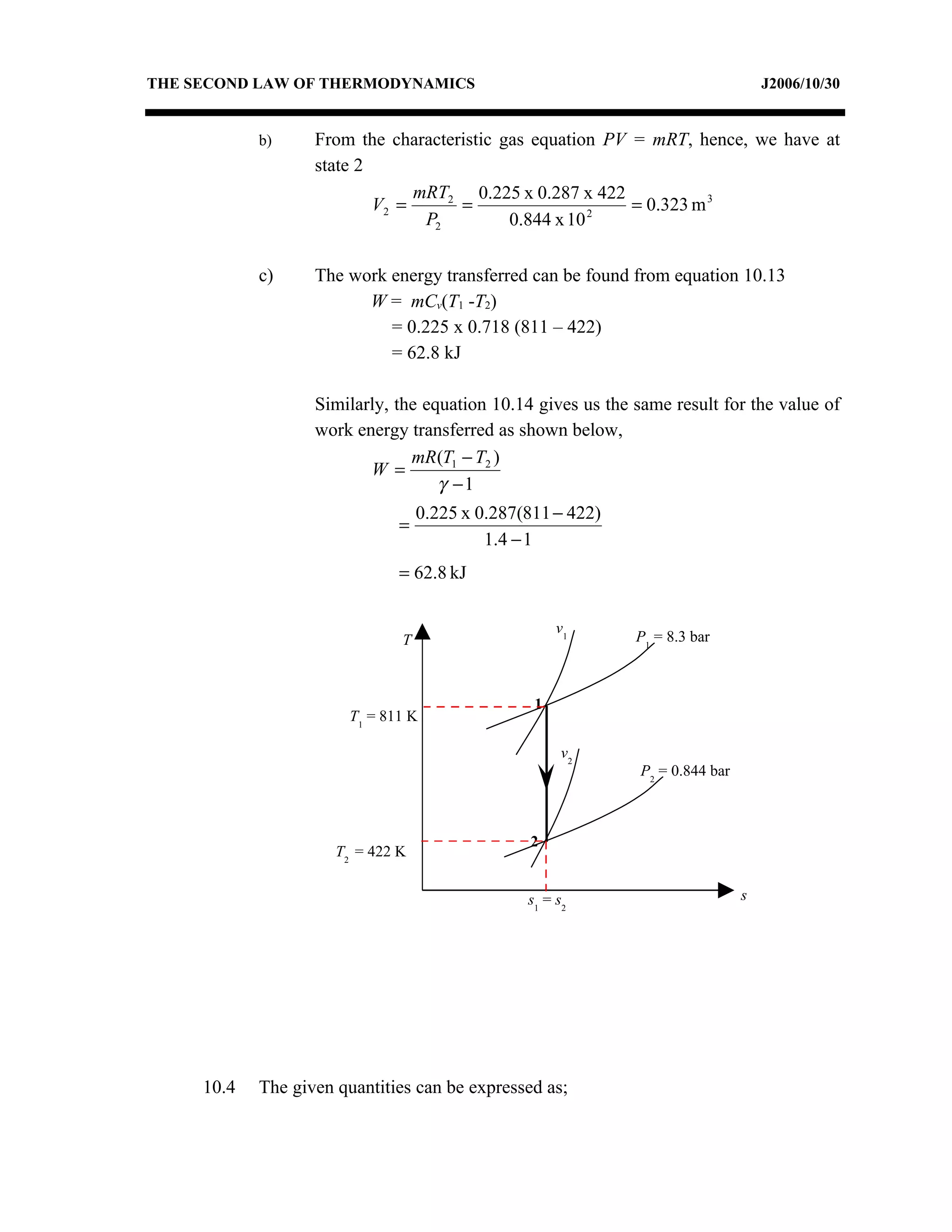

30. THE SECOND LAW OF THERMODYNAMICS J2006/10/30
b) From the characteristic gas equation PV = mRT, hence, we have at
state 2
mRT2 0.225 x 0.287 x 422
V2 = = 2
= 0.323 m 3
P2 0.844 x 10
c) The work energy transferred can be found from equation 10.13
W = mCv(T1 -T2)
= 0.225 x 0.718 (811 – 422)
= 62.8 kJ
Similarly, the equation 10.14 gives us the same result for the value of
work energy transferred as shown below,
mR (T1 − T2 )
W =
γ −1
0.225 x 0.287(811 − 422)
=
1.4 − 1
= 62.8 kJ
v1
T P1 = 8.3 bar
1
T1 = 811 K
v2
P2 = 0.844 bar
2
T2 = 422 K
s1 = s2 s

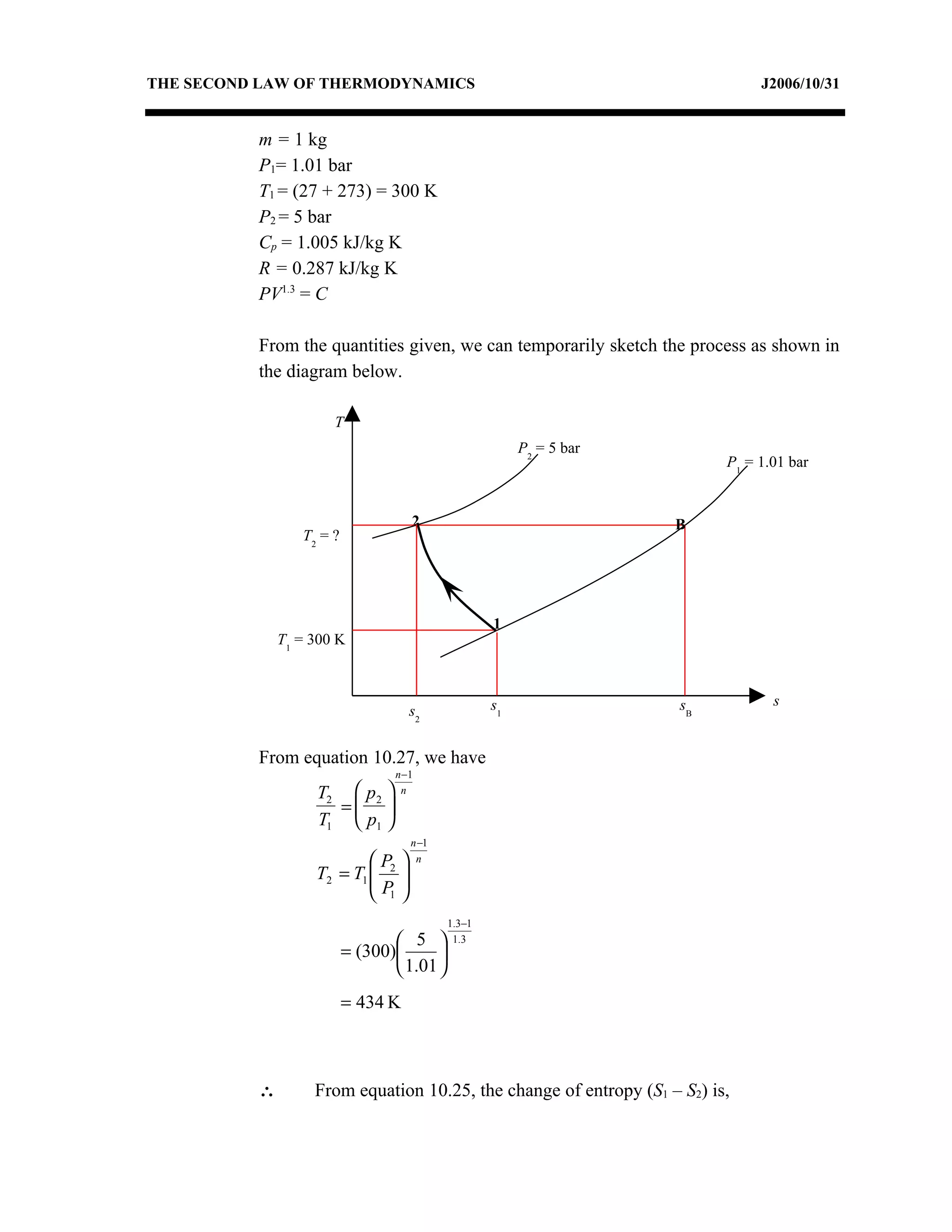

10.4 The given quantities can be expressed as;

31. THE SECOND LAW OF THERMODYNAMICS J2006/10/31
m = 1 kg
P1= 1.01 bar
T1 = (27 + 273) = 300 K
P2 = 5 bar
Cp = 1.005 kJ/kg K
R = 0.287 kJ/kg K
PV1.3 = C
From the quantities given, we can temporarily sketch the process as shown in
the diagram below.
T
P2 = 5 bar
P1 = 1.01 bar
2 B
T2 = ?
1
T1 = 300 K
s1 sB s
s2
From equation 10.27, we have
n −1
T2  p2  n
= 
T1  p1 
n −1
P  n
T2 = T1  2 
P 
 1
1.3−1
 5  1.3
= (300) 
 1.01 
= 434 K

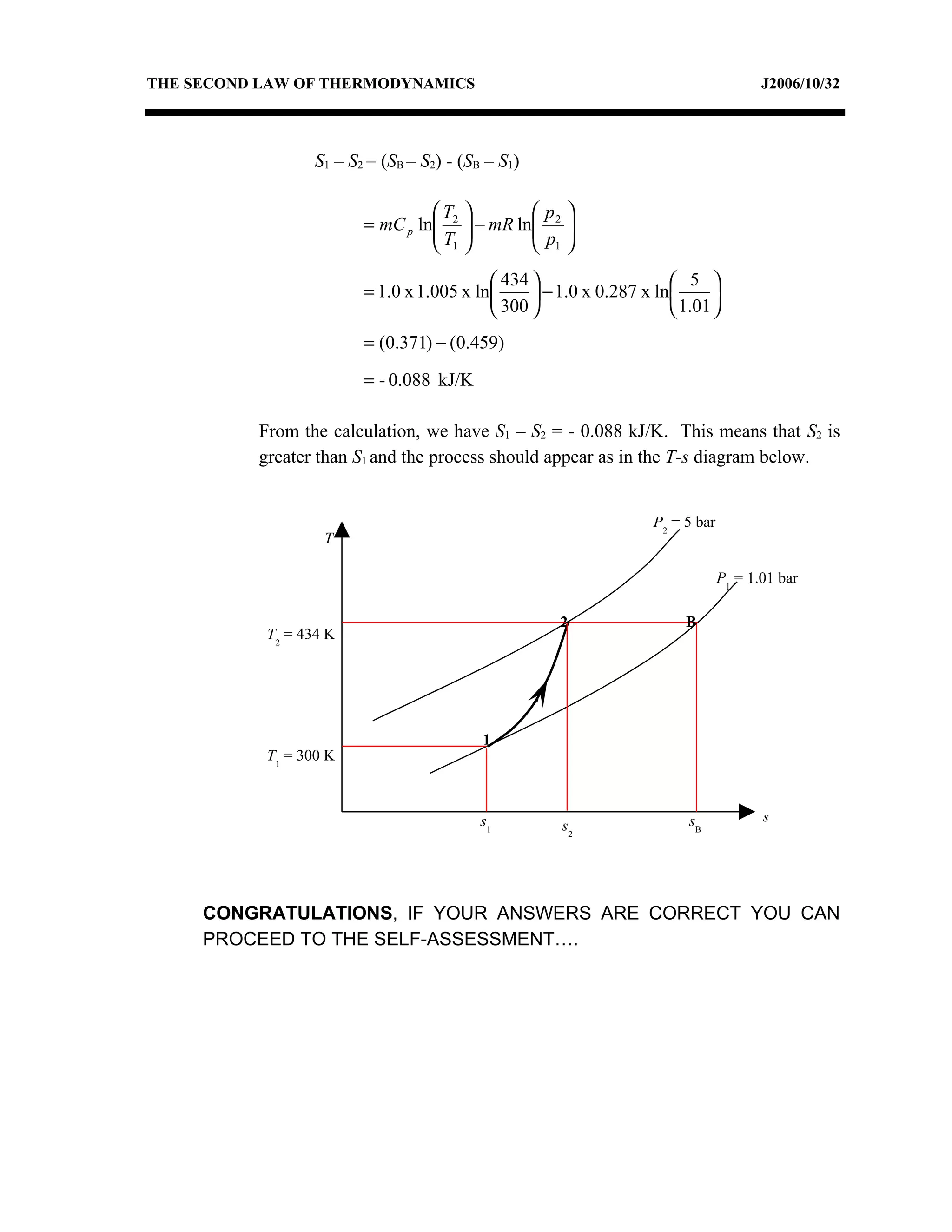

∴ From equation 10.25, the change of entropy (S1 – S2) is,

32. THE SECOND LAW OF THERMODYNAMICS J2006/10/32
S1 – S2 = (SB – S2) - (SB – S1)
T  p 
= mC p ln 2  − mR ln 2 
T  p 
 1  1
 434   5 
= 1.0 x 1.005 x ln  − 1.0 x 0.287 x ln 
 300   1.01 
= (0.371) − (0.459)
= - 0.088 kJ/K
From the calculation, we have S1 – S2 = - 0.088 kJ/K. This means that S2 is
greater than S1 and the process should appear as in the T-s diagram below.
P2 = 5 bar
T
P1 = 1.01 bar
2 B
T2 = 434 K
1
T1 = 300 K
s1 sB s
s2
CONGRATULATIONS, IF YOUR ANSWERS ARE CORRECT YOU CAN
PROCEED TO THE SELF-ASSESSMENT….

33. THE SECOND LAW OF THERMODYNAMICS J2006/10/33

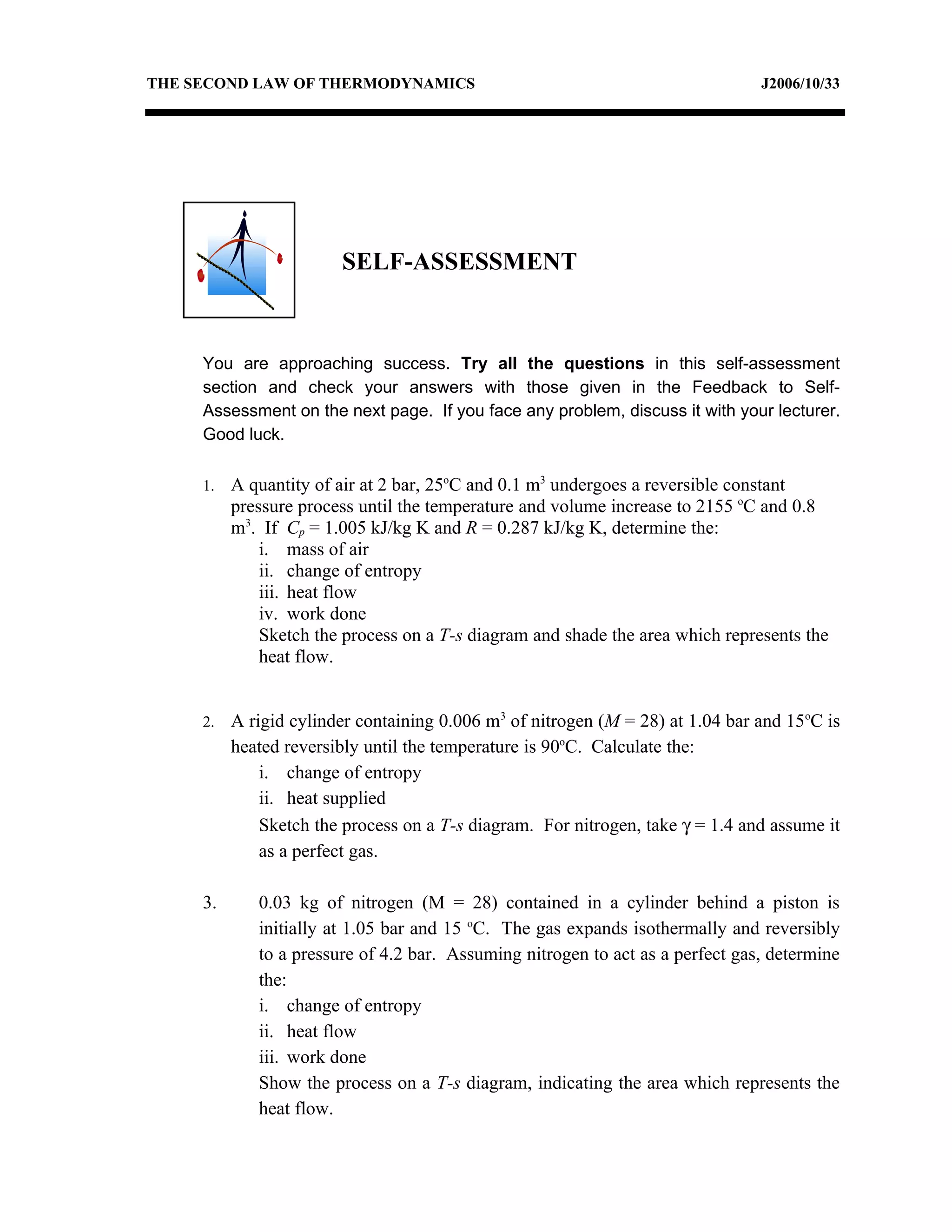

SELF-ASSESSMENT
You are approaching success. Try all the questions in this self-assessment
section and check your answers with those given in the Feedback to Self-
Assessment on the next page. If you face any problem, discuss it with your lecturer.
Good luck.
1. A quantity of air at 2 bar, 25oC and 0.1 m3 undergoes a reversible constant
pressure process until the temperature and volume increase to 2155 oC and 0.8
m3. If Cp = 1.005 kJ/kg K and R = 0.287 kJ/kg K, determine the:
i. mass of air
ii. change of entropy
iii. heat flow
iv. work done
Sketch the process on a T-s diagram and shade the area which represents the
heat flow.
2. A rigid cylinder containing 0.006 m3 of nitrogen (M = 28) at 1.04 bar and 15oC is
heated reversibly until the temperature is 90oC. Calculate the:
i. change of entropy
ii. heat supplied
Sketch the process on a T-s diagram. For nitrogen, take γ = 1.4 and assume it
as a perfect gas.
3. 0.03 kg of nitrogen (M = 28) contained in a cylinder behind a piston is
initially at 1.05 bar and 15 oC. The gas expands isothermally and reversibly
to a pressure of 4.2 bar. Assuming nitrogen to act as a perfect gas, determine
the:
i. change of entropy
ii. heat flow
iii. work done
Show the process on a T-s diagram, indicating the area which represents the
heat flow.

34. THE SECOND LAW OF THERMODYNAMICS J2006/10/34

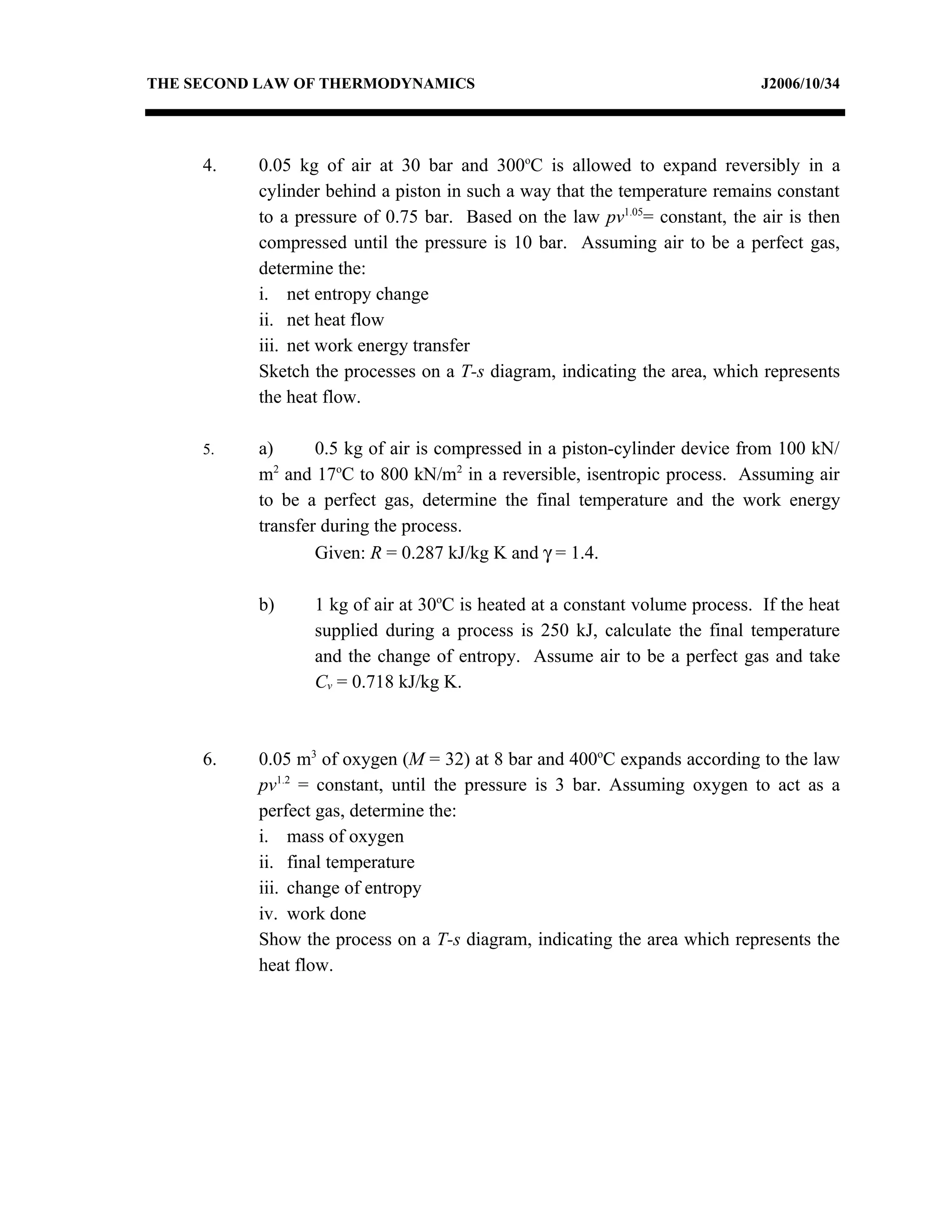

4. 0.05 kg of air at 30 bar and 300oC is allowed to expand reversibly in a
cylinder behind a piston in such a way that the temperature remains constant
to a pressure of 0.75 bar. Based on the law pv1.05= constant, the air is then
compressed until the pressure is 10 bar. Assuming air to be a perfect gas,
determine the:
i. net entropy change
ii. net heat flow
iii. net work energy transfer
Sketch the processes on a T-s diagram, indicating the area, which represents
the heat flow.
5. a) 0.5 kg of air is compressed in a piston-cylinder device from 100 kN/
m and 17oC to 800 kN/m2 in a reversible, isentropic process. Assuming air
2
to be a perfect gas, determine the final temperature and the work energy
transfer during the process.
Given: R = 0.287 kJ/kg K and γ = 1.4.
b) 1 kg of air at 30oC is heated at a constant volume process. If the heat
supplied during a process is 250 kJ, calculate the final temperature
and the change of entropy. Assume air to be a perfect gas and take
Cv = 0.718 kJ/kg K.
6. 0.05 m3 of oxygen (M = 32) at 8 bar and 400oC expands according to the law
pv1.2 = constant, until the pressure is 3 bar. Assuming oxygen to act as a
perfect gas, determine the:
i. mass of oxygen
ii. final temperature
iii. change of entropy
iv. work done
Show the process on a T-s diagram, indicating the area which represents the
heat flow.

35. THE SECOND LAW OF THERMODYNAMICS J2006/10/35

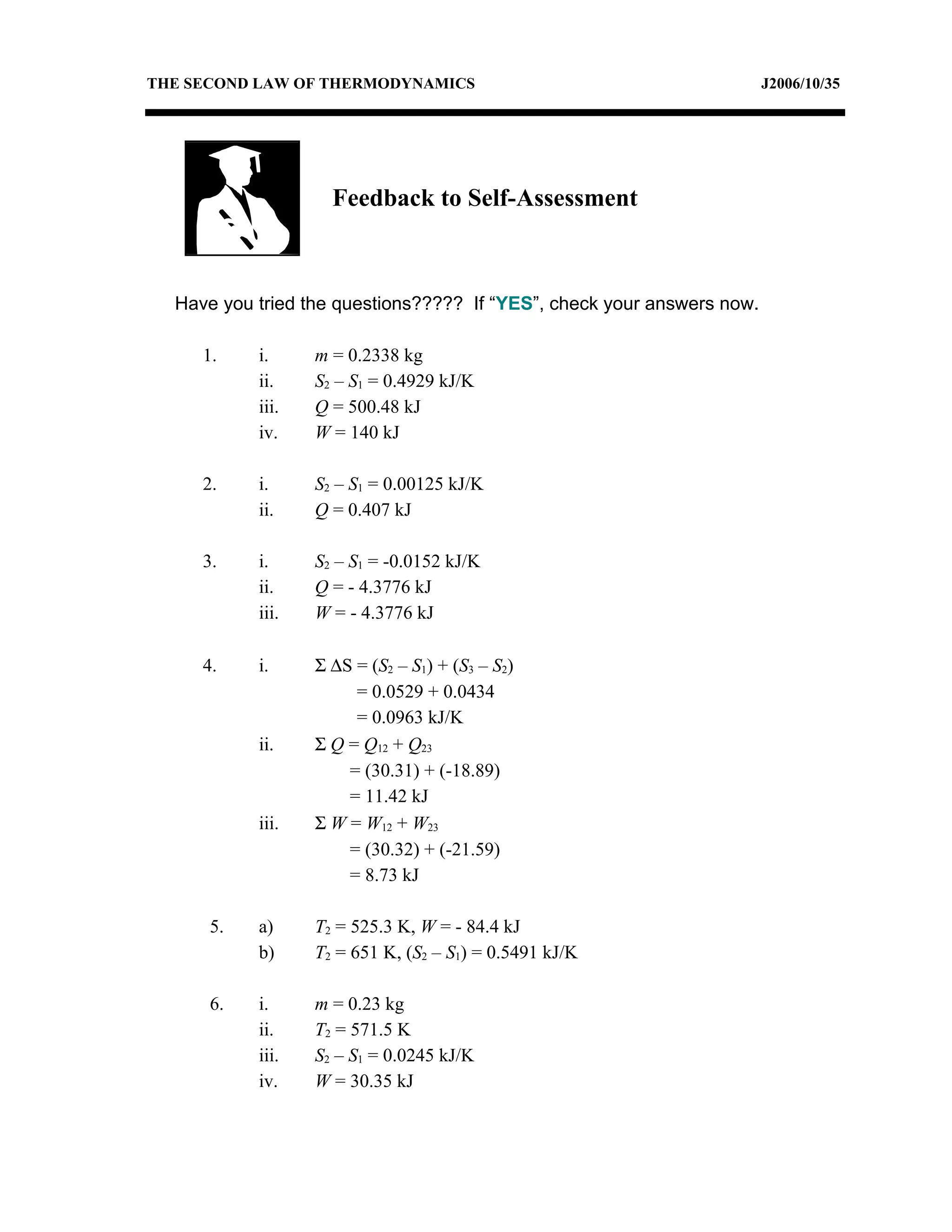

Feedback to Self-Assessment
Have you tried the questions????? If “YES”, check your answers now.
1. i. m = 0.2338 kg
ii. S2 – S1 = 0.4929 kJ/K
iii. Q = 500.48 kJ
iv. W = 140 kJ
2. i. S2 – S1 = 0.00125 kJ/K
ii. Q = 0.407 kJ
3. i. S2 – S1 = -0.0152 kJ/K
ii. Q = - 4.3776 kJ
iii. W = - 4.3776 kJ
4. i. Σ ∆S = (S2 – S1) + (S3 – S2)
= 0.0529 + 0.0434
= 0.0963 kJ/K
ii. Σ Q = Q12 + Q23
= (30.31) + (-18.89)
= 11.42 kJ
iii. Σ W = W12 + W23
= (30.32) + (-21.59)
= 8.73 kJ
5. a) T2 = 525.3 K, W = - 84.4 kJ
b) T2 = 651 K, (S2 – S1) = 0.5491 kJ/K
6. i. m = 0.23 kg
ii. T2 = 571.5 K
iii. S2 – S1 = 0.0245 kJ/K
iv. W = 30.35 kJ
