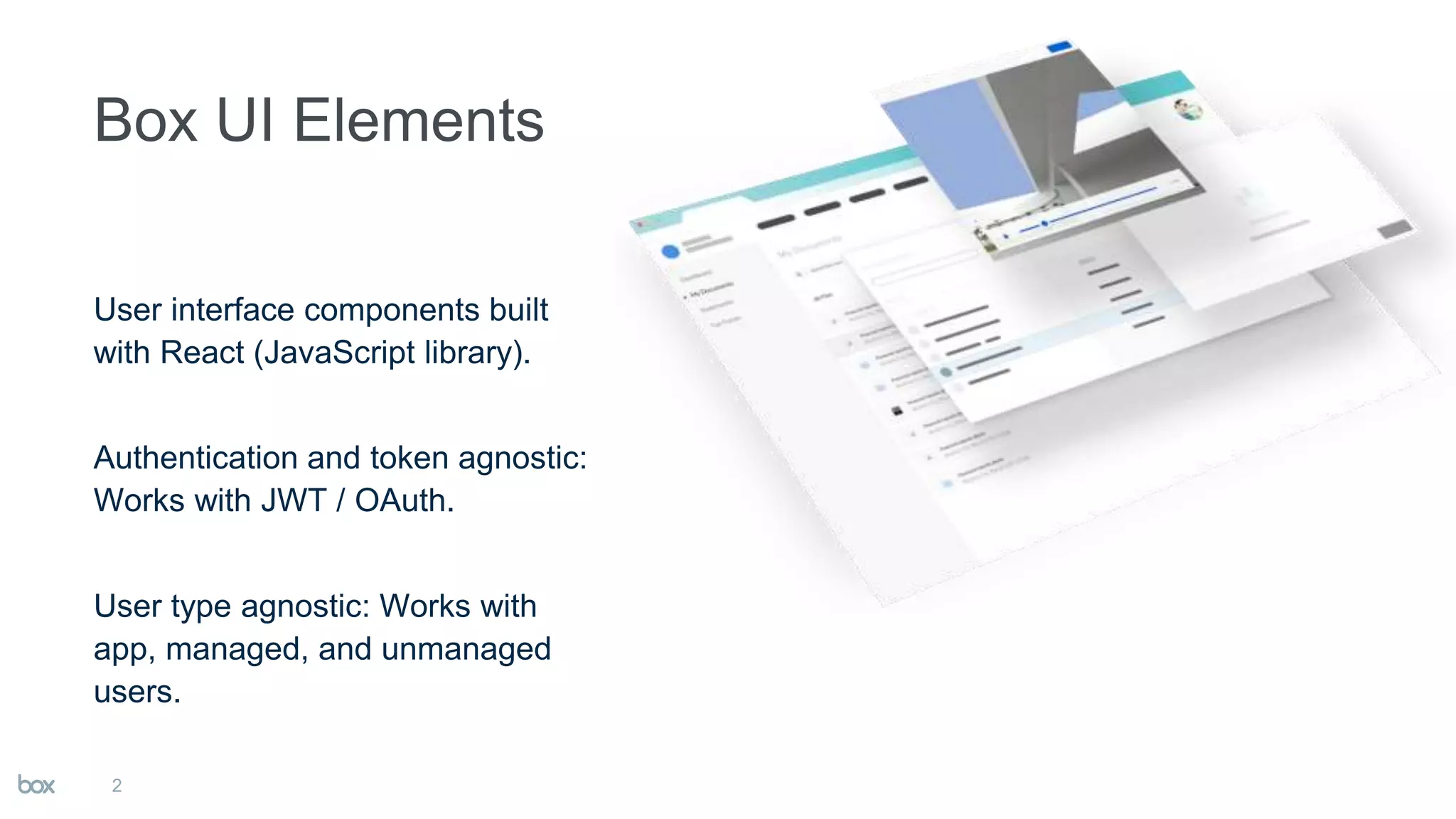

2. User interface components built
with React (JavaScript library).
Authentication and token agnostic:
Works with JWT / OAuth.
User type agnostic: Works with
app, managed, and unmanaged
users.
2

3. 3
Works with both mobile (through
React Native) and non-mobile
environments.
Responsive design implementation
to function in any size /
environment.

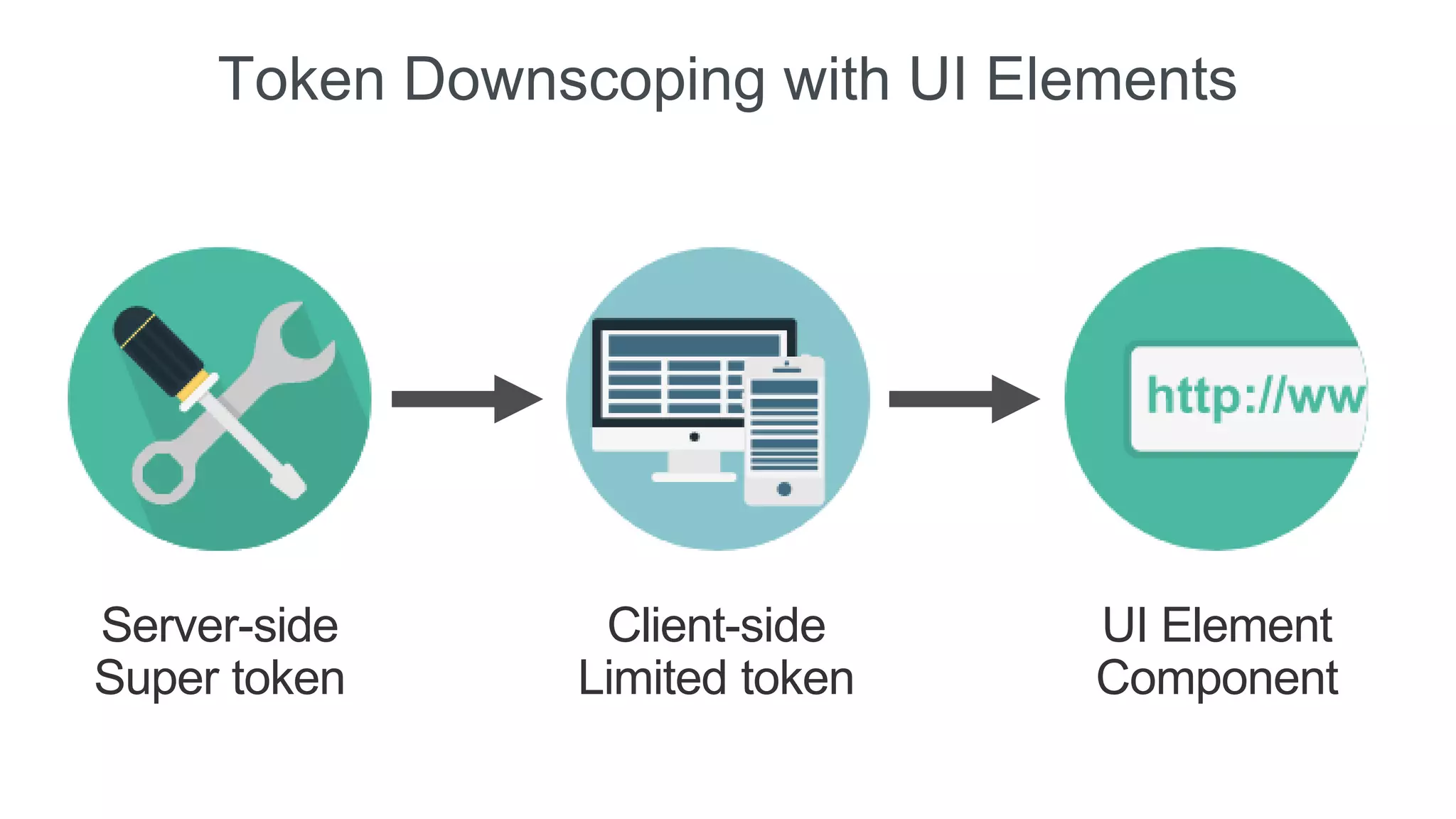

4. Token Downscoping

5. Server-side
Super token
Client-side
Limited token
UI Element
Component

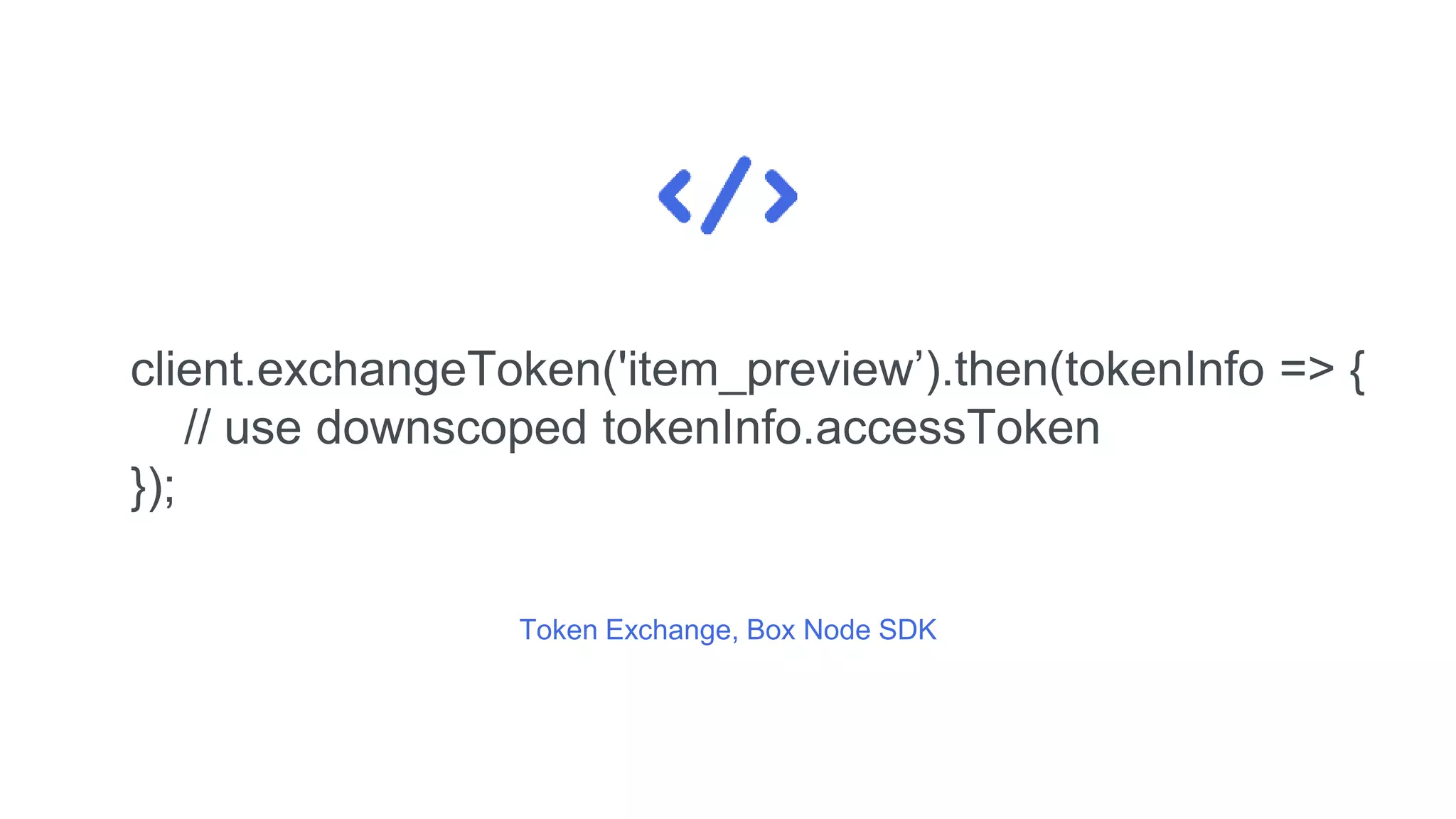

6. Token Exchange, Box Node SDK

7. The UI Elements

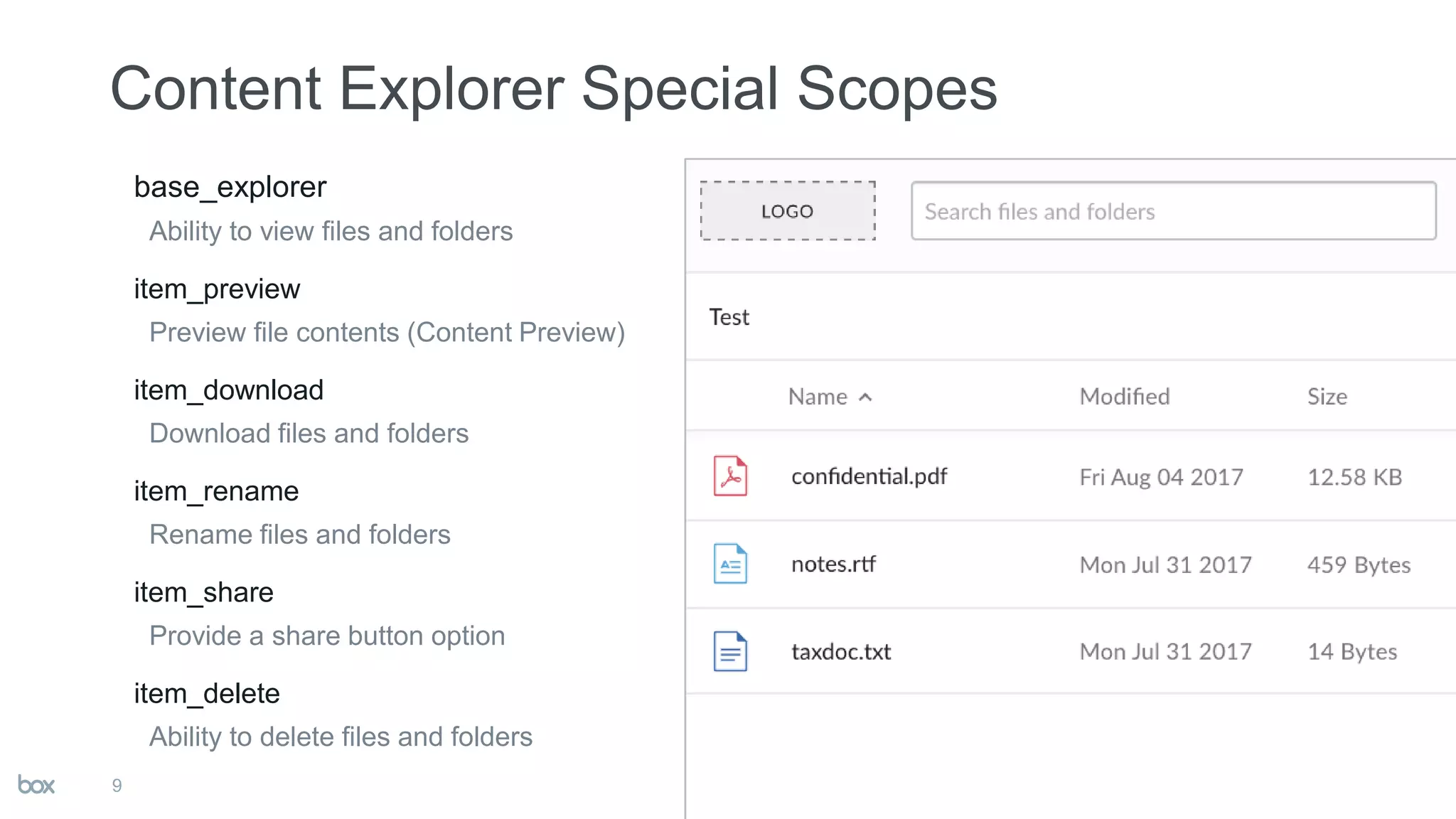

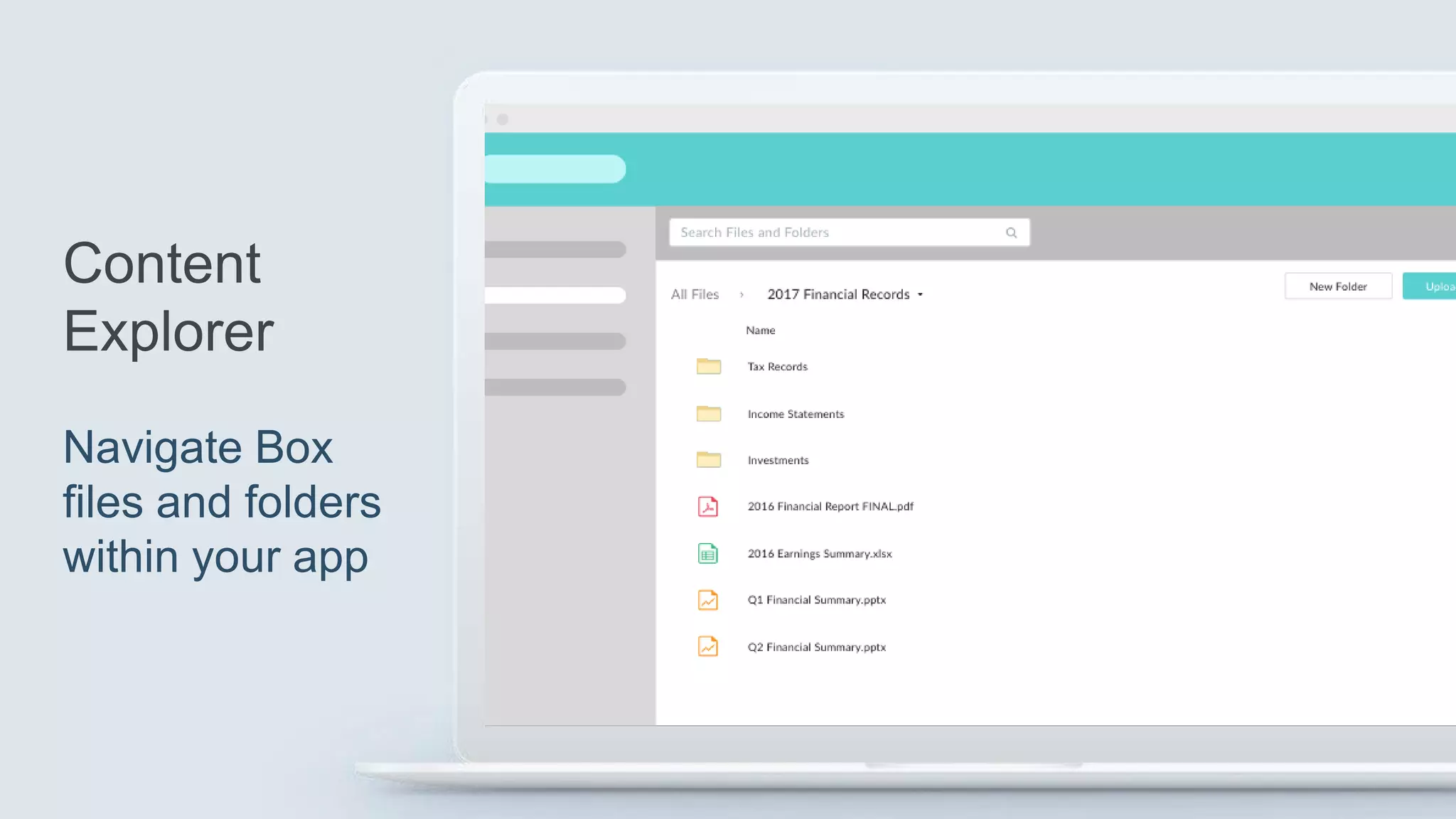

9. base_explorer
Ability to view files and folders
item_preview
Preview file contents (Content Preview)
item_download
Download files and folders
item_rename
Rename files and folders
item_share
Provide a share button option
item_delete
Ability to delete files and folders
9

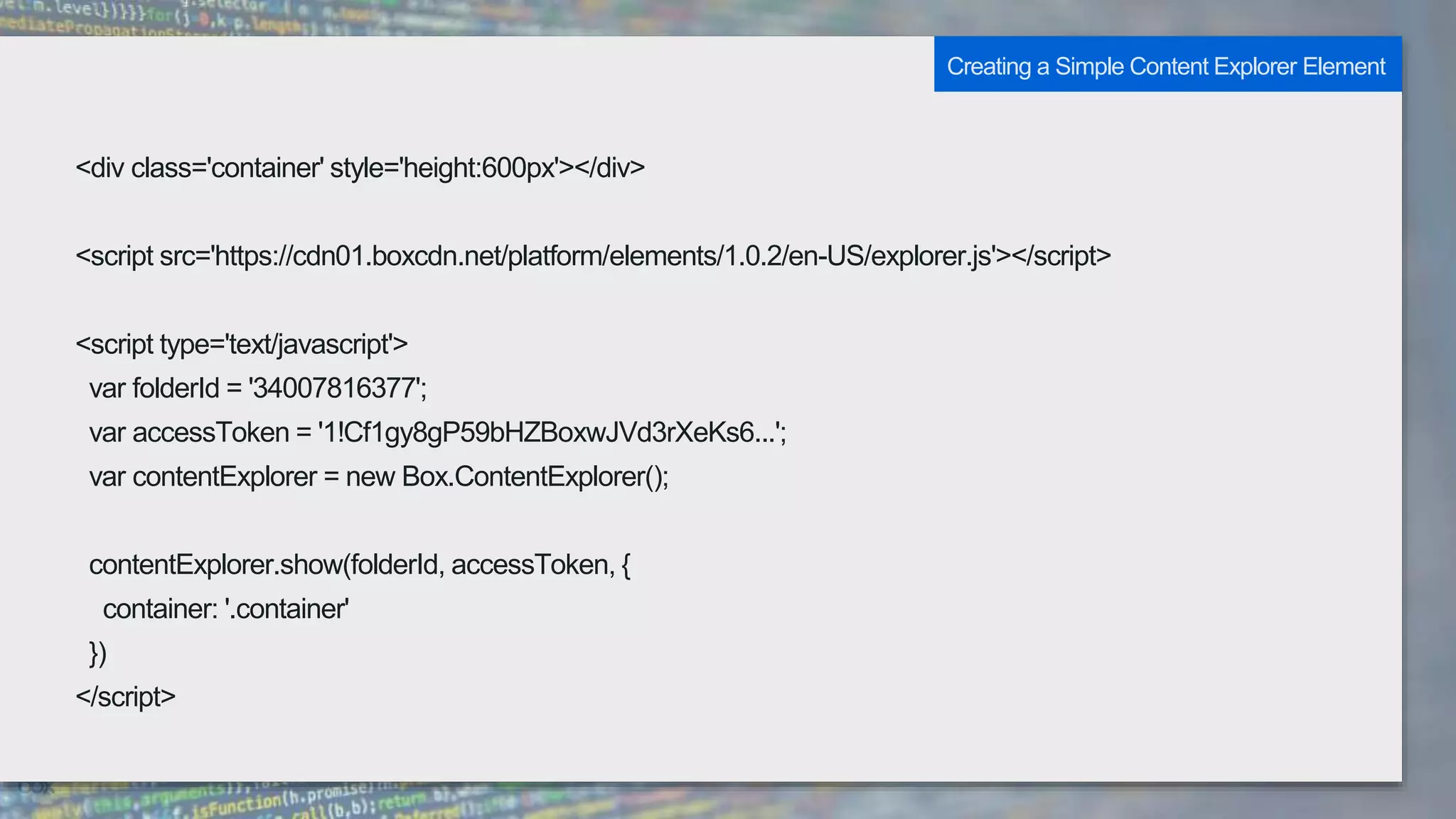

10. <div class='container' style='height:600px'></div>
<script src='https://cdn01.boxcdn.net/platform/elements/1.0.2/en-US/explorer.js'></script>
<script type='text/javascript'>
var folderId = '34007816377';
var accessToken = '1!Cf1gy8gP59bHZBoxwJVd3rXeKs6...';
var contentExplorer = new Box.ContentExplorer();
contentExplorer.show(folderId, accessToken, {
container: '.container'
})
</script>
Creating a Simple Content Explorer Element

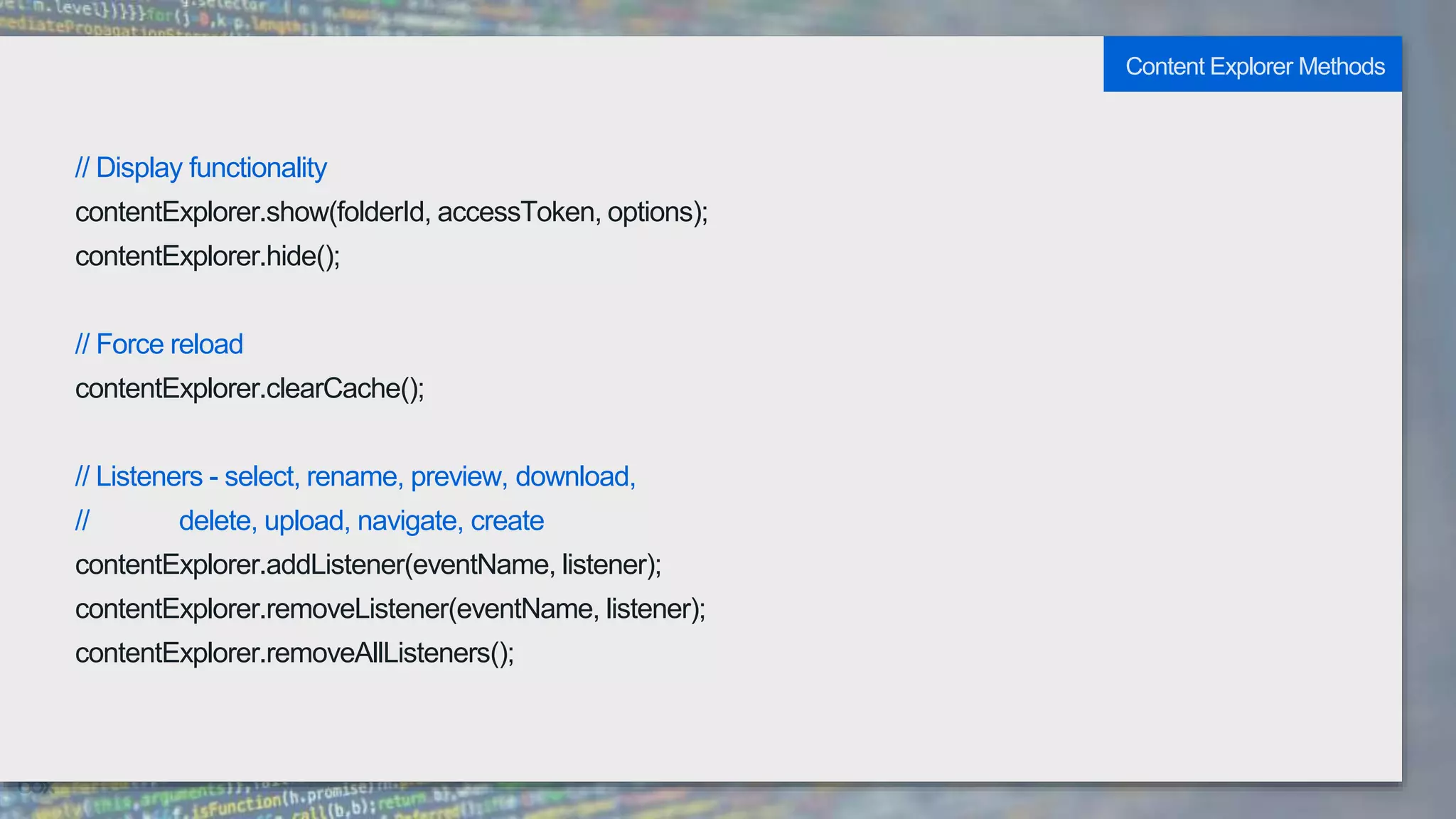

11. // Display functionality
contentExplorer.show(folderId, accessToken, options);
contentExplorer.hide();
// Force reload
contentExplorer.clearCache();
// Listeners - select, rename, preview, download,
// delete, upload, navigate, create
contentExplorer.addListener(eventName, listener);
contentExplorer.removeListener(eventName, listener);
contentExplorer.removeAllListeners();
Content Explorer Methods

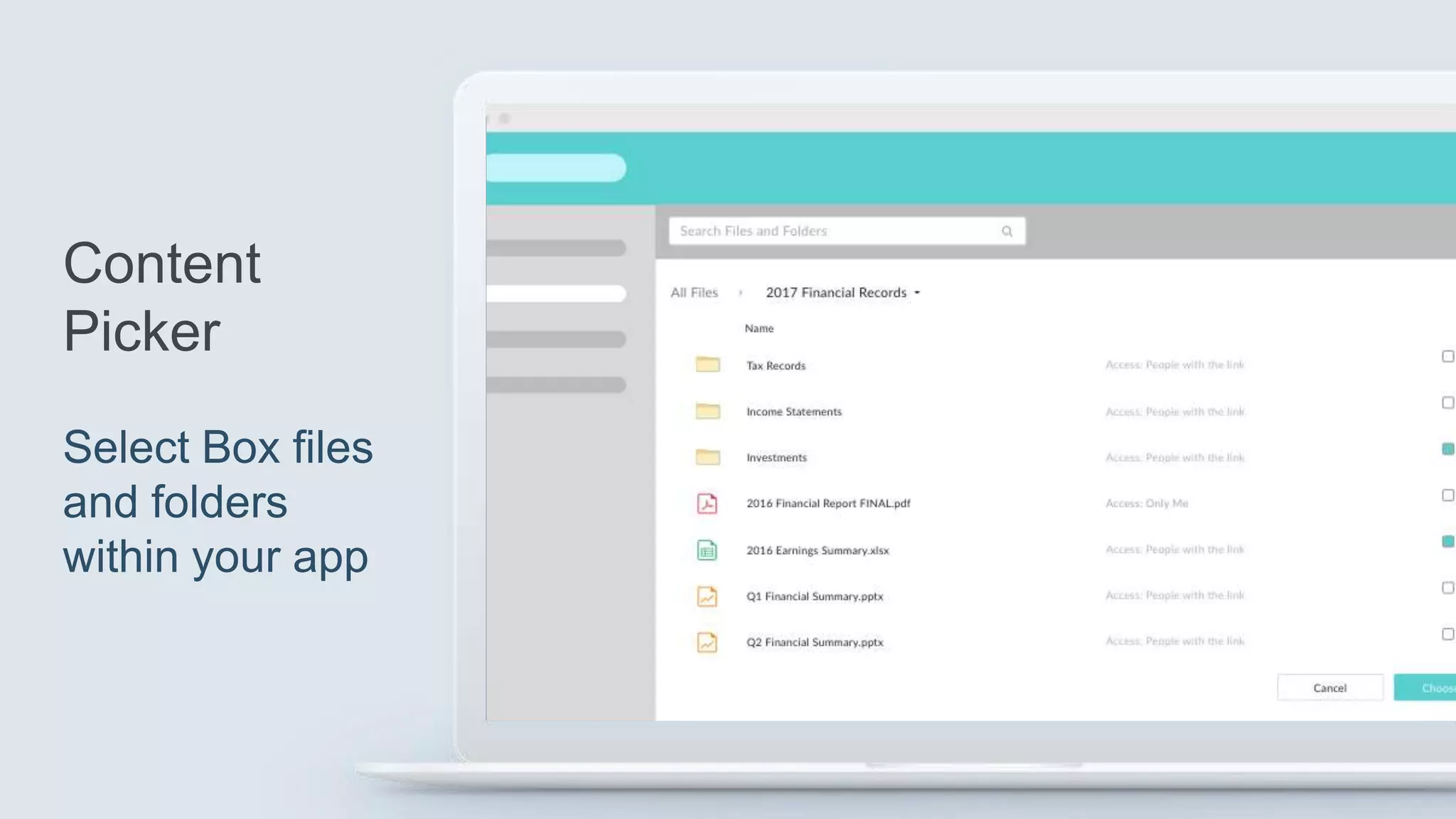

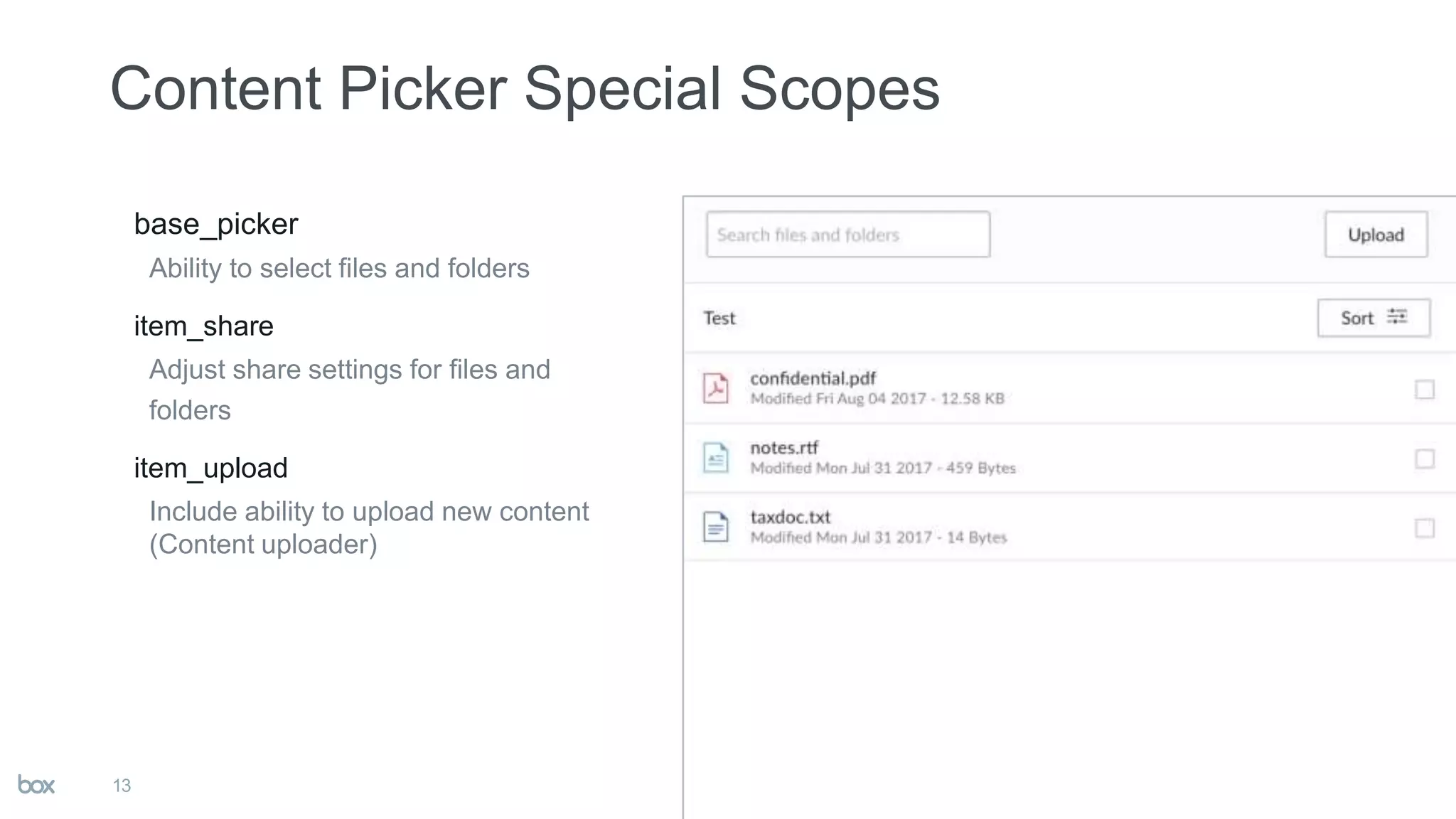

13. base_picker
Ability to select files and folders
item_share
Adjust share settings for files and
folders
item_upload
Include ability to upload new content
(Content uploader)
13

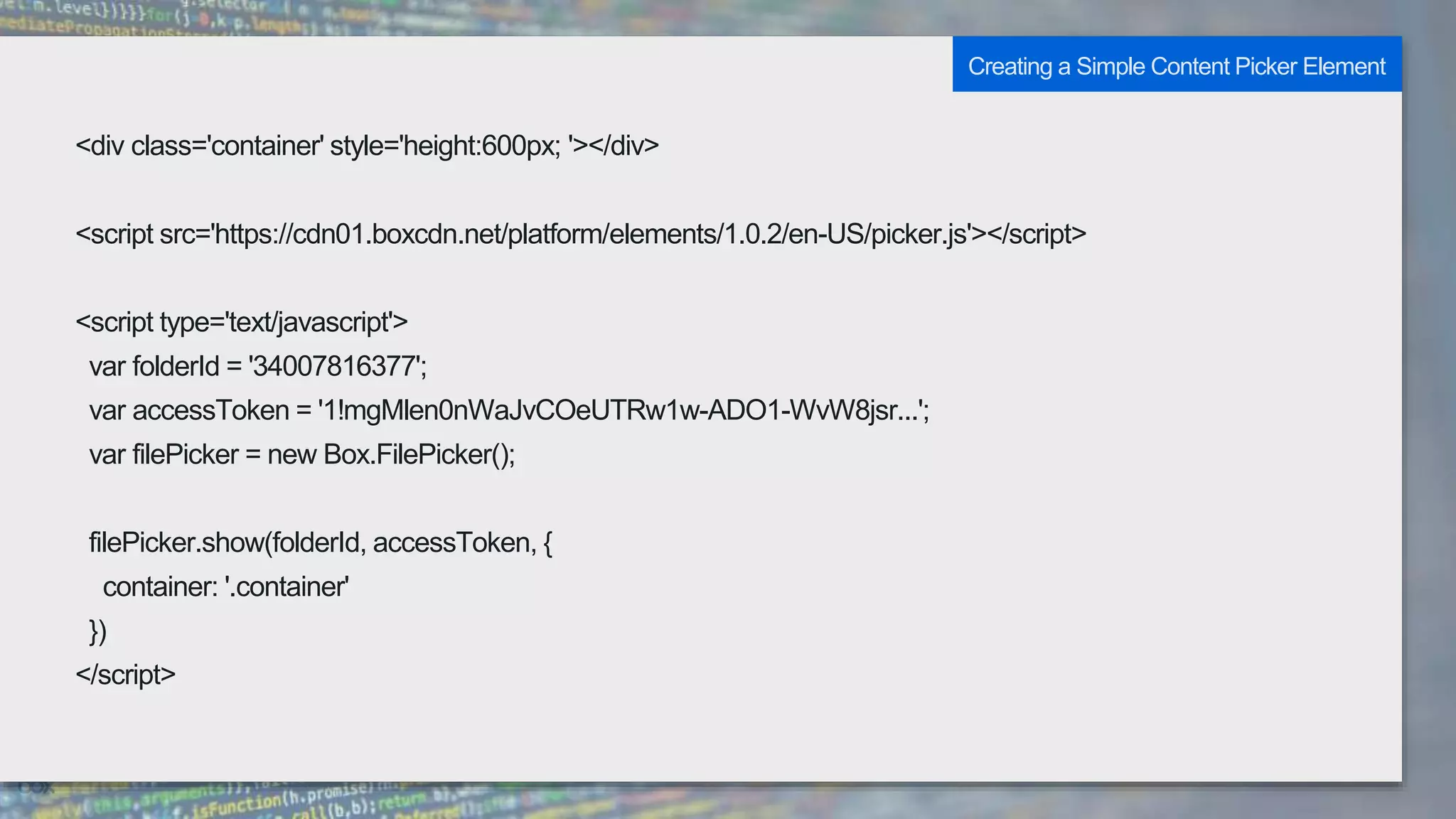

14. <div class='container' style='height:600px; '></div>
<script src='https://cdn01.boxcdn.net/platform/elements/1.0.2/en-US/picker.js'></script>
<script type='text/javascript'>
var folderId = '34007816377';
var accessToken = '1!mgMlen0nWaJvCOeUTRw1w-ADO1-WvW8jsr...';
var filePicker = new Box.FilePicker();
filePicker.show(folderId, accessToken, {
container: '.container'
})
</script>
Creating a Simple Content Picker Element

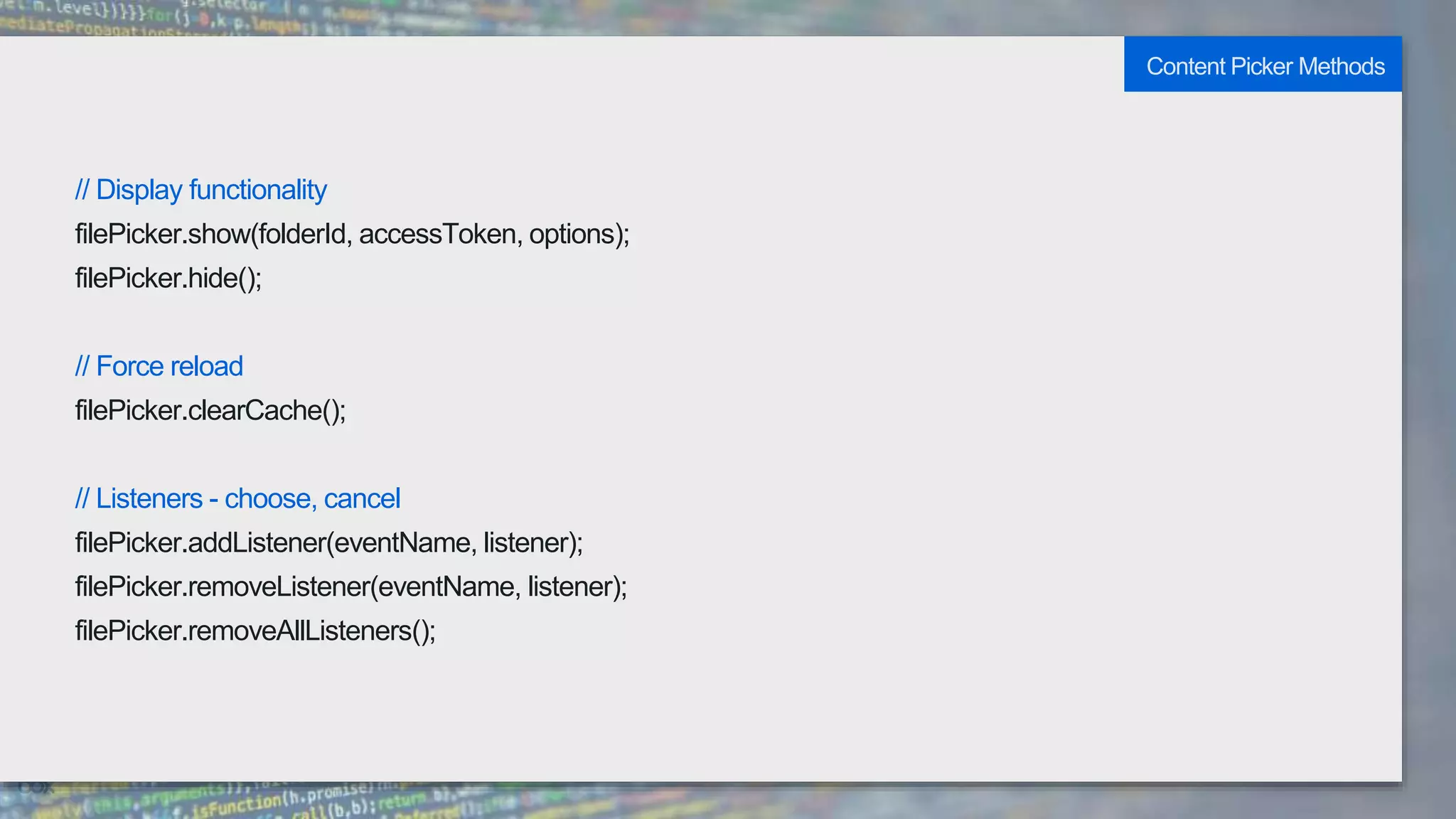

15. // Display functionality
filePicker.show(folderId, accessToken, options);
filePicker.hide();
// Force reload
filePicker.clearCache();
// Listeners - choose, cancel
filePicker.addListener(eventName, listener);
filePicker.removeListener(eventName, listener);
filePicker.removeAllListeners();
Content Picker Methods

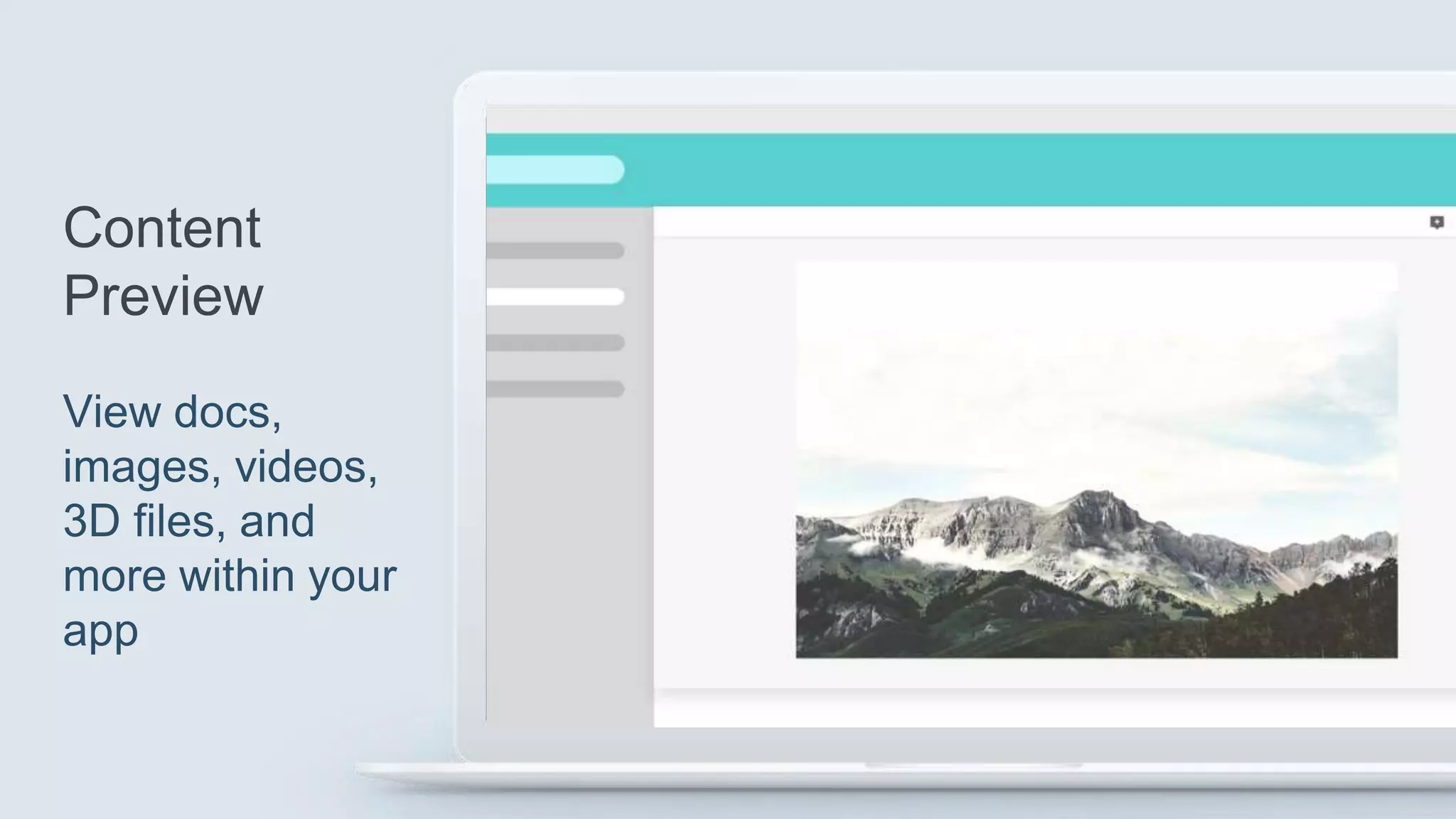

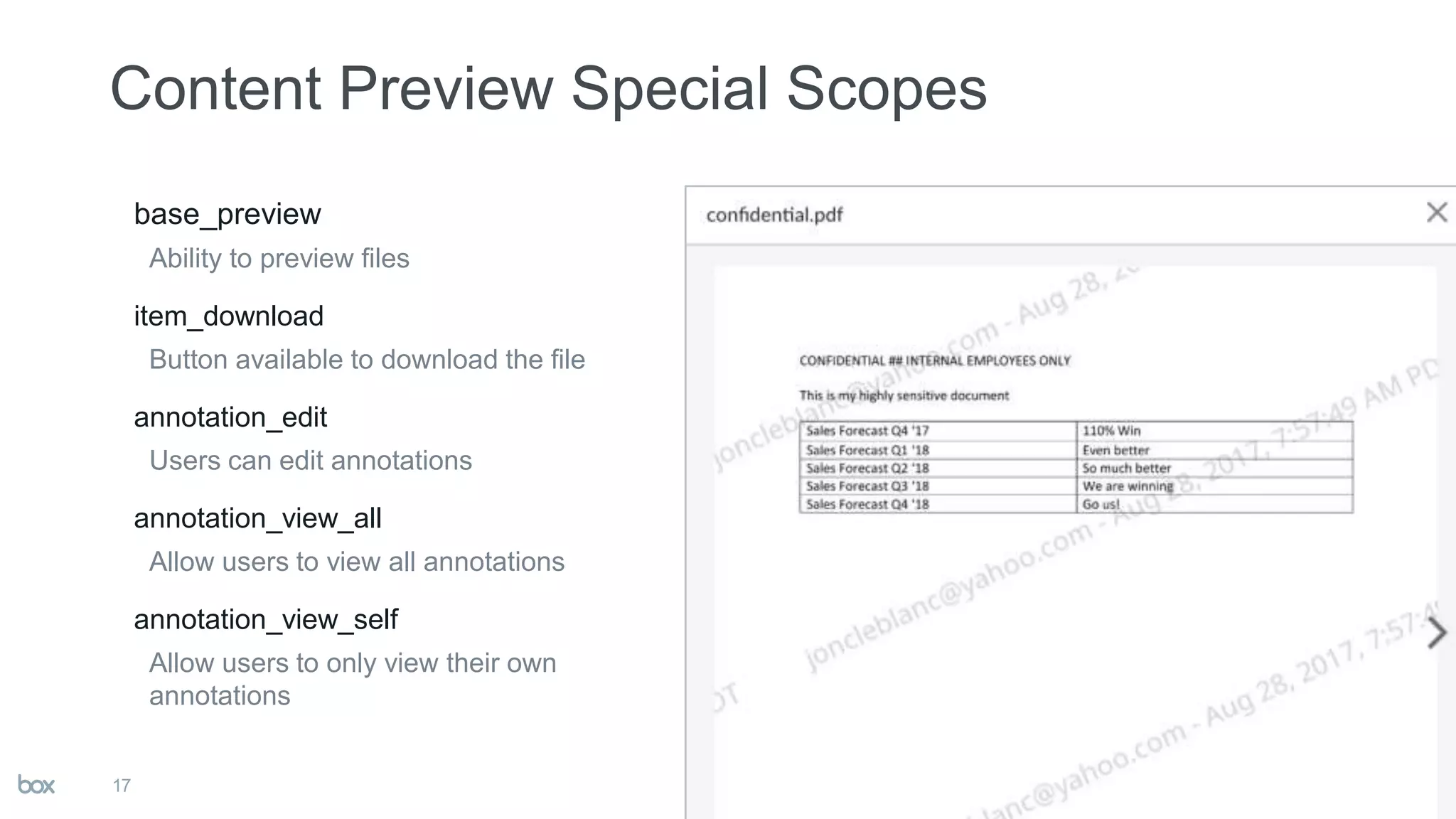

17. base_preview
Ability to preview files
item_download
Button available to download the file
annotation_edit
Users can edit annotations
annotation_view_all
Allow users to view all annotations
annotation_view_self
Allow users to only view their own
annotations
17

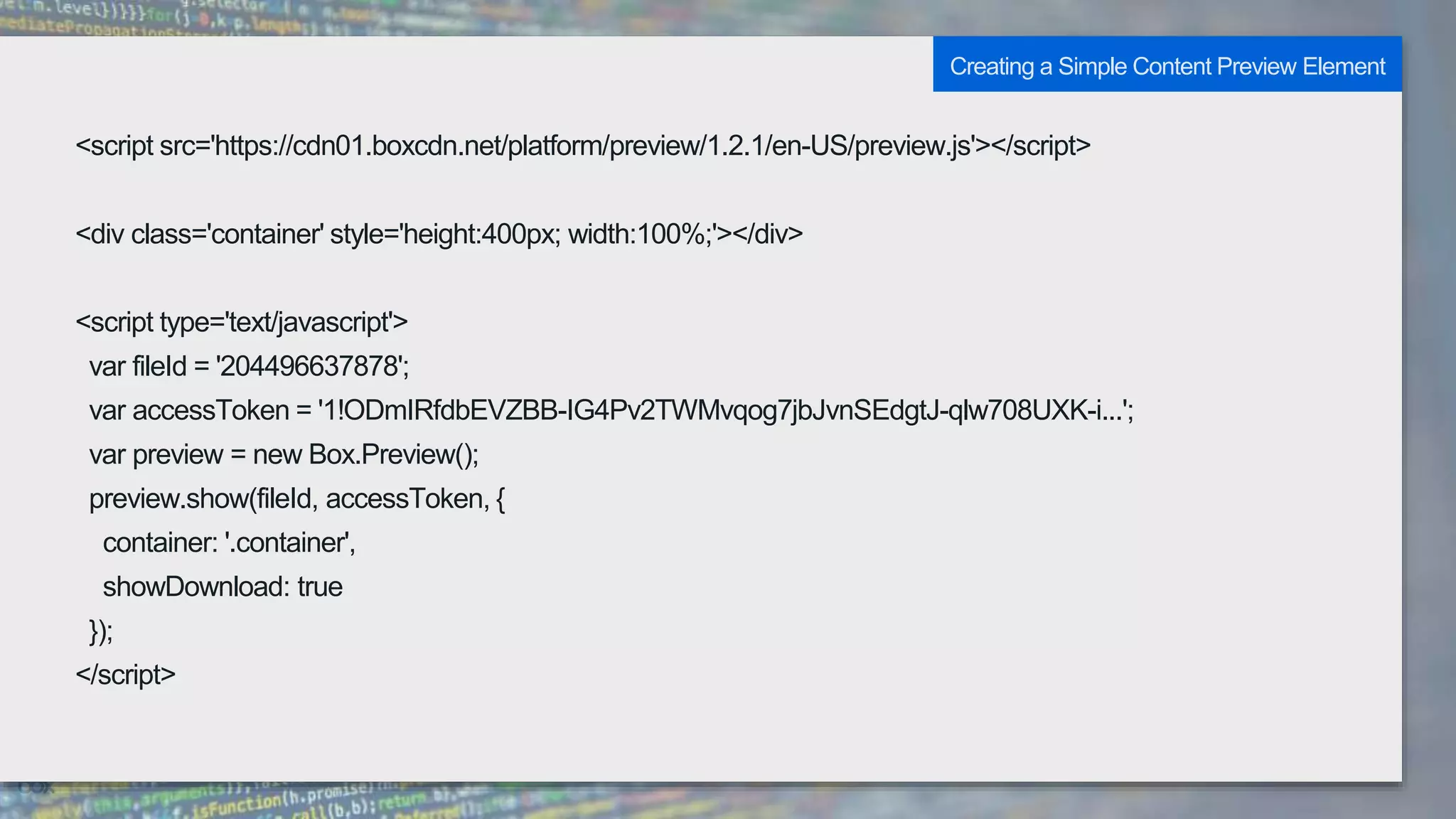

18. <script src='https://cdn01.boxcdn.net/platform/preview/1.2.1/en-US/preview.js'></script>
<div class='container' style='height:400px; width:100%;'></div>
<script type='text/javascript'>
var fileId = '204496637878';
var accessToken = '1!ODmIRfdbEVZBB-IG4Pv2TWMvqog7jbJvnSEdgtJ-qlw708UXK-i...';
var preview = new Box.Preview();
preview.show(fileId, accessToken, {
container: '.container',
showDownload: true
});
</script>
Creating a Simple Content Preview Element

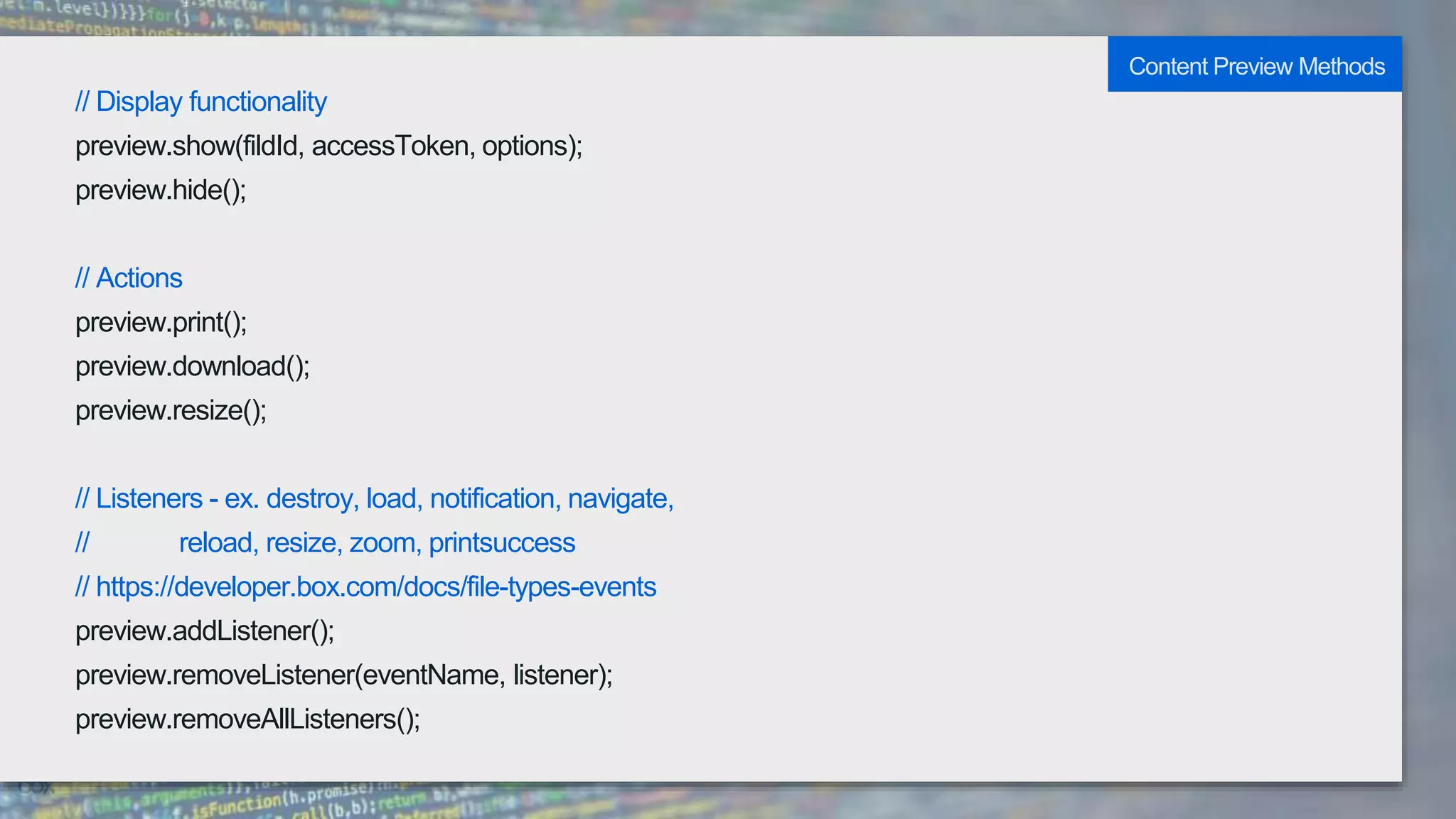

19. // Display functionality
preview.show(fildId, accessToken, options);
preview.hide();
// Actions
preview.print();
preview.download();
preview.resize();
// Listeners - ex. destroy, load, notification, navigate,
// reload, resize, zoom, printsuccess
// https://developer.box.com/docs/file-types-events
preview.addListener();
preview.removeListener(eventName, listener);
preview.removeAllListeners();
Content Preview Methods

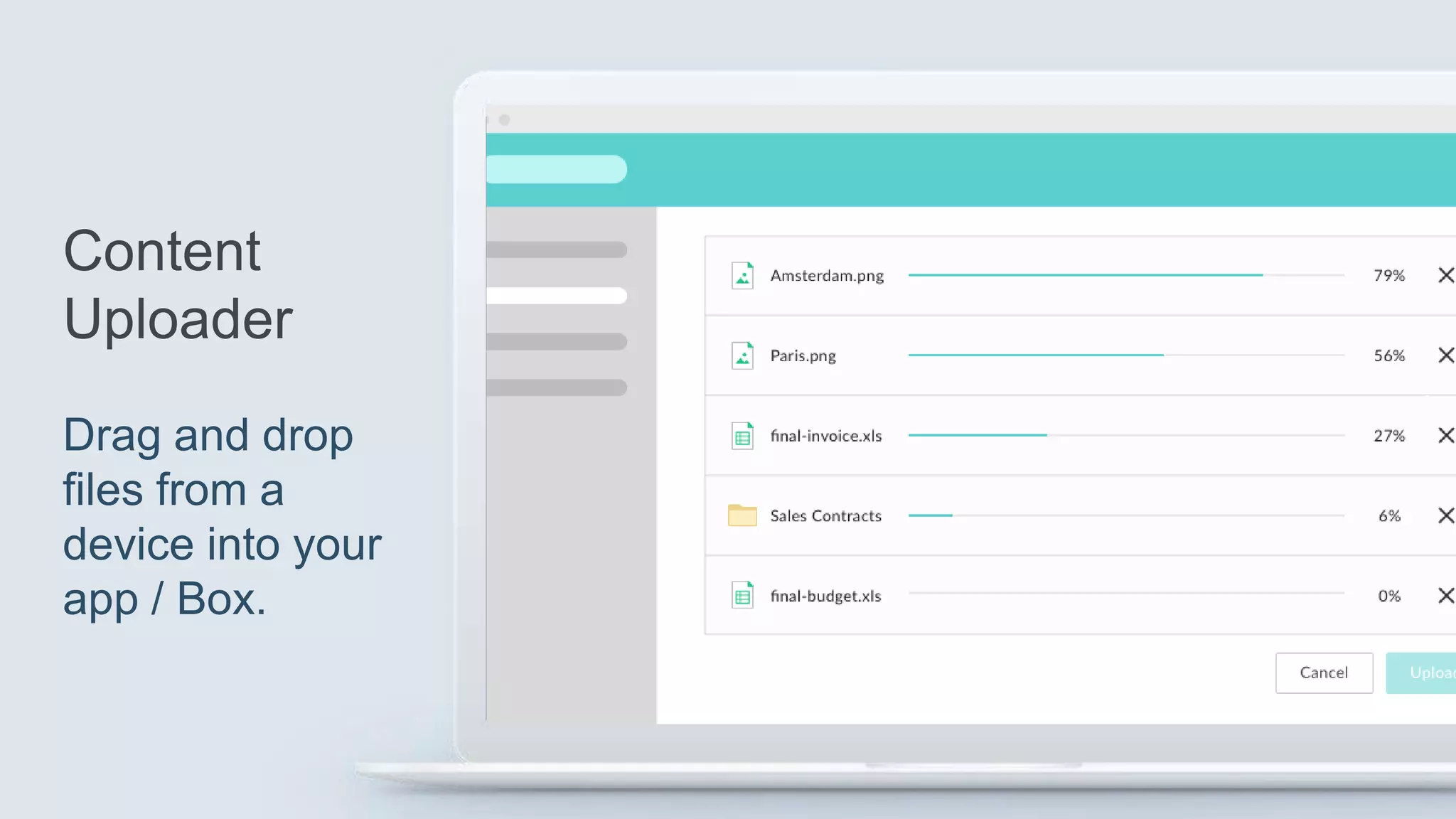

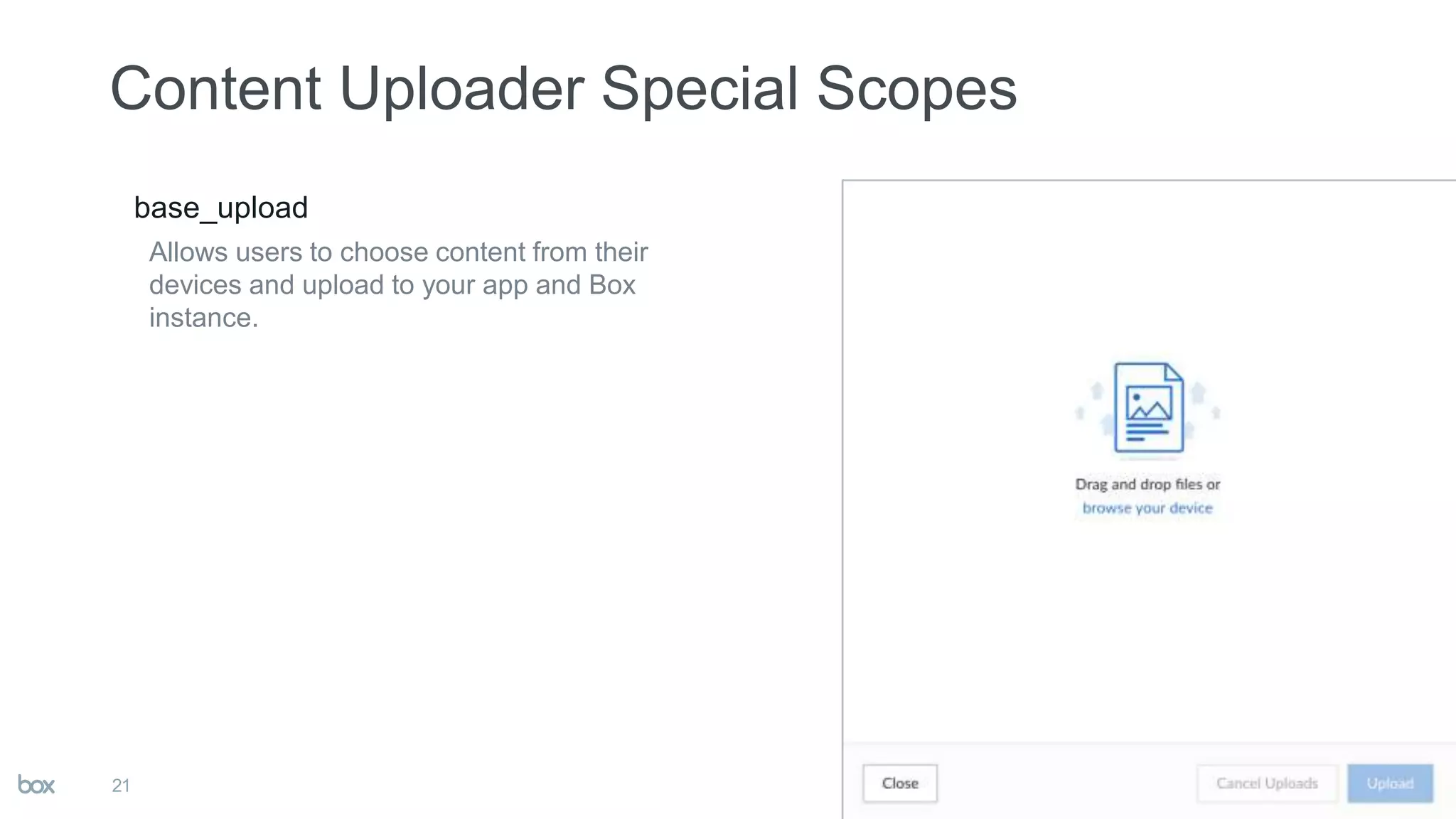

21. base_upload
Allows users to choose content from their
devices and upload to your app and Box
instance.
21

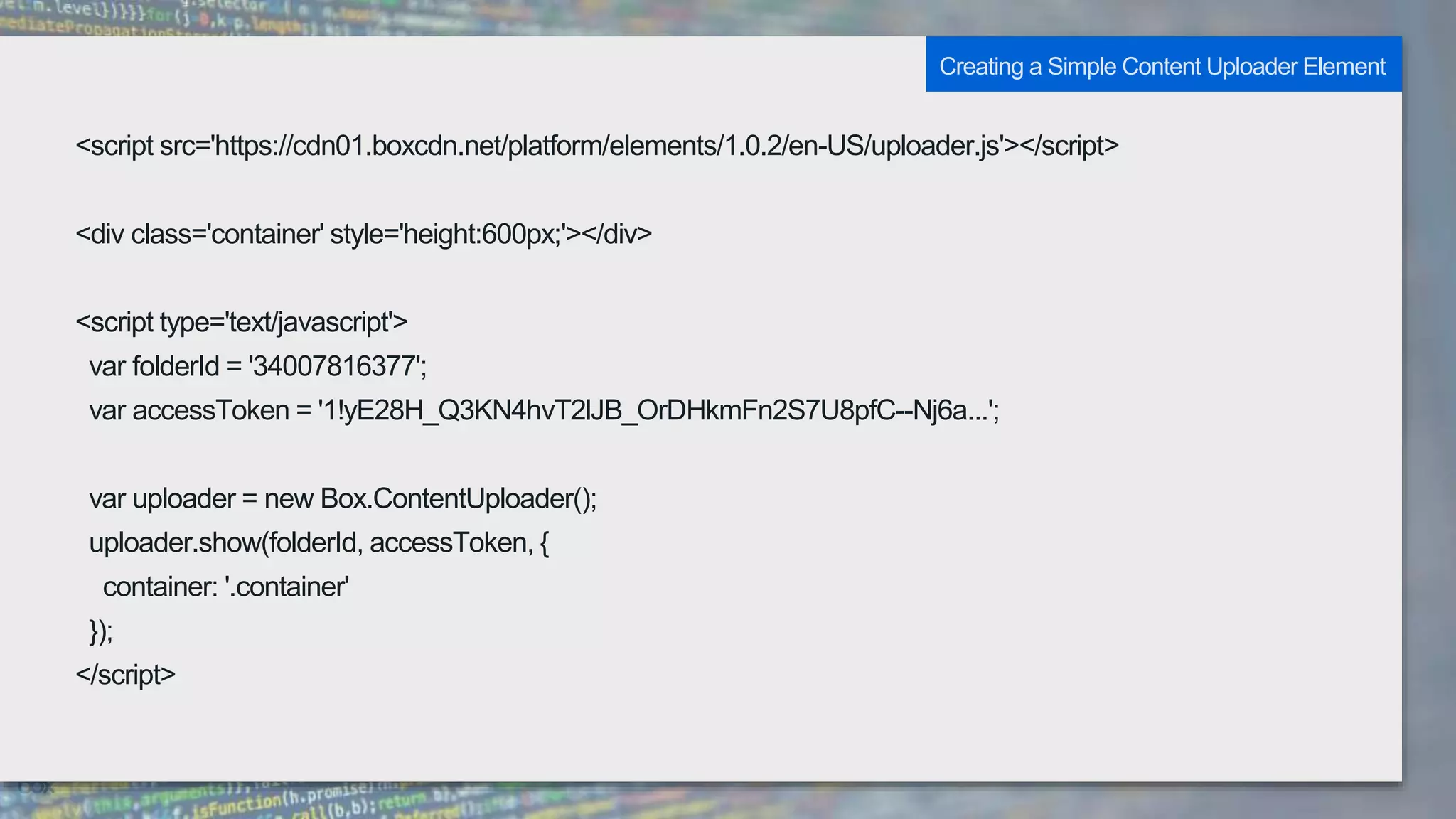

22. <script src='https://cdn01.boxcdn.net/platform/elements/1.0.2/en-US/uploader.js'></script>
<div class='container' style='height:600px;'></div>
<script type='text/javascript'>
var folderId = '34007816377';
var accessToken = '1!yE28H_Q3KN4hvT2lJB_OrDHkmFn2S7U8pfC--Nj6a...';
var uploader = new Box.ContentUploader();
uploader.show(folderId, accessToken, {
container: '.container'
});
</script>
Creating a Simple Content Uploader Element

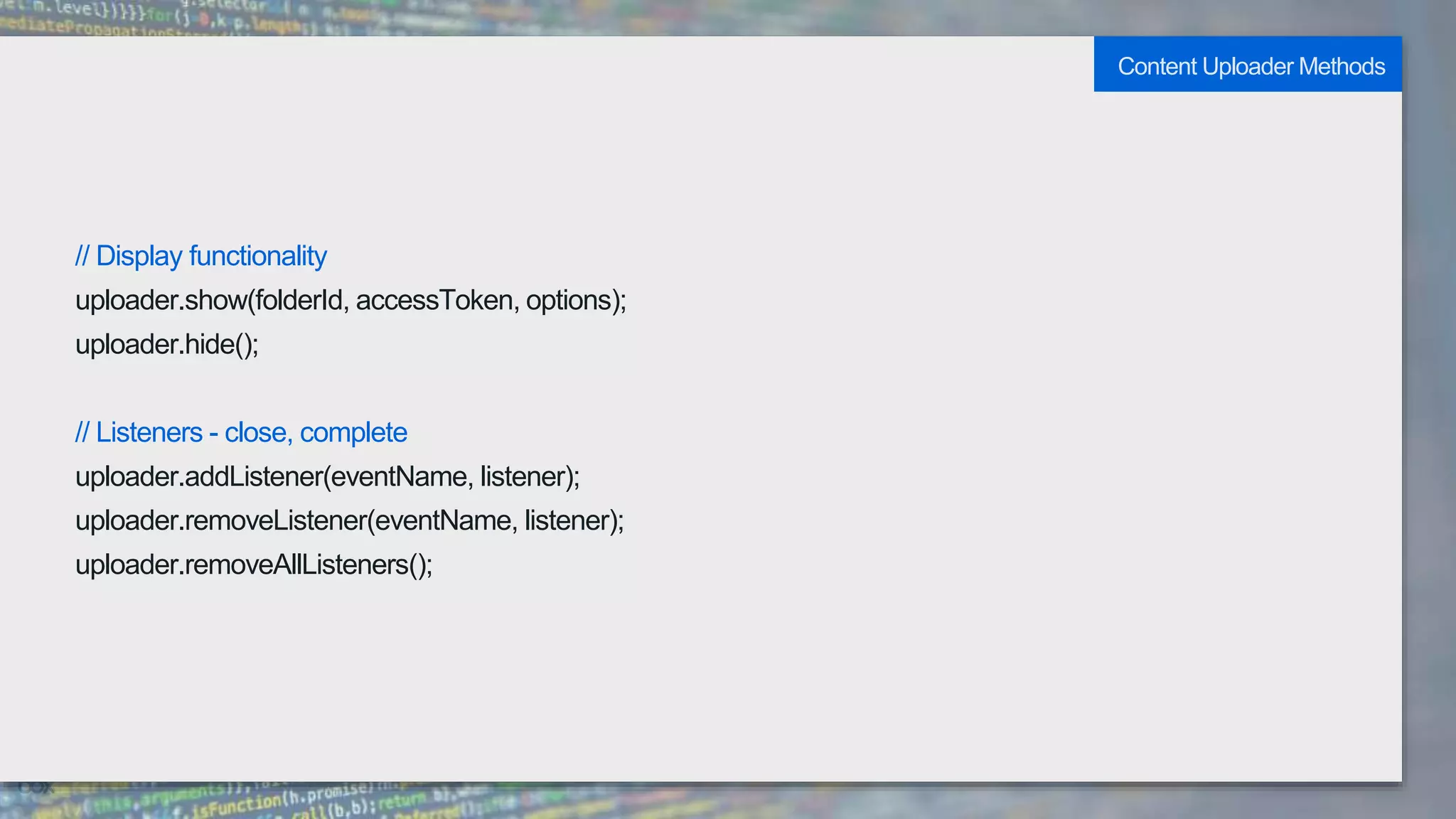

23. // Display functionality
uploader.show(folderId, accessToken, options);
uploader.hide();
// Listeners - close, complete
uploader.addListener(eventName, listener);
uploader.removeListener(eventName, listener);
uploader.removeAllListeners();
Content Uploader Methods

24. Demo
Github Source: http://bit.ly/bwelements
