Modern API Security with JSON Web Tokens
- 1. Modern API Security with! JSON Web Tokens! Jonathan LeBlanc ! Twitter: @jcleblanc ! Book: http://bit.ly/iddatasecurity!
- 2. JSON Web Token (JWT) Specification! ! https://tools.ietf.org/html/rfc7519!
- 3. JWT Benefits! ! They’re self contained and help maintain a stateless architecture.! ! They maintain a small footprint and can be passed along easily. ! ! They work well across multiple programming languages.!
- 4. Traditional vs Token-Based Authentication Systems!
- 5. User logs in, server checks creds Session stored in sever, cookie created Send session data to access endpoints Traditional Authentication Systems

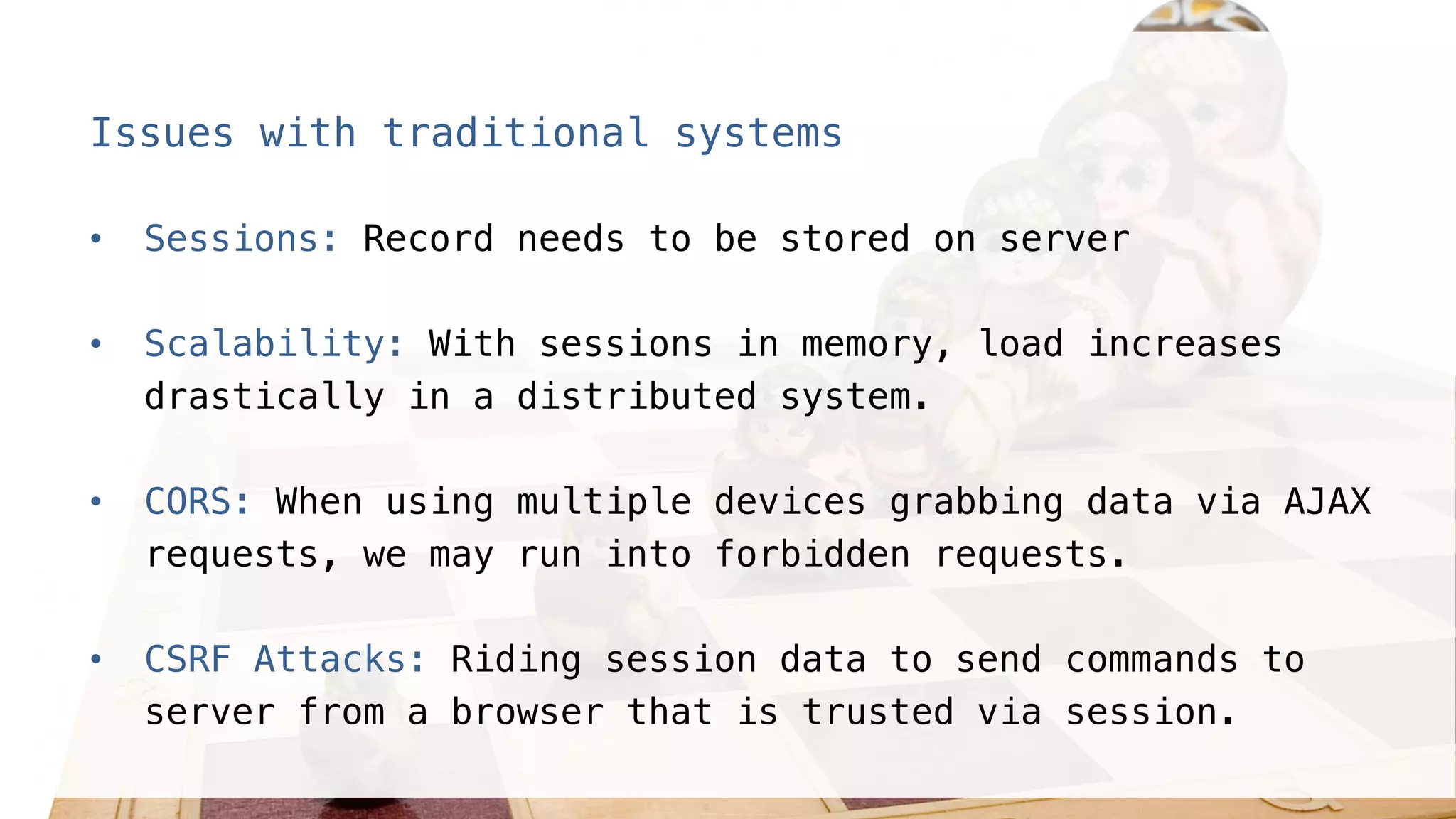

- 6. Issues with traditional systems! • Sessions: Record needs to be stored on server ! • Scalability: With sessions in memory, load increases drastically in a distributed system.! • CORS: When using multiple devices grabbing data via AJAX requests, we may run into forbidden requests.! • CSRF Attacks: Riding session data to send commands to server from a browser that is trusted via session.!

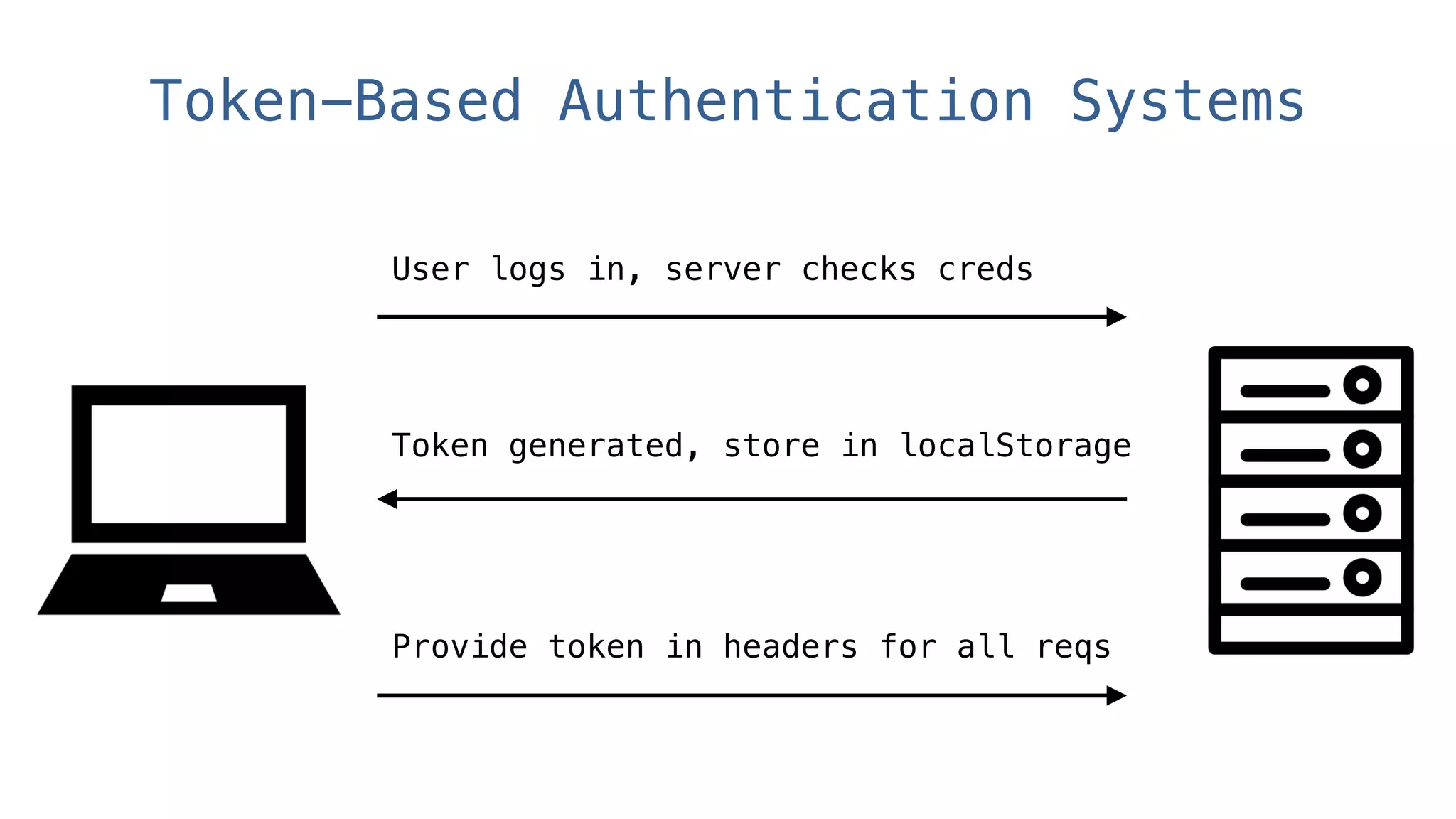

- 7. User logs in, server checks creds Token generated, store in localStorage Provide token in headers for all reqs Token-Based Authentication Systems
- 8. How JSON Web Tokens Work!

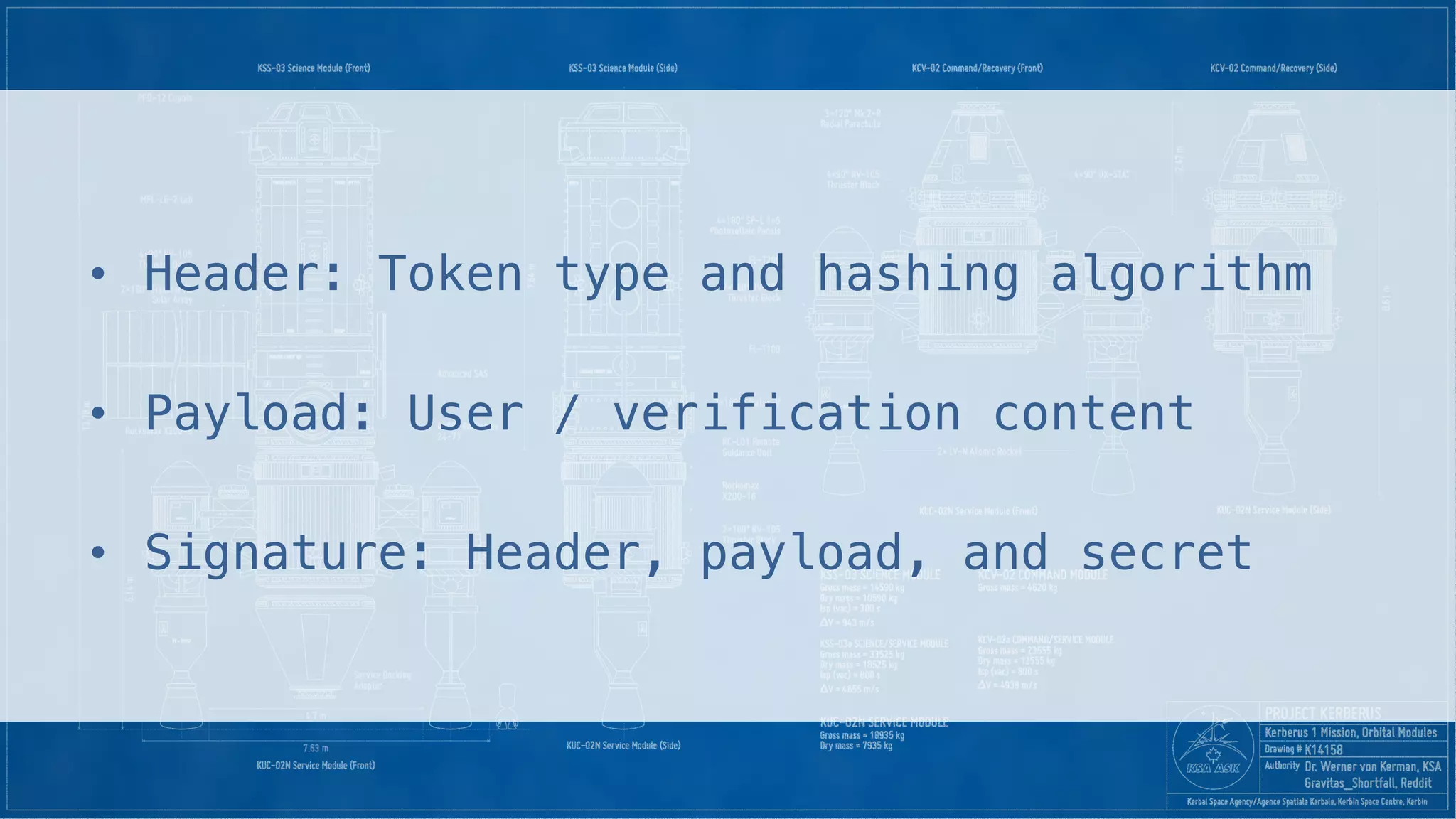

- 9. • Header: Token type and hashing algorithm! • Payload: User / verification content! • Signature: Header, payload, and secret!

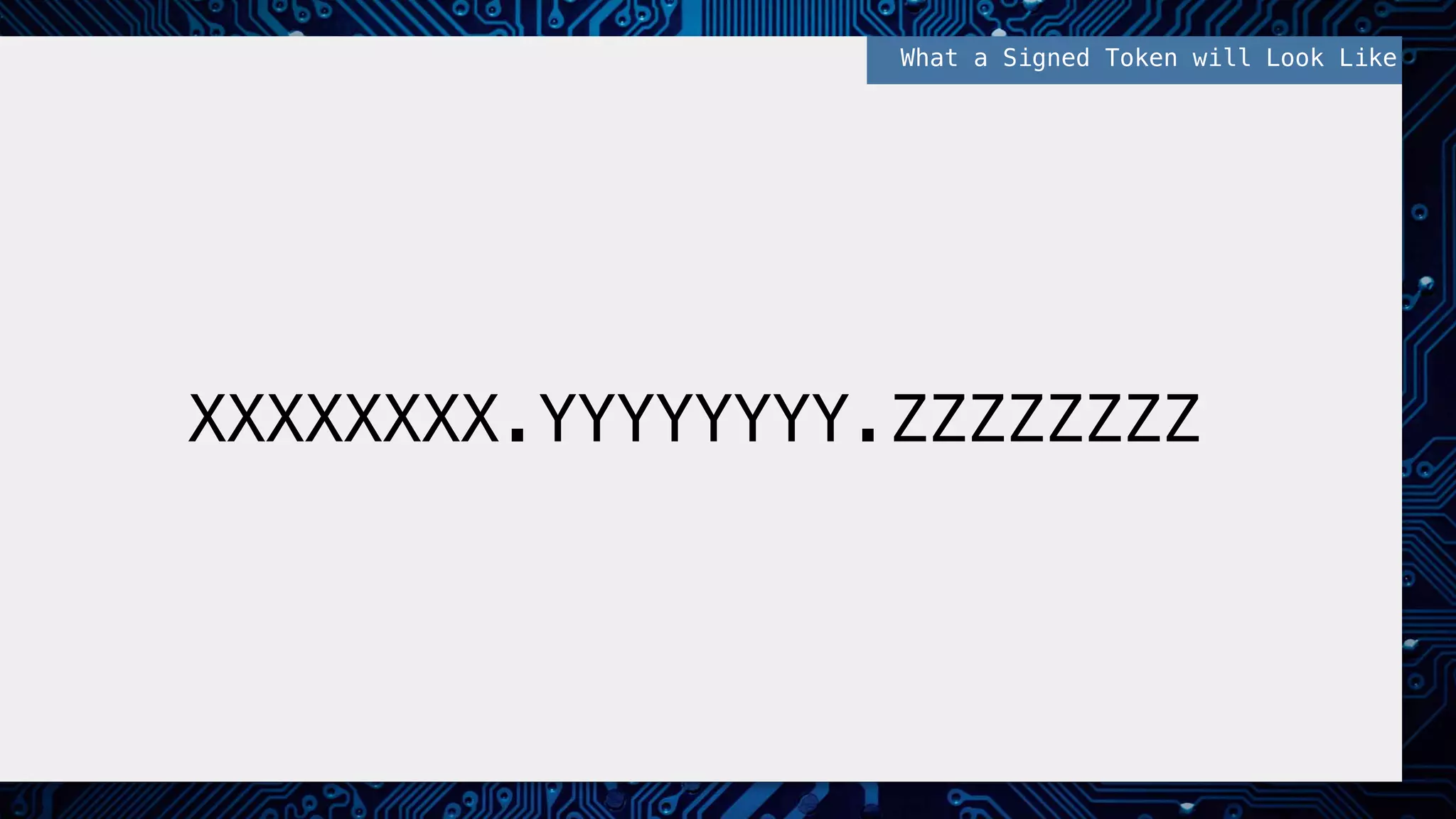

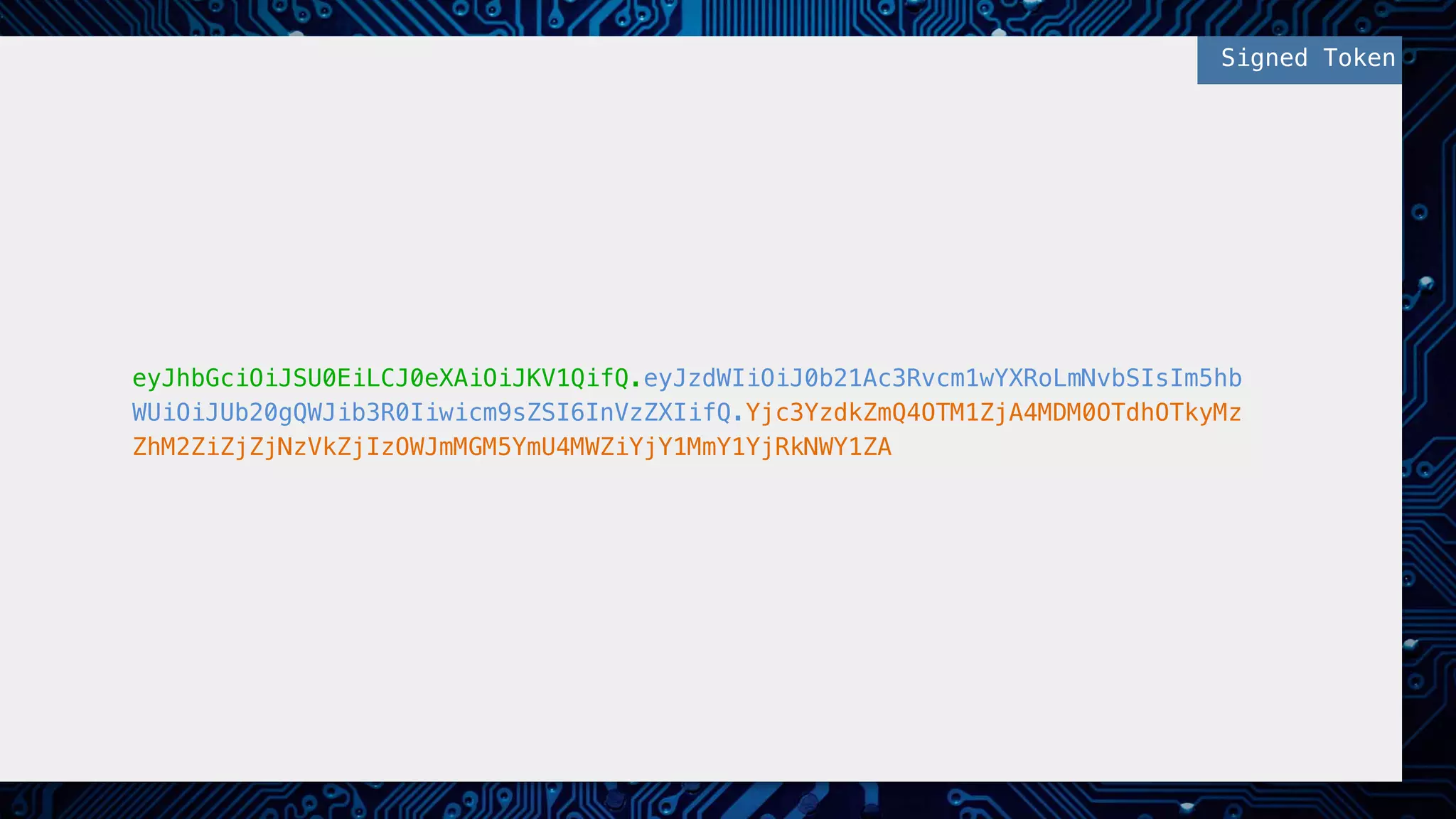

- 10. XXXXXXXX.YYYYYYYY.ZZZZZZZZ! What a Signed Token will Look Like!

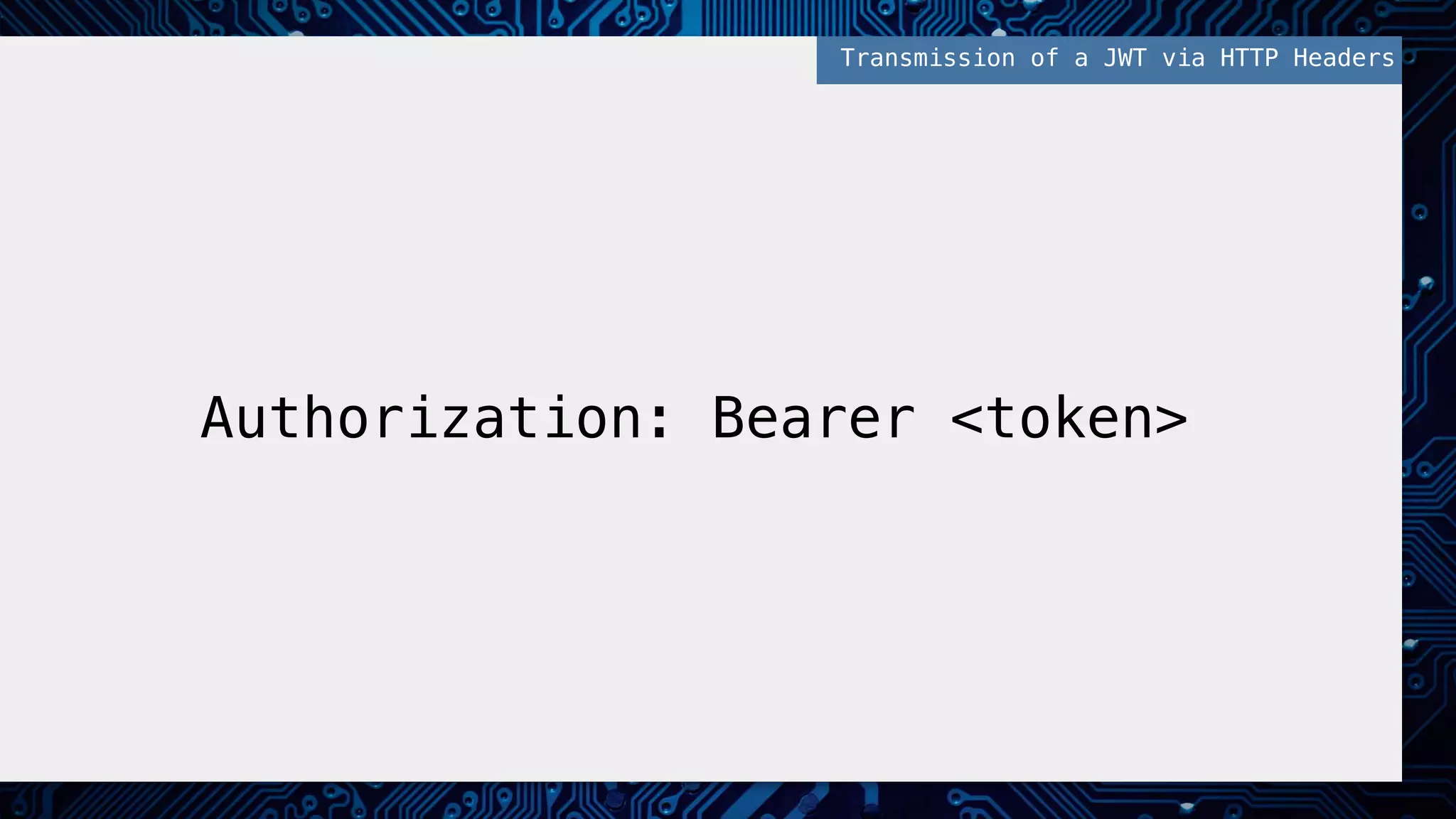

- 11. Authorization: Bearer <token>! Transmission of a JWT via HTTP Headers!

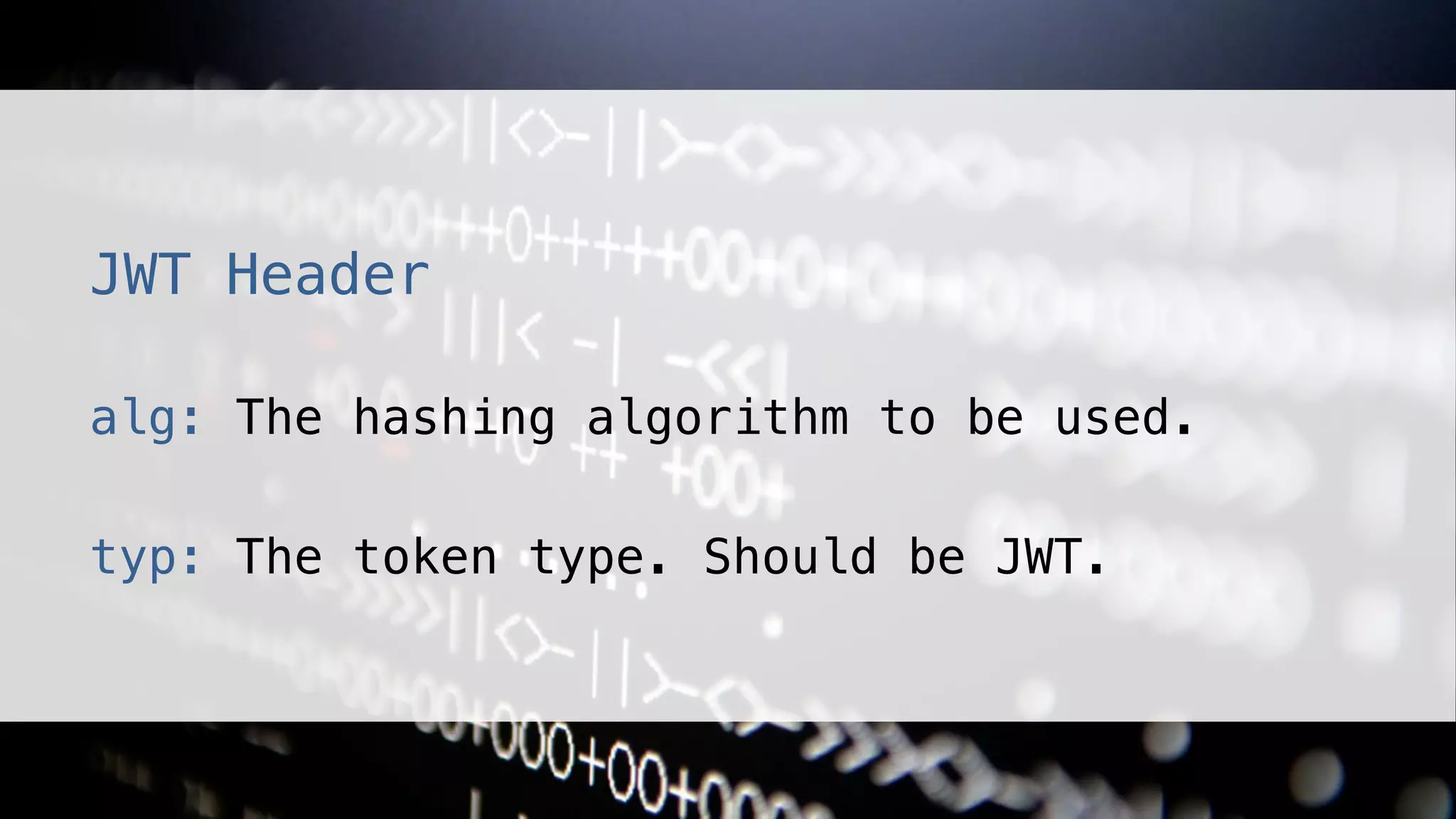

- 12. JWT Header! ! alg: The hashing algorithm to be used.! ! typ: The token type. Should be JWT.!

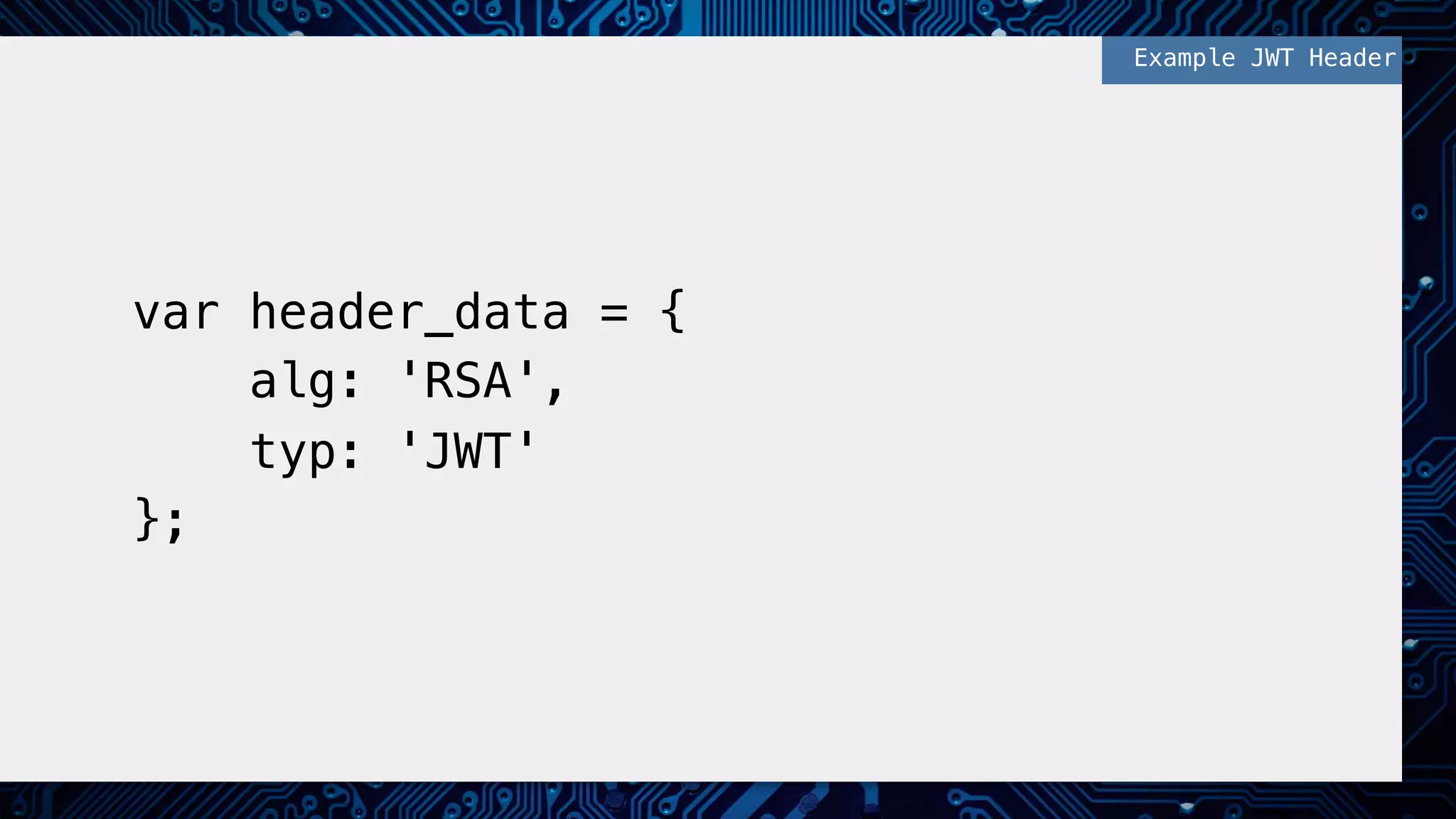

- 13. var header_data = {! alg: 'RSA', ! typ: 'JWT' ! };! Example JWT Header!

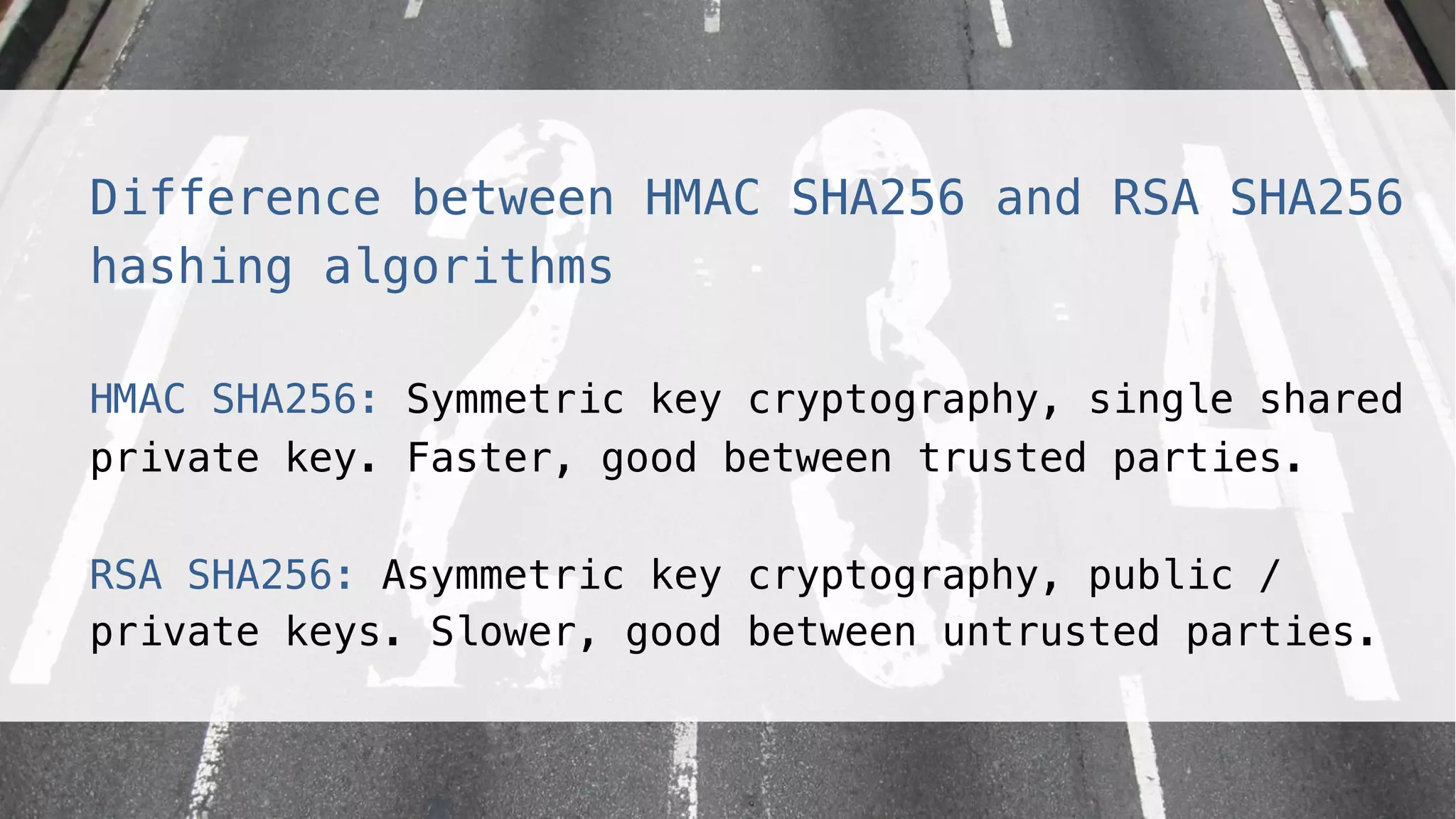

- 14. Difference between HMAC SHA256 and RSA SHA256 hashing algorithms! ! HMAC SHA256: Symmetric key cryptography, single shared private key. Faster, good between trusted parties.! ! RSA SHA256: Asymmetric key cryptography, public / private keys. Slower, good between untrusted parties.!

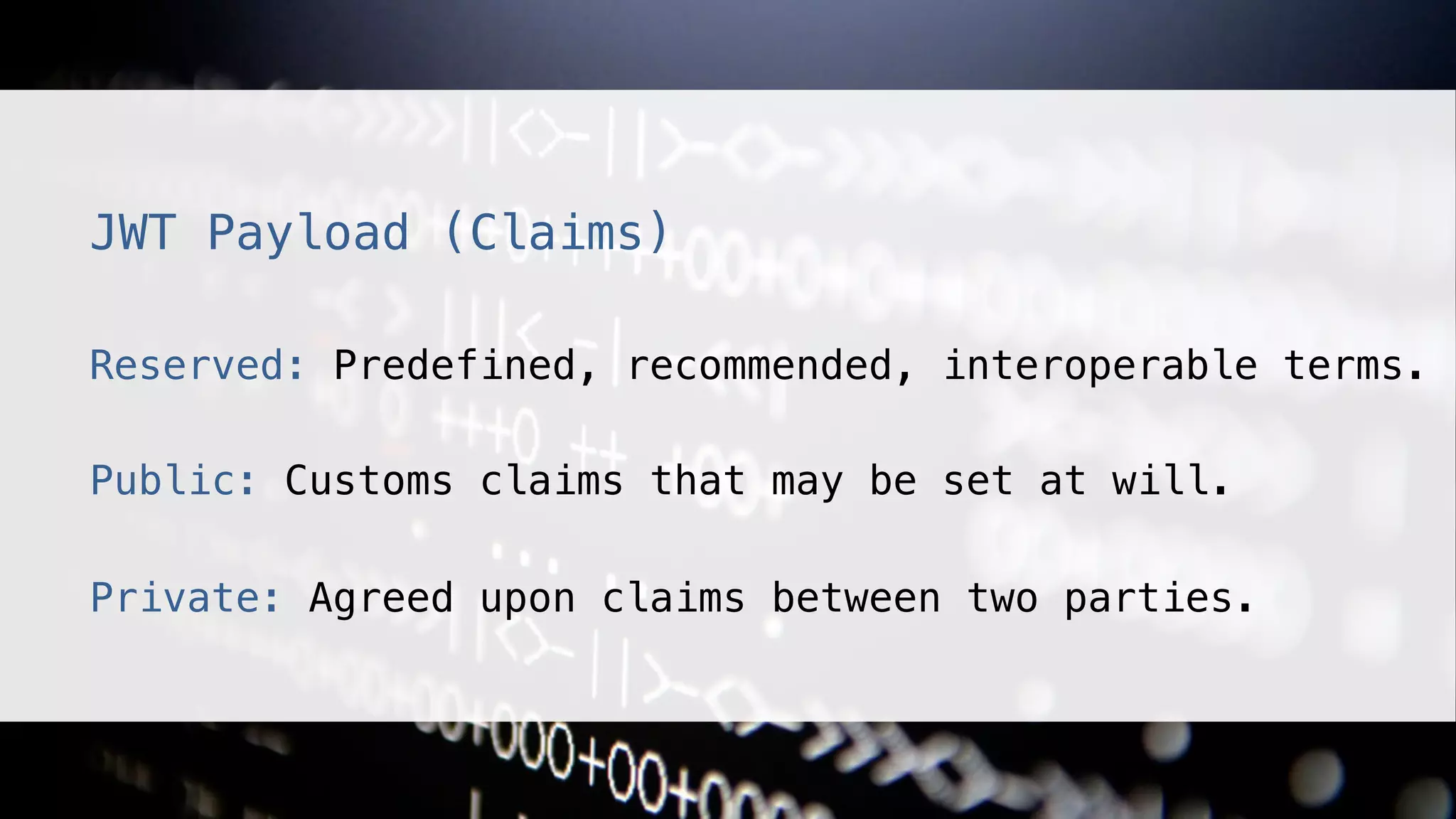

- 15. JWT Payload (Claims)! ! Reserved: Predefined, recommended, interoperable terms. ! ! Public: Customs claims that may be set at will.! ! Private: Agreed upon claims between two parties.!

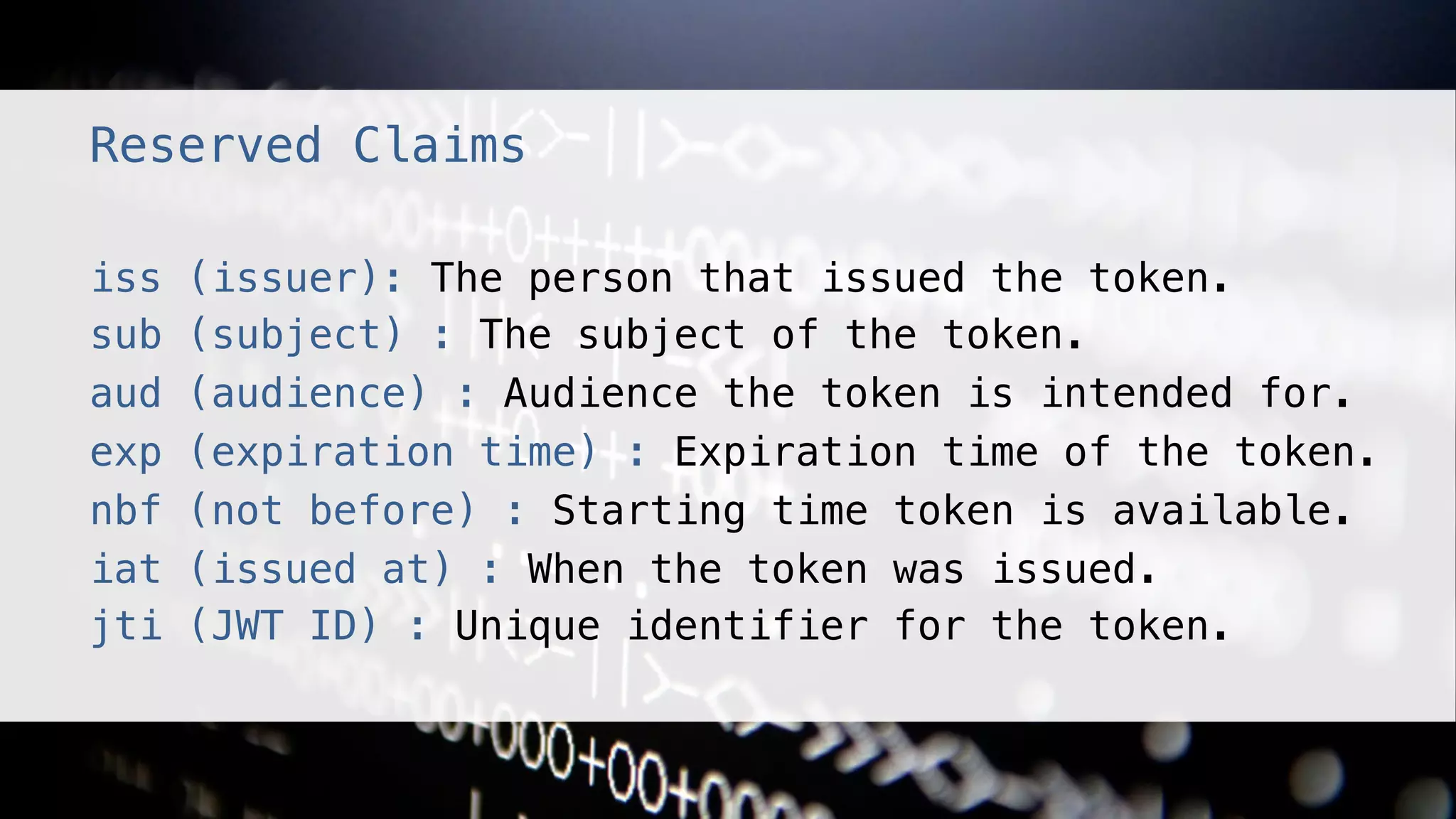

- 16. Reserved Claims! ! iss (issuer): The person that issued the token.! sub (subject) : The subject of the token.! aud (audience) : Audience the token is intended for.! exp (expiration time) : Expiration time of the token.! nbf (not before) : Starting time token is available.! iat (issued at) : When the token was issued.! jti (JWT ID) : Unique identifier for the token. ! !

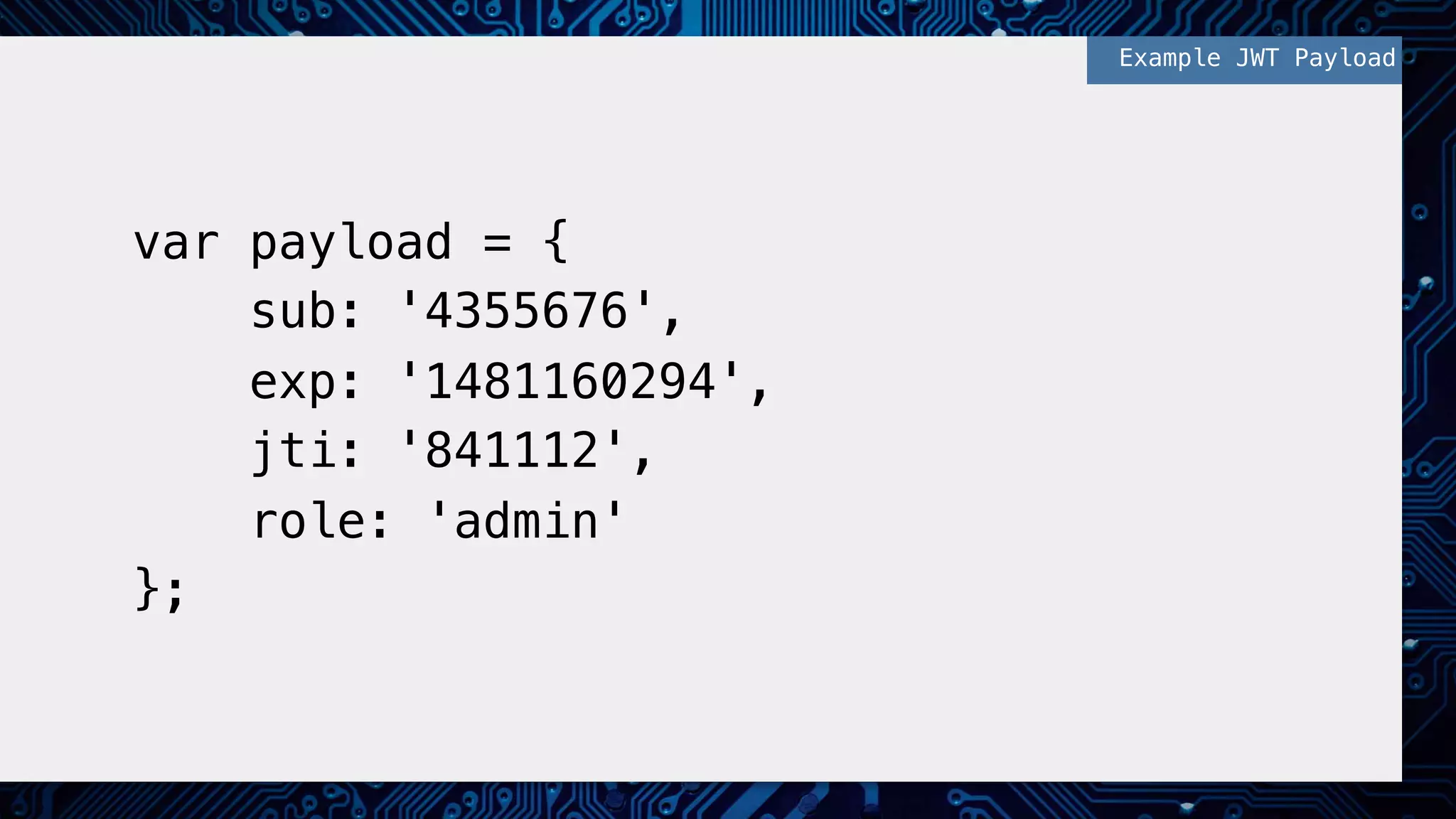

- 17. var payload = {! sub: '4355676',! exp: '1481160294',! jti: '841112',! role: 'admin'! };! Example JWT Payload!

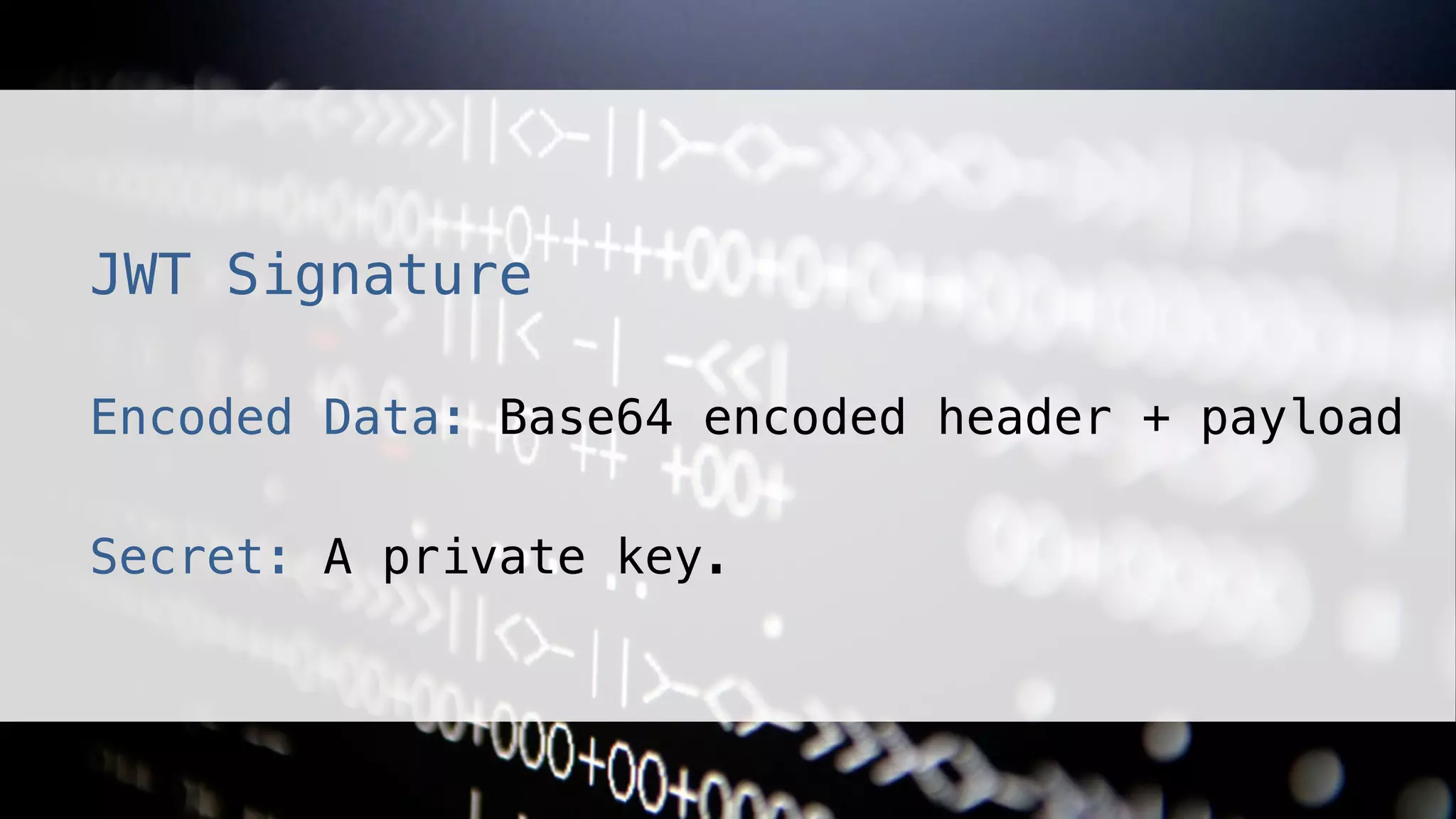

- 18. JWT Signature! ! Encoded Data: Base64 encoded header + payload! ! Secret: A private key.!

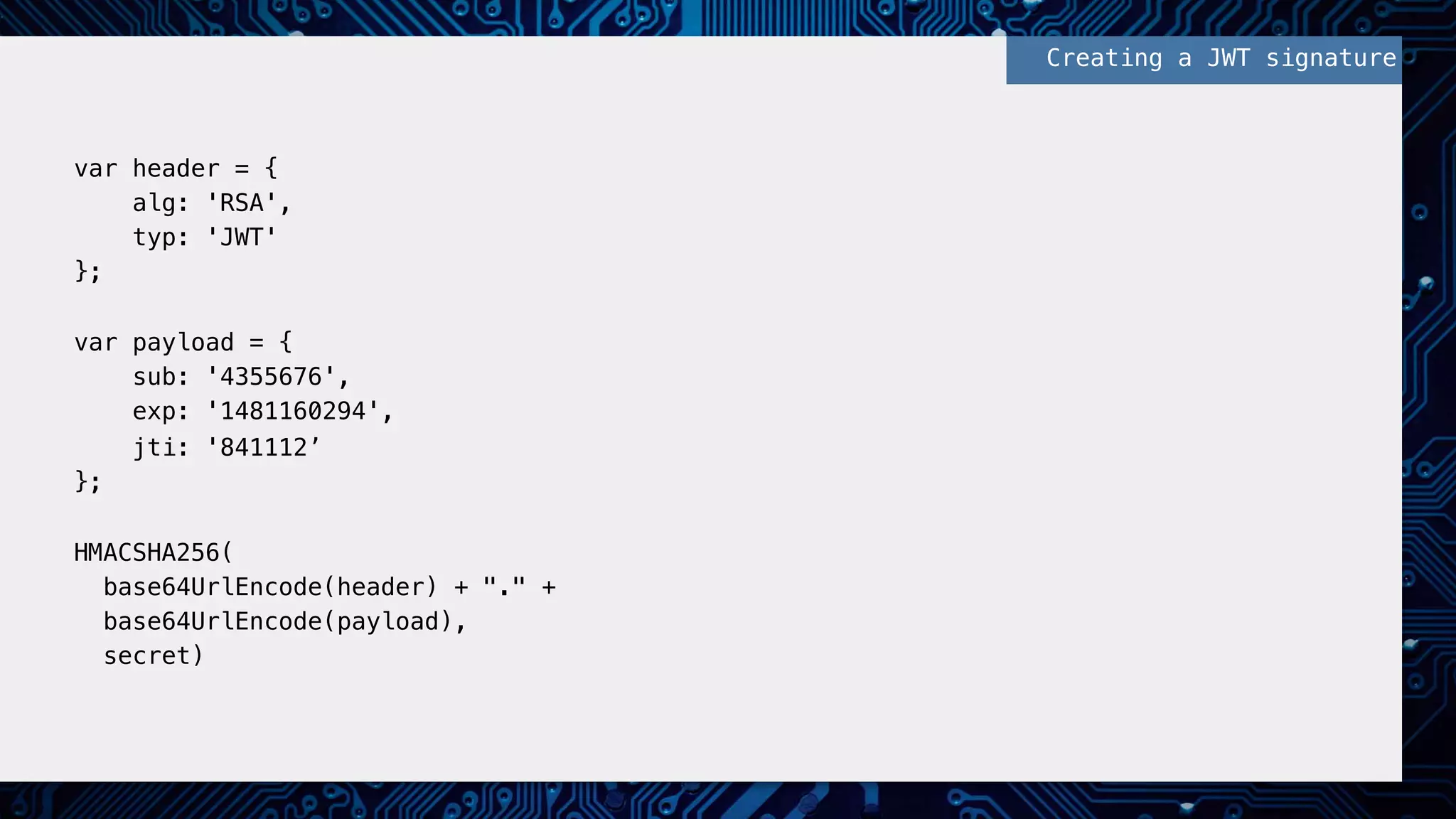

- 19. var header = {! alg: 'RSA', ! typ: 'JWT' ! };! ! var payload = {! sub: '4355676',! exp: '1481160294',! jti: '841112’! };! ! HMACSHA256(! base64UrlEncode(header) + "." +! base64UrlEncode(payload),! secret)! Creating a JWT signature!

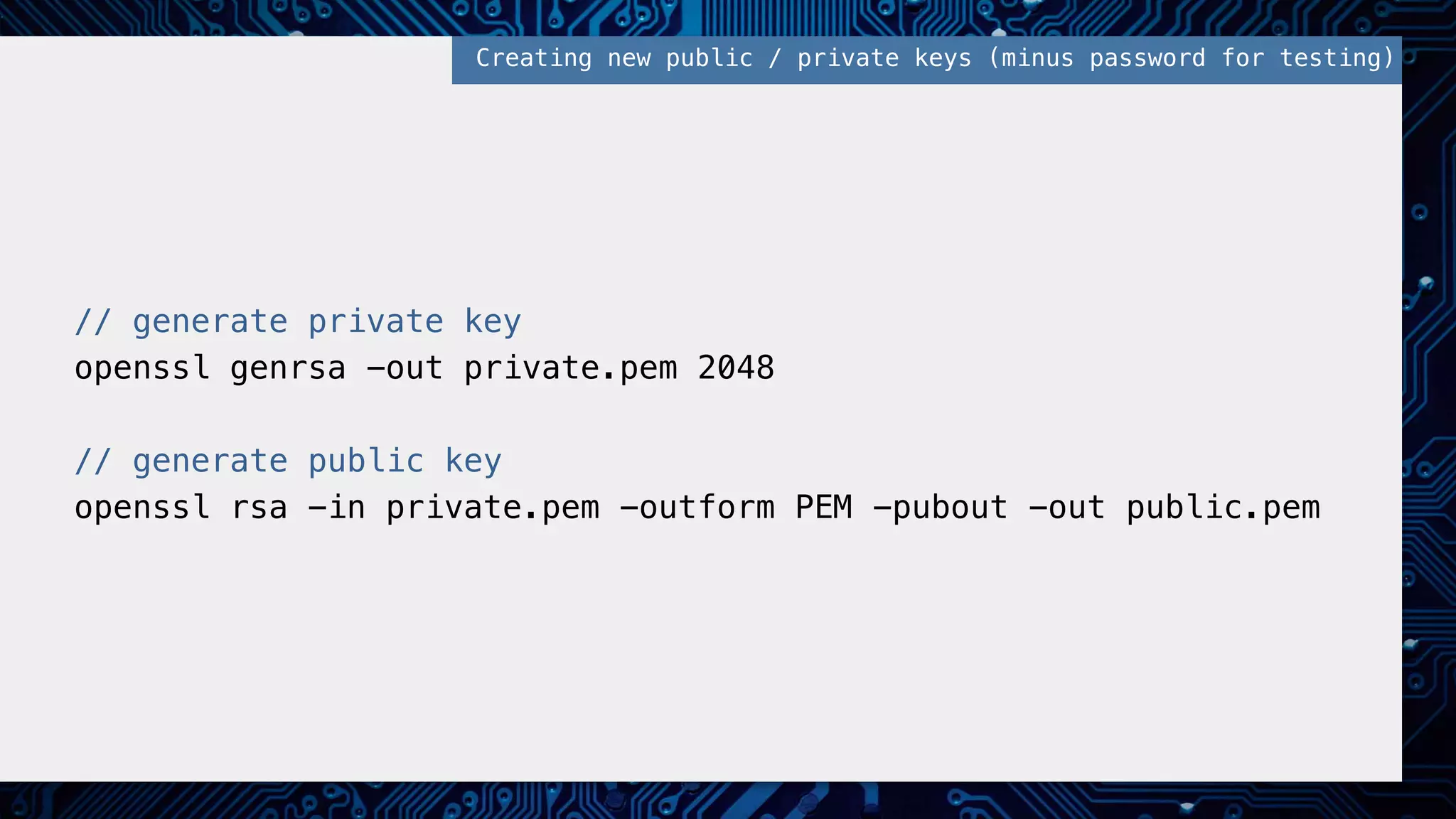

- 20. // generate private key! openssl genrsa -out private.pem 2048! ! // generate public key! openssl rsa -in private.pem -outform PEM -pubout -out public.pem! Creating new public / private keys (minus password for testing)!

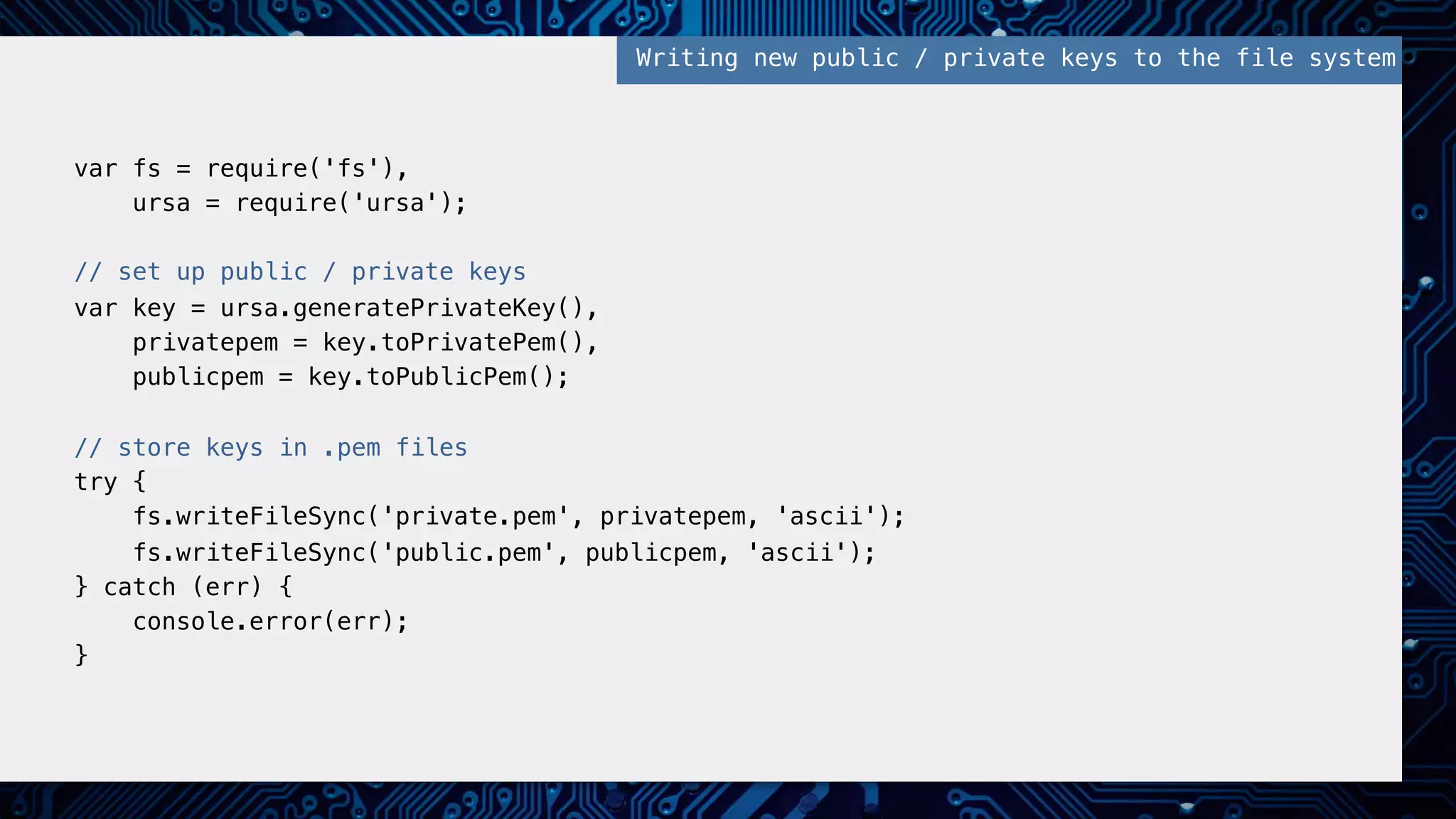

- 21. var fs = require('fs'), ! ursa = require('ursa');! ! // set up public / private keys! var key = ursa.generatePrivateKey(), ! privatepem = key.toPrivatePem(),! publicpem = key.toPublicPem();! ! // store keys in .pem files ! try {! fs.writeFileSync('private.pem', privatepem, 'ascii');! fs.writeFileSync('public.pem', publicpem, 'ascii');! } catch (err) {! console.error(err);! }! Writing new public / private keys to the file system!

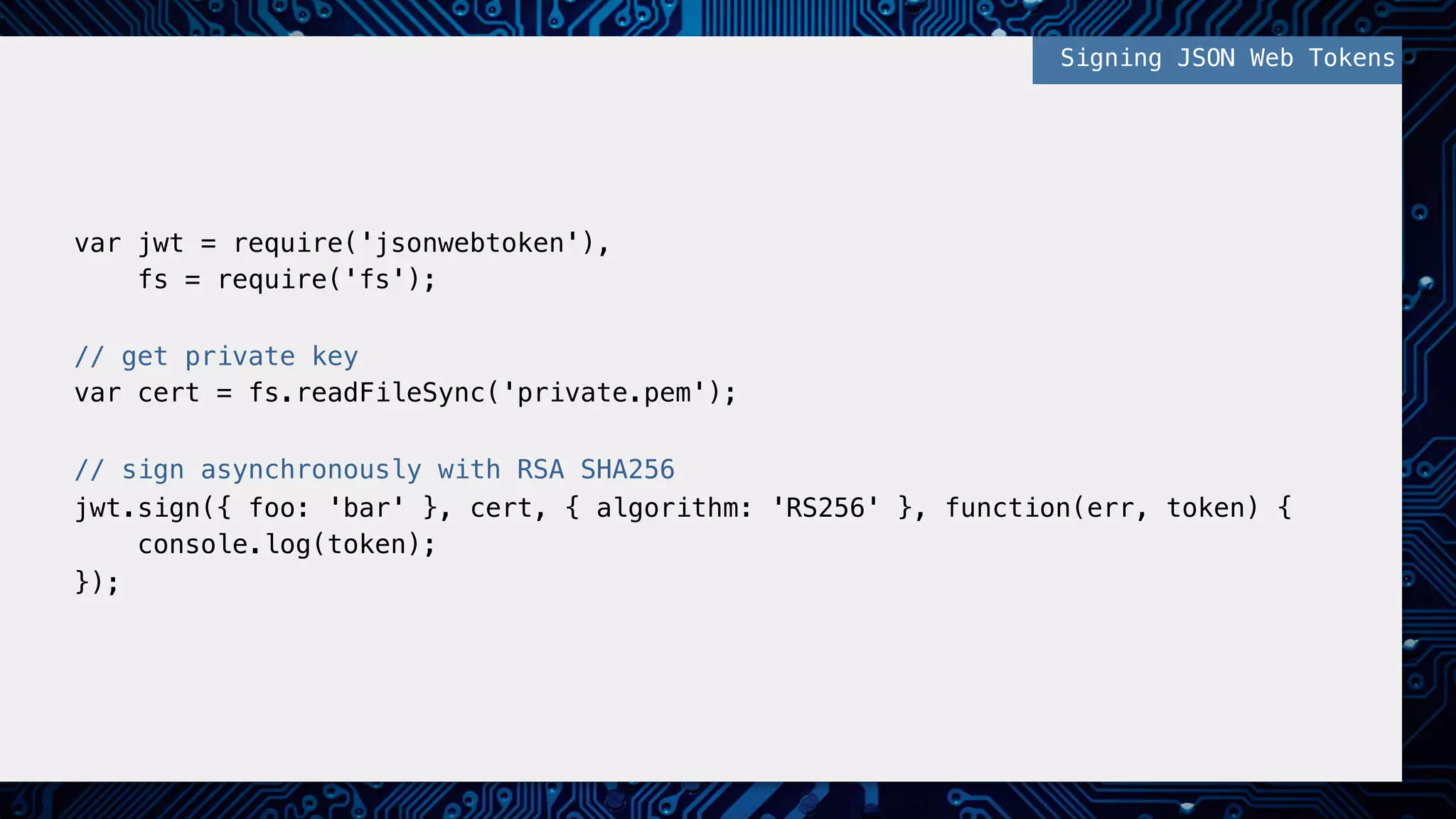

- 22. var jwt = require('jsonwebtoken'),! fs = require('fs');! ! // get private key! var cert = fs.readFileSync('private.pem');! ! // sign asynchronously with RSA SHA256 ! jwt.sign({ foo: 'bar' }, cert, { algorithm: 'RS256' }, function(err, token) {! console.log(token);! });! Signing JSON Web Tokens !

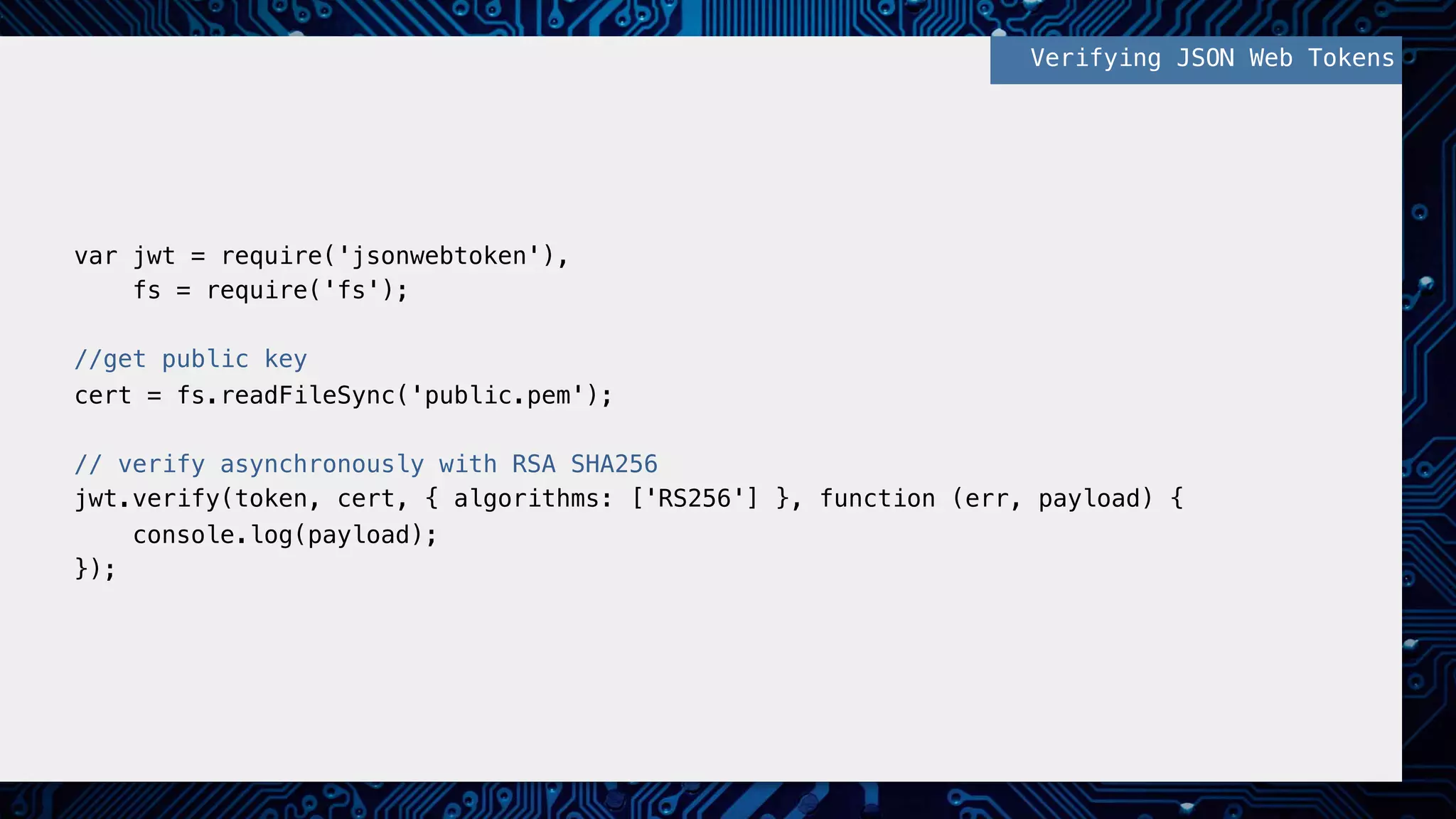

- 24. var jwt = require('jsonwebtoken'),! fs = require('fs');! ! //get public key ! cert = fs.readFileSync('public.pem'); ! ! // verify asynchronously with RSA SHA256! jwt.verify(token, cert, { algorithms: ['RS256'] }, function (err, payload) {! console.log(payload);! });! Verifying JSON Web Tokens!
- 25. Securing JWTs!
- 26. Securing JWTs! ! • Verify signature before trusting data in the JWT.! • Secure the secret key used for signing. Keys should only be accessible by the issuer and consumer.! • Do not add sensitive data to the JWT. They are signed to protect against manipulation, not encrypted.!

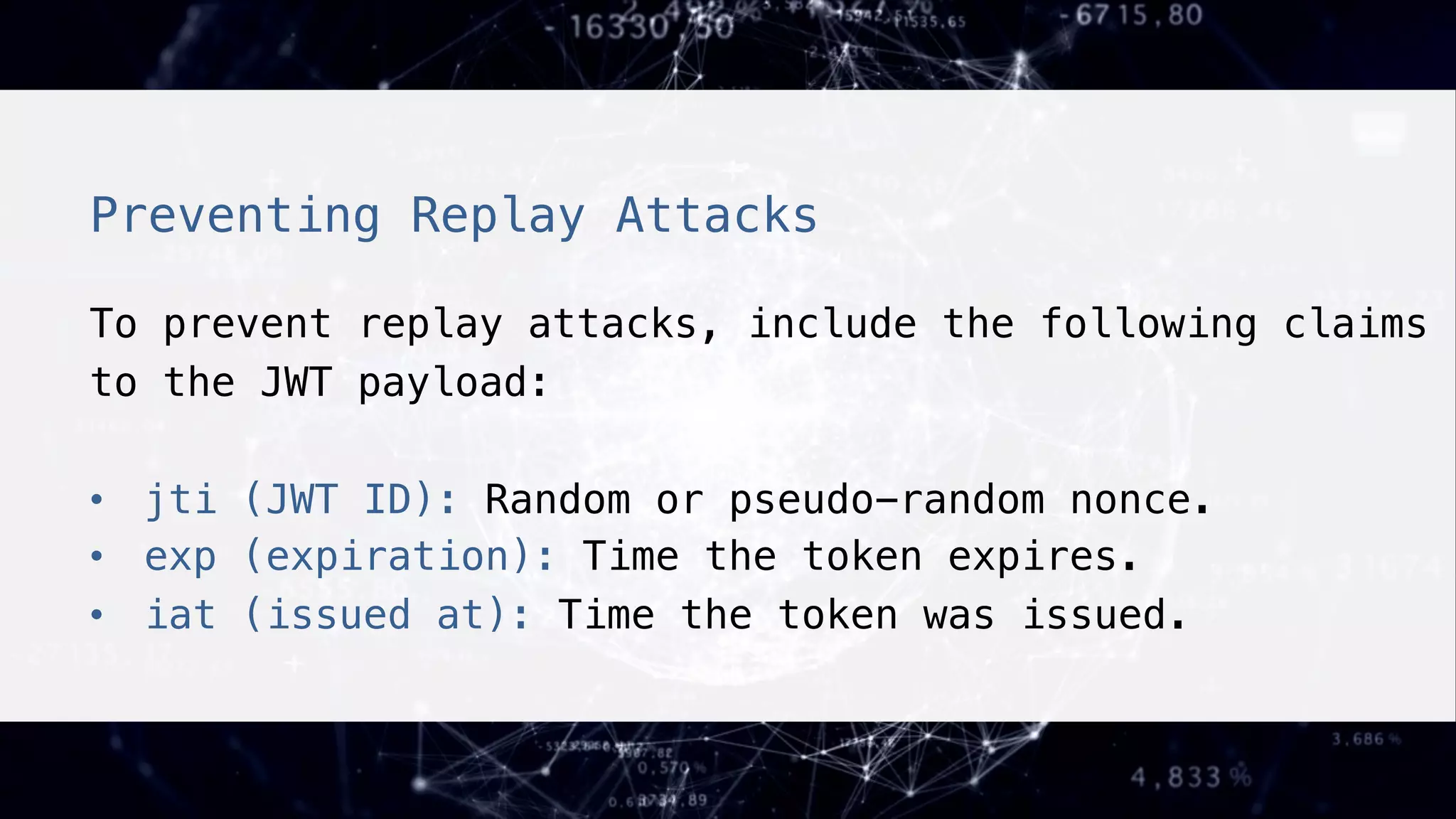

- 27. Preventing Replay Attacks! ! To prevent replay attacks, include the following claims to the JWT payload:! ! • jti (JWT ID): Random or pseudo-random nonce.! • exp (expiration): Time the token expires.! • iat (issued at): Time the token was issued. !
- 28. JSON Web Encryption (JWE) Specification! ! https://tools.ietf.org/html/rfc7516 !
- 29. Mixing JWTs with OAuth 2!

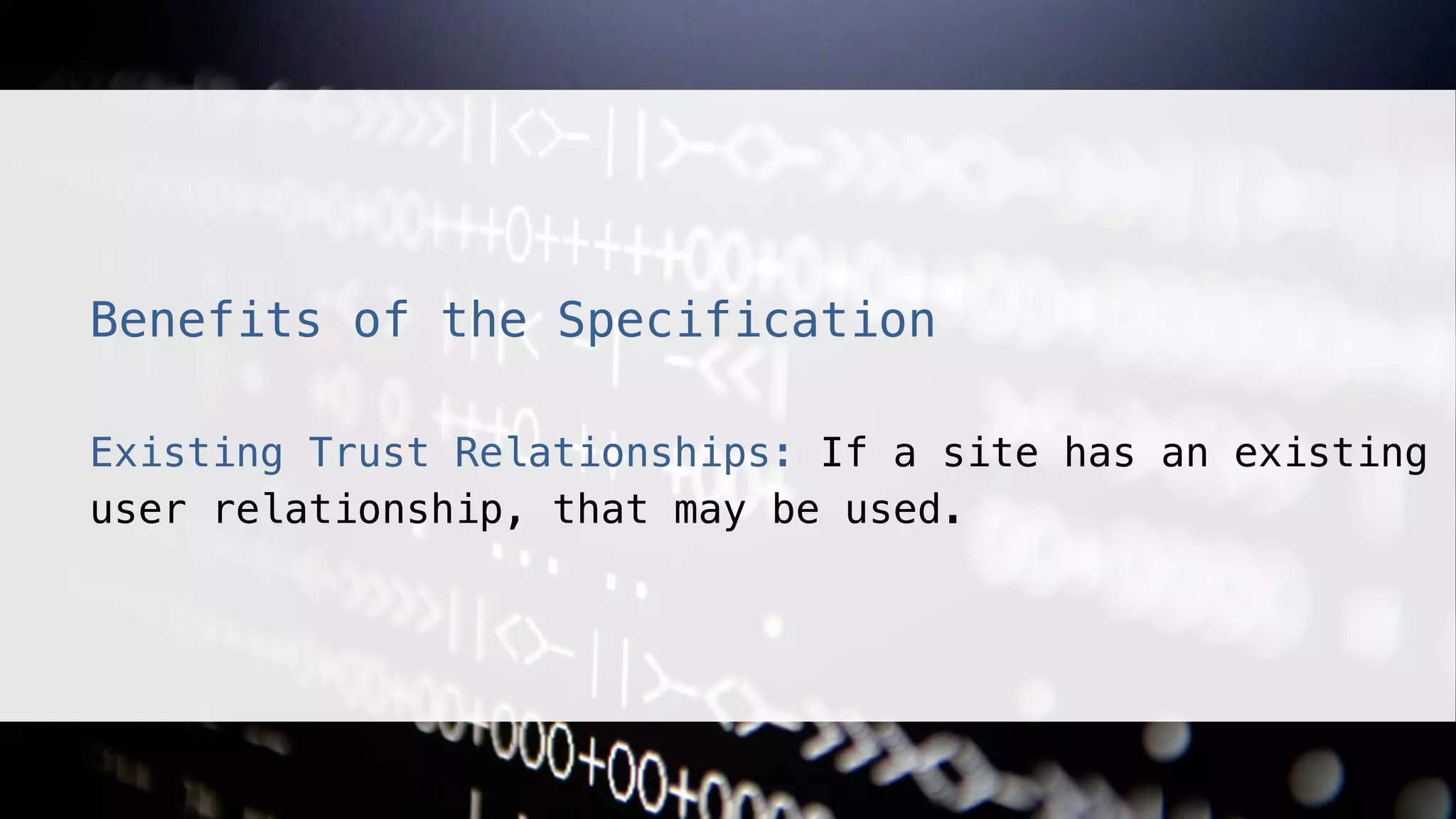

- 30. Benefits of the Specification! ! Existing Trust Relationships: If a site has an existing user relationship, that may be used.!
- 31. A Bit of History! ! OAuth, OpenID, authorization and authentication!
- 32. JSON Web Token (JWT) Profile for OAuth 2.0 Client Authentication and Authorization Grants! ! https://tools.ietf.org/pdf/rfc7523.pdf!

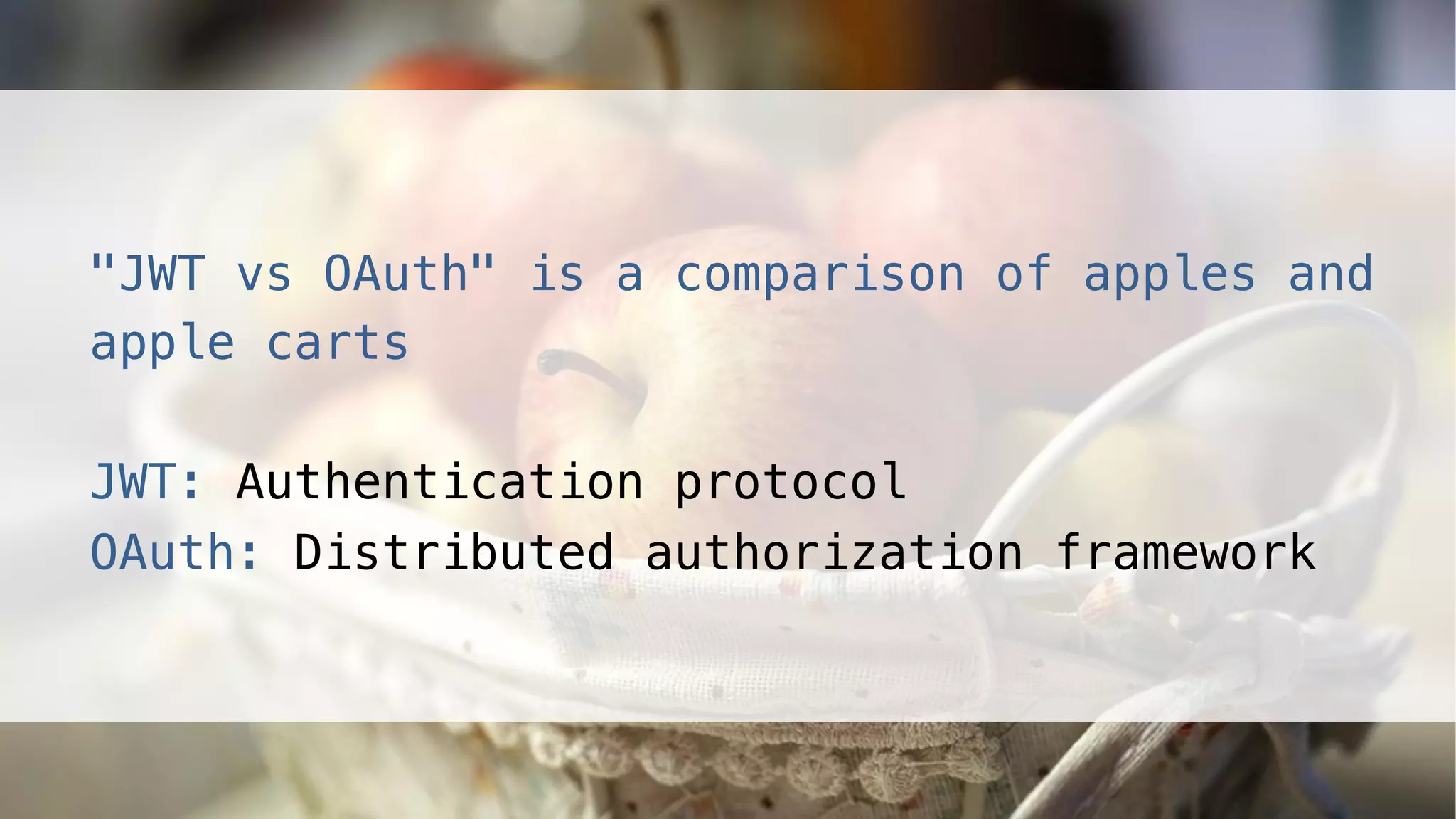

- 33. "JWT vs OAuth" is a comparison of apples and apple carts! ! JWT: Authentication protocol! OAuth: Distributed authorization framework !

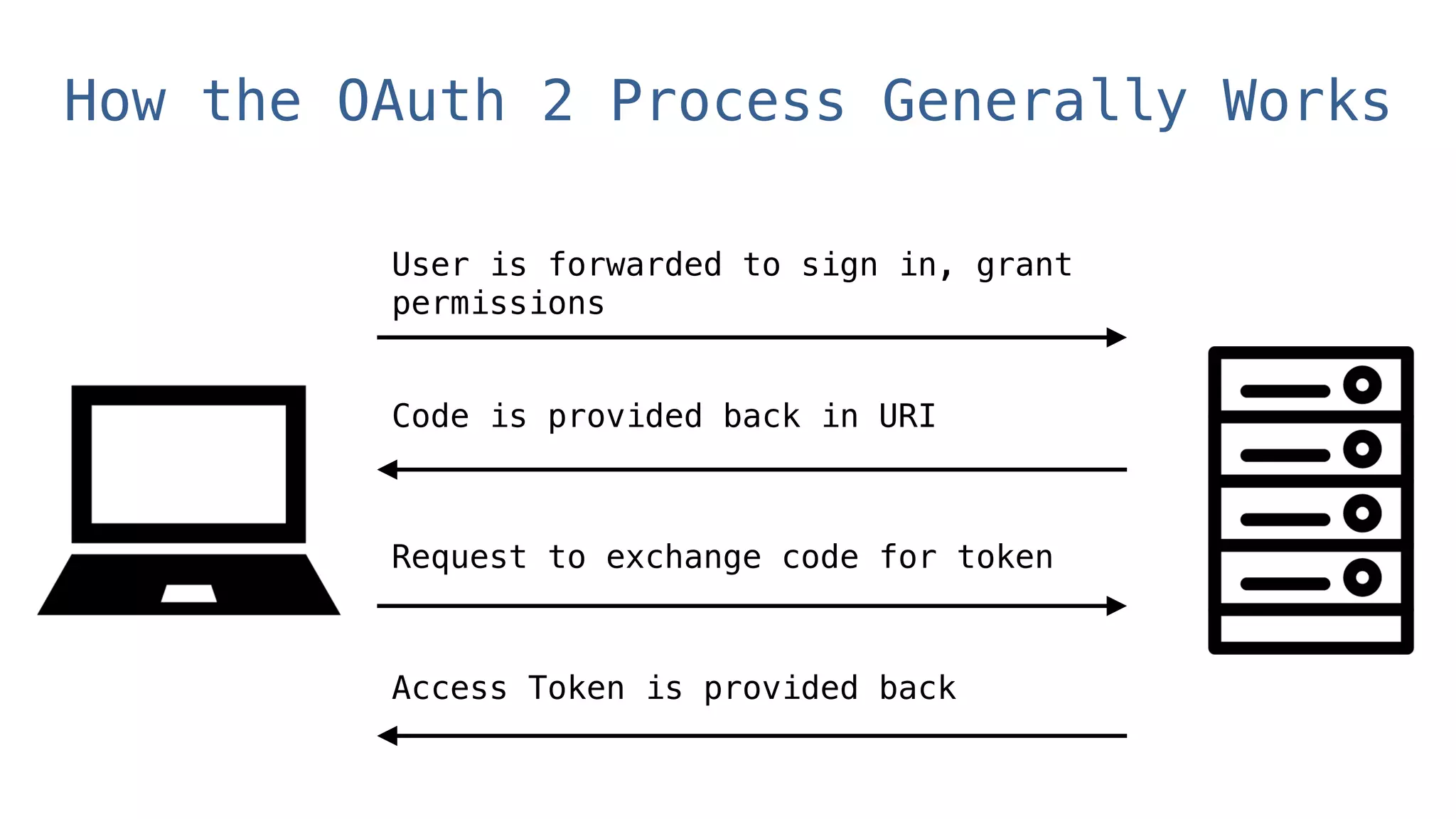

- 34. User is forwarded to sign in, grant permissions Code is provided back in URI Request to exchange code for token How the OAuth 2 Process Generally Works Access Token is provided back

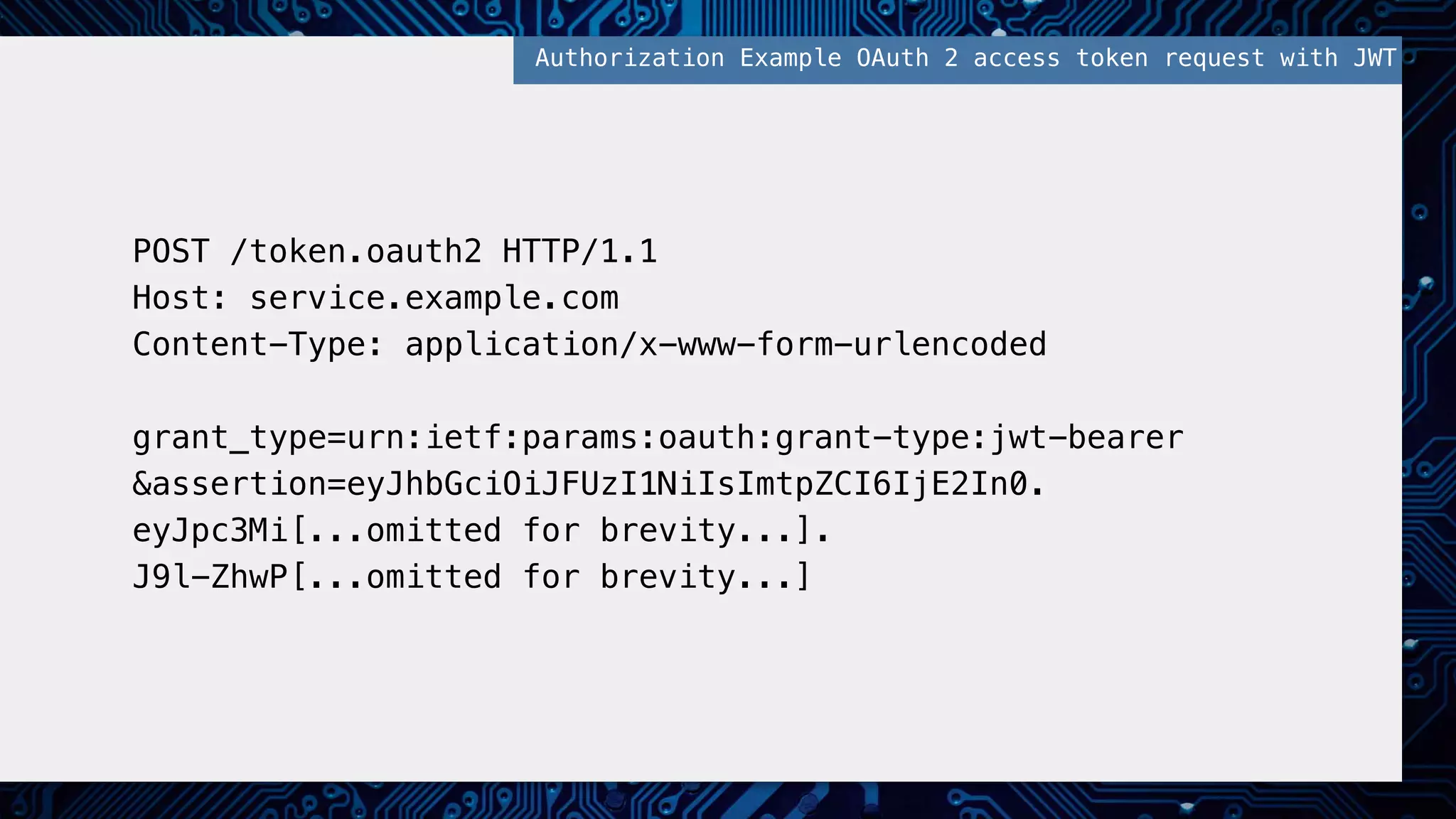

- 35. POST /token.oauth2 HTTP/1.1! Host: service.example.com! Content-Type: application/x-www-form-urlencoded! ! grant_type=urn:ietf:params:oauth:grant-type:jwt-bearer! &assertion=eyJhbGciOiJFUzI1NiIsImtpZCI6IjE2In0.! eyJpc3Mi[...omitted for brevity...].! J9l-ZhwP[...omitted for brevity...]! Authorization Example OAuth 2 access token request with JWT!

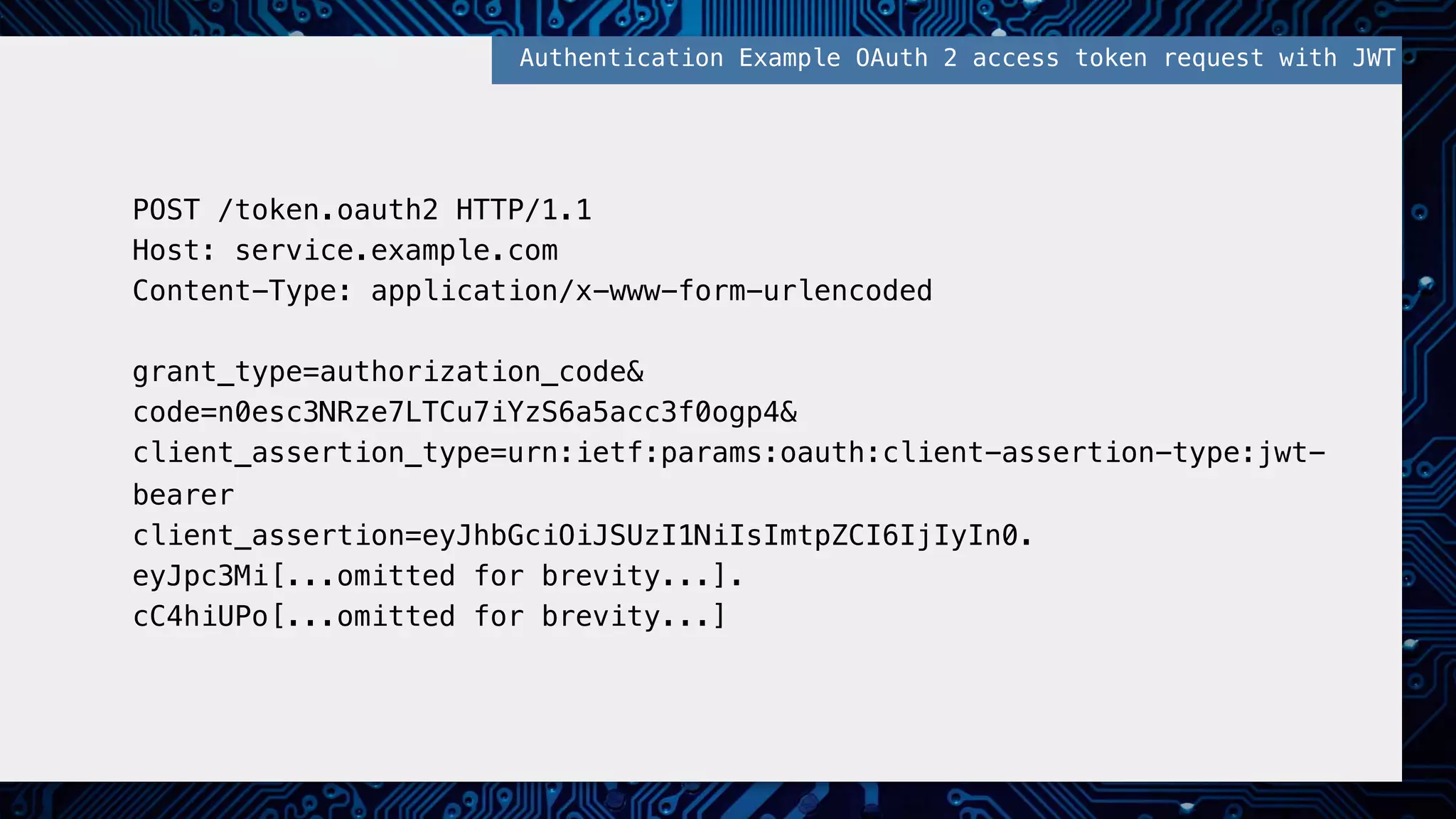

- 36. POST /token.oauth2 HTTP/1.1! Host: service.example.com! Content-Type: application/x-www-form-urlencoded! ! grant_type=authorization_code&! code=n0esc3NRze7LTCu7iYzS6a5acc3f0ogp4&! client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt- bearer! client_assertion=eyJhbGciOiJSUzI1NiIsImtpZCI6IjIyIn0.! eyJpc3Mi[...omitted for brevity...].! cC4hiUPo[...omitted for brevity...]! Authentication Example OAuth 2 access token request with JWT!

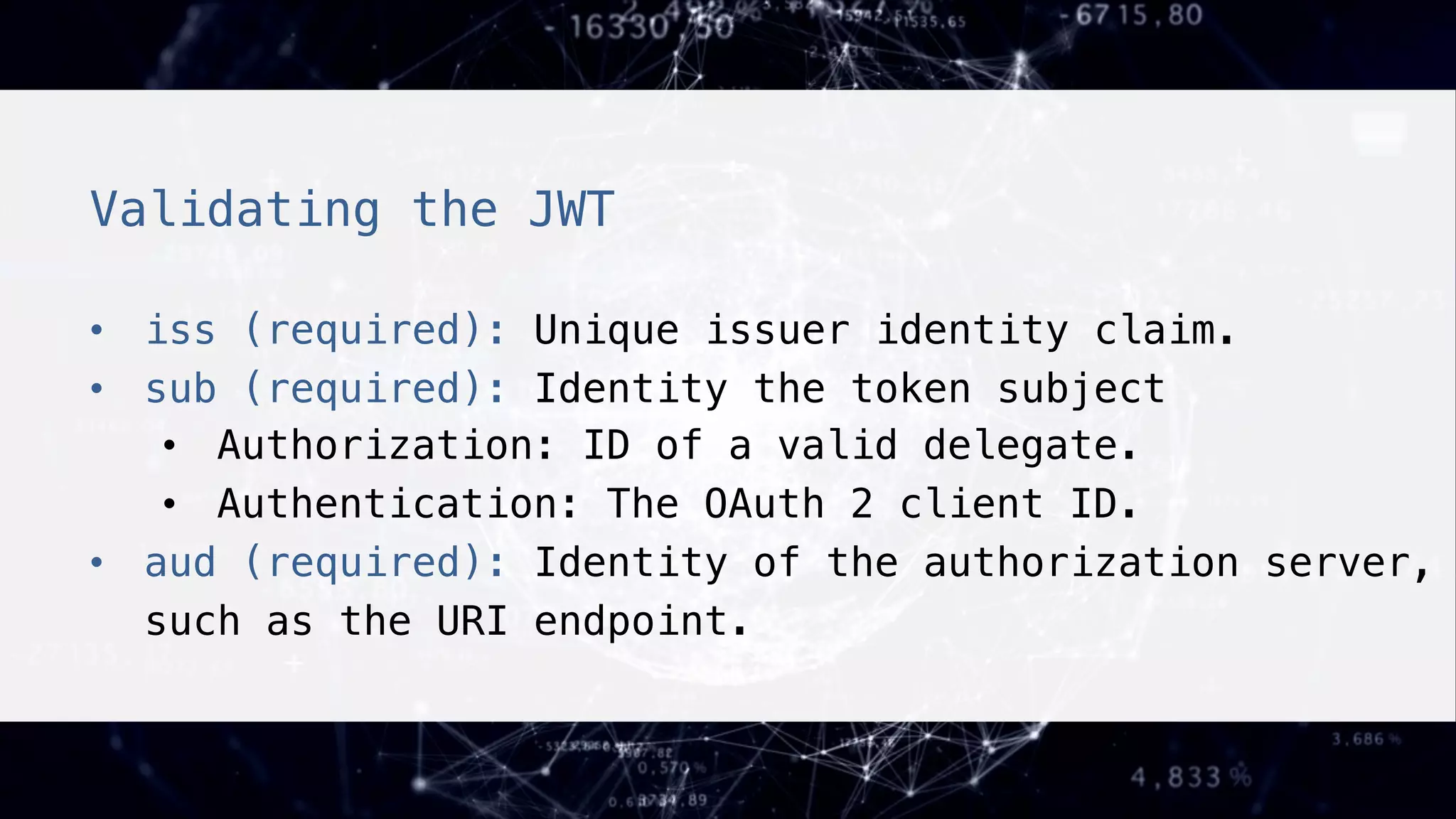

- 37. Validating the JWT! ! • iss (required): Unique issuer identity claim.! • sub (required): Identity the token subject! • Authorization: ID of a valid delegate. ! • Authentication: The OAuth 2 client ID.! • aud (required): Identity of the authorization server, such as the URI endpoint. !

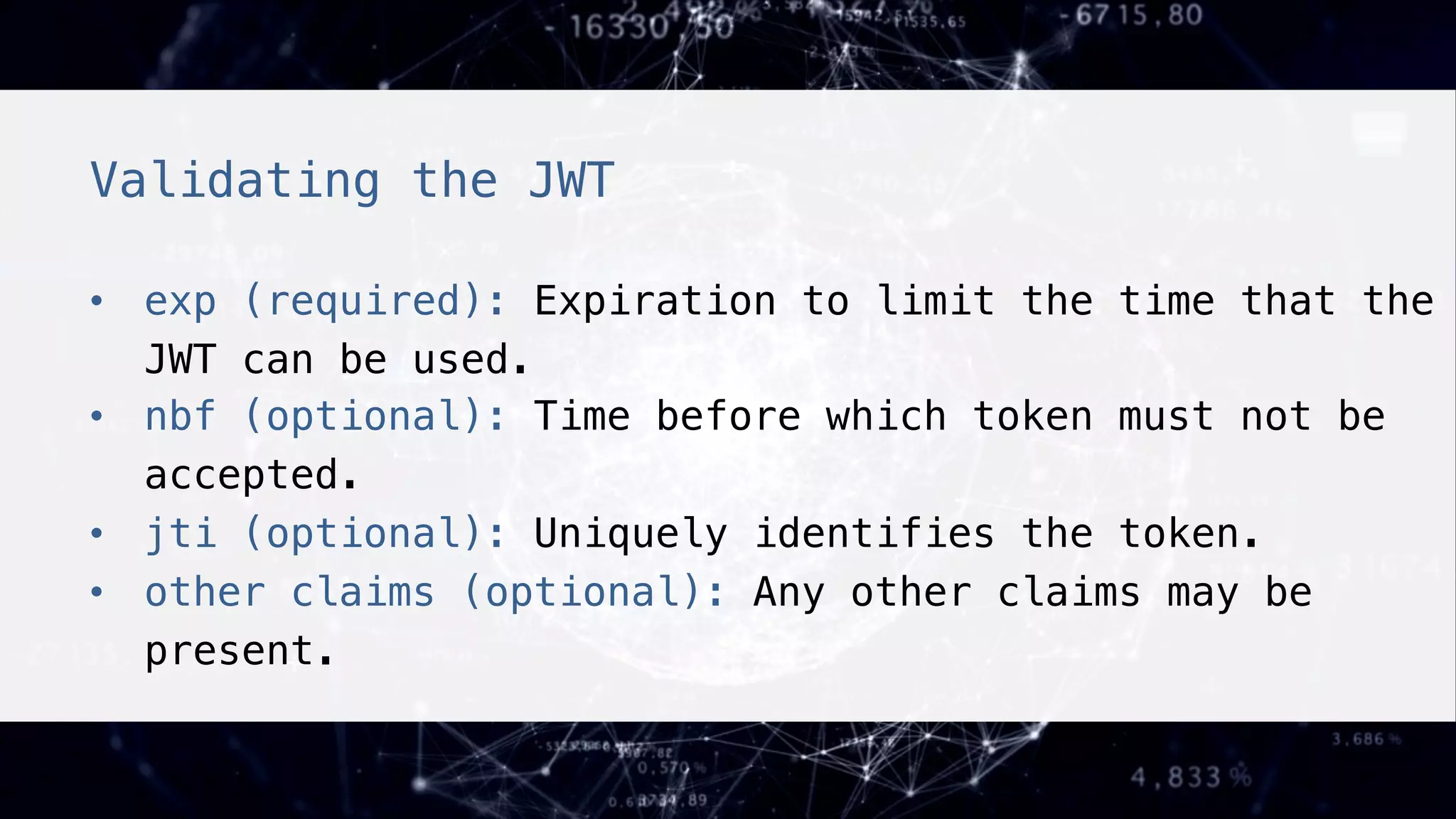

- 38. Validating the JWT! ! • exp (required): Expiration to limit the time that the JWT can be used.! • nbf (optional): Time before which token must not be accepted.! • jti (optional): Uniquely identifies the token.! • other claims (optional): Any other claims may be present.!

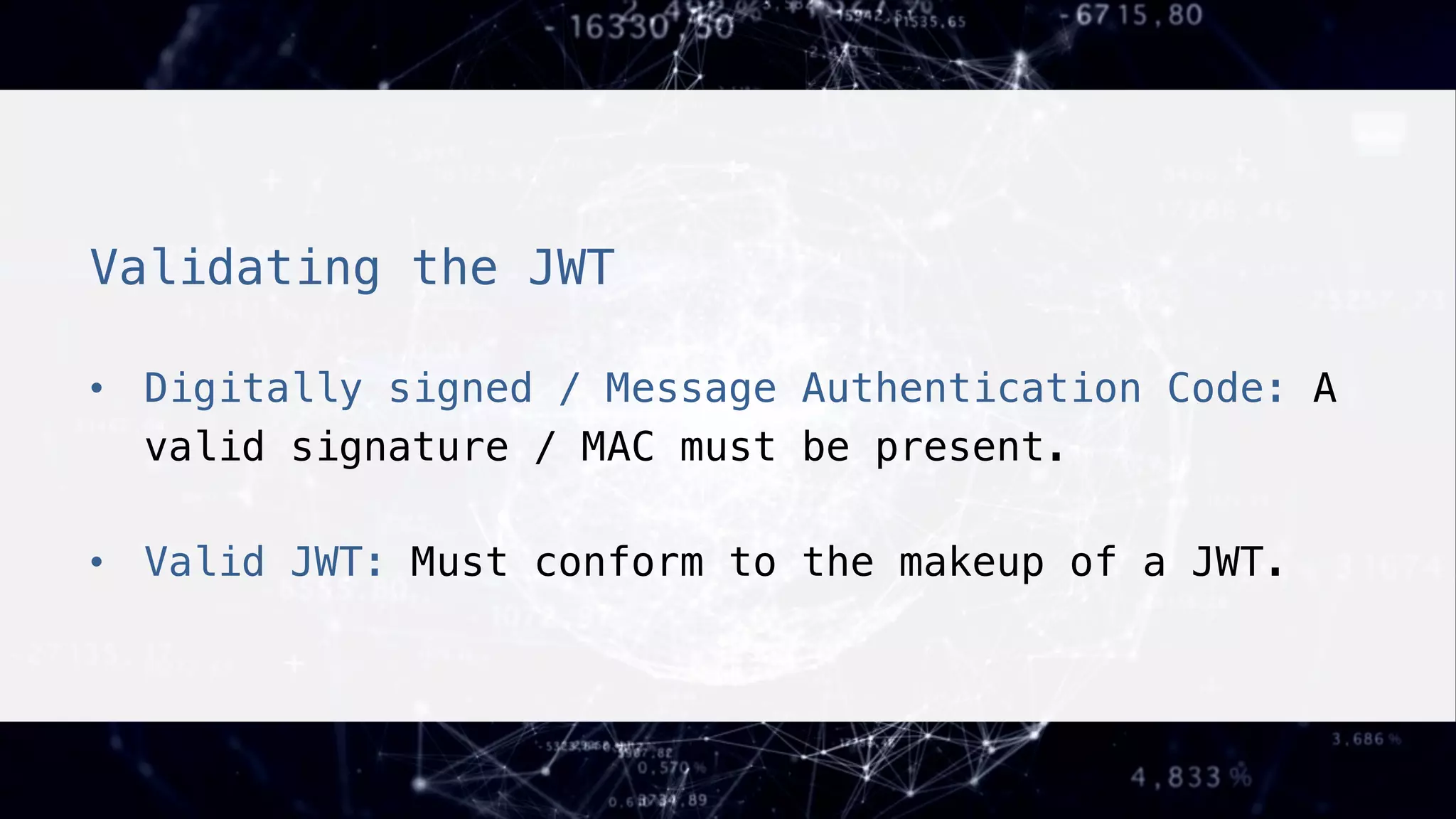

- 39. Validating the JWT! ! • Digitally signed / Message Authentication Code: A valid signature / MAC must be present.! • Valid JWT: Must conform to the makeup of a JWT.!

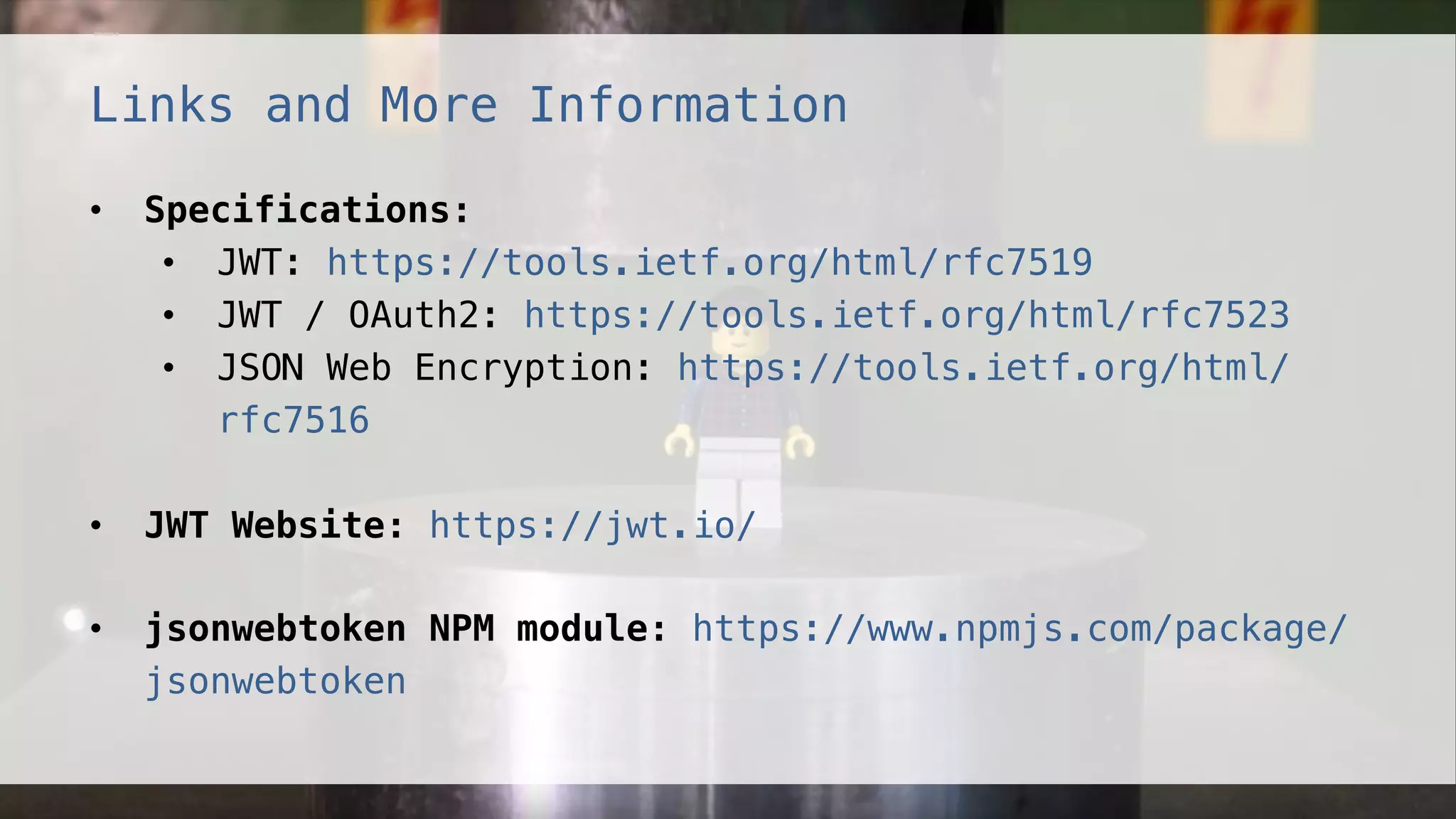

- 40. Links and More Information! • Specifications: ! • JWT: https://tools.ietf.org/html/rfc7519! • JWT / OAuth2: https://tools.ietf.org/html/rfc7523! • JSON Web Encryption: https://tools.ietf.org/html/ rfc7516! • JWT Website: https://jwt.io/! • jsonwebtoken NPM module: https://www.npmjs.com/package/ jsonwebtoken!
- 41. Thank You!! Slides: slideshare.net/jcleblanc! Jonathan LeBlanc ! Twitter: @jcleblanc ! Book: http://bit.ly/iddatasecurity!
