Uncertainty Quantification with Unsupervised Deep learning and Multi Agent System
The document discusses the use of Bayesian autoencoders for uncertainty quantification in machine learning models applied to industrial sensor data, highlighting challenges such as limited data availability and the need for explainable AI. It outlines a multi-agent system to manage complex models and time-series simulations, and presents ongoing research on improving predictive accuracy and understanding model predictions. Key developments include hierarchical and coalitional Bayesian autoencoders that address data scarcity while providing uncertainty quantification and feature contribution explanations.
More Related Content
Similar to Uncertainty Quantification with Unsupervised Deep learning and Multi Agent System
Uncertainty Quantification with Unsupervised Deep learning and Multi Agent System
- 1. Bang Xiang Yong AlexandraBrintrup Uncertainty Quantification with Unsupervised Deep learning and Multi-agent system
- 2. Introduction 1. Trend: Machinelearning (ML) techniques are a core pillar in Industry 4.0 paradigm 2. Idea: Train a model on a set of data, and predict on unseen data 3. Difference from conventional statistical models: i. High dimensional data (Heterogeneous sensors) ii. Complex and non-linear iii. Dynamic environment (Data is rarely stationary) 4. Example: ZEMA Dataset for Prognosis i. Given sensors measurements and time of Run-to-Failure of electromechanical cylinders, fit a model and predict on new machines. ii. Example of ML pipeline: Data Stream FFT BFC Pearson Correlation Linear Discriminant Analysis Evaluation X: Sensors data Y: % Degradation Accuracy (classification) MSE (regression) Preprocessing & Model
- 3. Challenges • Q: Canwe trust and explain the ML model? • Problem 1: Lack of uncertainty intervals. Does the model know what it doesn't know? • Predictive error is not the same as uncertainty! • In practice, we want predictions to be 50% +- 3% with “dynamic” uncertainty, • e.g With a perturbed sensor, we should get 50% +- 10% ! • Problem 2: We have 11 sensors, which sensors are contributing to the model prediction? • During test, we can only observe the prediction i.e 90% health remaining. • Why is the model predicting 90%, instead of 30%? Or 60%? • Which sensors led it to the decisions? • Problem 3: Limited data availability – ideally we want to have as many run-to failure-examples to learn from! • But in practice, we have only very few.. • Testing the trained model on other assets yields unstable performance. Poor vs Well calibrated uncertainty of classification Explaining predictions via contribution of features
- 4. Contribution Development of Hierarchical& Coalitional Bayesian Autoencoders (BAE) •Unsupervised model. Addressing the lack of faulty data availability. •Bayesian deep learning. Probabilistic framework – Principled approach towards high dimensional data with uncertainty bands. •Explainable AI predictions (XAI): Individual contributions by sensor and features with uncertainty. •Multi-agent system. Complex model management and time-series simulation. Screenshot of agent- based framework applying BAE on sensor network
- 5. Addendum: In development- Metrological Agents Joint work with PTB • Metrological meta-data class • Time-series buffer (Bjoern Ludwig & Max Gruber)
- 6. Research Outputs 1. B.X. Yong, T. Pearce and A. Brintrup, "Bayesian Autoencoders: Analysing and Fixing the Bernoulli likelihood for Out-of-Distribution Detection," 2020. ICML 2020 Workshop on Uncertainty and Robustness in Deep Learning. 2. B. X. Yong, Y. Fathy and A. Brintrup, "Bayesian Autoencoders for Drift Detection in Industrial Environments," 2020 IEEE International Workshop on Metrology for Industry 4.0 & IoT, Roma, Italy. 3. Bang X. Yong, A. Brintrup. "Multi Agent System for Machine Learning Under Uncertainty in Cyber Physical Manufacturing System". 9th Workshop on Service Oriented, Holonic and Multi-agent Manufacturing Systems for Industry of the Future 1. agentMET4FOF : Agent-based framework for metrologically-enabled distributed sensor data analytics • https://github.com/bangxiangyong/agentMET4FOF 2. baetorch : Bayesian autoencoder library • https://github.com/bangxiangyong/baetorch Conference papers Software packages Work in progress 1. Journal paper on Hierarchical and Coalitional BAE for industrial sensors 2. Video tutorials and metrological agents (agentMET4FOF) with PTB
- 7. Bayesian Autoencoders asBayesian Neural Networks With input X, autoencoder (parameterised by theta) reconstructs the input with signal X̂ Training with Bayes Rule: (unlabelled data) (reconstructed data) Prediction: Mean and variance of log-likelihood of new data x* (conditioned on training data) Gaussian Log-Likelihood: Methods of Sampling from posterior: • MCMC • Variational Inference • Bayesian ensembling Also known as reconstruction loss
- 8. Intuition - BayesianAutoencoders as Bayesian Neural Networks Bayesian ensembling (randomised MAP sampling) https://github.com/TeaPearce/Bayesian_NN_Ensembles Epistemic uncertainty:

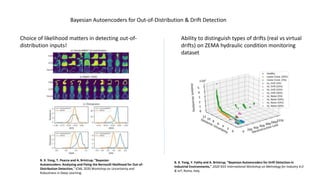

- 9. Bayesian Autoencoders forOut-of-Distribution & Drift Detection Choice of likelihood matters in detecting out-of- distribution inputs! B. X. Yong, Y. Fathy and A. Brintrup, "Bayesian Autoencoders for Drift Detection in Industrial Environments," 2020 IEEE International Workshop on Metrology for Industry 4.0 & IoT, Roma, Italy. B. X. Yong, T. Pearce and A. Brintrup, "Bayesian Autoencoders: Analysing and Fixing the Bernoulli likelihood for Out-of- Distribution Detection," ICML 2020 Workshop on Uncertainty and Robustness in Deep Learning. Ability to distinguish types of drifts (real vs virtual drifts) on ZEMA hydraulic condition monitoring dataset B. X. Yong, Y. Fathy and A. Brintrup, "Bayesian Autoencoders for Drift Detection in Industrial Environments," 2020 IEEE International Workshop on Metrology for Industry 4.0 & IoT, Roma, Italy.
- 10. WIP : Hierarchical& Coalitional BAE (Experiments on ZEMA EMC Prognosis) ZEMA EMC Dataset (@zenodo): i. Assets : 3x run-to-failures ii. Num cycles (examples)- 6292,6083,5732 cycles iii. 11 Sensors iv. Train (10% of initial cycles) v. Test (90% of remaining cycles) vi. Each cycle has measurements of - • 2000 time steps * 11 sensors • Apply FFT -> 1000 * 11 sensors https://zenodo.org/record/2702226

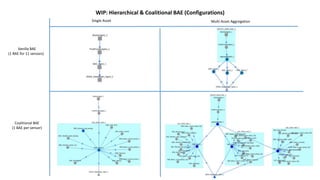

- 11. WIP: Hierarchical &Coalitional BAE (Configurations) Vanilla BAE (1 BAE for 11 sensors) Coalitional BAE (1 BAE per sensor) Single Asset Multi Asset Aggregation
- 12. Hierarchical & CoalitionalBAE (Axis 3 Lifetime = 6292 cycles) Vanilla BAE (1 BAE for 11 sensors) Coalitional BAE (1 BAE per sensor) Single Asset Multi Asset Aggregation Qualitatively, total log-likelihood gain for vanilla vs coalitional appears indifferent. Combining knowledge from other assets, uncertainty appears higher as condition moves away from healthy condition (better calibrated?).
- 13. Quantitative Comparison Note: PCC= Pearson Correlation Intuition: We should expect the LL Gain at Degradation =50% (Half- life) to be proportional with its overall life time. • The higher the LL Gain, the healthier it is (vice versa).
- 14. WIP: Explainable AIunder Uncertainty with BAE Vanilla BAE (1 BAE for 11 sensors) Coalitional BAE (1 BAE per sensor) Single Asset Multi Asset Aggregation Outputs of Vanilla BAE are highly correlated, which may give misleading explanation in identifying sensor contribution
- 15. WIP: Explainable AIunder Uncertainty with BAE • Can we tell which sensor was injected with noise? Vanilla BAE Coalitional BAE
- 16. Contributions 1. Hierarchical &Coalitional Bayesian Autoencoders: •Bayesian deep learning for unsupervised models. •Explainable AI predictions (XAI). •Multi-agent system. 2. Code: • agentMET4FOF: https://github.com/bangxiangyong/agentMET4FOF • baetorch: https://github.com/bangxiangyong/baetorch • MET4FOF repo: https://github.com/Met4FoF 3. Thanks to our collaborators: (open to more!) • PTB • NPL • VSL •IMBIH •ZEMA •STRATH
- 17. Appendix: Model setup VanillaBAE Architecture Coalition BAE Architecture Each BAE is trained using automatic learning rate finder by Leslie Smith for 250 epochs
- 18.
- 19. Appendix: agentMET4FOF - ConnectingSensors By: Benedikt Seeger (PTB)
- 20. Appendix: agentMET4FOF – Modularisedcomponents By: Gertjan Kok (VSL)
- 21. Appendix: baetorch – BayesianAutoencoder library Features •Quantify epistemic uncertainty using approximate Bayesian inference •MC-Dropout •Bayesian Ensembling (with Anchored priors) •Variational Inference (Bayes by Backprop) •Options for specifying data likelihood p(X|theta) to Gaussian or Bernoulli •Quantify (homo/heteroskedestic) aleatoric uncertainty using Gaussian Likelihood •Automatic learning rate finder for Bayesian Autoencoders
