UKOUG, Oracle Transaction Locks

Kyle Hailey is an Oracle expert who has worked with Oracle since 1990. He has experience with Oracle support, porting versions of Oracle, benchmarking, and real world performance. He has also worked with startups, Quest Software, Oracle OEM, and Embarcadero. The document discusses row locks in Oracle and how to find blocking sessions and SQL using tools like ASH, v$lock, and Logminer. It provides examples of creating row lock waits and how to investigate them using these tools.

Embed presentation

Downloaded 103 times
Enqueue Waits : Locks Thanks to Doug Burns for much of the Row Lock example Kyle Hailey Kylehailey.com kyle@delphix.com
Oaktable World UK • Mon Dec 2, Tues Dec 3

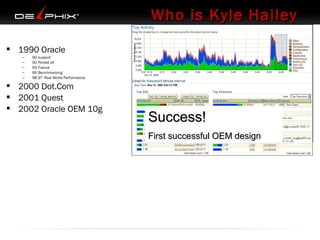

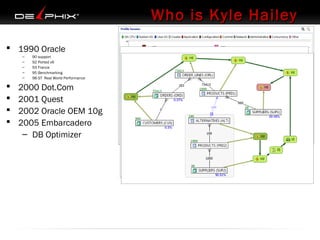

Who is Kyle Hailey  1990 Oracle – – – – – 90 support 92 Ported v6 93 France 95 Benchmarking 98 ST Real World Performance  2000 Dot.Com  2001 Quest  2002 Oracle OEM 10g Success! First successful OEM design
Who is Kyle Hailey  1990 Oracle – – – – –     90 support 92 Ported v6 93 France 95 Benchmarking 98 ST Real World Performance 2000 Dot.Com 2001 Quest 2002 Oracle OEM 10g 2005 Embarcadero – DB Optimizer
Who is Kyle Hailey • 1990 Oracle      • • • • • 90 support 92 Ported v6 93 France 95 Benchmarking 98 ST Real World Performance 2000 Dot.Com 2001 Quest 2002 Oracle OEM 10g 2005 Embarcadero  DB Optimizer Delphix When not being a Geek - Have a little 4 year old boy who takes up all my time

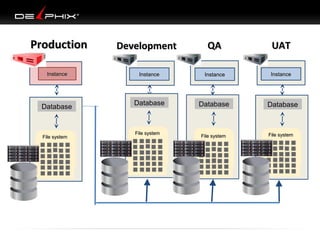

Production Instance Database File system File system QA UAT Instance Instance Instance Database Database Database File system File system File system File system File system File system File system Development

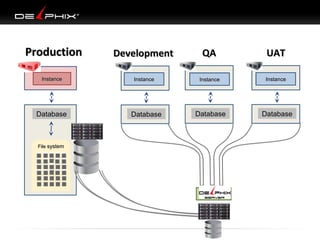

Production Instance Database File system Development QA UAT Instance Instance Instance Database Database Database
AWR Method Who/When Summary Top 5 Timed Events ~~~~~~~~~~~~~~~~~~ % for Load profile goodTotal Event Waits having a (s) Call Time Time feel for the ---------------------- ------------ application and ----------- --------buffer busy waits 2,748 250 78.72 comparing two 10.16 CPU time 32 periods for changes free buffer waits 1,588 15 4.63 Efficiency 8 ratios 2.51 write complete waits 10 log buffer space 306 misleading carry 1.51 5 ---------------------------------------- 6 over from version days Waits Big Picture

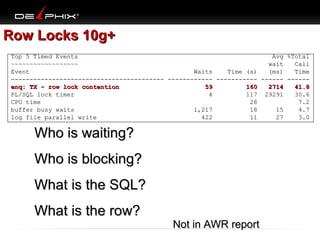

Row Locks 10g+ Top 5 Timed Events Avg %Total ~~~~~~~~~~~~~~~~~~ wait Call Event Waits Time (s) (ms) Time ----------------------------------------- ------------ ----------- ------ -----enq: TX - row lock contention 59 160 2714 41.8 PL/SQL lock timer 4 117 29291 30.6 CPU time 28 7.2 buffer busy waits 1,217 18 15 4.7 log file parallel write 422 11 27 3.0 Who is waiting? Who is blocking? What is the SQL? What is the row? Not in AWR report

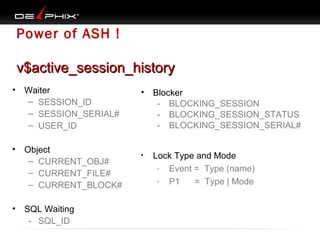

Power of ASH ! v$active_session_history • Waiter – SESSION_ID – SESSION_SERIAL# – USER_ID • Object – CURRENT_OBJ# – CURRENT_FILE# – CURRENT_BLOCK# • SQL Waiting - SQL_ID • Blocker - BLOCKING_SESSION - BLOCKING_SESSION_STATUS - BLOCKING_SESSION_SERIAL# • Lock Type and Mode - Event = Type (name) - P1 = Type | Mode

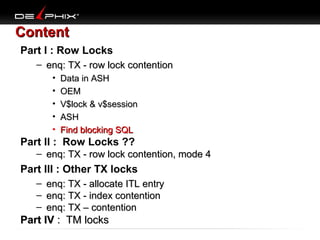

Content Part I : Row Locks – enq: TX - row lock contention • • • • • Data in ASH OEM V$lock & v$session ASH Find blocking SQL Part II : Row Locks ?? – enq: TX - row lock contention, mode 4 Part III : Other TX locks – – – enq: TX - allocate ITL entry enq: TX - index contention enq: TX – contention Part IV : TM locks

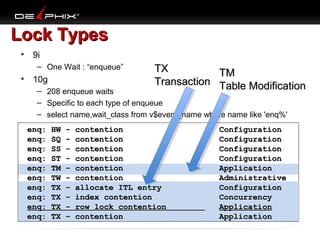

Lock Types • 9i – One Wait : “enqueue” • 10g TX TM Transaction Table Modification – 208 enqueue waits – Specific to each type of enqueue – select name,wait_class from v$event_name where name like 'enq%' enq: enq: enq: enq: enq: enq: enq: enq: enq: enq: HW SQ SS ST TM TW TX TX TX TX – contention contention contention contention contention contention allocate ITL entry index contention row lock contention contention Configuration Configuration Configuration Configuration Application Administrative Configuration Concurrency Application Application

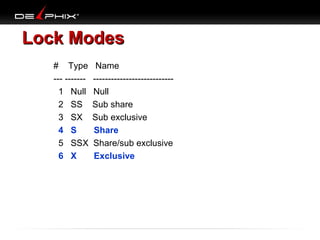

Lock Modes # Type --- ------1 Null 2 SS 3 SX 4 S 5 SSX 6 X Name --------------------------Null Sub share Sub exclusive Share Share/sub exclusive Exclusive

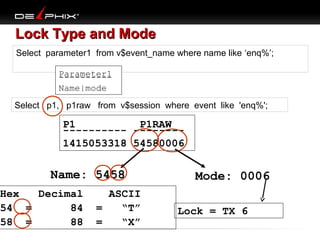

Lock Type and Mode Select parameter1 from v$event_name where name like ‘enq%’; Parameter1 ---------Name|mode Select p1, p1raw from v$session where event like 'enq%'; P1 P1RAW ---------- -------1415053318 54580006 Name: 5458 Hex Decimal 54 = 84 58 = 88 ASCII = “T” = “X” Mode: 0006 Lock = TX 6

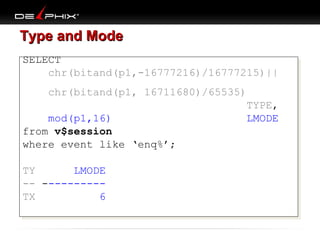

Type and Mode SELECT SELECT chr(bitand(p1,-16777216)/16777215)|| chr(bitand(p1,-16777216)/16777215)|| chr(bitand(p1, 16711680)/65535) chr(bitand(p1, 16711680)/65535) TYPE, TYPE, mod(p1,16) LMODE mod(p1,16) LMODE from v$session from v$session where event like ‘enq%’; where event like ‘enq%’; TY LMODE TY LMODE -- ----------- ---------TX 6 TX 6

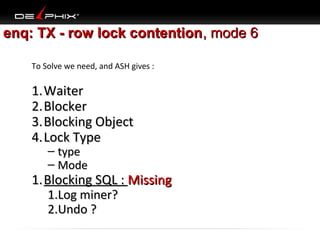

enq: TX - row lock contention, mode 6 To Solve we need, and ASH gives : 1. Waiter 2. Blocker 3. Blocking Object 4. Lock Type – type – Mode 1. Blocking SQL : Missing 1.Log miner? 2.Undo ?

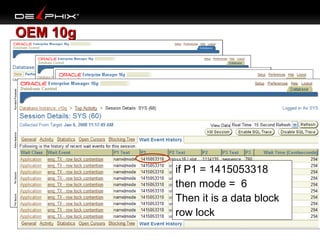

OEM 10g if P1 = 1415053318 then mode = 6 Then it is a data block row lock

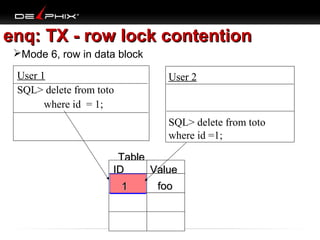

enq: TX - row lock contention Mode 6, row in data block User 1 SQL> delete from toto where id = 1; User 2 SQL> delete from toto where id =1; Table ID Value foo 1

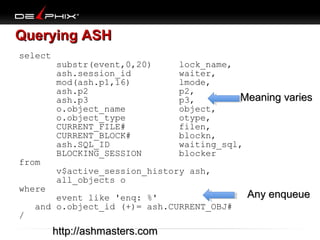

Querying ASH select substr(event,0,20) ash.session_id mod(ash.p1,16) ash.p2 ash.p3 o.object_name o.object_type CURRENT_FILE# CURRENT_BLOCK# ash.SQL_ID BLOCKING_SESSION lock_name, waiter, lmode, p2, Meaning varies p3, object, otype, filen, blockn, waiting_sql, blocker from v$active_session_history ash, all_objects o where event like 'enq: %' and o.object_id (+)= ash.CURRENT_OBJ# / http://ashmasters.com Any enqueue

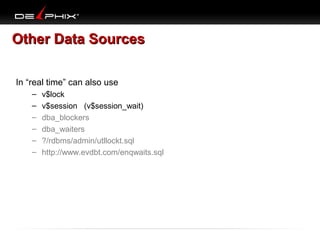

Other Data Sources In “real time” can also use – – – – – – v$lock v$session (v$session_wait) dba_blockers dba_waiters ?/rdbms/admin/utllockt.sql http://www.evdbt.com/enqwaits.sql

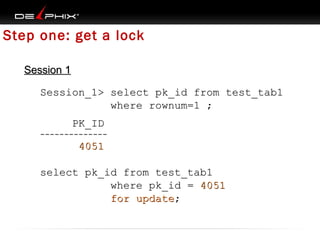

Step one: get a lock Session 1 Session_1> select pk_id from test_tab1 where rownum=1 ; PK_ID -------------- 4051 select pk_id from test_tab1 where pk_id = 4051 for update;

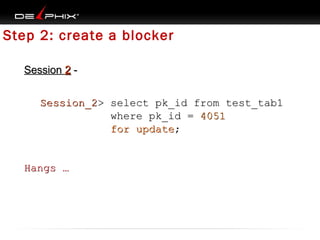

Step 2: create a blocker Session 2 Session_2> select pk_id from test_tab1 where pk_id = 4051 for update; Hangs …

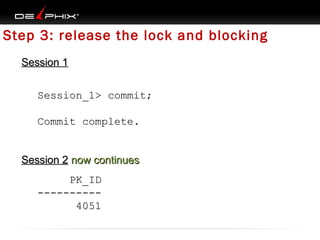

Step 3: release the lock and blocking Session 1 Session_1> commit; Commit complete. Session 2 now continues PK_ID ---------4051

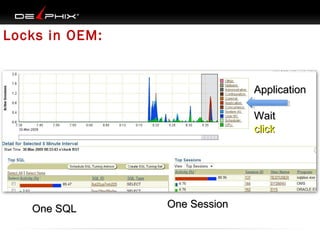

Locks in OEM: Application Wait click One SQL One Session
Click on “Application” Click on SQL ID

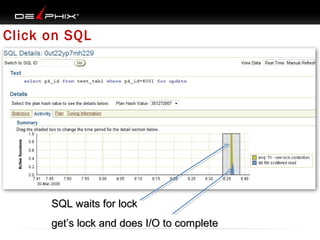

Click on SQL SQL waits for lock get’s lock and does I/O to complete

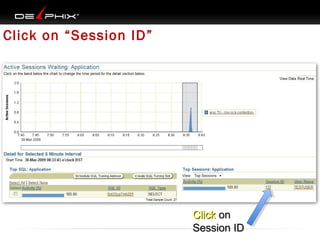

Click on “Session ID” Click on Session ID

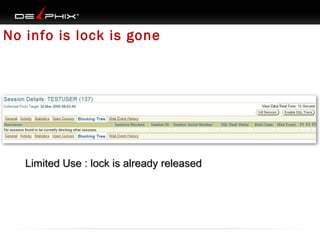

No info is lock is gone Limited Use : lock is already released

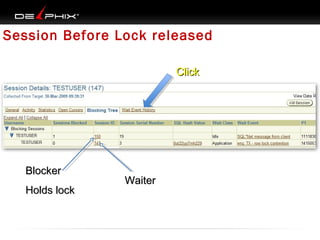

Session Before Lock released Click Blocker Holds lock Waiter

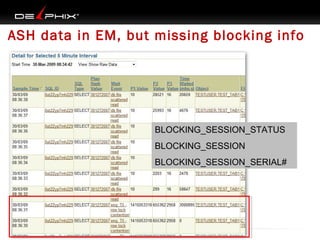

ASH data in EM, but missing blocking info BLOCKING_SESSION_STATUS BLOCKING_SESSION BLOCKING_SESSION_SERIAL#

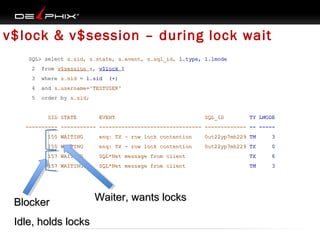

v$lock & v$session – during lock wait SQL> select s.sid, s.state, s.event, s.sql_id, l.type, l.lmode 2 from v$session s, v$lock l 3 where s.sid = l.sid 4 and s.username='TESTUSER' 5 order by s.sid; SID STATE (+) EVENT SQL_ID TY LMODE ---------- ----------- -------------------------------- ------------- -- ----150 WAITING enq: TX - row lock contention 0ut22yp7mh229 TM 3 150 WAITING enq: TX - row lock contention 0ut22yp7mh229 TX 0 157 WAITING SQL*Net message from client TX 6 157 WAITING SQL*Net message from client TM 3 Blocker Idle, holds locks Waiter, wants locks

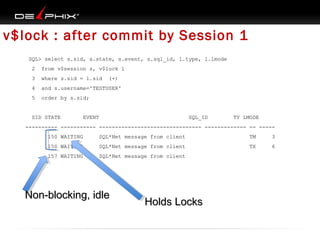

v$lock : after commit by Session 1 SQL> select s.sid, s.state, s.event, s.sql_id, l.type, l.lmode 2 from v$session s, v$lock l 3 where s.sid = l.sid 4 and s.username='TESTUSER' 5 order by s.sid; SID STATE (+) EVENT SQL_ID TY LMODE ---------- ----------- -------------------------------- ------------- -- ----150 WAITING SQL*Net message from client TM 3 150 WAITING SQL*Net message from client TX 6 157 WAITING SQL*Net message from client Non-blocking, idle Holds Locks

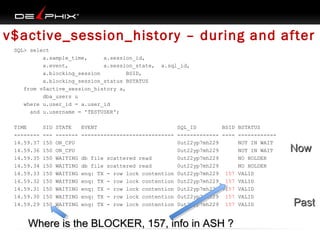

v$active_session_history – during and after SQL> select a.sample_time, a.session_id, a.event, a.session_state, a.blocking_session BSID, a.blocking_session_status BSTATUS from v$active_session_history a, dba_users u where u.user_id = a.user_id and u.username = 'TESTUSER'; TIME -------14.59.37 14.59.36 14.59.35 14.59.34 14.59.33 14.59.32 14.59.31 14.59.30 14.59.29 SID --150 150 150 150 150 150 150 150 150 STATE ------ON_CPU ON_CPU WAITING WAITING WAITING WAITING WAITING WAITING WAITING a.sql_id, EVENT SQL_ID BSID BSTATUS ----------------------------- ------------- ---- -----------0ut22yp7mh229 NOT IN WAIT 0ut22yp7mh229 NOT IN WAIT db file scattered read 0ut22yp7mh229 NO HOLDER db file scattered read 0ut22yp7mh229 NO HOLDER enq: TX - row lock contention 0ut22yp7mh229 157 VALID enq: TX - row lock contention 0ut22yp7mh229 157 VALID enq: TX - row lock contention 0ut22yp7mh229 157 VALID enq: TX - row lock contention 0ut22yp7mh229 157 VALID enq: TX - row lock contention 0ut22yp7mh229 157 VALID Where is the BLOCKER, 157, info in ASH ? Now Past

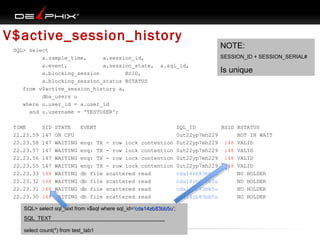

V$active_session_history SQL> select a.sample_time, a.session_id, a.event, a.session_state, a.blocking_session BSID, a.blocking_session_status BSTATUS from v$active_session_history a, dba_users u where u.user_id = a.user_id and u.username = 'TESTUSER'; TIME 22.23.59 22.23.58 22.23.57 22.23.56 22.23.55 22.23.33 22.23.32 22.23.31 22.23.30 SID 147 147 147 147 147 148 148 148 148 STATE ON CPU WAITING WAITING WAITING WAITING WAITING WAITING WAITING WAITING SESSION_ID + SESSION_SERIAL# a.sql_id, EVENT enq: TX enq: TX enq: TX enq: TX db file db file db file db file - row lock contention - row lock contention - row lock contention - row lock contention scattered read scattered read scattered read scattered read SQL> select sql_text from v$sql where sql_id='cda14zb83bb5u’; sql_id='cda14zb83bb5u’; SQL_TEXT -------------------------------------------------------------------------------select count(*) from test_tab1 NOTE: Is unique SQL_ID BSID BSTATUS 0ut22yp7mh229 NOT IN WAIT 0ut22yp7mh229 148 VALID 0ut22yp7mh229 148 VALID 0ut22yp7mh229 148 VALID 0ut22yp7mh229 148 VALID cda14zb83bb5u NO HOLDER cda14zb83bb5u NO HOLDER cda14zb83bb5u NO HOLDER cda14zb83bb5u NO HOLDER
How do we find the SQL that took the lock?

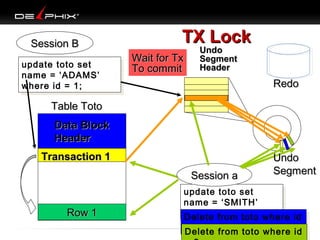

Session B update toto set update toto set name = ‘ADAMS’ name = ‘ADAMS’ where id = 1; where id = 1; TX Lock Wait for Tx To commit Undo Segment Header Redo Table Toto Data Block Data Block Header Header Transaction 1 Session a Row 1 Undo Segment update toto set update toto set name = ‘SMITH’ name = ‘SMITH’ where id = 1; where id = toto where id Delete from 1; Delete from toto where id = 2; = 2; Delete from toto where id Delete from toto where id

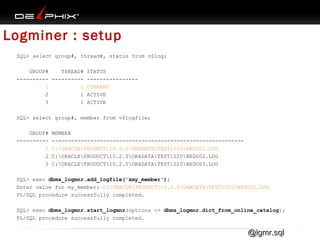

Logminer : setup SQL> select group#, thread#, status from v$log; GROUP# THREAD# STATUS ---------- ---------- ---------------1 1 CURRENT 2 1 ACTIVE 3 1 ACTIVE SQL> select group#, member from v$logfile; GROUP# ---------1 2 3 MEMBER -----------------------------------------------------------C:ORACLEPRODUCT10.2.0ORADATATEST1020REDO01.LOG C:ORACLEPRODUCT10.2.0ORADATATEST1020REDO02.LOG C:ORACLEPRODUCT10.2.0ORADATATEST1020REDO03.LOG SQL> exec dbms_logmnr.add_logfile('&my_member'); Enter value for my_member: C:ORACLEPRODUCT10.2.0ORADATATEST1020REDO01.LOG PL/SQL procedure successfully completed. SQL> exec dbms_logmnr.start_logmnr(options => dbms_logmnr.dict_from_online_catalog); PL/SQL procedure successfully completed. @lgmr.sql
Logminer : setup locking SQL> create table test_tab1 as select object_id pk_id, object_name from all_objects; SQL> select rowid, object_name from test_tab1 where pk_id=5042; ROWID OBJECT_NAME ------------------ -----------------------------AAAN2NAAKAAAaBLAEX SYSTEM_PRIVILEGE_MAP SESSION_1> update test_tab1 set object_name='UKOUG 1' where pk_id=5042; SESSION_2> update test_tab1 set object_name='UKOUG 2' where pk_id=5042; Future Reference: ROWID Create Lock Wait

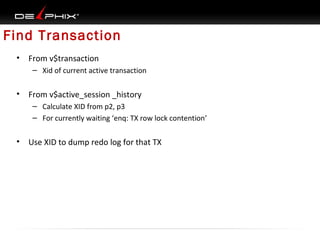

Find Transaction • From v$transaction – Xid of current active transaction • From v$active_session _history – Calculate XID from p2, p3 – For currently waiting ‘enq: TX row lock contention’ • Use XID to dump redo log for that TX

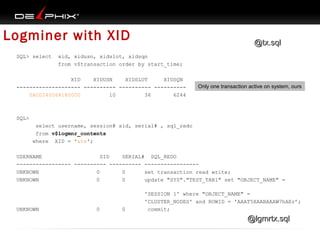

Logminer with XID SQL> select @tx.sql xid, xidusn, xidslot, xidsqn from v$transaction order by start_time; XID XIDUSN XIDSLOT XIDSQN -------------------- ---------- ---------- ---------0A00240064180000 10 36 6244 Only one transaction active on system, ours SQL> select username, session# sid, serial# , sql_redo from v$logmnr_contents where XID = '&tx'; USERNAME SID SERIAL# SQL_REDO ----------------- ---------- ---------- ----------------UNKNOWN 0 0 set transaction read write; UNKNOWN 0 0 update "SYS"."TEST_TAB1" set "OBJECT_NAME" = UNKNOWN 0 0 'SESSION 1' where "OBJECT_NAME" = 'CLUSTER_NODES' and ROWID = 'AAAT5XAABAAAW7hAEr’; commit; @lgmrtx.sql

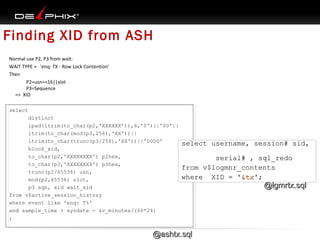

Finding XID from ASH Normal use P2, P3 from wait: WAIT TYPE = 'enq: TX - Row Lock Contention’ Then P2=usn<<16||slot P3=Sequence => XID select distinct lpad(ltrim(to_char(p2,'XXXXXX')),6,'0')||'00'|| ltrim(to_char(mod(p3,256),'XX'))|| ltrim(to_char(trunc(p3/256),'XX'))||'0000' block_xid, to_char(p2,'XXXXXXXX') p2hex, to_char(p3,'XXXXXXXX') p3hex, trunc(p2/65536) usn, mod(p2,65536) slot, p3 sqn, xid wait_xid from v$active_session_history where event like 'enq: T%' and sample_time > sysdate - &v_minutes/(60*24) ; select username, session# sid, serial# , sql_redo from v$logmnr_contents where XID = '&tx'; '&tx'; @ashtx.sql @lgmrtx.sql

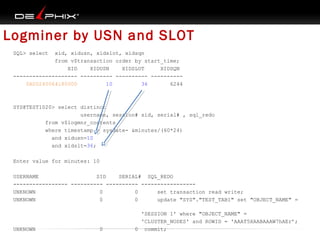

Logminer by USN and SLOT SQL> select xid, xidusn, xidslot, xidsqn from v$transaction order by start_time; XID XIDUSN XIDSLOT XIDSQN -------------------- ---------- ---------- ---------0A00240064180000 10 36 6244 SYS@TEST1020> select distinct username, session# sid, serial# , sql_redo from v$logmnr_contents where timestamp > sysdate- &minutes/(60*24) and xidusn=10 and xidslt=36; Enter value for minutes: 10 USERNAME SID SERIAL# SQL_REDO ----------------- ---------- ---------- ----------------UNKNOWN 0 0 set transaction read write; UNKNOWN 0 0 update "SYS"."TEST_TAB1" set "OBJECT_NAME" = UNKNOWN 0 'SESSION 1' where "OBJECT_NAME" = 'CLUSTER_NODES' and ROWID = 'AAAT5XAABAAAW7hAEr’; 0 commit;

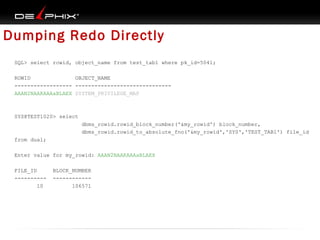

Dumping Redo Directly SQL> select rowid, object_name from test_tab1 where pk_id=5041; ROWID OBJECT_NAME ------------------ -----------------------------AAAN2NAAKAAAaBLAEX SYSTEM_PRIVILEGE_MAP SYS@TEST1020> select dbms_rowid.rowid_block_number('&my_rowid') block_number, dbms_rowid.rowid_to_absolute_fno('&my_rowid','SYS','TEST_TAB1') file_id from dual; Enter value for my_rowid: AAAN2NAAKAAAaBLAEX FILE_ID ---------10 BLOCK_NUMBER -----------106571

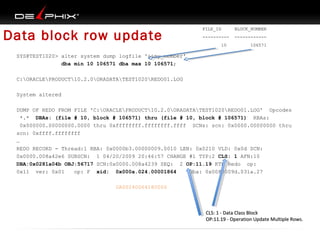

Data block row update FILE_ID BLOCK_NUMBER ---------- ------------ 10 106571 SYS@TEST1020> alter system dump logfile '&&my_member' dba min 10 106571 dba max 10 106571; C:ORACLEPRODUCT10.2.0ORADATATEST1020REDO01.LOG System altered DUMP OF REDO FROM FILE 'C:ORACLEPRODUCT10.2.0ORADATATEST1020REDO01.LOG' Opcodes *.* DBAs: (file # 10, block # 106571) thru (file # 10, block # 106571) RBAs: 0x000000.00000000.0000 thru 0xffffffff.ffffffff.ffff SCNs: scn: 0x0000.00000000 thru scn: 0xffff.ffffffff … REDO RECORD - Thread:1 RBA: 0x0000b3.00000009.0010 LEN: 0x0210 VLD: 0x0d SCN: 0x0000.008a42e6 SUBSCN: 1 04/20/2009 20:46:57 CHANGE #1 TYP:2 CLS: 1 AFN:10 DBA:0x0281a04b OBJ:56717 SCN:0x0000.008a4239 SEQ: 2 OP:11.19 KTB Redo op: 0x11 ver: 0x01 op: F xid: 0x000a.024.00001864 uba: 0x0080009d.031a.27 0A00240064180000 CLS: 1 - Data Class Block OP:11.19 - Operation Update Multiple Rows.

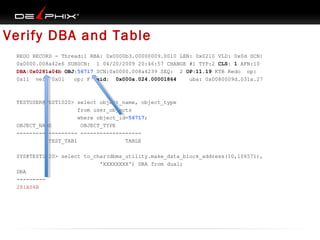

Verify DBA and Table REDO RECORD - Thread:1 RBA: 0x0000b3.00000009.0010 LEN: 0x0210 VLD: 0x0d SCN: 0x0000.008a42e6 SUBSCN: 1 04/20/2009 20:46:57 CHANGE #1 TYP:2 CLS: 1 AFN:10 DBA:0x0281a04b OBJ:56717 SCN:0x0000.008a4239 SEQ: 2 OP:11.19 KTB Redo op: 0x11 ver: 0x01 op: F xid: 0x000a.024.00001864 uba: 0x0080009d.031a.27 TESTUSER@TEST1020> select object_name, object_type from user_objects where object_id=56717; OBJECT_NAME OBJECT_TYPE ------------------- ------------------TEST_TAB1 TABLE SYS@TEST1020> select to_char(dbms_utility.make_data_block_address(10,106571), 'XXXXXXXX') DBA from dual; DBA --------281A04B

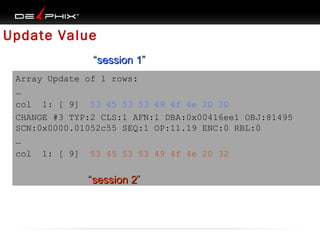

Update Value “session 1” Array Update of 1 rows: … col 1: [ 9] 53 45 53 53 49 4f 4e 20 30 CHANGE #3 TYP:2 CLS:1 AFN:1 DBA:0x00416ee1 OBJ:81495 SCN:0x0000.01052c55 SEQ:1 OP:11.19 ENC:0 RBL:0 … col 1: [ 9] 53 45 53 53 49 4f 4e 20 32 “session 2”

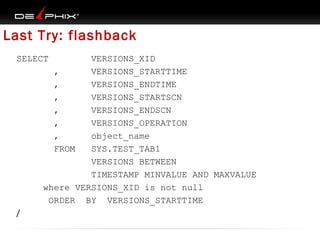

Last Try: flashback SELECT VERSIONS_XID , VERSIONS_STARTTIME , VERSIONS_ENDTIME , VERSIONS_STARTSCN , VERSIONS_ENDSCN , VERSIONS_OPERATION , object_name FROM SYS.TEST_TAB1 VERSIONS BETWEEN TIMESTAMP MINVALUE AND MAXVALUE where VERSIONS_XID is not null ORDER BY VERSIONS_STARTTIME /

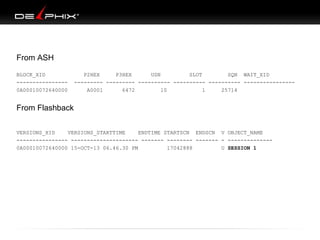

From ASH BLOCK_XID ---------------0A00010072640000 P2HEX P3HEX USN SLOT SQN WAIT_XID --------- --------- ---------- ---------- ---------- ---------------A0001 6472 10 1 25714 From Flashback VERSIONS_XID VERSIONS_STARTTIME ENDTIME STARTSCN ENDSCN V OBJECT_NAME ---------------- --------------------- ------- -------- ------- - -------------0A00010072640000 15-OCT-13 06.46.30 PM 17042888 U SESSION 1

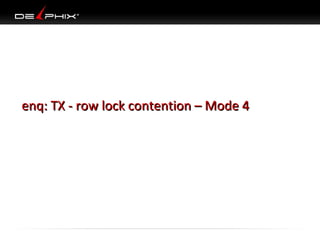

enq: TX - row lock contention – Mode 4

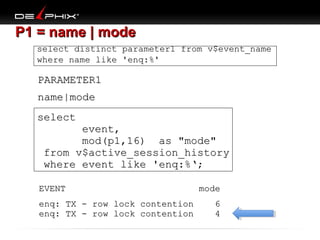

P1 = name | mode select distinct parameter1 from v$event_name where name like 'enq:%' PARAMETER1 name|mode select event, mod(p1,16) as "mode" from v$active_session_history where event like 'enq:%‘; EVENT enq: TX - row lock contention enq: TX - row lock contention mode 6 4

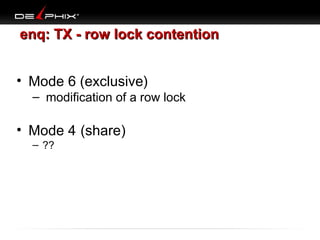

enq: TX - row lock contention • Mode 6 (exclusive) – modification of a row lock • Mode 4 (share) – ??

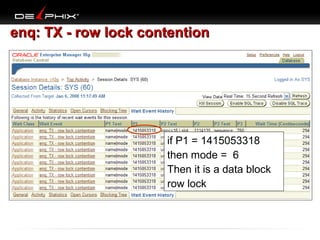

enq: TX - row lock contention if P1 = 1415053318 then mode = 6 Then it is a data block row lock

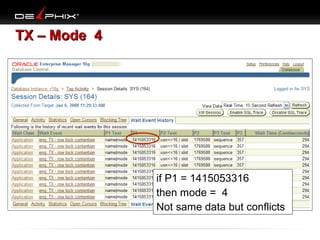

TX – Mode 4 if P1 = 1415053316 then mode = 4 Not same data but conflicts

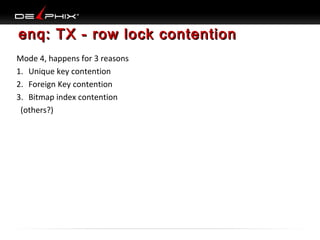

enq: TX - row lock contention Mode 4, happens for 3 reasons 1. Unique key contention 2. Foreign Key contention 3. Bitmap index contention (others?)

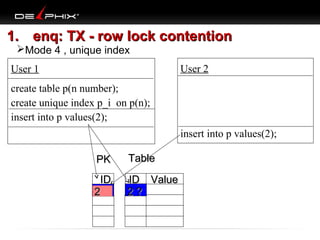

1. enq: TX - row lock contention Mode 4 , unique index User 2 User 1 create table p(n number); create unique index p_i on p(n); insert into p values(2); insert into p values(2); PK Table ID 2? ID Value 2?

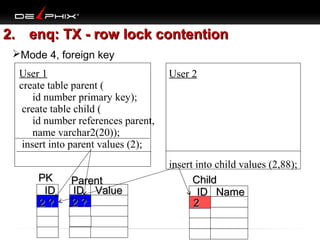

2. enq: TX - row lock contention Mode 4, foreign key User 1 create table parent ( id number primary key); create table child ( id number references parent, name varchar2(20)); insert into parent values (2); PK ID 2? Parent ID Value 2? User 2 insert into child values (2,88); Child ID Name 2

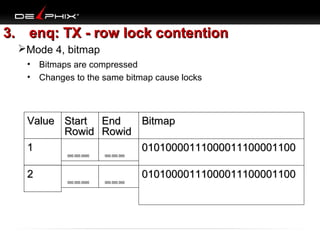

3. enq: TX - row lock contention Mode 4, bitmap • Bitmaps are compressed • Changes to the same bitmap cause locks Value Start Rowid 1 000.000.0000 End Bitmap Rowid 01010000111000011100001100 000.000.000 2 01010000111000011100001100 000.000.0000 000.000.000

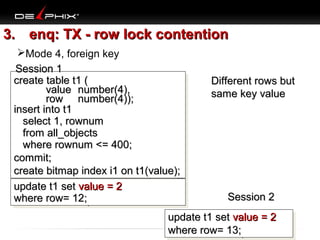

3. enq: TX - row lock contention Mode 4, foreign key Session 1 create table t1 (( Different rows but create table t1 value number(4), value number(4), same key value row number(4)); row number(4)); insert into t1 insert into t1 select 1, rownum select 1, rownum from all_objects from all_objects where rownum <= 400; where rownum <= 400; commit; commit; create bitmap index i1 on t1(value); create bitmap index i1 on t1(value); update t1 set value = 2 update t1 set value = 2 Session 2 where row= 12; where row= 12; update t1 set value = 2 update t1 set value = 2 where row= 13; where row= 13;
3. enq: TX - row lock contention Mode 4, foreign key • • Bitmaps are compressed Changes to the same bitmap chunk cause locks Value Start End Bitmap Rowid Rowid 1 01010000111000011100001100 200.0 1 2 205.0 200.0 block 204.7 210.3 205.6 row 01010000111000011100001100 01010000111000011100001100

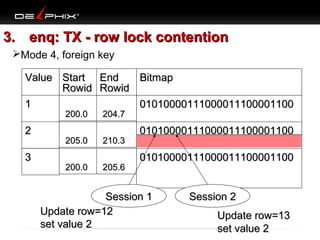

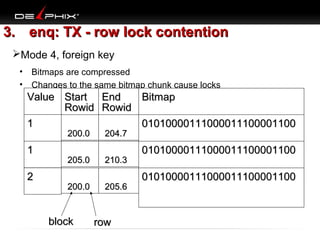

3. enq: TX - row lock contention Mode 4, foreign key Value Start End Bitmap Rowid Rowid 1 01010000111000011100001100 200.0 2 3 205.0 200.0 204.7 210.3 205.6 01010000111000011100001100 01010000111000011100001100 Session 1 Update row=12 set value 2 Session 2 Update row=13 set value 2

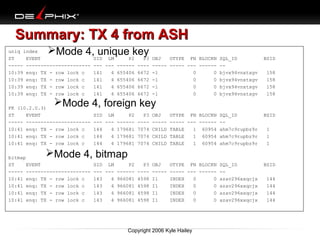

Summary: TX 4 from ASH Mode 4, unique key SID LM P2 P3 OBJ uniq index ST EVENT ----- ---------------------10:39 enq: TX - row lock c 10:39 enq: TX - row lock c 10:39 enq: TX - row lock c 10:39 enq: TX - row lock c --- --- ------ ---141 4 655406 6672 141 4 655406 6672 141 4 655406 6672 141 4 655406 6672 OTYPE FN BLOCKN SQL_ID ----- ----- --- ------ --1 0 0 bjvx94vnxtxgv -1 0 0 bjvx94vnxtxgv -1 0 0 bjvx94vnxtxgv -1 0 0 bjvx94vnxtxgv BSID 158 158 158 158 Mode 4, foreign key FK (10.2.0.3) ST EVENT ----- ---------------------10:41 enq: TX - row lock c 10:41 enq: TX - row lock c 10:41 enq: TX - row lock c SID LM P2 P3 OBJ --- --- ------ ---- ----144 4 179681 7074 CHILD 144 4 179681 7074 CHILD 144 4 179681 7074 CHILD OTYPE FN BLOCKN SQL_ID ----- --- ------ -TABLE 1 60954 ahm7c9rupbz9r TABLE 1 60954 ahm7c9rupbz9r TABLE 1 60954 ahm7c9rupbz9r BSID OTYPE FN BLOCKN SQL_ID ----- --- ------ -INDEX 0 0 azav296xxqcjx INDEX 0 0 azav296xxqcjx INDEX 0 0 azav296xxqcjx INDEX 0 0 azav296xxqcjx BSID 1 1 1 Mode 4, bitmap bitmap ST EVENT ----- ---------------------10:41 enq: TX - row lock c 10:41 enq: TX - row lock c 10:41 enq: TX - row lock c 10:41 enq: TX - row lock c SID LM P2 P3 OBJ --- --- ------ ---- ----143 4 966081 4598 I1 143 4 966081 4598 I1 143 4 966081 4598 I1 143 4 966081 4598 I1 Copyright 2006 Kyle Hailey 144 144 144 144

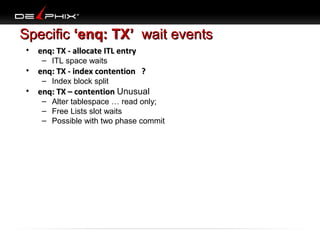

Specific ‘enq: TX’ wait events • enq: TX - allocate ITL entry – ITL space waits • enq: TX - index contention ? – Index block split • enq: TX – contention Unusual – Alter tablespace … read only; – Free Lists slot waits – Possible with two phase commit

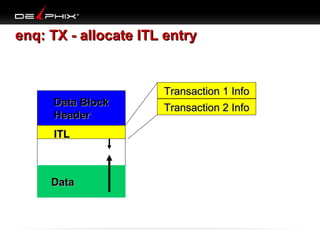

enq: TX - allocate ITL entry Data Block Data Block Header Header ITL Data Transaction 1 Info Transaction 2 Info
enq: TX - allocate ITL entry Data Block Data Block Header Header Transaction 1 Transaction 2 Row 3 Row 2 Data Row 1 Transaction 3

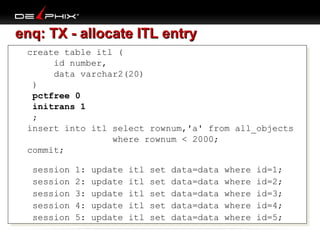

enq: TX - allocate ITL entry create table itl ( create table itl ( id number, id number, data varchar2(20) data varchar2(20) ) ) pctfree 0 pctfree 0 initrans 1 initrans 1 ; ; insert into itl select rownum,'a' from all_objects insert into itl select rownum,'a' from all_objects where rownum < 2000; where rownum < 2000; commit; commit; session 1: update itl set data=data where id=1; session 1: update itl set data=data where id=1; session 2: update itl set data=data where id=2; session 2: update itl set data=data where id=2; session 3: update itl set data=data where id=3; session 3: update itl set data=data where id=3; session 4: update itl set data=data where id=4; session 4: update itl set data=data where id=4; session 5: update itl set data=data where id=5; session 5: update itl set data=data where id=5;

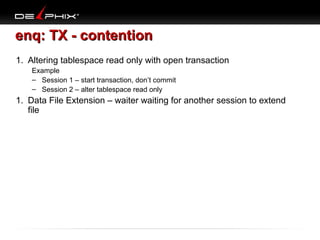

enq: TX - contention 1. Altering tablespace read only with open transaction Example – Session 1 – start transaction, don’t commit – Session 2 – alter tablespace read only 1. Data File Extension – waiter waiting for another session to extend file

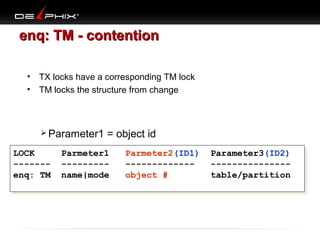

enq: TM - contention • • TX locks have a corresponding TM lock TM locks the structure from change  Parameter1 = object id LOCK Parmeter1 LOCK Parmeter1 ------- --------------- --------enq: TM name|mode enq: TM name|mode Parmeter2(ID1) Parameter3(ID2) Parmeter2(ID1) Parameter3(ID2) ----------------------------------------------------object # table/partition object # table/partition

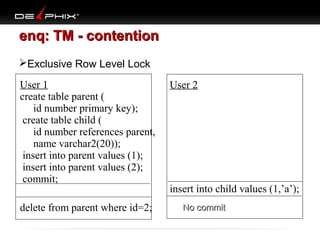

enq: TM - contention Exclusive Row Level Lock User 1 create table parent ( id number primary key); create table child ( id number references parent, name varchar2(20)); insert into parent values (1); insert into parent values (2); commit; delete from parent where id=2; User 2 insert into child values (1,’a’); No commit

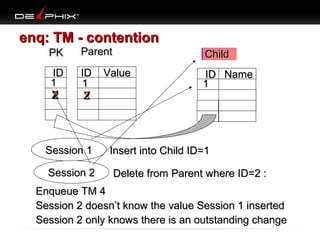

enq: TM - contention PK Parent Child ID 1 X 2 ID 1 X 2 ID Name 1 Session 1 Session 2 Value Insert into Child ID=1 Delete from Parent where ID=2 : Enqueue TM 4 Session 2 doesn’t know the value Session 1 inserted Session 2 only knows there is an outstanding change

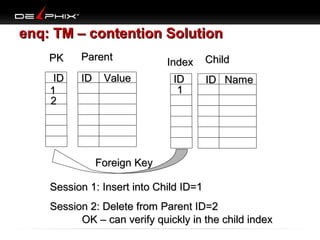

enq: TM – contention Solution PK Parent ID 1 2 ID Value Index ID 1 Child ID Name Foreign Key Session 1: Insert into Child ID=1 Session 2: Delete from Parent ID=2 OK – can verify quickly in the child index

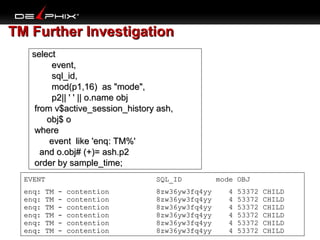

TM Further Investigation select event, sql_id, mod(p1,16) as "mode", p2|| ' ' || o.name obj from v$active_session_history ash, obj$ o where event like 'enq: TM%' and o.obj# (+)= ash.p2 order by sample_time; EVENT enq: enq: enq: enq: enq: enq: TM TM TM TM TM TM SQL_ID - contention contention contention contention contention contention 8zw36yw3fq4yy 8zw36yw3fq4yy 8zw36yw3fq4yy 8zw36yw3fq4yy 8zw36yw3fq4yy 8zw36yw3fq4yy mode OBJ 4 4 4 4 4 4 53372 53372 53372 53372 53372 53372 CHILD CHILD CHILD CHILD CHILD CHILD

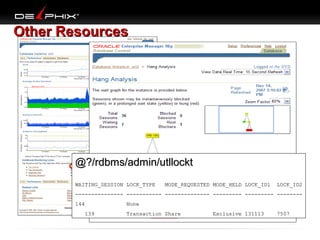

Other Resources @?/rdbms/admin/utllockt WAITING_SESSION LOCK_TYPE MODE_REQUESTED MODE_HELD LOCK_ID1 LOCK_ID2 --------------- ----------- -------------- --------- --------- -------144 139 None Transaction Share Exclusive 131113 7507

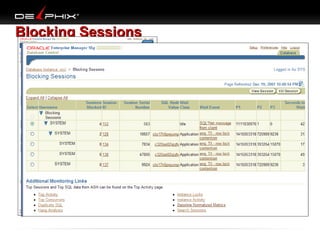

Blocking Sessions
Content Part I : Row Locks – enq: TX - row lock contention • • • • • Data in ASH OEM V$lock & v$session ASH Find blocking SQL Part II : Row Locks ?? – enq: TX - row lock contention, mode 4 Part III : Other TX locks – – – enq: TX - allocate ITL entry enq: TX - index contention enq: TX – contention Part IV : TM locks

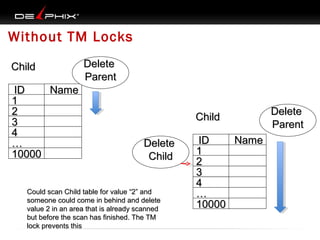

Without TM Locks Child Name ID 1 2 3 4 … 10000 Delete Parent Child Delete Child Could scan Child table for value “2” and someone could come in behind and delete value 2 in an area that is already scanned but before the scan has finished. The TM lock prevents this Name ID 1 2 3 4 … 10000 Delete Parent
