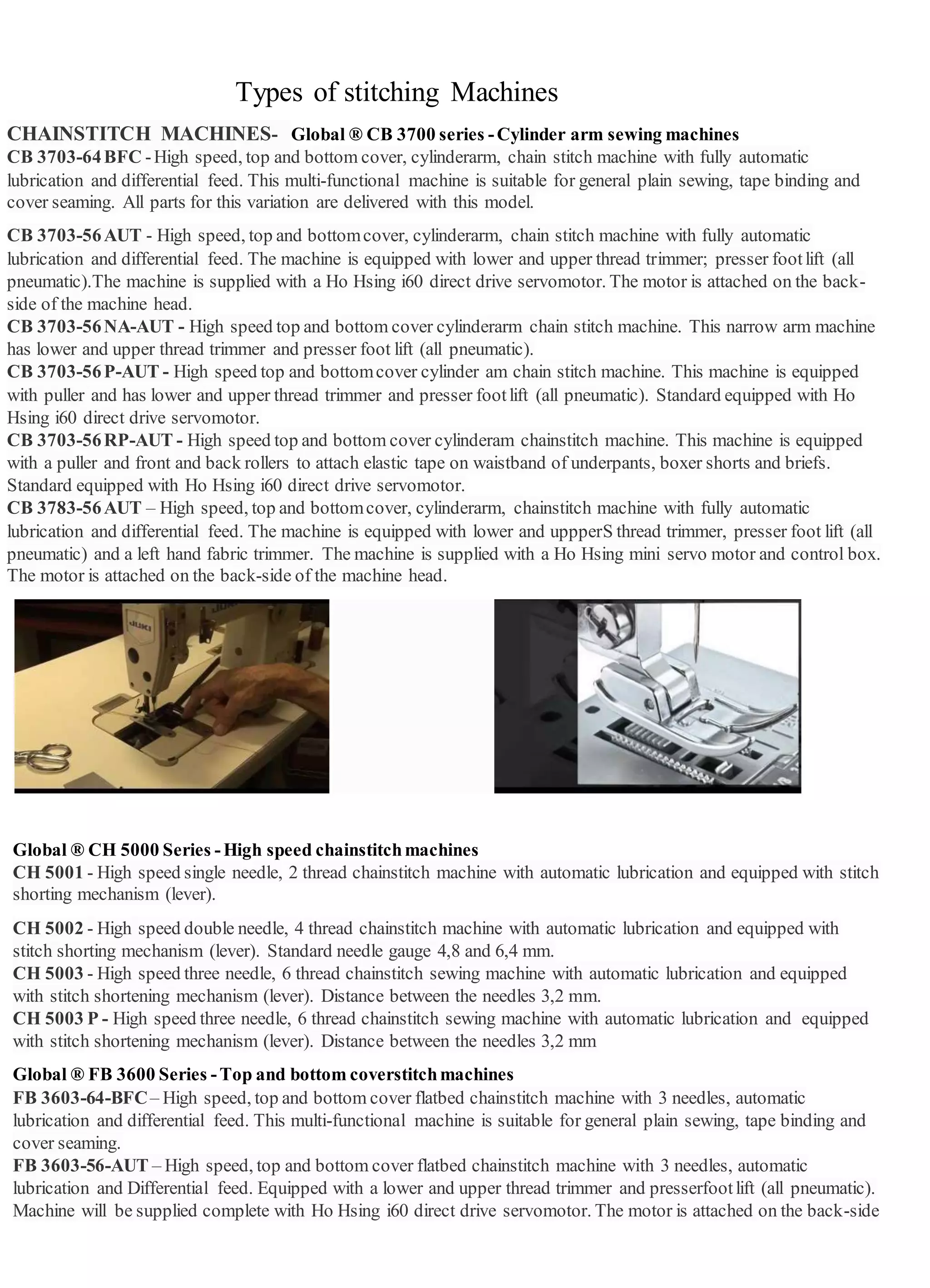

1. Types of stitching Machines
CHAINSTITCH MACHINES- Global ® CB 3700 series -Cylinder arm sewing machines
CB 3703-64BFC -High speed, top and bottom cover, cylinderarm, chain stitch machine with fully automatic
lubrication and differential feed. This multi-functional machine is suitable for general plain sewing, tape binding and
cover seaming. All parts for this variation are delivered with this model.
CB 3703-56AUT - High speed, top and bottomcover, cylinderarm, chain stitch machine with fully automatic
lubrication and differential feed. The machine is equipped with lower and upper thread trimmer; presser footlift (all
pneumatic).The machine is supplied with a Ho Hsing i60 direct drive servomotor. The motor is attached on the back-
side of the machine head.
CB 3703-56NA-AUT - High speed top and bottom cover cylinderarm chain stitch machine. This narrow arm machine
has lower and upper thread trimmer and presser foot lift (all pneumatic).
CB 3703-56P-AUT - High speed top and bottomcover cylinder am chain stitch machine. This machine is equipped
with puller and has lower and upper thread trimmer and presser footlift (all pneumatic). Standard equipped with Ho
Hsing i60 direct drive servomotor.
CB 3703-56RP-AUT - High speed top and bottom cover cylinderam chainstitch machine. This machine is equipped
with a puller and front and back rollers to attach elastic tape on waistband of underpants, boxer shorts and briefs.
Standard equipped with Ho Hsing i60 direct drive servomotor.
CB 3783-56AUT – High speed, top and bottomcover, cylinderarm, chainstitch machine with fully automatic
lubrication and differential feed. The machine is equipped with lower and uppperS thread trimmer, presser foot lift (all
pneumatic) and a left hand fabric trimmer. The machine is supplied with a Ho Hsing mini servo motor and control box.
The motor is attached on the back-side of the machine head.
Global ® CH 5000 Series -High speed chainstitchmachines
CH 5001 - High speed single needle, 2 thread chainstitch machine with automatic lubrication and equipped with stitch
shorting mechanism (lever).
CH 5002 - High speed double needle, 4 thread chainstitch machine with automatic lubrication and equipped with
stitch shorting mechanism (lever). Standard needle gauge 4,8 and 6,4 mm.
CH 5003 - High speed three needle, 6 thread chainstitch sewing machine with automatic lubrication and equipped
with stitch shortening mechanism (lever). Distance between the needles 3,2 mm.
CH 5003 P - High speed three needle, 6 thread chainstitch sewing machine with automatic lubrication and equipped
with stitch shortening mechanism (lever). Distance between the needles 3,2 mm
Global ® FB 3600 Series -Top and bottom coverstitchmachines
FB 3603-64-BFC– High speed, top and bottom cover flatbed chainstitch machine with 3 needles, automatic
lubrication and differential feed. This multi-functional machine is suitable for general plain sewing, tape binding and
cover seaming.
FB 3603-56-AUT – High speed, top and bottom cover flatbed chainstitch machine with 3 needles, automatic
lubrication and Differential feed. Equipped with a lower and upper thread trimmer and presserfootlift (all pneumatic).
Machine will be supplied complete with Ho Hsing i60 direct drive servomotor. The motor is attached on the back-side

2. of the machine head.
FB 3604-60 -High speed top and bottomcover flatbed chainstitch machine. This 4 needle machine has a 6 mm gauge.
FB 3653-56 TMD - High speed top and bottom cover flatbed chainstitch machine. This 3 needle machine with 5, 6
mm gauge has a top metering device and lower right hand fabric trimmer.
FB 3603-64-BFC– High speed, top and bottom cover flatbed chainstitch machine with 3 needles, automatic
lubrication and differential feed. This multi-functional machine is suitable for general plain sewing, tape binding and
cover seaming.
FB 3603-56-AUT – High speed, top and bottom cover flatbed chainstitch machine with 3 needles, automatic
lubrication and Differential feed. Equipped with a lower and upper thread trimmer and presser foots lift (all
pneumatic). Machine will be supplied complete with Ho Hsing i60 direct drive servomotor. The motor is attached on
the back-side of the machine head.
FB 3604-60 -High speed top and bottomcover flatbed chainstitch machine. This 4 needle machine has a 6 mm gauge.
FB 3653-56 TMD - High speed top and bottom cover flatbed chainstitch machine. This 3 needle machine with 5, 6
mm gauge has a top metering device and lower right hand fabric trimmer
SUNSHINE® 1100 Series -High speedtwo needle bottom coverstitchmachines
1102 / 1112 BLF - Two needle, 6,4 mm, bottom coverstitch, belt loop making machines. Model 1112 BLF is equipped
with front cutters to trim the material to the proper width.
1162 PMD - Two needle, 4,8 or 6,4 mm, bottomcoverstitch, flatbed machine with puller, featuring bothfront and rear
pullers. This machine is very usefull in more delicate flatbed elastic insertion operations suchas underwear when it is
desirable to trap the elastic in the hem rather than tacking the elastic onto the seam
SUNSHINE® 3400 Series -Multi needle, double chainstitch flatbed machines with rear puller
3404 - Four needle, double chainstitch, flatbed machines. A rear puller is featured on this machine for smooth sewing
operations.3406 / 3412 - Multi needle, double chainstitch machines. A wide range of available gauges, combined with
front and rear puller make these machines ideal for special operations
SUNSHINE® 5500 Series -High speed, double chainstitch machines with rear puller
5503 - Three needle, double chainstitch flatbed machines, lapseaming is accomplished easily and smoothly by the
combination of the puller and the tractor foot. Machine is ideal for flatbed work on medium to heavy fabrics.
5504 - Four needle, double chainstitch flatbed machine. This machine is designed for straight stitching of waistbands
on garments such as jeans and workwears. It is equipped with a puller for smooth operations on thick fabrics, even
when crossing seams.

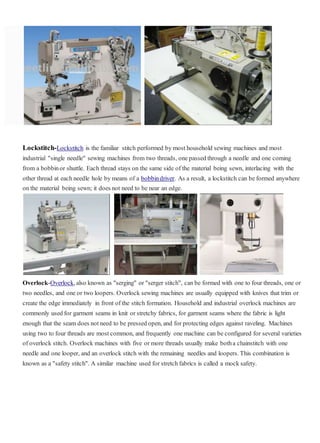

3. Lockstitch-Lockstitch is the familiar stitch performed by most household sewing machines and most
industrial "single needle" sewing machines from two threads, one passed through a needle and one coming
from a bobbinor shuttle. Each thread stays on the same side of the material being sewn, interlacing with the
other thread at each needle hole by means of a bobbindriver. As a result, a lockstitch can be formed anywhere
on the material being sewn; it does not need to be near an edge.
Overlock-Overlock, also known as "serging" or "serger stitch", can be formed with one to four threads, one or
two needles, and one or two loopers. Overlock sewing machines are usually equipped with knives that trim or
create the edge immediately in front of the stitch formation. Household and industrial overlock machines are
commonly used for garment seams in knit or stretchy fabrics, for garment seams where the fabric is light
enough that the seam does not need to be pressed open, and for protecting edges against raveling. Machines
using two to four threads are most common, and frequently one machine can be configured for several varieties
of overlock stitch. Overlock machines with five or more threads usually make botha chainstitch with one
needle and one looper, and an overlock stitch with the remaining needles and loopers. This combination is
known as a "safety stitch". A similar machine used for stretch fabrics is called a mock safety.

4. Cover stitch-Coverstitch is formed by two or more needles and one or two loopers. Like lockstitch and
chainstitch, coverstitch can be formed anywhere on the material being sewn. One looper manipulates a thread
below the material being sewn, forming a bottom cover stitch against the needle threads. An additional looper
above the material can form a top cover stitch simultaneously. The needle threads form parallel rows, while the
looper threads cross backand forth all the needle rows. Coverstitch is so-called because the grid of crossing
needle and looper threads covers raw seam edges, much as the overlock stitch does. It is widely used in
garment construction, particularly for attaching trims and flat seaming where the raw edges can be finished in
the same operation as forming the seam
Zigzag stitch-A zigzag stitch is variant geometry of the lockstitch. It is a back-and-forth stitch used where a
straight stitch will not suffice, such as in preventing raveling of a fabric, in stitching stretchable fabrics, and in
temporarily joining two work pieces edge-to-edge.
When creating a zigzag stitch, the back-and-forth motion of the sewing machine's needle is controlled by
a cam. As the cam rotates, a fingerlike follower, connected to the needle bar, rides along the cam and tracks its
indentations. As the follower moves in and out, the needle bar is moved from side to side.[21]

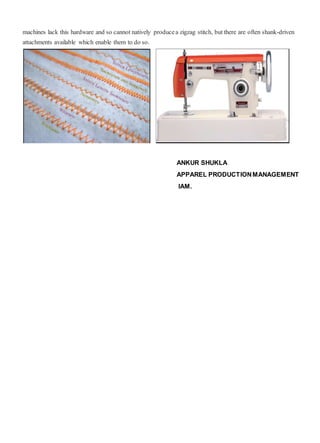

Very old sewing

5. machines lack this hardware and so cannot natively producea zigzag stitch, but there are often shank-driven
attachments available which enable them to do so.
