The tV-laser mandrel provides pipeline inspections using both laser profiling and CCTV camera technologies in a single pass. It is a battery-powered, autonomous device that does not require an inspection truck or power/signal cables. Operators can obtain on-site deflection results from the integrated laser profiler and software, or request a professionally processed report. The tV-laser mandrel allows for efficient and cost-effective inspections of water and wastewater pipelines.

1. tV-laser mandrel™
FOR PIPELINE INSPECTIONS
As easy as a mandrel,
but with the benefits of laser profiling technology
& CCTV inspections
No Inspection Truck Required
Everything is on- board. Significant fuel and cost savings.
Battery Powered Autonomous Operation
6 hrs of use per charge. Distance not limited by power & signal cables
Laser Profiler
On- site deflection results with included software
Optional, professionally processed reports
CCTV Inspection Camera & Bright Lights
Tandem CCTV & laser profiling inspection in one pass
See reverse for more details
Contact
Professional Data Processing Centre
Inventor of the CoolVision™ Laser Profiler
1- 866- 993- 0366
MilliM™ Video- micrometer E- mail : support@ctecworld.com
www.ctecworld.com

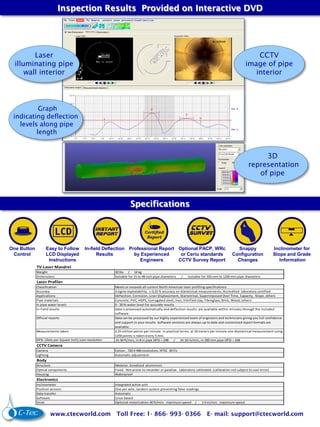

2. Inspection Results Provided on Interactive DVD
Laser CCTV
illuminating pipe image of pipe
wall interior interior
Graph
indicating deflection
levels along pipe
length
3D
representation
of pipe
Specifications
One Button Easy to Follow In-field Deflection Professional Report Optional PACP, WRc Snappy Inclinometer for
Control LCD Displayed Results by Experienced or Ceriu standards Configuration Slope and Grade
Instructions Engineers CCTV Survey Report Changes Information
TV-Laser Mandrel
Weight 30 lbs / 14 kg
Dimensions Suitable for 15 to 48 inch pipe diameters / Suitable for 350 mm to 1200 mm pipe diameters
Laser Profiler
Classification Meets or exceeds all current North American laser profiling specifications
Accuracy 3 sigma repeatability. ± 0,25 % accuracy on diametrical measurements. Accredited laboratory certified
Applications Deflection, Corrosion, Liner Displacement, Diametrical, Superimposed Over Time, Capacity, Slope, others
Pipe materials Concrete, PVC, HDPE, Corrugated steel, Iron, Vitrified clay, Fibreglass, Brick, Wood, others
In pipe water levels 0 - 20 % water level for accurate results
In-Field results Data is processed automatically and deflection results are available within minutes through the included
software.
Official reports Data can be processed by our highly experienced team of engineers and technicians giving you full confidence
and support in your results. Software versions are always up to date and customized report formats are
available.
Measurements taken 2,25 million points per minute. In practical terms, at 10 meters per minute one diametrical measurement using
1250 points is taken every 5 mm.
DPSI (Dots per Square Inch) scan resolution At 30 ft/min, in 8 in pipe DPSI = 248 / At 10 m/min, in 200 mm pipe DPSI = 248
CCTV Camera
Camera Colour , 720 X 480 resolution, NTSC 30 f/s
Lighting Automatic adjustment
Body
Structure Modular. Anodized aluminium
Optical components Fixed . Not prone to meander or parallax. Laboratory calibrated (calibration not subject to user error)
Housing Waterproof
Electronics
Inclinometer Integrated active unit
Position sensors One per axle, tandem system preventing false readings
Data transfer Automatic
Software Linux based
Drive Optional motorization 30 ft/min. maximum speed / 1 0 m/min. maximum speed
www.ctecworld.com Toll Free: 1- 866- 993- 0366 E- mail: support@ctecworld.com
