The document details the components and operations of a television production studio, including installation rooms for video productions and live recordings. It describes various equipment such as cameras, audio mixing consoles, and video servers, along with their roles in the production process. Additionally, it outlines the crew roles and installations necessary for both live and recorded broadcasts.

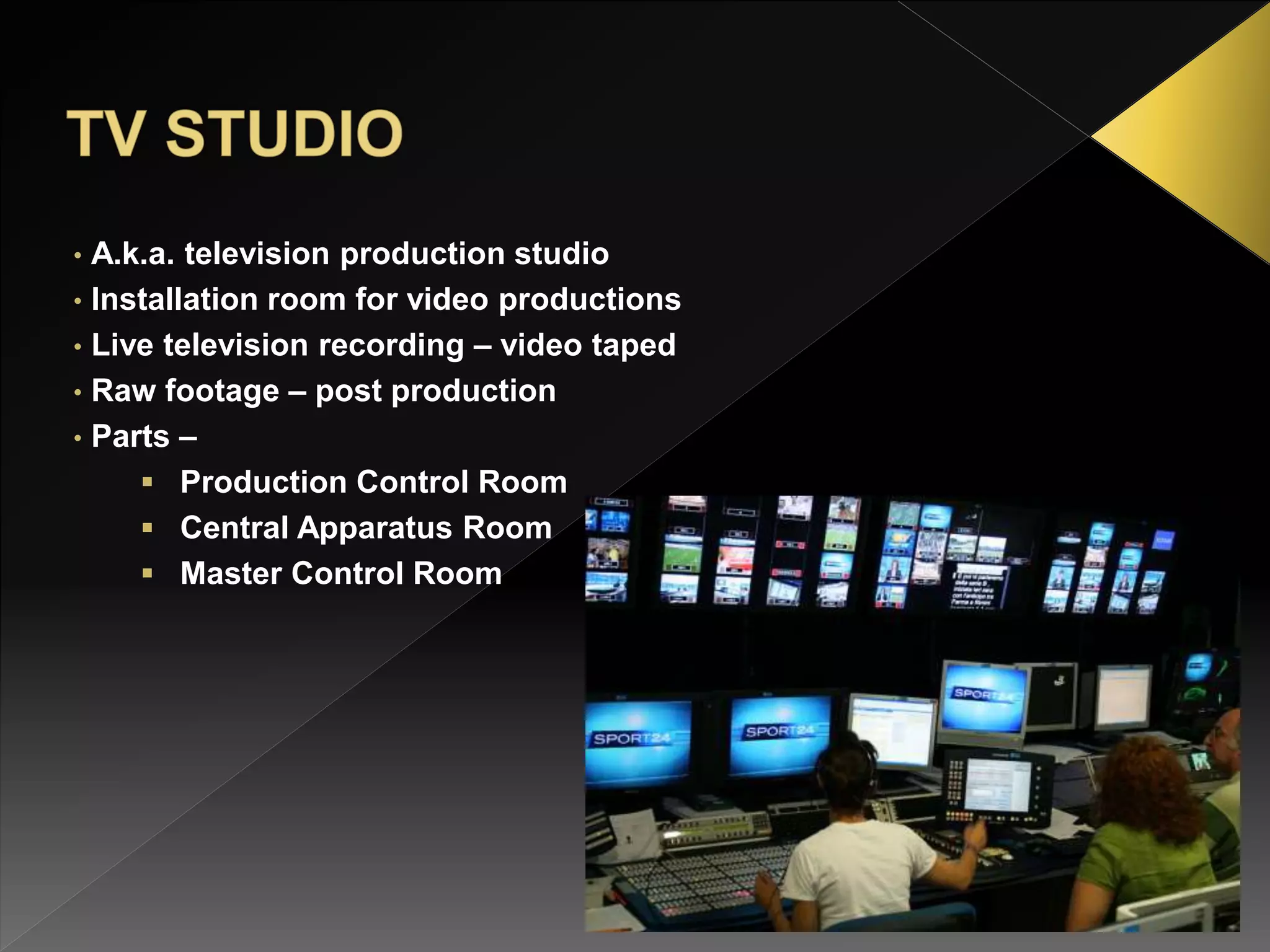

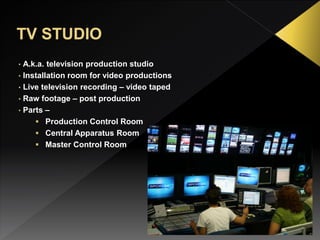

2. • A.k.a. television production studio
• Installation room for video productions
• Live television recording – video taped
• Raw footage – post production
• Parts –
 Production Control Room
 Central Apparatus Room
 Master Control Room

3. •A.k.a. Studio Control Room or Gallery
•Composition of programs
•Interfaces of the equipments in CAR
•Facilities -
• Video Monitor wall – program preview
• Vision mixer/ switcher – selection of multi-camera setup
• Audio mixing console – selection of audio sources
• Character Generator – names in the lower third portion
• Lighting Control Console – lighting on studio floor
• Still store – storage of graphics, frames, clips
• Intercom – connects talent and crew
• Digital Video effects – manipulation off video sources

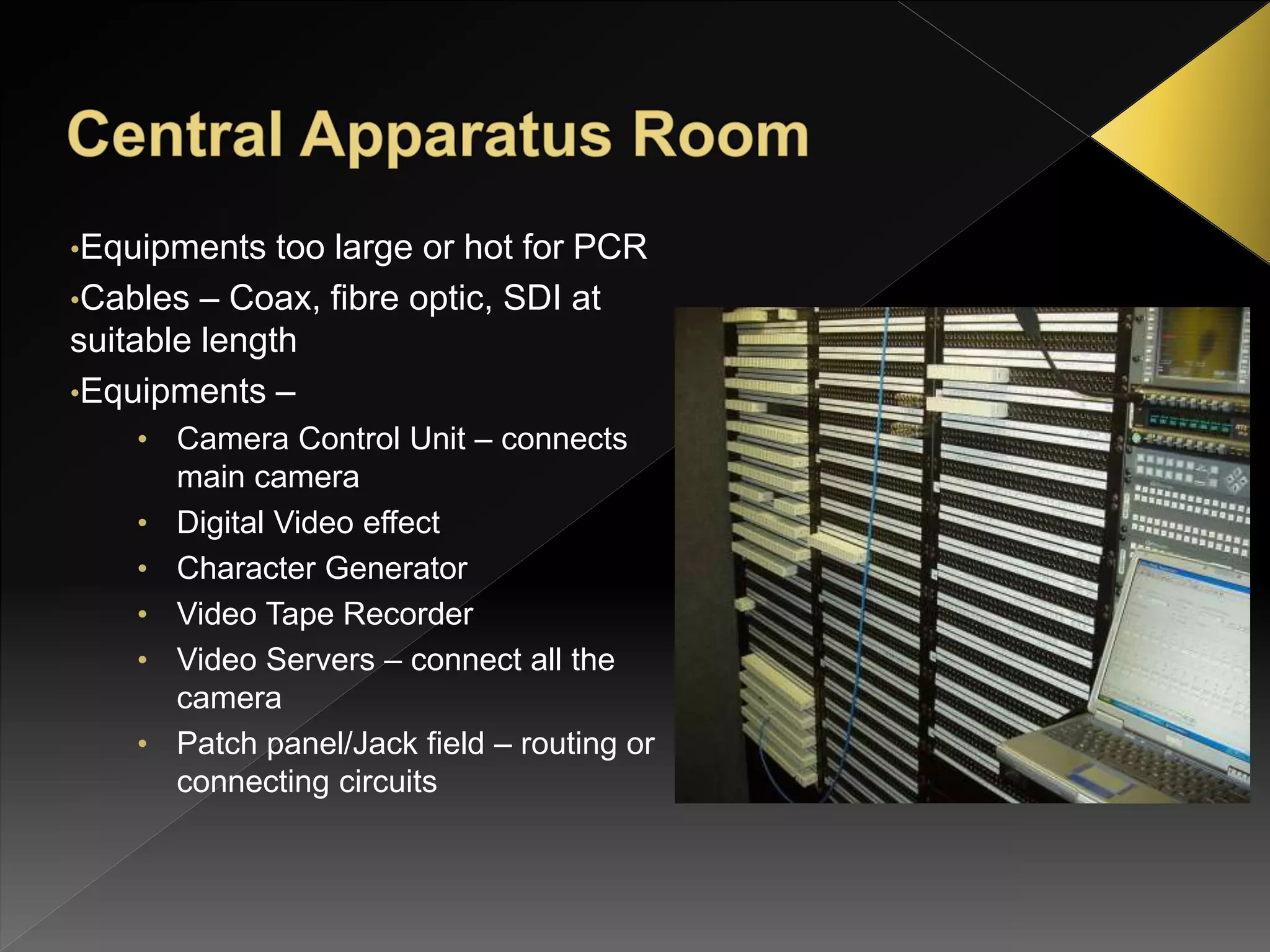

4. •Equipments too large or hot for PCR
•Cables – Coax, fibre optic, SDI at
suitable length
•Equipments –
• Camera Control Unit – connects
main camera
• Digital Video effect
• Character Generator
• Video Tape Recorder
• Video Servers – connect all the
camera
• Patch panel/Jack field – routing or
connecting circuits

5. •Technical hub of broadcast operations
•Coordinated camera switching
•Control on-air signal
•Controls –
• Playouts - Pre-recorded television program or commercial
• Local network feed
• Record satellite feeds
• Monitor transmitter
• For live broadcast :
Signal  PCR  MCR  Transmitter

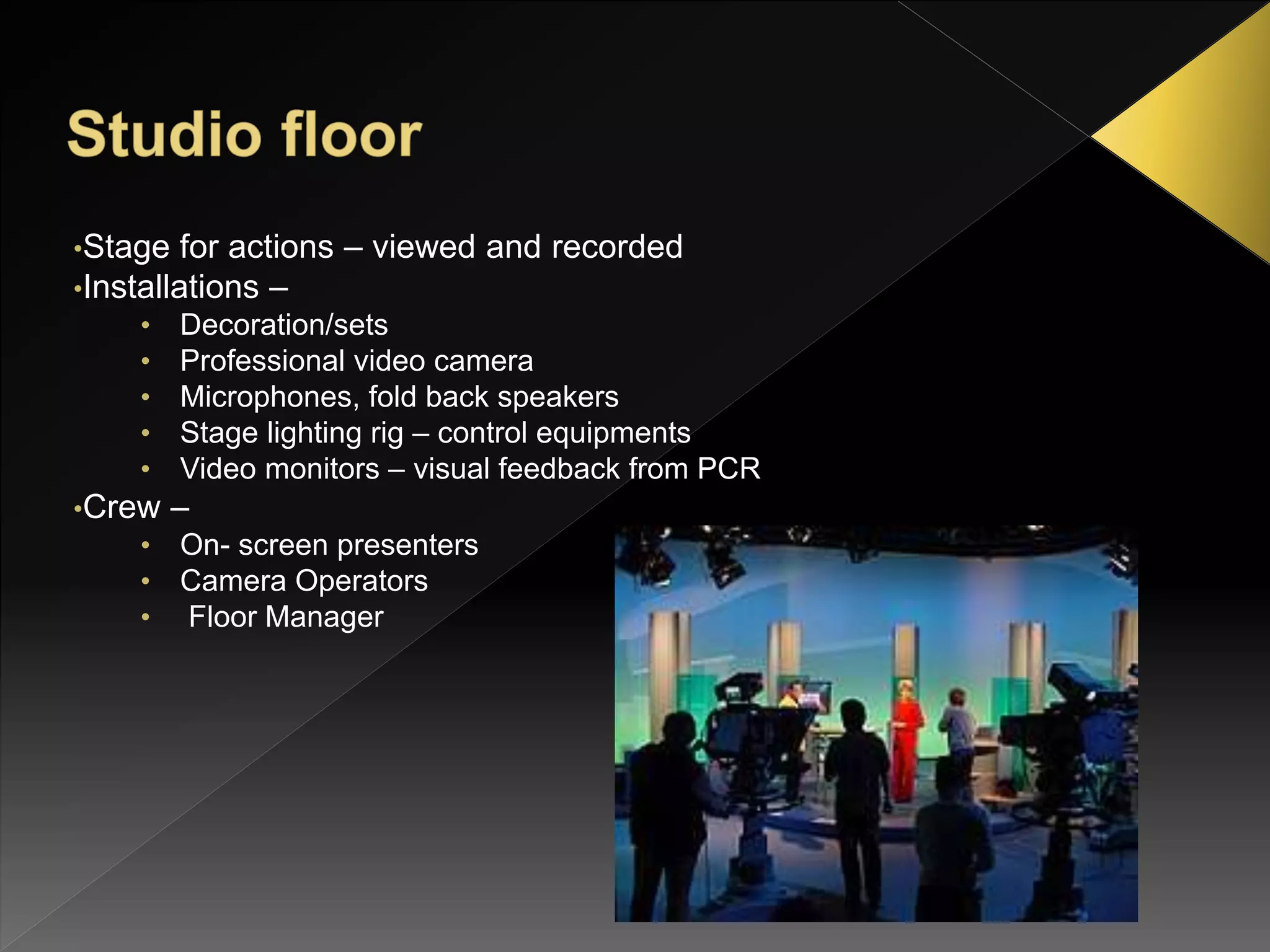

6. •Stage for actions – viewed and recorded
•Installations –
• Decoration/sets
• Professional video camera
• Microphones, fold back speakers
• Stage lighting rig – control equipments
• Video monitors – visual feedback from PCR
•Crew –
• On- screen presenters
• Camera Operators
• Floor Manager

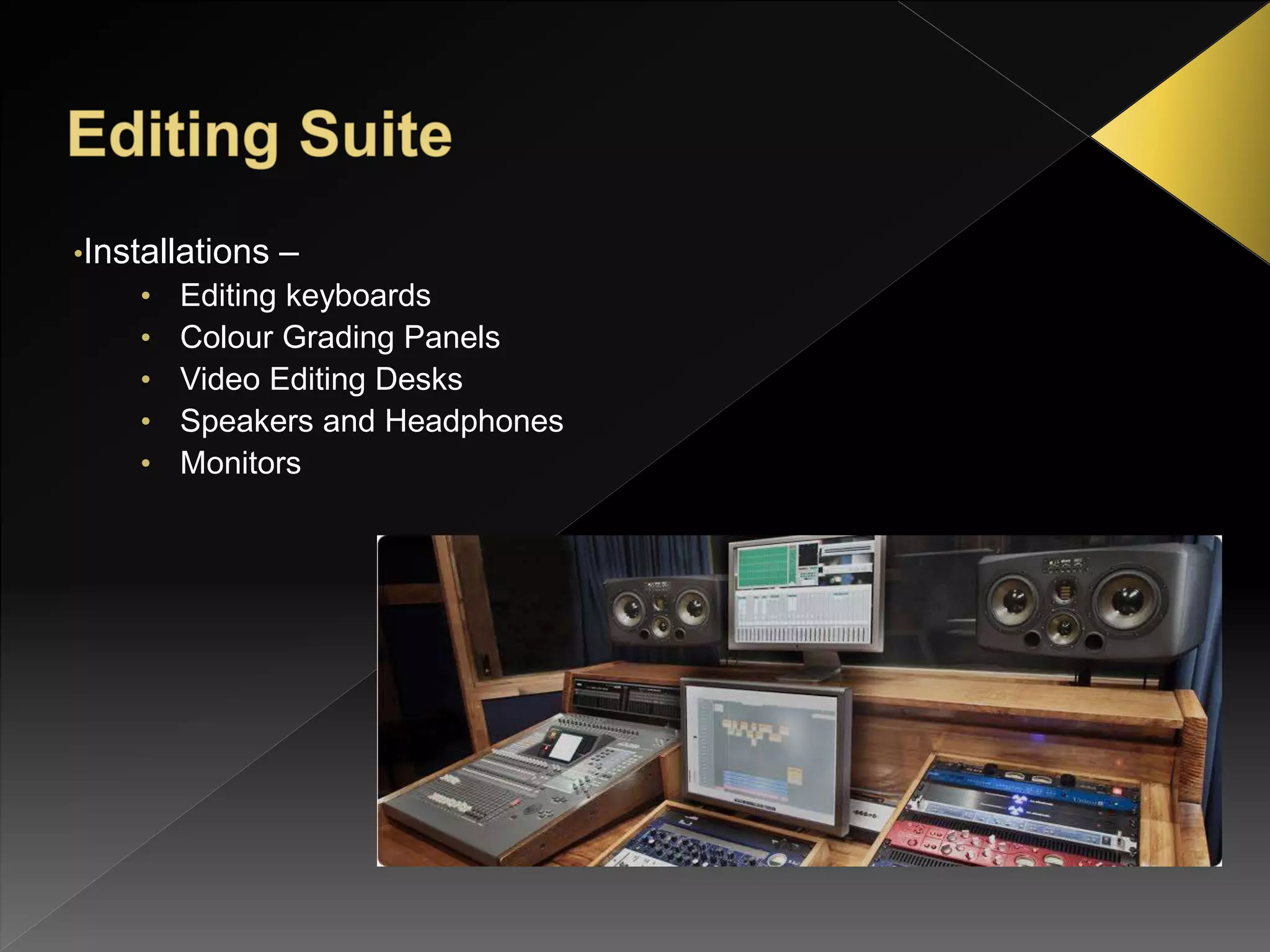

7. •Installations –
• Editing keyboards
• Colour Grading Panels
• Video Editing Desks
• Speakers and Headphones
• Monitors
