1. The Transport Layer
Chapter 4
1/4/2017 Mr Satyendra Mohan Srivastava 1

2. The Transport Service
• Services Provided to the Upper Layers
• Transport Service Primitives
• Berkeley Sockets
• An Example of Socket Programming:
– An Internet File Server
1/4/2017 Mr Satyendra Mohan Srivastava 2

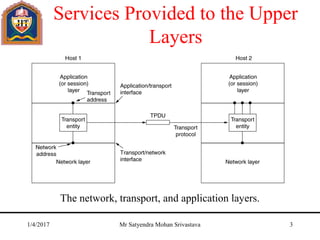

3. Services Provided to the Upper
Layers
The network, transport, and application layers.
1/4/2017 Mr Satyendra Mohan Srivastava 3

4. Transport Service Primitives

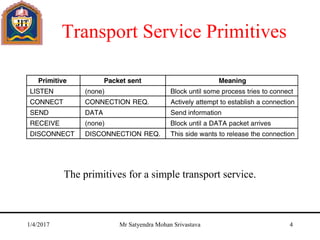

The primitives for a simple transport service.
1/4/2017 Mr Satyendra Mohan Srivastava 4

5. Transport Service Primitives
The nesting of TPDUs, packets, and frames.
1/4/2017 Mr Satyendra Mohan Srivastava 5

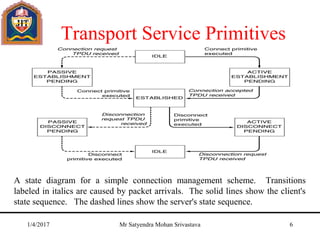

6. Transport Service Primitives
A state diagram for a simple connection management scheme. Transitions
labeled in italics are caused by packet arrivals. The solid lines show the client's
state sequence. The dashed lines show the server's state sequence.
1/4/2017 Mr Satyendra Mohan Srivastava 6

7. Berkeley Sockets

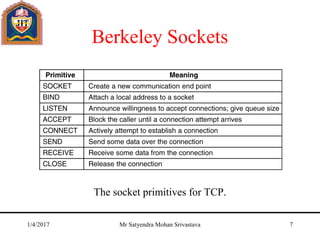

The socket primitives for TCP.
1/4/2017 Mr Satyendra Mohan Srivastava 7

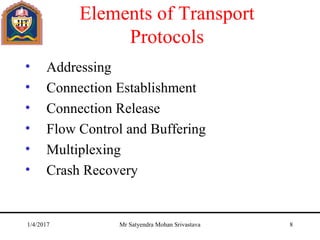

8. Elements of Transport
Protocols
• Addressing
• Connection Establishment
• Connection Release
• Flow Control and Buffering
• Multiplexing
• Crash Recovery
1/4/2017 Mr Satyendra Mohan Srivastava 8

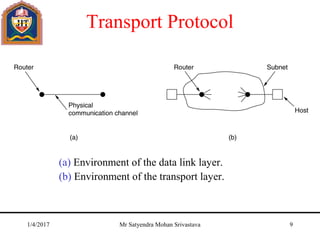

9. Transport Protocol
(a) Environment of the data link layer.
(b) Environment of the transport layer.
1/4/2017 Mr Satyendra Mohan Srivastava 9

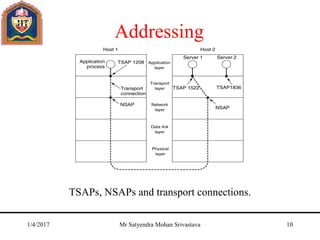

10. Addressing
TSAPs, NSAPs and transport connections.
1/4/2017 Mr Satyendra Mohan Srivastava 10

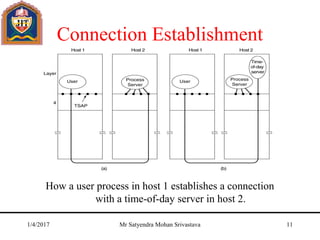

11. Connection Establishment
How a user process in host 1 establishes a connection
with a time-of-day server in host 2.
1/4/2017 Mr Satyendra Mohan Srivastava 11

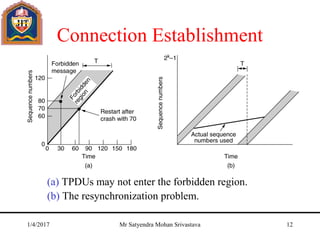

12. Connection Establishment
(a) TPDUs may not enter the forbidden region.
(b) The resynchronization problem.
1/4/2017 Mr Satyendra Mohan Srivastava 12

13. Connection Establishment

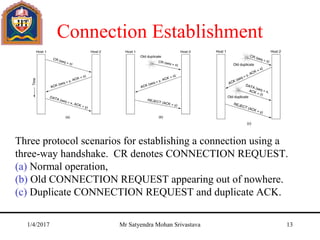

Three protocol scenarios for establishing a connection using a
three-way handshake. CR denotes CONNECTION REQUEST.
(a) Normal operation,
(b) Old CONNECTION REQUEST appearing out of nowhere.
(c) Duplicate CONNECTION REQUEST and duplicate ACK.
1/4/2017 Mr Satyendra Mohan Srivastava 13

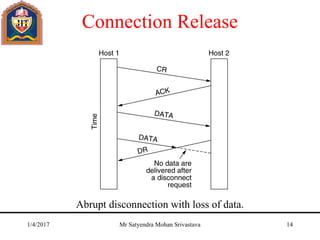

14. Connection Release
Abrupt disconnection with loss of data.
1/4/2017 Mr Satyendra Mohan Srivastava 14

15. Connection Release

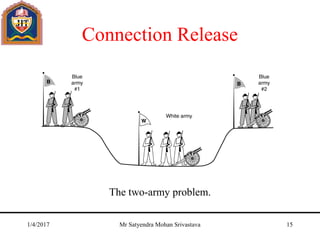

The two-army problem.
1/4/2017 Mr Satyendra Mohan Srivastava 15

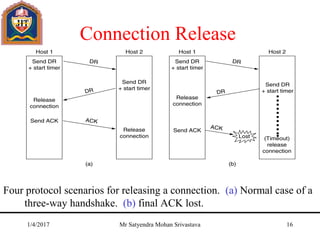

16. Connection Release
Four protocol scenarios for releasing a connection. (a) Normal case of a
three-way handshake. (b) final ACK lost.
6-14, a, b
1/4/2017 Mr Satyendra Mohan Srivastava 16

17. Connection Release
(c) Response lost. (d) Response lost and subsequent DRs lost.
6-14, c,d
1/4/2017 Mr Satyendra Mohan Srivastava 17

18. Multiplexing
(a) Upward multiplexing. (b) Downward multiplexing.
1/4/2017 Mr Satyendra Mohan Srivastava 18

19. Crash Recovery
Different combinations of client and server strategy.
1/4/2017 Mr Satyendra Mohan Srivastava 19

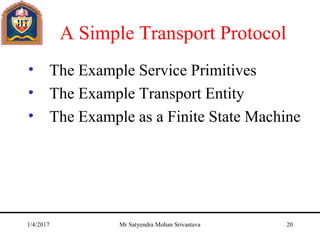

20. A Simple Transport Protocol
• The Example Service Primitives
• The Example Transport Entity
• The Example as a Finite State Machine
1/4/2017 Mr Satyendra Mohan Srivastava 20

21. The Example Transport Entity

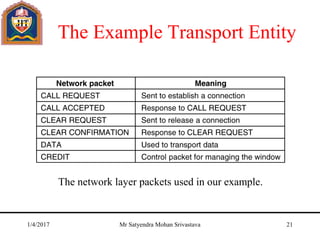

The network layer packets used in our example.
1/4/2017 Mr Satyendra Mohan Srivastava 21

22. The Example Transport Entity
Each connection is in one of seven states:
1. Idle – Connection not established yet.
2. Waiting – CONNECT has been executed, CALL REQUEST sent.
3. Queued – A CALL REQUEST has arrived; no LISTEN yet.
4. Established – The connection has been established.
5. Sending – The user is waiting for permission to send a packet.
6. Receiving – A RECEIVE has been done.
7. DISCONNECTING – a DISCONNECT has been done locally.
1/4/2017 Mr Satyendra Mohan Srivastava 22

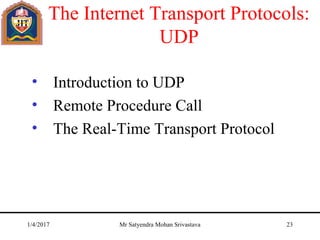

23. The Internet Transport Protocols:
UDP
• Introduction to UDP
• Remote Procedure Call
• The Real-Time Transport Protocol
1/4/2017 Mr Satyendra Mohan Srivastava 23

24. Introduction to UDP
The UDP header.
1/4/2017 Mr Satyendra Mohan Srivastava 24

25. Remote Procedure Call
Steps in making a remote procedure call. The stubs are shaded.
1/4/2017 Mr Satyendra Mohan Srivastava 25

26. The Real-Time Transport
Protocol

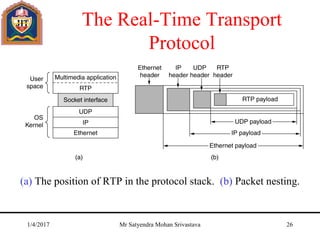

(a) The position of RTP in the protocol stack. (b) Packet nesting.
1/4/2017 Mr Satyendra Mohan Srivastava 26

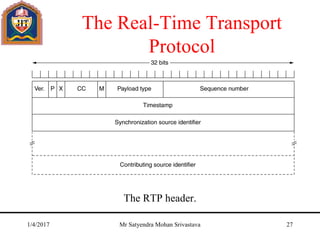

27. The Real-Time Transport
Protocol
The RTP header.
1/4/2017 Mr Satyendra Mohan Srivastava 27

28. The Internet Transport Protocols: TCP
• Introduction to TCP
• The TCP Service Model
• The TCP Protocol
• The TCP Segment Header
• TCP Connection Establishment
• TCP Connection Release
• TCP Connection Management Modeling
• TCP Transmission Policy
• TCP Congestion Control
• TCP Timer Management
• Wireless TCP and UDP
• Transactional TCP
1/4/2017 Mr Satyendra Mohan Srivastava 28

29. The TCP Service Model

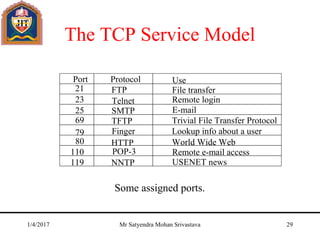

Some assigned ports.
Port Protocol Use
21 FTP File transfer
23 Telnet Remote login
25 SMTP E-mail
69 TFTP Trivial File Transfer Protocol
79 Finger Lookup info about a user
80 HTTP World Wide Web
110 POP-3 Remote e-mail access
119 NNTP USENET news
1/4/2017 Mr Satyendra Mohan Srivastava 29

30. The TCP Service Model

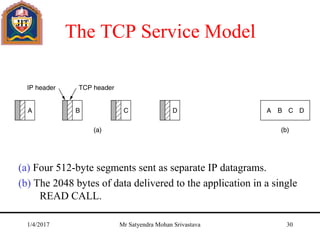

(a) Four 512-byte segments sent as separate IP datagrams.
(b) The 2048 bytes of data delivered to the application in a single
READ CALL.
1/4/2017 Mr Satyendra Mohan Srivastava 30

31. The TCP Segment Header

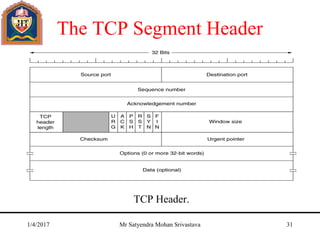

TCP Header.
1/4/2017 Mr Satyendra Mohan Srivastava 31

32. The TCP Segment Header

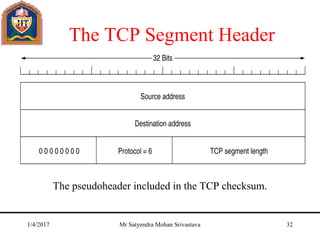

The pseudoheader included in the TCP checksum.
1/4/2017 Mr Satyendra Mohan Srivastava 32

33. TCP Connection Establishment

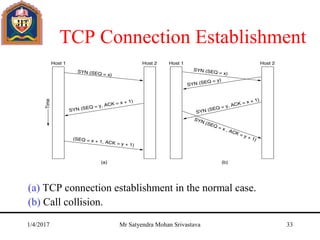

(a) TCP connection establishment in the normal case.
(b) Call collision.
6-31
1/4/2017 Mr Satyendra Mohan Srivastava 33

34. TCP Connection Management
Modeling

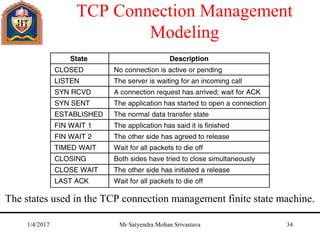

The states used in the TCP connection management finite state machine.
1/4/2017 Mr Satyendra Mohan Srivastava 34

35. TCP Transmission Policy

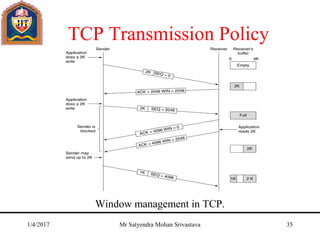

Window management in TCP.
1/4/2017 Mr Satyendra Mohan Srivastava 35

36. TCP Transmission Policy
Silly window syndrome.
1/4/2017 Mr Satyendra Mohan Srivastava 36

37. TCP Congestion Control

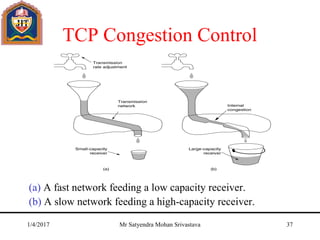

(a) A fast network feeding a low capacity receiver.
(b) A slow network feeding a high-capacity receiver.
1/4/2017 Mr Satyendra Mohan Srivastava 37

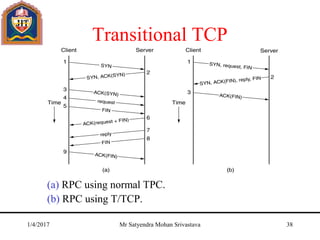

38. Transitional TCP
(a) RPC using normal TPC.
(b) RPC using T/TCP.
1/4/2017 Mr Satyendra Mohan Srivastava 38

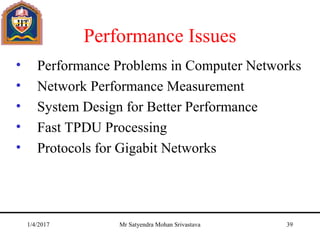

39. Performance Issues
• Performance Problems in Computer Networks
• Network Performance Measurement
• System Design for Better Performance
• Fast TPDU Processing
• Protocols for Gigabit Networks
1/4/2017 Mr Satyendra Mohan Srivastava 39

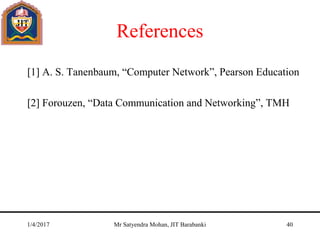

40. References
[1] A. S. Tanenbaum, “Computer Network”, Pearson Education
[2] Forouzen, “Data Communication and Networking”, TMH
1/4/2017 Mr Satyendra Mohan, JIT Barabanki 40
