This slide provides the basic and advance concept of process and various related terminology used in it such as process switching, process scheduling, schedulers, context switching, deadlock, threads and various problems such as Dining Philosopher, Critical Section, Producer-Consumer Problems etc.
2. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 2

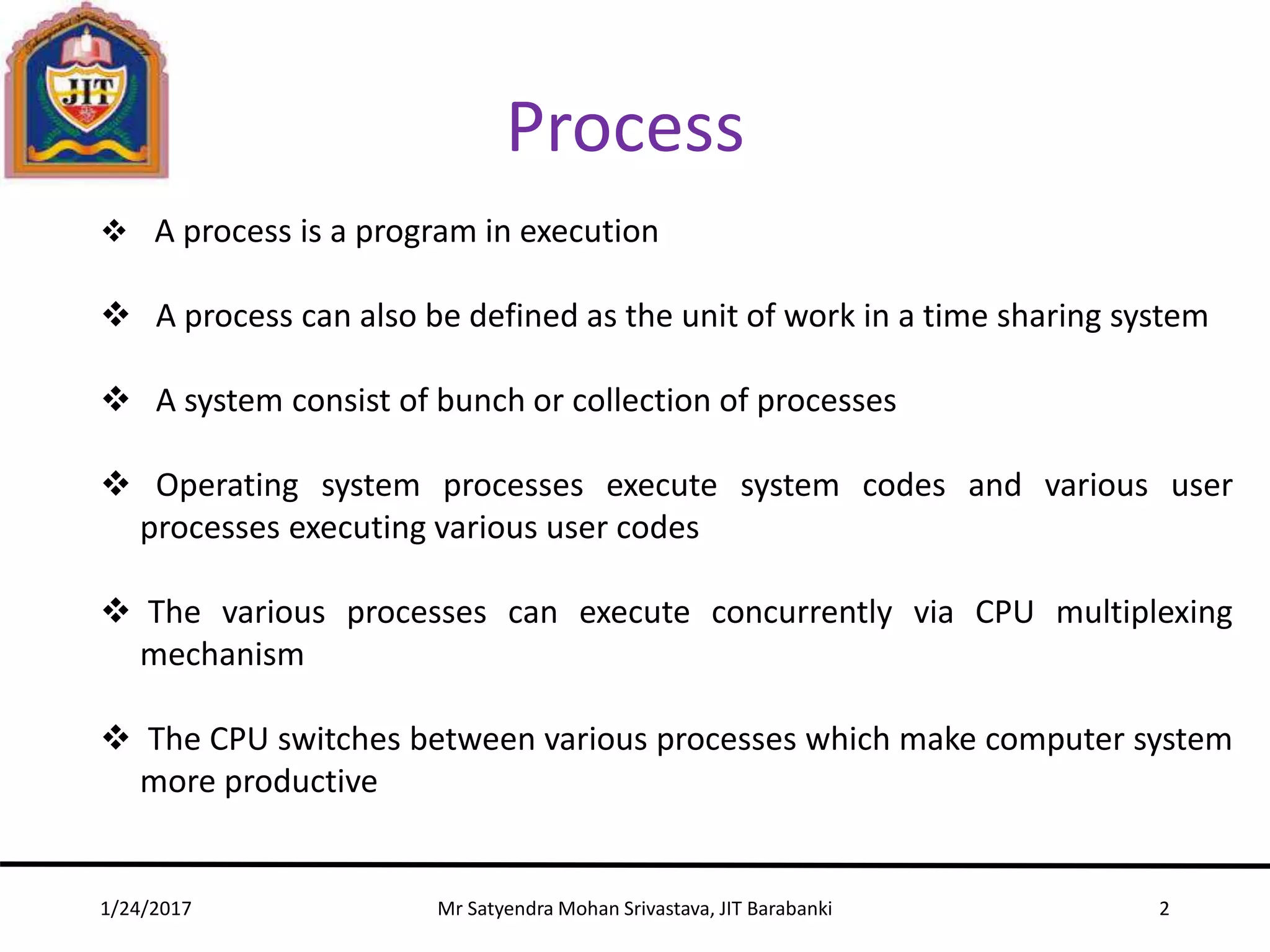

Process
A process is a program in execution
A process can also be defined as the unit of work in a time sharing system
A system consist of bunch or collection of processes
Operating system processes execute system codes and various user
processes executing various user codes
The various processes can execute concurrently via CPU multiplexing
mechanism
The CPU switches between various processes which make computer system
more productive
3. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 3

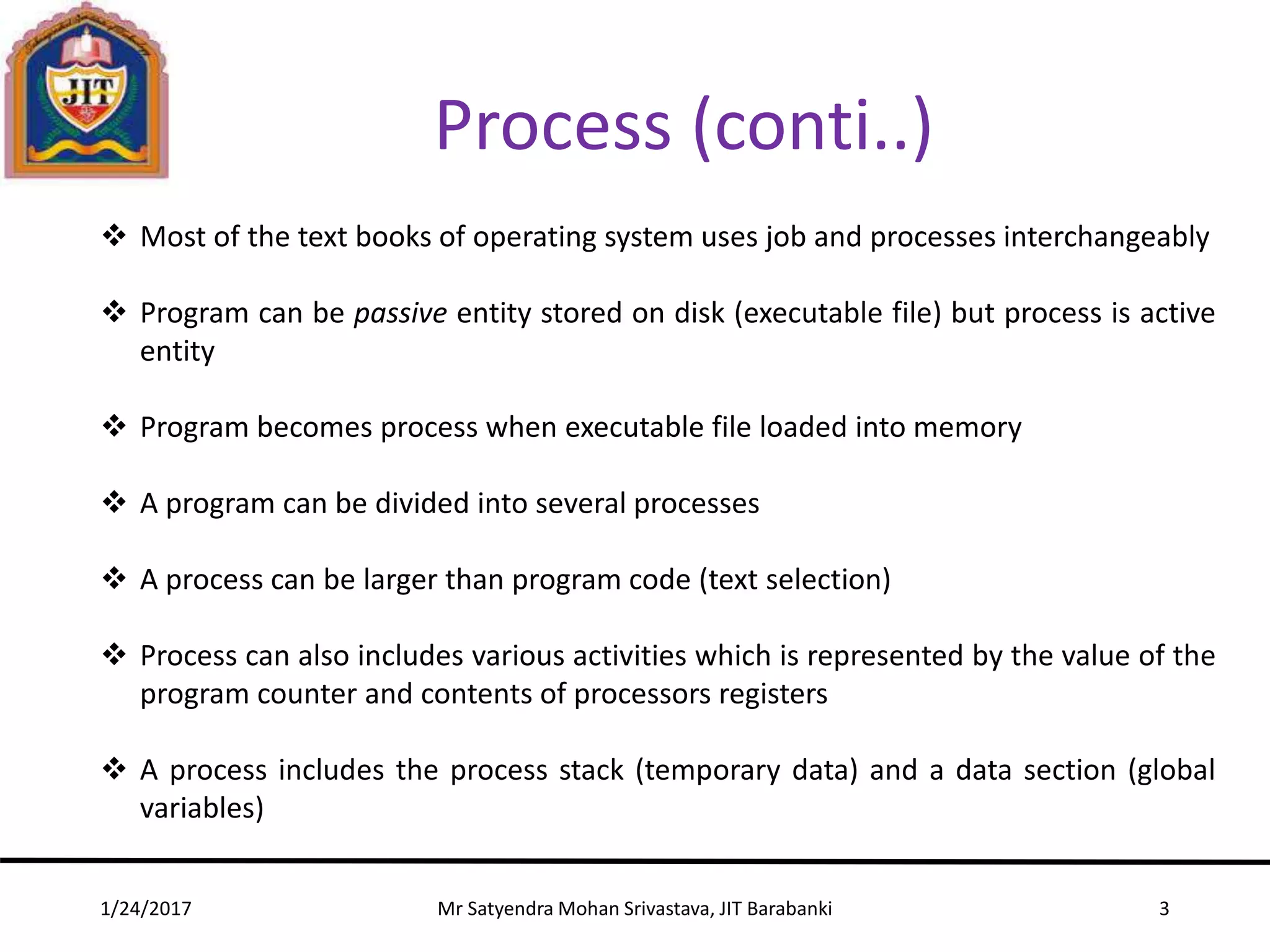

Process (conti..)
Most of the text books of operating system uses job and processes interchangeably
Program can be passive entity stored on disk (executable file) but process is active
entity
Program becomes process when executable file loaded into memory
A program can be divided into several processes
A process can be larger than program code (text selection)
Process can also includes various activities which is represented by the value of the
program counter and contents of processors registers
A process includes the process stack (temporary data) and a data section (global
variables)
4. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 4

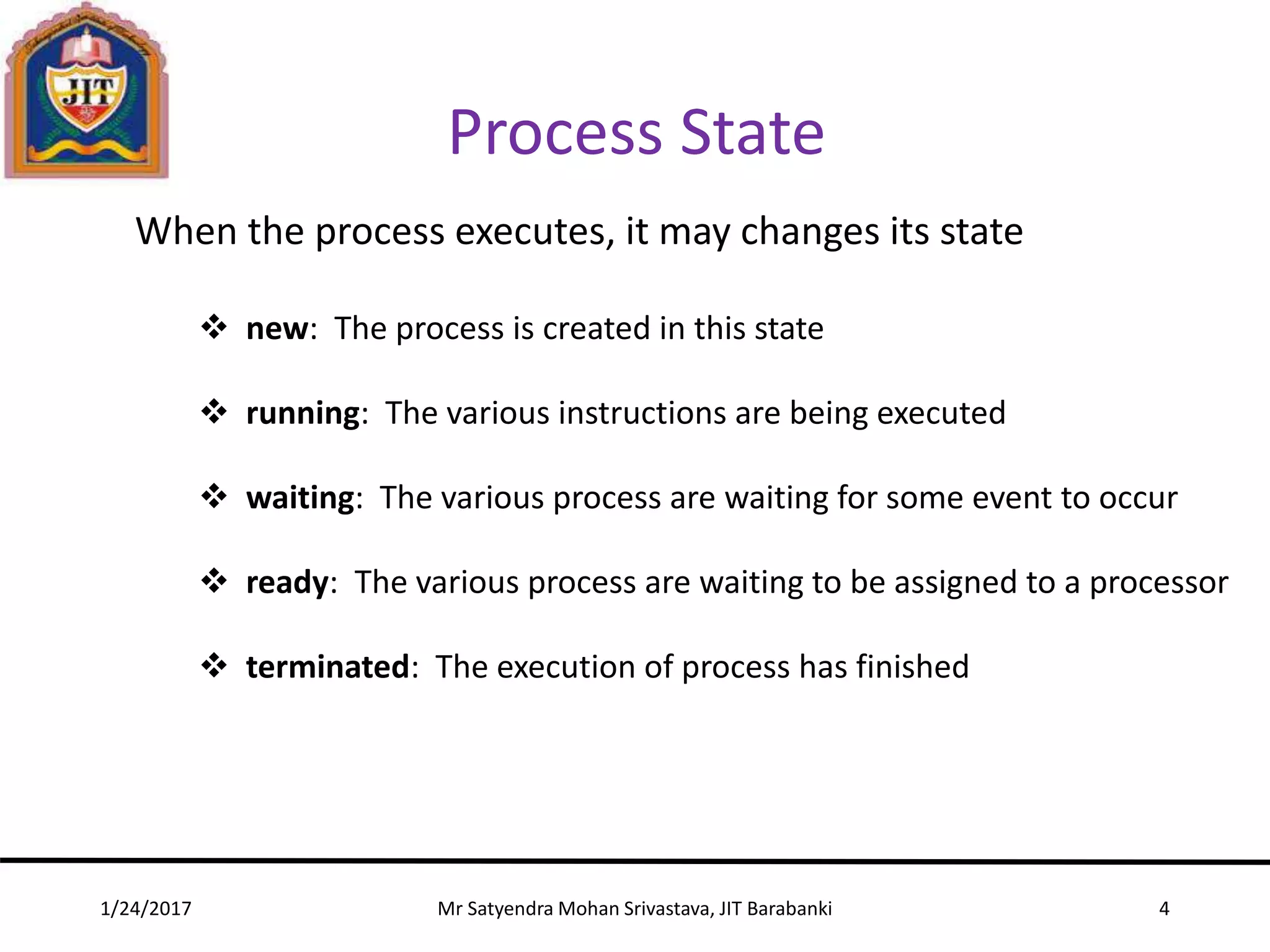

When the process executes, it may changes its state
new: The process is created in this state
running: The various instructions are being executed
waiting: The various process are waiting for some event to occur
ready: The various process are waiting to be assigned to a processor
terminated: The execution of process has finished
Process State
5. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 5

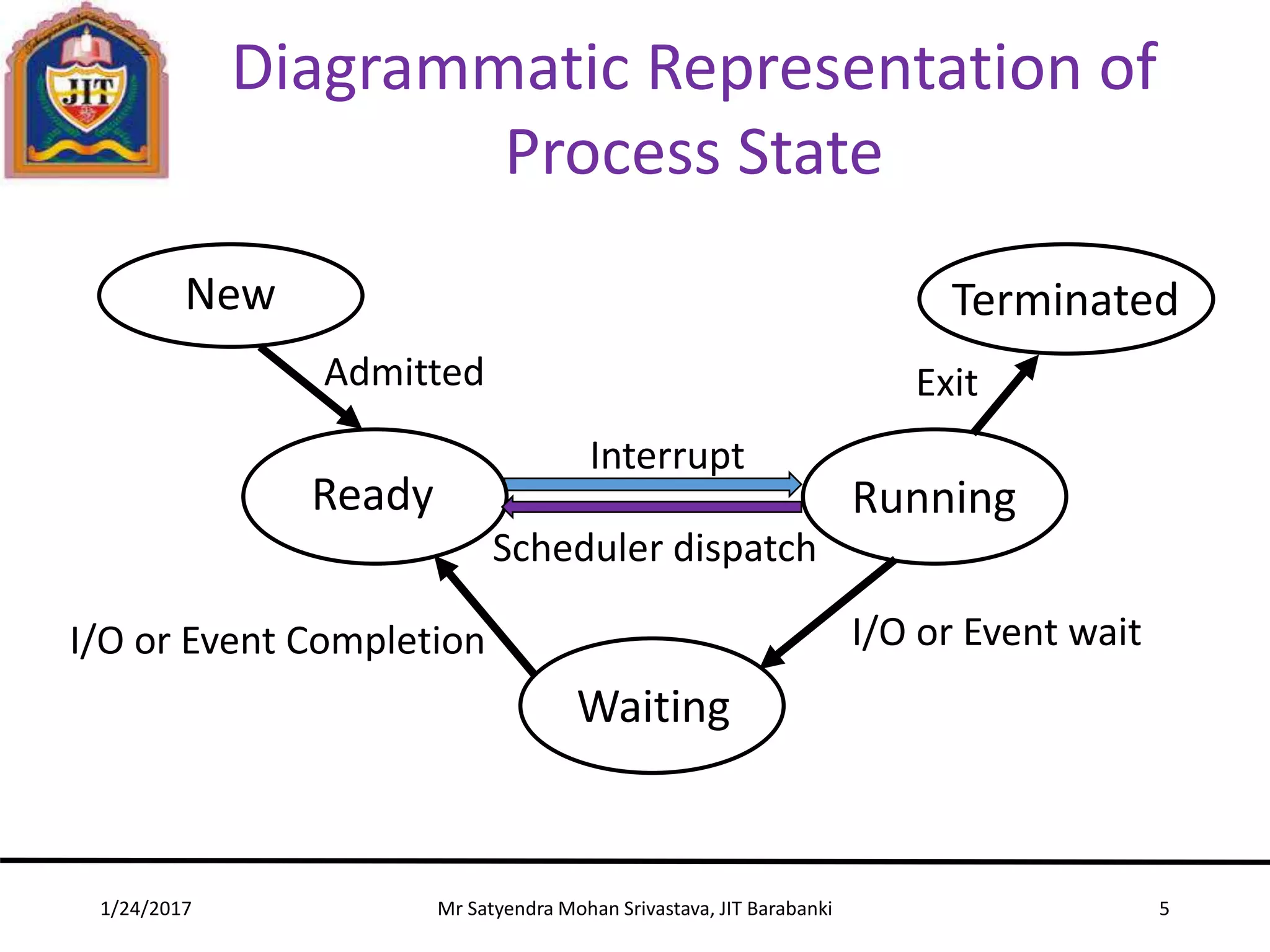

Diagrammatic Representation of
Process State
Interrupt
New Terminated
Ready Running
Waiting
Scheduler dispatch
Admitted Exit
I/O or Event waitI/O or Event Completion
6. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 6

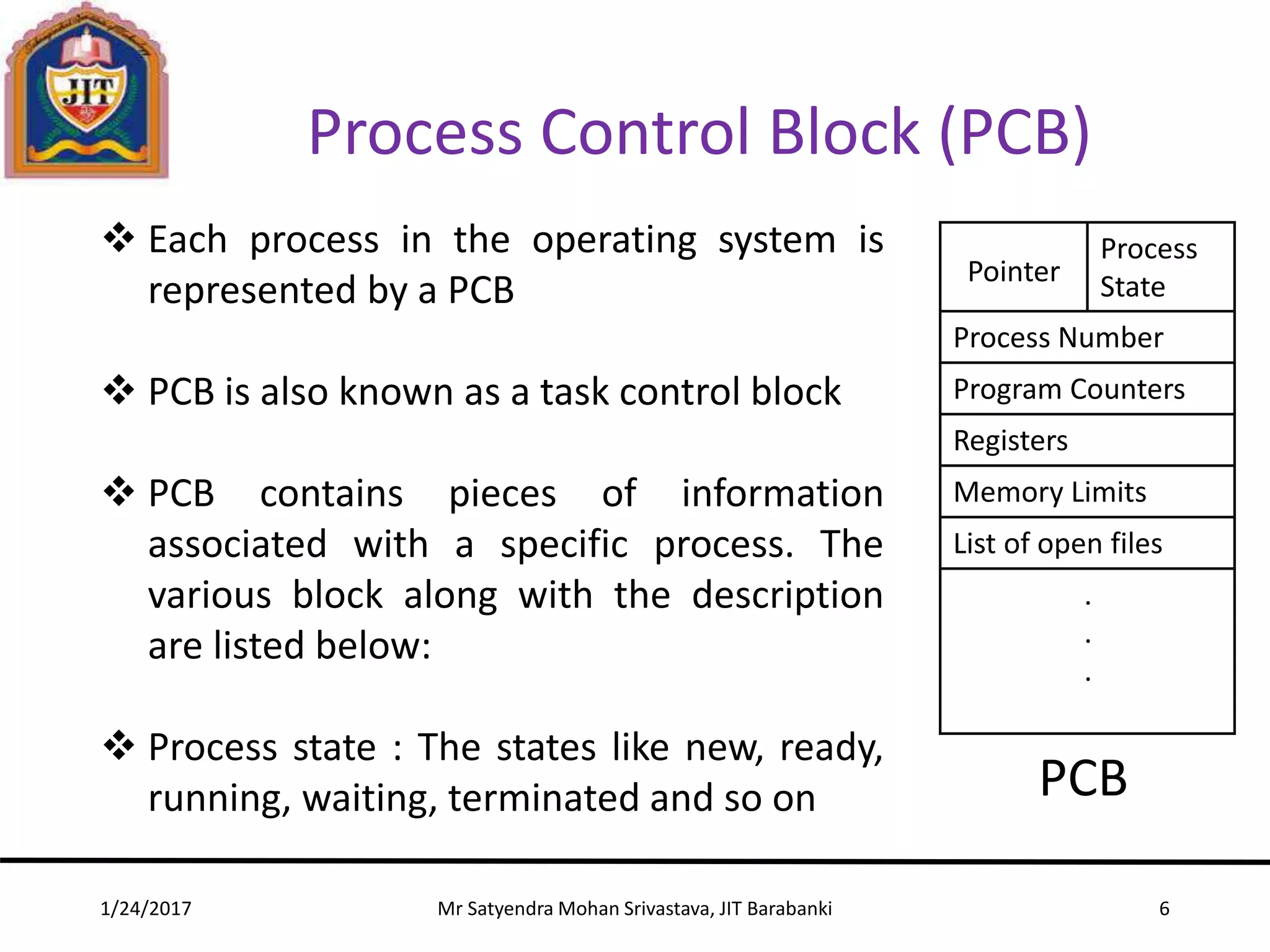

Process Control Block (PCB)
Pointer
Process
State
Process Number
Program Counters
Registers
Memory Limits
List of open files
.
.
.
Each process in the operating system is
represented by a PCB
PCB is also known as a task control block
PCB contains pieces of information
associated with a specific process. The
various block along with the description
are listed below:
Process state : The states like new, ready,
running, waiting, terminated and so on PCB
7. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 7

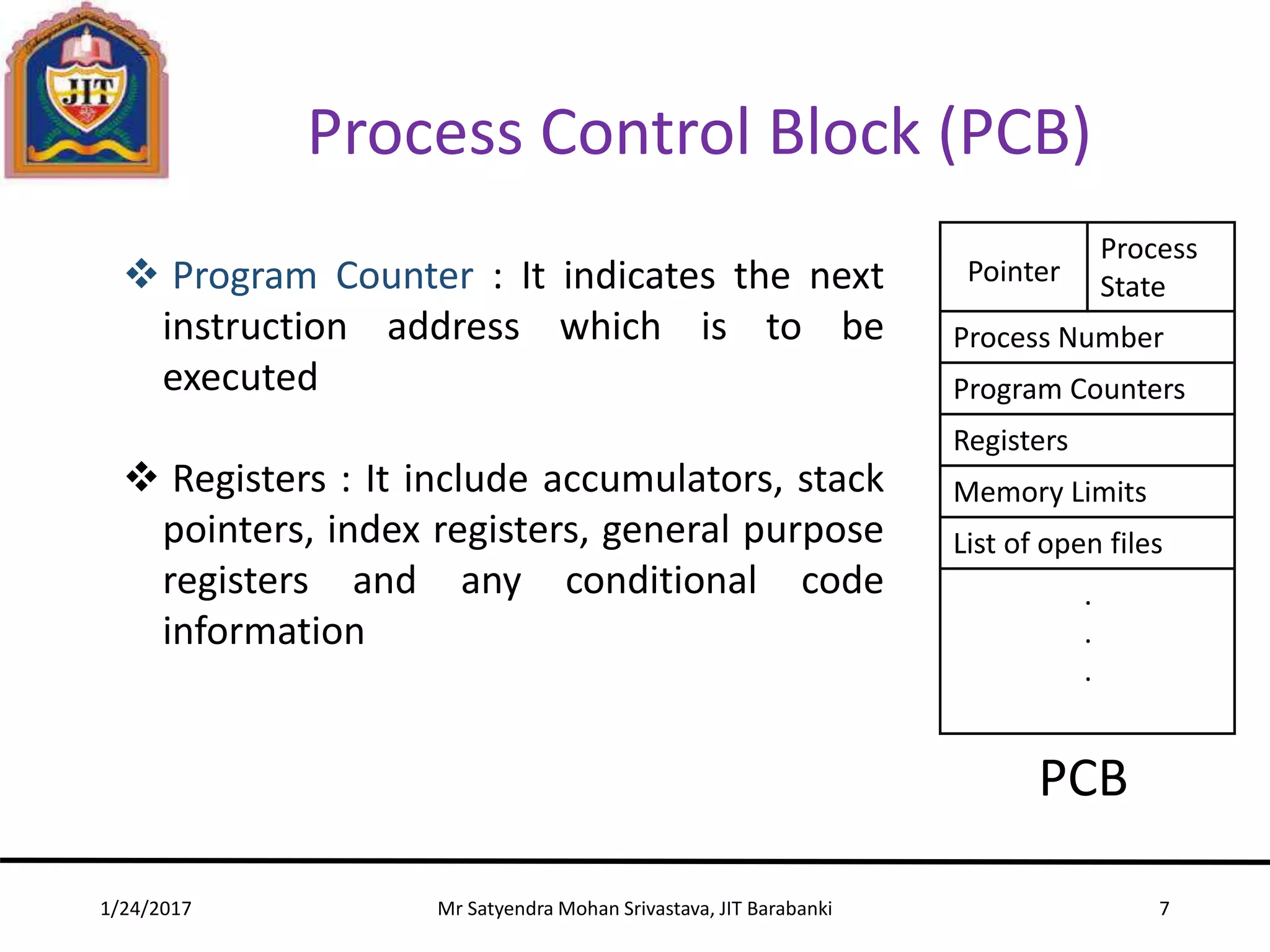

Process Control Block (PCB)
Pointer
Process
State
Process Number
Program Counters
Registers
Memory Limits
List of open files
.
.
.
Program Counter : It indicates the next
instruction address which is to be
executed
Registers : It include accumulators, stack
pointers, index registers, general purpose
registers and any conditional code
information
PCB
8. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 8

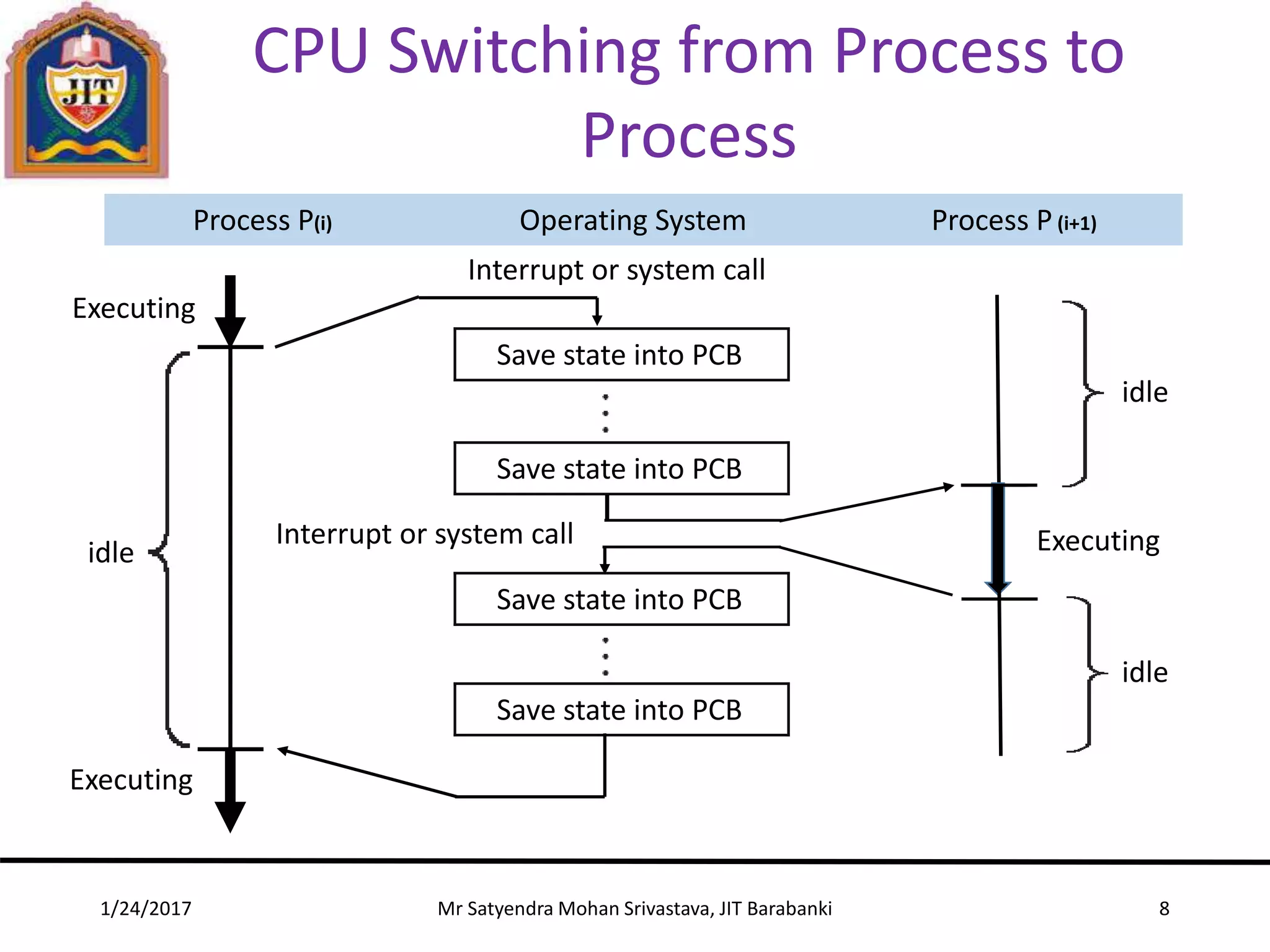

CPU Switching from Process to
Process
Process P(i) Operating System Process P(i+1)
Interrupt or system call
Save state into PCB
Save state into PCB
Save state into PCB
Save state into PCB
Executing
Executing
Executing
idle
idle
idle
Interrupt or system call
9. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 9

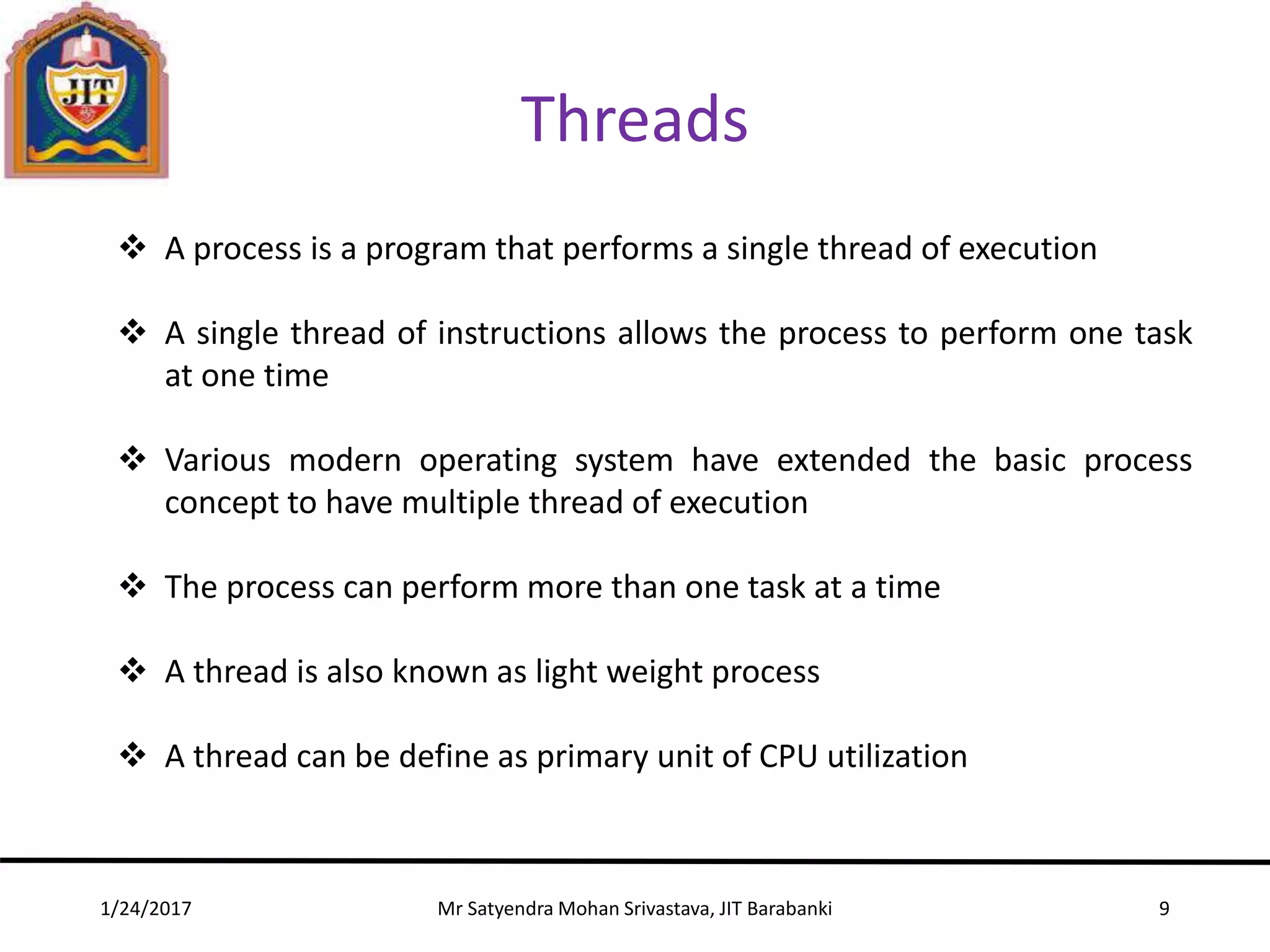

Threads
A process is a program that performs a single thread of execution
A single thread of instructions allows the process to perform one task
at one time
Various modern operating system have extended the basic process
concept to have multiple thread of execution
The process can perform more than one task at a time
A thread is also known as light weight process
A thread can be define as primary unit of CPU utilization

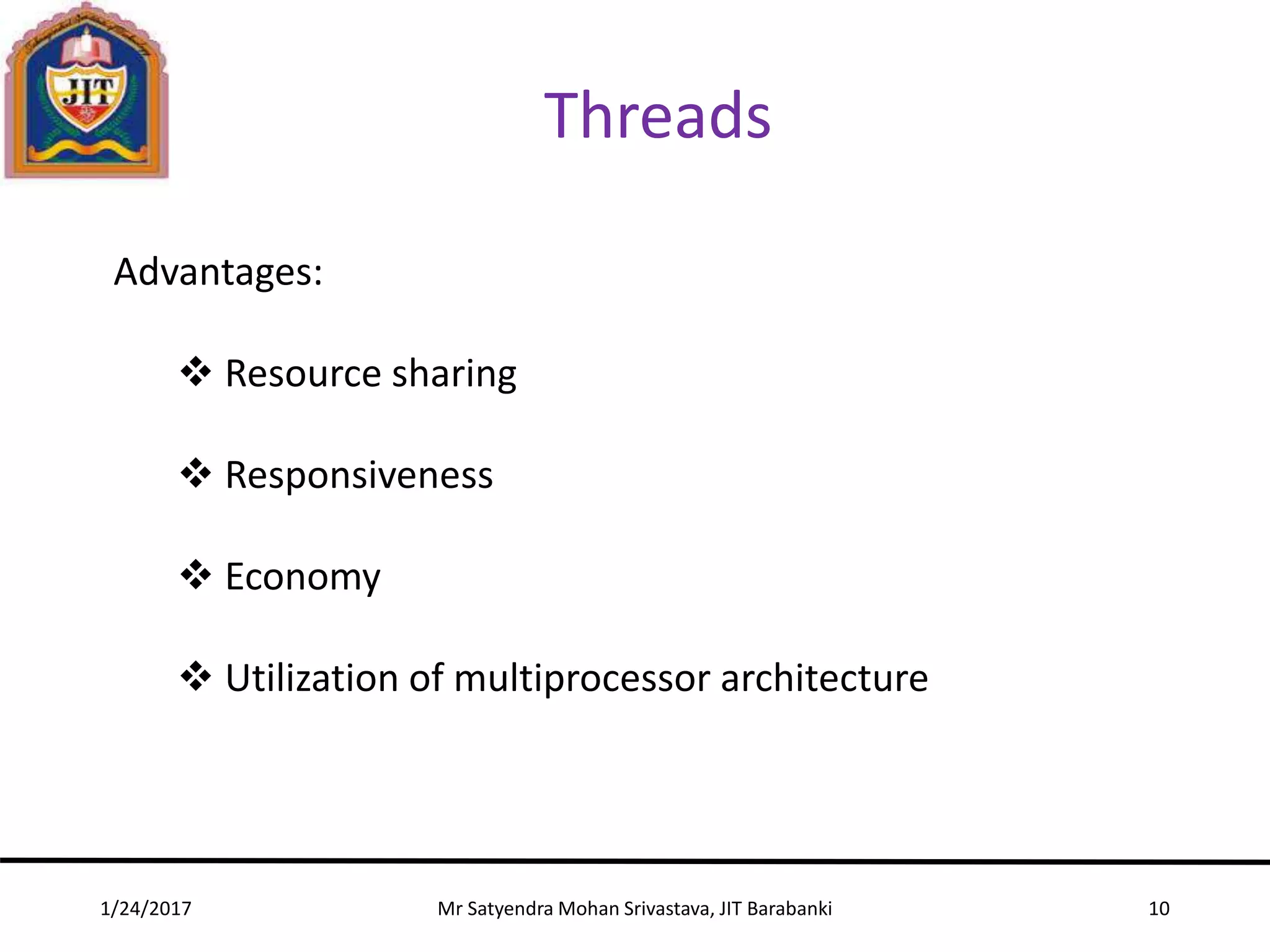

11. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 11

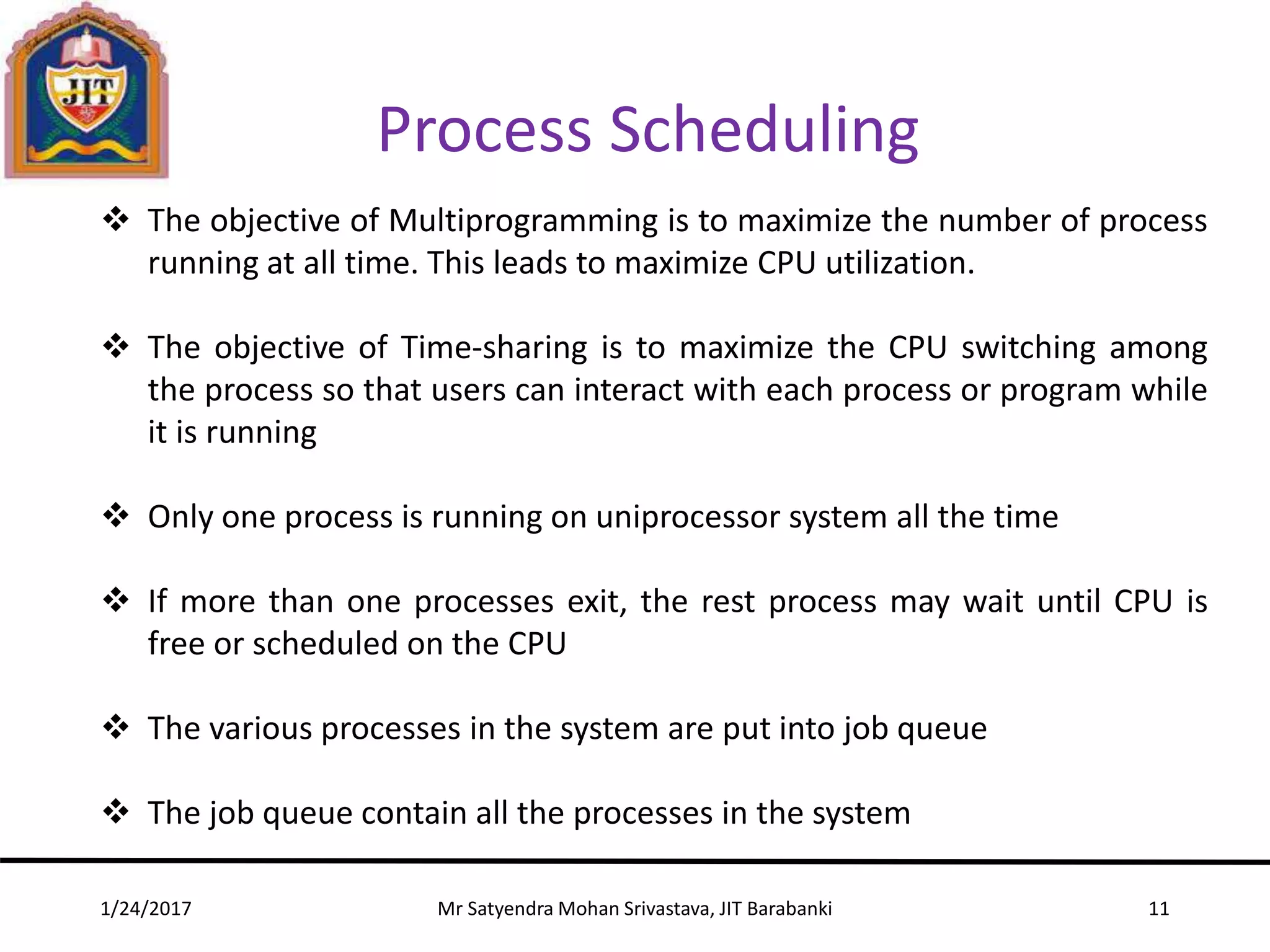

Process Scheduling
The objective of Multiprogramming is to maximize the number of process
running at all time. This leads to maximize CPU utilization.
The objective of Time-sharing is to maximize the CPU switching among
the process so that users can interact with each process or program while
it is running
Only one process is running on uniprocessor system all the time
If more than one processes exit, the rest process may wait until CPU is
free or scheduled on the CPU
The various processes in the system are put into job queue
The job queue contain all the processes in the system

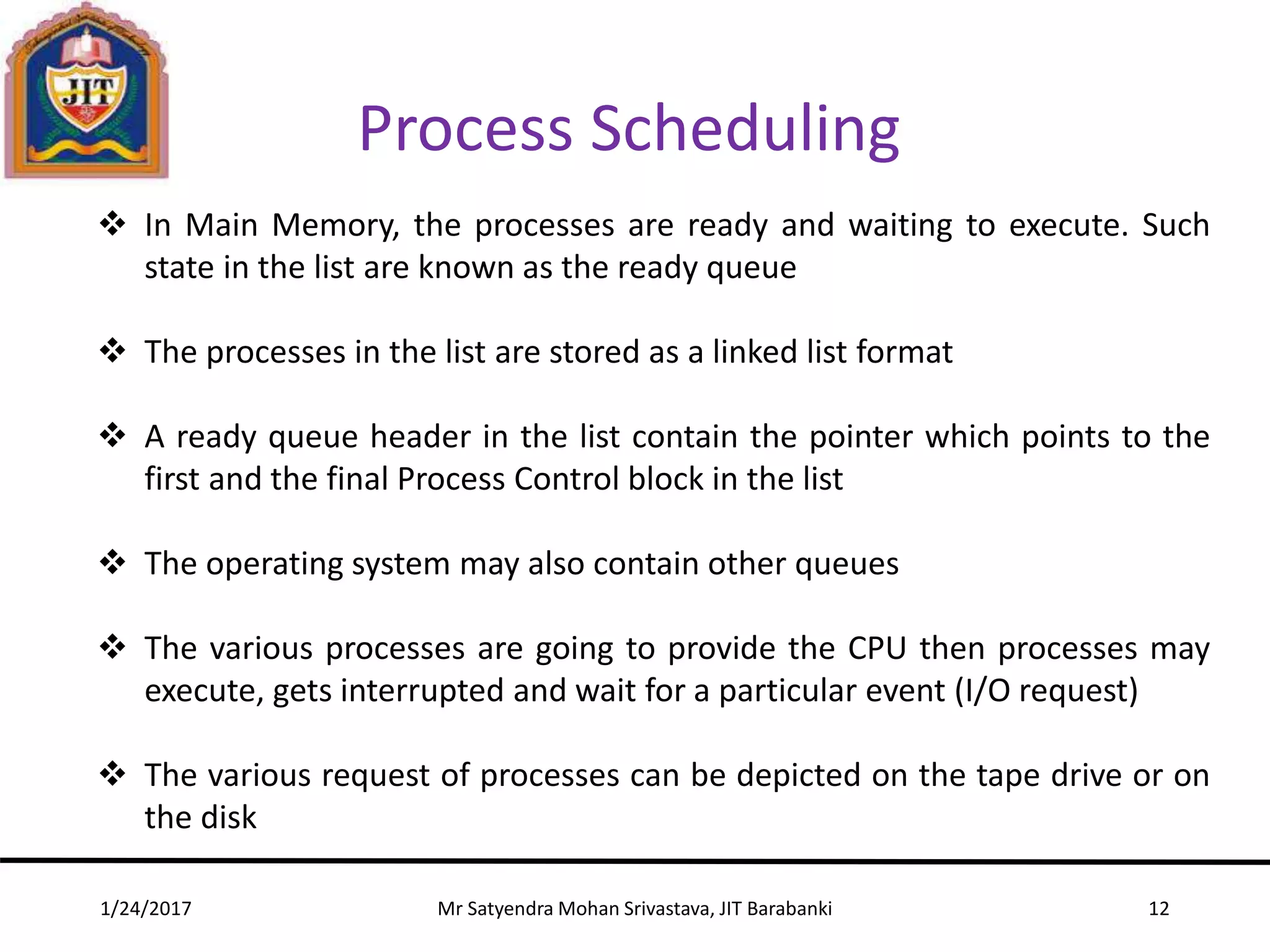

12. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 12
In Main Memory, the processes are ready and waiting to execute. Such
state in the list are known as the ready queue
The processes in the list are stored as a linked list format
A ready queue header in the list contain the pointer which points to the
first and the final Process Control block in the list
The operating system may also contain other queues
The various processes are going to provide the CPU then processes may
execute, gets interrupted and wait for a particular event (I/O request)
The various request of processes can be depicted on the tape drive or on
the disk
Process Scheduling
13. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 13

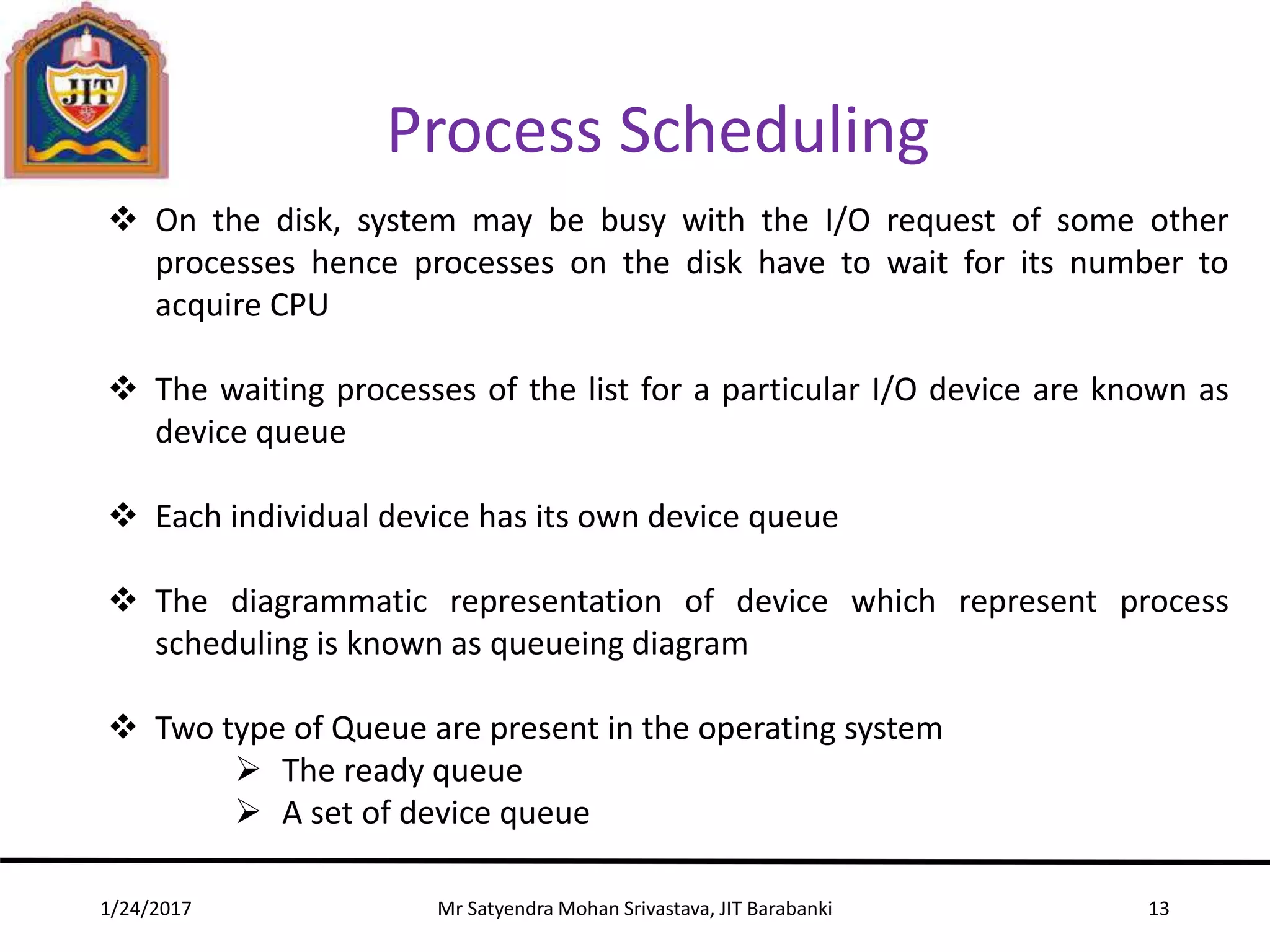

Process Scheduling
On the disk, system may be busy with the I/O request of some other
processes hence processes on the disk have to wait for its number to
acquire CPU
The waiting processes of the list for a particular I/O device are known as
device queue
Each individual device has its own device queue
The diagrammatic representation of device which represent process
scheduling is known as queueing diagram
Two type of Queue are present in the operating system
The ready queue
A set of device queue
14. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 14

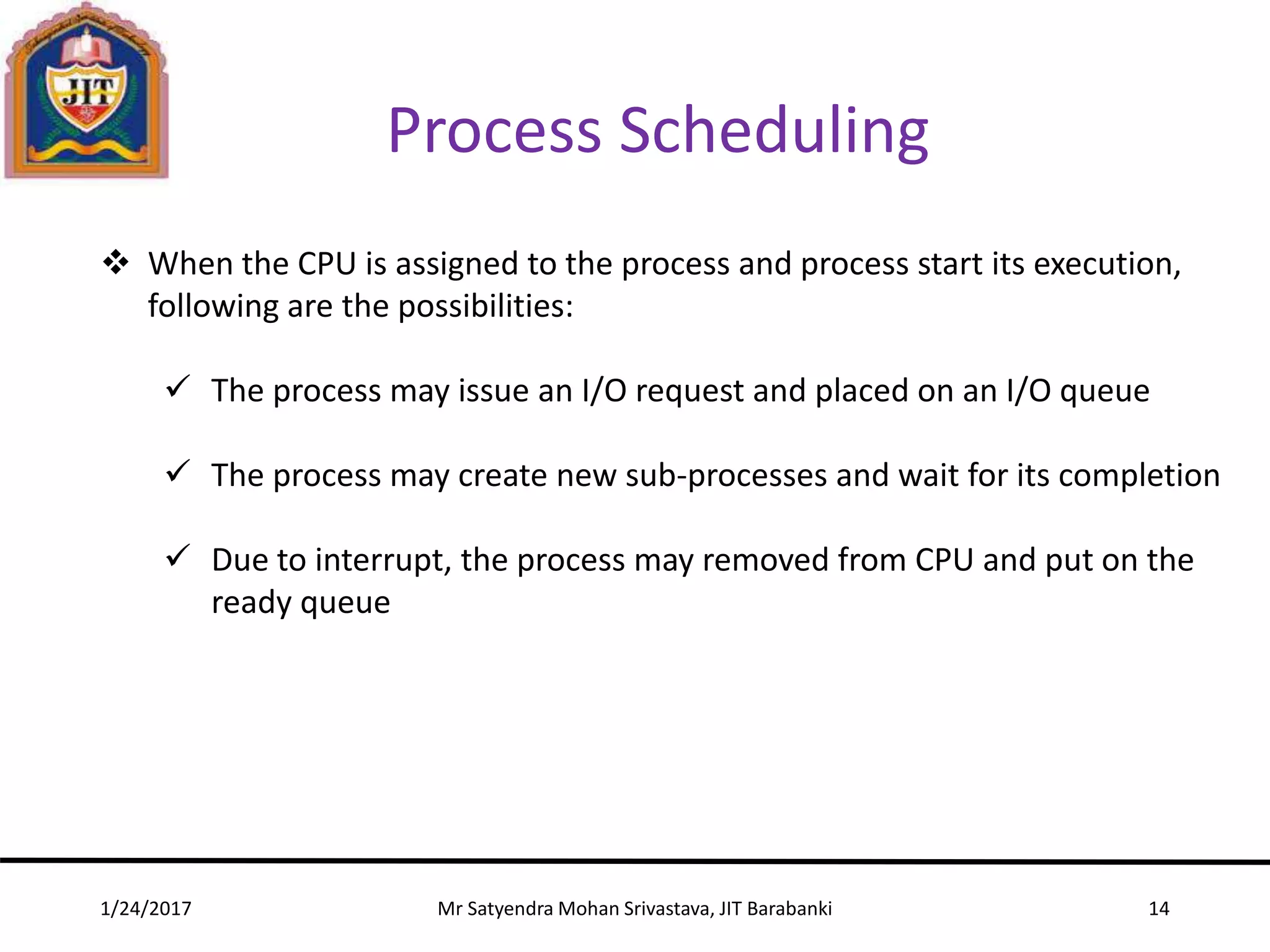

Process Scheduling
When the CPU is assigned to the process and process start its execution,
following are the possibilities:
The process may issue an I/O request and placed on an I/O queue
The process may create new sub-processes and wait for its completion
Due to interrupt, the process may removed from CPU and put on the
ready queue

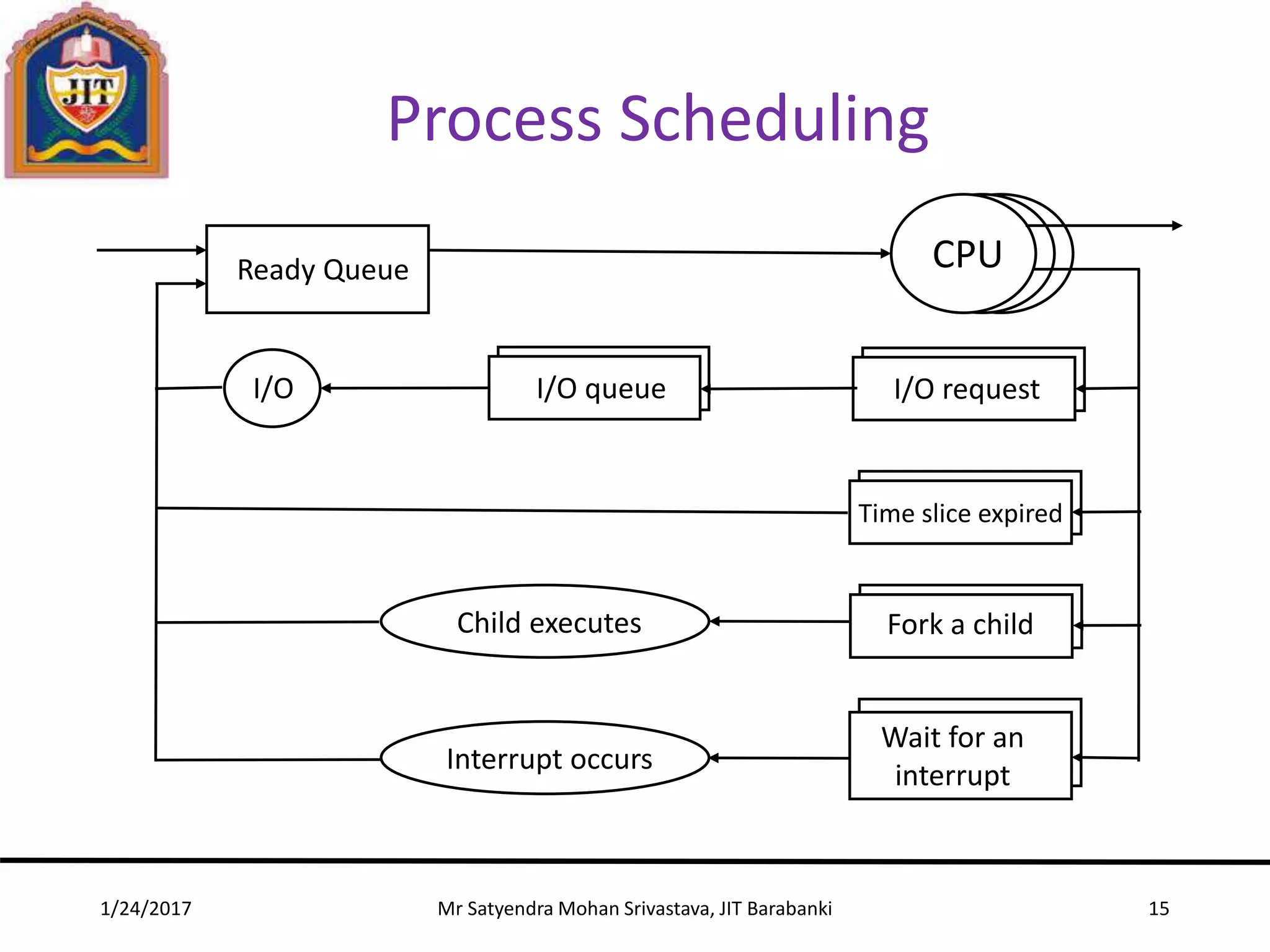

15. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 15
Process Scheduling
Ready Queue CPU
I/O I/O queue I/O request
Time slice expired
Child executes
Interrupt occurs
Fork a child
Wait for an
interrupt
16. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 16

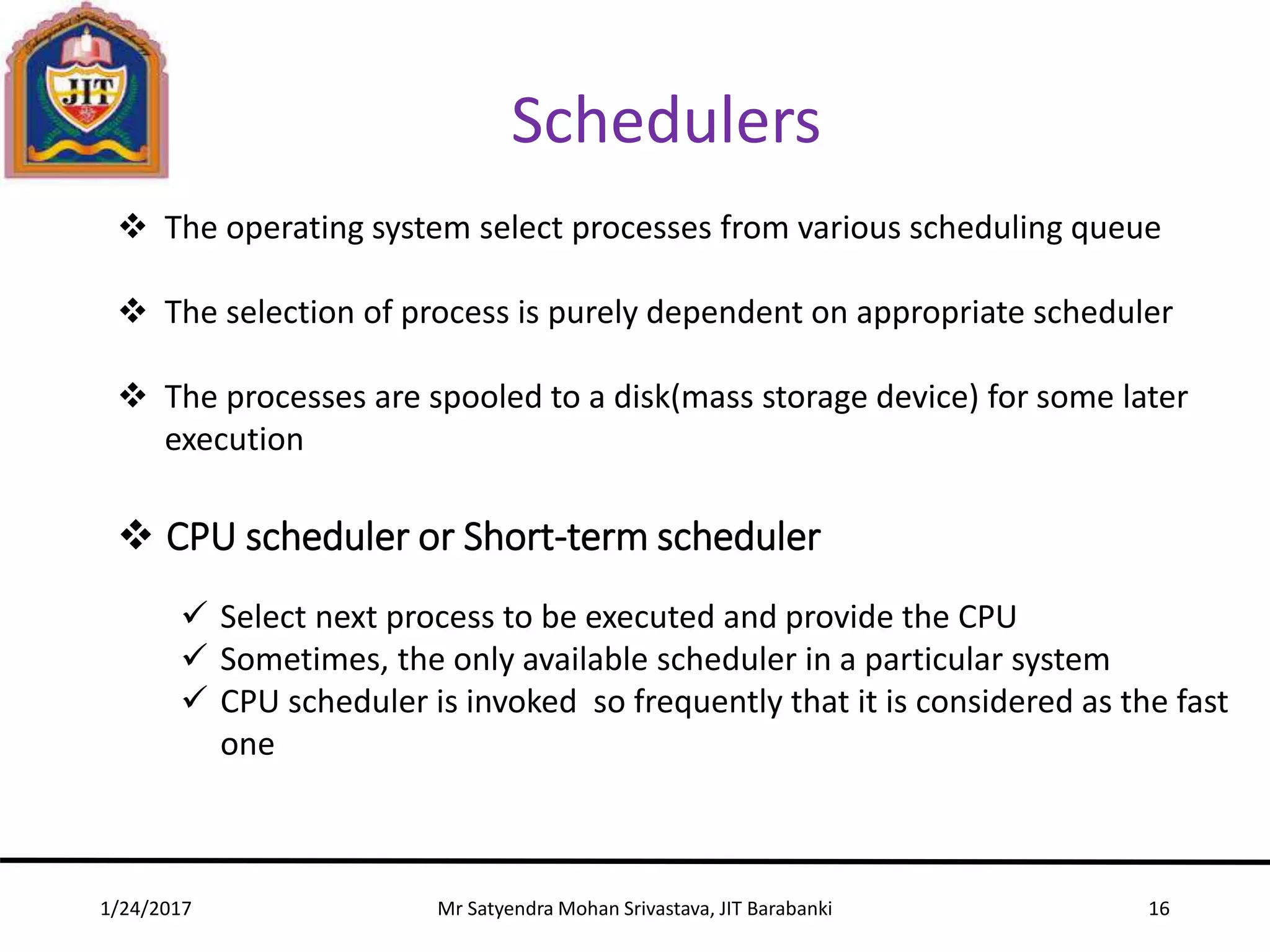

Schedulers
The operating system select processes from various scheduling queue
The selection of process is purely dependent on appropriate scheduler
The processes are spooled to a disk(mass storage device) for some later
execution
CPU scheduler or Short-term scheduler
Select next process to be executed and provide the CPU
Sometimes, the only available scheduler in a particular system
CPU scheduler is invoked so frequently that it is considered as the fast
one

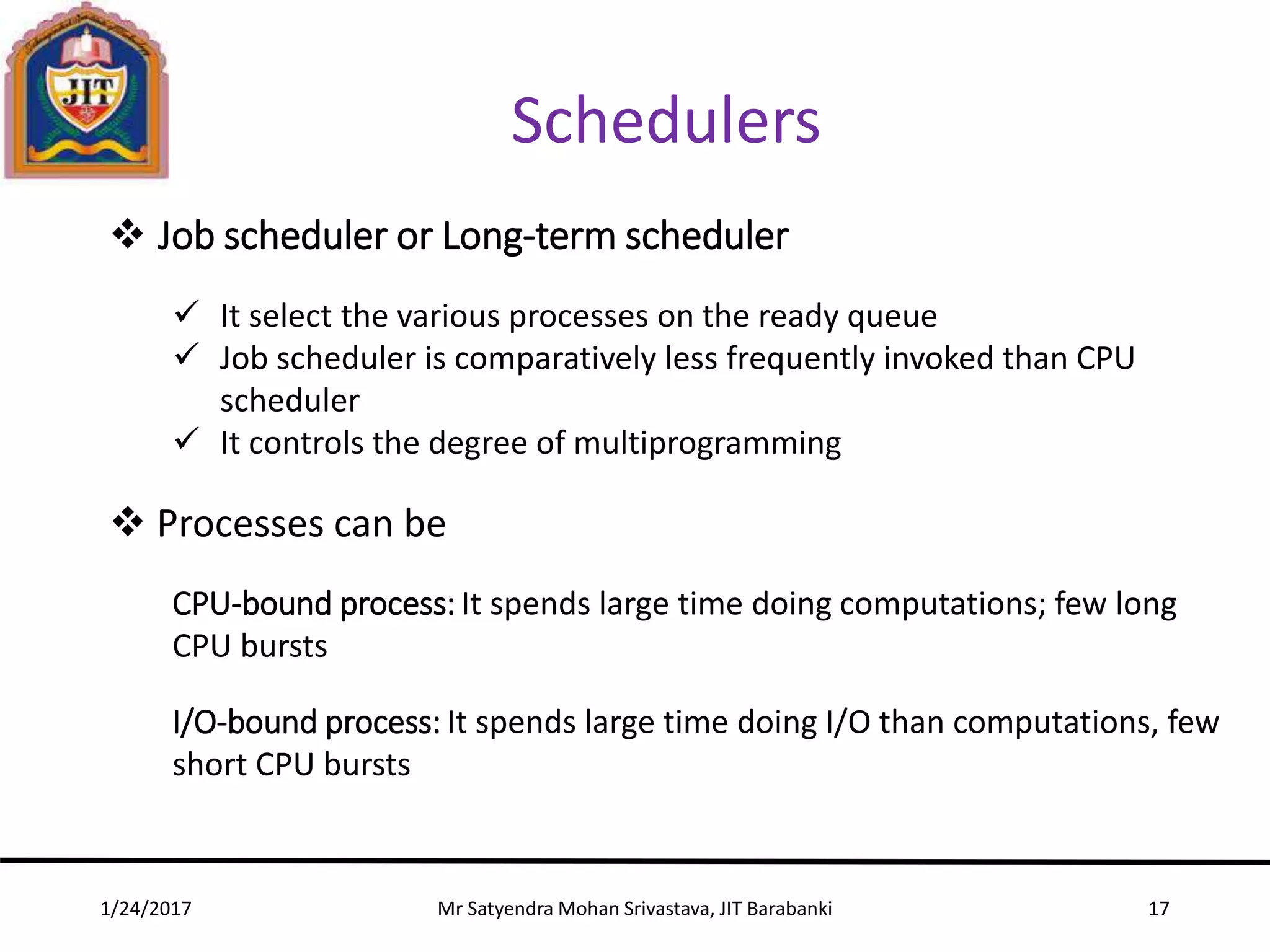

17. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 17
Schedulers
Job scheduler or Long-term scheduler
It select the various processes on the ready queue
Job scheduler is comparatively less frequently invoked than CPU
scheduler
It controls the degree of multiprogramming
Processes can be
CPU-bound process: It spends large time doing computations; few long
CPU bursts
I/O-bound process: It spends large time doing I/O than computations, few
short CPU bursts
18. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 18

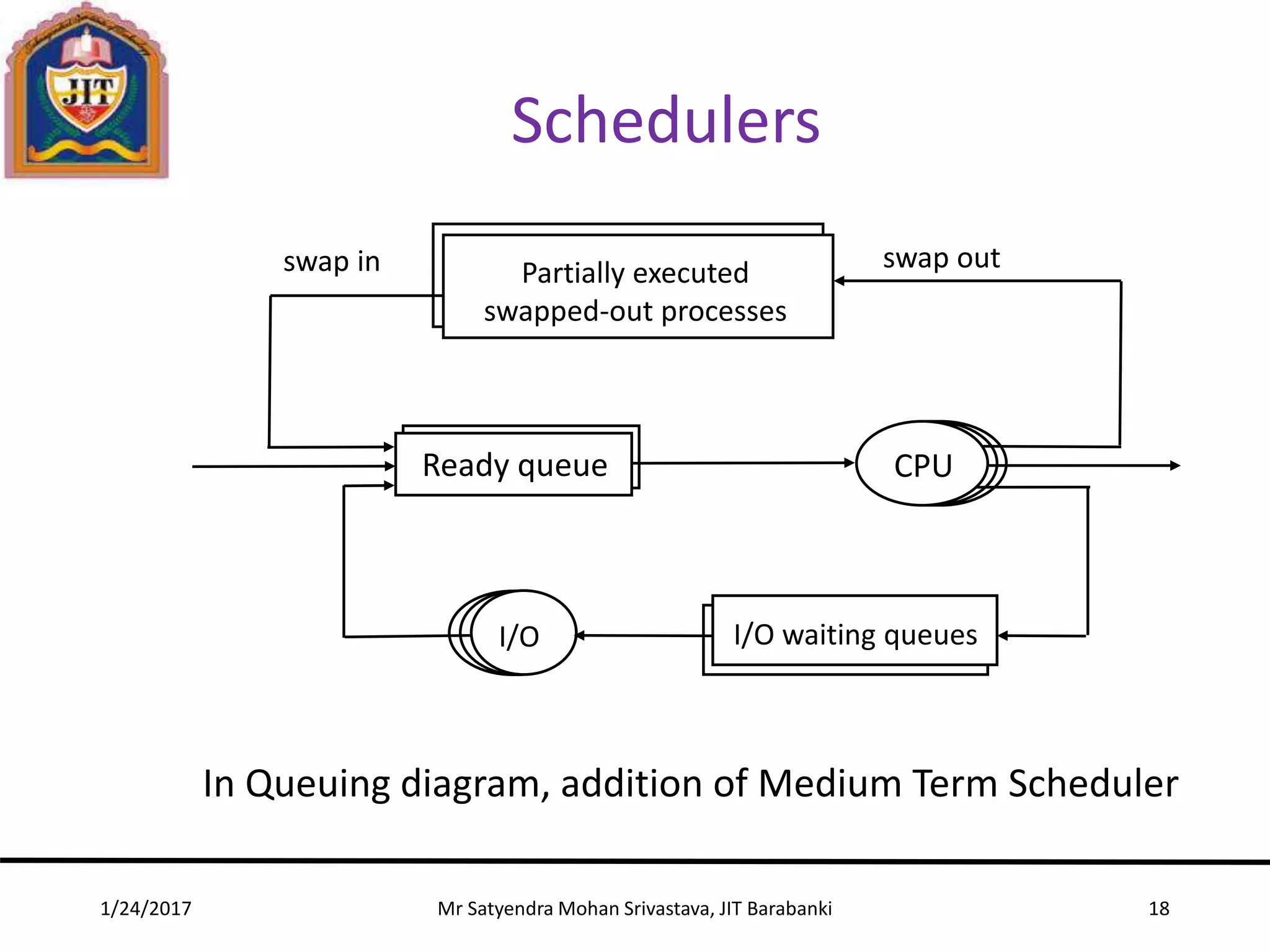

Schedulers
Partially executed
swapped-out processes
Ready queue CPU
I/O I/O waiting queues
swap in swap out
In Queuing diagram, addition of Medium Term Scheduler
19. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 19

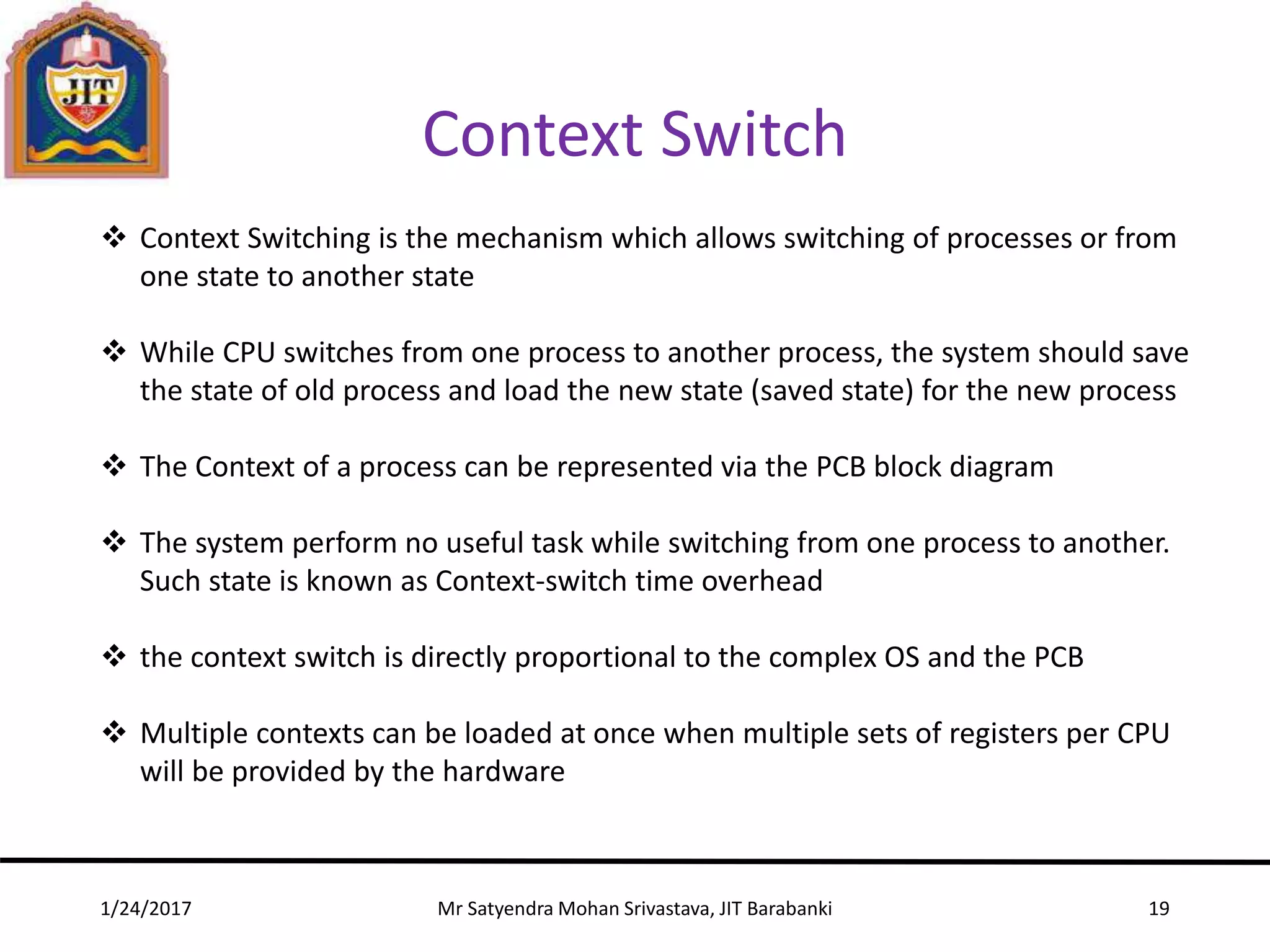

Context Switch
Context Switching is the mechanism which allows switching of processes or from
one state to another state
While CPU switches from one process to another process, the system should save
the state of old process and load the new state (saved state) for the new process
The Context of a process can be represented via the PCB block diagram
The system perform no useful task while switching from one process to another.
Such state is known as Context-switch time overhead
the context switch is directly proportional to the complex OS and the PCB
Multiple contexts can be loaded at once when multiple sets of registers per CPU
will be provided by the hardware

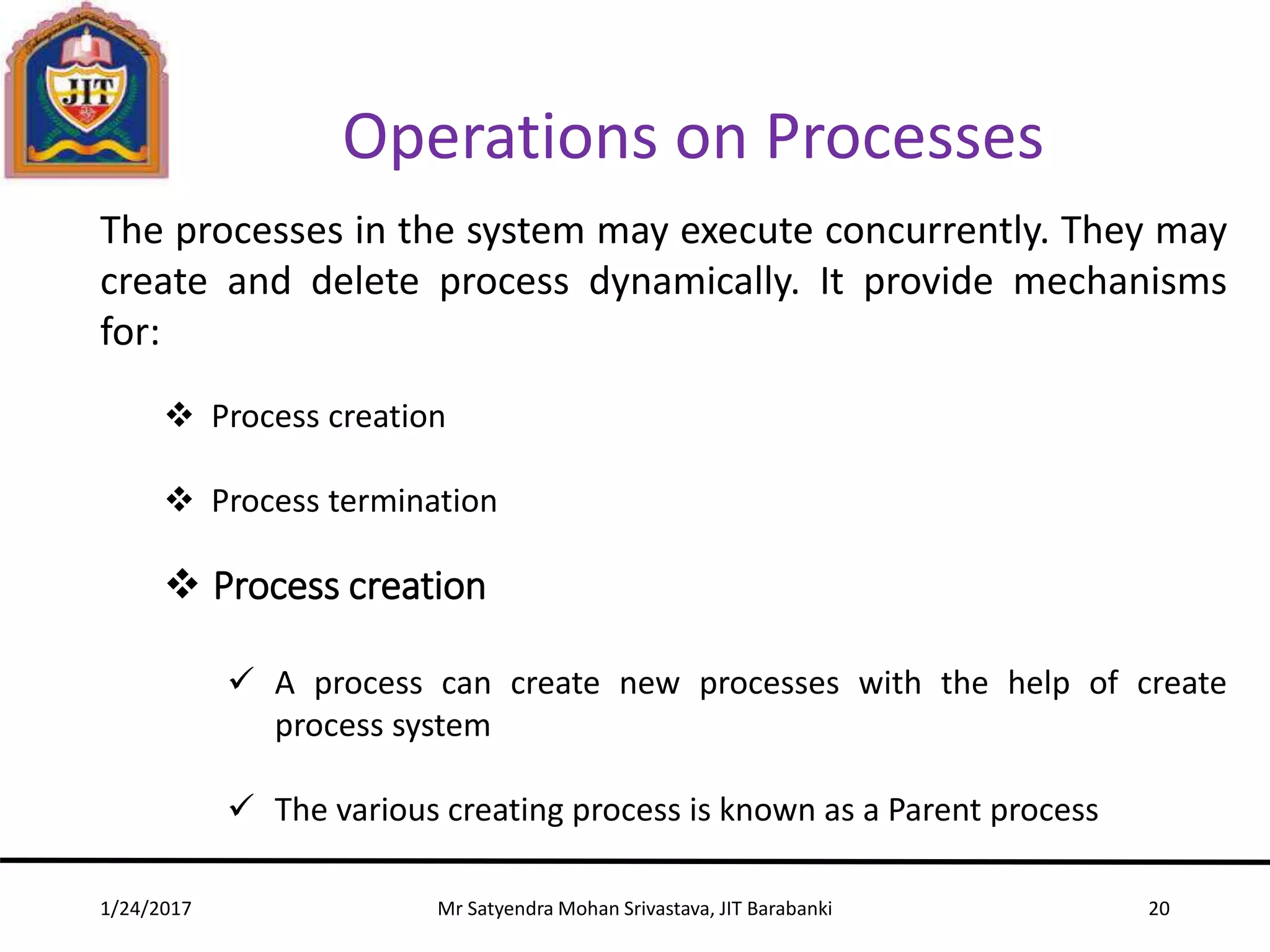

20. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 20
Operations on Processes
The processes in the system may execute concurrently. They may
create and delete process dynamically. It provide mechanisms
for:
Process creation
Process termination
Process creation
A process can create new processes with the help of create
process system
The various creating process is known as a Parent process
21. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 21

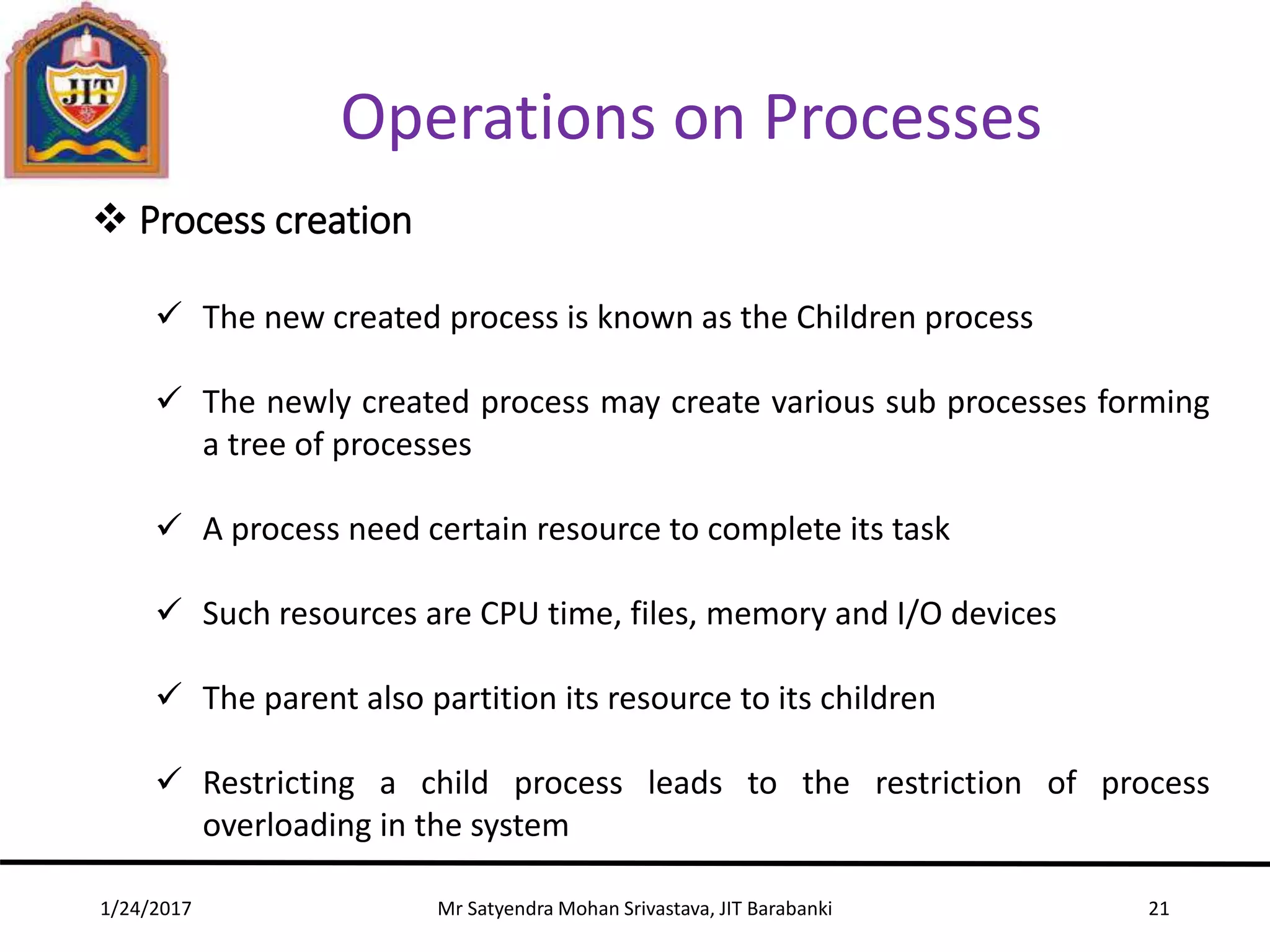

Operations on Processes
Process creation
The new created process is known as the Children process
The newly created process may create various sub processes forming
a tree of processes
A process need certain resource to complete its task
Such resources are CPU time, files, memory and I/O devices
The parent also partition its resource to its children
Restricting a child process leads to the restriction of process
overloading in the system
22. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 22

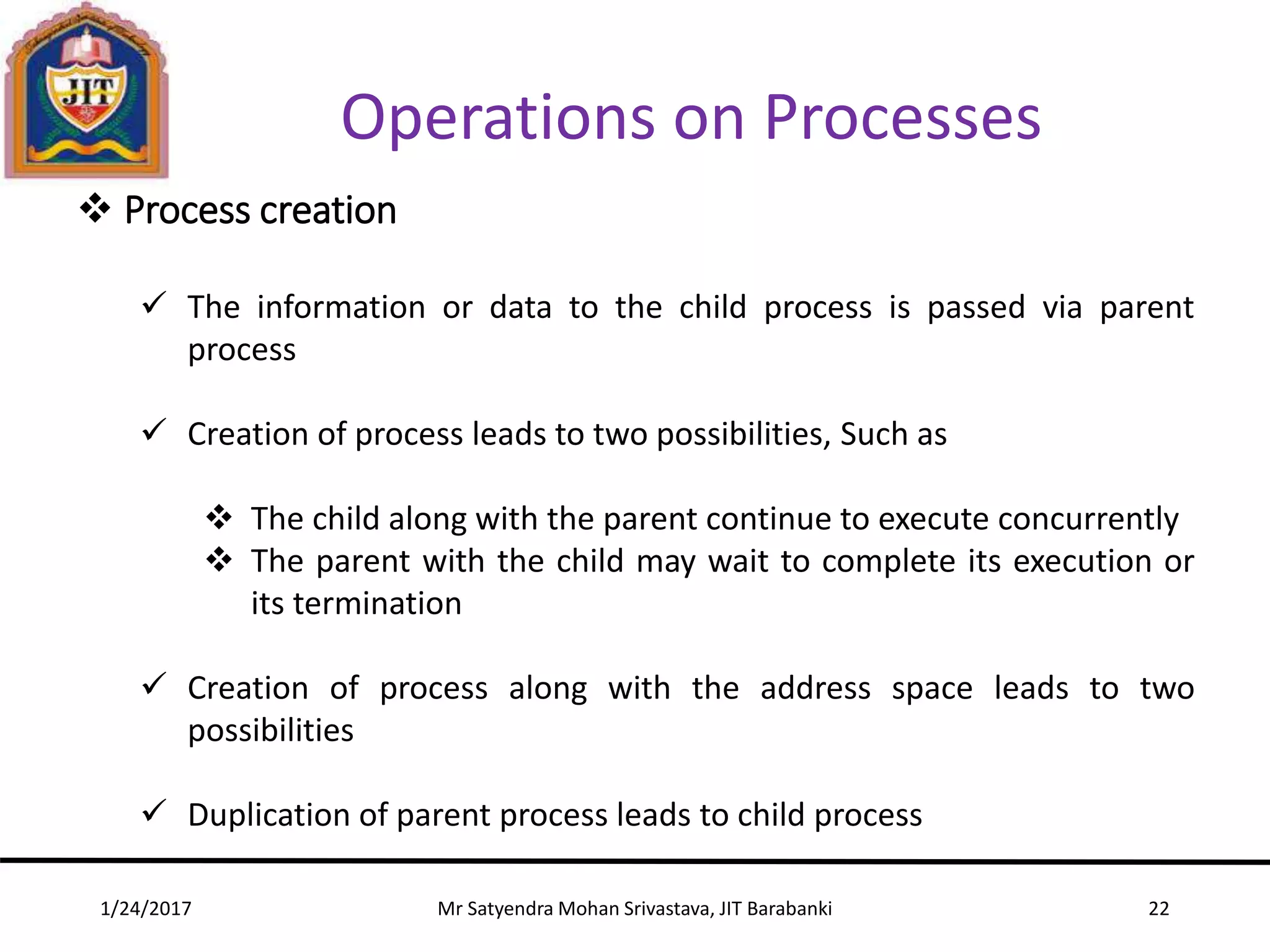

Operations on Processes
Process creation
The information or data to the child process is passed via parent
process
Creation of process leads to two possibilities, Such as
The child along with the parent continue to execute concurrently
The parent with the child may wait to complete its execution or
its termination
Creation of process along with the address space leads to two
possibilities
Duplication of parent process leads to child process
23. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 23

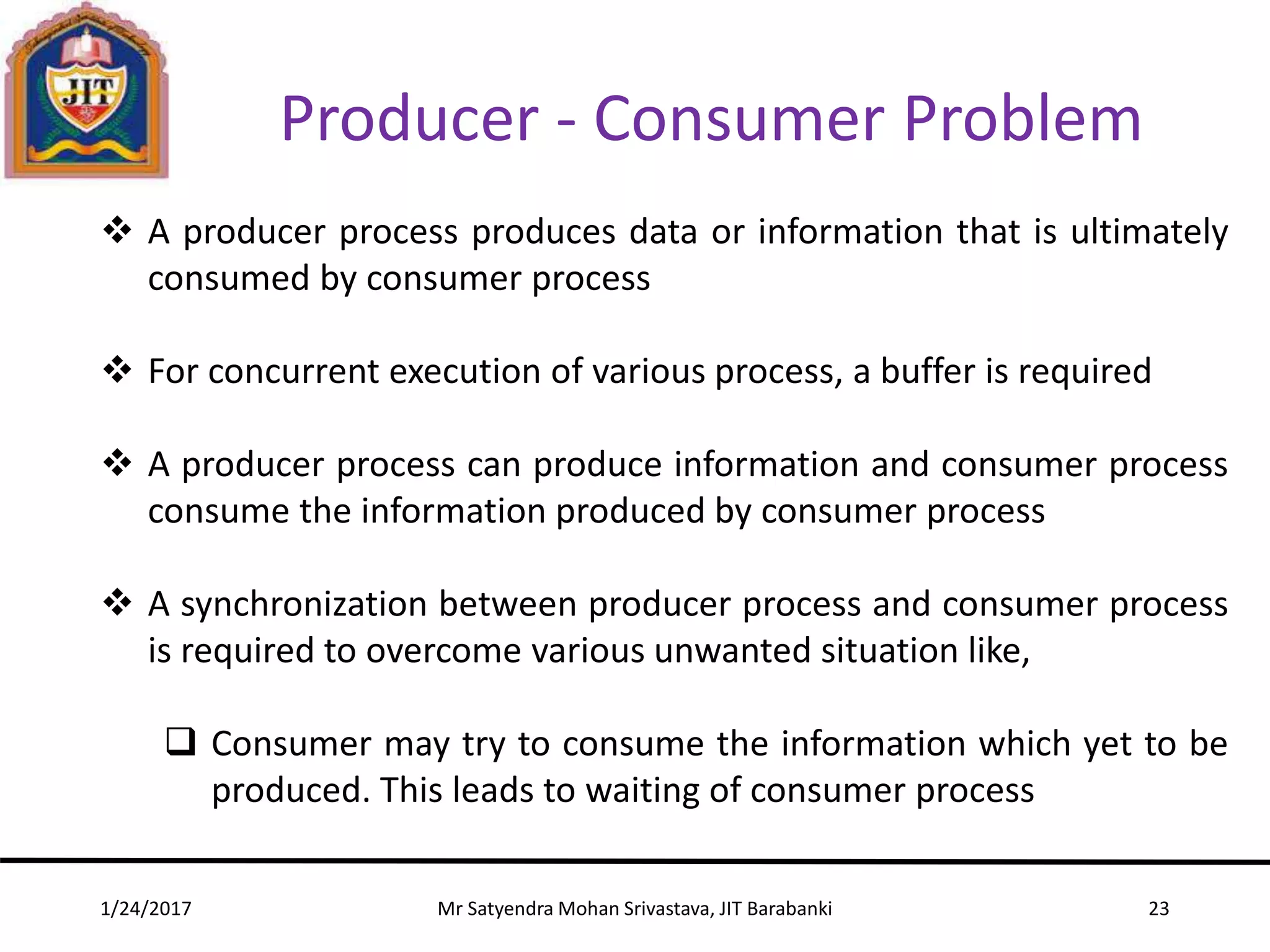

Producer - Consumer Problem
A producer process produces data or information that is ultimately
consumed by consumer process
For concurrent execution of various process, a buffer is required
A producer process can produce information and consumer process
consume the information produced by consumer process
A synchronization between producer process and consumer process
is required to overcome various unwanted situation like,
Consumer may try to consume the information which yet to be
produced. This leads to waiting of consumer process
24. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 24

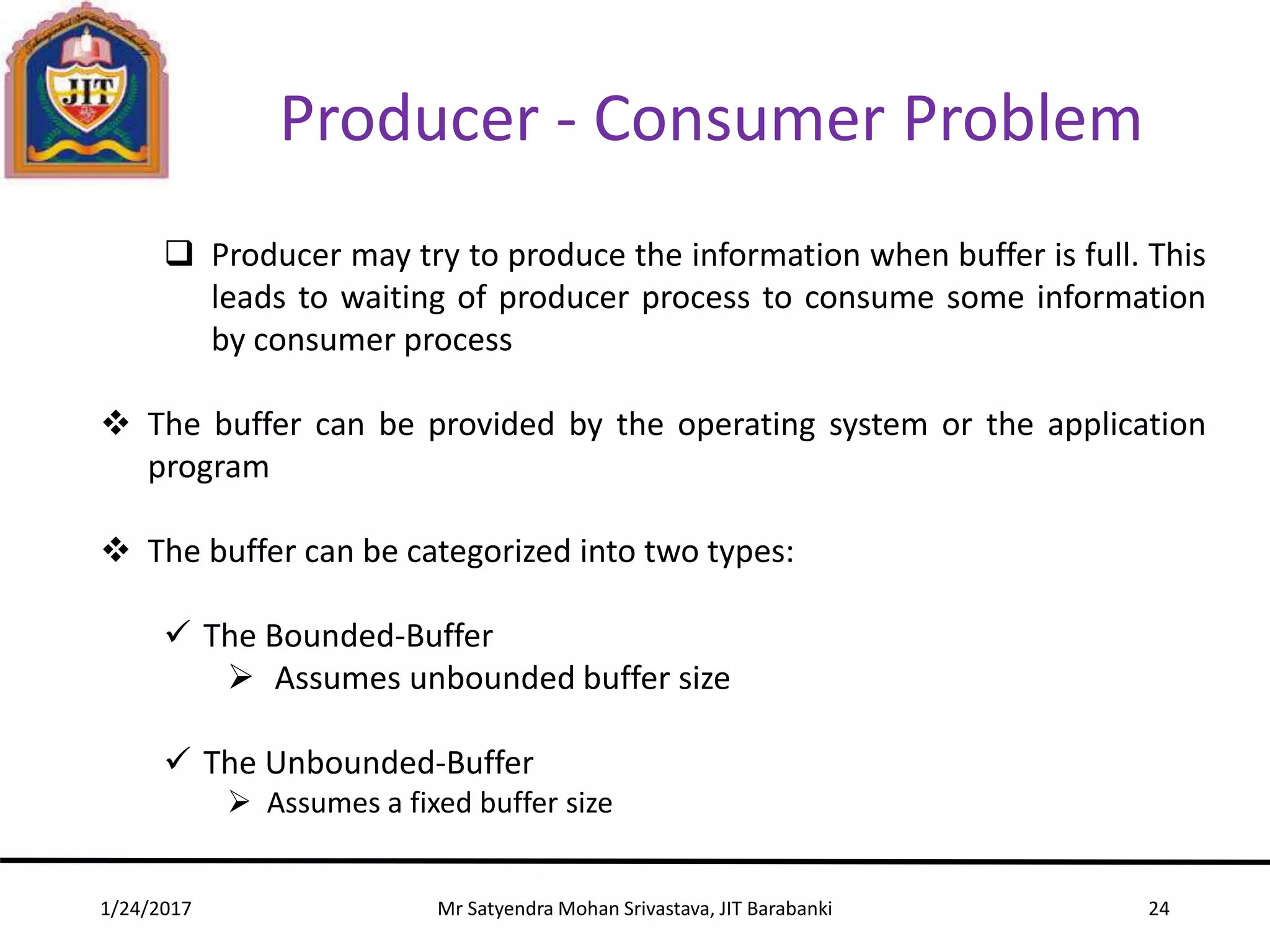

Producer - Consumer Problem
Producer may try to produce the information when buffer is full. This
leads to waiting of producer process to consume some information
by consumer process
The buffer can be provided by the operating system or the application
program
The buffer can be categorized into two types:
The Bounded-Buffer
Assumes unbounded buffer size
The Unbounded-Buffer
Assumes a fixed buffer size
25. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 25

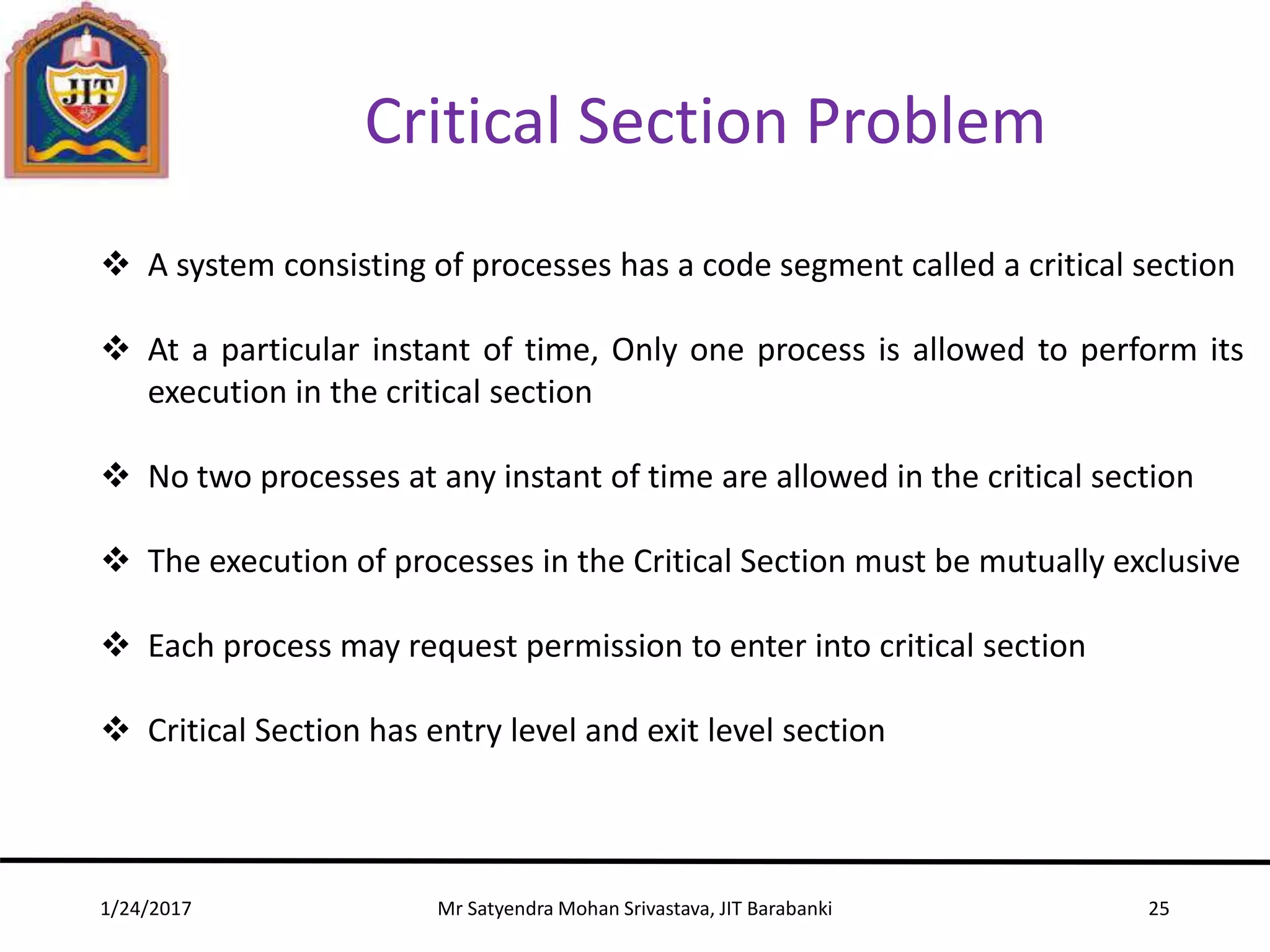

Critical Section Problem
A system consisting of processes has a code segment called a critical section
At a particular instant of time, Only one process is allowed to perform its
execution in the critical section
No two processes at any instant of time are allowed in the critical section
The execution of processes in the Critical Section must be mutually exclusive
Each process may request permission to enter into critical section
Critical Section has entry level and exit level section
26. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 26

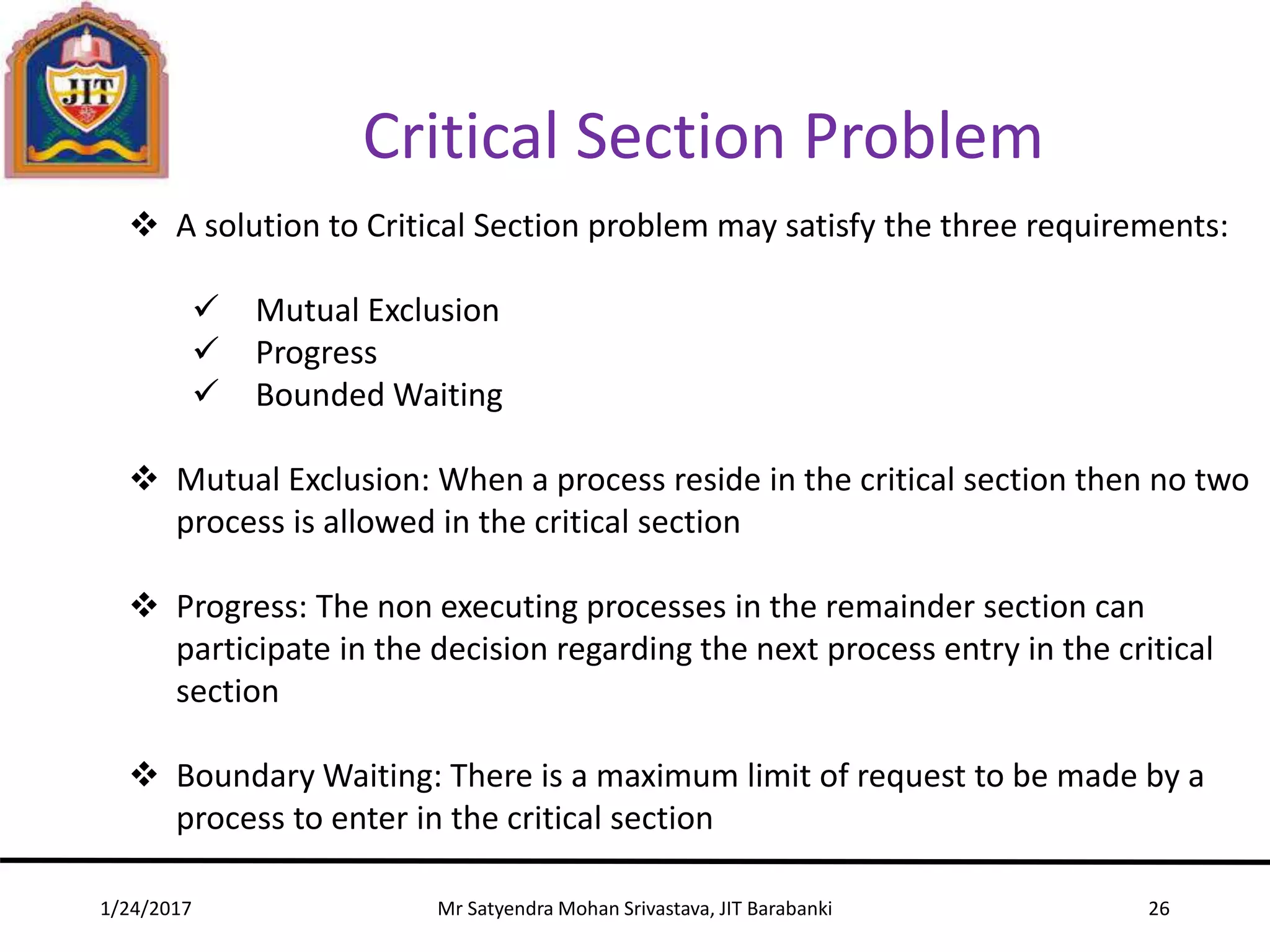

Critical Section Problem
A solution to Critical Section problem may satisfy the three requirements:
Mutual Exclusion
Progress
Bounded Waiting
Mutual Exclusion: When a process reside in the critical section then no two
process is allowed in the critical section
Progress: The non executing processes in the remainder section can
participate in the decision regarding the next process entry in the critical
section
Boundary Waiting: There is a maximum limit of request to be made by a
process to enter in the critical section
27. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 27

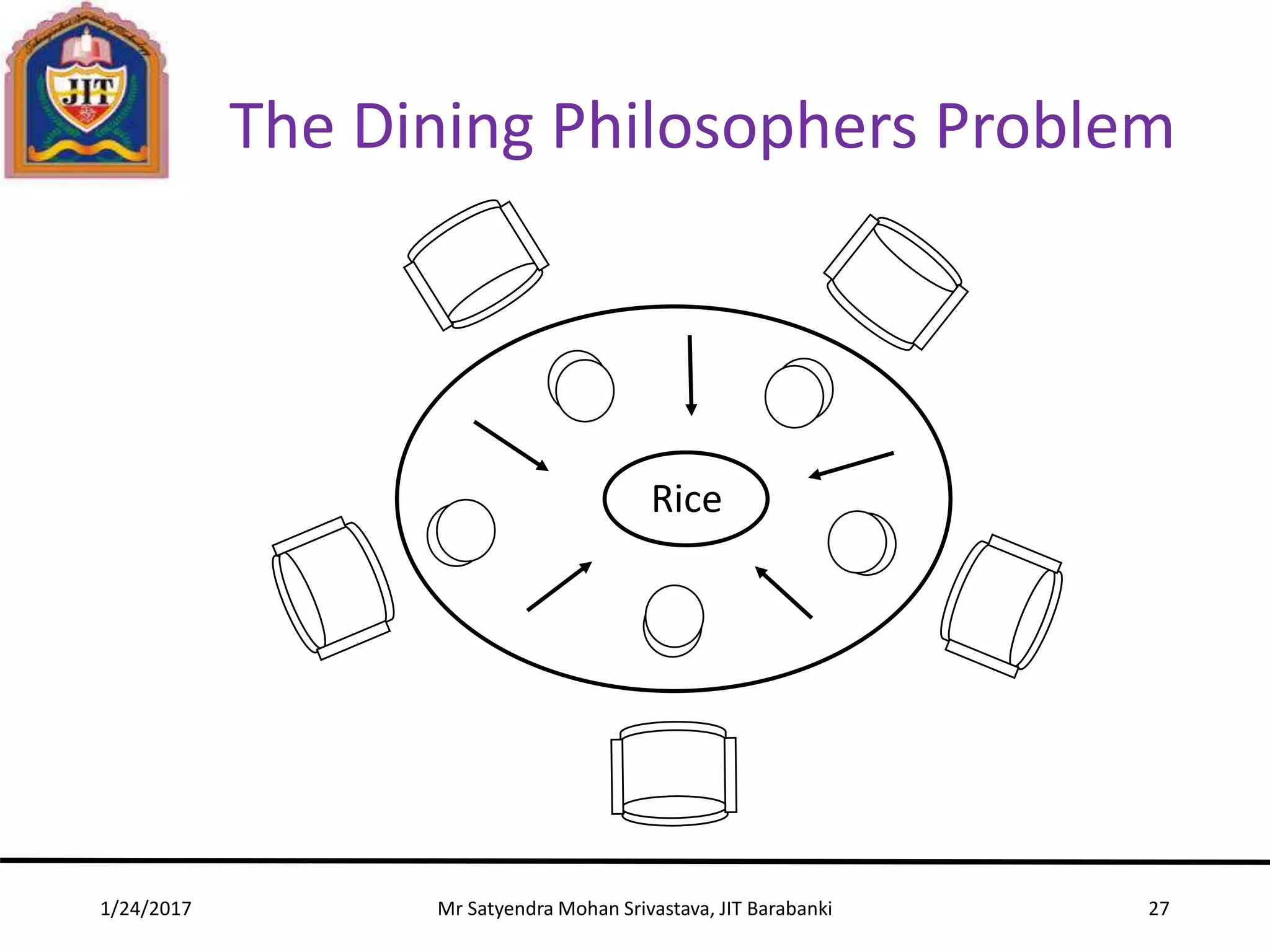

The Dining Philosophers Problem
Rice
28. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 28

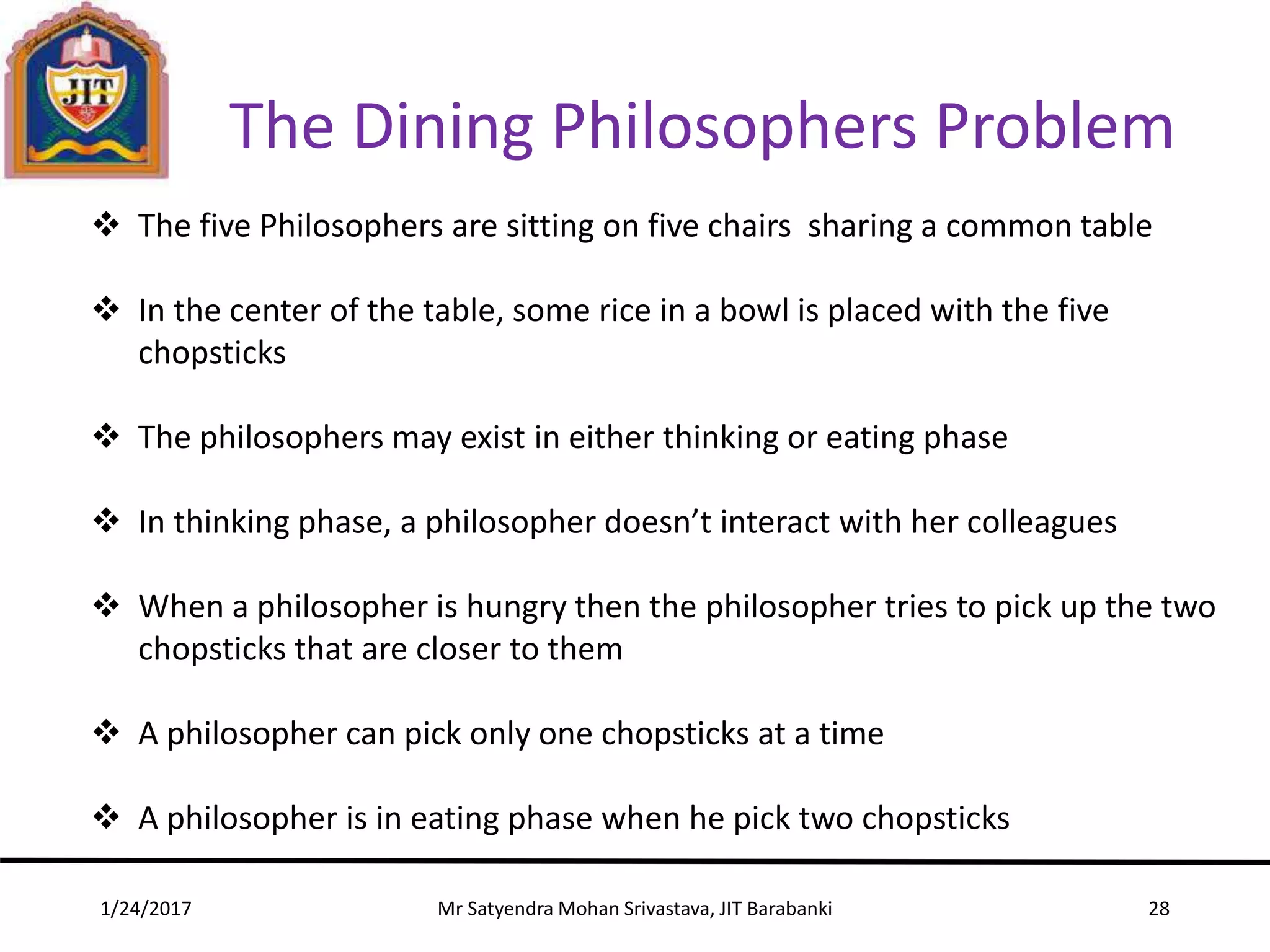

The Dining Philosophers Problem
The five Philosophers are sitting on five chairs sharing a common table
In the center of the table, some rice in a bowl is placed with the five
chopsticks
The philosophers may exist in either thinking or eating phase
In thinking phase, a philosopher doesn’t interact with her colleagues
When a philosopher is hungry then the philosopher tries to pick up the two
chopsticks that are closer to them
A philosopher can pick only one chopsticks at a time
A philosopher is in eating phase when he pick two chopsticks
29. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 29

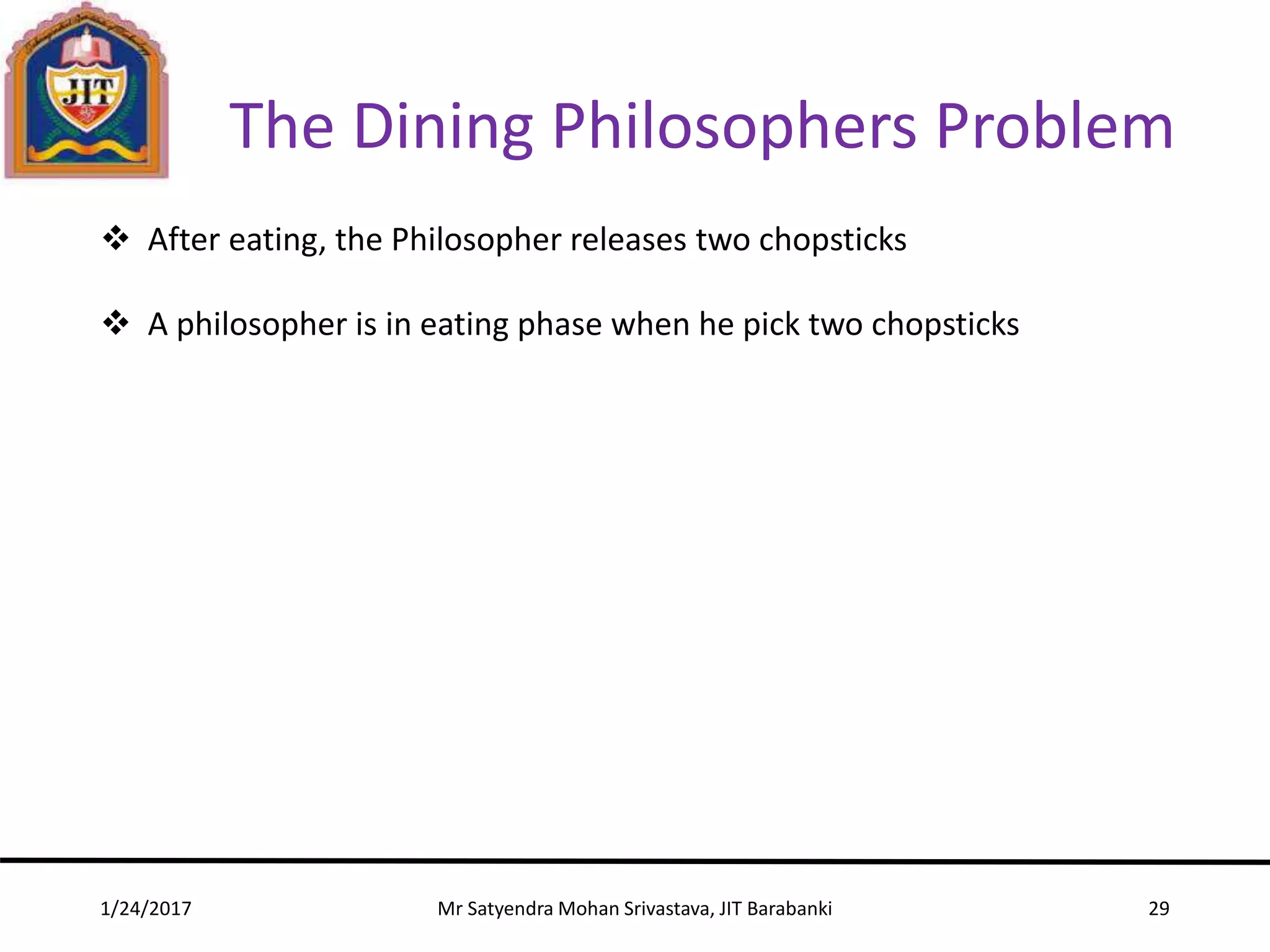

The Dining Philosophers Problem
After eating, the Philosopher releases two chopsticks
A philosopher is in eating phase when he pick two chopsticks
30. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 30

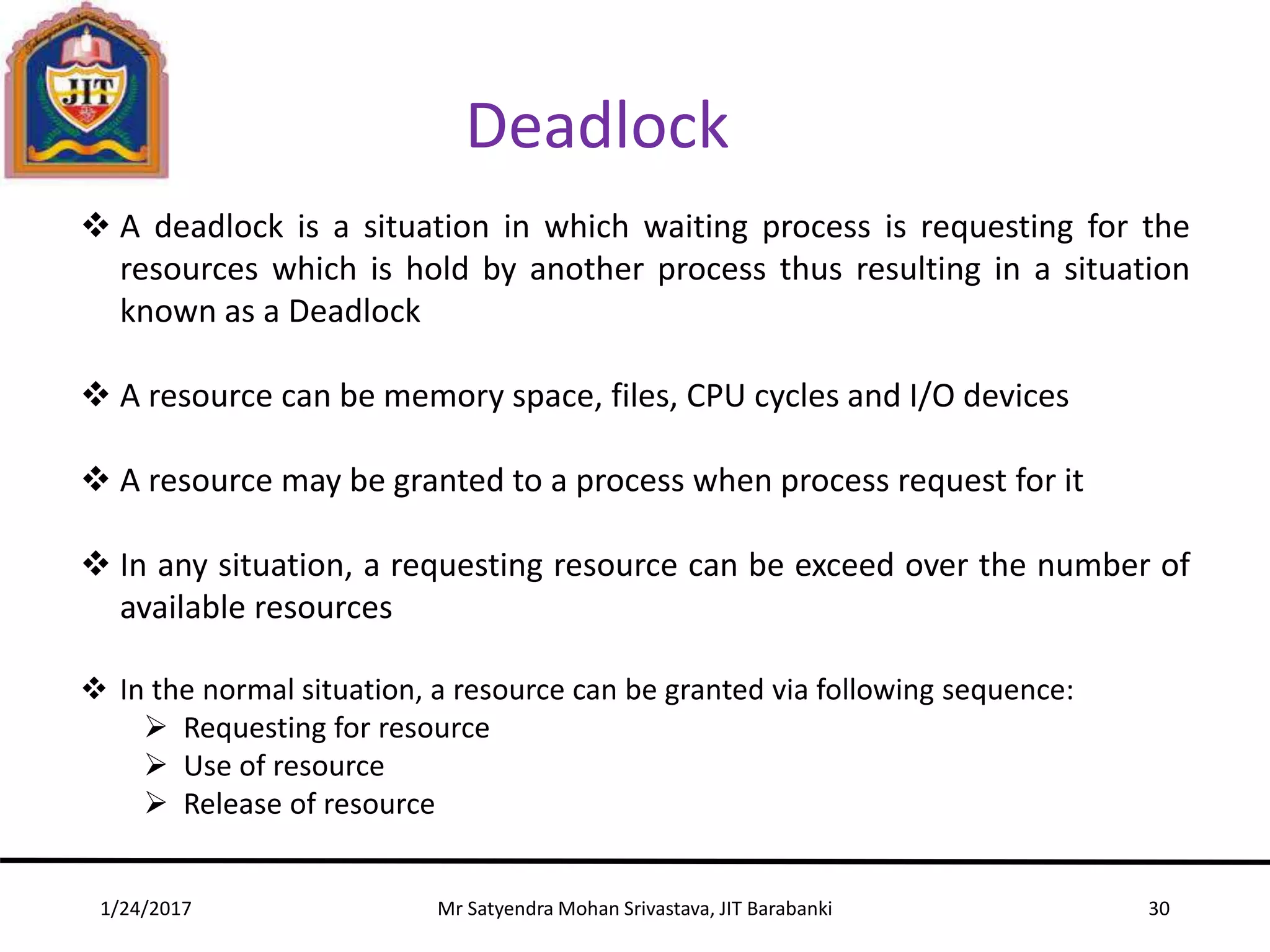

Deadlock
A deadlock is a situation in which waiting process is requesting for the
resources which is hold by another process thus resulting in a situation
known as a Deadlock
A resource can be memory space, files, CPU cycles and I/O devices
A resource may be granted to a process when process request for it
In any situation, a requesting resource can be exceed over the number of
available resources
In the normal situation, a resource can be granted via following sequence:
Requesting for resource
Use of resource
Release of resource
31. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 31

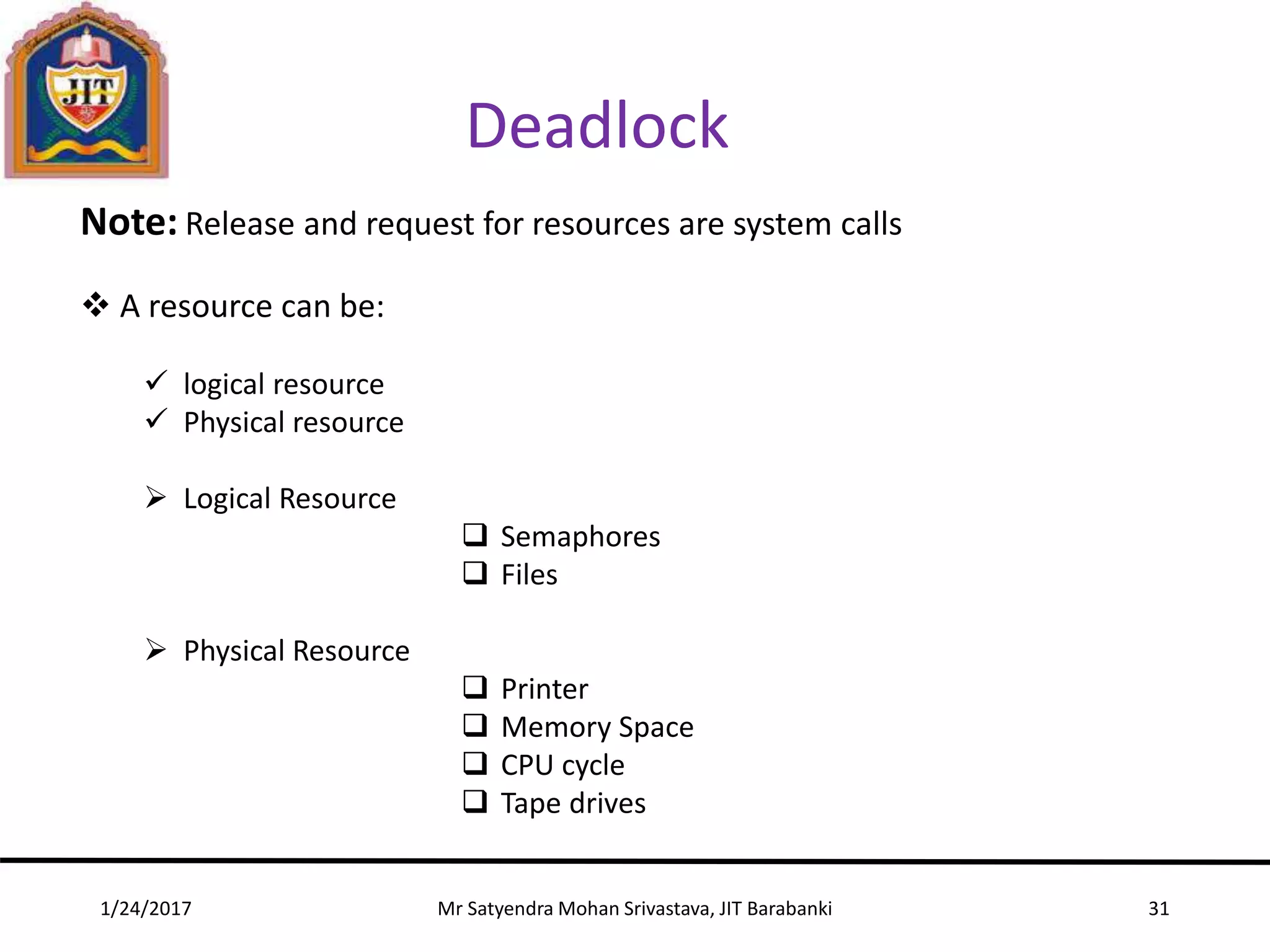

Deadlock
Note: Release and request for resources are system calls
A resource can be:
logical resource
Physical resource
Logical Resource
Semaphores
Files
Physical Resource
Printer
Memory Space
CPU cycle
Tape drives
32. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 32

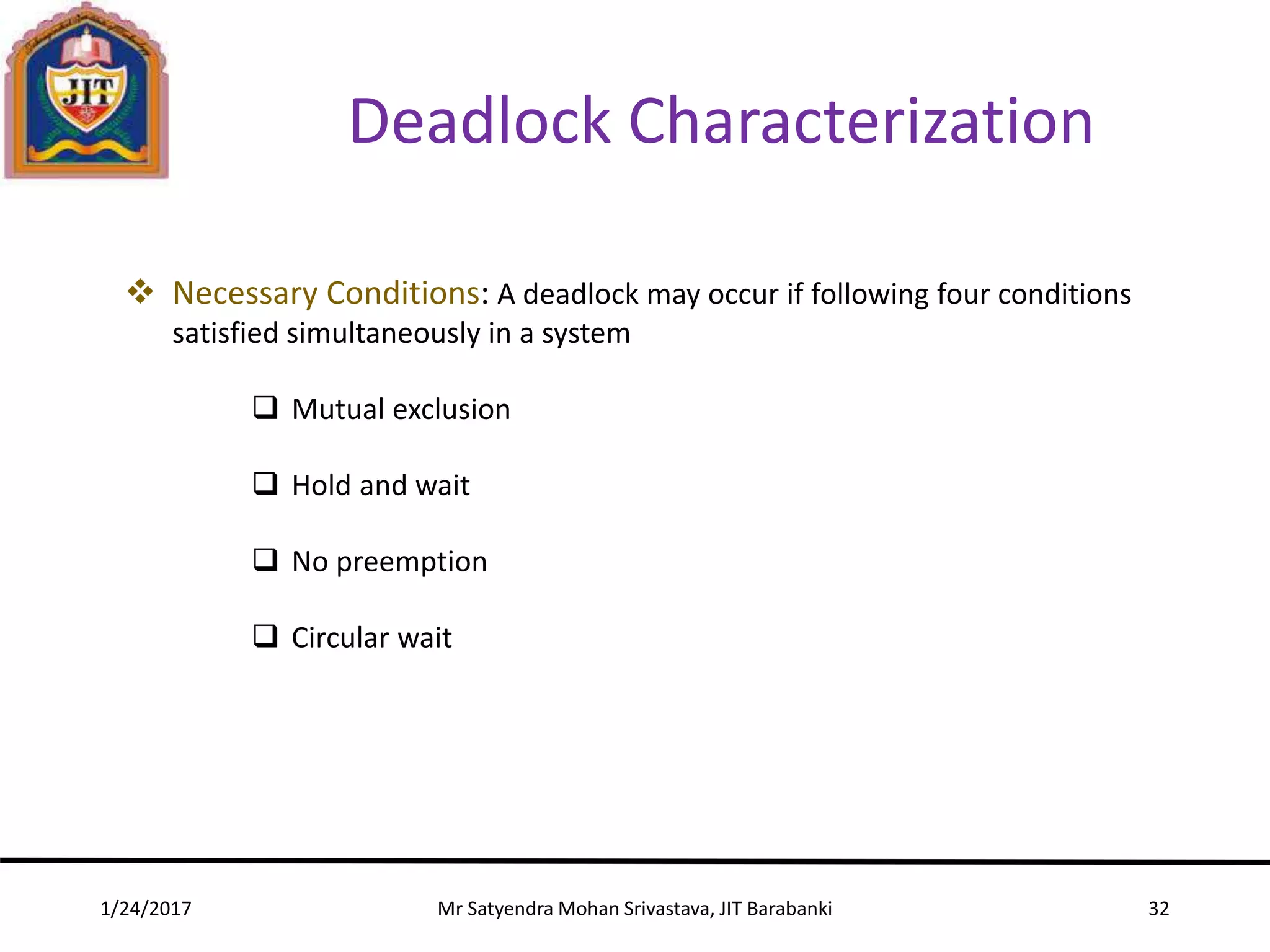

Deadlock Characterization
Necessary Conditions: A deadlock may occur if following four conditions
satisfied simultaneously in a system
Mutual exclusion
Hold and wait
No preemption
Circular wait
33. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 33

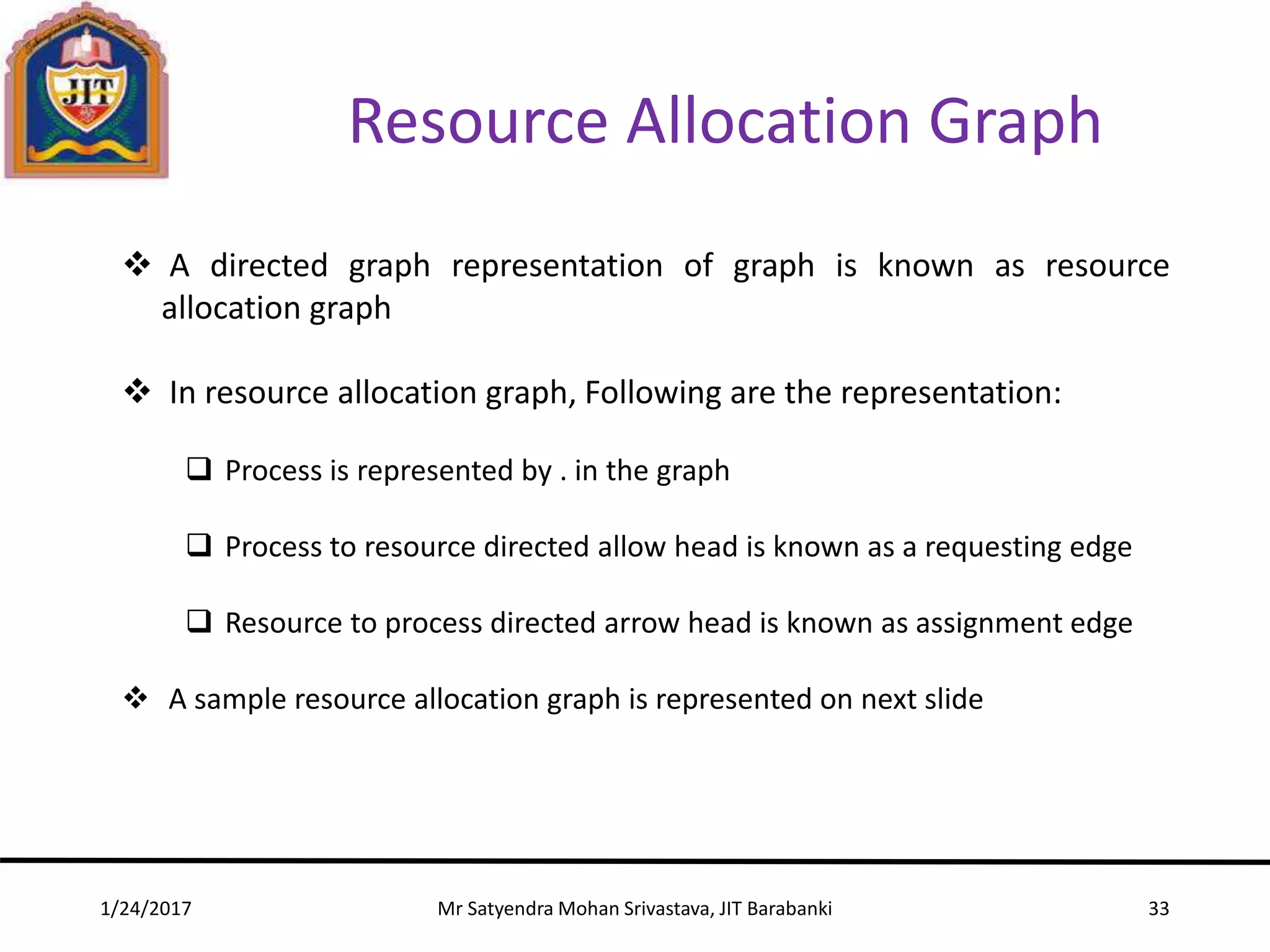

Resource Allocation Graph
A directed graph representation of graph is known as resource
allocation graph
In resource allocation graph, Following are the representation:
Process is represented by . in the graph
Process to resource directed allow head is known as a requesting edge
Resource to process directed arrow head is known as assignment edge

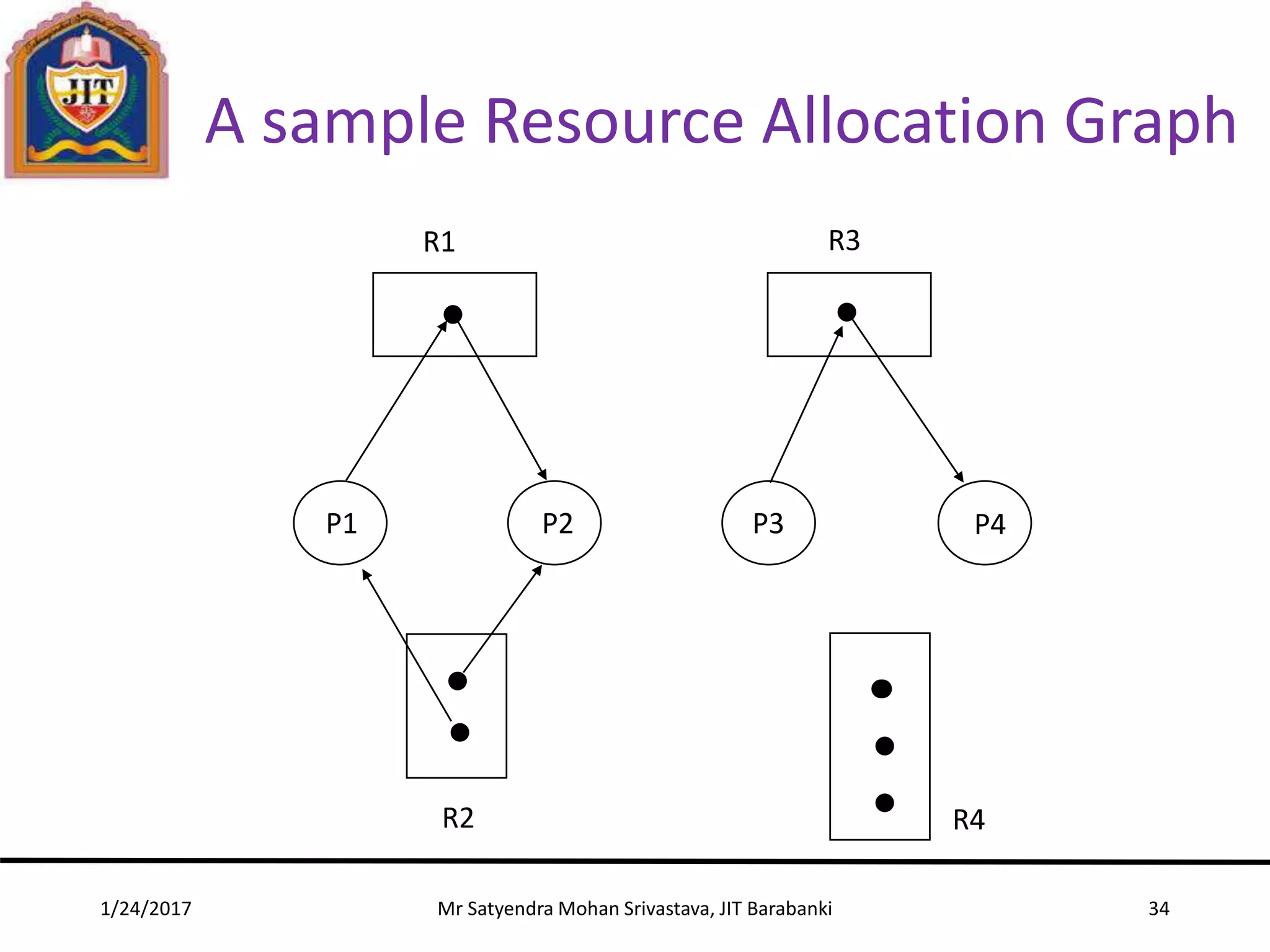

A sample resource allocation graph is represented on next slide
35. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 35

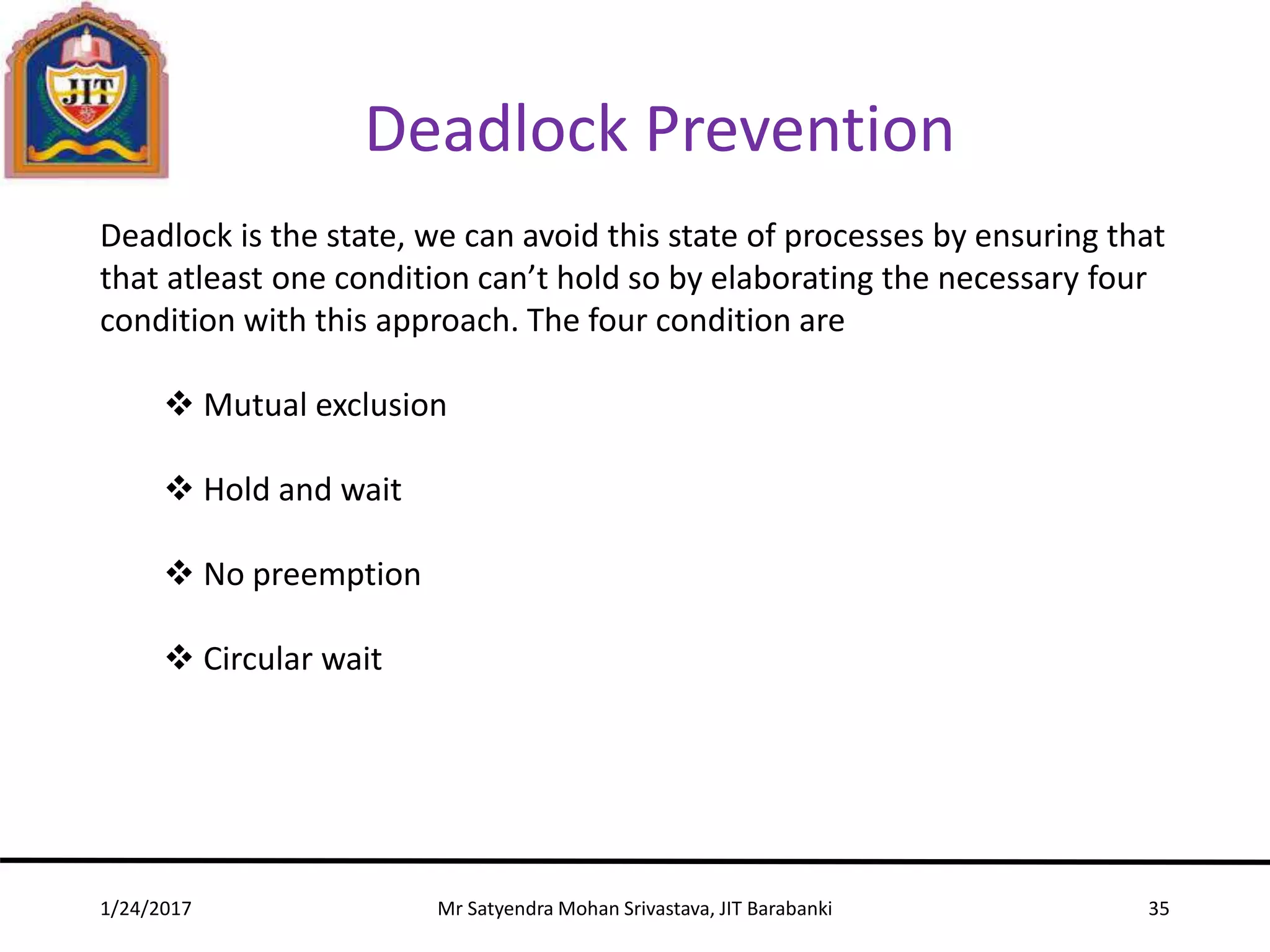

Deadlock Prevention
Deadlock is the state, we can avoid this state of processes by ensuring that
that atleast one condition can’t hold so by elaborating the necessary four
condition with this approach. The four condition are
Mutual exclusion
Hold and wait
No preemption
Circular wait
36. 1/24/2017 Mr Satyendra Mohan Srivastava, JIT Barabanki 36

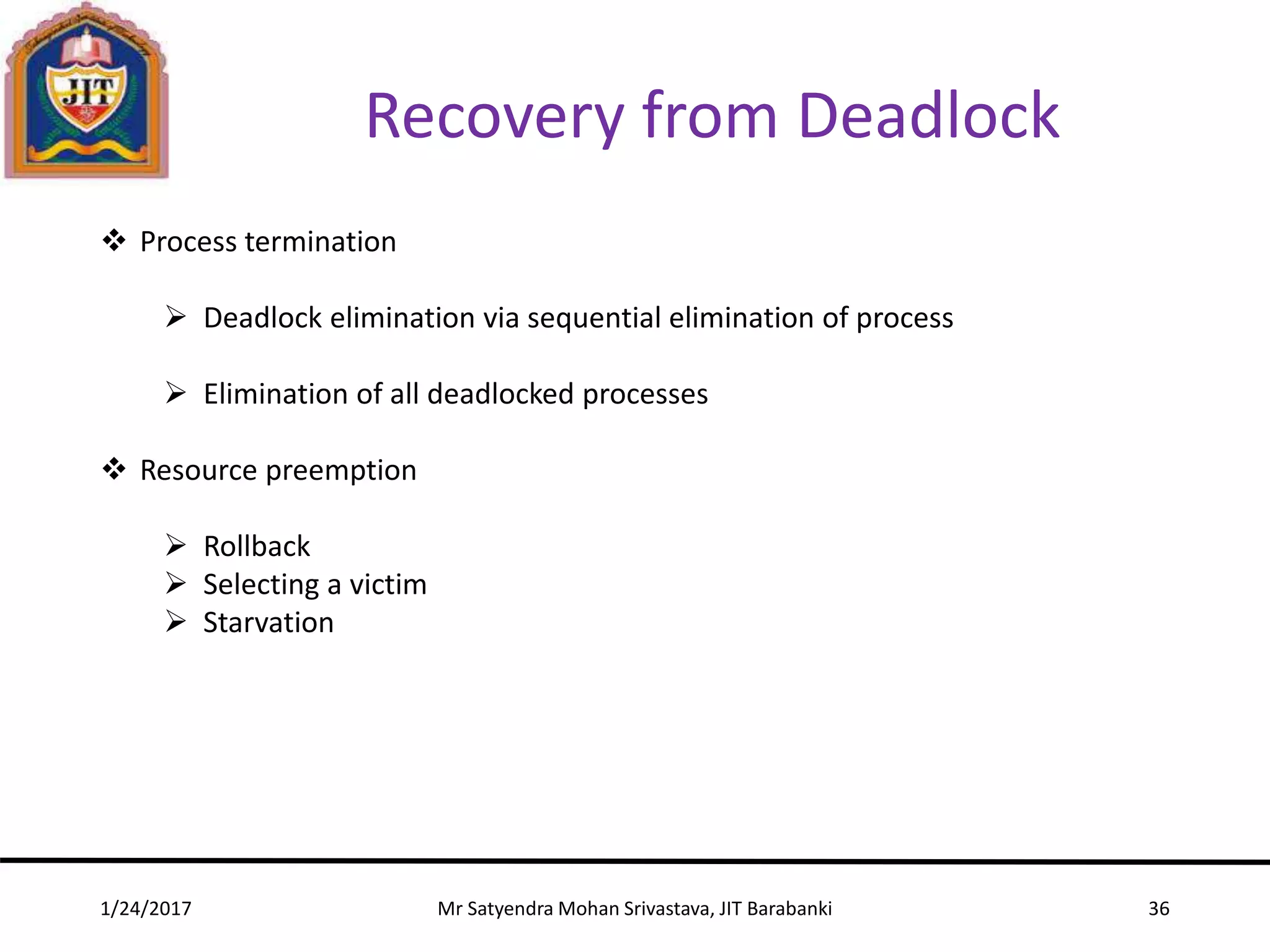

Recovery from Deadlock
Process termination
Deadlock elimination via sequential elimination of process
Elimination of all deadlocked processes
Resource preemption
Rollback
Selecting a victim
Starvation
