Talk given at second NLP Dublin Meetup (http://www.meetup.com/NLP-Dublin/events/233314527/) by Piyush Arora, PhD student at Dublin City University.

1. Transformation Functions for Text
Classification: A case study with
StackOverflow
The ADAPT Centre is funded under the SFI Research Centres Programme (Grant 13/RC/2106) and is co-funded under the European Regional Development Fund.
1
Natural Language Processing, Dublin Meetup
28th Sept, 2016

2. Piyush Arora, Debasis Ganguly, Gareth J.F. Jones
ADAPT Centre, School of Computing,
Dublin City University
{parora@computing.dcu.ie, piyusharora07@gmail.com}
https://computing.dcu.ie/~parora/
2

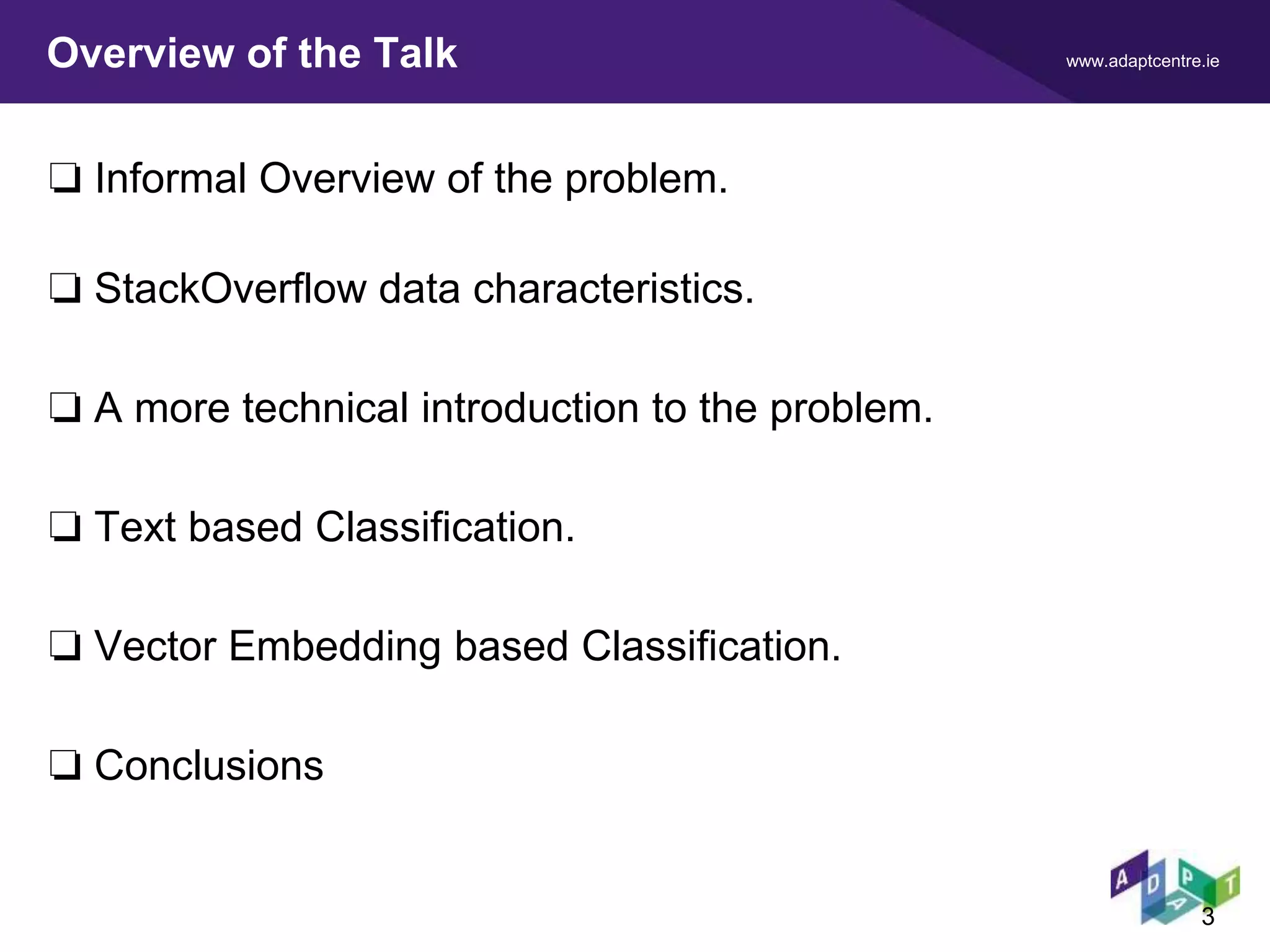

3. www.adaptcentre.ieOverview of the Talk
❏ Informal Overview of the problem.
❏ StackOverflow data characteristics.
❏ A more technical introduction to the problem.
❏ Text based Classification.
❏ Vector Embedding based Classification.
❏ Conclusions
3

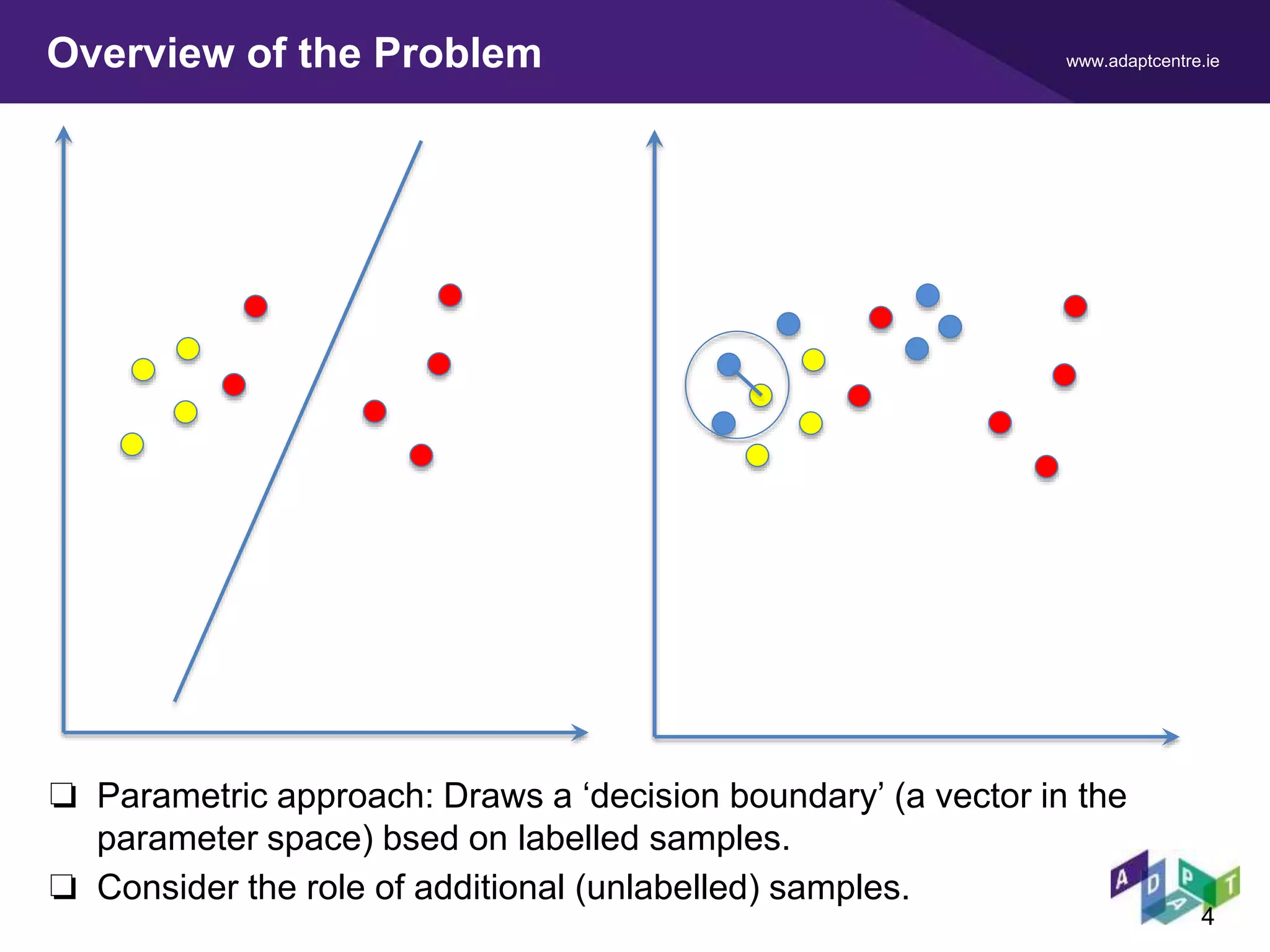

4. www.adaptcentre.ieOverview of the Problem
❏ Parametric approach: Draws a ‘decision boundary’ (a vector in the
parameter space) bsed on labelled samples.
❏ Consider the role of additional (unlabelled) samples.
4

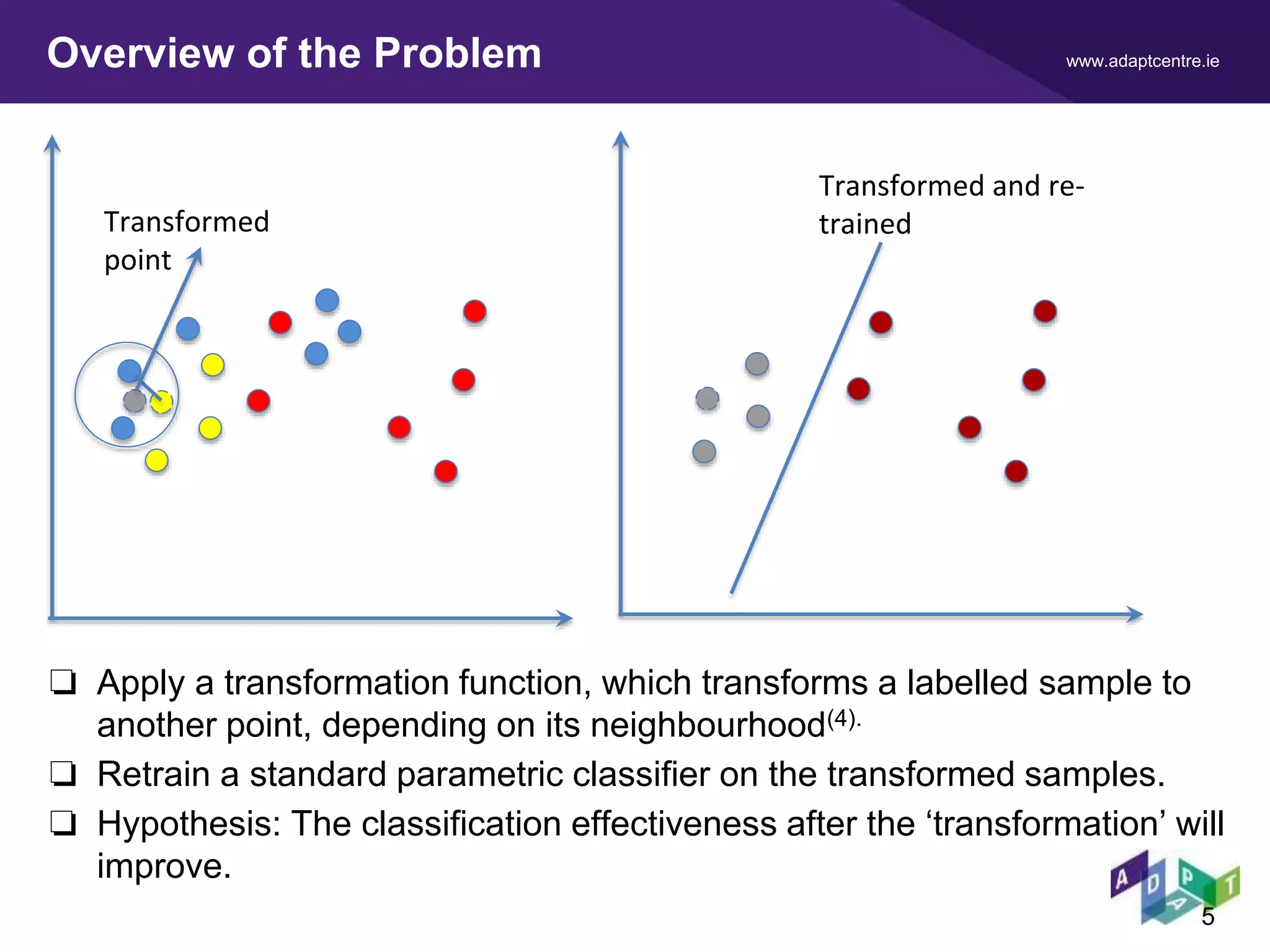

5. www.adaptcentre.ieOverview of the Problem
❏ Apply a transformation function, which transforms a labelled sample to
another point, depending on its neighbourhood(4).
❏ Retrain a standard parametric classifier on the transformed samples.
❏ Hypothesis: The classification effectiveness after the ‘transformation’ will
improve.
Transformed
point
Transformed and re-
trained
5

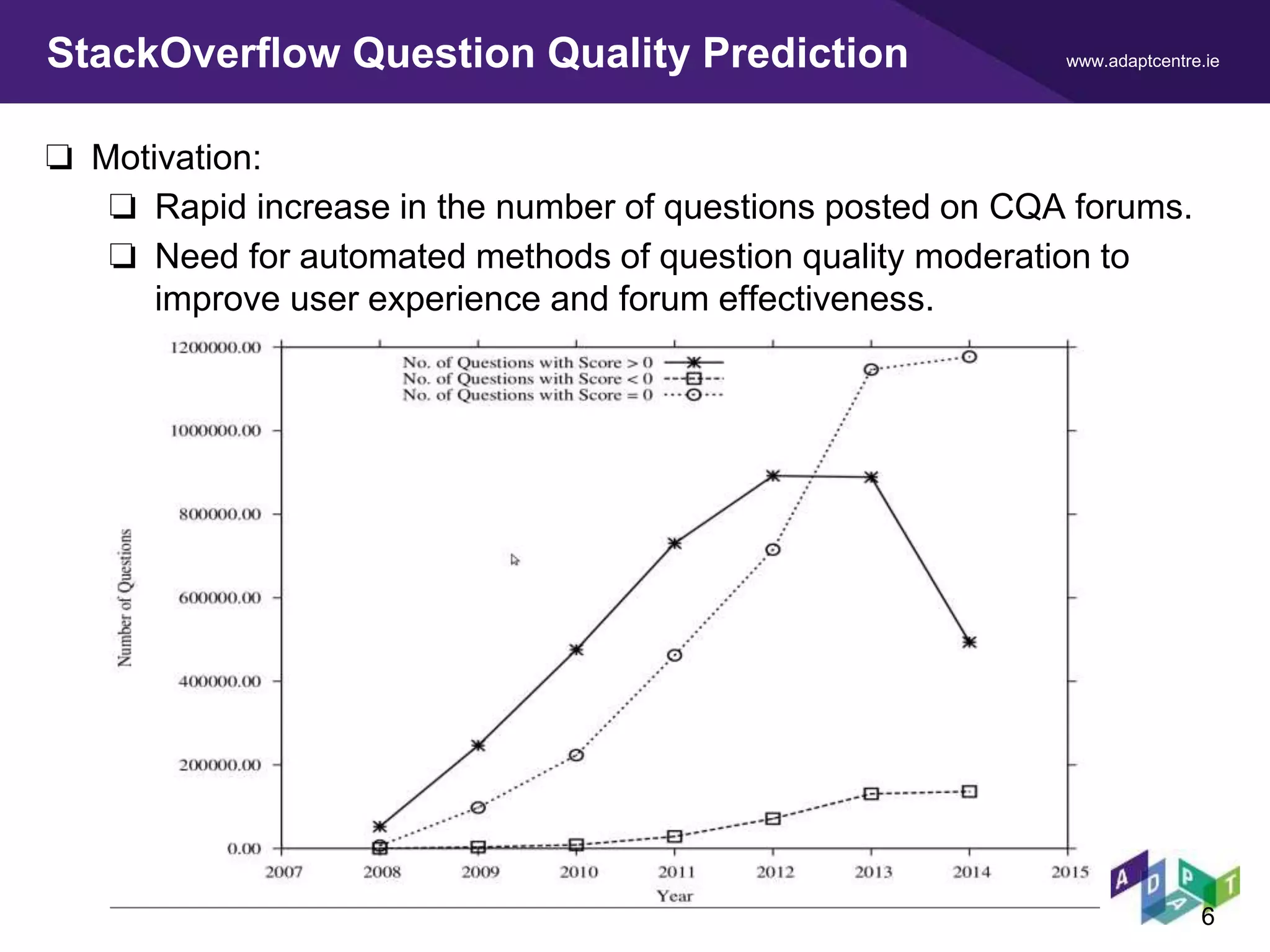

6. www.adaptcentre.ieStackOverflow Question Quality Prediction
❏ Motivation:
❏ Rapid increase in the number of questions posted on CQA forums.
❏ Need for automated methods of question quality moderation to
improve user experience and forum effectiveness.
6

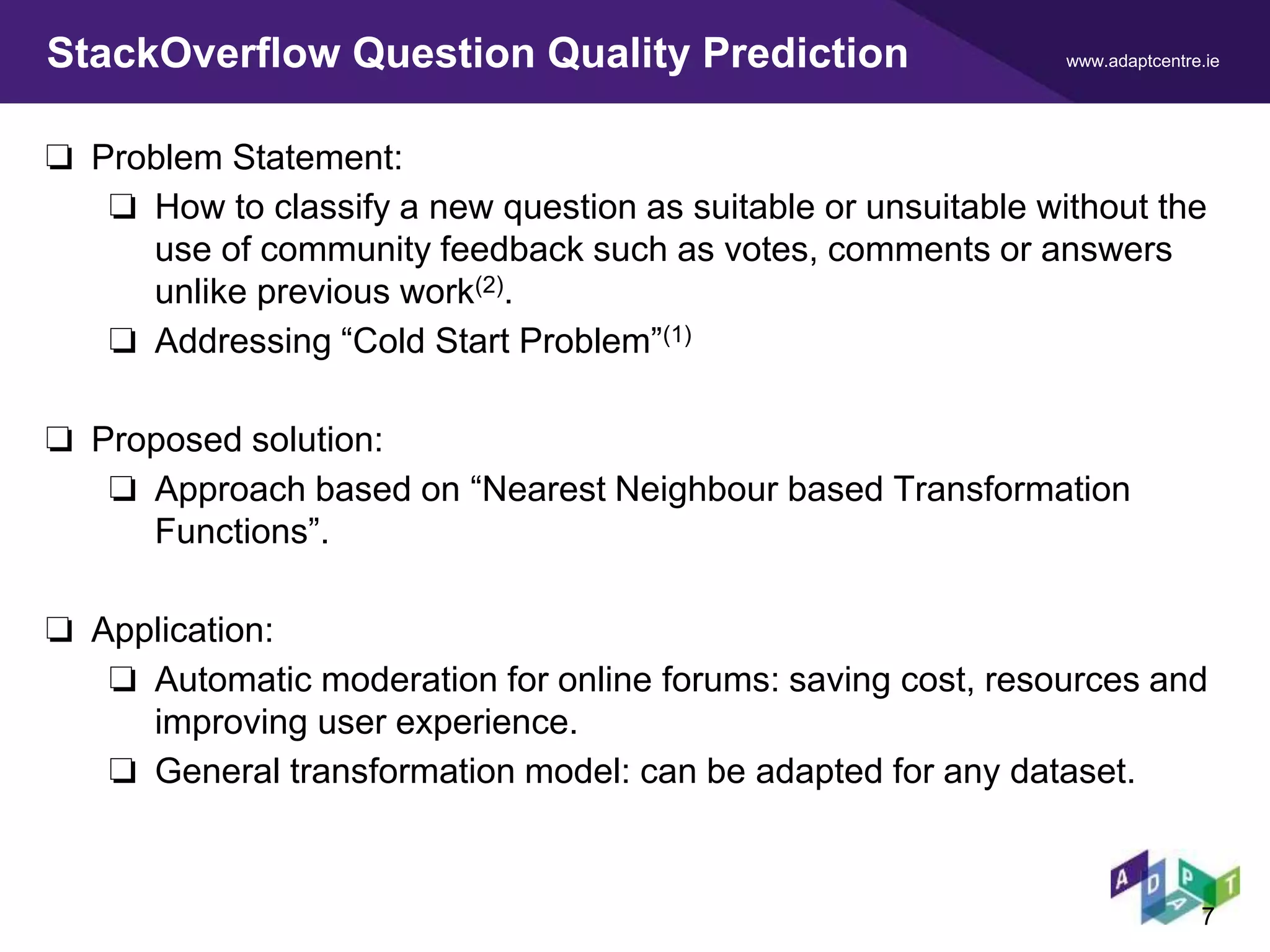

7. www.adaptcentre.ieStackOverflow Question Quality Prediction
❏ Problem Statement:
❏ How to classify a new question as suitable or unsuitable without the
use of community feedback such as votes, comments or answers
unlike previous work(2).
❏ Addressing “Cold Start Problem”(1)
❏ Proposed solution:
❏ Approach based on “Nearest Neighbour based Transformation
Functions”.
❏ Application:
❏ Automatic moderation for online forums: saving cost, resources and
improving user experience.
❏ General transformation model: can be adapted for any dataset.
7

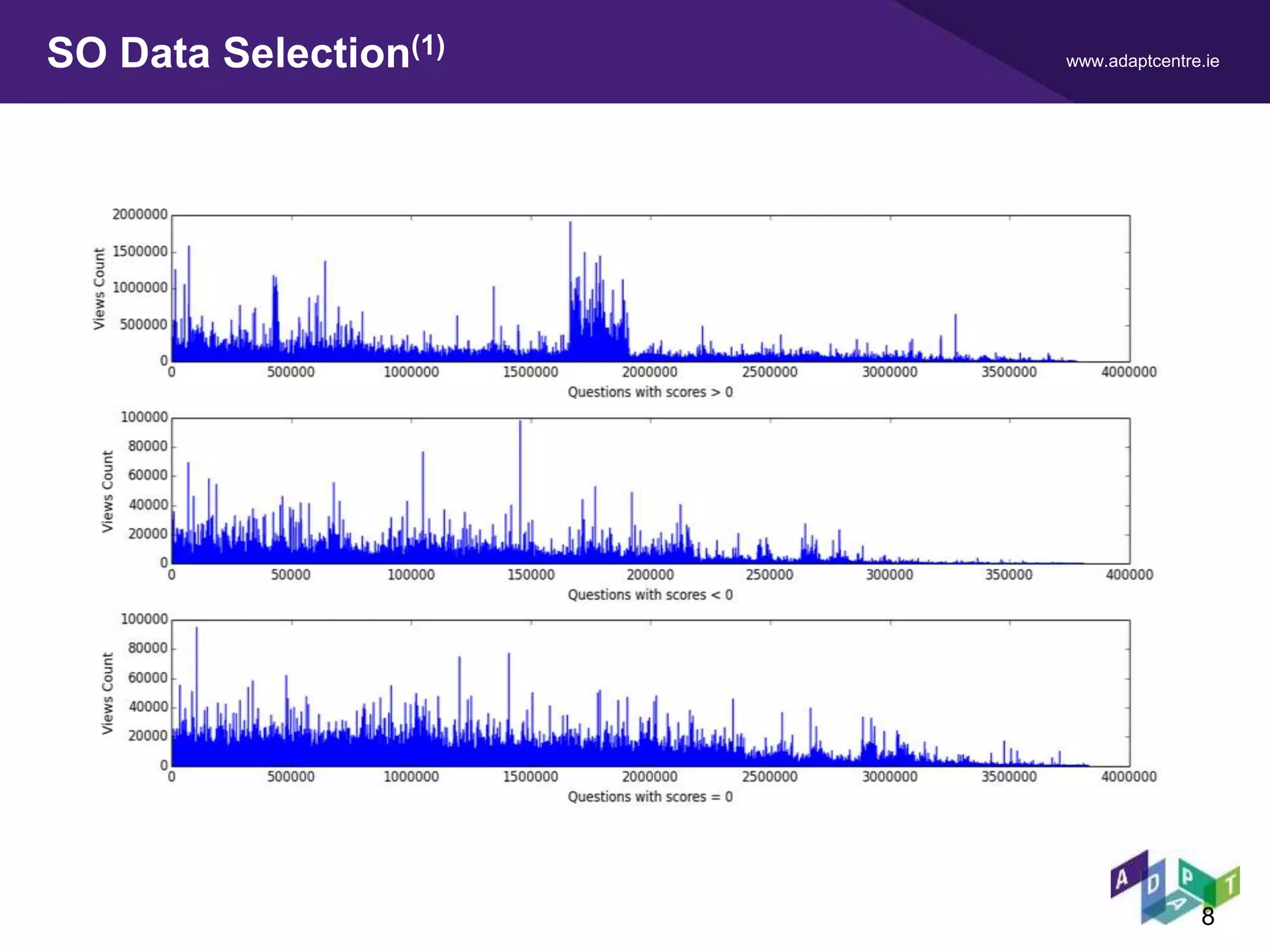

8. www.adaptcentre.ieSO Data Selection(1)
8

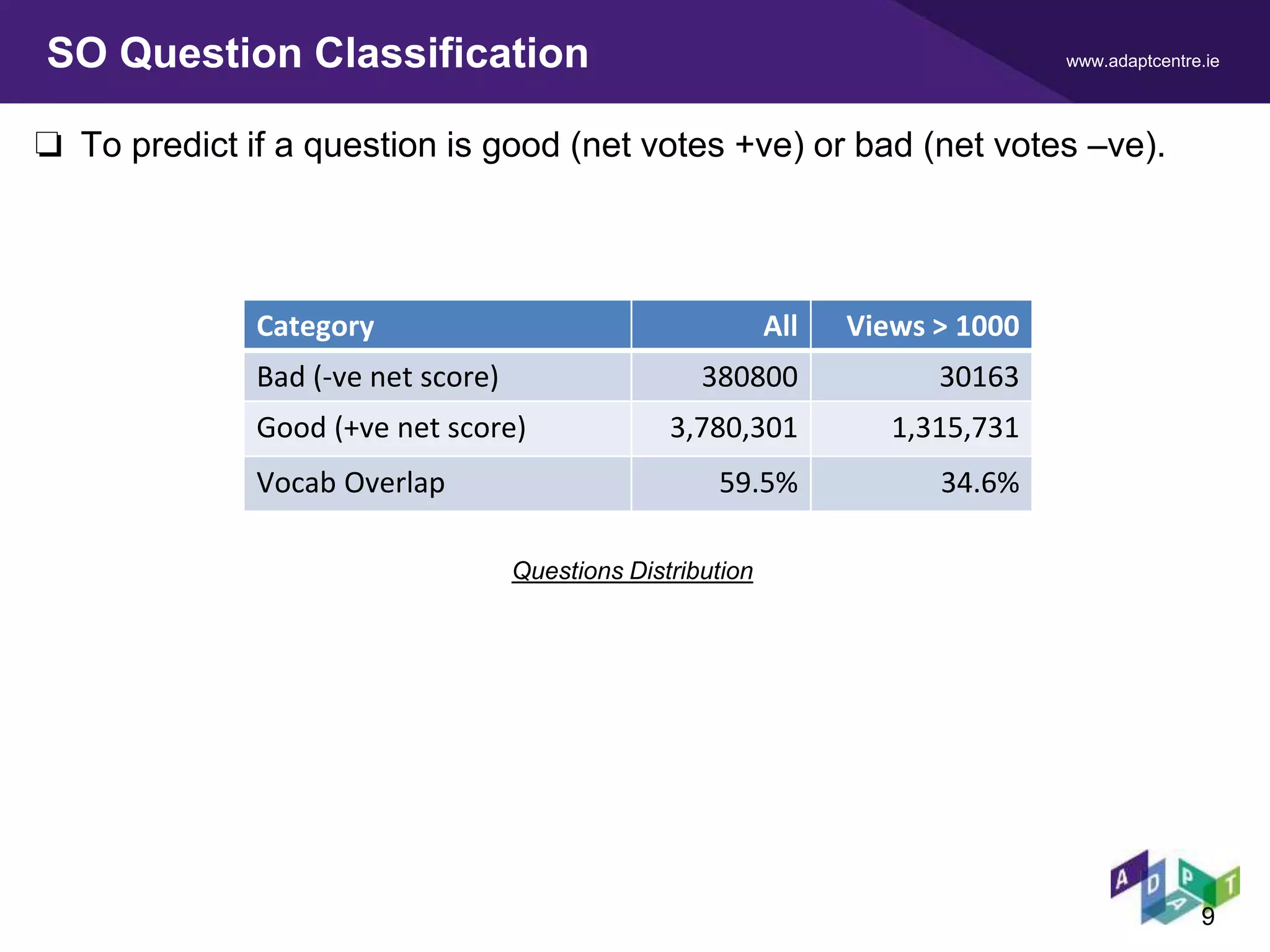

9. www.adaptcentre.ieSO Question Classification
❏ To predict if a question is good (net votes +ve) or bad (net votes –ve).
Category All Views > 1000
Bad (-ve net score) 380800 30163
Good (+ve net score) 3,780,301 1,315,731
Vocab Overlap 59.5% 34.6%
9
Questions Distribution

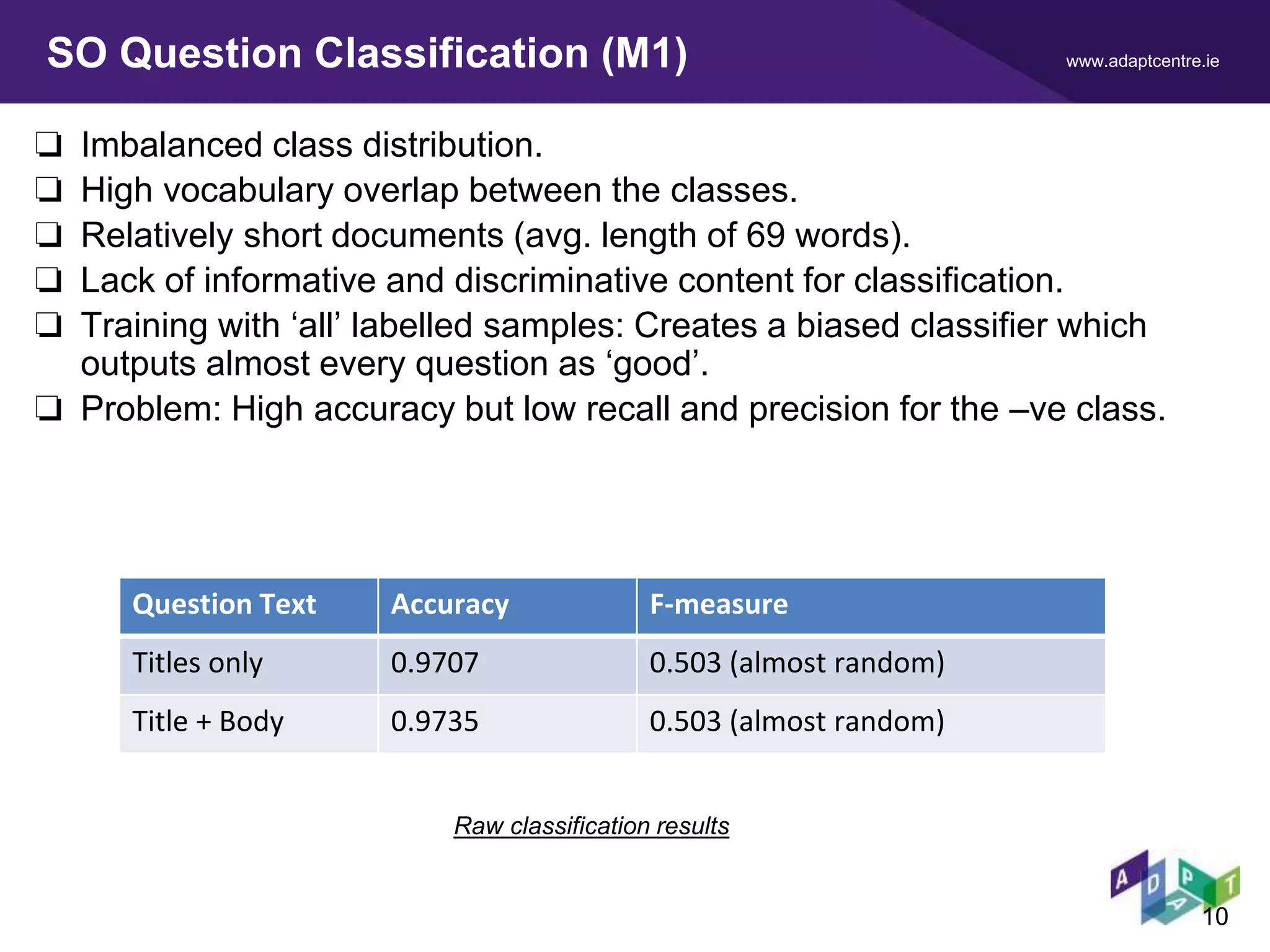

10. www.adaptcentre.ieSO Question Classification (M1)
❏ Imbalanced class distribution.
❏ High vocabulary overlap between the classes.
❏ Relatively short documents (avg. length of 69 words).
❏ Lack of informative and discriminative content for classification.
❏ Training with ‘all’ labelled samples: Creates a biased classifier which
outputs almost every question as ‘good’.
❏ Problem: High accuracy but low recall and precision for the –ve class.
Question Text Accuracy F-measure
Titles only 0.9707 0.503 (almost random)
Title + Body 0.9735 0.503 (almost random)
10
Raw classification results

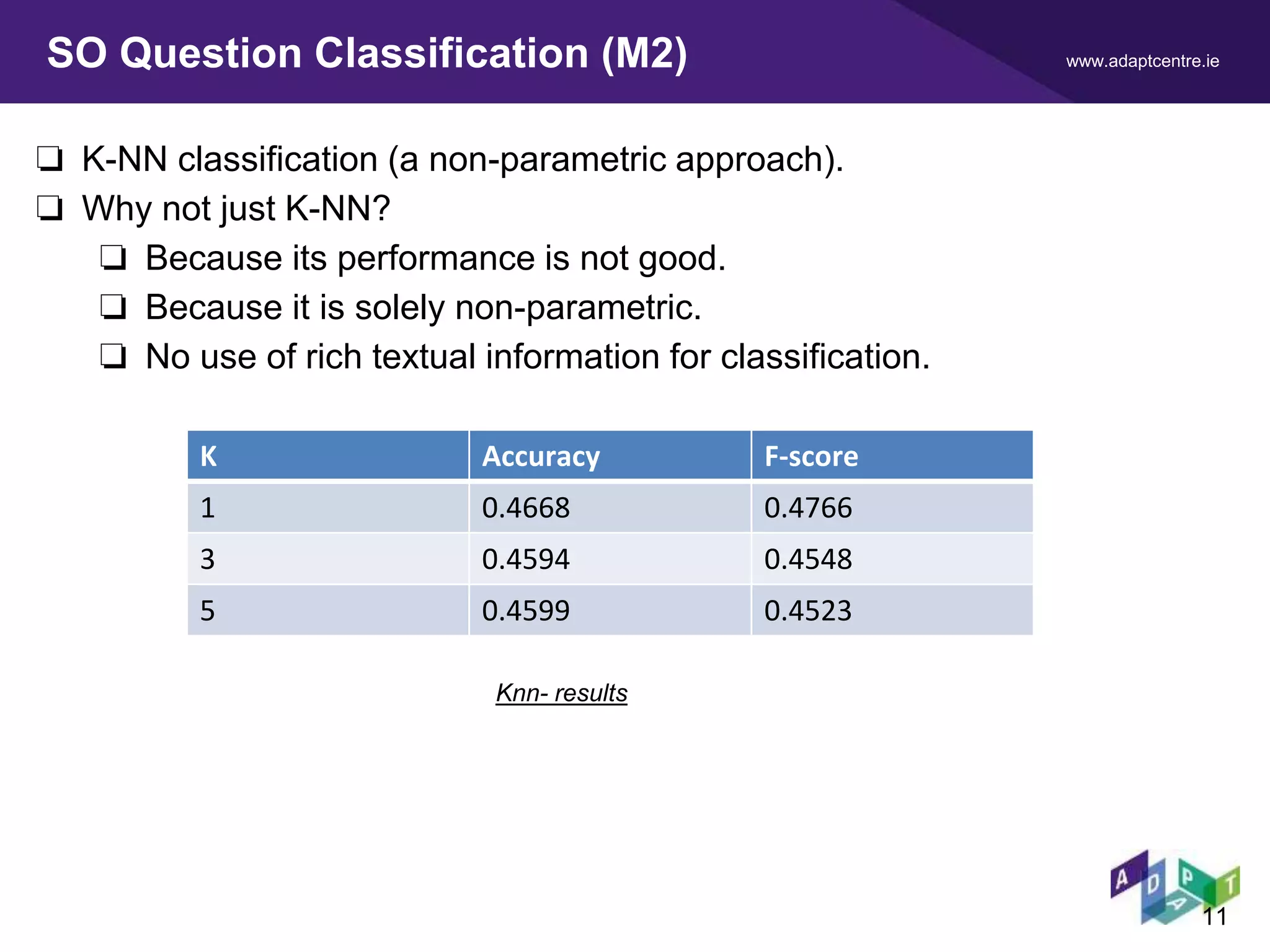

11. www.adaptcentre.ieSO Question Classification (M2)
❏ K-NN classification (a non-parametric approach).
❏ Why not just K-NN?
❏ Because its performance is not good.
❏ Because it is solely non-parametric.
❏ No use of rich textual information for classification.
K Accuracy F-score
1 0.4668 0.4766
3 0.4594 0.4548
5 0.4599 0.4523
Knn- results
11

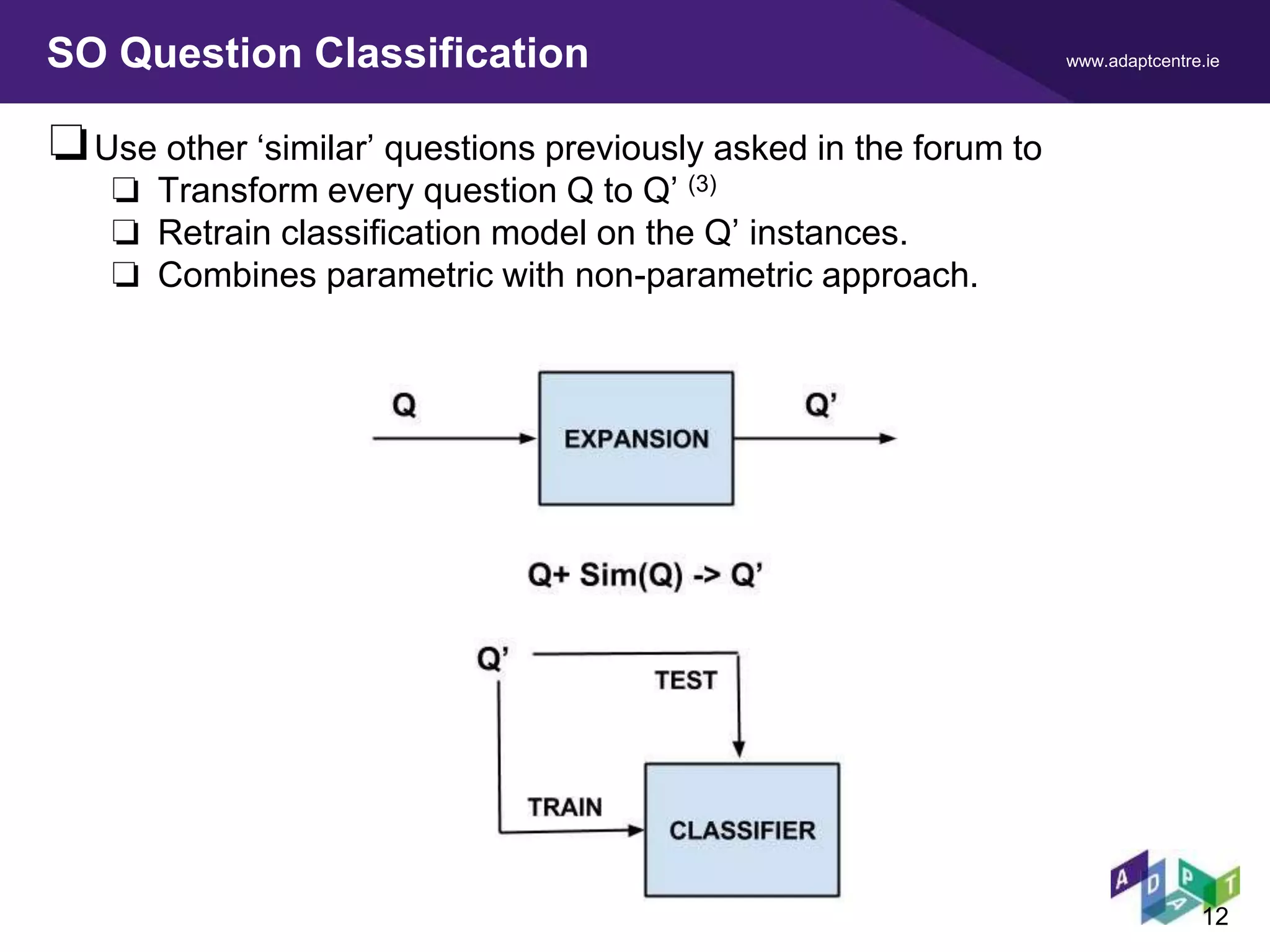

12. www.adaptcentre.ieSO Question Classification
❏Use other ‘similar’ questions previously asked in the forum to
❏ Transform every question Q to Q’ (3)
❏ Retrain classification model on the Q’ instances.
❏ Combines parametric with non-parametric approach.
12

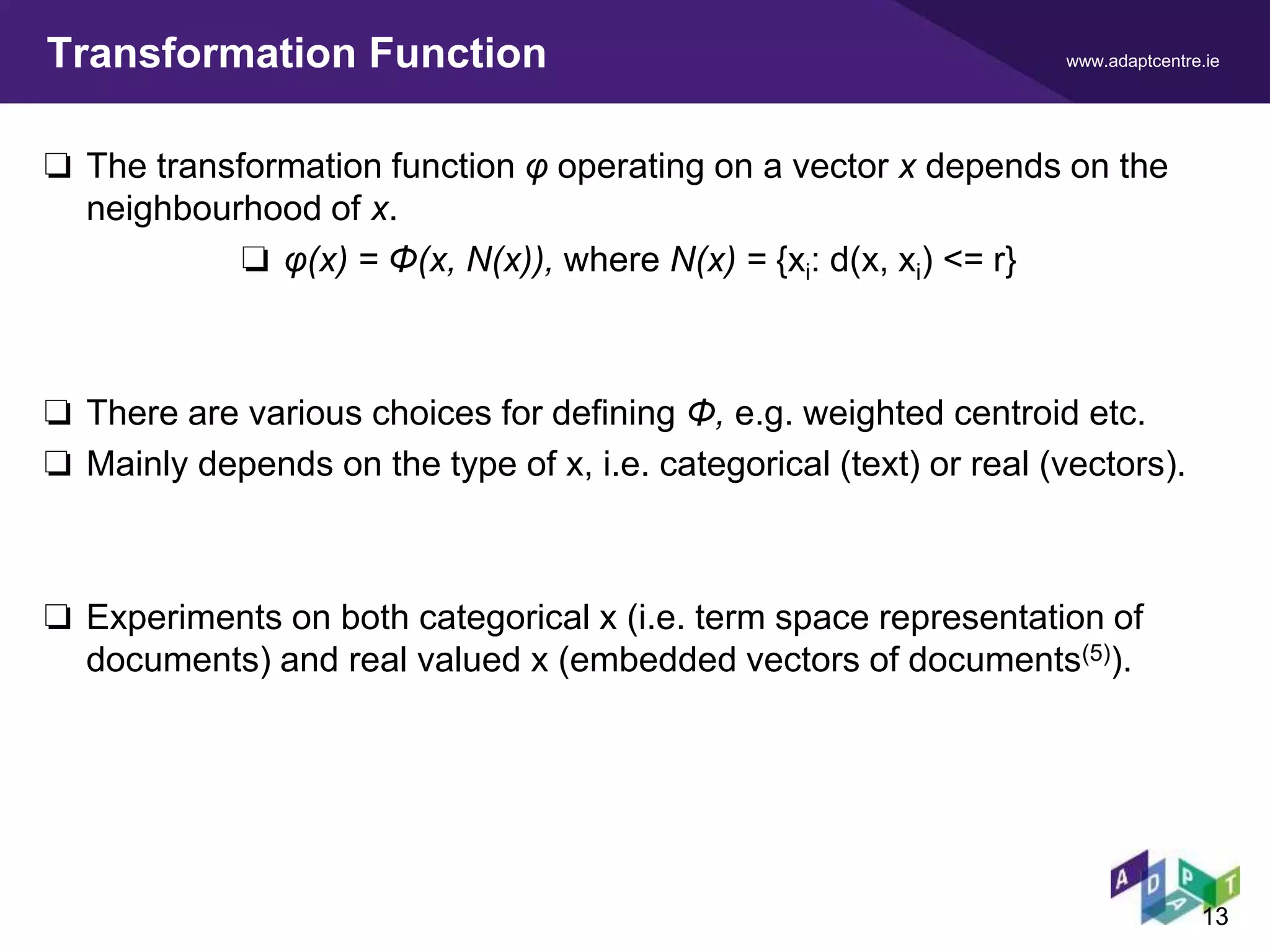

13. www.adaptcentre.ieTransformation Function
❏ The transformation function φ operating on a vector x depends on the
neighbourhood of x.
❏ φ(x) = Φ(x, N(x)), where N(x) = {xi: d(x, xi) <= r}
❏ There are various choices for defining Φ, e.g. weighted centroid etc.
❏ Mainly depends on the type of x, i.e. categorical (text) or real (vectors).
❏ Experiments on both categorical x (i.e. term space representation of
documents) and real valued x (embedded vectors of documents(5)).
13

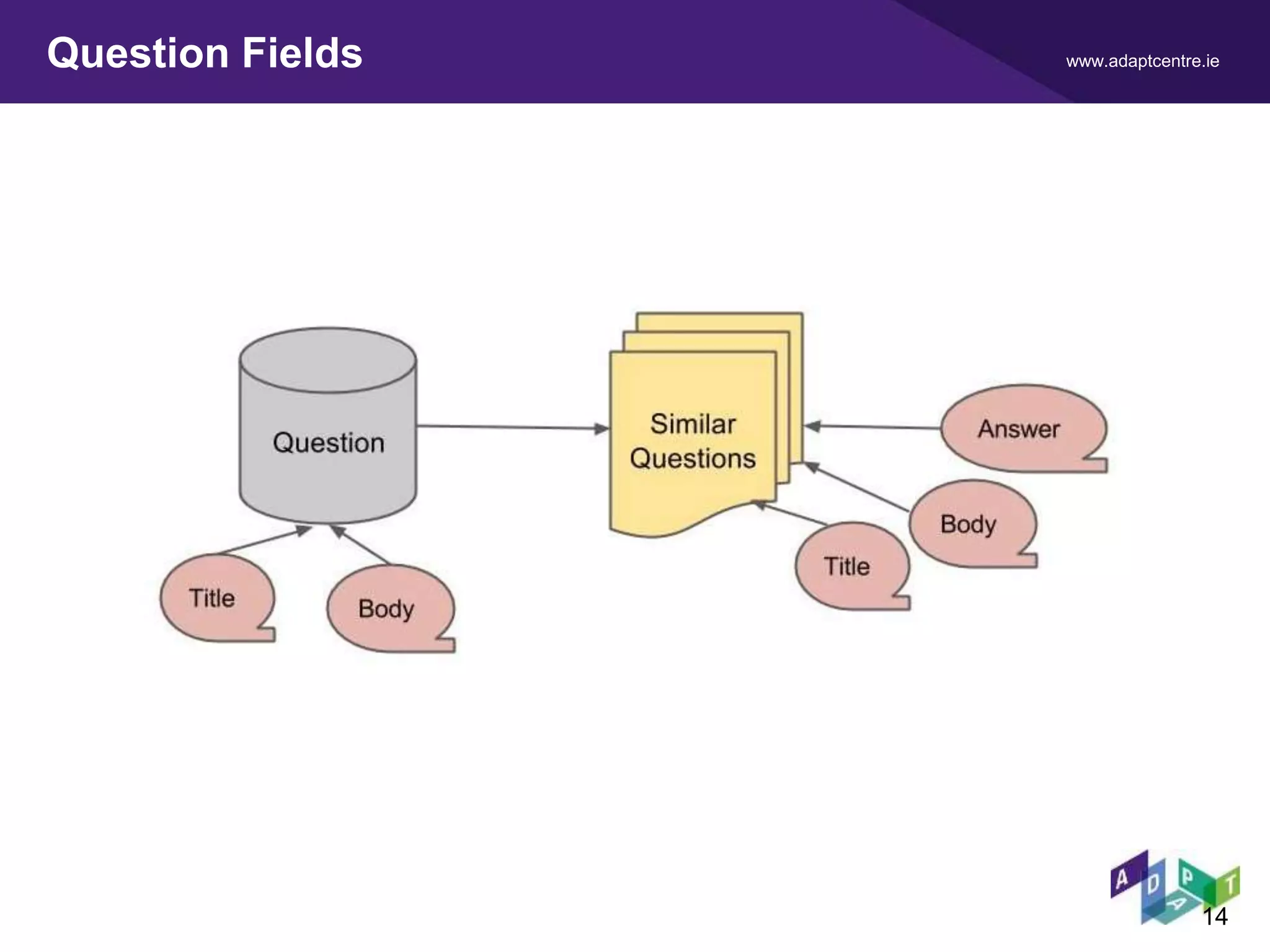

14. www.adaptcentre.ieQuestion Fields
14

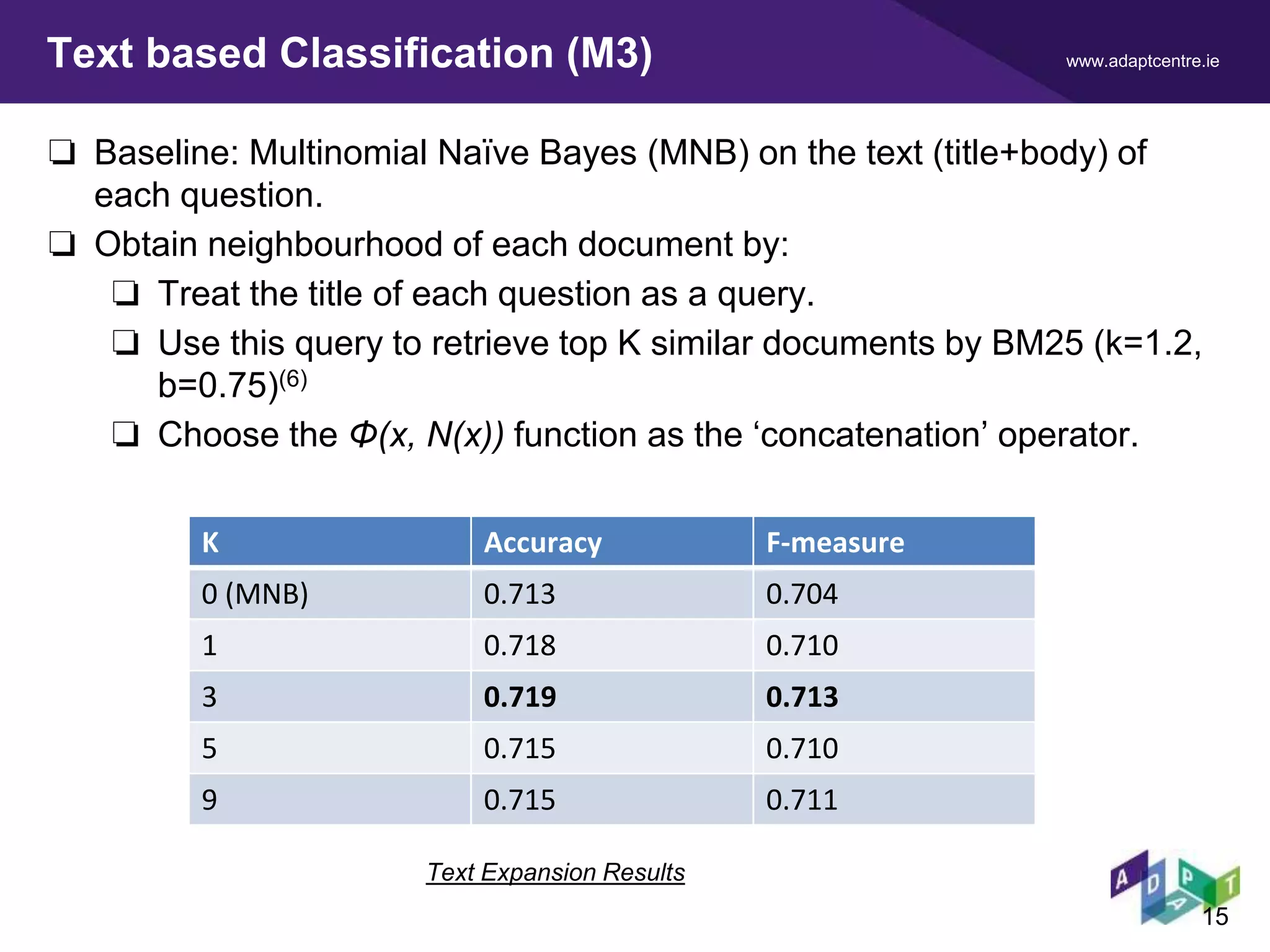

15. www.adaptcentre.ieText based Classification (M3)
❏ Baseline: Multinomial Naïve Bayes (MNB) on the text (title+body) of
each question.
❏ Obtain neighbourhood of each document by:
❏ Treat the title of each question as a query.
❏ Use this query to retrieve top K similar documents by BM25 (k=1.2,
b=0.75)(6)
❏ Choose the Φ(x, N(x)) function as the ‘concatenation’ operator.
K Accuracy F-measure
0 (MNB) 0.713 0.704
1 0.718 0.710
3 0.719 0.713
5 0.715 0.710
9 0.715 0.711
15
Text Expansion Results

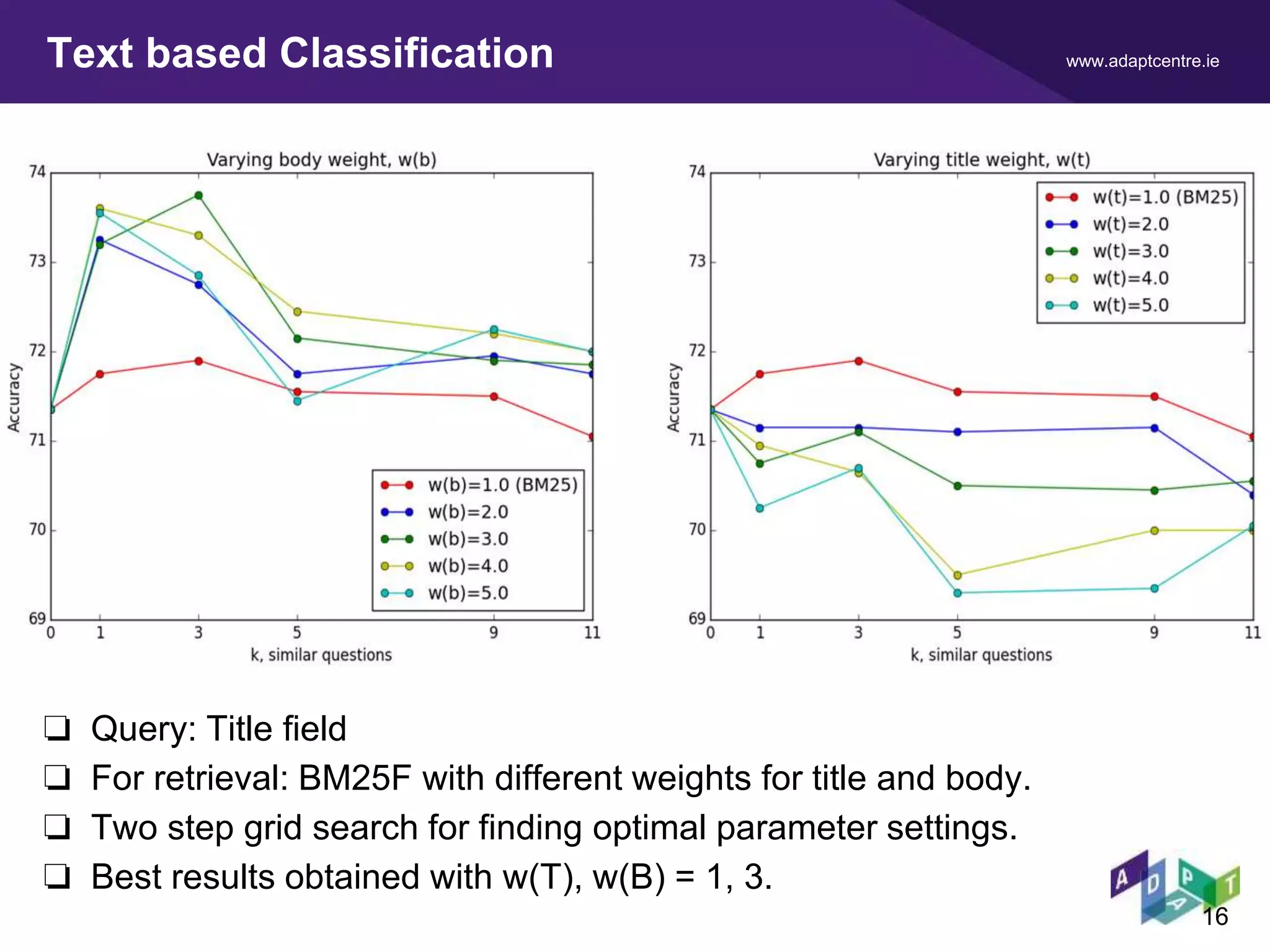

16. www.adaptcentre.ieText based Classification
❏ Query: Title field
❏ For retrieval: BM25F with different weights for title and body.
❏ Two step grid search for finding optimal parameter settings.
❏ Best results obtained with w(T), w(B) = 1, 3.
16

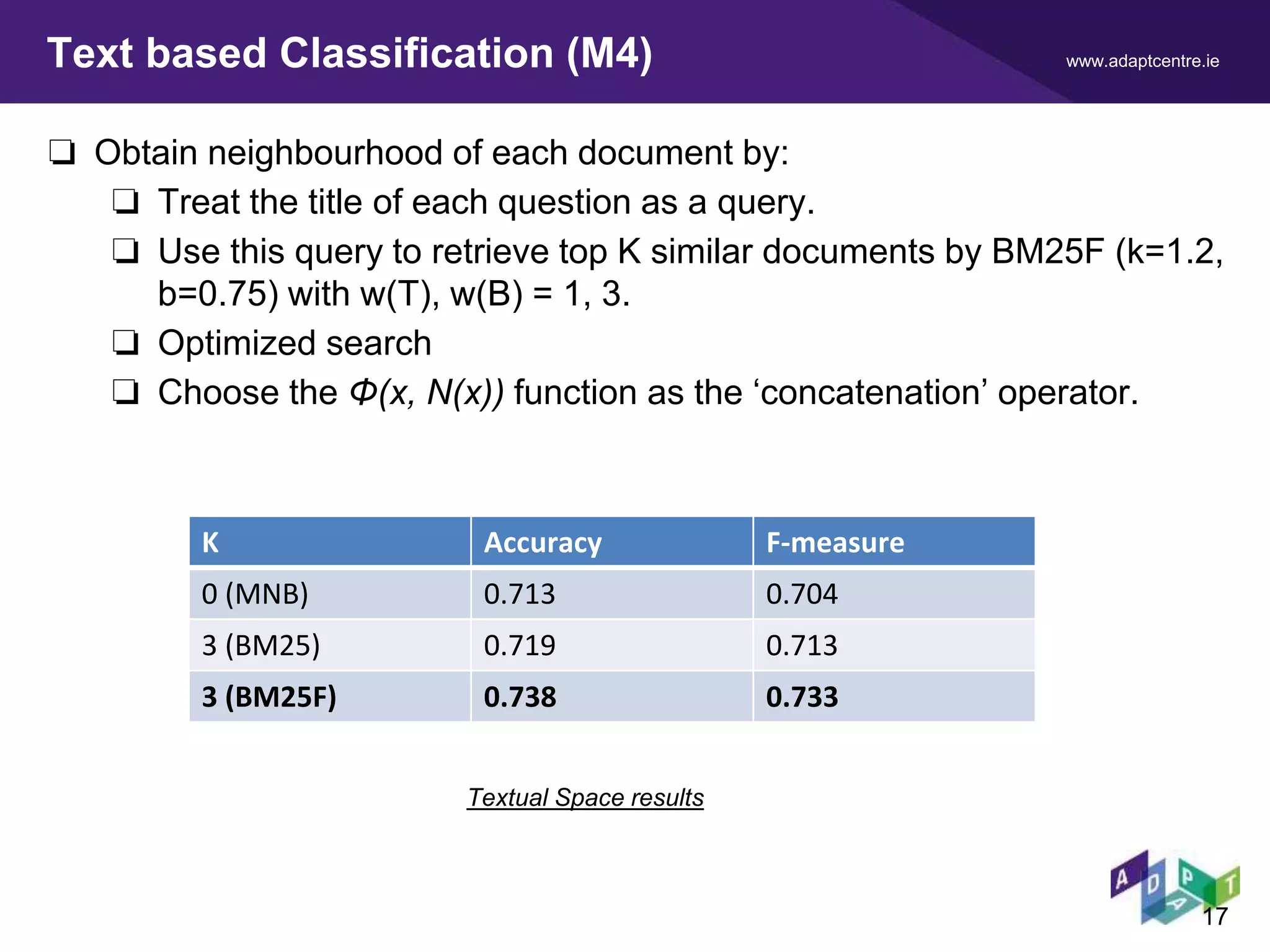

17. www.adaptcentre.ieText based Classification (M4)
❏ Obtain neighbourhood of each document by:
❏ Treat the title of each question as a query.
❏ Use this query to retrieve top K similar documents by BM25F (k=1.2,
b=0.75) with w(T), w(B) = 1, 3.
❏ Optimized search
❏ Choose the Φ(x, N(x)) function as the ‘concatenation’ operator.
K Accuracy F-measure
0 (MNB) 0.713 0.704
3 (BM25) 0.719 0.713
3 (BM25F) 0.738 0.733
17
Textual Space results

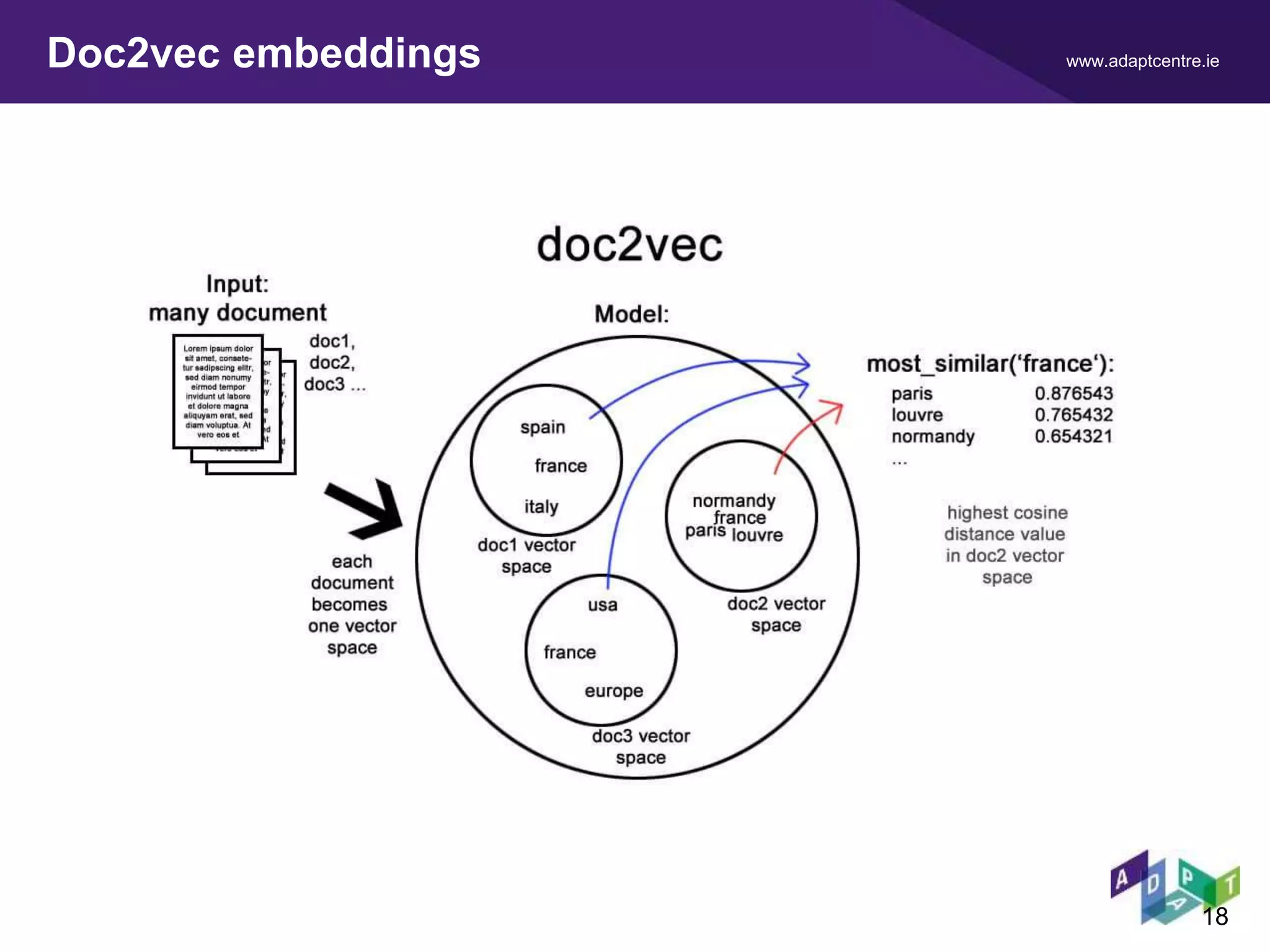

18. www.adaptcentre.ieDoc2vec embeddings
18

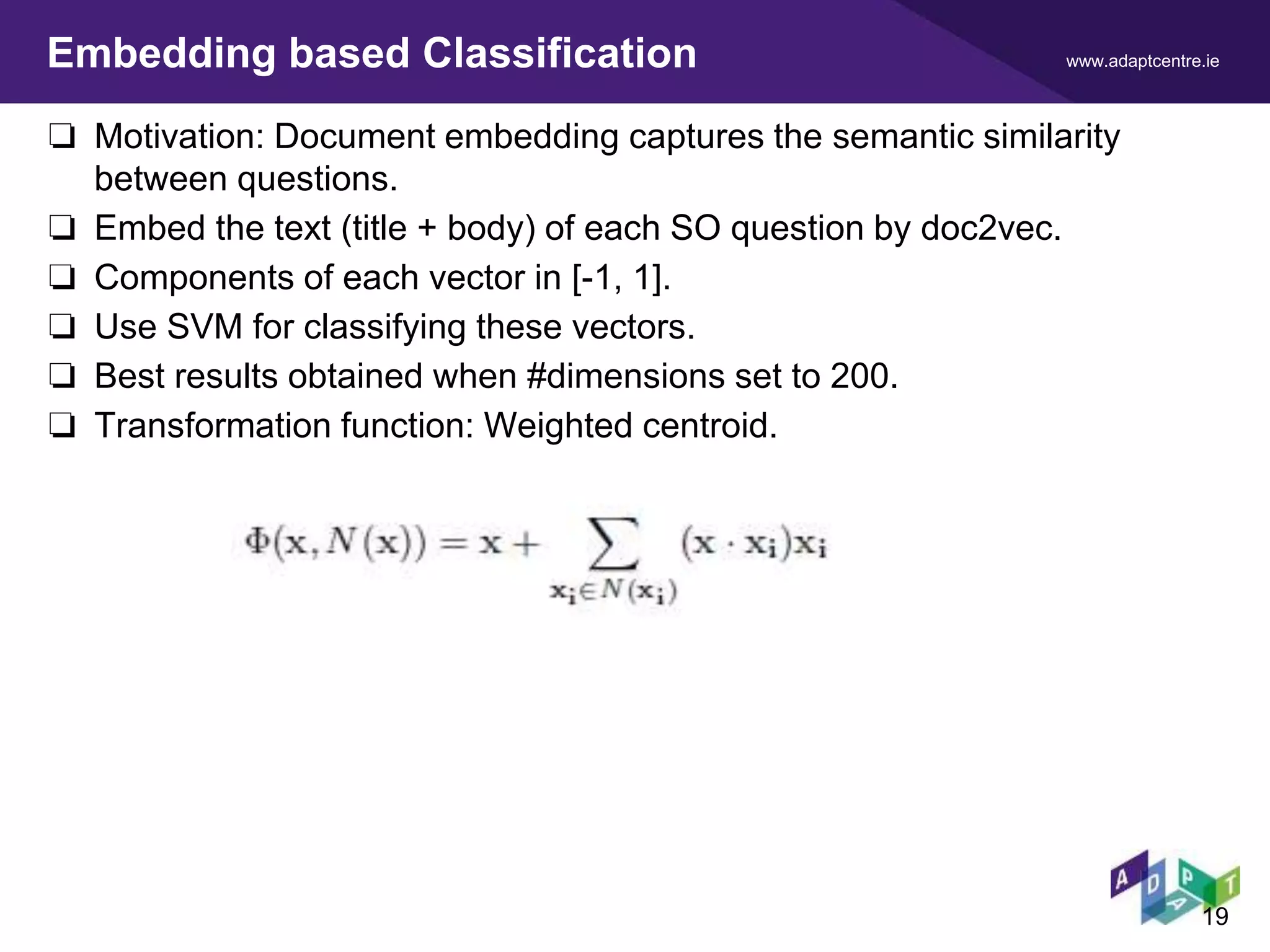

19. www.adaptcentre.ieEmbedding based Classification
❏ Motivation: Document embedding captures the semantic similarity
between questions.
❏ Embed the text (title + body) of each SO question by doc2vec.
❏ Components of each vector in [-1, 1].
❏ Use SVM for classifying these vectors.
❏ Best results obtained when #dimensions set to 200.
❏ Transformation function: Weighted centroid.
19

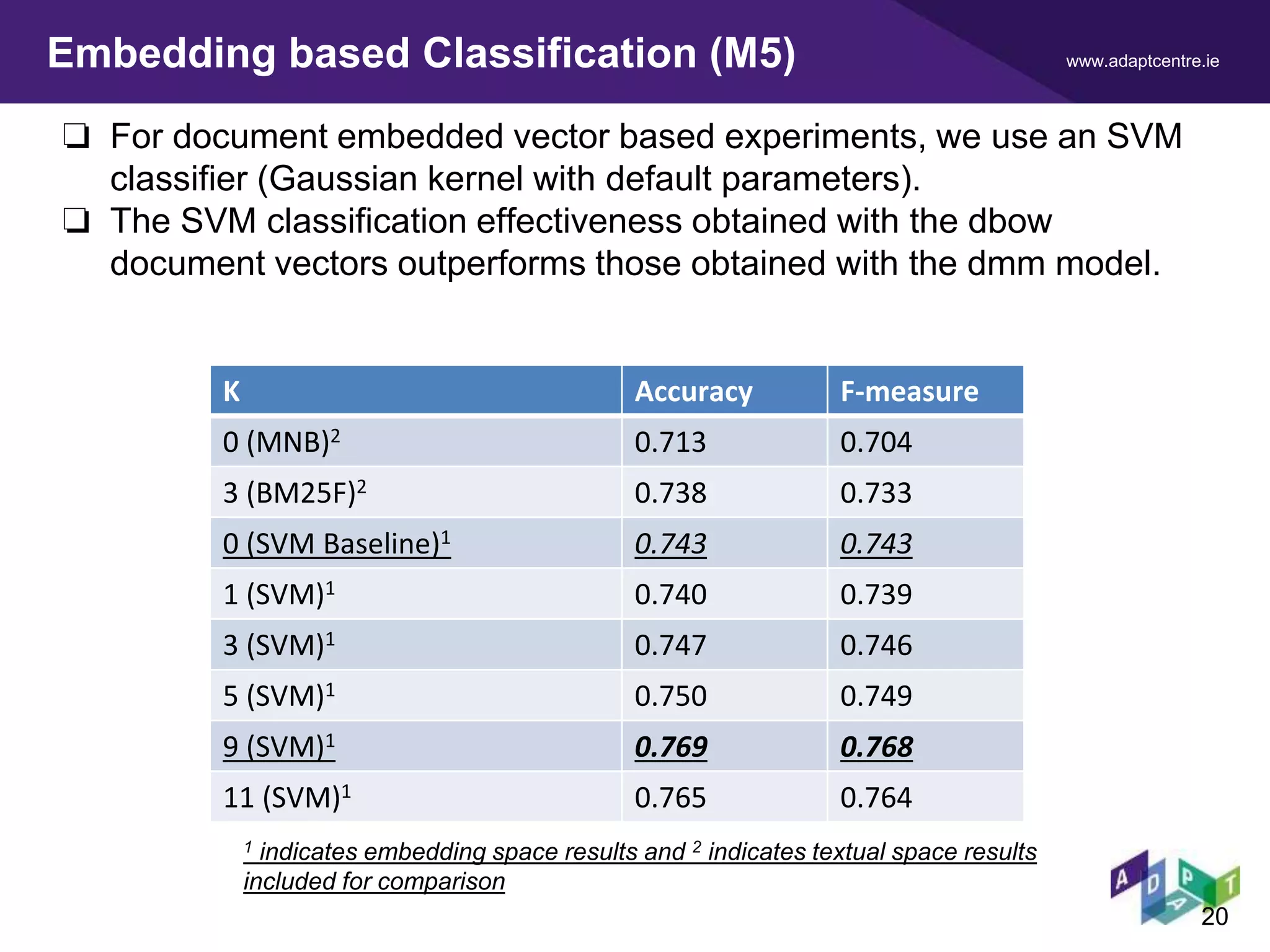

20. www.adaptcentre.ieEmbedding based Classification (M5)
❏ For document embedded vector based experiments, we use an SVM
classifier (Gaussian kernel with default parameters).
❏ The SVM classification effectiveness obtained with the dbow
document vectors outperforms those obtained with the dmm model.
K Accuracy F-measure
0 (MNB)2 0.713 0.704
3 (BM25F)2 0.738 0.733
0 (SVM Baseline)1 0.743 0.743
1 (SVM)1 0.740 0.739
3 (SVM)1 0.747 0.746
5 (SVM)1 0.750 0.749
9 (SVM)1 0.769 0.768
11 (SVM)1 0.765 0.764
20
1 indicates embedding space results and 2 indicates textual space results
included for comparison

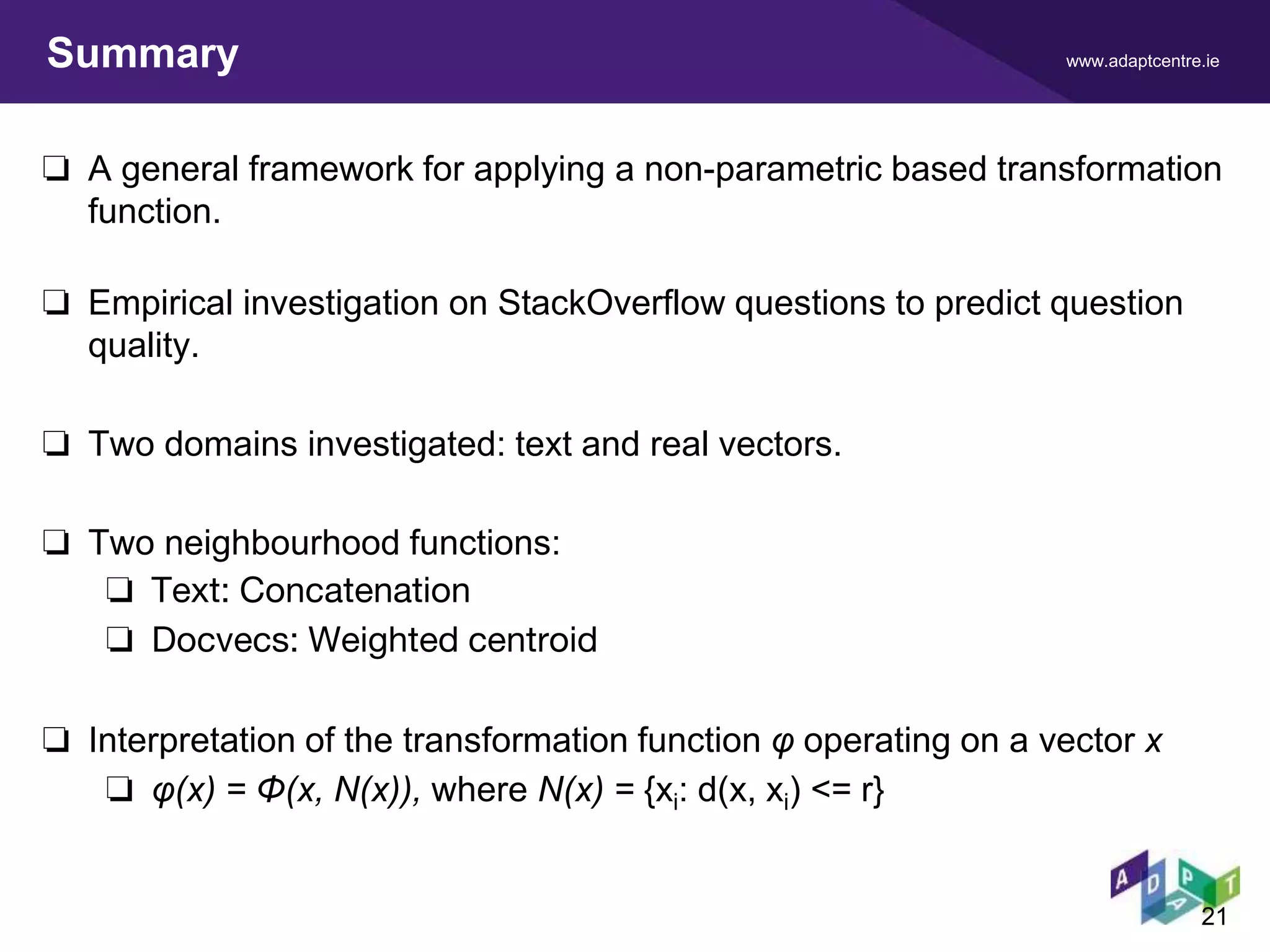

21. www.adaptcentre.ieSummary
❏ A general framework for applying a non-parametric based transformation
function.
❏ Empirical investigation on StackOverflow questions to predict question
quality.
❏ Two domains investigated: text and real vectors.
❏ Two neighbourhood functions:
❏ Text: Concatenation
❏ Docvecs: Weighted centroid
❏ Interpretation of the transformation function φ operating on a vector x
❏ φ(x) = Φ(x, N(x)), where N(x) = {xi: d(x, xi) <= r}
21

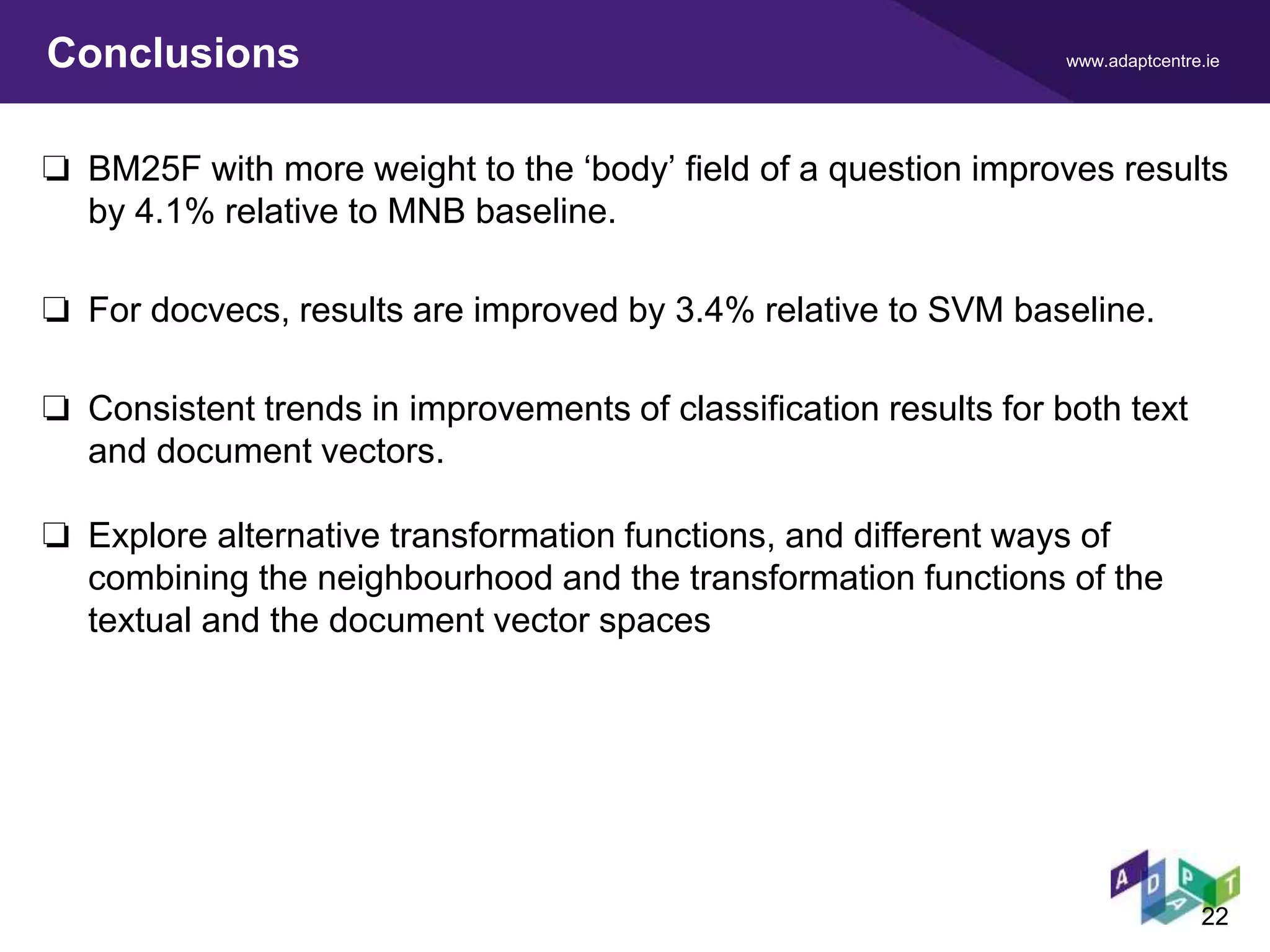

22. www.adaptcentre.ieConclusions
❏ BM25F with more weight to the ‘body’ field of a question improves results
by 4.1% relative to MNB baseline.
❏ For docvecs, results are improved by 3.4% relative to SVM baseline.
❏ Consistent trends in improvements of classification results for both text
and document vectors.
❏ Explore alternative transformation functions, and different ways of
combining the neighbourhood and the transformation functions of the
textual and the document vector spaces
22

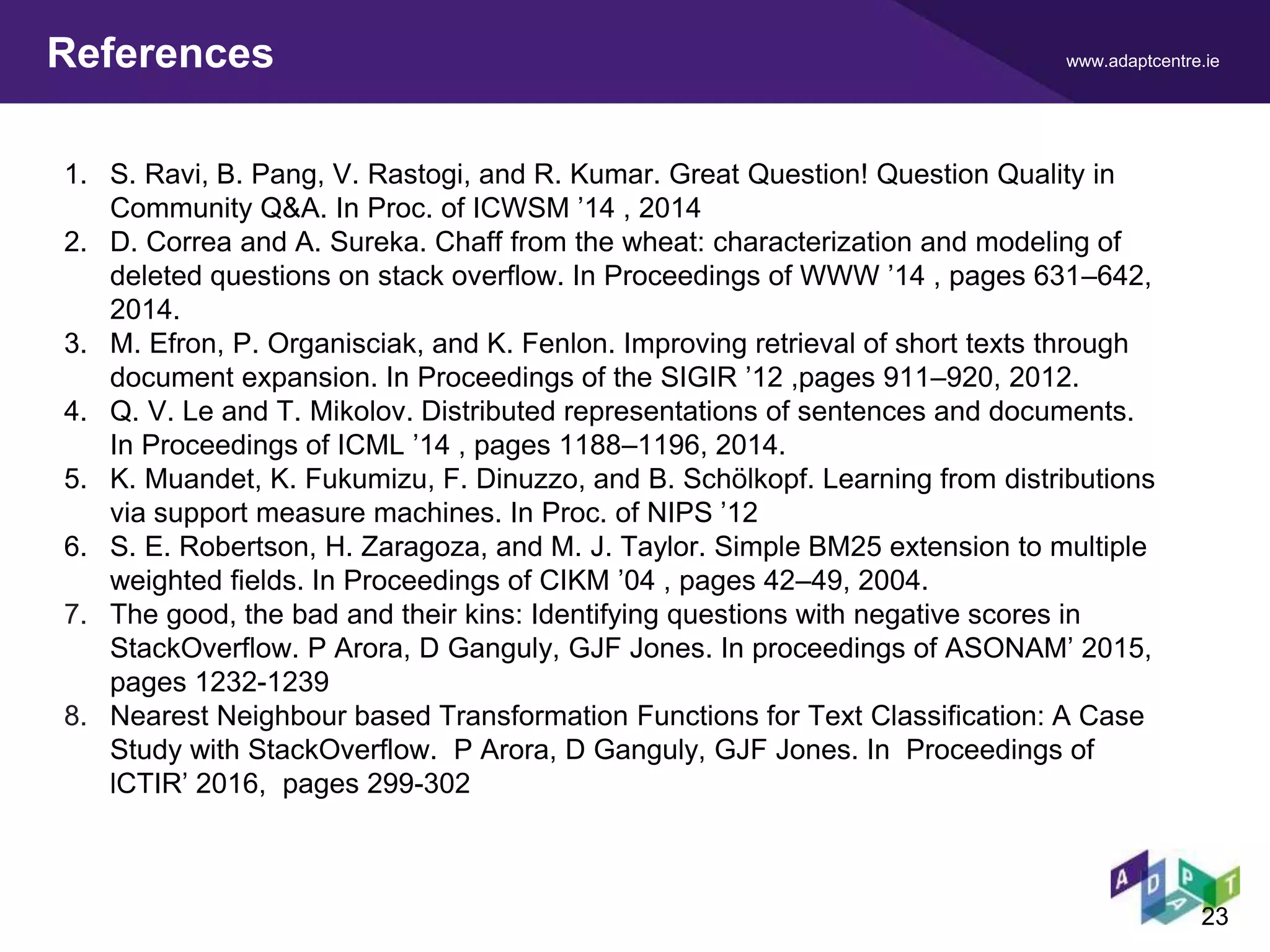

23. www.adaptcentre.ieReferences
1. S. Ravi, B. Pang, V. Rastogi, and R. Kumar. Great Question! Question Quality in
Community Q&A. In Proc. of ICWSM ’14 , 2014
2. D. Correa and A. Sureka. Chaff from the wheat: characterization and modeling of
deleted questions on stack overflow. In Proceedings of WWW ’14 , pages 631–642,
2014.
3. M. Efron, P. Organisciak, and K. Fenlon. Improving retrieval of short texts through
document expansion. In Proceedings of the SIGIR ’12 ,pages 911–920, 2012.
4. Q. V. Le and T. Mikolov. Distributed representations of sentences and documents.
In Proceedings of ICML ’14 , pages 1188–1196, 2014.
5. K. Muandet, K. Fukumizu, F. Dinuzzo, and B. Schölkopf. Learning from distributions
via support measure machines. In Proc. of NIPS ’12
6. S. E. Robertson, H. Zaragoza, and M. J. Taylor. Simple BM25 extension to multiple
weighted fields. In Proceedings of CIKM ’04 , pages 42–49, 2004.
7. The good, the bad and their kins: Identifying questions with negative scores in
StackOverflow. P Arora, D Ganguly, GJF Jones. In proceedings of ASONAM’ 2015,
pages 1232-1239
8. Nearest Neighbour based Transformation Functions for Text Classification: A Case
Study with StackOverflow. P Arora, D Ganguly, GJF Jones. In Proceedings of
lCTIR’ 2016, pages 299-302
23

24. www.adaptcentre.ieQ & A
24
