Topshelf is an easy service hosting framework for building Windows services using .NET. The presentation introduces Topshelf and covers getting started, building custom services, using command line options, and provides references for additional information. Getting started with Topshelf involves calling HostFactory.Run and registering a service that defines start and stop methods. Custom services are built by inheriting from ServiceControl. Command line options allow installing, uninstalling, starting, and stopping services.

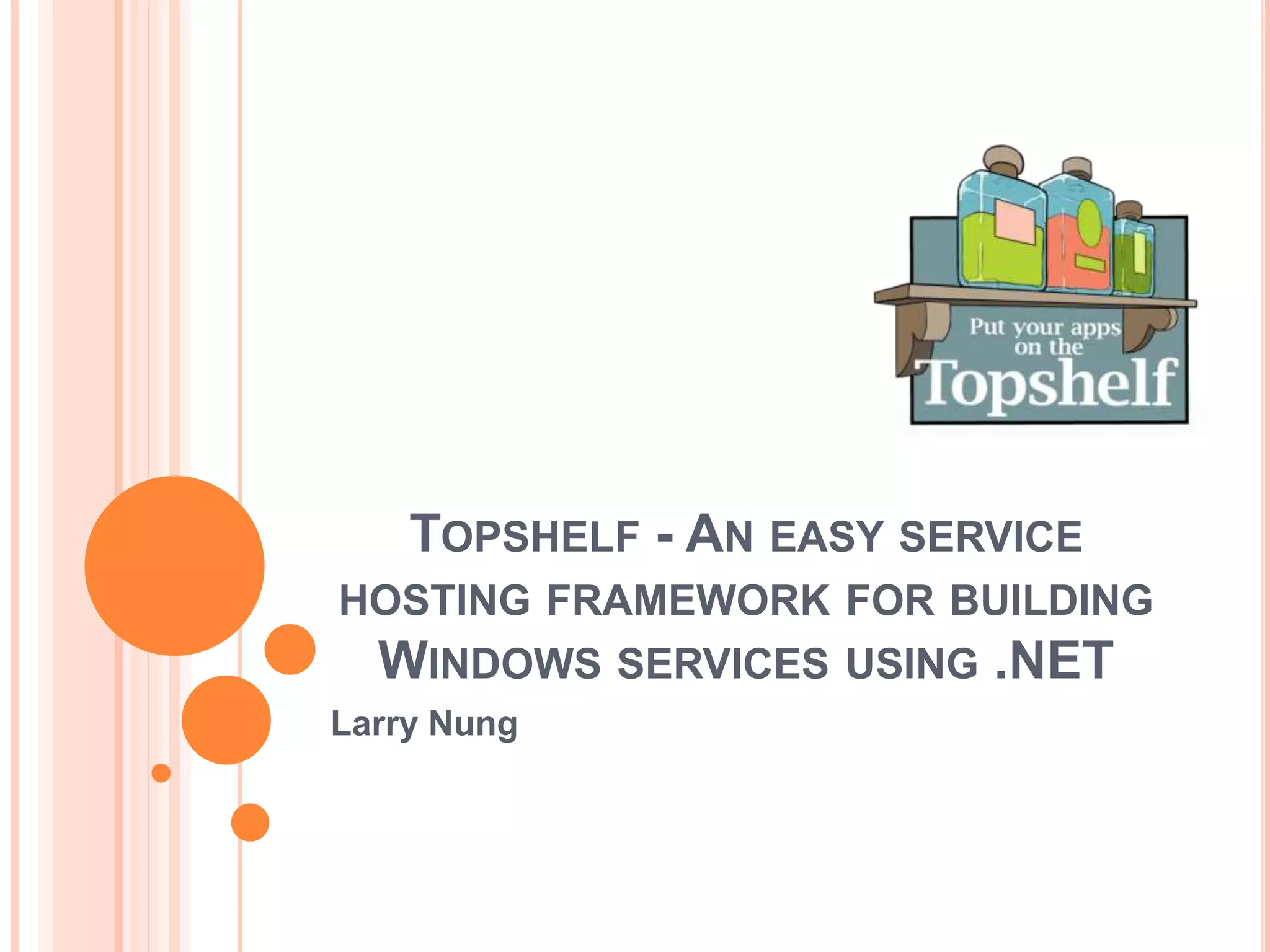

1. TOPSHELF - AN EASY SERVICE
HOSTING FRAMEWORK FOR BUILDING
WINDOWS SERVICES USING .NET
Larry Nung

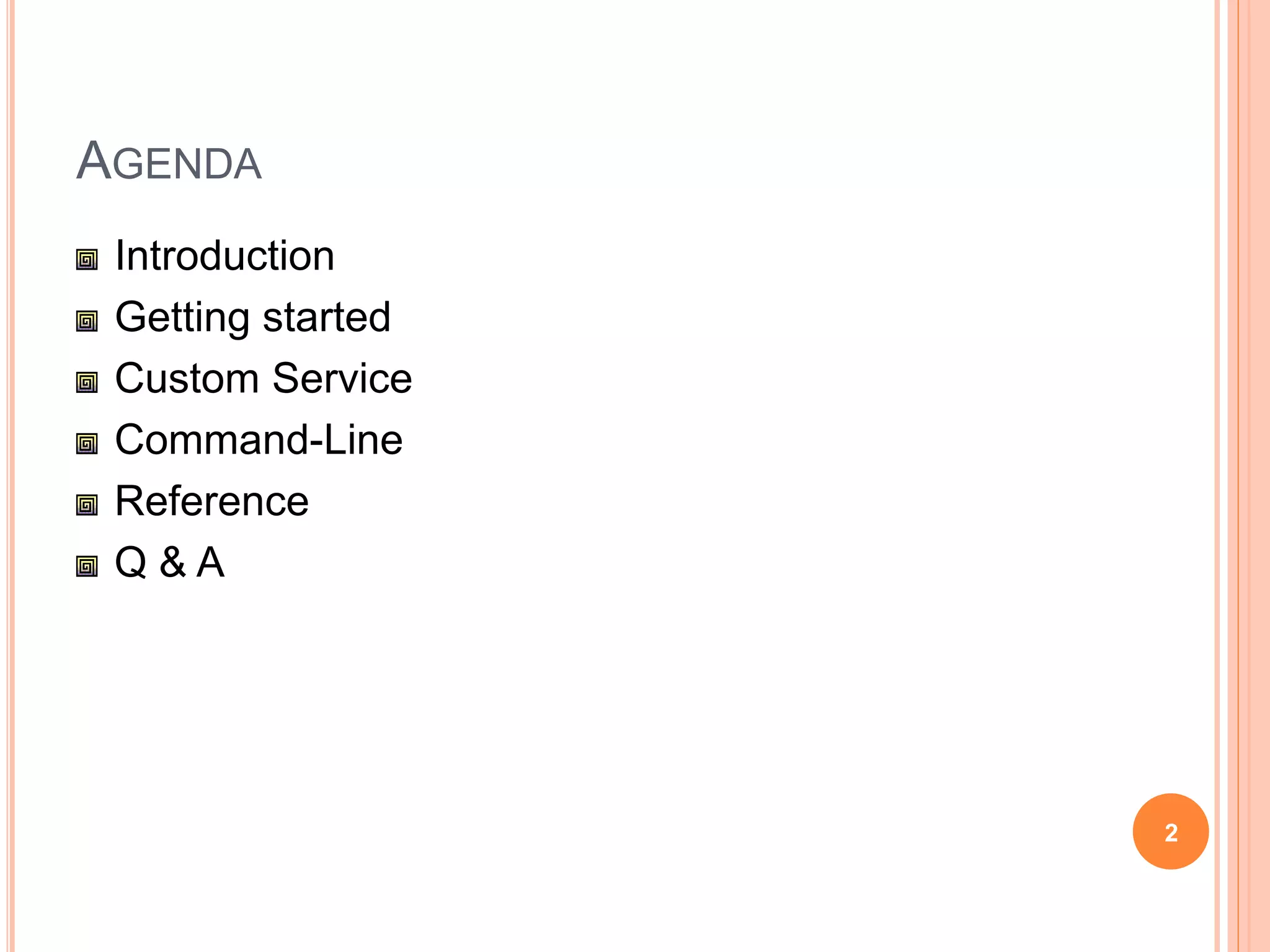

2. AGENDA
Introduction
Getting started
Custom Service
Command-Line
Reference
Q & A
2

3. INTRODUCTION
3

4. INTRODUCTION
 Put Your Apps on the Topshelf
 An easy service hosting framework for building
Windows services using .NET
4

5. GETTING STARTED
5

6. GETTING STARTED
6

7. GETTING STARTED
7

8. GETTING STARTED
using System;
using Topshelf;
…
class Program {
static void Main(string[] args) {
HostFactory.Run(x => {
x.Service<Program>(s => {
s.ConstructUsing(name => new Program());
s.WhenStarted(p => p.Start());
s.WhenStopped(p => p.Stop());
});
});
}
public void Start() {
Console.WriteLine("Service start...");
}
public void Stop() {
Console.WriteLine("Service stop...");
}
}
8

9. GETTING STARTED
9

10. CUSTOM SERVICE
10

11. CUSTOM SERVICE
using System;
using Topshelf;
...
class Program {
static void Main(string[] args) {
HostFactory.Run(x => {
x.Service<ProgramService>();
});
}
}
class ProgramService : ServiceControl {
public bool Start(HostControl hostControl) {
Console.WriteLine("Service start...");
return true;
}
public bool Stop(HostControl hostControl) {
Console.WriteLine("Service stop...");
return true;
}
}
...
11

12. COMMAND-LINE
12

13. COMMAND-LINE
service.exe [verb] [-option:value] [-switch]
run Runs the service from the command line (default)
help, --help Displays help
install Installs the service
--autostart The service should start automatically (default)
--disabled The service should be set to disabled
--manual The service should be started manually
--delayed The service should start automatically (delayed)
-instance An instance name if registering the service
multiple times
-username The username to run the service
-password The password for the specified username
--localsystem Run the service with the local system account
--localservice Run the service with the local service account
--networkservice Run the service with the network service permission
--interactive The service will prompt the user at installation for
the service credentials 13

14. COMMAND-LINE
start Start the service after it has been installed
--sudo Prompts for UAC if running on Vista/W7/2008
-servicename The name that the service should use when
installing
-description The service description the service should use when
installing
-displayname The display name the the service should use when
installing
start Starts the service if it is not already running
stop Stops the service if it is running
uninstall Uninstalls the service
-instance An instance name if registering the service
multiple times
--sudo Prompts for UAC if running on Vista/W7/2008 14

15. COMMAND-LINE
Examples:
service install
Installs the service into the service control manager
service install -username:joe -password:bob --autostart
Installs the service using the specified username/password and
configures the service to start automatically at machine startup
service uninstall
Uninstalls the service
service install -instance:001
Installs the service, appending the instance name to the service name
so that the service can be installed multiple times. You may need to
tweak the log4net.config to make this play nicely with the log files. 15

16. COMMAND-LINE
16

17. COMMAND-LINE
17

18. COMMAND-LINE
18

19. COMMAND-LINE
19

20. COMMAND-LINE
20

21. COMMAND-LINE
21

22. REFERENCE
22

23. REFERENCE
 Topshelf
 http://topshelf-project.com/
 Welcome to Topshelf’s documentation! — Topshelf
3.0 documentation
 https://topshelf.readthedocs.io/en/latest/index.html
 Topshelf/Topshelf: An easy service hosting
framework for building Windows services
using .NET
 https://github.com/Topshelf/Topshelf
23

24. Q&A
24

25. QUESTION & ANSWER
25
