1. COMMON.LOGGING
Larry Nung

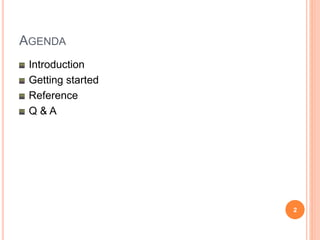

2. AGENDA
Introduction
Getting started
Reference
Q & A
2

3. INTRODUCTION
3

4. INTRODUCTION
 Provides a simple logging abstraction to switch
between different logging implementations.
 Support
 Log4net
 Nlog
 Microsoft Enterprise Library logging
 Microsoft Application Insights
 Microsoft Event Tracing for Windows
 Serilog
4

5. GETTING STARTED
5

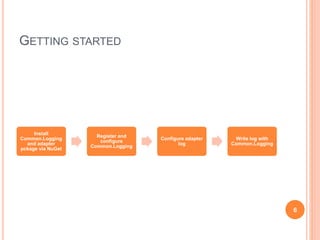

6. GETTING STARTED
Install
Common.Logging
and adapter
pckage via NuGet
Register and
configure
Common.Logging
Configure adapter
log
Write log with
Common.Logging
6

7. INSTALL COMMON.LOGGING AND ADAPTER
PCKAGE VIA NUGET
7

8. INSTALL COMMON.LOGGING AND ADAPTER
PCKAGE VIA NUGET
<?xml version="1.0" encoding="utf-8"?>
<packages>
<package id="Common.Logging" version="3.3.1"
targetFramework="net45" />
<package id="Common.Logging.Core"
version="3.3.1" targetFramework="net45" />
<package id="Common.Logging.Log4Net1215"
version="3.3.1" targetFramework="net45" />
<package id="log4net" version="2.0.5"
targetFramework="net45" />
</packages> 8

9. REGISTER AND CONFIGURE
COMMON.LOGGING
<?xml version="1.0" encoding="utf-8" ?>
<configuration>
<configSections>
<sectionGroup name="common">
<section name="logging" type="Common.Logging.ConfigurationSectionHandler,
Common.Logging" />
</sectionGroup>
</configSections>
<common>
<logging>
<factoryAdapter type="Common.Logging.Log4Net.Log4NetLoggerFactoryAdapter,
Common.Logging.Log4net1215">
<!--<arg key="configType" value="INLINE" />-->
<!--<arg key="configType" value="FILE" />-->
<arg key="configType" value="FILE-WATCH" />
<arg key="configFile" value="~/log4net.config" />
</factoryAdapter>
</logging>
</common>
</configuration>
9

10. CONFIGURE ADAPTER LOG
<?xml version="1.0" encoding="utf-8" ?>
<log4net>
<appender name="FullAppender" type="log4net.Appender.RollingFileAppender">
<file type="log4net.Util.PatternString" value="LogFull.log" />
<appendToFile value="true" />
<rollingStyle value="Composite" />
<datePattern value="yyyyMMdd" />
<maximumFileSize value="10MB" />
<maxSizeRollBackups value="-1" />
<CountDirection value="1" />
<layout type="log4net.Layout.PatternLayout">
<conversionPattern
value="%date&#x9;[%thread]&#x9;%level&#x9;%logger&#x9;%identity&#x9;-
%message%newline" />
</layout>
</appender>
<root>
<level value="INFO" />
<appender-ref ref="FullAppender" />
</root>
</log4net>
10

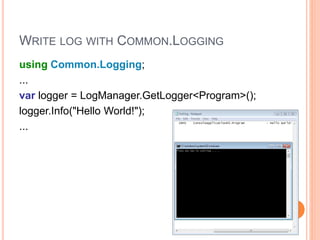

11. WRITE LOG WITH COMMON.LOGGING
using Common.Logging;
...
var logger = LogManager.GetLogger<Program>();
logger.Info("Hello World!");
...
11

12. REFERENCE
12

13. REFERENCE
 Common Infrastructure Libraries for .NET
 http://netcommon.sourceforge.net/
 net-commons/common-logging: A portable logging
abstraction for .NET
 https://github.com/net-commons/common-logging
 Xian's 學習筆記: Common.Logging
 http://blog.developer.idv.tw/2013/12/commonlogging.htm
l
13

14. Q&A
14

15. QUESTION & ANSWER
15
