Tokyo Flight Service Center
The document summarizes the remote air-ground communication services provided by the Tokyo Flight Service Center (FSC) for small airports in Japan. The Tokyo FSC uses a REMOTE-AFIS system to provide air traffic services like clearance delivery and aerodrome advisories for airports without control towers. A single flight information officer remotely handles air traffic communication for multiple small airports using cameras, radios, and data links with airport operators and air traffic control. The system ensures safety through agreements with local weather services and area control centers for coordination.
More Related Content
![A presentation on internship from jaipur Airport [AAI]](https://cdn.slidesharecdn.com/ss_thumbnails/airportpptbyadityasept-160404162154-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Tokyo Flight Service Center
More from Secretaria de Aviação Civil da Presidência da República
Tokyo Flight Service Center
- 1. 1 AIS center, Japan CIVILAVIATION BUREAU, JAPAN Ministry of Land, Infrastructure, Transport and Tourism Aeronautical Operation and Information Division Air Traffic Services and Safety Department Tokyo Regional Civil Aviation Bureau @2015 Tokyo FSC

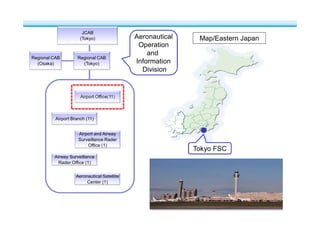

- 2. Regional CAB (Tokyo) Airport Office(11) AirportBranch (11) Airport and Airway Surveillance Rader Office (1) Airway Surveillance Rader Office (1) Aeronautical Satellite Center (1) Map/Eastern JapanAeronautical Operation and Information Division Tokyo FSC Regional CAB (Osaka) JCAB (Tokyo)

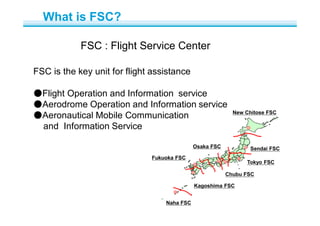

- 3. FSC : FlightService Center FSC is the key unit for flight assistance ●Flight Operation and Information service ●Aerodrome Operation and Information service ●Aeronautical Mobile Communication and Information Service New Chitose FSC Sendai FSC Tokyo FSC Chubu FSC Osaka FSC Fukuoka FSC Kagoshima FSC Naha FSC What is FSC?

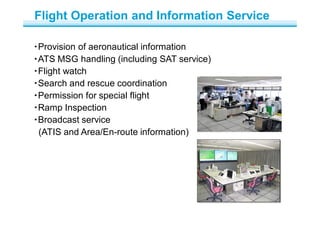

- 4. ・Provision of aeronauticalinformation ・ATS MSG handling (including SAT service) ・Flight watch ・Search and rescue coordination ・Permission for special flight ・Ramp Inspection ・Broadcast service (ATIS and Area/En-route information) Flight Operation and Information Service

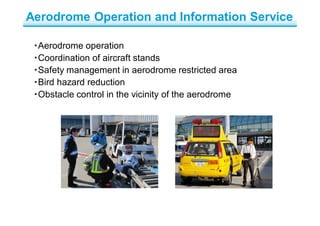

- 5. ・Aerodrome operation ・Coordination ofaircraft stands ・Safety management in aerodrome restricted area ・Bird hazard reduction ・Obstacle control in the vicinity of the aerodrome Aerodrome Operation and Information Service
- 6. Kozushima Hachjyojima Tokyo FSC Niijima Miyakejima Niijima MiyakejimaKozushima Hachijojima ● RemoteAir-Ground communication service ●Area/Enroute Information Service Weather information and other information required by pilots are provided by radio telephony. Aeronautical Mobile Communication and Information Service

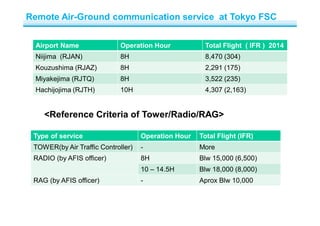

- 7. Type of serviceOperation Hour Total Flight (IFR) TOWER(by Air Traffic Controller) - More RADIO (by AFIS officer) 8H Blw 15,000 (6,500) 10 – 14.5H Blw 18,000 (8,000) RAG (by AFIS officer) - Aprox Blw 10,000 Airport Name Operation Hour Total Flight ( IFR ) 2014 Niijima (RJAN) 8H 8,470 (304) Kouzushima (RJAZ) 8H 2,291 (175) Miyakejima (RJTQ) 8H 3,522 (235) Hachijojima (RJTH) 10H 4,307 (2,163) <Reference Criteria of Tower/Radio/RAG> Remote Air-Ground communication service at Tokyo FSC

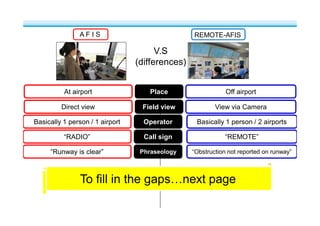

- 8. V.S (differences) At airport Offairport Direct view View via Camera Place Field view Basically 1 person / 1 airport Basically 1 person / 2 airportsOperator “Runway is clear” “Obstruction not reported on runway”Phraseology “RADIO” “REMOTE”Call sign A F I S REMOTE-AFIS To fill in the gaps…next page

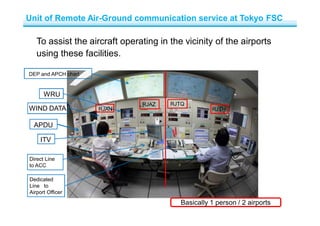

- 9. To assist theaircraft operating in the vicinity of the airports using these facilities. APDU DEP and APCH chart RJAN RJTQ ITV WRU WIND DATA Direct Line to ACC Dedicated Line to Airport Officer RJAZ RJTH Basically 1 person / 2 airports Unit of Remote Air-Ground communication service at Tokyo FSC
- 10. 【 APDU :Aircraft Position Display Unit 】 Data is provided from RADAR system Reference use only 【 ITV : Industrial television 】 2 Cameras for each airport Reference use only 【 WRU : Weather Data Receiving Unit 】 Provide Wind data Average wind in last 2 min
- 11. JAPAN AIP ENR1.5-15 phrasemeaning ‘Runway is Clear’ Used when no traffic or obstruction exists on the runway. ‘Obstruction not reported on runway’ Used when no report of obstruction on the runway is received. Not mean ‘CLEARED TO LAND ’ or ‘CLEARED FOR TAKE OFF’ Special phrases used by the Airport Advisory Service Units

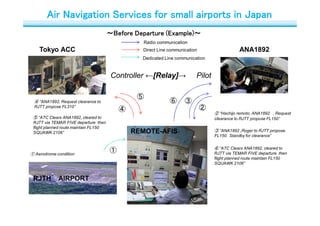

- 12. ～Before Departure (Example)～ ②“Hachijo remoto, ANA1892 , Request clearance to RJTT propose FL150” ③ “ANA1892 ,Roger to RJTT propose FL150．Standby for clearance” ⑥ ② ③ ④ ④ “ANA1892, Request clearance to RJTT propose FL310” ⑤ “ATC Clears ANA1892, cleared to RJTT via TEMAR FIVE departure then flight planned route maintain FL150 SQUAWK 2106” ⑤ ⑥ “ATC Clears ANA1892, cleared to RJTT via TEMAR FIVE departure then flight planned route maintain FL150 SQUAWK 2106” Tokyo ACC ANA1892 Radio communication Direct Line communication REMOTE-AFIS RJTH AIRPORT ① Aerodrome condition Dedicated Line communication Controller ←[Relay]→ Pilot ① Air Navigation Services for small airports in Japan

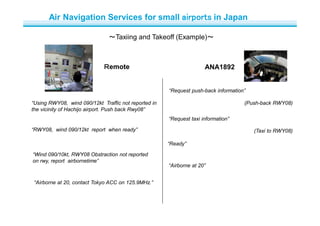

- 13. ～Taxiing and Takeoff(Example)～ Ｒemote ANA1892 “Request push-back information” “Using RWY08, wind 090/12kt Traffic not reported in the vicinity of Hachijo airport. Push back Rwy08” “Request taxi information” “RWY08, wind 090/12kt report when ready” (Push-back RWY08) (Taxi to RWY08) “Ready” “Wind 090/10kt, RWY08 Obstraction not reported on rwy, report airbornetime” “Airborne at 20” “Airborne at 20, contact Tokyo ACC on 125.9MHz.” Air Navigation Services for small airports in Japan

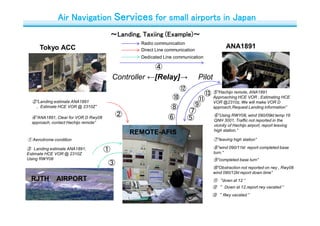

- 14. ～Landing, Taxiing (Example)～ ⑤”Hachijoremote, ANA1891 Approaching HCE VOR , Estimating HCE VOR @2310z, We will make VOR D approach,Request Landing information” ⑦ ② ④ ⑤④”ANA1891, Clear for VOR D Rwy08 approach, contact Hachijo remote” ⑥”Using RWY08, wind 090/09kt temp 16 QNH 3001, Traffic not reported in the vicinity of Hachijo airport, report leaving high station.” Tokyo ACC ANA1891 Radio communication Direct Line communication ②”Landing estimate ANA1891 , Estimate HCE VOR @ 2310Z” ⑦”leaving high station” ⑨”completed base turn” ⑩ REMOTE-AFIS RJTH AIRPORT ① Aerodrome condition Dedicated Line communication ① ③ ③ Landing estimate ANA1891, Estimate HCE VOR @ 2310Z Using RWY08 ⑧”wind 090/11kt report completed base turn.” ⑩”Obstraction not reported on rwy , Rwy08 wind 090/12kt report down time” ⑪ “down at 12 ” ⑫ “ Down at 12,report rwy vacated ” ⑬ “ Ｒwy vacated ” ⑨ ⑪ ⑬ ⑥ ⑧ ⑫ Controller ←[Relay]→ Pilot Air Navigation Services for small airports in Japan

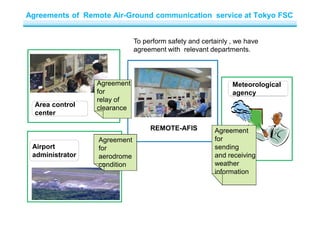

- 15. Airport administrator Agreement for aerodrome condition Meteorological agency Area control center Agreement for relay of clearance Agreement for sending andreceiving weather information REMOTE-AFIS To perform safety and certainly , we have agreement with relevant departments. Agreements of Remote Air-Ground communication service at Tokyo FSC
- 16. Air Traffic ServicesFlight Information Officer, Tokyo Airport Office, Tokyo Civil Aviation Bureau, Ministry of Land, Infrastructure, Transport, and Tourism Thank you !
