- 1. Extended Context-Free GrammarsParsing with Generalized LL Author: Artem Gorokhov Saint Petersburg University Programming Languages and Tools Lab, JetBrains March 4,2017 Artem Gorokhov (SPbU) March 4,2017 1 / 15

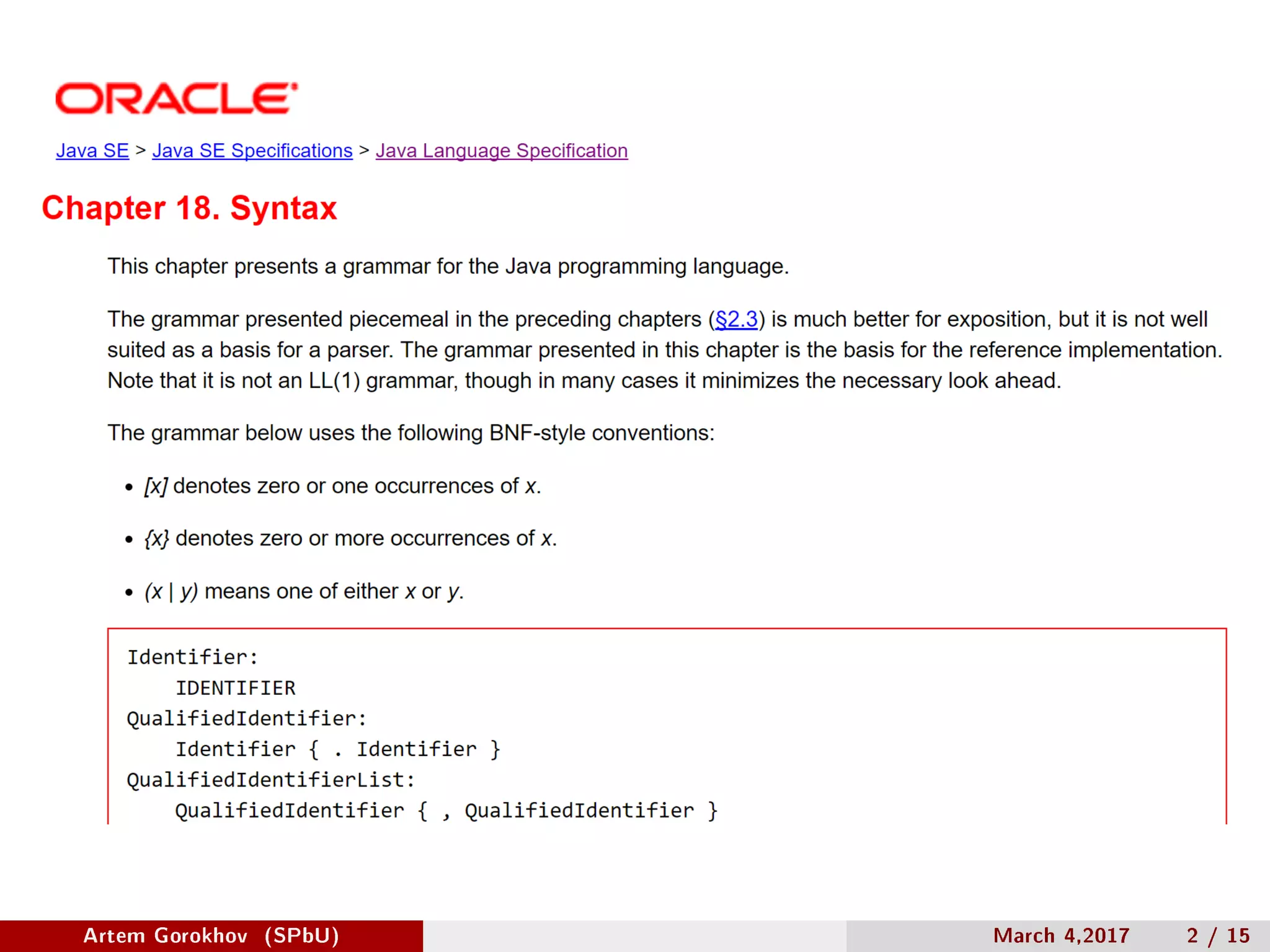

- 2. Artem Gorokhov (SPbU)March 4,2017 2 / 15

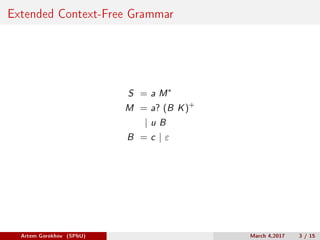

- 3. Extended Context-Free Grammar S= a M* M = a? (B K)+ | u B B = c | 𝜀 Artem Gorokhov (SPbU) March 4,2017 3 / 15

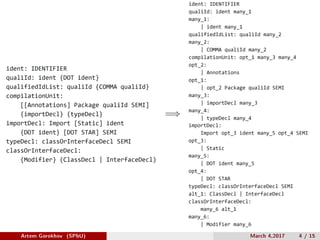

- 4. =⇒ Artem Gorokhov (SPbU)March 4,2017 4 / 15

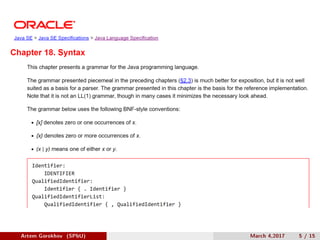

- 5. Artem Gorokhov (SPbU)March 4,2017 5 / 15

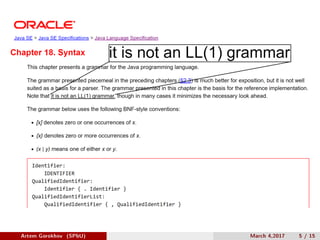

- 6. Artem Gorokhov (SPbU)March 4,2017 5 / 15

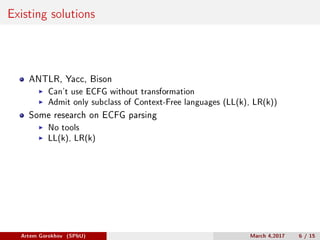

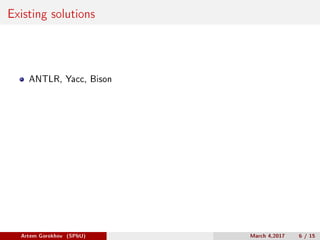

- 7. Existing solutions ANTLR, Yacc,Bison Artem Gorokhov (SPbU) March 4,2017 6 / 15

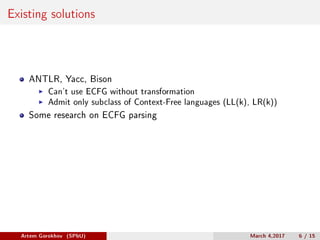

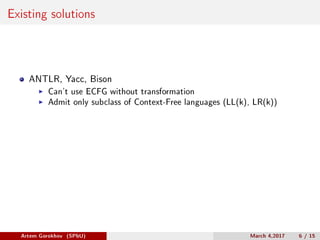

- 8. Existing solutions ANTLR, Yacc,Bison Can’t use ECFG without transformation Admit only subclass of Context-Free languages (LL(k), LR(k)) Artem Gorokhov (SPbU) March 4,2017 6 / 15
- 9. Existing solutions ANTLR, Yacc,Bison Can’t use ECFG without transformation Admit only subclass of Context-Free languages (LL(k), LR(k)) Some research on ECFG parsing Artem Gorokhov (SPbU) March 4,2017 6 / 15
- 10. Existing solutions ANTLR, Yacc,Bison Can’t use ECFG without transformation Admit only subclass of Context-Free languages (LL(k), LR(k)) Some research on ECFG parsing No tools LL(k), LR(k) Artem Gorokhov (SPbU) March 4,2017 6 / 15

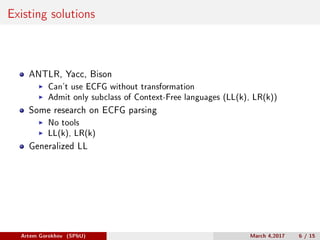

- 11. Existing solutions ANTLR, Yacc,Bison Can’t use ECFG without transformation Admit only subclass of Context-Free languages (LL(k), LR(k)) Some research on ECFG parsing No tools LL(k), LR(k) Generalized LL Artem Gorokhov (SPbU) March 4,2017 6 / 15
- 12. Existing solutions ANTLR, Yacc,Bison Can’t use ECFG without transformation Admit only subclass of Context-Free languages (LL(k), LR(k)) Some research on ECFG parsing No tools LL(k), LR(k) Generalized LL Admit arbitrary CFG (including ambiguous) Can’t use ECFG without transformation Artem Gorokhov (SPbU) March 4,2017 6 / 15

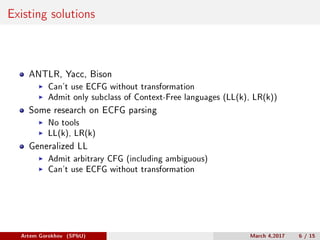

- 13. Existing solutions ANTLR, Yacc,Bison Can’t use ECFG without transformation Admit only subclass of Context-Free languages (LL(k), LR(k)) Some research on ECFG parsing No tools LL(k), LR(k) Generalized LL Admit arbitrary CFG (including ambiguous) Can’t use ECFG without transformation Artem Gorokhov (SPbU) March 4,2017 6 / 15

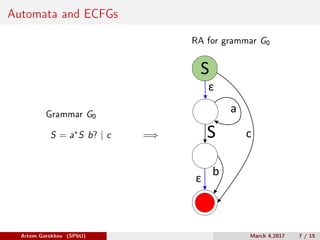

- 14. Automata and ECFGs GrammarG0 S = a*S b? | c =⇒ RA for grammar G0 cS S a b ε ε Artem Gorokhov (SPbU) March 4,2017 7 / 15

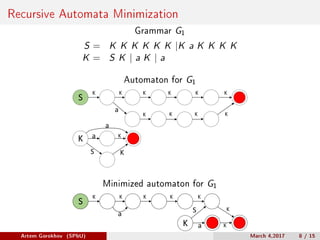

- 15. Recursive Automata Minimization GrammarG1 S = K K K K K K |K a K K K K K = S K | a K | a Automaton for G1 K a K K KK S K K K K K a K K K S a Minimized automaton for G1 a S a K K S K K K K K K Artem Gorokhov (SPbU) March 4,2017 8 / 15

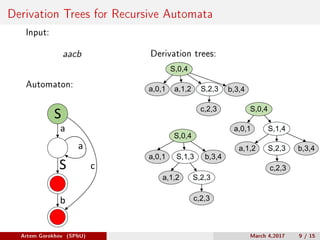

- 16. Derivation Trees forRecursive Automata Input: aacb Automaton: cS S a b a Derivation trees: S,0,4 b,3,4a,0,1 a,1,2 c,2,3 S,2,3 S,0,4 b,3,4a,0,1 a,1,2 c,2,3 S,2,3 S,1,3 S,0,4 b,3,4 a,0,1 a,1,2 c,2,3 S,1,4 S,2,3 Artem Gorokhov (SPbU) March 4,2017 9 / 15

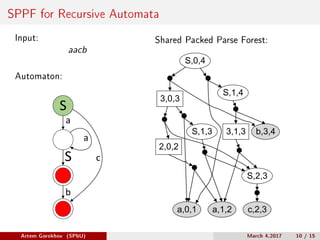

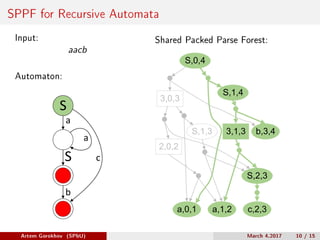

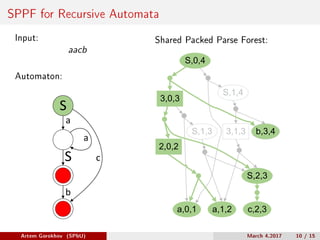

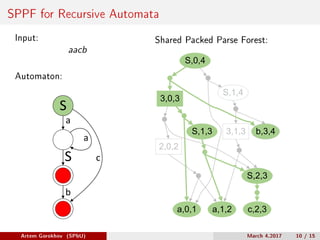

- 17. SPPF for RecursiveAutomata Input: aacb Automaton: cS S a b a Shared Packed Parse Forest: S,0,4 b,3,4 a,0,1 a,1,2 3,1,3 c,2,3 S,1,4 S,2,3 3,0,3 S,1,3 2,0,2 Artem Gorokhov (SPbU) March 4,2017 10 / 15
- 18. SPPF for RecursiveAutomata Input: aacb Automaton: cS S a b a Shared Packed Parse Forest: S,0,4 b,3,4 a,0,1 a,1,2 3,1,3 c,2,3 S,1,4 S,2,3 3,0,3 S,1,3 2,0,2 Artem Gorokhov (SPbU) March 4,2017 10 / 15
- 19. SPPF for RecursiveAutomata Input: aacb Automaton: cS S a b a Shared Packed Parse Forest: S,0,4 b,3,4 a,0,1 a,1,2 3,1,3 c,2,3 S,1,4 S,2,3 3,0,3 S,1,3 2,0,2 Artem Gorokhov (SPbU) March 4,2017 10 / 15
- 20. SPPF for RecursiveAutomata Input: aacb Automaton: cS S a b a Shared Packed Parse Forest: S,0,4 b,3,4 a,0,1 a,1,2 3,1,3 c,2,3 S,1,4 S,2,3 3,0,3 S,1,3 2,0,2 Artem Gorokhov (SPbU) March 4,2017 10 / 15

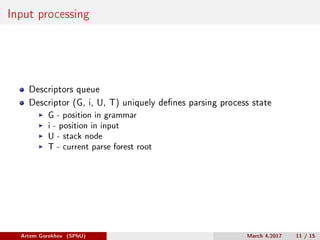

- 21. Input processing Descriptors queue Descriptor(G, i, U, T) uniquely defines parsing process state G - position in grammar i - position in input U - stack node T - current parse forest root Artem Gorokhov (SPbU) March 4,2017 11 / 15

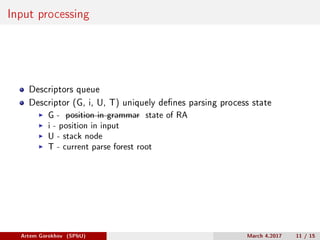

- 22. Input processing Descriptors queue Descriptor(G, i, U, T) uniquely defines parsing process state G - position in grammar state of RA i - position in input U - stack node T - current parse forest root Artem Gorokhov (SPbU) March 4,2017 11 / 15

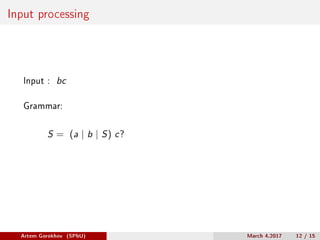

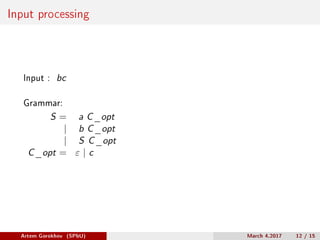

- 23. Input processing Input :bc Grammar: S = (a | b | S) c? Artem Gorokhov (SPbU) March 4,2017 12 / 15
- 24. Input processing Input :bc Grammar: S = a C_opt | b C_opt | S C_opt C_opt = 𝜀 | c Artem Gorokhov (SPbU) March 4,2017 12 / 15

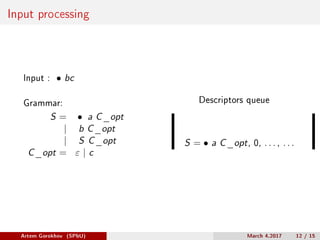

- 25. Input processing Input :∙ bc Grammar: S = ∙ a C_opt | b C_opt | S C_opt C_opt = 𝜀 | c Descriptors queue S = ∙ a C_opt, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 12 / 15

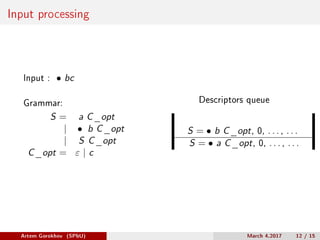

- 26. Input processing Input :∙ bc Grammar: S = a C_opt | ∙ b C_opt | S C_opt C_opt = 𝜀 | c Descriptors queue S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 12 / 15

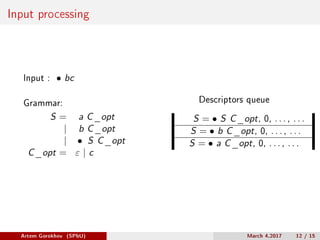

- 27. Input processing Input :∙ bc Grammar: S = a C_opt | b C_opt | ∙ S C_opt C_opt = 𝜀 | c Descriptors queue S = ∙ S C_opt, 0, . . . , . . . S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 12 / 15
- 28. Input processing Input :∙ bc Grammar: S = ∙ a C_opt | b C_opt | S C_opt C_opt = 𝜀 | c Descriptors queue S = ∙ S C_opt, 0, . . . , . . . S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 12 / 15

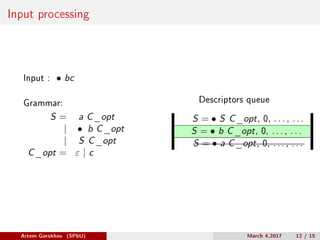

- 29. Input processing Input :∙ bc Grammar: S = a C_opt | ∙ b C_opt | S C_opt C_opt = 𝜀 | c Descriptors queue S = ∙ S C_opt, 0, . . . , . . . S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 12 / 15
- 30. Input processing Input :b ∙ c Grammar: S = a C_opt | b ∙ C_opt | S C_opt C_opt = 𝜀 | c Descriptors queue S = ∙ S C_opt, 0, . . . , . . . S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . b,0,1 Artem Gorokhov (SPbU) March 4,2017 12 / 15
- 31. Input processing Input :b ∙ c Grammar: S = a C_opt | b C_opt | S C_opt C_opt = ∙ 𝜀 | c Descriptors queue C_opt = ∙𝜀, 1, . . . , . . . S = ∙ S C_opt, 0, . . . , . . . S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 12 / 15

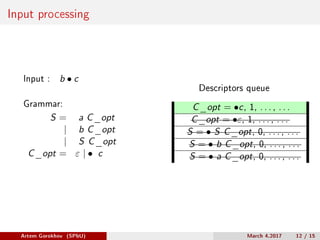

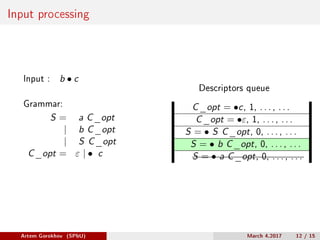

- 32. Input processing Input :b ∙ c Grammar: S = a C_opt | b C_opt | S C_opt C_opt = 𝜀 | ∙ c Descriptors queue C_opt = ∙c, 1, . . . , . . . C_opt = ∙𝜀, 1, . . . , . . . S = ∙ S C_opt, 0, . . . , . . . S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 12 / 15
- 33. Input processing Input :b ∙ c Grammar: S = a C_opt | b C_opt | S C_opt C_opt = 𝜀 | ∙ c Descriptors queue C_opt = ∙c, 1, . . . , . . . C_opt = ∙𝜀, 1, . . . , . . . S = ∙ S C_opt, 0, . . . , . . . S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 12 / 15

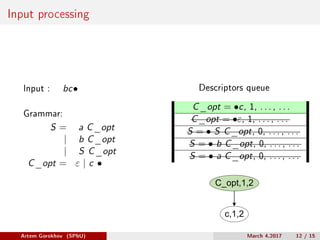

- 34. Input processing Input :bc∙ Grammar: S = a C_opt | b C_opt | S C_opt C_opt = 𝜀 | c ∙ Descriptors queue C_opt = ∙c, 1, . . . , . . . C_opt = ∙𝜀, 1, . . . , . . . S = ∙ S C_opt, 0, . . . , . . . S = ∙ b C_opt, 0, . . . , . . . S = ∙ a C_opt, 0, . . . , . . . C_opt,1,2 c,1,2 Artem Gorokhov (SPbU) March 4,2017 12 / 15

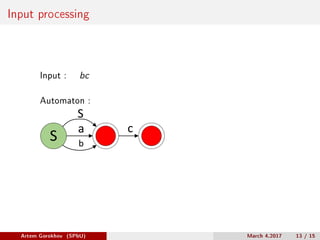

- 35. Input processing Input :bc Automaton : ca b S S Artem Gorokhov (SPbU) March 4,2017 13 / 15

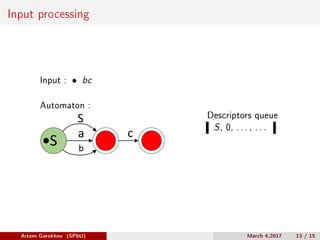

- 36. Input processing Input :∙ bc Automaton : ca b S S Descriptors queue S, 0, . . . , . . . Artem Gorokhov (SPbU) March 4,2017 13 / 15
- 37. Input processing Input :∙ bc Automaton : ca b S S b,0,1 S,0,1 b,0,1 Artem Gorokhov (SPbU) March 4,2017 13 / 15

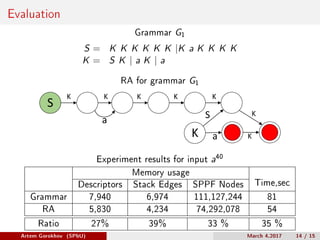

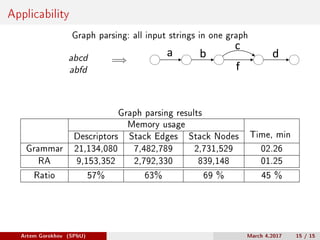

- 38. Evaluation Grammar G1 S =K K K K K K |K a K K K K K = S K | a K | a RA for grammar G1 a S a K K S K K K K K K Experiment results for input a40 Memory usage Time,secDescriptors Stack Edges SPPF Nodes Grammar 7,940 6,974 111,127,244 81 RA 5,830 4,234 74,292,078 54 Ratio 27% 39% 33 % 35 % Artem Gorokhov (SPbU) March 4,2017 14 / 15
