The document provides information about measurement tools and systems of measurement. It defines various drawing and measuring tools like a compass, triangle, T-square, protractor, ruler, tape measure, scale, and divider. It also explains the metric and English systems of measurement, including linear equivalents and conversion tables between the two systems. Examples are given to demonstrate how to convert between millimeters, centimeters, meters, inches, feet, and yards.

4. Directions: Look for the name of the
drawing/measuring tools that you included in your
inventory before. There are eight (8) drawing/
measuring tools, look for at least six (6) tools to pass
the activity.

6. Compass-used for inscribing circles or arcs.
Triangle- used for drawing vertical and oblique lines
T-Square- used as guide in drawing horizontal lines
Protractor- it is a measuring tool used
for measuring and setting of angles
Ruler- the most popular type of measuring
tools, usually 6 to 12 inches in length
Tape Measure-used to measure length, used to measure
many of the distances that are too long for a ruler to
measure easily
Scale- main purpose is to
reproduce or enlarge the
dimension of size on a
drawing
Divider- is used for dividing distances into equal parts

7. Compass-used for inscribing circles or arcs.
Triangle- used for drawing vertical and oblique lines
T-Square- used as guide in drawing horizontal lines
Protractor- it is a measuring tool used for measuring and setting of angles
Ruler- the most popular type of measuring tools, usually 6 to 12 inches in
length
Tape Measure-used to measure length, used to measure many of the distances
that are too long for a ruler to measure easily
Scale- main purpose is to reproduce or enlarge the dimension of size on a
drawing
Divider- is used for dividing distances into equal parts

8. LO 2. Carry out mensuration and calculation
(TLE_ICTTD7/8MC-0g2)
2.1 Perform calculation needed to complete task by
applying trade mathematics/mensuration
2.2 Employ different techniques in checking for accuracy
of the computation

9. At the end of the lesson, learners are expected to:
1.Familiarize oneself on the equivalents for English and
Metric system measurement.
2.Apply basic mathematical operations on how to carry out
mensuration’s and calculations.
3. Perform calculation needed to complete task by applying
trade mathematics/mensuration.

10. Analyze and Solve Me!
Directions: Solve the following
situation given below using the basic
mathematical operations.

11. Analyze and Solve Me!
1. Anna has 5 boxes of drawing pencil.
Each box has 12 drawing pencil. How
many drawing pencil does she have in
total?

12. Analyze and Solve Me!
1. Anna has 5 boxes of drawing pencil. Each box
has 12 drawing pencil. How many drawing
pencil does she have in total?

13. Analyze and Solve Me!
2. Lucy went to the National bookstore.
She bought 12 packs of Eraser and 16
packs of sharpener. How many packs of
tools and materials did she buy in all?

14. Analyze and Solve Me!
2. Lucy went to the National bookstore. She bought
12 packs of Eraser and 16 packs of sharpener. How
many packs of tools and materials did she buy in
all?

15. Analyze and Solve Me!
3. Tom had 63 Reams of bond paper. He divides
all reams of bond paper evenly among 9
friends. How many reams of bond paper did
Tom give to each of his friends?

16. Analyze and Solve Me!
3. Tom had 63 Reams of bond paper. He divides all reams
of bond paper evenly among 9 friends. How many reams
of bond paper did Tom give to each of his friends?

17. Analyze and Solve Me!
4. John has 12 T-Square, and he
gives away 5 of them. How many
T-Square does he have left?

18. Analyze and Solve Me!
4. John has 12 T-Square, and he gives away 5 of
them. How many T-Square does he have left?

19.  Measuring accurately is a skill that should be
developed. Inaccurate measurement would
mean waste of time, effort and materials. The
development of the skill in measuring starts
with the ability to read measurement.
INTRODUCTION

20. CARRY OUT MENSURATION AND CALCULATION
Two Systems of Measurement
There are two systems of measurement: the
English system which originated in
England and the Metric system or Systems
International (S.I) which originated in France.

21. CONVERSION OF FRACTION AND DECIMAL
The basic unit in the Systems International
measurement is called the meter. The
meter is divided into 100 centimeters. Each
centimeter is divided into 10 millimeters.

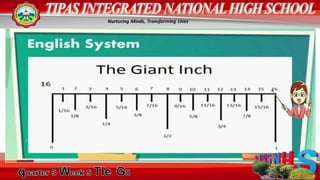

22. In the English system, the inch is divided into 16
graduations and the smallest graduation is read 1/16.

24. In the Systems International measurement OR Metric
System, the meter is divided into 10 millimeters

26. Metric system measurement (linear equivalent)
10 millimeters (mm.) = 1 centimeter (cm.)
10 centimeters (cm.) = 1 decimeter (dm.)
10 decimeter (dm.) = 1 meter (m.)
10 meters (m.) = 1 decameter (Dm.)
10 decameter (Dm.) = 1 hectometer (Hm.)
10 hectometer (Hm.) = 1 kilometer (Km.)

27. English System of Measurement (linear
equivalent)
12 inches (in.) = 1 foot (ft.)
3 feet (ft.) = 1 yard (yd.)

28. Metric Conversion Table
1 millimeter = 0.03937 inches (in.)
1 centimeter = 0.3937 inches (in.)
1 meter = 39.37 inches (in.)

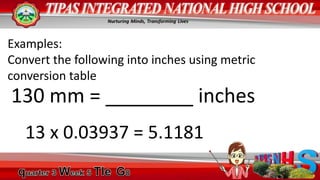

29. Examples:
Convert the following into inches using metric
conversion table
130 mm = ________ inches
13 x 0.03937 = 5.1181

30. Examples:
5 cm = __________ inches
5 x 0.3937 = 1. 9685

31. Examples:
3 m = ___________ inches
3 x 39.37 = 118.11

32. English Conversion Table
1 inch (in.) = 25.4 mm. = 2.54 cm. = .0254 (m.)
1 foot (ft.) = 304.8 mm. = 30.48 cm = .3048 (m.)
1 yard (yd.) = 914.4 mm = 91.4 cm = .9144 (m.)

33. Examples:
Convert the following using English conversion table.
5 yards = ________ cm
5 x 91.4 = 457 cm

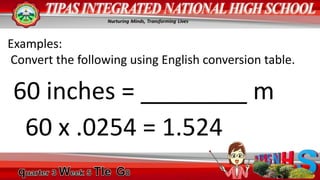

34. Examples:
Convert the following using English conversion table.
60 inches = ________ m
60 x .0254 = 1.524

35. Examples:
Convert the following using English conversion table.
2 feet = _________ mm
2 x 304.8 = 609.6

36. Directions: : Group the students into 5. Using a
ruler let them measure the given objects using
English System and convert it into Metric
System. (in - cm.)
Learning Task 1- Let Us Measure!
(Group Activity)

37. Learning Task 1- Let Us Measure! (Group Activity)
 Pencil
 Paper Clip
 Notebook
 Paper
 Learning Module

38. ASSESSMENT:
Direction: Convert the
measurements and round-off your
answer to two decimal places.

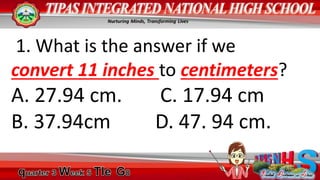

39. 1. What is the answer if we
convert 11 inches to centimeters?
A. 27.94 cm. C. 17.94 cm
B. 37.94cm D. 47. 94 cm.

40. 2. How long is 16 meters in
feet?
A. 22.59 ft. C. 12.59 ft
B. 52.59 ft. D. 32.59 ft.

41. 3. Angela measures the floor of his
room using a meter stick and its length
measures 9 meters. What is 9 meters
in inches?
A. 354.33 in. C. 300.12 in.
B. 254.33 in. D. 154.33 in.

42. 4. John’s table measures 5 meters
while Joseph’s table is 350
centimeters long. Whose table is
longer?
A. John’s Table B. Joseph’s Table

43. 5. Donna made a 6 yards long curtain while
Mica made a 216 inches-long curtain.
Which of them made the longest curtain?
A. Donna B. Mica
C. Both Dona and Mica have the same
length of curtain.

44. Answers
1. A. 27.94 cm.
2. B. 52.59 ft.
3. A. 354.33 in.
4. A. John’s Table
5. C. Both Dona and Mica

45. Reflection

46. Food for the Soul

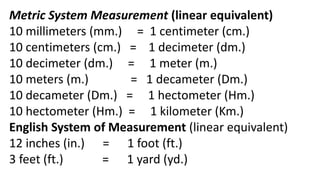

47. Metric System Measurement (linear equivalent)
10 millimeters (mm.) = 1 centimeter (cm.)
10 centimeters (cm.) = 1 decimeter (dm.)
10 decimeter (dm.) = 1 meter (m.)
10 meters (m.) = 1 decameter (Dm.)
10 decameter (Dm.) = 1 hectometer (Hm.)
10 hectometer (Hm.) = 1 kilometer (Km.)
English System of Measurement (linear equivalent)
12 inches (in.) = 1 foot (ft.)
3 feet (ft.) = 1 yard (yd.)

48. English Conversion Table
1 inch (in.) = 25.4 mm. = 2.54 cm. = .0254 (m.)
1 foot (ft.) = 304.8 mm. = 30.48 cm = .3048 (m.)
1 yard (yd.) = 914.4 mm = 91.4 cm = .9144 (m.)
Metric Conversion Table
1 millimeter = 0.03937 inches (in.)
1 centimeter = 0.3937 inches (in.)
1 meter = 39.37 inches (in.)
