Containers and Big Data

1 © Hortonworks Inc. 2011–2018. All rights reserved.
Containers and Big Data
Billie Rinaldi and Shane Kumpf
Software Engineering – Hortonworks YARN R&D

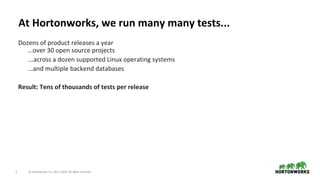

At Hortonworks, we run many many tests...
Dozens of product releases a year
...over 30 open source projects
...across a dozen supported Linux operating systems
…and multiple backend databases
Result: Tens of thousands of tests per release

3 © Hortonworks Inc. 2011 – 2018. All Rights Reserved
...on a container cloud powered by Apache Hadoop YARN
YARN
Jenkins
Worker
(Docker)
Testing HDP and HDF releases in container clusters
Worker
(Docker)
Worker
(Docker)
HDP
(Docker)
HDP
(Docker)
HDP
(Docker)
HDP
(Docker)
HDFS
That’s right! HDP running in Docker containers on YARN!

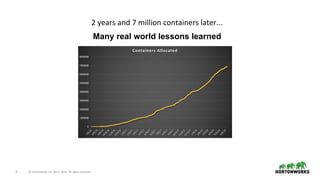

2 years and 7 million containers later...
Many real world lessons learned

Let’s Talk About
Containers

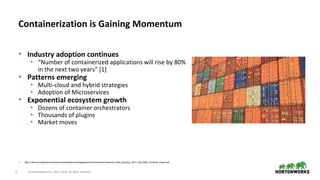

• Industry adoption continues
• “Number of containerized applications will rise by 80%
in the next two years” [1]
• Patterns emerging
• Multi-cloud and hybrid strategies
• Adoption of Microservices
• Exponential ecosystem growth
• Dozens of container orchestrators
• Thousands of plugins
• Market moves
Containerization is Gaining Momentum
1. http://i.dell.com/sites/doccontent/business/solutions/whitepapers/en/Documents/Containers_Real_Adoption_2017_Dell_EMC_Forrester_Paper.pdf

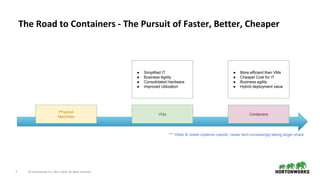

The Road to Containers - The Pursuit of Faster, Better, Cheaper
Physical
Machines
VMs Containers
● Simplified IT
● Business Agility
● Consolidated Hardware
● Improved Utilization
● More efficient than VMs
● Cheaper Cost for IT
● Business agility
● Hybrid deployment value
*** Older & newer systems coexist, newer tech increasingly taking larger share

• Improved hardware utilization through increased density
• No virtual machine operating system overhead
• Image layer reuse limits data duplication on disk
• Strong resource isolation
• Namespaces and cgroups
• Better software packaging
• Package applications and dependencies together
• Improved reuse vs VM images
• Distribution mechanism
• Improved developer self service
• More control over the execution environment
Why Are Containers Gaining Popularity?

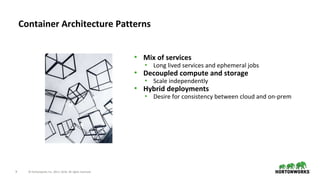

• Mix of services
• Long lived services and ephemeral jobs
• Decoupled compute and storage
• Scale independently
• Hybrid deployments
• Desire for consistency between cloud and on-prem
Container Architecture Patterns

Let’s Talk Big Data

The Road to Big Data - The Pursuit of Faster, Better, Cheaper
Siloed
Data
Systems
(ERP, CRM, DBs,
SAN, NAS)
Apache
Hadoop
Ecosystem
● Massive scale
● More efficient than Siloed
systems
● Cheaper Cost for IT
● Business agility
● Hybrid deployment value
prop
*** Older & newer systems coexist, newer tech increasingly taking larger share

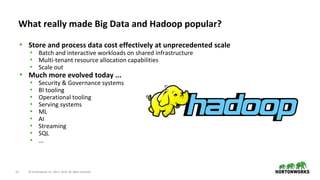

• Store and process data cost effectively at unprecedented scale
• Batch and interactive workloads on shared infrastructure
• Multi-tenant resource allocation capabilities
• Scale out
• Much more evolved today ...
• Security & Governance systems
• BI tooling
• Operational tooling
• Serving systems
• ML
• AI
• Streaming
• SQL
• ...
What really made Big Data and Hadoop popular?

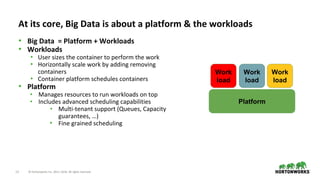

• Big Data = Platform + Workloads
• Workloads
• User sizes the container to perform the work
• Horizontally scale work by adding removing
containers
• Container platform schedules containers
• Platform
• Manages resources to run workloads on top
• Includes advanced scheduling capabilities
• Multi-tenant support (Queues, Capacity
guarantees, …)
• Fine grained scheduling
At its core, Big Data is about a platform & the workloads
Platform
Work
load
Work
load
Work
load

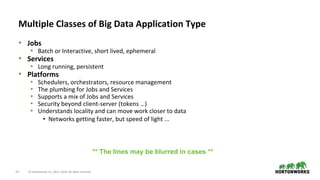

• Jobs
• Batch or Interactive, short lived, ephemeral
• Services
• Long running, persistent
• Platforms
• Schedulers, orchestrators, resource management
• The plumbing for Jobs and Services
• Supports a mix of Jobs and Services
• Security beyond client-server (tokens …)
• Understands locality and can move work closer to data
• Networks getting faster, but speed of light ...
Multiple Classes of Big Data Application Type
** The lines may be blurred in cases **

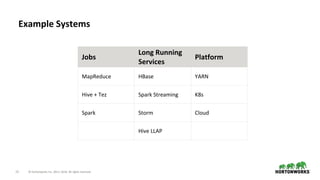

Jobs
Long Running
Services
Platform
MapReduce HBase YARN
Hive + Tez Spark Streaming K8s
Spark Storm Cloud
Hive LLAP
Example Systems

Containers & Big Data
Together

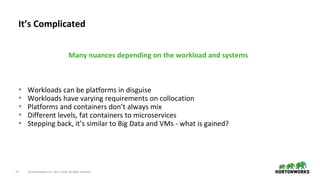

• Workloads can be platforms in disguise
• Workloads have varying requirements on collocation
• Platforms and containers don’t always mix
• Different levels, fat containers to microservices
• Stepping back, it’s similar to Big Data and VMs - what is gained?
It’s Complicated
Many nuances depending on the workload and systems

Full decomposition requires modification
Fat Containers Microservice

Considerations for
Containerization

General Considerations

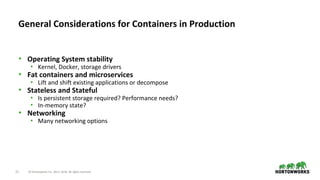

• Operating System stability
• Kernel, Docker, storage drivers
• Fat containers and microservices
• Lift and shift existing applications or decompose
• Stateless and Stateful
• Is persistent storage required? Performance needs?
• In-memory state?
• Networking
• Many networking options
General Considerations for Containers in Production

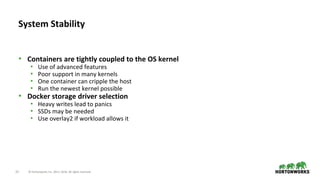

• Containers are tightly coupled to the OS kernel
• Use of advanced features
• Poor support in many kernels
• One container can cripple the host
• Run the newest kernel possible
• Docker storage driver selection
• Heavy writes lead to panics
• SSDs may be needed
• Use overlay2 if workload allows it
System Stability

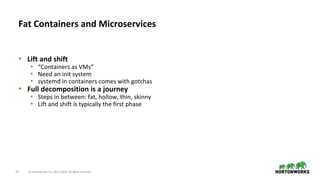

• Lift and shift
• “Containers as VMs”
• Need an init system
• systemd in containers comes with gotchas
• Full decomposition is a journey
• Steps in between: fat, hollow, thin, skinny
• Lift and shift is typically the first phase
Fat Containers and Microservices

• What kind of state?
• Data persistence? In-memory store?
• How does the application recover state?
• “Checkpoint” the container?
• Performance impact
• Impact of remote data access?
Stateless and Stateful

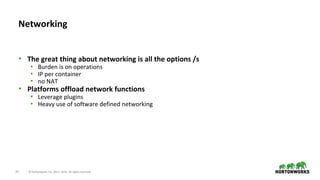

• The great thing about networking is all the options /s
• Burden is on operations
• IP per container
• no NAT
• Platforms offload network functions
• Leverage plugins
• Heavy use of software defined networking
Networking

Considerations for Jobs

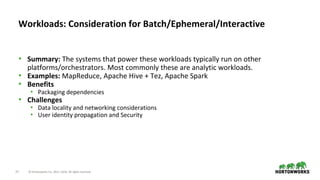

• Summary: The systems that power these workloads typically run on other
platforms/orchestrators. Most commonly these are analytic workloads.
• Examples: MapReduce, Apache Hive + Tez, Apache Spark
• Benefits
• Packaging dependencies
• Challenges
• Data locality and networking considerations
• User identity propagation and Security
Workloads: Consideration for Batch/Ephemeral/Interactive

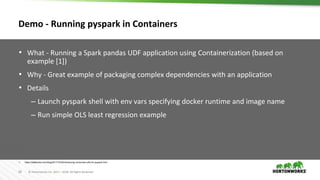

Demo - Running pyspark in Containers
• What - Running a Spark pandas UDF application using Containerization (based on
example [1])
• Why - Great example of packaging complex dependencies with an application
• Details
– Launch pyspark shell with env vars specifying docker runtime and image name
– Run simple OLS least regression example
1. https://databricks.com/blog/2017/10/30/introducing-vectorized-udfs-for-pyspark.html

Considerations for Services

• Summary: These are typically serving systems with varying requirements. In many cases
low latency online serving use cases that have specific resource requirements.
• Examples: Apache HBase, Apache Spark SQL/Streaming, Apache Storm, Apache Hive LLAP
• Benefits
• Ease of deployment
• Vertical scaling
• Challenges
• Data locality considerations
• Static networks expected
• Token/key expiration
• Short circuit reads lose value
Consideration for Long Running Services

Demo - Running HBase in Containers
• What - Running Containerized HBase on YARN
• Why - Demonstrate long running application and ease of scaling
• Details
– Launch HBase application using YARN service framework
– Verify HBase status through master UI
– Flex application to add regionserver(s)

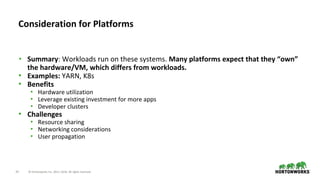

Considerations for Platforms

• Summary: Workloads run on these systems. Many platforms expect that they “own”
the hardware/VM, which differs from workloads.
• Examples: YARN, K8s
• Benefits
• Hardware utilization
• Leverage existing investment for more apps
• Developer clusters
• Challenges
• Resource sharing
• Networking considerations
• User propagation
Consideration for Platforms

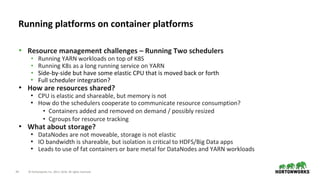

• Resource management challenges – Running Two schedulers
• Running YARN workloads on top of K8S
• Running K8s as a long running service on YARN
• Side-by-side but have some elastic CPU that is moved back or forth
• Full scheduler integration?
• How are resources shared?
• CPU is elastic and shareable, but memory is not
• How do the schedulers cooperate to communicate resource consumption?
• Containers added and removed on demand / possibly resized
• Cgroups for resource tracking
• What about storage?
• DataNodes are not moveable, storage is not elastic
• IO bandwidth is shareable, but isolation is critical to HDFS/Big Data apps
• Leads to use of fat containers or bare metal for DataNodes and YARN workloads
Running platforms on container platforms

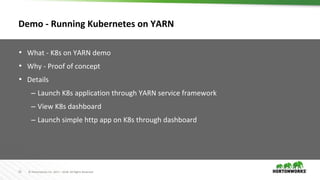

Demo - Running Kubernetes on YARN
• What - K8s on YARN demo
• Why - Proof of concept
• Details
– Launch K8s application through YARN service framework
– View K8s dashboard
– Launch simple http app on K8s through dashboard

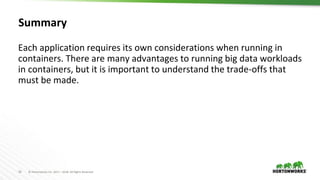

Summary
Each application requires its own considerations when running in
containers. There are many advantages to running big data workloads
in containers, but it is important to understand the trade-offs that
must be made.

Thank you to the Apache Software Foundation!
Apache Hadoop, Apache Spark, Apache HBase, Apache Hive, and
Apache Storm are trademarks of the Apache Software Foundation.
http://www.apache.org/

Thank you
