David G. Simmons / @davidgsIoT
Sensor Data in InfluxDB

© 2018 InfluxData. All rights reserved. @davidgsIoT

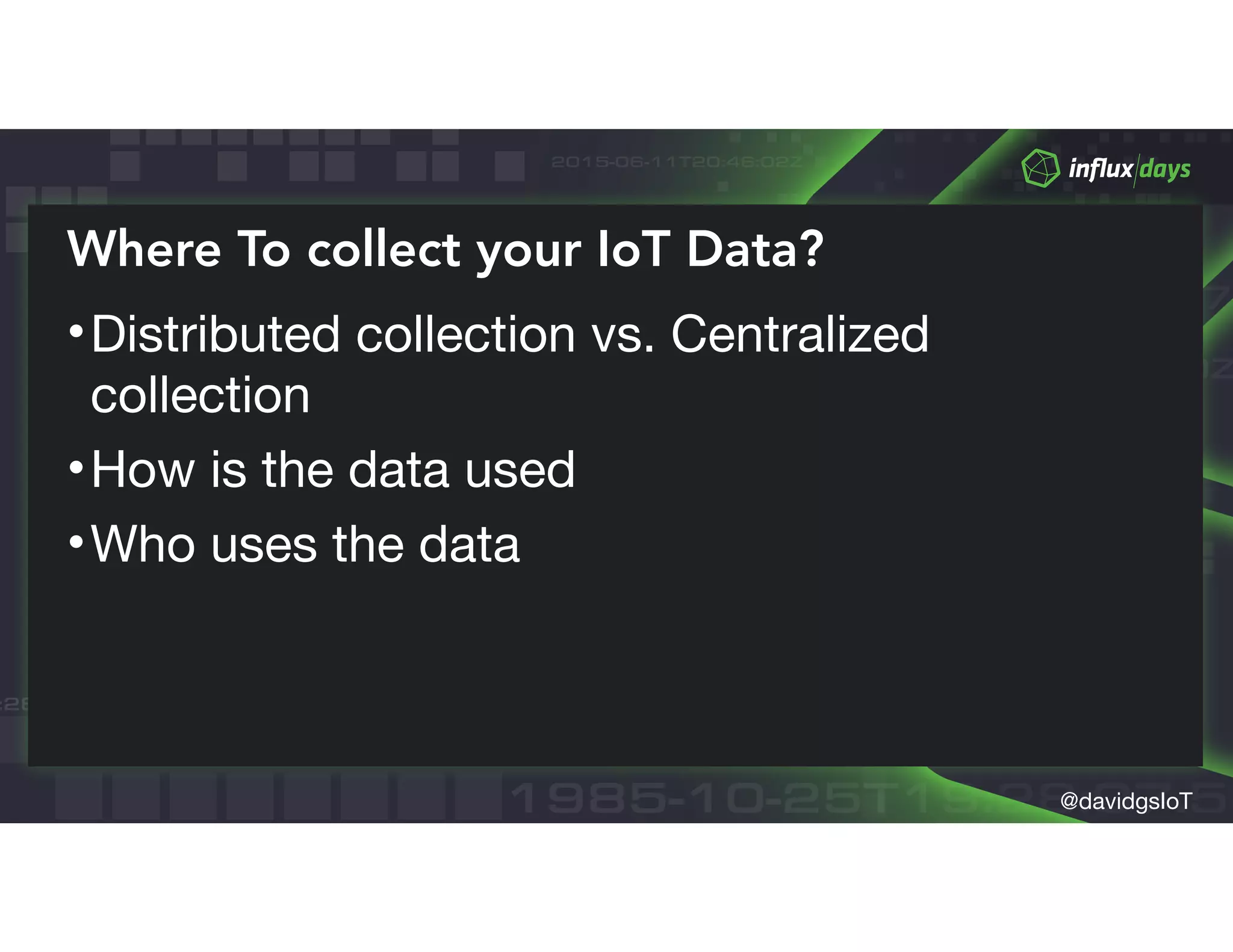

Where To collect your IoT Data?
•Distributed collection vs. Centralized
collection

•How is the data used

•Who uses the data

Collect it in the cloud
•All data flows directly to the cloud

•Requires highly available network

–Low latency

–No down-time

•Analysis and visualization from anywhere

Collect it at the edge
•Collect close to the sensor

•Unreliable back-haul network

•Local processing and analysis

Distributed data collection
•Data collected at multiple collections points

•Remote collection points feed back-end
system of record

•Distributes data collection load

•More tolerant of network outages, etc.

Data Layer Architecture
•Data collected at the edge, where it’s generated

•Edge collectors also capable of analysis

•Edge collectors handle local event, etc.

•Down-sampled data forwarded to backend on a
network-available basis

–Lower network costs

–More fault tolerant

© 2018 InfluxData. All rights reserved.
InfluxData

• Telegraf

• Data Collection

• InfluxDB

• Short-term storage

• Long-term storage

• Kapacitor

• Local Alerts

• System-wide alerts

• Chronograf

• Dashboards

How does InfluxData help?
• Extremely efficient data collection

• High-volume data collection

• IoT generates huge volumes of data very quickly

• Being able to ingest, analyze and query that data is key to IoT success

• Ease of Deployment

• Easy to deploy InfluxDB and the TICK stack for data collection, analysis
and action

• Very low time to value – Time To Awesome™

• Dashboards and visualization

• Easy to build useful, easy to read dashboards.

Monitor the Platform

What is flux?
Flux is a functional data scripting and query language

• Written to be:

– Useable

– Readable

– Composeable

– Testable

– Contributable

– Shareable

• JavaScript-esque

• MIT Licensed

InfluxData as the IoT Data Platform
• What is IoT Data?

– sensor@time – that’s time series data!

• IoT data MUST be

– Timely – ingestion rates and query efficiency is key

– Accurate – data integrity and platform reliability is important

– Actionable – data visualization, anomaly detection & alerting are essential

• IoT deployments are struggling to find efficient, scalable, data
platform that meets all of these criteria

• The InfluxData Platform meets them all

Download and Install
• Docker:

• Run

• Setup
http://localhost:9999
docker pull quay.io/influxdb/influxdb:2.0.0-alpha
docker run --name influxdb -p 9999:9999 quay.io/influxdb/influxdb:2.0.0-alpha

Download and Install
• Download MacOS:

• Download Linux

• Uncompress 
• Run
tar zxvf influxdb_2.0.0-alpha.9_*.tar.gz
https://dl.influxdata.com/influxdb/releases/influxdb_2.0.0-alpha.9_darwin_amd64.tar.gz
wget https://dl.influxdata.com/influxdb/releases/influxdb_2.0.0-alpha.9_linux_amd64.tar.gz
cd influxdb_2*; ./influxd

Influx 2.0 Cloud
https://cloud2.influxdata.com/beta/signup

Browser Setup

User Setup

Quick Start!

Data Collectors

Telegraf Configuration

System Monitoring

Name Your Config

Using Your Config

A Word About Tokens
• As of 2.0, security is on by default

• It can’t be turned off

• All access is token-based

• Must have a token to read or write data

• Every request to InfluxDB must include the token

But Wait, we didn’t install Telegraf!

Install and start Telegraf
• Mac OS:

• Linux 
 
 
• All
brew install telegraf; brew enable telegraf
wget -qO- https://repos.influxdata.com/influxdb.key | sudo apt-key add -
source /etc/lsb-release
echo "deb https://repos.influxdata.com/${DISTRIB_ID,,} ${DISTRIB_CODENAME} stable" | sudo tee /etc/
apt/sources.list.d/influxdb.list
export INFLUX_TOKEN=<TOKEN>
telegraf --config http://localhost:9999/api/v2/telegrafs/

Starting Telegraf

Pre-Built Dashboards

System Dashboard

Influx Metrics

Writing Queries
• InfluxQL is dead

• Long live Flux!

• TICK Script is dead!

• Long live Tasks! 
 
 
 
 
 
No one will miss TICK Script

Key Terms and Terminology
• Bucket: Named data source with retention policy

• Pipe-forward operator: Used to chain operation together in flux  
|>

• Table: Data is returned in annotated CSVs, represented as tables

• Group key: list of columns for which every row in the table has
the same value

Flux Query Example
from(bucket:"telegraf/autogen")

|> range(start: -1h)

|> filter(fn: (r) =>

r.measurement == “cpu” AND

r.field == “usage_system” AND

r.cpu == “cpu_total”

|> yield()

What is a Task?
• Written in Flux

• Run at configurable intervals

• Completes a flux query and does ‘something’ with the result

Managing/Creating Tasks

Writing Tasks

Task Example
import "mqtt"

option task = {name: "Gas", every: 4s, offset: 4s}

from(bucket: "telegraf")

|> range(start: -task.every)

|> filter(fn: (r) => (r._measurement == "k30_reader"))

|> filter(fn: (r) => (r._field == "co2"))

|> last()

|> mqtt.to(

broker: "tcp://davidgs.com:8883",

topic: "gas",

clientid: "gas-flux",

format: "JSON",

valueColumns: ["_value"],

)

Sending Data to InfluxDB
• Remember, everything needs a token!

• Using Telegraf

• Using native libraries

Telegraf and MQTT
[[inputs.mqtt_consumer]]

servers = ["tcp://localhost:1883"]

qos = 0

connection_timeout = “30s"

username = “myUsername”

password = “MySecret”

topics = [ "/toNet", "/fromNet" ]

client_id = ""

data_format = "json"

insecure_skip_verify = true

Arduino Native
#include <InfluxDb.h>
#define INFLUXDB_HOST “myhost.com”
#define BATCH_SIZE 10
Influxdb influx(INFLUXDB_HOST);
void setup() {
influx.setBucket("myBucket");
influx.setVersion(2);
influx.setOrg("myOrg");
influx.setPort(9999);
influx.setToken("MyLongTokenString==");
}

Batch Writing
getReadings(); // read the sensors
int rssi = WiFi.RSSI();
if (batchCount >= BATCH_SIZE) {
influx.write();
batchCount = 0;
}
int power = analogRead(POWER_PIN) * 2;
InfluxData row("environment");
row.addTag("location", myName.c_str());
row.addValue("temp_c", temperature);
row.addValue("humidity", humidity);
row.addValue("pressure", pressure);
row.addValue("battery", power);
row.addValue("RSSI", rssi);
influx.prepare(row);
batchCount += 1;
