THOR Workshop - Persistent Identifier Linking
- 1.
- 2. Tom Demeranville THOR SeniorProject Officer and ORCID Software Engineer https://orcid.org/0000-0003-0902-4386 Martin Fenner DataCite Technical Director https://orcid.org/0000-0003-1419-2405 Laura Rueda DataCite Communications Director https://orcid.org/0000-0001-5952-7630
- 3. Linking Data andData Challenges How to cite data with right granularity? How to link data and contributors with right granularity? Datasets that are part of larger datasets or heterogenous collections Multiple versions of the same dataset Dynamic data
- 4. Linking Data andData Challenges – Granularity of Data in ORCID Record http://search.datacite.org/contributors/0000-0002-8635-8390
- 5. Linking Data andData Challenges – Versioned Data in ORCID Record http://orcid.org/0000-0003-1419-2405

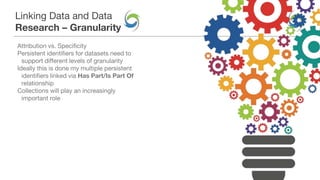

- 6. Linking Data andData Research – Granularity Attribution vs. Specificity Persistent identifiers for datasets need to support different levels of granularity Ideally this is done my multiple persistent identifiers linked via Has Part/Is Part Of relationship Collections will play an increasingly important role
- 7. Linking Data andData Research – Data Versioning Versioning of data is important for specificity and verifiability Practices and expectations for versioning of data vary widely between communities and data centers The data repository is ultimately responsible for decisions about versioning General recommendations can only include high-level best practices and common vocabulary

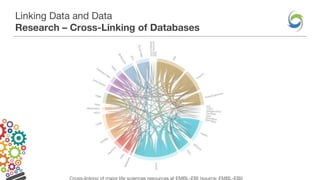

- 8. Linking Data andData Research – Cross-Linking of Databases
- 9. Linking Data andData Implementation – Cross-Linking of Databases Cross-linking between different databases not conceptually different from article-data linking, implementation should follow same principles (see next section)

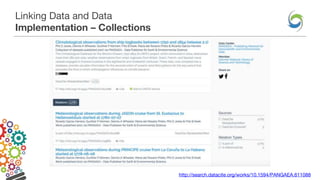

- 10. Linking Data andData Implementation – Collections http://search.datacite.org/works/10.1594/PANGAEA.611088

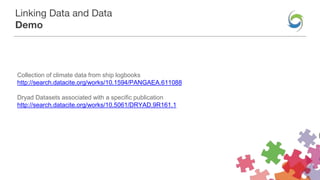

- 11. Linking Data andData Demo Collection of climate data from ship logbooks http://search.datacite.org/works/10.1594/PANGAEA.611088 Dryad Datasets associated with a specific publication http://search.datacite.org/works/10.5061/DRYAD.9R161.1

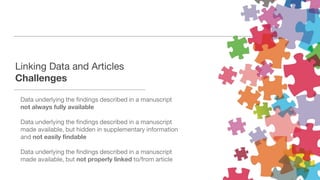

- 12. Linking Data andArticles Challenges Data underlying the findings described in a manuscript not always fully available Data underlying the findings described in a manuscript made available, but hidden in supplementary information and not easily findable Data underlying the findings described in a manuscript made available, but not properly linked to/from article

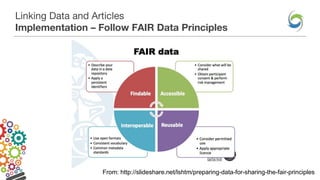

- 13. Linking Data andArticles Implementation – Follow FAIR Data Principles From: http://slideshare.net/lshtm/preparing-data-for-sharing-the-fair-principles

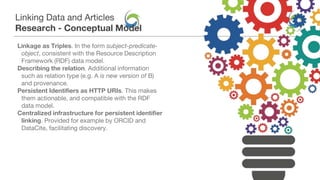

- 14. Linking Data andArticles Research - Conceptual Model Linkage as Triples. In the form subject-predicate- object, consistent with the Resource Description Framework (RDF) data model. Describing the relation. Additional information such as relation type (e.g. A is new version of B) and provenance. Persistent Identifiers as HTTP URIs. This makes them actionable, and compatible with the RDF data model. Centralized infrastructure for persistent identifier linking. Provided for example by ORCID and DataCite, facilitating discovery.

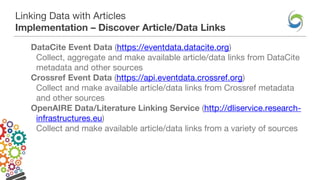

- 15. Linking Data withArticles Implementation – Discover Article/Data Links DataCite Event Data (https://eventdata.datacite.org) Collect, aggregate and make available article/data links from DataCite metadata and other sources Crossref Event Data (https://api.eventdata.crossref.org) Collect and make available article/data links from Crossref metadata and other sources OpenAIRE Data/Literature Linking Service (http://dliservice.research- infrastructures.eu) Collect and make available article/data links from a variety of sources
- 16. Linking Data withArticles Implementation – Exchange Article/Data Links Standard metadata for exchanging Article/Data Links Joint Collaboration within RDA/WDS Data Publishing Services WG (http://www.scholix.org/guidelines) Link Exchange between Crossref and DataCite Using the same open source software (https://github.com/lagotto/lagotto) for their respective Event Data services

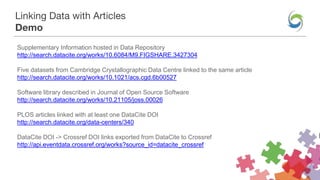

- 17. Linking Data withArticles Demo Supplementary Information hosted in Data Repository http://search.datacite.org/works/10.6084/M9.FIGSHARE.3427304 Five datasets from Cambridge Crystallographic Data Centre linked to the same article http://search.datacite.org/works/10.1021/acs.cgd.6b00527 Software library described in Journal of Open Source Software http://search.datacite.org/works/10.21105/joss.00026 PLOS articles linked with at least one DataCite DOI http://search.datacite.org/data-centers/340 DataCite DOI -> Crossref DOI links exported from DataCite to Crossref http://api.eventdata.crossref.org/works?source_id=datacite_crossref

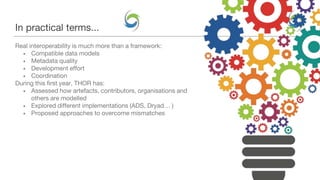

- 18. In practical terms... Realinteroperability is much more than a framework: • Compatible data models • Metadata quality • Development effort • Coordination During this first year, THOR has: • Assessed how artefacts, contributors, organisations and others are modelled • Explored different implementations (ADS, Dryad… ) • Proposed approaches to overcome mismatches

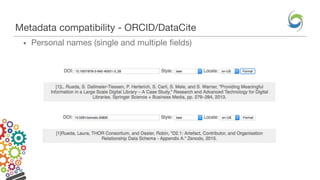

- 19. Metadata compatibility -ORCID/DataCite • Personal names (single and multiple fields)

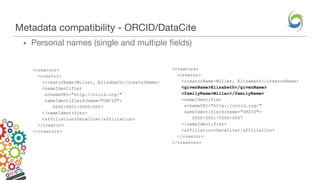

- 20. Metadata compatibility -ORCID/DataCite • Personal names (single and multiple fields) <creators> <creator> <creatorName>Miller, Elizabeth</creatorName> <givenName>Elizabeth</givenName> <familyName>Miller</familyName> <nameIdentifier schemeURI="http://orcid.org/" nameIdentifierScheme="ORCID"> 0000-0001-5000-0007 </nameIdentifier> <affiliation>DataCite</affiliation> </creator> </creators> <creators> <creator> <creatorName>Miller, Elizabeth</creatorName> <nameIdentifier schemeURI="http://orcid.org/" nameIdentifierScheme="ORCID"> 0000-0001-5000-0007 </nameIdentifier> <affiliation>DataCite</affiliation> </creator> </creators>

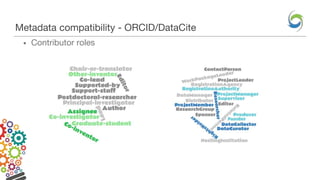

- 21. Metadata compatibility -ORCID/DataCite • Contributor roles

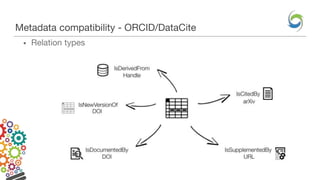

- 22. Metadata compatibility -ORCID/DataCite • Relation types
- 23. Metadata compatibility -ORCID/DataCite • Lack of standards • Low adoption • Organisations: • ISNI / Ringgold / Others • Open standard? • Funding, projects: • Crossref’s Open Funder Registry • Coverage and quality?

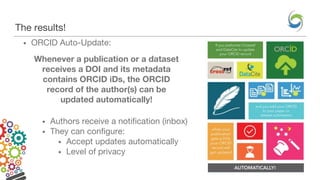

- 24. The results! • ORCIDAuto-Update: Whenever a publication or a dataset receives a DOI and its metadata contains ORCID iDs, the ORCID record of the author(s) can be updated automatically! • Authors receive a notification (inbox) • They can configure: • Accept updates automatically • Level of privacy

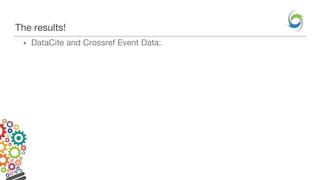

- 25. The results! • DataCiteand Crossref Event Data:

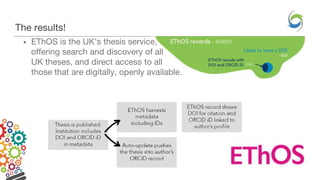

- 26. The results! • EThOSis the UK’s thesis service, offering search and discovery of all UK theses, and direct access to all those that are digitally, openly available.

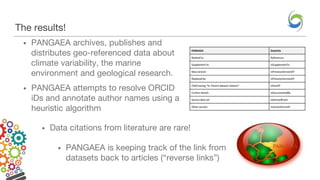

- 27. The results! • PANGAEAarchives, publishes and distributes geo-referenced data about climate variability, the marine environment and geological research. • PANGAEA attempts to resolve ORCID iDs and annotate author names using a heuristic algorithm • Data citations from literature are rare! • PANGAEA is keeping track of the link from datasets back to articles (“reverse links”)

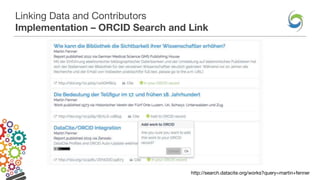

- 28. Linking Data andContributors Implementation – ORCID Search and Link http://search.datacite.org/works?query=martin+fenner
- 29. Linking Data andContributors Implementation – ORCID Auto-Update https://profiles.datacite.org/users/me

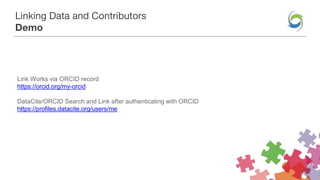

- 30. Linking Data andContributors Demo Link Works via ORCID record https://orcid.org/my-orcid DataCite/ORCID Search and Link after authenticating with ORCID https://profiles.datacite.org/users/me
- 31. Linking identifier types Thereare a LOTS of identifier types Attempting to work with them all raises LOTS of questions

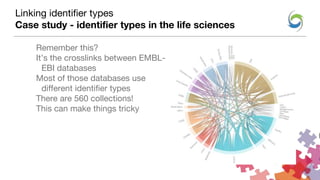

- 32. Remember this? It’s thecrosslinks between EMBL- EBI databases Most of those databases use different identifier types There are 560 collections! This can make things tricky Linking identifier types Case study - identifier types in the life sciences

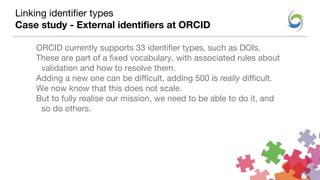

- 33. ORCID currently supports33 identifier types, such as DOIs. These are part of a fixed vocabulary, with associated rules about validation and how to resolve them. Adding a new one can be difficult, adding 500 is really difficult. We now know that this does not scale. But to fully realise our mission, we need to be able to do it, and so do others. Linking identifier types Case study - External identifiers at ORCID

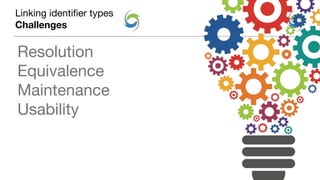

- 34.

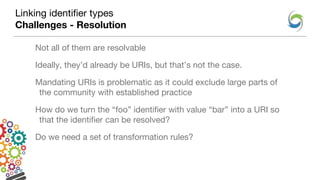

- 35. Linking identifier types Challenges- Resolution Not all of them are resolvable Ideally, they’d already be URIs, but that’s not the case. Mandating URIs is problematic as it could exclude large parts of the community with established practice How do we turn the “foo” identifier with value “bar” into a URI so that the identifier can be resolved? Do we need a set of transformation rules?

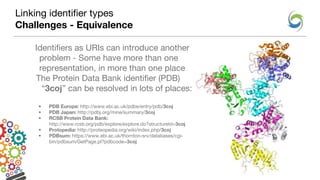

- 36. Linking identifier types Challenges- Equivalence Identifiers as URIs can introduce another problem - Some have more than one representation, in more than one place The Protein Data Bank identifier (PDB) “3coj” can be resolved in lots of places: • PDB Europe: http://www.ebi.ac.uk/pdbe/entry/pdb/3coj • PDB Japan: http://pdbj.org/mine/summary/3coj • RCSB Protein Data Bank: http://www.rcsb.org/pdb/explore/explore.do?structureId=3coj • Protopedia: http://proteopedia.org/wiki/index.php/3coj • PDBsum: https://www.ebi.ac.uk/thornton-srv/databases/cgi- bin/pdbsum/GetPage.pl?pdbcode=3coj

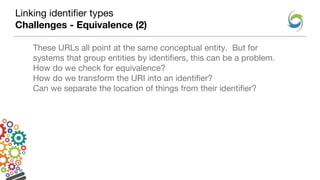

- 37. Linking identifier types Challenges- Equivalence (2) These URLs all point at the same conceptual entity. But for systems that group entities by identifiers, this can be a problem. How do we check for equivalence? How do we transform the URI into an identifier? Can we separate the location of things from their identifier?

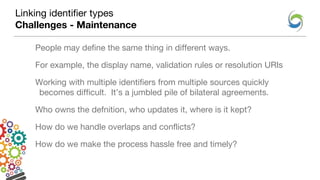

- 38. Linking identifier types Challenges- Maintenance People may define the same thing in different ways. For example, the display name, validation rules or resolution URIs Working with multiple identifiers from multiple sources quickly becomes difficult. It’s a jumbled pile of bilateral agreements. Who owns the defnition, who updates it, where is it kept? How do we handle overlaps and conflicts? How do we make the process hassle free and timely?

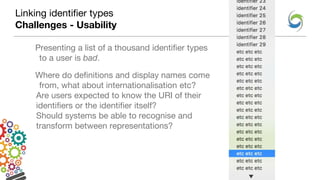

- 39. Linking identifier types Challenges- Usability Presenting a list of a thousand identifier types to a user is bad. Where do definitions and display names come from, what about internationalisation etc? Are users expected to know the URI of their identifiers or the identifier itself? Should systems be able to recognise and transform between representations?

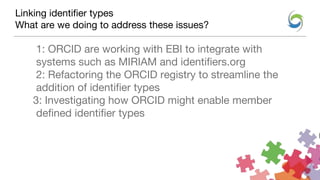

- 40. Linking identifier types Whatare we doing to address these issues? 1: ORCID are working with EBI to integrate with systems such as MIRIAM and identifiers.org 2: Refactoring the ORCID registry to streamline the addition of identifier types 3: Investigating how ORCID might enable member defined identifier types

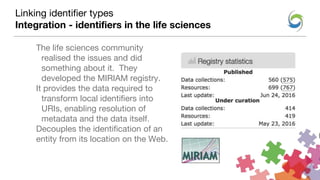

- 41. The life sciencescommunity realised the issues and did something about it. They developed the MIRIAM registry. It provides the data required to transform local identifiers into URIs, enabling resolution of metadata and the data itself. Decouples the identification of an entity from its location on the Web. Linking identifier types Integration - identifiers in the life sciences

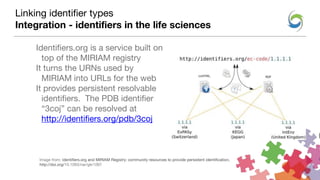

- 42. Identifiers.org is aservice built on top of the MIRIAM registry It turns the URNs used by MIRIAM into URLs for the web It provides persistent resolvable identifiers. The PDB identifier “3coj” can be resolved at http://identifiers.org/pdb/3coj Linking identifier types Integration - identifiers in the life sciences Image from: Identifiers.org and MIRIAM Registry: community resources to provide persistent identification, http://doi.org/10.1093/nar/gkr1097

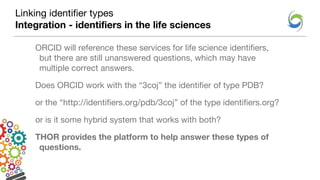

- 43. Linking identifier types Integration- identifiers in the life sciences ORCID will reference these services for life science identifiers, but there are still unanswered questions, which may have multiple correct answers. Does ORCID work with the “3coj” the identifier of type PDB? or the “http://identifiers.org/pdb/3coj” of the type identifiers.org? or is it some hybrid system that works with both? THOR provides the platform to help answer these types of questions.
- 44. Controlled vocabularies can,in fact, impede interoperability by restricting links to specific systems. Yet we need to know what is valid and what isn’t. ORCID is moving to a system whereby the identifier vocabulary is well understood and defined, yet not fixed and easily extensible in an on-demand manner. Clients can query the current list of identifier types using the public API. We will soon add the rules associated with them https://pub.sandbox.orcid.org/v2.0_rc2/#!/Identifier_API/viewIdentifierTypes Linking identifier types Integration - ‘un’controlled vocabularies identifier types

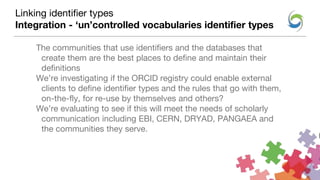

- 45. The communities thatuse identifiers and the databases that create them are the best places to define and maintain their definitions We’re investigating if the ORCID registry could enable external clients to define identifier types and the rules that go with them, on-the-fly, for re-use by themselves and others? We’re evaluating to see if this will meet the needs of scholarly communication including EBI, CERN, DRYAD, PANGAEA and the communities they serve. Linking identifier types Integration - ‘un’controlled vocabularies identifier types
- 46. Some of theimages in these slides were designed by freepik.com THOR is funded by the European Commission under call H2020-EINFRA-2014-2, project number 654039
Editor's Notes
- #34 For example: a user might wish to claim some sequencing data within their ORCID record (or the database might want to add it for them). How can this happen if they do not have a known identifier? Having other-id:218751258217 in a record doesn’t help anyone.
- #38 We could treat PDB Europe identifiers as being conceptually as different from PDB Japan as DOIs are from Handles. This benefits from simplicity but effectively ignores the problem, providing no way of associating the two identifiers. Reverse lookup is required, the ability to query these resolving services in the reverse direction, such that, for example, a query for http://www.ebi.ac.uk/pdbe/entry/pdb/3coj points to a common ‘umbrella’/’collection’ identifier such as http://identifiers.org/pdb/3coj.
- #43 (but is that now the identifier? A meta identifier)
- #44 (yes, it does matter!) (compounded by the fact some identifiers in identifiers.org already exist within ORCID e.g. PMC identifiers. ARGH!
- #45 This will enable new identifier types and their associated metadata (for example multi-language descriptions) to be added to the registry in response to community needs.
- #46 E.g. ISGN Once we've done the evaluation then we will put it on the dev roadmap.
