1. Application-Level
Virtual Memory for
Object-Oriented Systems
Mariano Martinez Peck
1

2. Application-Level
Virtual Memory for
Object-Oriented Systems
Mariano Martinez Peck
2

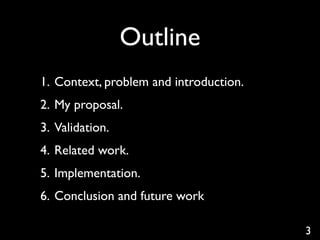

3. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
3

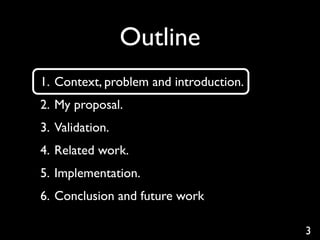

4. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
3

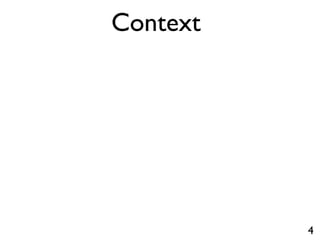

5. Context
4

6. Context
4

7. Context
4

8. Context
4

9. Context
4

10. Context
4

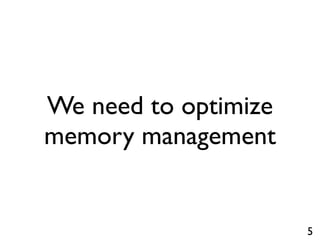

11. We need to optimize
memory management
5

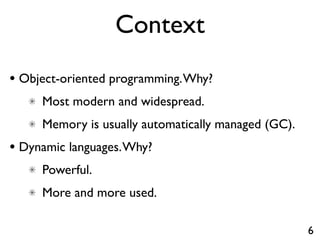

12. Context
• Object-oriented programming. Why?
Most modern and widespread.
Memory is usually automatically managed (GC).
• Dynamic languages. Why?
Powerful.
More and more used.
6

13. In this context of OOP,
is GC actually enough to
optimize memory
management?
7

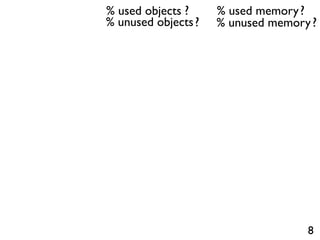

14. % used objects ? % used memory ?
% unused objects ? % unused memory ?
8

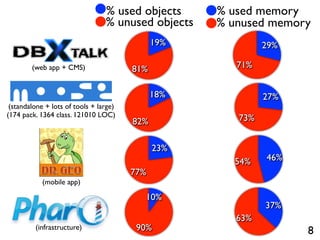

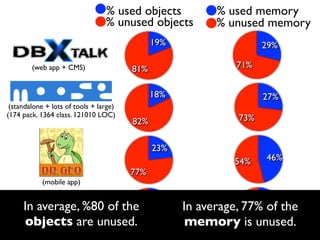

15. % used objects % used memory
% unused objects % unused memory
(web app + CMS)
(standalone + lots of tools + large)
(174 pack. 1364 class. 121010 LOC)
(mobile app)
(infrastructure)
8

16. % used objects % used memory
% unused objects % unused memory
19% 29%
(web app + CMS) 81% 71%
18% 27%
(standalone + lots of tools + large)
(174 pack. 1364 class. 121010 LOC) 73%
82%
23%
54% 46%
77%
(mobile app)
10%
37%
63%
(infrastructure) 90% 8

17. % used objects % used memory
% unused objects % unused memory
19% 29%
(web app + CMS) 81% 71%
18% 27%
(standalone + lots of tools + large)
(174 pack. 1364 class. 121010 LOC) 73%
82%
23%
54% 46%
77%
(mobile app)
10%
In average, %80 of the 37%
objects are unused.90% 63%
(infrastructure)
8

18. % used objects % used memory
% unused objects % unused memory
19% 29%
(web app + CMS) 81% 71%
18% 27%
(standalone + lots of tools + large)
(174 pack. 1364 class. 121010 LOC) 73%
82%
23%
54% 46%
77%
(mobile app)
10%
In average, %80 of the In average, 77% 37%the
of
objects are unused.90% memory is63% unused.
(infrastructure)
8

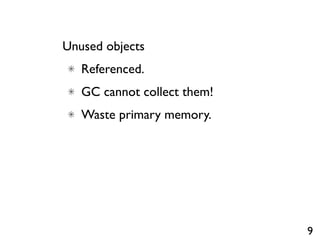

19. Unused objects
Referenced.
GC cannot collect them!
Waste primary memory.
9

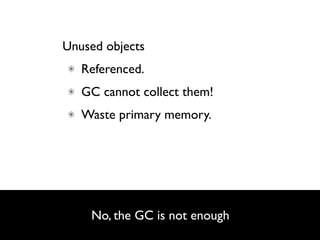

20. Unused objects
Referenced.
GC cannot collect them!
Waste primary memory.
No, the GC is not enough
9

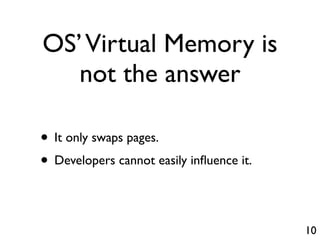

21. OS’ Virtual Memory is
not the answer
• It only swaps pages.
• Developers cannot easily influence it.
10

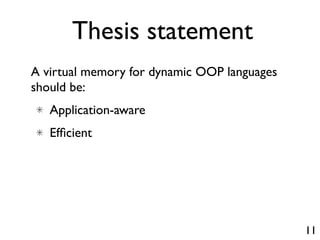

22. Thesis statement
A virtual memory for dynamic OOP languages
should be:
Application-aware
Efficient
11

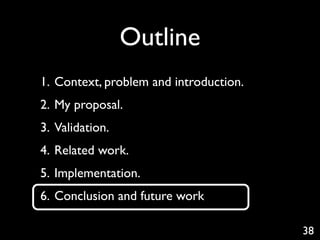

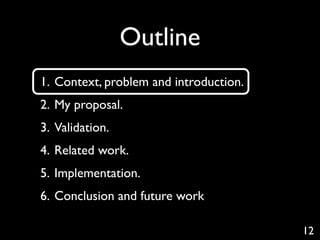

23. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
12

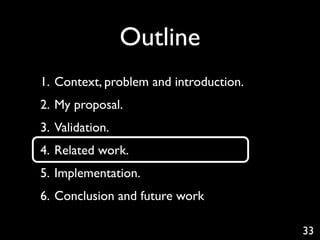

24. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
12

25. A model for efficient application-level virtual
memory:
• Designed for dynamic OOP
• Based on the swapping of object graphs
13

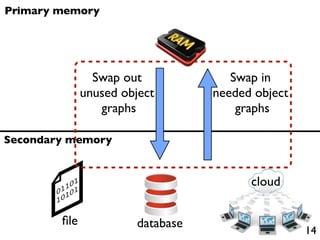

26. Primary memory
Swap out Swap in
unused object needed object
graphs graphs
Secondary memory
cloud
file database
14

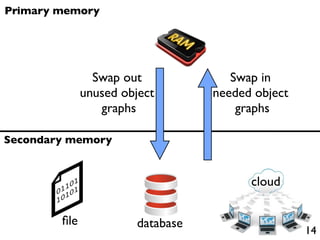

27. Primary memory
Swap out Swap in
unused object needed object
graphs graphs
Secondary memory
cloud
file database
14

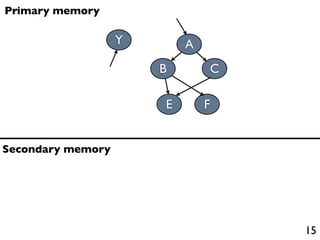

28. Primary memory
Y A
B C
E F
Secondary memory
15

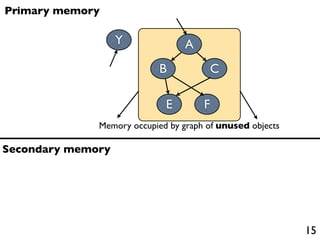

29. Primary memory
Y A
B C
E F
Memory occupied by graph of unused objects
Secondary memory
15

30. Primary memory
Y A
B C
E F
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
15

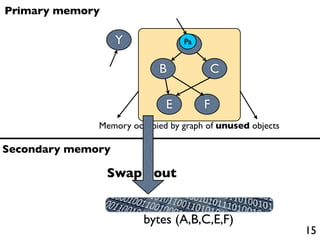

31. Primary memory
Y A
Pa
B C
E F
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
15

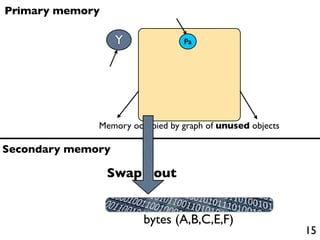

32. Primary memory
Y Pa
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
15

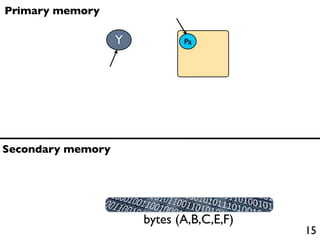

33. Primary memory
Y Pa
Secondary memory
bytes (A,B,C,E,F)
15

34. Primary memory
Y Pa
Secondary memory
bytes (A,B,C,E,F)
15

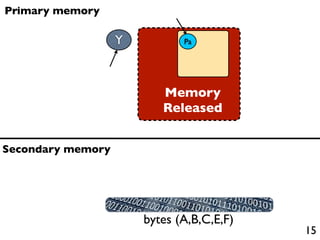

35. Primary memory
Y Pa
Memory
Released
Secondary memory
bytes (A,B,C,E,F)
15

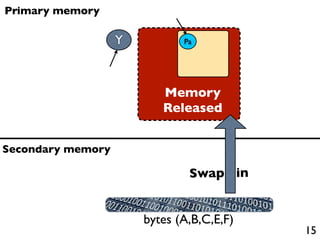

36. Primary memory
Y Pa
Memory
Released
Secondary memory
Swap in
bytes (A,B,C,E,F)
15

37. Primary memory
Y A
B C
E F
Secondary memory
15

38. Primary memory
Y A
B C
E F
Secondary memory
16

39. Primary memory
Y A D
B C
E F
Secondary memory
16

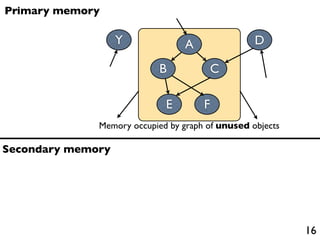

40. Primary memory
Y A D
B C
E F
Memory occupied by graph of unused objects
Secondary memory
16

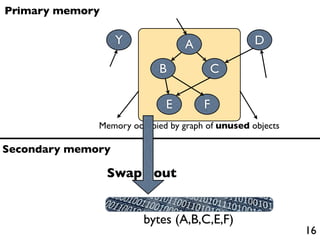

41. Primary memory
Y A D
B C
E F
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
16

42. Primary memory
Y A
Pa D
B C
E F
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
16

43. Primary memory
Y Pa D
C
E
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
16

44. Primary memory
Y Pa D
C
E
Secondary memory
bytes (A,B,C,E,F)
16

45. Primary memory
Y Pa D
C
E
Secondary memory
bytes (A,B,C,E,F)
16

46. Primary memory
Y Pa D
C
E
Secondary memory
Swap in
bytes (A,B,C,E,F)
16

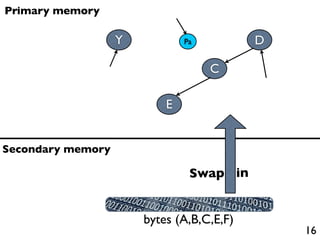

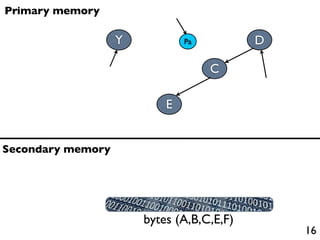

47. Primary memory
Y Pa D
C
E
Secondary memory
Swap in
bytes (A,B,C,E,F)
16

48. Primary memory
Y Pa D
C
E
Secondary memory
Swap in
bytes (A,B,C,E,F)
16

49. Primary memory
Y A D
B C C
E E F
Secondary memory
16

50. Primary memory
Y A D
B C C
E E F
Secondary memory
16

51. Primary memory
Y A D
B C C
E E F
Secondary memory
INCORRECT!!! 16

52. Objectives
Correctness: SwapIn(SwapOut(X))==X
Maximize memory released.
Minimize runtime overhead.
17

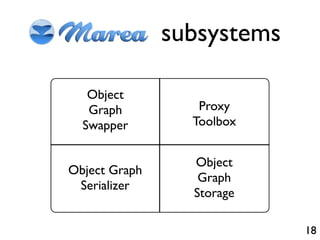

53. subsystems
Object
Graph Proxy
Swapper Toolbox
Object
Object Graph
Graph
Serializer
Storage
18

54. Primary memory
Y A D
B C
E F
Secondary memory
19

55. Primary memory
Y A D
B C
E F
Memory occupied by graph of unused objects
Secondary memory
19

56. Primary memory
Y A D
B C
E F
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
19

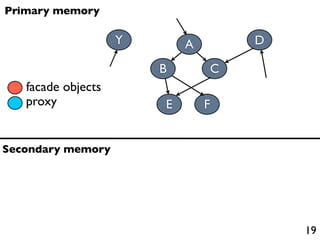

57. Primary memory
Y A D
B C
facade objects
E F
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
19

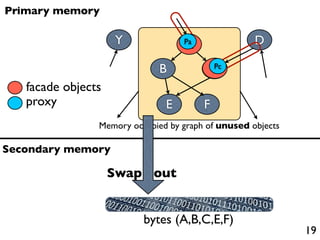

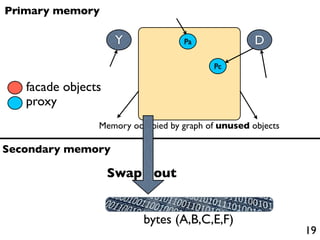

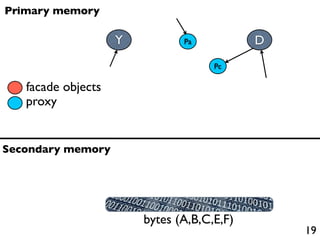

58. Primary memory
Y A
Pa D
B C
Pc
facade objects
proxy E F
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
19

59. Primary memory
Y Pa D
Pc
facade objects
proxy
Memory occupied by graph of unused objects
Secondary memory
Swap out
bytes (A,B,C,E,F)
19

60. Primary memory
Y Pa D
Pc
facade objects
proxy
Secondary memory
bytes (A,B,C,E,F)
19

61. Primary memory
Y Pa D
Pc
facade objects
proxy
Secondary memory
bytes (A,B,C,E,F)
19

62. Primary memory
Y Pa D
Pc
facade objects
proxy
Secondary memory
Swap in
bytes (A,B,C,E,F)
19

63. Primary memory
Y A D
B C
facade objects
proxy E F
Secondary memory
19

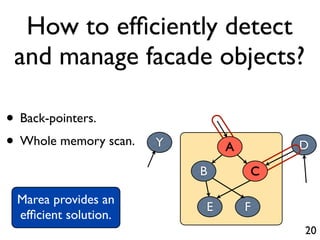

64. How to efficiently detect
and manage facade objects?
• Back-pointers.
• Whole memory scan. Y A D
B C
E F
20

65. How to efficiently detect
and manage facade objects?
• Back-pointers.
• Whole memory scan. Y A D
B C
Marea provides an
E F
efficient solution.

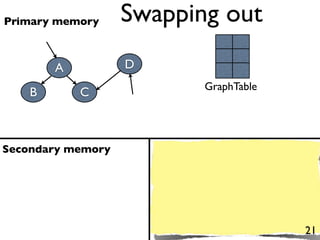

20

66. Primary memory Swapping out
A D
GraphTable
B C
Secondary memory
21

67. Primary memory Swapping out
A D
GraphTable
B C
Secondary memory
21

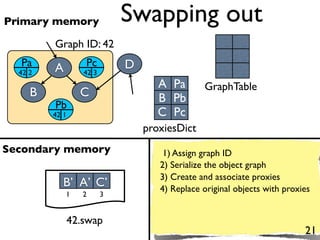

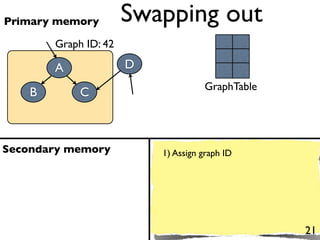

68. Primary memory Swapping out
Graph ID: 42
A D
GraphTable
B C
Secondary memory 1) Assign graph ID
21

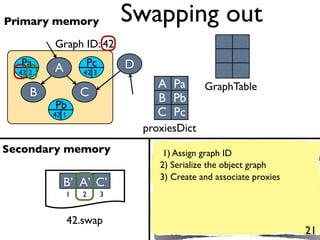

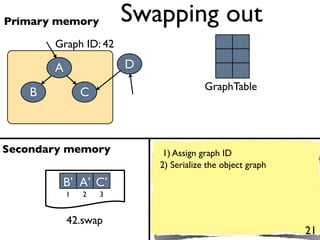

69. Primary memory Swapping out
Graph ID: 42
A D
GraphTable
B C
Secondary memory 1) Assign graph ID
2) Serialize the object graph
B’ A’ C’
1 2 3
42.swap
21

70. Primary memory Swapping out
Graph ID: 42
Pa Pc D
42 2 A 42 3
A Pa GraphTable
B C B Pb
Pb
42 1 C Pc
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’
1 2 3
42.swap
21

71. Primary memory Swapping out
Graph ID: 42
Pa Pc D
42 2 A 42 3
A Pa GraphTable
B C B Pb
Pb
42 1 C Pc
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’
1 2 3
42.swap
21

72. Primary memory Swapping out
Graph ID: 42
Pa Pc D
42 2 A 42 3
A Pa GraphTable
B C B Pb
Pb
42 1 C Pc
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’
1 2 3
42.swap
21

73. Primary memory Swapping out
Graph ID: 42
Pa Pc D
42 2 A 42 3
A Pa GraphTable
B C B Pb
Pb
42 1 C Pc
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
42.swap
21

74. Primary memory Swapping out
Graph ID: 42
Pa Pc D
42 2 A 42 3
A Pa GraphTable
B C B Pb
Pb
42 1 C Pc
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
42.swap
21

75. Primary memory Swapping out
Graph ID: 42
Pa Pc D
42 2 A 42 3
Pa A GraphTable
B C B Pb
Pb
42 1 C Pc
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
42.swap
21

76. Primary memory Swapping out
Graph ID: 42
Pa Pc D
42 2 A 42 3
Pa A GraphTable
B C Pb B
Pb
42 1 C Pc
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
42.swap
21

77. Primary memory Swapping out
Graph ID: 42
Pa Pc D
42 2 A 42 3
Pa A GraphTable
B C Pb B
Pb
42 1 Pc C
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
42.swap
21

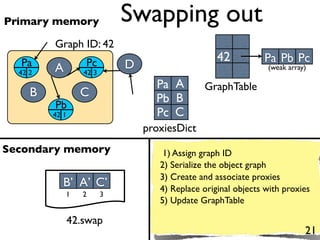

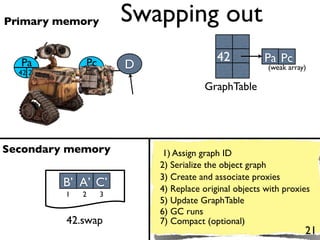

78. Primary memory Swapping out
Graph ID: 42
Pa Pc 42 Pa Pb Pc
A D (weak array)
42 2 42 3
Pa A GraphTable
B C Pb B
Pb
42 1 Pc C
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Update GraphTable
42.swap
21

79. Primary memory Swapping out
Graph ID: 42
Pa Pc 42 Pa Pb Pc
A D (weak array)
42 2 42 3
Pa A GraphTable
B C Pb B
Pb
42 1 Pc C
proxiesDict
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Update GraphTable
6) GC runs
42.swap
21

80. Primary memory Swapping out
Pa Pc 42 Pa nil Pc
D (weak array)
42 2 42 3
Pa A GraphTable
Pb B
Pc C
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Update GraphTable
6) GC runs
42.swap
21

81. Primary memory Swapping out
Pa Pc 42 Pa nil Pc
D (weak array)
42 2 42 3
Pa A GraphTable
Pb B
Pc C
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Update GraphTable
6) GC runs
42.swap 7) Compact (optional)
21

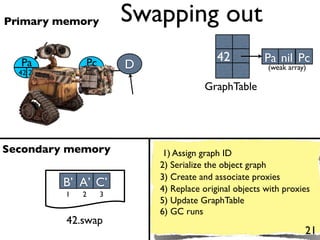

82. Primary memory Swapping out
Pa Pc 42 Pa Pc
D (weak array)
42 2 42 3
Pa A GraphTable
Pb B
Pc C
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Update GraphTable
6) GC runs
42.swap 7) Compact (optional)
21

83. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 42 3 (weak array)
GraphTable
Secondary memory
B’ A’ C’
1 2 3
42.swap
22

84. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 42 3 (weak array)
GraphTable

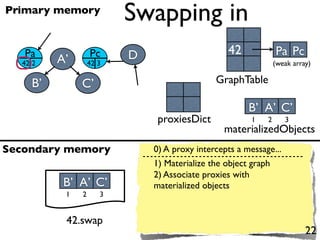

Secondary memory 0) A proxy intercepts a message...
B’ A’ C’
1 2 3
42.swap
22

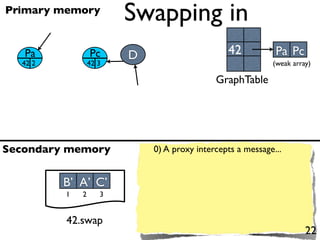

85. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 42 3 (weak array)
GraphTable
Secondary memory 0) A proxy intercepts a message...
B’ A’ C’
1 2 3
42.swap
22

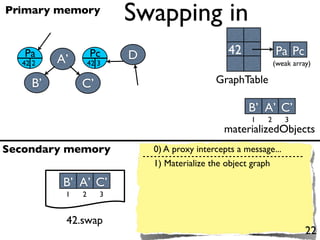

86. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
B’ A’ C’
1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
B’ A’ C’
1 2 3
42.swap
22

87. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3
42.swap
22

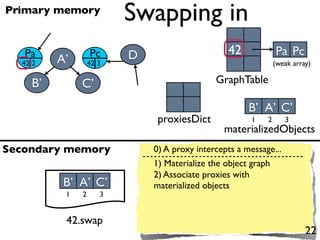

88. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3
42.swap
22

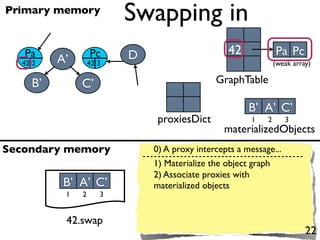

89. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3
42.swap
22

90. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3
42.swap
22

91. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3
42.swap
22

92. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3
42.swap
22

93. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
Pa A’
B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3
42.swap
22

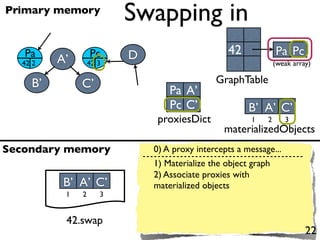

94. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
Pa A’
Pc C’ B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3
42.swap
22

95. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
Pa A’
Pc C’ B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3 3) Replace proxies with original objects
42.swap
22

96. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
A’ Pa
Pc C’ B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3 3) Replace proxies with original objects
42.swap
22

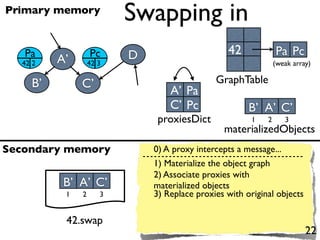

97. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
A’ Pa
C’ Pc B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3 3) Replace proxies with original objects
42.swap
22

98. Primary memory
Swapping in
Pa Pc D 42 Pa Pc
42 2 A’ 42 3 (weak array)
B’ C’ GraphTable
A’ Pa
C’ Pc B’ A’ C’
proxiesDict 1 2 3
materializedObjects
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
B’ A’ C’ materialized objects
1 2 3 3) Replace proxies with original objects
4) Clean
42.swap
22

99. Primary memory
Swapping in
Pa Pc D
42 2 A’ 42 3
B’ C’ GraphTable
C’ Pc
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
materialized objects
3) Replace proxies with original objects
4) Clean
22

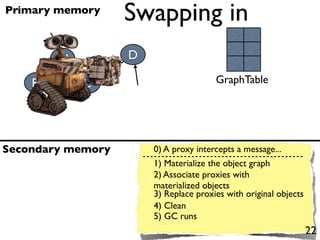

100. Primary memory
Swapping in
A’ D
B’ C’ GraphTable
C’ Pc
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
materialized objects
3) Replace proxies with original objects
4) Clean
5) GC runs
22

101. Primary memory
Swapping in
A’ D
B’ C’ GraphTable
C’ Pc
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
materialized objects
3) Replace proxies with original objects
4) Clean
5) GC runs
6) Forward message to object 22

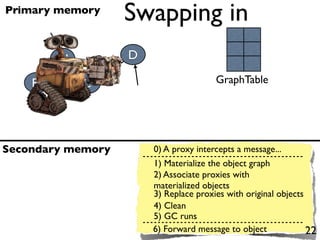

102. Primary memory
Swapping in
A’ D
B’ C’ GraphTable
C’ Pc
Secondary memory 0) A proxy intercepts a message...
1) Materialize the object graph
2) Associate proxies with
materialized objects
3) Replace proxies with original objects
4) Clean
5) GC runs
6) Forward message to object 22

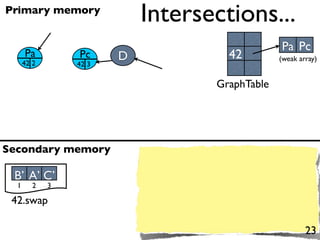

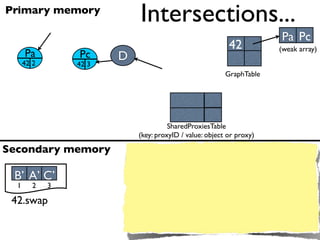

103. Primary memory
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
GraphTable
Secondary memory
B’ A’ C’
1 2 3
42.swap
23

104. Primary memory
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
GraphTable
Secondary memory
B’ A’ C’
1 2 3
42.swap
23

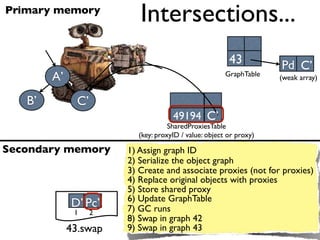

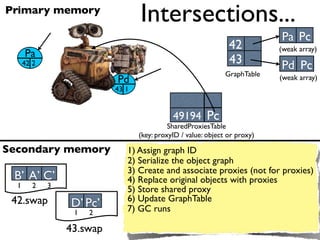

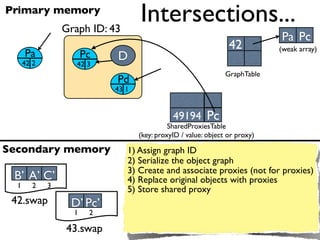

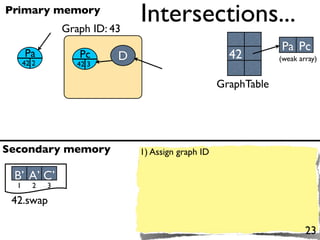

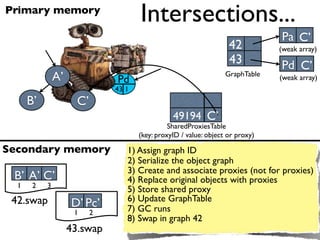

105. Primary memory

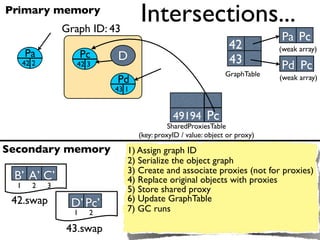

Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
GraphTable
Secondary memory 1) Assign graph ID
B’ A’ C’
1 2 3
42.swap
23

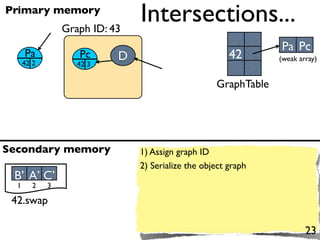

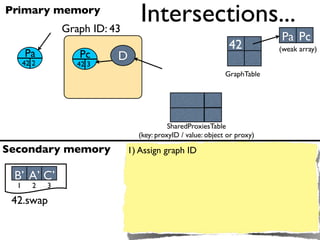

106. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
GraphTable
Secondary memory 1) Assign graph ID
2) Serialize the object graph
B’ A’ C’
1 2 3
42.swap
23

107. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
GraphTable
Secondary memory 1) Assign graph ID
2) Serialize the object graph
B’ A’ C’
1 2 3
42.swap
23

108. Primary memory
Graph ID: 43
Intersections...
Pc
A’ D
B’ C’ GraphTable
Secondary memory 1) Assign graph ID
2) Serialize the object graph
23

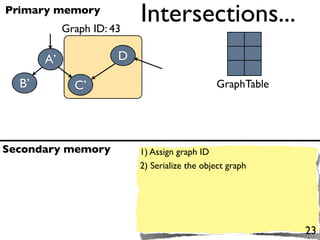

109. Primary memory
Graph ID: 43
Intersections...
Pc
A’ D
B’ C’ GraphTable
Secondary memory 1) Assign graph ID
2) Serialize the object graph
D’ C’
1 2
43.swap 23

110. Primary memory
Graph ID: 43
Intersections...
Pc
A’ D
B’ C’ GraphTable
Secondary memory 1) Assign graph ID
2) Serialize the object graph
...) as usually...
D’ C’
1 2
43.swap 23

111. Primary memory
Graph ID: 43
Intersections...
Pc
A’ D
B’ C’ GraphTable
Secondary memory 1) Assign graph ID
2) Serialize the object graph
...) as usually...
We don’tC’

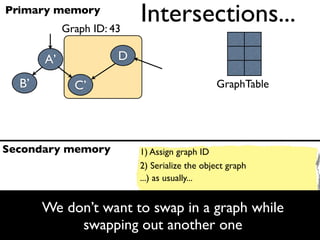

D’ want to swap in a graph while
1 2
swapping out another one
43.swap 23

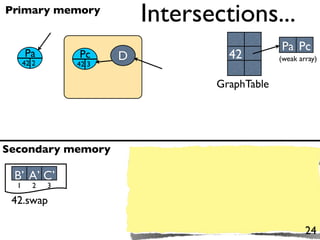

112. Primary memory
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
GraphTable
Secondary memory
B’ A’ C’
1 2 3
42.swap
24

113. Primary memory
Intersections...
Pa Pc
Pa Pc D 42 (weak array)

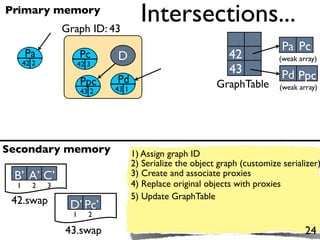

42 2 42 3
GraphTable
Secondary memory
B’ A’ C’
1 2 3
42.swap
24

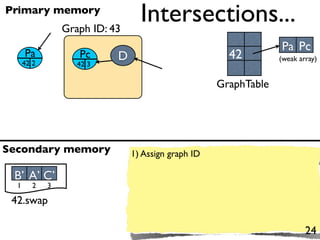

114. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
GraphTable
Secondary memory 1) Assign graph ID
B’ A’ C’
1 2 3
42.swap
24

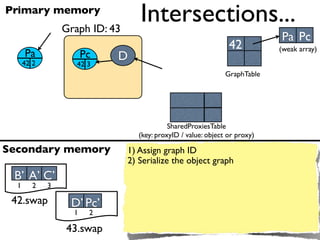

115. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
GraphTable
Secondary memory 1) Assign graph ID

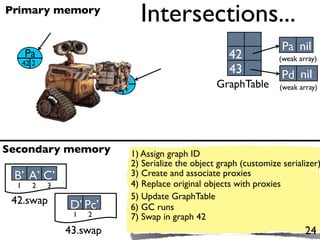

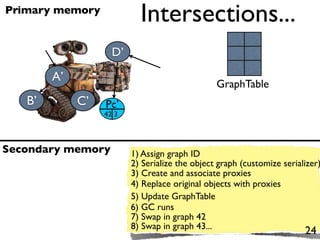

2) Serialize the object graph (customize serializer)
B’ A’ C’
1 2 3
42.swap D’ Pc’
1 2
43.swap 24

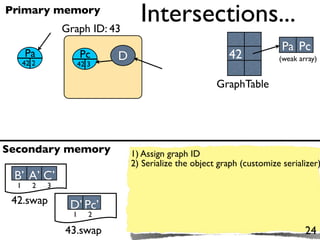

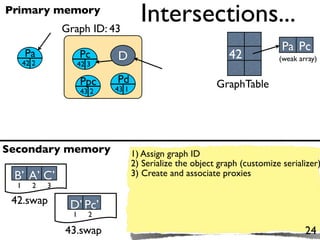

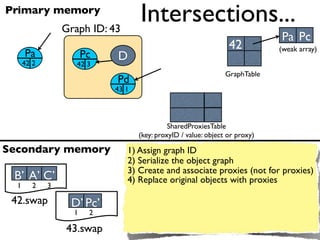

116. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
Ppc Pd GraphTable
43 2 43 1
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
B’ A’ C’ 3) Create and associate proxies
1 2 3
42.swap D’ Pc’
1 2
43.swap 24

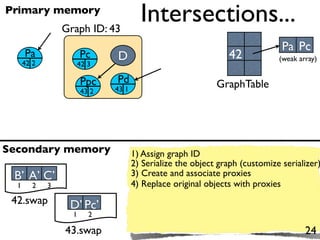

117. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
Ppc Pd GraphTable
43 2 43 1
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
B’ A’ C’ 3) Create and associate proxies
1 2 3 4) Replace original objects with proxies
42.swap D’ Pc’
1 2
43.swap 24

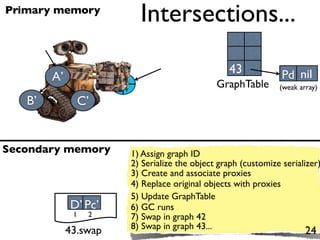

118. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
Ppc Pd GraphTable
43 2 43 1
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
B’ A’ C’ 3) Create and associate proxies
1 2 3 4) Replace original objects with proxies
42.swap D’ Pc’
1 2
43.swap 24

119. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
Ppc Pd GraphTable
43 2 43 1
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
B’ A’ C’ 3) Create and associate proxies
1 2 3 4) Replace original objects with proxies
42.swap D’ Pc’
1 2
43.swap 24

120. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
43 Pd Ppc
Ppc Pd GraphTable
43 1 (weak array)
43 2
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
B’ A’ C’ 3) Create and associate proxies
1 2 3 4) Replace original objects with proxies
42.swap 5) Update GraphTable
D’ Pc’
1 2
43.swap 24

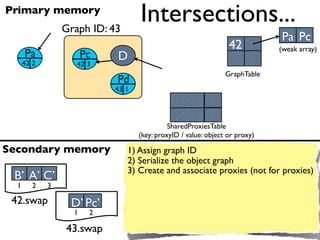

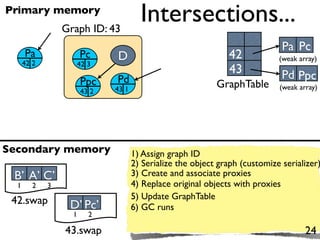

121. Primary memory
Graph ID: 43
Intersections...
Pa Pc
Pa Pc D 42 (weak array)
42 2 42 3
43 Pd Ppc
Ppc Pd GraphTable
43 1 (weak array)
43 2
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
B’ A’ C’ 3) Create and associate proxies
1 2 3 4) Replace original objects with proxies
42.swap 5) Update GraphTable
D’ Pc’ 6) GC runs
1 2
43.swap 24

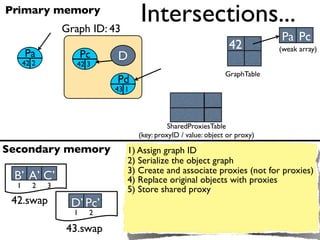

122. Primary memory
Intersections...
Pa nil
Pa 42 (weak array)
42 2
43 Pd nil
Pd GraphTable
43 1 (weak array)
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
B’ A’ C’ 3) Create and associate proxies
1 2 3 4) Replace original objects with proxies
42.swap 5) Update GraphTable
D’ Pc’ 6) GC runs
1 2
43.swap 24

123. Primary memory
Intersections...
Pa nil
Pa 42 (weak array)
42 2
43 Pd nil
Pd GraphTable
43 1 (weak array)
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
B’ A’ C’ 3) Create and associate proxies
1 2 3 4) Replace original objects with proxies
42.swap 5) Update GraphTable
D’ Pc’ 6) GC runs
1 2 7) Swap in graph 42
43.swap 24

124. Primary memory
Intersections...
nil
43 Pd nil
A’ Pd
43 1
GraphTable (weak array)
B’ C’
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
3) Create and associate proxies
4) Replace original objects with proxies
5) Update GraphTable
D’ Pc’ 6) GC runs
1 2 7) Swap in graph 42
43.swap 24

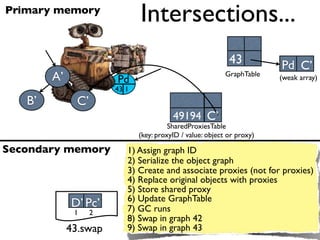

125. Primary memory
Intersections...
nil
43 Pd nil
A’ Pd
43 1
GraphTable (weak array)
B’ C’
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
3) Create and associate proxies
4) Replace original objects with proxies
5) Update GraphTable
D’ Pc’ 6) GC runs
1 2 7) Swap in graph 42
8) Swap in graph 43...
43.swap 24

126. Primary memory
Intersections...
nil
43 Pd nil
A’ Pd
43 1
GraphTable (weak array)
B’ C’
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
3) Create and associate proxies
4) Replace original objects with proxies
5) Update GraphTable
D’ Pc’ 6) GC runs
1 2 7) Swap in graph 42
8) Swap in graph 43...
43.swap 24

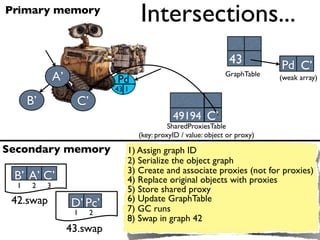

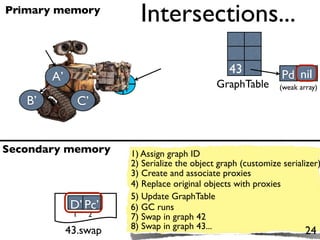

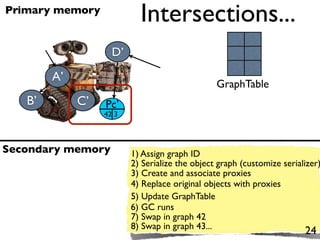

127. Primary memory
Intersections...
D’ nil
A’
GraphTable
B’ C’ Pc’
42 3
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
3) Create and associate proxies
4) Replace original objects with proxies
5) Update GraphTable
6) GC runs
7) Swap in graph 42
8) Swap in graph 43...
24

128. Primary memory
Intersections...
D’ nil
A’
GraphTable
B’ C’ Pc’
42 3
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
3) Create and associate proxies
4) Replace original objects with proxies
5) Update GraphTable
6) GC runs
7) Swap in graph 42
8) Swap in graph 43...
24

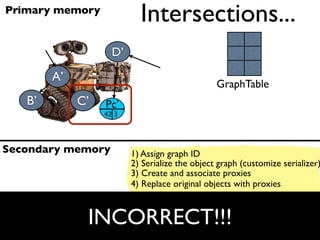

129. Primary memory
Intersections...
D’ nil
A’
GraphTable
B’ C’ Pc’
42 3
Secondary memory 1) Assign graph ID
2) Serialize the object graph (customize serializer)
3) Create and associate proxies
4) Replace original objects with proxies
5) Update GraphTable
6) GC runs
INCORRECT!!!
7) Swap in graph 42
8) Swap in graph 43...
24

130. Graph intersections
• Avoiding proxies for proxies (Ppc) does not solve
the problem either.
• Several scenarios for swapping in
swapped intersecting graphs.
25

131. Graph intersections
• Avoiding proxies for proxies (Ppc) does not solve
the problem either.
• Several scenarios for swapping in
swapped intersecting graphs.
Marea solves all these
scenarios and challenges.
25

132. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
26

133. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
26

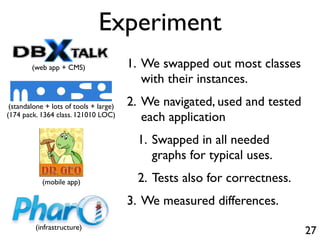

134. Experiment
(web app + CMS) 1. We swapped out most classes
with their instances.
(standalone + lots of tools + large) 2. We navigated, used and tested
(174 pack. 1364 class. 121010 LOC) each application
1. Swapped in all needed
graphs for typical uses.
(mobile app) 2. Tests also for correctness.
3. We measured differences.
(infrastructure)
27

135. Original = 100% With Marea Measured minimun
100
75
% of memory
50
25
0
DBXTalk Moose DrGeo Pharo
28

136. Original = 100% With Marea Measured minimun
100
75
% of memory
50
25
0
DBXTalk Moose DrGeo Pharo

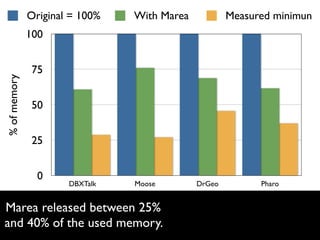

Marea released between 25%
and 40% of the used memory.
28

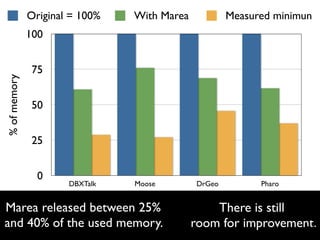

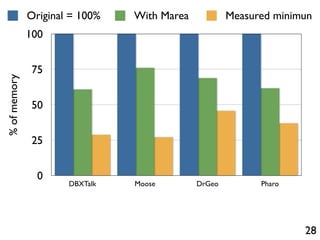

137. Original = 100% With Marea Measured minimun
100
75
% of memory
50
25
0
DBXTalk Moose DrGeo Pharo
Marea released between 25% There is still
and 40% of the used memory. room for improvement.
28

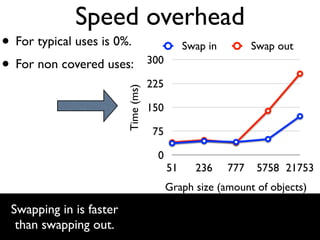

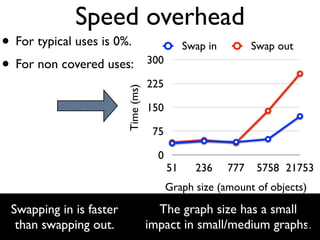

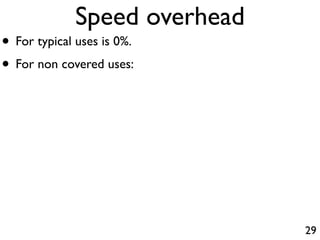

138. Speed overhead
• For typical uses is 0%.
• For non covered uses:
29

139. Speed overhead

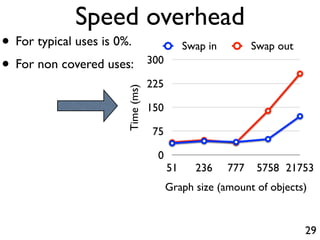

• For typical uses is 0%. Swap in Swap out
• For non covered uses: 300
225
Time (ms)
150
75
0
51 236 777 5758 21753
Graph size (amount of objects)
29

140. Speed overhead
• For typical uses is 0%. Swap in Swap out
• For non covered uses: 300
225
Time (ms)
150
75
0
51 236 777 5758 21753
Graph size (amount of objects)
Swapping in is faster
than swapping out. 29

141. Speed overhead
• For typical uses is 0%. Swap in Swap out
• For non covered uses: 300
225
Time (ms)
150
75
0
51 236 777 5758 21753
Graph size (amount of objects)
Swapping in is faster The graph size has a small
than swapping out. impact in small/medium graphs.
29

142. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
30

143. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
30

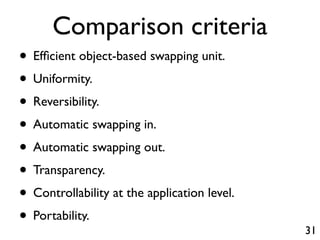

144. Comparison criteria
• Efficient object-based swapping unit.
• Uniformity.
• Reversibility.
• Automatic swapping in.
• Automatic swapping out.
• Transparency.
• Controllability at the application level.
• Portability. 31

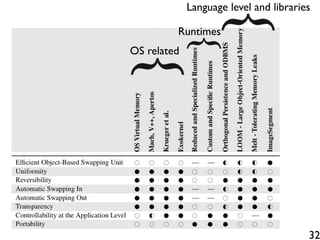

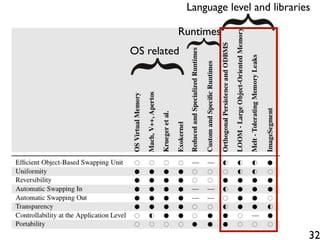

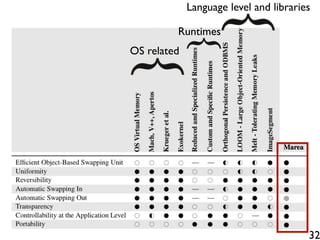

145. Language level and libraries
Runtimes
OS related
32

146. Language level and libraries
Runtimes
OS related
32

147. Language level and libraries
Runtimes
OS related
32

148. Language level and libraries
Runtimes
OS related
32

149. Language level and libraries
Runtimes
OS related
32

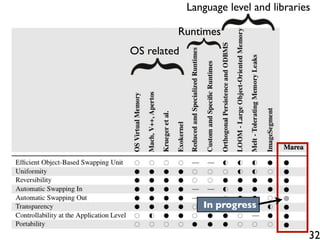

150. Language level and libraries
Runtimes
OS related
In progress
32

151. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
33

152. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
33

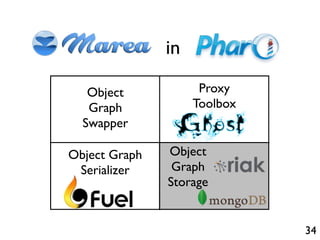

153. in
Object Proxy
Graph Toolbox
Swapper
Object Graph Object
Serializer Graph
Storage
34

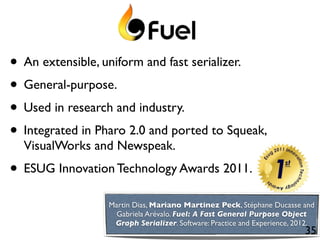

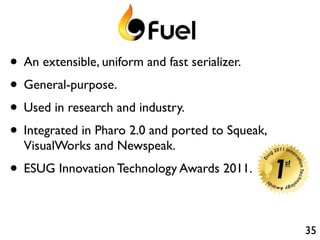

154. • An extensible, uniform and fast serializer.
• General-purpose.
• Used in research and industry.
• Integrated in Pharo 2.0 and ported to Squeak,
VisualWorks and Newspeak.
• ESUG Innovation Technology Awards 2011.
35

155. • An extensible, uniform and fast serializer.
• General-purpose.
• Used in research and industry.
• Integrated in Pharo 2.0 and ported to Squeak,
VisualWorks and Newspeak.
• ESUG Innovation Technology Awards 2011.
Martin Dias, Mariano Martinez Peck, Stéphane Ducasse and
Gabriela Arévalo. Fuel: A Fast General Purpose Object
Graph Serializer. Software: Practice and Experience, 2012.
35

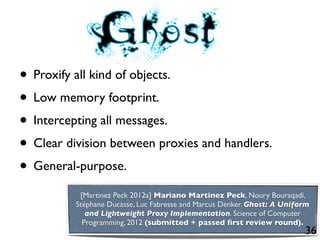

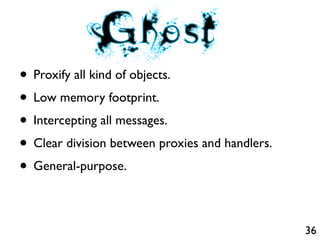

156. • Proxify all kind of objects.
• Low memory footprint.
• Intercepting all messages.
• Clear division between proxies and handlers.
• General-purpose.
36

157. • Proxify all kind of objects.
• Low memory footprint.
• Intercepting all messages.
• Clear division between proxies and handlers.
• General-purpose.
[Martinez Peck 2012a] Mariano Martinez Peck, Noury Bouraqadi,
Stéphane Ducasse, Luc Fabresse and Marcus Denker. Ghost: A Uniform
and Lightweight Proxy Implementation. Science of Computer
Programming, 2012 (submitted + passed first review round).
36

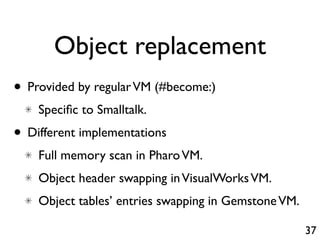

158. Object replacement
• Provided by regular VM (#become:)
Specific to Smalltalk.
• Different implementations
Full memory scan in Pharo VM.
Object header swapping in VisualWorks VM.
Object tables’ entries swapping in Gemstone VM.
37

159. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
38

160. Outline
1. Context, problem and introduction.
2. My proposal.
3. Validation.
4. Related work.
5. Implementation.
6. Conclusion and future work
38

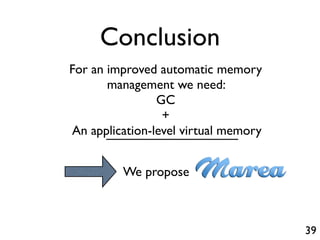

161. Conclusion
For an improved automatic memory
management we need:
GC
+
An application-level virtual memory
We propose
39

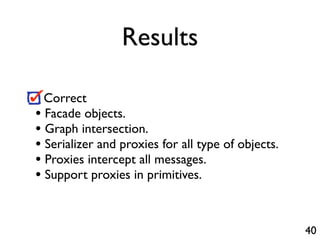

162. Results
Correct
• Facade objects.
• Graph intersection.
• Serializer and proxies for all type of objects.
• Proxies intercept all messages.
• Support proxies in primitives.
40

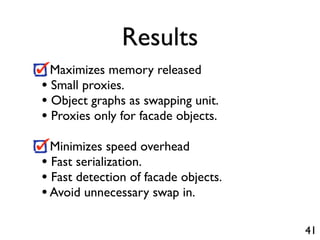

163. Results
Maximizes memory released
• Small proxies.
• Object graphs as swapping unit.
• Proxies only for facade objects.
Minimizes speed overhead
• Fast serialization.
• Fast detection of facade objects.
• Avoid unnecessary swap in.
41

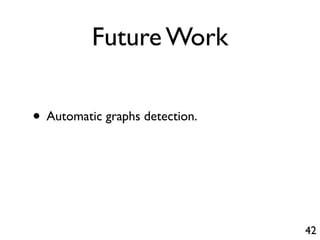

164. Future Work
• Automatic graphs detection.
42

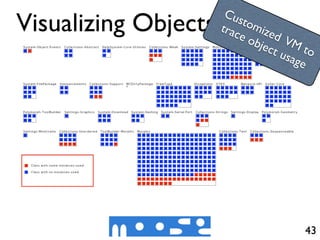

165. Visualizing Objects Usage
43

166. Cus
Visualizing Objects Usage
trac tom
eo ized
bjec VM
t us to
age
43

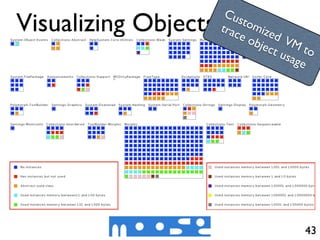

167. Cus
Visualizing Objects Usage
trac tom
eo ized
bjec VM
t us to
age
43

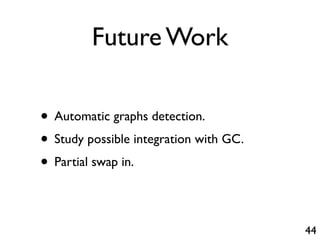

168. Future Work
• Automatic graphs detection.
• Study possible integration with GC.
• Partial swap in.
44

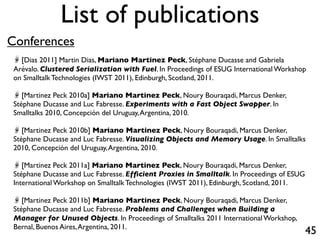

169. List of publications
Conferences
[Dias 2011] Martin Dias, Mariano Martinez Peck, Stéphane Ducasse and Gabriela
Arévalo. Clustered Serialization with Fuel. In Proceedings of ESUG International Workshop
on Smalltalk Technologies (IWST 2011), Edinburgh, Scotland, 2011.
[Martinez Peck 2010a] Mariano Martinez Peck, Noury Bouraqadi, Marcus Denker,
Stéphane Ducasse and Luc Fabresse. Experiments with a Fast Object Swapper. In
Smalltalks 2010, Concepción del Uruguay, Argentina, 2010.
[Martinez Peck 2010b] Mariano Martinez Peck, Noury Bouraqadi, Marcus Denker,
Stéphane Ducasse and Luc Fabresse. Visualizing Objects and Memory Usage. In Smalltalks
2010, Concepción del Uruguay, Argentina, 2010.
[Martinez Peck 2011a] Mariano Martinez Peck, Noury Bouraqadi, Marcus Denker,
Stéphane Ducasse and Luc Fabresse. Efficient Proxies in Smalltalk. In Proceedings of ESUG
International Workshop on Smalltalk Technologies (IWST 2011), Edinburgh, Scotland, 2011.
[Martinez Peck 2011b] Mariano Martinez Peck, Noury Bouraqadi, Marcus Denker,
Stéphane Ducasse and Luc Fabresse. Problems and Challenges when Building a
Manager for Unused Objects. In Proceedings of Smalltalks 2011 International Workshop,
Bernal, Buenos Aires, Argentina, 2011.
45

170. List of publications
Journals
[Martinez Peck 2011c] Mariano Martinez Peck, Noury Bouraqadi, Stéphane Ducasse
and Luc Fabresse. Object Swapping Challenges: an Evaluation of ImageSegment.
Journal of Computer Languages, Systems and Structures, vol. 38, no. 1, pages 1–15, nov 2011.
[Dias 2012] Martin Dias, Mariano Martinez Peck, Stéphane Ducasse and Gabriela
Arévalo. Fuel: A Fast General Purpose Object Graph Serializer. Software: Practice and
Experience, 2012.
[Martinez Peck 2012a] Mariano Martinez Peck, Noury Bouraqadi, Stéphane Ducasse,
Luc Fabresse and Marcus Denker. Ghost: A Uniform and Lightweight Proxy
Implementation. Science of Computer Programming, 2012 (submitted + passed first
review round).
[Martinez Peck 2012b] Mariano Martinez Peck, Noury Bouraqadi, Marcus Denker,
Stéphane Ducasse and Luc Fabresse. Object-Based Virtual Memory Brought To The
Application Level. Journal of Object Technology, 2012 (submitted).
46

171. In summary...
• We implemented a novel and efficient
application-level virtual memory for object-
oriented systems.
• Almost no need from the VM and fully
implemented in the language side.
• Users can decide and influence what and when
to swap.
Thanks!
Mariano Martinez Peck
47

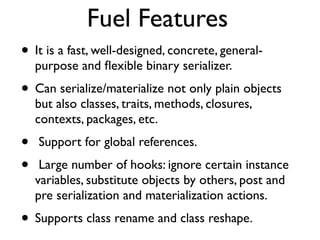

174. Fuel Features
• It is a fast, well-designed, concrete, general-
purpose and flexible binary serializer.
• Can serialize/materialize not only plain objects
but also classes, traits, methods, closures,
contexts, packages, etc.
• Support for global references.
• Large number of hooks: ignore certain instance
variables, substitute objects by others, post and
pre serialization and materialization actions.
• Supports class rename and class reshape.

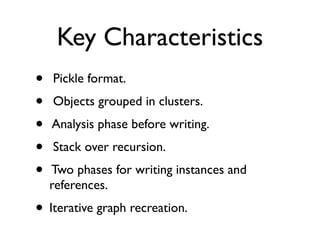

175. Key Characteristics
• Pickle format.
• Objects grouped in clusters.
• Analysis phase before writing.
• Stack over recursion.
• Two phases for writing instances and
references.
• Iterative graph recreation.

176. Success stories
• Export and import of Moose models.
• Pier CMS persistency (and export/import)
• Backend of SandstoneDB, SimplePersistence and NoSQL databases.
• BioSmalltalk: serialize big DNA or proteins.
• PharoKernel regeneration and bootstrap (Hazelnut).
• Presenty UI and Gaucho frameworks.
• Revive test failures from Jenkins and materialize debuggers in
another image.
• Serialization for remote programming (Seamless).
• Tanker (export/import packages of code).
• Several commercial applications.

177. Traditional proxies
Usage of a minimal object together with an implementation of a
custom #doesNotUnderstand
ProtoObject
identityHash
pointersTo
nextObject
...
Proxy
target
doesNotUnderstand:
executeBeforeHandling
executeAfterHandling

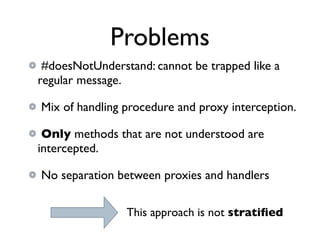

178. Problems
#doesNotUnderstand: cannot be trapped like a
regular message.
Mix of handling procedure and proxy interception.
Only methods that are not understood are
intercepted.
No separation between proxies and handlers
This approach is not stratified

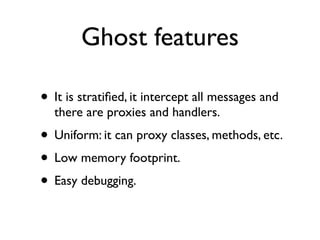

179. Ghost features
• It is stratified, it intercept all messages and
there are proxies and handlers.
• Uniform: it can proxy classes, methods, etc.
• Low memory footprint.
• Easy debugging.

180. Traditional Ghost
#doesNotUnderstand: #cannotInterpret: is
cannot be trapped like a trapped like a regular
regular message. message.
Mix of handling No mix of handling
procedure and proxy procedure and proxy
interception. interception.
Only methods that are
“All” methods are
not understood are
intercepted.
intercepted.
No separation between Clear separation between
proxies and handlers. proxies and handlers.

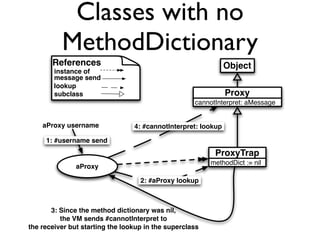

181. Classes with no
MethodDictionary
References Object
instance of
message send
lookup
subclass Proxy
cannotInterpret: aMessage
aProxy username 4: #cannotInterpret: lookup
1: #username send
ProxyTrap
methodDict := nil
aProxy
2: #aProxy lookup
3: Since the method dictionary was nil,
the VM sends #cannotInterpret to
the receiver but starting the lookup in the superclass

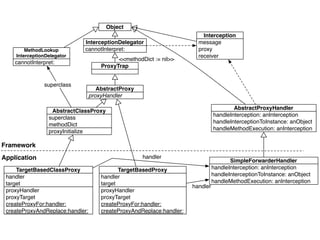

182. Object
Interception
InterceptionDelegator message
MethodLookup cannotInterpret: proxy
InterceptionDelegator receiver
<<methodDict := nil>>
cannotInterpret:
ProxyTrap
superclass
AbstractProxy
proxyHandler
AbstractProxyHandler
AbstractClassProxy
handleInterception: anInterception
superclass
handleInterceptionToInstance: anObject
methodDict
handleMethodExecution: anInterception
proxyInitialize
Framework
Application handler
SimpleForwarderHandler
TargetBasedClassProxy TargetBasedProxy handleInterception: anInterception
handler handler handleInterceptionToInstance: anObject
target target handleMethodExecution: anInterception
handler
proxyHandler proxyHandler
proxyTarget proxyTarget
createProxyFor:handler: createProxyFor:handler:
createProxyAndReplace:handler: createProxyAndReplace:handler:

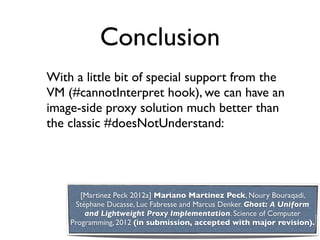

183. Conclusion
With a little bit of special support from the
VM (#cannotInterpret hook), we can have an
image-side proxy solution much better than
the classic #doesNotUnderstand:
[Martinez Peck 2012a] Mariano Martinez Peck, Noury Bouraqadi,
Stéphane Ducasse, Luc Fabresse and Marcus Denker. Ghost: A Uniform
and Lightweight Proxy Implementation. Science of Computer
Programming, 2012 (in submission, accepted with major revision).

184. ObjectTracer VM
• A Pharo Smalltalk virtual machine that
traces object usage.
• Let us query which objects has been used
and which ones have not.
http://ss3.gemstone.com/ss/ObjectUsageTracer.html

185. Results

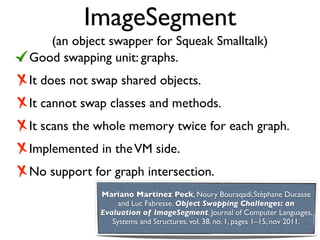

186. ImageSegment
(an object swapper for Squeak Smalltalk)
Good swapping unit: graphs.
It does not swap shared objects.
It cannot swap classes and methods.
It scans the whole memory twice for each graph.
Implemented in the VM side.
No support for graph intersection.
Mariano Martinez Peck, Noury Bouraqadi,Stéphane Ducasse
and Luc Fabresse. Object Swapping Challenges: an
Evaluation of ImageSegment. Journal of Computer Languages,
Systems and Structures, vol. 38, no. 1, pages 1–15, nov 2011.

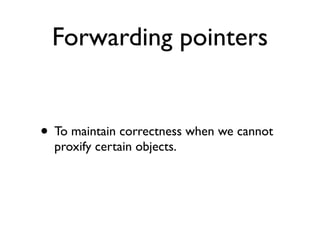

187. Forwarding pointers
• To maintain correctness when we cannot
proxify certain objects.

188. Speed analysis

189. Primary memory
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory
B’ A’ C’
1 2 3
42.swap

190. Primary memory
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory
B’ A’ C’
1 2 3
42.swap

191. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
B’ A’ C’
1 2 3
42.swap

192. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
B’ A’ C’
1 2 3
42.swap D’ Pc’
1 2
43.swap

193. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
Pd
43 1
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’
1 2 3
42.swap D’ Pc’
1 2
43.swap

194. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
Pd
43 1
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
42.swap D’ Pc’
1 2
43.swap

195. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
Pd
43 1
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
42.swap D’ Pc’
1 2
43.swap

196. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
Pd
43 1
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Store shared proxy
42.swap D’ Pc’
1 2
43.swap

197. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3
GraphTable
Pd
43 1
49194 Pc
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Store shared proxy
42.swap D’ Pc’
1 2
43.swap

198. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3 43 Pd Pc
GraphTable
Pd (weak array)
43 1
49194 Pc
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Store shared proxy
42.swap 6) Update GraphTable
D’ Pc’
1 2
43.swap

199. Primary memory
Graph ID: 43
Intersections...
Pa Pc
42 (weak array)
Pa Pc D
42 2 42 3 43 Pd Pc
GraphTable
Pd (weak array)
43 1
49194 Pc
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Store shared proxy
42.swap 6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
43.swap

200. Primary memory
Intersections...
Pa Pc
42 (weak array)
Pa Pc
42 2 42 3 43 Pd Pc
GraphTable
Pd (weak array)
43 1
49194 Pc
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Store shared proxy
42.swap 6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
43.swap

201. Primary memory
Intersections...
Pa Pc
42 (weak array)
Pa Pc
42 2 42 3 43 Pd Pc
GraphTable
Pd (weak array)
43 1
49194 Pc
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Store shared proxy
42.swap 6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
8) Swap in graph 42
43.swap

202. Primary memory
Intersections...
Pa C’
42 (weak array)
Pc
42 3 43 Pd C’
A’ Pd
GraphTable (weak array)
43 1
B’ C’
49194 C’
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Store shared proxy
42.swap 6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
8) Swap in graph 42
43.swap

203. Primary memory
Intersections...
C’
Pc
42 3 43 Pd C’
A’ Pd
GraphTable (weak array)
43 1
B’ C’
49194 C’
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
B’ A’ C’ 4) Replace original objects with proxies
1 2 3
5) Store shared proxy
42.swap 6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
8) Swap in graph 42
43.swap

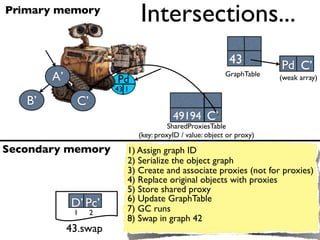

204. Primary memory
Intersections...
C’
Pc
42 3 43 Pd C’
A’ Pd
GraphTable (weak array)
43 1
B’ C’
49194 C’
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
4) Replace original objects with proxies
5) Store shared proxy
6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
8) Swap in graph 42
43.swap

205. Primary memory
Intersections...
C’
Pc
42 3 43 Pd C’
A’ Pd
GraphTable (weak array)
43 1
B’ C’
49194 C’
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
4) Replace original objects with proxies
5) Store shared proxy
6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
8) Swap in graph 42
43.swap 9) Swap in graph 43

206. Primary memory
Intersections...
C’
Pc
42 3 43 Pd C’
A’ Pd
GraphTable (weak array)
43 1
B’ C’
49194 C’
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
4) Replace original objects with proxies
5) Store shared proxy
6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
8) Swap in graph 42
43.swap 9) Swap in graph 43

207. Primary memory
Intersections...
C’
Pc
42 3 43 Pd C’
A’ Pd
GraphTable (weak array)
43 1
B’ C’
49194 C’
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
4) Replace original objects with proxies
5) Store shared proxy
6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
8) Swap in graph 42
43.swap 9) Swap in graph 43

208. Primary memory
Intersections...
C’
Pc D
42 3 43 Pd C’
A’ GraphTable (weak array)
B’ C’
49194 C’
SharedProxiesTable
(key: proxyID / value: object or proxy)
Secondary memory 1) Assign graph ID
2) Serialize the object graph
3) Create and associate proxies (not for proxies)
4) Replace original objects with proxies
5) Store shared proxy
6) Update GraphTable
D’ Pc’ 7) GC runs
1 2
8) Swap in graph 42
43.swap 9) Swap in graph 43

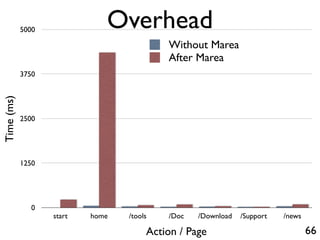

209. 5000
Overhead
Without Marea
After Marea
3750
Time (ms)
2500
1250
0
start home /tools /Doc /Download /Support /news
Action / Page 66

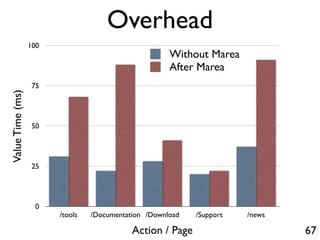

210. Overhead
100
Without Marea
After Marea
75
Value Time (ms)
50
25
0
/tools /Documentation /Download /Support /news
Action / Page 67
