1. THE URINARY
SYSTEM
Presenter :Jagruti Marathe
20/06/2022 1

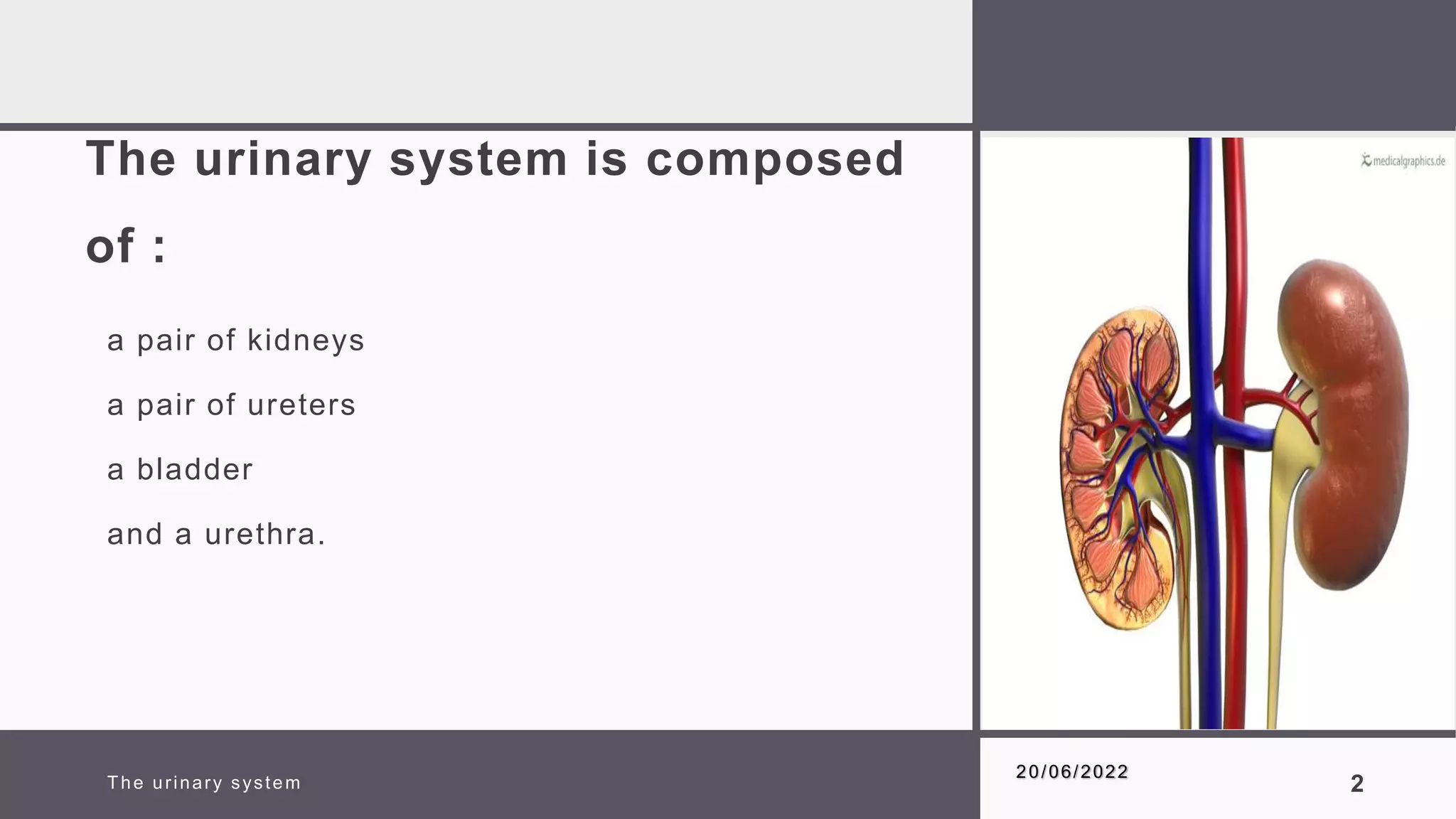

2. The urinary system is composed
of :
a pair of kidneys
a pair of ureters
a bladder
and a urethra.
The urinary system
20/06/2022
2

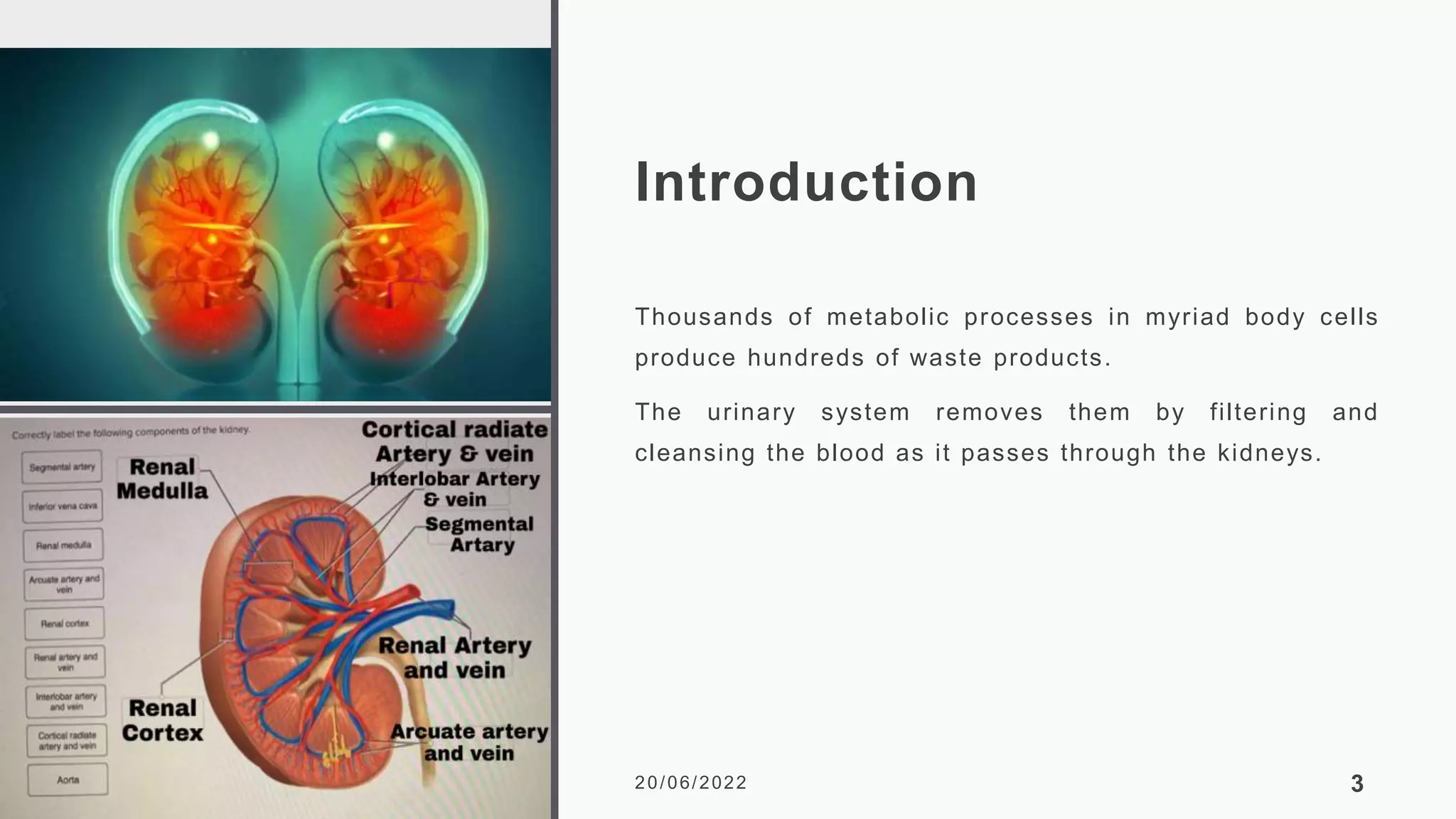

3. Introduction
Thousands of metabolic processes in myriad body cells
produce hundreds of waste products.
The urinary system removes them by filtering and
cleansing the blood as it passes through the kidneys.
20/06/2022 3

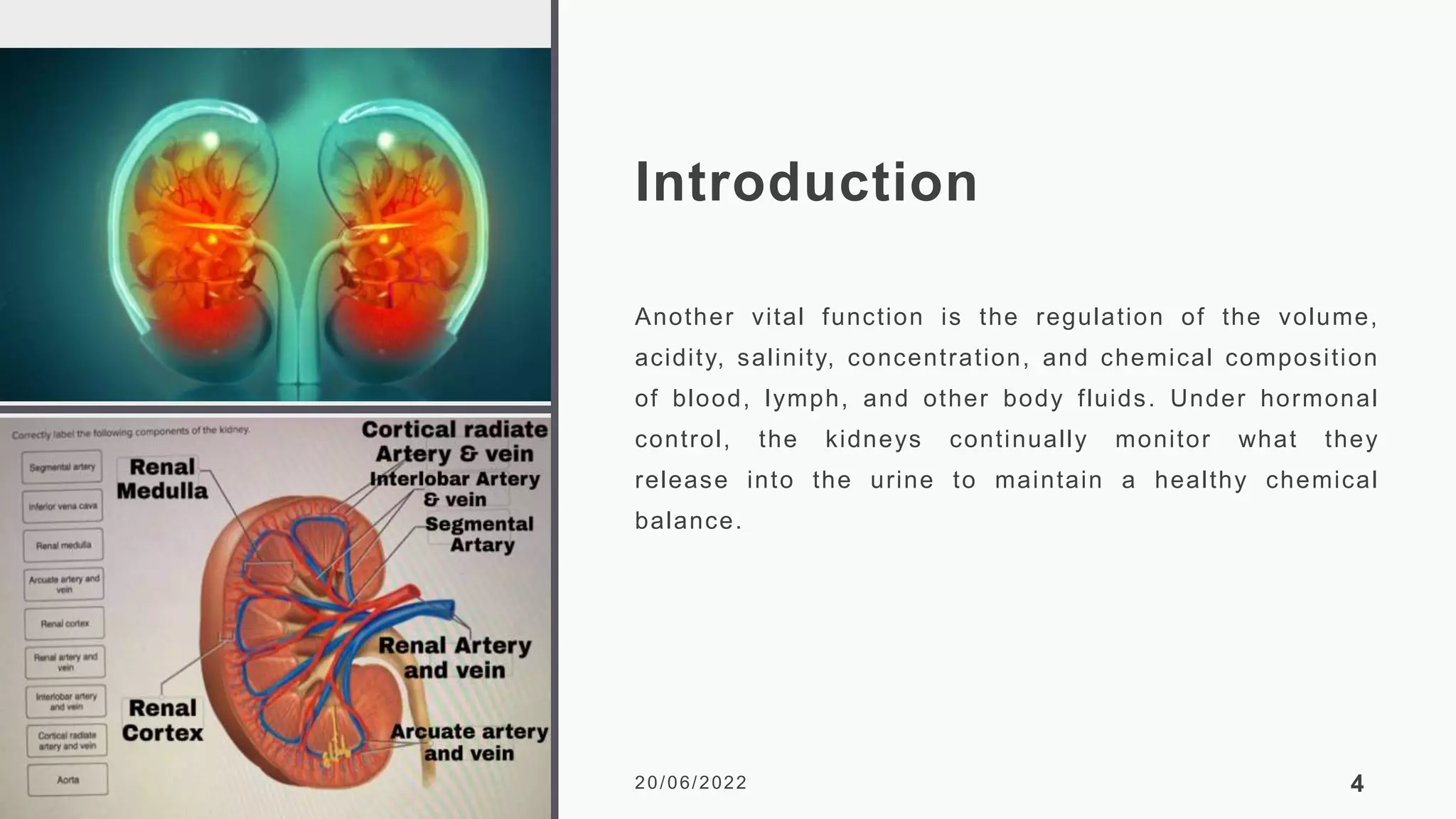

4. Introduction
Another vital function is the regulation of the volume,
acidity, salinity, concentration, and chemical composition
of blood, lymph, and other body fluids. Under hormonal
control, the kidneys continually monitor what they
release into the urine to maintain a healthy chemical
balance.
20/06/2022 4

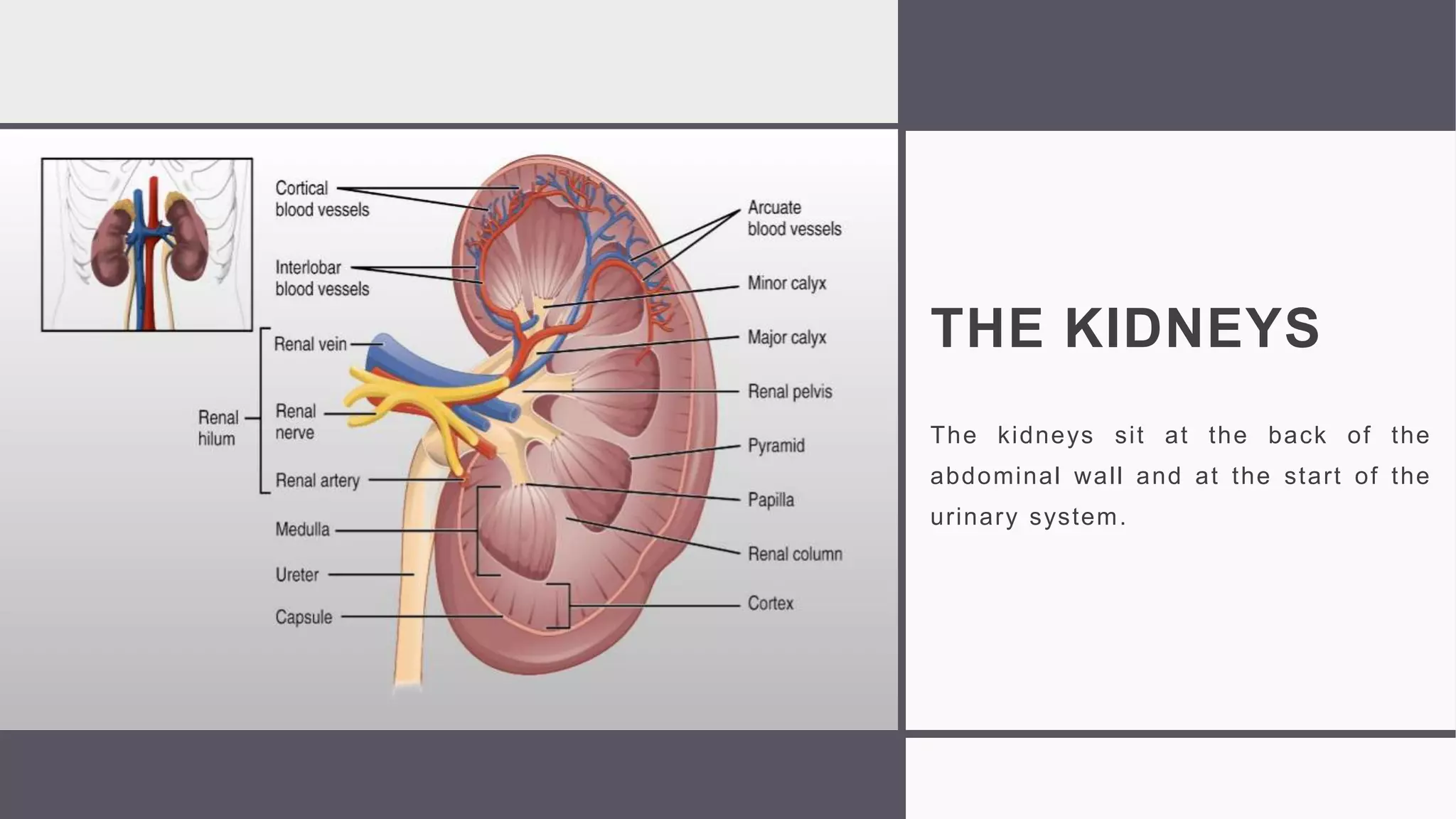

5. THE KIDNEYS
The kidneys sit at the back of the
abdominal wall and at the start of the
urinary system.

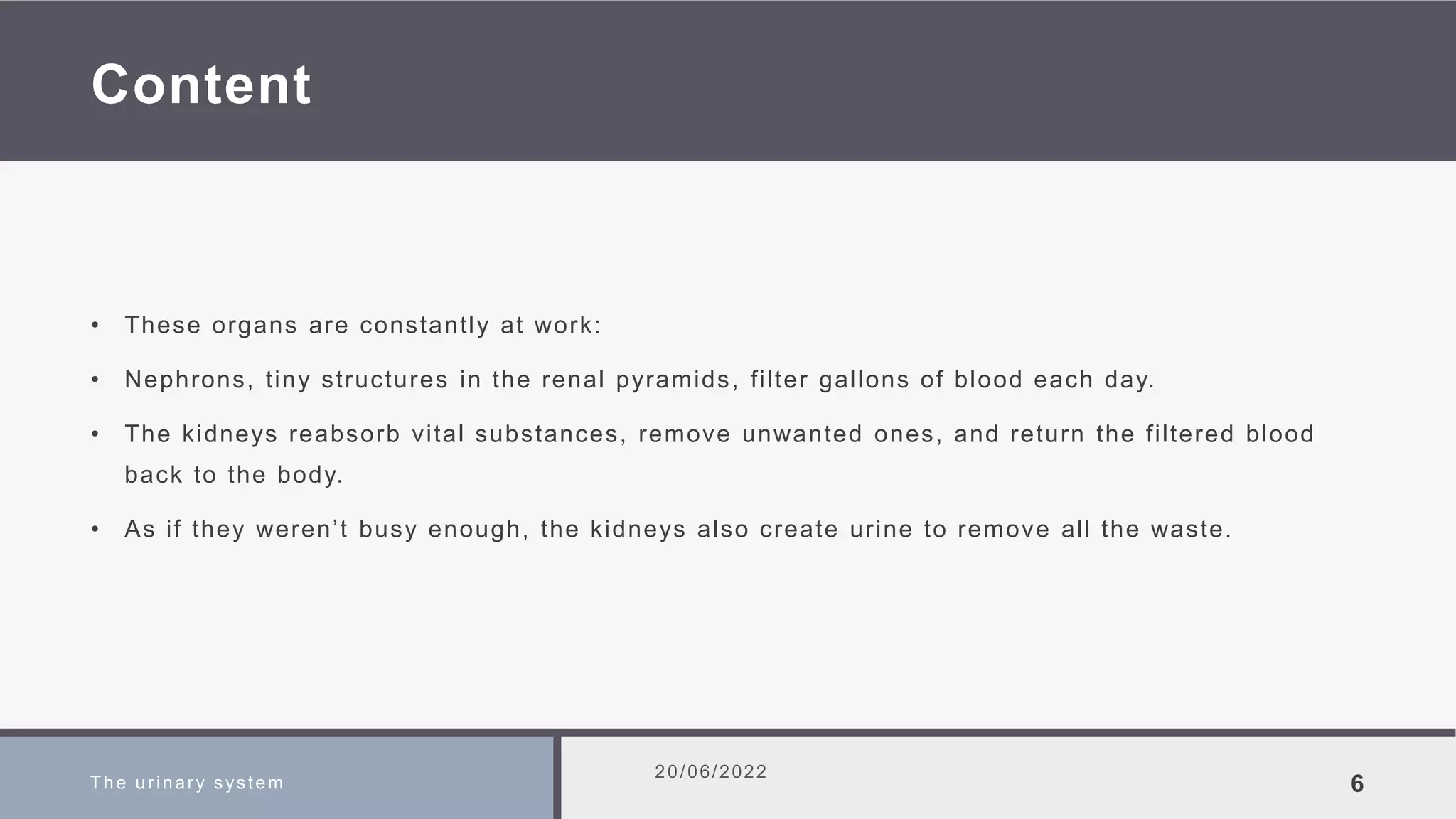

6. Content
• These organs are constantly at work:
• Nephrons, tiny structures in the renal pyramids, filter gallons of blood each day.
• The kidneys reabsorb vital substances, remove unwanted ones, and return the filtered blood
back to the body.
• As if they weren’t busy enough, the kidneys also create urine to remove all the waste.
The urinary system
20/06/2022
6

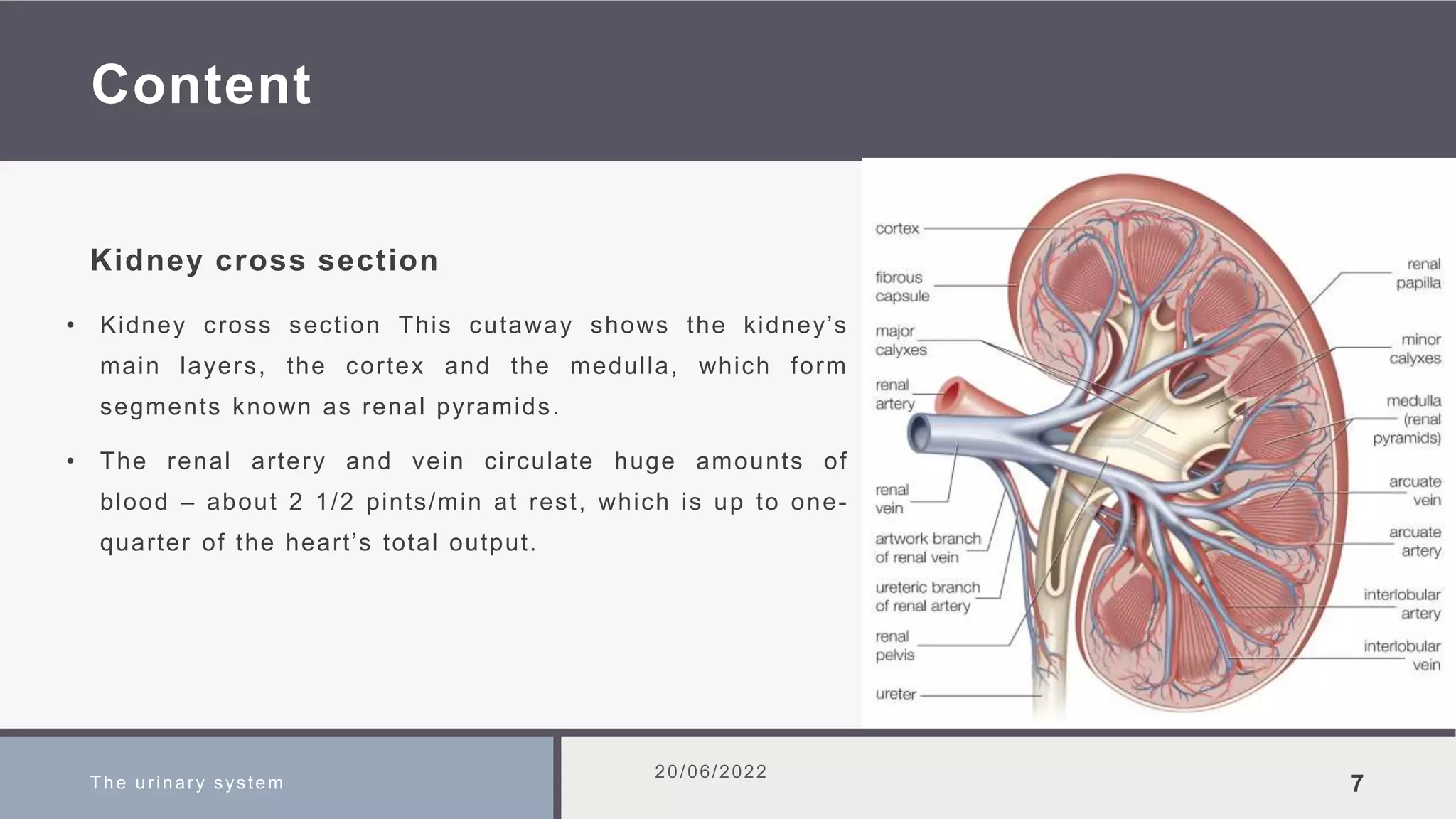

7. Content
• Kidney cross section This cutaway shows the kidney’s
main layers, the cortex and the medulla, which form
segments known as renal pyramids.
• The renal artery and vein circulate huge amounts of
blood – about 2 1/2 pints/min at rest, which is up to one-
quarter of the heart’s total output.
The urinary system
20/06/2022
7
Kidney cross section

8. Content

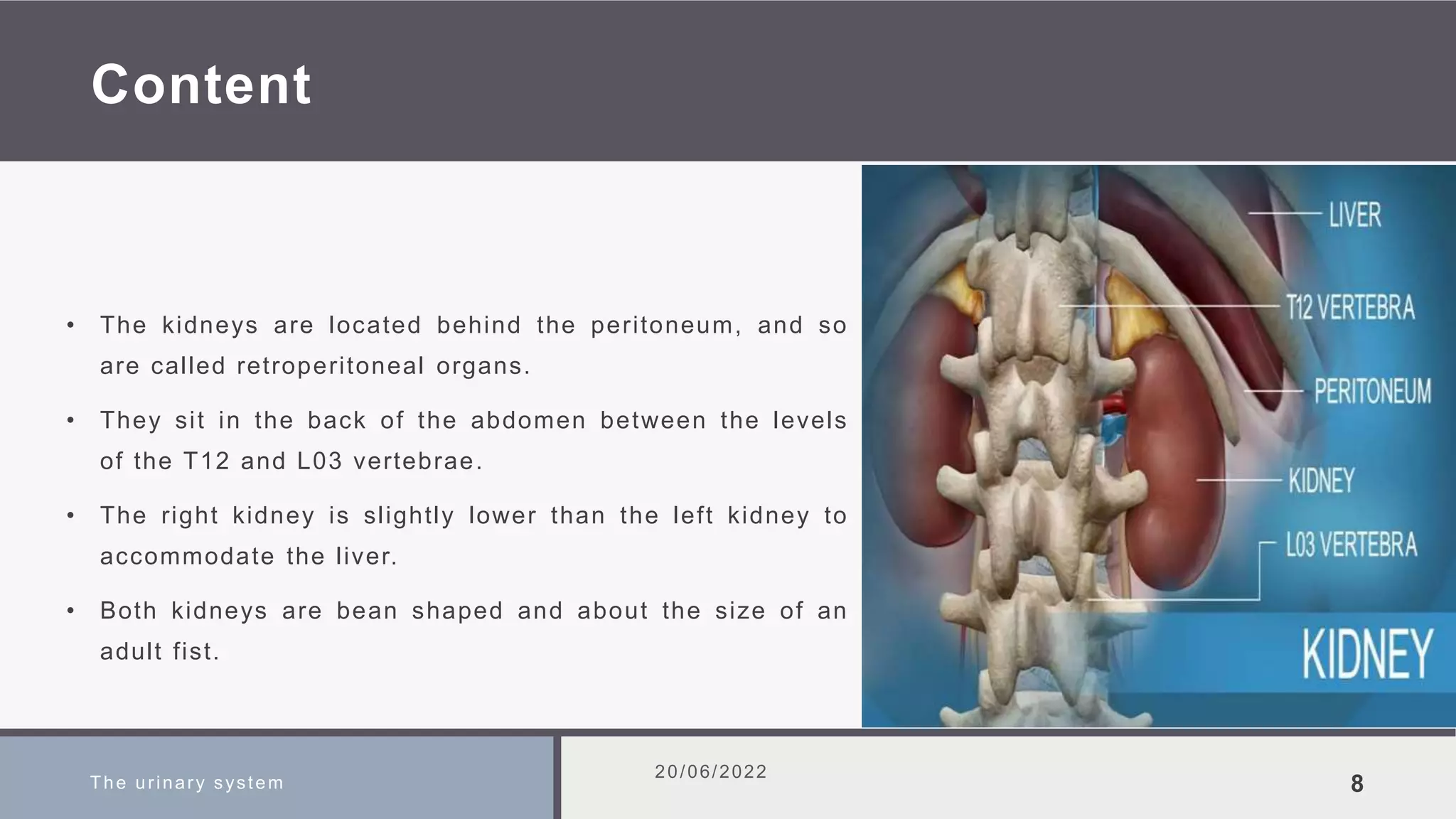

• The kidneys are located behind the peritoneum, and so
are called retroperitoneal organs.
• They sit in the back of the abdomen between the levels
of the T12 and L03 vertebrae.
• The right kidney is slightly lower than the left kidney to
accommodate the liver.
• Both kidneys are bean shaped and about the size of an
adult fist.
The urinary system
20/06/2022
8

9. Content

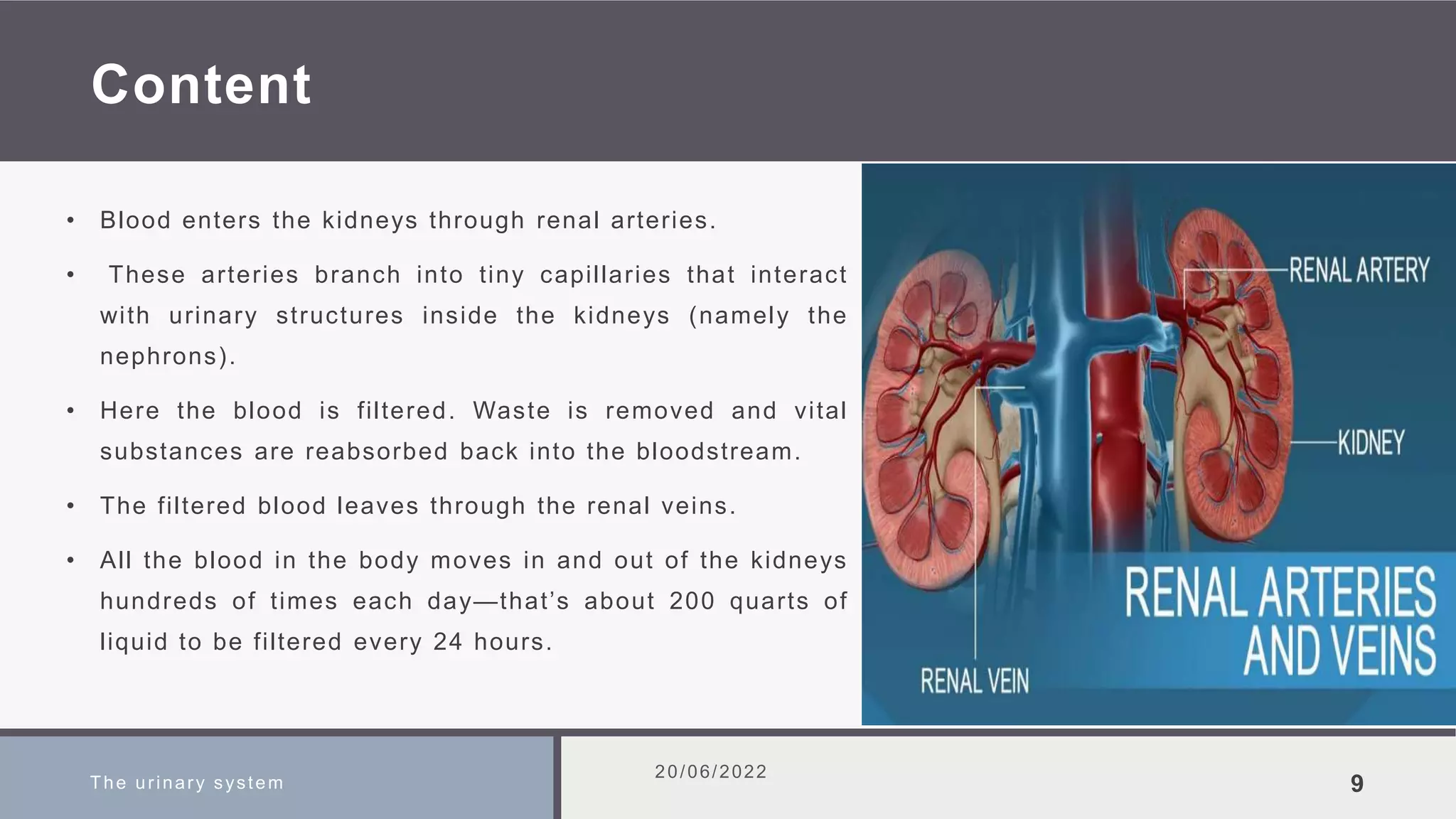

• Blood enters the kidneys through renal arteries.
• These arteries branch into tiny capillaries that interact
with urinary structures inside the kidneys (namely the
nephrons).
• Here the blood is filtered. Waste is removed and vital
substances are reabsorbed back into the bloodstream.
• The filtered blood leaves through the renal veins.
• All the blood in the body moves in and out of the kidneys
hundreds of times each day—that’s about 200 quarts of
liquid to be filtered every 24 hours.
The urinary system
20/06/2022
9

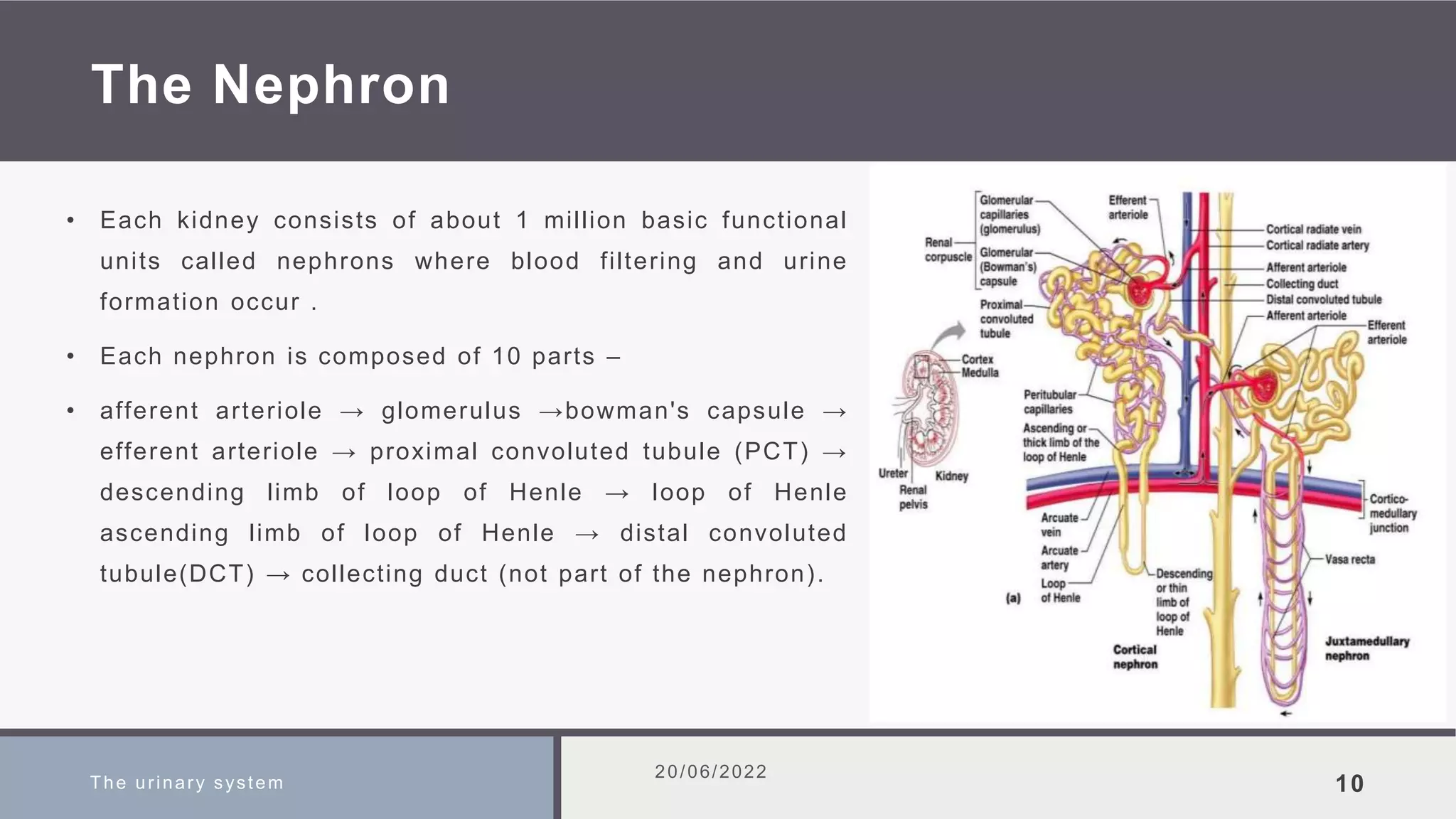

10. The Nephron
• Each kidney consists of about 1 million basic functional
units called nephrons where blood filtering and urine
formation occur .
• Each nephron is composed of 10 parts –
• afferent arteriole → glomerulus →bowman's capsule →
efferent arteriole → proximal convoluted tubule (PCT) →
descending limb of loop of Henle → loop of Henle
ascending limb of loop of Henle → distal convoluted
tubule(DCT) → collecting duct (not part of the nephron).
The urinary system
20/06/2022
10

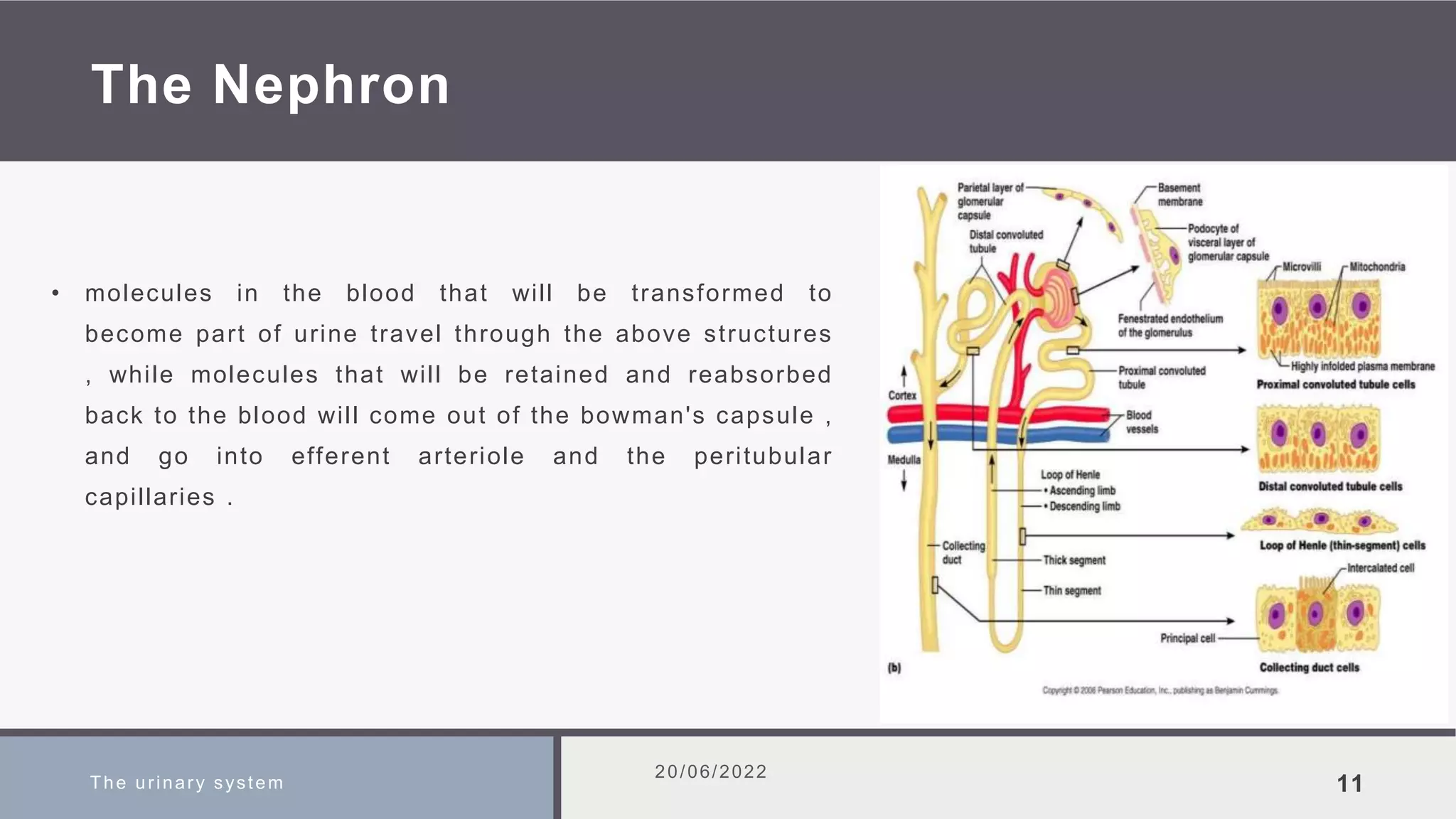

11. The Nephron
• molecules in the blood that will be transformed to
become part of urine travel through the above structures
, while molecules that will be retained and reabsorbed
back to the blood will come out of the bowman's capsule ,
and go into efferent arteriole and the peritubular
capillaries .
The urinary system
20/06/2022
11

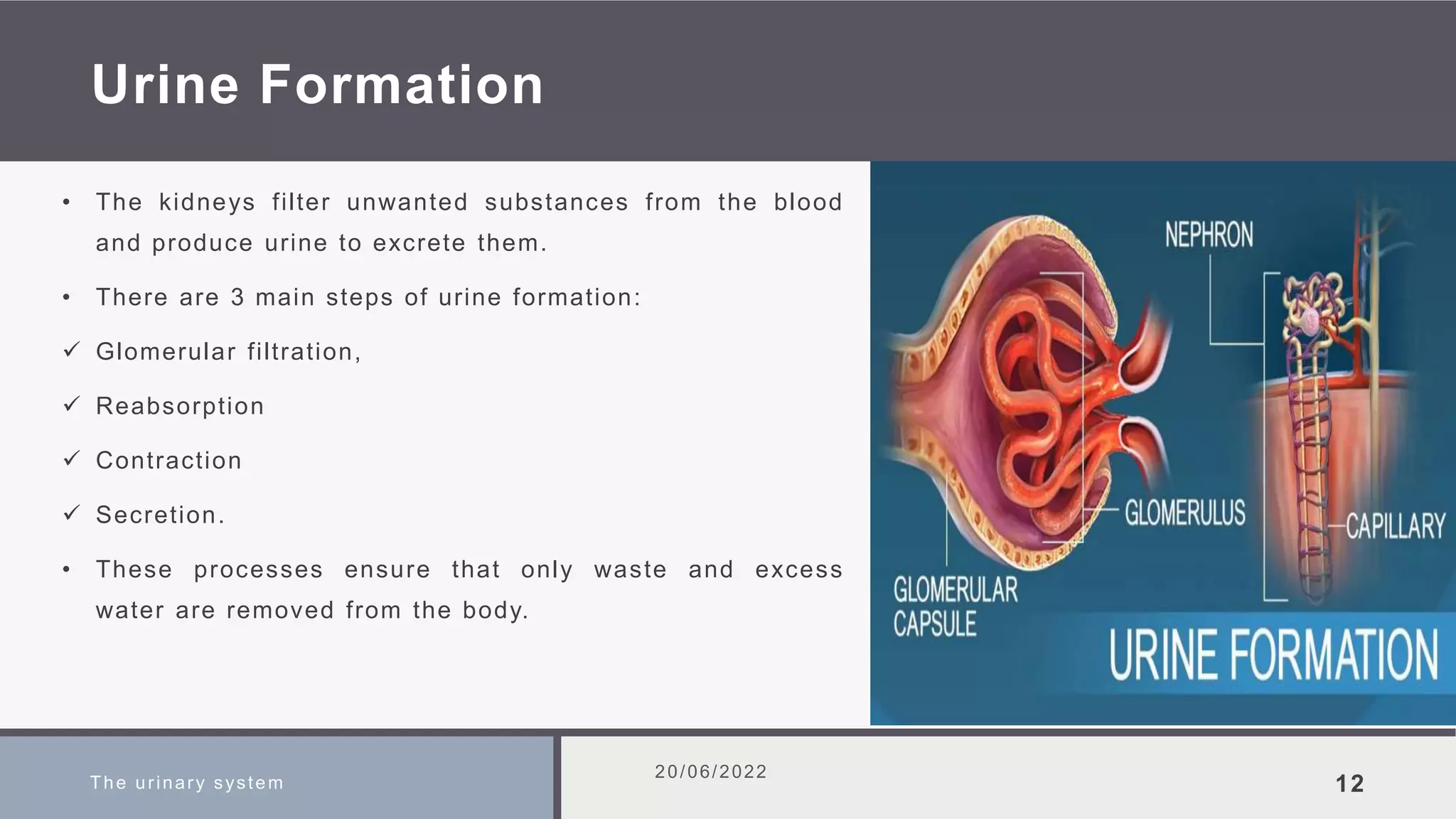

12. Urine Formation
• The kidneys filter unwanted substances from the blood
and produce urine to excrete them.
• There are 3 main steps of urine formation:
 Glomerular filtration,
 Reabsorption
 Contraction
 Secretion.
• These processes ensure that only waste and excess
water are removed from the body.
The urinary system
20/06/2022
12

13. Content

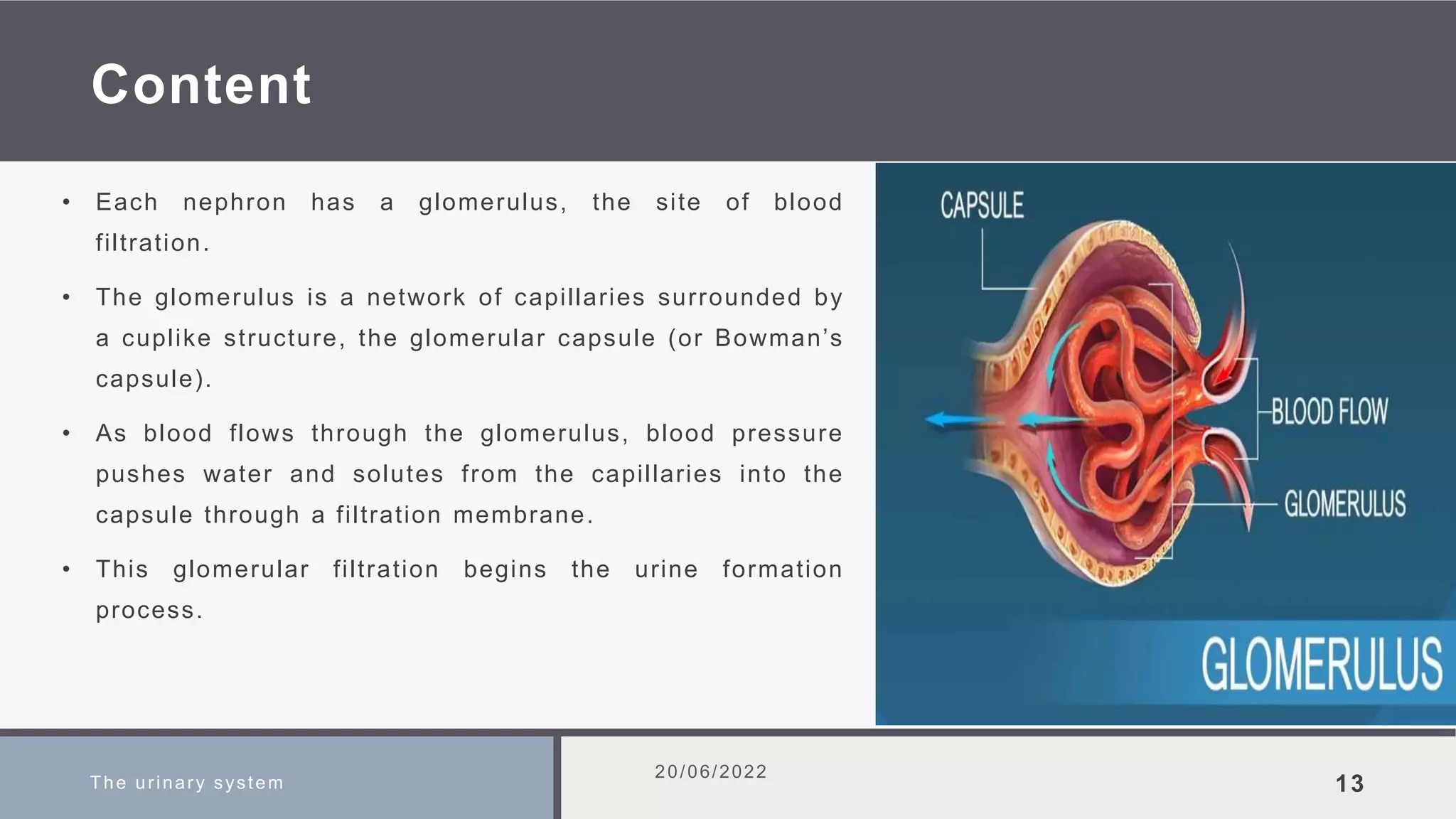

• Each nephron has a glomerulus, the site of blood
filtration.
• The glomerulus is a network of capillaries surrounded by
a cuplike structure, the glomerular capsule (or Bowman’s
capsule).
• As blood flows through the glomerulus, blood pressure
pushes water and solutes from the capillaries into the
capsule through a filtration membrane.
• This glomerular filtration begins the urine formation
process.
The urinary system
20/06/2022
13

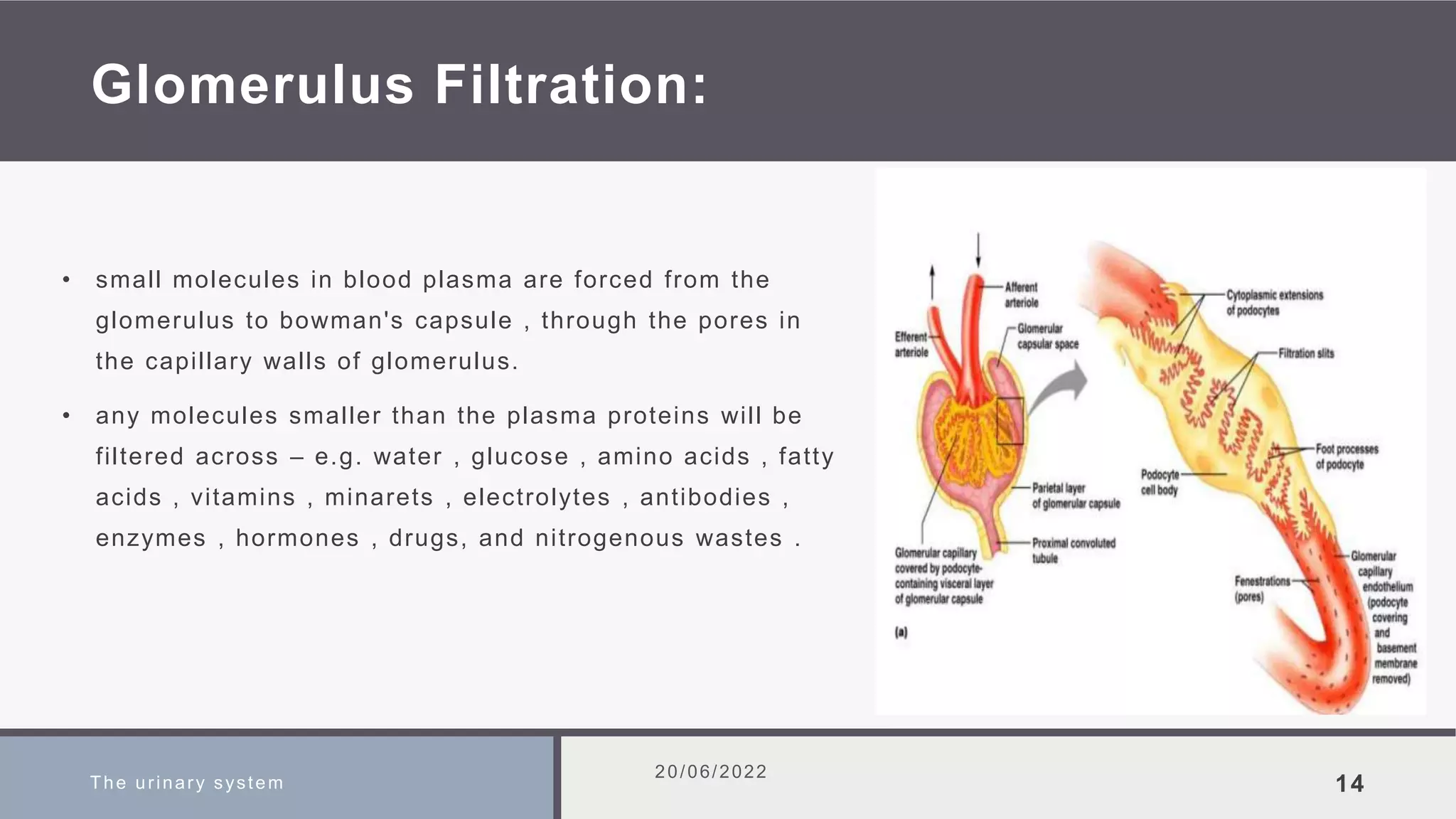

14. Glomerulus Filtration:
• small molecules in blood plasma are forced from the
glomerulus to bowman's capsule , through the pores in
the capillary walls of glomerulus.
• any molecules smaller than the plasma proteins will be
filtered across – e.g. water , glucose , amino acids , fatty
acids , vitamins , minarets , electrolytes , antibodies ,
enzymes , hormones , drugs, and nitrogenous wastes .
The urinary system
20/06/2022
14

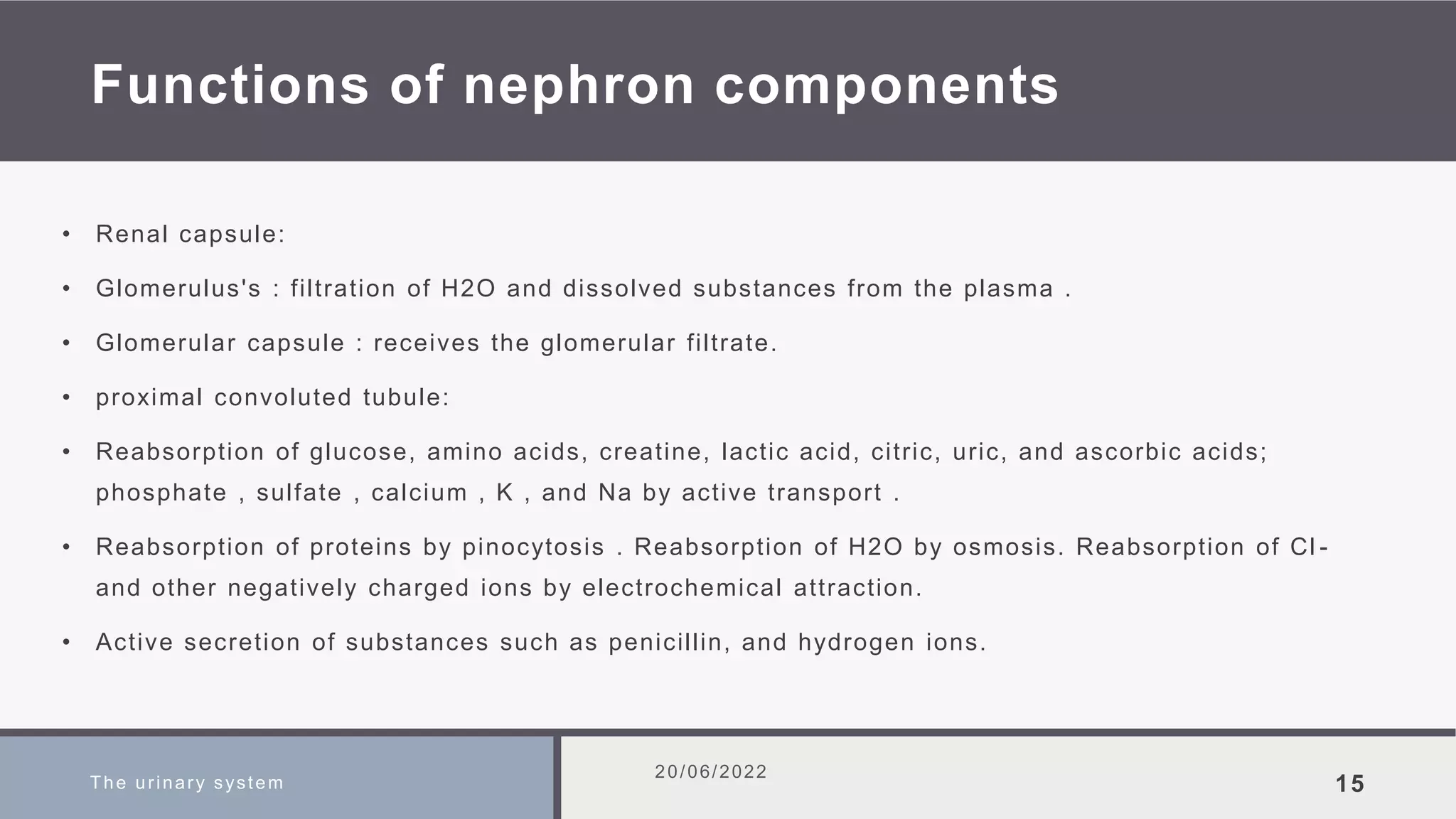

15. Functions of nephron components
• Renal capsule:
• Glomerulus's : filtration of H2O and dissolved substances from the plasma .
• Glomerular capsule : receives the glomerular filtrate.
• proximal convoluted tubule:
• Reabsorption of glucose, amino acids, creatine, lactic acid, citric, uric, and ascorbic acids;
phosphate , sulfate , calcium , K , and Na by active transport .
• Reabsorption of proteins by pinocytosis . Reabsorption of H2O by osmosis. Reabsorption of Cl -
and other negatively charged ions by electrochemical attraction.
• Active secretion of substances such as penicillin, and hydrogen ions.
The urinary system
20/06/2022
15

16. The urinary system
20/06/2022
16

17. The urinary system
20/06/2022
17

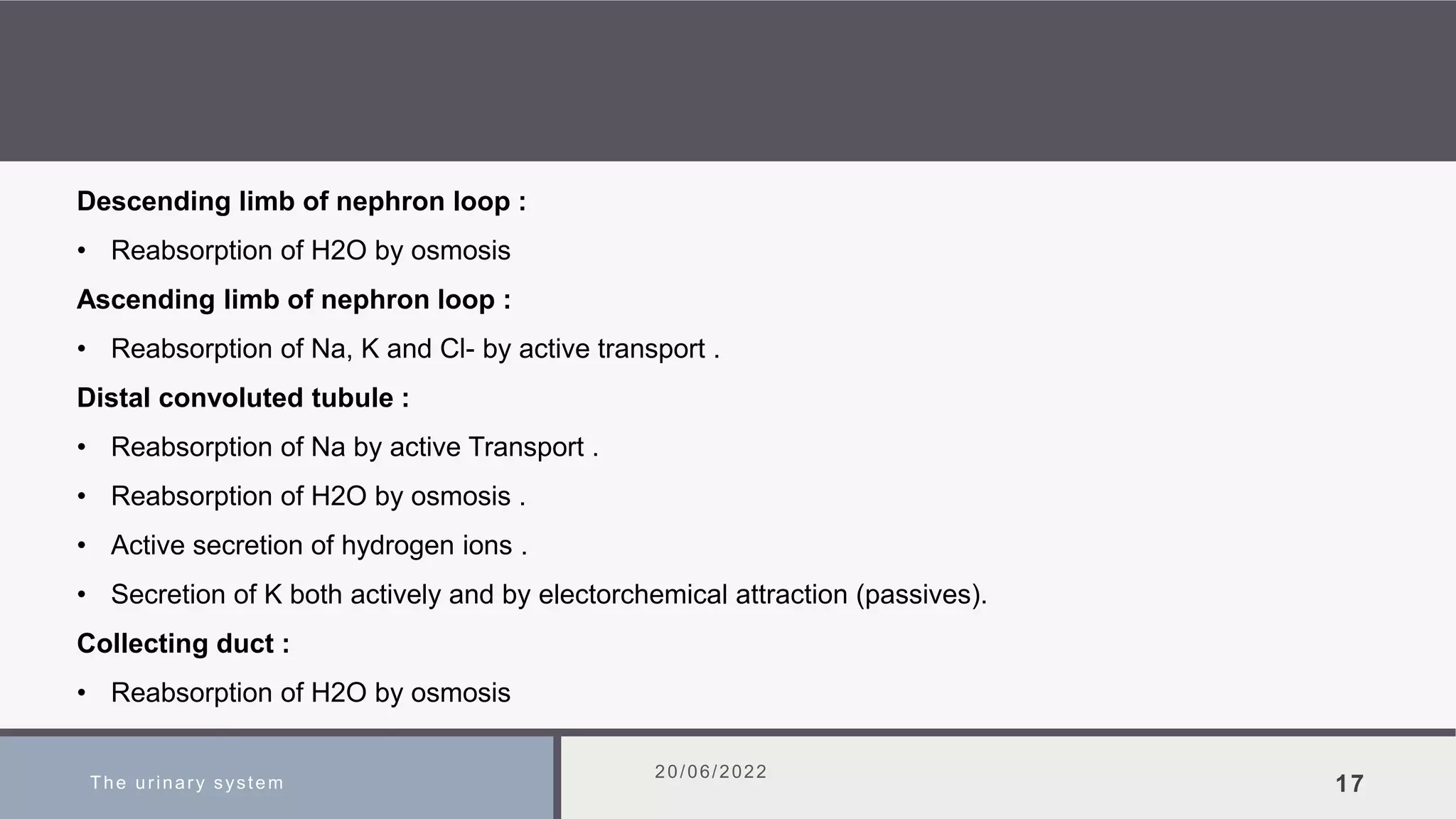

Descending limb of nephron loop :
• Reabsorption of H2O by osmosis
Ascending limb of nephron loop :
• Reabsorption of Na, K and Cl- by active transport .
Distal convoluted tubule :
• Reabsorption of Na by active Transport .
• Reabsorption of H2O by osmosis .
• Active secretion of hydrogen ions .
• Secretion of K both actively and by electorchemical attraction (passives).
Collecting duct :
• Reabsorption of H2O by osmosis

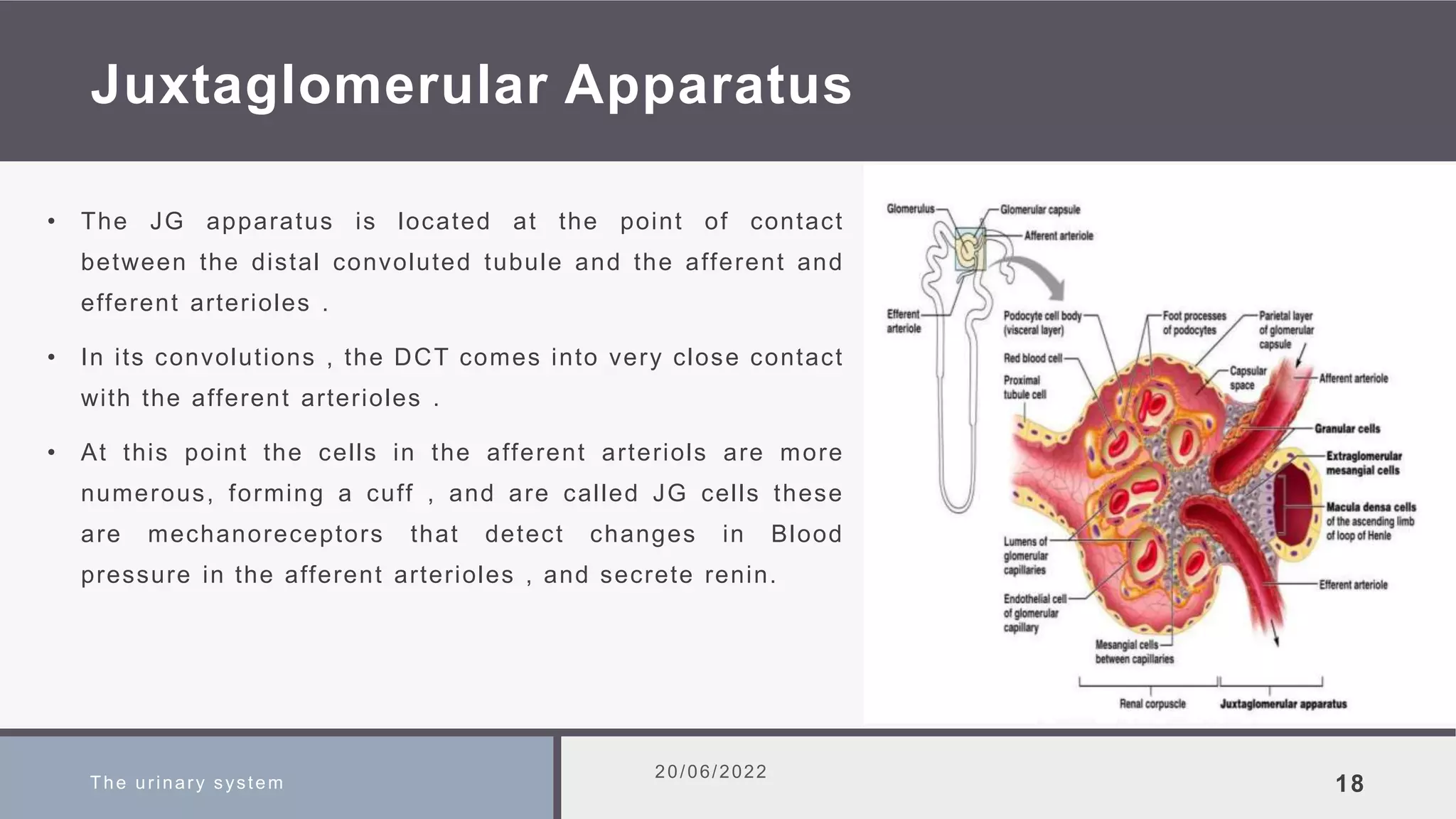

18. Juxtaglomerular Apparatus
• The JG apparatus is located at the point of contact
between the distal convoluted tubule and the afferent and
efferent arterioles .
• In its convolutions , the DCT comes into very close contact
with the afferent arterioles .
• At this point the cells in the afferent arteriols are more
numerous, forming a cuff , and are called JG cells these
are mechanoreceptors that detect changes in Blood
pressure in the afferent arterioles , and secrete renin.
The urinary system
20/06/2022
18

19. Juxtaglomerular Apparatus

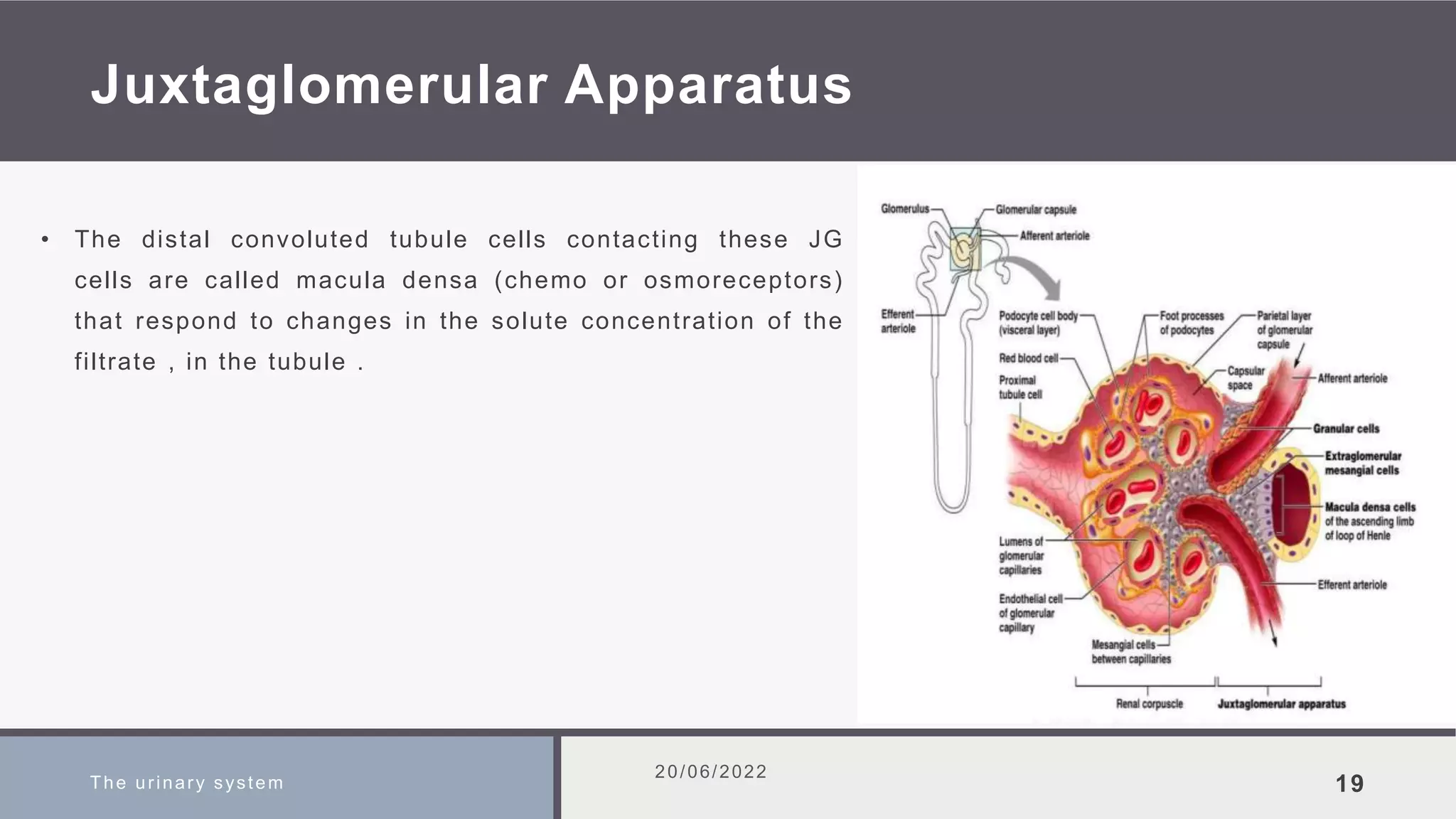

• The distal convoluted tubule cells contacting these JG
cells are called macula densa (chemo or osmoreceptors)
that respond to changes in the solute concentration of the
filtrate , in the tubule .
The urinary system
20/06/2022
19

20. • The distal convoluted tubule cells contacting these JG
cells are called macula densa (chemo or osmoreceptors)
that respond to changes in the solute concentration of the
filtrate , in the tubule .
The urinary system
20/06/2022
20

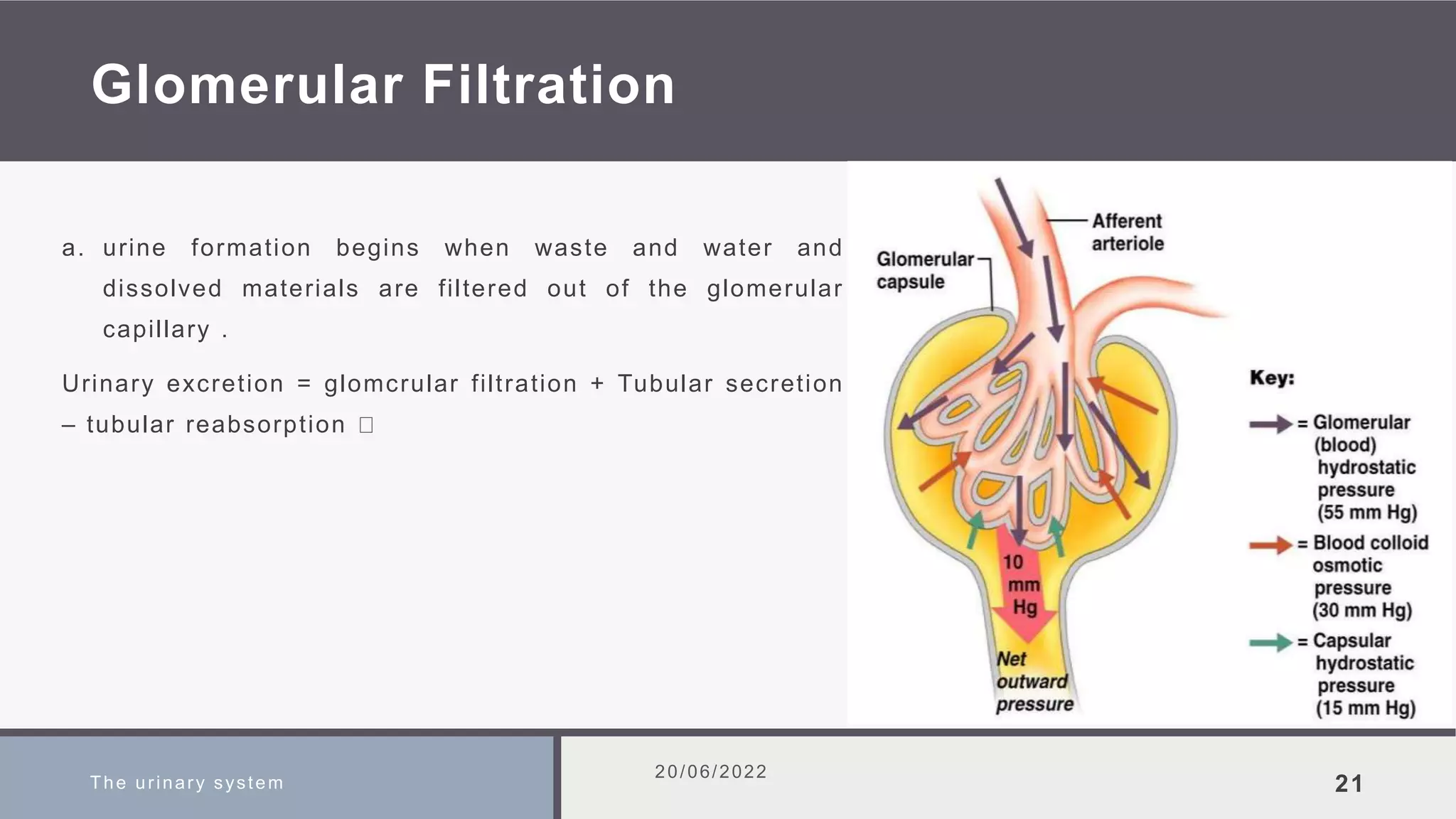

21. Glomerular Filtration
a. urine formation begins when waste and water and
dissolved materials are filtered out of the glomerular
capillary .
Urinary excretion = glomcrular filtration + Tubular secretion
– tubular reabsorption
The urinary system
20/06/2022
21

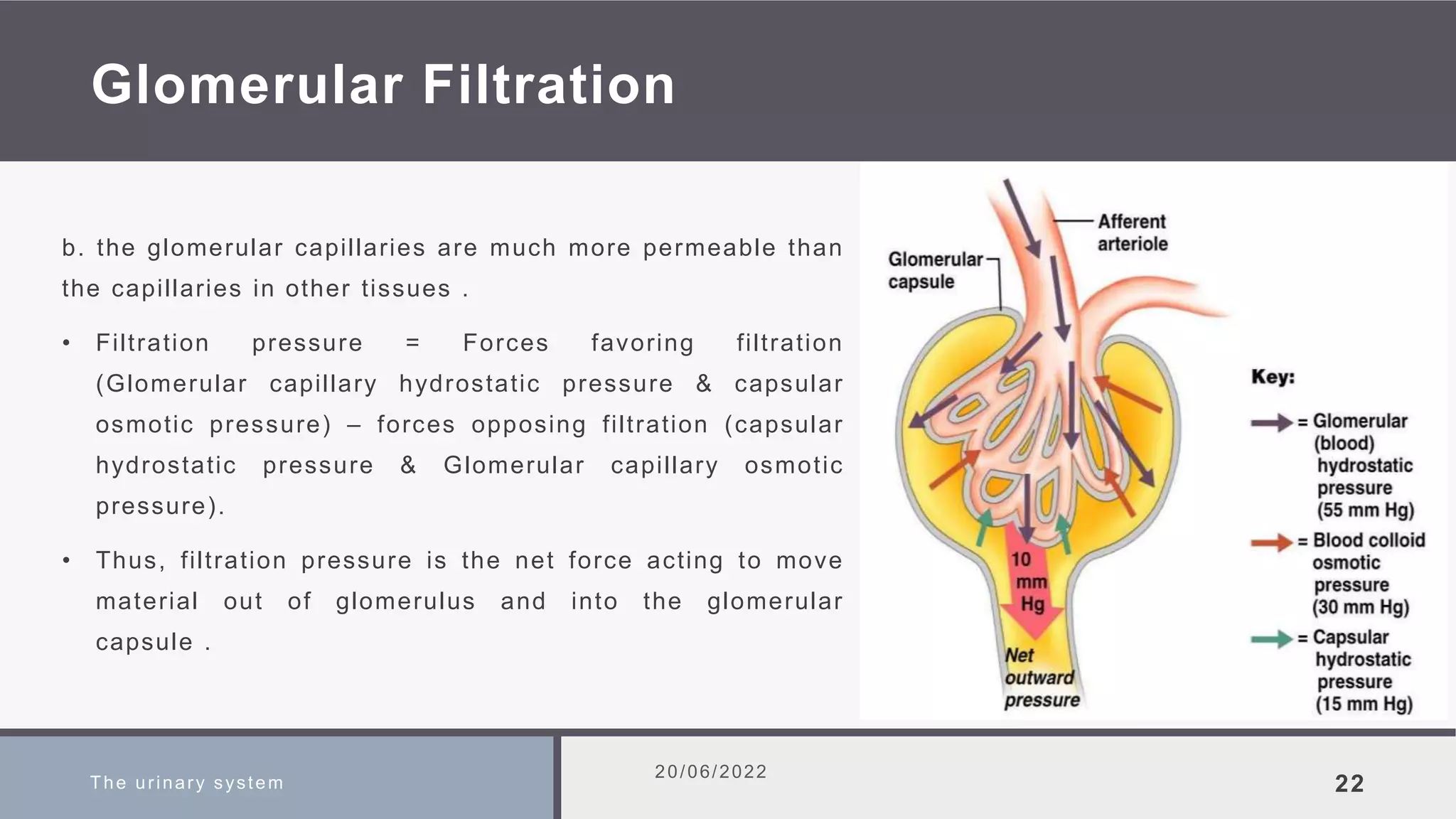

22. Glomerular Filtration
b. the glomerular capillaries are much more permeable than
the capillaries in other tissues .
• Filtration pressure = Forces favoring filtration
(Glomerular capillary hydrostatic pressure & capsular
osmotic pressure) – forces opposing filtration (capsular
hydrostatic pressure & Glomerular capillary osmotic
pressure).
• Thus, filtration pressure is the net force acting to move
material out of glomerulus and into the glomerular
capsule .
The urinary system
20/06/2022
22

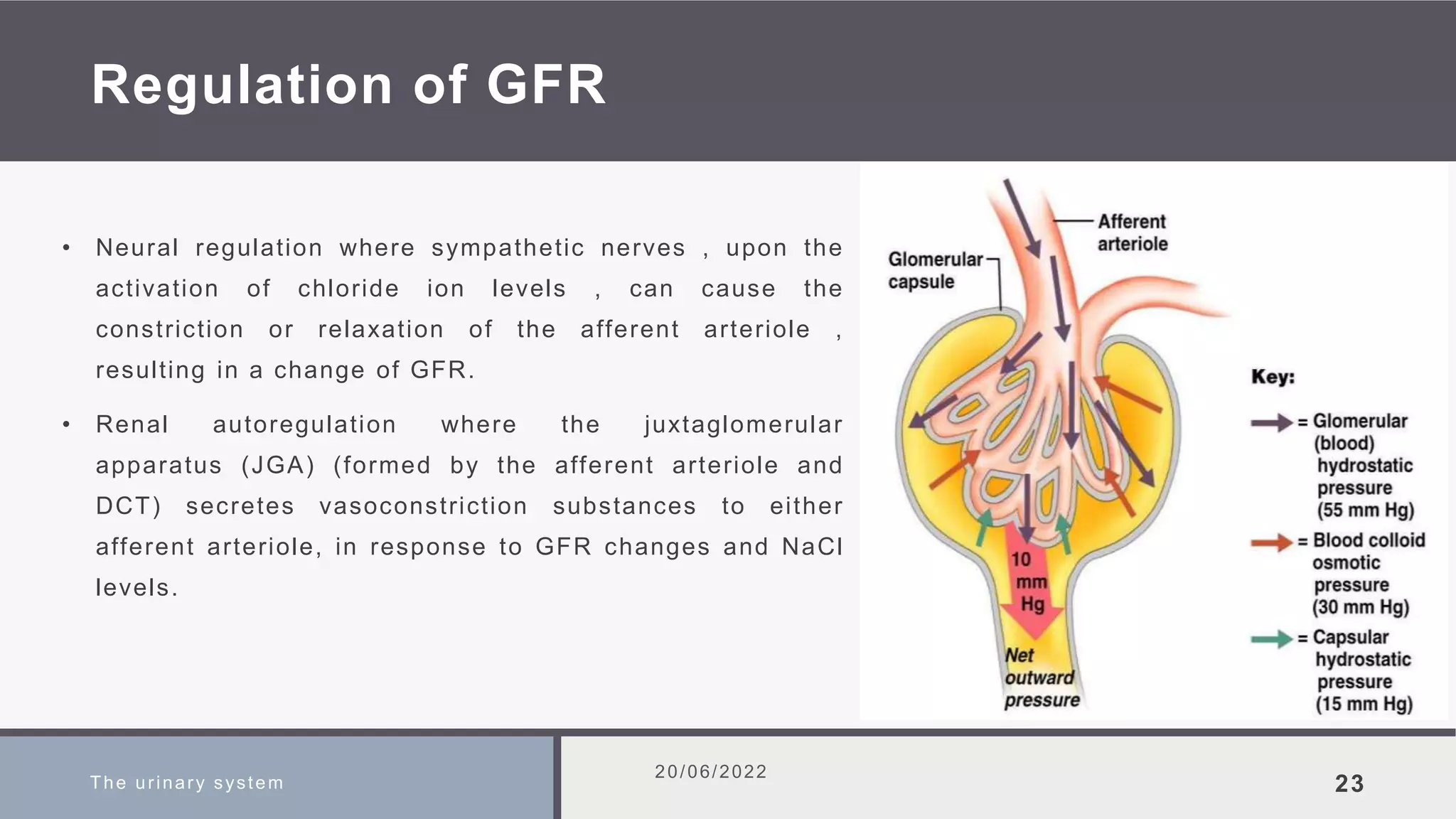

23. Regulation of GFR
• Neural regulation where sympathetic nerves , upon the
activation of chloride ion levels , can cause the
constriction or relaxation of the afferent arteriole ,
resulting in a change of GFR.
• Renal autoregulation where the juxtaglomerular
apparatus (JGA) (formed by the afferent arteriole and
DCT) secretes vasoconstriction substances to either
afferent arteriole, in response to GFR changes and NaCl
levels.
The urinary system
20/06/2022
23

24. Regulation of GFR

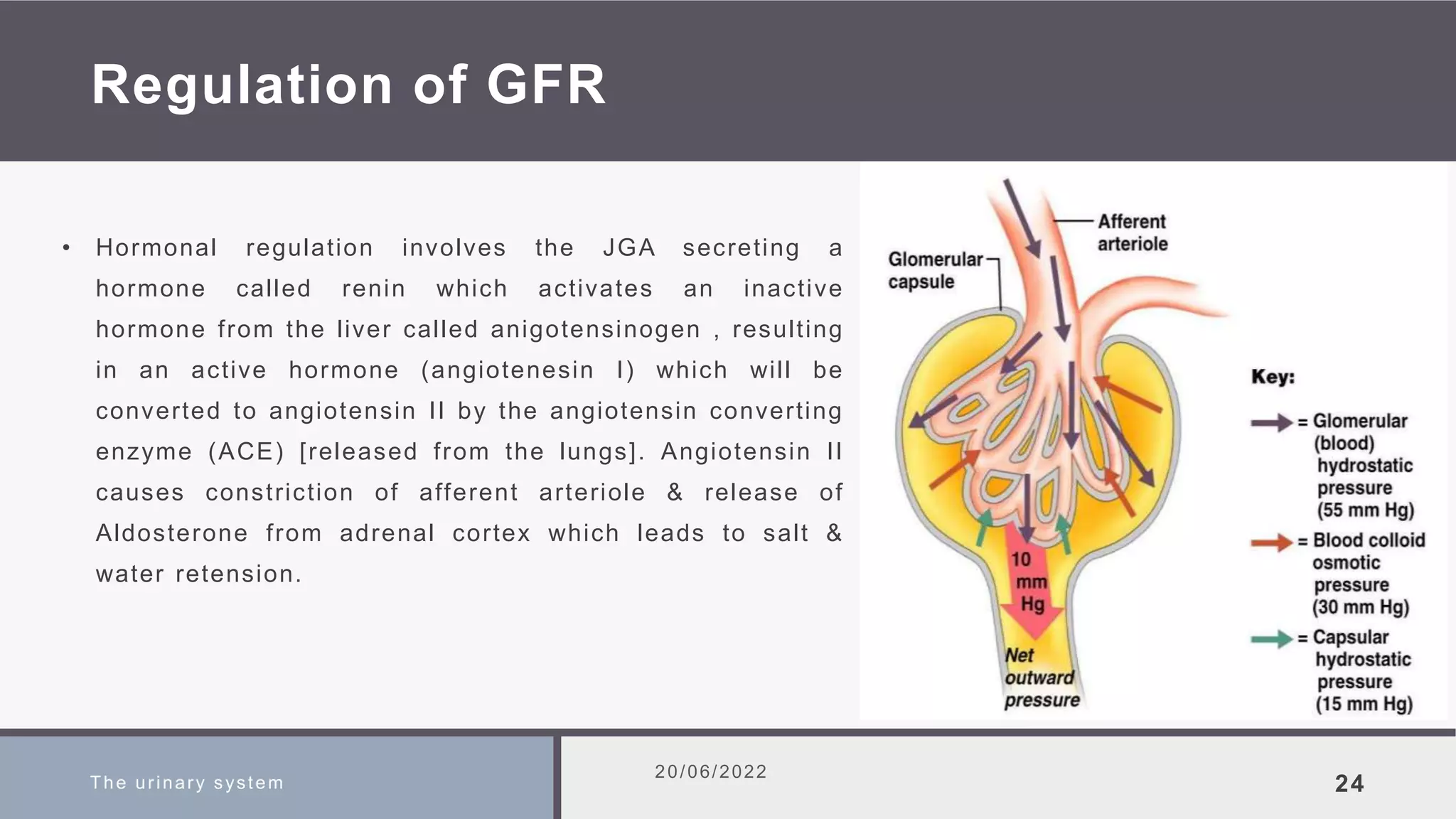

• Hormonal regulation involves the JGA secreting a
hormone called renin which activates an inactive
hormone from the liver called anigotensinogen , resulting
in an active hormone (angiotenesin I) which will be
converted to angiotensin II by the angiotensin converting
enzyme (ACE) [released from the lungs]. Angiotensin II
causes constriction of afferent arteriole & release of
Aldosterone from adrenal cortex which leads to salt &
water retension.
The urinary system
20/06/2022
24

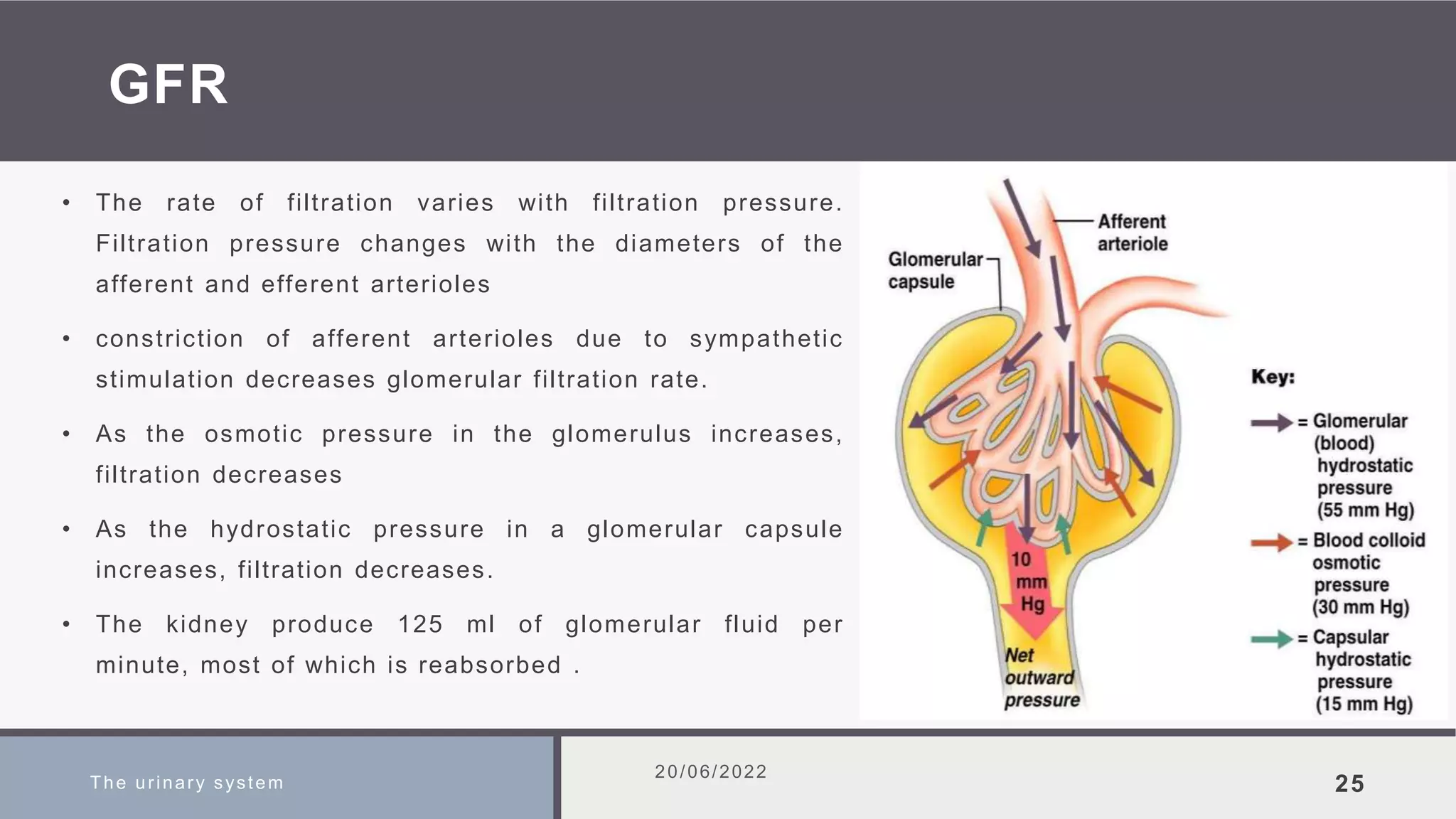

25. GFR
• The rate of filtration varies with filtration pressure.
Filtration pressure changes with the diameters of the
afferent and efferent arterioles
• constriction of afferent arterioles due to sympathetic
stimulation decreases glomerular filtration rate.
• As the osmotic pressure in the glomerulus increases,
filtration decreases
• As the hydrostatic pressure in a glomerular capsule
increases, filtration decreases.
• The kidney produce 125 ml of glomerular fluid per
minute, most of which is reabsorbed .
The urinary system
20/06/2022
25

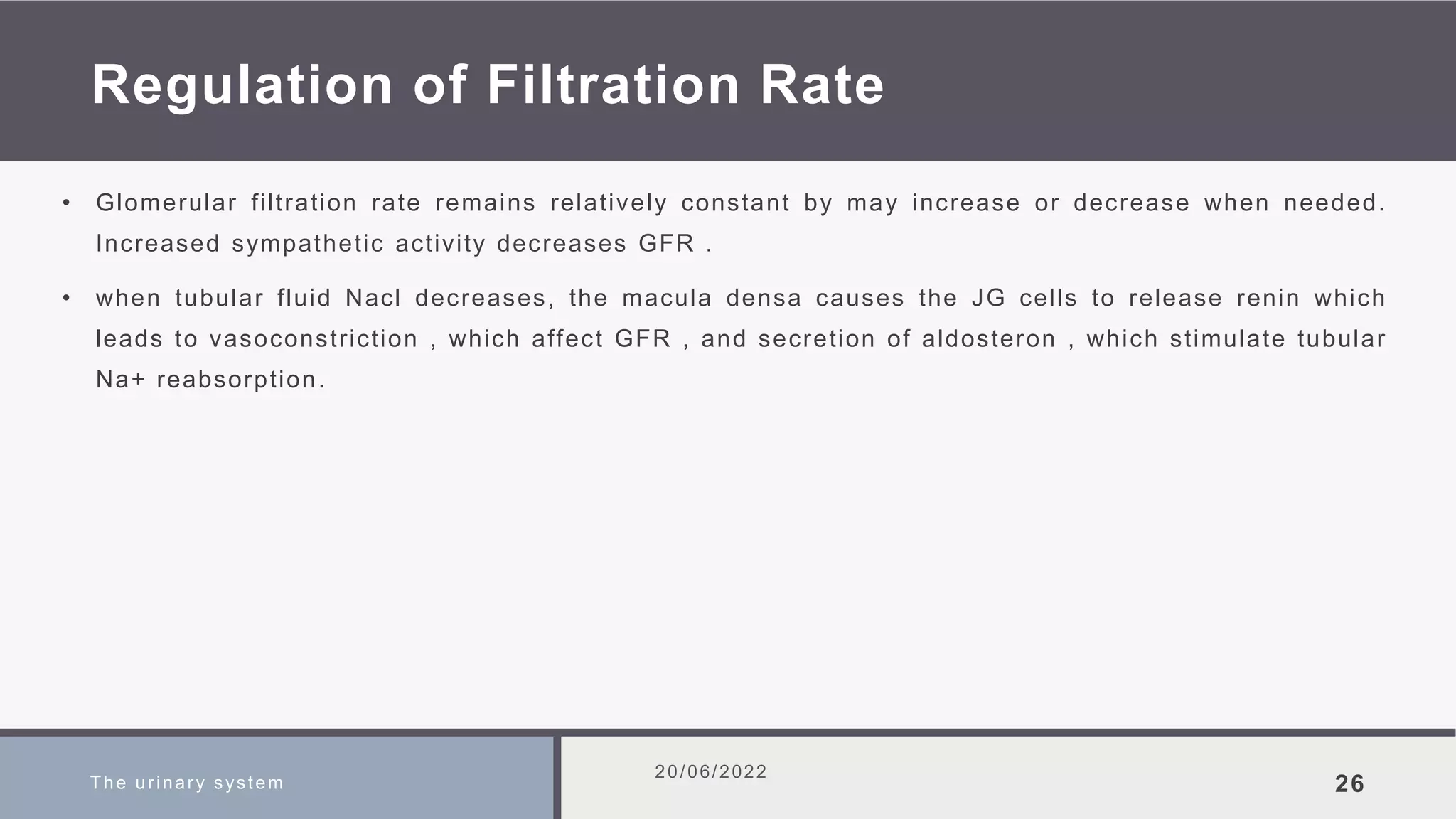

26. Regulation of Filtration Rate
• Glomerular filtration rate remains relatively constant by may increase or decrease when needed.
Increased sympathetic activity decreases GFR .
• when tubular fluid Nacl decreases, the macula densa causes the JG cells to release renin which
leads to vasoconstriction , which affect GFR , and secretion of aldosteron , which stimulate tubular
Na+ reabsorption.
The urinary system
20/06/2022
26

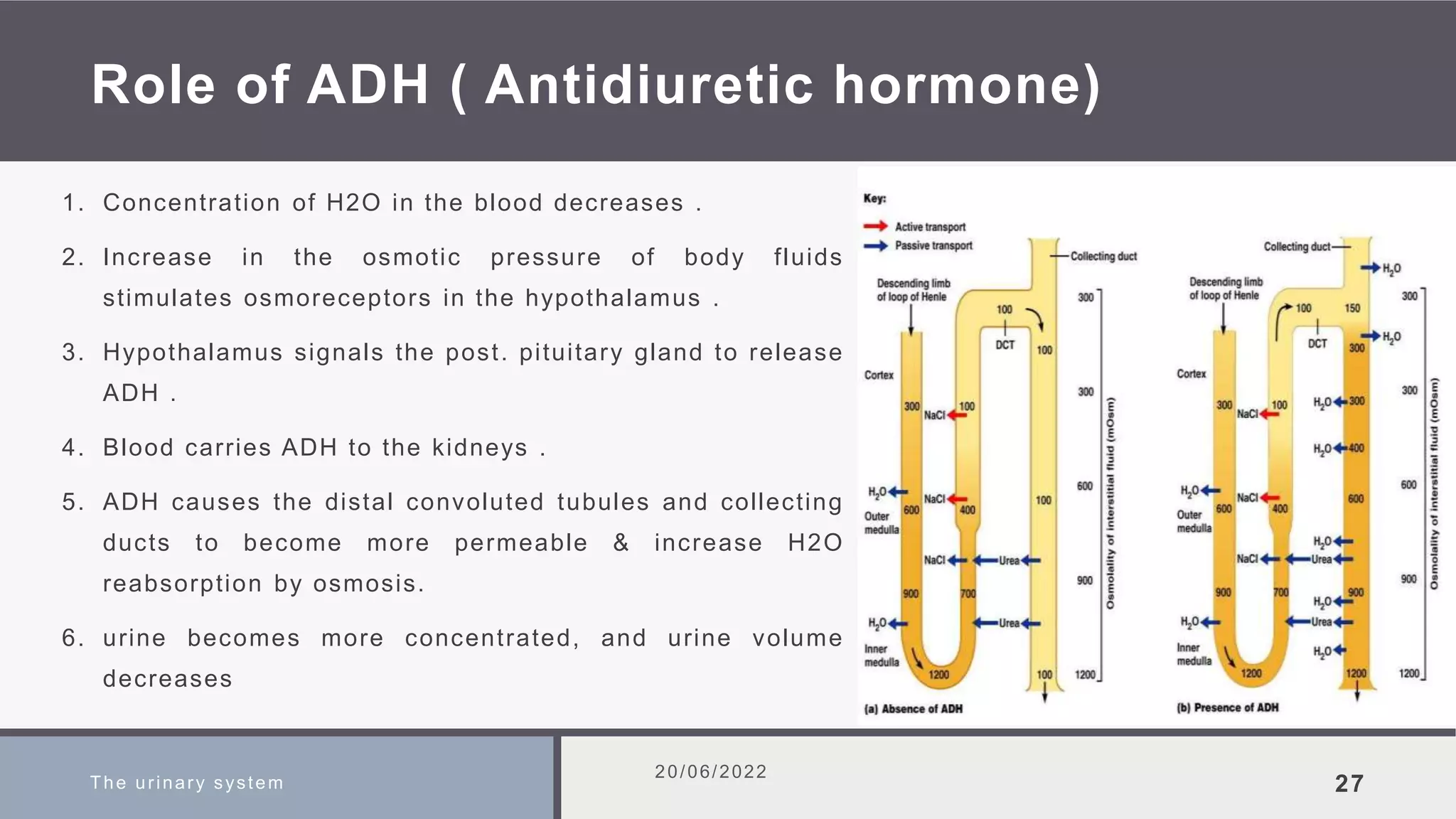

27. Role of ADH ( Antidiuretic hormone)
1. Concentration of H2O in the blood decreases .
2. Increase in the osmotic pressure of body fluids
stimulates osmoreceptors in the hypothalamus .
3. Hypothalamus signals the post. pituitary gland to release
ADH .
4. Blood carries ADH to the kidneys .
5. ADH causes the distal convoluted tubules and collecting
ducts to become more permeable & increase H2O
reabsorption by osmosis.
6. urine becomes more concentrated, and urine volume
decreases
The urinary system
20/06/2022
27

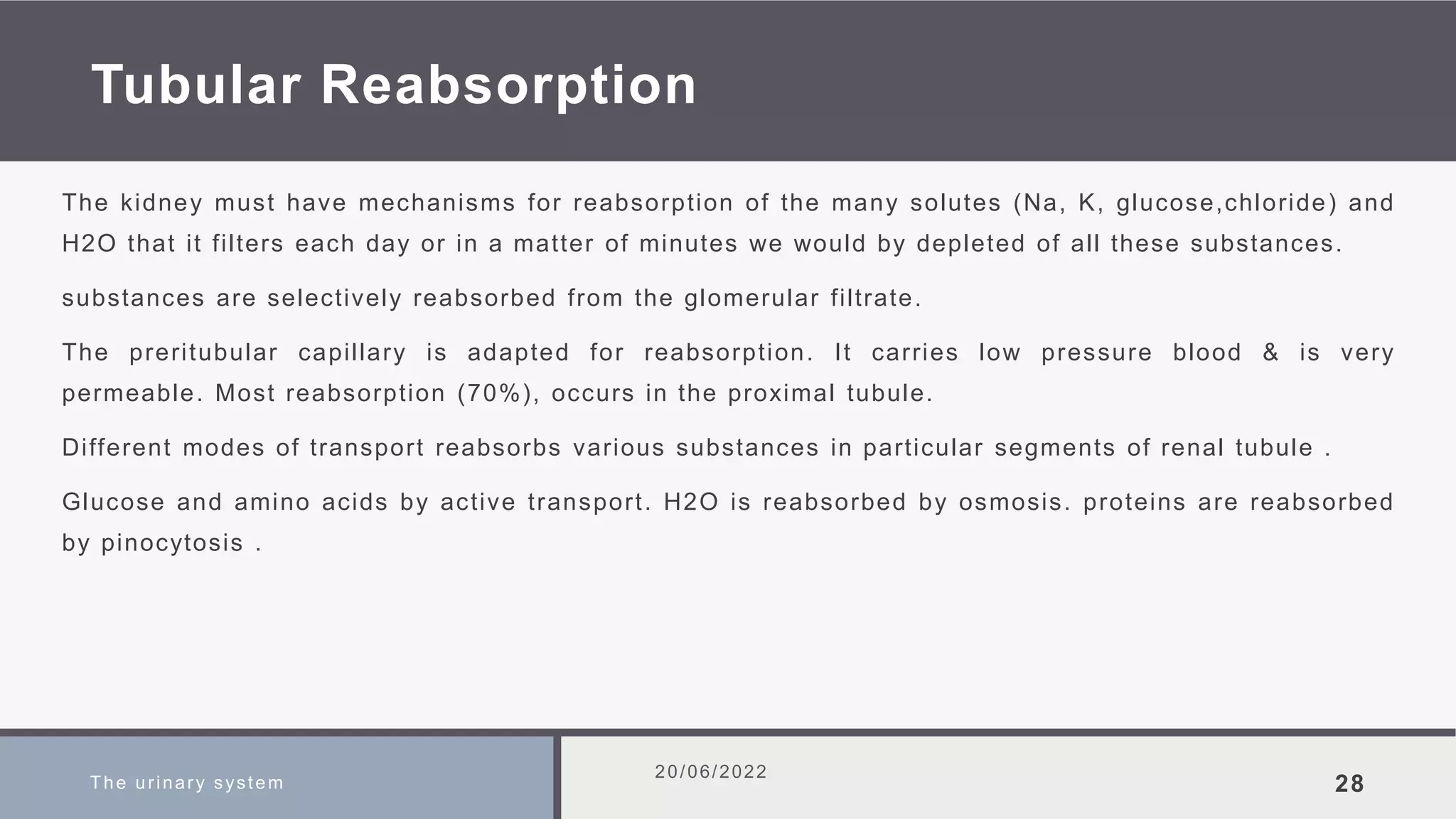

28. Tubular Reabsorption
The kidney must have mechanisms for reabsorption of the many solutes (Na, K, glucose,chloride) and
H2O that it filters each day or in a matter of minutes we would by depleted of all these substances.
substances are selectively reabsorbed from the glomerular filtrate.
The preritubular capillary is adapted for reabsorption. It carries low pressure blood & is very
permeable. Most reabsorption (70%), occurs in the proximal tubule.
Different modes of transport reabsorbs various substances in particular segments of renal tubule .
Glucose and amino acids by active transport. H2O is reabsorbed by osmosis. proteins are reabsorbed
by pinocytosis .
The urinary system
20/06/2022
28

29. Water Reabsorption (Proximal Tubule)
• Na+ and K+ ions are reabsorbed by active transport
Negatively charged ions are attracted to positively
charged ions (passive transport) .
• As the concentration of ions (solute) increases in plasma,
osmotic pressure increases .
• Water (70%) moves from renal tubule to capillary by
osmosis ( passive transport).
The urinary system
20/06/2022
29

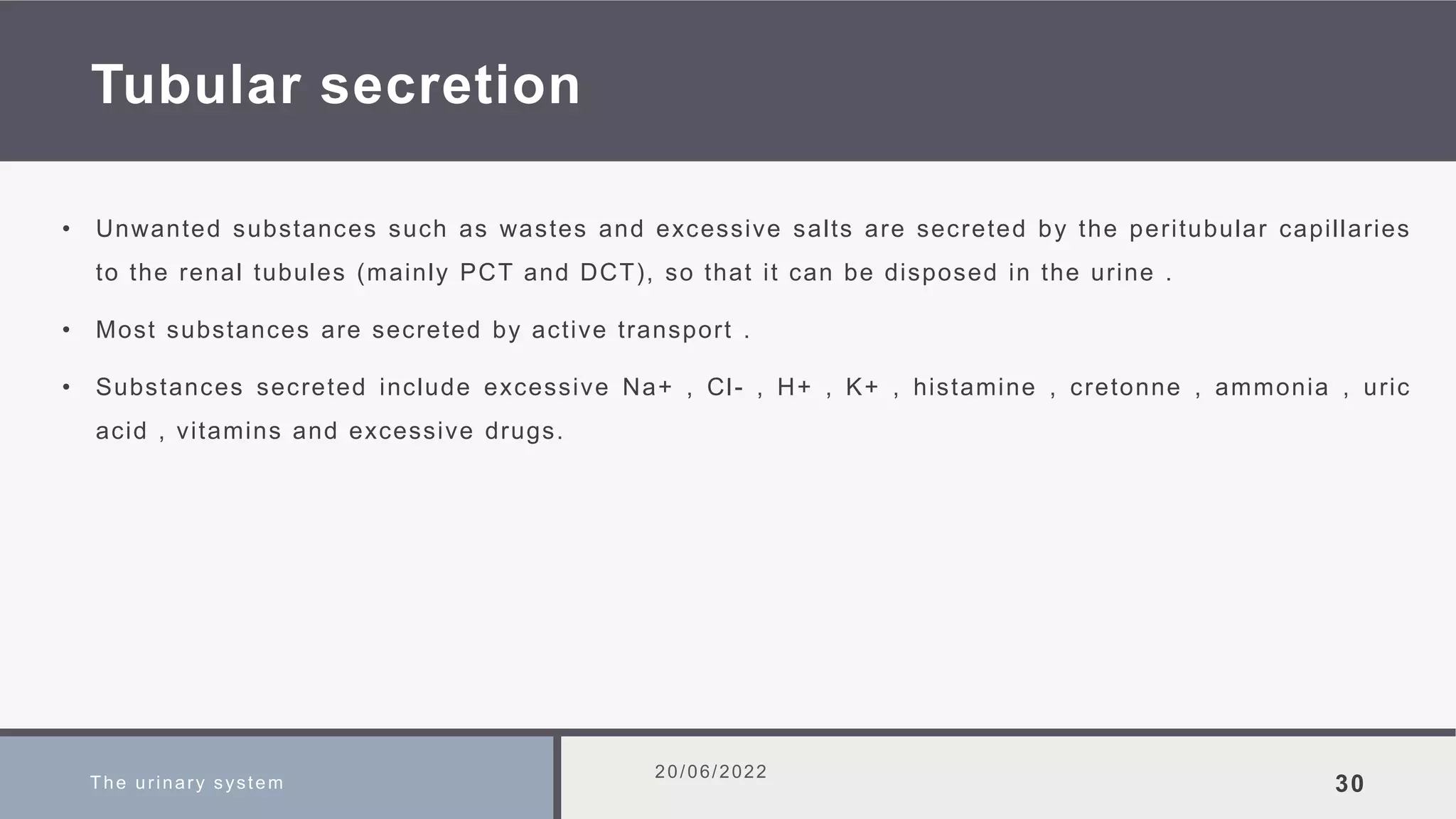

30. Tubular secretion
• Unwanted substances such as wastes and excessive salts are secreted by the peritubular capillaries
to the renal tubules (mainly PCT and DCT), so that it can be disposed in the urine .
• Most substances are secreted by active transport .
• Substances secreted include excessive Na+ , Cl- , H+ , K+ , histamine , cretonne , ammonia , uric
acid , vitamins and excessive drugs.
The urinary system
20/06/2022
30

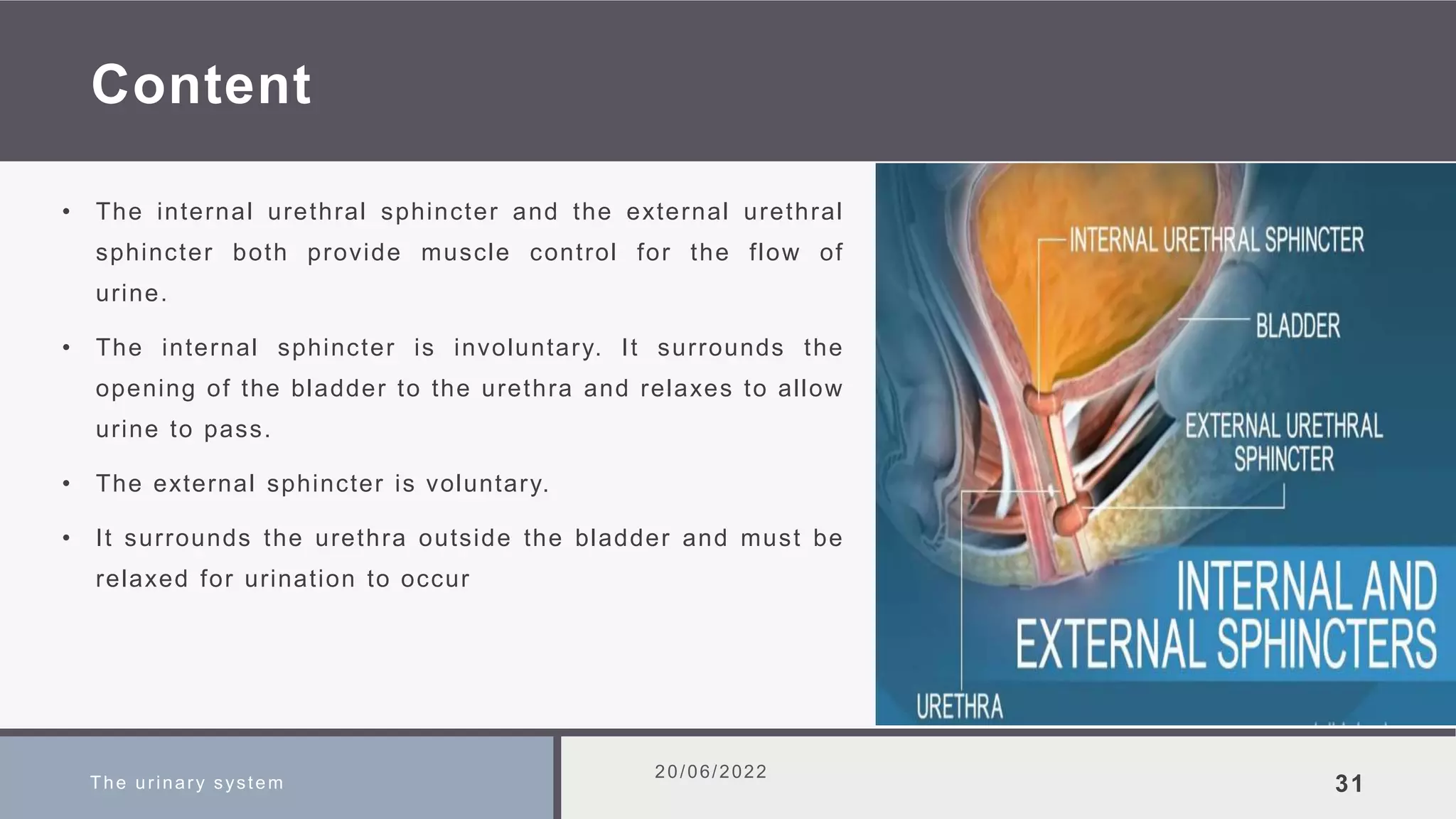

31. Content
• The internal urethral sphincter and the external urethral
sphincter both provide muscle control for the flow of
urine.
• The internal sphincter is involuntary. It surrounds the
opening of the bladder to the urethra and relaxes to allow
urine to pass.
• The external sphincter is voluntary.
• It surrounds the urethra outside the bladder and must be
relaxed for urination to occur
The urinary system
20/06/2022
31

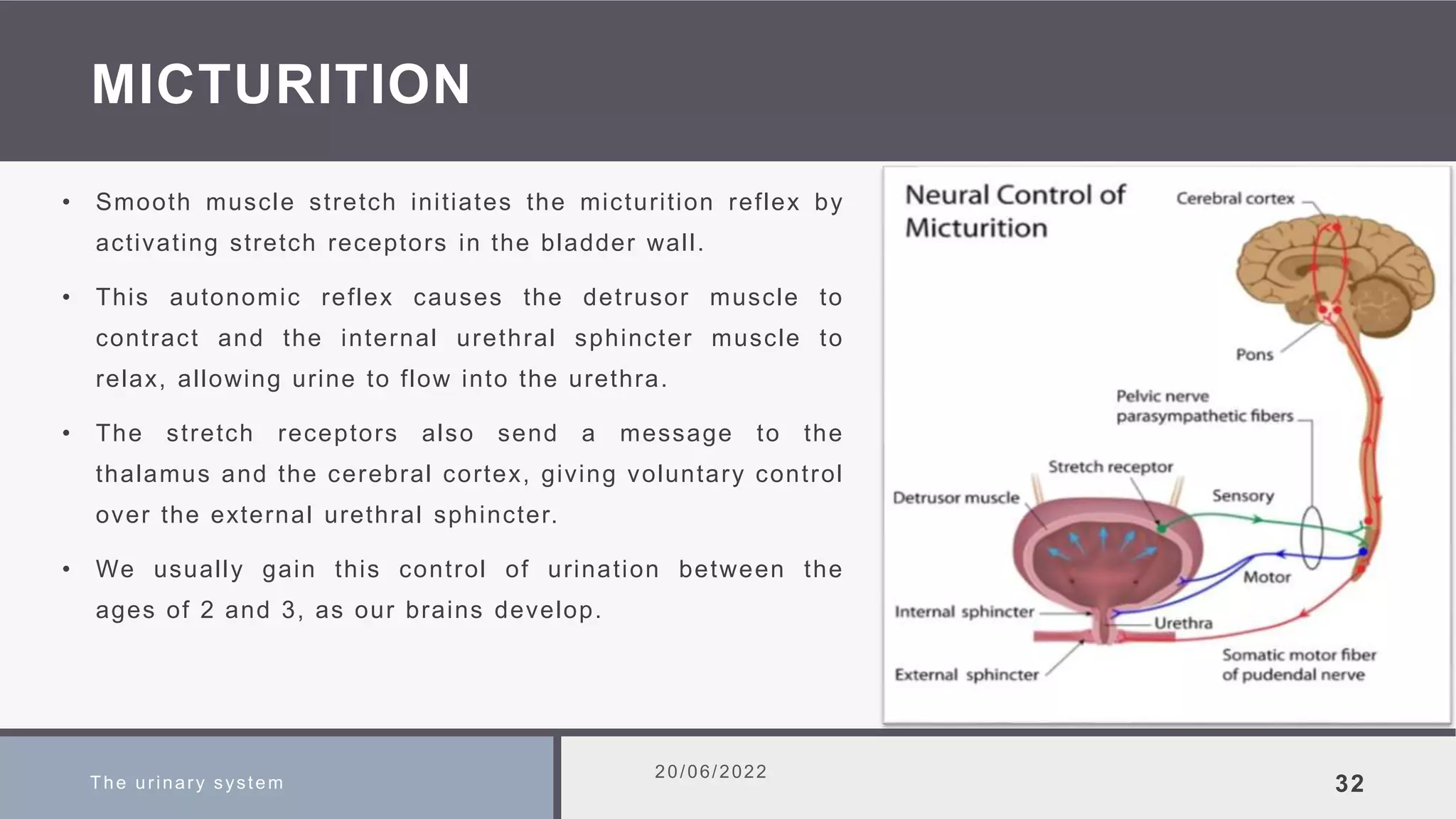

32. MICTURITION
• Smooth muscle stretch initiates the micturition reflex by
activating stretch receptors in the bladder wall.
• This autonomic reflex causes the detrusor muscle to
contract and the internal urethral sphincter muscle to
relax, allowing urine to flow into the urethra.
• The stretch receptors also send a message to the
thalamus and the cerebral cortex, giving voluntary control
over the external urethral sphincter.
• We usually gain this control of urination between the
ages of 2 and 3, as our brains develop.
The urinary system
20/06/2022
32

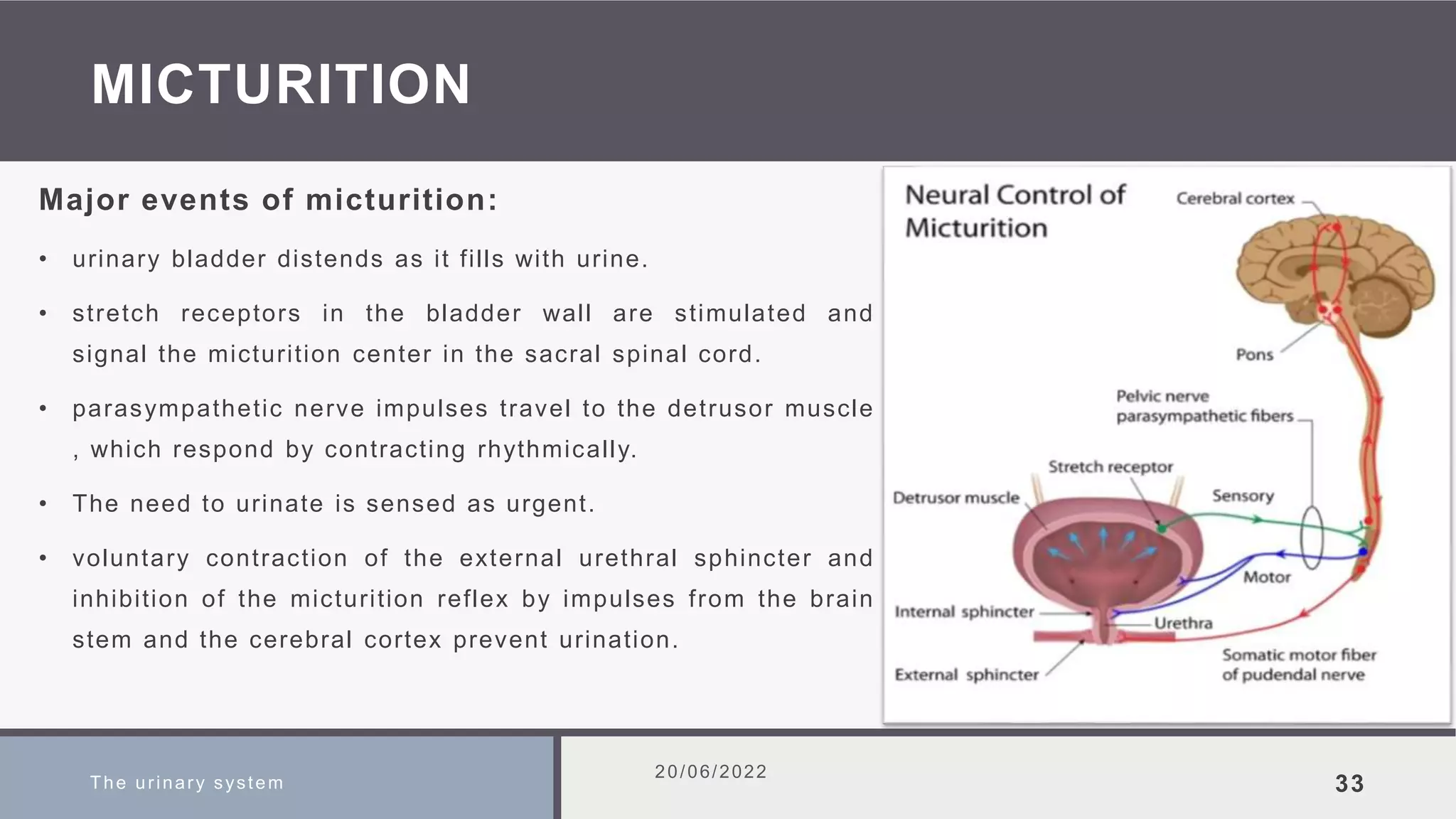

33. MICTURITION
Major events of micturition:
• urinary bladder distends as it fills with urine.
• stretch receptors in the bladder wall are stimulated and
signal the micturition center in the sacral spinal cord.
• parasympathetic nerve impulses travel to the detrusor muscle
, which respond by contracting rhythmically.
• The need to urinate is sensed as urgent.
• voluntary contraction of the external urethral sphincter and
inhibition of the micturition reflex by impulses from the brain
stem and the cerebral cortex prevent urination.
The urinary system
20/06/2022
33

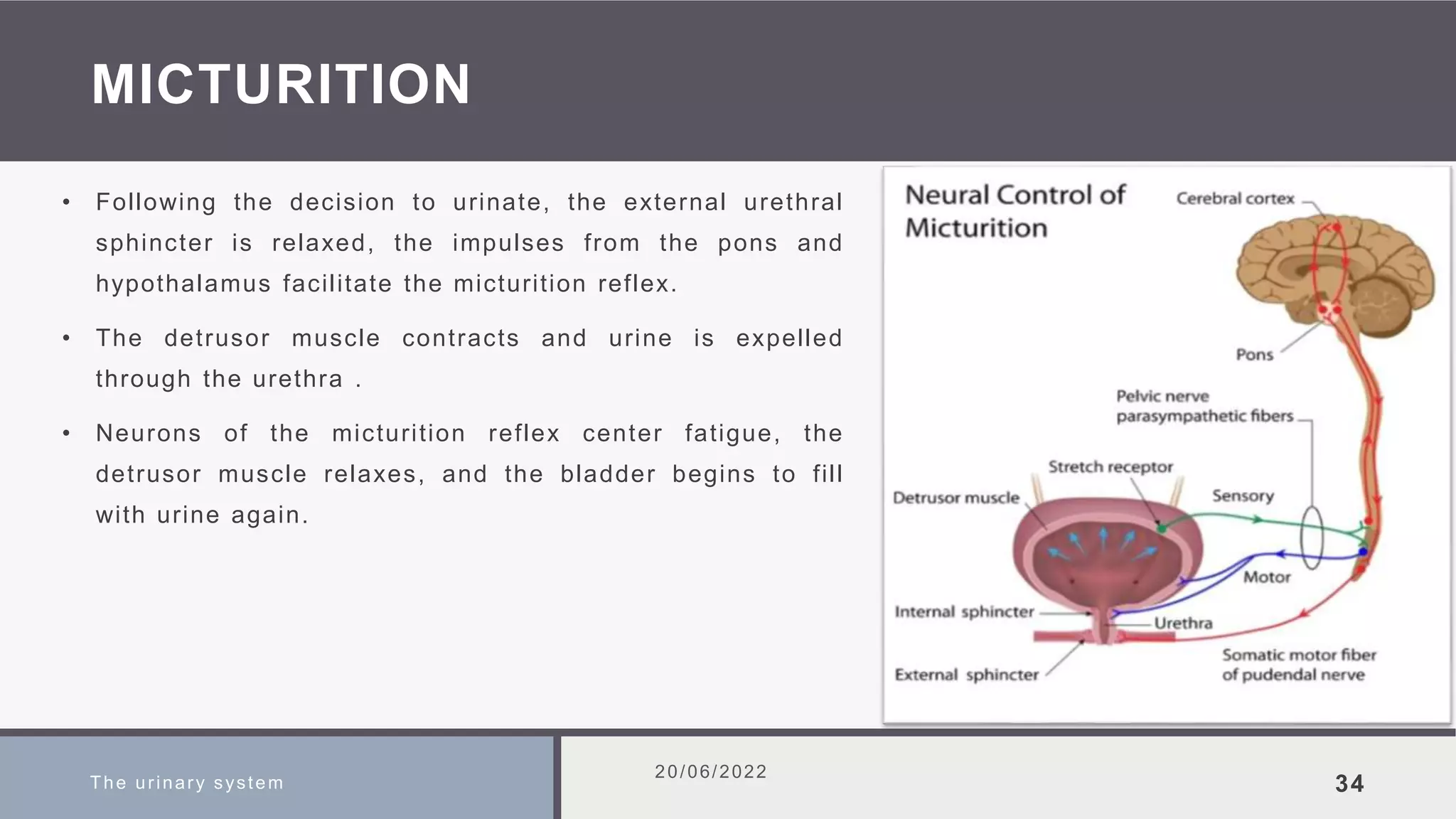

34. MICTURITION
• Following the decision to urinate, the external urethral
sphincter is relaxed, the impulses from the pons and
hypothalamus facilitate the micturition reflex.
• The detrusor muscle contracts and urine is expelled
through the urethra .
• Neurons of the micturition reflex center fatigue, the
detrusor muscle relaxes, and the bladder begins to fill
with urine again.
The urinary system
20/06/2022
34

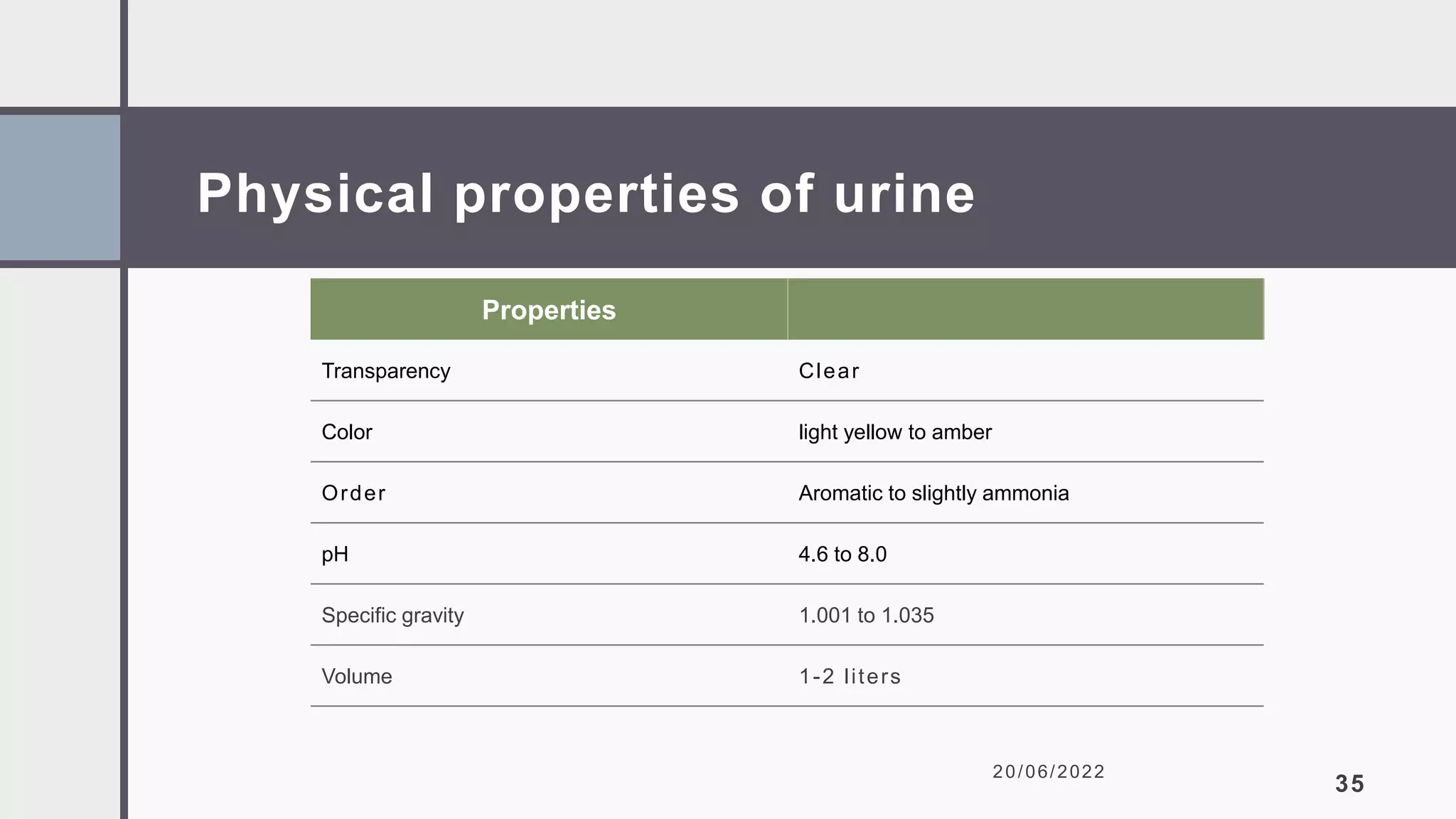

35. Physical properties of urine
20/06/2022
35
Properties
Transparency Clear
Color light yellow to amber
Order Aromatic to slightly ammonia
pH 4.6 to 8.0
Specific gravity 1.001 to 1.035
Volume 1-2 liters

36. Physical properties of urine
20/06/2022
36
Transparency is clear , indicating the lack of large solutes such as plasma proteins or blood cells . [can
be influenced by bacterial metabolism in older urine samples].
Color is from light yellow to amber , due to urochrome pigments as byproduct of bile metabolism [can be
influenced by food, menstrual bleeding , and minor metabolic products].
Odor is from aromatic to slightly ammonia – like , due to the nitrogenous wastes in urine. [can be
influenced by disorders such as glycosuria where urine shows a sweet odor, or by food such as garlic , or
by drug].
pH is from 4.6 to 8.0 with an average of 6.0 , due to H+ in the urine [strongly influenced by diet where
protein cause acidic urine , and vegetables and wheat cause alkaline urine]. Copyright © 2006 Pearson
Education, Inc., publishing as Benjamin Cummings

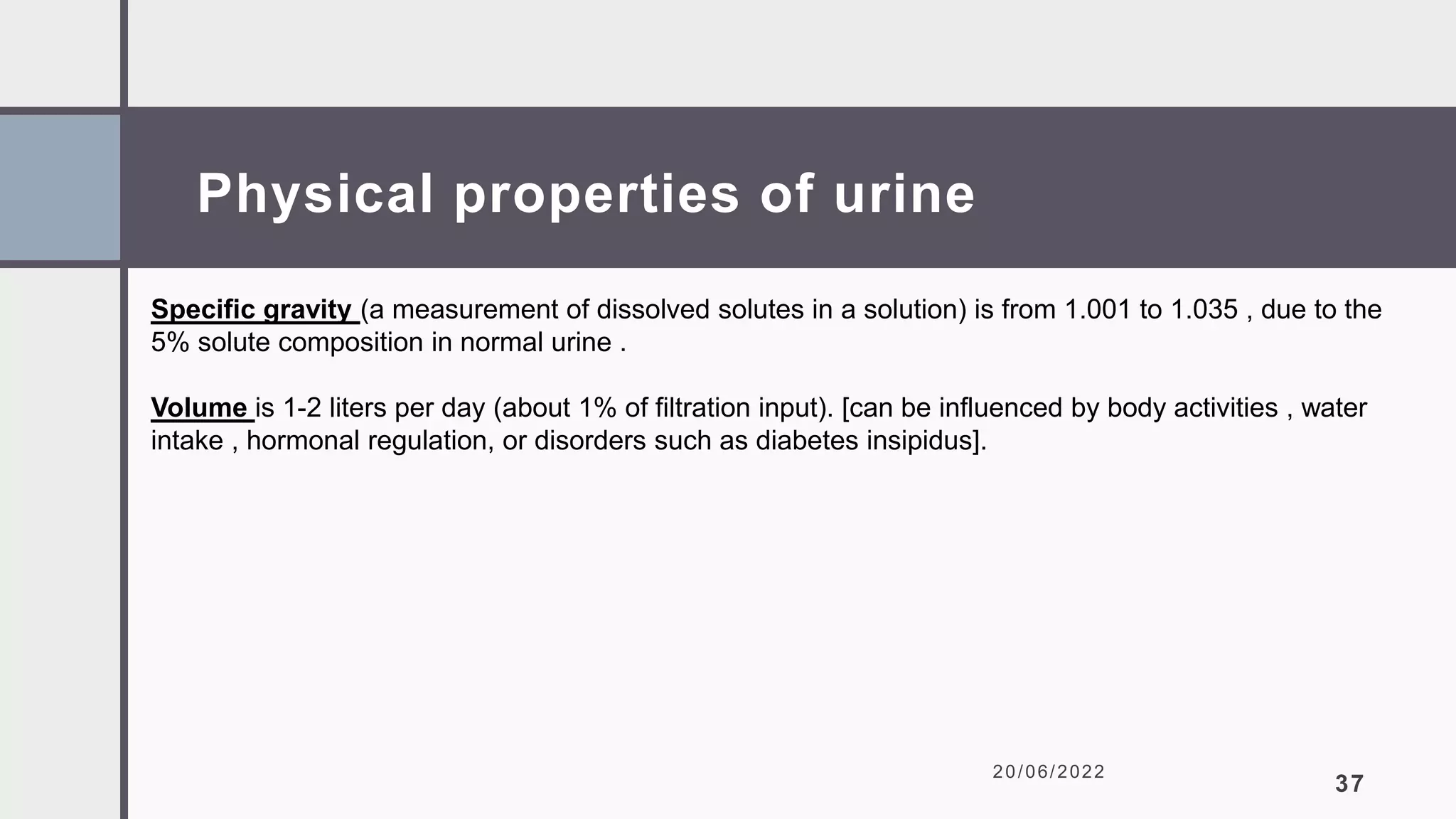

37. Physical properties of urine
20/06/2022
37
Specific gravity (a measurement of dissolved solutes in a solution) is from 1.001 to 1.035 , due to the
5% solute composition in normal urine .
Volume is 1-2 liters per day (about 1% of filtration input). [can be influenced by body activities , water
intake , hormonal regulation, or disorders such as diabetes insipidus].

38. Clinical Terms
2/1/20XX 38

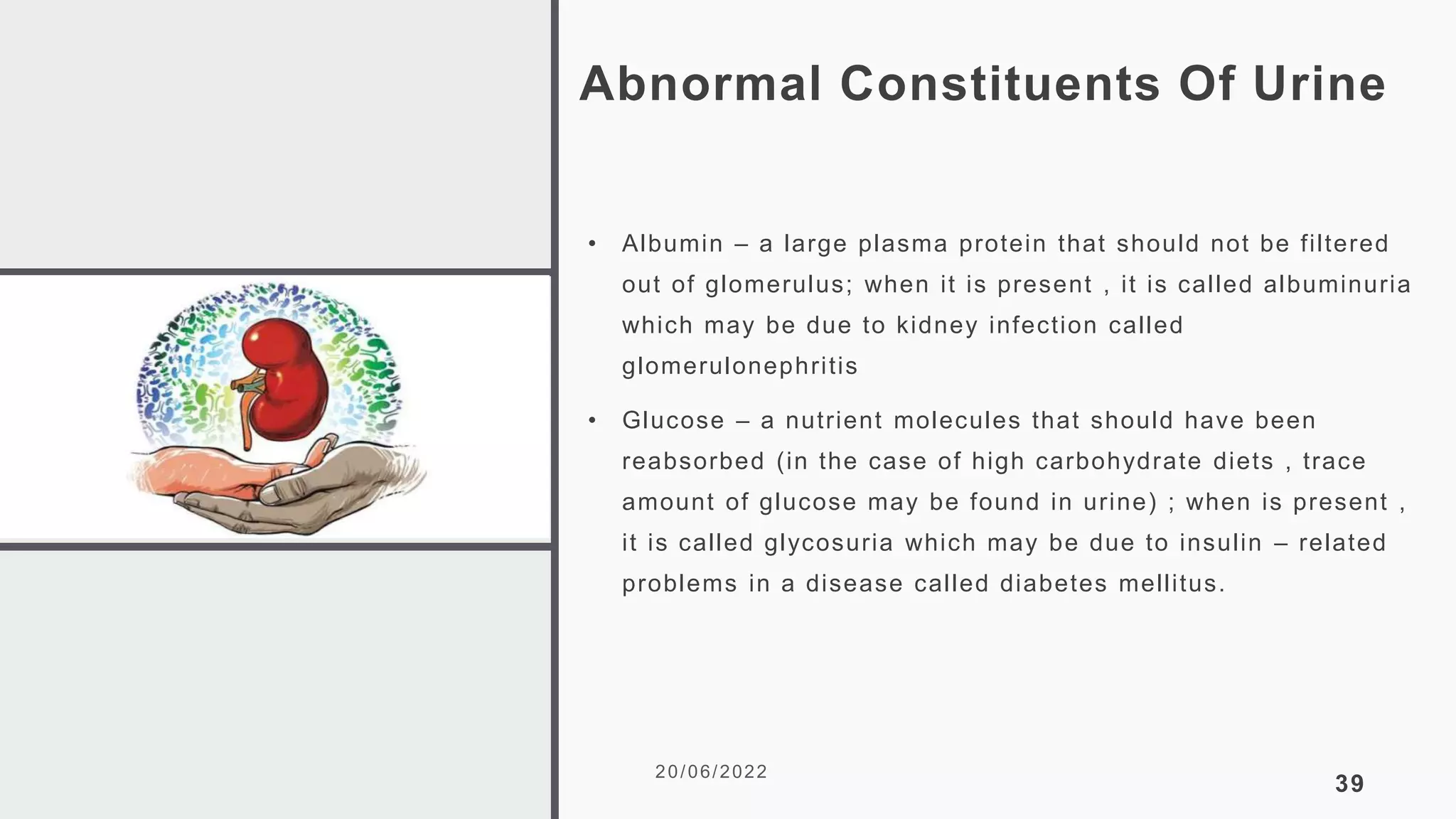

39. Abnormal Constituents Of Urine
• Albumin – a large plasma protein that should not be filtered
out of glomerulus; when it is present , it is called albuminuria
which may be due to kidney infection called
glomerulonephritis
• Glucose – a nutrient molecules that should have been
reabsorbed (in the case of high carbohydrate diets , trace
amount of glucose may be found in urine) ; when is present ,
it is called glycosuria which may be due to insulin – related
problems in a disease called diabetes mellitus.
20/06/2022
39

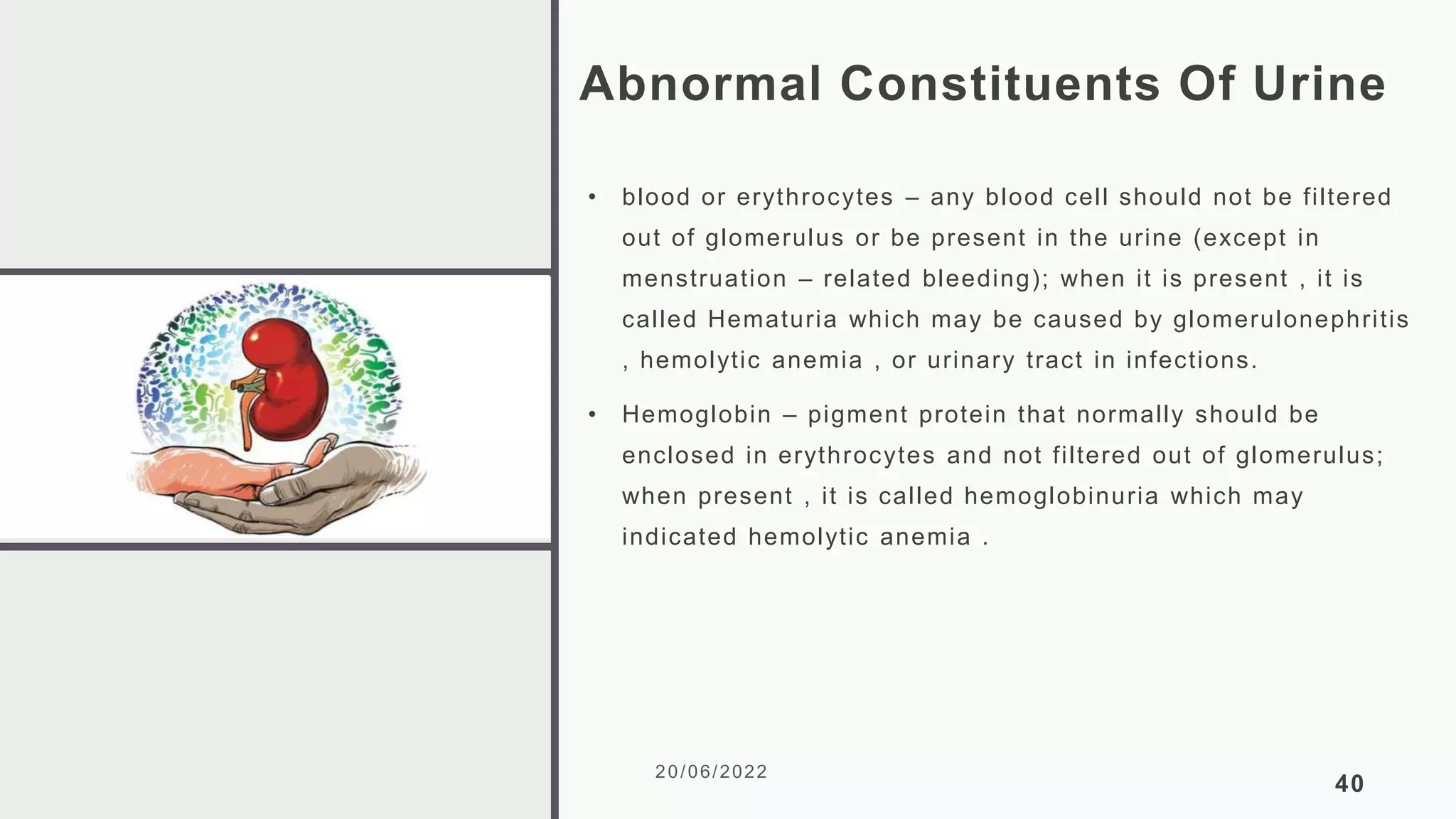

40. Abnormal Constituents Of Urine
• blood or erythrocytes – any blood cell should not be filtered
out of glomerulus or be present in the urine (except in
menstruation – related bleeding); when it is present , it is
called Hematuria which may be caused by glomerulonephritis
, hemolytic anemia , or urinary tract in infections.
• Hemoglobin – pigment protein that normally should be
enclosed in erythrocytes and not filtered out of glomerulus;
when present , it is called hemoglobinuria which may
indicated hemolytic anemia .
20/06/2022
40

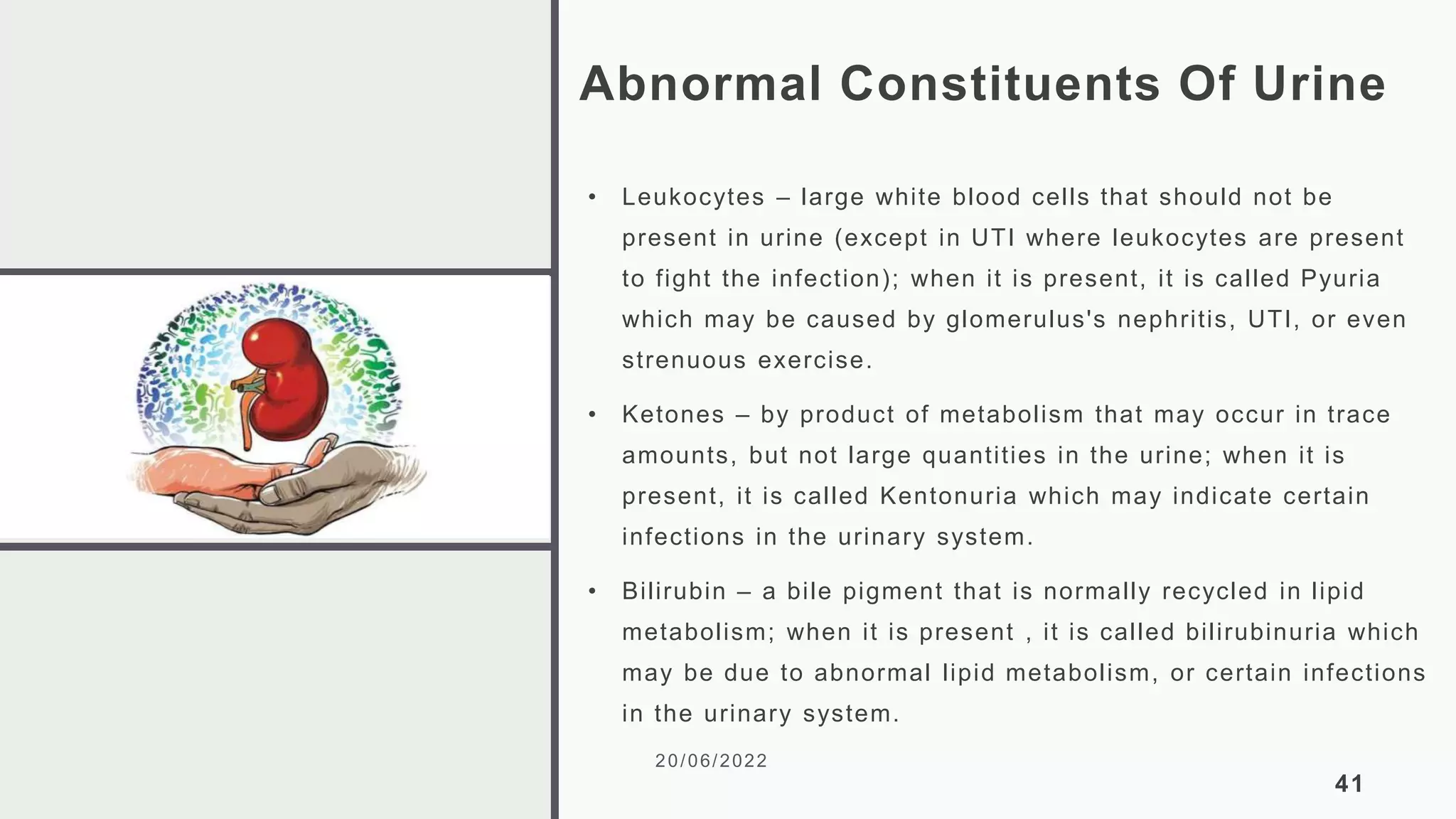

41. Abnormal Constituents Of Urine
• Leukocytes – large white blood cells that should not be
present in urine (except in UTI where leukocytes are present
to fight the infection); when it is present, it is called Pyuria
which may be caused by glomerulus's nephritis, UTI, or even
strenuous exercise.
• Ketones – by product of metabolism that may occur in trace
amounts, but not large quantities in the urine; when it is
present, it is called Kentonuria which may indicate certain
infections in the urinary system.
• Bilirubin – a bile pigment that is normally recycled in lipid
metabolism; when it is present , it is called bilirubinuria which
may be due to abnormal lipid metabolism, or certain infections
in the urinary system.
20/06/2022
41

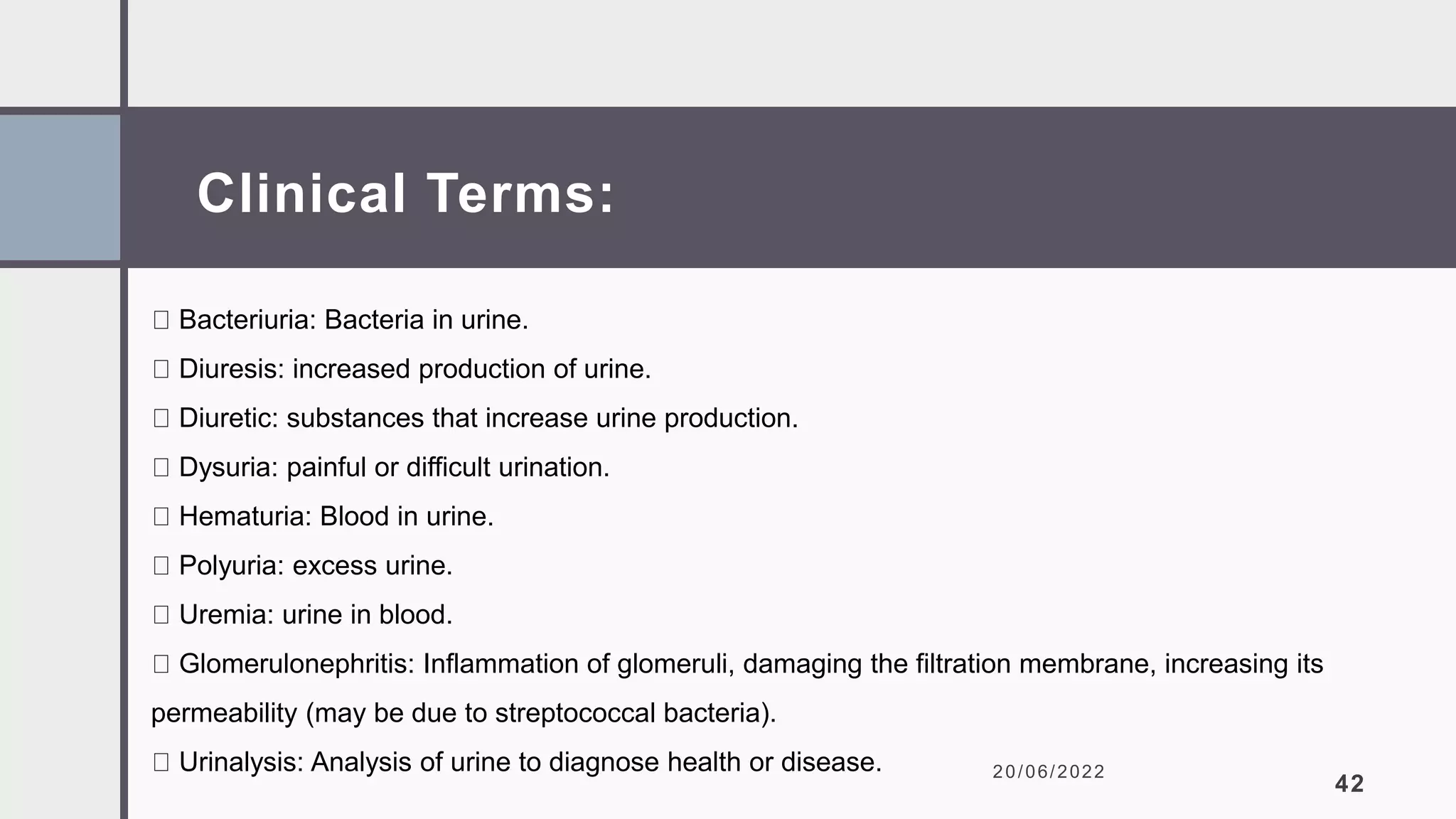

42. Clinical Terms:
20/06/2022
42
Bacteriuria: Bacteria in urine.
Diuresis: increased production of urine.
Diuretic: substances that increase urine production.
Dysuria: painful or difficult urination.
Hematuria: Blood in urine.
Polyuria: excess urine.
Uremia: urine in blood.
Glomerulonephritis: Inflammation of glomeruli, damaging the filtration membrane, increasing its
permeability (may be due to streptococcal bacteria).
Urinalysis: Analysis of urine to diagnose health or disease.

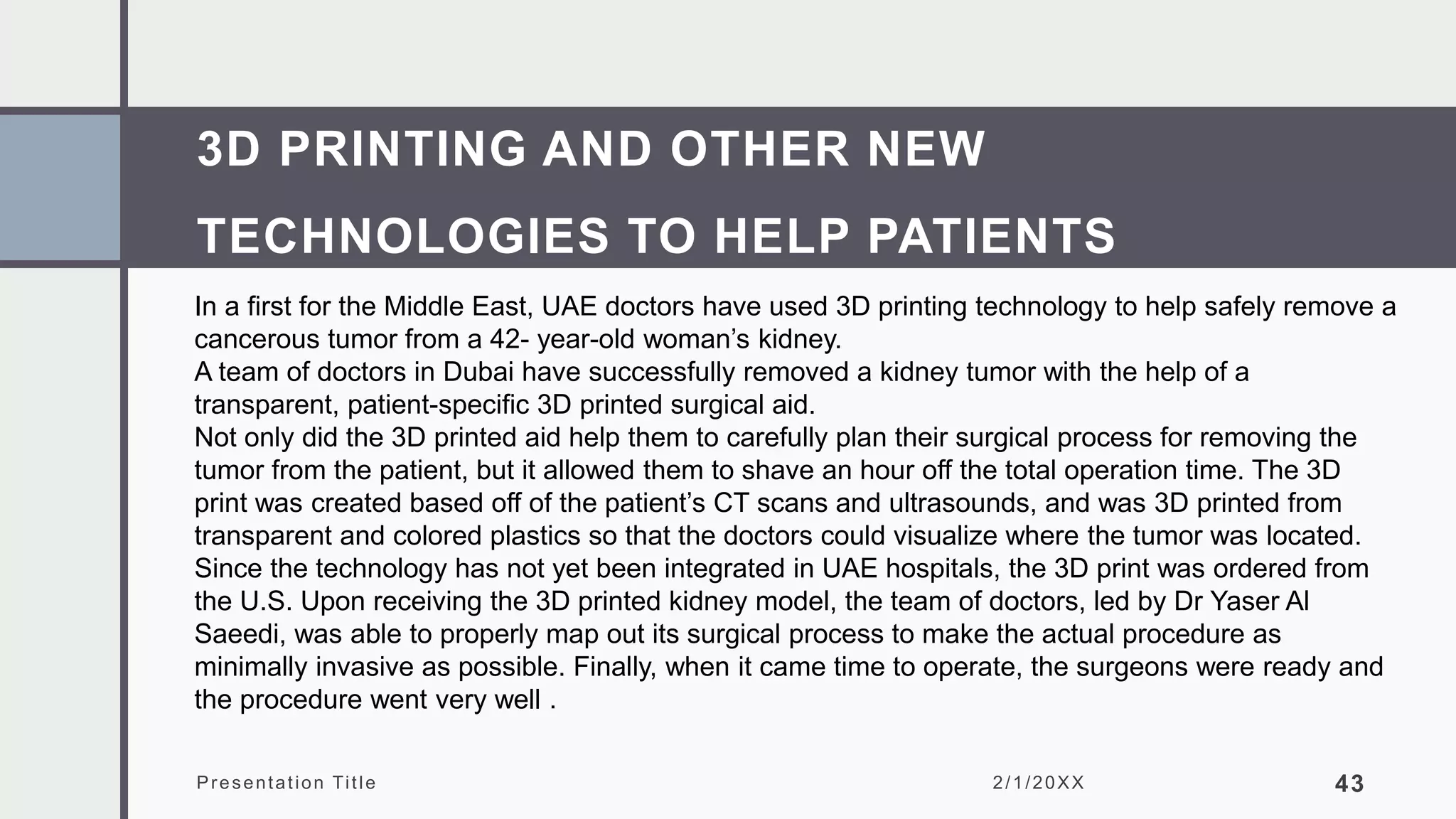

43. 3D PRINTING AND OTHER NEW
TECHNOLOGIES TO HELP PATIENTS
Presentation Title 2/1/20XX 43
In a first for the Middle East, UAE doctors have used 3D printing technology to help safely remove a
cancerous tumor from a 42- year-old woman’s kidney.
A team of doctors in Dubai have successfully removed a kidney tumor with the help of a
transparent, patient-specific 3D printed surgical aid.
Not only did the 3D printed aid help them to carefully plan their surgical process for removing the
tumor from the patient, but it allowed them to shave an hour off the total operation time. The 3D
print was created based off of the patient’s CT scans and ultrasounds, and was 3D printed from
transparent and colored plastics so that the doctors could visualize where the tumor was located.
Since the technology has not yet been integrated in UAE hospitals, the 3D print was ordered from
the U.S. Upon receiving the 3D printed kidney model, the team of doctors, led by Dr Yaser Al
Saeedi, was able to properly map out its surgical process to make the actual procedure as
minimally invasive as possible. Finally, when it came time to operate, the surgeons were ready and
the procedure went very well .

44. Presenter Jagruti Marathe
Email:
drxjagrutimarathe@gmail.com
20/06/2022
44
