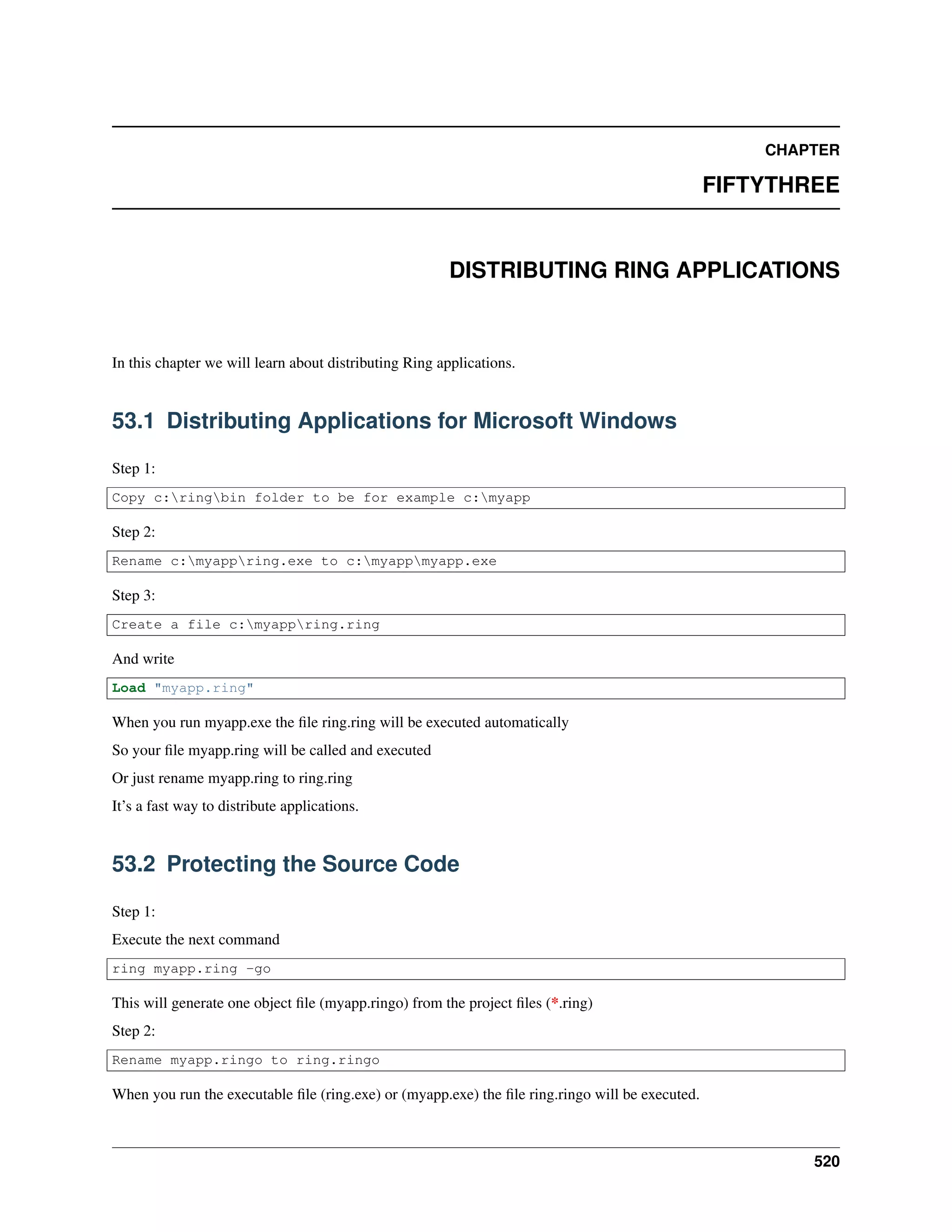

1. CHAPTER
FIFTYTHREE
DISTRIBUTING RING APPLICATIONS
In this chapter we will learn about distributing Ring applications.
53.1 Distributing Applications for Microsoft Windows
Step 1:
Copy c:ringbin folder to be for example c:myapp
Step 2:
Rename c:myappring.exe to c:myappmyapp.exe
Step 3:
Create a file c:myappring.ring
And write
Load "myapp.ring"
When you run myapp.exe the file ring.ring will be executed automatically
So your file myapp.ring will be called and executed
Or just rename myapp.ring to ring.ring
It’s a fast way to distribute applications.
53.2 Protecting the Source Code
Step 1:
Execute the next command
ring myapp.ring -go
This will generate one object file (myapp.ringo) from the project files (*.ring)
Step 2:
Rename myapp.ringo to ring.ringo
When you run the executable file (ring.exe) or (myapp.exe) the file ring.ringo will be executed.
520

2. Ring Documentation, Release 1.2

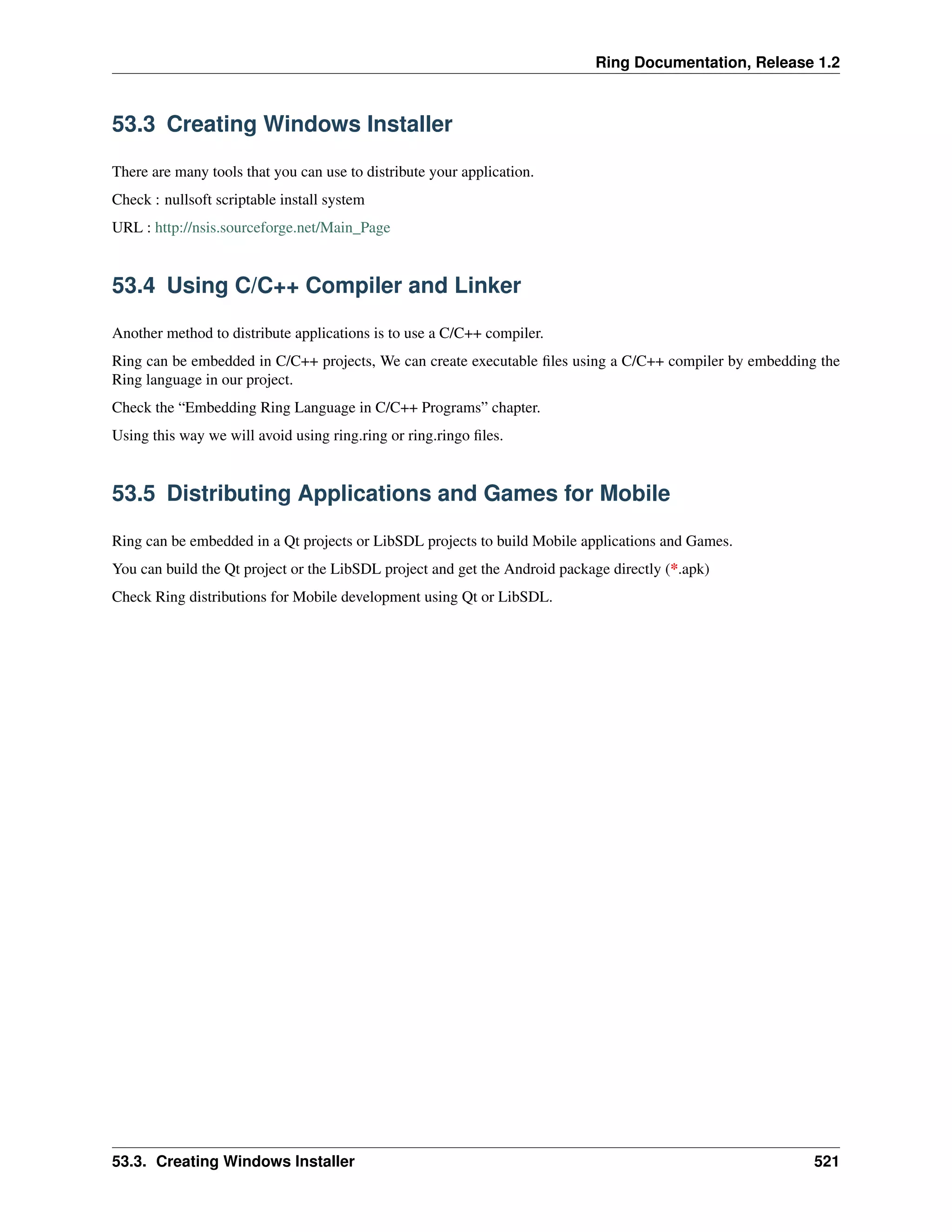

53.3 Creating Windows Installer
There are many tools that you can use to distribute your application.
Check : nullsoft scriptable install system
URL : http://nsis.sourceforge.net/Main_Page
53.4 Using C/C++ Compiler and Linker
Another method to distribute applications is to use a C/C++ compiler.
Ring can be embedded in C/C++ projects, We can create executable files using a C/C++ compiler by embedding the
Ring language in our project.
Check the “Embedding Ring Language in C/C++ Programs” chapter.
Using this way we will avoid using ring.ring or ring.ringo files.
53.5 Distributing Applications and Games for Mobile
Ring can be embedded in a Qt projects or LibSDL projects to build Mobile applications and Games.
You can build the Qt project or the LibSDL project and get the Android package directly (*.apk)
Check Ring distributions for Mobile development using Qt or LibSDL.
53.3. Creating Windows Installer 521

3. CHAPTER
FIFTYFOUR
COMMAND LINE OPTIONS
The ring language takes source code file (.ring) or the object file (.ringo) as input to execute, also the language provide
other options like
Option Description
-tokens Print a list of tokens in the source code file
-rules Print grammar rules applied on the tokens
-ic Print the intermediate byte code (before execution)
-icfinal Print the final byte code (after execution)
-cgi Print http response header before error messages
-norun Don’t run the program after compiling
-ins Print instruction operation code before execution
-performance Print clock before and after program execution
-go Generate Object File
-w Display Warnings
54.1 Printing Tokens
Example:
Func Main
See "Hello World" + nl
for x = 1 to 10
see x + nl
next
test()
func test
see "welcome" + nl
o1 = new point { x=10 y=20 z=30 }
see o1
class point x y z
Command:
ring test.ring -tokens -norun
Output:
===================================================
Tokens - Generated by the Scanner
===================================================
522

4. Ring Documentation, Release 1.2
Keyword : FUNC
Identifier : main
EndLine
Keyword : SEE
Literal : Hello World
Operator : +
Identifier : nl
EndLine
Keyword : FOR
Identifier : x
Operator : =
Number : 1
Keyword : TO
Number : 10
EndLine
Keyword : SEE
Identifier : x
Operator : +
Identifier : nl
EndLine
Keyword : NEXT
EndLine
Identifier : test
Operator : (
Operator : )
EndLine
Keyword : FUNC
Identifier : test
EndLine
Keyword : SEE
Literal : welcome
Operator : +
Identifier : nl
EndLine
Identifier : o1
Operator : =
Keyword : NEW
Identifier : point
Operator : {
Identifier : x
Operator : =
Number : 10
Identifier : y
Operator : =
Number : 20
Identifier : z
Operator : =
Number : 30
Operator : }
EndLine
Keyword : SEE
Identifier : o1
EndLine
Keyword : CLASS
Identifier : point
Identifier : x
Identifier : y
Identifier : z
54.1. Printing Tokens 523

5. Ring Documentation, Release 1.2
EndLine
===================================================
54.2 Printing Rules
Command:
ring test.ring -rules -norun
Output:
===================================================
Grammar Rules Used by The Parser
===================================================
Rule : Program --> {Statement}
Line 1
Rule : Statement --> 'Func' Identifier [ParaList]
Line 2
Rule : Factor --> Literal
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : Arithmetic --> Arithmetic + Arithmetic
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> 'See' Expr
Line 3
Rule : Factor --> Number
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Factor --> Number
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
54.2. Printing Rules 524

6. Ring Documentation, Release 1.2
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> 'For' Identifier '=' Expr to Expr ['step' Expr]
Line 4
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : Arithmetic --> Arithmetic + Arithmetic
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> 'See' Expr
Line 5
Rule : Next --> 'Next'
Line 6
Rule : Mixer -> '(' [Expr { ',' Expr} ] ')'
Line 8
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> Expr
Rule : Statement --> 'Func' Identifier [ParaList]
Line 9
Rule : Factor --> Literal
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : Arithmetic --> Arithmetic + Arithmetic
54.2. Printing Rules 525

7. Ring Documentation, Release 1.2
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> 'See' Expr
Line 10
Rule : Factor --> New Identifier {'.' Identifier }
Rule : Mixer --> '{' {Statement} BraceEnd
Rule : Factor --> Number
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Assignment -> '=' Expr
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> Expr
Rule : Factor --> Number
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Assignment -> '=' Expr
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
54.2. Printing Rules 526

8. Ring Documentation, Release 1.2
Rule : Expr --> LogicNot
Rule : Statement --> Expr
Rule : Factor --> Number
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Assignment -> '=' Expr
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> Expr
Rule : BraceEnd --> '}'
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Assignment -> '=' Expr
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> Expr
Line 11
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
54.2. Printing Rules 527

9. Ring Documentation, Release 1.2
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> 'See' Expr
Line 13
Rule : Statement --> 'Class' Identifier
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> Expr
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> Expr
Rule : Factor --> Identifier [ {Mixer} | Assignment | PlusPlus | MinusMinus]
Rule : Range --> Factor
Rule : Term --> Range
Rule : Arithmetic --> Term
Rule : BitShift --> Arithmetic
Rule : BitAnd --> BitShift
Rule : BitOrXOR --> BitAnd
Rule : Compare --> BitOrXOR
Rule : EqualOrNot --> Compare
Rule : LogicNot -> EqualOrNot
Rule : Expr --> LogicNot
Rule : Statement --> Expr
===================================================
54.3 Printing Intermediate Code
Command:
ring test.ring -ic -norun
Output:
54.3. Printing Intermediate Code 528

10. Ring Documentation, Release 1.2
===================================================
Byte Code - Before Execution by the VM
===================================================
PC OPCode Data
1 ReturnNull
2 Func main
3 NewLine 2
4 FuncExE
5 PushC Hello World
6 LoadA nl 0
7 PushV
8 SUM 0
9 Print
10 NewLine 3
11 ExitMark 29 28
12 LoadAFirst x
13 PushN 1.000000
14 BeforeEqual 0
15 Assignment
16 PushN 1.000000
17 StepNumber
18 JumpVarLENum x 10.000000 29
19 NewLine 4
20 FuncExE
21 LoadA x 0
22 PushV
23 LoadA nl 0
24 PushV
25 SUM 0
26 Print
27 NewLine 5
28 IncJump x 18
29 POPExitMark
30 POPStep
31 NewLine 6
32 LoadFunc test
33 Call 0
34 NoOperation
35 NewLine 8
36 PushV
37 FreeStack
38 ReturnNull
39 Func test
40 NewLine 9
41 FuncExE
42 PushC welcome
43 LoadA nl 0
44 PushV
45 SUM 0
46 Print
47 NewLine 10
48 LoadA o1 0
49 AssignmentPointer
50 New point
51 SetScope
52 PushV
54.3. Printing Intermediate Code 529
