1. Text Analytics Past, Present &
Future: An Industry View
Seth Grimes
Alta Plana Corporation
@sethgrimes
June 5, 2014

2. Text Analytics: An Industry View
JADT – June 5, 2014
2

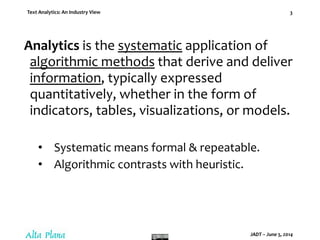

3. Text Analytics: An Industry View
JADT – June 5, 2014
3
Analytics is the systematic application of
algorithmic methods that derive and deliver
information, typically expressed
quantitatively, whether in the form of
indicators, tables, visualizations, or models.
• Systematic means formal & repeatable.
• Algorithmic contrasts with heuristic.

4. Text Analytics: An Industry View
JADT – June 5, 2014
4

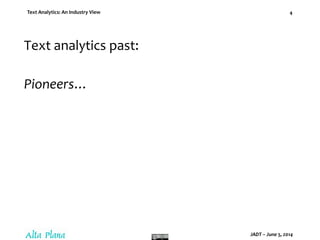

Text analytics past:
Pioneers…

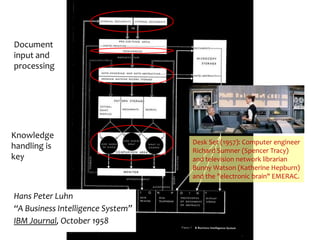

5. Document
input and
processing
Knowledge
handling is
key
Desk Set (1957): Computer engineer
Richard Sumner (Spencer Tracy)
and television network librarian
Bunny Watson (Katherine Hepburn)
and the "electronic brain" EMERAC.
Hans Peter Luhn
“A Business Intelligence System”
IBM Journal, October 1958

6. Text Analytics: An Industry View
JADT – June 5, 2014
6

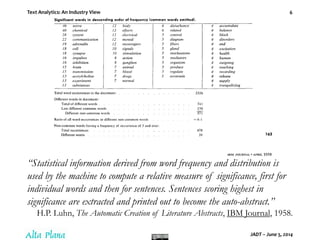

“Statistical information derived from word frequency and distribution is
used by the machine to compute a relative measure of significance, first for
individual words and then for sentences. Sentences scoring highest in
significance are extracted and printed out to become the auto-abstract.”
H.P. Luhn, The Automatic Creation of Literature Abstracts, IBM Journal, 1958.

10. Text Analytics: An Industry View
JADT – June 5, 2014
10

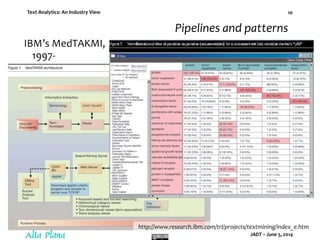

Pipelines and patterns
IBM’s MedTAKMI,
1997-
http://www.research.ibm.com/trl/projects/textmining/index_e.htm

11. Text Analytics: An Industry View
JADT – June 5, 2014
11

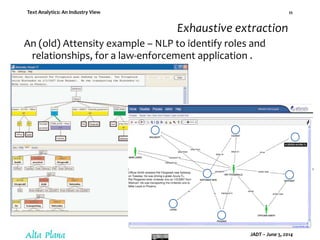

Exhaustive extraction
An (old) Attensity example – NLP to identify roles and
relationships, for a law-enforcement application .

12. Text Analytics: An Industry View
JADT – June 5, 2014
12

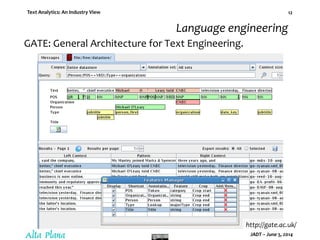

Language engineering
GATE: General Architecture for Text Engineering.
http://gate.ac.uk/

13. Text Analytics: An Industry View
JADT – June 5, 2014
13

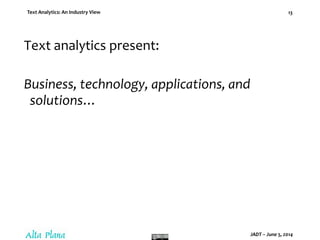

Text analytics present:
Business, technology, applications, and
solutions…

14. Text Analytics: An Industry View
JADT – June 5, 2014
14
“Organizations embracing text analytics all
report having an epiphany moment when
they suddenly knew more than before.”
-- Philip Russom, the Data Warehousing Institute, 2007
http://tdwi.org/articles/2007/05/09-what-works/bi-search-and-text-analytics.aspx

15. Text Analytics: An Industry View
JADT – June 5, 2014
15

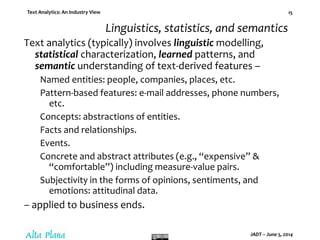

Linguistics, statistics, and semantics
Text analytics (typically) involves linguistic modelling,
statistical characterization, learned patterns, and
semantic understanding of text-derived features –
Named entities: people, companies, places, etc.
Pattern-based features: e-mail addresses, phone numbers,
etc.
Concepts: abstractions of entities.
Facts and relationships.
Events.
Concrete and abstract attributes (e.g., “expensive” &
“comfortable”) including measure-value pairs.
Subjectivity in the forms of opinions, sentiments, and
emotions: attitudinal data.
– applied to business ends.

16. Text Analytics: An Industry View
JADT – June 5, 2014
16

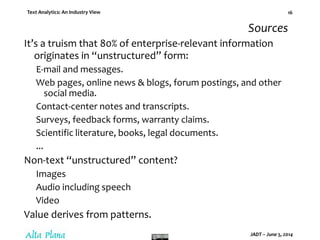

Sources
It’s a truism that 80% of enterprise-relevant information
originates in “unstructured” form:
E-mail and messages.
Web pages, online news & blogs, forum postings, and other
social media.
Contact-center notes and transcripts.
Surveys, feedback forms, warranty claims.
Scientific literature, books, legal documents.
...
Non-text “unstructured” content?
Images
Audio including speech
Video
Value derives from patterns.

17. Text Analytics: An Industry View
JADT – June 5, 2014
17

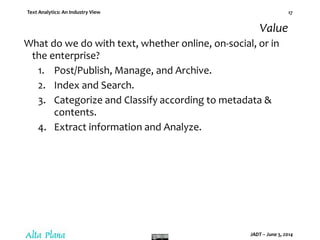

Value
What do we do with text, whether online, on-social, or in
the enterprise?
1. Post/Publish, Manage, and Archive.
2. Index and Search.
3. Categorize and Classify according to metadata &
contents.
4. Extract information and Analyze.

18. Text Analytics: An Industry View
JADT – June 5, 2014
18

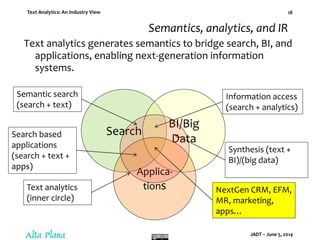

Semantics, analytics, and IR
Text analytics generates semantics to bridge search, BI, and
applications, enabling next-generation information
systems.
Search
BI/Big
Data
Applica-
tions
Search based
applications
(search + text +
apps)
Information access
(search + analytics)
Synthesis (text +
BI)/(big data)
Text analytics
(inner circle)
Semantic search
(search + text)
NextGen CRM, EFM,
MR, marketing,
apps…

19. Text Analytics: An Industry View
JADT – June 5, 2014
19

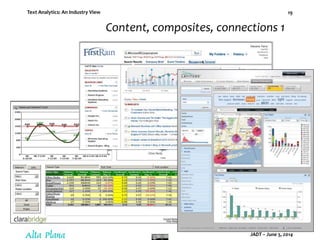

Content, composites, connections 1

20. Text Analytics: An Industry View
JADT – June 5, 2014
20

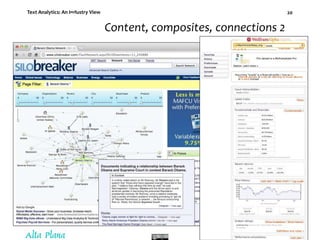

Content, Composites, Connections, 2
Content, composites, connections 2

21. Text Analytics: An Industry View
JADT – June 5, 2014
21

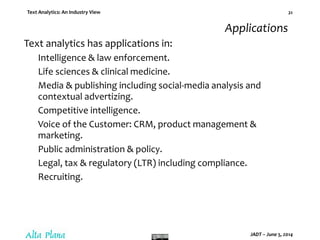

Applications
Text analytics has applications in:
Intelligence & law enforcement.
Life sciences & clinical medicine.
Media & publishing including social-media analysis and
contextual advertizing.
Competitive intelligence.
Voice of the Customer: CRM, product management &
marketing.
Public administration & policy.
Legal, tax & regulatory (LTR) including compliance.
Recruiting.

22. Text Analytics: An Industry View
JADT – June 5, 2014
22

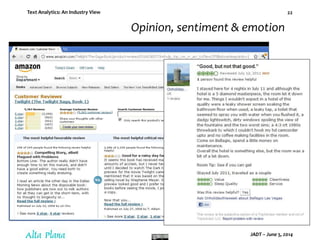

Opinion, sentiment & emotion

23. Text Analytics: An Industry View
JADT – June 5, 2014
23

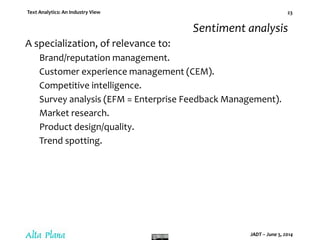

Sentiment analysis
A specialization, of relevance to:
Brand/reputation management.
Customer experience management (CEM).
Competitive intelligence.
Survey analysis (EFM = Enterprise Feedback Management).
Market research.
Product design/quality.
Trend spotting.

24. Text Analytics: An Industry View
JADT – June 5, 2014
24

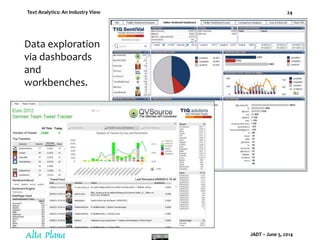

Data exploration
via dashboards
and
workbenches.

25. Text Analytics: An Industry View
JADT – June 5, 2014
25

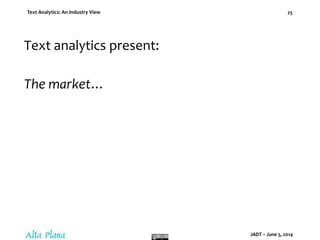

Text analytics present:
The market…

26. Text Analytics: An Industry View
JADT – June 5, 2014
26

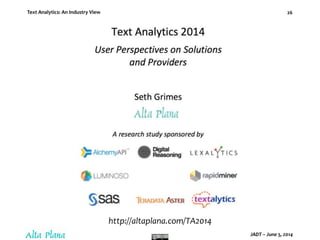

http://altaplana.com/TA2014

27. Text Analytics: An Industry View
JADT – June 5, 2014
27

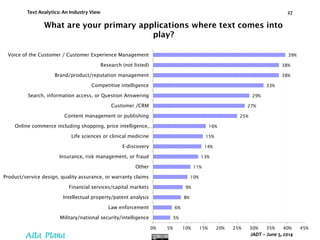

5%
6%
8%
9%
10%
11%
13%
14%
15%
16%
25%
27%
29%
33%
38%
38%
39%
0% 5% 10% 15% 20% 25% 30% 35% 40% 45%
Military/national security/intelligence
Law enforcement
Intellectual property/patent analysis
Financial services/capital markets
Product/service design, quality assurance, or warranty claims
Other
Insurance, risk management, or fraud
E-discovery
Life sciences or clinical medicine
Online commerce including shopping, price intelligence,…
Content management or publishing
Customer /CRM
Search, information access, or Question Answering
Competitive intelligence
Brand/product/reputation management
Research (not listed)
Voice of the Customer / Customer Experience Management
What are your primary applications where text comes into
play?

28. Text Analytics: An Industry View
JADT – June 5, 2014
28

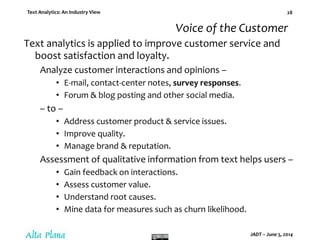

Voice of the Customer
Text analytics is applied to improve customer service and
boost satisfaction and loyalty.
Analyze customer interactions and opinions –
• E-mail, contact-center notes, survey responses.
• Forum & blog posting and other social media.
– to –
• Address customer product & service issues.
• Improve quality.
• Manage brand & reputation.
Assessment of qualitative information from text helps users –
• Gain feedback on interactions.
• Assess customer value.
• Understand root causes.
• Mine data for measures such as churn likelihood.

29. Text Analytics: An Industry View
JADT – June 5, 2014
29
The commercial scene

30. Text Analytics: An Industry View
JADT – June 5, 2014
30

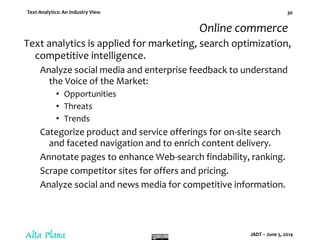

Online commerce
Text analytics is applied for marketing, search optimization,
competitive intelligence.
Analyze social media and enterprise feedback to understand
the Voice of the Market:
• Opportunities
• Threats
• Trends
Categorize product and service offerings for on-site search
and faceted navigation and to enrich content delivery.
Annotate pages to enhance Web-search findability, ranking.
Scrape competitor sites for offers and pricing.
Analyze social and news media for competitive information.

31. Text Analytics: An Industry View
JADT – June 5, 2014
31
E-Discovery and compliance
Text analytics is applied for compliance, fraud and risk, and
e-discovery.
Regulatory mandates and corporate practices dictate –
• Monitoring corporate communications
• Managing electronic stored information for production in
event of litigation
Sources include e-mail (!!), news, social media
Risk avoidance and fraud detection are key to effective
decision making
• Text analytics mines critical data from unstructured sources
• Integrated text-transactional analytics provides rich insights

32. Text Analytics: An Industry View
JADT – June 5, 2014
32

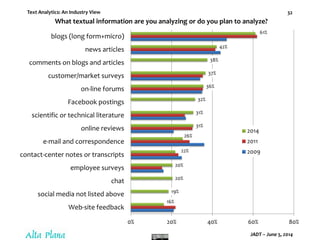

16%
19%
20%
20%
22%
26%
31%
31%
32%
36%
37%
38%
42%
61%
0% 20% 40% 60% 80%
Web-site feedback
social media not listed above
chat
employee surveys
contact-center notes or transcripts
e-mail and correspondence
online reviews
scientific or technical literature
Facebook postings
on-line forums
customer/market surveys
comments on blogs and articles
news articles
blogs (long form+micro)
What textual information are you analyzing or do you plan to analyze?
2014
2011
2009

33. Text Analytics: An Industry View
JADT – June 5, 2014
33

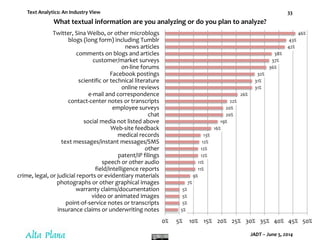

5%
5%
5%
5%
7%
9%
11%
11%
12%
12%
12%
13%
16%
19%
20%
20%
22%
26%
31%
31%
32%
36%
37%
38%
42%
43%
46%
0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50%
insurance claims or underwriting notes
point-of-service notes or transcripts
video or animated images
warranty claims/documentation
photographs or other graphical images
crime, legal, or judicial reports or evidentiary materials
field/intelligence reports
speech or other audio
patent/IP filings
other
text messages/instant messages/SMS
medical records
Web-site feedback
social media not listed above
chat
employee surveys
contact-center notes or transcripts
e-mail and correspondence
online reviews
scientific or technical literature
Facebook postings
on-line forums
customer/market surveys
comments on blogs and articles
news articles
blogs (long form) including Tumblr
Twitter, Sina Weibo, or other microblogs
What textual information are you analyzing or do you plan to analyze?

34. Text Analytics: An Industry View
JADT – June 5, 2014
34

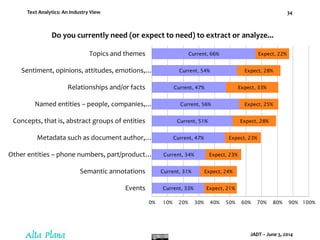

Current, 33%
Current, 31%
Current, 34%
Current, 47%
Current, 51%
Current, 56%
Current, 47%
Current, 54%
Current, 66%
Expect, 21%
Expect, 24%
Expect, 23%
Expect, 23%
Expect, 28%
Expect, 25%
Expect, 33%
Expect, 28%
Expect, 22%
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Events
Semantic annotations
Other entities – phone numbers, part/product…
Metadata such as document author,…
Concepts, that is, abstract groups of entities
Named entities – people, companies,…
Relationships and/or facts
Sentiment, opinions, attitudes, emotions,…
Topics and themes
Do you currently need (or expect to need) to extract or analyze...

35. Text Analytics: An Industry View
JADT – June 5, 2014
35

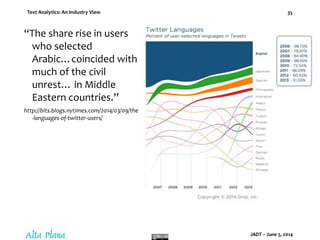

“The share rise in users
who selected
Arabic…coincided with
much of the civil
unrest… in Middle
Eastern countries.”
http://bits.blogs.nytimes.com/2014/03/09/the
-languages-of-twitter-users/

36. Text Analytics: An Industry View
JADT – June 5, 2014
36
10%
1%
16%
9%
36%
34%
2%
2%
18%
7%
4%
3%
13%
8%
7%
38%
3%
2%
3%
2%
5%
9%
17%
3%
28%
7%
17%
24%
2%
10%
11%
15%
8%
4%
17%
21%
3%
20%
4%
0%
1%
1%
2%
0%
0% 10% 20% 30% 40% 50% 60%
Arabic
Bahasa Indonesia or Malay
Chinese
Dutch
French
German
Greek
Hindi, Urdu, Bengali, Punjabi, or…
Italian
Japanese
Korean
Polish
Portuguese
Russian
Scandinavian or Baltic
Spanish
Turkish or Turkic
Other African
Other Arabic script (including Urdu,…
Other East Asian
Other European or Slavic/Cyrillic
Other
Current
Within 2 years

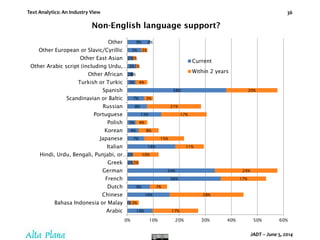

Non-English language support?

37. Text Analytics: An Industry View
JADT – June 5, 2014
37

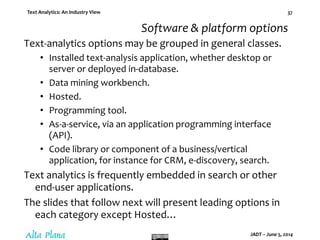

Software & platform options
Text-analytics options may be grouped in general classes.
• Installed text-analysis application, whether desktop or
server or deployed in-database.
• Data mining workbench.
• Hosted.
• Programming tool.
• As-a-service, via an application programming interface
(API).
• Code library or component of a business/vertical
application, for instance for CRM, e-discovery, search.
Text analytics is frequently embedded in search or other
end-user applications.
The slides that follow next will present leading options in
each category except Hosted…

38. Text Analytics: An Industry View
JADT – June 5, 2014
38
22%
25%
28%
30%
32%
33%
33%
36%
37%
40%
41%
43%
44%
45%
53%
53%
54%
64%
0% 10% 20% 30% 40% 50% 60% 70%
media monitoring/analysis interface
hosted or Web service (on-demand "API") option
supports data fusion / unified analytics
sector adaptation (e.g., hospitality, insurance, retail, health care,…
BI (business intelligence) integration
ability to create custom workflows or to create or change…
big data capabilities, e.g., via Hadoop/MapReduce
predictive-analytics integration
open source
support for multiple languages
sentiment scoring
"real time" capabilities
low cost
deep sentiment/emotion/opinion/intent extraction
document classification
broad information extraction capability
ability to use specialized dictionaries, taxonomies, ontologies, or…
ability to generate categories or taxonomies

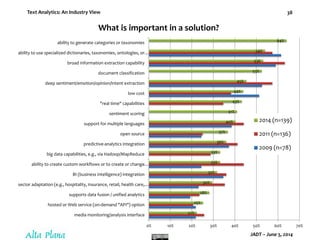

What is important in a solution?
2014 (n=139)
2011 (n=136)
2009 (n=78)

39. Text Analytics: An Industry View
JADT – June 5, 2014
39

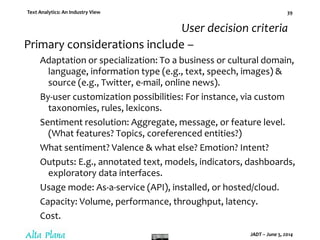

User decision criteria
Primary considerations include –
Adaptation or specialization: To a business or cultural domain,
language, information type (e.g., text, speech, images) &
source (e.g., Twitter, e-mail, online news).
By-user customization possibilities: For instance, via custom
taxonomies, rules, lexicons.
Sentiment resolution: Aggregate, message, or feature level.
(What features? Topics, coreferenced entities?)
What sentiment? Valence & what else? Emotion? Intent?
Outputs: E.g., annotated text, models, indicators, dashboards,
exploratory data interfaces.
Usage mode: As-a-service (API), installed, or hosted/cloud.
Capacity: Volume, performance, throughput, latency.
Cost.

40. Text Analytics: An Industry View
JADT – June 5, 2014
40
A few French companies

41. Text Analytics: An Industry View
JADT – June 5, 2014
41
Academic spin-offs
People Pattern

42. Text Analytics: An Industry View
JADT – June 5, 2014
42

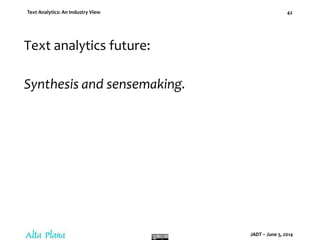

Text analytics future:
Synthesis and sensemaking.

43. New York Times,
September 8, 1957

44. Text Analytics: An Industry View
JADT – June 5, 2014
44

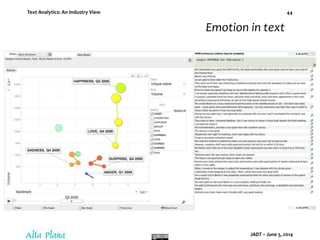

Emotion in text

45. Text Analytics: An Industry View
JADT – June 5, 2014
45

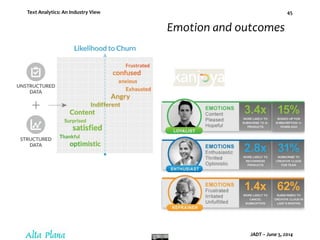

Emotion and outcomes

46. Text Analytics: An Industry View
JADT – June 5, 2014
46
Audio including speech.
Images.
Video.
http://www.geekosystem.com/
facebook-face-recognition/
http://www.sciencedirect.com/science
/article/pii/S0167639312000118
http://flylib.com/books/en/2.495.1.54/1/
Beyond Text

47. Text Analytics: An Industry View
JADT – June 5, 2014
47

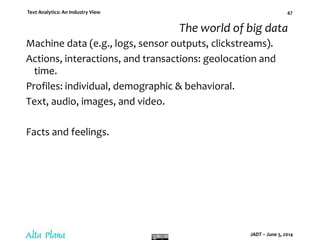

The world of big data
Machine data (e.g., logs, sensor outputs, clickstreams).
Actions, interactions, and transactions: geolocation and
time.
Profiles: individual, demographic & behavioral.
Text, audio, images, and video.
Facts and feelings.

48. Text Analytics: An Industry View
JADT – June 5, 2014
48

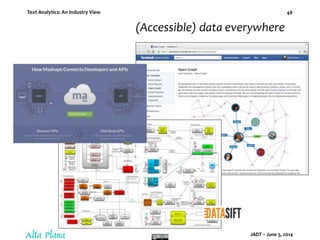

(Accessible) data everywhere

49. Text Analytics: An Industry View
JADT – June 5, 2014
49
http://www.geeklawblog.com/2011/12/lexis-advance-platform-launch-two.html

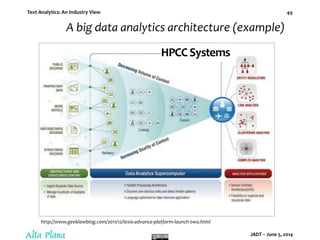

A big data analytics architecture (example)

50. Text Analytics: An Industry View
JADT – June 5, 2014
50
http://searchuserinterfaces.com/
“It is convenient to divide the entire
information access process into two
main components: information
retrieval through searching and
browsing, and analysis and synthesis
of results. This broader process is
often referred to in the literature as
sensemaking.
Sensemaking refers to an iterative
process of formulating a conceptual
representation from of a large
volume of information.”
– Marti Hearst, 2009
Sensemaking

51. Text Analytics: An Industry View
JADT – June 5, 2014
51
http://www.businessweek.com/magazine/content/04_19/b3882029_mz072.htm
En route

52. Text Analytics Past, Present &
Future: An Industry View
Seth Grimes
Alta Plana Corporation
@sethgrimes
June 5, 2014
