secure lazy binding, and the 64bit time_t development process by Philip Guenther

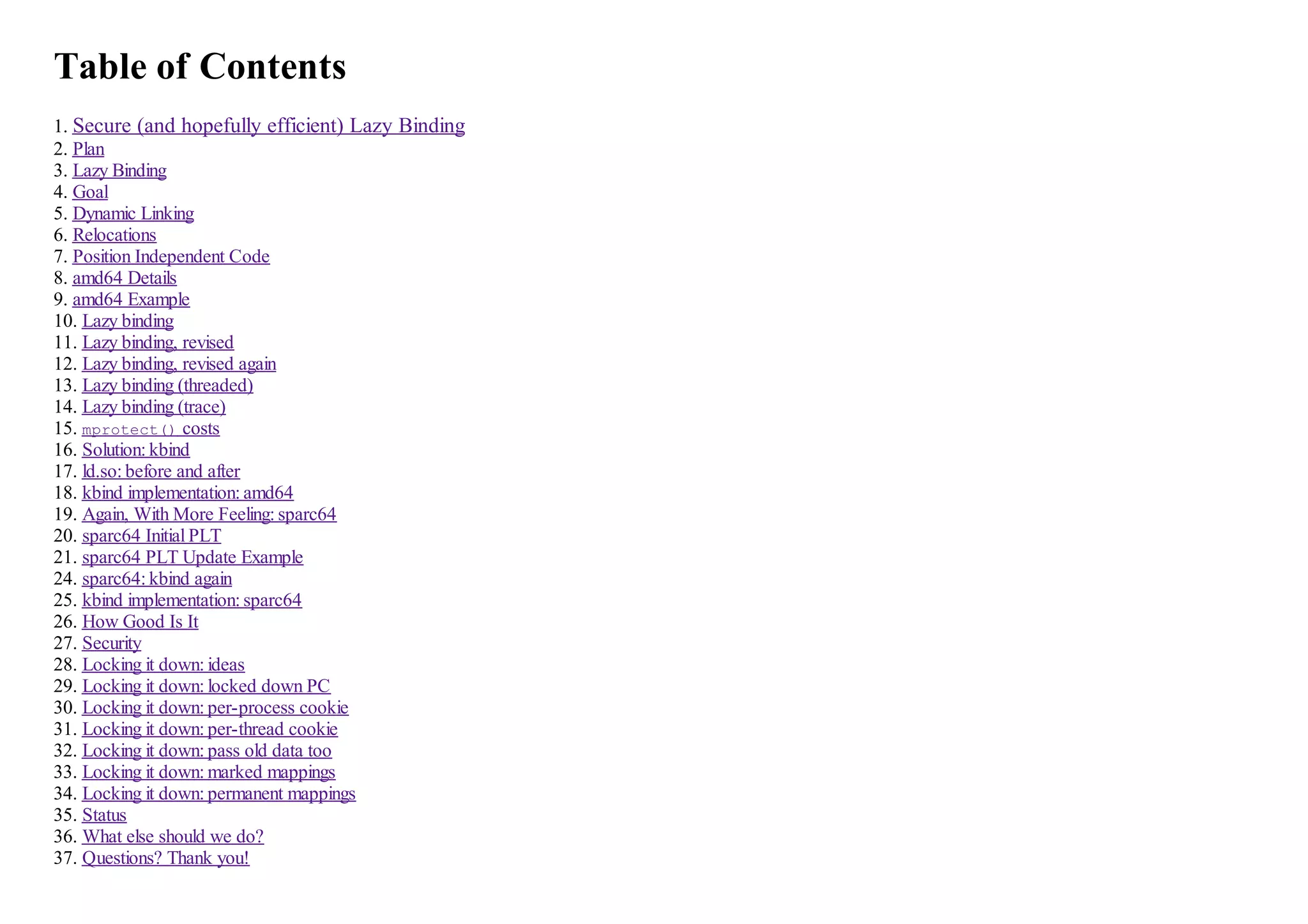

Table of Contents
1. Secure (and hopefully efficient) Lazy Binding
2. Plan
3. Lazy Binding
4. Goal
5. Dynamic Linking
6. Relocations
7. Position Independent Code
8. amd64 Details
9. amd64 Example
10. Lazy binding
11. Lazy binding, revised
12. Lazy binding, revised again
13. Lazy binding (threaded)
14. Lazy binding (trace)
15. mprotect() costs
16. Solution: kbind
17. ld.so: before and after
18. kbind implementation: amd64
19. Again, With More Feeling: sparc64
20. sparc64 Initial PLT
21. sparc64 PLT Update Example
24. sparc64: kbind again
25. kbind implementation: sparc64
26. How Good Is It
27. Security

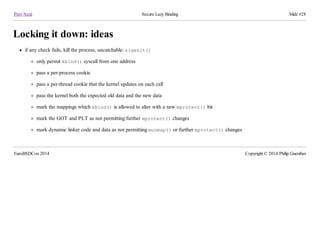

28. Locking it down: ideas
29. Locking it down: locked down PC
30. Locking it down: per-process cookie
31. Locking it down: per-thread cookie
32. Locking it down: pass old data too
33. Locking it down: marked mappings
34. Locking it down: permanent mappings
35. Status
36. What else should we do?
37. Questions? Thank you!

Prev Next Secure Lazy Binding Slide #1
Secure (and hopefully efficient) Lazy Binding
EuroBSDCon 2014 Copyright © 2014 Philip Guenther

Plan
What's the problem we're trying to solve?
What can we do?
How good is the solution?
Does the solution create new problems?
What else should we do?
Where are we?

Lazy Binding
Lazy binding is the method by which the dynamic linker defers symbol lookups for function calls until the first time the function is
called
pro: save effort of symbol lookups that aren't used
cons:
inconsistent call latency
violates W^X on some architectures: code or function pointers need to be changed on the fly while being executable!

Lazy Binding
Lazy binding is the method by which the dynamic linker defers symbol lookups for function calls until the first time the function is
called
pro: save effort of symbol lookups that aren't used
cons:
inconsistent call latency
continued...

Goal
Make it possible for the dynamic linker to perform lazy binding
without creating a window of vulnerability
while being efficient

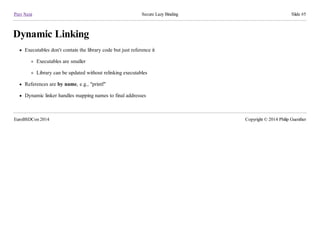

Dynamic Linking
Executables don't contain the library code but just reference it
Executables are smaller
Library can be updated without relinking executables
References are by name, e.g., "printf"
Dynamic linker handles mapping names to final addresses

Relocations
tables created by the assembler and linker recording how the code or data depends on load location or symbol value
R_X86_64_RELATIVE
rewrite with load location plus some addend
R_X86_64_64
rewrite with symbol value plus some addend
relocations used by dynamic linker can be split into two groups:
immediate: affect data items, pointers to functions
lazy: function calls to or from shared objects
function call is initially directed to the dynamic linker instead

Relocations
R_X86_64_RELATIVE
R_X86_64_64
continued...

Relocations
R_X86_64_RELATIVE
R_X86_64_64
relocations used by dynamic linker can be split into two groups:
immediate: affect data items, pointers to functions
lazy: function calls to or from shared objects
continued...

Position Independent Code
We want to maximize sharing of memory between processes
text (code) and read-only memory shouldn't change
...even when the library or executable is loaded at a random location (ASLR)
generated code accesses variables and functions using relative addresses or by indirecting through a table
the mappings needed by a program or library are packed into indirection tables
GOT: global offset table
stores final addresses of variables and functions
PLT: procedure linkage table
directly callable stub routines
many architecture specific details

amd64 Details
PLT is never changed
linker knows offset between GOT and PLT
PLT code uses "load from %rip-relative address" instructions to get values from GOT
initial call to a PLT entry gets another address in the PLT, which calls dynamic linker
dynamic linker just updates the GOT entry used by the function's PLT entry
i386 is similar, but no %eip-relative addressing
caller of PLT has to set %ebx to point to GOT

amd64 Details
PLT is never changed
linker knows offset between GOT and PLT
PLT code uses "load from %rip-relative address" instructions to get values from GOT
initial call to a PLT entry gets another address in the PLT, which calls dynamic linker
dynamic linker just updates the GOT entry used by the function's PLT entry
continued...

amd64 Example
extern int foo;
extern int bar(int);
int call_bar(void) {
return bar(foo);
}
movq foo@GOTPCREL(%rip), %rax # load foo's address from GOT
movl (%rax), %edi # read foo's value
call bar@PLT # call bar's PLT stub
.PLT0: pushq GOT+8(%rip) # push argument for lazy bind code
jmp *GOT+16(%rip) # jump to lazy binding entry
....
.PLTn: jmp *bar@GOTPCREL(%rip) # load address from JUMP_SLOT in GOT
pushq $index1 # load index of JUMP_SLOT relocation
jmp .PLT0 # jump to above

amd64 Example
extern int foo;
return bar(foo);
}
continued...

amd64 Example
extern int foo;
return bar(foo);
}
movq foo@GOTPCREL(%rip), %rax # load foo's address from GOT
movl (%rax), %edi # read foo's value
call bar@PLT # call bar's PLT stub
continued...

Lazy binding
Lazy binding code:
resolve symbol to correct address
update GOT entry
GOT and PLT don't need to be written to by application code!
OpenBSD: after loading, both GOT and PLT are mprotect()ed to read-only

Lazy binding
Lazy binding code:
update GOT entry
continued...

Lazy binding, revised
Lazy binding code:
mprotect() the GOT to read-write
update GOT entry
mprotect() the GOT read-only again
but what if a signal is delivered during this and it calls the target function?

Lazy binding, revised
Lazy binding code:
update GOT entry
continued...

Lazy binding, revised again
Lazy binding code:
block all signals with sigprocmask()
update GOT entry
restore signal mask with sigprocmask()
but what if another thread calls the target function?

Lazy binding, revised again
Lazy binding code:
update GOT entry
continued...

Lazy binding (threaded)
Lazy binding code:
grab bind spinlock
update GOT or PLT entry
release bind spinlock

Lazy binding (trace)
CALL sigprocmask(SIG_BLOCK,~0<>)
RET sigprocmask 0<>
CALL mprotect(0x16bc657ac000,0x3000,0x3<PROT_READ|PROT_WRITE>)
RET mprotect 0
CALL mprotect(0x16bc657ac000,0x3000,0x1<PROT_READ>)
RET mprotect 0
CALL sigprocmask(SIG_SETMASK,0<>)
RET sigprocmask ~0x10100<SIGKILL|SIGSTOP>
CALL ioctl(0,TIOCGETA,0x7f7ffffcbbb0)
RET ioctl 0

mprotect() costs
When you add a permission to a page, the update can be lazy
kernel notes the change but doesn't update the hardware mapping
when the process tries to use that permission, it faults and the fault handler fixes it up to work
When you remove a permission from a page, the update must be immediate
update the page tables and flush the involved TLB entries
if process has threads running on other CPUs, need to force them to do that too
not cheap...
...and we don't even want other threads to be able to see the change!

mprotect() costs
When you add a permission to a page, the update can be lazy
kernel notes the change but doesn't update the hardware mapping
when the process tries to use that permission, it faults and the fault handler fixes it up to work
When you remove a permission from a page, the update must be immediate
update the page tables and flush the involved TLB entries
if process has threads running on other CPUs, need to force them to do that too
not cheap...
continued...

Solution: kbind
syscall to do PLT/GOT update
kbind(void *addr, size_t len, void *data)
address and length of memory to update
buffer of copy there
performs same permission checks and copy-on-write handling as mprotect and page fault
uninterruptible: no signal issues
VM and pmap have to provide whatever locking is necessary in kernel

ld.so: before and after
before:
/* set the GOT to RW */
sigprocmask(SIG_BLOCK, &allsigs, &savedmask);
spinlock_lock(&bind_lock); /* libpthread cb */
mprotect(object->got_start, object->got_size, PROT_READ|PROT_WRITE);
*(Elf_Addr *)addr = newval;
/* put the GOT back to RO */
mprotect(object->got_start, object->got_size, PROT_READ);
spinlock_unlock(&bind_lock); /* libpthread cb */
sigprocmask(SIG_SETMASK, &curset, NULL);
after:
kbind(addr, sizeof(Elf_Addr), &newval);
kbind(0x171d762ebd8,0x8,0x7f7ffffde1f8)
kbind 0
ioctl(0,TIOCGETA,0x7f7ffffde2f0)
ioctl 0

before:
continued...

before:
after:
kbind(addr, sizeof(Elf_Addr), &newval);
continued...

kbind implementation: amd64
OpenBSD/amd64 has "direct pmap": direct map in VA always maps all PA
Copy new data into buffer in kernel
uvm_fault(map, baseva, VM_FAULT_WIRE, VM_PROT_NONE)
force copy-on-write resolution
force page to be physically in memory and unpageable
physical page has "maximal" permissions for mapping
pmap_extract(map->pmap, baseva, &paddr)
kva = PMAP_DIRECT_MAP(paddr)
get kernel's direct mapped address of the underlying physical page
bcopy(buffer, kva + offset, len)
update the wired-in physical page
uvm_fault_unwire(map, last_baseva, last_baseva + PAGE_SIZE)
permit page to be paged again

Again, With More Feeling: sparc64
GOT is never changed after the library is loaded
initial PLT stubs load index and jump to common stub, which does call to dynamic linker
dynamic linker updates the PLT code sequence to jump to the final address
many possible sequences depending on the relative and absolute address
within 2^21 of the PLT entry? within 2^31 of address zero?
hard to exercise, ergo buggy: incorrect offset calculations, wrong ASM
PLT could be called by another thread while changing it
instruction sequence must always be safely executable
change it in two steps

continued...

hard to exercise, ergo buggy: incorrect offset calculations, wrong ASM
continued...

sparc64 Initial PLT
.PLT1: save %sp, -176, %sp # create stack frame
... # calculate lazy bind addr and jump
...
.PLTn: sethi (. - .PLT0), %g1 # load offset of entry
ba,a %xcc, .PLT1 # jump to above
nop; nop
nop; nop
nop; nop

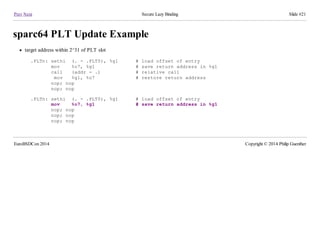

sparc64 PLT Update Example
target address within 2^31 of PLT slot
mov %o7, %g1 # save return address in %g1
call (addr - .) # relative call
mov %g1, %o7 # restore return address
nop; nop
nop; nop
nop; nop
nop; nop
nop; nop

target address within 2^31 of PLT slot
nop; nop
nop; nop
continued...

ba,a %xcc, .PLT1 # jump to above
nop; nop
nop; nop

nop; nop
nop; nop
so we need to pass the kernel two blocks to copy into place

sparc64: kbind again
kbind(void *param, size_t plen)
address
length
new data
new data
address
length
new data

kbind implementation: sparc64
Copy new data into buffer in kernel
for each block:
uvm_map_extract(map, baseva, PAGE_SIZE, &kva, UVM_EXTRACT_FIXPROT)
force copy-on-write resolution
map that userspace VA into the kernel map, with max permitted permissions
bcopy(buffer, kva + offset, len)
update the page via the kernel mapping
actually use word-sized writes
uvm_unmap_remove(kernel_map, kva, kva+PAGE_SIZE, &dead_entries, FALSE, TRUE)
remove the page from the kernel map
uvm_unmap_detach(&dead_entries, AMAP_REFALL)
clean up/release references to backing objects

How Good Is It
4%
That's the savings in real time for a make build, both amd64 and sparc64
much of that is in the make install step: lots of short-lived processes
current version is not always faster
kbind() only touches the specific page involved, no read-ahead?

How Good Is It
4%
continued...

How Good Is It
4%
That's the savings in real time for a make build, both amd64 and sparc64
much of that is in the make install step: lots of short-lived processes
continued...

Security
Sweet, a syscall that can change read-only memory!
Hmmm, this is a power that can only be used for Good Or Evil
Can we make it only capable of resolving lazy bindings to their correct values?
Only want dynamic linker to be able to call this
Don't want this to be useful as a target of Return-Oriented-Programming
Don't want it to be able to change arbitrary memory

Locking it down: ideas
if any check fails, kill the process, uncatchable: sigexit()
only permit kbind() syscall from one address
pass a per-process cookie
pass a per-thread cookie that the kernel updates on each call
pass the kernel both the expected old data and the new data
mark the mappings which kbind() is allowed to alter with a new mprotect() bit
mark the GOT and PLT as not permitting further mprotect() changes
mark dynamic linker code and data as not permitting munmap() or further mprotect() changes

Locking it down: locked down PC
only permit kbind() syscall from one address
struct process has caddr_t ps_kbind_addr
copied on fork(), zeroed on execve()
kbind() extracts the return address from the syscall trap frame
if ps_kbind_addr is zero, this is first call, so set it
otherwise, if they don't match then sigexit(SIGILL)
if called with NULL parameters ("change nothing"), then set ps_kbind_addr to impossible address
C startup code for static executables can use that to disable kbind() for them
dynamic linker has syscall as inline ASM and is built with -fstack-protector
if you jump into the middle of _dl_bind() to get to the syscall, on return the stack protector will catch you

Locking it down: per-process cookie
pass a per-process cookie
kernel saves value from first call in struct process, ps_kbind_cookie
mismatch in later call? sigexit(SIGILL)
variable placed in PT_OPENBSD_RANDOMIZE segment, filled with random bytes by kernel
_dl_bind() loads the cookie before calculating the GOT/PLT changes to pass to the kernel
attacker can't use ld.so's "load the cookie" code with its own changes
...but the variable's address is static offset within ld.so memory

Locking it down: per-thread cookie
pass a per-thread cookie and its address
kernel saves value from first call in each thread in struct proc, p_kbind_cookie
generate new value and copy it out to supplied address
reserve space for the cookie in TCB
problems:
have to (finally...) push TCB management code into ld.so
cookie is easy to find; lots of code in libpthread has to access it, probably plenty of ROP gadgets
probably will remove

Locking it down: per-thread cookie
pass a per-thread cookie and its address
kernel saves value from first call in each thread in struct proc, p_kbind_cookie
generate new value and copy it out to supplied address
reserve space for the cookie in TCB
continued...

Locking it down: pass old data too
compare each word against both old and new
already new? do nothing
matches old? update to new
match neither? sigexit(SIGILL)
sounds nice, but the kernel isn't really checking the data for validity
there's a corner case where an entry can legitimately change the value it should resolve to
will remove

Locking it down: pass old data too
compare each word against both old and new
already new? do nothing
matches old? update to new
match neither? sigexit(SIGILL)
sounds nice, but the kernel isn't really checking the data for validity
continued...

Locking it down: marked mappings
mprotect(got_addr, got_len, PROT_READ | __PROT_KBIND)
kbind() verifies that that bit is set, else sigexit(SIGILL)
mark the GOT and PLT as not permitting further mprotect() changes
mprotect(got_addr, got_len, PROT_READ | __PROT_KBIND | __PROT_LOCKPROT)
kbind() can only change those pages; those pages can only be changed by kbind()

Locking it down: marked mappings
mprotect(got_addr, got_len, PROT_READ | __PROT_KBIND)
kbind() verifies that that bit is set, else sigexit(SIGILL)
continued...

Locking it down: permanent mappings
mmap() and munmap() can effectively override mprotect() by remapping over protected page
doesn't make sense to unmap dynamic linker
or libc, for that matter
test for DT_FLAGS_1 NODELETE
new mmap() or madvise() flag to mark a mapping as permanent and only removable via execve()?

Status
Not committed yet
Have working code on amd64, sparc64, and i386
powerpc will require converting to "secure PLT" ABI
haven't dug into the others (alpha, m88k, mips64, sh, hppa) yet
Need to update the security measures implemented
Performance should be consistently better

What else should we do?
better shared library symbol management
ELF hidden visibility: libraries can bind directly to their own symbols
OpenBSD/amd64 libc.so has 771 PLT entries, but only a few are necessary

Questions? Thank you!

secure lazy binding, and the 64bit time_t development process by Philip Guenther

More Related Content

What's hot

Similar to secure lazy binding, and the 64bit time_t development process by Philip Guenther

More from eurobsdcon

Recently uploaded

secure lazy binding, and the 64bit time_t development process by Philip Guenther
