The document describes the Teri Retreat Centre located near Delhi, India. It is a 36 hectare site that includes a forestry, micropropagation technology park, patchy greens, retreat centre, golf range, and golf course. The retreat centre was built between 1997-2000 at a cost of Rs. 23.6 million for civil works and Rs. 2.5 million for electrical works. It has a residential training facility with seminar blocks and accommodations designed to be energy efficient and utilize renewable energy sources like solar power.

1. G

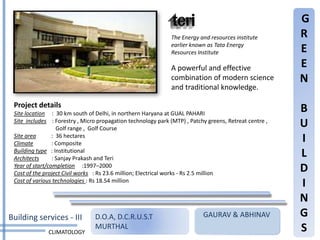

The Energy and resources institute R
earlier known as Tata Energy
Resources Institute E
A powerful and effective E
combination of modern science N
and traditional knowledge.
Project details
Site location : 30 km south of Delhi, in northern Haryana at GUAL PAHARI
B
Site includes : Forestry , Micro propagation technology park (MTP) , Patchy greens, Retreat centre ,
Golf range , Golf Course
U
Site area
Climate
: 36 hectares
: Composite
I
Building type : Institutional
Architects : Sanjay Prakash and Teri
L
Year of start/completion :1997–2000
Cost of the project Civil works : Rs 23.6 million; Electrical works - Rs 2.5 million
D
Cost of various technologies : Rs 18.54 million
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

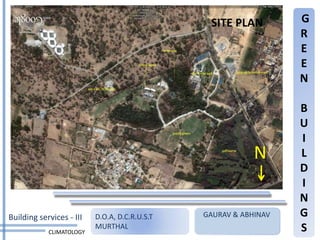

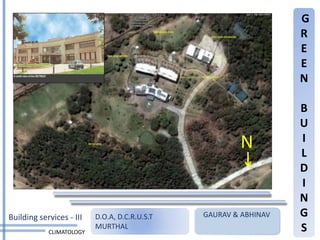

2. SITE PLAN G
R
E
E
N
B
U
I
N L
D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

3. G
R
E
E
N
B
U
N I
L
D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

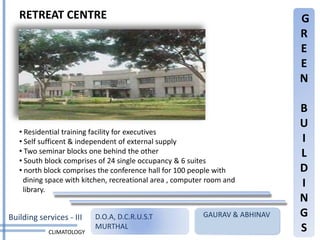

4. RETREAT CENTRE G
R
E
E
N
B
U
• Residential training facility for executives
• Self sufficent & independent of external supply I
• Two seminar blocks one behind the other L
• South block comprises of 24 single occupancy & 6 suites
• north block comprises the conference hall for 100 people with D
dining space with kitchen, recreational area , computer room and
library.
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

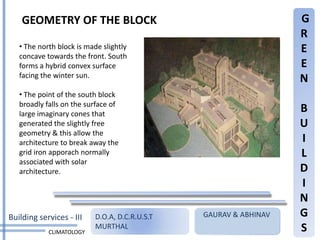

5. GEOMETRY OF THE BLOCK G
R
• The north block is made slightly E
concave towards the front. South
forms a hybrid convex surface E
facing the winter sun.
N
• The point of the south block
broadly falls on the surface of
large imaginary cones that
B
generated the slightly free U
geometry & this allow the
architecture to break away the I
grid iron apporach normally L
associated with solar
architecture. D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

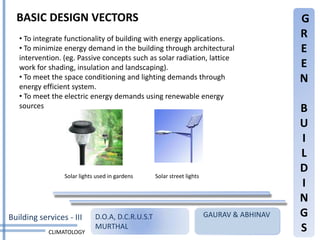

6. BASIC DESIGN VECTORS G
• To integrate functionality of building with energy applications. R
• To minimize energy demand in the building through architectural E
intervention. (eg. Passive concepts such as solar radiation, lattice
work for shading, insulation and landscaping). E
• To meet the space conditioning and lighting demands through N
energy efficient system.
• To meet the electric energy demands using renewable energy
sources B
U
I
L
D
Solar lights used in gardens Solar street lights
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

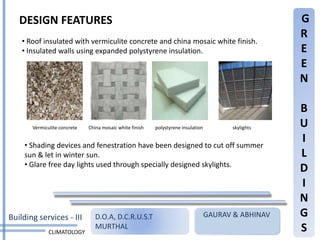

7. DESIGN FEATURES G
R
• Roof insulated with vermiculite concrete and china mosaic white finish.
• Insulated walls using expanded polystyrene insulation. E
E
N
B
Vermiculite concrete China mosaic white finish polystyrene insulation skylights U
• Shading devices and fenestration have been designed to cut off summer
I
sun & let in winter sun. L
• Glare free day lights used through specially designed skylights.
D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

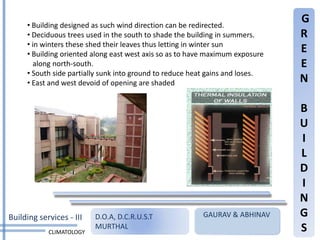

8. • Building designed as such wind direction can be redirected.
G
• Deciduous trees used in the south to shade the building in summers. R
• in winters these shed their leaves thus letting in winter sun
• Building oriented along east west axis so as to have maximum exposure
E
along north-south. E
• South side partially sunk into ground to reduce heat gains and loses.
• East and west devoid of opening are shaded N
B
U
I
L
D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

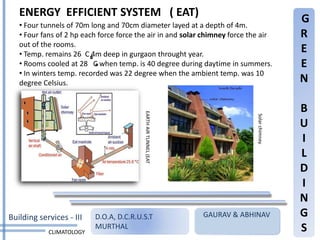

9. ENERGY EFFICIENT SYSTEM ( EAT)
• Four tunnels of 70m long and 70cm diameter layed at a depth of 4m.
G
• Four fans of 2 hp each force force the air in and solar chimney force the air R
out of the rooms.
• Temp. remains 26 C 4m deep in gurgaon throught year.
E
• Rooms cooled at 28 C when temp. is 40 degree during daytime in summers. E
• In winters temp. recorded was 22 degree when the ambient temp. was 10
degree Celsius. N
B
EARTH AIR TUNNEL (EAT
Solar chimney
U
I
L
D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

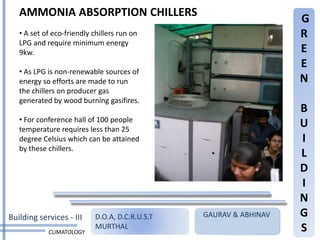

10. AMMONIA ABSORPTION CHILLERS
G
• A set of eco-friendly chillers run on R
LPG and require minimum energy
9kw. E
E
• As LPG is non-renewable sources of
energy so efforts are made to run N
the chillers on producer gas
generated by wood burning gasifires.
B
• For conference hall of 100 people
temperature requires less than 25
U
degree Celsius which can be attained I
by these chillers.
L
D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

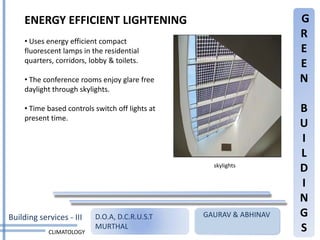

11. ENERGY EFFICIENT LIGHTENING G
R
• Uses energy efficient compact
fluorescent lamps in the residential E
quarters, corridors, lobby & toilets.
E
• The conference rooms enjoy glare free N
daylight through skylights.
• Time based controls switch off lights at B
present time.
U
I
L
skylights
D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

12. ROOT ZONE SYSTEM G
R
E
E
N
PHRAGMITES PLANT WATER COLLECTING SYSTEM
B
U
• Waste water is recycled by ‘root zone’ technique in which the roots of
phragmites plants with special capabilities of collecting the waste at the
I
roots are used to clean the water which is used for irrigation. It cleans L
5metre cube of water every day.
D
• Water harvesting and watershed management are proposed in entire I
area.
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

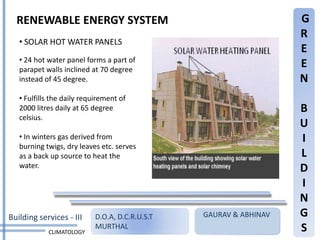

13. RENEWABLE ENERGY SYSTEM G
R
• SOLAR HOT WATER PANELS
E
• 24 hot water panel forms a part of
parapet walls inclined at 70 degree
E
instead of 45 degree. N
• Fulfills the daily requirement of
2000 litres daily at 65 degree B
celsius.
U
• In winters gas derived from I
burning twigs, dry leaves etc. serves
as a back up source to heat the L
water. D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

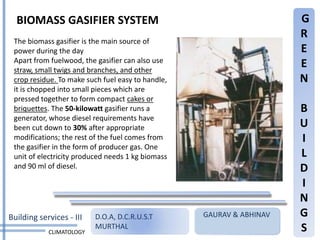

14. BIOMASS GASIFIER SYSTEM G
R
The biomass gasifier is the main source of
power during the day E
Apart from fuelwood, the gasifier can also use
straw, small twigs and branches, and other
E
crop residue. To make such fuel easy to handle, N
it is chopped into small pieces which are
pressed together to form compact cakes or
briquettes. The 50-kilowatt gasifier runs a B
generator, whose diesel requirements have
been cut down to 30% after appropriate U
modifications; the rest of the fuel comes from I
the gasifier in the form of producer gas. One
unit of electricity produced needs 1 kg biomass L
and 90 ml of diesel. D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S

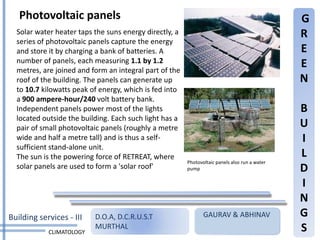

15. Photovoltaic panels G
Solar water heater taps the suns energy directly, a R
series of photovoltaic panels capture the energy
and store it by charging a bank of batteries. A E
number of panels, each measuring 1.1 by 1.2 E
metres, are joined and form an integral part of the
roof of the building. The panels can generate up N
to 10.7 kilowatts peak of energy, which is fed into
a 900 ampere-hour/240 volt battery bank.
Independent panels power most of the lights B
located outside the building. Each such light has a
pair of small photovoltaic panels (roughly a metre U
wide and half a metre tall) and is thus a self- I
sufficient stand-alone unit.
The sun is the powering force of RETREAT, where L
Photovoltaic panels also run a water
solar panels are used to form a 'solar roof' pump D
I
N
Building services - III D.O.A, D.C.R.U.S.T GAURAV & ABHINAV G
CLIMATOLOGY
MURTHAL S
