1. Proprietary | Lake Shore Cryotronics, Inc.
Terahertz Materials Characterization
in Extreme Environments
Emerging Tools for Materials Research
David R. Daughton
Applications Scientist

2. Proprietary | Lake Shore Cryotronics, Inc.
THz Systems
Probe Stations
Hall Effect
Measurement
Systems (HMS)
Magnetometers
(VSM/AGM)
Permanent Magnets
High Density Recording Media
Mineral Magnetism
Electronic thin films
Organic Electronics
Spintronics
Nanowires
Magnetoresistance
Organic electronics
Thermoelectrics
Solar Cells
HEMTS
Materials Characterization Systems
2
Systems
Measure electrical
properties of devices and
materials in temperature-
controlled environment
AC/DC measurements:
 Hall mobilities
 Carrier concentration
 Carrier type
Measure magnetic properties:
 Hysteresis M(H) loops
 FORC curves
 Temperature dependencies
Fully integrated for material properties:
 Electronic
 Magnetic
 Chemical

3. Proprietary | Lake Shore Cryotronics, Inc.
Why THz?
3

4. Proprietary | Lake Shore Cryotronics, Inc.
Equivalent Scales for THz
5
1012 Hz
2.5 THz ~ 10 meV
 Alignment of THz energy levels
with phenomena of interest
– Vibrational resonances
– Novel spin resonances
– Free carrier motion in
semiconductors

5. Proprietary | Lake Shore Cryotronics, Inc.
Materials Phenomena
6
The Electromagnetic Spectrum
D. N. Basov, et al.
“Electrodynamics of correlated electron materials”
Rev. Mod. Phys. 85(2), 471 (2011).

6. Proprietary | Lake Shore Cryotronics, Inc.
Equivalent Scales for THz
 THz wavelengths match the feature
sizes of development-grade
electronic materials
– Non-contact electronic characterization
– Novel magnetic materials
7
1012 Hz
0.6 THz ~ 0.5 mm
2”
10 mm

7. Proprietary | Lake Shore Cryotronics, Inc.
Equivalent Scales for THz
 Coupling to spin-based
materials at THz frequencies
– High speed computing
paradigms
– May require large fields
8
1012 Hz
0.2 THz ~7 T
Nagashima, T.; Nishitani, J.; Kozuki, Kohei, "Lasers & Electro Optics & The Pacific
Rim Conference on Lasers and Electro-Optics, 2009. CLEO/PACIFIC RIM '09.
Conference on , vol., no., pp.1,2, 30-3 Aug. 2009

8. Proprietary | Lake Shore Cryotronics, Inc.
Equivalent Scales for THz
9
1012 Hz
6.5 THz ~ 300 K
480 500 520 540 560 580
0.1
1
THzTransmission
Frequency (GHz)
5.8 K
75 K
150 K
a-Lactose
THzTransmission
 Cryogenic temperatures
– Homogeneous broadening of
vibrational resonances

9. Proprietary | Lake Shore Cryotronics, Inc.
Equivalent Scales for THz
10
1012 Hz
 Cryogenic temperatures
– Homogeneous broadening of
vibrational resonances
– Temperature dependent carrier
concentration and mobility
6.5 THz ~ 300 K

10. Proprietary | Lake Shore Cryotronics, Inc.
Equivalent Scales for THz
11
1012 Hz
10 meV7 T 300 K0.5 mm
 Alignment of THz energy levels with phenomena of interest
 THz wavelengths match the feature sizes of development-
grade electronic materials
 Coupling to spin-based materials at THz frequencies
 Cryogenic temperatures

11. Proprietary | Lake Shore Cryotronics, Inc.

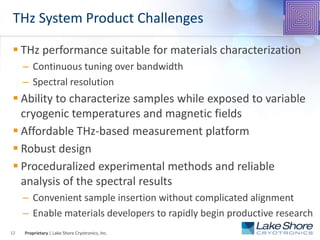

THz System Product Challenges
 THz performance suitable for materials characterization
– Continuous tuning over bandwidth
– Spectral resolution
 Ability to characterize samples while exposed to variable
cryogenic temperatures and magnetic fields
 Affordable THz-based measurement platform
 Robust design
 Proceduralized experimental methods and reliable
analysis of the spectral results
– Convenient sample insertion without complicated alignment
– Enable materials developers to rapidly begin productive research
12

12. Proprietary | Lake Shore Cryotronics, Inc.
Filling the THz Gap
13
The Electromagnetic Spectrum
0 10 20 30 40 50
0
ElectricField(a.u.)
Time (ps)

13. Proprietary | Lake Shore Cryotronics, Inc.
THz with cryogenics & magnetics
14
 Many materials of interest for THz
require variable temperature
and/or high magnetic fields
 Optical cryostats are the standard
approach
– THz generation outside the
environment
– Must pass optical energy through
windows, cutting signal power and
spectral distortion
 Not ideal for THz spectroscopies

14. Proprietary | Lake Shore Cryotronics, Inc.
Variable Temperature and
High Magnetic Field THz Platform
15
Cryostat Sample space
±9 T magnet
Removable
sample insert
Cryo-compatible
THz emitter with
collimating optics
Rotatable
sample stage
(10 mm × 10 mm)
Thermally stable
optical
alignment stages

15. Proprietary | Lake Shore Cryotronics, Inc.
Application software
for turnkey operation
 Experiment setup/run
 Analysis of spectral data
 Calculation of material properties
Integrated THz System Details
16
Fiber-based optical
platform for CW THz
spectroscopy
 CW THz spectrometer instrument
 Amplitude and phase detection from
200 GHz to 1.5 THz
 Spectral resolution under 500 MHz
 Circularly polarized light
Integrated controls
 Model 336 cryogenic
temperature controller
 Model 625 superconducting
magnet power supply
Superconducting magnet
 High magnetic fields to ±9 Tesla
Integrated cryostat & insert
 Variable temperatures from 5 K to 300 K
 Sample size – 10 mm
 Measurement – THz transmission

16. Proprietary | Lake Shore Cryotronics, Inc.
Photoconductive THz Emitter
17
Photoconductive
device
-10 -5 0 5 10
-40
-20
0
20
40
Current(A)
Bias (V)
Dark
Fiber illuminated device
Room Temperature

17. Proprietary | Lake Shore Cryotronics, Inc.
Photoconductive THz Emitter
18
 THz-frequency transient current
oscillations induced by amplitude
modulated IR laser light
 Current oscillations in the antenna
structure radiate propagating EM
waves.
 A high resistivity Si lens is attached
to the emitter device to couple the
THz emission to free space.
Photoconductive
device

18. Proprietary | Lake Shore Cryotronics, Inc.
THz Time Domain Spectroscopy
19
fs
I

19. Proprietary | Lake Shore Cryotronics, Inc.
THz Time Domain Spectroscopy
20
fs
IA
0 10 20 30 40
0
ElectricField(a.u.)
Time (ps)
E

20. Proprietary | Lake Shore Cryotronics, Inc.
THz Time Domain Spectroscopy
21
ps
fs
Dispersion

21. Proprietary | Lake Shore Cryotronics, Inc.
THz Time Domain Spectroscopy
22
Dispersion
Compensation
fs

22. Proprietary | Lake Shore Cryotronics, Inc.
THz Time Domain Spectroscopy
23
Dispersion
Compensation
ps

23. Proprietary | Lake Shore Cryotronics, Inc.
Continuous-Wave THz Spectroscopy
24
DFB Laser 1
DFB Laser 2
f1
f2

24. Proprietary | Lake Shore Cryotronics, Inc.
Continuous-Wave THz Spectroscopy
- Generation
25
f1-f2
f1-f2

25. Proprietary | Lake Shore Cryotronics, Inc.26
Detected current No detected current
Continuous-Wave THz Spectroscopy
- Detection

26. Proprietary | Lake Shore Cryotronics, Inc.
Continuous-Wave THz Spectroscopy
- Frequency Tuning
27
DFB Laser 1
DFB Laser 2
f1
f2

27. Proprietary | Lake Shore Cryotronics, Inc.28
DFB Laser 1
DFB Laser 2
f1
f2

28. | Confidential Lake Shore Cryotronics, Inc.
Integrated Software for Turn-key Operation
29

29. | Confidential Lake Shore Cryotronics, Inc.
Integrated Software for Turn-key Operation
30

30. | Confidential Lake Shore Cryotronics, Inc.
Integrated Software for Turn-key Operation
31
Sample Reference Background
BLOCK

31. | Confidential Lake Shore Cryotronics, Inc.
Integrated Software for Turn-key Operation
32

32. | Confidential Lake Shore Cryotronics, Inc.
Integrated Software for Turn-key Operation
33

33. Proprietary | Lake Shore Cryotronics, Inc.
Case Study: Sr2CrReO6 Thin Films
34
In-plane
 Double-perovskite ferrimagnet (Tc = 635 K)
 Ms = 1.29 B per f.u.
 Predicted 90% spin polarization
 Large anisotropy
 Stoichiometric, epitaxial, and well ordered
 Well ordered films on STO and LSAT
substrates

34. Proprietary | Lake Shore Cryotronics, Inc.
Case Study: Sr2CrReO6 Thin Films
35
Stoichiometric, epitaxial, and well ordered
 Grown with off-axis magnetron sputtering
1 µm thickness ~ 20 hours
Low material yields
 10 to 200 nm thick film on 10 × 10 mm substrate
 After characterization, wafer is diced & distributed for
device manufacturing
Wafer real estate is at a premium
 Electrical contacts for material evaluation reduce
number of devices — non contact evaluation
 Cryogenic characterization elucidates conduction
mechanisms

35. Proprietary | Lake Shore Cryotronics, Inc.
CW-THz Transmission
36
0.5 1.0 1.5
0.0
0.5
1.0
THzTransmission
Frequency (THz)

36. Proprietary | Lake Shore Cryotronics, Inc.
CW-THz Spectroscopy of
Conductive Thin Films
37
Thickness
Conductivity
Ga-doped ZnO on ZnO

37. Proprietary | Lake Shore Cryotronics, Inc.
SCRO Film DC Conductivity
38
0.0
0.2
0.4
0.6
0.8
1.0
200 400 600 800 1000
0.0
0.2
0.4
0.6
0.8
1.0
120 m LSAT
5 K
50 K
100 K
300 K
1.4 mSCRO on 120 m LSAT
THzTransmission
Frequency (GHz)
300 K
0.0
0.2
0.4
0.6
0.8
1.0
200 400 600 800 1000
0.0
0.2
0.4
0.6
0.8
1.0
120 m LSAT
5 K
50 K
100 K
300 K
1.4 mSCRO on 120 m LSAT
THzTransmission
Frequency (GHz)
300 K

38. Proprietary | Lake Shore Cryotronics, Inc.
Variable Range Hopping Conductivity
39
Variable Range Hopping
5 K
5 K

39. Proprietary | Lake Shore Cryotronics, Inc.
What’s Next
40
– Turn-key acquisition of temperature
and field dependent THz spectra
Taking orders March 2014!
Model 8500
THz System for
Material Characterization
 Customer applications
— samples
 Sponsored research
program to develop
turn-key analysis
software for CW-THz
spectra
