Uploaded byAlvaro Videla
Taming the rabbit
This document discusses RabbitMQ plugins. It begins with background on RabbitMQ and an overview of its extensibility through a plugin system. It then provides examples of how plugins can add new protocols, authentication mechanisms, custom message stores, and more. The document also discusses how to develop plugins, including environment setup, file structure, boot process integration, and managing plugins. It emphasizes that plugins run in the same Erlang process as the broker and can potentially crash it, so testing is important.
More Related Content
![5G Explained! A High Level Overview [Introduction]](https://cdn.slidesharecdn.com/ss_thumbnails/5gexplainedahighleveloverview-260119165306-cc137a3e-thumbnail.jpg?width=640&height=640&fit=bounds)
Taming the rabbit
- 1. Taming The Rabbit Writing RabbitMQ Plugins Alvaro Videla - VMware Wednesday, October 24, 12

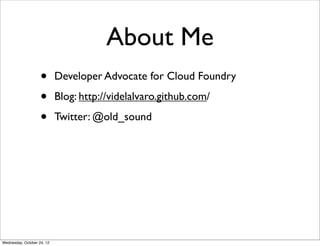

- 2. About Me • Developer Advocate for Cloud Foundry • Blog: http://videlalvaro.github.com/ • Twitter: @old_sound Wednesday, October 24, 12
- 3. About Me • Developer Advocate for Cloud Foundry • Blog: http://videlalvaro.github.com/ • Twitter: @old_sound • I created gifsockets™ Wednesday, October 24, 12
- 4. About Me Co-authored RabbitMQ in Action http://bit.ly/rabbitmq Wednesday, October 24, 12
- 5.

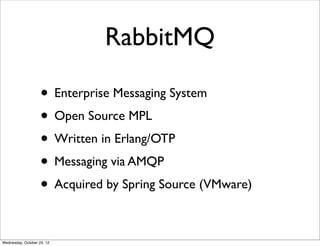

- 6. RabbitMQ • Enterprise Messaging System • Open Source MPL • Written in Erlang/OTP • Messaging via AMQP • Acquired by Spring Source (VMware) Wednesday, October 24, 12

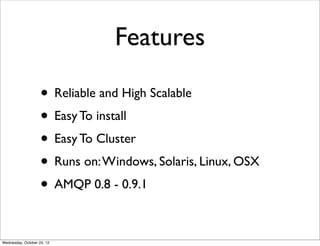

- 7. Features • Reliable and High Scalable • Easy To install • Easy To Cluster • Runs on: Windows, Solaris, Linux, OSX • AMQP 0.8 - 0.9.1 Wednesday, October 24, 12
- 8.

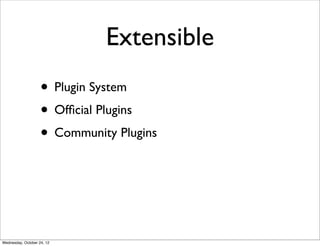

- 9. Extensible • Plugin System • Official Plugins • Community Plugins Wednesday, October 24, 12

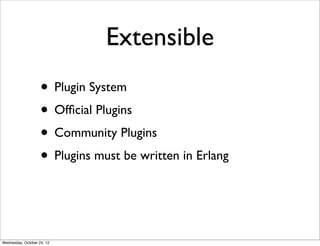

- 10. Extensible • Plugin System • Official Plugins • Community Plugins • Plugins must be written in Erlang Wednesday, October 24, 12
- 11.

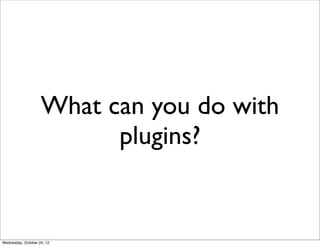

- 12. What can youdo with plugins? Wednesday, October 24, 12

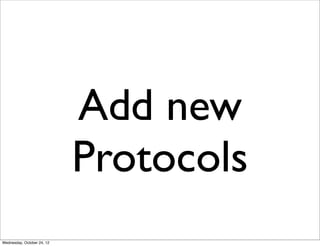

- 13. Add new Protocols Wednesday, October 24, 12

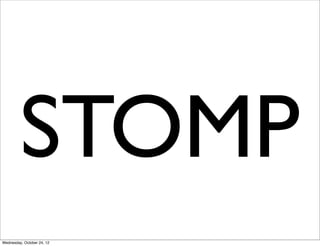

- 14.

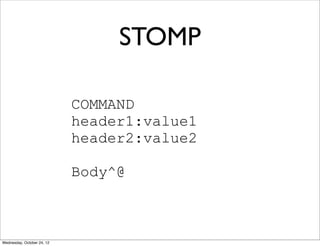

- 15. STOMP COMMAND header1:value1 header2:value2 Body^@ Wednesday, October 24, 12

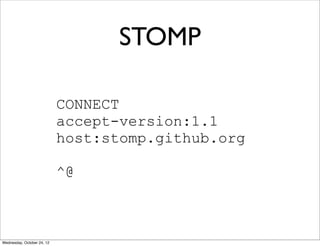

- 16. STOMP CONNECT accept-version:1.1 host:stomp.github.org ^@ Wednesday, October 24, 12
- 17. STOMP CONNECTED version:1.1 ^@ Wednesday, October 24, 12

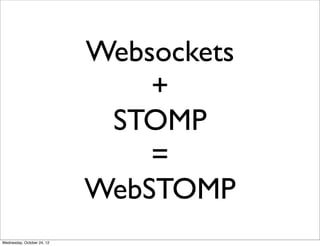

- 18. Websockets + STOMP = WebSTOMP Wednesday, October 24, 12

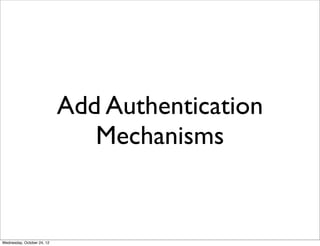

- 19. Add Authentication Mechanisms Wednesday, October 24, 12
- 20.
- 21.

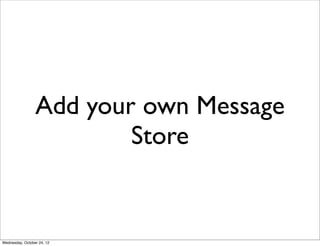

- 22. Add your ownMessage Store Wednesday, October 24, 12

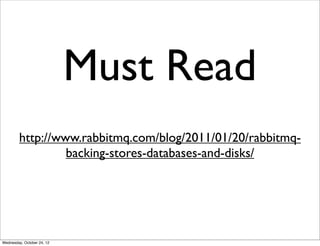

- 23. Must Read http://www.rabbitmq.com/blog/2011/01/20/rabbitmq- backing-stores-databases-and-disks/ Wednesday, October 24, 12
- 24. Wrap Erlang apps together with RabbitMQ Wednesday, October 24, 12
- 25.
- 26.
- 27.

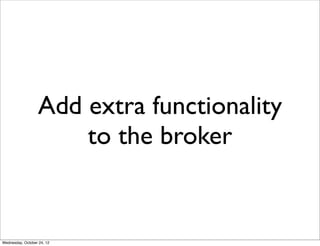

- 28. Add extra functionality to the broker Wednesday, October 24, 12

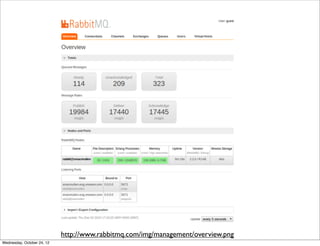

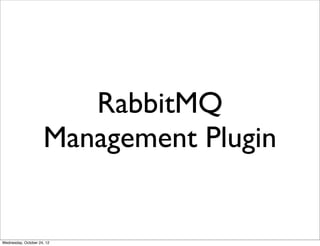

- 29. RabbitMQ Management Plugin Wednesday, October 24, 12
- 30.
- 31. RabbitMQ Shovel Plugin Wednesday, October 24, 12

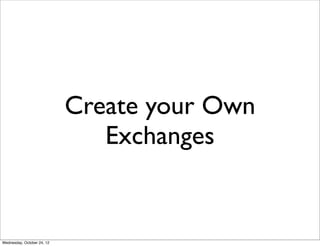

- 32. Create your Own Exchanges Wednesday, October 24, 12
- 33.
- 34.
- 35. Message Flow http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_MRG/1.0/html/Messaging_Tutorial/chap-Messaging_Tutorial-Initial_Concepts.html Wednesday, October 24, 12

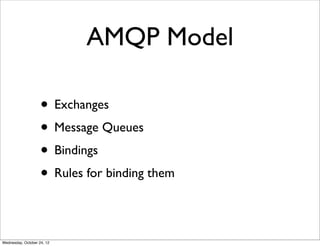

- 36. AMQP Model • Exchanges • Message Queues • Bindings • Rules for binding them Wednesday, October 24, 12

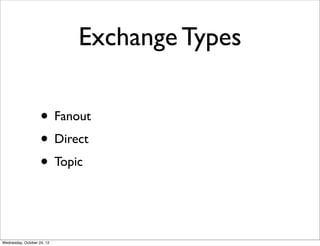

- 37. Exchange Types • Fanout • Direct • Topic Wednesday, October 24, 12

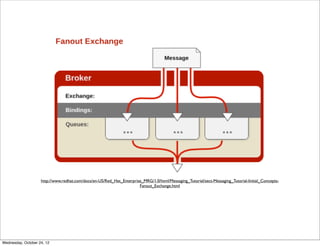

- 38. http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_MRG/1.0/html/Messaging_Tutorial/sect-Messaging_Tutorial-Initial_Concepts- Fanout_Exchange.html Wednesday, October 24, 12

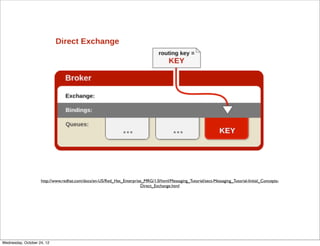

- 39. http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_MRG/1.0/html/Messaging_Tutorial/sect-Messaging_Tutorial-Initial_Concepts- Direct_Exchange.html Wednesday, October 24, 12
- 40. http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_MRG/1.0/html/Messaging_Tutorial/sect-Messaging_Tutorial-Initial_Concepts- Topic_Exchange.html Wednesday, October 24, 12
- 41.
- 42.
- 43.
- 44.
- 45.

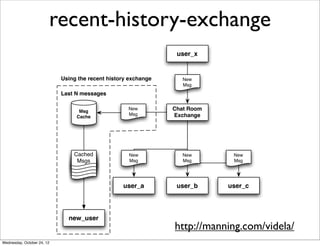

- 46. recent-history-exchange user_x Using the recent history exchange New Msg Last N messages Msg New Chat Room Msg Exchange Cache Cached New New New Msgs Msg Msg Msg user_a user_b user_c new_user http://manning.com/videla/ Wednesday, October 24, 12
- 47.

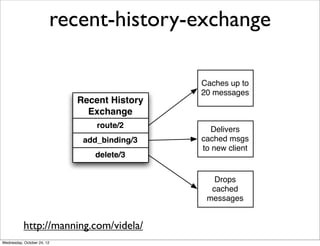

- 48. recent-history-exchange Caches up to 20 messages Recent History Exchange route/2 Delivers add_binding/3 cached msgs to new client delete/3 Drops cached messages http://manning.com/videla/ Wednesday, October 24, 12

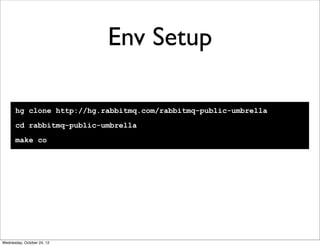

- 49. Env Setup hg clone http://hg.rabbitmq.com/rabbitmq-public-umbrella cd rabbitmq-public-umbrella make co Wednesday, October 24, 12

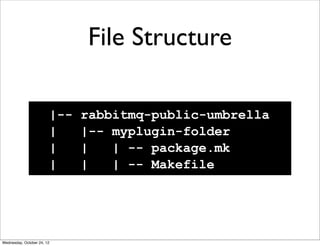

- 50. File Structure |-- rabbitmq-public-umbrella | |-- myplugin-folder | | | -- package.mk | | | -- Makefile Wednesday, October 24, 12

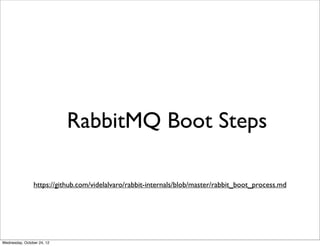

- 51. RabbitMQ Boot Steps https://github.com/videlalvaro/rabbit-internals/blob/master/rabbit_boot_process.md Wednesday, October 24, 12

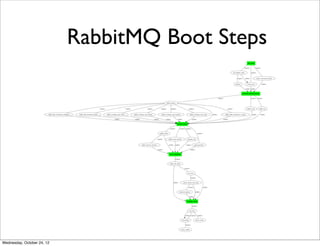

- 52. RabbitMQ Boot Steps Wednesday,October 24, 12

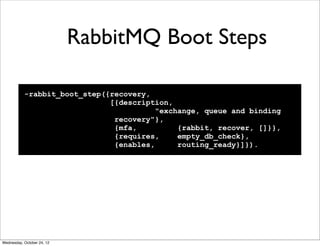

- 53. RabbitMQ Boot Steps -rabbit_boot_step({recovery, [{description, "exchange, queue and binding recovery"}, {mfa, {rabbit, recover, []}}, {requires, empty_db_check}, {enables, routing_ready}]}). Wednesday, October 24, 12

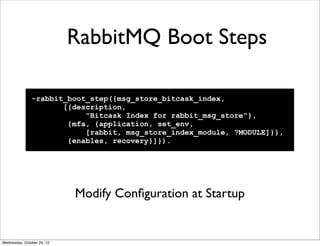

- 54. RabbitMQ Boot Steps -rabbit_boot_step({msg_store_bitcask_index, [{description, "Bitcask Index for rabbit_msg_store"}, {mfa, {application, set_env, [rabbit, msg_store_index_module, ?MODULE]}}, {enables, recovery}]}). Modify Configuration at Startup Wednesday, October 24, 12
- 55.
- 56.

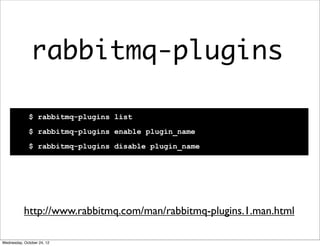

- 57. rabbitmq-plugins $ rabbitmq-plugins list $ rabbitmq-plugins enable plugin_name $ rabbitmq-plugins disable plugin_name http://www.rabbitmq.com/man/rabbitmq-plugins.1.man.html Wednesday, October 24, 12

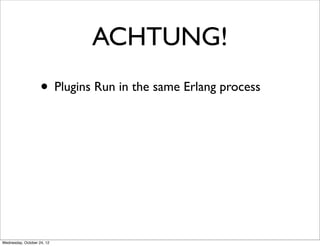

- 58. ACHTUNG! • Plugins Run in the same Erlang process Wednesday, October 24, 12

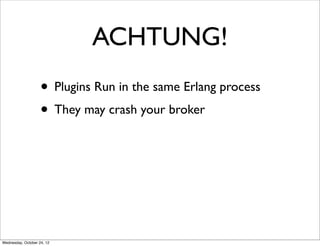

- 59. ACHTUNG! • Plugins Run in the same Erlang process • They may crash your broker Wednesday, October 24, 12
- 60. Have Fun and Experiment! Wednesday, October 24, 12
- 61.
- 62. Thanks! Álvaro Videla http://twitter.com/old_sound http://github.com/videlalvaro http://www.slideshare.net/old_sound Wednesday, October 24, 12
