1. Scaling Applications
with RabbitMQ
Alvaro Videla - RabbitMQ

2. Alvaro Videla
•
•
•
•
•
Developer Advocate at Pivotal / RabbitMQ!
Co-Author of RabbitMQ in Action!
Creator of the RabbitMQ Simulator!
Blogs about RabbitMQ Internals: http://videlalvaro.github.io/internals.html!
@old_sound — alvaro@rabbitmq.com — github.com/videlalvaro

3. About Me
Co-authored!
!
RabbitMQ in Action!
http://bit.ly/rabbitmq

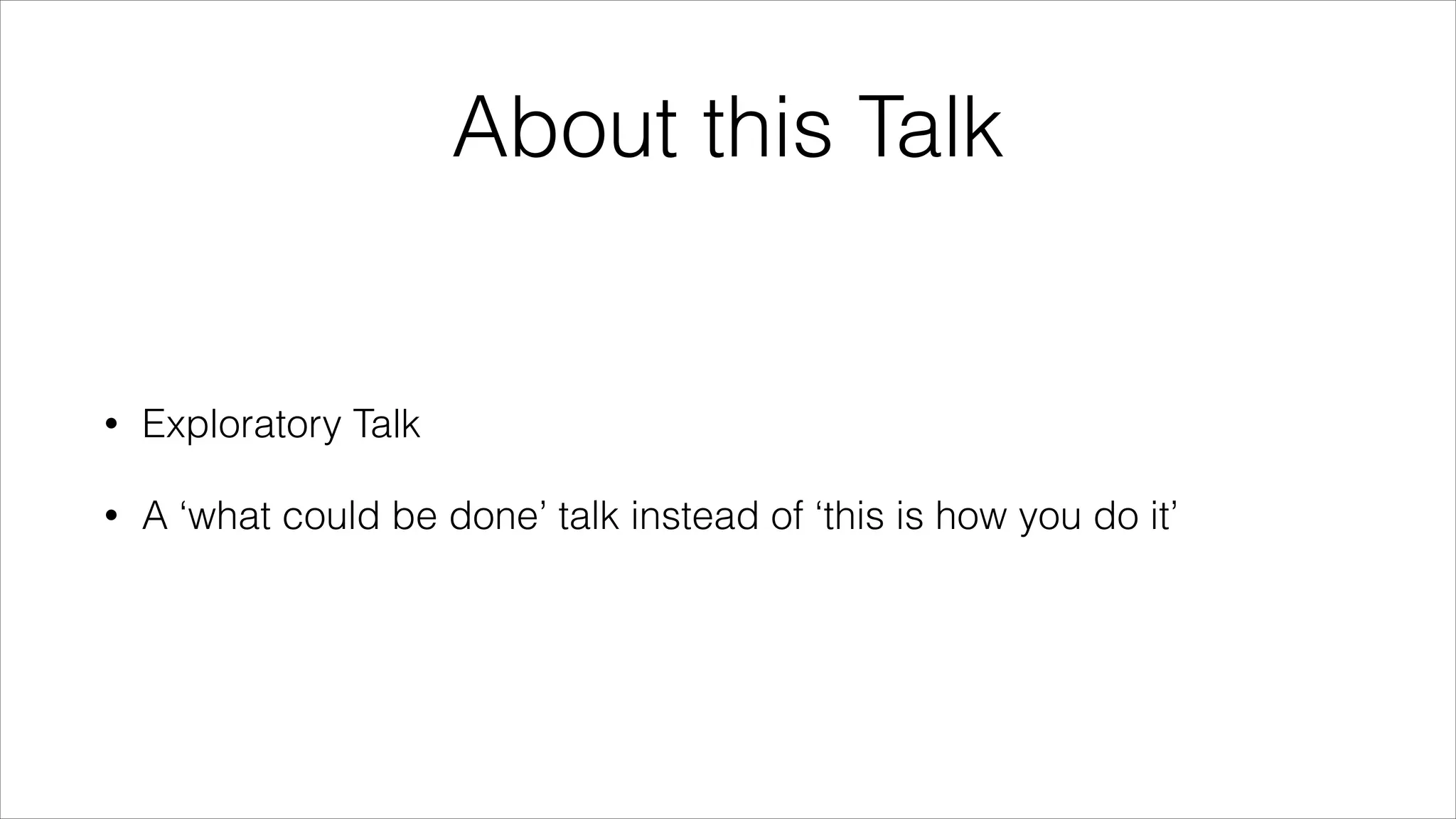

4. About this Talk
•
Exploratory Talk
•
A ‘what could be done’ talk instead of ‘this is how you do it’

5. What is RabbitMQ

6. RabbitMQ

7. RabbitMQ

8. RabbitMQ
• Multi Protocol Messaging Server

9. RabbitMQ
• Multi Protocol Messaging Server!
• Open Source (MPL)

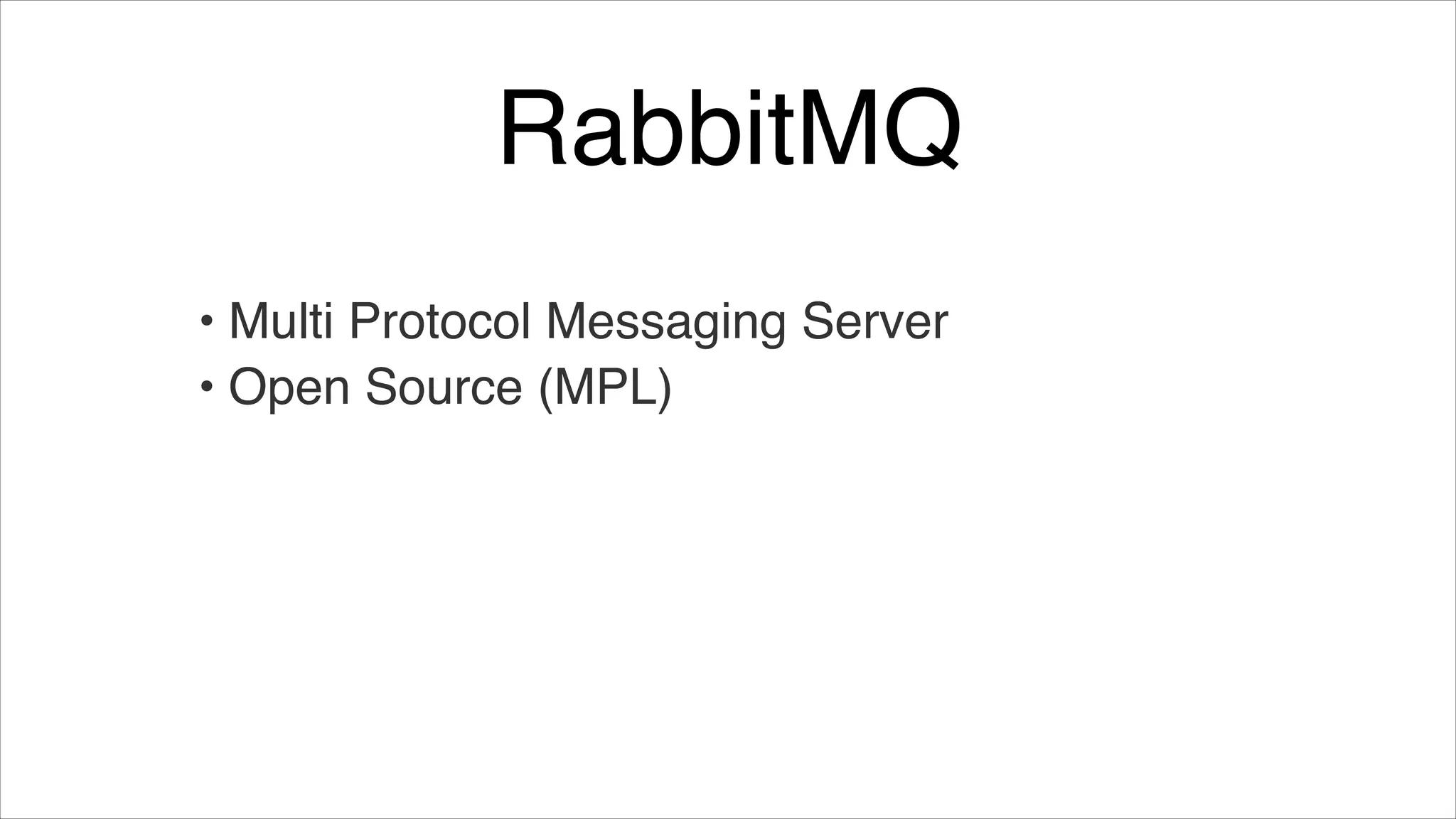

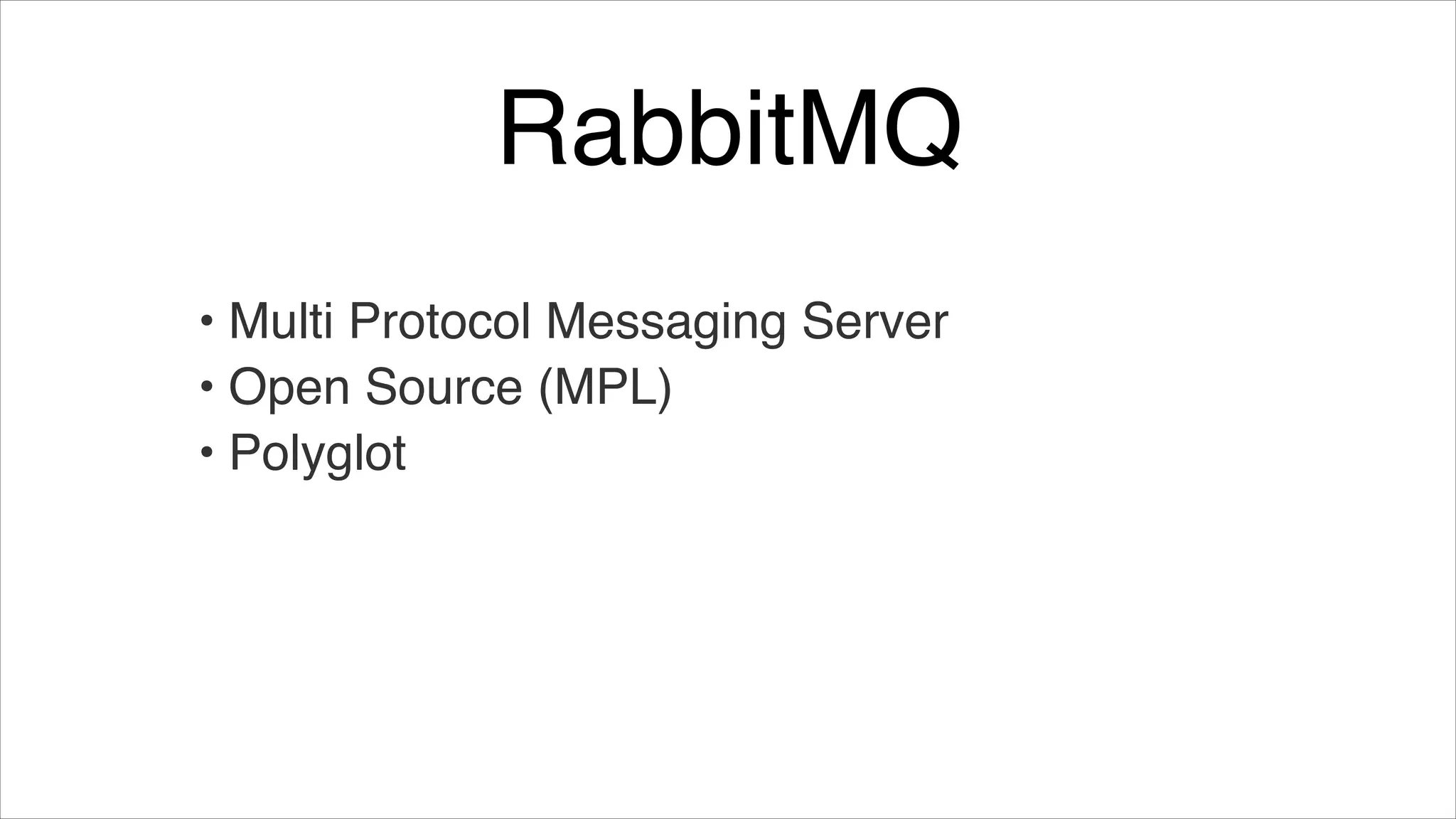

10. RabbitMQ
• Multi Protocol Messaging Server!
• Open Source (MPL)!
• Polyglot

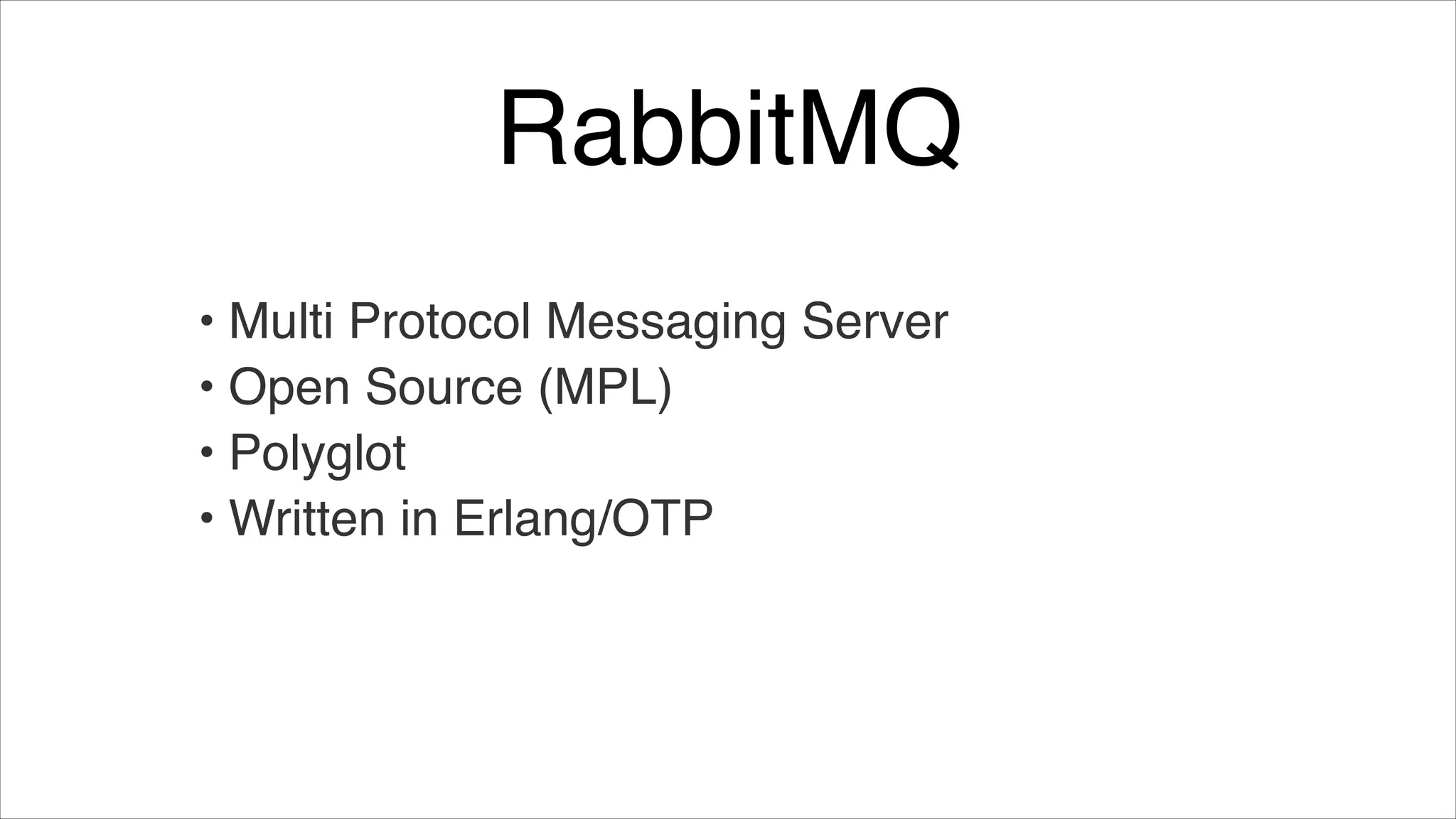

11. RabbitMQ
• Multi Protocol Messaging Server!
• Open Source (MPL)!
• Polyglot!
• Written in Erlang/OTP

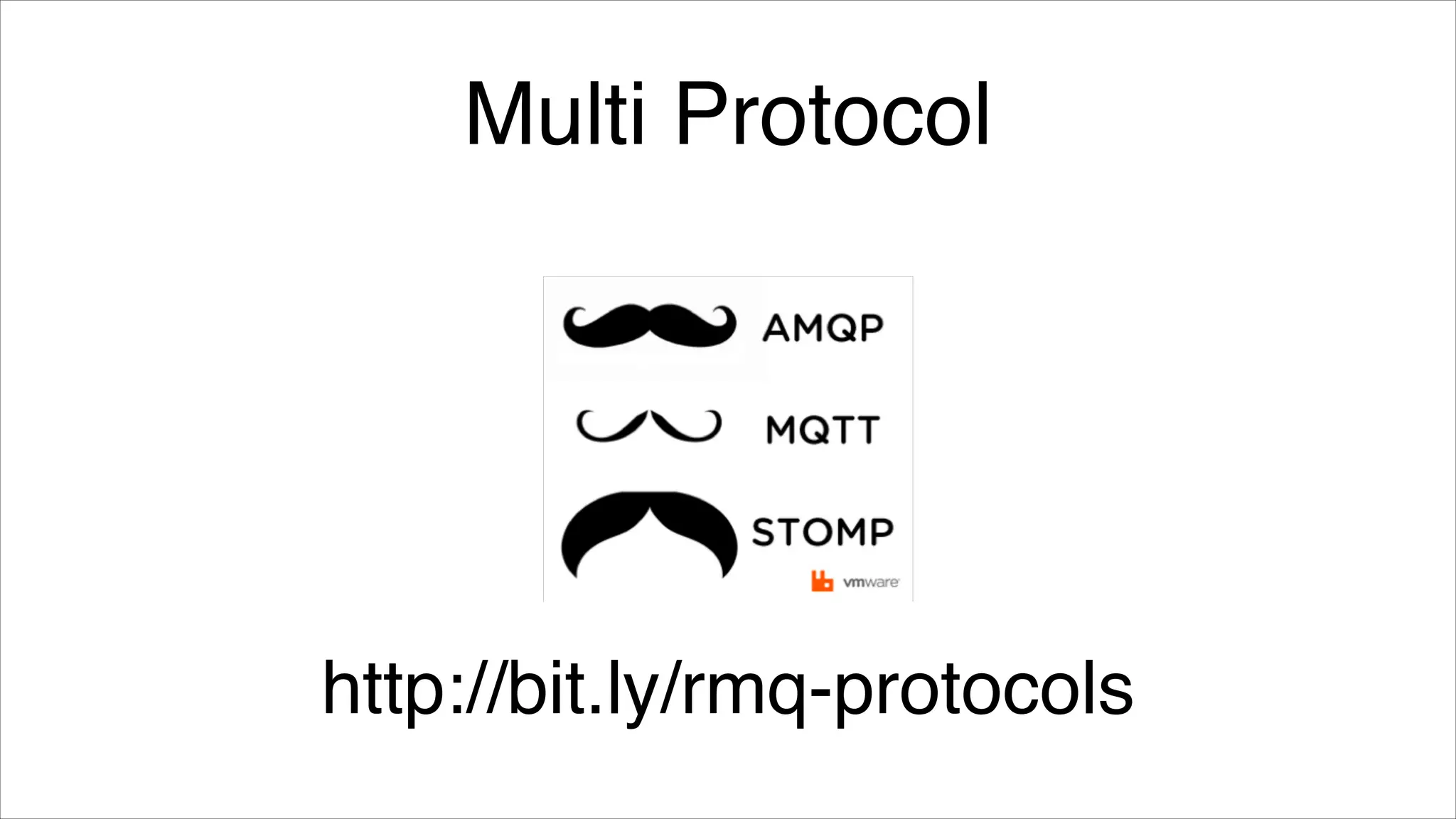

12. Multi Protocol
http://bit.ly/rmq-protocols

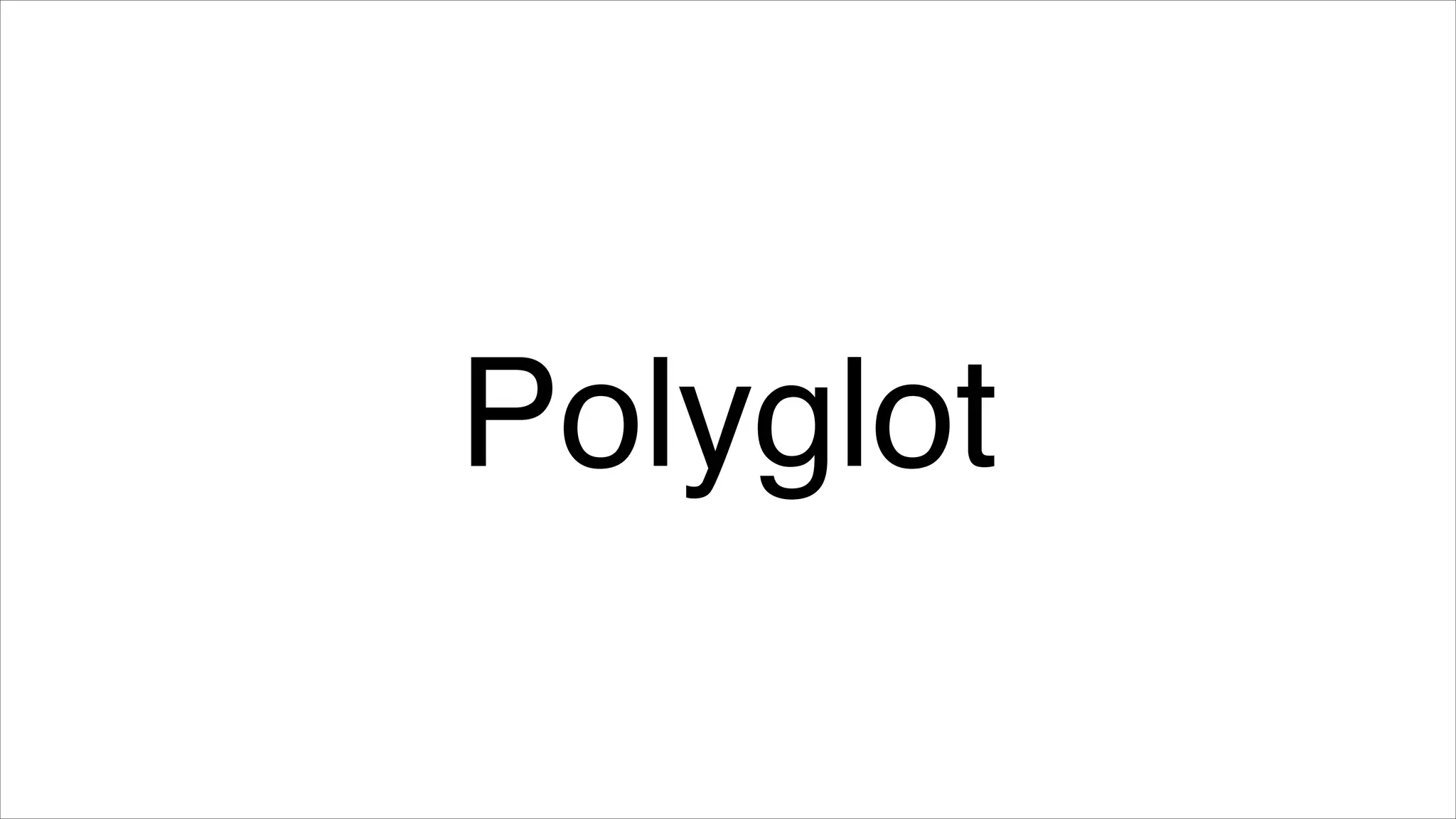

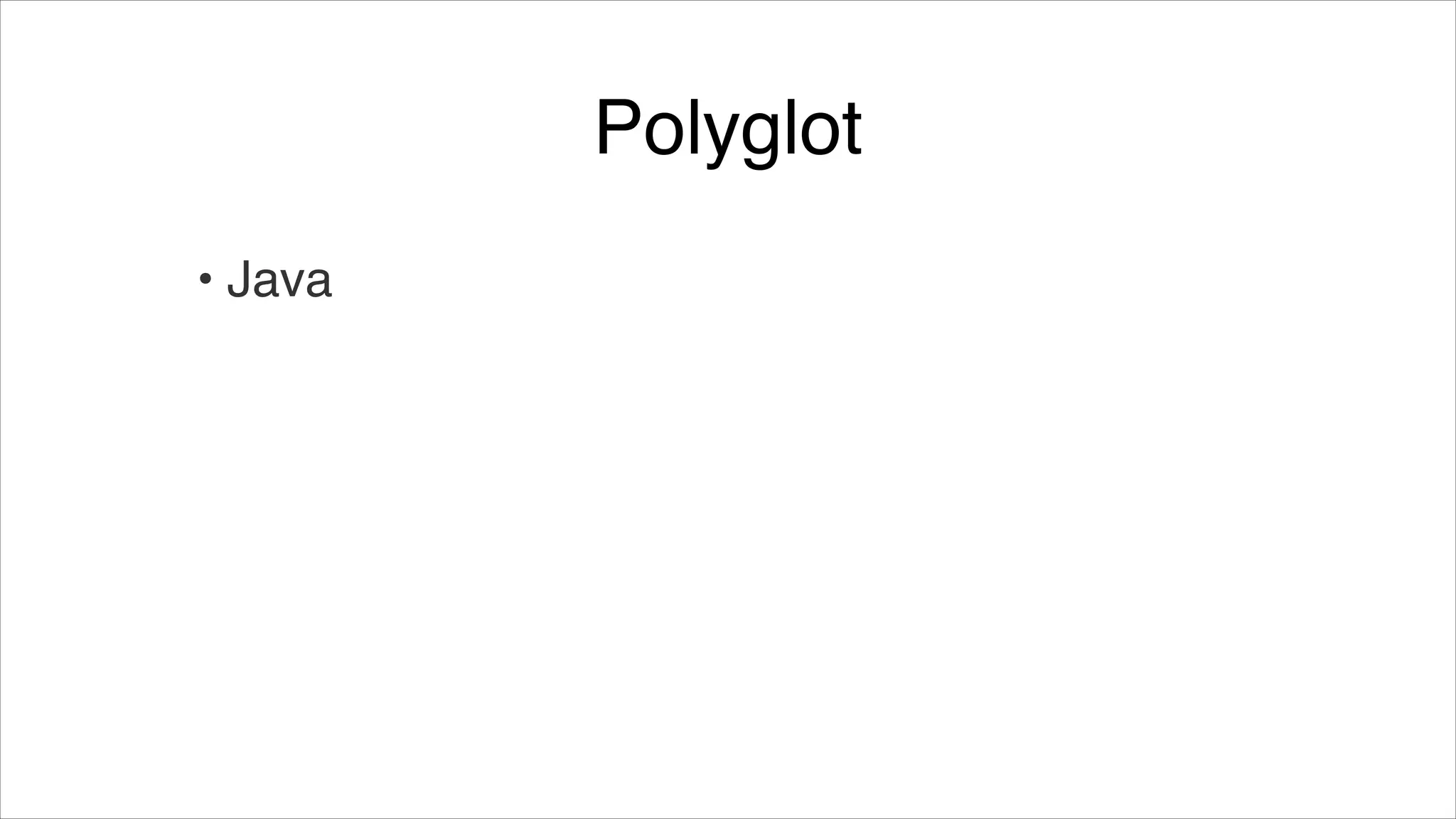

13. Polyglot

14. Polyglot

15. Polyglot
• Java

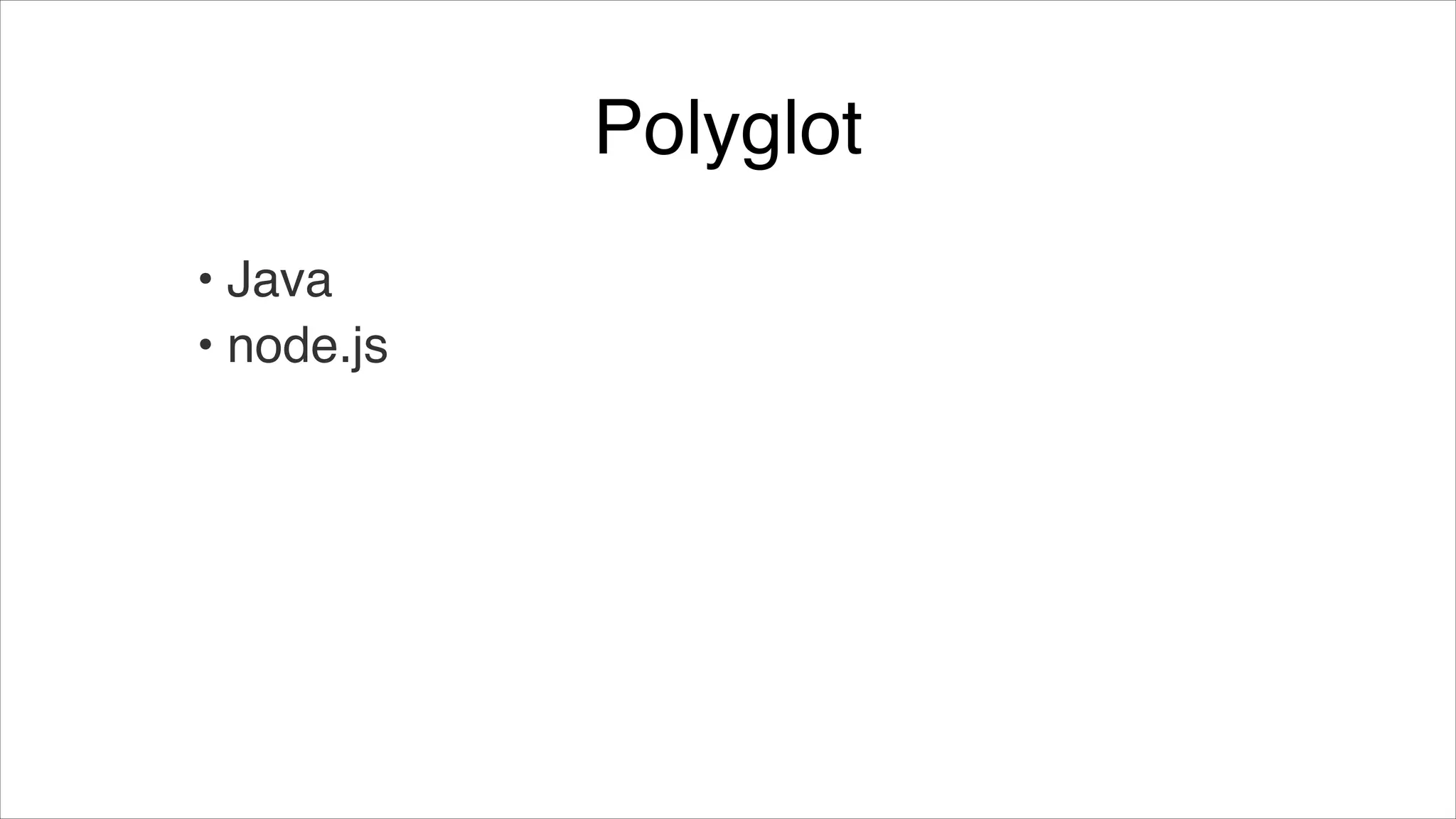

16. Polyglot
• Java!
• node.js

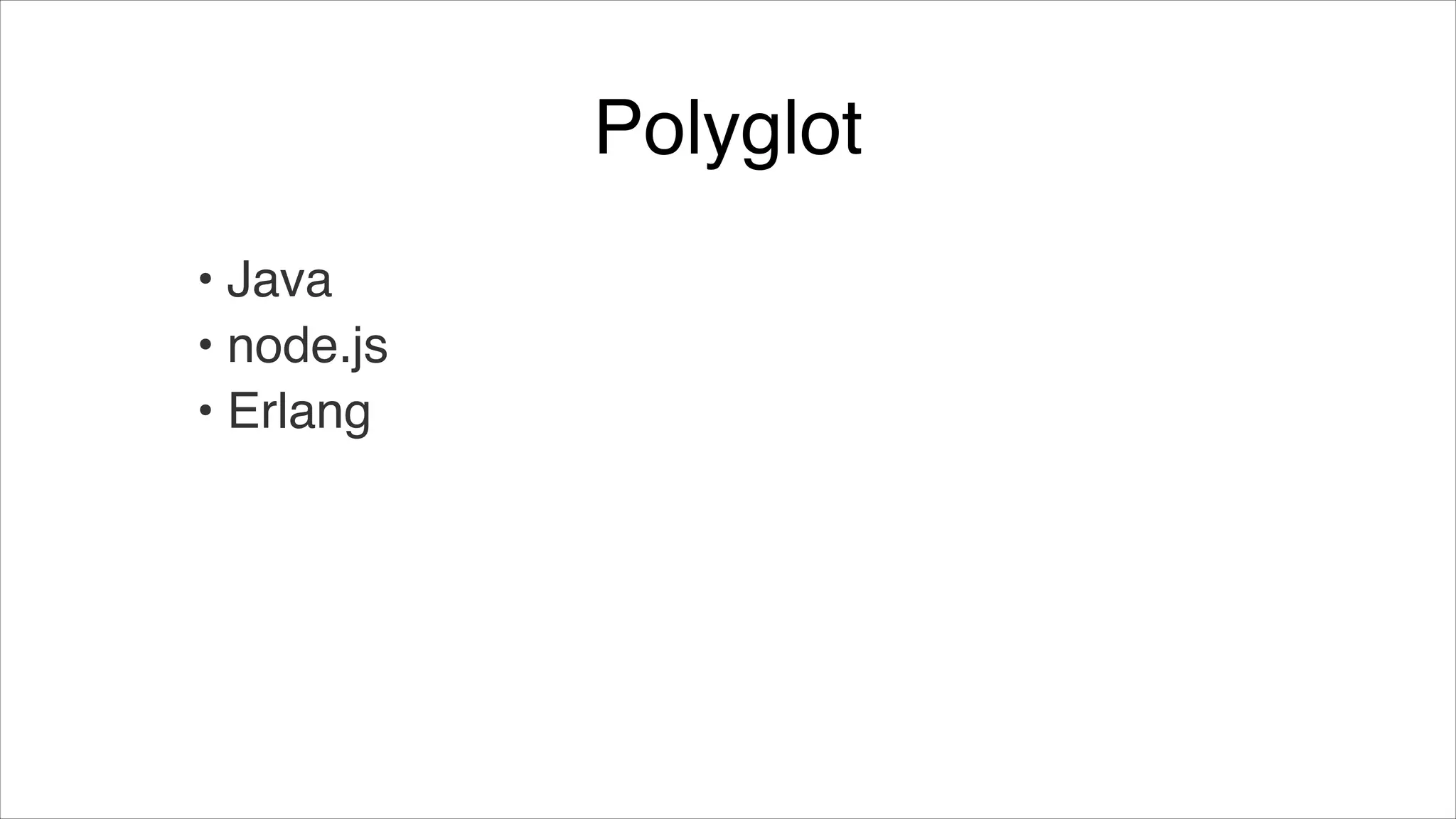

17. Polyglot
• Java!
• node.js!
• Erlang

18. Polyglot
• Java!
• node.js!
• Erlang!
• PHP

19. Polyglot
• Java!
• node.js!
• Erlang!
• PHP!
• Ruby

20. Polyglot
• Java!
• node.js!
• Erlang!
• PHP!
• Ruby!
• .Net

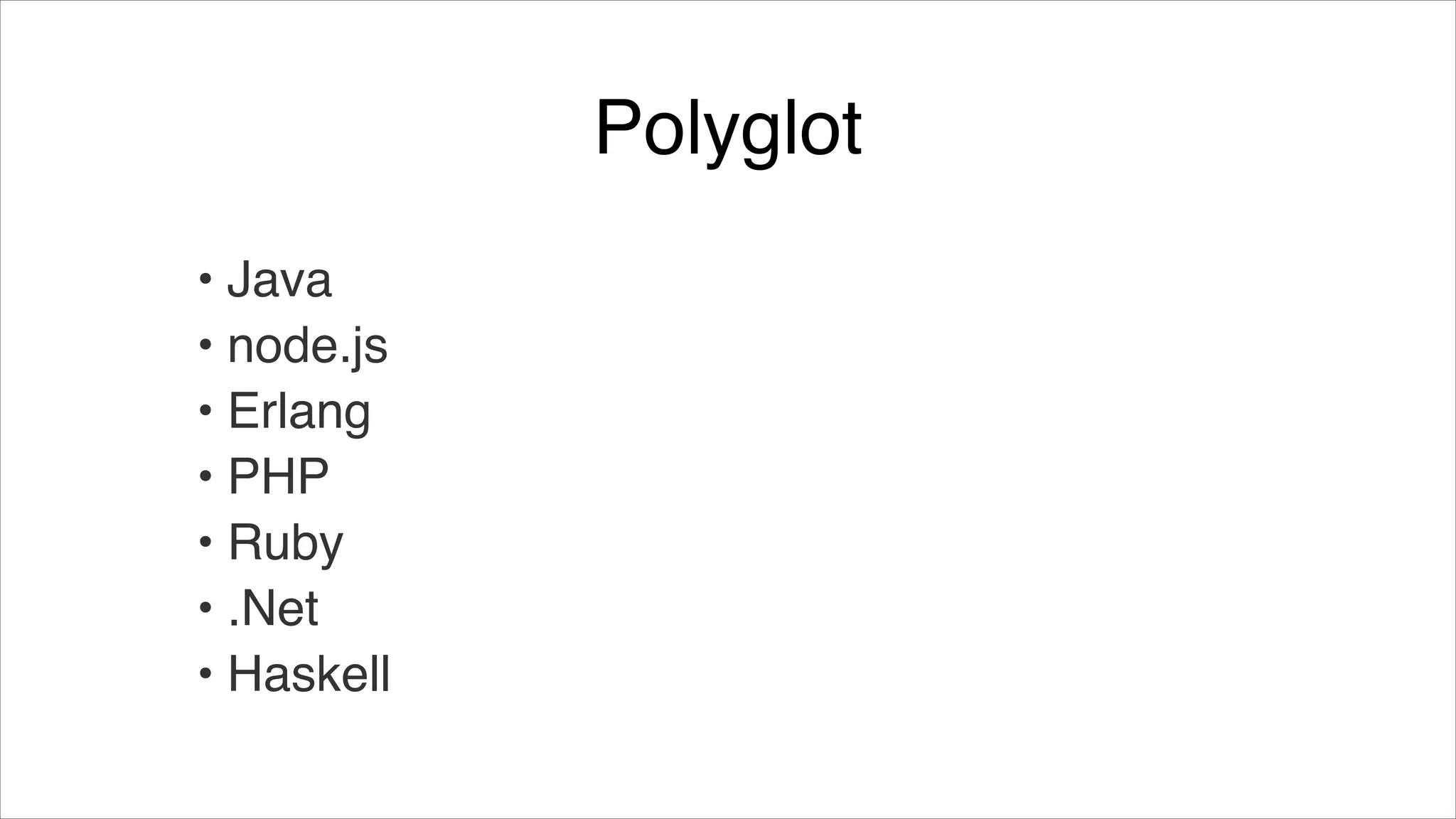

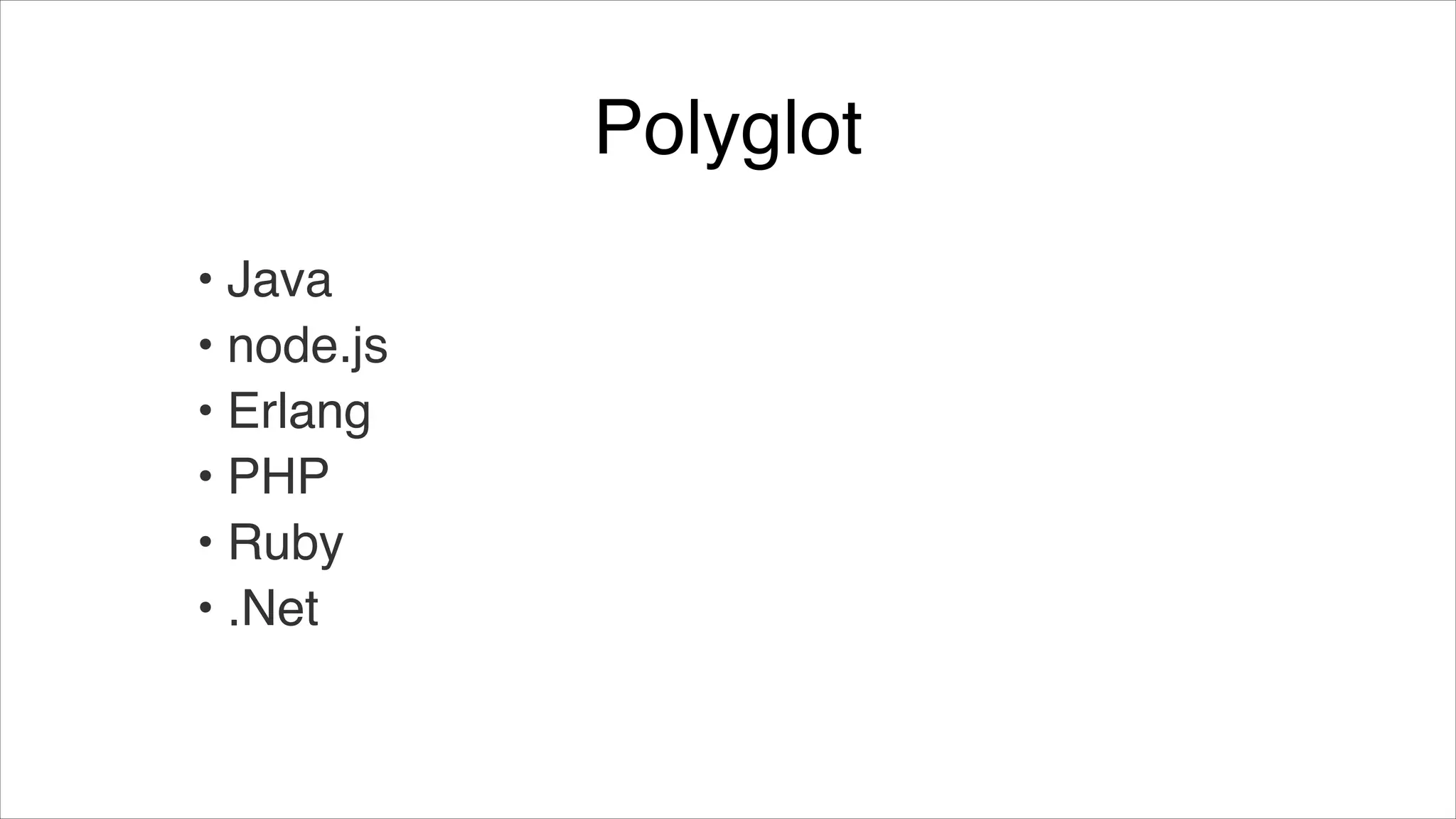

21. Polyglot
• Java!
• node.js!
• Erlang!
• PHP!
• Ruby!
• .Net!
• Haskell

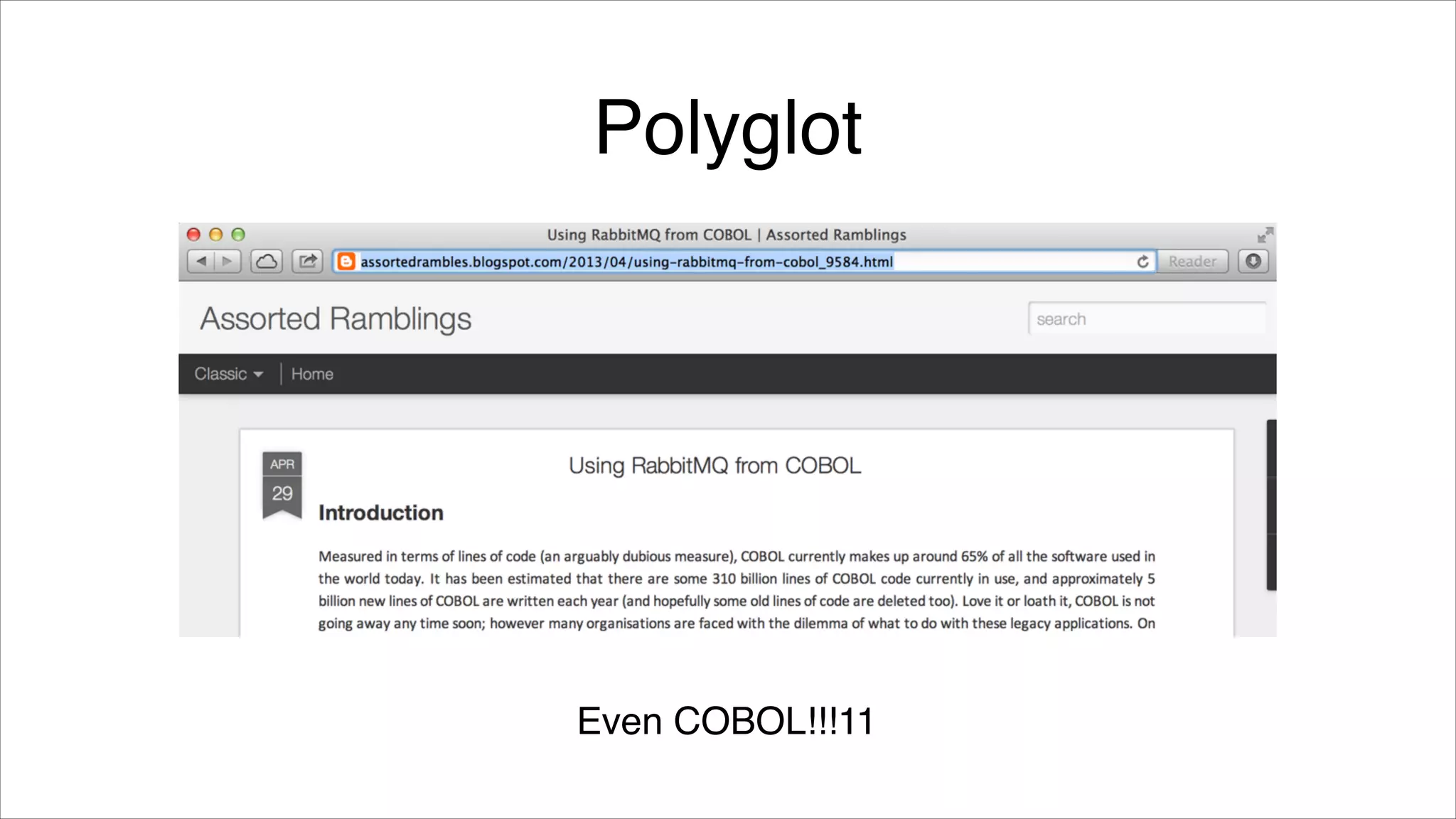

22. Polyglot
Even COBOL!!!11

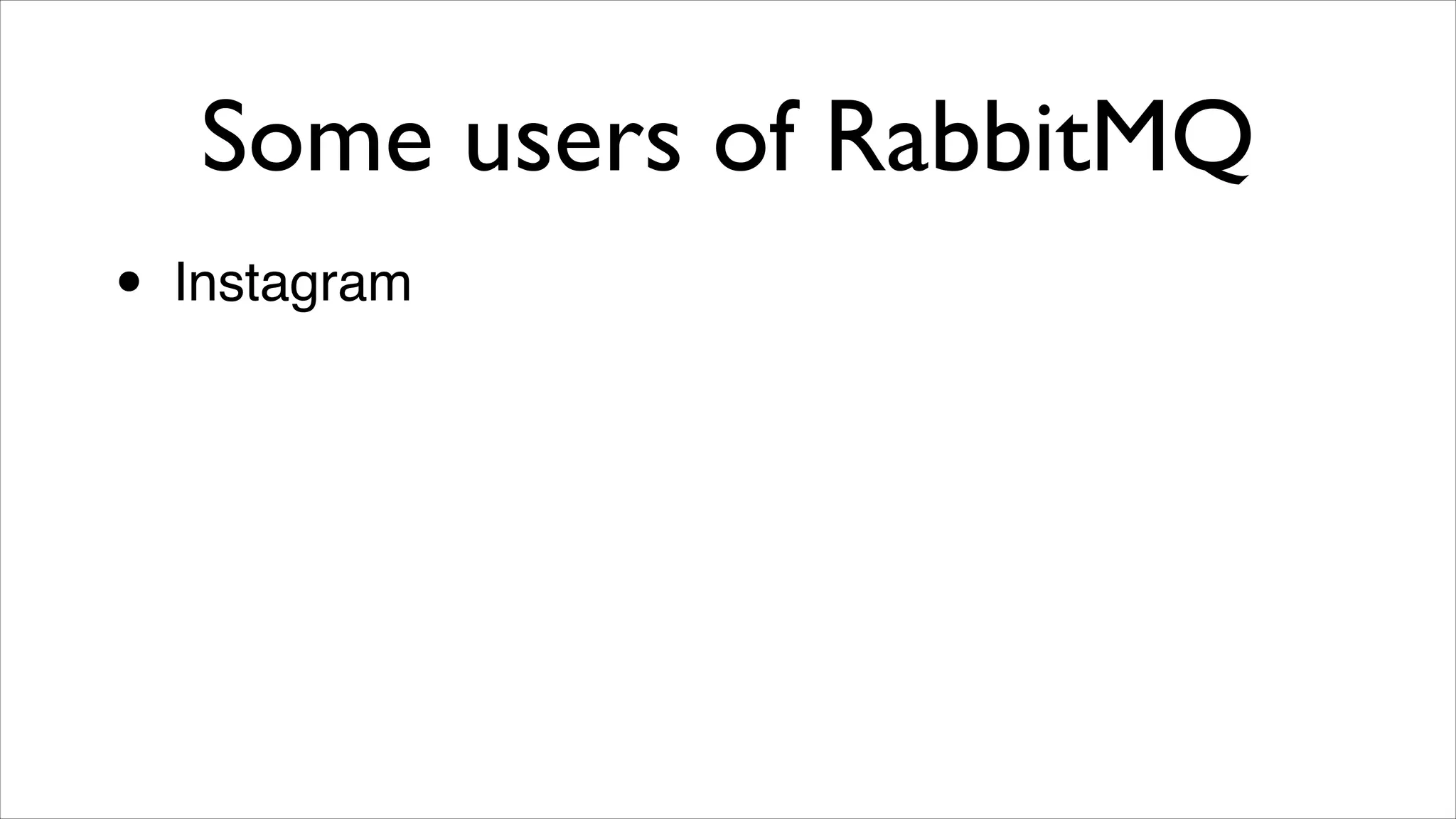

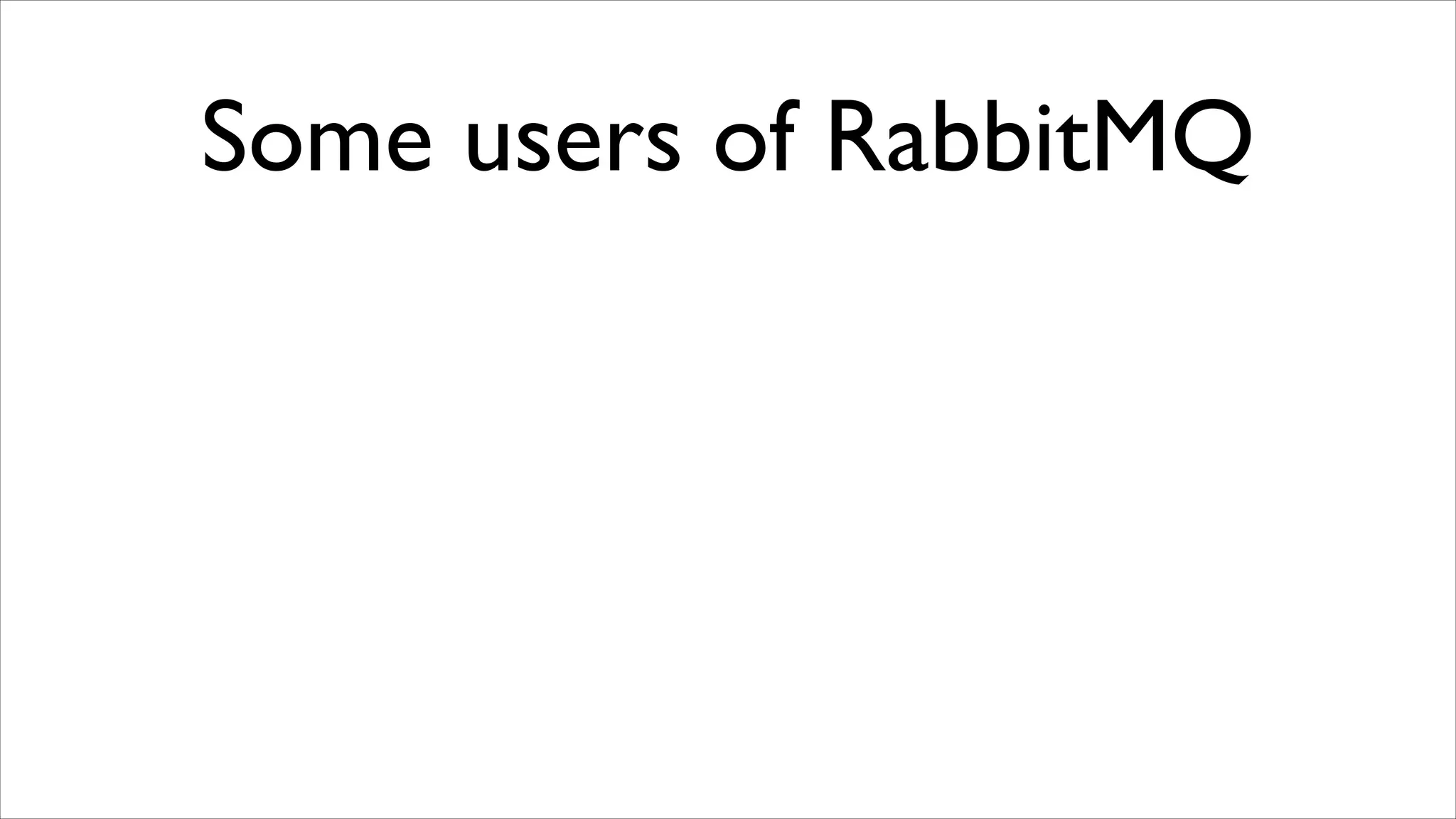

23. Some users of RabbitMQ

24. Some users of RabbitMQ
•
Instagram

25. Some users of RabbitMQ
•
•
Instagram!
Indeed.com

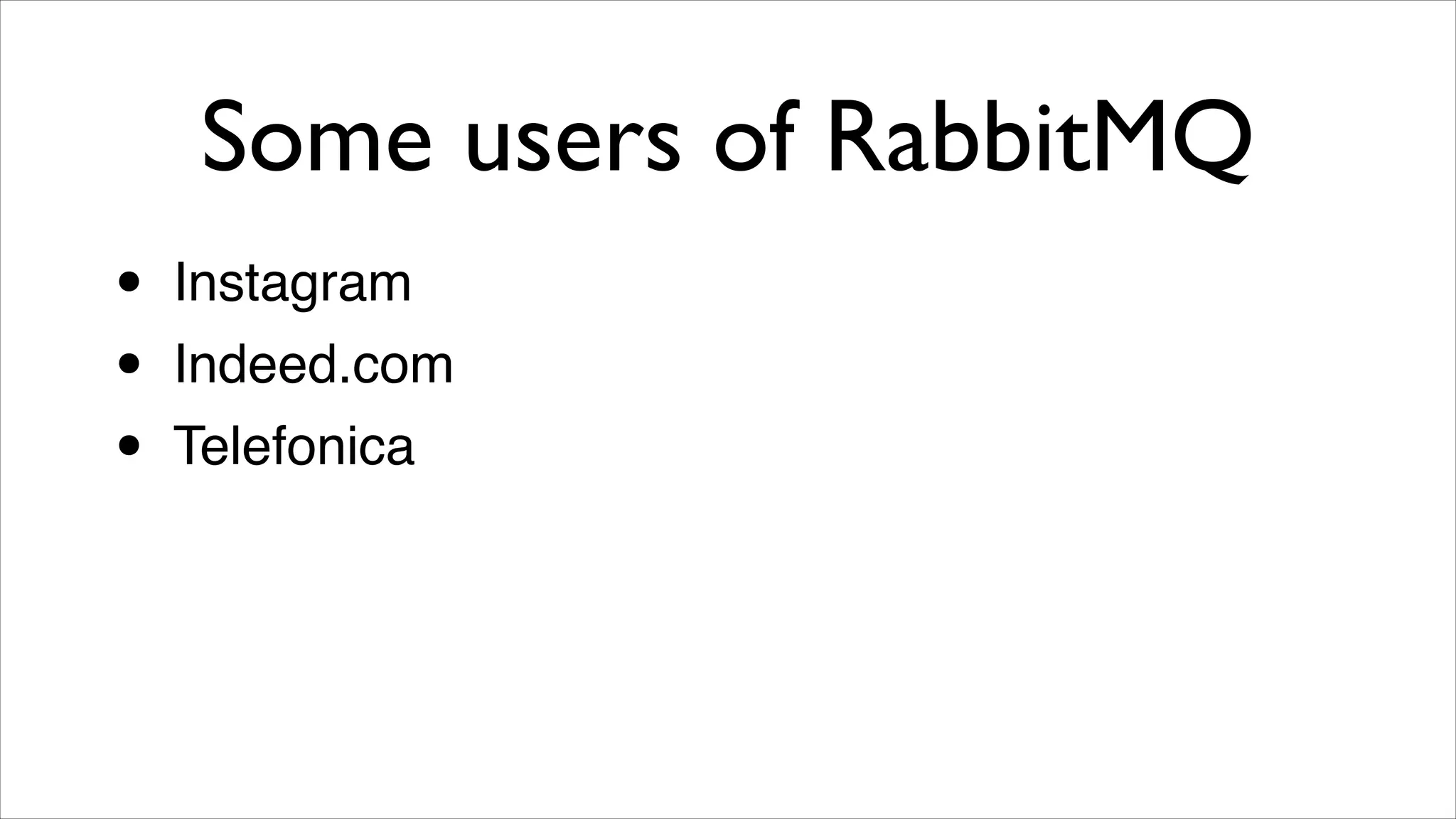

26. Some users of RabbitMQ
•
•
•
Instagram!
Indeed.com!
Telefonica

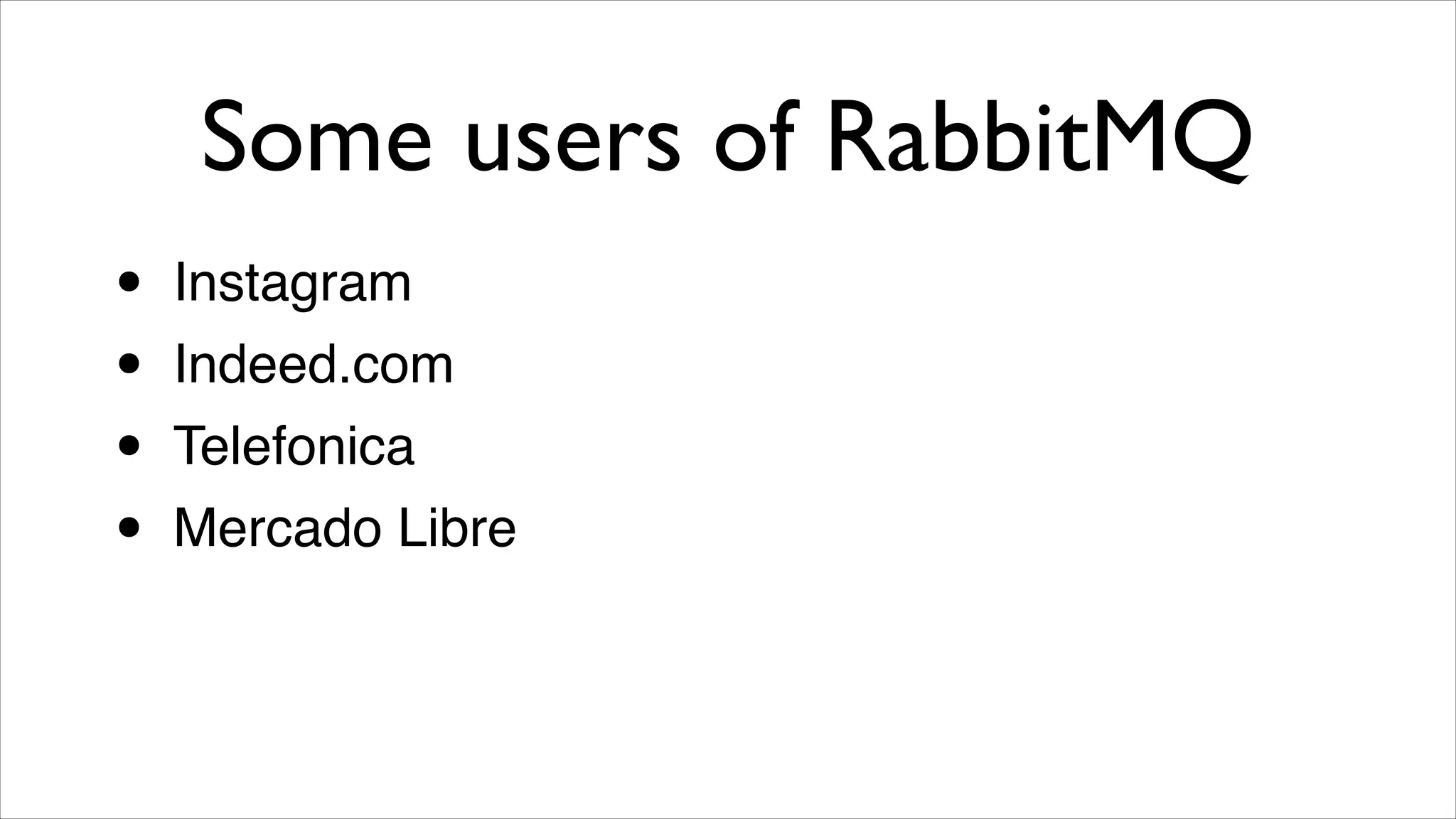

27. Some users of RabbitMQ
•
•
•
•
Instagram!
Indeed.com!
Telefonica!
Mercado Libre

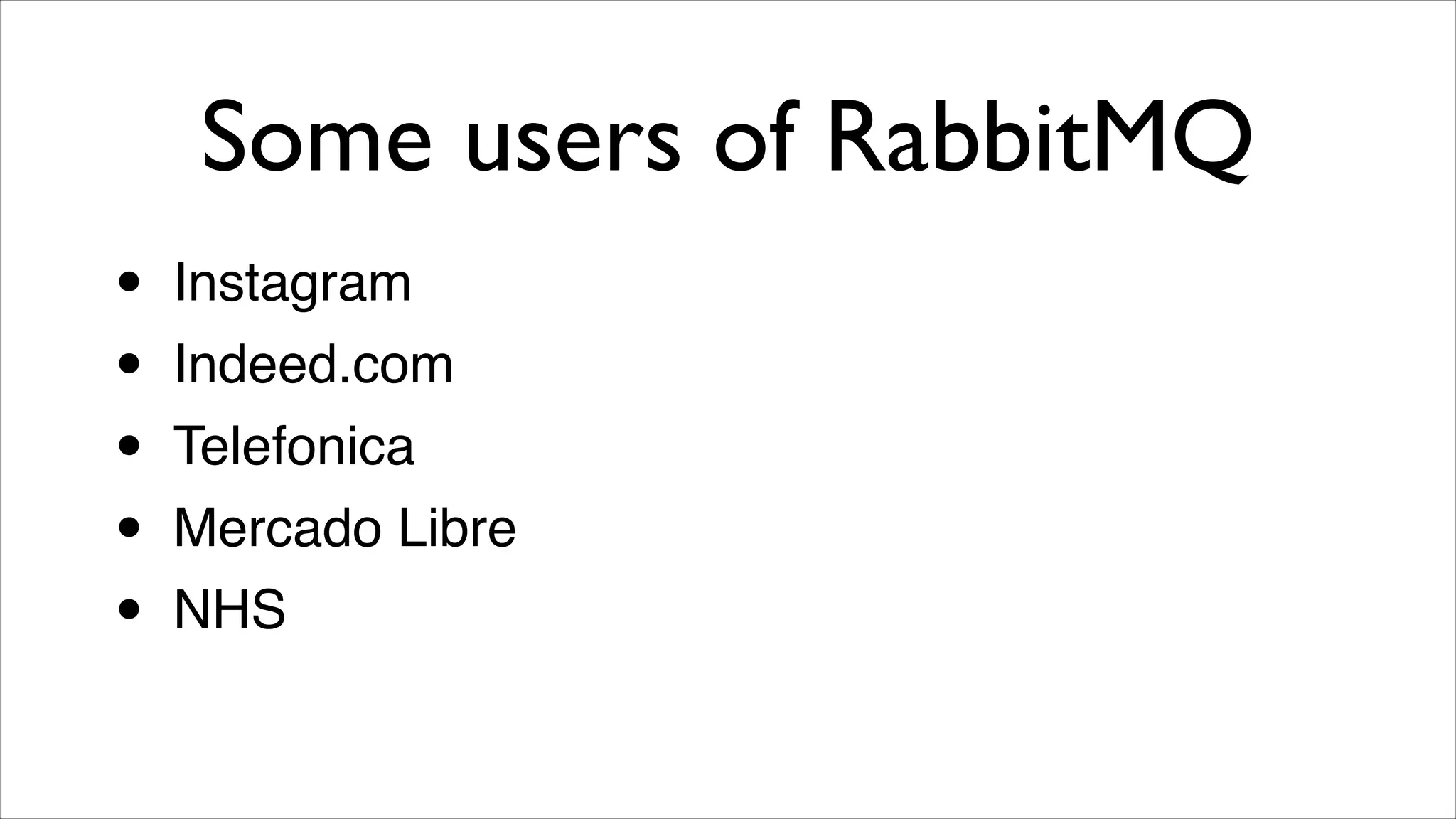

28. Some users of RabbitMQ
•
•
•
•
•
Instagram!
Indeed.com!
Telefonica!
Mercado Libre!
NHS

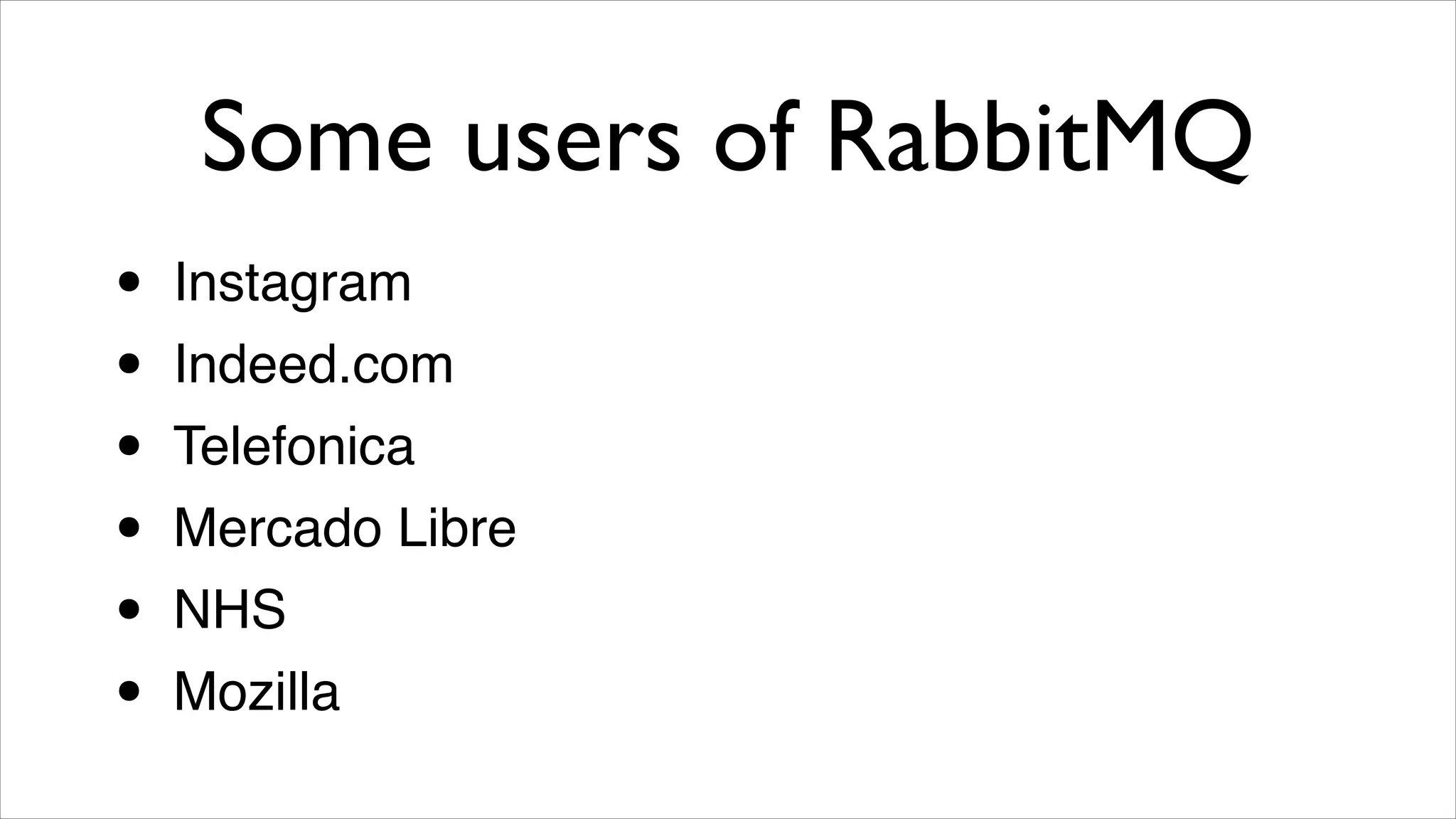

29. Some users of RabbitMQ
•
•
•
•
•
•
Instagram!
Indeed.com!
Telefonica!
Mercado Libre!
NHS!
Mozilla

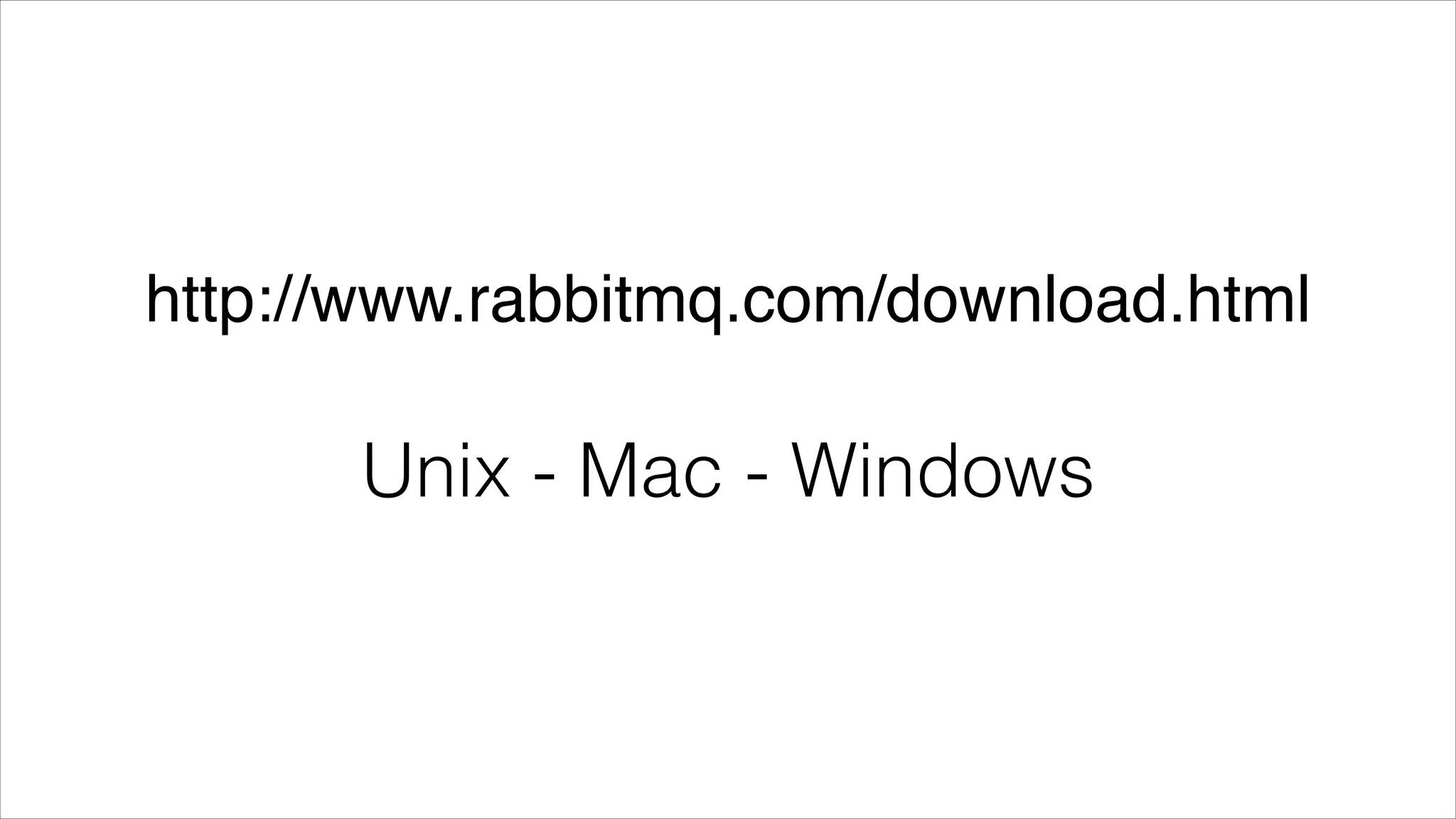

30. http://www.rabbitmq.com/download.html
Unix - Mac - Windows

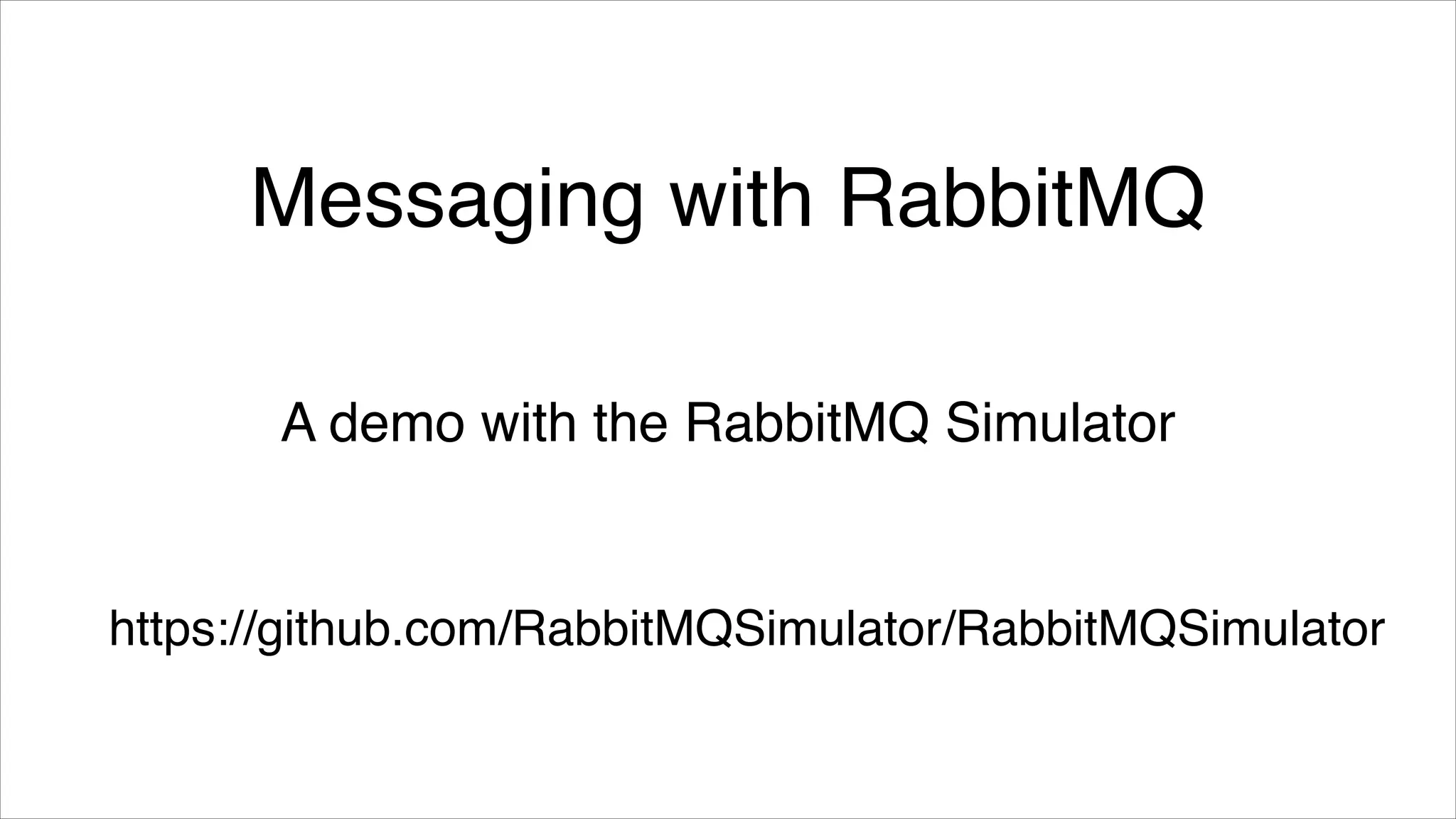

31. Messaging with RabbitMQ
A demo with the RabbitMQ Simulator
https://github.com/RabbitMQSimulator/RabbitMQSimulator

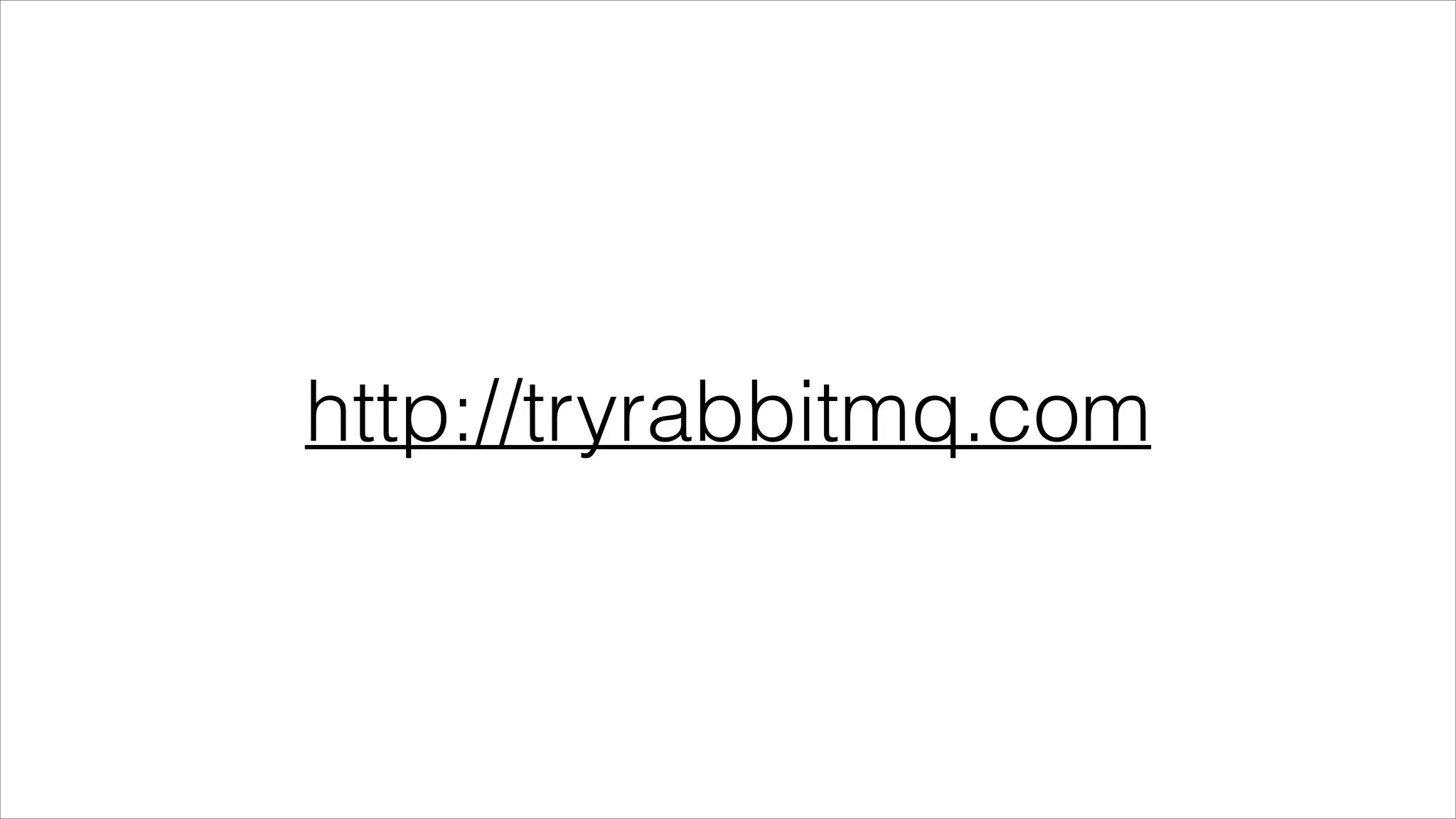

32. http://tryrabbitmq.com

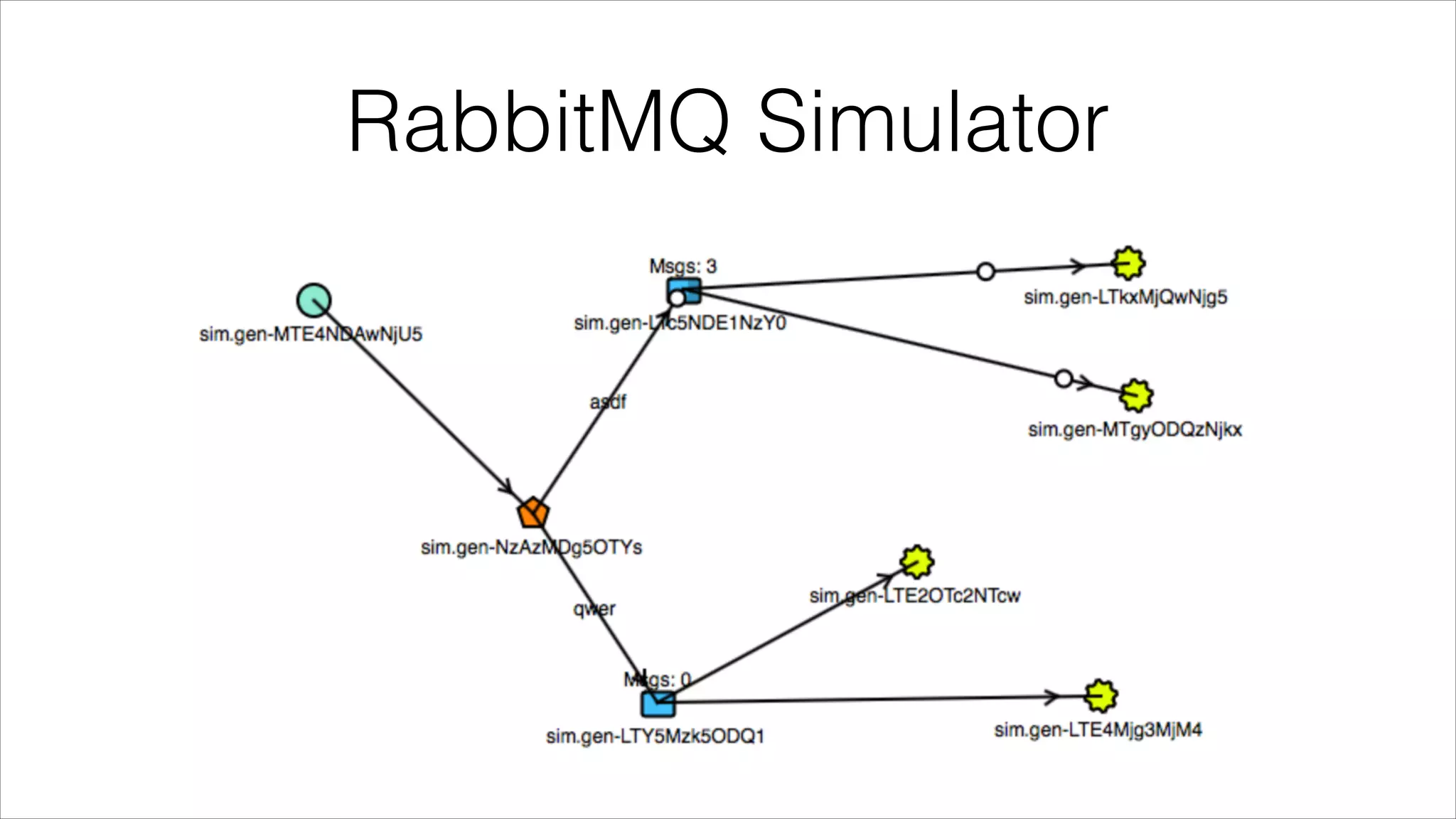

33. RabbitMQ Simulator

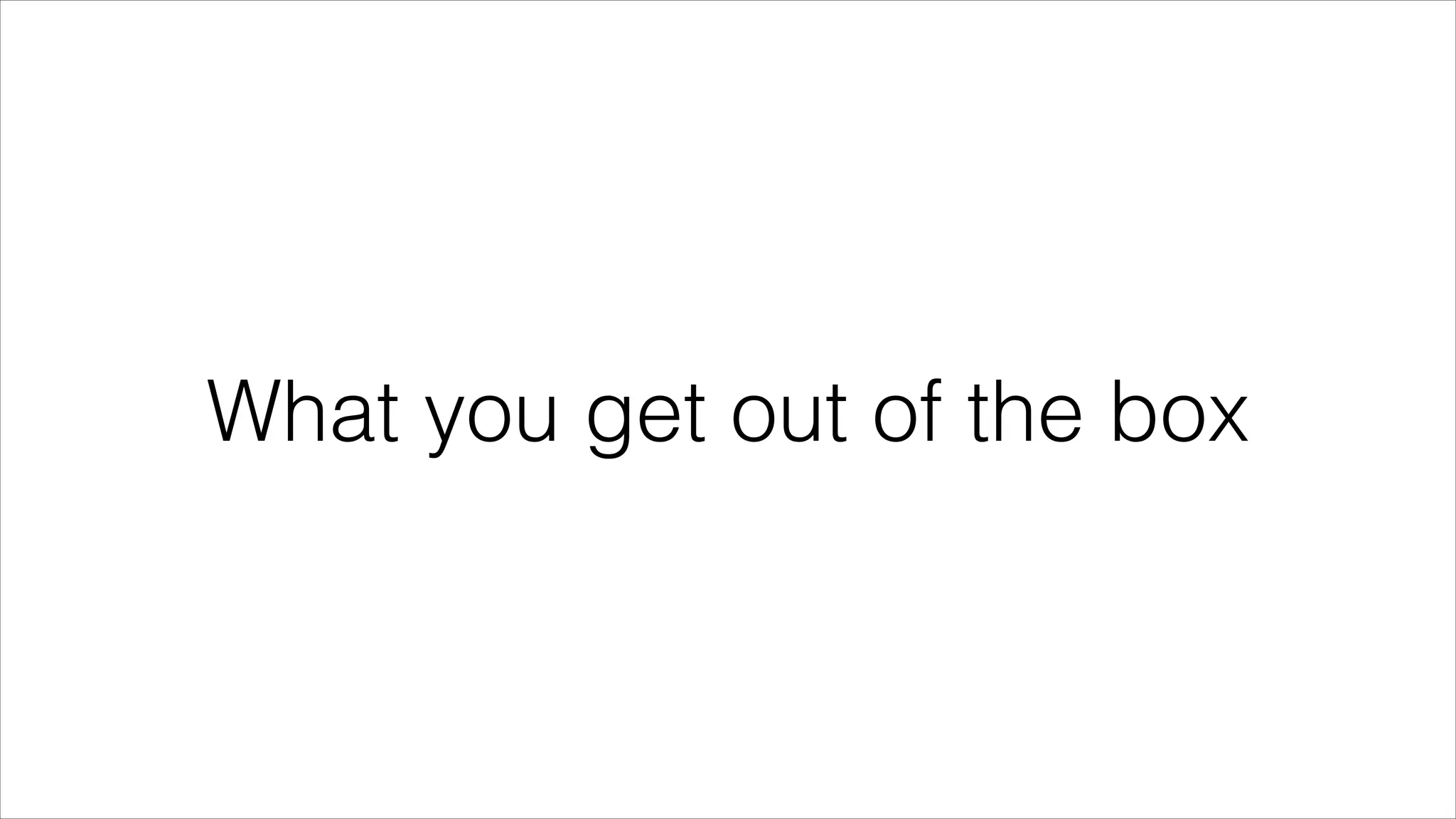

34. What you get out of the box

35. Some RabbitMQ Features

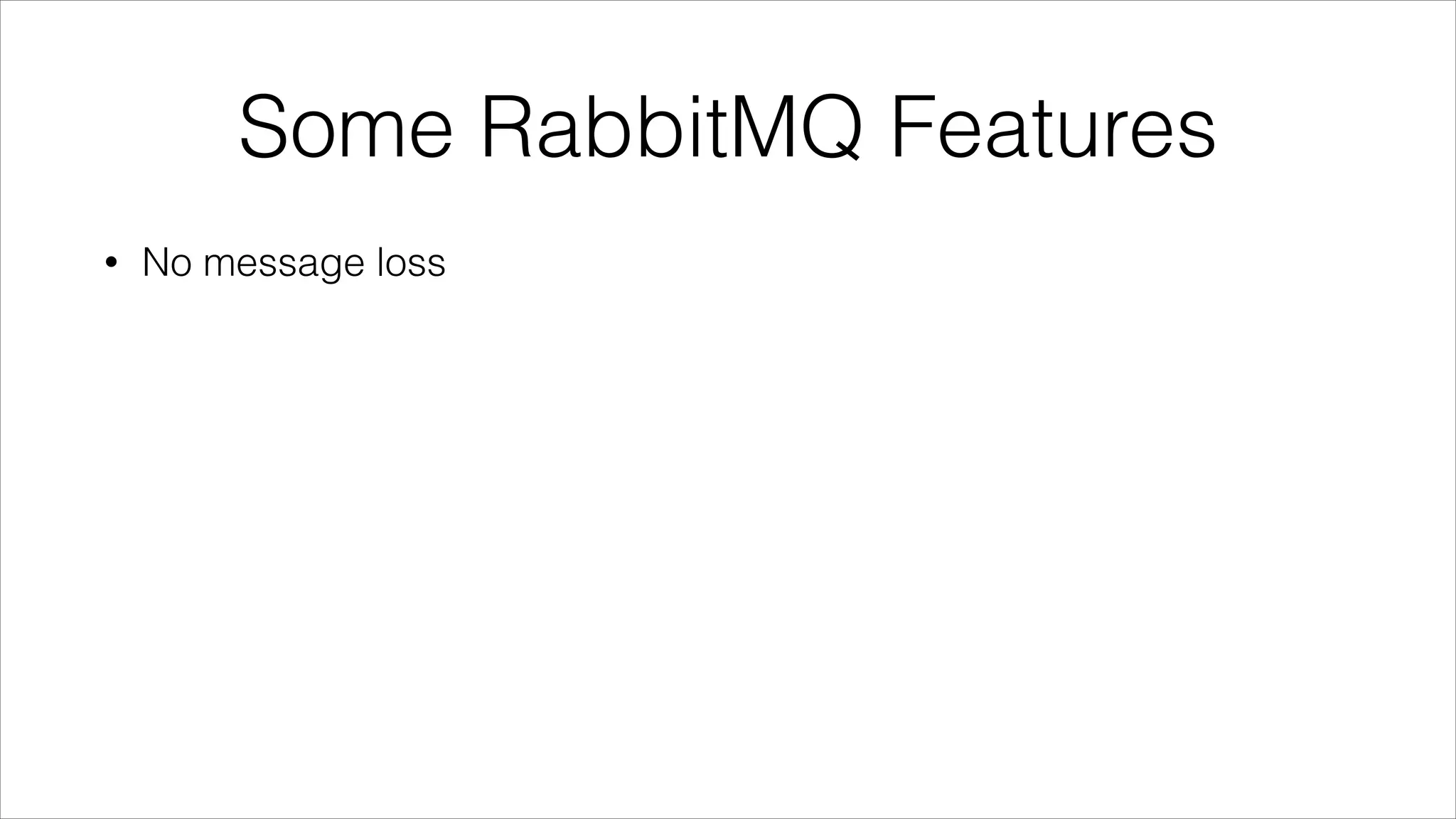

36. Some RabbitMQ Features
•
No message loss

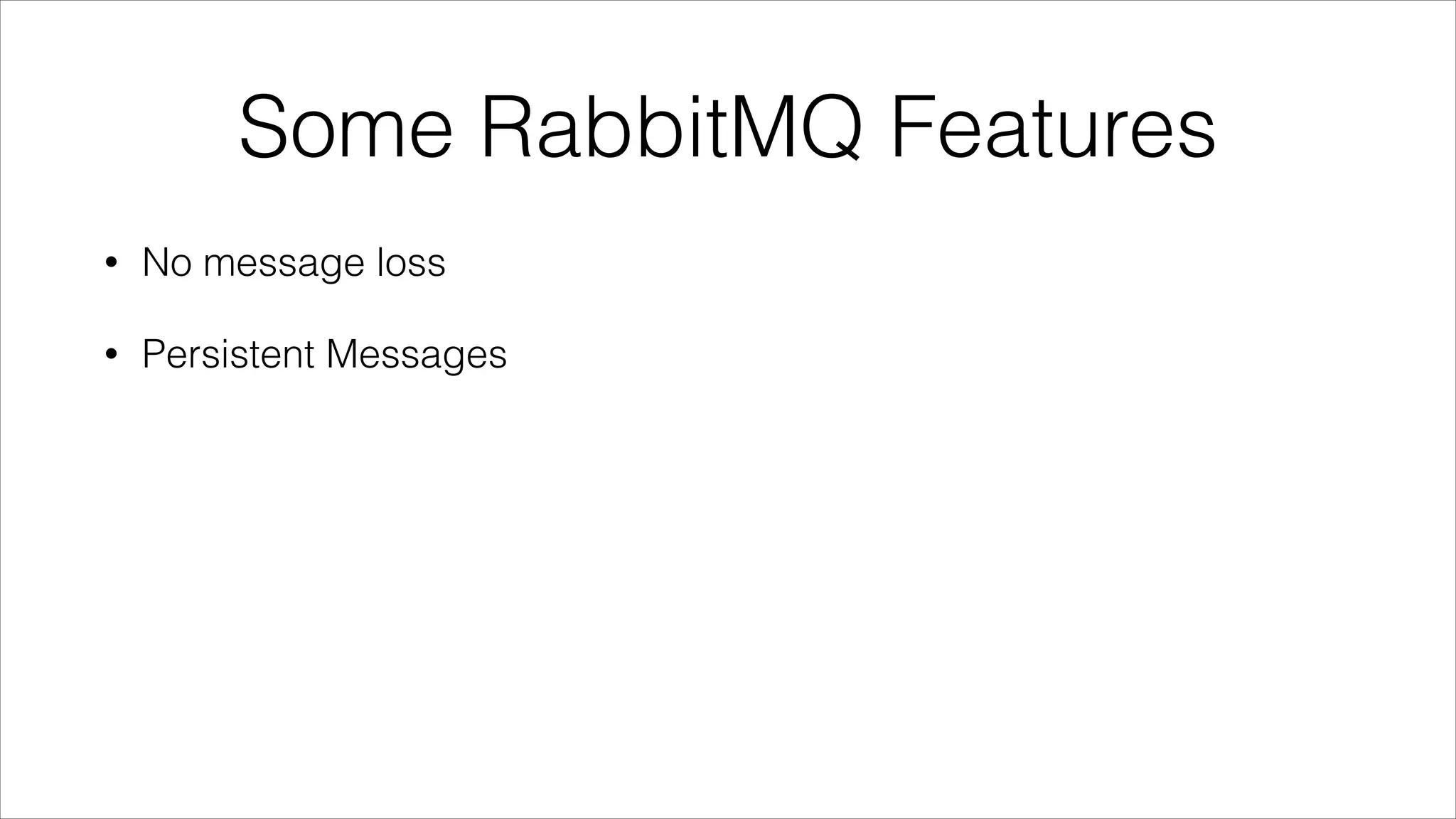

37. Some RabbitMQ Features
•
No message loss
•
Persistent Messages

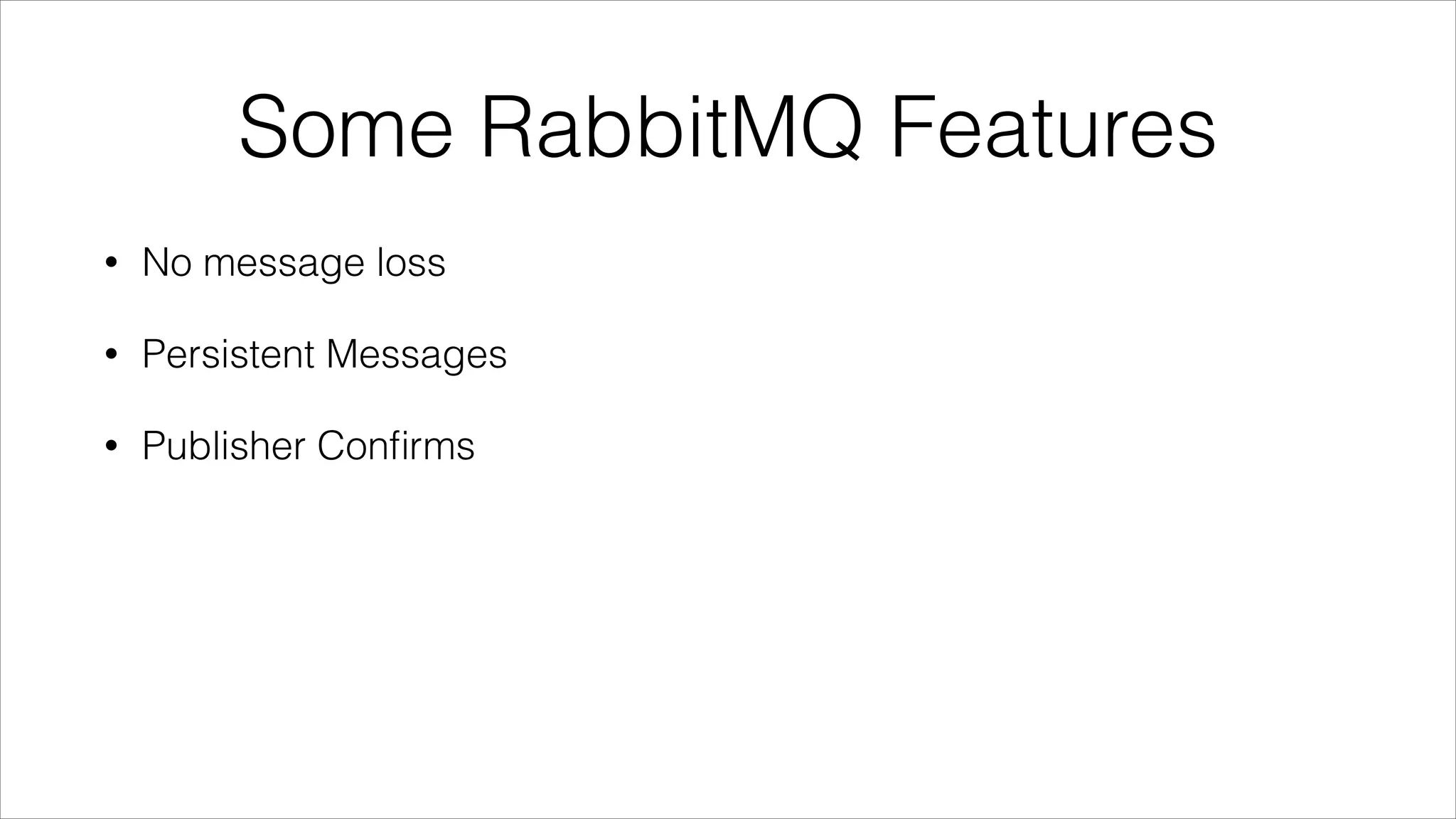

38. Some RabbitMQ Features
•
No message loss
•
Persistent Messages
•
Publisher Confirms

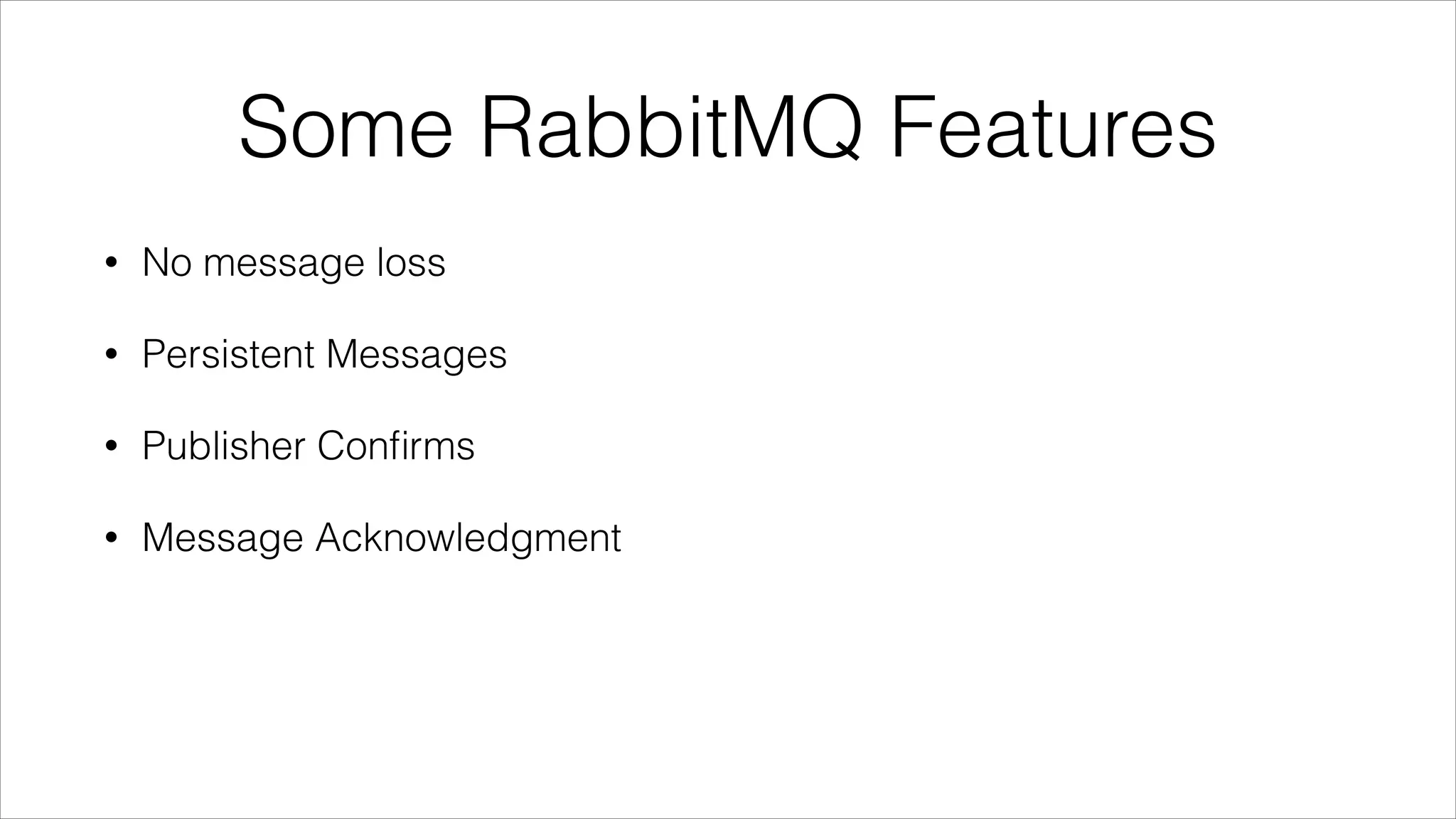

39. Some RabbitMQ Features
•
No message loss
•
Persistent Messages
•
Publisher Confirms
•
Message Acknowledgment

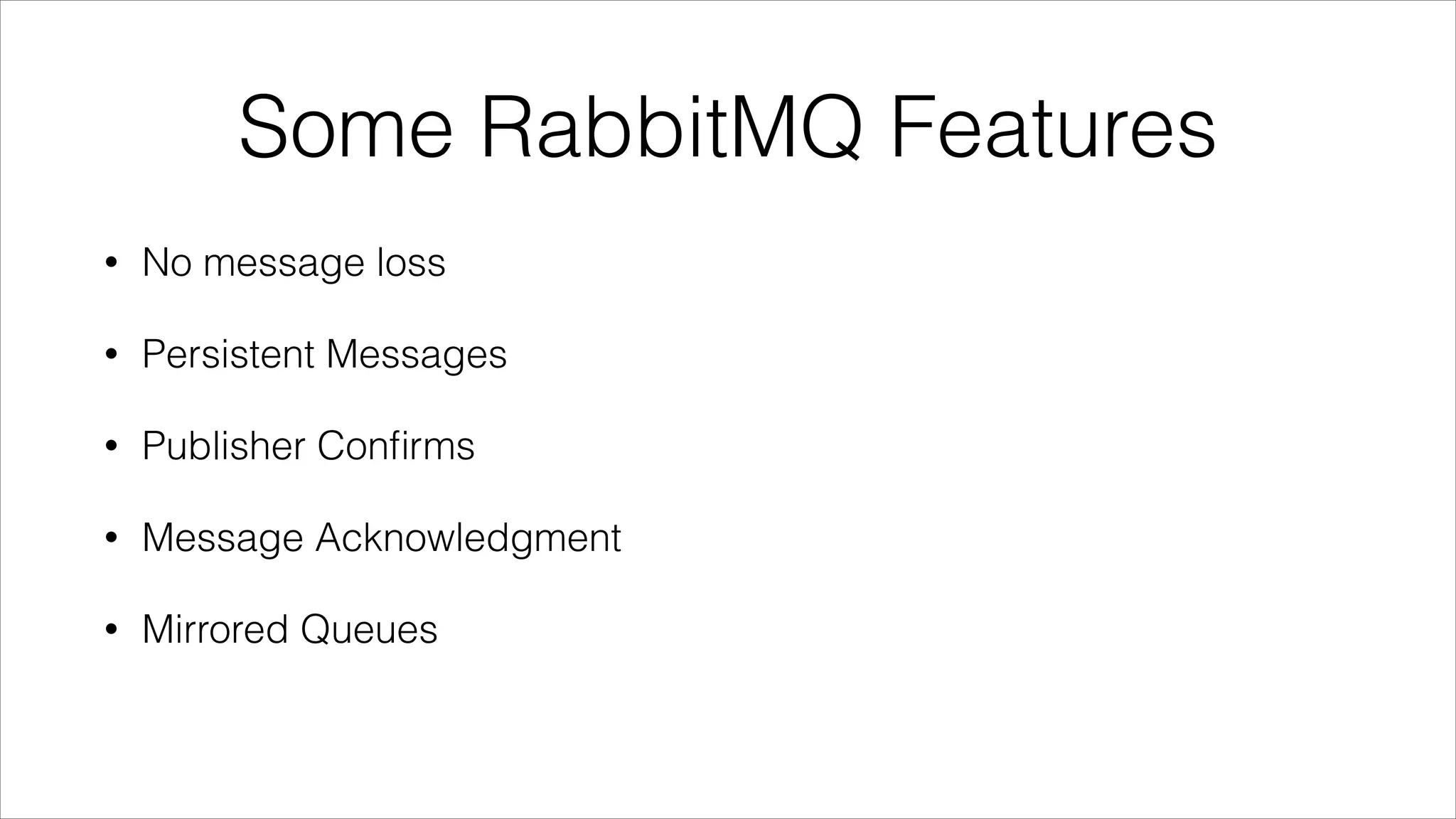

40. Some RabbitMQ Features
•
No message loss
•
Persistent Messages
•
Publisher Confirms
•
Message Acknowledgment
•
Mirrored Queues

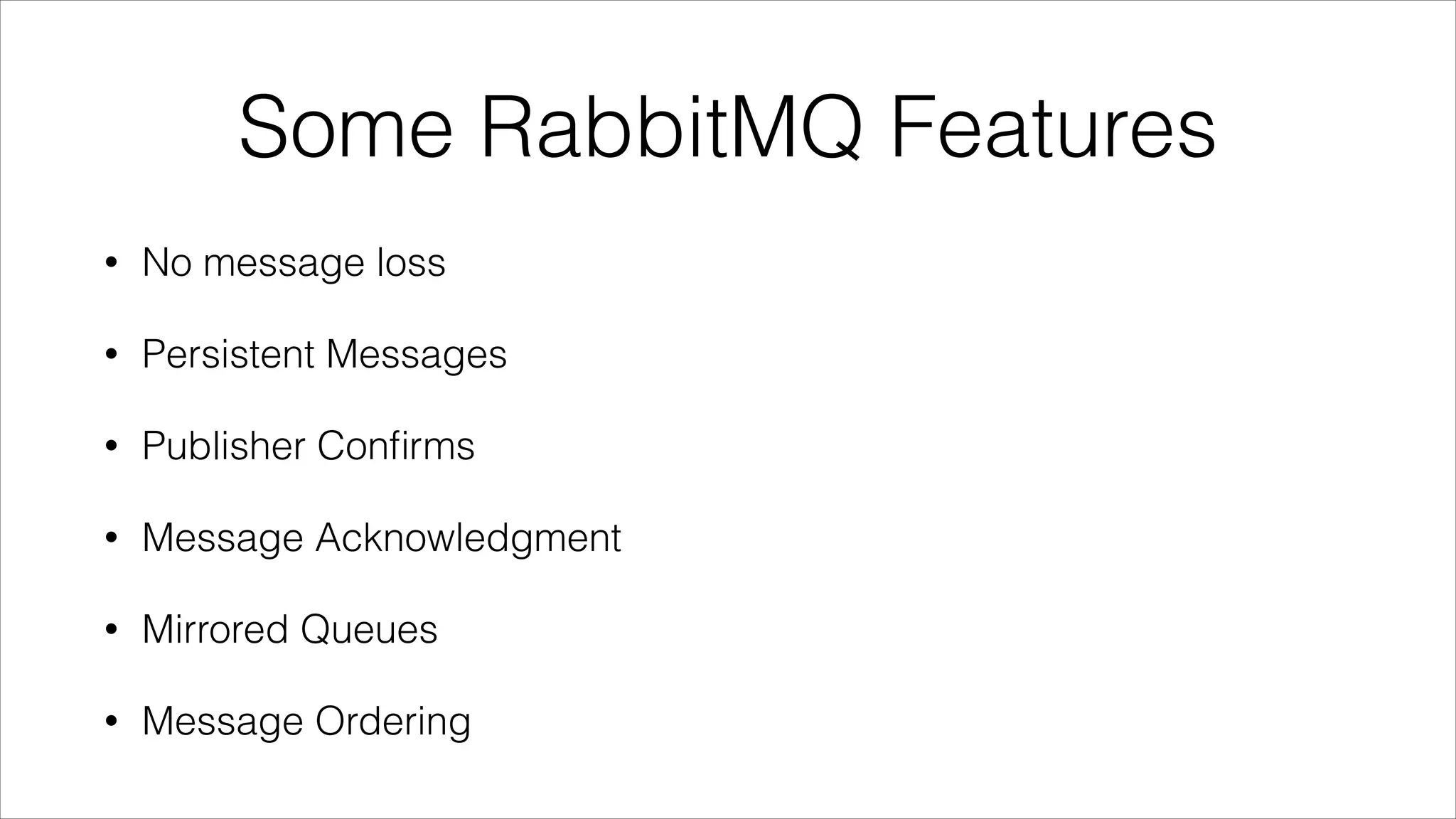

41. Some RabbitMQ Features
•
No message loss
•
Persistent Messages
•
Publisher Confirms
•
Message Acknowledgment
•
Mirrored Queues
•
Message Ordering

42. Some RabbitMQ Features

43. Some RabbitMQ Features
•
Dead Letter Exchanges

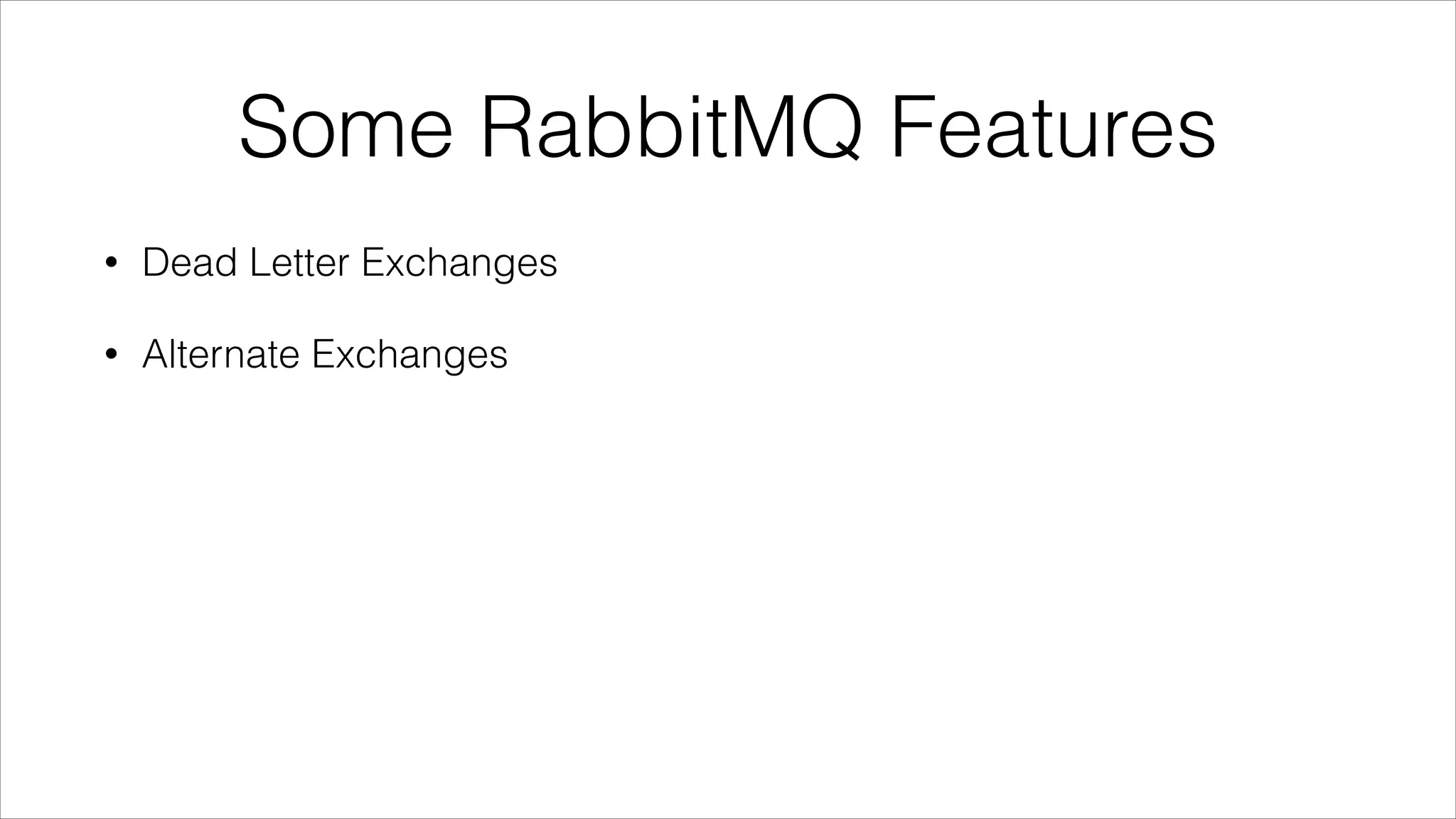

44. Some RabbitMQ Features
•
Dead Letter Exchanges
•
Alternate Exchanges

45. Some RabbitMQ Features
•
Dead Letter Exchanges
•
Alternate Exchanges
•
Message and Queues TTLs

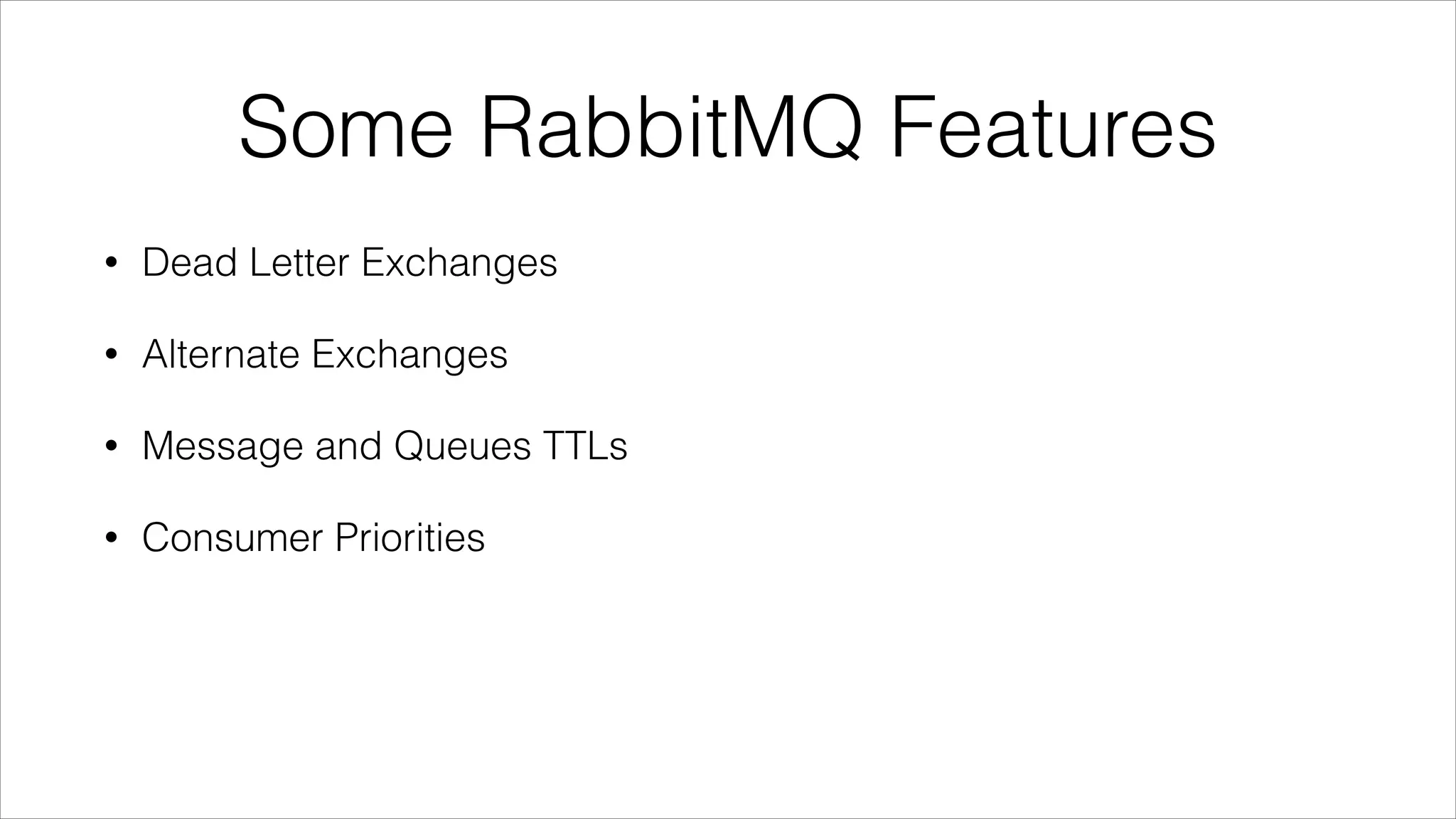

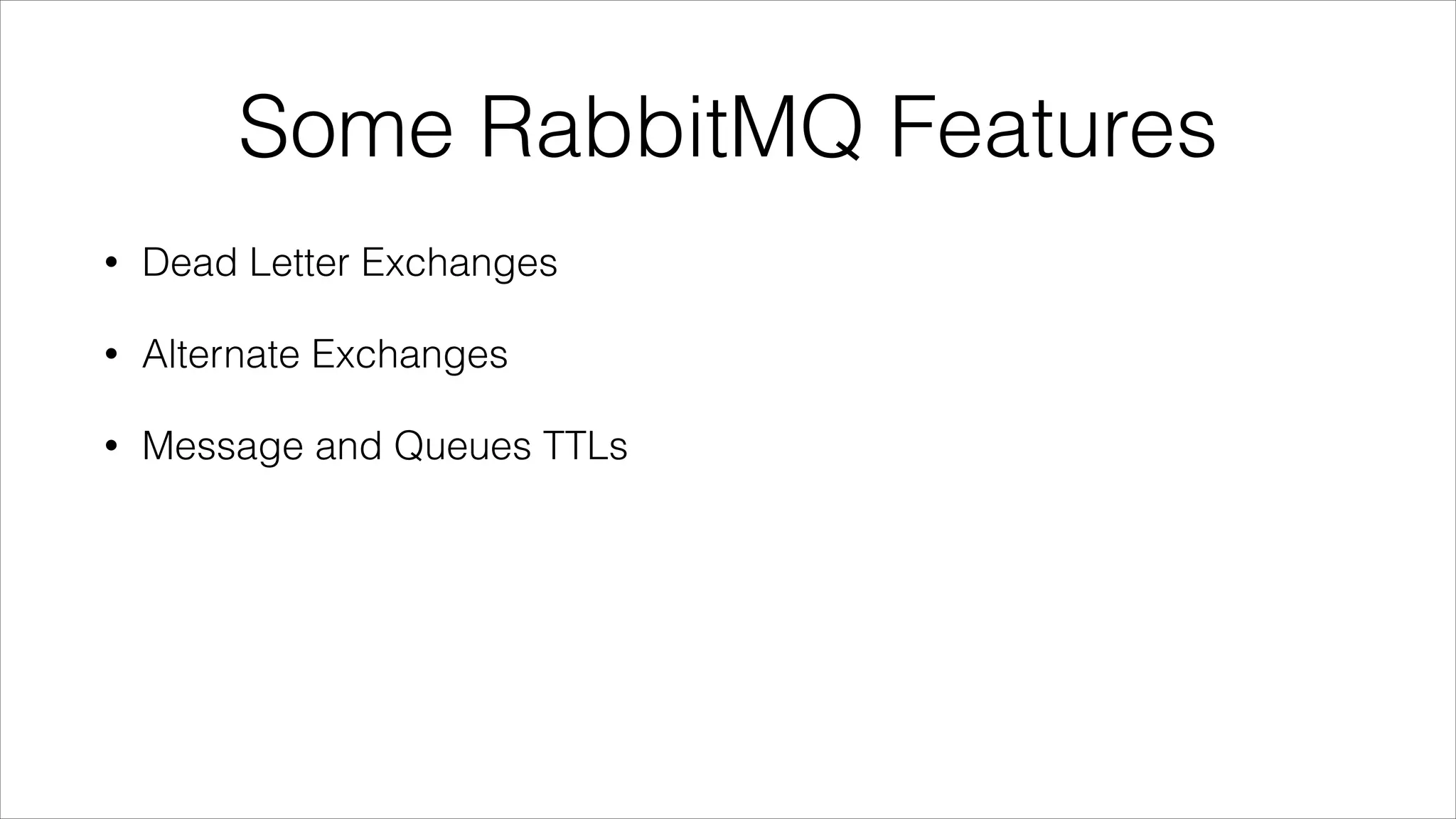

46. Some RabbitMQ Features
•
Dead Letter Exchanges
•
Alternate Exchanges
•
Message and Queues TTLs
•
Consumer Priorities

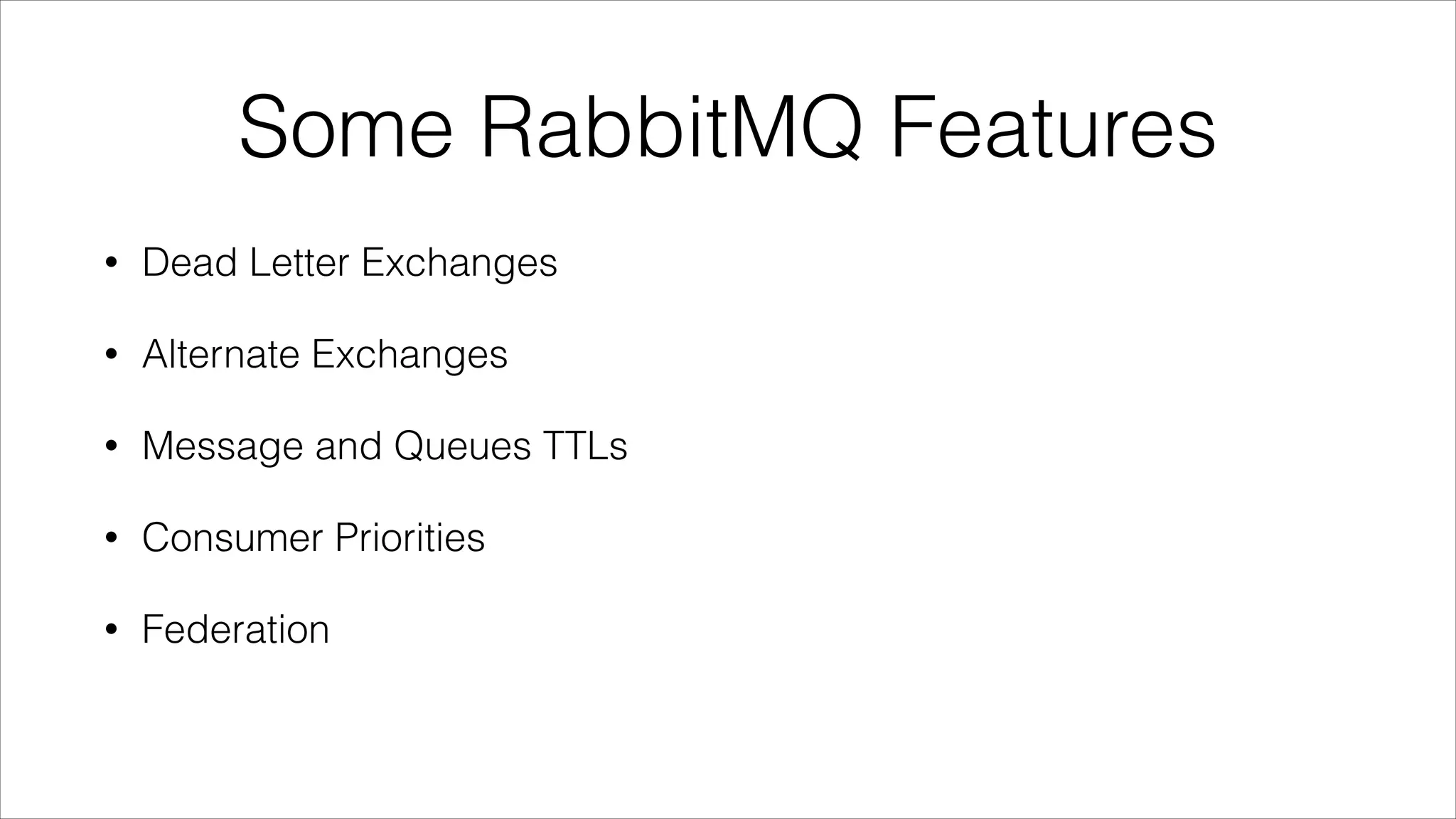

47. Some RabbitMQ Features
•
Dead Letter Exchanges
•
Alternate Exchanges
•
Message and Queues TTLs
•
Consumer Priorities
•

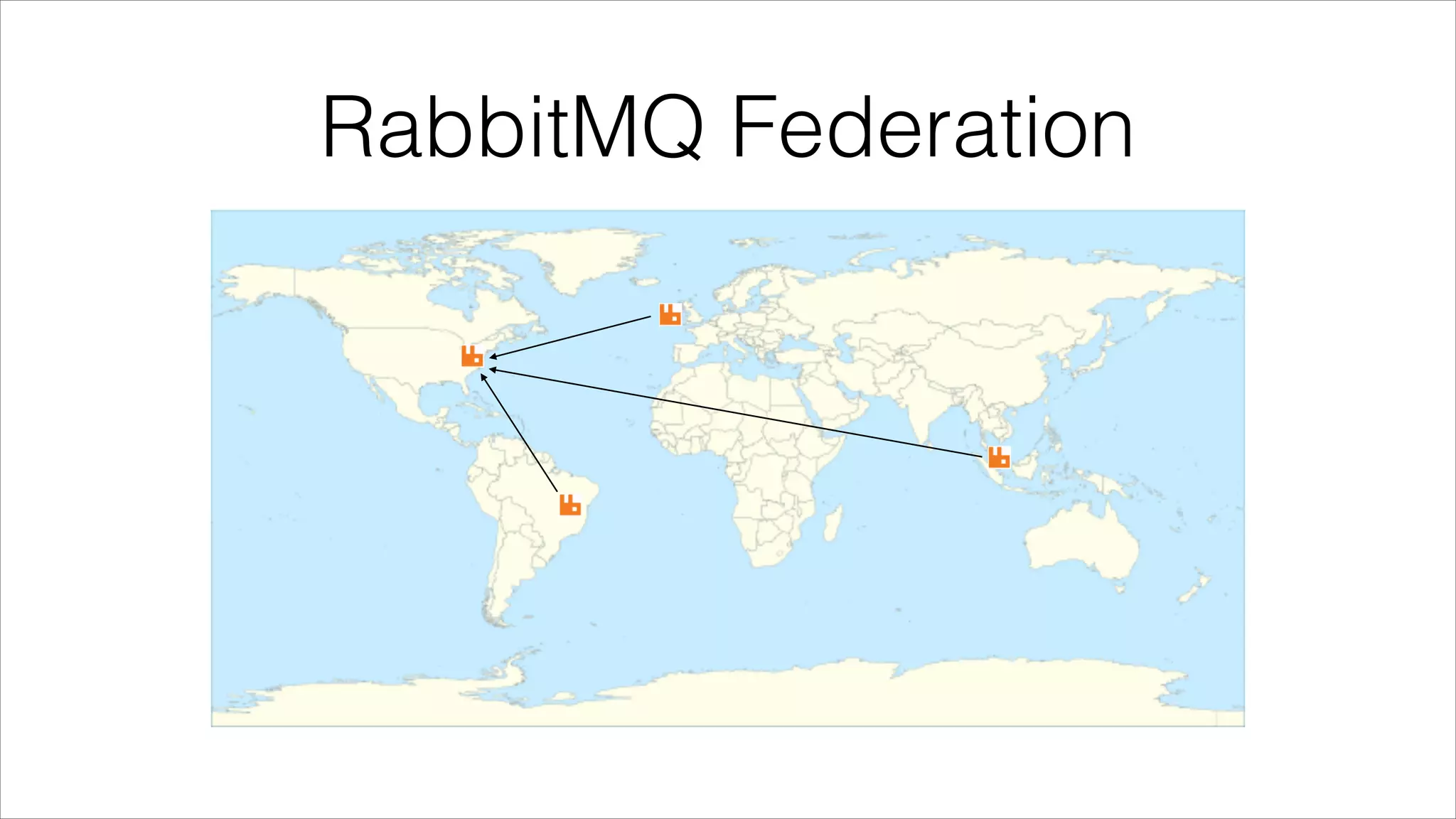

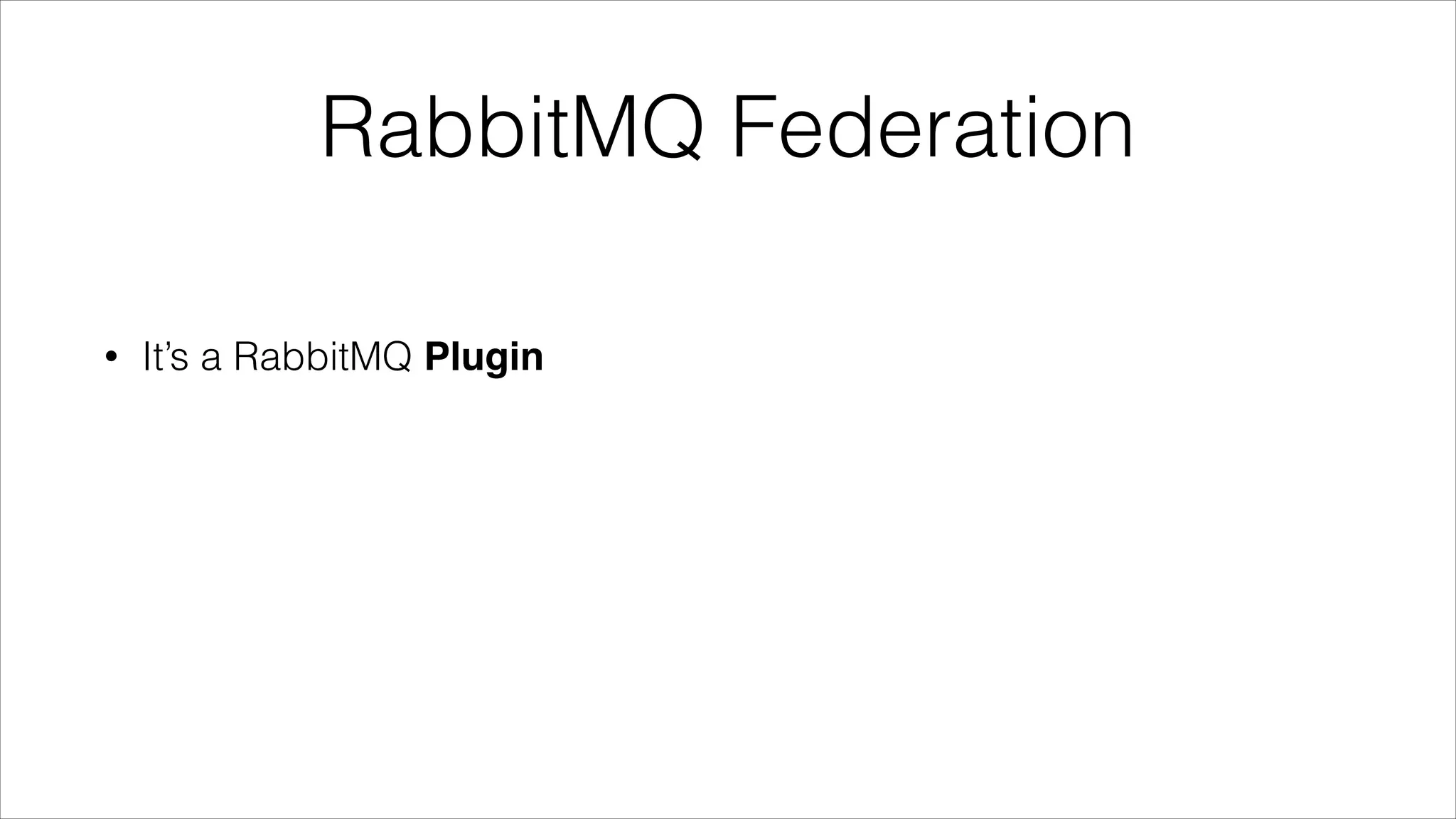

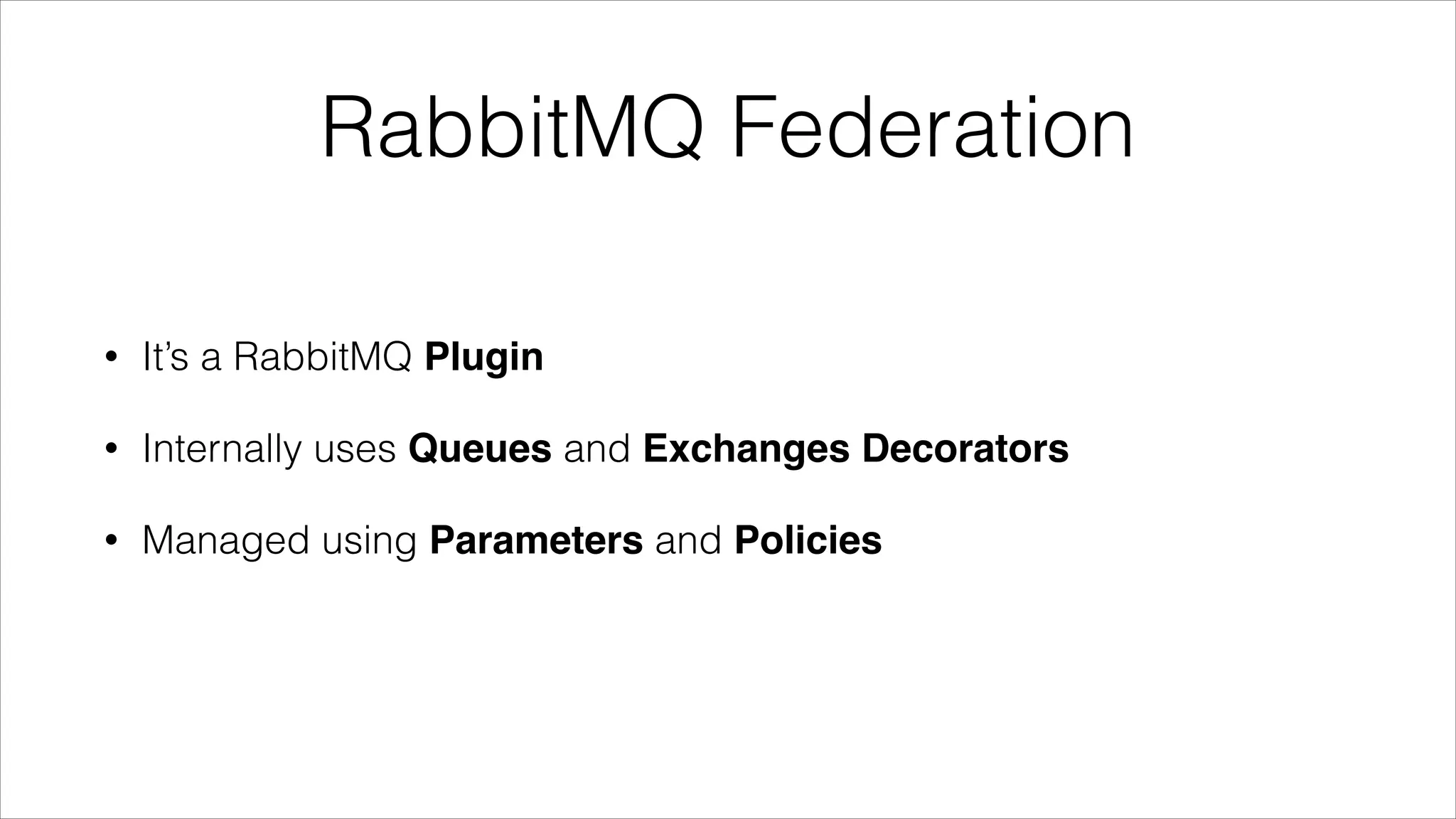

Federation

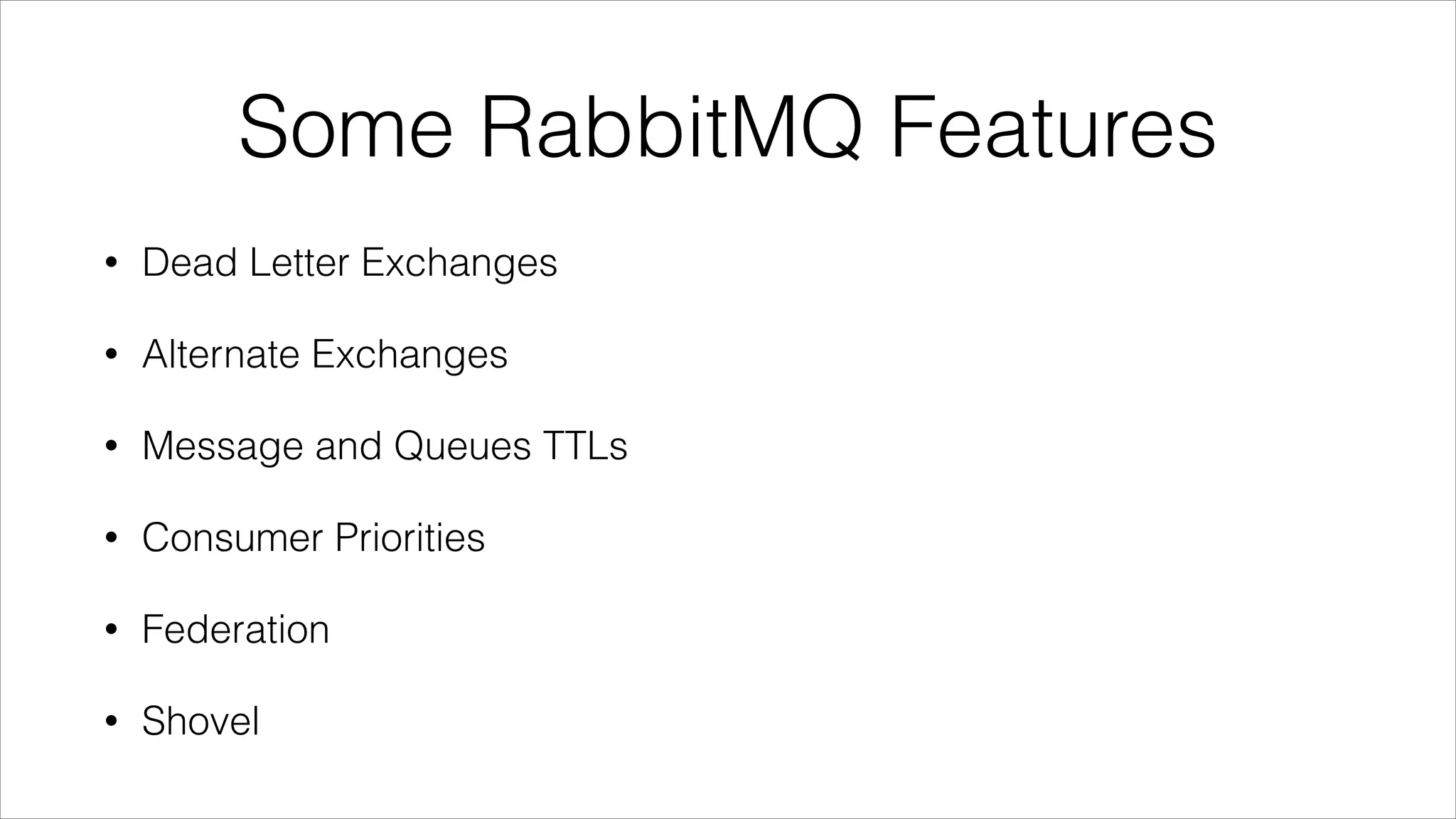

48. Some RabbitMQ Features
•
Dead Letter Exchanges
•
Alternate Exchanges
•
Message and Queues TTLs
•
Consumer Priorities
•
Federation
•
Shovel

49. Preventing unbounded
buffers with RabbitMQ
http://bit.ly/1eCKYK8

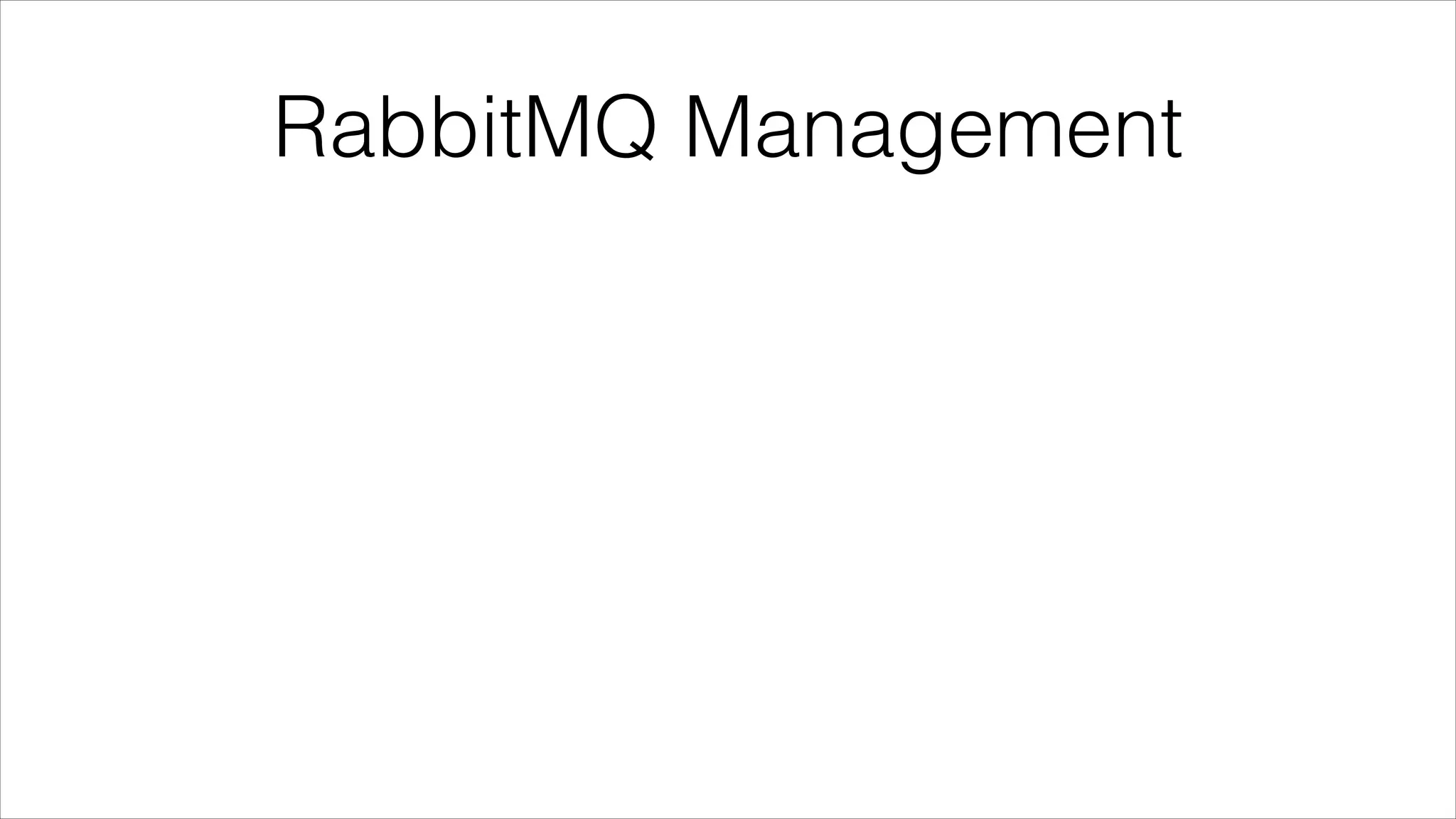

50. RabbitMQ Management

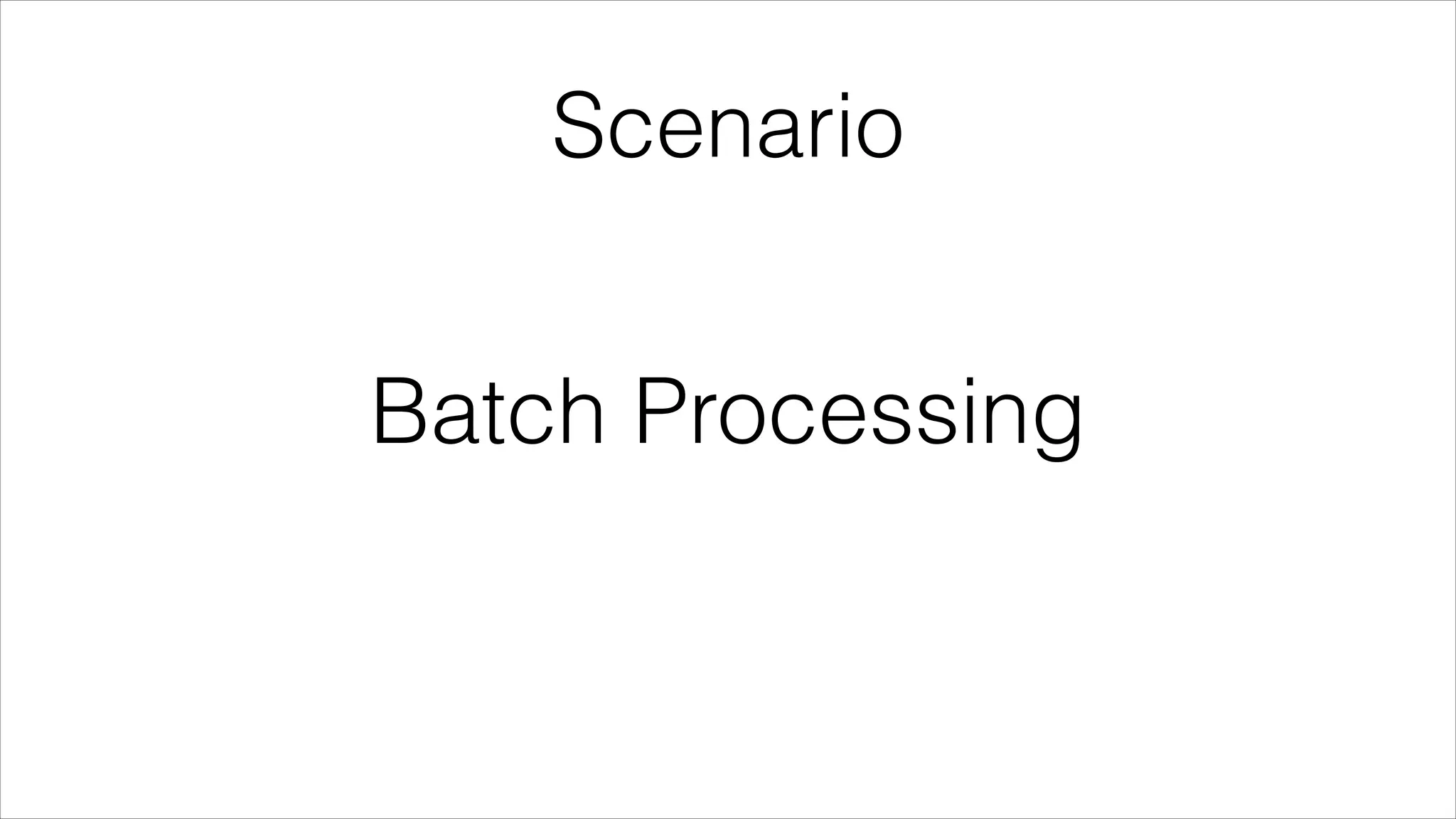

51. Scenario
Batch Processing

52. Requirements

53. Requirements
•
Generate XML

54. Requirements
•
Generate XML
•
Distribution Over a Cluster

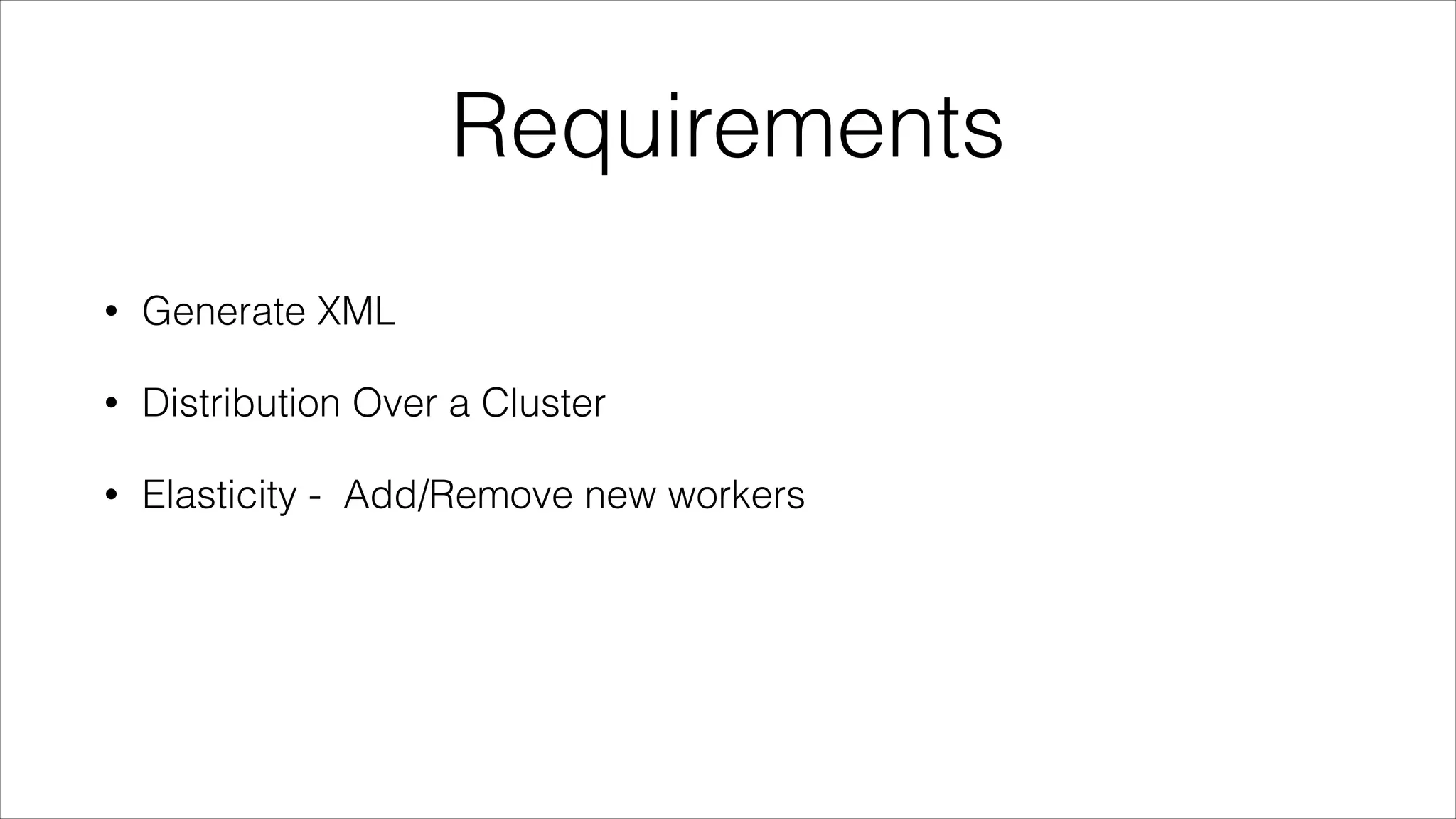

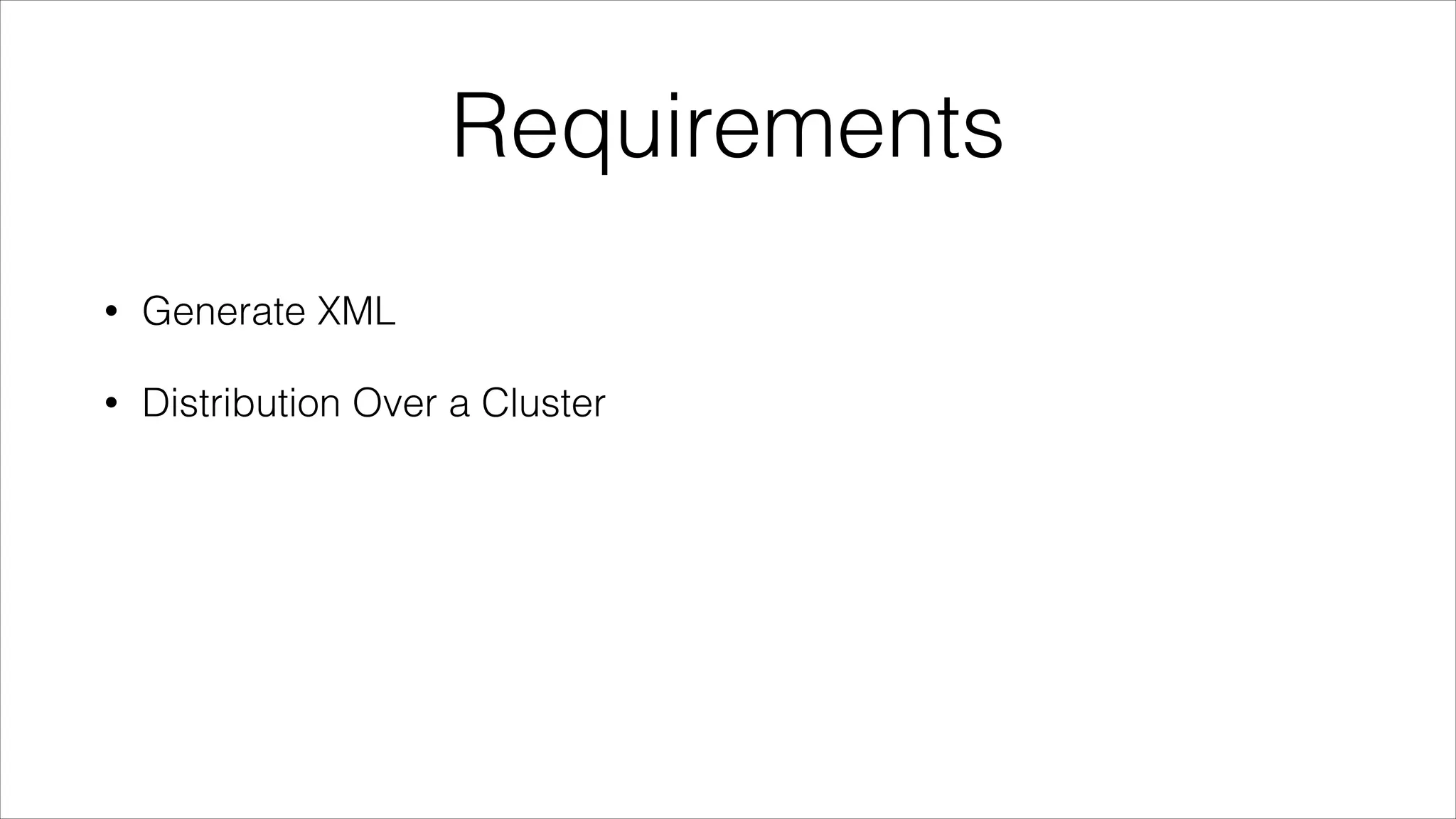

55. Requirements
•
Generate XML
•
Distribution Over a Cluster
•
Elasticity - Add/Remove new workers

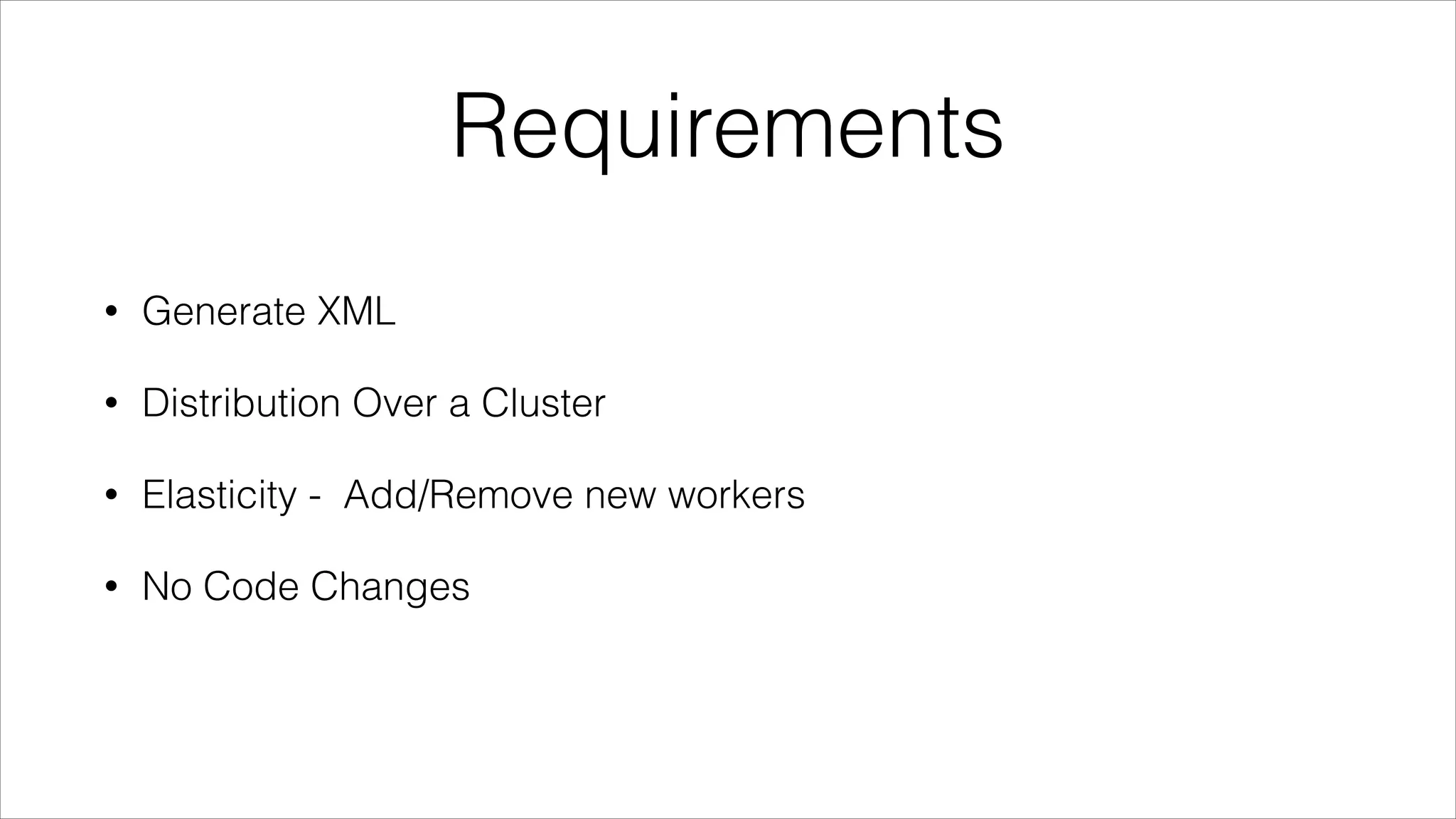

56. Requirements
•
Generate XML
•
Distribution Over a Cluster
•
Elasticity - Add/Remove new workers
•
No Code Changes

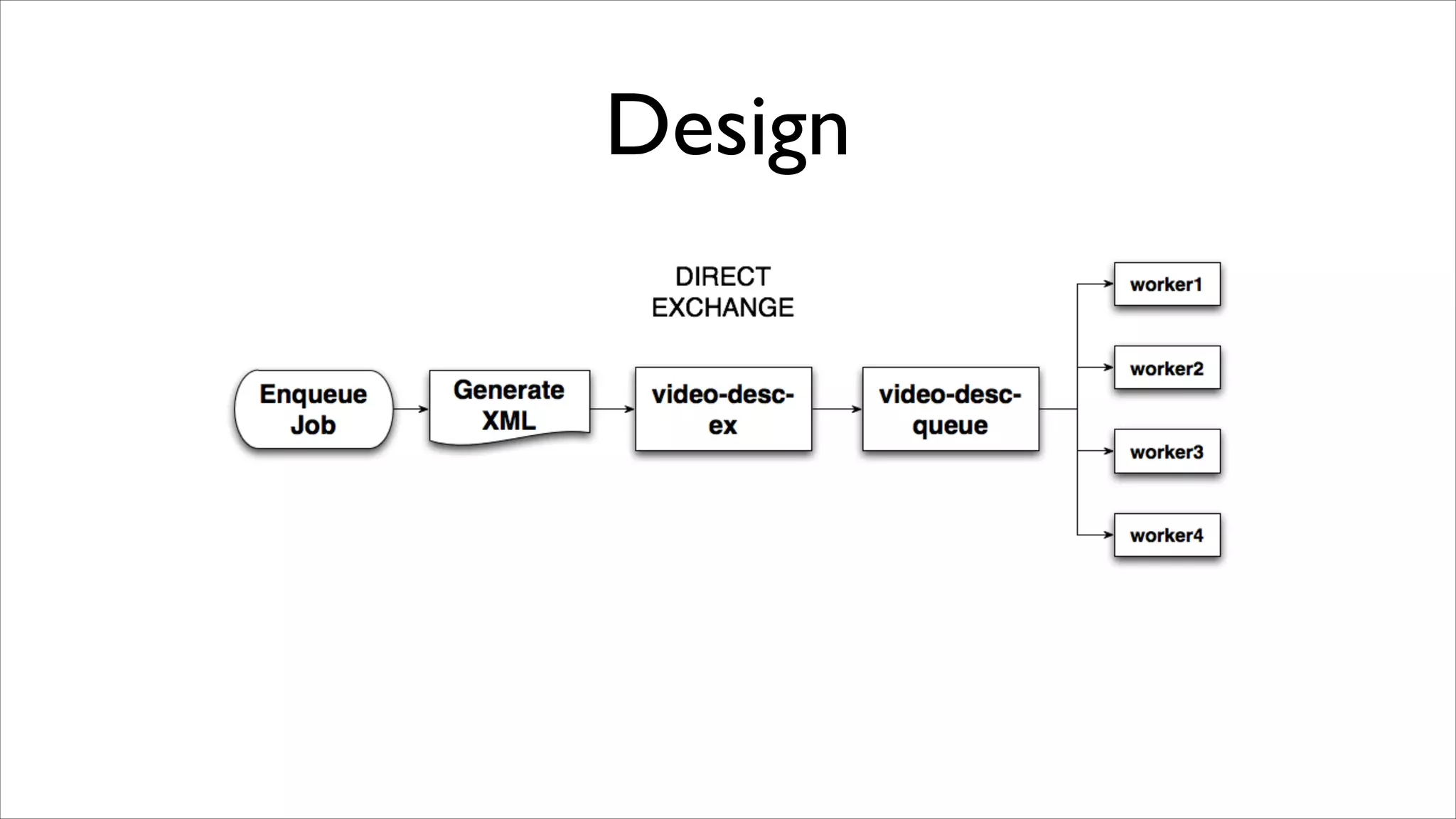

57. Design

58. Publisher Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
!
$msg = new AMQPMessage($video_info,
array('content_type' => 'text/plain',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'video-desc-ex');
!
$channel->close();
$conn->close();

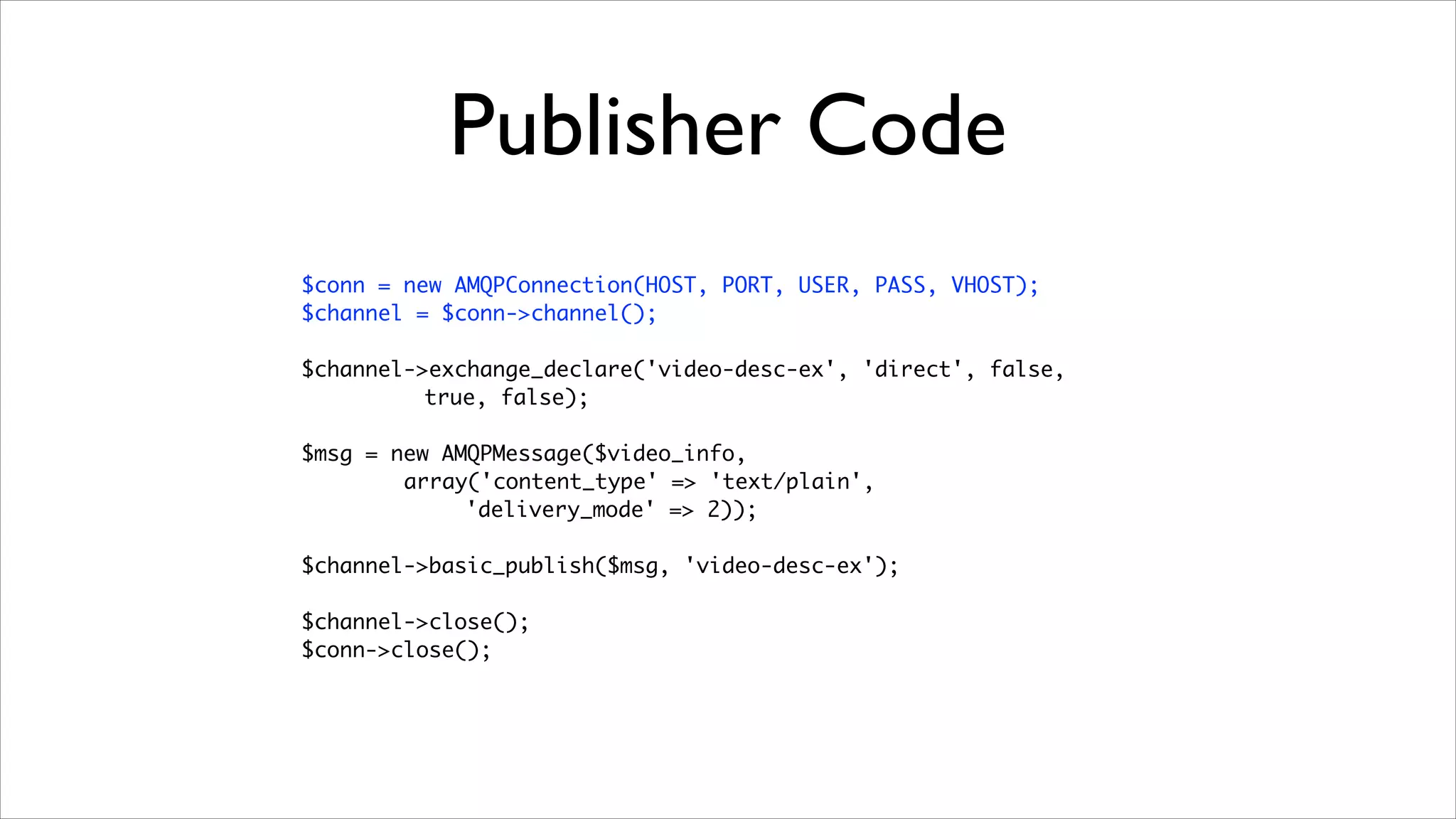

59. Publisher Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
!
$msg = new AMQPMessage($video_info,
array('content_type' => 'text/plain',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'video-desc-ex');
!
$channel->close();
$conn->close();

60. Publisher Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
!
$msg = new AMQPMessage($video_info,
array('content_type' => 'text/plain',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'video-desc-ex');
!
$channel->close();
$conn->close();

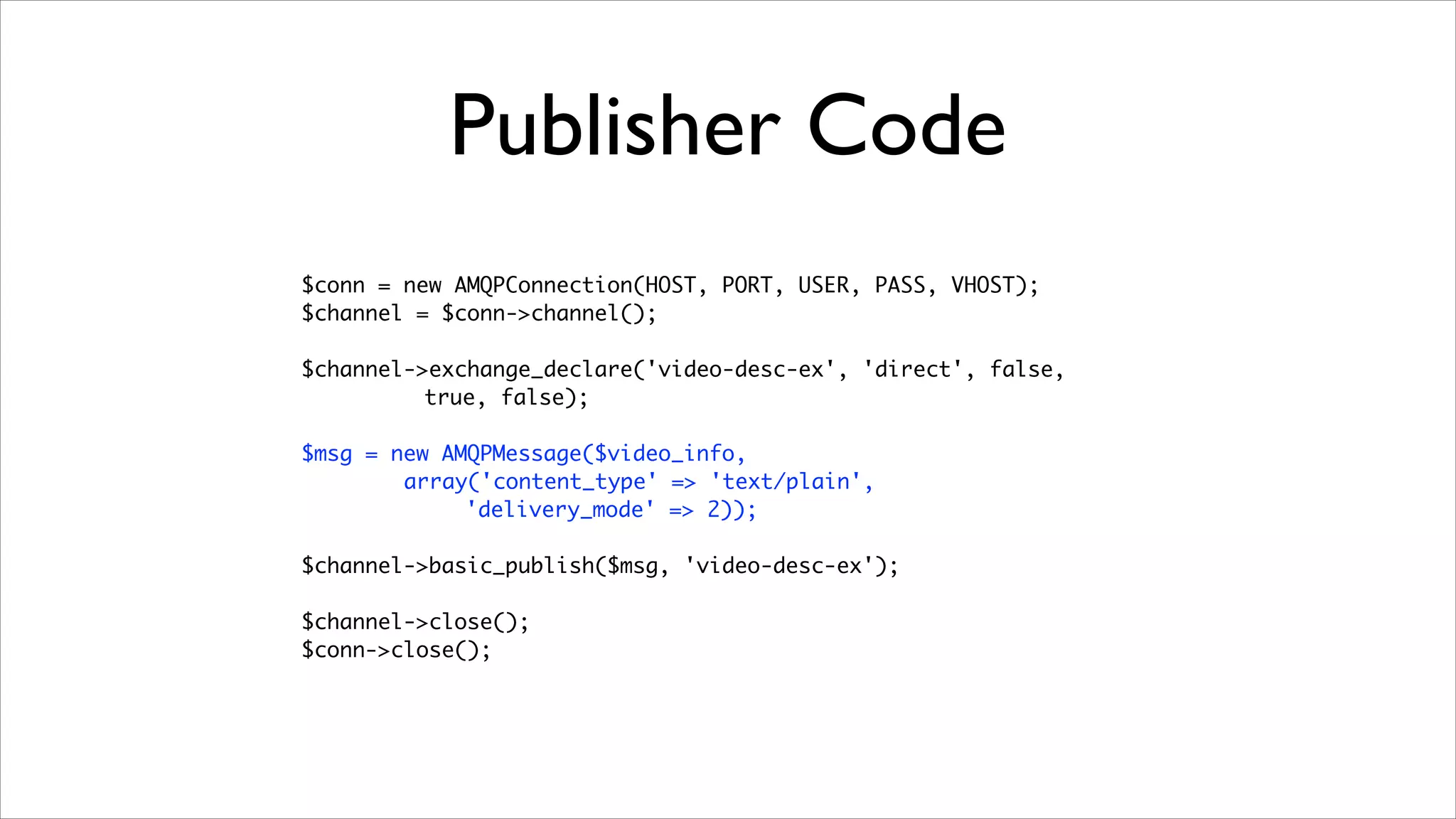

61. Publisher Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
!
$msg = new AMQPMessage($video_info,
array('content_type' => 'text/plain',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'video-desc-ex');
!
$channel->close();
$conn->close();

62. Publisher Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
!
$msg = new AMQPMessage($video_info,
array('content_type' => 'text/plain',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'video-desc-ex');
!
$channel->close();
$conn->close();

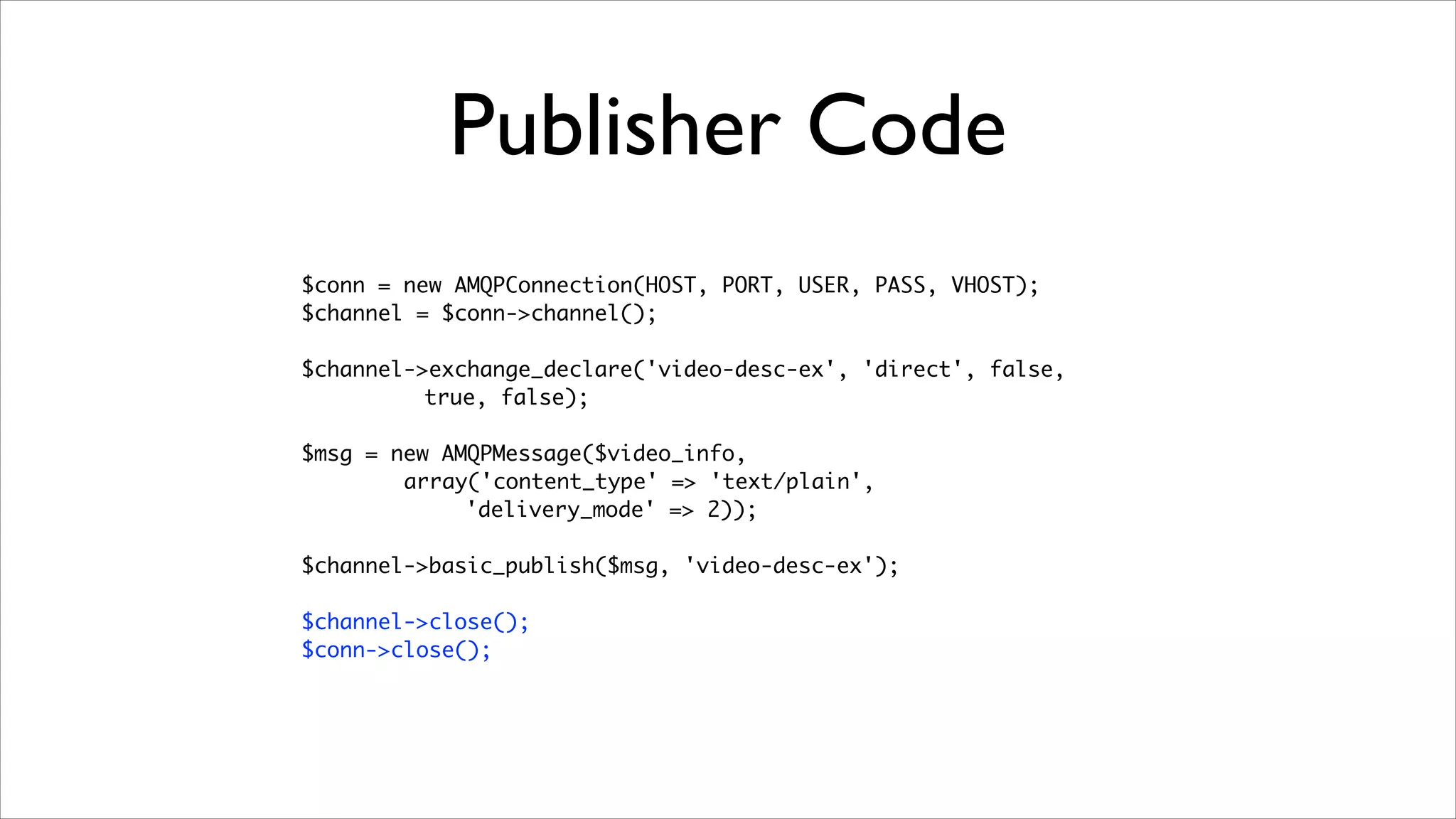

63. Publisher Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
!
$msg = new AMQPMessage($video_info,
array('content_type' => 'text/plain',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'video-desc-ex');
!
$channel->close();
$conn->close();

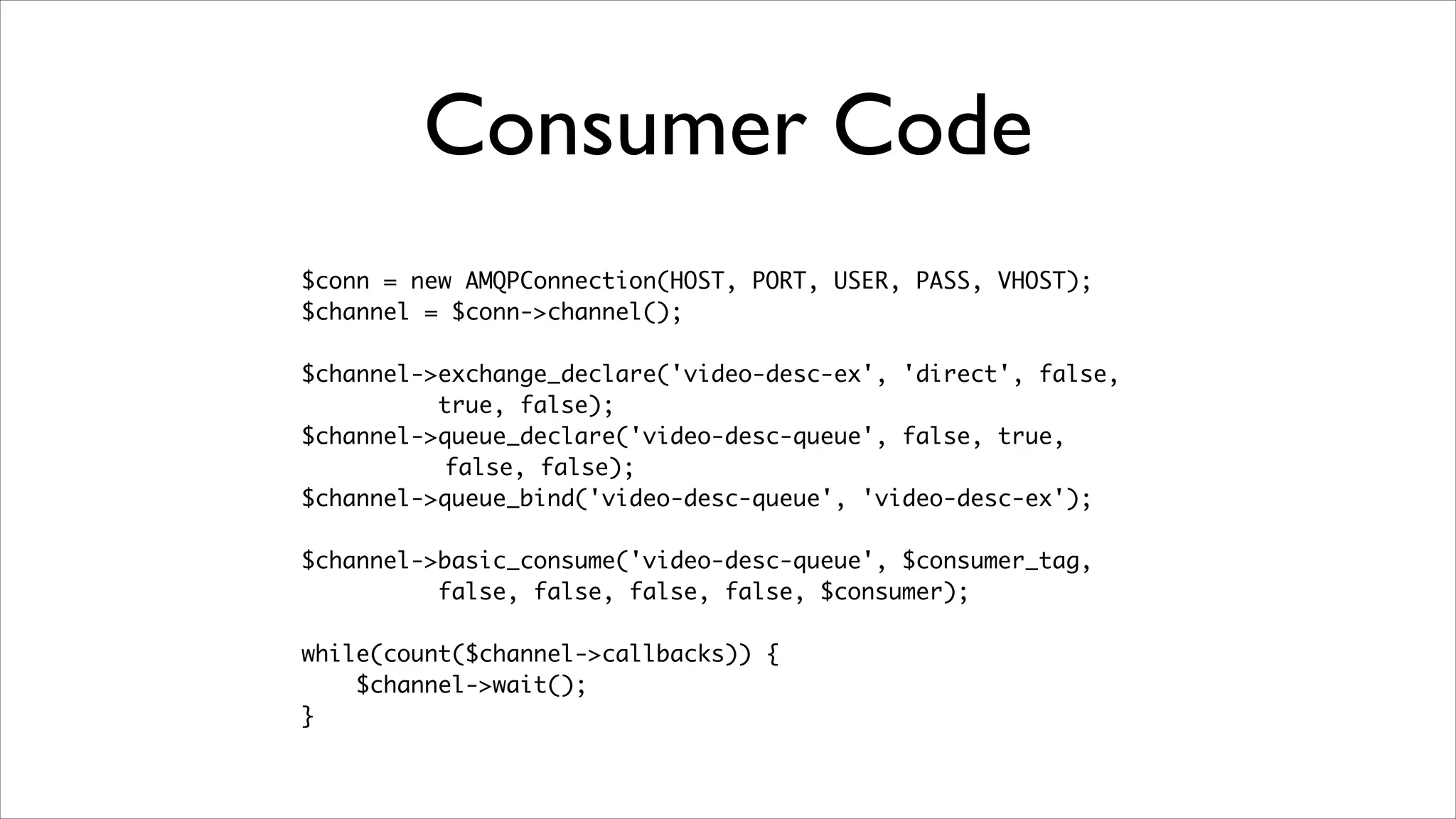

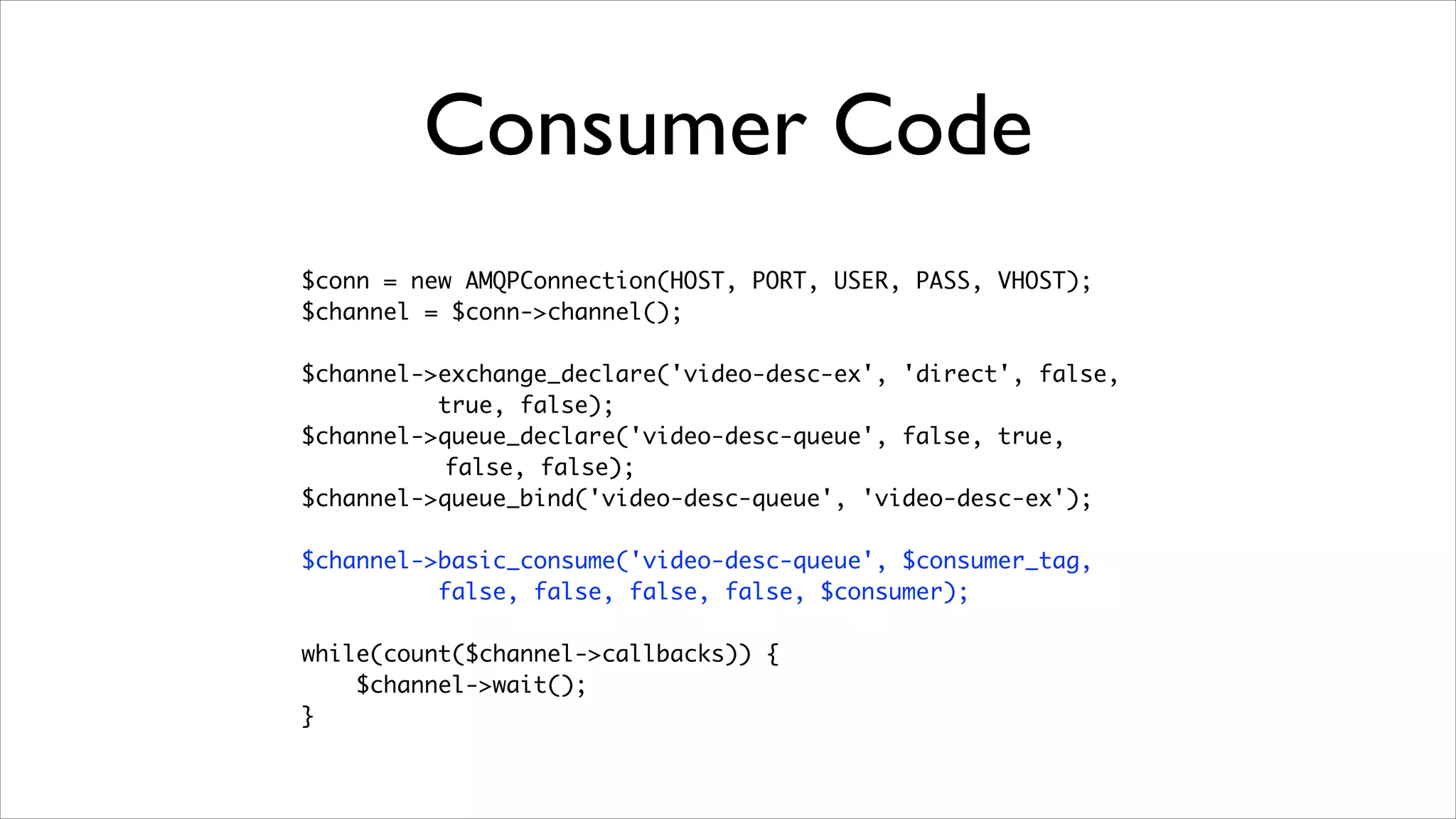

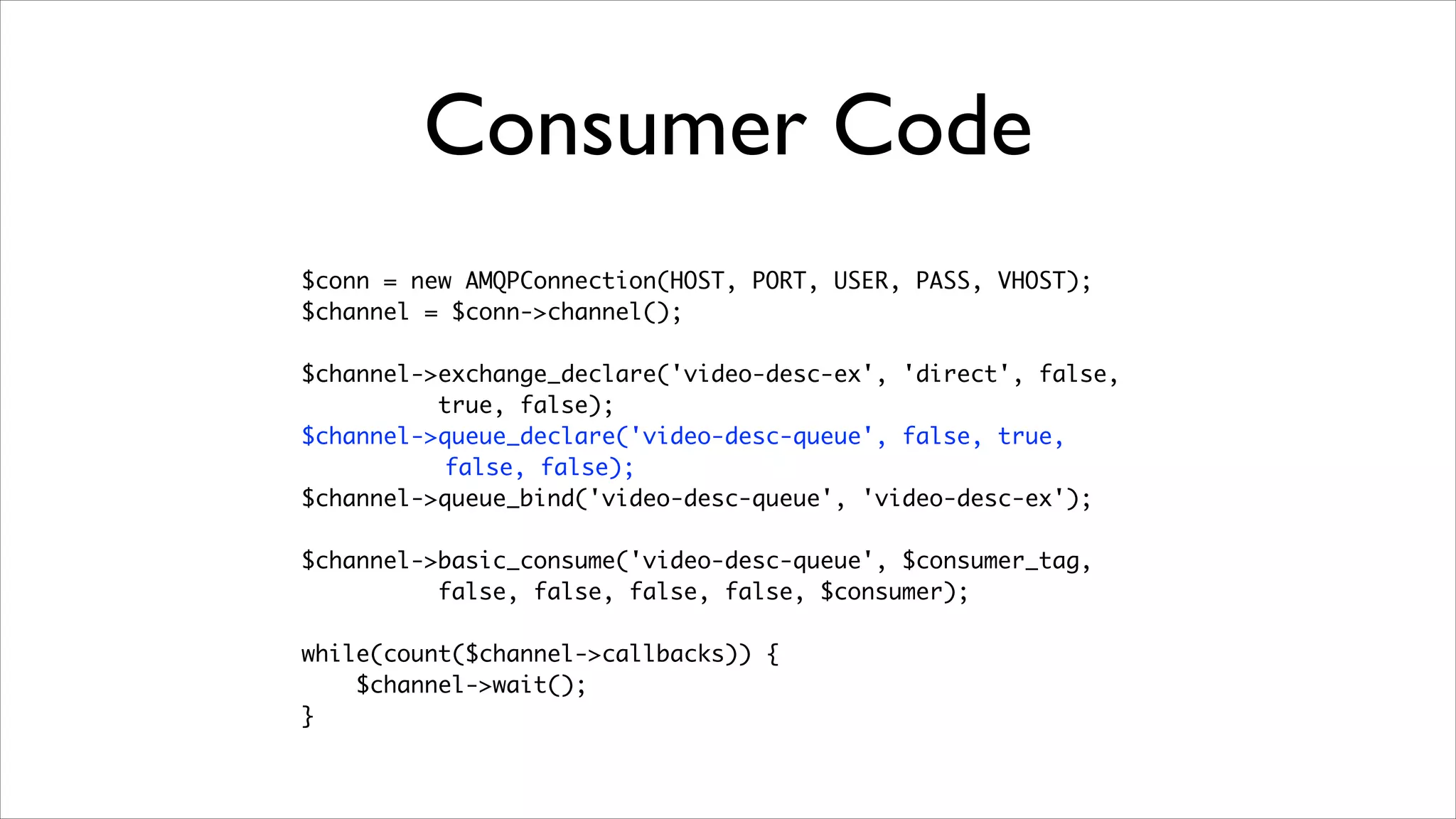

64. Consumer Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
$channel->queue_declare('video-desc-queue', false, true,
false, false);
$channel->queue_bind('video-desc-queue', 'video-desc-ex');
!
$channel->basic_consume('video-desc-queue', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

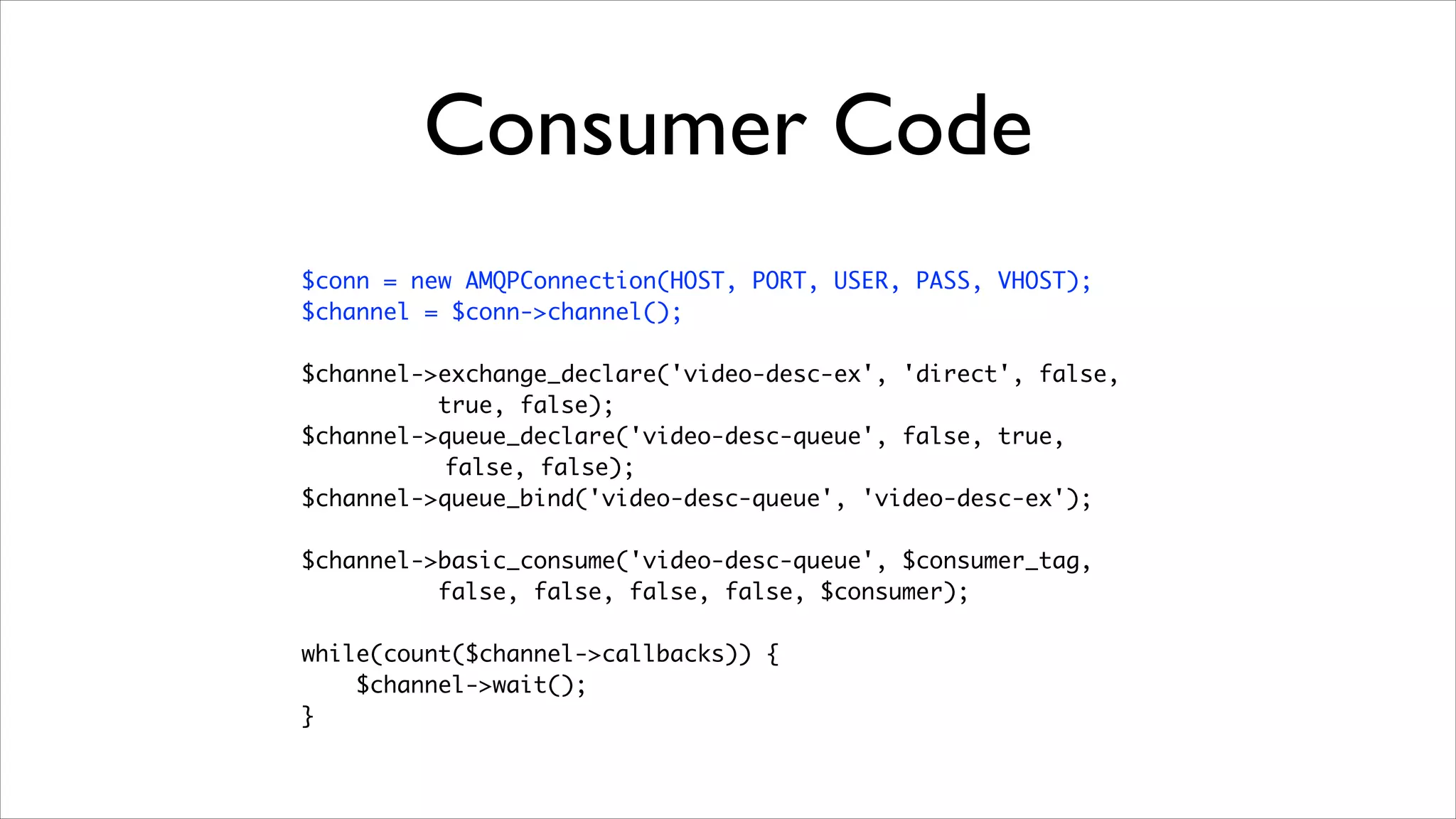

65. Consumer Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
$channel->queue_declare('video-desc-queue', false, true,
false, false);
$channel->queue_bind('video-desc-queue', 'video-desc-ex');
!
$channel->basic_consume('video-desc-queue', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

66. Consumer Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
$channel->queue_declare('video-desc-queue', false, true,
false, false);
$channel->queue_bind('video-desc-queue', 'video-desc-ex');
!
$channel->basic_consume('video-desc-queue', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

67. Consumer Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
$channel->queue_declare('video-desc-queue', false, true,
false, false);
$channel->queue_bind('video-desc-queue', 'video-desc-ex');
!
$channel->basic_consume('video-desc-queue', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

68. Consumer Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
$channel->queue_declare('video-desc-queue', false, true,
false, false);
$channel->queue_bind('video-desc-queue', 'video-desc-ex');
!
$channel->basic_consume('video-desc-queue', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

69. Consumer Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
$channel->queue_declare('video-desc-queue', false, true,
false, false);
$channel->queue_bind('video-desc-queue', 'video-desc-ex');
!
$channel->basic_consume('video-desc-queue', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

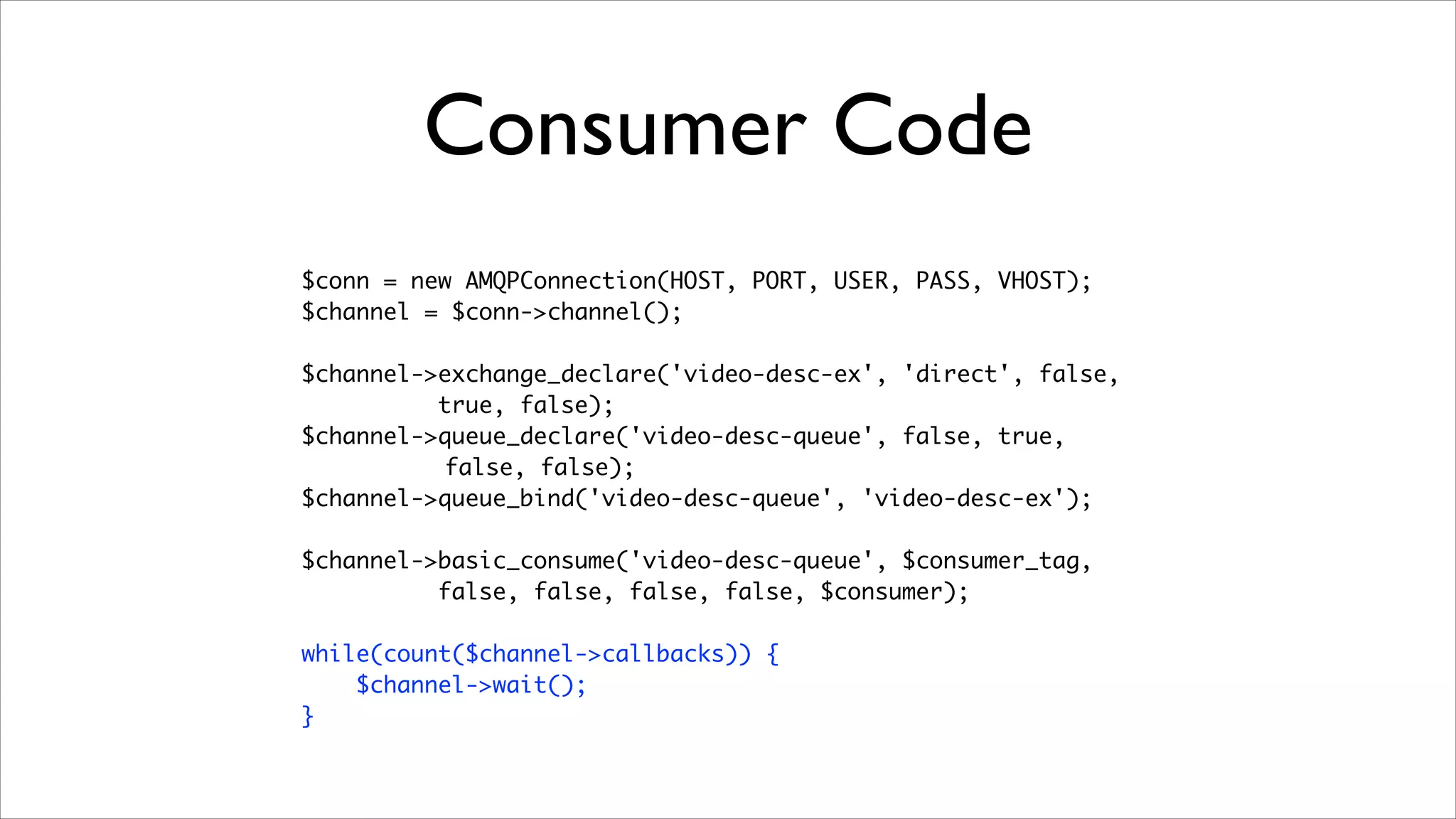

70. Consumer Code
$conn = new AMQPConnection(HOST, PORT, USER, PASS, VHOST);
$channel = $conn->channel();
!
$channel->exchange_declare('video-desc-ex', 'direct', false,
true, false);
$channel->queue_declare('video-desc-queue', false, true,
false, false);
$channel->queue_bind('video-desc-queue', 'video-desc-ex');
!
$channel->basic_consume('video-desc-queue', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

71. Scenario
Upload Pictures

72. Requirements

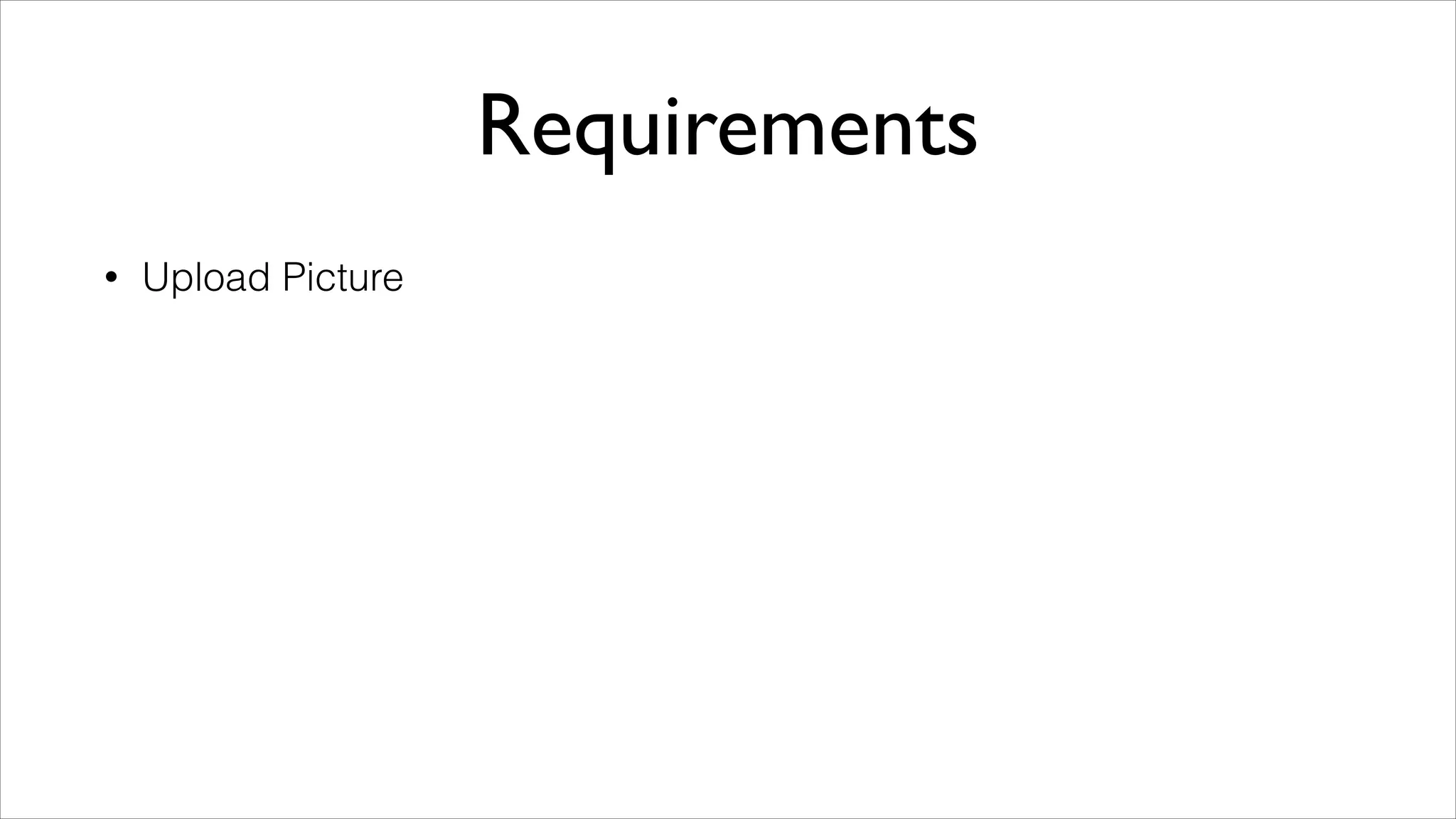

73. Requirements
•
Upload Picture

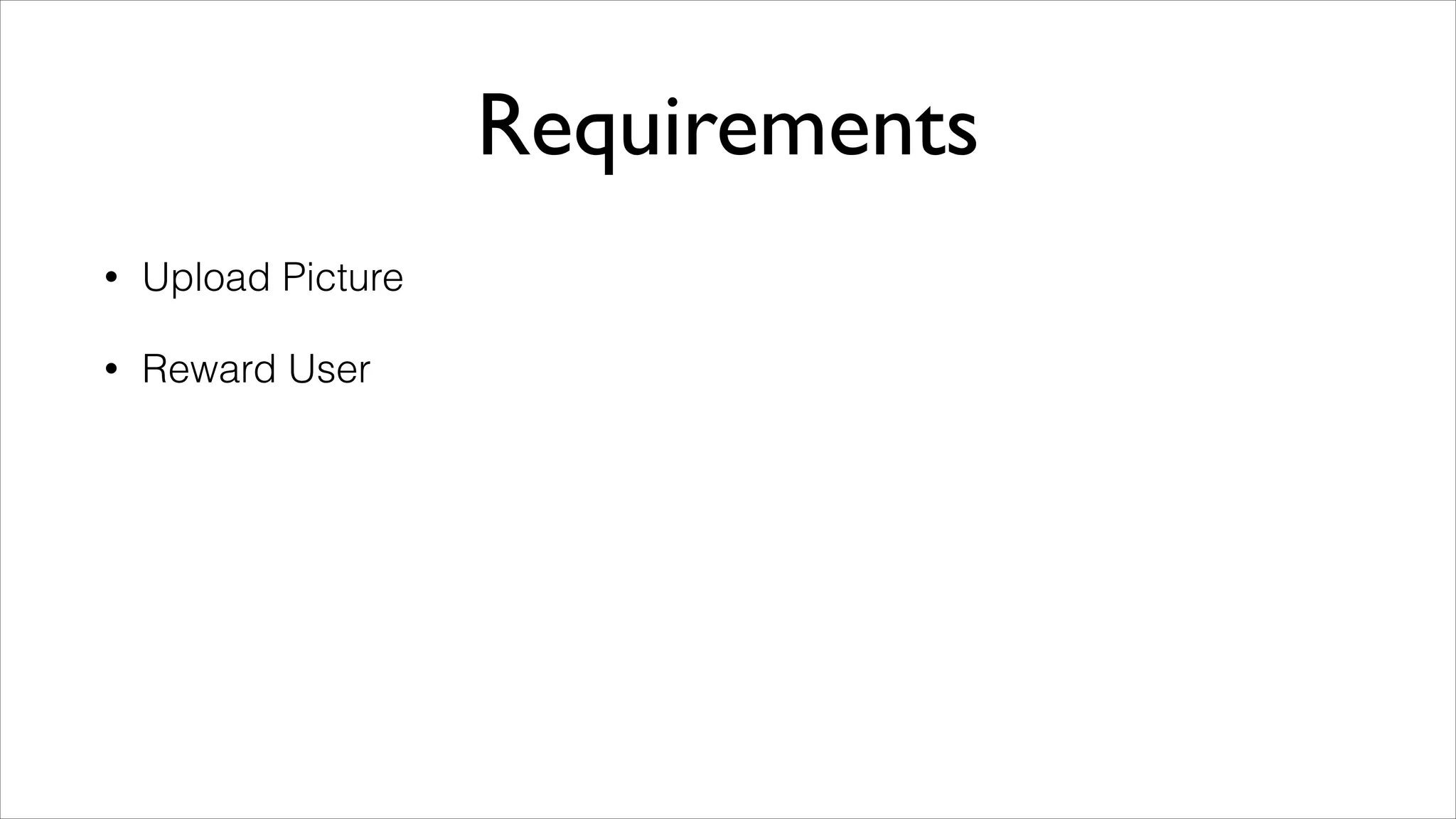

74. Requirements
•
Upload Picture
•
Reward User

75. Requirements
•
Upload Picture
•
Reward User
•
Notify User Friends

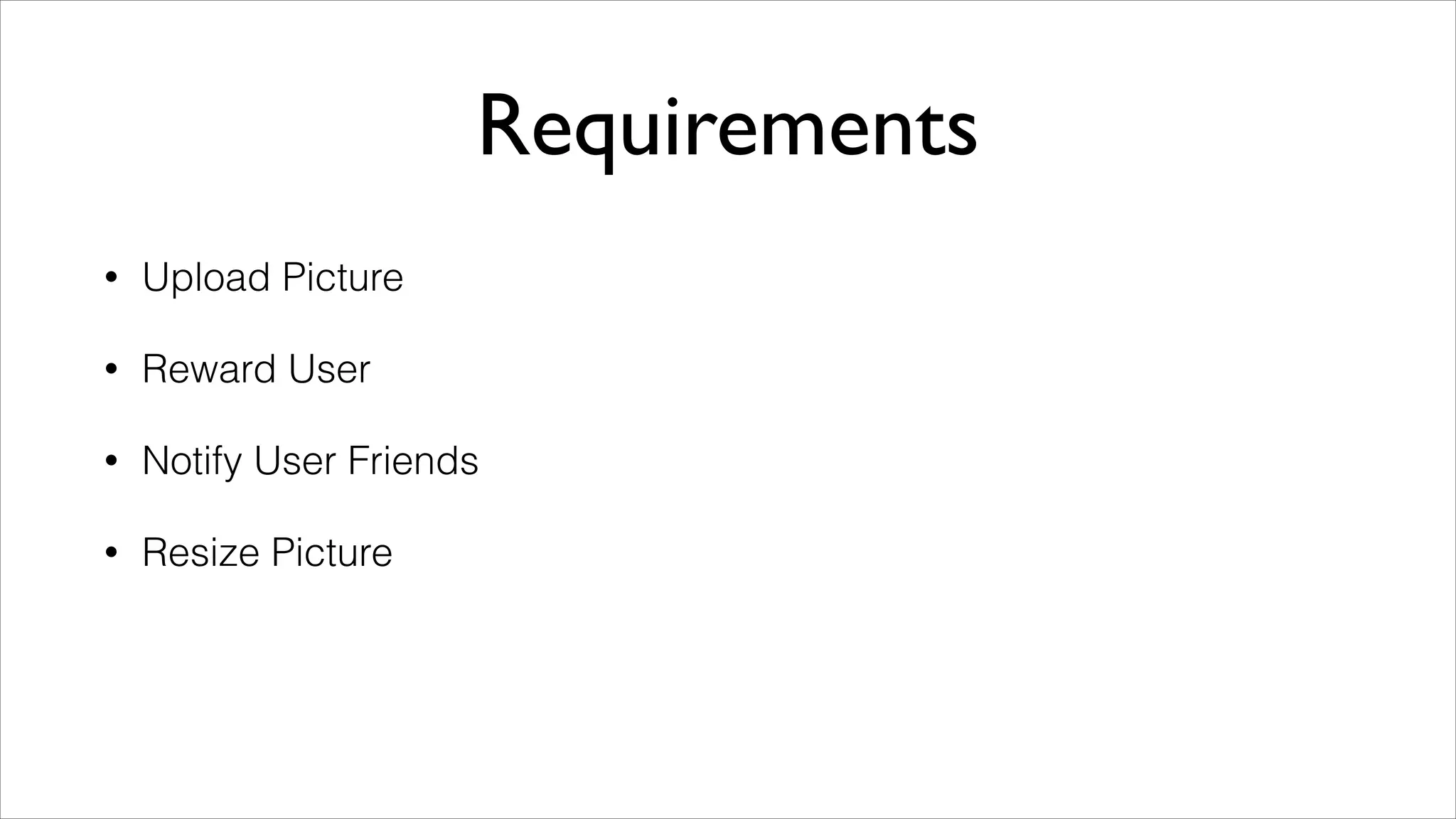

76. Requirements
•
Upload Picture
•
Reward User
•
Notify User Friends
•
Resize Picture

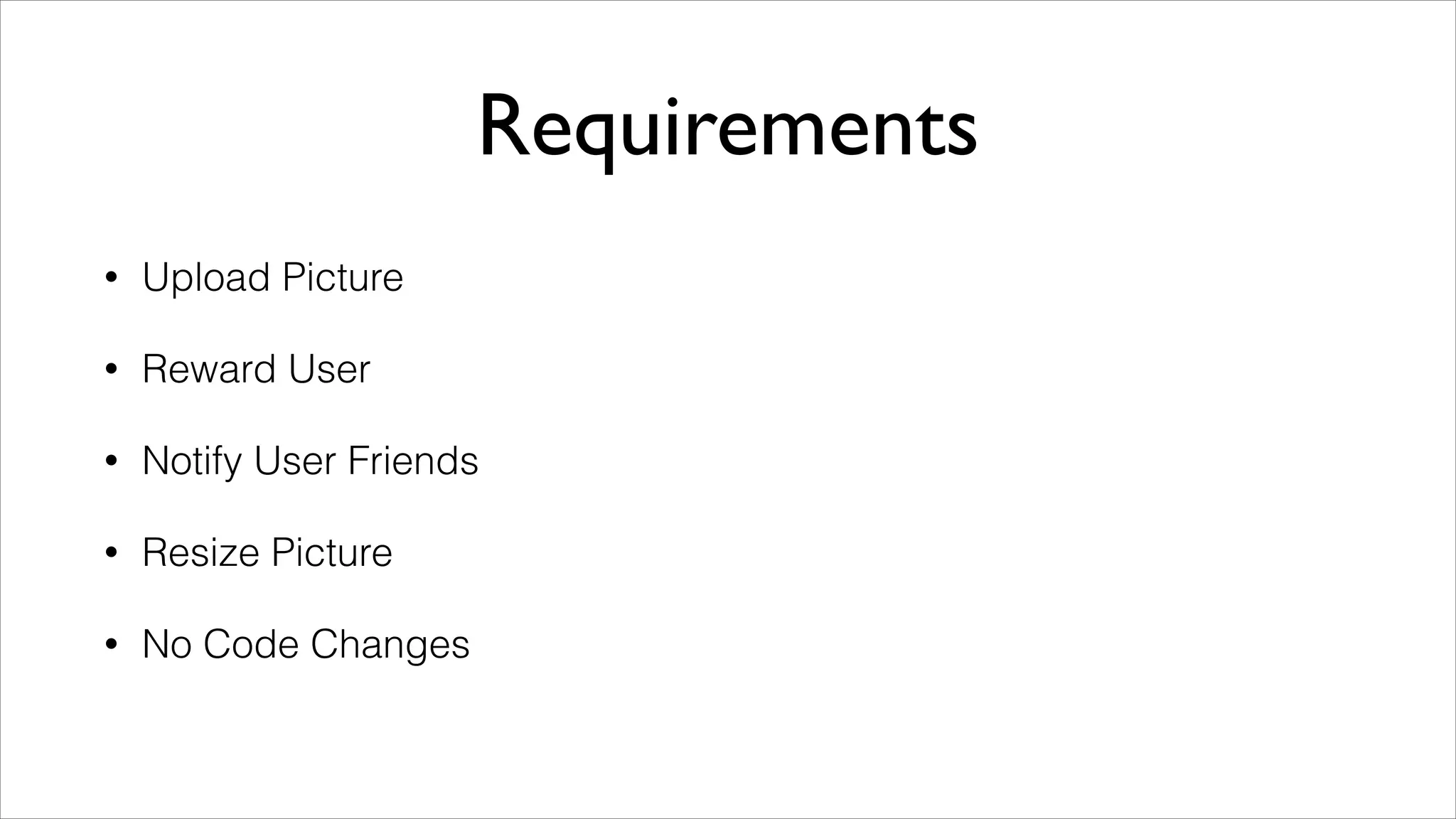

77. Requirements
•
Upload Picture
•
Reward User
•
Notify User Friends
•
Resize Picture
•
No Code Changes

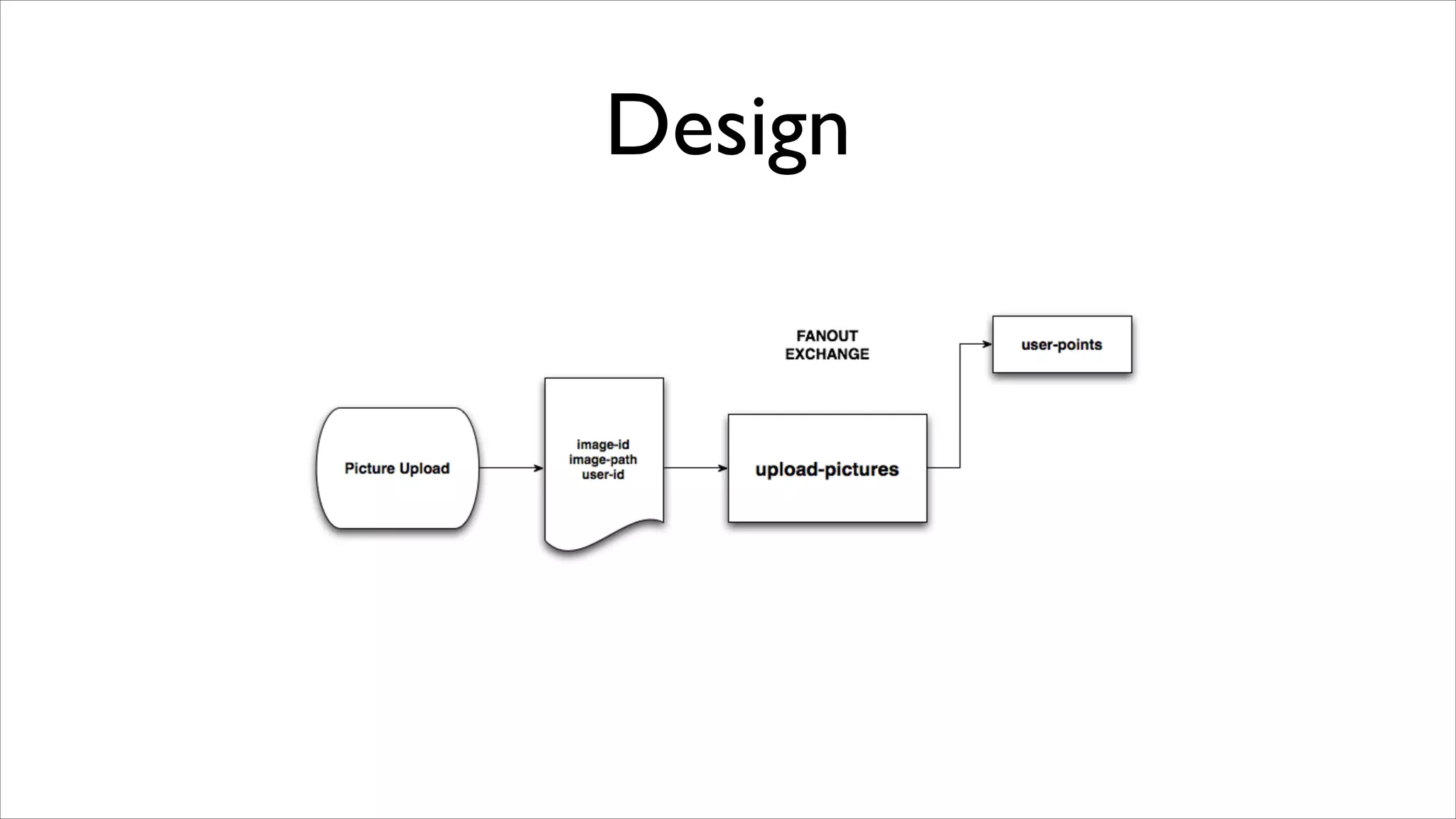

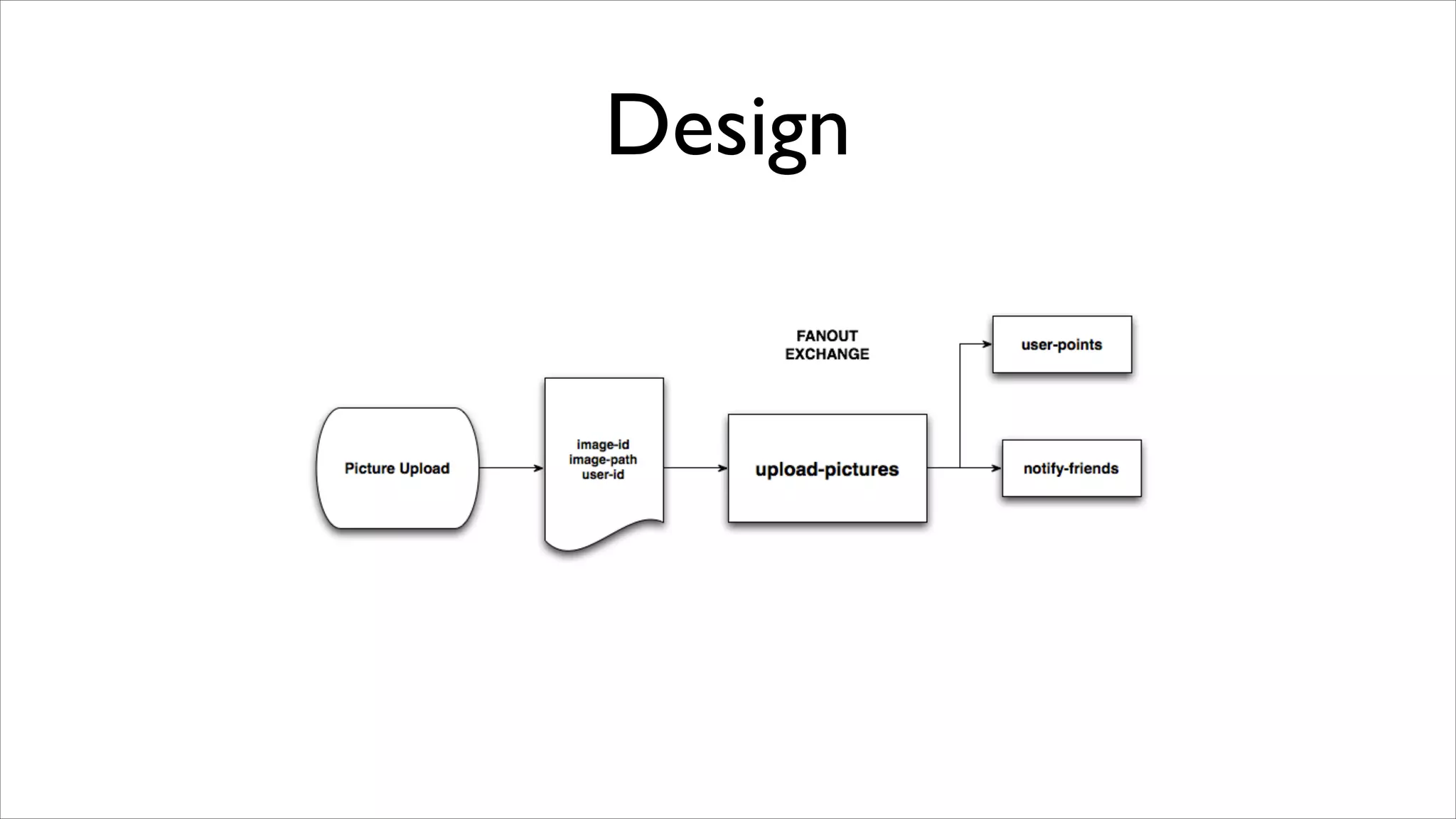

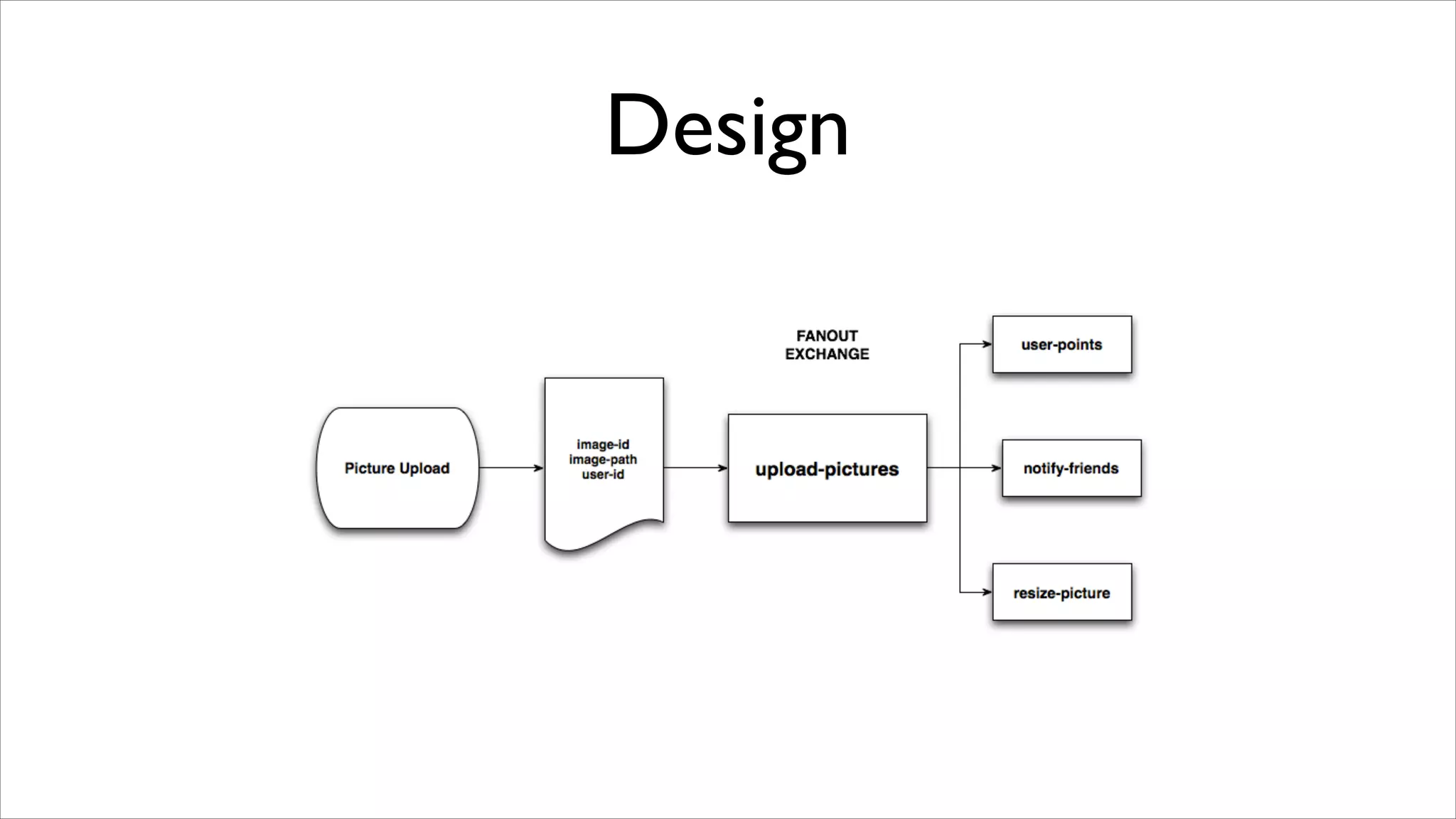

78. Design

79. Design

80. Design

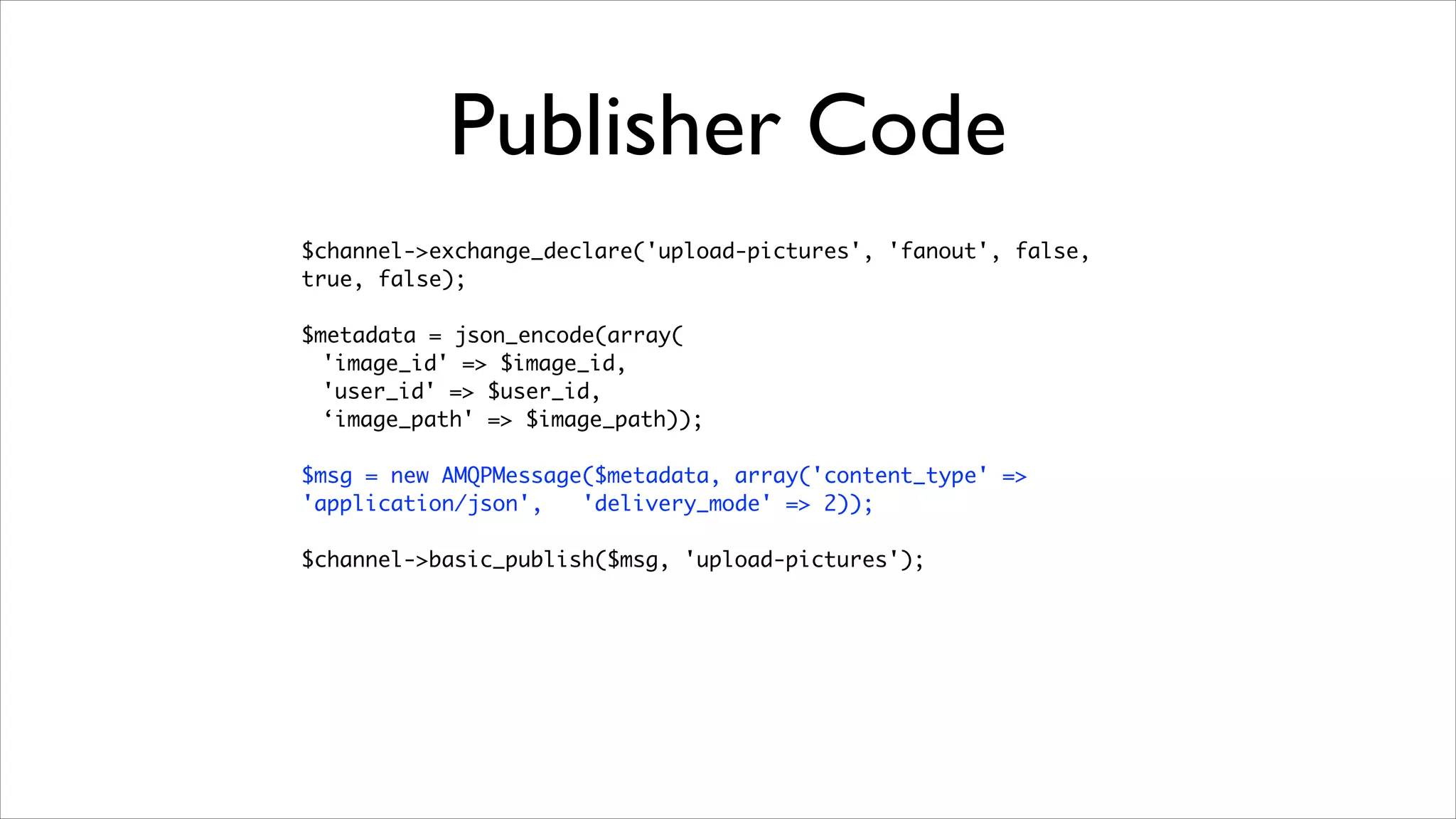

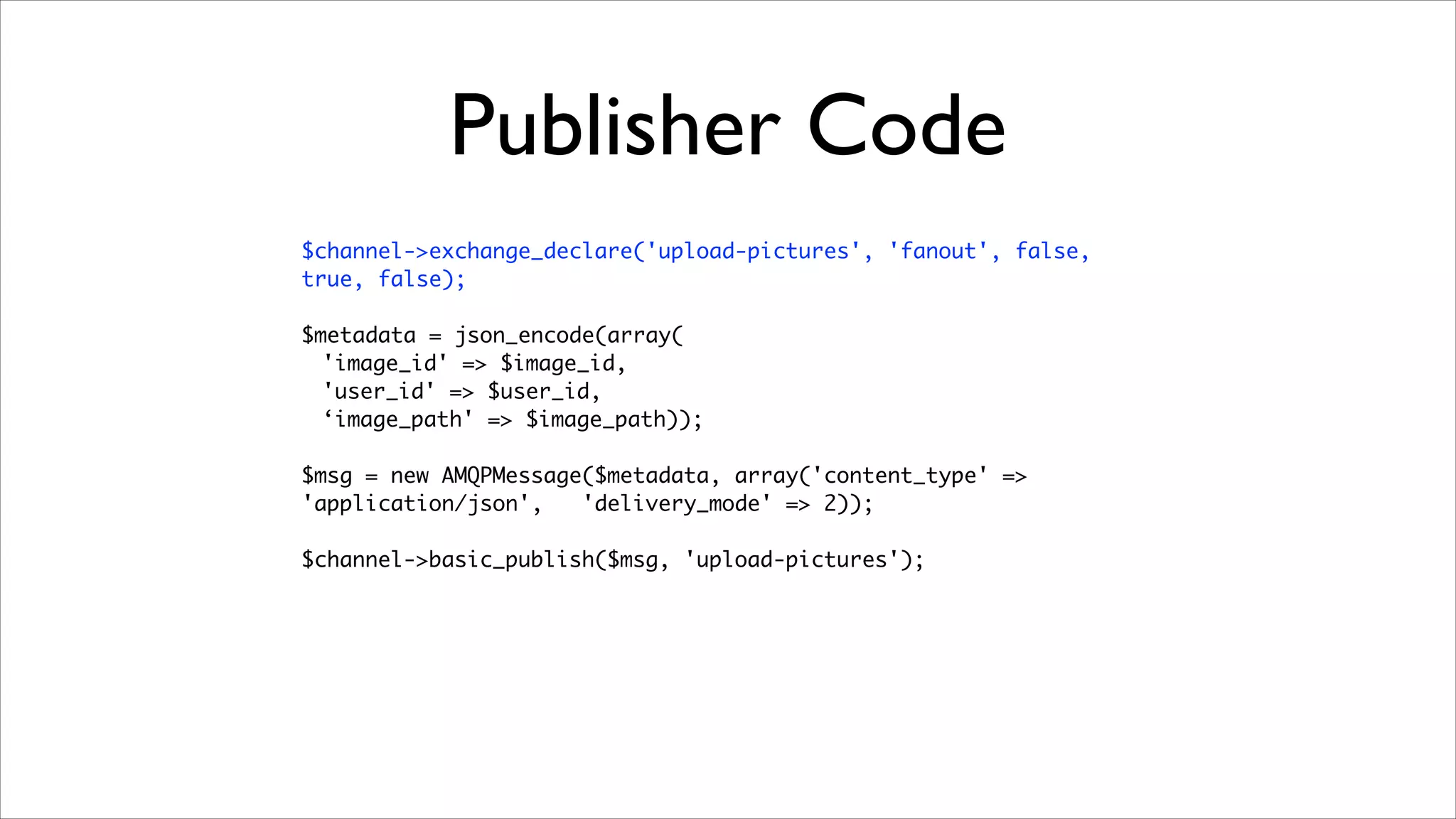

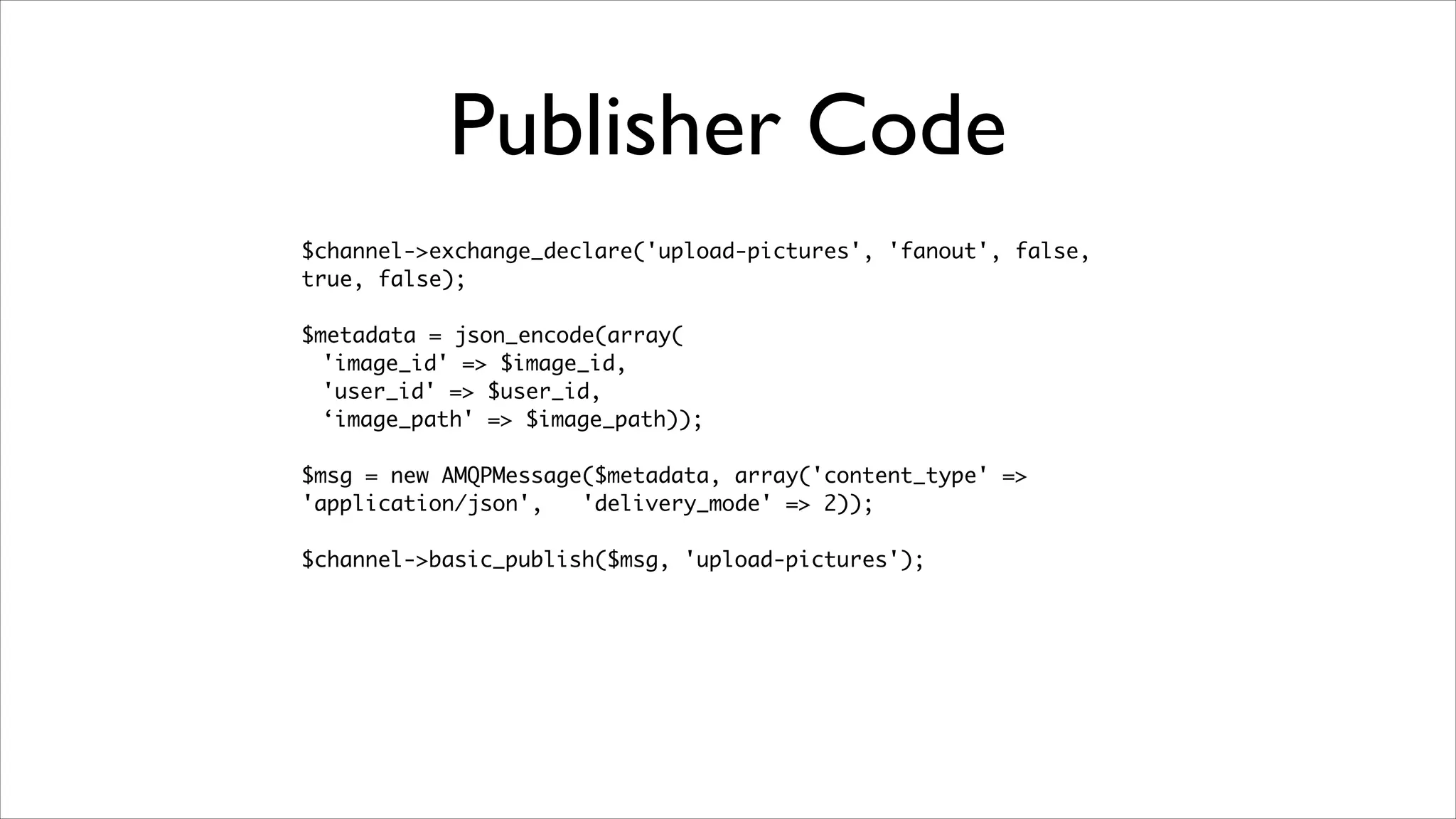

81. Publisher Code
$channel->exchange_declare('upload-pictures', 'fanout', false,
true, false);
!
$metadata = json_encode(array(
'image_id' => $image_id,
'user_id' => $user_id,
‘image_path' => $image_path));
!
$msg = new AMQPMessage($metadata, array('content_type' =>
'application/json',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'upload-pictures');

82. Publisher Code
$channel->exchange_declare('upload-pictures', 'fanout', false,
true, false);
!
$metadata = json_encode(array(
'image_id' => $image_id,
'user_id' => $user_id,
‘image_path' => $image_path));
!
$msg = new AMQPMessage($metadata, array('content_type' =>
'application/json',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'upload-pictures');

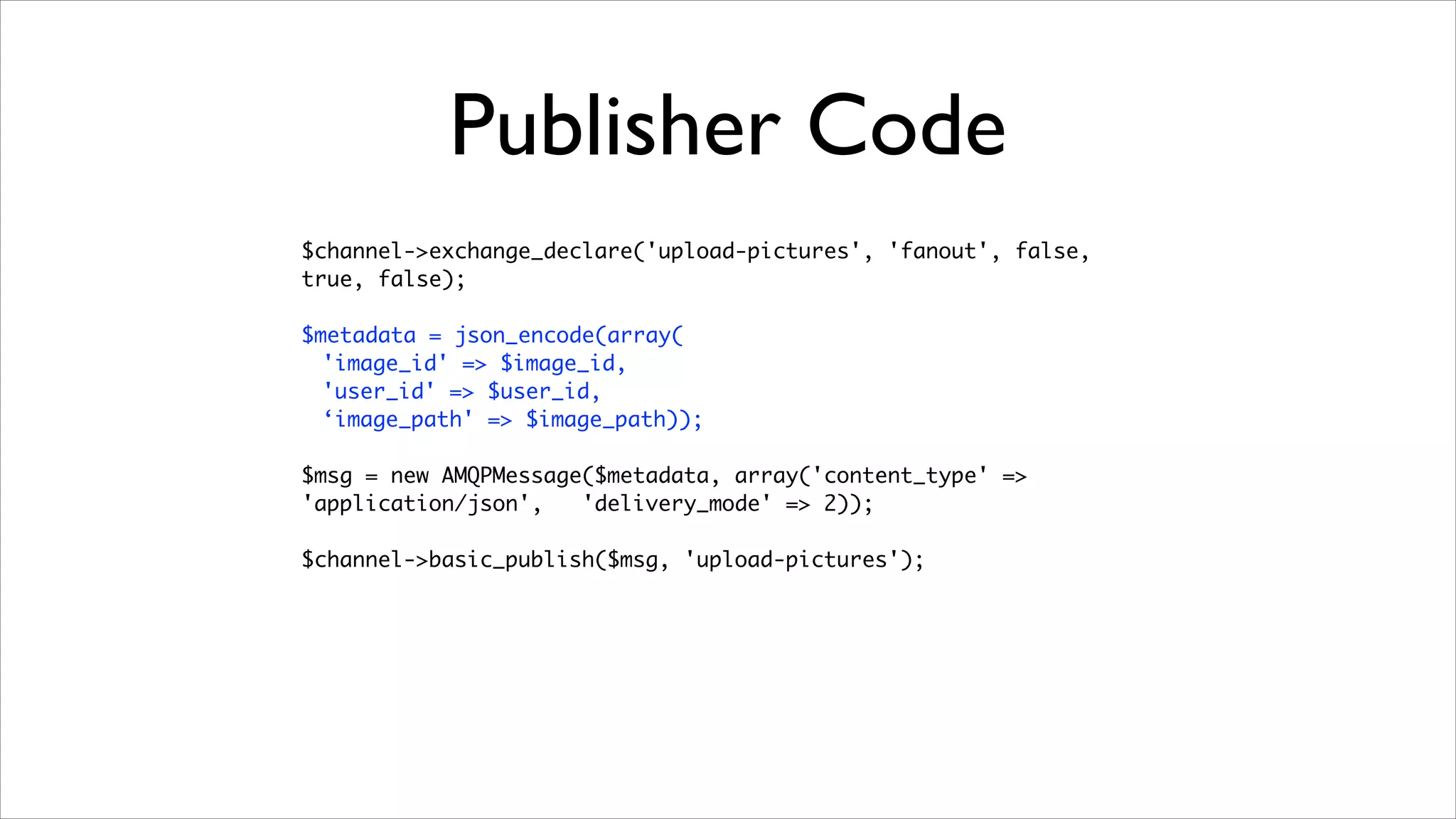

83. Publisher Code
$channel->exchange_declare('upload-pictures', 'fanout', false,
true, false);
!
$metadata = json_encode(array(
'image_id' => $image_id,
'user_id' => $user_id,
‘image_path' => $image_path));
!
$msg = new AMQPMessage($metadata, array('content_type' =>
'application/json',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'upload-pictures');

84. Publisher Code
$channel->exchange_declare('upload-pictures', 'fanout', false,
true, false);
!
$metadata = json_encode(array(
'image_id' => $image_id,
'user_id' => $user_id,
‘image_path' => $image_path));
!
$msg = new AMQPMessage($metadata, array('content_type' =>
'application/json',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'upload-pictures');

85. Publisher Code
$channel->exchange_declare('upload-pictures', 'fanout', false,
true, false);
!
$metadata = json_encode(array(
'image_id' => $image_id,
'user_id' => $user_id,
‘image_path' => $image_path));
!
$msg = new AMQPMessage($metadata, array('content_type' =>
'application/json',
'delivery_mode' => 2));
!
$channel->basic_publish($msg, 'upload-pictures');

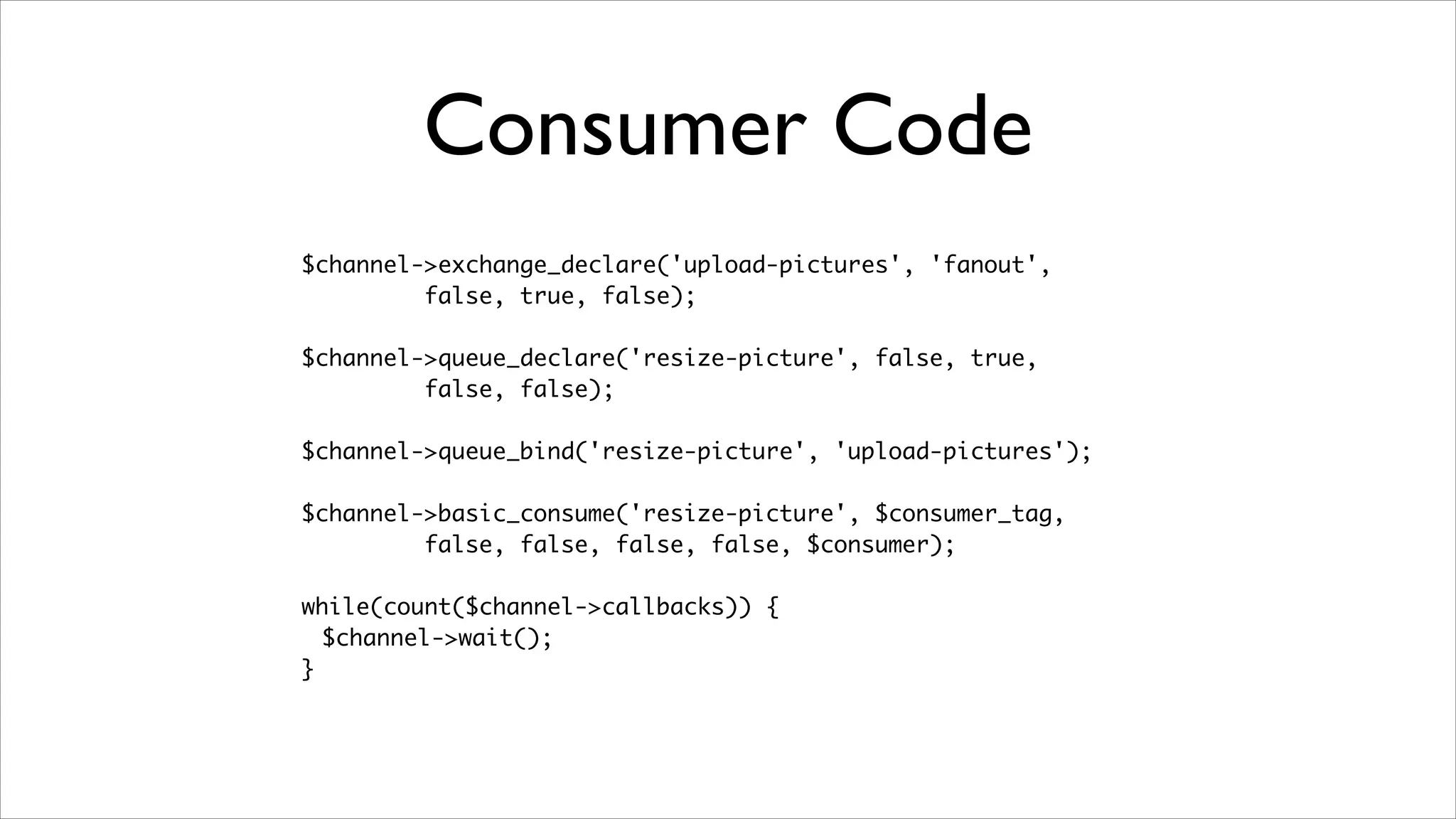

86. Consumer Code
$channel->exchange_declare('upload-pictures', 'fanout',
false, true, false);
!
$channel->queue_declare('resize-picture', false, true,
false, false);
!
$channel->queue_bind('resize-picture', 'upload-pictures');
!
$channel->basic_consume('resize-picture', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

87. Consumer Code
$channel->exchange_declare('upload-pictures', 'fanout',
false, true, false);
!
$channel->queue_declare('resize-picture', false, true,
false, false);
!
$channel->queue_bind('resize-picture', 'upload-pictures');
!
$channel->basic_consume('resize-picture', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

88. Consumer Code
$channel->exchange_declare('upload-pictures', 'fanout',
false, true, false);
!
$channel->queue_declare('resize-picture', false, true,
false, false);
!
$channel->queue_bind('resize-picture', 'upload-pictures');
!
$channel->basic_consume('resize-picture', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

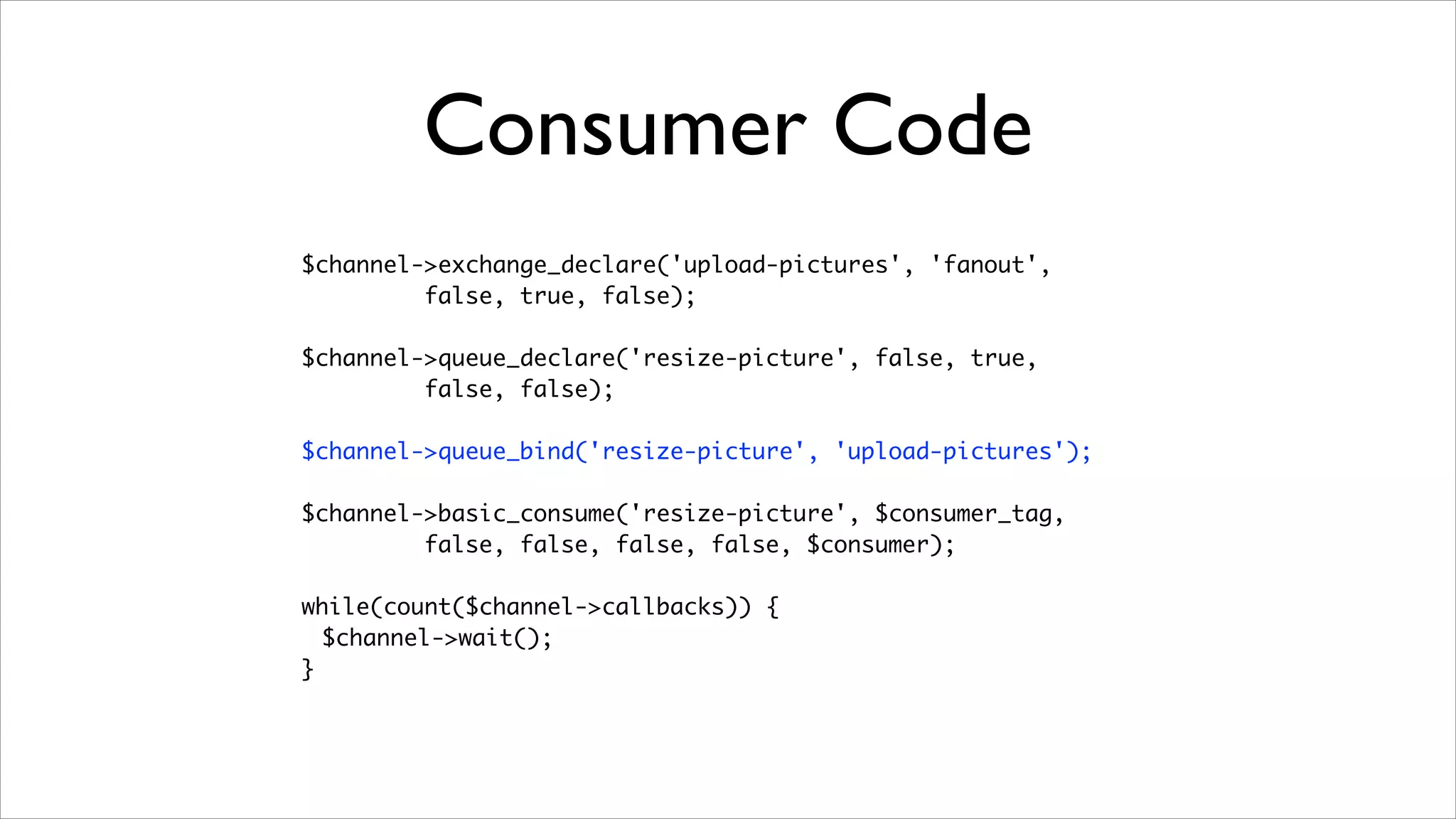

89. Consumer Code
$channel->exchange_declare('upload-pictures', 'fanout',
false, true, false);
!
$channel->queue_declare('resize-picture', false, true,
false, false);
!
$channel->queue_bind('resize-picture', 'upload-pictures');
!
$channel->basic_consume('resize-picture', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

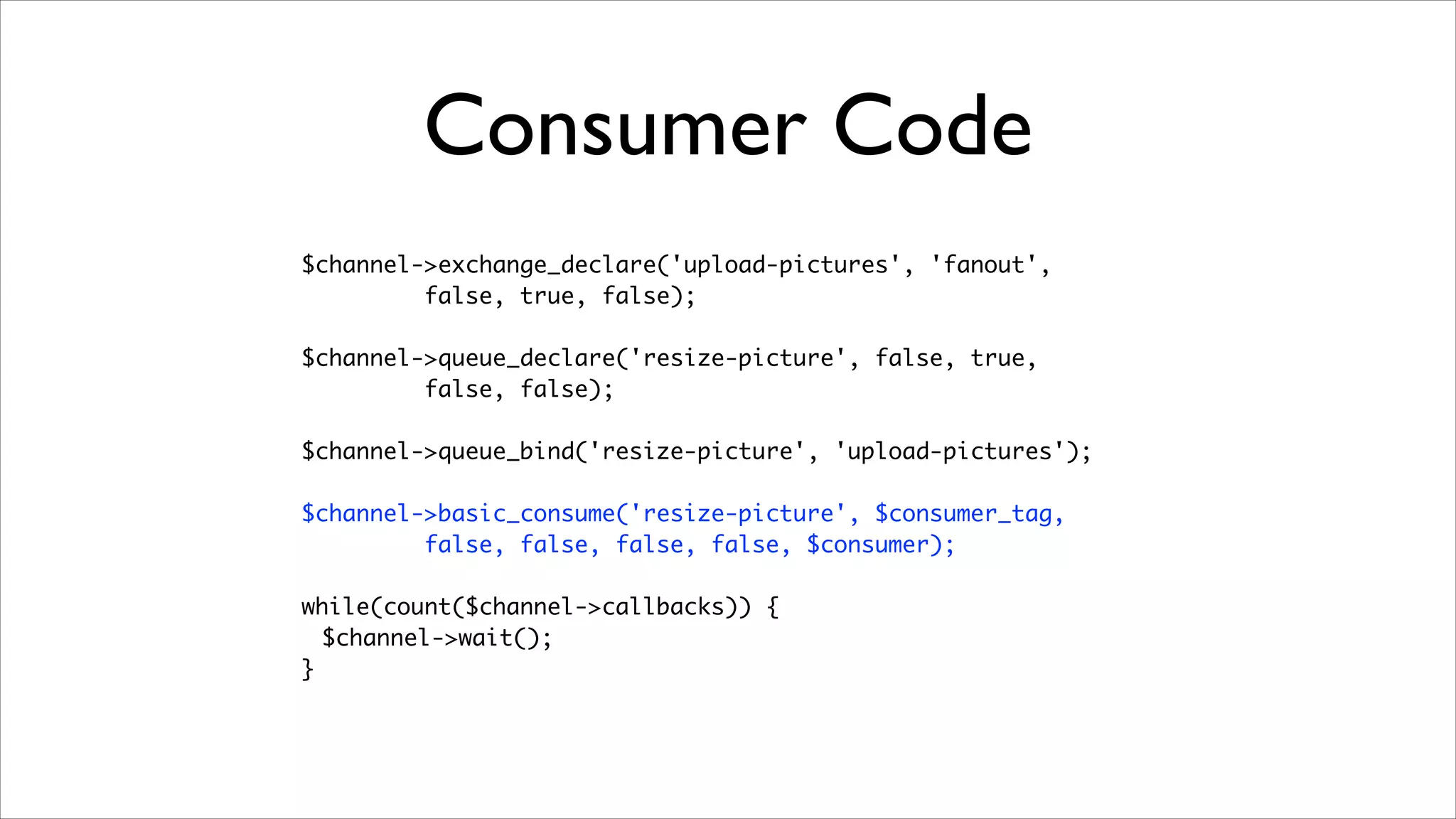

90. Consumer Code
$channel->exchange_declare('upload-pictures', 'fanout',
false, true, false);
!
$channel->queue_declare('resize-picture', false, true,
false, false);
!
$channel->queue_bind('resize-picture', 'upload-pictures');
!
$channel->basic_consume('resize-picture', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

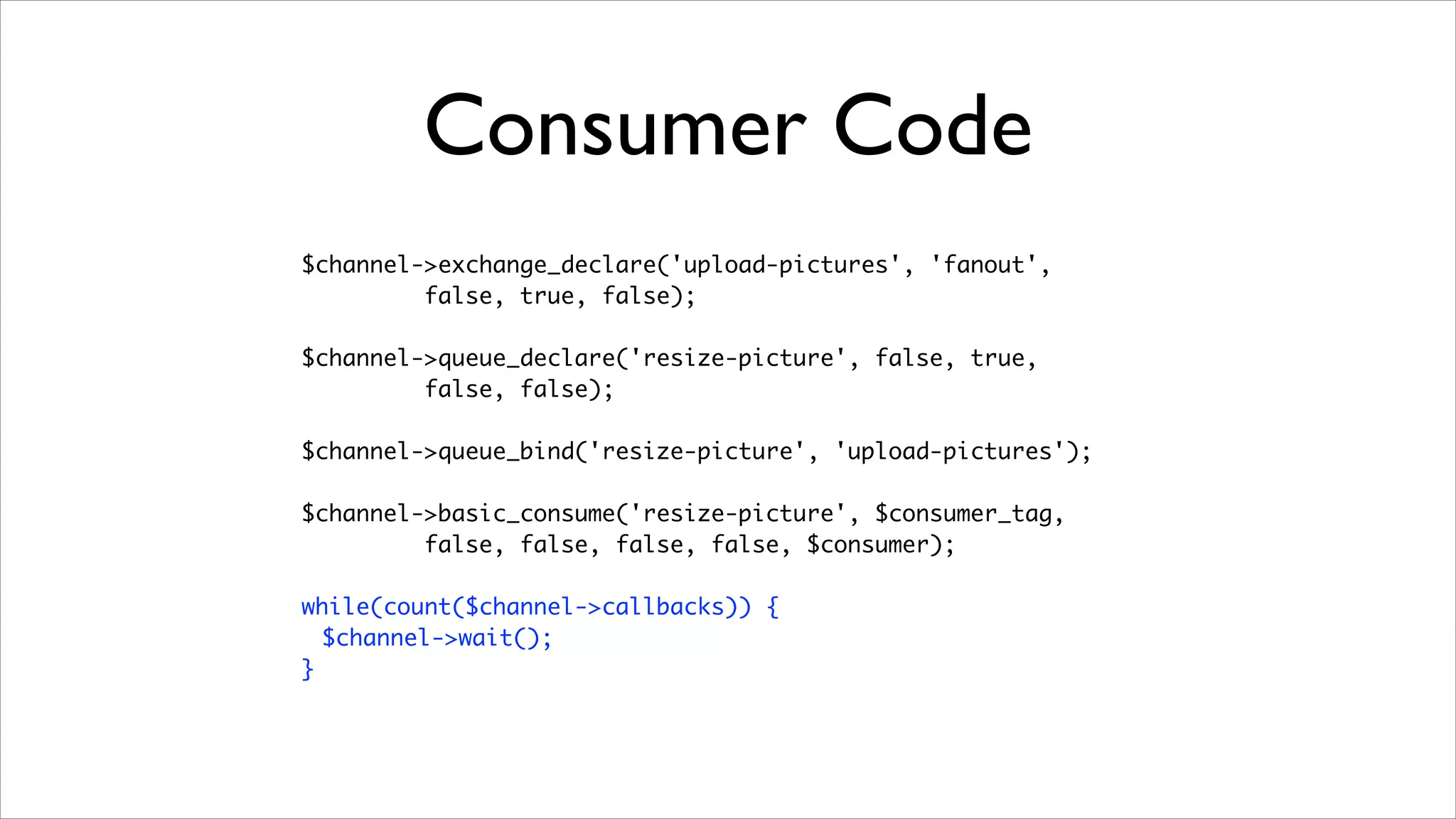

91. Consumer Code
$channel->exchange_declare('upload-pictures', 'fanout',
false, true, false);
!
$channel->queue_declare('resize-picture', false, true,
false, false);
!
$channel->queue_bind('resize-picture', 'upload-pictures');
!
$channel->basic_consume('resize-picture', $consumer_tag,
false, false, false, false, $consumer);
!
while(count($channel->callbacks)) {
$channel->wait();
}

92. Consumer Code
$consumer = function($msg){
!
$meta = json_decode($msg->body, true);
resize_picture($meta['image_id'], $meta['image_path']);
$msg->delivery_info['channel']->
basic_ack($msg->delivery_info['delivery_tag']);
};

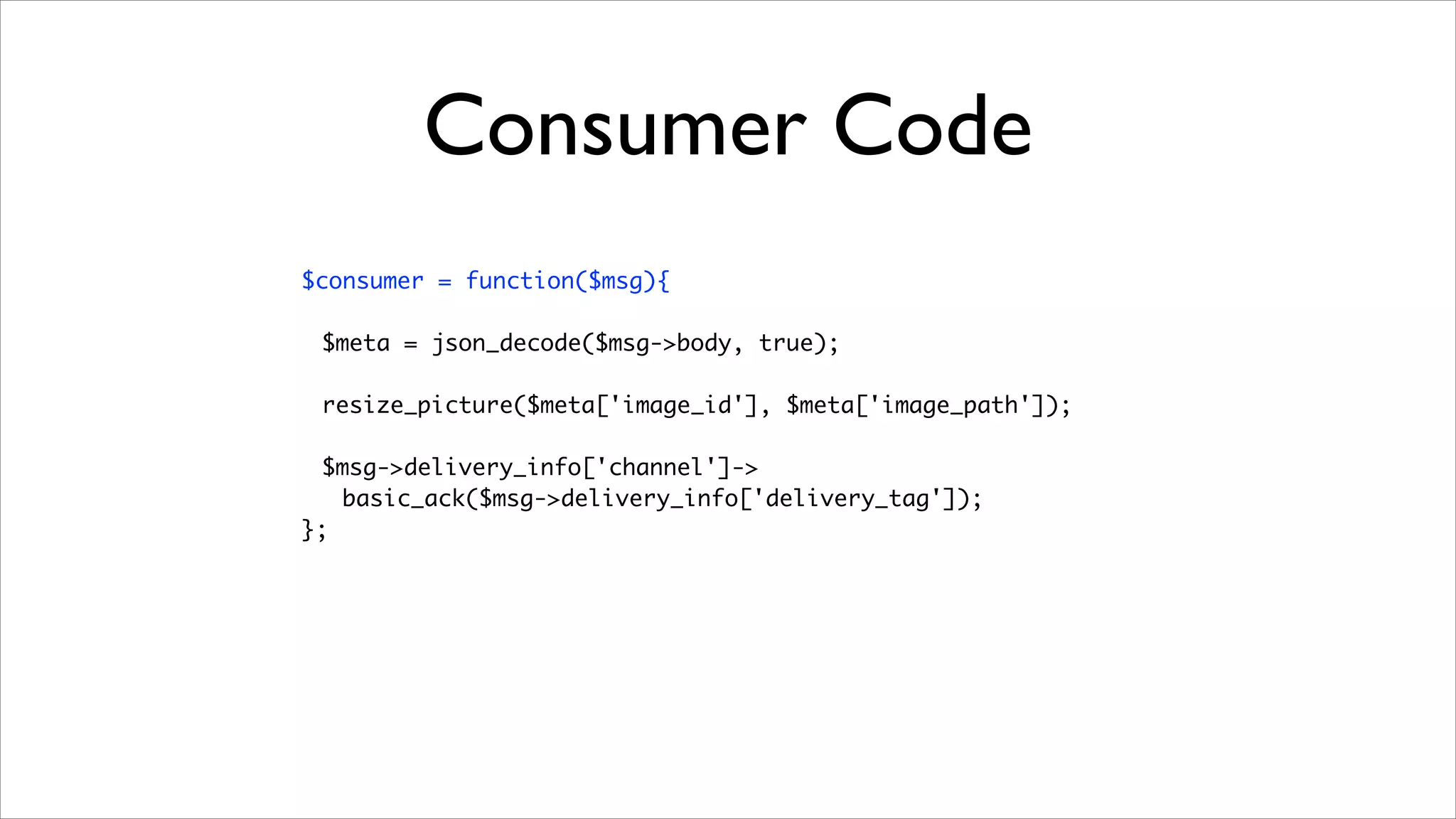

93. Consumer Code
$consumer = function($msg){
!
$meta = json_decode($msg->body, true);
resize_picture($meta['image_id'], $meta['image_path']);
$msg->delivery_info['channel']->
basic_ack($msg->delivery_info['delivery_tag']);
};

94. Consumer Code
$consumer = function($msg){
!
$meta = json_decode($msg->body, true);
resize_picture($meta['image_id'], $meta['image_path']);
$msg->delivery_info['channel']->
basic_ack($msg->delivery_info['delivery_tag']);
};

95. Consumer Code
$consumer = function($msg){
!
$meta = json_decode($msg->body, true);
resize_picture($meta['image_id'], $meta['image_path']);
$msg->delivery_info['channel']->
basic_ack($msg->delivery_info['delivery_tag']);
};

96. Consumer Code
$consumer = function($msg){
!
$meta = json_decode($msg->body, true);
resize_picture($meta['image_id'], $meta['image_path']);
$msg->delivery_info['channel']->
basic_ack($msg->delivery_info['delivery_tag']);
};

97. Scenario
Distributed Logging

98. Requirements

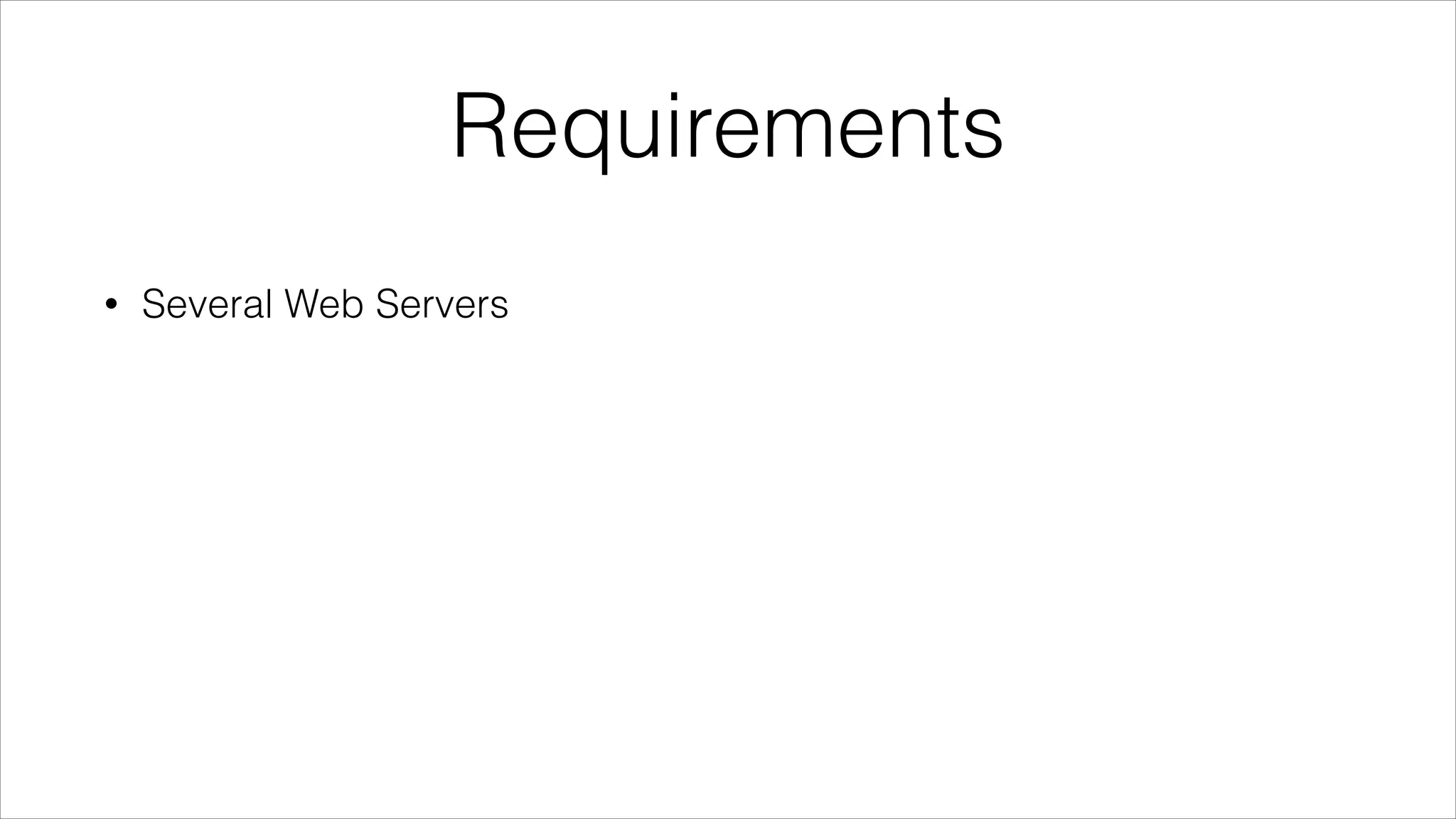

99. Requirements
•
Several Web Servers

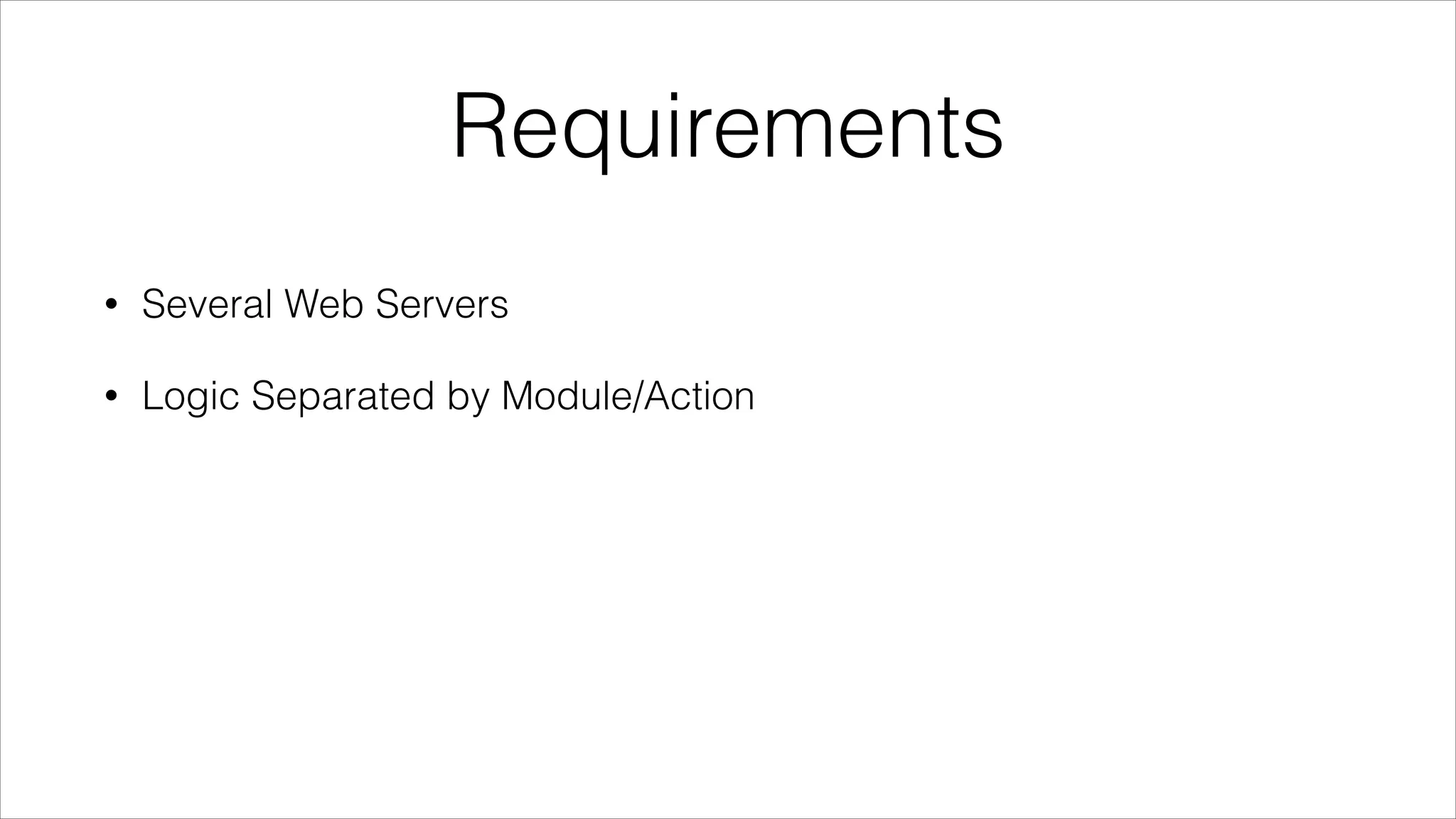

100. Requirements
•
Several Web Servers
•
Logic Separated by Module/Action

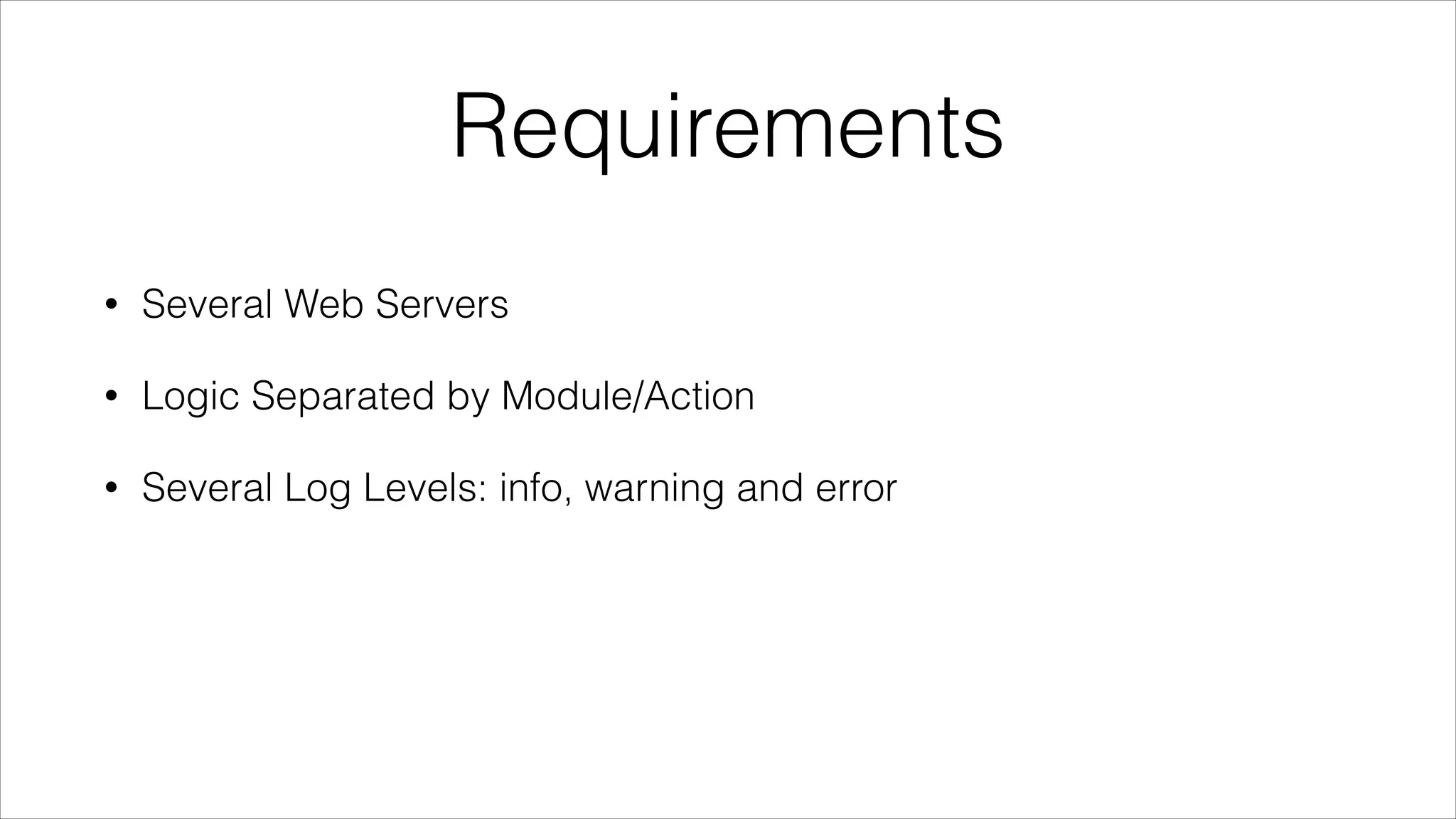

101. Requirements
•
Several Web Servers
•
Logic Separated by Module/Action
•
Several Log Levels: info, warning and error

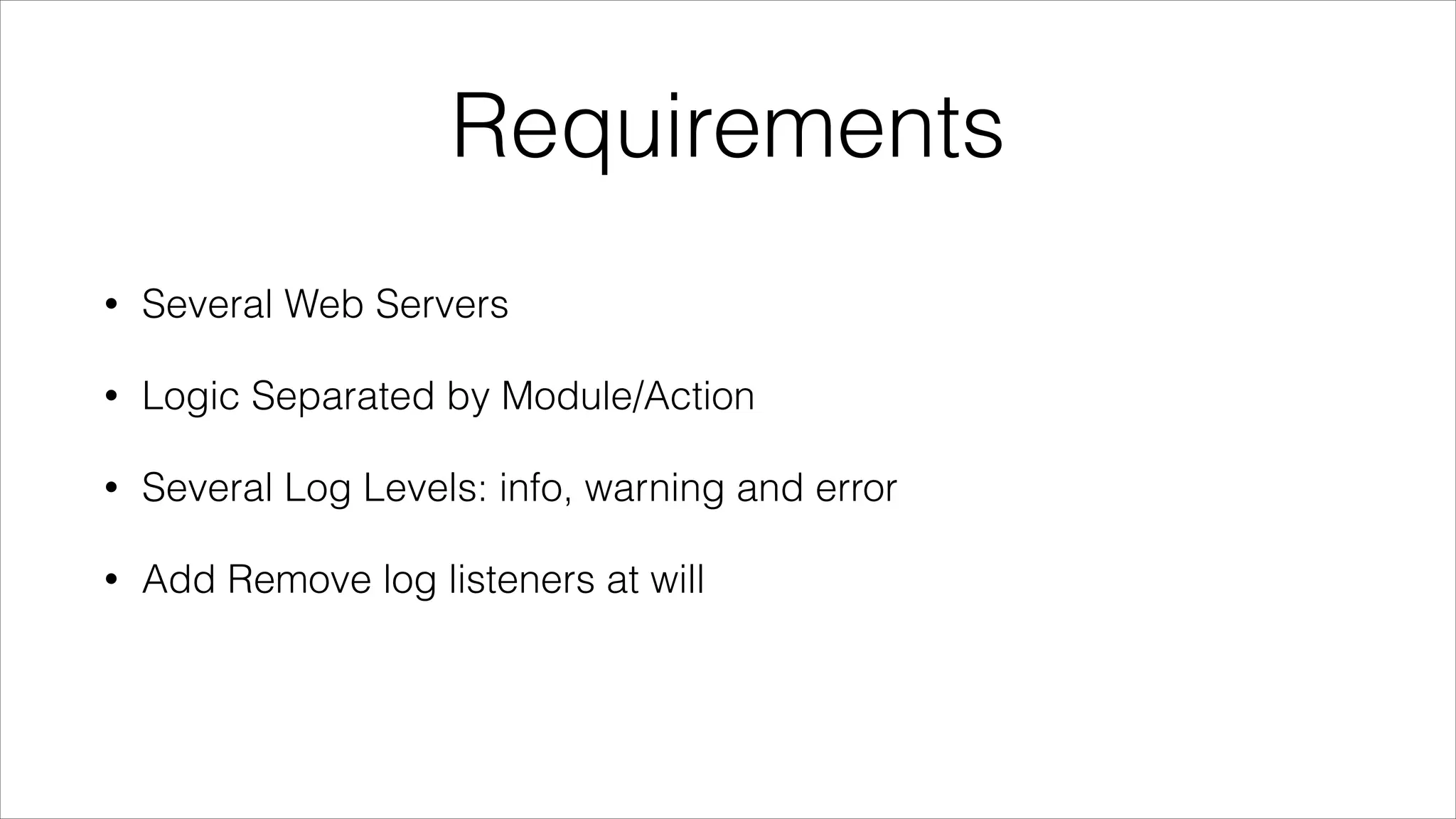

102. Requirements
•
Several Web Servers
•
Logic Separated by Module/Action
•
Several Log Levels: info, warning and error
•
Add Remove log listeners at will

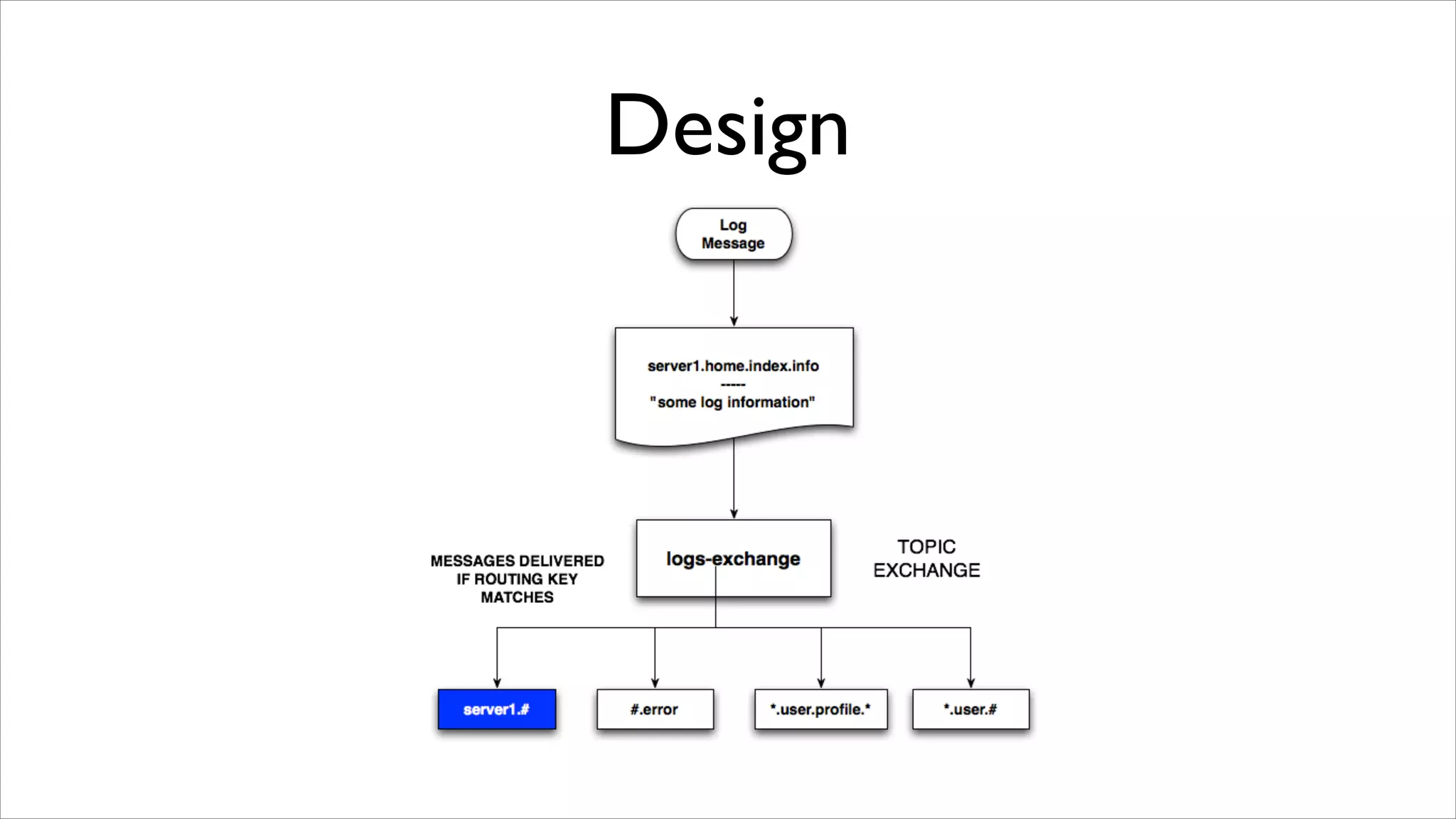

103. Design

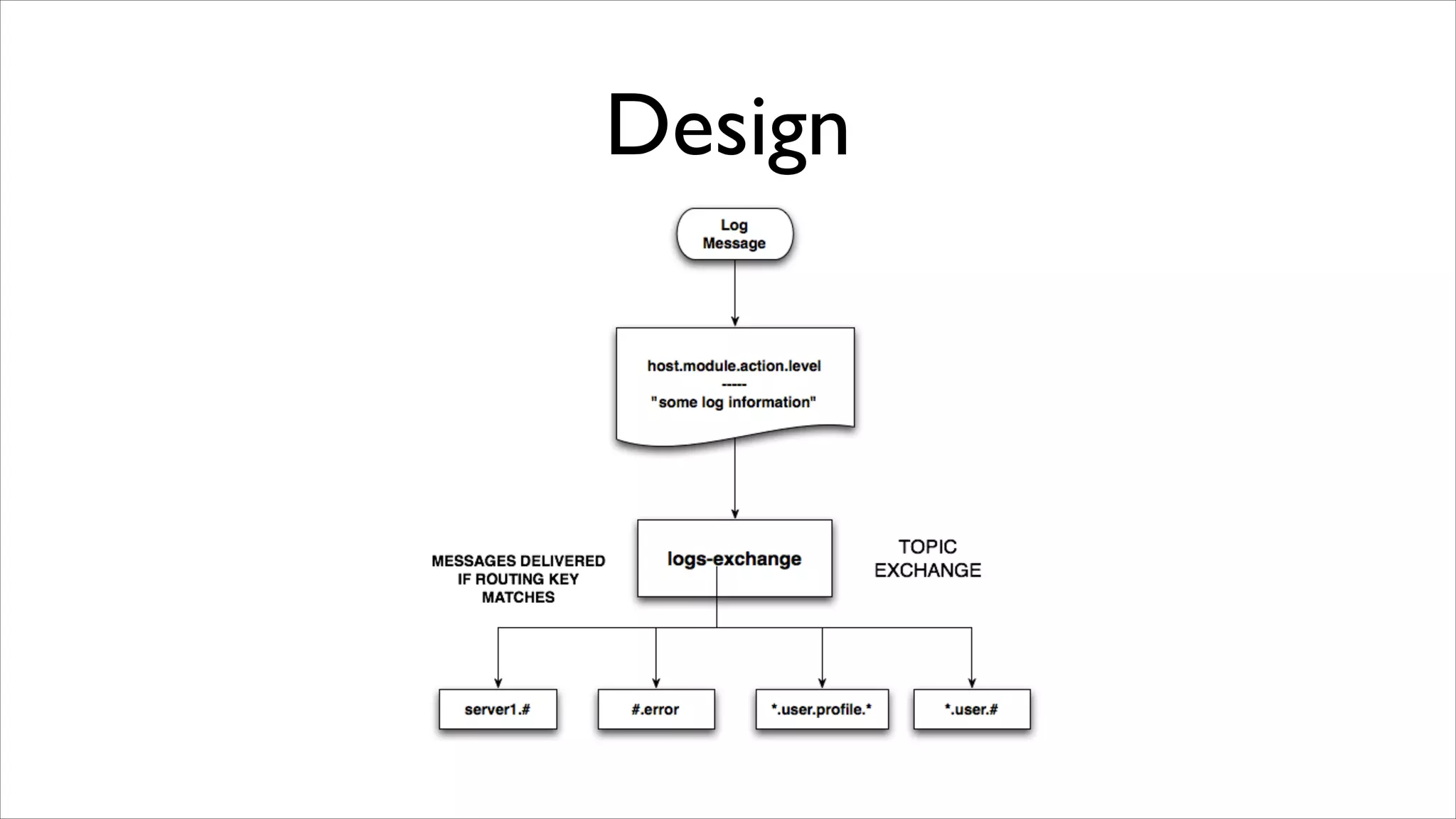

104. Design

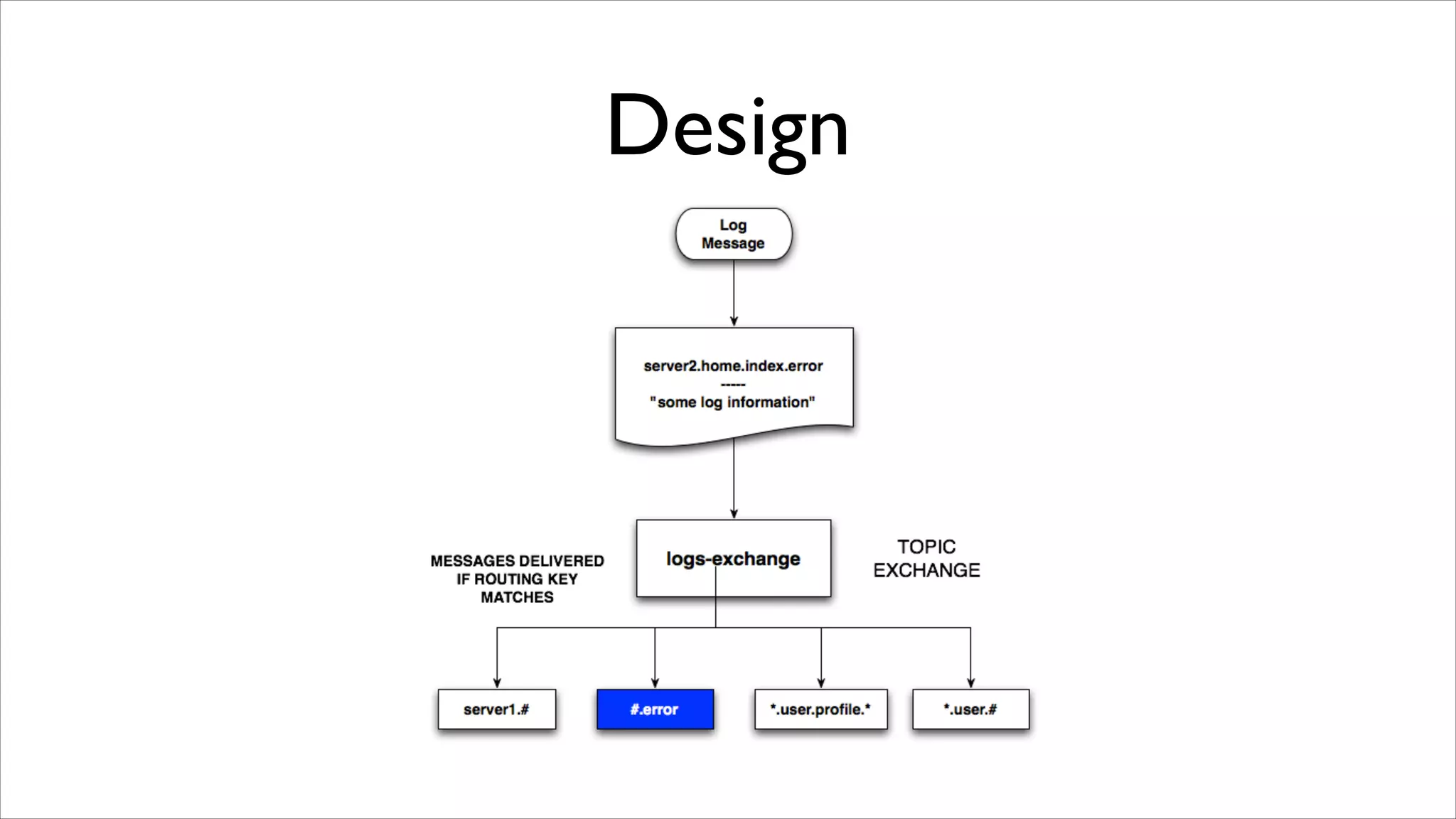

105. Design

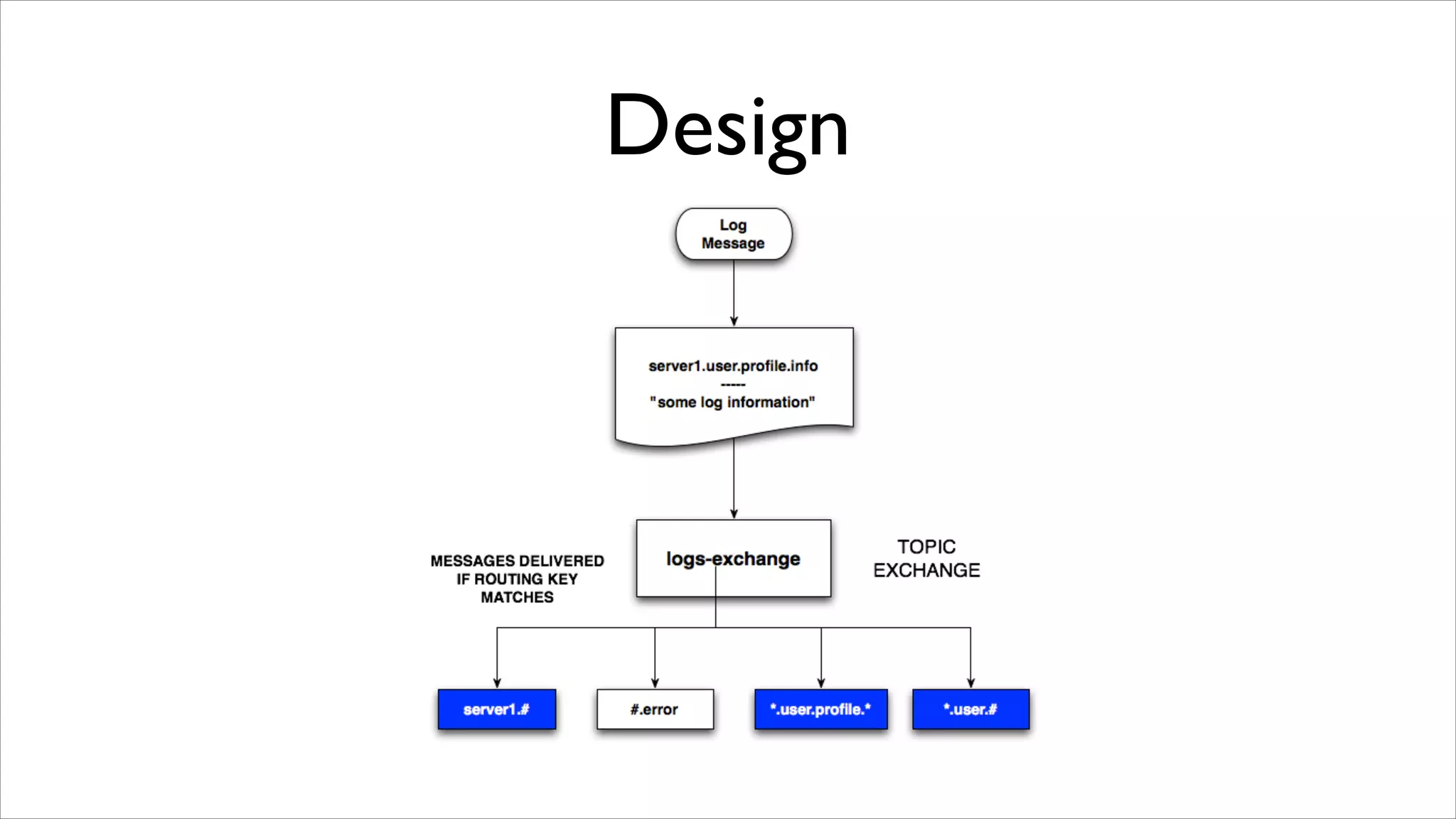

106. Design

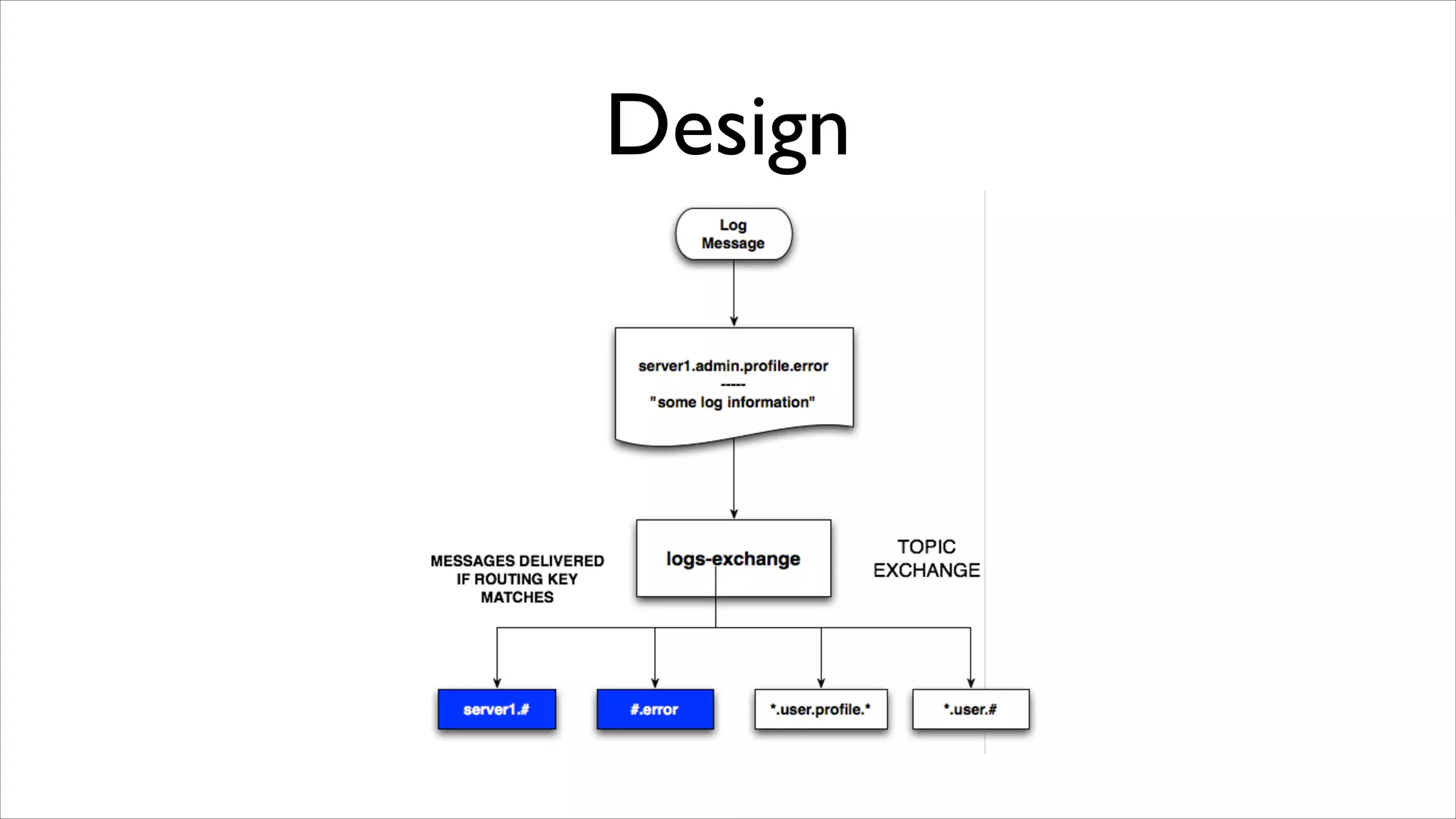

107. Design

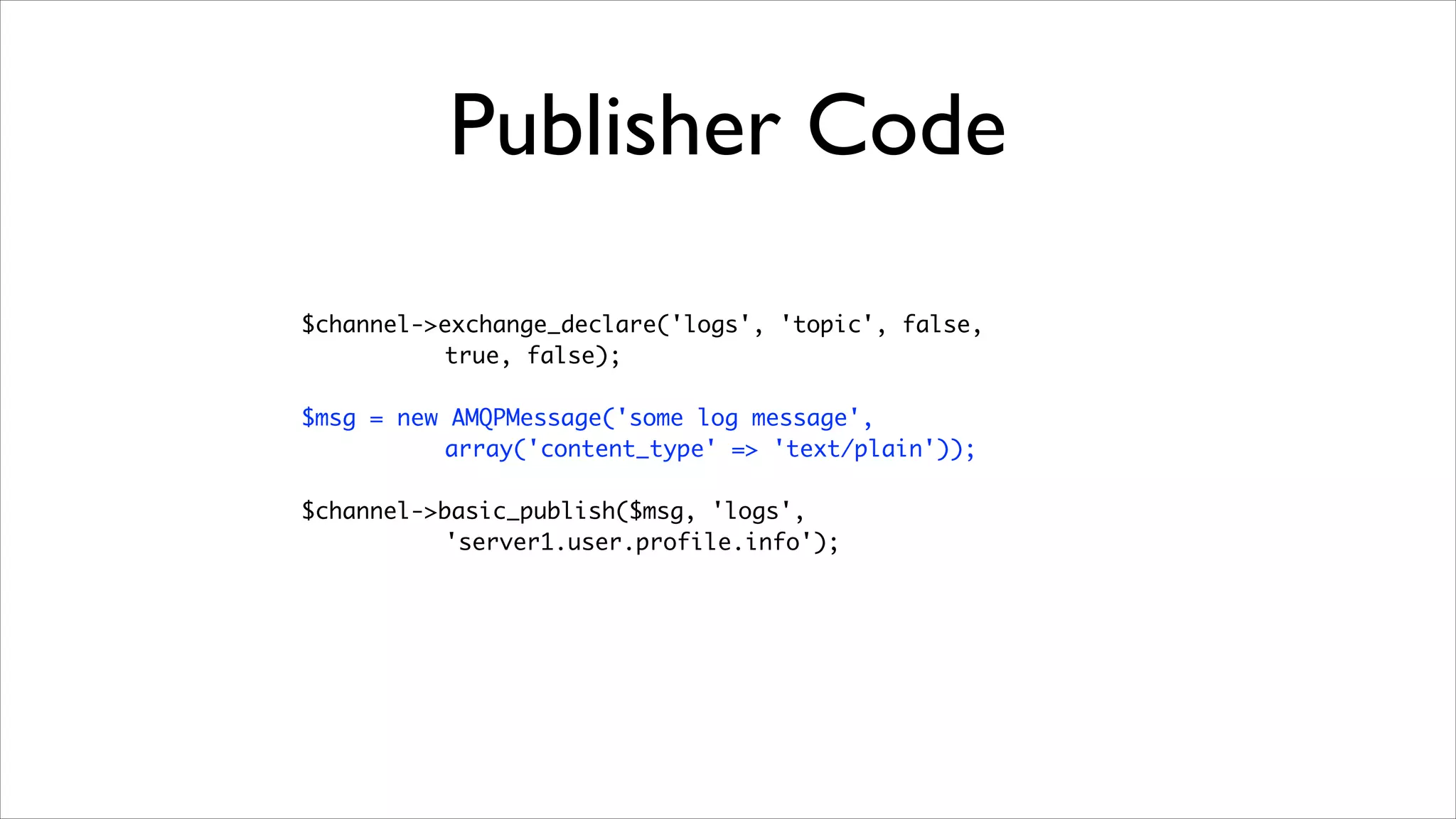

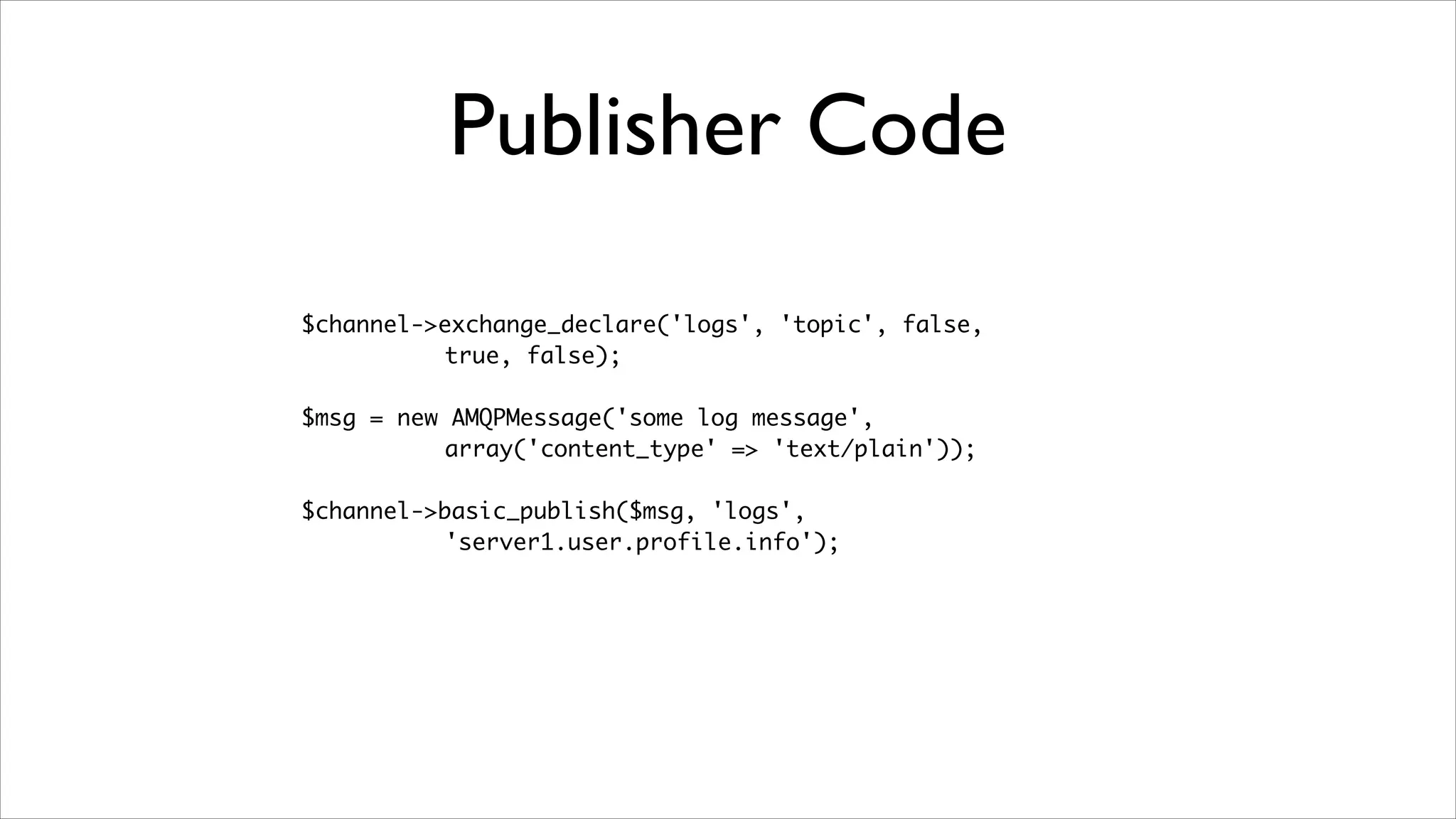

108. Publisher Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$msg = new AMQPMessage('some log message',
array('content_type' => 'text/plain'));
!
$channel->basic_publish($msg, 'logs',
'server1.user.profile.info');

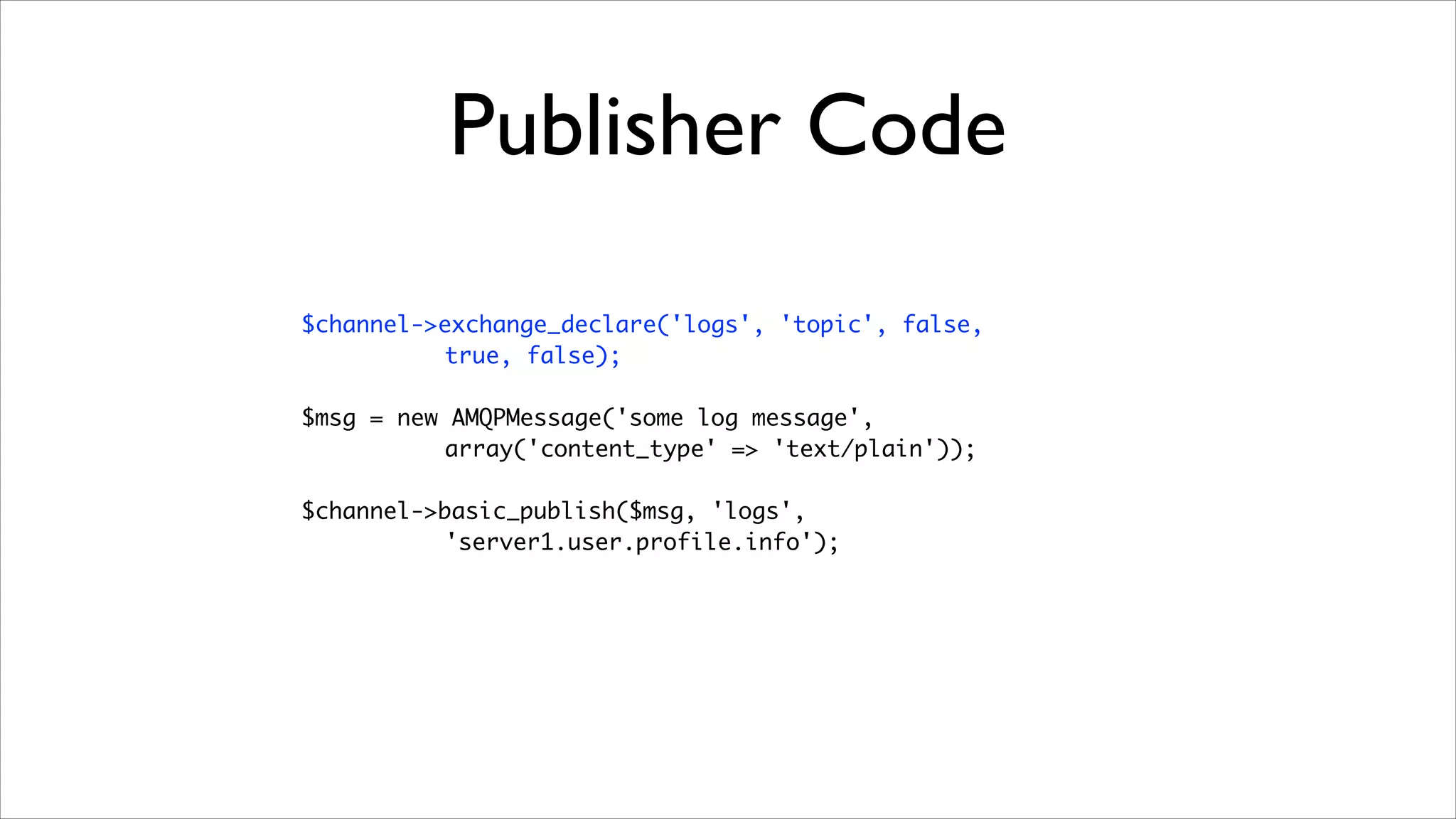

109. Publisher Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$msg = new AMQPMessage('some log message',
array('content_type' => 'text/plain'));
!
$channel->basic_publish($msg, 'logs',
'server1.user.profile.info');

110. Publisher Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$msg = new AMQPMessage('some log message',
array('content_type' => 'text/plain'));
!
$channel->basic_publish($msg, 'logs',
'server1.user.profile.info');

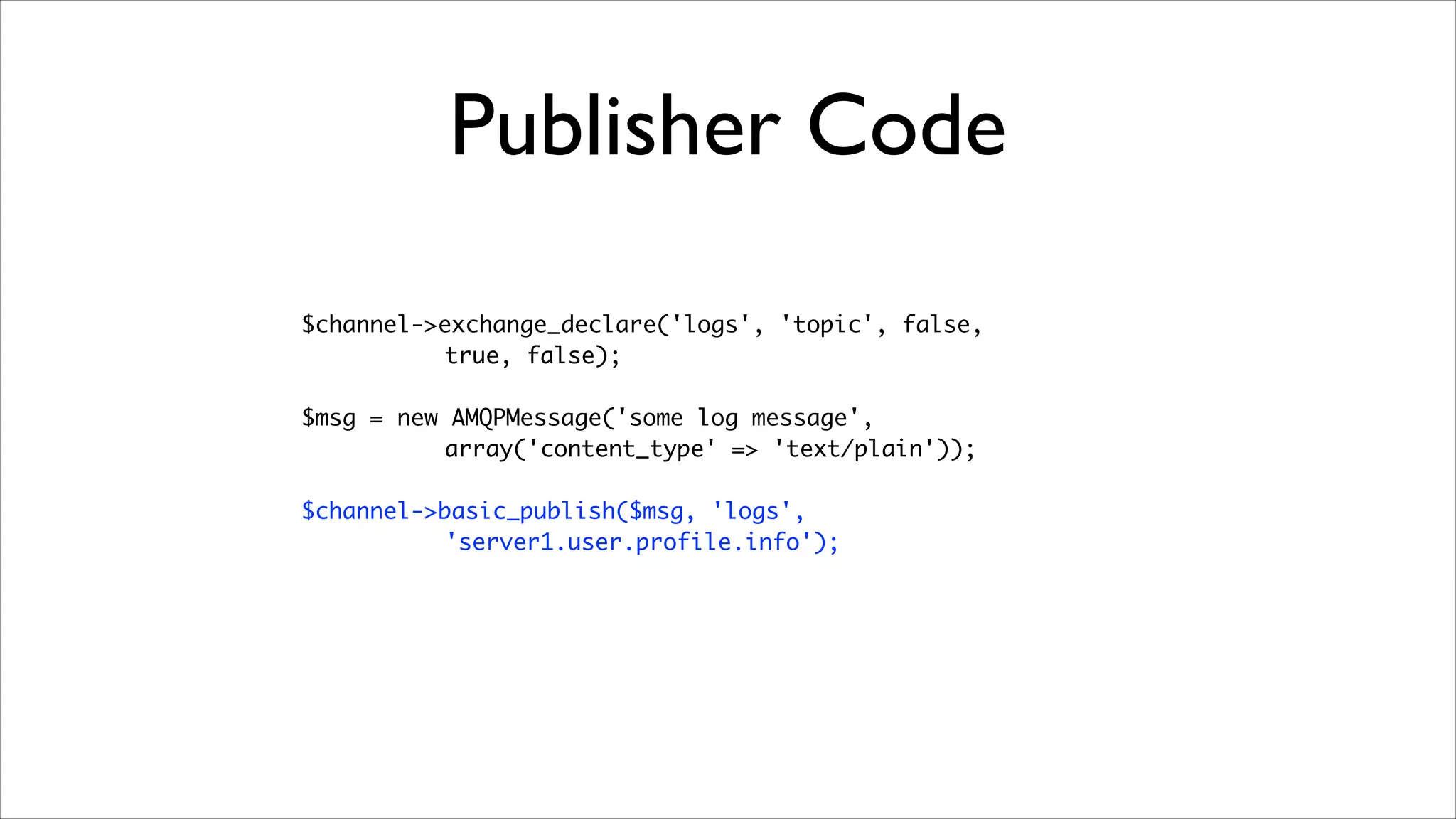

111. Publisher Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$msg = new AMQPMessage('some log message',
array('content_type' => 'text/plain'));
!
$channel->basic_publish($msg, 'logs',
'server1.user.profile.info');

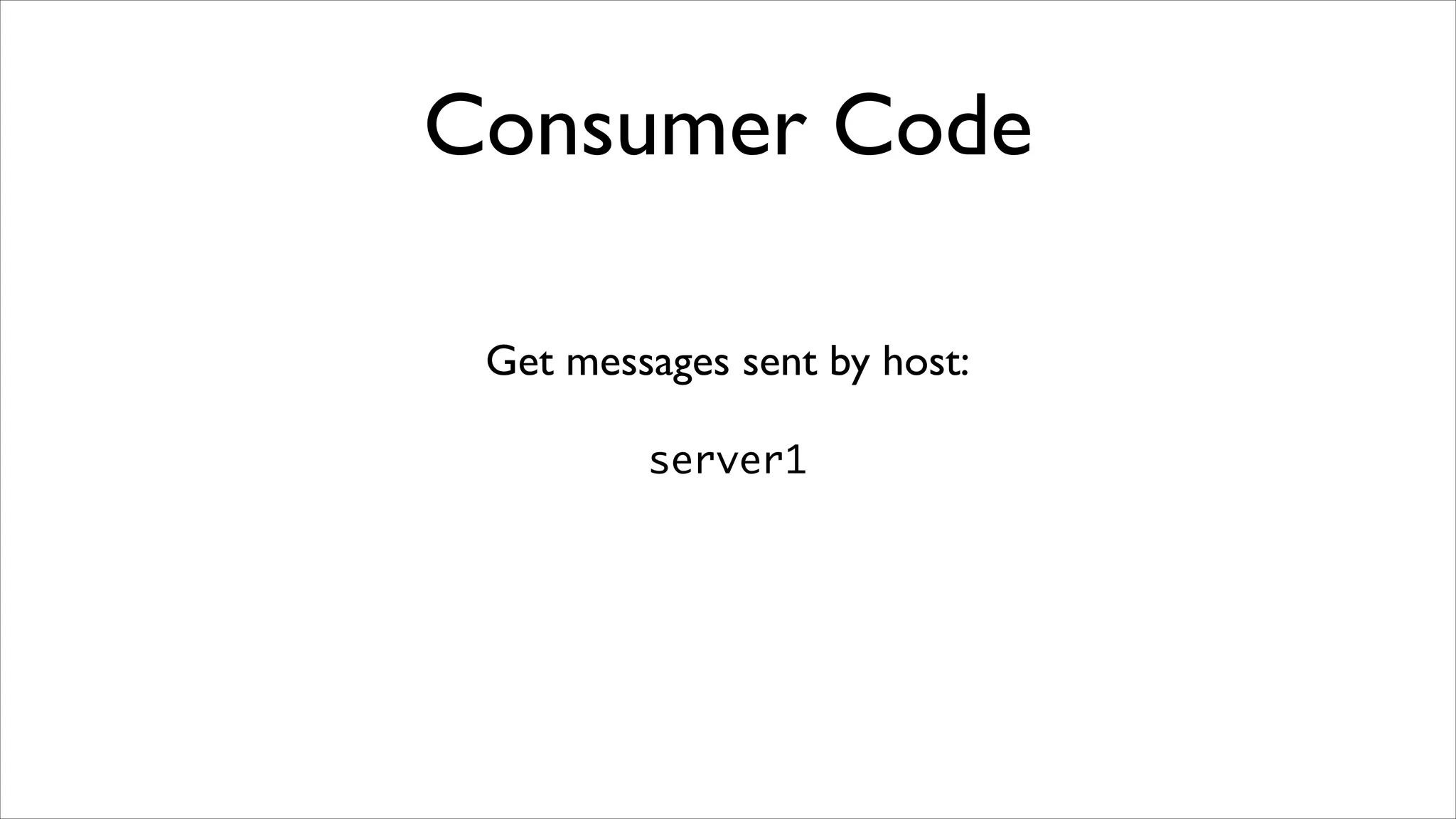

112. Consumer Code
Get messages sent by host:
!
server1

113. Consumer Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$channel->queue_declare('server1-logs', false, true,
false, false);
!
$channel->queue_bind('server1-logs', 'logs', 'server1.#');

114. Consumer Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$channel->queue_declare('server1-logs', false, true,
false, false);
!
$channel->queue_bind('server1-logs', 'logs', 'server1.#');

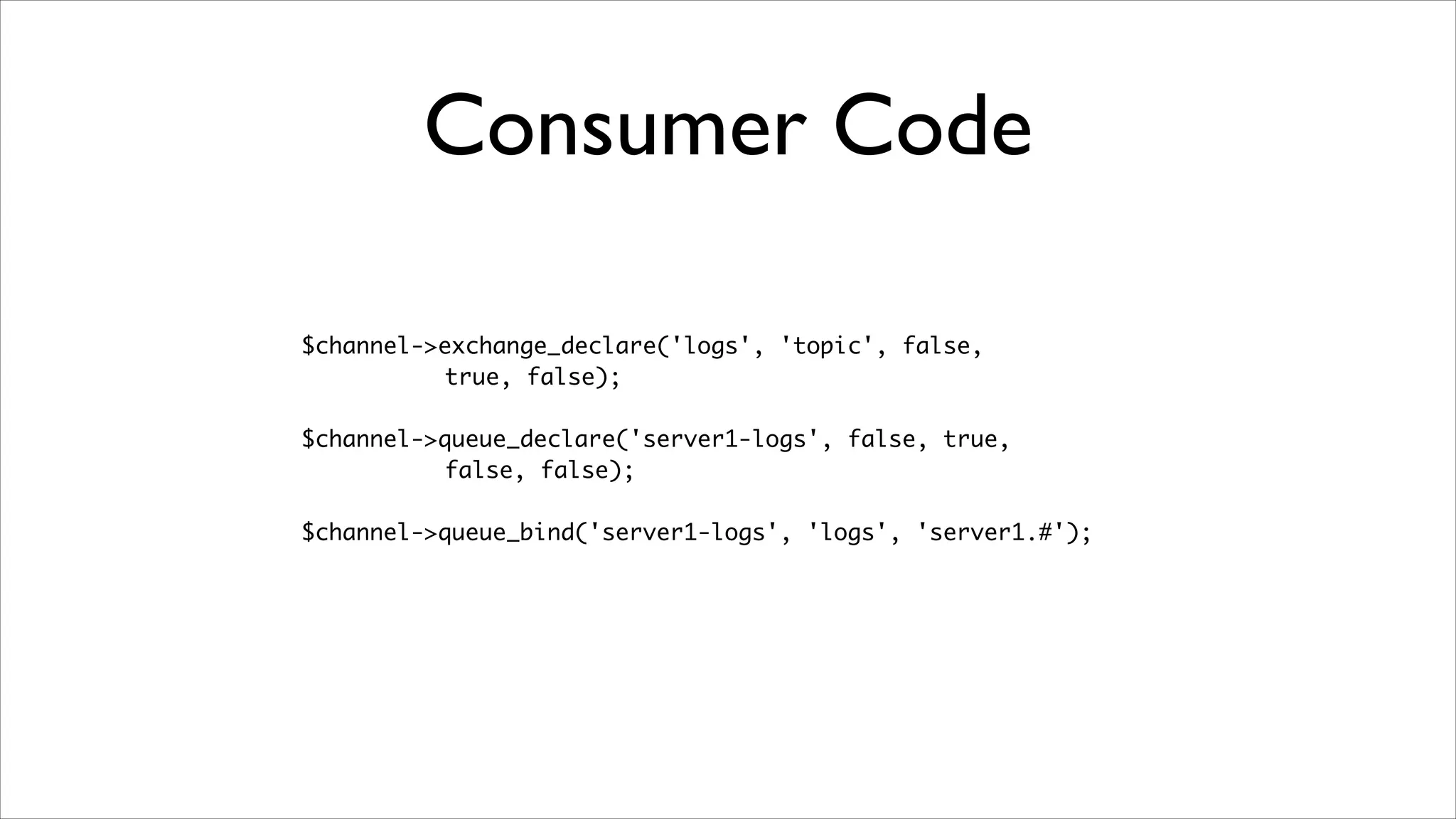

115. Consumer Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$channel->queue_declare('server1-logs', false, true,
false, false);
!
$channel->queue_bind('server1-logs', 'logs', 'server1.#');

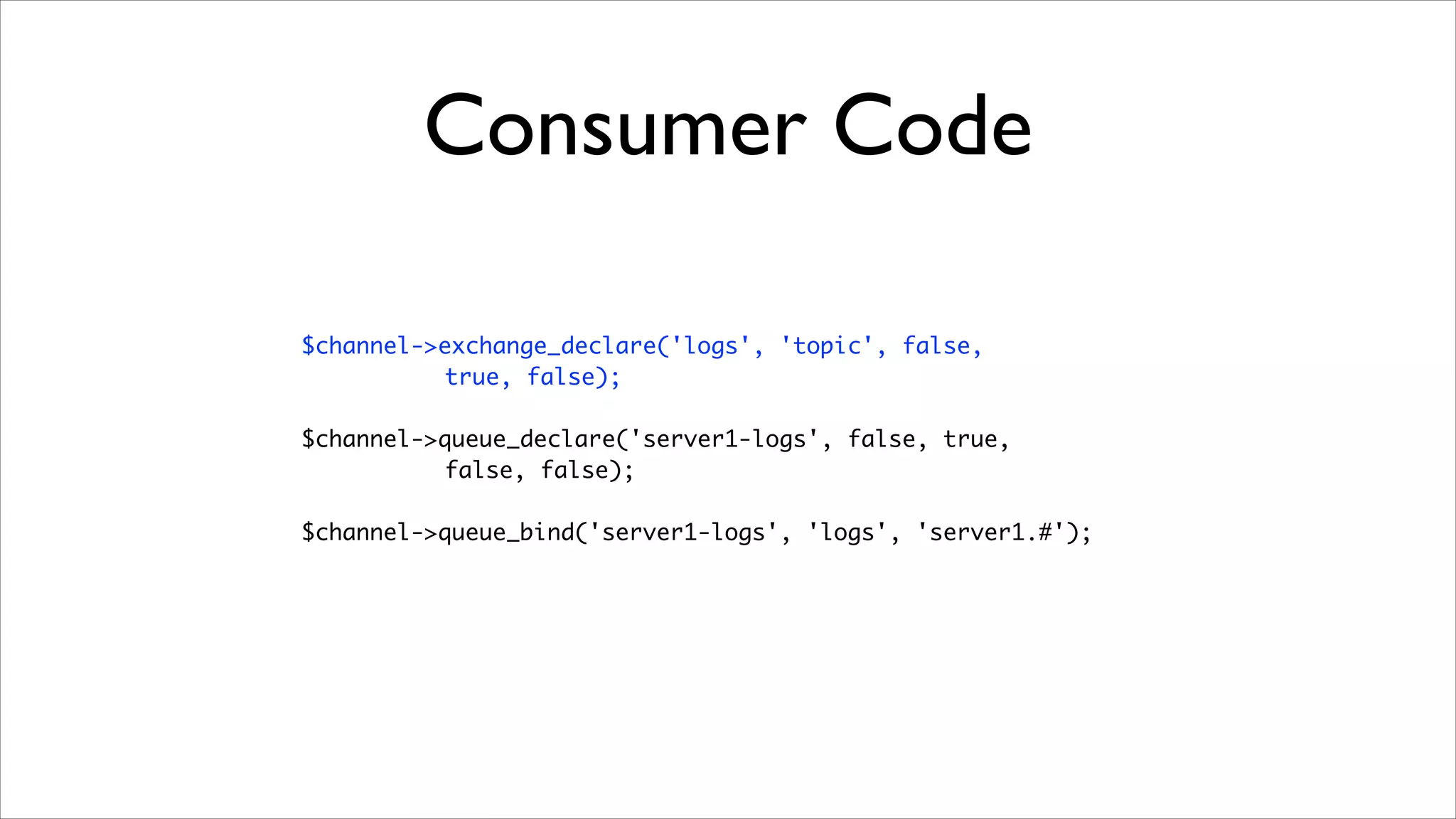

116. Consumer Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$channel->queue_declare('server1-logs', false, true,
false, false);
!
$channel->queue_bind('server1-logs', 'logs', 'server1.#');

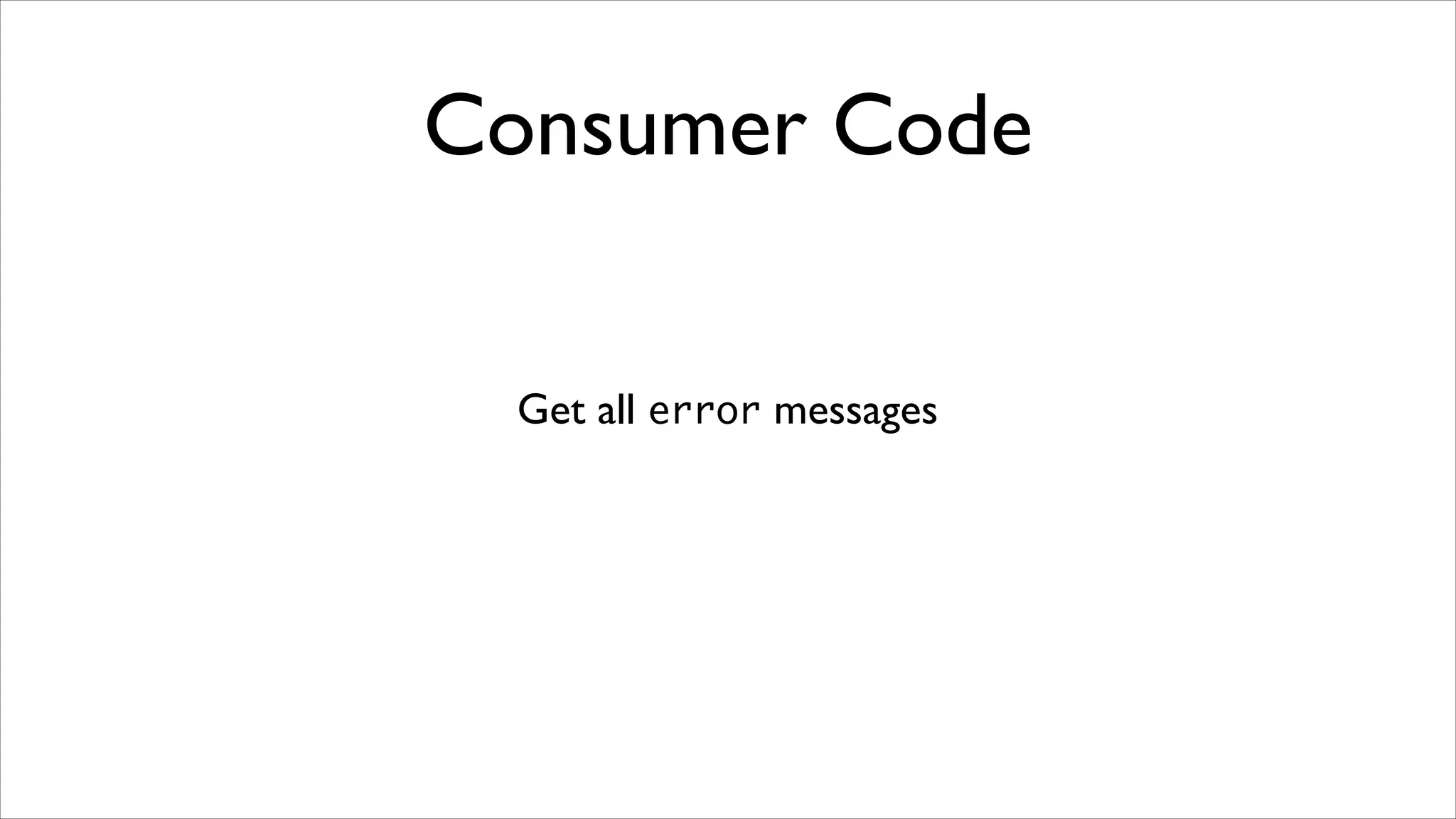

117. Consumer Code
Get all error messages

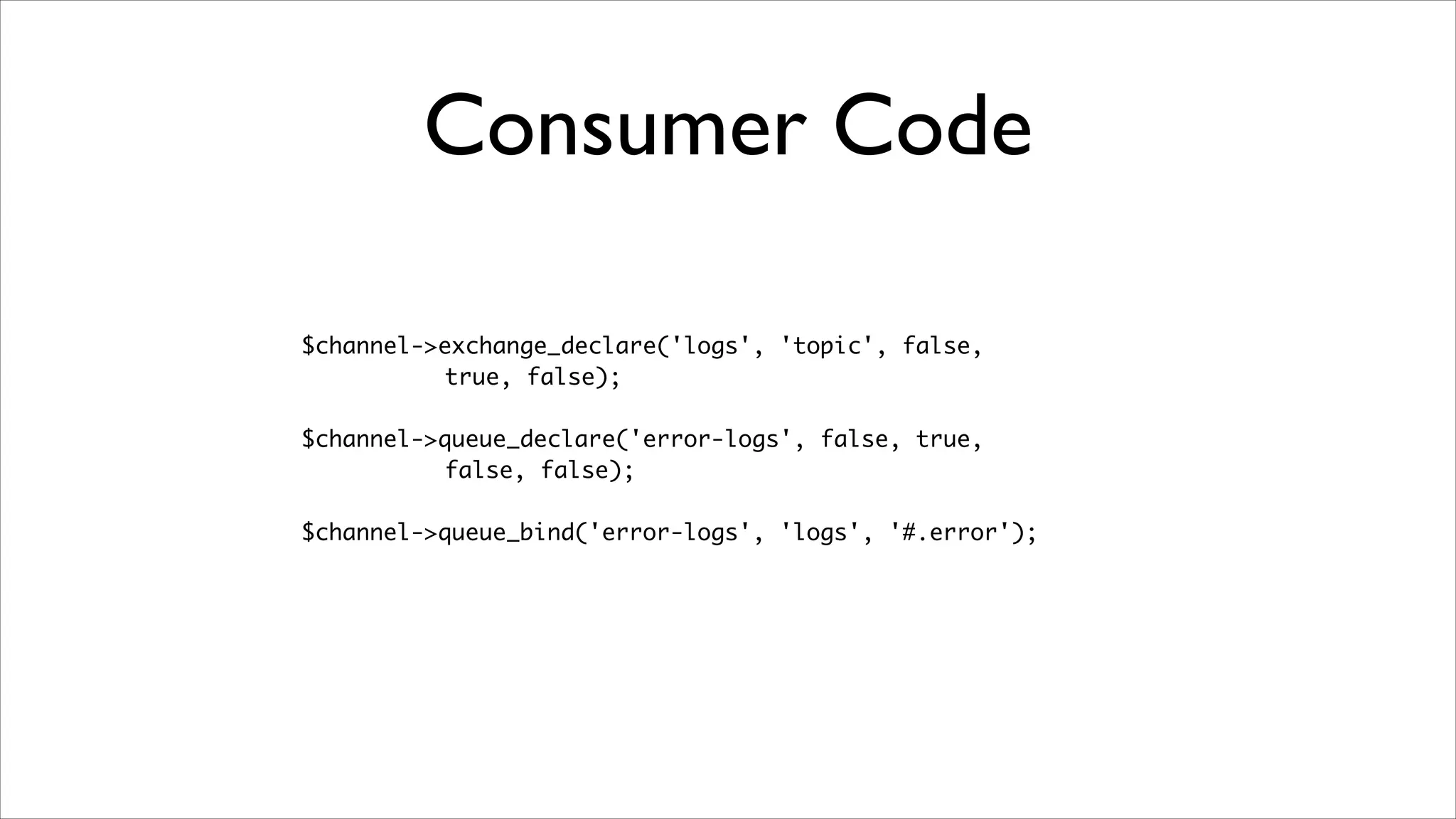

118. Consumer Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$channel->queue_declare('error-logs', false, true,
false, false);
!
$channel->queue_bind('error-logs', 'logs', '#.error');

119. Consumer Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$channel->queue_declare('error-logs', false, true,
false, false);
!
$channel->queue_bind('error-logs', 'logs', '#.error');

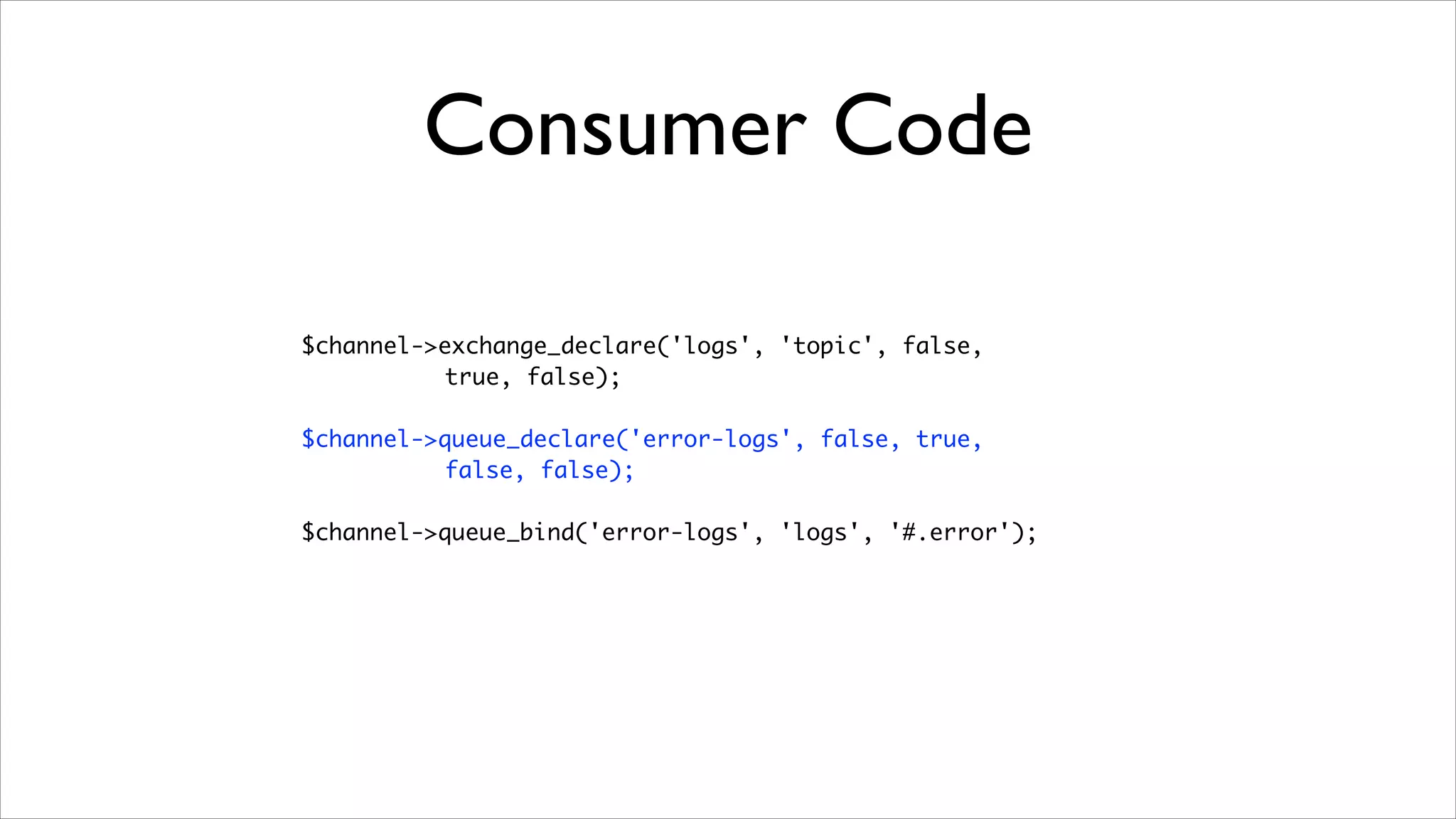

120. Consumer Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$channel->queue_declare('error-logs', false, true,
false, false);
!
$channel->queue_bind('error-logs', 'logs', '#.error');

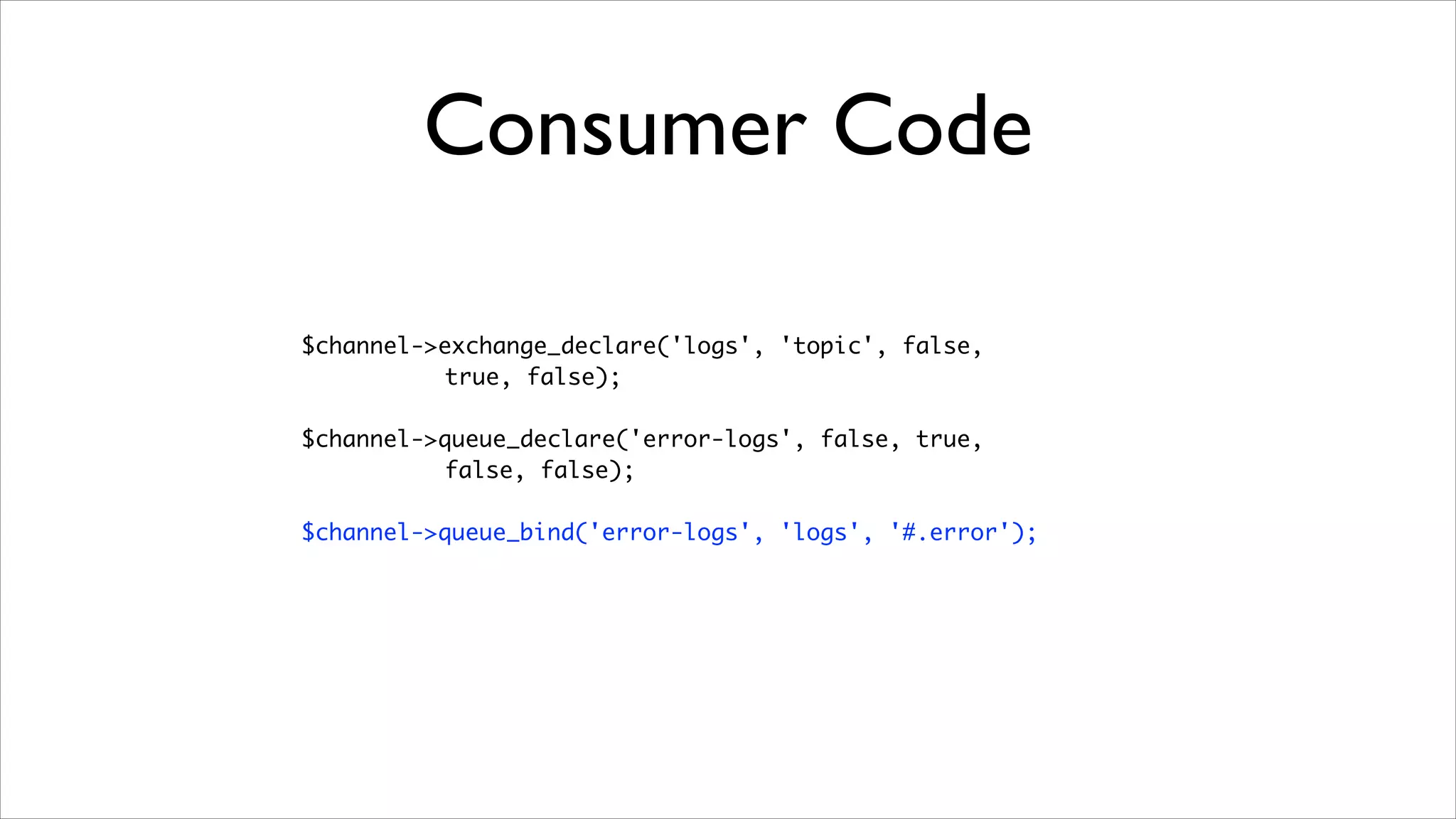

121. Consumer Code
$channel->exchange_declare('logs', 'topic', false,
true, false);
!
$channel->queue_declare('error-logs', false, true,
false, false);
!
$channel->queue_bind('error-logs', 'logs', '#.error');

122. Distributed Apps

123. Distributed Application
App
App
App
App

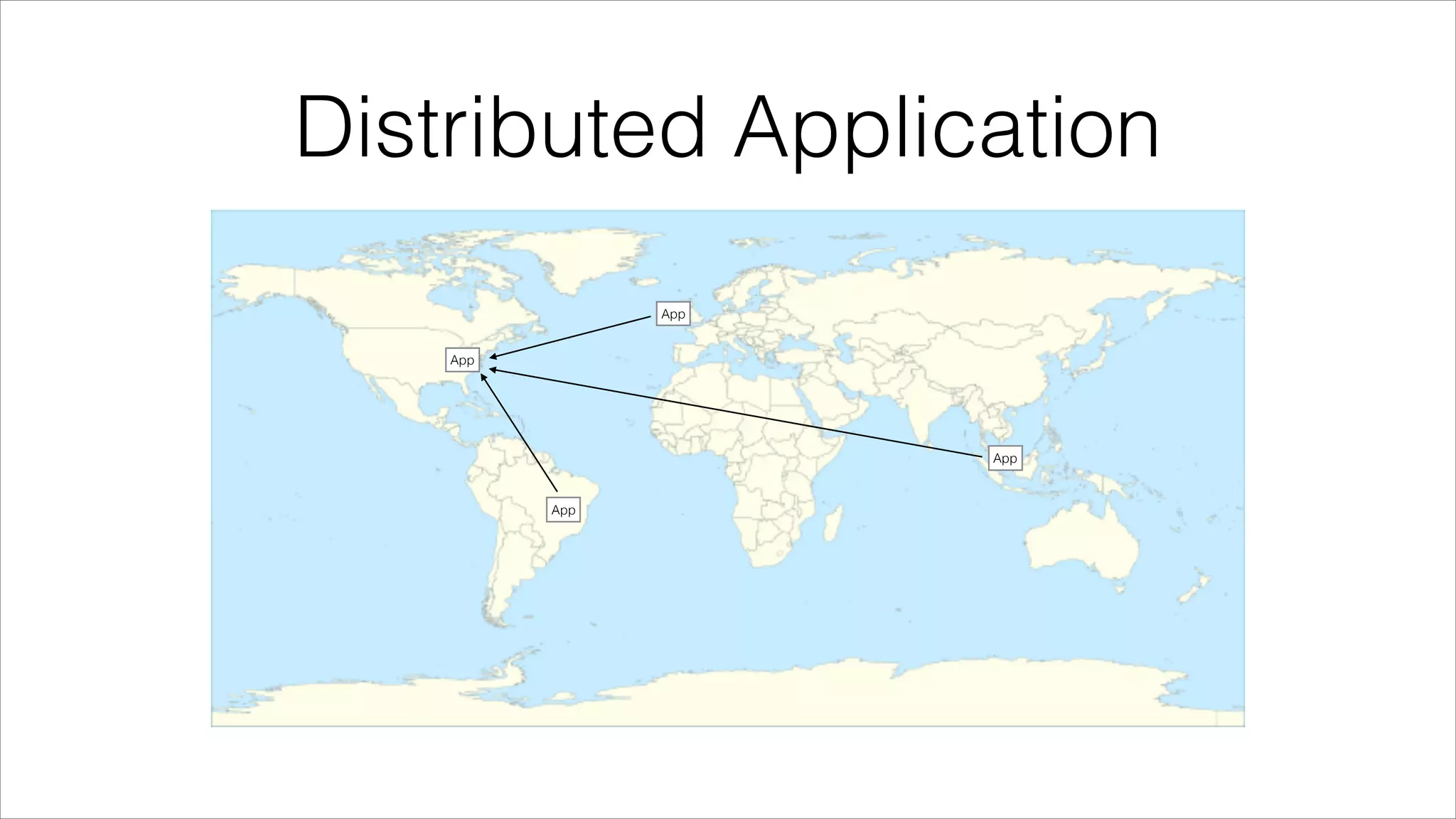

124. Distributed Application
App
App
App
App

125. Ad-hoc solution

126. A process that replicates data
to the remote server

127. Possible issues
•
Remote server is offline
•
•
•
Prevent unbounded local buffers
Prevent message loss
Prevent unnecessary message replication
•
No need for those messages on remote server
•
Messages that became stale

128. Can we do better?

129. RabbitMQ Federation

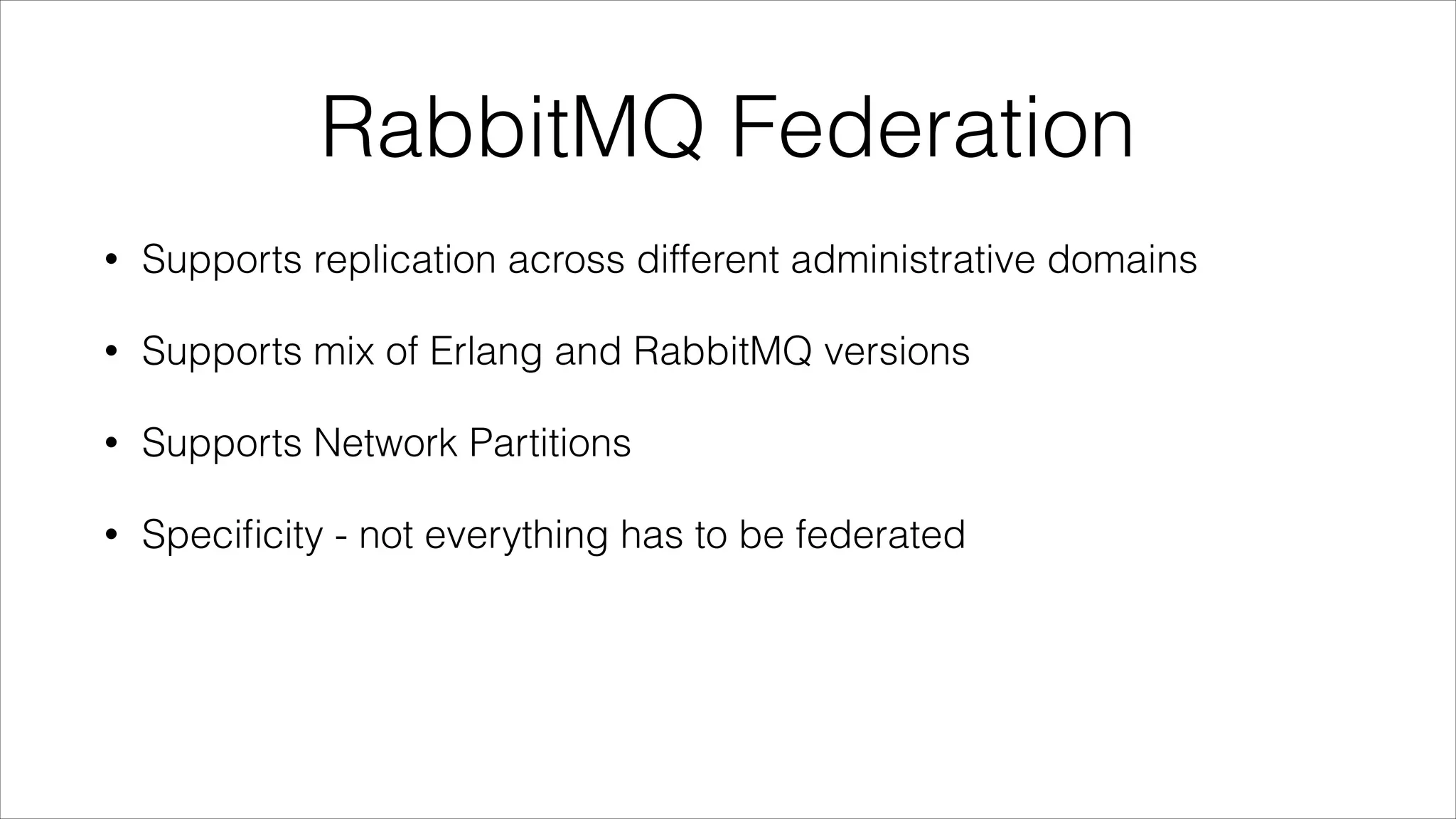

130. RabbitMQ Federation
•
Supports replication across different administrative domains
•
Supports mix of Erlang and RabbitMQ versions
•
Supports Network Partitions
•
Specificity - not everything has to be federated

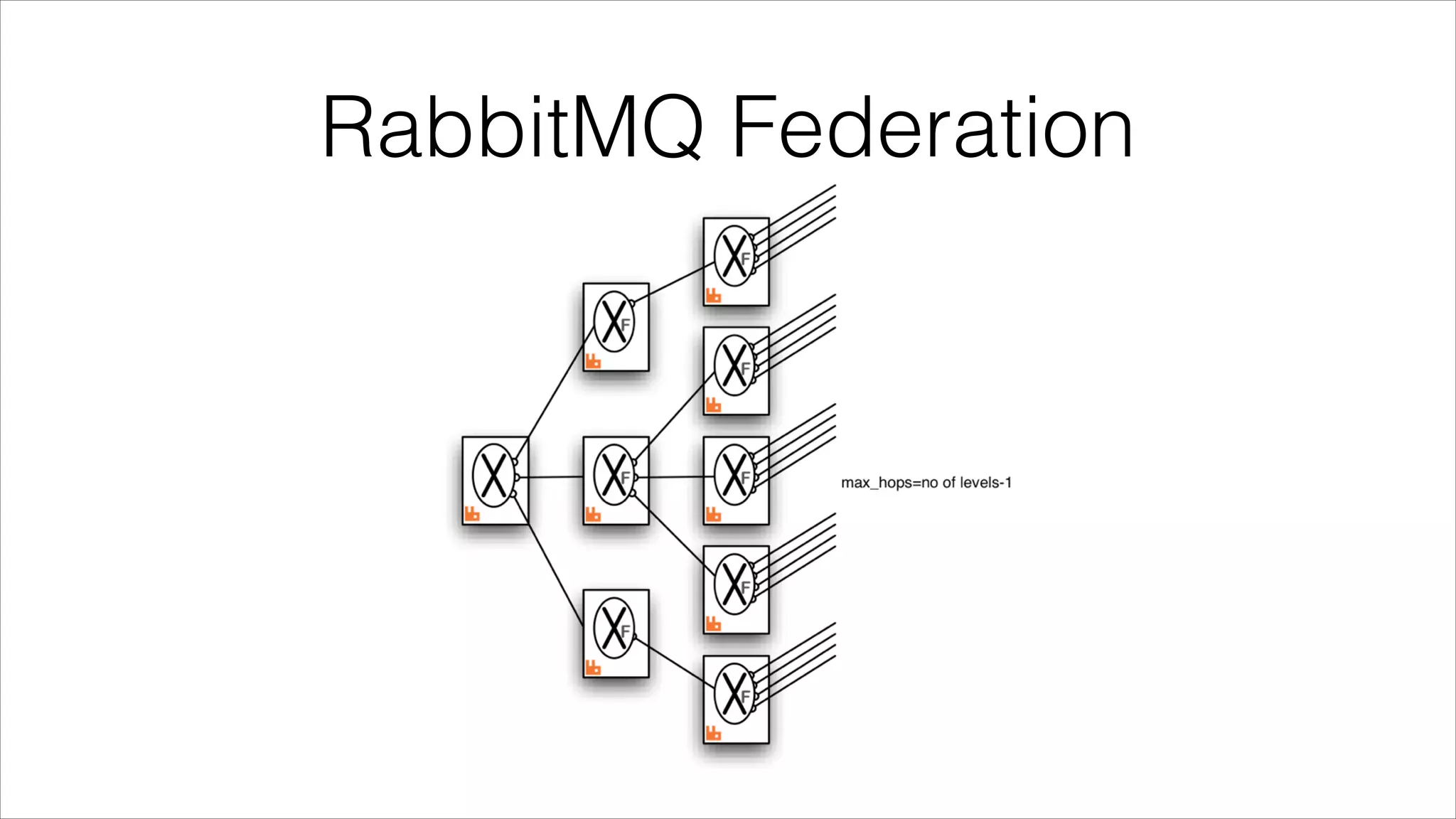

131. RabbitMQ Federation

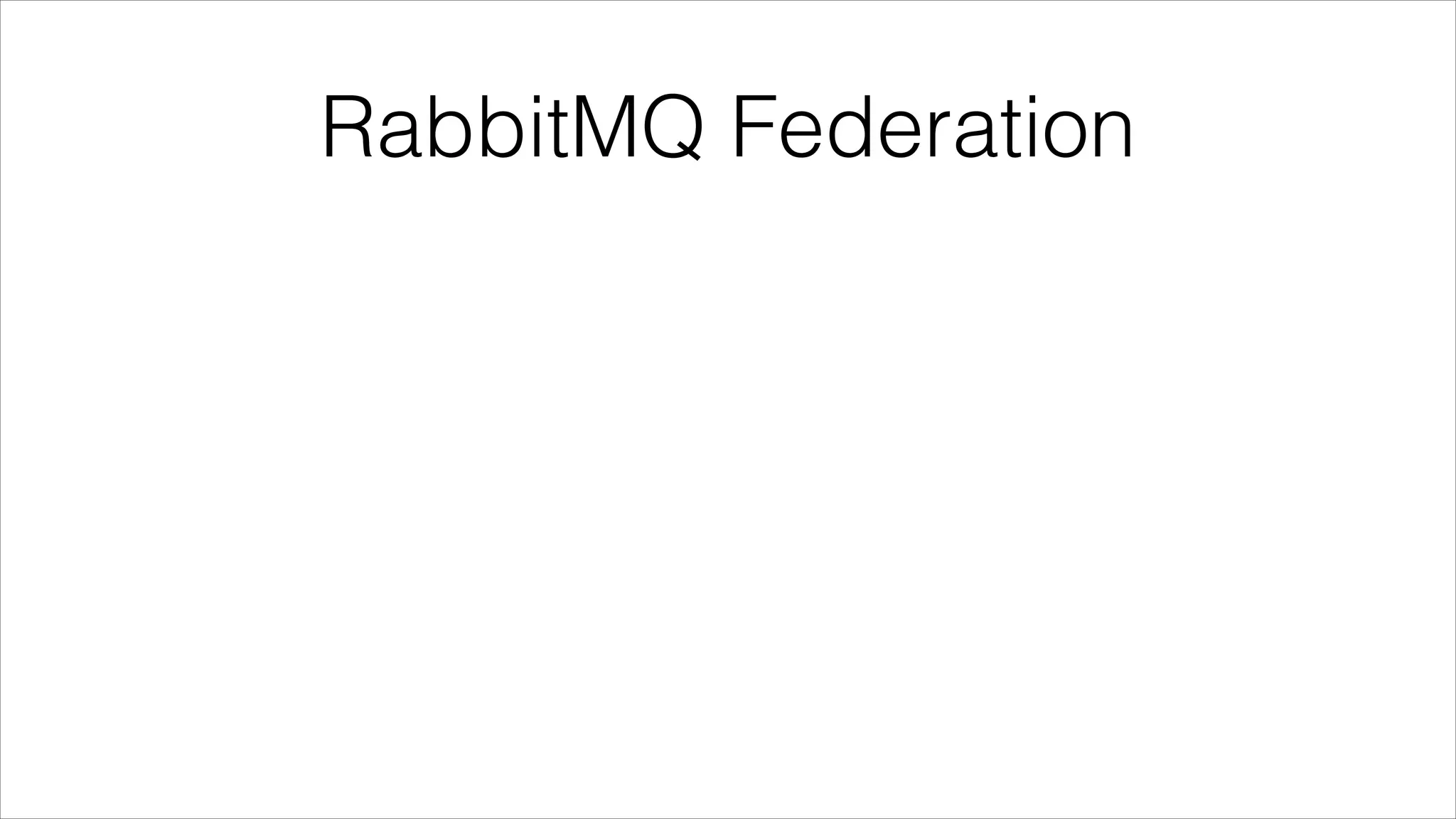

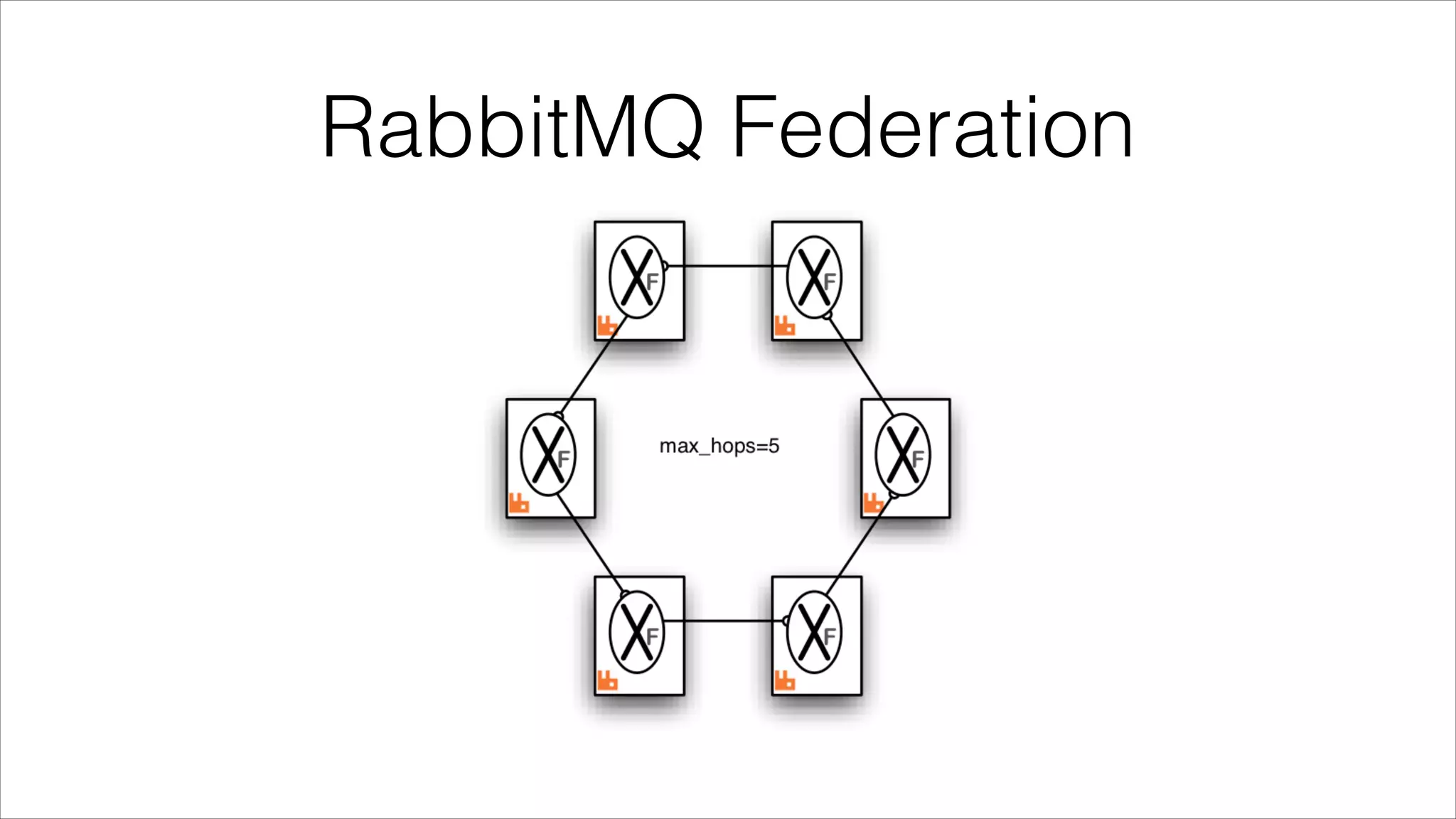

132. RabbitMQ Federation

133. RabbitMQ Federation

134. RabbitMQ Federation
•
It’s a RabbitMQ Plugin

135. RabbitMQ Federation
•
It’s a RabbitMQ Plugin
•
Internally uses Queues and Exchanges Decorators

136. RabbitMQ Federation
•
It’s a RabbitMQ Plugin
•
Internally uses Queues and Exchanges Decorators
•
Managed using Parameters and Policies

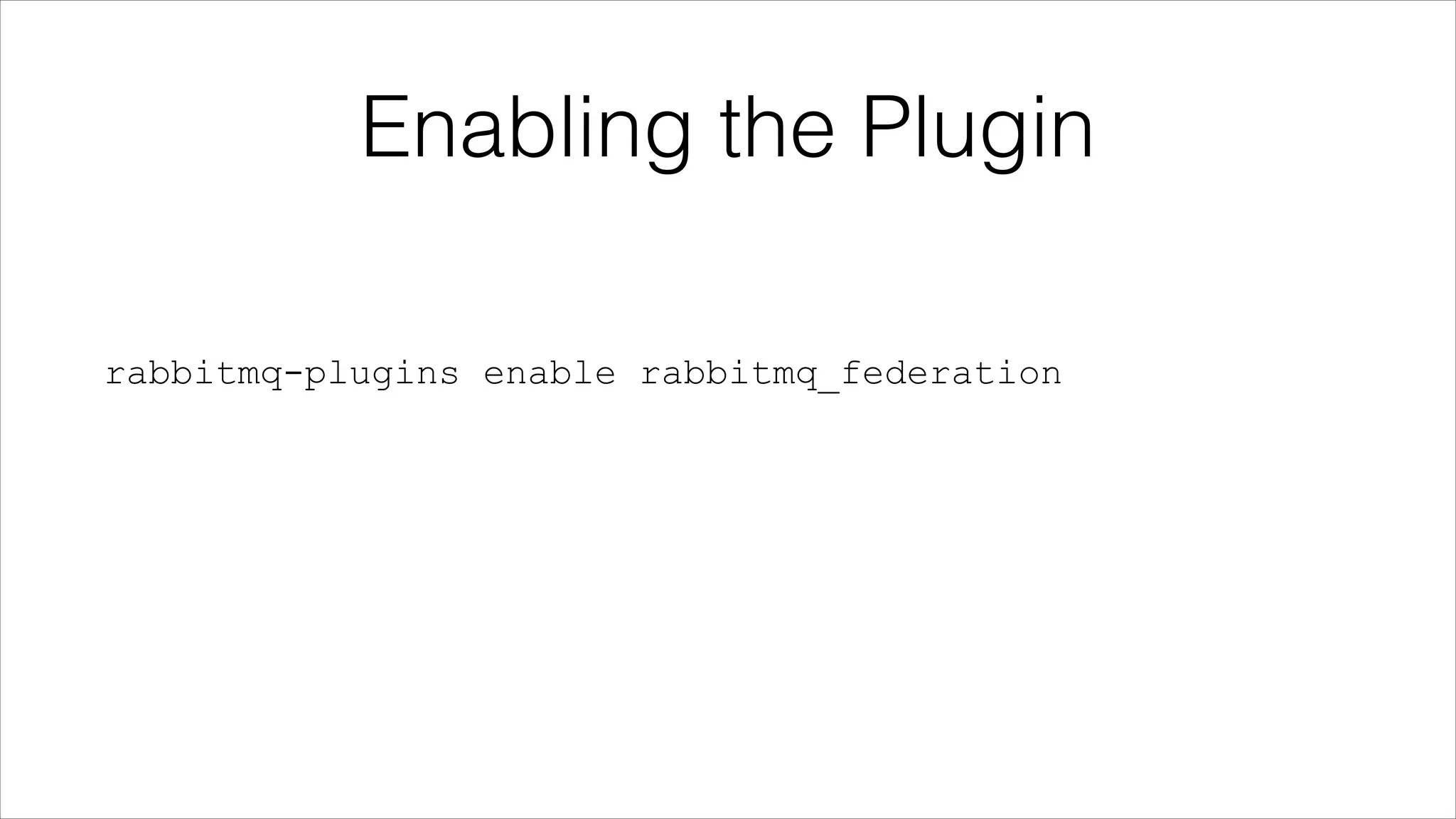

137. Enabling the Plugin
rabbitmq-plugins enable rabbitmq_federation

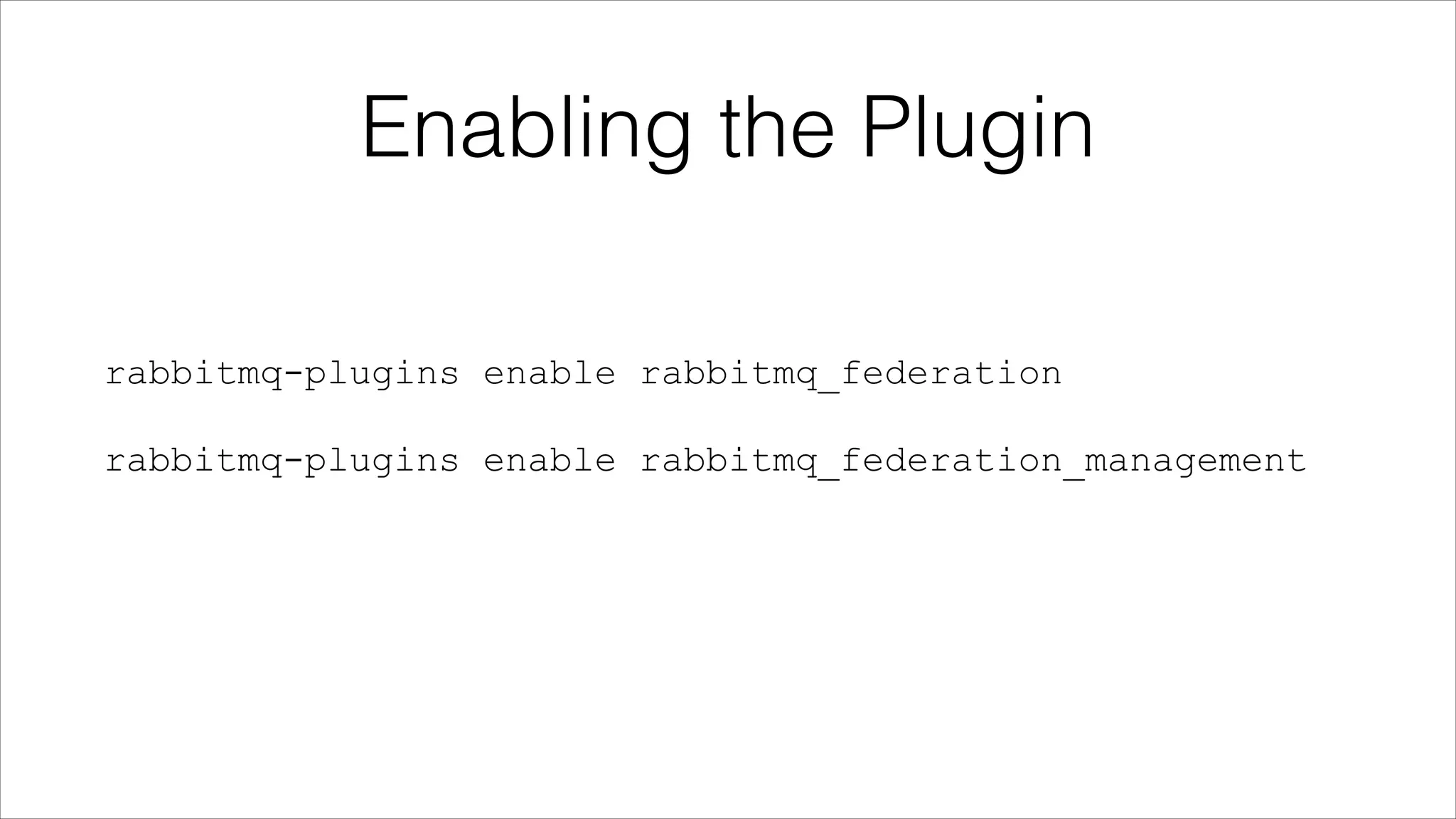

138. Enabling the Plugin
rabbitmq-plugins enable rabbitmq_federation
rabbitmq-plugins enable rabbitmq_federation_management

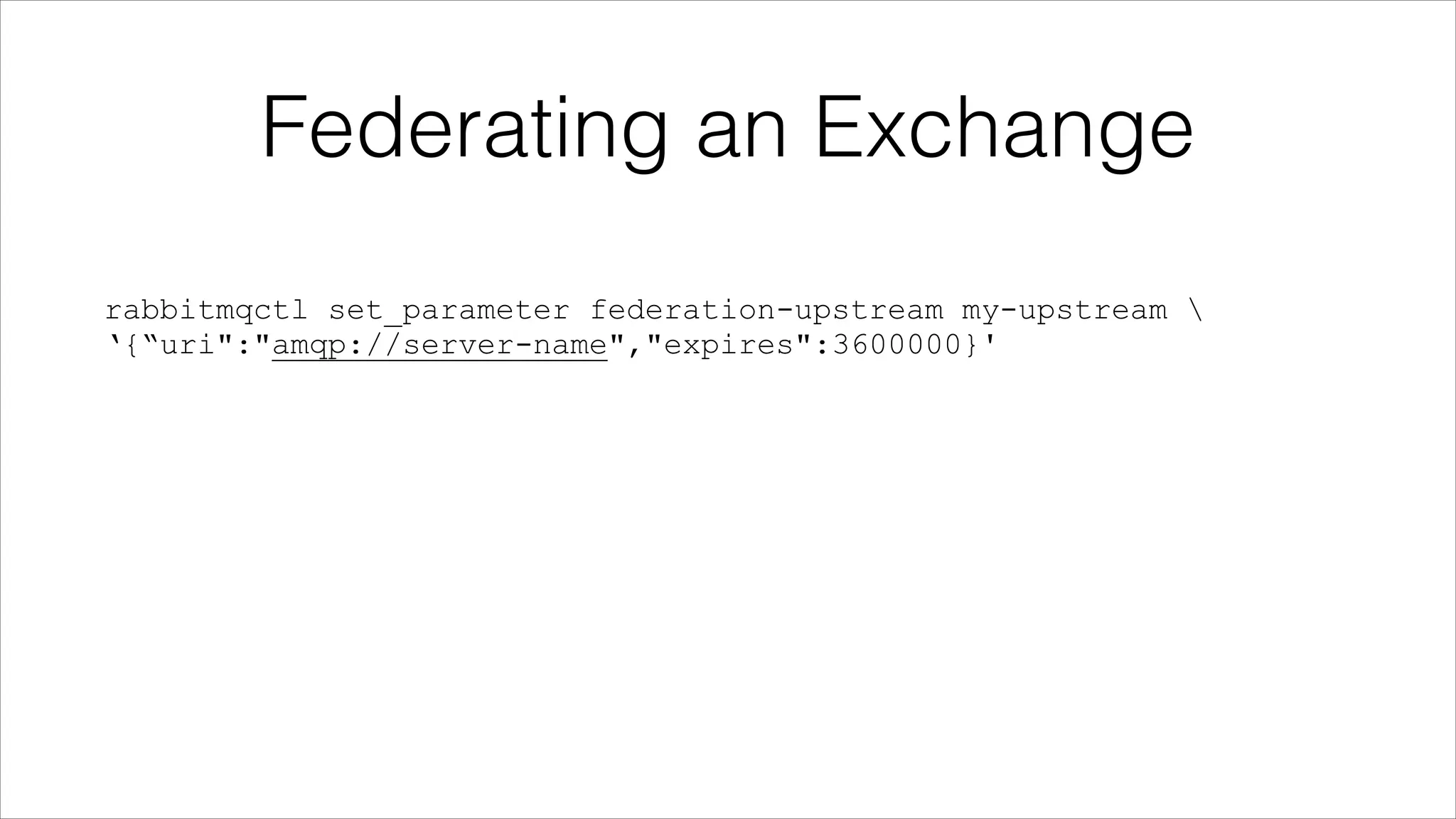

139. Federating an Exchange
rabbitmqctl set_parameter federation-upstream my-upstream
‘{“uri":"amqp://server-name","expires":3600000}'

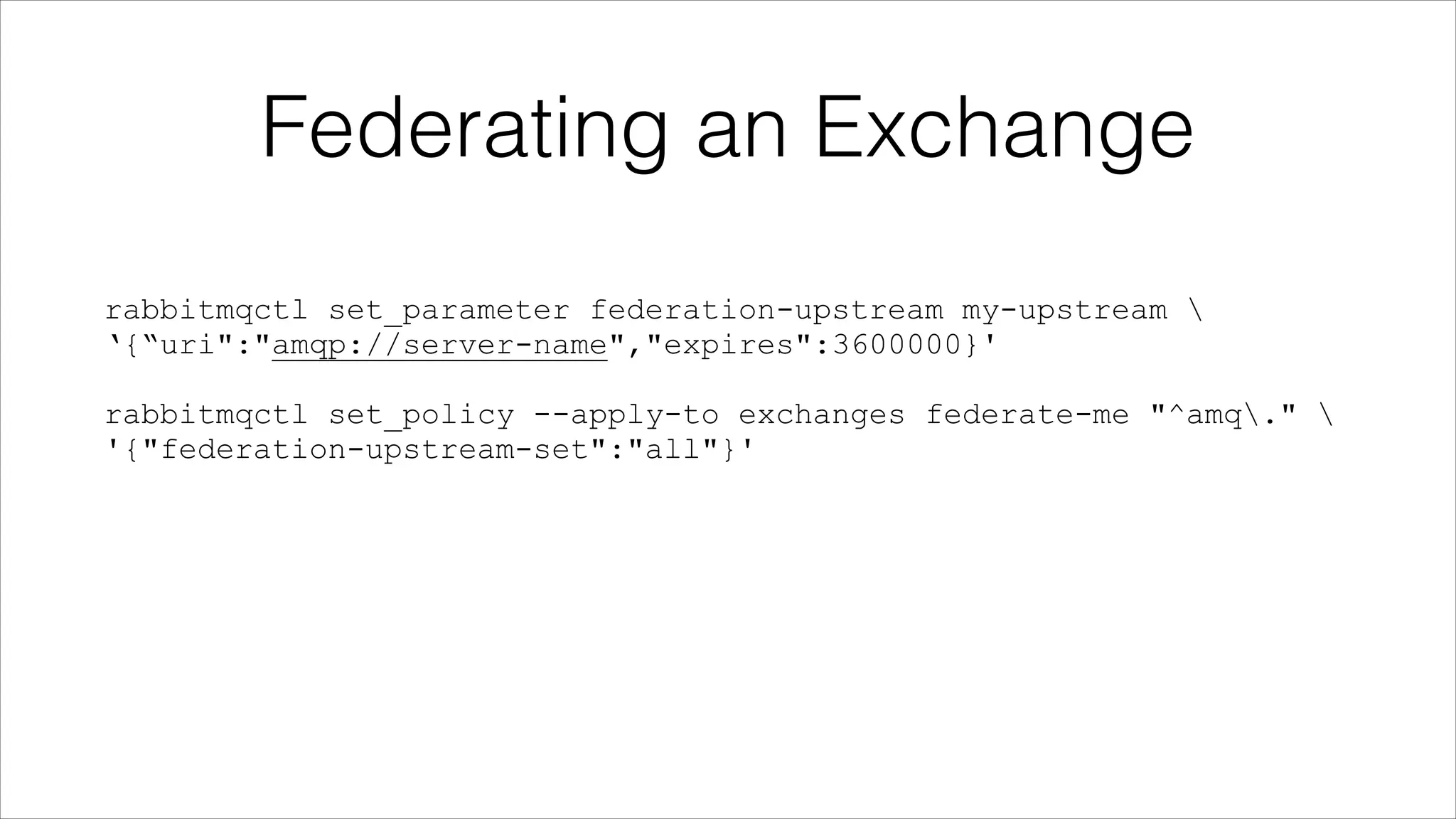

140. Federating an Exchange
rabbitmqctl set_parameter federation-upstream my-upstream
‘{“uri":"amqp://server-name","expires":3600000}'
!
rabbitmqctl set_policy --apply-to exchanges federate-me "^amq."
'{"federation-upstream-set":"all"}'

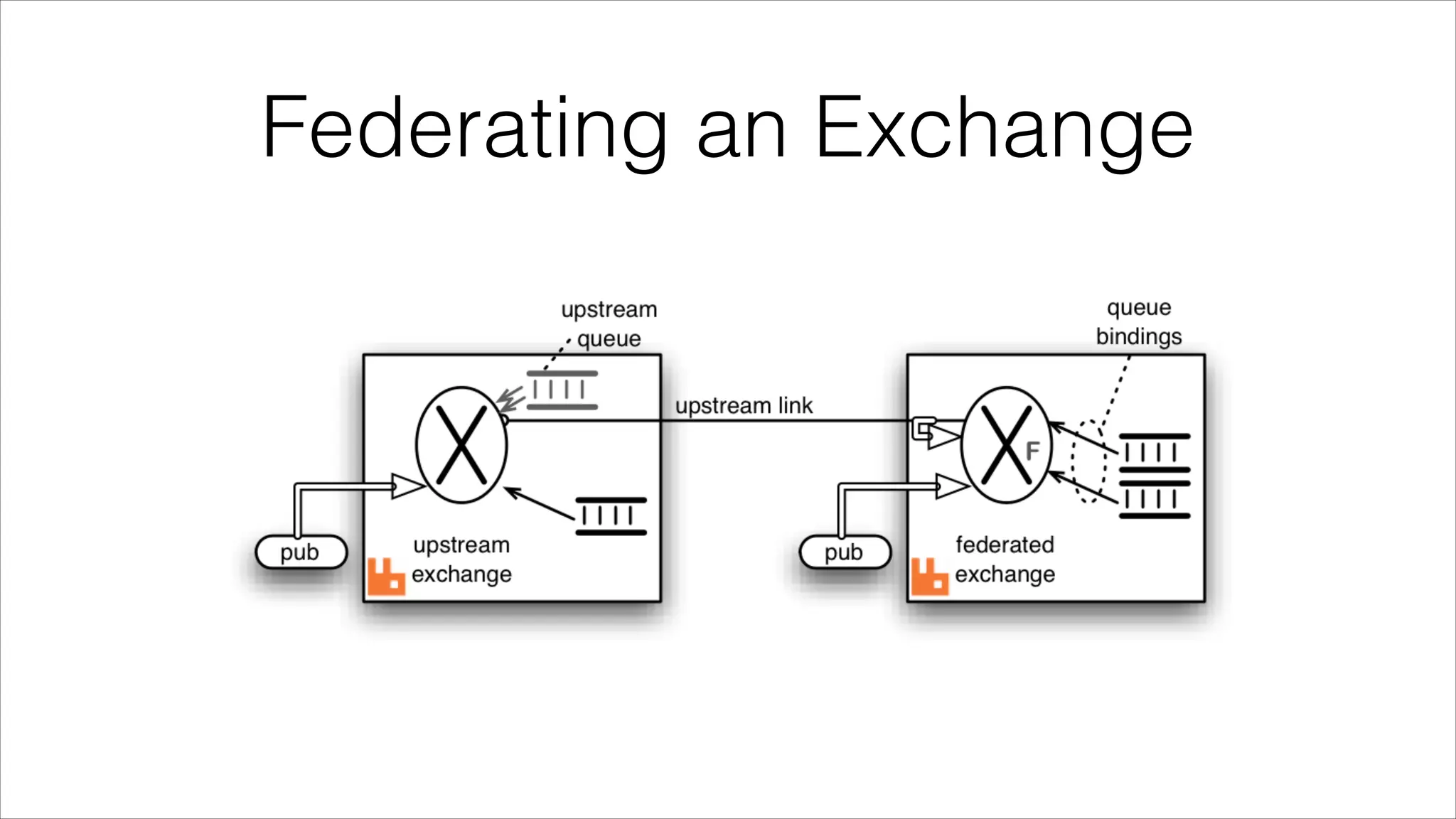

141. Federating an Exchange

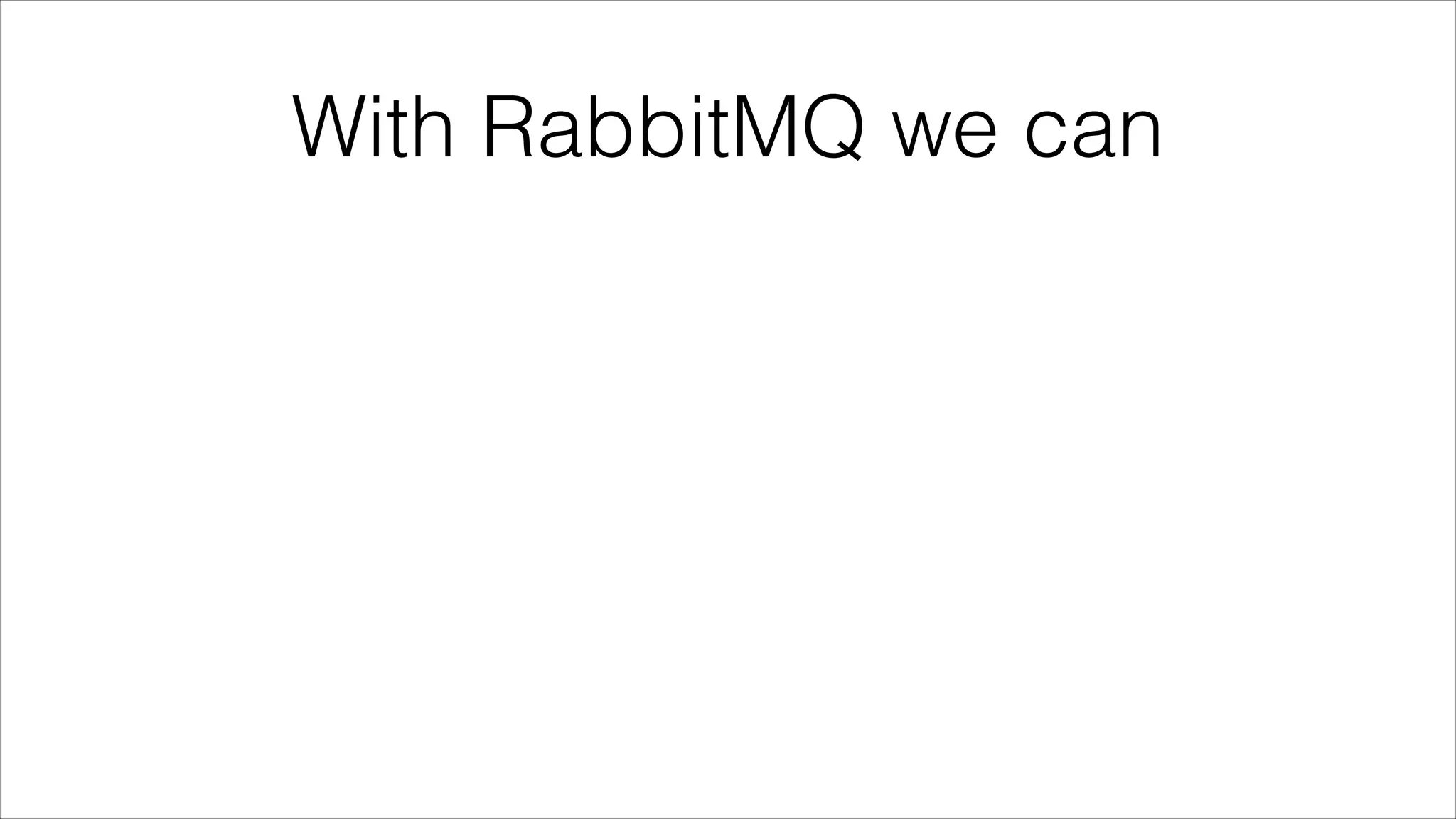

142. With RabbitMQ we can

143. With RabbitMQ we can
•
Ingest data using various protocols: AMQP, MQTT and STOMP

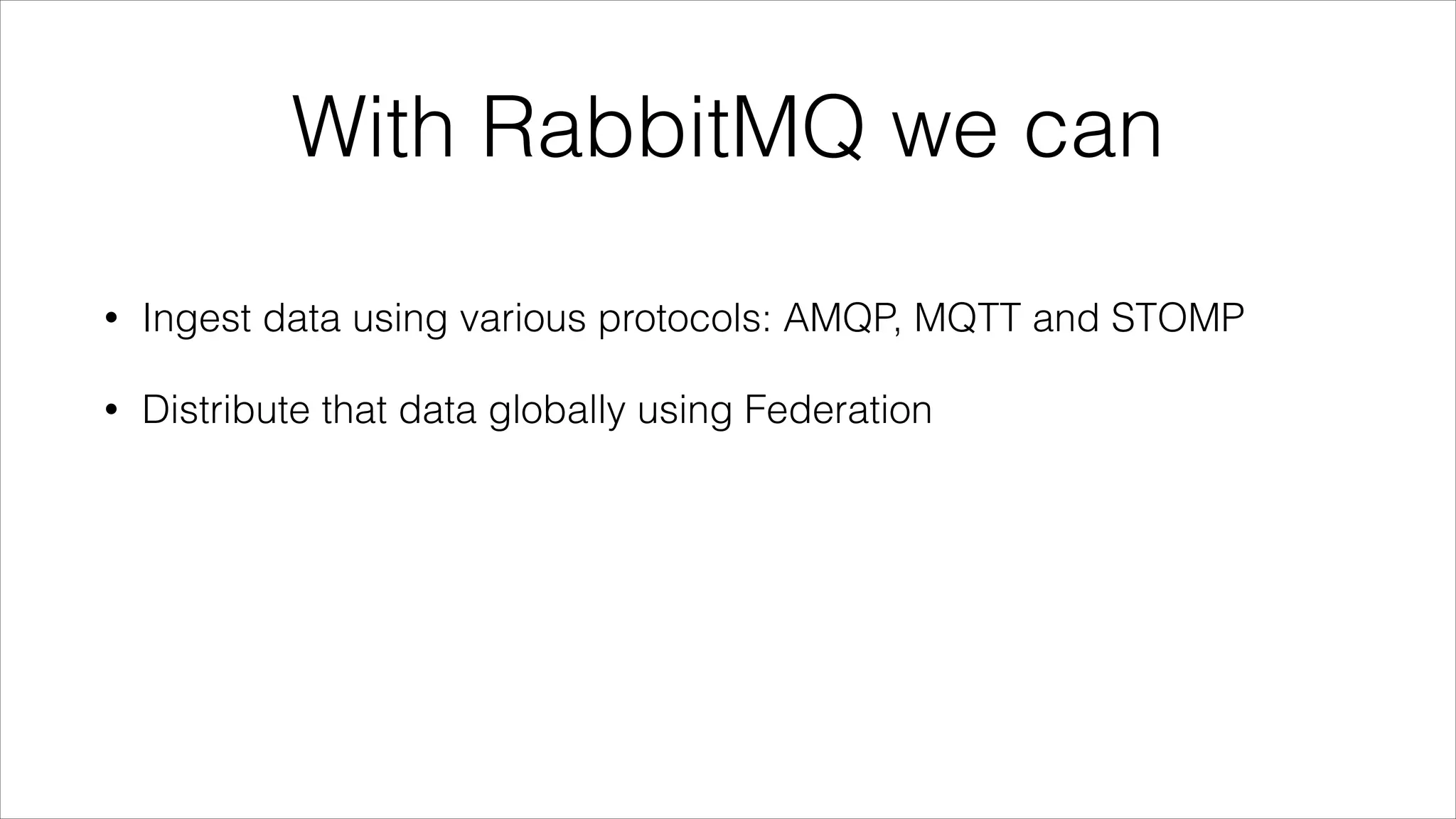

144. With RabbitMQ we can
•
Ingest data using various protocols: AMQP, MQTT and STOMP
•
Distribute that data globally using Federation

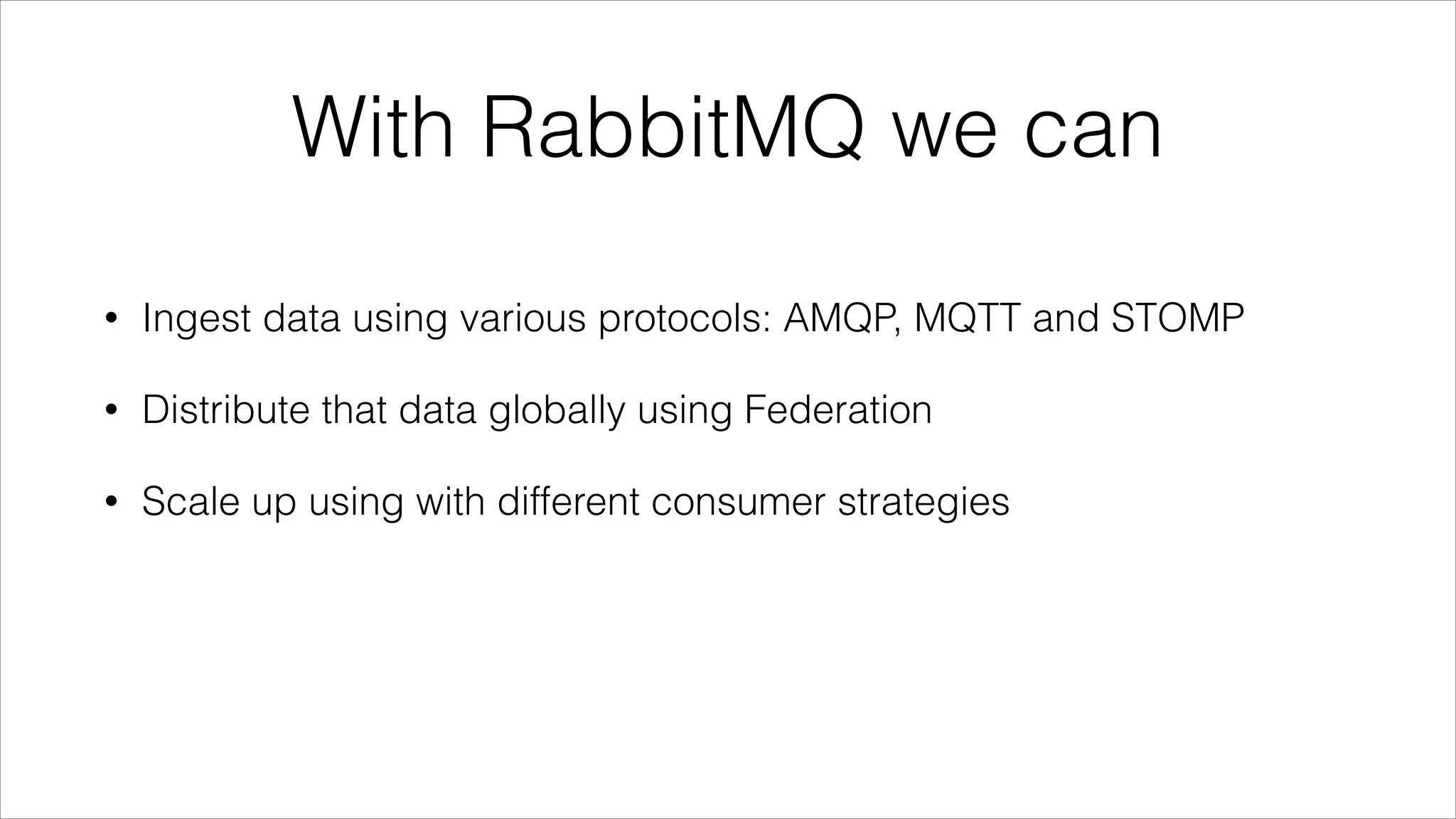

145. With RabbitMQ we can
•
Ingest data using various protocols: AMQP, MQTT and STOMP
•
Distribute that data globally using Federation
•
Scale up using with different consumer strategies

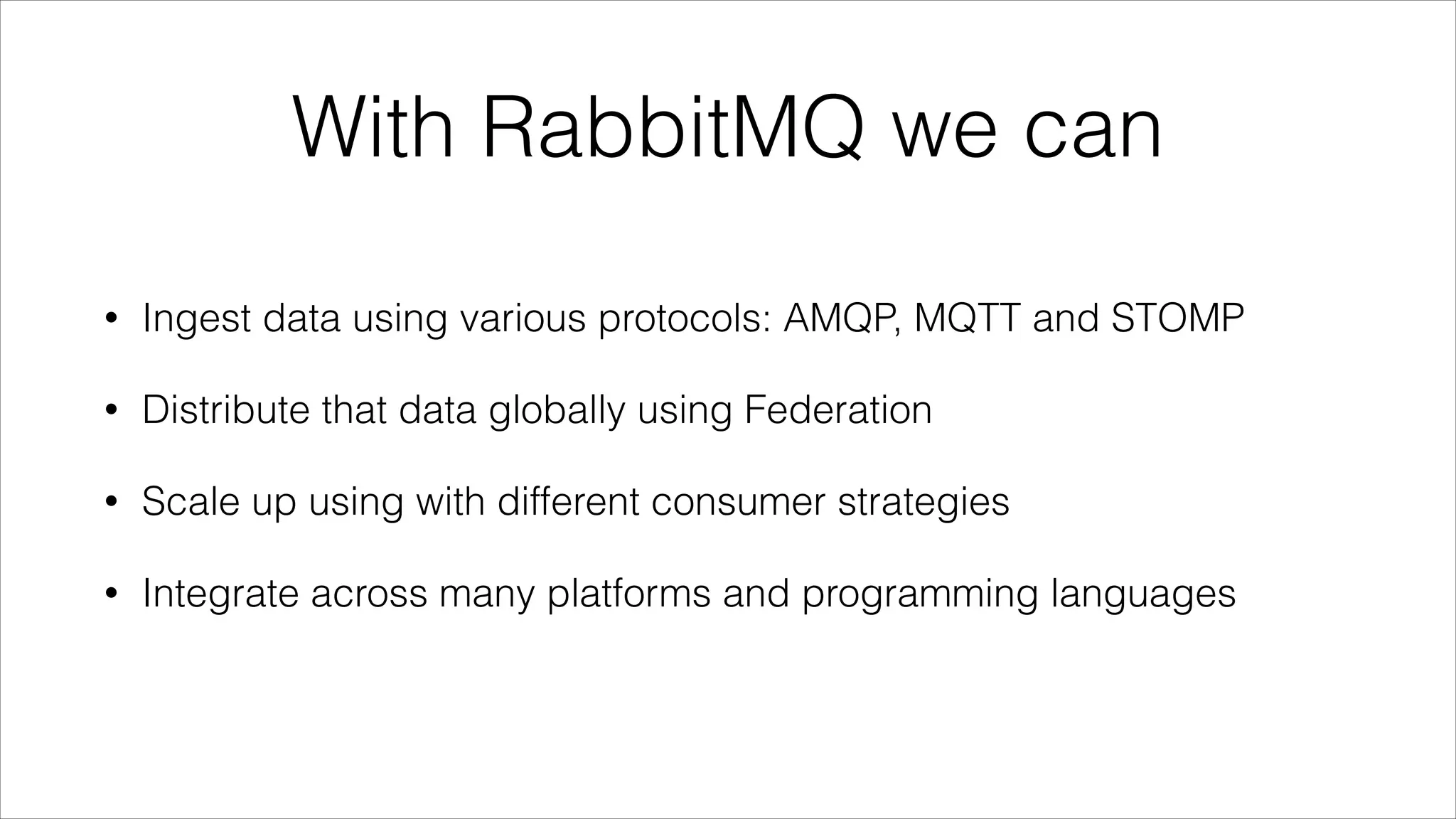

146. With RabbitMQ we can
•
Ingest data using various protocols: AMQP, MQTT and STOMP
•
Distribute that data globally using Federation
•
Scale up using with different consumer strategies
•
Integrate across many platforms and programming languages

147. Questions?

148. Talk and Slides
https://joind.in/talk/view/10525

149. Thanks
Alvaro Videla - @old_sound
Credits
world map: wikipedia.org
federation diagrams: rabbitmq.com
