2. BUILDING & FACILITIES
 Designed according to GMP practices which
ensures ;
 Prevention of cross contamination
 Proper air handling systems.
 Proper cleaning & sanitary facilities.
 Proper Lighting
 Proper Plumbing
 Proper washing .etc.

3. LAYOUT
 It is the organized properly planned Interdepartment and
Intradepartment arrangements.
 Proper layout
 Increases productivity
 Helps in proper utilization of
 MAN
 MATERIAL
 MONEY
 MACHINES

4. TYPES OF LAYOUT
 Three Types of layout With
1) Circular Flow
2) Parallel Flow
3) Crossover Traffic

5. layout with Central warehouse
(crossover traffic)

6. Circular flow

7. Parallel flow

8. Environmental Requirements
 Proper maintenance is required for
 Product Protection
 Employee Comfort
 Controlled Process
Parameters

9. Some Important Aspects
 low Humidity for Effervescent tablets & moisture sensitive drugs.
 Pressure within areas like mixing & tableting area should remain on
negative side than central corridor
 All areas should be free from dust & floating particles , if possible air
conditioned.
 In coating section suitable exhaust systems
 There should be properly organized & working air handling system to supply
purified air.

10.  Temp control & Air control should be such that there
should be comfortable working environment.
 And no impact on characteristics of in-process
materials such as granulations, raw materials.
 All areas should be properly ventilated.

11. LIST OF EQUIPMENTS
 MIXING, GRANULATION & DRYING AREA
 Powder mixer
 Mass mixer / Planetary mixer / Rapid mixer granulator
 Sifter
 Granulators (High shear granulator, chilsonator, )
 Tray dryer / FBD
 Weighing Machines

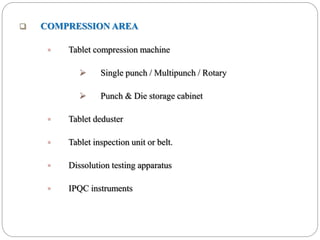

12.  COMPRESSION AREA
 Tablet compression machine
 Single punch / Multipunch / Rotary
 Punch & Die storage cabinet
 Tablet deduster
 Tablet inspection unit or belt.
 Dissolution testing apparatus
 IPQC instruments

13.  COATING AREA
 Jacketed kettle (steam, gas, Electrically heated)
 Coating pans
 Polishing pans
 Exhaust system
 Air conditioning & Dehumidification equipment
 Weighing balance.

14.  PACKAGING AREA
 Strip or Blister packaging Machine.
 Tablet counter
 Leak tester
Air conditioning & Dehumidification equipment
