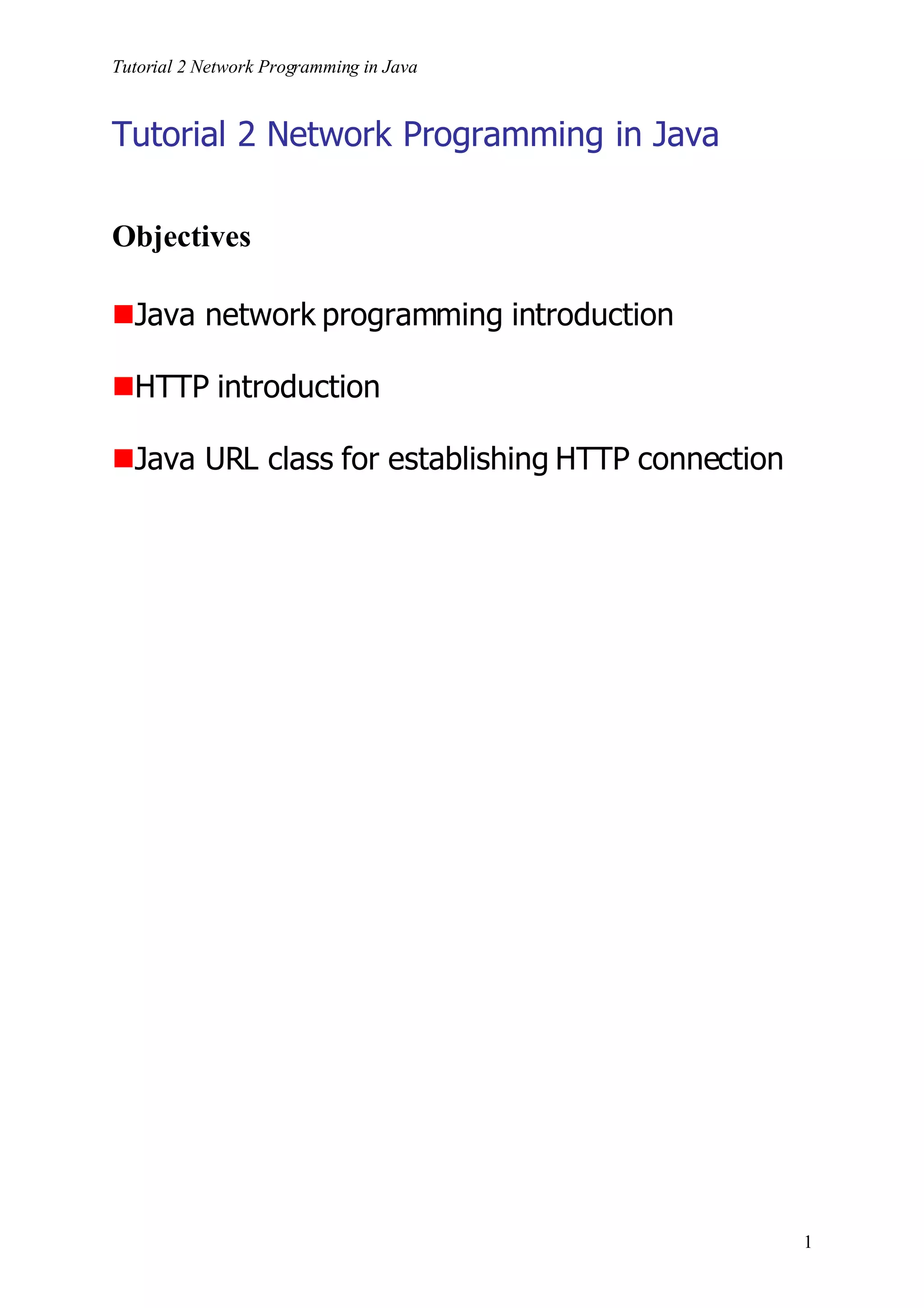

Tutorial 2 Network Programming in Java


Objectives

Java network programming introduction

HTTP introduction

Java URL class for establishing HTTP connection

1


1 Java network programming introduction

Java provides java.net package to support network
programming.

1.1 Client and Server
 A client obtains a service via sending a request to a
server
 A client initiates a connection, retrieves data, responds
user input. For example, web browser, chat program
(ICQ)
 A server provides a set of services, such as web server,
time server, file server, chat server.

 A server responds to connection, receives requests for
data from client, and delivers it to client.
 The protocol between client and server is the
communication rule, for example FTP, SMTP, and
HTTP.

2


1.2 Socket

 We use socket to establish the connection between client
and server.
 Socket identifies a connection using host address and port
number.

 A socket is a bi-directional communication channel

 Java differentiates client sockets from server sockets.

e.g. for client
Socket client=new Socket(“hostname”,portNumber);

for server
ServerSocket server=new SeverSocket(portNumber);



Client
port 13 Time Service

port 80 Web Service

Socket Socket

Server

3


 Well known ports for server
80 web server
21 Ftp server
13 Time server
23 Telnet
25 Email(SMTP)

1.3 The connection between server and client using
socket

Socket Operations at Client Side
 create a client socket:
Socket (host, port)
s = new Socket (“java.sun.com”, 13)

 get input / output data streams out of the socket:
in = new DataInputStream(s.getInputStream ());
out = new DataOutputStream( s.getOutputStream());
out = new PrintStream( s.getOutputStream());

 read from input / write to output data streams:
String str = in.readLine();
out.println ( “Echo:” + str + “r”);

 close the socket:
s.close();

4


Socket Operations at Server Side

A server is always waiting for being connected. It
need not initiate a connection to a host. So a server
socket need only specify its own port no.
 create a server socket:
ServerSocket (port)
ServerSocket s = new ServerSocket(8189);
 accept an incoming connection:
Socket snew = s.accept ();
 get input / output data streams out of the socket for
the incoming client:
in = new DataInputStream(snew.getInputStream());
out = new PrintStream(snew.getOutputStream());
 close the socket for the incoming client:
snew.close();

1.4 Example : A web Client

import java.net.*;
import java.io.*;

class HttpClient {
public static void main(String[] args ) {
try {

Tutorial for CS5286 Algorithms&Tech for Web Search 5


Socket s = new
Socket(quot;www.cs.cityu.edu.hkquot;,80);
DataInputStrea in = new
m
DataInputStream(s.getInputStream());
PrintStream out=new
PrintStream(s.getOutputStream());
out.println(quot;GET / HTTP/1.0quot;);
out.println();
String line;
while ((line=in.readLine())!=null)
System.out.println(quot;> quot;+line);
s.close();
} catch (Exception e)
{ System.out.println(e);}
}
}

2 HTTP introduction

HTTP( Hypertext Transfer Protocol) is an application
layer protocol , just like FTP, SMTP, etc. The WWW is
based on HTTP, for the communication rule between
the browser and web server is HTTP.
You can check following URL for detailed document about
HTTP . http://www.w3.org/Protocols/



2.1 Overview

HTTP request
Format: Method URI HTTP Version

For example: GET / HTTP/1.0
There are three most important methods in HTTP 1.0 ,
include GET, PUT and HEAD

 To request a web page, a browser sends a web server an
HTTP GET message

 To send data to a web server, a browser can use an
HTTP POST message

 To get information about document size , modification
date, but not document itself , you can use HTTP HEAD
request.

And there are some other HTTP methods added in HTTP
1.1 , such as PUT, DELETE, OPTIONS, and TRACE.

Also client can send additional information about itself to
web server, such as browser type, operation system.

HTTP response



After receiving client’s request, web server will
respond. It includes web server HTTP version, HTTP
server status code for client’s request, and some
information about document, such as Content-Length,
Content-Type, Last-Modified date.

2. browser sends 3. server fetches web
1. user types or GET URL to page for URL
clicks URL server

4. server sends
web page data to
browser
5. browser
displays web
page*

internet



2.2 Example

import java.net.*;
import java.io.*;

class HttpClient1 {
public static void main(String[] args ) {
try {
Socket s = new Socket(quot;www.cs.cityu.edu.hkquot;, 80);
DataInputStream in = new
DataInputStream(s.getInputStream());
PrintStream out=new PrintStream(s.getOutputStream());
out.println(quot;HEAD /index.html HTTP/1.0quot;);
out.println();
String line;
System.out.println(quot;> quot;+line);
s.close();
} catch (Exception e) { System.out.println(e);}
}
}



2.3 URL: Uniform Resource Locator

 The URL standard defines a common way to refer to
any web page, anywhere on the web

 format: protocol://web_server_name/page_name

example: http://www.yahoo.com/index.html

 URLs are most commonly used in conjunction with
the HTTP protocol to GET a URL, or POST data to a
URL

 a URL can refer to many kinds of web page:
plain text, formatted text (usually in HTML…),
multimedia, database, ...

2.4 HTML: HypeText Markup Language

•Specific mark-up language used in the Web

•Many kinds of markups

–low-level appearance (font changes, lists)
–logical structure (title, headings)
–links to other documents
–embedded graphics
–meta-information (language)



–and much more...

 A simple HTML file

<HTML>
<HEAD>
<TITLE>
A HTML to test applet
</TITLE>
</HEAD>
<BODY>
<applet code=quot;HelloKitty2.classquot; Width=quot;80quot;
Height=quot;100quot;>
</applet>
</BODY>
</HTML>



3 Java URL class

Java provides URL class to make it much easier to deal
with HTTP connection. We don’t need to care about low
layer socket connection.

You can find detailed information about them on following
URL,
http://java.sun.com/j2se/1.4.2/docs/api/java/net/URL.html

3.1 URL

Constructor
URL(String spec)
Creates a URL object from the String representation.
URL(String protocol, String host, int port, String file)
Creates a URL object from the specified protocol, host, port number, and file.
URL(String protocol, String host, int port, String file, URLStreamHandler handler)
Creates a URL object from the specified protocol, host, port number, file, and handler.
URL(String protocol, String host, String file)
Creates a URL from the specified protocol name, host name, and file name.
URL(URL context, String spec)
Creates a URL by parsing the given spec within a specified context.
URL(URL context, String spec, URLStreamHandler handler)
Creates a URL by parsing the given spec with the specified handler wit in a specified
h
context.

Excetption
MalformedURLException
Thrown if you try to create a bogus URL
Usually means bad user input, so fail
gracefully and informatively



accessor methods

getProtocol(), getHost(), getPort(),
getFile(), getRef()

openConnection()

public URLConnection openConnection() throws
IOException
Returns a URLConnection object that
represents a connection to the remote
object referred to by the URL.
If there is not already an open
connection, the connection is opened by
calling the openConnection method of the
protocol handler for this URL.

OpenStream()
public final InputStream openStream() throws
IOException
Opens a connection to this URL and returns
an InputStream for reading from that
connection. This method is a shorthand for:
openConnection().getInputStream()

getContent
public final Object getContent() throws IOException
Returns the contents of this URL. This method is a shorthand for:
openConnection().getContent()



Example 1

import java.net.*;

public class UrlTest {
public static void main(String[] args) {
if (args.length == 1) {
try {
URL url = new URL(args[0]);
System.out.println
(quot;URL: quot; + url.toExternalForm() + quot;nquot; +
quot; File: quot; + url.getFile() + quot;nquot; +
quot; Host: quot; + url.getHost() + quot;nquot; +
quot; Port: quot; + url.getPort() + quot;nquot; +
quot; Protocol: quot; + url.getProtocol() + quot;nquot; +
quot; Reference: quot; + url.getRef());
} catch(MalformedURLException mue) {
System.out.println(quot;Bad URL.quot;);
}
} else
System.out.println(quot;Usage: UrlTest <URL>quot;);
}
}



Example 2 was given in Tutorial 1.
Using openStream()

Example 3 Using getContent()
import java.net.*;
import java.io.*;

public class UrlRetriever1 {
public static void main(String[] args) {
checkUsage(args);
try {
URL url=new URL(args[0]);

DataInputStream in= new
DataInputStream((InputStream)url.getContent());
String line;
System.out.println(line);
in.close();
} catch(MalformedURLException mue)
{ System.out.println(args[0]+quot;is an invalid URL:quot;+mue);
} catch(IOException ioe) {
System.out.println(quot;IOException: quot;+ioe);
}
}

private static void checkUsage(String[] args) {
if (args.length!=1) {
System.out.println(quot;Usage: UrlRetriever2 <URL>quot;);
System.exit(-1);
}
}
}



4 Exercises

 Implement a HTTP server (Simulated) using
ServerSocket.

 Using URL Class, write a http client to retrieve
http://www.cs.cityu.edu.hk/index.html, and return the
last modified date, Content-Length, Content-Type of this
web page.
