The document discusses the challenges of developing software for the Iridium satellite telephony system in the 1990s. Key challenges included building a huge distributed system with interacting components before modern frameworks existed, developing for new platforms with immature processes, and having to invent custom solutions due to lack of standard off-the-shelf components. The messaging subsystem had to provide high throughput, availability, and fault tolerance. The solution involved building custom high availability and fault tolerant architectures with hand-written components. Development also involved regularly testing compiler and source control limits, and re-inventing browsers and display frameworks for early mobile phones with very limited resources.

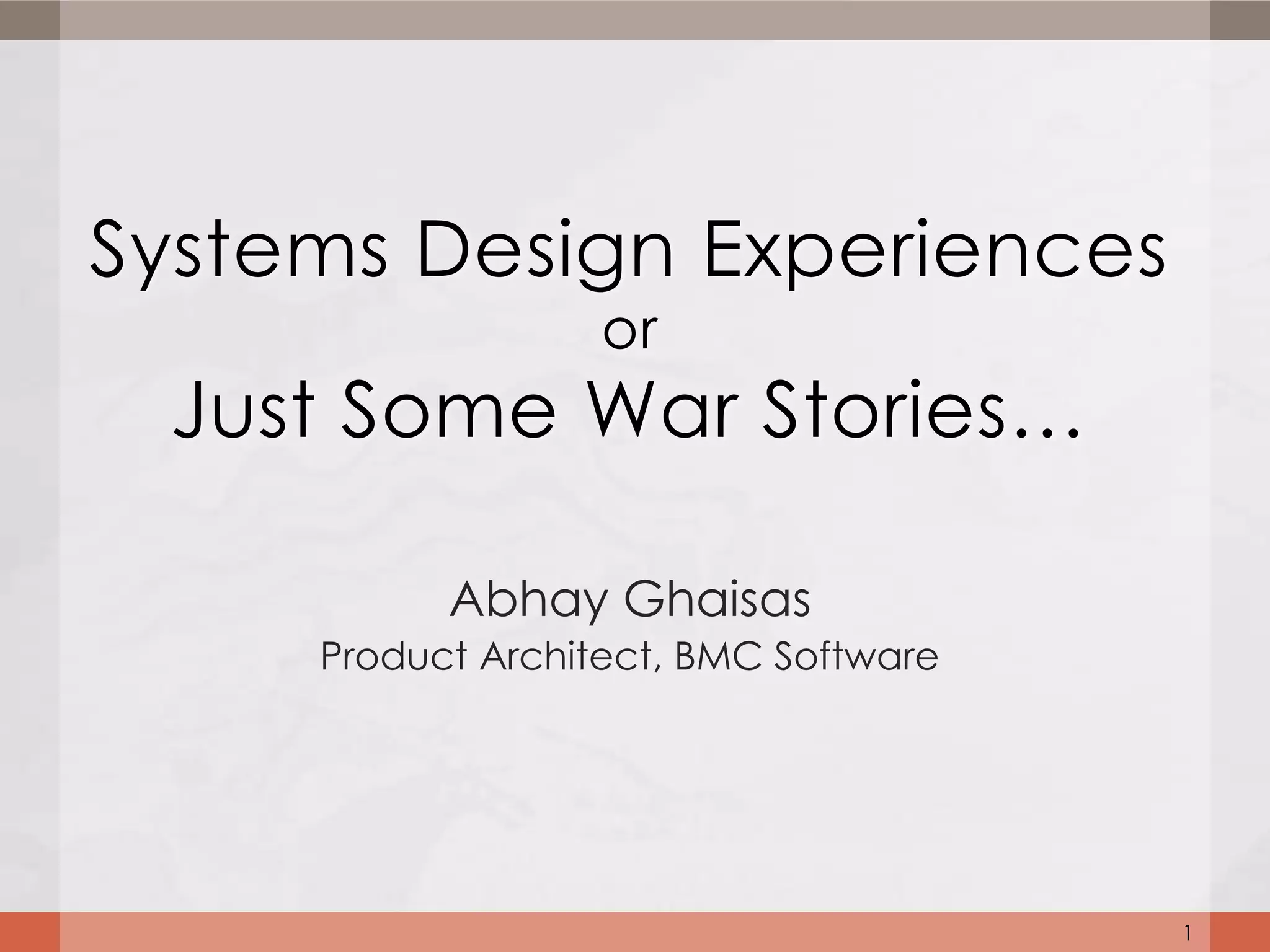

1. Systems Design Experiences
or
Just Some War Stories…
Abhay Ghaisas
Product Architect, BMC Software
1

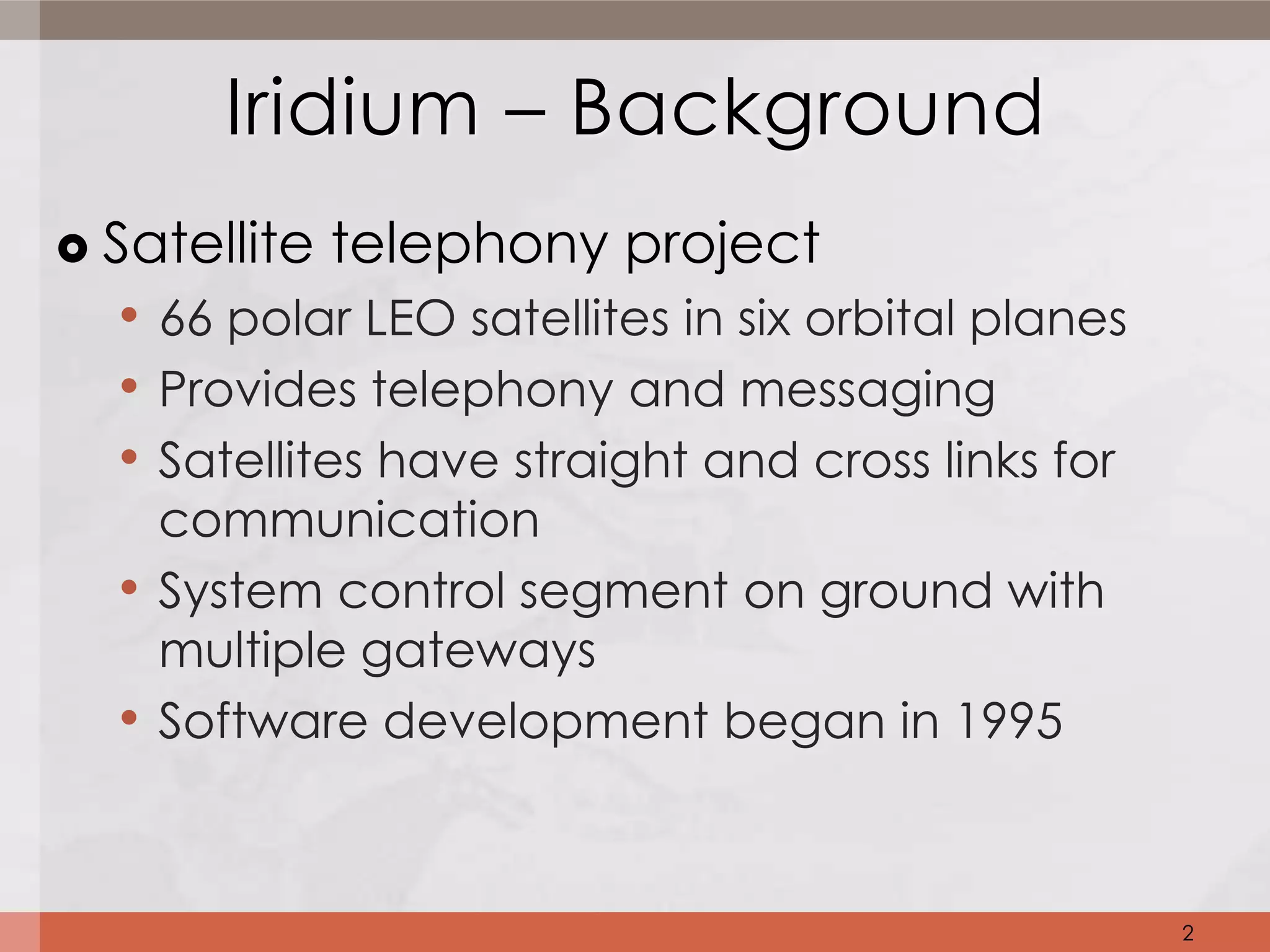

2. Iridium – Background
 Satellite telephony project
• 66 polar LEO satellites in six orbital planes
• Provides telephony and messaging
• Satellites have straight and cross links for
communication
• System control segment on ground with
multiple gateways
• Software development began in 1995
2

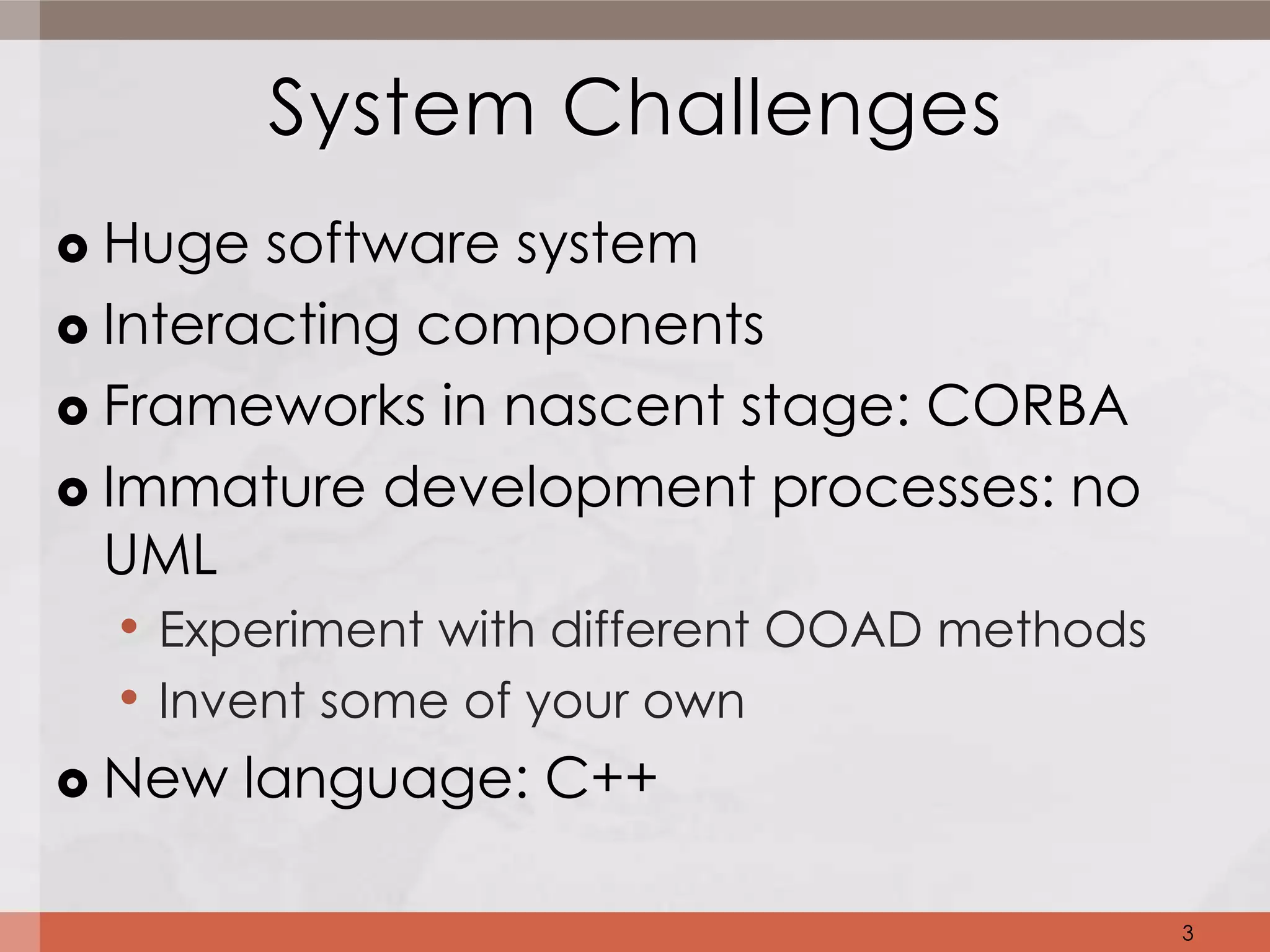

3. System Challenges
 Huge software system
 Interacting components
 Frameworks in nascent stage: CORBA
 Immature development processes: no
UML
• Experiment with different OOAD methods
• Invent some of your own
 New language: C++
3

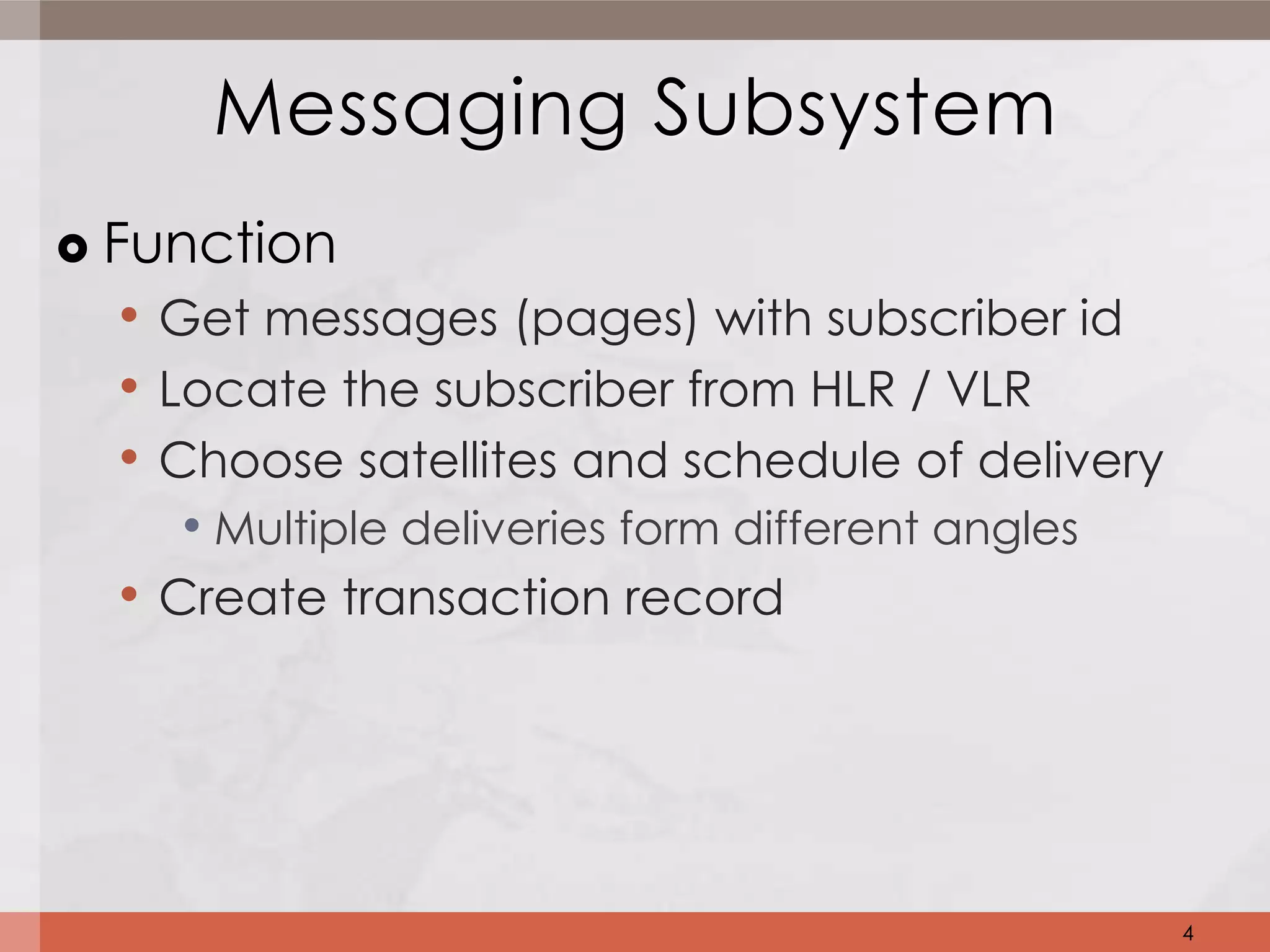

4. Messaging Subsystem
 Function
• Get messages (pages) with subscriber id
• Locate the subscriber from HLR / VLR
• Choose satellites and schedule of delivery
• Multiple deliveries form different angles
• Create transaction record
4

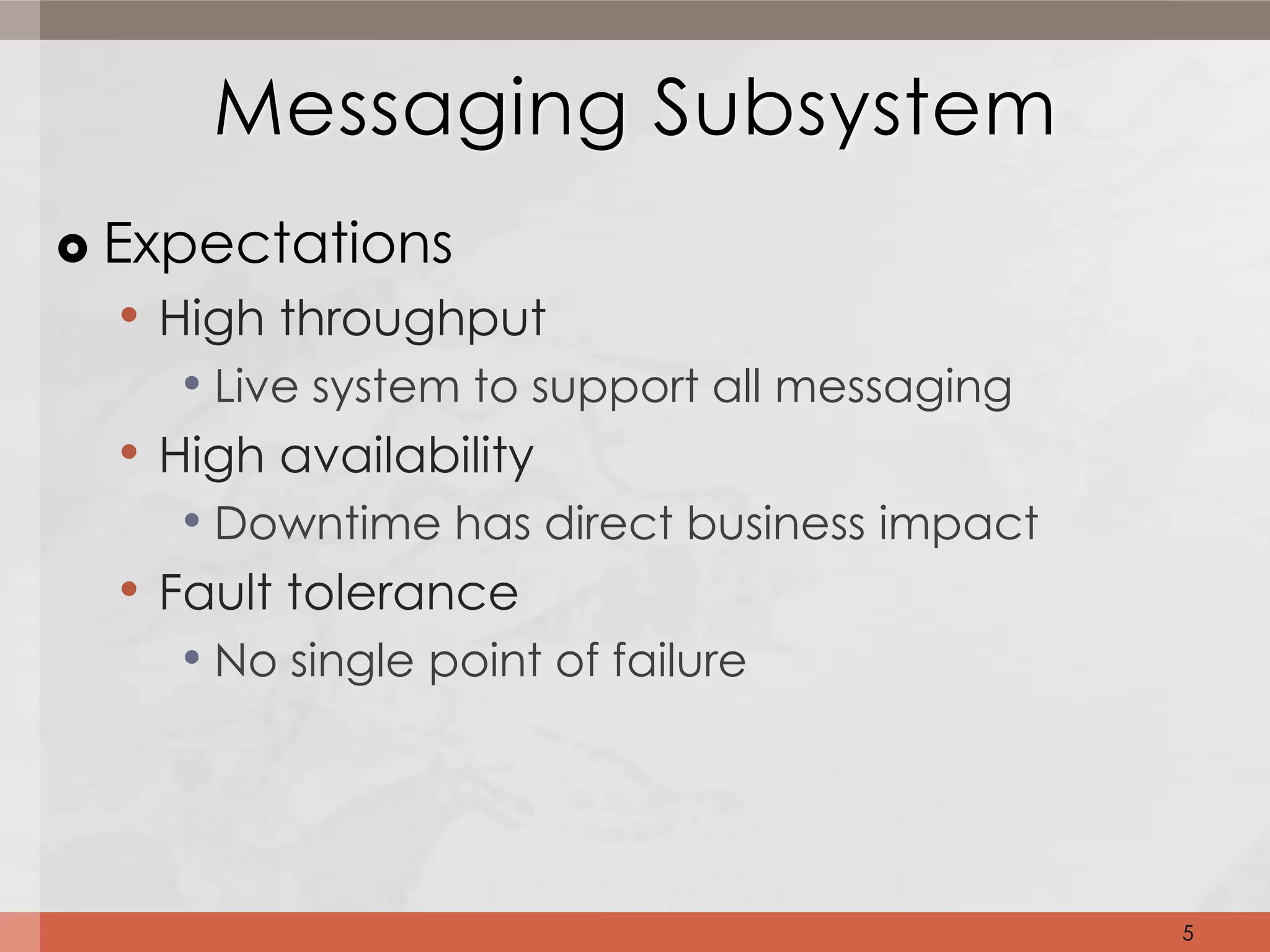

5. Messaging Subsystem
 Expectations
• High throughput
• Live system to support all messaging
• High availability
• Downtime has direct business impact
• Fault tolerance
• No single point of failure
5

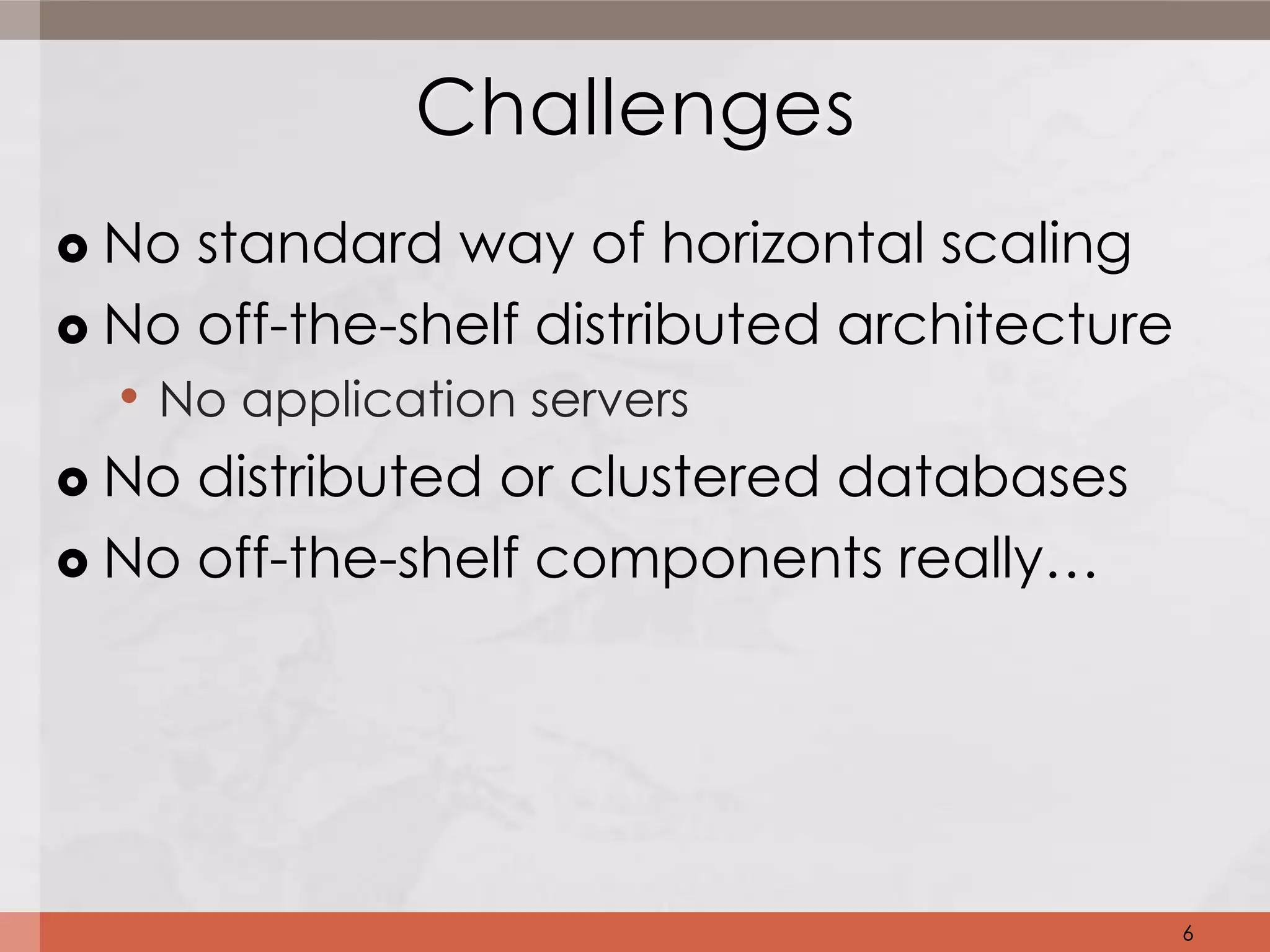

6. Challenges
 No standard way of horizontal scaling
 No off-the-shelf distributed architecture
• No application servers
 No distributed or clustered databases
 No off-the-shelf components really…
6

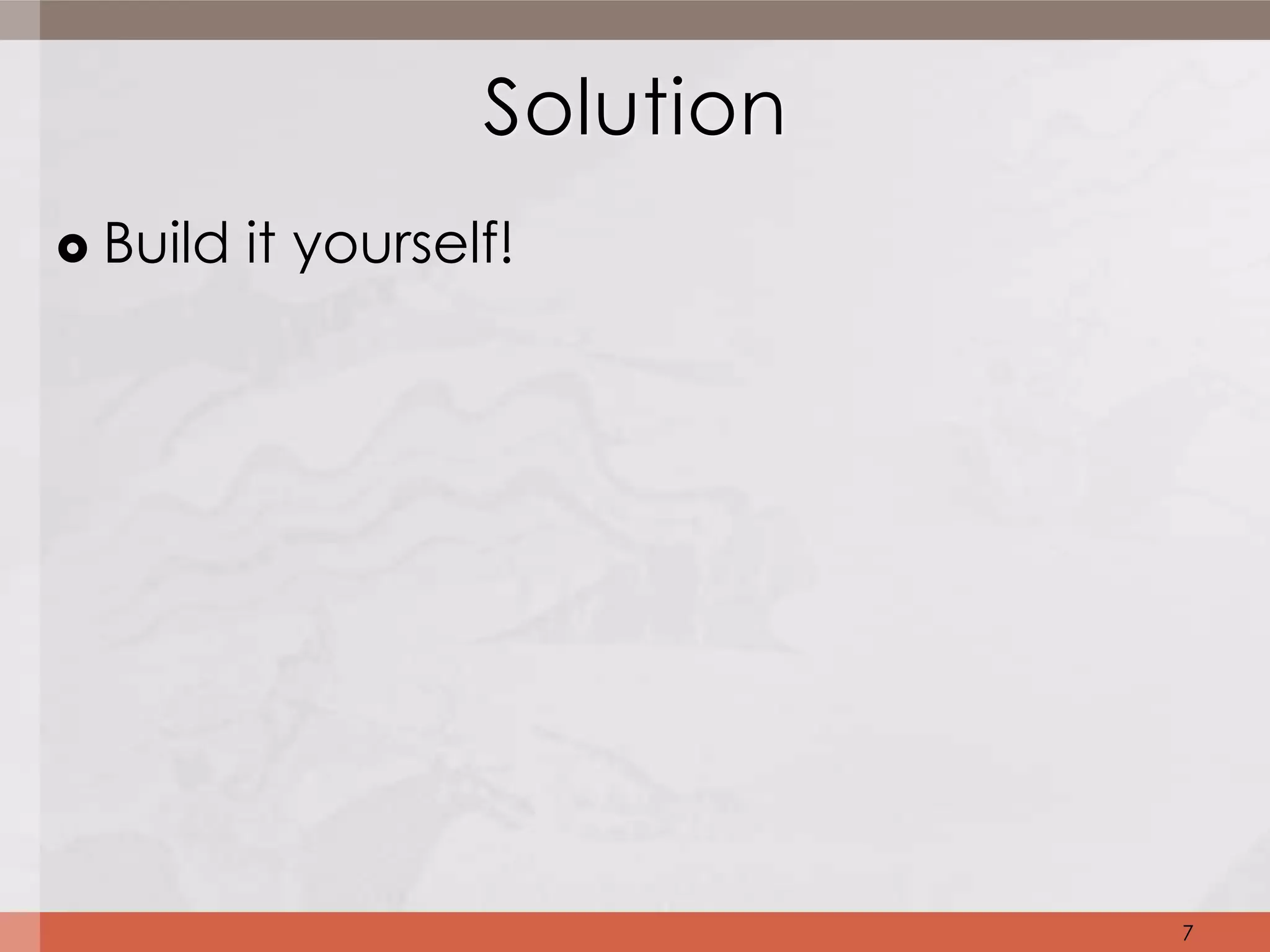

7. Solution
 Build it yourself!
7

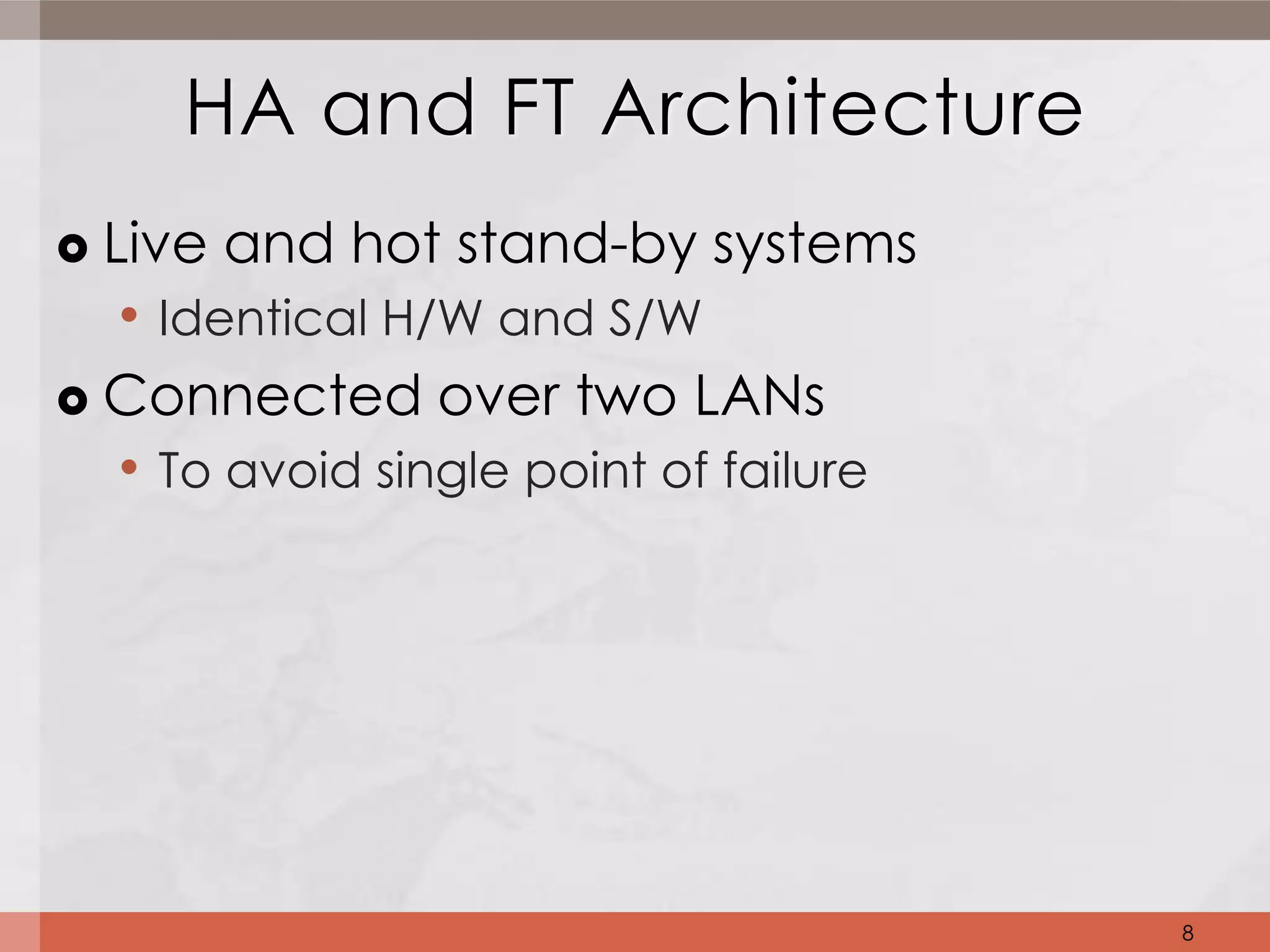

8. HA and FT Architecture
 Live and hot stand-by systems
• Identical H/W and S/W
 Connected over two LANs
• To avoid single point of failure
8

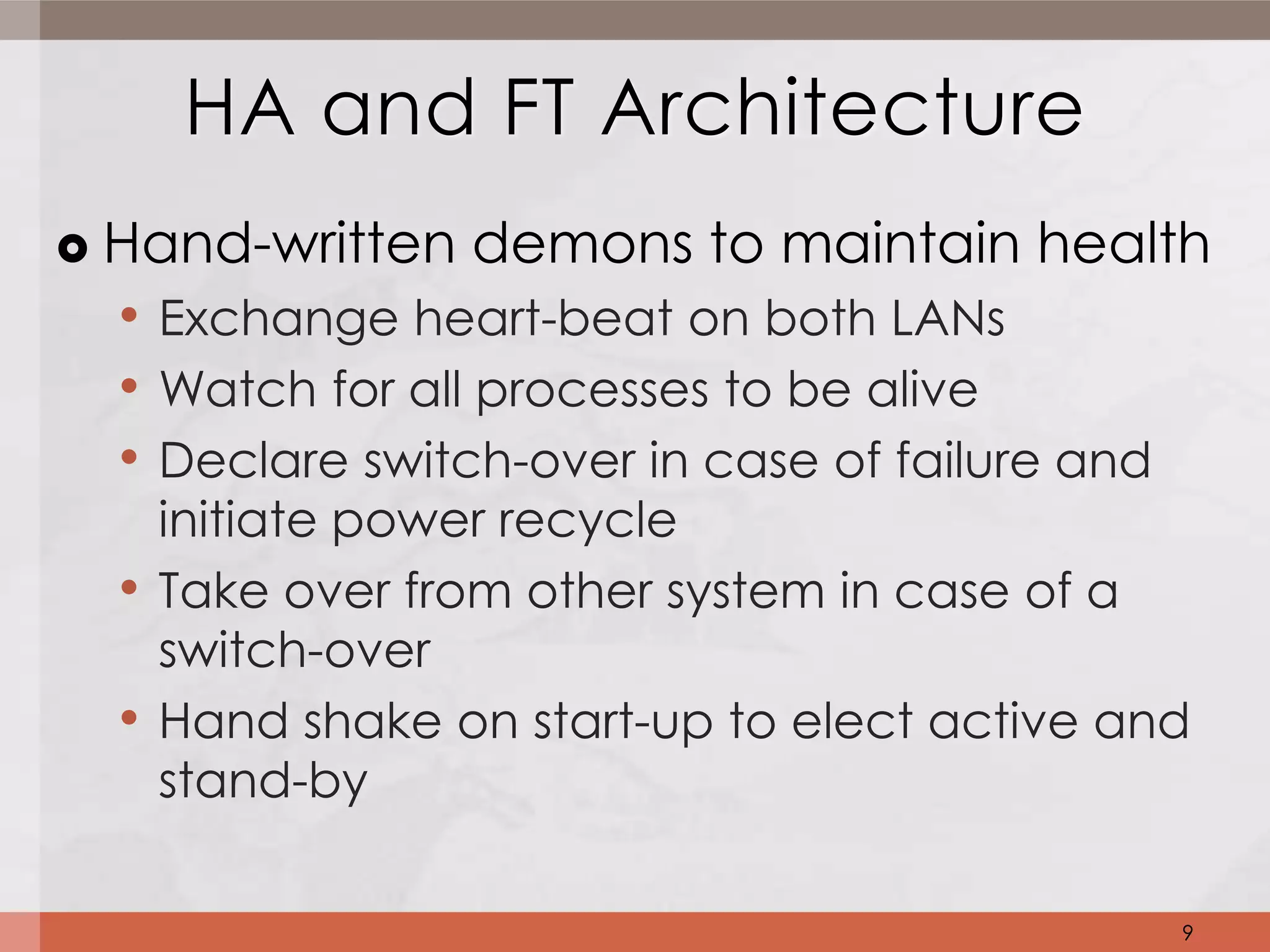

9. HA and FT Architecture
 Hand-written demons to maintain health
• Exchange heart-beat on both LANs
• Watch for all processes to be alive
• Declare switch-over in case of failure and
initiate power recycle
• Take over from other system in case of a
switch-over
• Hand shake on start-up to elect active and
stand-by
9

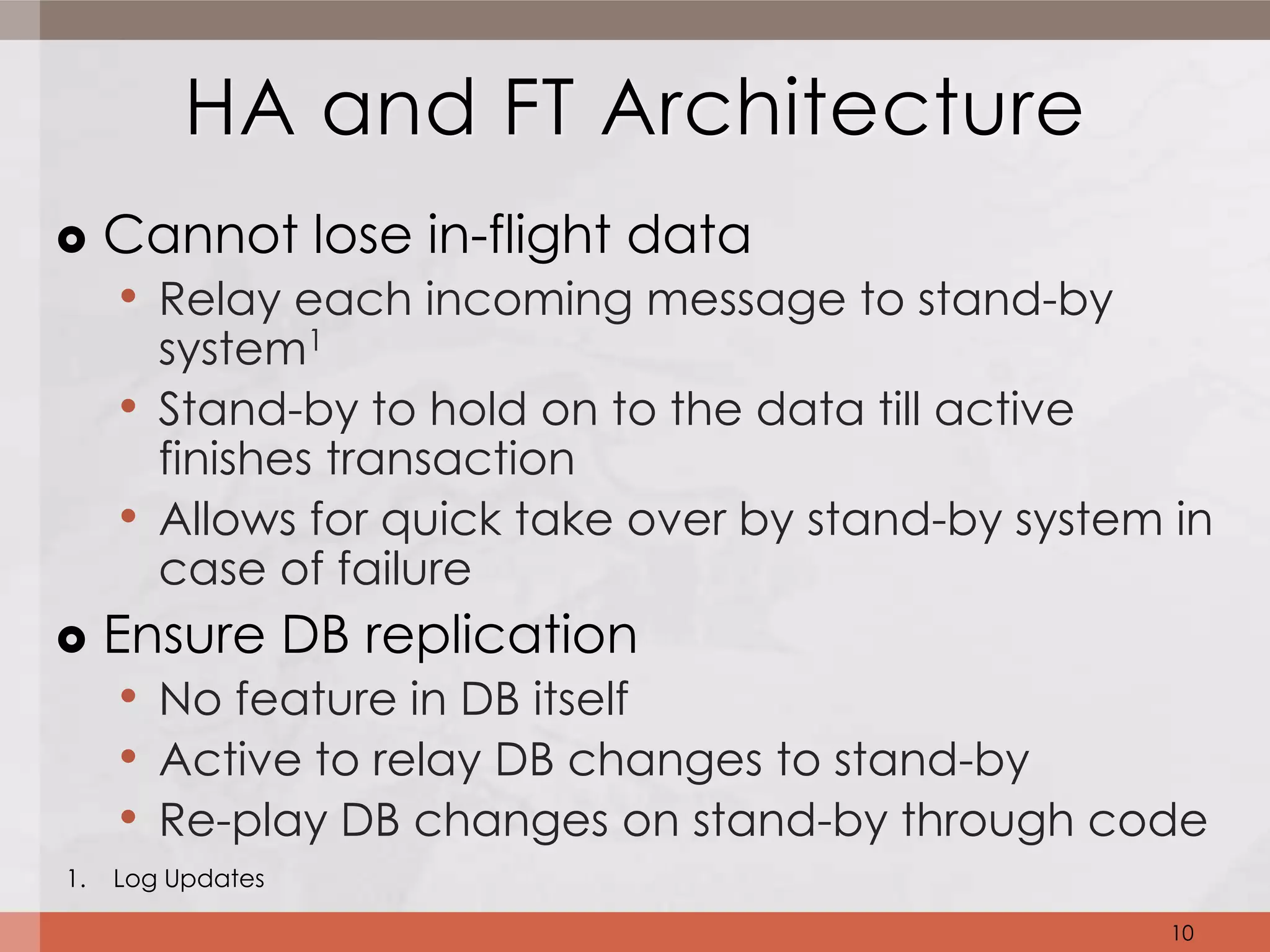

10. HA and FT Architecture
 Cannot lose in-flight data
• Relay each incoming message to stand-by
system1
• Stand-by to hold on to the data till active
finishes transaction
• Allows for quick take over by stand-by system in
case of failure
 Ensure DB replication
• No feature in DB itself
• Active to relay DB changes to stand-by
• Re-play DB changes on stand-by through code
1. Log Updates
10

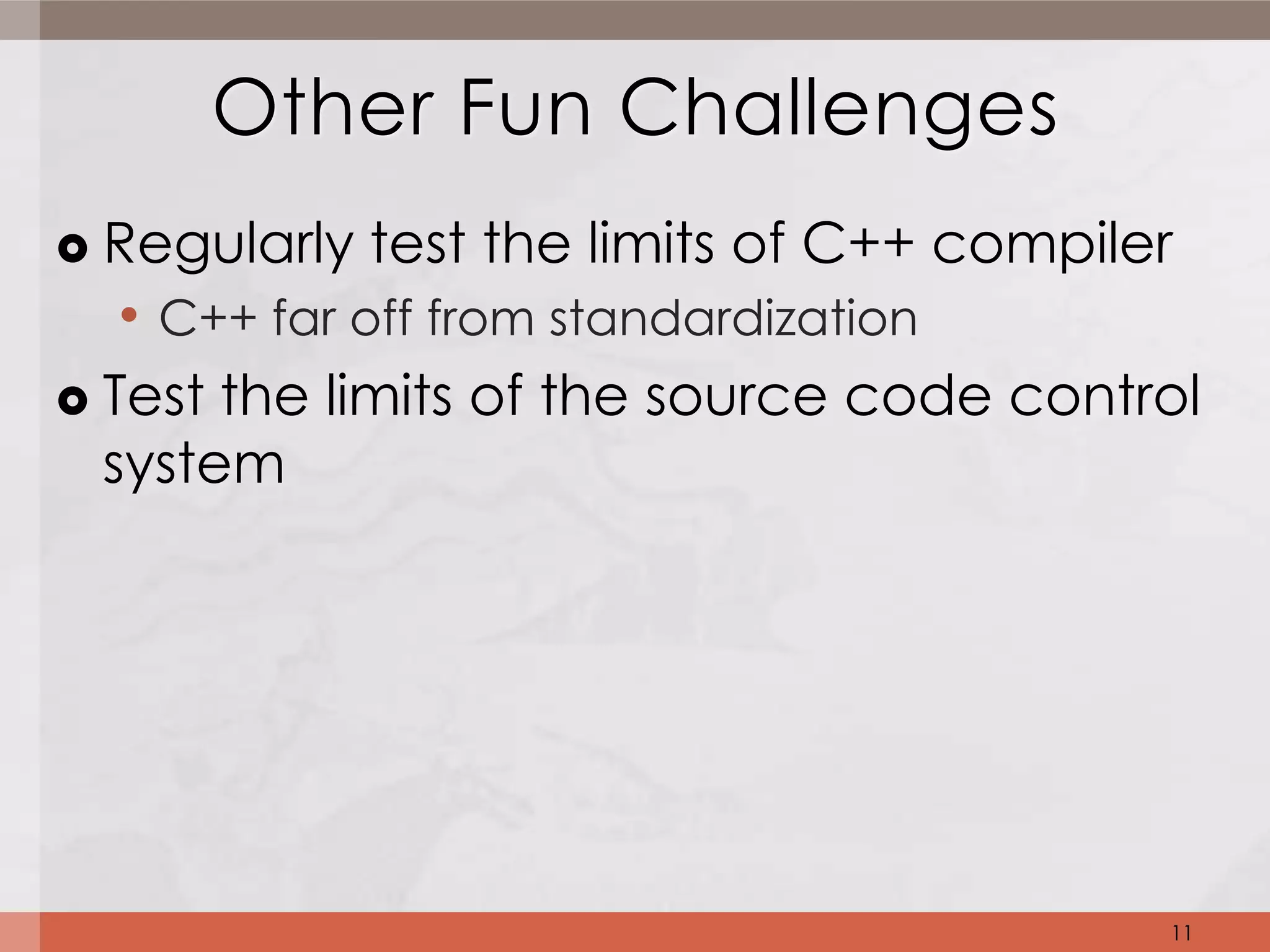

11. Other Fun Challenges
 Regularly test the limits of C++ compiler
• C++ far off from standardization
 Test the limits of the source code control
system
11

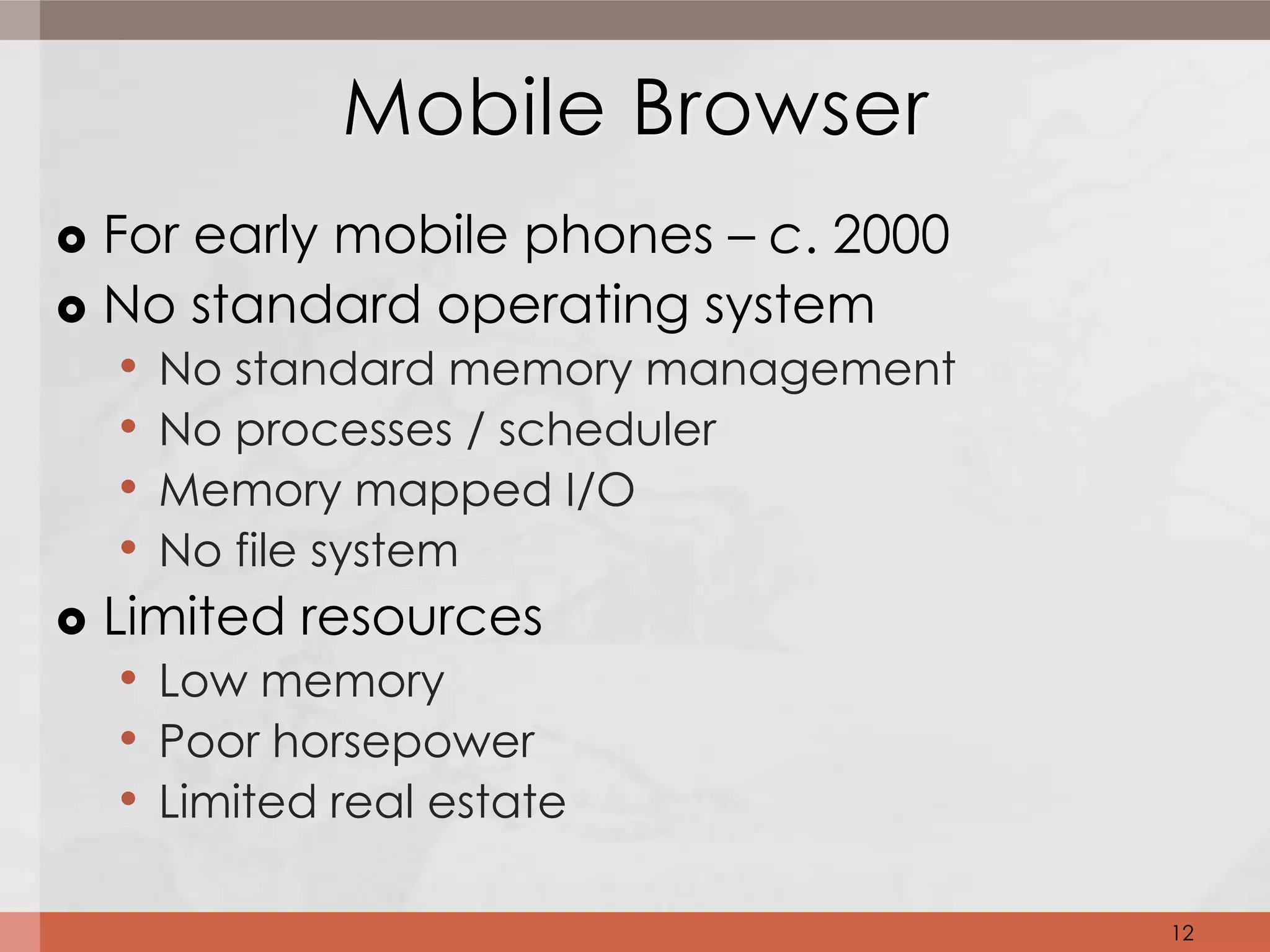

12. Mobile Browser
 For early mobile phones – c. 2000
 No standard operating system
• No standard memory management
• No processes / scheduler
• Memory mapped I/O
• No file system
 Limited resources
• Low memory
• Poor horsepower
• Limited real estate
12

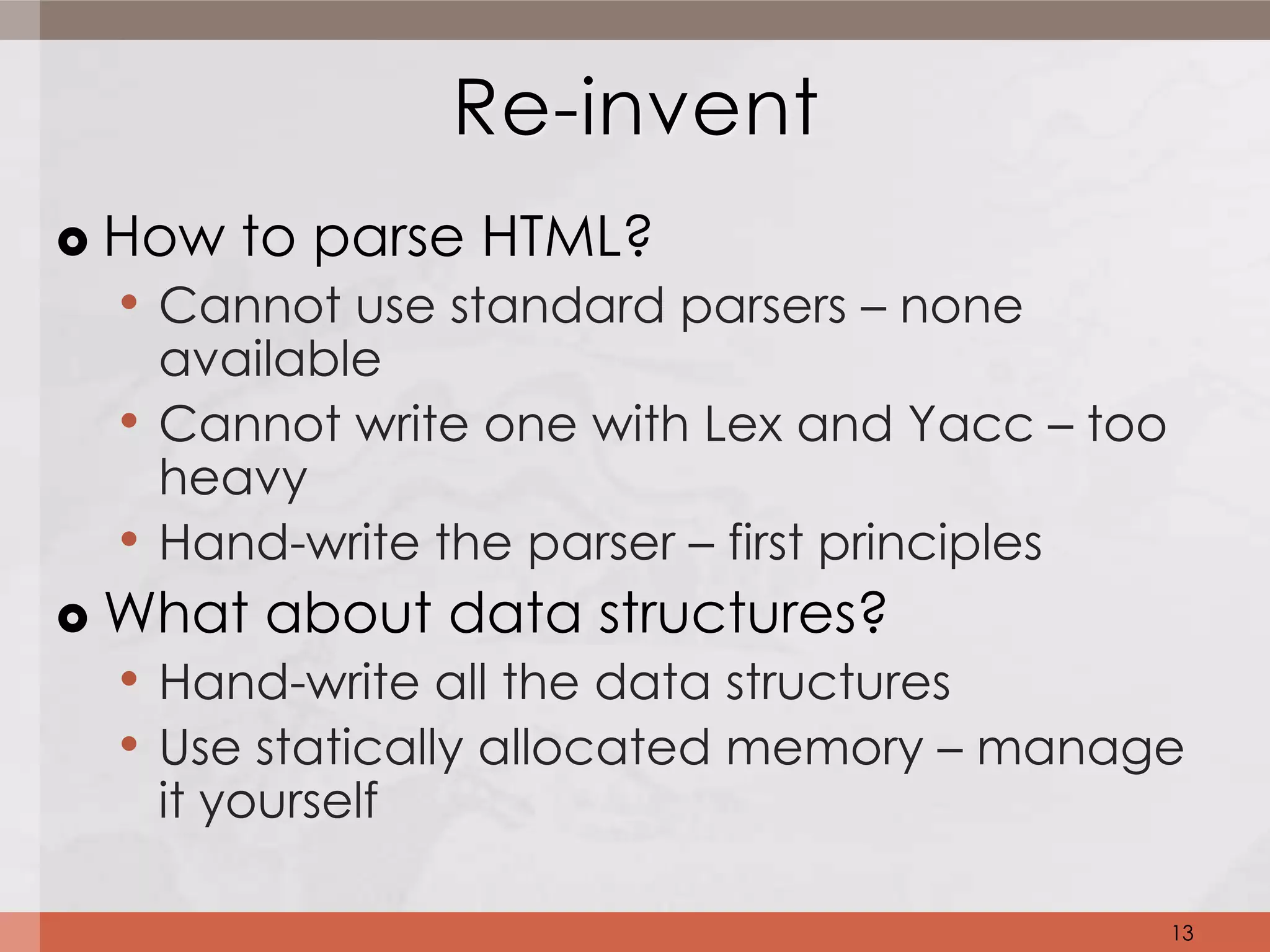

13. Re-invent
 How to parse HTML?
• Cannot use standard parsers – none
available
• Cannot write one with Lex and Yacc – too
heavy
• Hand-write the parser – first principles
 What about data structures?
• Hand-write all the data structures
• Use statically allocated memory – manage
it yourself
13

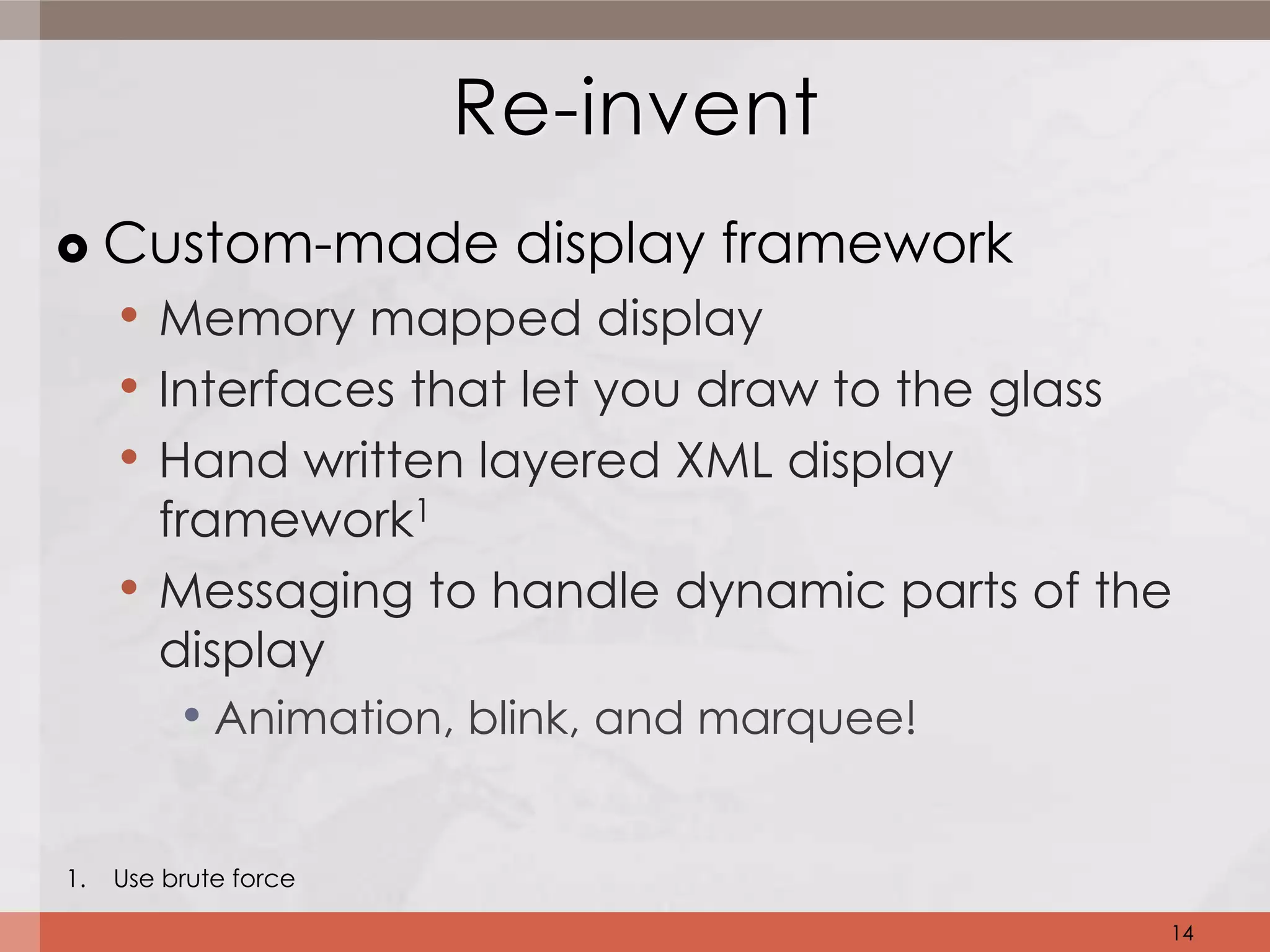

14. Re-invent
 Custom-made display framework
• Memory mapped display
• Interfaces that let you draw to the glass
• Hand written layered XML display
framework1
• Messaging to handle dynamic parts of the
display
• Animation, blink, and marquee!
1. Use brute force
14

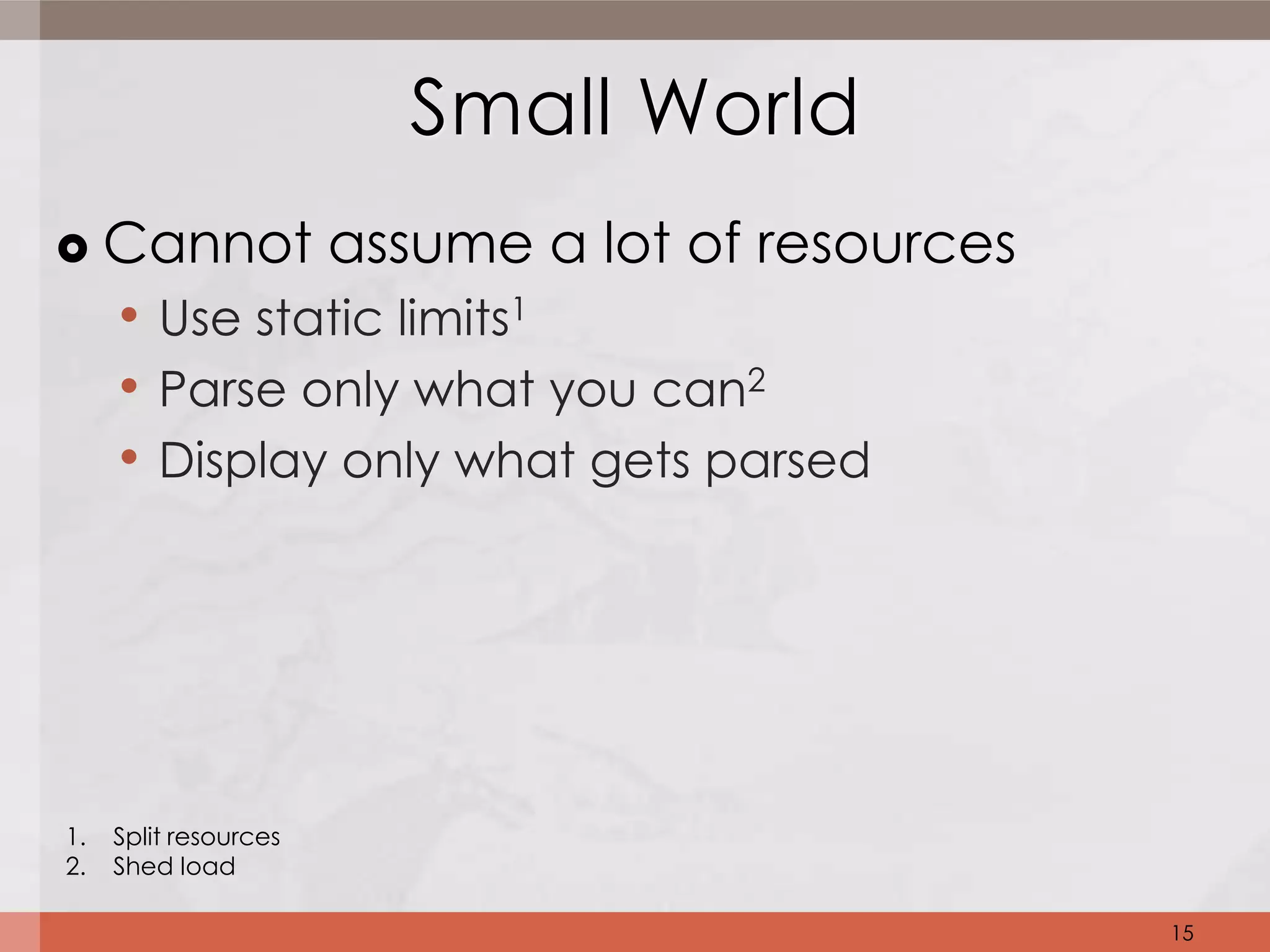

15. Small World
 Cannot assume a lot of resources
• Use static limits1
• Parse only what you can2
• Display only what gets parsed
1. Split resources
2. Shed load
15

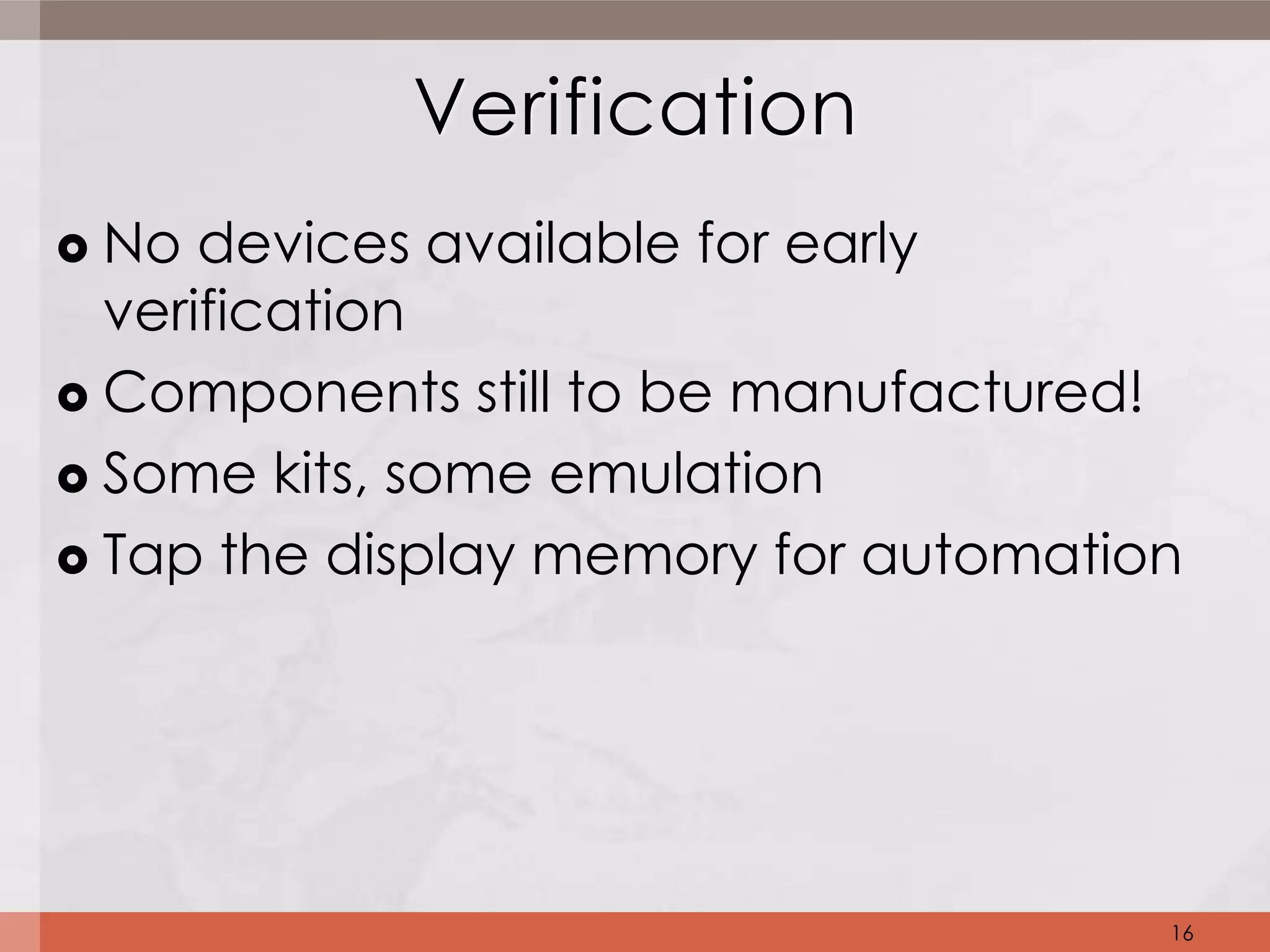

16. Verification
 No devices available for early
verification
 Components still to be manufactured!
 Some kits, some emulation
 Tap the display memory for automation
16
