1. System design considerations
optical communication
Mr.S.Tamilselvan

2. Components of Optical
Communication Systems
Optical Fiber:
The choice of optical fiber is a fundamental
consideration.
Single-mode fibers are preferred for long-distance
communication due to lower dispersion and attenuation.
Multi-mode fibers may be used for shorter distances but
have limitations in terms of data rate and distance.

3. Components of Optical
Communication Systems

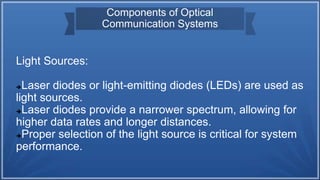

Light Sources:
Laser diodes or light-emitting diodes (LEDs) are used as
light sources.
Laser diodes provide a narrower spectrum, allowing for
higher data rates and longer distances.
Proper selection of the light source is critical for system
performance.

4. Components of Optical
Communication Systems

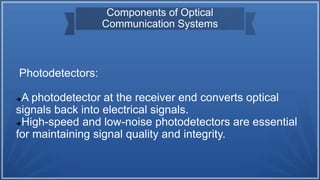

Photodetectors:
A photodetector at the receiver end converts optical
signals back into electrical signals.
High-speed and low-noise photodetectors are essential
for maintaining signal quality and integrity.

5. Components of Optical
Communication Systems
Connectors and Splices:
The quality of connectors and splices affects signal loss.
Proper alignment and cleanliness are essential to
minimize signal degradation.

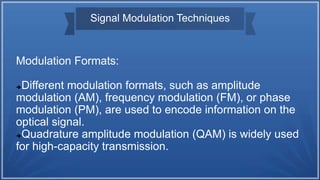

6. Signal Modulation Techniques
Modulation Formats:
Different modulation formats, such as amplitude
modulation (AM), frequency modulation (FM), or phase
modulation (PM), are used to encode information on the
optical signal.
Quadrature amplitude modulation (QAM) is widely used
for high-capacity transmission.

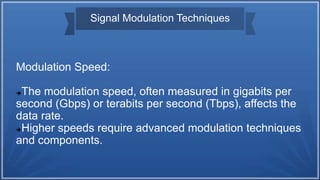

7. Signal Modulation Techniques
Modulation Speed:
The modulation speed, often measured in gigabits per
second (Gbps) or terabits per second (Tbps), affects the
data rate.
Higher speeds require advanced modulation techniques
and components.

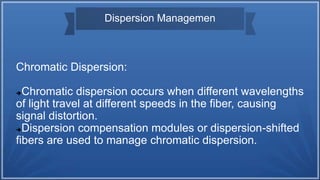

8. Dispersion Managemen
Chromatic Dispersion:
Chromatic dispersion occurs when different wavelengths
of light travel at different speeds in the fiber, causing
signal distortion.
Dispersion compensation modules or dispersion-shifted
fibers are used to manage chromatic dispersion.

9. Dispersion Managemen
Polarization Mode Dispersion (PMD):
PMD can cause signal degradation due to polarization
variations in the fiber.
Specialized fibers and polarization controllers are
employed to mitigate PMD effects.

10. Network Architecture
Point-to-Point vs. Wavelength-Division Multiplexing
(WDM):
Optical networks can be point-to-point or use WDM to
transmit multiple wavelengths on a single fiber.
WDM increases network capacity significantly and is
commonly used in long-haul communication.

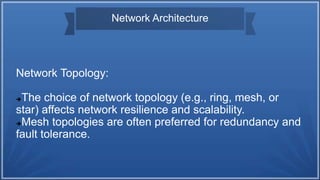

11. Network Architecture
Network Topology:
The choice of network topology (e.g., ring, mesh, or
star) affects network resilience and scalability.
Mesh topologies are often preferred for redundancy and
fault tolerance.

12. Network Architecture
Network Management and Monitoring:
Real-time monitoring and management tools are
essential for detecting and addressing network issues
promptly.
Optical performance monitoring and fault localization
systems are crucial for maintaining network reliability.
