This document discusses key components and design considerations for optical communication systems, including: - Single-mode optical fibers are preferred for long distances due to lower dispersion and attenuation. - Laser diodes are commonly used as light sources due to their ability to provide high data rates over long distances. - Modulation formats like QAM are widely used to encode information at high capacities. - Dispersion compensation and specialized fibers are needed to manage chromatic and polarization mode dispersion effects. - WDM and mesh network topologies increase capacity and resilience relative to point-to-point and ring architectures.

1. System design considerations
optical communication
Ms.P.Monisha

2. Components of Optical Communication
Systems

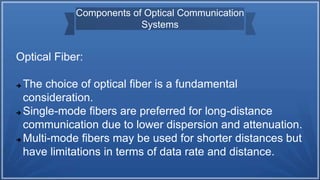

Optical Fiber:
 The choice of optical fiber is a fundamental
consideration.
 Single-mode fibers are preferred for long-distance
communication due to lower dispersion and attenuation.
 Multi-mode fibers may be used for shorter distances but
have limitations in terms of data rate and distance.

3. Components of Optical Communication
Systems

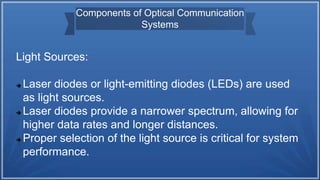

Light Sources:
 Laser diodes or light-emitting diodes (LEDs) are used
as light sources.
 Laser diodes provide a narrower spectrum, allowing for
higher data rates and longer distances.
 Proper selection of the light source is critical for system
performance.

4. Components of Optical Communication
Systems

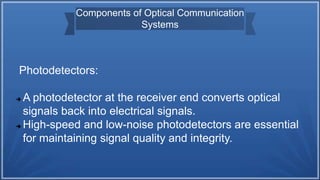

Photodetectors:
 A photodetector at the receiver end converts optical
signals back into electrical signals.
 High-speed and low-noise photodetectors are essential
for maintaining signal quality and integrity.

5. Components of Optical Communication
Systems

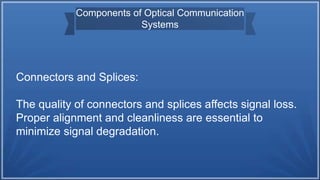

Connectors and Splices:
The quality of connectors and splices affects signal loss.
Proper alignment and cleanliness are essential to
minimize signal degradation.

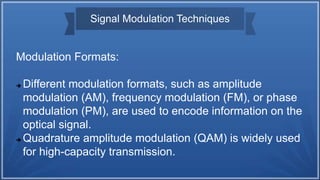

6. Signal Modulation Techniques
Modulation Formats:
 Different modulation formats, such as amplitude
modulation (AM), frequency modulation (FM), or phase
modulation (PM), are used to encode information on the
optical signal.
 Quadrature amplitude modulation (QAM) is widely used
for high-capacity transmission.

7. Signal Modulation Techniques

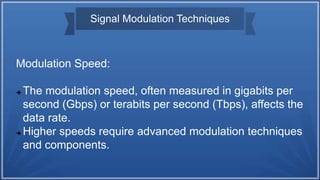

Modulation Speed:
 The modulation speed, often measured in gigabits per
second (Gbps) or terabits per second (Tbps), affects the
data rate.
 Higher speeds require advanced modulation techniques
and components.

8. Dispersion Managemen
Chromatic Dispersion:
 Chromatic dispersion occurs when different
wavelengths of light travel at different speeds in the
fiber, causing signal distortion.
 Dispersion compensation modules or dispersion-shifted
fibers are used to manage chromatic dispersion.

9. Dispersion Managemen

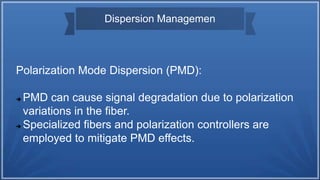

Polarization Mode Dispersion (PMD):
 PMD can cause signal degradation due to polarization
variations in the fiber.
 Specialized fibers and polarization controllers are
employed to mitigate PMD effects.

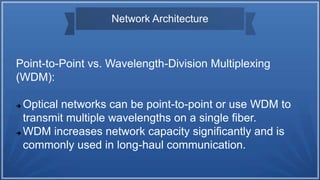

10. Network Architecture
Point-to-Point vs. Wavelength-Division Multiplexing
(WDM):
 Optical networks can be point-to-point or use WDM to
transmit multiple wavelengths on a single fiber.
 WDM increases network capacity significantly and is
commonly used in long-haul communication.

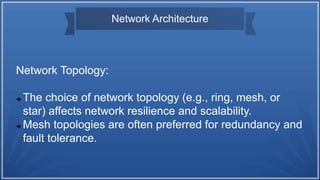

11. Network Architecture
Network Topology:
 The choice of network topology (e.g., ring, mesh, or
star) affects network resilience and scalability.
 Mesh topologies are often preferred for redundancy and
fault tolerance.

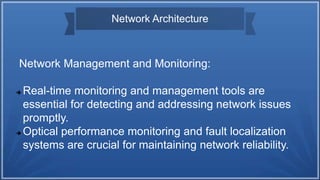

12. Network Architecture
Network Management and Monitoring:
 Real-time monitoring and management tools are
essential for detecting and addressing network issues
promptly.
 Optical performance monitoring and fault localization
systems are crucial for maintaining network reliability.
