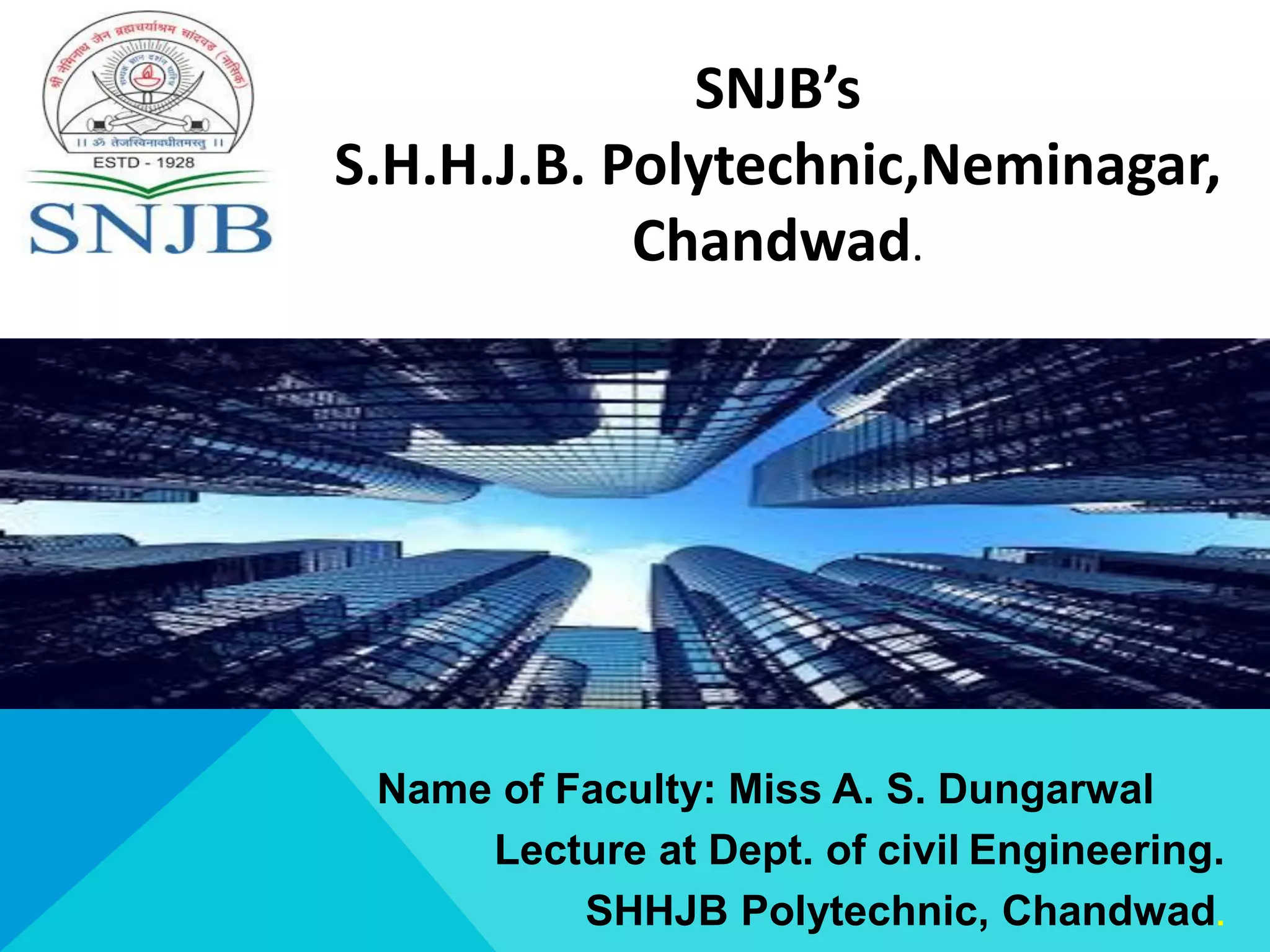

1. SNJB’s
S.H.H.J.B. Polytechnic,Neminagar,
Chandwad.
Name of Faculty: Miss A. S. Dungarwal
Lecture at Dept. of civil Engineering.
SHHJB Polytechnic, Chandwad.

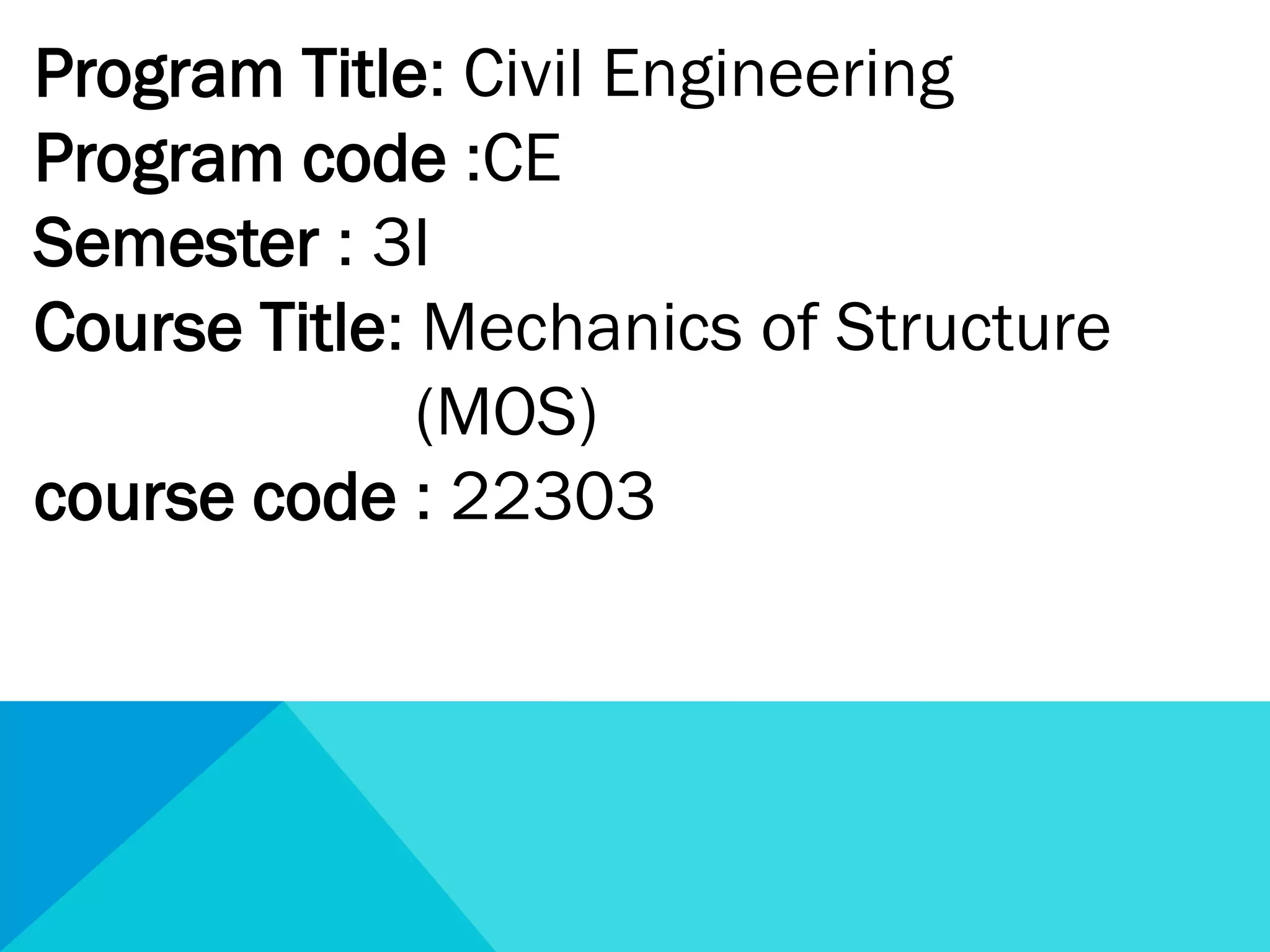

2. Program Title: Civil Engineering
Program code :CE
Semester : 3I
Course Title: Mechanics of Structure
(MOS)
course code : 22303

3. RATIONALE
• Design and analysis of structure and its components,
needs the basic understanding and application of
mechanical properties of material and their behavior
under different loading and stress conditions.
• Concepts and principles of structural analysis shall be well
understood by students, which is important for design of
reinforced cement concrete and steel structures and the
same has been covered in this course.
• Analysis of determinate structure under action of
transverse loading along with analysis of members under
direct loading will also be studied in this course .
Continue…

4. • The approach of teaching the course shall focus on
development of students analytical and critical
thinking while solving structural problems.
• The experiments expected to be conducted in
laboratory will integrate knowledge and required skills
as regards the structural behavior of components and
material.

5. COMPETENCY
 Analyze Structural components using different methods.

6. TEACHING AND EXAMINATION SCHEME
Teaching Scheme
Credit
(L+T+P)
Paper
Hours
L T P
7 3
3 2 2
THEORY
TOTAL
PRACTICAL
TOTAL
ESE PA ESE PA
70 30 100 25 25 50
Progressive
Assessment
Test I
Progressive
Assessment
Test II
Average of
1 &2 (3)
Micro-
Project (4)
TOTAL
Marks
(3+4)
20 20 20 10 30

7. COURSE OUTCOMES (COS)
a. Articulate practical applications of moment of inertia of
symmetrical and unsymmetrical structural sections
b. Interpret structural behavior of material under various loading
conditions.
c. Select material considering engineering properties for various
structural applications
d. Interpret shear force and bending moment diagrams for various
types of beams and loading conditions.
e. Determine the bending and shear stresses in beam under different
loading conditions.
f. Check the column safety for various loading and end conditions.

8. THEORY COMPONENTS
Unit
no.
Unit Title Teachin
g Hours
Total
Marks
I Moment of Inertia 08 10
II Simple Stress and strain 10 14
III Elastic constant 06 08
IV Shear force and bending moment 12 18
V Bending and shear stresses in beam 08 14
VI columns 04 06
Total 48 70

9. MICRO-PROJECT TOPIC
a) Collect the IS Related to methods of testing and specifications
for five materials used in actual practice.
b) Select 10 material from day to day life and compare their
mechanical properties and present it in a format of report.
c) Prepare prototype model of various types of support ,beams,
and loading.
d) Prepare a report about beam sections subjected to bending and
shear stresses from actual field/design office along with
photographs and its justification.
e) Collect photographs along with justification about failure of
short and long columns from actual field situations.

10. LEARNING RESOURCES
Sr.
No.
Title of Book Author
1 Strength of material Timeshenko.s
2 Strength of material Khurmi R.S.
3 Strength of material Ramamurtham S.
4 Strength of material Punmia B. C.
5 Strength of material Rattan S.S.
