C.PRADIPA
M.Sc (Agrl. Meteorology)

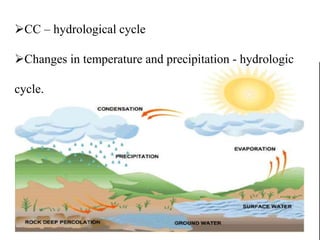

CC – hydrological cycle
Changes in temperature and precipitation - hydrologic
cycle.

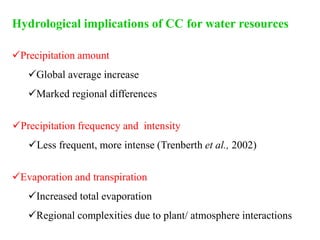

Hydrological implications of CC for water resources
Precipitation amount
Global average increase
Marked regional differences
Precipitation frequency and intensity
Less frequent, more intense (Trenberth et al., 2002)
Evaporation and transpiration
Increased total evaporation
Regional complexities due to plant/ atmosphere interactions

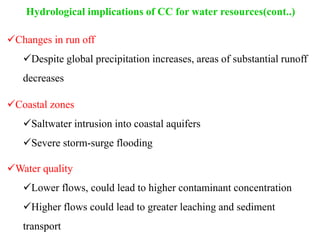

Hydrological implications of CC for water resources(cont..)
Changes in run off
Despite global precipitation increases, areas of substantial runoff
decreases
Coastal zones
Saltwater intrusion into coastal aquifers
Severe storm-surge flooding
Water quality
Lower flows, could lead to higher contaminant concentration
Higher flows could lead to greater leaching and sediment
transport

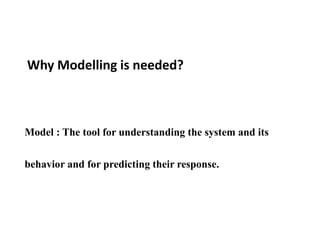

Why Modelling is needed?
Model : The tool for understanding the system and its
behavior and for predicting their response.

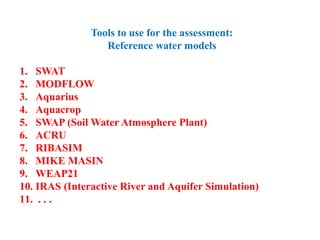

Tools to use for the assessment:
Reference water models
1. SWAT
2. MODFLOW
3. Aquarius
4. Aquacrop
5. SWAP (Soil Water Atmosphere Plant)
6. ACRU
7. RIBASIM
8. MIKE MASIN
9. WEAP21
10. IRAS (Interactive River and Aquifer Simulation)
11. . . .

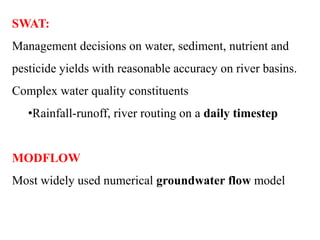

SWAT:
Management decisions on water, sediment, nutrient and
pesticide yields with reasonable accuracy on river basins.
Complex water quality constituents
•Rainfall-runoff, river routing on a daily timestep
MODFLOW
Most widely used numerical groundwater flow model

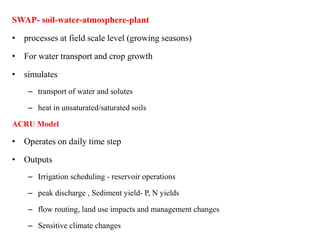

SWAP- soil-water-atmosphere-plant
• processes at field scale level (growing seasons)
• For water transport and crop growth
• simulates
– transport of water and solutes
– heat in unsaturated/saturated soils
ACRU Model
• Operates on daily time step
• Outputs
– Irrigation scheduling - reservoir operations
– peak discharge , Sediment yield- P, N yields
– flow routing, land use impacts and management changes
– Sensitive climate changes

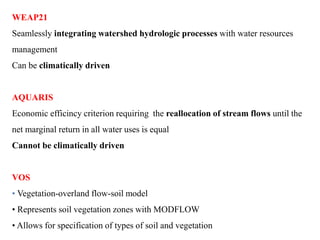

WEAP21
Seamlessly integrating watershed hydrologic processes with water resources
management
Can be climatically driven
AQUARIS
Economic efficincy criterion requiring the reallocation of stream flows until the
net marginal return in all water uses is equal
Cannot be climatically driven
VOS
• Vegetation-overland flow-soil model
• Represents soil vegetation zones with MODFLOW
• Allows for specification of types of soil and vegetation

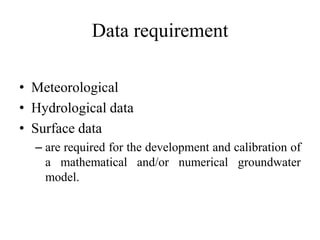

Data requirement
• Meteorological
• Hydrological data
• Surface data
– are required for the development and calibration of
a mathematical and/or numerical groundwater
model.

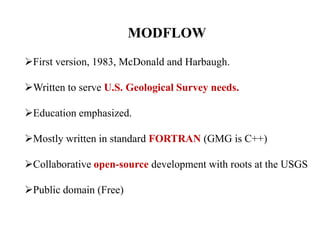

MODFLOW
First version, 1983, McDonald and Harbaugh.
Written to serve U.S. Geological Survey needs.
Education emphasized.
Mostly written in standard FORTRAN (GMG is C++)
Collaborative open-source development with roots at the USGS
Public domain (Free)

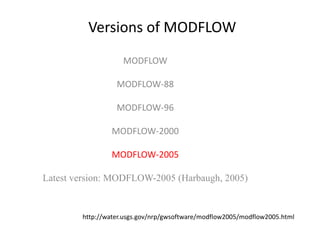

Versions of MODFLOW
MODFLOW
MODFLOW-88
MODFLOW-96
MODFLOW-2000
MODFLOW-2005
Latest version: MODFLOW-2005 (Harbaugh, 2005)
http://water.usgs.gov/nrp/gwsoftware/modflow2005/modflow2005.html

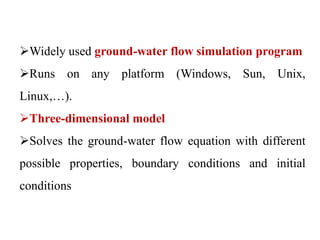

Widely used ground-water flow simulation program
Runs on any platform (Windows, Sun, Unix,
Linux,…).
Three-dimensional model
Solves the ground-water flow equation with different
possible properties, boundary conditions and initial
conditions

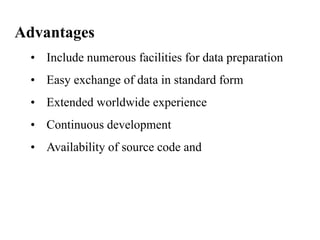

Advantages
• Include numerous facilities for data preparation
• Easy exchange of data in standard form
• Extended worldwide experience
• Continuous development
• Availability of source code and
Disadvantages:
• Surface runoff and unsaturated flow are not included,
• Hence in case of transient problems, MODFLOW can not be
applied if the flux at the groundwater table depends on the
calculated head and the function is not known in advance.
Land surface elevation is not used in MODFLOW,
except in the ET package.

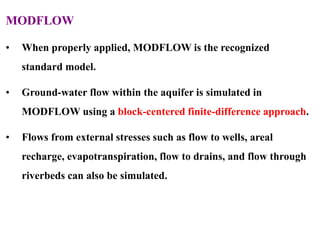

MODFLOW
• When properly applied, MODFLOW is the recognized
standard model.
• Ground-water flow within the aquifer is simulated in
MODFLOW using a block-centered finite-difference approach.
• Flows from external stresses such as flow to wells, areal
recharge, evapotranspiration, flow to drains, and flow through
riverbeds can also be simulated.

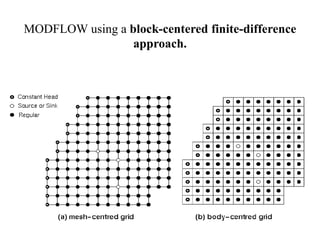

MODFLOW using a block-centered finite-difference
approach.

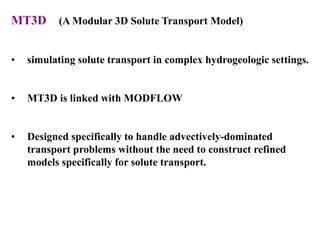

MT3D (A Modular 3D Solute Transport Model)
• simulating solute transport in complex hydrogeologic settings.
• MT3D is linked with MODFLOW
• Designed specifically to handle advectively-dominated
transport problems without the need to construct refined
models specifically for solute transport.

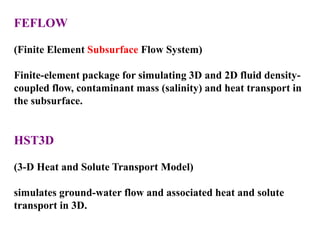

FEFLOW
(Finite Element Subsurface Flow System)
Finite-element package for simulating 3D and 2D fluid density-
coupled flow, contaminant mass (salinity) and heat transport in
the subsurface.
HST3D
(3-D Heat and Solute Transport Model)
simulates ground-water flow and associated heat and solute
transport in 3D.

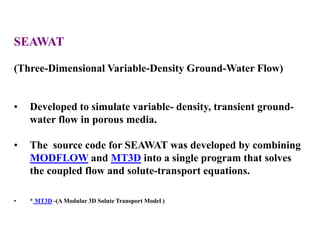

SEAWAT
(Three-Dimensional Variable-Density Ground-Water Flow)
• Developed to simulate variable- density, transient ground-
water flow in porous media.
• The source code for SEAWAT was developed by combining
MODFLOW and MT3D into a single program that solves
the coupled flow and solute-transport equations.
• * MT3D -(A Modular 3D Solute Transport Model )

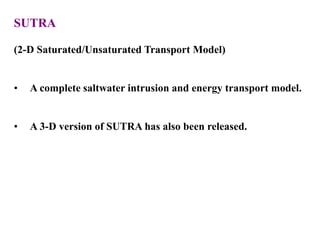

SUTRA
(2-D Saturated/Unsaturated Transport Model)
• A complete saltwater intrusion and energy transport model.
• A 3-D version of SUTRA has also been released.
SWIM
(Soil water infiltration and movement model)
• Deals with a one-dimensional vertical soil profile which
may be vertically in homogeneous but is assumed to be
horizontally uniform.
• Used to simulate runoff, infiltration, redistribution, solute
transport and redistribution of solutes, plant uptake and
transpiration, evaporation, deep drainage and leaching.

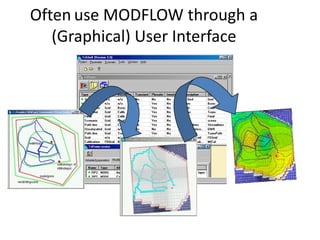

Often use MODFLOW through a
(Graphical) User Interface
Maps
Model
Results

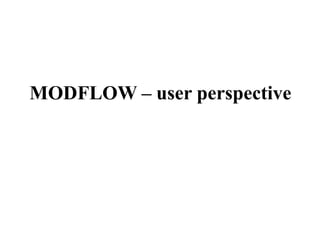

MODFLOW – user perspective

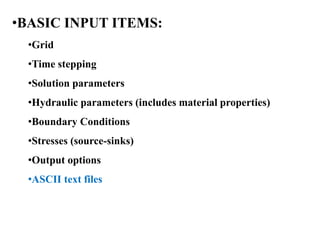

•BASIC INPUT ITEMS:
•Grid
•Time stepping
•Solution parameters
•Hydraulic parameters (includes material properties)
•Boundary Conditions
•Stresses (source-sinks)
•Output options
•ASCII text files

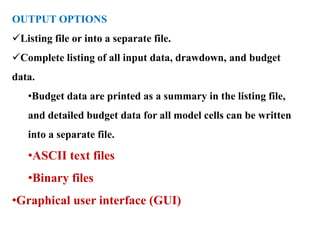

OUTPUT OPTIONS
Listing file or into a separate file.
Complete listing of all input data, drawdown, and budget
data.
•Budget data are printed as a summary in the listing file,
and detailed budget data for all model cells can be written
into a separate file.
•ASCII text files
•Binary files
•Graphical user interface (GUI)
Case studies
•Projected impacts of climate change on farmers’ extraction of
groundwater from crystalline aquifers in South India
•Sylvain Ferrant et al., 2014
• Downscaled GCM data- spatially distributed agro-hydrological
model - MODFLOW
•Projected - climatic extremes create worse GWE shortages
•Areas vulnerable to CC in terms of irrigation apportionment
•Emphasize – importance of accounting for local characteristics
(water harvesting systems and maximal aquifer capacity versus
GWE) in developing measures to cope with CC impacts.

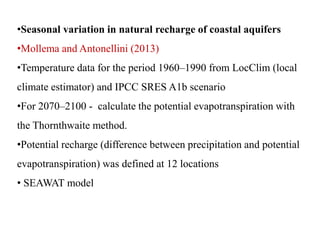

•Seasonal variation in natural recharge of coastal aquifers
•Mollema and Antonellini (2013)
•Temperature data for the period 1960–1990 from LocClim (local
climate estimator) and IPCC SRES A1b scenario
•For 2070–2100 - calculate the potential evapotranspiration with
the Thornthwaite method.
•Potential recharge (difference between precipitation and potential
evapotranspiration) was defined at 12 locations
• SEAWAT model

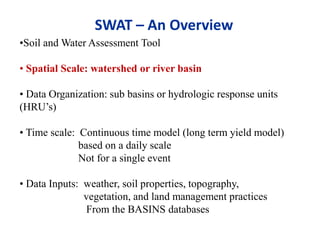

•Soil and Water Assessment Tool
• Spatial Scale: watershed or river basin
• Data Organization: sub basins or hydrologic response units
(HRU’s)
• Time scale: Continuous time model (long term yield model)
based on a daily scale
Not for a single event
• Data Inputs: weather, soil properties, topography,
vegetation, and land management practices
From the BASINS databases
SWAT – An Overview
 SWAT separates soil profiles into 10 layers to model inter and
intra-movement between layers.
 The model is applied to each soil layer independently starting
at the upper layer.
 SWAT soil water routing feature consists of four main pathways:
1. Soil evaporation
2. Plant uptake and transpiration
3. Lateral flow
4. Percolation.
SWAT – An Overview
Soil and Water Assessment
Tool (SWAT)
• Inputs:
– Precipitation
– Max/Min Temperature
– Land Use
– Soils
– Land Management
– Topography
– Hydrogeology
– Weather
http://www.brc.tamus.edu/swat/
• Output:
– Daily Streamflow
SWAT is a watershed modeling tool

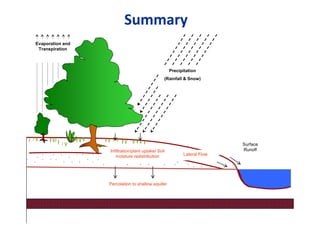

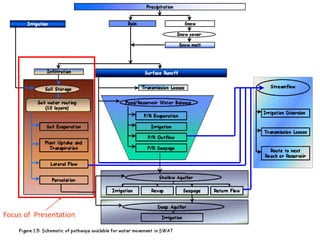

Summary
Precipitation
(Rainfall & Snow)
Evaporation and
Transpiration
Infiltration/plant uptake/ Soil
moisture redistribution
Surface
Runoff
Lateral Flow
Percolation to shallow aquifer
Focus of Presentation

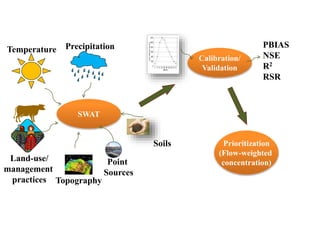

Land-use/
management
practices
SWAT
Topography
Soils
Temperature Precipitation
Calibration/
Validation
Prioritization
(Flow-weighted
concentration)
PBIAS
NSE
R2
RSR
Point
Sources

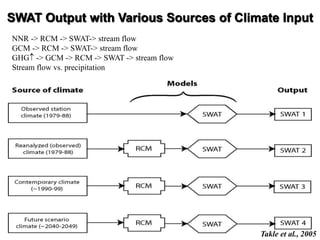

SWAT Output with Various Sources of Climate Input
Takle et al., 2005
NNR -> RCM -> SWAT-> stream flow
GCM -> RCM -> SWAT-> stream flow
GHG -> GCM -> RCM -> SWAT -> stream flow
Stream flow vs. precipitation

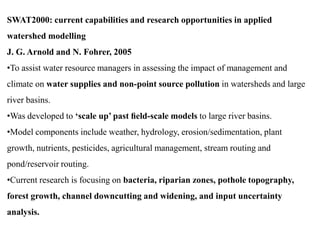

SWAT2000: current capabilities and research opportunities in applied
watershed modelling
J. G. Arnold and N. Fohrer, 2005
•To assist water resource managers in assessing the impact of management and
climate on water supplies and non-point source pollution in watersheds and large
river basins.
•Was developed to ‘scale up’ past field-scale models to large river basins.
•Model components include weather, hydrology, erosion/sedimentation, plant
growth, nutrients, pesticides, agricultural management, stream routing and
pond/reservoir routing.
•Current research is focusing on bacteria, riparian zones, pothole topography,
forest growth, channel downcutting and widening, and input uncertainty
analysis.
Climate change impact assessment on hydrology of Indian river basin
Gosain et al., 2006
• NATCOM - was the first attempt to quantify the impact of the climate change on the
water resources of the country
• twelve river basins
• detailed analyses on two river basins selected with respect to the extreme drought and
flood conditions predicted on account of the climate change.
• spatio-temporal water availability- without incorporating any man-made changes like
dams, diversions, etc.
Percent change in mean annual water balance components

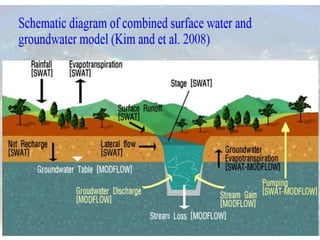

Swat & modflow
Swat & modflow

More Related Content

What's hot

Estimation of Groundwater Potential
Estimation of Groundwater PotentialEstimation of Groundwater Potential
Estimation of Groundwater Potential
C. P. Kumar

RAINFALL RUNOFF MODELLING USING HEC-HMS
RAINFALL RUNOFF MODELLING                USING HEC-HMSRAINFALL RUNOFF MODELLING                USING HEC-HMS
RAINFALL RUNOFF MODELLING USING HEC-HMS
Pushp Aggarwal

Modelling of a Coastal Aquifer using FEFLOW
Modelling of a Coastal Aquifer using FEFLOWModelling of a Coastal Aquifer using FEFLOW
Modelling of a Coastal Aquifer using FEFLOW
C. P. Kumar

Climate change impact assessment on hydrology on river basins
Climate change impact assessment on hydrology on river basinsClimate change impact assessment on hydrology on river basins
Climate change impact assessment on hydrology on river basins
Abhiram Kanigolla


What's hot (20)

Estimation of Groundwater Potential
Estimation of Groundwater PotentialEstimation of Groundwater Potential
Estimation of Groundwater Potential

Groundwater modelling (an Introduction)
Groundwater modelling (an Introduction)Groundwater modelling (an Introduction)
Groundwater modelling (an Introduction)

Coupling of Surface water and Groundwater Models
Coupling of Surface water and Groundwater Models Coupling of Surface water and Groundwater Models
Coupling of Surface water and Groundwater Models

Runoff & Flood Frequency Analysis
Runoff & Flood Frequency AnalysisRunoff & Flood Frequency Analysis
Runoff & Flood Frequency Analysis

Water resource model modflow
Water resource model modflowWater resource model modflow
Water resource model modflow

Data Requirements for Groundwater Modelling
Data Requirements for Groundwater ModellingData Requirements for Groundwater Modelling
Data Requirements for Groundwater Modelling

Seminar on Hydrological modelling
Seminar on Hydrological modellingSeminar on Hydrological modelling
Seminar on Hydrological modelling

Arc swat
Arc swat Arc swat
Arc swat

Infiltration and runoff
Infiltration and runoffInfiltration and runoff
Infiltration and runoff

GROUNDWATER MODELING SYSTEM
GROUNDWATER MODELING SYSTEMGROUNDWATER MODELING SYSTEM
GROUNDWATER MODELING SYSTEM

Hydrological modelling
Hydrological modellingHydrological modelling
Hydrological modelling

Well Hydraulics (Lecture 1)
Well Hydraulics (Lecture 1)Well Hydraulics (Lecture 1)
Well Hydraulics (Lecture 1)

RAINFALL RUNOFF MODELLING USING HEC-HMS
RAINFALL RUNOFF MODELLING                USING HEC-HMSRAINFALL RUNOFF MODELLING                USING HEC-HMS
RAINFALL RUNOFF MODELLING USING HEC-HMS

Hydrograph
HydrographHydrograph
Hydrograph

Rainfall-Runoff Modelling
Rainfall-Runoff ModellingRainfall-Runoff Modelling
Rainfall-Runoff Modelling

Updating the curve number method for rainfall runoff estimation
Updating the curve number method for rainfall runoff estimationUpdating the curve number method for rainfall runoff estimation
Updating the curve number method for rainfall runoff estimation

Modelling of a Coastal Aquifer using FEFLOW
Modelling of a Coastal Aquifer using FEFLOWModelling of a Coastal Aquifer using FEFLOW
Modelling of a Coastal Aquifer using FEFLOW

REMOTE SENSING DATA FOR HYDROLOGICAL MODELING
REMOTE SENSING DATA FOR HYDROLOGICAL MODELINGREMOTE SENSING DATA FOR HYDROLOGICAL MODELING
REMOTE SENSING DATA FOR HYDROLOGICAL MODELING

Climate change impact assessment on hydrology on river basins
Climate change impact assessment on hydrology on river basinsClimate change impact assessment on hydrology on river basins
Climate change impact assessment on hydrology on river basins

Soil erosion assessment using RUSLE and Projection Augmented Landscape Model ...
Soil erosion assessment using RUSLE and Projection Augmented Landscape Model ...Soil erosion assessment using RUSLE and Projection Augmented Landscape Model ...
Soil erosion assessment using RUSLE and Projection Augmented Landscape Model ...


Viewers also liked

Water Cycle Presentation
Water Cycle PresentationWater Cycle Presentation
Water Cycle Presentation
kramerk7

Dhi uk 2015 - marine - a new approach to modelling long-term shoreline evolut...
Dhi uk 2015 - marine - a new approach to modelling long-term shoreline evolut...Dhi uk 2015 - marine - a new approach to modelling long-term shoreline evolut...
Dhi uk 2015 - marine - a new approach to modelling long-term shoreline evolut...
Stephen Flood

Rain water harvesting
Rain water harvestingRain water harvesting
Rain water harvesting
alind tiwari

The Water Cycle Final Product
The Water Cycle Final ProductThe Water Cycle Final Product
The Water Cycle Final Product
aoconnor988


Viewers also liked (20)

Using Computer-simulated hydrological model (SWAT) to estimate the ground-wat...
Using Computer-simulated hydrological model (SWAT) to estimate the ground-wat...Using Computer-simulated hydrological model (SWAT) to estimate the ground-wat...
Using Computer-simulated hydrological model (SWAT) to estimate the ground-wat...

A model integration framework
A model integration frameworkA model integration framework
A model integration framework

Hydrologic Assessment in a Middle Narmada Basin, India using SWAT Model
Hydrologic Assessment in a Middle Narmada Basin, India using SWAT ModelHydrologic Assessment in a Middle Narmada Basin, India using SWAT Model
Hydrologic Assessment in a Middle Narmada Basin, India using SWAT Model

Riverkeeper Responds to State Officials on Coal Ash Problems in Uniontown, Ala.
Riverkeeper Responds to State Officials on Coal Ash Problems in Uniontown, Ala.Riverkeeper Responds to State Officials on Coal Ash Problems in Uniontown, Ala.
Riverkeeper Responds to State Officials on Coal Ash Problems in Uniontown, Ala.

Marché logiciels et services en France. Bilan 2009 et perspectives 2010 (sour...
Marché logiciels et services en France. Bilan 2009 et perspectives 2010 (sour...Marché logiciels et services en France. Bilan 2009 et perspectives 2010 (sour...
Marché logiciels et services en France. Bilan 2009 et perspectives 2010 (sour...

DSD-INT 2016 The unsaturated zone MetaSWAP-package - Van Walsum
DSD-INT 2016 The unsaturated zone MetaSWAP-package - Van WalsumDSD-INT 2016 The unsaturated zone MetaSWAP-package - Van Walsum
DSD-INT 2016 The unsaturated zone MetaSWAP-package - Van Walsum

Climate Change Impact Assessment on Hydrological Regime of Kali Gandaki Basin
Climate Change Impact Assessment on Hydrological Regime of Kali Gandaki BasinClimate Change Impact Assessment on Hydrological Regime of Kali Gandaki Basin
Climate Change Impact Assessment on Hydrological Regime of Kali Gandaki Basin

Current trends of disasters in the asia pacific region
Current trends of disasters in the asia pacific regionCurrent trends of disasters in the asia pacific region
Current trends of disasters in the asia pacific region

DSD-INT 2016 India Ganges Basin modelling - Stuurman
DSD-INT 2016 India Ganges Basin modelling - StuurmanDSD-INT 2016 India Ganges Basin modelling - Stuurman
DSD-INT 2016 India Ganges Basin modelling - Stuurman

Final presentation
Final presentationFinal presentation
Final presentation

Dinh vu
Dinh vuDinh vu
Dinh vu

Do tin cay cac cong trinh tren bien_Nguyen Vi
Do tin cay cac cong trinh tren bien_Nguyen ViDo tin cay cac cong trinh tren bien_Nguyen Vi
Do tin cay cac cong trinh tren bien_Nguyen Vi

Water cycle
Water cycle Water cycle
Water cycle

Hydrological Cycle
Hydrological CycleHydrological Cycle
Hydrological Cycle

Erosion modeling in the Upper Blue Nile Basin: The case for Mizewa Watershed
Erosion modeling in the Upper Blue Nile Basin: The case for Mizewa WatershedErosion modeling in the Upper Blue Nile Basin: The case for Mizewa Watershed
Erosion modeling in the Upper Blue Nile Basin: The case for Mizewa Watershed

Water Cycle Presentation
Water Cycle PresentationWater Cycle Presentation
Water Cycle Presentation

Dhi uk 2015 - marine - a new approach to modelling long-term shoreline evolut...
Dhi uk 2015 - marine - a new approach to modelling long-term shoreline evolut...Dhi uk 2015 - marine - a new approach to modelling long-term shoreline evolut...
Dhi uk 2015 - marine - a new approach to modelling long-term shoreline evolut...

Undertaking Modelling of Flooding due to Wave Overtopping using the MIKE by D...
Undertaking Modelling of Flooding due to Wave Overtopping using the MIKE by D...Undertaking Modelling of Flooding due to Wave Overtopping using the MIKE by D...
Undertaking Modelling of Flooding due to Wave Overtopping using the MIKE by D...

Rain water harvesting
Rain water harvestingRain water harvesting
Rain water harvesting

The Water Cycle Final Product
The Water Cycle Final ProductThe Water Cycle Final Product
The Water Cycle Final Product


Similar to Swat & modflow

Monitoring and Modeling of the CDOT Blue Island/Cermak Streetscape
Monitoring and Modeling of the CDOT Blue Island/Cermak StreetscapeMonitoring and Modeling of the CDOT Blue Island/Cermak Streetscape
Monitoring and Modeling of the CDOT Blue Island/Cermak Streetscape
Center for Neighborhood Technology

Evaluation Of Low Impact Developments (LID)
Evaluation Of Low Impact Developments (LID)Evaluation Of Low Impact Developments (LID)
Evaluation Of Low Impact Developments (LID)
Dawit A. Melaku


Similar to Swat & modflow (20)

Modflow Nepal
Modflow NepalModflow Nepal
Modflow Nepal

Water and Productivity Impacts for the NBDC
Water and Productivity Impacts for the NBDCWater and Productivity Impacts for the NBDC
Water and Productivity Impacts for the NBDC

Drought monitoring, Precipitation statistics, and water balance with freely a...
Drought monitoring, Precipitation statistics, and water balance with freely a...Drought monitoring, Precipitation statistics, and water balance with freely a...
Drought monitoring, Precipitation statistics, and water balance with freely a...

Streamflow simulation using radar-based precipitation applied to the Illinois...
Streamflow simulation using radar-based precipitation applied to the Illinois...Streamflow simulation using radar-based precipitation applied to the Illinois...
Streamflow simulation using radar-based precipitation applied to the Illinois...

Applications of Integrated Models to Watershed and Sub-Watershed Scale Analys...
Applications of Integrated Models to Watershed and Sub-Watershed Scale Analys...Applications of Integrated Models to Watershed and Sub-Watershed Scale Analys...
Applications of Integrated Models to Watershed and Sub-Watershed Scale Analys...

Integrated Modelling as a Tool for Assessing Groundwater Sustainability under...
Integrated Modelling as a Tool for Assessing Groundwater Sustainability under...Integrated Modelling as a Tool for Assessing Groundwater Sustainability under...
Integrated Modelling as a Tool for Assessing Groundwater Sustainability under...

Use of UAV for Hydrological Monitoring
Use of UAV for Hydrological MonitoringUse of UAV for Hydrological Monitoring
Use of UAV for Hydrological Monitoring

Final Ppt.pdf
Final Ppt.pdfFinal Ppt.pdf
Final Ppt.pdf

Somers et al 2016
Somers et al 2016Somers et al 2016
Somers et al 2016

Extending rhem from hillslopes to watersheds
Extending rhem from hillslopes to watershedsExtending rhem from hillslopes to watersheds
Extending rhem from hillslopes to watersheds

Monitoring and Modeling of the CDOT Blue Island/Cermak Streetscape
Monitoring and Modeling of the CDOT Blue Island/Cermak StreetscapeMonitoring and Modeling of the CDOT Blue Island/Cermak Streetscape
Monitoring and Modeling of the CDOT Blue Island/Cermak Streetscape

Incorporating a Dynamic Irrigation Demand Module into an Integrated Surface ...
Incorporating a Dynamic Irrigation Demand Module into an Integrated Surface ...Incorporating a Dynamic Irrigation Demand Module into an Integrated Surface ...
Incorporating a Dynamic Irrigation Demand Module into an Integrated Surface ...

The Development of a Catchment Management Modelling System for the Googong Re...
The Development of a Catchment Management Modelling System for the Googong Re...The Development of a Catchment Management Modelling System for the Googong Re...
The Development of a Catchment Management Modelling System for the Googong Re...

Easter Desert Project
Easter Desert ProjectEaster Desert Project
Easter Desert Project

Mandal
MandalMandal
Mandal

Al33217222
Al33217222Al33217222
Al33217222

Al33217222
Al33217222Al33217222
Al33217222

September 1 - 1116 - Tassia Brighenti and Phillip Gassman
September 1 - 1116 - Tassia Brighenti and Phillip GassmanSeptember 1 - 1116 - Tassia Brighenti and Phillip Gassman
September 1 - 1116 - Tassia Brighenti and Phillip Gassman

DSD-INT 2016 Regional groundwater flow systems in the Kenya Rift Valley - Mur...
DSD-INT 2016 Regional groundwater flow systems in the Kenya Rift Valley - Mur...DSD-INT 2016 Regional groundwater flow systems in the Kenya Rift Valley - Mur...
DSD-INT 2016 Regional groundwater flow systems in the Kenya Rift Valley - Mur...

Evaluation Of Low Impact Developments (LID)
Evaluation Of Low Impact Developments (LID)Evaluation Of Low Impact Developments (LID)
Evaluation Of Low Impact Developments (LID)


Recently uploaded

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project research
CaitlinCummins3

Contoh Aksi Nyata Refleksi Diri ( NUR ).pdf
Contoh Aksi Nyata Refleksi Diri ( NUR ).pdfContoh Aksi Nyata Refleksi Diri ( NUR ).pdf
Contoh Aksi Nyata Refleksi Diri ( NUR ).pdf
cupulin

MuleSoft Integration with AWS Textract | Calling AWS Textract API |AWS - Clou...
MuleSoft Integration with AWS Textract | Calling AWS Textract API |AWS - Clou...MuleSoft Integration with AWS Textract | Calling AWS Textract API |AWS - Clou...
MuleSoft Integration with AWS Textract | Calling AWS Textract API |AWS - Clou...
MysoreMuleSoftMeetup

SPLICE Working Group: Reusable Code Examples
SPLICE Working Group:Reusable Code ExamplesSPLICE Working Group:Reusable Code Examples
SPLICE Working Group: Reusable Code Examples
Peter Brusilovsky


Recently uploaded (20)

Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community PartnershipsSpring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships

diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...

Graduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxGraduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptx

Observing-Correct-Grammar-in-Making-Definitions.pptx
Observing-Correct-Grammar-in-Making-Definitions.pptxObserving-Correct-Grammar-in-Making-Definitions.pptx
Observing-Correct-Grammar-in-Making-Definitions.pptx

PSYPACT- Practicing Over State Lines May 2024.pptx
PSYPACT- Practicing Over State Lines May 2024.pptxPSYPACT- Practicing Over State Lines May 2024.pptx
PSYPACT- Practicing Over State Lines May 2024.pptx

Details on CBSE Compartment Exam.pptx1111
Details on CBSE Compartment Exam.pptx1111Details on CBSE Compartment Exam.pptx1111
Details on CBSE Compartment Exam.pptx1111

UChicago CMSC 23320 - The Best Commit Messages of 2024
UChicago CMSC 23320 - The Best Commit Messages of 2024UChicago CMSC 23320 - The Best Commit Messages of 2024
UChicago CMSC 23320 - The Best Commit Messages of 2024

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project research

Trauma-Informed Leadership - Five Practical Principles
Trauma-Informed Leadership - Five Practical PrinciplesTrauma-Informed Leadership - Five Practical Principles
Trauma-Informed Leadership - Five Practical Principles

Sternal Fractures & Dislocations - EMGuidewire Radiology Reading Room
Sternal Fractures & Dislocations - EMGuidewire Radiology Reading RoomSternal Fractures & Dislocations - EMGuidewire Radiology Reading Room
Sternal Fractures & Dislocations - EMGuidewire Radiology Reading Room

Mattingly "AI & Prompt Design: Named Entity Recognition"
Mattingly "AI & Prompt Design: Named Entity Recognition"Mattingly "AI & Prompt Design: Named Entity Recognition"
Mattingly "AI & Prompt Design: Named Entity Recognition"

Contoh Aksi Nyata Refleksi Diri ( NUR ).pdf
Contoh Aksi Nyata Refleksi Diri ( NUR ).pdfContoh Aksi Nyata Refleksi Diri ( NUR ).pdf
Contoh Aksi Nyata Refleksi Diri ( NUR ).pdf

Michaelis Menten Equation and Estimation Of Vmax and Tmax.pptx
Michaelis Menten Equation and Estimation Of Vmax and Tmax.pptxMichaelis Menten Equation and Estimation Of Vmax and Tmax.pptx
Michaelis Menten Equation and Estimation Of Vmax and Tmax.pptx

MuleSoft Integration with AWS Textract | Calling AWS Textract API |AWS - Clou...
MuleSoft Integration with AWS Textract | Calling AWS Textract API |AWS - Clou...MuleSoft Integration with AWS Textract | Calling AWS Textract API |AWS - Clou...
MuleSoft Integration with AWS Textract | Calling AWS Textract API |AWS - Clou...

Model Attribute _rec_name in the Odoo 17
Model Attribute _rec_name in the Odoo 17Model Attribute _rec_name in the Odoo 17
Model Attribute _rec_name in the Odoo 17

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...

HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx
HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptxHMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx
HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx

AIM of Education-Teachers Training-2024.ppt
AIM of Education-Teachers Training-2024.pptAIM of Education-Teachers Training-2024.ppt
AIM of Education-Teachers Training-2024.ppt

SPLICE Working Group: Reusable Code Examples
SPLICE Working Group:Reusable Code ExamplesSPLICE Working Group:Reusable Code Examples
SPLICE Working Group: Reusable Code Examples


Swat & modflow

  • 2. CC – hydrological cycle Changes in temperature and precipitation - hydrologic cycle.
  • 3. Hydrological implications of CC for water resources Precipitation amount Global average increase Marked regional differences Precipitation frequency and intensity Less frequent, more intense (Trenberth et al., 2002) Evaporation and transpiration Increased total evaporation Regional complexities due to plant/ atmosphere interactions
  • 4. Hydrological implications of CC for water resources(cont..) Changes in run off Despite global precipitation increases, areas of substantial runoff decreases Coastal zones Saltwater intrusion into coastal aquifers Severe storm-surge flooding Water quality Lower flows, could lead to higher contaminant concentration Higher flows could lead to greater leaching and sediment transport
  • 5. Why Modelling is needed? Model : The tool for understanding the system and its behavior and for predicting their response.
  • 6. Tools to use for the assessment: Reference water models 1. SWAT 2. MODFLOW 3. Aquarius 4. Aquacrop 5. SWAP (Soil Water Atmosphere Plant) 6. ACRU 7. RIBASIM 8. MIKE MASIN 9. WEAP21 10. IRAS (Interactive River and Aquifer Simulation) 11. . . .
  • 7. SWAT: Management decisions on water, sediment, nutrient and pesticide yields with reasonable accuracy on river basins. Complex water quality constituents •Rainfall-runoff, river routing on a daily timestep MODFLOW Most widely used numerical groundwater flow model
  • 8. SWAP- soil-water-atmosphere-plant • processes at field scale level (growing seasons) • For water transport and crop growth • simulates – transport of water and solutes – heat in unsaturated/saturated soils ACRU Model • Operates on daily time step • Outputs – Irrigation scheduling - reservoir operations – peak discharge , Sediment yield- P, N yields – flow routing, land use impacts and management changes – Sensitive climate changes
  • 9. WEAP21 Seamlessly integrating watershed hydrologic processes with water resources management Can be climatically driven AQUARIS Economic efficincy criterion requiring the reallocation of stream flows until the net marginal return in all water uses is equal Cannot be climatically driven VOS • Vegetation-overland flow-soil model • Represents soil vegetation zones with MODFLOW • Allows for specification of types of soil and vegetation
  • 10. Data requirement • Meteorological • Hydrological data • Surface data – are required for the development and calibration of a mathematical and/or numerical groundwater model.
  • 11. MODFLOW First version, 1983, McDonald and Harbaugh. Written to serve U.S. Geological Survey needs. Education emphasized. Mostly written in standard FORTRAN (GMG is C++) Collaborative open-source development with roots at the USGS Public domain (Free)
  • 12. Versions of MODFLOW MODFLOW MODFLOW-88 MODFLOW-96 MODFLOW-2000 MODFLOW-2005 Latest version: MODFLOW-2005 (Harbaugh, 2005) http://water.usgs.gov/nrp/gwsoftware/modflow2005/modflow2005.html
  • 13. Widely used ground-water flow simulation program Runs on any platform (Windows, Sun, Unix, Linux,…). Three-dimensional model Solves the ground-water flow equation with different possible properties, boundary conditions and initial conditions
  • 14. Advantages • Include numerous facilities for data preparation • Easy exchange of data in standard form • Extended worldwide experience • Continuous development • Availability of source code and
  • 15. Disadvantages: • Surface runoff and unsaturated flow are not included, • Hence in case of transient problems, MODFLOW can not be applied if the flux at the groundwater table depends on the calculated head and the function is not known in advance. Land surface elevation is not used in MODFLOW, except in the ET package.
  • 16. MODFLOW • When properly applied, MODFLOW is the recognized standard model. • Ground-water flow within the aquifer is simulated in MODFLOW using a block-centered finite-difference approach. • Flows from external stresses such as flow to wells, areal recharge, evapotranspiration, flow to drains, and flow through riverbeds can also be simulated.
  • 17. MODFLOW using a block-centered finite-difference approach.
  • 18. MT3D (A Modular 3D Solute Transport Model) • simulating solute transport in complex hydrogeologic settings. • MT3D is linked with MODFLOW • Designed specifically to handle advectively-dominated transport problems without the need to construct refined models specifically for solute transport.
  • 19. FEFLOW (Finite Element Subsurface Flow System) Finite-element package for simulating 3D and 2D fluid density- coupled flow, contaminant mass (salinity) and heat transport in the subsurface. HST3D (3-D Heat and Solute Transport Model) simulates ground-water flow and associated heat and solute transport in 3D.
  • 20. SEAWAT (Three-Dimensional Variable-Density Ground-Water Flow) • Developed to simulate variable- density, transient ground- water flow in porous media. • The source code for SEAWAT was developed by combining MODFLOW and MT3D into a single program that solves the coupled flow and solute-transport equations. • * MT3D -(A Modular 3D Solute Transport Model )
  • 21. SUTRA (2-D Saturated/Unsaturated Transport Model) • A complete saltwater intrusion and energy transport model. • A 3-D version of SUTRA has also been released.
  • 22. SWIM (Soil water infiltration and movement model) • Deals with a one-dimensional vertical soil profile which may be vertically in homogeneous but is assumed to be horizontally uniform. • Used to simulate runoff, infiltration, redistribution, solute transport and redistribution of solutes, plant uptake and transpiration, evaporation, deep drainage and leaching.
  • 23. Often use MODFLOW through a (Graphical) User Interface Maps Model Results
  • 24. MODFLOW – user perspective
  • 25. •BASIC INPUT ITEMS: •Grid •Time stepping •Solution parameters •Hydraulic parameters (includes material properties) •Boundary Conditions •Stresses (source-sinks) •Output options •ASCII text files
  • 26. OUTPUT OPTIONS Listing file or into a separate file. Complete listing of all input data, drawdown, and budget data. •Budget data are printed as a summary in the listing file, and detailed budget data for all model cells can be written into a separate file. •ASCII text files •Binary files •Graphical user interface (GUI)
  • 28. •Projected impacts of climate change on farmers’ extraction of groundwater from crystalline aquifers in South India •Sylvain Ferrant et al., 2014 • Downscaled GCM data- spatially distributed agro-hydrological model - MODFLOW •Projected - climatic extremes create worse GWE shortages •Areas vulnerable to CC in terms of irrigation apportionment •Emphasize – importance of accounting for local characteristics (water harvesting systems and maximal aquifer capacity versus GWE) in developing measures to cope with CC impacts.
  • 29. •Seasonal variation in natural recharge of coastal aquifers •Mollema and Antonellini (2013) •Temperature data for the period 1960–1990 from LocClim (local climate estimator) and IPCC SRES A1b scenario •For 2070–2100 - calculate the potential evapotranspiration with the Thornthwaite method. •Potential recharge (difference between precipitation and potential evapotranspiration) was defined at 12 locations • SEAWAT model
  • 30.
  • 31. •Soil and Water Assessment Tool • Spatial Scale: watershed or river basin • Data Organization: sub basins or hydrologic response units (HRU’s) • Time scale: Continuous time model (long term yield model) based on a daily scale Not for a single event • Data Inputs: weather, soil properties, topography, vegetation, and land management practices From the BASINS databases SWAT – An Overview
  • 32.  SWAT separates soil profiles into 10 layers to model inter and intra-movement between layers.  The model is applied to each soil layer independently starting at the upper layer.  SWAT soil water routing feature consists of four main pathways: 1. Soil evaporation 2. Plant uptake and transpiration 3. Lateral flow 4. Percolation. SWAT – An Overview
  • 33. Soil and Water Assessment Tool (SWAT) • Inputs: – Precipitation – Max/Min Temperature – Land Use – Soils – Land Management – Topography – Hydrogeology – Weather http://www.brc.tamus.edu/swat/ • Output: – Daily Streamflow SWAT is a watershed modeling tool
  • 34. Summary Precipitation (Rainfall & Snow) Evaporation and Transpiration Infiltration/plant uptake/ Soil moisture redistribution Surface Runoff Lateral Flow Percolation to shallow aquifer
  • 37. SWAT Output with Various Sources of Climate Input Takle et al., 2005 NNR -> RCM -> SWAT-> stream flow GCM -> RCM -> SWAT-> stream flow GHG -> GCM -> RCM -> SWAT -> stream flow Stream flow vs. precipitation
  • 38. SWAT2000: current capabilities and research opportunities in applied watershed modelling J. G. Arnold and N. Fohrer, 2005 •To assist water resource managers in assessing the impact of management and climate on water supplies and non-point source pollution in watersheds and large river basins. •Was developed to ‘scale up’ past field-scale models to large river basins. •Model components include weather, hydrology, erosion/sedimentation, plant growth, nutrients, pesticides, agricultural management, stream routing and pond/reservoir routing. •Current research is focusing on bacteria, riparian zones, pothole topography, forest growth, channel downcutting and widening, and input uncertainty analysis.
  • 39. Climate change impact assessment on hydrology of Indian river basin Gosain et al., 2006 • NATCOM - was the first attempt to quantify the impact of the climate change on the water resources of the country • twelve river basins • detailed analyses on two river basins selected with respect to the extreme drought and flood conditions predicted on account of the climate change. • spatio-temporal water availability- without incorporating any man-made changes like dams, diversions, etc. Percent change in mean annual water balance components

Editor's Notes

  1. 23
  2. 24
