Supertech Supernova is a mixed-use development under construction in Noida, India covering 114.75 acres. It will consist of 5 towers with a total of 5,708 residential units and retail shops. The project includes residential apartments in the Nova and Spira towers up to 80 floors, as well as commercial office space in the Astralis tower and a hotel in the Queen tower. The podium area features extensive landscaped gardens, pools, and event spaces. Construction began in 2012 with completion expected in 2021.

1. 1
CASE STUDY - SUPERTECH SUPERNOVA,NOIDA
Location Noida,India.
Type Mixed use
Status Under construction
Project area 114.75acres
No. of towers ` 5+retail shops
Open area 70%
No. of floors 80
No. of units 5708
Expected year of completetion 2021
FAR 4
Designed by Benoy architects
Construction started 2012
Built up area 50,00,000 sq.ft
Introduction
• Supernova Spira isa supertall mixed use skyscraper under construction
in Noida, India. It is located near Amity University, Noida in Sector 94,
Amrapali Marg, Noida.
• Supertech Supernova is built by keeping in mind the necessity of prominent
clients who desire to have luxurious lifestyle, and it is comprised with all
modern facilities like well appointed apartments with modern conveniences
such as a clubhouse, jogging track, swimming pool and more.
• Comprising Commercial, Residences and Luxury Retail spaces, 5 Star Hotel,
branded residences and serviced apartments
• Supertech Supernova has two main towers Nova East and Nova West which
are reserved for residential apartments and offering 2 BHK and 3 BHK
furnished apartments variants with sizes 1330 sq ft & 2040 sq ft.
• It is leed certified green building.
• Contains retail shops and 5 towers namely Astralis,Nova east, Nova west,
Spira and Queen tower.

2. 2
• Astralis(commercial)
- Ground+28 floor.
- From ground to 2nd
i.e double height entrance lobby.
- 3rd
floor is a waiting floor.
- 4th
floor is club.
- From 5th to 23rd are Lockable Spaces.
- 25th is Service Floor.
- 24th,26th,27th,28th are Virtual Spaces.
• Nova east + Nova west(residential)
- Ground+ 35 Floor.
- Having 2BHK and 3BHK .
- From Ground to 2nd i.e Double Height Entrance Lobby.
- 3rd Floor is a Waiting Area.
- 4th Floor i.e Club.
- From 5th to 30th i.e 2BHK and 3BHK.
- From 31st to 35th Floor i.e Pent House.
• Spira(residential)
- Ground+80 Floor.
- From Ground to 2nd i.e Double Height Entrance Lobby.
- 3rd Floor is a Waiting Area.
- 4th Floor i.e Club.
- Divided into Four Parts - Spira Residency, Spira Suits, Spira Residency
and Spira Sky Villas.
• Queen tower(commercial)
- Ground+40 Floor.
- The whole building is in under Armani Design Appartments and JW Marriott
Hotel.
• Retail shops
- Total Area is 10 Lakhs sq.ft.
Fig 3.52Astralis tower
http://propshop.org.in/images/astralis.jpg
Fig 3.53Nova tower
http://propshop.org.in/images/astralis.jpg

3. 3
- From Ground to 2nd Floor i.e Mall.
- 3rd Floor is a Podium Park which includes 5 Clubs , 7 Swimming Pools ,Food
court and Multiplexes.
- International Brands in 3 Lakhs sq.ft area.
- Inox Multiplex 10 Screens.
- Indian Brands in 7 Lakhs sq.ft of area.
Criteria for selection
Supertech Supernova is the splendour project, which is the biggest project of
North India having mixed-use development spread over the area of 5 million
square feet. It is the only project till in Delhi NCR to accomodate so much of land
uses at a single place.Studying this vast project can help in understanding how to
merge different land uses at a place and design the spaces more efficiently.
Fig 3.54Supernova view
http://www.propertynewsindia.in/wp-content/uploads/2014/05/Supertech-Supernova-

4. 4

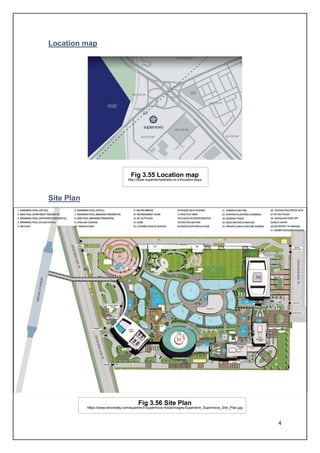

Location map
Fig 3.55 Location map
http://www.supertechastralis.co.in/location.aspx
Site Plan
Fig 3.56 Site Plan
https://www.smcrealty.com/supertech-supernova noida/images/Supertech_Supernova_Site_Plan.jpg

5. 5
Floors Use Floors Use
78 Helipad 19-48 Studio floors
77 Observatory roof 18 Service floor
76 Observatory Function
area
5-17 Appartment floors
75 Observatory F&b 4 Service floor
74 Observatory public
gallery/skywalk/VIP
lounge
3 Podium
73 Service floor 2 Meeting/function/AHU
65-72 Service appartments 1 Mall shop units
54-64 Hotel floors 0 Double ht. lobby for
Apts/studio/hotel
53 Service floor B1 Plant room
49-52 Hotel floors B2-B3 Double ht.
chillarplant,cooling
tower
Floor Plans

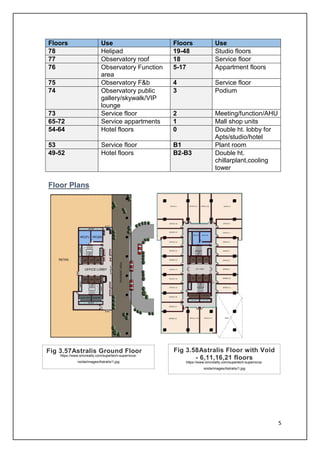

Fig 3.57Astralis Ground Floor
https://www.smcrealty.com/supertech-supernova-
noida/images/Astralis/1.jpg
Fig 3.58Astralis Floor with Void
- 6,11,16,21 floors
https://www.smcrealty.com/supertech-supernova-
noida/images/Astralis/1.jpg

6. 6

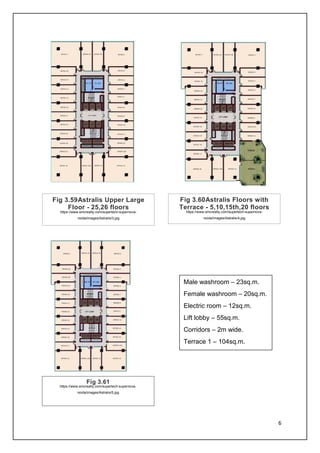

Fig 3.59Astralis Upper Large
Floor - 25,26 floors
https://www.smcrealty.com/supertech-supernova-
noida/images/Astralis/3.jpg
Fig 3.60Astralis Floors with
Terrace - 5,10,15th,20 floors
https://www.smcrealty.com/supertech-supernova-
noida/images/Astralis/4.jpg
Fig 3.61
https://www.smcrealty.com/supertech-supernova-
noida/images/Astralis/5.jpg
Male washroom – 23sq.m.
Female washroom – 20sq.m.
Electric room – 12sq.m.
Lift lobby – 55sq.m.
Corridors – 2m wide.
Terrace 1 – 104sq.m.

7. 7
Abbreviation Area(sq.m) Abbreviation Area(sq.m)
Office 1 190 Office 12 43.5
Office 2 78.5 Office 12A 43.5
Office 2A 78.5 Office 14 143
Office 3 190 Office 15 68.5
Office 4 50 Office 15A 68.5
Office 5 54 Office 16 143
Office 6 45.5 Office 17 43.5
Office 7 43.5 Office 18 43.5
Office 8 43.5 Office 19 43.5
Office 9 43.5 Office 20 43.5
Office 10 43.5 Office 21 43.5
Office 11 43.5 Office 22 43.5
Office 23 43.5 Office 25 54
Office 24 45.5 Office 26 50

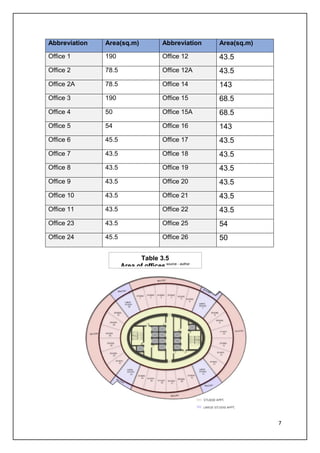

Table 3.5
Area of offices source - author

8. 8

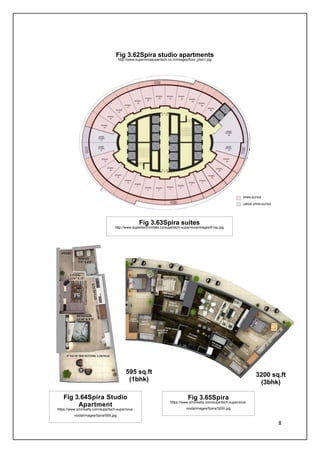

Fig 3.62Spira studio apartments
http://www.supernovasupertech.co.in/images/floor_plan1.jpg
Fig 3.64Spira Studio
Apartment
https://www.smcrealty.com/supertech-supernova-
noida/images/Spira/595.jpg
Fig 3.65Spira
https://www.smcrealty.com/supertech-supernova-
noida/images/Spira/3200.jpg
595 sq.ft
(1bhk)
3200 sq.ft
(3bhk)
Fig 3.63Spira suites
http://www.supertech-limited.co/supertech-supernova/images/fl1sp.jpg

9. 9
Fig 3.66Spira
https://www.smcrealty.com/supertech-
supernovanoida/images/Spira/4200.jpg
4200 sq.ft
Fig 3.67 Nova east & west lvl 2A,2B,3A,3B
https://www.smcrealty.com/supertech-supernova-noida/images/Nova/1380.jpg
1380 sq.ft
2 BHK(Type A)
1380 sq.ft
2 BHK(Type B)

10. 10
Fig 3.68 Nova east & west lvl5th
to 14th
https://www.smcrealty.com/supertech-supernova-noida/images/Nova/1380_t2.jpg
Fig 3.69 Nova east & west lvl15th
to 24th
https://www.smcrealty.com/supertech-supernova-noida/images/Nova/1380_t3.jpg
Fig 3.70 Nova east & west lvl25th
to 37th.
https://www.smcrealty.com/supertech-supernova-noida/images/Nova/1380_t4.jpg
1380 sq.ft
2 BHK(Type C)
1380 sq.ft
2 BHK(Type D)
2105sq.ft
3 BHK(Type A)
Fig 3.71 Nova east & west lvl 2A,2B,3A,3B
https://www.smcrealty.com/supertech-supernova-noida/images/Nova/2105.jpg

11. 11
2105sq.ft
3 BHK(Type C)
2105sq.ft
3 BHK(Type B)
2105sq.ft
3 BHK(Type D)

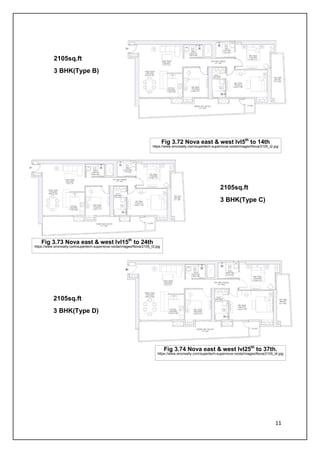

Fig 3.72 Nova east & west lvl5th
to 14th
https://www.smcrealty.com/supertech-supernova-noida/images/Nova/2105_t2.jpg
Fig 3.73 Nova east & west lvl15th
to 24th
https://www.smcrealty.com/supertech-supernova-noida/images/Nova/2105_t3.jpg
Fig 3.74 Nova east & west lvl25th
to 37th.
https://www.smcrealty.com/supertech-supernova-noida/images/Nova/2105_t4.jpg

12. 12
Fig 3.75 Nova Residential tower
http://www.supertech-limited.co/supertech-supernova/images/fl1we.jpg
Features
• Landscaped terrace and rooftop gardens.
• Gymnasium.
• Clubhouse.
• Indoor swimming pool.
• Cigar lounge and library.
Fig 3.76 Retail shops(mall)
https://www.slideshare.net/growingbricks/supertech-
supernova-studio-apartments-noida-
9811822426?qid=1b0037d7-6ccc-4a7b-b69e-
aa55a59d7c59&v=&b=&from_search=3
Fig 3.77 Podium landscape
http://www.supernovasupertech.co.in/images/gallery_img

13. 13
• Private terraces.
• High speed automated elevators.
• Restaurants and cafes.
Structural information Spira suites
• Foundation having 4.1 m depth concrete raft.
• 229 piles of 52m depth each.
• Grade of concrete used is M80.
• Size of column is 1200MM X 4000MM.
• Steel bars are of Fe500 having 40mm diameter.
• Pre-cast structures are not in use.
Structural information Nova Residences
• Foundation having 2.5m depth concrete raft.
• Size of column is 600mm X 600mm.
• Beams are just on edges and for inner area capitols are provided.
• Admixtures used are retarders which are of BSF 8066, Greceelva, Sika 10H1.
• Steel bars are of 40mm diameter.
• Pre-cast structures are not in use.
Specifications for Nova Residences

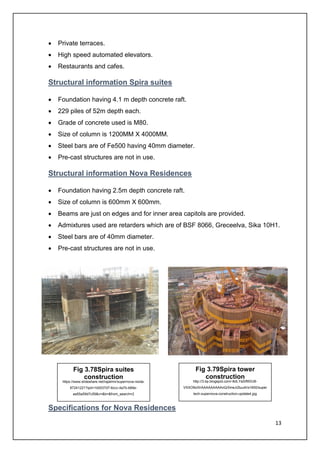

Fig 3.78Spira suites
construction
https://www.slideshare.net/rajatrmr/supernova-noida-
87241221?qid=1b0037d7-6ccc-4a7b-b69e-
aa55a59d7c59&v=&b=&from_search=2
Fig 3.79Spira tower
construction
http://3.bp.blogspot.com/-8dLYaSiftl0/U8-
VXXO9oXI/AAAAAAAAAnQ/0meJi2tuu4I/s1600/super

14. 14

15. 15
Specifications for Spira Studio Appartments

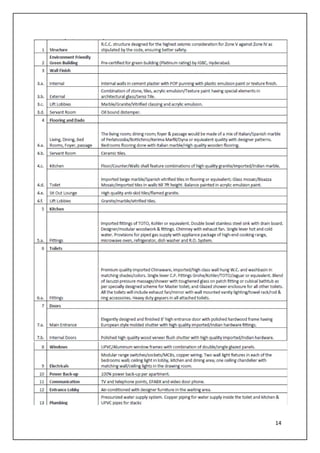

Table 3.6 Specifications for nova
residences
https://www.slideshare.net/GRealtech/supertech-supernova?qid=1b0037d7-6ccc-
4a7b-b69e-aa55a59d7c59&v=&b=&from_search=8

16. 16

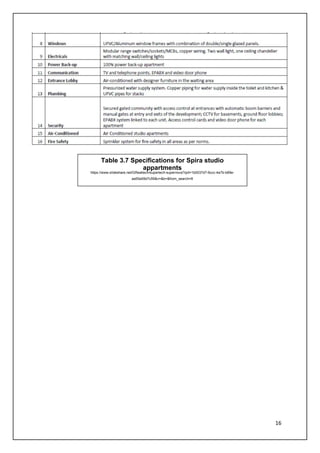

Table 3.7 Specifications for Spira studio
appartments
https://www.slideshare.net/GRealtech/supertech-supernova?qid=1b0037d7-6ccc-4a7b-b69e-
aa55a59d7c59&v=&b=&from_search=8

17. 17
Supertech Supernova, Noida

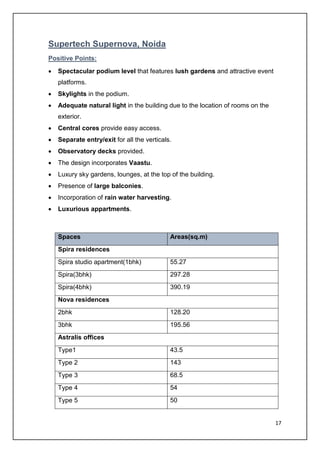

Positive Points:
• Spectacular podium level that features lush gardens and attractive event
platforms.
• Skylights in the podium.
• Adequate natural light in the building due to the location of rooms on the
exterior.
• Central cores provide easy access.
• Separate entry/exit for all the verticals.
• Observatory decks provided.
• The design incorporates Vaastu.
• Luxury sky gardens, lounges, at the top of the building.
• Presence of large balconies.
• Incorporation of rain water harvesting.
• Luxurious appartments.
Spaces Areas(sq.m)
Spira residences
Spira studio apartment(1bhk) 55.27
Spira(3bhk) 297.28
Spira(4bhk) 390.19
Nova residences
2bhk 128.20
3bhk 195.56
Astralis offices
Type1 43.5
Type 2 143
Type 3 68.5
Type 4 54
Type 5 50

18. 18

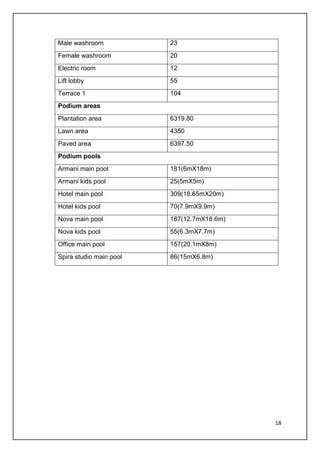

Male washroom 23
Female washroom 20
Electric room 12
Lift lobby 55
Terrace 1 104
Podium areas
Plantation area 6319.80
Lawn area 4350
Paved area 6397.50
Podium pools
Armani main pool 181(6mX18m)
Armani kids pool 25(5mX5m)
Hotel main pool 309(18.65mX20m)
Hotel kids pool 70(7.9mX9.9m)
Nova main pool 187(12.7mX18.6m)
Nova kids pool 55(6.3mX7.7m)
Office main pool 157(20.1mX8m)
Spira studio main pool 86(15mX6.8m)
