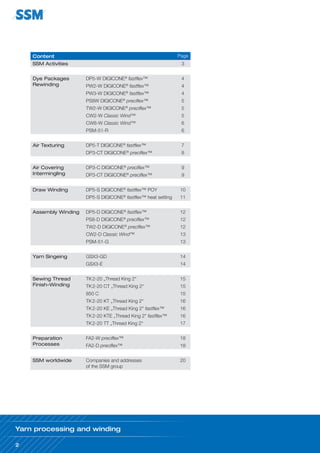

- 2. 2 2 Content Page SSM Activities3 Dye Packages Rewinding DP5-W DIGICONE® fastflex™ 4 PW2-W DIGICONE® fastflex™ 4 PW3-W DIGICONE® fastflex™ 4 PS8W DIGICONE® preciflex™ 5 TW2-W DIGICONE® preciflex™ 5 CW2-W Classic Wind™ 5 CW8-W Classic Wind™ 6 PSM-51-R 6 Air Texturing DP5-T DIGICONE® fastflex™ 7 DP3-CT DIGICONE® preciflex™ 8 Air Covering Intermingling DP3-C DIGICONE® preciflex™ 9 DP3-CT DIGICONE® preciflex™ 9 Draw Winding DP5-S DIGICONE® fastflex™ POY 10 DP5-S DIGICONE® fastflex™ heat setting 11 Assembly Winding DP5-D DIGICONE® fastflex™ 12 PS8-D DIGICONE® preciflex™ 12 TW2-D DIGICONE® preciflex™ 12 CW2-D Classic Wind™ 13 PSM-51-G 13 Yarn Singeing GSX3-GD 14 GSX3-E 14 Sewing Thread Finish-Winding TK2-20 „Thread King 2“ 15 TK2-20 CT „Thread King 2“ 15 850 C 15 TK2-20 KT „Thread King 2“ 16 TK2-20 KE „Thread King 2“ fastflex™ 16 TK2-20 KTE „Thread King 2“ fastflex™ 16 TK2-20 TT „Thread King 2“ 17 Preparation Processes FA2-W preciflex™ 18 FA2-D preciflex™ 18 SSM worldwide Companies and addresses of the SSM group 20 Yarn processing and winding

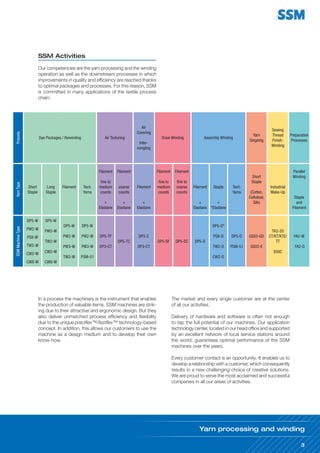

- 3. 3 3 Our competencies arethe yarn processing and the winding operation as well as the downstream processes in which improvements in quality and efficiency are reached thanks to optimal packages and processes. For this reason, SSM is committed in many applications of the textile process chain: In a process the machinery is the instrument that enables the production of valuable items. SSM machines are strik- ing due to their attractive and ergonomic design. But they also deliver unmatched process efficiency and flexibility due to the unique preciflex™/fastflex™ technology-based concept. In addition, this allows our customers to use the machine as a design medium and to develop their own know-how. SSM Activities The market and every single customer are at the center of all our activities. Delivery of hardware and software is often not enough to tap the full potential of our machines. Our application technology center, located in our head office and supported by an excellent network of local service stations around the world, guarantees optimal performance of the SSM machines over the years. Every customer contact is an opportunity. It enables us to develop a relationship with a customer, which consequently results in a new challenging choice of creative solutions. We are proud to serve the most acclaimed and successful companies in all our areas of activities. Yarn processing and winding Process Dye Packages / Rewinding Air Texturing Air Covering Inter- mingling Draw Winding Assembly Winding Yarn Singeing Sewing Thread Finish- Winding Preparation Processes Yarn Type Short Staple Long Staple Filament Tech. Yarns Filament fine to medium counts + Elastane Filament coarse counts + Elastane Filament + Elastane Filament fine to medium counts Filament fine to coarse counts Filament + Elastane Staple + *Elastane Tech. Yarns Short Staple (Cotton, Cellulose, Silk) Industrial Make-Up Parallel Winding Staple and Filament SSM Machine Type DP5-W PW2-W PS8-W TW2-W CW2-W CW8-W DP5-W PW2-W TW2-W CW2-W CW8-W DP5-W PW2-W PW3-W TW2-W DP5-W PW2-W PW3-W PSM-51 DP5-TF DP3-CT DP5-TC DP3-C DP3-CT DP5-SF DP5-SC DP5-D DP5-D* PS8-D TW2-D CW2-D DP5-D PSM-51 GSX3-GD GSX3-E TK2-20 CT/KT/KTE/ TT 850C FA2-W FA2-D

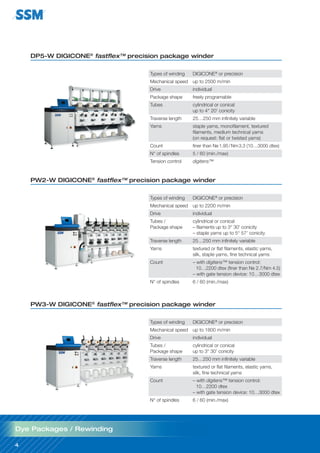

- 4. 4 4 DP5-W DIGICONE® fastflex™ precisionpackage winder Types of winding DIGICONE® or precision Mechanical speed up to 2500 m/min Drive individual Package shape freely programable Tubes cylindrical or conical up to 4° 20’ conicity Traverse length 25…250 mm infinitely variable Yarns staple yarns, monofilament, textured filaments, medium technical yarns (on request: flat or twisted yarns) Count finer than Ne1.95/Nm3.3 (10…3000 dtex) N° of spindles 5 / 60 (min./max) Tension control digitens™ PW2-W DIGICONE® fastflex™ precision package winder PW3-W DIGICONE® fastflex™ precision package winder Types of winding DIGICONE® or precision Mechanical speed up to 2200 m/min Drive individual Tubes / Package shape cylindrical or conical – filaments up to 3° 30’ conicity – staple yarns up to 5° 57’ conicity Traverse length 25…250 mm infinitely variable Yarns textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns Count – with digitens™ tension control: 10…2200 dtex (finer than Ne 2.7/Nm 4.5) – with gate tension device: 10…3000 dtex N° of spindles 6 / 60 (min./max) Types of winding DIGICONE® or precision Mechanical speed up to 1800 m/min Drive individual Tubes / Package shape cylindrical or conical up to 3° 30’ conicity Traverse length 25…250 mm infinitely variable Yarns textured or flat filaments, elastic yarns, silk, fine technical yarns Count – with digitens™ tension control: 10…2200 dtex – with gate tension device: 10…3000 dtex N° of spindles 6 / 60 (min./max) Dye Packages / Rewinding

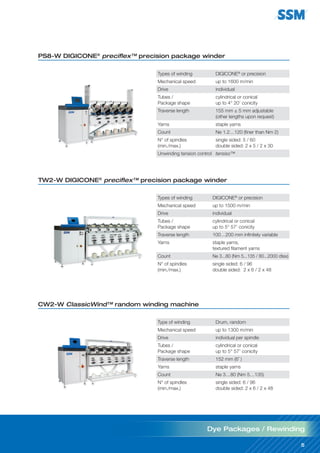

- 5. 5 5 Type of windingDrum, random Mechanical speed up to 1300 m/min Drive individual per spindle Tubes / Package shape cylindrical or conical up to 5° 57’ conicity Traverse length 152 mm (6˝ ) Yarns staple yarns Count Ne 3…80 (Nm 5…135) N° of spindles (min./max.) single sided: 6 / 96 double sided: 2 x 6 / 2 x 48 CW2-W ClassicWind™ random winding machine PS8-W DIGICONE® preciflex™ precision package winder Types of winding DIGICONE® or precision Mechanical speed up to 1600 m/min Drive individual Tubes / Package shape cylindrical or conical up to 4° 20’ conicity Traverse length 155 mm ± 5 mm adjustable (other lengths upon request) Yarns staple yarns Count Ne 1.2…120 (finer than Nm 2) N° of spindles (min./max.) single sided: 5 / 60 double sided: 2 x 5 / 2 x 30 Unwinding tension control tensiso™ Types of winding DIGICONE® or precision Mechanical speed up to 1500 m/min Drive individual Tubes / Package shape cylindrical or conical up to 5° 57’ conicity Traverse length 100…200 mm infinitely variable Yarns staple yarns, textured filament yarns Count Ne 3...80 (Nm 5...135 / 80...2000 dtex) N° of spindles (min./max.) single sided: 6 / 96 double sided: 2 x 6 / 2 x 48 TW2-W DIGICONE® preciflex™ precision package winder Dye Packages / Rewinding

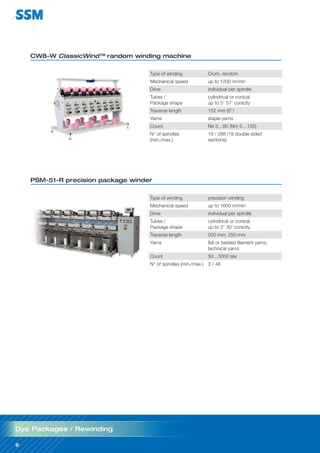

- 6. 6 6 Type of windingDrum, random Mechanical speed up to 1200 m/min Drive individual per spindle Tubes / Package shape cylindrical or conical up to 5° 57’ conicity Traverse length 152 mm (6˝ ) Yarns staple yarns Count Ne 3…80 (Nm 5…135) N° of spindles (min./max.) 16 / 288 (18 double sided sections) CW8-W ClassicWind™ random winding machine Type of winding precision winding Mechanical speed up to 1600 m/min Drive individual per spindle Tubes / Package shape cylindrical or conical up to 3° 30’ conicity Traverse length 200 mm, 250 mm Yarns flat or twisted filament yarns, technical yarns Count 50…5000 tex N° of spindles (min./max.) 3 / 48 PSM-51-R precision package winder Dye Packages / Rewinding

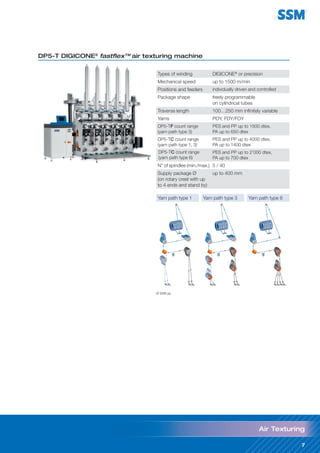

- 7. 7 © SSM pp 7 DP5-TDIGICONE® fastflex™ air texturing machine Types of winding DIGICONE® or precision Mechanical speed up to 1500 m/min Positions and feeders individually driven and controlled Package shape freely programmable on cylindrical tubes Traverse length 100…250 mm infinitely variable Yarns POY, FDY/FOY DP5-TF count range (yarn path type 3) PES and PP up to 1500 dtex, PA up to 650 dtex DP5-TC count range (yarn path type 1, 3) PES and PP up to 4000 dtex, PA up to 1400 dtex DP5-TC count range (yarn path type 6) PES and PP up to 2’000 dtex, PA up to 700 dtex N° of spindles (min./max.) 5 / 40 Supply package Ø (on rotary creel with up to 4 ends and stand by) up to 400 mm Air Texturing Yarn path type 1 Yarn path type 3 Yarn path type 6
- 8. 8 © SSM pp 8 DP3-CTDIGICONE® preciflex™ air texturing & air covering machine Types of winding DIGICONE® or precision Mechanical speed up to 1200 m/min Drive individual Tubes / Package shape freely programmable on cylindrical tubes Traverse length 100…250 mm infinitely variable Yarns FDY/FOY, Elastane Final count up to 400 dtex N° of spindles (min./max.) 5 / 40 Supply package Ø (on side creel with up to 4 ends and stand by) up to 440 mm Easy change from air texuring to air covering process through exchange of the air jet Air Texturing

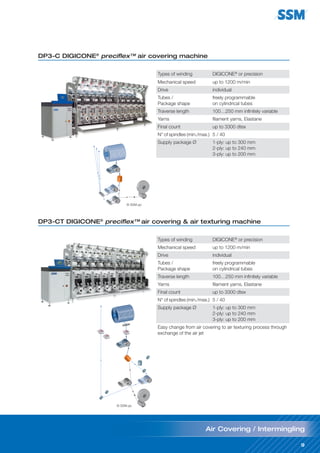

- 9. 9 © SSM pp ©SSM pp 9 Types of winding DIGICONE® or precision Mechanical speed up to 1200 m/min Drive individual Tubes / Package shape freely programmable on cylindrical tubes Traverse length 100…250 mm infinitely variable Yarns filament yarns, Elastane Final count up to 3300 dtex N° of spindles (min./max.) 5 / 40 Supply package Ø 1-ply: up to 300 mm 2-ply: up to 240 mm 3-ply: up to 200 mm DP3-C DIGICONE® preciflex™ air covering machine DP3-CT DIGICONE® preciflex™ air covering & air texturing machine Types of winding DIGICONE® or precision Mechanical speed up to 1200 m/min Drive individual Tubes / Package shape freely programmable on cylindrical tubes Traverse length 100…250 mm infinitely variable Yarns filament yarns, Elastane Final count up to 3300 dtex N° of spindles (min./max.) 5 / 40 Supply package Ø 1-ply: up to 300 mm 2-ply: up to 240 mm 3-ply: up to 200 mm Easy change from air covering to air texturing process through exchange of the air jet Air Covering / Intermingling
- 10. 10 © SSM pp 10 DP5-SDIGICONE® fastflex™ POY draw winding machine Types of winding DIGICONE® or precision Mechanical speed up to 1500 m/min Positions and feeders individually driven and controlled Package shape freely programmable on cylindrical tubes Traverse length 100…250 mm infinitely variable Yarns POY, FDY/FOY DP5-SF count range PES, PBT and PP up to 1000 dtex, PA up to 330 dtex DP5-SC count range PES, PBT and PP up to 2000 dtex, PA up to 700 dtex N° of spindles (min./max.) 5 / 40 Supply package Ø up to 400 mm Yarn path type 1 Yarn path type 2 Yarn path type 3 Yarn path type 4 Draw Winding
- 11. 11 © SSM pp 11 DP5-SDIGICONE® fastflex™ draw heat setting winder Types of winding DIGICONE® or precision Mechanical speed up to 1500 m/min Positions and feeders individually driven and controlled Package shape freely programmable on cylindrical tubes Traverse length 100…250 mm infinitely variable Yarns filament sewing thread, twisted technical yarn DP5-SF count range / draw force PES and PA yarn path 11: 50 to 1000 dtex, up to 40 N draw force yarn path 12: 50 to 2500 dtex, up to 40 N draw force DP5-SC count range / draw force PES and PA yarn path 12: 50 to 4000 dtex, up to 60 N draw force N° of spindles (min./max.) 5 / 40 Supply package Ø up to 400 mm Draw Winding Yarn path type 11 Yarn path type 12
- 12. 12 12 Types of windingDIGICONE® or precision Mechanical speed up to 1600 m/min Drive individual Tubes / Package shape cylindrical or conical up to 4° 20’ conicity Traverse length 155 mm ± 5 mm adjustable (other lengths upon request) Supply package Ø 2-ply: ≤ 250 mm / 3-ply: ≤ 250 mm Yarns staple yarns Count Ne 1.2…120 (Nm 2…200) N° of spindles (min./max. ) single sided: 5 / 60 double sided: 2 x 5 / 2 x 30 PS8-D DIGICONE® preciflex™ precision assembly winder Types of winding DIGICONE® or precision Mechanical speed up to 1500 m/min Drive individual Tubes / Package shape cylindrical or conical up to 4° 20’ conicity Traverse length 100…200 mm infinitely variable Supply package Ø 2-ply: ≤ 240 mm / 3-ply: ≤ 220 mm Yarns staple yarns Count finer than Ne 3 / Nm 5 (80…2000 dtex) N° of spindles (min./max.) single sided: 6 / 96 double sided: 2 x 6 / 2 x 48 TW2-D DIGICONE® preciflex™ precision assembly winder DP5-D DIGICONE® fastflex™ precision assembly winder Types of winding DIGICONE® or precision Mechanical speed up to 2500 m/min Drive individual Package shape freely programmable Tubes cylindrical or conical up to 4° 20’ conicity Traverse length 25…250 mm infinitely variable Supply package Ø 2-ply: ≤ 280 mm / 3-ply: ≤ 240 mm Yarns staple yarns, silk, staple + filament, flat filaments, staple + elastomer, textured filaments, technical yarns Count finer than Ne1.95/Nm3.3 (10…3000 dtex) N° of spindles 5 / 60 (min./max) Assembly Winding

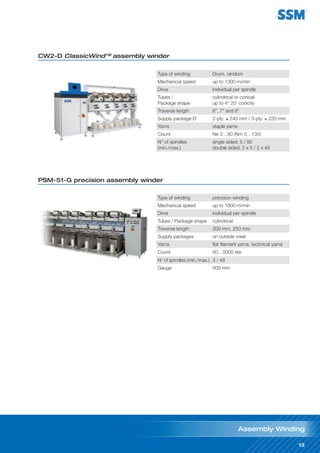

- 13. 13 13 Type of windingDrum, random Mechanical speed up to 1300 m/min Drive individual per spindle Tubes / Package shape cylindrical or conical up to 4° 20’ conicity Traverse length 6”, 7” and 8” Supply package Ø 2-ply: ≤ 240 mm / 3-ply: ≤ 220 mm Yarns staple yarns Count Ne 3…80 (Nm 5…135) N° of spindles (min./max.) single sided: 5 / 90 double sided: 2 x 5 / 2 x 45 CW2-D ClassicWind™ assembly winder Type of winding precision winding Mechanical speed up to 1600 m/min Drive individual per spindle Tubes / Package shape cylindrical Traverse length 200 mm, 250 mm Supply packages on outside creel Yarns flat filament yarns, technical yarns Count 50…5000 tex N° of spindles (min./max.) 3 / 48 Gauge 500 mm PSM-51-G precision assembly winder Assembly Winding
- 14. 14 14 GSX3-GD yarn singeingand random winding machine Type of winding drum with ceramic inserts, random Mechanical speed up to 1500 m/min Drive individual Tubes / Package shape cylindrical or conical up to 4° 20’ conicity Traverse length 152 mm (6”) Yarns cotton, rayon staple fibre yarns, blends and other staple yarns Count Ne 10/2…160/2 (Nm 16/2…270/2) N° of spindles (min./max.) double sided: 2 x 6 / 2 x 42 Yarn Singeing GSX3-E yarn singeing and precision winding machine Type of winding DIGICONE® or precision Mechanical speed up to 1500 m/min Drive individual Tubes / Package shape cylindrical or conical up to 4° 20’ conicity Traverse length 152 mm (6”) Yarns cotton, rayon staple fibre yarns, blends and other staple yarns Count Ne 10/2…160/2 (Nm 16/2…270/2) N° of spindles (min./max.) double sided: 2 x 6 / 2 x 42 before/after singeing
- 15. 15 15 Industrial Make-Up |Sewing Thread Finish Winding Type of winding precision crosswind Mechanical speed up to 13000 min-1 (≤ 2000 m/min) Drive individual two drive system per spindle Packages – cones; conicity 1° 30’ – 5° 57’ – kingspools; cylindrical or conical (≤ 2°) Traverse length – cones: 3”–6” – kingspools: 1.5”–6” Yarns sewing threads Count up to 5000 dtex N° of spindles 5/40 (min./max) TK2-20 „Thread King 2“ manual version for cones and kingspools TK2-20 CT „Thread King 2“ automatic “doffer” version for cones Type of winding precision crosswind Mechanical speed up to 13000 min-1 (≤ 2000 m/min) Drive individual two drive system per spindle Packages cones; conicity from 1° 30’ up to 5° 57’ Traverse length 3”–6” Yarns sewing threads Count up to 3300 dtex N° of spindles 5/40 (min./max) with automatic final end tuck-in 850 C „Thread Prince“ automatic high-performance cone winder Type of winding precision crosswind Mechanical speed up to 13000 min-1 (≤ 1600 m/min) Drive individual two drive system per spindle Packages cones; conicity from 1° 30’ up to 5° 57’ Traverse length 100–150 mm (4”–6”) Yarns spun thread/core spun, textured filament, technical thread, special thread Count 20…200 tex N° of spindles 6/24 (min./max) with automatic doffing system

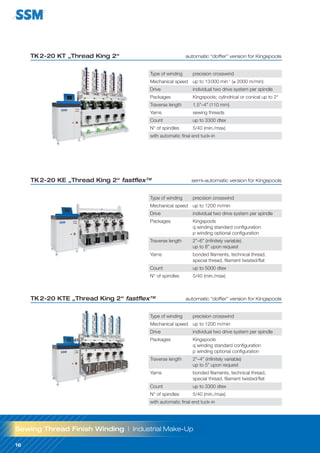

- 16. 16 16 TK2-20 KT „ThreadKing 2“ automatic “doffer” version for Kingspools TK2-20 KE „Thread King 2“ fastflex™ semi-automatic version for Kingspools Type of winding precision crosswind Mechanical speed up to 1200 m/min Drive individual two drive system per spindle Packages Kingspools q winding standard configuration p winding optional configuration Traverse length 2”–6” (infinitely variable) up to 8” upon request Yarns bonded filaments, technical thread, special thread, filament twisted/flat Count up to 5000 dtex N° of spindles 5/40 (min./max) TK2-20 KTE „Thread King 2“ fastflex™ automatic “doffer” version for Kingspools Type of winding precision crosswind Mechanical speed up to 1200 m/min Drive individual two drive system per spindle Packages Kingspools q winding standard configuration p winding optional configuration Traverse length 2”–4” (infinitely variable) up to 5” upon request Yarns bonded filaments, technical thread, special thread, filament twisted/flat Count up to 3300 dtex N° of spindles 5/40 (min./max) with automatic final end tuck-in Sewing Thread Finish Winding | Industrial Make-Up Type of winding precision crosswind Mechanical speed up to 13000 min-1 (≤ 2000 m/min) Drive individual two drive system per spindle Packages Kingspools; cylindrical or conical up to 2° Traverse length 1.5”–4” (110 mm) Yarns sewing threads Count up to 3300 dtex N° of spindles 5/40 (min./max) with automatic final end tuck-in
- 17. 17 17 Type of windingprecision crosswind Mechanical speed up to 13000 min-1 (≤ 2000 m/min) Drive individual two drive system per spindle Packages cylindrical tubes (cops) Traverse length 1.5”–4” (110 mm) Yarns sewing threads Count up to 2000 dtex N° of spindles 2/20 (min./max) with automatic final end tuck-in and doffing system TK2-20 TT „Thread King 2“ automatic cops winder Industrial Make-Up | Sewing Thread Finish Winding

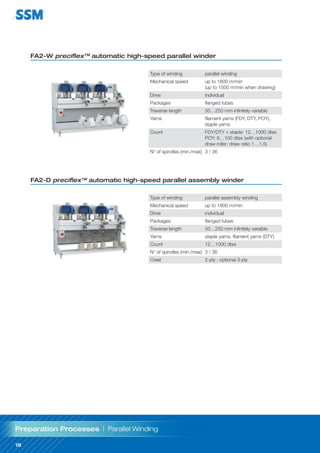

- 18. 18 18 Type of windingparallel assembly winding Mechanical speed up to 1800 m/min Drive individual Packages flanged tubes Traverse length 50…250 mm infinitely variable Yarns staple yarns, filament yarns (DTY) Count 12…1000 dtex N° of spindles (min./max) 3 / 36 Creel 2-ply ; optional 3-ply FA2-D preciflex™ automatic high-speed parallel assembly winder Type of winding parallel winding Mechanical speed up to 1800 m/min (up to 1500 m/min when drawing) Drive individual Packages flanged tubes Traverse length 50…250 mm infinitely variable Yarns filament yarns (FDY, DTY, POY), staple yarns Count FDY/DTY + staple: 12…1000 dtex POY: 8…100 dtex (with optional draw roller; draw ratio 1…1.5) N° of spindles (min./max) 3 / 36 FA2-W preciflex™ automatic high-speed parallel winder Preparation Processes | Parallel Winding

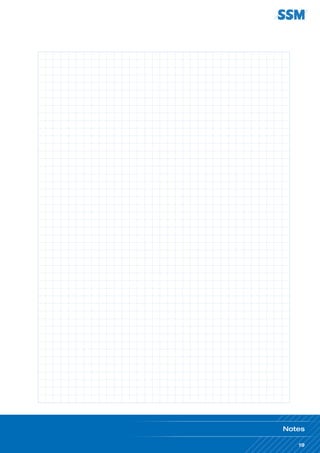

- 19.
