SQL Server Integration Services (SSIS) is a platform for building extract, transform, and load (ETL) packages and other data integration and workflow tasks. It includes graphical tools and wizards to design packages, as well as utilities to run, debug, and deploy packages. Key components of SSIS include control flow tasks, data flows, variables, logging, and support for transactions and restarting failed packages.

1. SQL Server Integration
Service 2008

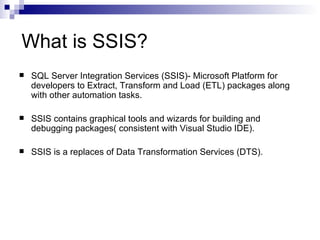

2. What is SSIS?
 SQL Server Integration Services (SSIS)- Microsoft Platform for
developers to Extract, Transform and Load (ETL) packages along
with other automation tasks.
 SSIS contains graphical tools and wizards for building and
debugging packages( consistent with Visual Studio IDE).
 SSIS is a replaces of Data Transformation Services (DTS).

3. SSIS Tools
 Wizards
 SQL Server Import and Export Wizard
 Package Migration Wizard
…
 SSIS Designer
 built into the BI Development Studio and is the main surface for
package development.
 Command-prompt utilities
 Dtexec (run an existing package at the command prompt )
 Dtutil (manage existing packages at the command prompt)

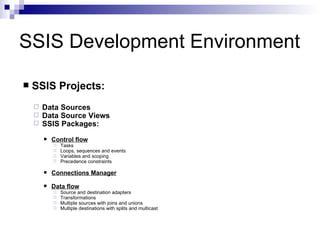

4. SSIS Development Environment
 SSIS Projects:
 Data Sources
 Data Source Views
 SSIS Packages:
 Control flow
 Tasks
 Loops, sequences and events
 Variables and scoping
 Precedence constraints
 Connections Manager
 Data flow
 Source and destination adapters
 Transformations
 Multiple sources with joins and unions
 Multiple destinations with splits and multicast

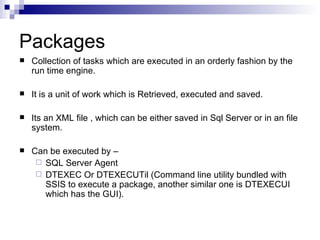

6. Packages
 Collection of tasks which are executed in an orderly fashion by the
run time engine.
 It is a unit of work which is Retrieved, executed and saved.
 Its an XML file , which can be either saved in Sql Server or in an file
system.
 Can be executed by –
 SQL Server Agent
 DTEXEC Or DTEXECUTil (Command line utility bundled with
SSIS to execute a package, another similar one is DTEXECUI
which has the GUI).

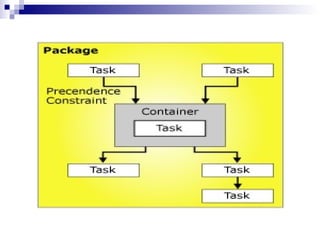

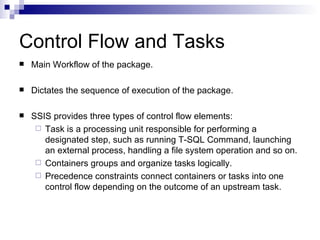

8. Control Flow and Tasks
 Main Workflow of the package.
 Dictates the sequence of execution of the package.
 SSIS provides three types of control flow elements:
 Task is a processing unit responsible for performing a
designated step, such as running T-SQL Command, launching
an external process, handling a file system operation and so on.
 Containers groups and organize tasks logically.
 Precedence constraints connect containers or tasks into one
control flow depending on the outcome of an upstream task.

10. Containers

12. Precedence Constraints
Complete
Success
Failure

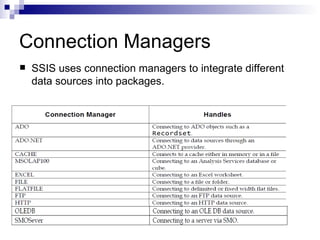

13. Connection Managers
 SSIS uses connection managers to integrate different
data sources into packages.

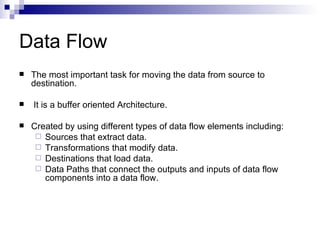

14. Data Flow
 The most important task for moving the data from source to
destination.
 It is a buffer oriented Architecture.
 Created by using different types of data flow elements including:
 Sources that extract data.
 Transformations that modify data.
 Destinations that load data.
 Data Paths that connect the outputs and inputs of data flow
components into a data flow.

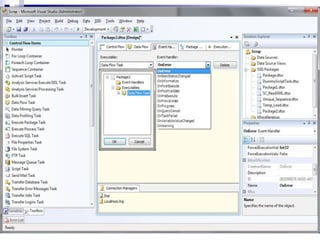

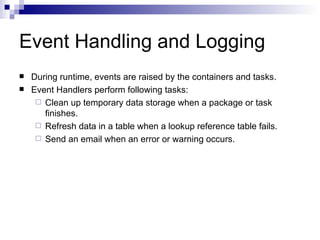

16. Event Handling and Logging
 During runtime, events are raised by the containers and tasks.
 Event Handlers perform following tasks:
 Clean up temporary data storage when a package or task
finishes.
 Refresh data in a table when a lookup reference table fails.
 Send an email when an error or warning occurs.

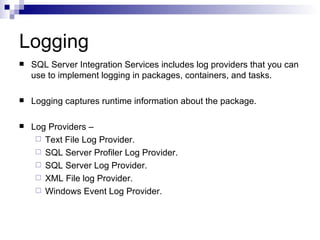

18. Logging
 SQL Server Integration Services includes log providers that you can
use to implement logging in packages, containers, and tasks.
 Logging captures runtime information about the package.
 Log Providers –
 Text File Log Provider.
 SQL Server Profiler Log Provider.
 SQL Server Log Provider.
 XML File log Provider.
 Windows Event Log Provider.

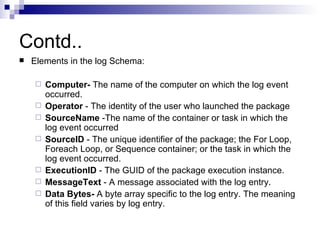

19. Contd..
 Elements in the log Schema:
 Computer- The name of the computer on which the log event
occurred.
 Operator - The identity of the user who launched the package
 SourceName -The name of the container or task in which the
log event occurred
 SourceID - The unique identifier of the package; the For Loop,
Foreach Loop, or Sequence container; or the task in which the
log event occurred.
 ExecutionID - The GUID of the package execution instance.
 MessageText - A message associated with the log entry.
 Data Bytes- A byte array specific to the log entry. The meaning
of this field varies by log entry.

20. Transactions
 SSIS Container types can be configured to use transaction.
 Three Options for configuring transactions:
 Supported – joins any transaction started by the parent
container.
 Not Supported – does not join or start a transaction.
 Required – Starts a transaction, unless one is already started by
the parent. If transaction exists, it joins the existing one.

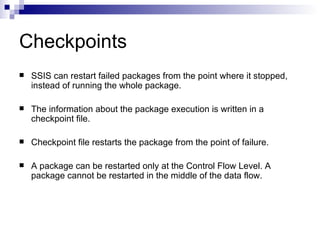

21. Checkpoints
 SSIS can restart failed packages from the point where it stopped,
instead of running the whole package.
 The information about the package execution is written in a
checkpoint file.
 Checkpoint file restarts the package from the point of failure.
 A package can be restarted only at the Control Flow Level. A
package cannot be restarted in the middle of the data flow.

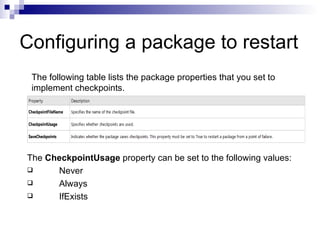

22. Configuring a package to restart
The following table lists the package properties that you set to
implement checkpoints.
The CheckpointUsage property can be set to the following values:
 Never
 Always
 IfExists

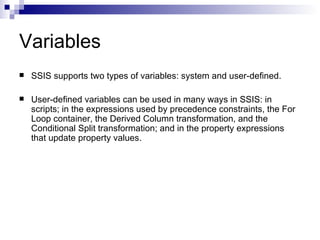

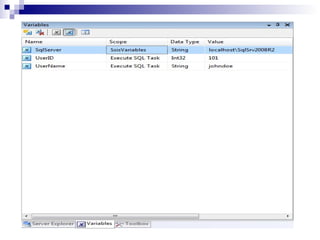

23. Variables
 SSIS supports two types of variables: system and user-defined.
 User-defined variables can be used in many ways in SSIS: in
scripts; in the expressions used by precedence constraints, the For
Loop container, the Derived Column transformation, and the
Conditional Split transformation; and in the property expressions
that update property values.

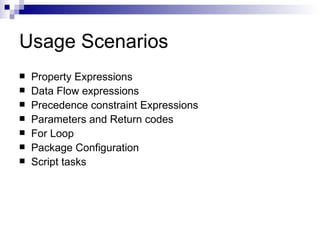

25. Usage Scenarios
 Property Expressions
 Data Flow expressions
 Precedence constraint Expressions
 Parameters and Return codes
 For Loop
 Package Configuration
 Script tasks

26. Package Debugging
 Control flow
 Breakpoints
 Debug window
 Watch window
 Data flow
 Data viewer
 Row counts

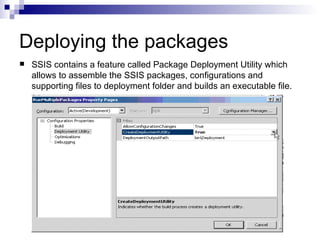

27. Deploying the packages
 SSIS contains a feature called Package Deployment Utility which
allows to assemble the SSIS packages, configurations and
supporting files to deployment folder and builds an executable file.

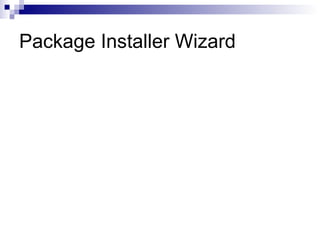

28. Package Installer Wizard
