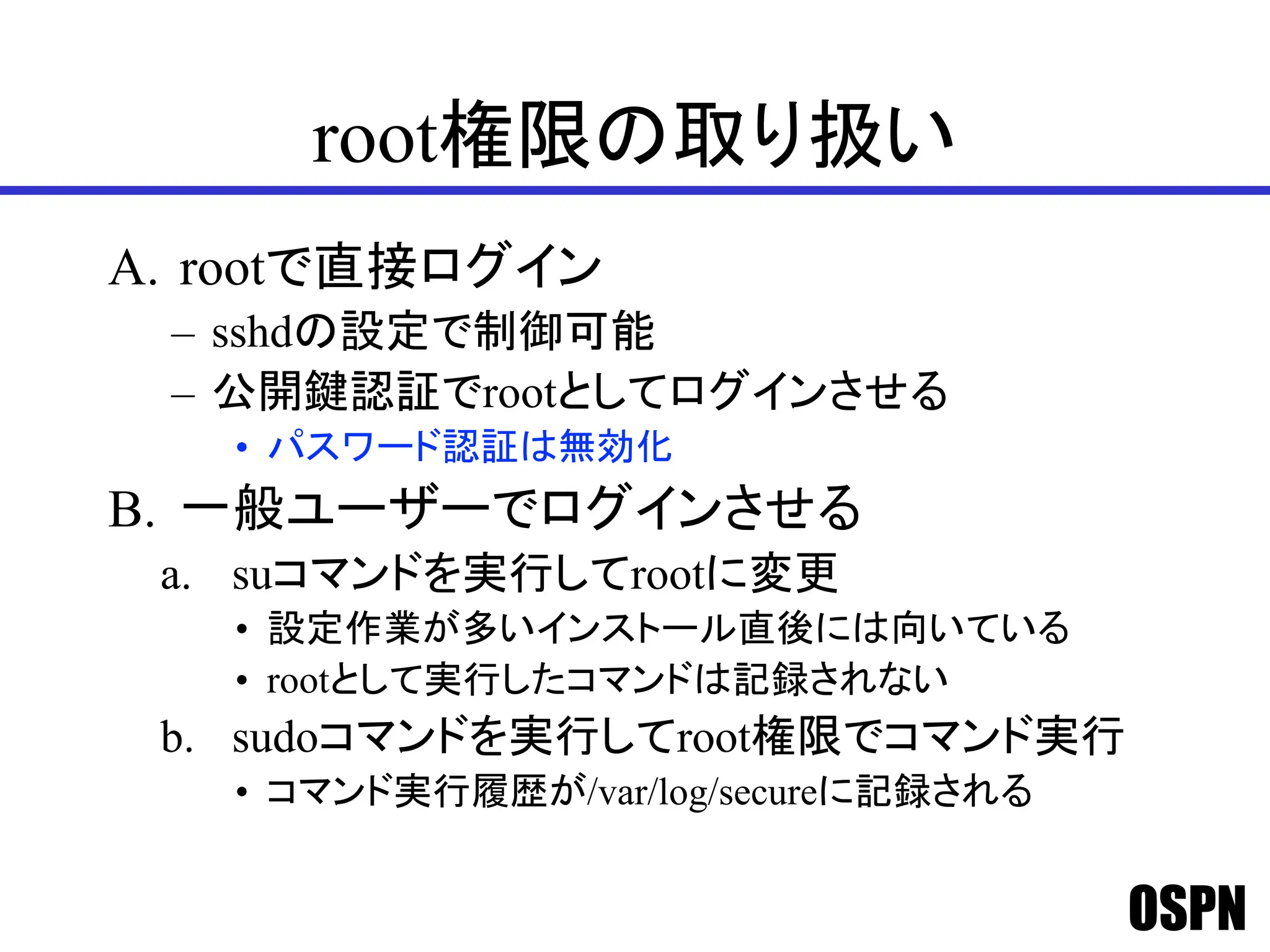

6. OSPN
root権限の取り扱い
A. rootで直接ログイン
– sshdの設定で制御可能
– 公開鍵認証でrootとしてログインさせる
• パスワード認証は無効化
B. 一般ユーザーでログインさせる
a. suコマンドを実行してrootに変更
• 設定作業が多いインストール直後には向いている
• rootとして実行したコマンドは記録されない
b. sudoコマンドを実行してroot権限でコマンド実行
• コマンド実行履歴が/var/log/secureに記録される
7. OSPN
su コマンド実行の制限
• PAMを設定してsuコマンドの実行を制御
– trust:suコマンド実行時にrootパスワードを要求しない
– require:suコマンドを実行するにはwheelグループに所
属している必要がある
• /etc/pam.d/suを編集
– 設定のコメントアウトを外して保存すると即時有効
# Uncomment the following line to implicitly trust users in the "wheel" group.
#auth sufficientpam_wheel.so trust use_uid
# Uncomment the following line to require a user to be in the "wheel" group.
#auth required pam_wheel.so use_uid

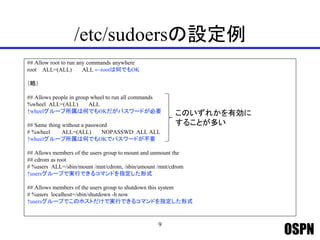

9. OSPN

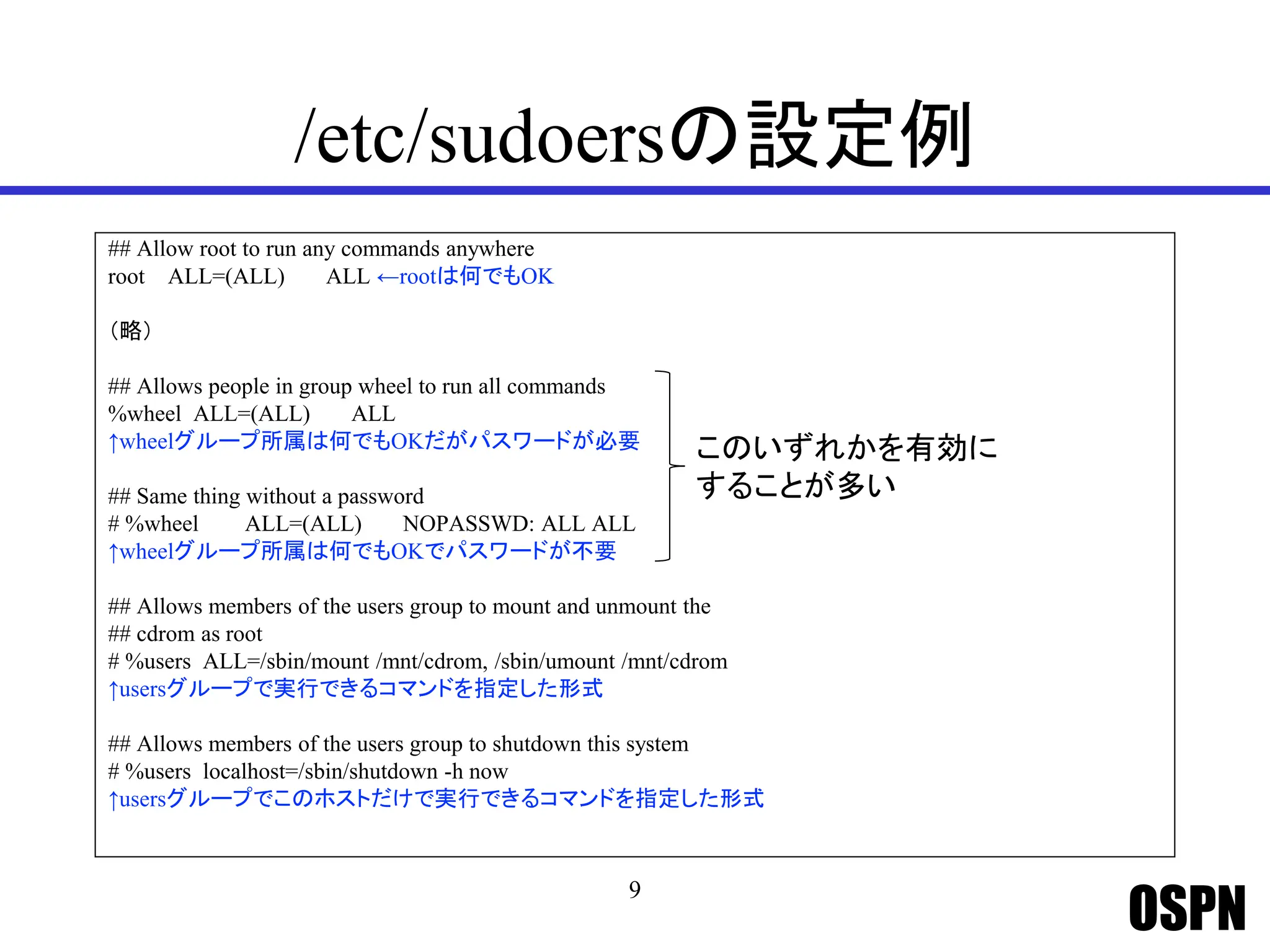

/etc/sudoersの設定例
## Allow root to run any commands anywhere
root ALL=(ALL) ALL ←rootは何でもOK
(略)
## Allows people in group wheel to run all commands
%wheel ALL=(ALL) ALL
↑wheelグループ所属は何でもOKだがパスワードが必要
## Same thing without a password
# %wheel ALL=(ALL) NOPASSWD: ALL ALL
↑wheelグループ所属は何でもOKでパスワードが不要
## Allows members of the users group to mount and unmount the
## cdrom as root
# %users ALL=/sbin/mount /mnt/cdrom, /sbin/umount /mnt/cdrom
↑usersグループで実行できるコマンドを指定した形式
## Allows members of the users group to shutdown this system
# %users localhost=/sbin/shutdown -h now
↑usersグループでこのホストだけで実行できるコマンドを指定した形式
9
このいずれかを有効に
することが多い

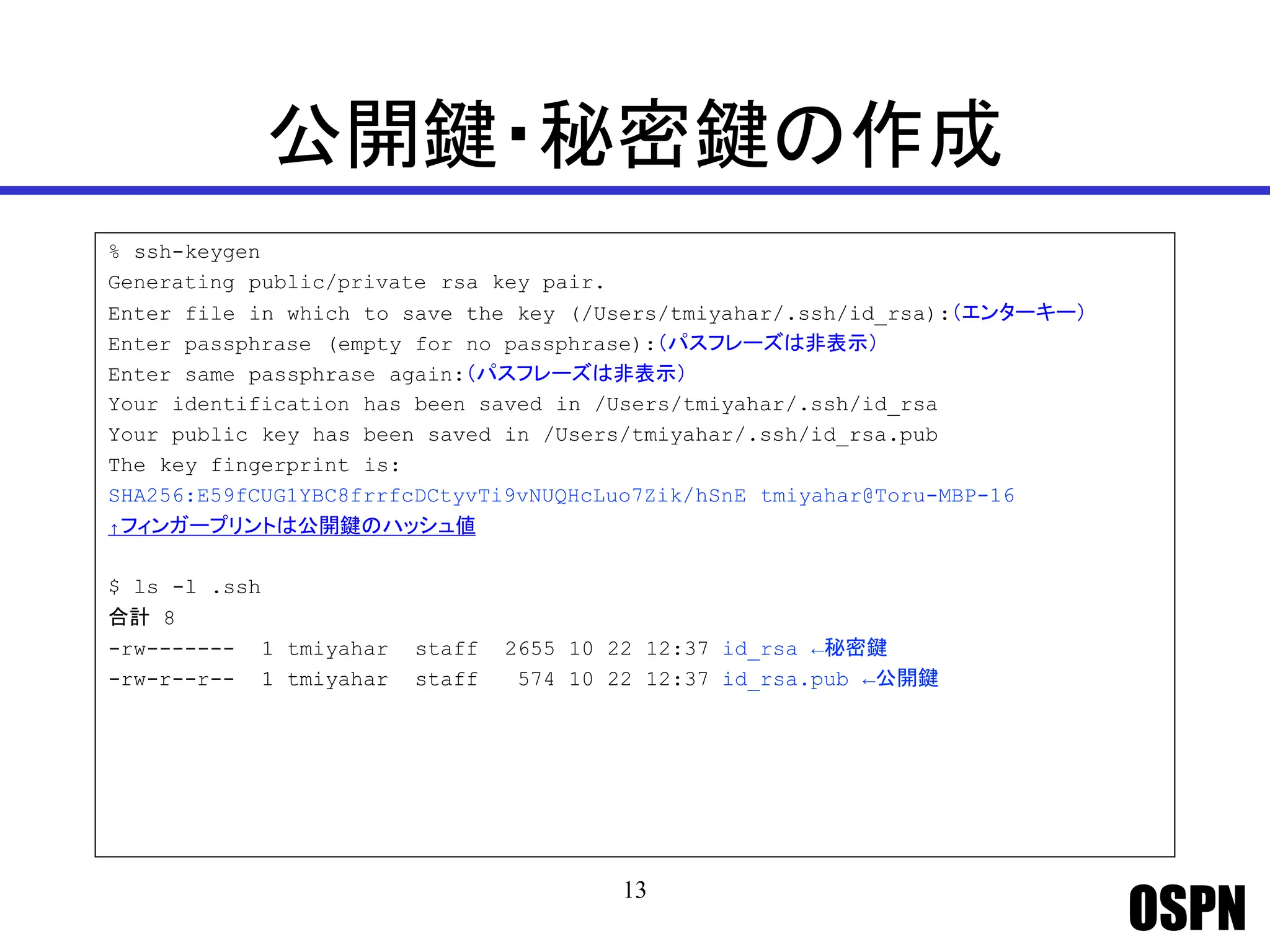

13. OSPN
公開鍵・秘密鍵の作成
% ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/Users/tmiyahar/.ssh/id_rsa):(エンターキー)
Enter passphrase (empty for no passphrase):(パスフレーズは非表示)
Enter same passphrase again:(パスフレーズは非表示)
Your identification has been saved in /Users/tmiyahar/.ssh/id_rsa
Your public key has been saved in /Users/tmiyahar/.ssh/id_rsa.pub
The key fingerprint is:
SHA256:E59fCUG1YBC8frrfcDCtyvTi9vNUQHcLuo7Zik/hSnE tmiyahar@Toru-MBP-16
↑フィンガープリントは公開鍵のハッシュ値
$ ls -l .ssh
合計 8
-rw------- 1 tmiyahar staff 2655 10 22 12:37 id_rsa ←秘密鍵
-rw-r--r-- 1 tmiyahar staff 574 10 22 12:37 id_rsa.pub ←公開鍵
13

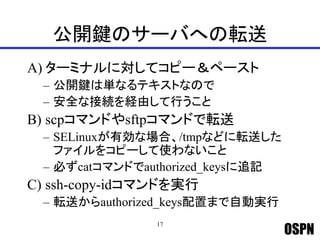

17. OSPN
公開鍵のサーバへの転送
A) ターミナルに対してコピー&ペースト
– 公開鍵は単なるテキストなので
– 安全な接続を経由して行うこと
B) scpコマンドやsftpコマンドで転送
– SELinuxが有効な場合、/tmpなどに転送した
ファイルをコピーして使わないこと
– 必ずcatコマンドでauthorized_keysに追記
C) ssh-copy-idコマンドを実行
– 転送からauthorized_keys配置まで自動実行
17
18. OSPN
sshコマンドで接続
% ssh sshuser@192.168.156.101
The authenticity of host '192.168.156.101 (192.168.156.101)' can't be established.
ED25519 key fingerprint is SHA256:nKWsgCAF9YdR02YZKp0QqIk0/TDy/PzUJHCQnNCtxjM.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.156.101' (ED25519) to the list of known hosts.
Enter passphrase for key /Users/xxx/.ssh/id_rsa ': (パスフレーズを入力。非表示)
[sshuser@server ~]$
• 初めて接続するサーバーはホスト証明書が送られ
てくる
• yesと入力することで~/.ssh/known_hostsに
記録される
• 次回以降はホスト証明書を照合して異なっている
場合には警告を表示して接続させない(サーバー
のすり替えなどの防止)
18

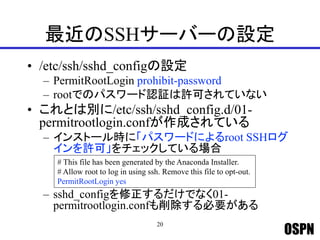

20. OSPN
最近のSSHサーバーの設定
• /etc/ssh/sshd_configの設定
– PermitRootLogin prohibit-password
– rootでのパスワード認証は許可されていない
• これとは別に/etc/ssh/sshd_config.d/01-
permitrootlogin.confが作成されている
– インストール時に「パスワードによるroot SSHログ
インを許可」をチェックしている場合
– sshd_configを修正するだけでなく01-
permitrootlogin.confも削除する必要がある
20
# This file has been generated by the Anaconda Installer.
# Allow root to log in using ssh. Remove this file to opt-out.
PermitRootLogin yes
