1. Somewhere between schema
and schemaless
SHANE K JOHNSON
MARIADB CORPORATION

2. About me
I’m not a morning person,
but I like breakfast.

3. About me
I’m not a NoSQL person,
but I like JSON.

4. What’s the point?

5. What’s the point?

6. What’s the point?
If a movie can be both
science fiction and
western…

7. A data model can be comprised of
structured and semi-structured data.

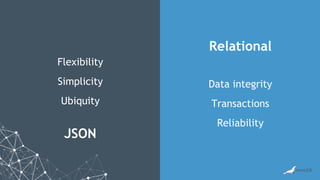

8. JSON
Relational
Flexibility
Simplicity
Ubiquity
Data integrity
Transactions
Reliability

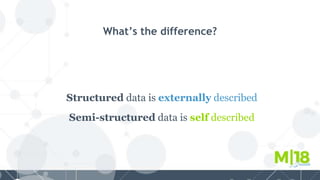

9. What’s the difference?
Structured data is externally described
Semi-structured data is self described

10. Structured and semi-structured data
with relational + JSON
Structured Semi-structured

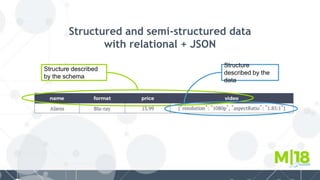

11. Structured and semi-structured data
with relational + JSON
Structure described
by the schema
Structure
described by the
data

12. Creating and querying
JSON documents

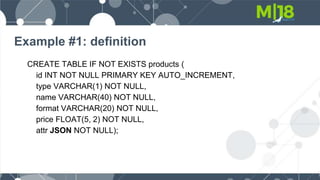

13. Example #1: definition
CREATE TABLE IF NOT EXISTS products (
id INT NOT NULL PRIMARY KEY AUTO_INCREMENT,
type VARCHAR(1) NOT NULL,
name VARCHAR(40) NOT NULL,
format VARCHAR(20) NOT NULL,
price FLOAT(5, 2) NOT NULL,
attr JSON NOT NULL);

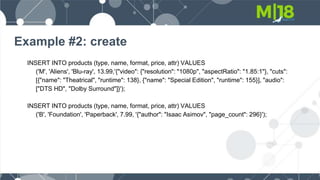

14. Example #2: create
INSERT INTO products (type, name, format, price, attr) VALUES
('M', 'Aliens', 'Blu-ray', 13.99,'{"video": {"resolution": "1080p", "aspectRatio": "1.85:1"}, "cuts":
[{"name": "Theatrical", "runtime": 138}, {"name": "Special Edition", "runtime": 155}], "audio":
["DTS HD", "Dolby Surround"]}');
INSERT INTO products (type, name, format, price, attr) VALUES
('B', 'Foundation', 'Paperback', 7.99, '{"author": "Isaac Asimov", "page_count": 296}');

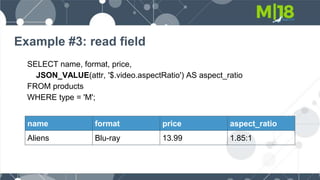

15. Example #3: read field
SELECT name, format, price,
JSON_VALUE(attr, '$.video.aspectRatio') AS aspect_ratio
FROM products
WHERE type = 'M';
name format price aspect_ratio
Aliens Blu-ray 13.99 1.85:1

16. Example #4: null field
SELECT type, name, format, price,
JSON_VALUE(attr,$.video.aspectRatio') AS aspect_ratio
FROM products;
type name format price aspect_ratio
M Aliens Blu-ray 13.99 1.85:1
B Foundation Paperback 7.99 NULL

17. Example #5: contains field
SELECT name, format, price,
JSON_VALUE(attr, '$.video.aspectRatio') AS aspect_ratio
FROM products
WHERE type = 'M' AND
JSON_CONTAINS_PATH(attr, 'one', '$.video.resolution') = 1;
name format price aspect_ratio
Aliens Blu-ray 13.99 1.85:1

18. Example #6: contains value
SELECT id, name, format, price
FROM products
WHERE type = 'M' AND
JSON_CONTAINS(attr, '"DTS HD"', '$.audio') = 1;
name format price aspect_ratio
Aliens Blu-ray 13.99 1.85:1

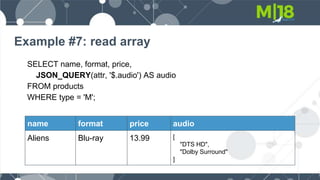

19. Example #7: read array
SELECT name, format, price,
JSON_QUERY(attr, '$.audio') AS audio
FROM products
WHERE type = 'M';
name format price audio
Aliens Blu-ray 13.99 [
"DTS HD",
"Dolby Surround"
]

20. Example #8: read array element
SELECT name, format, price,
JSON_VALUE(attr, '$.audio[0]') AS default_audio
FROM products
WHERE type = 'M';
name format price audio
Aliens Blu-ray 13.99 DTS HD

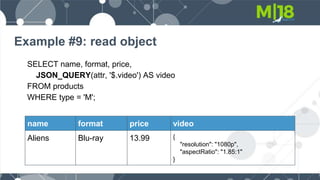

21. Example #9: read object
SELECT name, format, price,
JSON_QUERY(attr, '$.video') AS video
FROM products
WHERE type = 'M';
name format price video
Aliens Blu-ray 13.99 {
"resolution": "1080p",
"aspectRatio": "1.85:1"
}

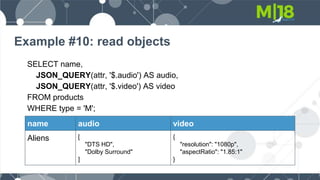

22. Example #10: read objects
SELECT name,
JSON_QUERY(attr, '$.audio') AS audio,
JSON_QUERY(attr, '$.video') AS video
FROM products
WHERE type = 'M';
name audio video
Aliens [
"DTS HD",
"Dolby Surround"
]
{
"resolution": "1080p",
"aspectRatio": "1.85:1"
}

23. Example #11: field equals
SELECT id, name, format, price
FROM products
WHERE type = 'M' AND
JSON_VALUE(attr, '$.video.resolution') = '1080p';
name format price aspect_ratio
Aliens Blu-ray 13.99 1.85:1

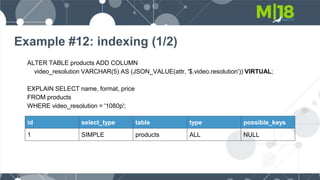

24. Example #12: indexing (1/2)
ALTER TABLE products ADD COLUMN
video_resolution VARCHAR(5) AS (JSON_VALUE(attr, '$.video.resolution')) VIRTUAL;
EXPLAIN SELECT name, format, price
FROM products
WHERE video_resolution = '1080p';
id select_type table type possible_keys
1 SIMPLE products ALL NULL

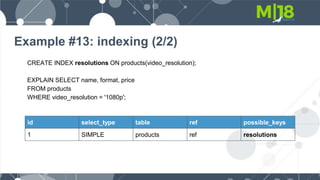

25. Example #13: indexing (2/2)
CREATE INDEX resolutions ON products(video_resolution);
EXPLAIN SELECT name, format, price
FROM products
WHERE video_resolution = '1080p';
id select_type table ref possible_keys
1 SIMPLE products ref resolutions

26. Modifying JSON documents

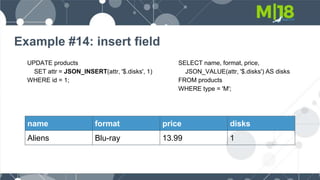

27. Example #14: insert field
UPDATE products
SET attr = JSON_INSERT(attr, '$.disks', 1)
WHERE id = 1;
name format price disks
Aliens Blu-ray 13.99 1
SELECT name, format, price,
JSON_VALUE(attr, '$.disks') AS disks
FROM products
WHERE type = 'M';

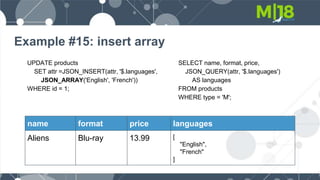

28. Example #15: insert array
UPDATE products
SET attr =JSON_INSERT(attr, '$.languages',
JSON_ARRAY('English', 'French'))
WHERE id = 1;
SELECT name, format, price,
JSON_QUERY(attr, '$.languages')
AS languages
FROM products
WHERE type = 'M';
name format price languages
Aliens Blu-ray 13.99 [
"English",
"French"
]

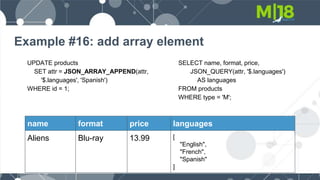

29. Example #16: add array element
UPDATE products
SET attr = JSON_ARRAY_APPEND(attr,
'$.languages', 'Spanish')
WHERE id = 1;
SELECT name, format, price,
JSON_QUERY(attr, '$.languages')
AS languages
FROM products
WHERE type = 'M';
name format price languages
Aliens Blu-ray 13.99 [
"English",
"French",
"Spanish"
]

30. Example #17: remove array element
UPDATE products
SET attr = JSON_REMOVE(attr,
'$.languages[0]')
WHERE id = 1;
SELECT name, format, price,
JSON_QUERY(attr, '$.languages')
AS languages
FROM products
WHERE type = 'M';
name format price languages
Aliens Blu-ray 13.99 [
"French",
"Spanish"
]

31. Creating JSON documents
from relational data

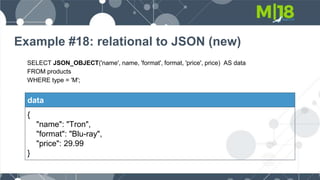

32. Example #18: relational to JSON (new)
SELECT JSON_OBJECT('name', name, 'format', format, 'price', price) AS data
FROM products
WHERE type = 'M';
data
{
"name": "Tron",
"format": "Blu-ray",
"price": 29.99
}

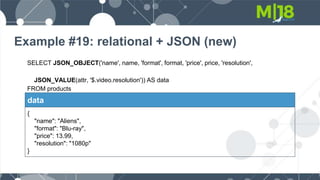

33. Example #19: relational + JSON (new)
SELECT JSON_OBJECT('name', name, 'format', format, 'price', price, 'resolution',
JSON_VALUE(attr, '$.video.resolution')) AS data
FROM products
WHERE type = 'M';
data
{
"name": "Aliens",
"format": "Blu-ray",
"price": 13.99,
"resolution": "1080p"
}

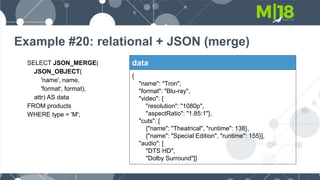

34. Example #20: relational + JSON (merge)
SELECT JSON_MERGE(
JSON_OBJECT(
'name', name,
'format', format),
attr) AS data
FROM products
WHERE type = 'M';
data
{
"name": "Tron",
"format": "Blu-ray",
"video": {
"resolution": "1080p",
"aspectRatio": "1.85:1"},
"cuts": [
{"name": "Theatrical", "runtime": 138},
{"name": "Special Edition", "runtime": 155}],
"audio": [
"DTS HD",
"Dolby Surround"]}

35. Enforcing data integrity with
JSON documents

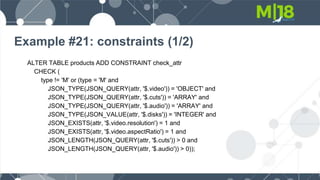

36. Example #21: constraints (1/2)
ALTER TABLE products ADD CONSTRAINT check_attr
CHECK (
type != 'M' or (type = 'M' and
JSON_TYPE(JSON_QUERY(attr, '$.video')) = 'OBJECT' and
JSON_TYPE(JSON_QUERY(attr, '$.cuts')) = 'ARRAY' and
JSON_TYPE(JSON_QUERY(attr, '$.audio')) = 'ARRAY' and
JSON_TYPE(JSON_VALUE(attr, '$.disks')) = 'INTEGER' and
JSON_EXISTS(attr, '$.video.resolution') = 1 and
JSON_EXISTS(attr, '$.video.aspectRatio') = 1 and
JSON_LENGTH(JSON_QUERY(attr, '$.cuts')) > 0 and
JSON_LENGTH(JSON_QUERY(attr, '$.audio')) > 0));

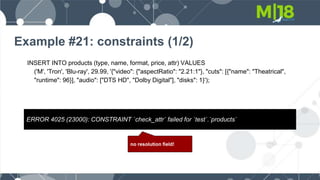

37. Example #21: constraints (1/2)
INSERT INTO products (type, name, format, price, attr) VALUES
('M', 'Tron', 'Blu-ray', 29.99, '{"video": {"aspectRatio": "2.21:1"}, "cuts": [{"name": "Theatrical",
"runtime": 96}], "audio": ["DTS HD", "Dolby Digital"], "disks": 1}');
ERROR 4025 (23000): CONSTRAINT `check_attr` failed for `test`.`products`
no resolution field!

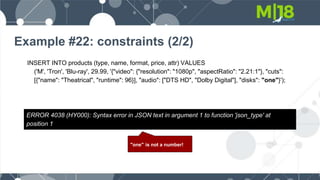

38. Example #22: constraints (2/2)
INSERT INTO products (type, name, format, price, attr) VALUES
('M', 'Tron', 'Blu-ray', 29.99, '{"video": {"resolution": "1080p", "aspectRatio": "2.21:1"}, "cuts":
[{"name": "Theatrical", "runtime": 96}], "audio": ["DTS HD", "Dolby Digital"], "disks": "one"}');
ERROR 4038 (HY000): Syntax error in JSON text in argument 1 to function 'json_type' at
position 1
"one" is not a number!

39. One more thing…

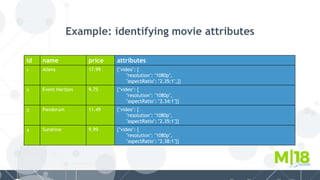

40. Example: identifying movie attributes
id name price attributes
1 Aliens 17.99 {"video": {
"resolution": "1080p",
"aspectRatio": "2.35:1",}}
2 Event Horizon 9.75 {"video": {
"resolution": "1080p",
"aspectRatio": "2.34:1"}}
3 Pandorum 11.49 {"video": {
"resolution": "1080p",
"aspectRatio": "2.35:1"}}
4 Sunshine 9.99 {"video": {
"resolution": "1080p",
"aspectRatio": "2.38:1"}}

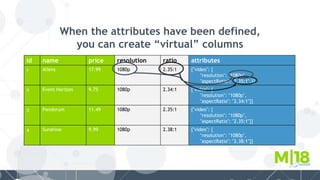

41. When the attributes have been defined,
you can create “virtual” columns
id name price resolution ratio attributes
1 Aliens 17.99 1080p 2.35:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.35:1",}}
2 Event Horizon 9.75 1080p 2.34:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.34:1"}}
3 Pandorum 11.49 1080p 2.35:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.35:1"}}
4 Sunshine 9.99 1080p 2.38:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.38:1"}}

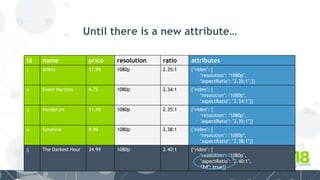

42. Until there is a new attribute…
id name price resolution ratio attributes
1 Aliens 17.99 1080p 2.35:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.35:1",}}
2 Event Horizon 9.75 1080p 2.34:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.34:1"}}
3 Pandorum 11.49 1080p 2.35:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.35:1"}}
4 Sunshine 9.99 1080p 2.38:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.38:1"}}
5 The Darkest Hour 34.99 1080p 2.40:1 {"video": {
"resolution": "1080p",
"aspectRatio": "2.40:1",
"3d": true}}

43. But, you can create “virtual” columns
using functions
id name price resolution ratio 3d attributes
4 Sunshine 9.99 1080p 2.38:1 false {"video": {
"resolution": "1080p",
"aspectRatio": "2.38:1"}}
5 The Darkest Hour 34.99 1080p 2.40:1 true {"video": {
"resolution": "1080p",
"aspectRatio": "2.40:1",
"3d": true}}
IFNULL(JSON_VALUE(attr, '$.video.3d'), false)

44. Questions?

45. Check out the JSON microsite:
mariadb.com/database/topics/json
Check out the JSON white paper:
goo.gl/sw34cx
Try it out!
What’s next?

46. Thank you!
