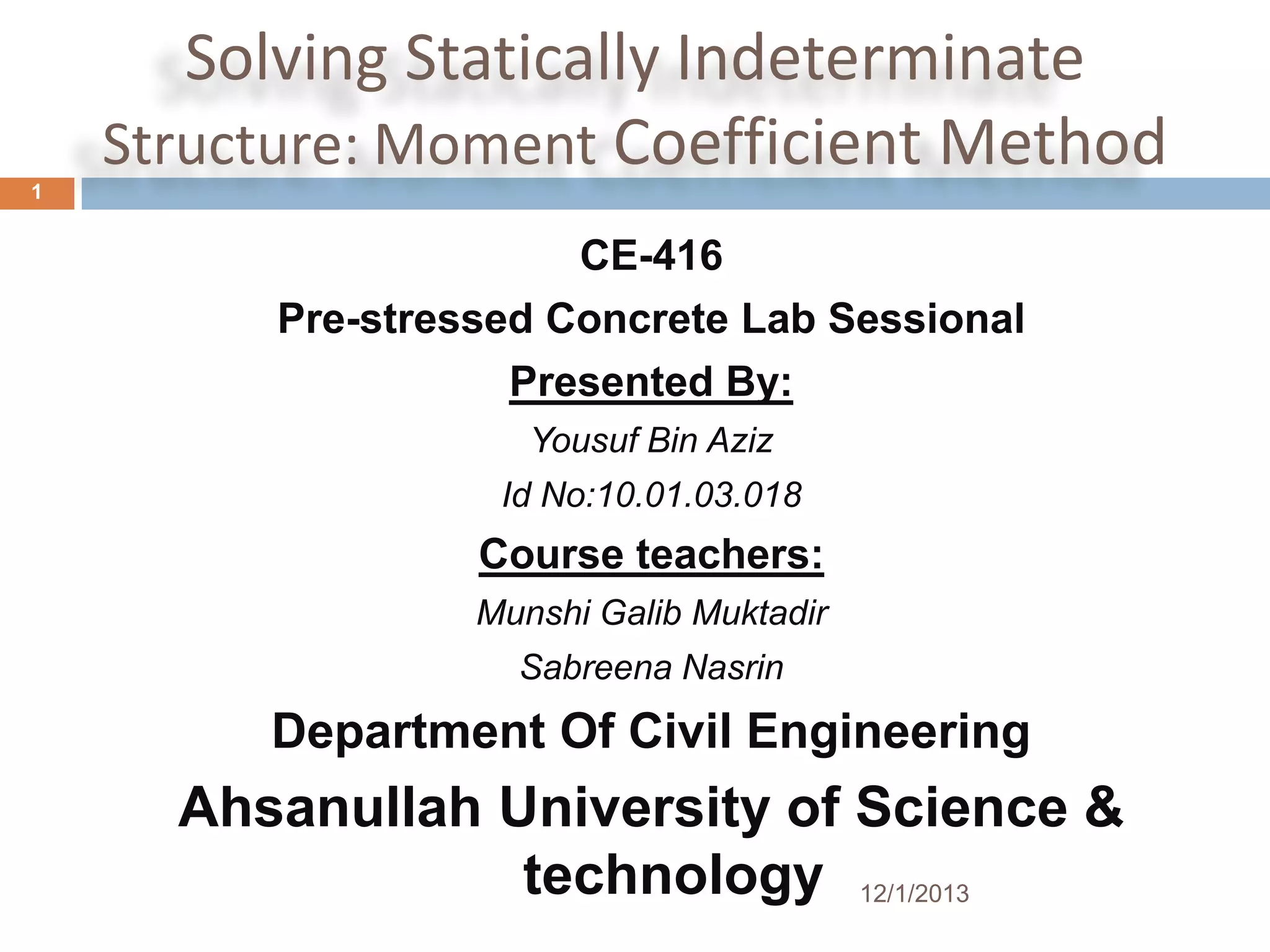

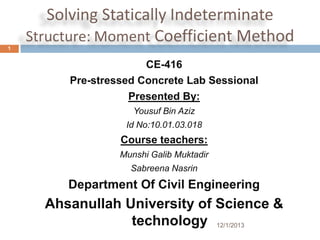

1. Solving Statically Indeterminate
Structure: Moment Coefficient Method
12/1/2013
1
CE-416
Pre-stressed Concrete Lab Sessional
Presented By:
Yousuf Bin Aziz
Id No:10.01.03.018
Course teachers:
Munshi Galib Muktadir
Sabreena Nasrin
Department Of Civil Engineering
Ahsanullah University of Science &
technology

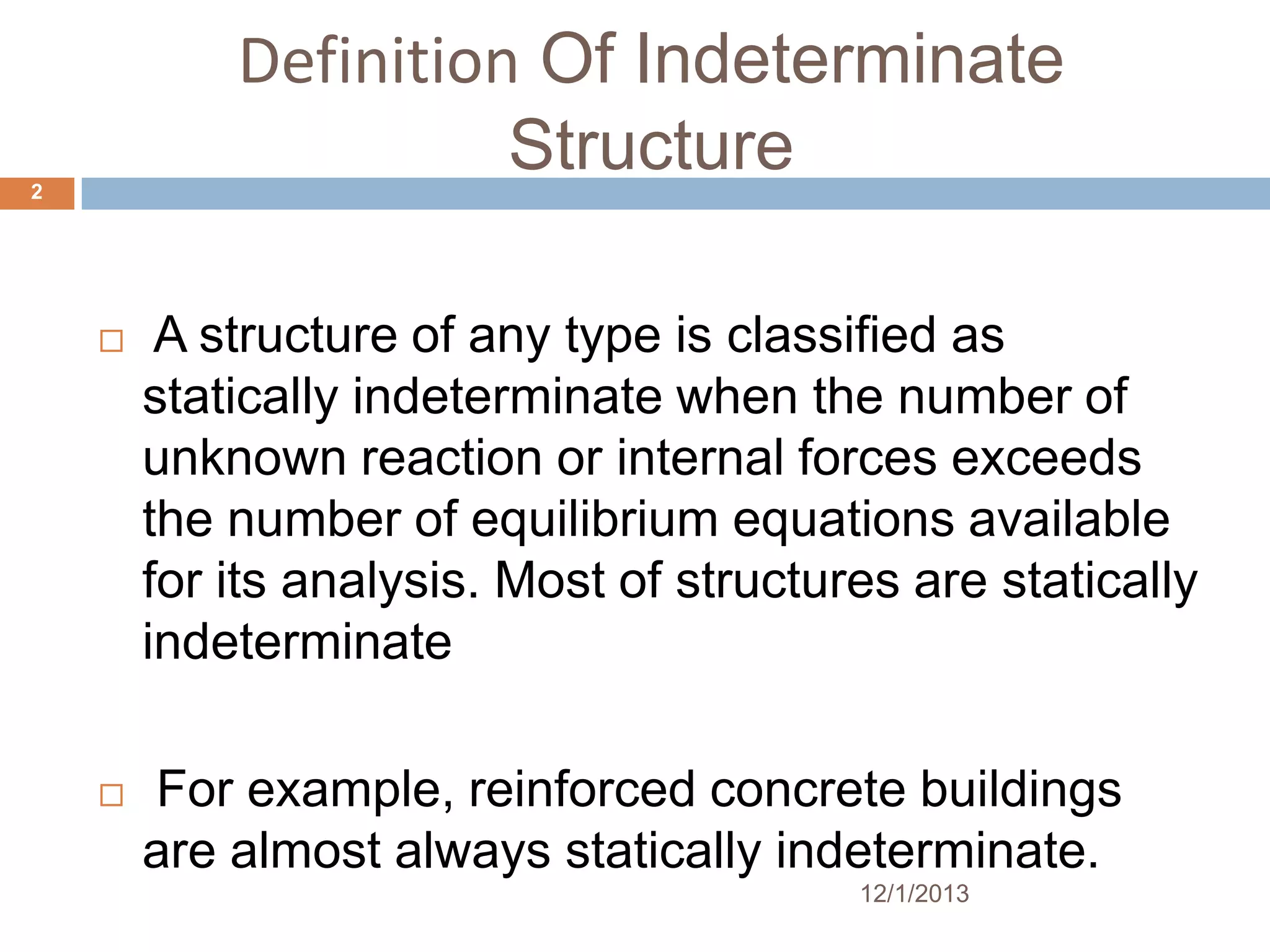

2. Definition Of Indeterminate
Structure
12/1/2013
2
 A structure of any type is classified as
statically indeterminate when the number of
unknown reaction or internal forces exceeds
the number of equilibrium equations available
for its analysis. Most of structures are statically
indeterminate
 For example, reinforced concrete buildings
are almost always statically indeterminate.

3. Moment Coefficient Method
12/1/2013
3
 The ACI Code provides tables of moment
coefficient
for a variety of conditions. These coefficients
are based on elastic analysis but also account
for inelastic redistribution.
 The expressions for moment take the form of
coefficient multiplied by total factored load per
unit length on the span & the length of the
clear span.

4. History Of Moment Coefficient
Method
12/1/2013
4
 The Moment Coefficient Method included for the
first time in 1963 ACI Code is applicable to two-
way slabs supported on four sides of each slab
panel by walls, steel beams.
 Although, not included in 1977 and later versions
of ACI code,its continued use is permissible under
the ACI 318-08 code provision (13.5.1). Visit ACI
13.5.1.relatively deep, stiff, edge beams.

5. Advantage
12/1/2013
5
 The coefficients give more exact analysis.
 Significant economy can be achieved by making a
more precise analysis.
 There should be no reversal of moments at the
critical design sections near midspan or at the
support faces.

6. Moment Coefficient Method: Cases
12/1/2013
6

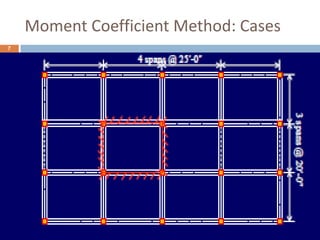

7. Moment Coefficient Method: Cases
12/1/2013
7

8. Moment Coefficient Method: Cases
12/1/2013
8

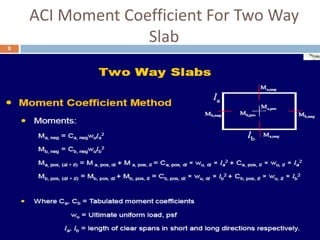

9. ACI Moment Coefficient For Two Way
Slab
12/1/2013
9

10. Moment Coefficient Method
12/1/2013
10

11. Moment Coefficient Method
12/1/2013
11

12. Moment Coefficient Method
12/1/2013
12

13. Moment Coefficient Method
12/1/2013
13

14. Moment Coefficient Method
12/1/2013
14

15. Design Of One-Way Slab-
Moment
12/1/2013
15

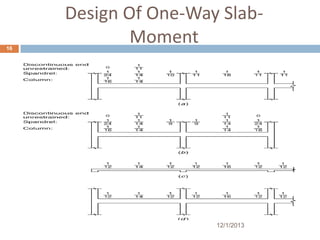

16. Design Of One-Way Slab-
Moment
12/1/2013
16

17. Limitation of One-Way Slab
12/1/2013
17
