Solid works Simulation Valve body proof load estimate

•

1 like•293 views

h - adaptive mesh refinement used to calculate absolute peak stress

Solidworks Simulation
Valve Body casting
proof load estimate
05/20/2016
Don Blanchet
3B Associates
USNNRL00127892-405

Model – cast steel

Meshed model

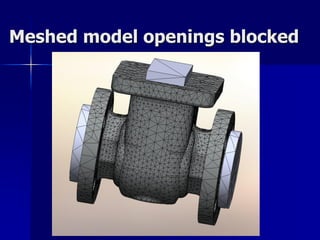

Meshed model openings blocked

Max stress under internal
pressure load of 1500 psi
Material yield point
Exceeded locally

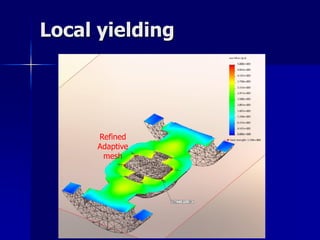

Local yielding
Refined
Adaptive
mesh

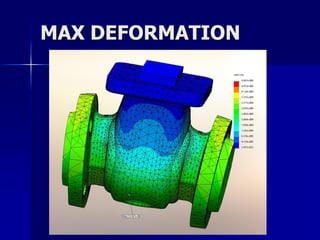

MAX DEFORMATION

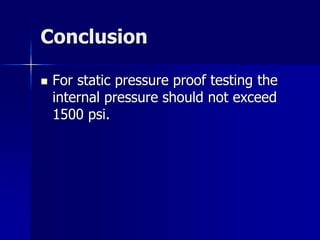

Conclusion
 For static pressure proof testing the
internal pressure should not exceed
1500 psi.
