The document describes several solar power generation and distribution systems. It outlines systems for commercial solar power generation connected to the commercial power grid, solar power for homes connected to the residential power grid, and stand-alone solar power systems with battery storage for loads like telecommunications equipment. It also discusses hybrid power systems that can incorporate solar power, wind power, diesel generators, battery storage, and grid power. Finally, it summarizes a hybrid street lighting system that uses solar and wind power with an optional remote monitoring and dimming control system.

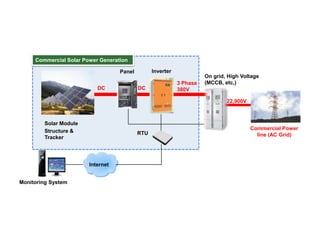

1. Monitoring System
Commercial Power
line (AC Grid)
On grid, High Voltage
(MCCB, etc,)3 Phase
380V
22,900V
Panel Inverter
DC DC
Solar Module
Structure &
Tracker
RTU
Internet
Commercial Solar Power Generation

2. Commercial power
Line (AC Grid)
220VAC
Connection
Unit
Inverter
DC DC
Solar Power house
RTU
Internet
Solar Power for Home
flow of power
Monitoring System

3. Stand alone
PCS
DC
Solar Module
RTU
Internet
…
Rechargeable
Battery
Load
- Telecommunication System
- Appliance
- Eco Friendly industry
- Farm/Storage/building
Monitoring System

4. 48V DC
0~110V DC
0~60V DC
Load
220V AC
48V DC
Storage Battery
PV Panel
Wind
Disel Generator
PCS
Grid Power
48V DC
 Solar Power
 Wind Power
 Disel Generator
 Storage Battery
 Grid (Utility) Power
Hybrid Power System

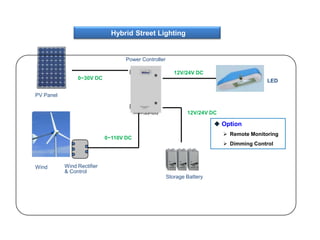

5. 12V/24V DC
0~30V DC
LED
12V/24V DC
Storage Battery
PV Panel
Wind
Power Controller
0~110V DC
Wind Rectifier
& Control
 Option
 Remote Monitoring
 Dimming Control
Hybrid Street Lighting
