SOLAR ROOFTOP PROJECTS
Primotech Energy Solution ( Solar Division)
•Primotech has three verticals-Solar,Led Solution & Energy consultancy services.
•Provides complete Solar EPC solutions.
•ISO 9001:2008,ISO 14001:2004 Certified firm.
•Strong brand awareness and reputation among clients.
•
•Diverse solar installation expertise .
•Registered Company Under Company Act. 1956.
•Energetic & Dynamic approach for Providing extraordinary benefits to our Clients.
•Strong Dealer Network across North India.
U.S.P OF PRIMOTECH :
Planned and organized execution
Quick Turnaround service
Customized Solution
Excellent CRM Services
Complete transparency
Constant Sales & service support
Highly competitive price
Best quality products
Tie-up with reputed organization

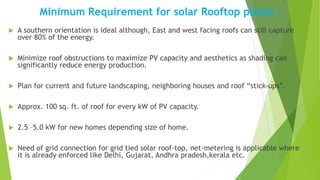

Minimum Requirement for solar Rooftop plants :
 A southern orientation is ideal although, East and west facing roofs can still capture
over 80% of the energy.
 Minimize roof obstructions to maximize PV capacity and aesthetics as shading can
significantly reduce energy production.
 Plan for current and future landscaping, neighboring houses and roof “stick-ups”.
 Approx. 100 sq. ft. of roof for every kW of PV capacity.
 2.5 –5.0 kW for new homes depending size of home.
 Need of grid connection for grid tied solar roof-top, net-metering is applicable where
it is already enforced like Delhi, Gujarat, Andhra pradesh,kerala etc.

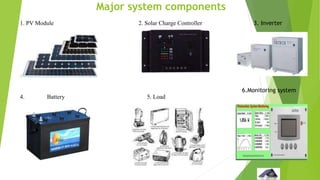

Major system components
1. PV Module 2. Solar Charge Controller
1.
4. Battery 5. Load
3. Inverter
6.Monitoring system

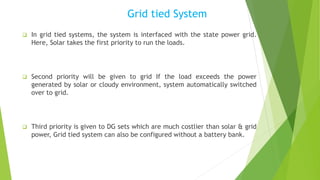

Grid tied System
 In grid tied systems, the system is interfaced with the state power grid.
Here, Solar takes the first priority to run the loads.
 Second priority will be given to grid If the load exceeds the power
generated by solar or cloudy environment, system automatically switched
over to grid.
 Third priority is given to DG sets which are much costlier than solar & grid
power, Grid tied system can also be configured without a battery bank.

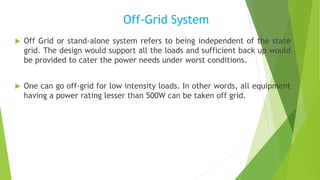

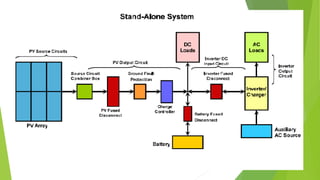

Off-Grid System
 Off Grid or stand-alone system refers to being independent of the state
grid. The design would support all the loads and sufficient back up would
be provided to cater the power needs under worst conditions.
 One can go off-grid for low intensity loads. In other words, all equipment
having a power rating lesser than 500W can be taken off grid.

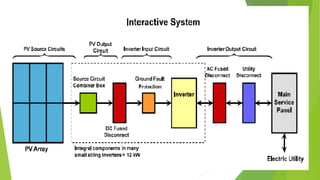

Hybrid and grid interactive System
 Hybrid system is a smart system involving, solar, grid and diesel generator (DG). Here, Solar
takes the first priority to run the loads. Excess power generated will charge the battery
bank.
 During night battery will support the loads till a safe battery voltage. System will switch
over to grid automatically below battery safe voltage. If GRID is not available and battery
has been discharged, PCU can command DG to start and supply power to the loads till Grid
or solar is restored.
 Hybrid systems can also be configured as grid interactive systems where only solar and grid
are present. Here, the first priority is given to solar. Excess power generated will charge the
battery bank. During night battery will support the loads, till a safe battery voltage. System
will switch over to grid automatically below battery safe voltage. This would extend the
battery life and provide seamless power supply.

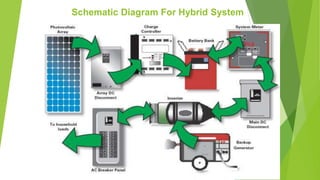

Schematic Diagram For Hybrid System
Site Survey

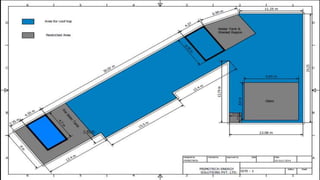

Phase-I
Energy Audit
Phase-II

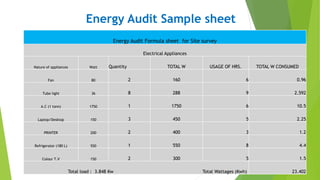

Energy Audit Sample sheet
Energy Audit Formula sheet for Site survey
Electrical Appliances
Nature of appliances Watt Quantity TOTAL W USAGE OF HRS. TOTAL W CONSUMED
Fan 80 2 160 6 0.96
Tube light 36 8 288 9 2.592
A.C (1 tonn) 1750 1 1750 6 10.5
Laptop/Desktop 150 3 450 5 2.25
PRINTER 200 2 400 3 1.2
Refrigerator (180 L) 550 1 550 8 4.4
Colour T.V 150 2 300 5 1.5
Total load : 3.848 Kw Total Wattages (Kwh) 23.402

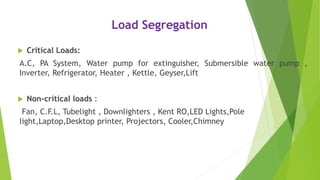

Load Segregation
 Critical Loads:
A.C, PA System, Water pump for extinguisher, Submersible water pump ,
Inverter, Refrigerator, Heater , Kettle, Geyser,Lift
 Non-critical loads :
Fan, C.F.L, Tubelight , Downlighters , Kent RO,LED Lights,Pole
light,Laptop,Desktop printer, Projectors, Cooler,Chimney
Phase-III
Installation & commissioning

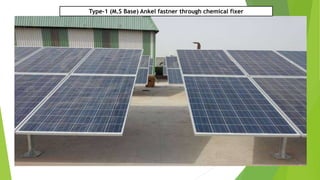

Type-1 (M.S Base) Ankel fastner through chemical fixer

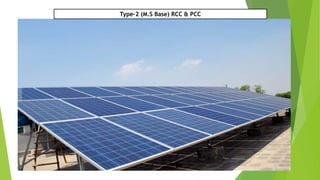

Type-2 (M.S Base) RCC & PCC
Phase-IV

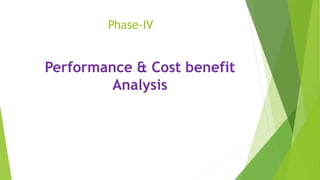

Performance & Cost benefit
Analysis

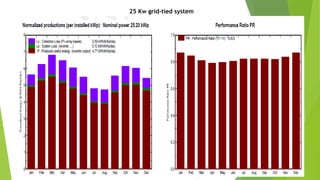

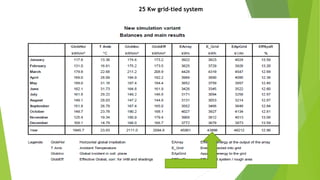

25 Kw grid-tied system
25 Kw grid-tied system

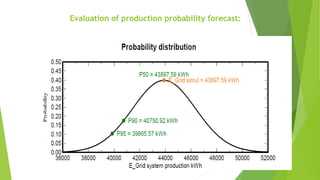

Evaluation of production probability forecast:

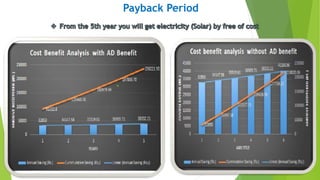

Payback Period
TARGET CLIENTS :
Small,Medium & Large Industries
Homes & offices
Govt./Pvt. Hospitals
Educational Institutions & Schools
Commercial Buildings & Shopping malls
Hotels & Resorts

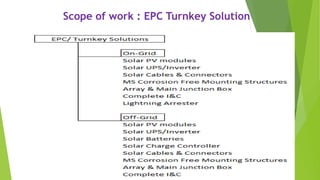

Scope of work : EPC Turnkey Solution

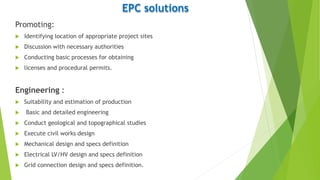

EPC solutions
Promoting:
 Identifying location of appropriate project sites
 Discussion with necessary authorities
 Conducting basic processes for obtaining
 licenses and procedural permits.
Engineering :
 Suitability and estimation of production
 Basic and detailed engineering
 Conduct geological and topographical studies
 Execute civil works design
 Mechanical design and specs definition
 Electrical LV/HV design and specs definition
 Grid connection design and specs definition.
Procurement :
 Qualified vendors portfolio
 Invite for quotation
 Supplier selection
 Quality supervision and inspection at supplier
 facilities
 Deliveries follow up
Construction:
 Project management
 Planning and schedules/follow up
 Coordination with customers
 Quality contractor assurance

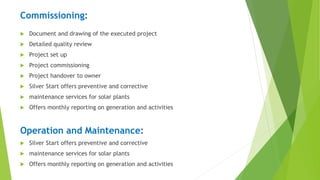

Commissioning:
 Document and drawing of the executed project
 Detailed quality review
 Project set up
 Project commissioning
 Project handover to owner
 Silver Start offers preventive and corrective
 maintenance services for solar plants
 Offers monthly reporting on generation and activities
Operation and Maintenance:
 Silver Start offers preventive and corrective
 maintenance services for solar plants
 Offers monthly reporting on generation and activities
OUR ASSOCIATE PARTNERS:
Primotech solar  projects
Primotech solar  projects

Primotech solar projects

  • 2.
  • 3.
