Solar Power Generation: From Sunlight to Electricity in 40 Characters
1.
2. The energy crisis and oil embargos of the 1970’s made
many nations aware of their dependency on controlled
non-renewable energy sources .
This formulated the scientists to search for new
alternative sources of energy.
Further researches into renewable sources made a
path through solar power, wind power and geothermal
power.
Solar power generation has emerged as one of the
most rapidly growing renewable sources of energy.
3. Solar power is the conversion of sunlight
into electricity .
The methods used for generating electricity
through solar power are:
1. Concentrated solar power(CSP)
2. Photovoltaic method .
4. CSP systems use mirrors or lenses to concentrate a
large area of sunlight on to a small area.
Electrical power - produced when concentrated light is
converted to heat- drives heat engine connected to
electric power generator.
5. The French physicist -Edmond
Becquerel - demonstrated photo voltaic
activity.
Photovoltaics – a method of generating
electrical power – converts solar radiation
into direct current electricity.
This is done by using semiconductors
6. The first solar cell
was constructed by
Charles Fritts.
Solar cells are devices
converts “photons” of
light energy directly
into electricity.
They function by
photovoltaic effect.
8. Silicon – Phosphorus system
form a part of solar cell.
Free electrons and holes are
generated on both the sides of
the junction.
Current is produced due to these holes and
electrons.
9. Photon strikes the solar
cell-is absorbed if its
energy is greater than
band gap value energy.
Electron receives energy
and excites into
Conduction band from
Valence band.
Electric field created in
PV cell provides the
required voltage to drive
electrons to external
circuit
10. Electrons from n-type and holes from p-type flow
towards p and n type materials respectively, when
they are sandwiched together inside a PV cell.
An electric field at the junction is formed.
It repels electrons – causes electrons to jump towards
surface.
Thus electrons are available for electric circuit.
With the help of electric field that provides voltage
electrons are driven into the electric circuit.
Thus electrical current is produced.
11.
12. A solar panel -assembly of
photovoltaic cells.
A solar panel -collects and
utilizes heat energy from
the sun.
Multiple cells in integrated
group, all oriented in one
plane form a “solar thermal
module” .
13. When photons strike the
solar panels they convert
into electrons of direct
current (DC).
These electrons flow out of
the panel and into an
inverter.
The inverters converts the
DC power into AC power.
14. Solar array -a linked
collection of solar
panels.
PV arrays use -inverter
and convert DC power
produced by the
module into AC.
It is used to power the
house hold appliances
and other loads.

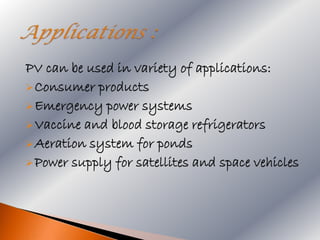

15. PV can be used in variety of applications:
Consumer products
Emergency power systems
Vaccine and blood storage refrigerators
Aeration system for ponds
Power supply for satellites and space vehicles
16.
17. It is in Charanka
village in Gujarat.
It is the Asia‟s first
and largest power park.
It contributes about
2/3rd „s of the 900MW
of the total power
generated in the
country.
18.
19. Avoids green-house gases
Infinite free energy
Decentralisation of power
Saving eco-systems and livelihood
Their life span is more
Easy installation
