Soil ii presentation-department of urban and infrastructure engg,neduet.
•Download as PPTX, PDF•
0 likes•10 views

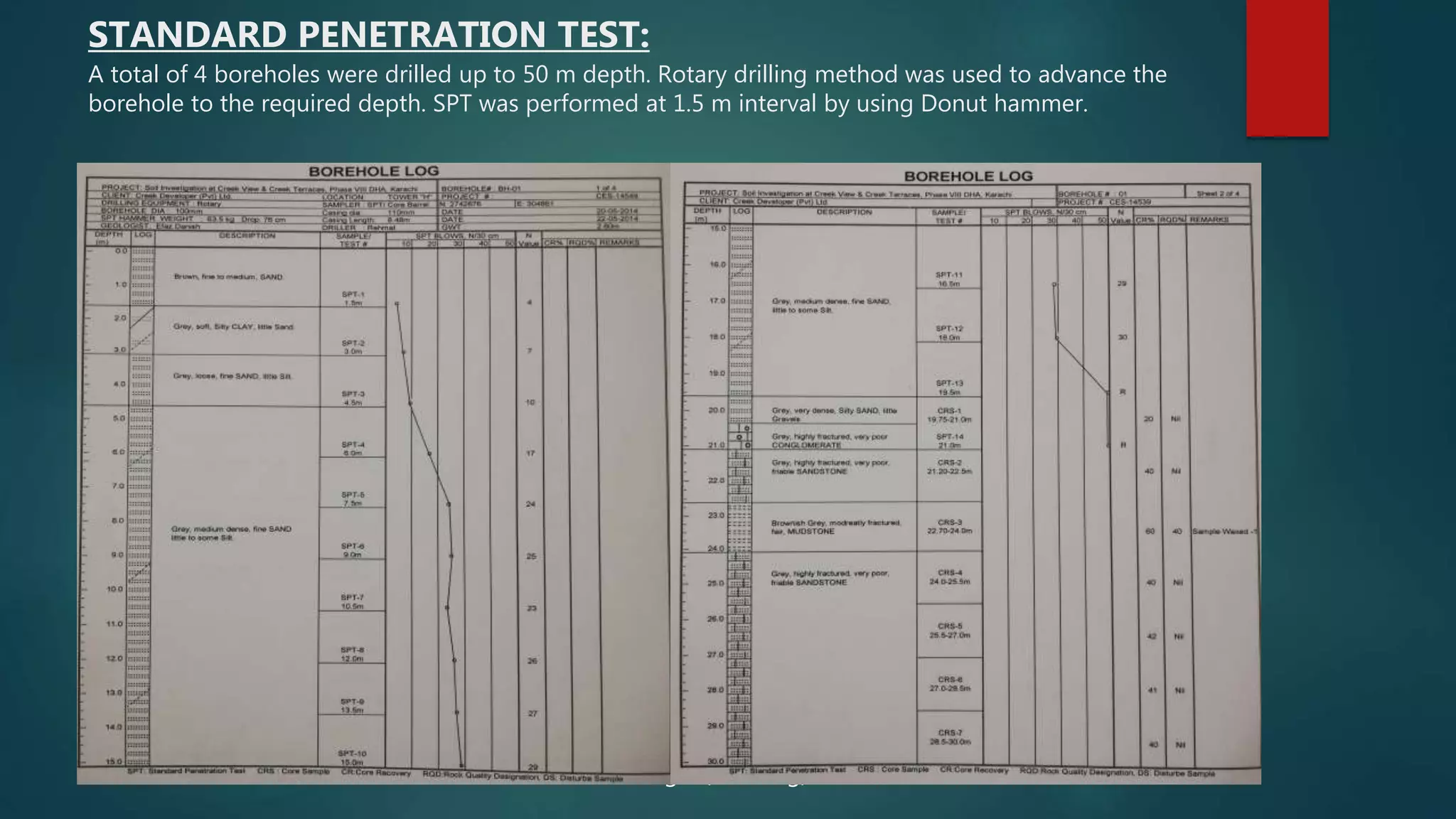

1) Four boreholes were drilled up to 50 m depth at the site of Tower H in DHA, Karachi to determine subsoil conditions. Standard penetration tests and other tests were performed on soil samples. 2) Grain size analysis, Atterberg limits, unconfined compression tests, point load tests, direct shear tests, and specific gravity tests were conducted to understand properties of the soil. 3) Results of the tests are presented in eight figures as part of the report on subsoil investigation.
Report
Share
Report
Share
Recommended
Soil Investigation Report
This geotechnical investigation report summarizes soil testing performed for the construction of a shopping mall and residential building in Karachi, Pakistan. Field testing included borehole drilling, standard penetration testing, and soil sampling. Laboratory tests analyzed grain size, Atterberg limits, unconfined compression strength, density, moisture content, direct shear strength, and chemistry. The direct shear tests determined cohesion and angle of friction values for soil samples from 8 boreholes ranging from 0-1.0 kg/cm2 and 12.1-36.4 degrees, respectively. The report provides details of the field and laboratory testing done to characterize the soil conditions at the construction site.
Ghznfr's ppt
The document discusses issues with existing transportation systems like population increase leading to traffic congestion, unreliable service, and long waiting times. It then lists several benefits of improving transportation systems such as reliable and safe journeys, reduced pollution and accidents, lower fuel consumption and costs, improved quality of life, and economic benefits. The document also provides details on construction methods for pile foundations, including using a pile cap, grade beam, and columns to support a retaining wall. Site soil properties and compaction methods are described. Personal protective equipment for construction worker safety is emphasized.
Field compaction methods
In this presentation various field methods of compaction along with their practical applications are discussed
Sand replacement
The sand replacement test determines the in situ density of natural or compacted soils using sand pouring cylinders. The test involves excavating a soil sample, measuring its mass, and replacing the excavated volume with sand of a known density to find the sample volume. This allows calculating the dry density based on the sample mass and volume. The test establishes a relationship between dry density and moisture content. It is used to evaluate compaction levels in the field according to acceptance criteria for different depths.
Soil Test and Surveys
The document summarizes various methods used to analyze soil properties for highway construction projects. It describes procedures for sieve analysis, liquid limit testing, plastic limit testing, and other methods to determine characteristics like density, bearing capacity, and moisture content that are used in designing roadway foundations and pavements. Preliminary soil surveys are also outlined to identify soil types and conditions along proposed routes to inform design and construction decisions.
Chapter 3 soil compaction and field density
This document discusses soil compaction, including definitions, laboratory tests, field density tests, compaction equipment, specifications, and measurement. It outlines the intended learning outcomes and covers compaction principles, the compaction curve, optimum moisture content, field density tests, compaction equipment, and specifications. Specifically, it explains the procedures and results of laboratory compaction tests, factors that affect compaction, and the engineering properties and structure of compacted fine-grained soils.
Proctor Compaction Test
Determination of water content-dry density relation using light compaction (Standard Proctor Test).
Soil Specimen (Compositions of Dhanauri Clay and Delhi Silt).
It is seen that as the proportion of clay is increased in the soil mix the Optimum Moisture Increases and the Maximum Dry Density Decreases.
Characteristic study on pervious concrete
This document summarizes a study on the characteristics of pervious concrete. The study tested 7 different mixes of pervious concrete that varied the type and size of coarse aggregate and use of fine aggregate. 42 concrete specimens were cast and tested for compressive strength, flexural strength, and void ratio. The mix with river sand fine aggregate and 12mm coarse aggregate (M4) performed best with 83% higher compressive strength, 72% higher flexural strength, and 51% lower void ratio than the control mix without fine aggregate (M1). In general, the addition of fine aggregate improved the strength of pervious concrete while reducing the void ratio.
Recommended
Soil Investigation Report
This geotechnical investigation report summarizes soil testing performed for the construction of a shopping mall and residential building in Karachi, Pakistan. Field testing included borehole drilling, standard penetration testing, and soil sampling. Laboratory tests analyzed grain size, Atterberg limits, unconfined compression strength, density, moisture content, direct shear strength, and chemistry. The direct shear tests determined cohesion and angle of friction values for soil samples from 8 boreholes ranging from 0-1.0 kg/cm2 and 12.1-36.4 degrees, respectively. The report provides details of the field and laboratory testing done to characterize the soil conditions at the construction site.
Ghznfr's ppt
The document discusses issues with existing transportation systems like population increase leading to traffic congestion, unreliable service, and long waiting times. It then lists several benefits of improving transportation systems such as reliable and safe journeys, reduced pollution and accidents, lower fuel consumption and costs, improved quality of life, and economic benefits. The document also provides details on construction methods for pile foundations, including using a pile cap, grade beam, and columns to support a retaining wall. Site soil properties and compaction methods are described. Personal protective equipment for construction worker safety is emphasized.
Field compaction methods
In this presentation various field methods of compaction along with their practical applications are discussed
Sand replacement
The sand replacement test determines the in situ density of natural or compacted soils using sand pouring cylinders. The test involves excavating a soil sample, measuring its mass, and replacing the excavated volume with sand of a known density to find the sample volume. This allows calculating the dry density based on the sample mass and volume. The test establishes a relationship between dry density and moisture content. It is used to evaluate compaction levels in the field according to acceptance criteria for different depths.
Soil Test and Surveys
The document summarizes various methods used to analyze soil properties for highway construction projects. It describes procedures for sieve analysis, liquid limit testing, plastic limit testing, and other methods to determine characteristics like density, bearing capacity, and moisture content that are used in designing roadway foundations and pavements. Preliminary soil surveys are also outlined to identify soil types and conditions along proposed routes to inform design and construction decisions.
Chapter 3 soil compaction and field density
This document discusses soil compaction, including definitions, laboratory tests, field density tests, compaction equipment, specifications, and measurement. It outlines the intended learning outcomes and covers compaction principles, the compaction curve, optimum moisture content, field density tests, compaction equipment, and specifications. Specifically, it explains the procedures and results of laboratory compaction tests, factors that affect compaction, and the engineering properties and structure of compacted fine-grained soils.
Proctor Compaction Test
Determination of water content-dry density relation using light compaction (Standard Proctor Test).
Soil Specimen (Compositions of Dhanauri Clay and Delhi Silt).
It is seen that as the proportion of clay is increased in the soil mix the Optimum Moisture Increases and the Maximum Dry Density Decreases.
Characteristic study on pervious concrete
This document summarizes a study on the characteristics of pervious concrete. The study tested 7 different mixes of pervious concrete that varied the type and size of coarse aggregate and use of fine aggregate. 42 concrete specimens were cast and tested for compressive strength, flexural strength, and void ratio. The mix with river sand fine aggregate and 12mm coarse aggregate (M4) performed best with 83% higher compressive strength, 72% higher flexural strength, and 51% lower void ratio than the control mix without fine aggregate (M1). In general, the addition of fine aggregate improved the strength of pervious concrete while reducing the void ratio.
Geotechnical aspects of highway construction
This document discusses using dynamic cone penetration tests (DCPT) to estimate California bearing ratio (CBR) values of soils along a canal in Punjab, India for road construction. Laboratory and field DCPT and CBR tests were conducted on saturated soil samples at various locations. Polynomial equations were developed relating DCPT index to laboratory and field CBR values, allowing quick estimation of soaked CBR from DCPT. The relationships show DCPT can effectively evaluate soil strength for pavement design and quality control along the canal.
Soil: Strength and compaction
This document discusses soil strength and compaction. It notes that soil strength is influenced by soil moisture and management. Cone penetrometers can quantify relative soil strength. Soil workability and friability are measures of soil quality, with small plastic index and large friability index indicating best workability. Soil is weakest for compaction when it is at its best for planting. Disc seeders are highly sensitive to soil strength. Managing to reduce soil strength and increase moisture at maximum friability is optimal. Generally, soil with high friability and low plasticity close to the plastic limit is most cultivation friendly, but this also makes it best for compaction.
Field control of compaction and compaction Equipment
This document discusses field compaction control and compaction equipment. It notes that field compaction depends on placement water content, compaction equipment type, and soil type. Placement water content should be within 2% of optimum moisture content from lab tests. Different soils require different moisture levels - cohesive soils are compacted dry of optimum while earth dam cores are compacted wet of optimum. Compaction can be measured using methods like core cutting or nuclear gauges. Common compaction equipment includes smooth drum rollers, pneumatic rubber-tired rollers, sheepfoot rollers, and vibratory rollers, each suited to different soil types. Relative compaction is used to check compaction levels in the field.
Soil ppt (1)
This document outlines four common geotechnical engineering tests: 1) Standard Penetration Test which estimates soil density and shear strength, 2) Moisture Content Test which determines soil moisture percentage, 3) Dry Density Test which measures soil density, and 4) Unconfined Compression Test which measures a rock specimen's strength under zero confinement. It provides brief descriptions of the moisture content and unconfined compression tests.
GT Lab Manual
The document provides instructions for conducting 12 geotechnical engineering experiments in the geotechnical engineering lab at B.V. Raju Institute of Technology. The experiments include determining Atterberg limits, field density via core cutter and sand replacement methods, grain size analysis, constant and variable head permeability tests, unconfined compression test, direct shear test, compaction tests, and CBR testing. Students must complete 8 of the 12 experiments listed. Instructions are provided for each experiment, including the aim, theory, apparatus required, and procedures to follow.
Compaction characteristics of soil
Compaction, Its definition, uses, Factors affecting compaction
Field compaction methods and equipments. Solved Numerical and graphical representation of compaction curve and Zero air void line to obtain Optimum moistute content and Maximum dry density.
Cone Penetration Test
The document summarizes information about the cone penetration test (CPT), a method used to determine geotechnical engineering properties of soils. It provides a brief history of the CPT, describing how it has evolved from a mechanical cone in the 1930s to electric cones in the 1960s. It then explains that the CPT involves pushing a cone tip into the ground to continuously measure resistance, and describes the components of the CPT device and how the test is conducted. Finally, it outlines the advantages and disadvantages of the CPT and how the results can be used to evaluate soil types, densities, and shear strengths for foundation design purposes.
Study on Consolidation and Correlation with Index Properties Of Different Soi...
The document discusses a study on correlating the coefficient of consolidation (cv) of different soils in Manipur Valley with their index properties. One-dimensional consolidation tests were conducted on five undisturbed soil samples collected from different locations. The cv was determined and found to correlate best with the liquid limit. Specifically:
1) Consolidation tests were conducted and cv values ranging from 1.02x10^-8 to 6.27x10^-9 m^2/sec were obtained.
2) cv was found to increase with effective vertical pressure up to 40kPa and then remain similar for higher pressures.
3) cv showed better correlation with the liquid limit than other index properties like plasticity index
Experimental Study to Correlate the Test Results of PBT, UCS, and CBR with Li...
This document presents an experimental study that correlates test results from the plate bearing test (PBT), unconfined compressive strength (UCS) test, and California bearing ratio (CBR) test with results from the dynamic cone penetrometer (DCP) test on various soils under soaked conditions. Soil samples from different locations in Gujarat, India were tested for liquid limit, plastic limit, CBR, PBT, UCS, and DCP at their maximum dry densities achieved through modified proctor compaction in a soaked state. Empirical correlations between the test results were established using linear regression to develop formulations that can be used to estimate time-consuming strength parameters from rapid DCP tests.
Soil Compaction
It's about soil compaction. Here only laboratory compaction methods have been described and the effect different parameters have been discussed,
Min and Max Density of soil
This report summarizes an experiment to determine the minimum and maximum dry density of a Badarpur sand soil specimen. Testing was conducted according to Indian Standards and involved compacting sand in a vibratory compactor and measuring the dry density. The average minimum dry density was found to be 1.469 g/cm3 and the average maximum was 1.679 g/cm3. These values were 11-15% higher than a Yamuna River sand sample. The Badarpur sand was also observed to be more angular in shape compared to the Yamuna River sand. The report discusses how dry density values can depend on testing methods and compaction energy applied.
Geotechnical Engineering-I [Lec #6: Sieve Analysis]
Class notes of Geotechnical Engineering course I used to teach at UET Lahore. Feel free to download the slide show.
Anyone looking to modify these files and use them for their own teaching purposes can contact me directly to get hold of editable version.
Compaction test of soil ASTM-D698
The document discusses soil compaction testing. There are two main types of compaction tests - standard and modified proctor. The standard proctor test uses a 4 inch diameter mold compacted in 3 layers with 25 blows per layer. The modified proctor uses a 6 inch mold compacted in 5 layers with 25 blows per layer. The test determines the optimum moisture content for compaction by measuring dry unit weight at different moisture contents. Testing involves compacting soil samples, determining dry unit weights and moisture contents, and plotting a curve showing maximum dry unit weight corresponds to optimum moisture content.
Estimation of CBR value using Dynamic Cone Penetrometer
Estimation of CBR value using Dynamic Cone Penetrometer Guru Nank Dev Engineering College, Ludhiana, Punjab, India-141006
The subbase/base thickness of pavement is governed by the CBR value of the subgrade soil along with some other parameters such as traffic intensity, climatic conditions, etc. Dynamic cone penetration test (DCPT) value conducted in the field can be used to estimate the CBR value provided a suitable relationship exists between CBR and DCPT value.Pavement Engineering Materials_4
This document provides an overview of pavement materials and roadbed soils, focusing on grain size analysis and Atterberg limits. It defines key terms like soil texture, grain size, particle shape, effective size, coefficient of uniformity, liquid limit, plastic limit, and plasticity index. Methods for conducting grain size analysis using sieves and hydrometers are described. The Casagrande cup test for determining the liquid limit of a soil is explained. Engineering applications of grain size distribution and Atterberg limits are also discussed.
Ex 8 standard proctor test
The standard Proctor test is conducted to determine the optimum water content and maximum dry density of soil for compaction. Soil samples are compacted in layers in a standardized metal mold at different water contents using a rammer. The bulk density of each compacted sample is calculated and a curve is plotted of dry density versus water content. The water content corresponding to the highest dry density is the optimum water content. A penetration resistance test is also conducted using a Proctor needle to obtain the relationship between penetration resistance and water content.
Pavement Engineering Materials_5
This document provides an overview of two common soil classification systems used in pavement engineering: the Unified Soil Classification System (USCS) and the American Association of State Highway and Transportation Officials system (AASHTO). It describes the purpose, key components, and procedures for classifying soils according to grain size, plasticity characteristics, and other properties in each system. Examples are provided to demonstrate how soil test data can be analyzed and soils assigned appropriate classifications under the USCS and AASHTO systems.
Classification of soil by (ISCS)
This document presents a seminar by Anand Singh on soil classification based on the Indian Standard Classification System. It discusses the various soil classification systems and focuses on defining the ISCS. The ISCS classifies soils into four major divisions - coarse grained, fine grained, organic, and peat. It then explains how to classify soils under each division based on factors like grain size, plasticity, liquid limit, and location on a plasticity chart. Examples are provided to demonstrate how to determine the classification symbol of a given soil sample based on test results.
20320140504004
This document summarizes a study on improving the geotechnical properties of poor soil through the addition of stone dust. Tests were conducted on black cotton soil mixed with 0%, 10%, 20%, and 30% stone dust by weight to determine effects on properties. Key findings include:
1. Addition of stone dust decreased the soil's liquid limit, plastic limit, and percentage of particles finer than 75μ.
2. Maximum dry density increased and optimum moisture content decreased with higher stone dust content due to its coarser texture.
3. California Bearing Ratio (CBR), a measure of soil stiffness and strength, improved from below 3% for raw black cotton soil to 4%, 7%, and 12% for
Site Investigation and Example of Soil Sampling
The document provides information on various soil testing methods conducted as part of a site investigation study. It discusses procedures for collecting undisturbed and disturbed soil samples, and conducting tests such as grain size analysis, Atterberg limits tests, relative density tests, and compaction tests. The purpose of the site investigation and specific laboratory tests are explained. Sample collection and testing is performed to obtain properties of the soil and understand its suitability for construction purposes.
Urban and infrastructure engineering department
This document summarizes a soil investigation report for a construction project in Karachi, Pakistan. It lists the group members conducting the investigation and the tests performed, which include standard penetration testing, grain size analysis, Atterberg limits testing, unconfined compression testing, point load testing, direct shear testing, and specific gravity testing. The standard penetration testing involved drilling 4 boreholes to 50m depth using rotary drilling and performing tests every 1.5m. The other tests aimed to determine properties of the soil like grain size distribution, water content, strength, and shear strength.
Soil test sanepa housing
The document is a geotechnical investigation report for a proposed housing development site in Sanepa, Lalitpur. It includes:
1) A summary of the field investigation conducted, including two boreholes drilled to 12m depth with standard penetration tests and soil sampling.
2) Details of the laboratory tests performed on soil samples, including moisture content, grain size analysis, Atterberg limits, consolidation testing, and shear strength testing.
3) An analysis of the soil properties to determine the allowable bearing capacity of the site's foundation soils based on ultimate capacity and tolerable settlement. The analysis finds the soils can support foundations without excessive settlement.
More Related Content
What's hot
Geotechnical aspects of highway construction
This document discusses using dynamic cone penetration tests (DCPT) to estimate California bearing ratio (CBR) values of soils along a canal in Punjab, India for road construction. Laboratory and field DCPT and CBR tests were conducted on saturated soil samples at various locations. Polynomial equations were developed relating DCPT index to laboratory and field CBR values, allowing quick estimation of soaked CBR from DCPT. The relationships show DCPT can effectively evaluate soil strength for pavement design and quality control along the canal.
Soil: Strength and compaction
This document discusses soil strength and compaction. It notes that soil strength is influenced by soil moisture and management. Cone penetrometers can quantify relative soil strength. Soil workability and friability are measures of soil quality, with small plastic index and large friability index indicating best workability. Soil is weakest for compaction when it is at its best for planting. Disc seeders are highly sensitive to soil strength. Managing to reduce soil strength and increase moisture at maximum friability is optimal. Generally, soil with high friability and low plasticity close to the plastic limit is most cultivation friendly, but this also makes it best for compaction.
Field control of compaction and compaction Equipment
This document discusses field compaction control and compaction equipment. It notes that field compaction depends on placement water content, compaction equipment type, and soil type. Placement water content should be within 2% of optimum moisture content from lab tests. Different soils require different moisture levels - cohesive soils are compacted dry of optimum while earth dam cores are compacted wet of optimum. Compaction can be measured using methods like core cutting or nuclear gauges. Common compaction equipment includes smooth drum rollers, pneumatic rubber-tired rollers, sheepfoot rollers, and vibratory rollers, each suited to different soil types. Relative compaction is used to check compaction levels in the field.
Soil ppt (1)
This document outlines four common geotechnical engineering tests: 1) Standard Penetration Test which estimates soil density and shear strength, 2) Moisture Content Test which determines soil moisture percentage, 3) Dry Density Test which measures soil density, and 4) Unconfined Compression Test which measures a rock specimen's strength under zero confinement. It provides brief descriptions of the moisture content and unconfined compression tests.
GT Lab Manual
The document provides instructions for conducting 12 geotechnical engineering experiments in the geotechnical engineering lab at B.V. Raju Institute of Technology. The experiments include determining Atterberg limits, field density via core cutter and sand replacement methods, grain size analysis, constant and variable head permeability tests, unconfined compression test, direct shear test, compaction tests, and CBR testing. Students must complete 8 of the 12 experiments listed. Instructions are provided for each experiment, including the aim, theory, apparatus required, and procedures to follow.
Compaction characteristics of soil
Compaction, Its definition, uses, Factors affecting compaction
Field compaction methods and equipments. Solved Numerical and graphical representation of compaction curve and Zero air void line to obtain Optimum moistute content and Maximum dry density.
Cone Penetration Test
The document summarizes information about the cone penetration test (CPT), a method used to determine geotechnical engineering properties of soils. It provides a brief history of the CPT, describing how it has evolved from a mechanical cone in the 1930s to electric cones in the 1960s. It then explains that the CPT involves pushing a cone tip into the ground to continuously measure resistance, and describes the components of the CPT device and how the test is conducted. Finally, it outlines the advantages and disadvantages of the CPT and how the results can be used to evaluate soil types, densities, and shear strengths for foundation design purposes.
Study on Consolidation and Correlation with Index Properties Of Different Soi...
The document discusses a study on correlating the coefficient of consolidation (cv) of different soils in Manipur Valley with their index properties. One-dimensional consolidation tests were conducted on five undisturbed soil samples collected from different locations. The cv was determined and found to correlate best with the liquid limit. Specifically:
1) Consolidation tests were conducted and cv values ranging from 1.02x10^-8 to 6.27x10^-9 m^2/sec were obtained.
2) cv was found to increase with effective vertical pressure up to 40kPa and then remain similar for higher pressures.
3) cv showed better correlation with the liquid limit than other index properties like plasticity index
Experimental Study to Correlate the Test Results of PBT, UCS, and CBR with Li...
This document presents an experimental study that correlates test results from the plate bearing test (PBT), unconfined compressive strength (UCS) test, and California bearing ratio (CBR) test with results from the dynamic cone penetrometer (DCP) test on various soils under soaked conditions. Soil samples from different locations in Gujarat, India were tested for liquid limit, plastic limit, CBR, PBT, UCS, and DCP at their maximum dry densities achieved through modified proctor compaction in a soaked state. Empirical correlations between the test results were established using linear regression to develop formulations that can be used to estimate time-consuming strength parameters from rapid DCP tests.
Soil Compaction
It's about soil compaction. Here only laboratory compaction methods have been described and the effect different parameters have been discussed,
Min and Max Density of soil
This report summarizes an experiment to determine the minimum and maximum dry density of a Badarpur sand soil specimen. Testing was conducted according to Indian Standards and involved compacting sand in a vibratory compactor and measuring the dry density. The average minimum dry density was found to be 1.469 g/cm3 and the average maximum was 1.679 g/cm3. These values were 11-15% higher than a Yamuna River sand sample. The Badarpur sand was also observed to be more angular in shape compared to the Yamuna River sand. The report discusses how dry density values can depend on testing methods and compaction energy applied.
Geotechnical Engineering-I [Lec #6: Sieve Analysis]
Class notes of Geotechnical Engineering course I used to teach at UET Lahore. Feel free to download the slide show.
Anyone looking to modify these files and use them for their own teaching purposes can contact me directly to get hold of editable version.
Compaction test of soil ASTM-D698
The document discusses soil compaction testing. There are two main types of compaction tests - standard and modified proctor. The standard proctor test uses a 4 inch diameter mold compacted in 3 layers with 25 blows per layer. The modified proctor uses a 6 inch mold compacted in 5 layers with 25 blows per layer. The test determines the optimum moisture content for compaction by measuring dry unit weight at different moisture contents. Testing involves compacting soil samples, determining dry unit weights and moisture contents, and plotting a curve showing maximum dry unit weight corresponds to optimum moisture content.
Estimation of CBR value using Dynamic Cone Penetrometer
Estimation of CBR value using Dynamic Cone Penetrometer Guru Nank Dev Engineering College, Ludhiana, Punjab, India-141006
The subbase/base thickness of pavement is governed by the CBR value of the subgrade soil along with some other parameters such as traffic intensity, climatic conditions, etc. Dynamic cone penetration test (DCPT) value conducted in the field can be used to estimate the CBR value provided a suitable relationship exists between CBR and DCPT value.Pavement Engineering Materials_4
This document provides an overview of pavement materials and roadbed soils, focusing on grain size analysis and Atterberg limits. It defines key terms like soil texture, grain size, particle shape, effective size, coefficient of uniformity, liquid limit, plastic limit, and plasticity index. Methods for conducting grain size analysis using sieves and hydrometers are described. The Casagrande cup test for determining the liquid limit of a soil is explained. Engineering applications of grain size distribution and Atterberg limits are also discussed.
Ex 8 standard proctor test
The standard Proctor test is conducted to determine the optimum water content and maximum dry density of soil for compaction. Soil samples are compacted in layers in a standardized metal mold at different water contents using a rammer. The bulk density of each compacted sample is calculated and a curve is plotted of dry density versus water content. The water content corresponding to the highest dry density is the optimum water content. A penetration resistance test is also conducted using a Proctor needle to obtain the relationship between penetration resistance and water content.
Pavement Engineering Materials_5
This document provides an overview of two common soil classification systems used in pavement engineering: the Unified Soil Classification System (USCS) and the American Association of State Highway and Transportation Officials system (AASHTO). It describes the purpose, key components, and procedures for classifying soils according to grain size, plasticity characteristics, and other properties in each system. Examples are provided to demonstrate how soil test data can be analyzed and soils assigned appropriate classifications under the USCS and AASHTO systems.
Classification of soil by (ISCS)
This document presents a seminar by Anand Singh on soil classification based on the Indian Standard Classification System. It discusses the various soil classification systems and focuses on defining the ISCS. The ISCS classifies soils into four major divisions - coarse grained, fine grained, organic, and peat. It then explains how to classify soils under each division based on factors like grain size, plasticity, liquid limit, and location on a plasticity chart. Examples are provided to demonstrate how to determine the classification symbol of a given soil sample based on test results.
20320140504004
This document summarizes a study on improving the geotechnical properties of poor soil through the addition of stone dust. Tests were conducted on black cotton soil mixed with 0%, 10%, 20%, and 30% stone dust by weight to determine effects on properties. Key findings include:
1. Addition of stone dust decreased the soil's liquid limit, plastic limit, and percentage of particles finer than 75μ.
2. Maximum dry density increased and optimum moisture content decreased with higher stone dust content due to its coarser texture.
3. California Bearing Ratio (CBR), a measure of soil stiffness and strength, improved from below 3% for raw black cotton soil to 4%, 7%, and 12% for
Site Investigation and Example of Soil Sampling
The document provides information on various soil testing methods conducted as part of a site investigation study. It discusses procedures for collecting undisturbed and disturbed soil samples, and conducting tests such as grain size analysis, Atterberg limits tests, relative density tests, and compaction tests. The purpose of the site investigation and specific laboratory tests are explained. Sample collection and testing is performed to obtain properties of the soil and understand its suitability for construction purposes.
What's hot (20)
Field control of compaction and compaction Equipment
Field control of compaction and compaction Equipment
Study on Consolidation and Correlation with Index Properties Of Different Soi...
Study on Consolidation and Correlation with Index Properties Of Different Soi...
Experimental Study to Correlate the Test Results of PBT, UCS, and CBR with Li...
Experimental Study to Correlate the Test Results of PBT, UCS, and CBR with Li...
Geotechnical Engineering-I [Lec #6: Sieve Analysis]
Geotechnical Engineering-I [Lec #6: Sieve Analysis]
Estimation of CBR value using Dynamic Cone Penetrometer
Estimation of CBR value using Dynamic Cone Penetrometer
Similar to Soil ii presentation-department of urban and infrastructure engg,neduet.
Urban and infrastructure engineering department
This document summarizes a soil investigation report for a construction project in Karachi, Pakistan. It lists the group members conducting the investigation and the tests performed, which include standard penetration testing, grain size analysis, Atterberg limits testing, unconfined compression testing, point load testing, direct shear testing, and specific gravity testing. The standard penetration testing involved drilling 4 boreholes to 50m depth using rotary drilling and performing tests every 1.5m. The other tests aimed to determine properties of the soil like grain size distribution, water content, strength, and shear strength.
Soil test sanepa housing
The document is a geotechnical investigation report for a proposed housing development site in Sanepa, Lalitpur. It includes:
1) A summary of the field investigation conducted, including two boreholes drilled to 12m depth with standard penetration tests and soil sampling.
2) Details of the laboratory tests performed on soil samples, including moisture content, grain size analysis, Atterberg limits, consolidation testing, and shear strength testing.
3) An analysis of the soil properties to determine the allowable bearing capacity of the site's foundation soils based on ultimate capacity and tolerable settlement. The analysis finds the soils can support foundations without excessive settlement.
20120130406011
The document summarizes a study that used a direct shear box test to determine the shear strength characteristics of rockfill material from the Beas River in India. Rockfill samples of varying particle sizes from 1-12.5 mm were tested under normal pressures from 1-2 kg/cm2. The results showed that shear strength, as indicated by the angle of shearing resistance, increased as particle size decreased at a given void ratio. However, shear stress generally decreased with increasing particle size. A direct shear box with internal dimensions of 30x30x12 cm was used to test the rockfill samples based on standard methodologies for such tests.
AMITT PPT OF PROJECT_1
The document discusses using waste materials like fly ash and cinder in road construction to increase soil bearing capacity and road stability. It describes several experiments conducted on clayey soil, fly ash, and cinder, including proctor compaction testing, liquid/plastic limit tests, particle size distribution analysis, specific gravity tests, permeability testing, unconfined compression testing, and California Bearing Ratio (CBR) testing. The results showed that clayey soil has the best engineering properties overall, while fly ash individually has some benefits but also weaknesses in permeability resistance and strength, and cinder does not perform well in most tests on its own.
Influence of subgrade condition on rutting in flexible pavements
This document summarizes an experimental investigation into the influence of subgrade condition on rutting in flexible pavements. Laboratory pavement sections were constructed with varying subgrade conditions achieved by modifying the CBR of a clayey subgrade. The results showed that rutting initiates in the subgrade and surface strengthening alone has a low influence on limiting rut formation. Rut depth was highest for sections with unmodified clay subgrades and lowest for sections with pond ash and lime stabilized subgrades, indicating subgrade modification is more effective than surface modification alone in controlling rutting.
Foundation engineering
The document discusses subsurface investigations for foundations. It describes various methods used for soil exploration including test pits, borings, geophysical methods, and in-situ tests. The key methods covered are auger boring, wash boring, rotary drilling, percussion drilling, standard penetration test, and cone penetration test. The document also discusses planning exploration programs, sampling techniques, factors affecting depth and spacing of boreholes, and interpretation of soil exploration data for foundation design.
Geological site investigation for Civil Engineering Foundations
Aim to introduce Preliminary geological Investigations for fulfilling knowledge about geological need to determine engineering properties of foundation rocks and check the suitability & feasibility of site wherein selection of site plays a crucial role to avoid future implications in civil engineering projects.
E03405038045
The International Journal of Engineering & Science is aimed at providing a platform for researchers, engineers, scientists, or educators to publish their original research results, to exchange new ideas, to disseminate information in innovative designs, engineering experiences and technological skills. It is also the Journal's objective to promote engineering and technology education. All papers submitted to the Journal will be blind peer-reviewed. Only original articles will be published.
The papers for publication in The International Journal of Engineering& Science are selected through rigorous peer reviews to ensure originality, timeliness, relevance, and readability.
Effectiveness of Marble Powder and Terrazyme as natural Soil Stabilizer Labor...
This document summarizes a research study that investigated the effectiveness of using marble powder and Terrazyme as natural soil stabilizers. The study evaluated the physical and mechanical properties of soil samples mixed with varying percentages of marble powder and Terrazyme. Key findings from laboratory tests showed that mixing soil with 10% marble powder and 1.04 ml/kg of Terrazyme produced the highest maximum dry density, shear strength, and water retention, while also reducing permeability. The study concluded that using these natural materials as soil stabilizers provides sustainable and eco-friendly alternatives to traditional chemical stabilizers, though further research is needed to evaluate their long-term effectiveness under different field conditions.
The Geotechnical Properties of Jamshoro Soil (Shale) With Cement
This study examined the effect of cement on the geotechnical properties of expansive Jamshoro soil in Pakistan. Jamshoro soil samples were mixed with 5%, 10%, 15%, and 20% cement by weight and cured for 1, 7, 14, and 28 days. Direct shear tests showed that shear strength increased with higher cement content and longer curing time, indicating improved cohesion. It was concluded that cement treatment effectively improved the geotechnical properties of Jamshoro soil by binding soil particles into larger aggregates and increasing shear strength and cohesion over time.
The Geotechnical Properties of Jamshoro Soil (Shale) With Cement
The geology of Jamshoro soil is nearly consist of multilayers in alternative form. The alternative layer of
Jamshoro soil occur in the form of lime stone and shale or vice versa. The basic aim of this research is to improve
the geotechnical properties of Jamshoro soil (shale) by using the cement as the stabilized material. This paper
reports the effect of cement on the geotechnical characteristic of the cohesive soil and swelling potential of the
Jamshoro soil. The soil sample used for testing purpose are thoroughly mixed to obtain the homogeneity. After
that thoroughly mixed was dried in the oven. Oven dried sample was mixed with cement at different proportion
that was 5% ,10%, 15% and 20% by the soil weight. Water content used in the mixture to form the specimens at
optimum moisture contents of the soil. The compacted this prepared soil specimen was done by followed the
procedure of standard proctor test. Compacted specimens were cured for the period of 1, 7, 14 and 28 days. After
the completion of curing duration of specimen direct shear test was done. On the base of experimental result, it
was concluded that the cement showed an appreciable improvement of the cohesion with the curing period.
shear strength of soil
This document discusses the shear strength of soils. It begins with an abstract describing shear strength and factors that influence it, such as particle interactions and stresses. It then outlines different methods to measure shear strength in the laboratory and field, including direct shear tests, triaxial shear tests, and vane shear tests. The Mohr-Coulomb failure criteria is also explained as a way to analyze shear strength based on normal and shear stresses. Key parameters that govern shear strength are identified as cohesion and the friction angle.
“STABILAZATION OF SOIL USING PLASTIC WASTE GENERATED FROM PLASTIC BAGS AND BO...
This document summarizes research on stabilizing expansive clay soils using plastic waste from bottles and bags. The plastic was cut into strips and added to soil samples at different ratios and sizes. Tests found adding plastic strips significantly improved shear strength, reduced swelling and cracking, lowered optimum moisture content, and slightly increased maximum dry density. Stabilizing expansive soils with plastic waste helps address the problem of plastic recycling while improving soil engineering properties.
Site Investigation.ppt
The document provides information on site investigation procedures for determining subsurface soil conditions. It discusses the purpose of site investigations which include selecting foundation type, evaluating load capacity, estimating settlement, and determining groundwater levels. The typical steps of a subsurface exploration program are outlined, including assembling structure information, conducting reconnaissance, preliminary borings, and detailed borings. Methods of soil and rock sampling are described along with tools used. Standards for boring depth and spacing are provided based on structure type and soil conditions. Finally, components of a geotechnical investigation report are summarized.
GE Lab manual.pdf
I am sharing here GEOTECHNICAL ENGINEERING LAB MANUAL for students and faculty. it will be helpful to all civil engineer and institutes.
Siteinvestigation
This document provides an overview of site investigation procedures for determining subsurface soil conditions. It discusses the purposes of site investigations, which include selecting foundation types, evaluating load capacity, estimating settlements, and determining potential foundation problems. The exploration program aims to determine soil stratification and engineering properties through borings, samples, and field tests. Standard procedures are outlined for boring depth and spacing, soil and rock sampling methods, groundwater level determination, and field strength tests like SPT, CPT, and PLT.
Piling design intro
Piling design
Pile Design and Construction Rules of Thumb
by Ruwan Rajapakse
Chapter 1 and 3
***pic in the slides are not my own creation but are credited, may be subjected to copyright.
Site Investegation
The process of determining the layers of natural soil deposits that will underlie a proposed structure and their physical properties is generally referred to as site investigation.
014
This study examined the effect of gradation and sample size on the compression index of coarse-grained clayey soils. Consolidation tests were performed on base soil samples and gradation-modified samples using both a Rowe consolidation cell and oedometer tests. The results showed that modifying the gradation by replacement or scalping techniques increased the compression index values compared to the base soils. The replacement modification technique produced results closest to the base soils tested in the Rowe cell. The study concluded the replacement technique provides a more reliable way to determine the compression index of coarse-grained clayey soils compared to scalping or standard oedometer tests.
Similar to Soil ii presentation-department of urban and infrastructure engg,neduet. (20)
Influence of subgrade condition on rutting in flexible pavements
Influence of subgrade condition on rutting in flexible pavements
Geological site investigation for Civil Engineering Foundations
Geological site investigation for Civil Engineering Foundations
Effectiveness of Marble Powder and Terrazyme as natural Soil Stabilizer Labor...
Effectiveness of Marble Powder and Terrazyme as natural Soil Stabilizer Labor...
The Geotechnical Properties of Jamshoro Soil (Shale) With Cement
The Geotechnical Properties of Jamshoro Soil (Shale) With Cement
The Geotechnical Properties of Jamshoro Soil (Shale) With Cement
The Geotechnical Properties of Jamshoro Soil (Shale) With Cement
“STABILAZATION OF SOIL USING PLASTIC WASTE GENERATED FROM PLASTIC BAGS AND BO...
“STABILAZATION OF SOIL USING PLASTIC WASTE GENERATED FROM PLASTIC BAGS AND BO...
Recently uploaded
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
原版一模一样【微信：741003700 】【(csu毕业证书)查尔斯特大学毕业证硕士学历】【微信：741003700 】学位证，留信认证（真实可查，永久存档）offer、雅思、外壳等材料/诚信可靠,可直接看成品样本，帮您解决无法毕业带来的各种难题！外壳，原版制作，诚信可靠，可直接看成品样本。行业标杆！精益求精，诚心合作，真诚制作！多年品质 ,按需精细制作，24小时接单,全套进口原装设备。十五年致力于帮助留学生解决难题，包您满意。
本公司拥有海外各大学样板无数，能完美还原海外各大学 Bachelor Diploma degree, Master Degree Diploma
1:1完美还原海外各大学毕业材料上的工艺：水印，阴影底纹，钢印LOGO烫金烫银，LOGO烫金烫银复合重叠。文字图案浮雕、激光镭射、紫外荧光、温感、复印防伪等防伪工艺。材料咨询办理、认证咨询办理请加学历顾问Q/微741003700
留信网认证的作用:
1:该专业认证可证明留学生真实身份
2:同时对留学生所学专业登记给予评定
3:国家专业人才认证中心颁发入库证书
4:这个认证书并且可以归档倒地方
5:凡事获得留信网入网的信息将会逐步更新到个人身份内，将在公安局网内查询个人身份证信息后，同步读取人才网入库信息
6:个人职称评审加20分
7:个人信誉贷款加10分
8:在国家人才网主办的国家网络招聘大会中纳入资料，供国家高端企业选择人才
Advanced control scheme of doubly fed induction generator for wind turbine us...
This paper describes a speed control device for generating electrical energy on an electricity network based on the doubly fed induction generator (DFIG) used for wind power conversion systems. At first, a double-fed induction generator model was constructed. A control law is formulated to govern the flow of energy between the stator of a DFIG and the energy network using three types of controllers: proportional integral (PI), sliding mode controller (SMC) and second order sliding mode controller (SOSMC). Their different results in terms of power reference tracking, reaction to unexpected speed fluctuations, sensitivity to perturbations, and resilience against machine parameter alterations are compared. MATLAB/Simulink was used to conduct the simulations for the preceding study. Multiple simulations have shown very satisfying results, and the investigations demonstrate the efficacy and power-enhancing capabilities of the suggested control system.
New techniques for characterising damage in rock slopes.pdf
rock mass characterization and New techniques for characterising damage in rock slopes
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Horizon Generation
6th International Conference on Machine Learning & Applications (CMLA 2024)
6th International Conference on Machine Learning & Applications (CMLA 2024) will provide an excellent international forum for sharing knowledge and results in theory, methodology and applications of on Machine Learning & Applications.
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
As digital technology becomes more deeply embedded in power systems, protecting the communication
networks of Smart Grids (SG) has emerged as a critical concern. Distributed Network Protocol 3 (DNP3)
represents a multi-tiered application layer protocol extensively utilized in Supervisory Control and Data
Acquisition (SCADA)-based smart grids to facilitate real-time data gathering and control functionalities.
Robust Intrusion Detection Systems (IDS) are necessary for early threat detection and mitigation because
of the interconnection of these networks, which makes them vulnerable to a variety of cyberattacks. To
solve this issue, this paper develops a hybrid Deep Learning (DL) model specifically designed for intrusion
detection in smart grids. The proposed approach is a combination of the Convolutional Neural Network
(CNN) and the Long-Short-Term Memory algorithms (LSTM). We employed a recent intrusion detection
dataset (DNP3), which focuses on unauthorized commands and Denial of Service (DoS) cyberattacks, to
train and test our model. The results of our experiments show that our CNN-LSTM method is much better
at finding smart grid intrusions than other deep learning algorithms used for classification. In addition,
our proposed approach improves accuracy, precision, recall, and F1 score, achieving a high detection
accuracy rate of 99.50%.
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
K8sGPT is a tool that analyzes and diagnoses Kubernetes clusters. This presentation was used to share the requirements and dependencies to deploy K8sGPT in a local environment.
bank management system in java and mysql report1.pdf
truth is high but higher still is truth full living
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Traditionally, dealing with real-time data pipelines has involved significant overhead, even for straightforward tasks like data transformation or masking. However, in this talk, we’ll venture into the dynamic realm of WebAssembly (WASM) and discover how it can revolutionize the creation of stateless streaming pipelines within a Kafka (Redpanda) broker. These pipelines are adept at managing low-latency, high-data-volume scenarios.
Recently uploaded (20)
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
basic-wireline-operations-course-mahmoud-f-radwan.pdf
basic-wireline-operations-course-mahmoud-f-radwan.pdf
Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content
Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...
New techniques for characterising damage in rock slopes.pdf
New techniques for characterising damage in rock slopes.pdf
2. Operations Strategy in a Global Environment.ppt
2. Operations Strategy in a Global Environment.ppt
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
6th International Conference on Machine Learning & Applications (CMLA 2024)
6th International Conference on Machine Learning & Applications (CMLA 2024)
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressions
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
ACRP 4-09 Risk Assessment Method to Support Modification of Airfield Separat...
bank management system in java and mysql report1.pdf
bank management system in java and mysql report1.pdf
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Soil ii presentation-department of urban and infrastructure engg,neduet.
- 1. URBAN AND INFRASTRUCTURE ENGINEERING DEPARTMENT SOIL MECHANICS II GROUP MEMBERS: MUHAMMAD QAISER (UE-16067) S.M. HAMZA SHAH (UE-16075) SAAD ARAIN (UE-16302) ALI RAZA RIZVI (UE-16078)

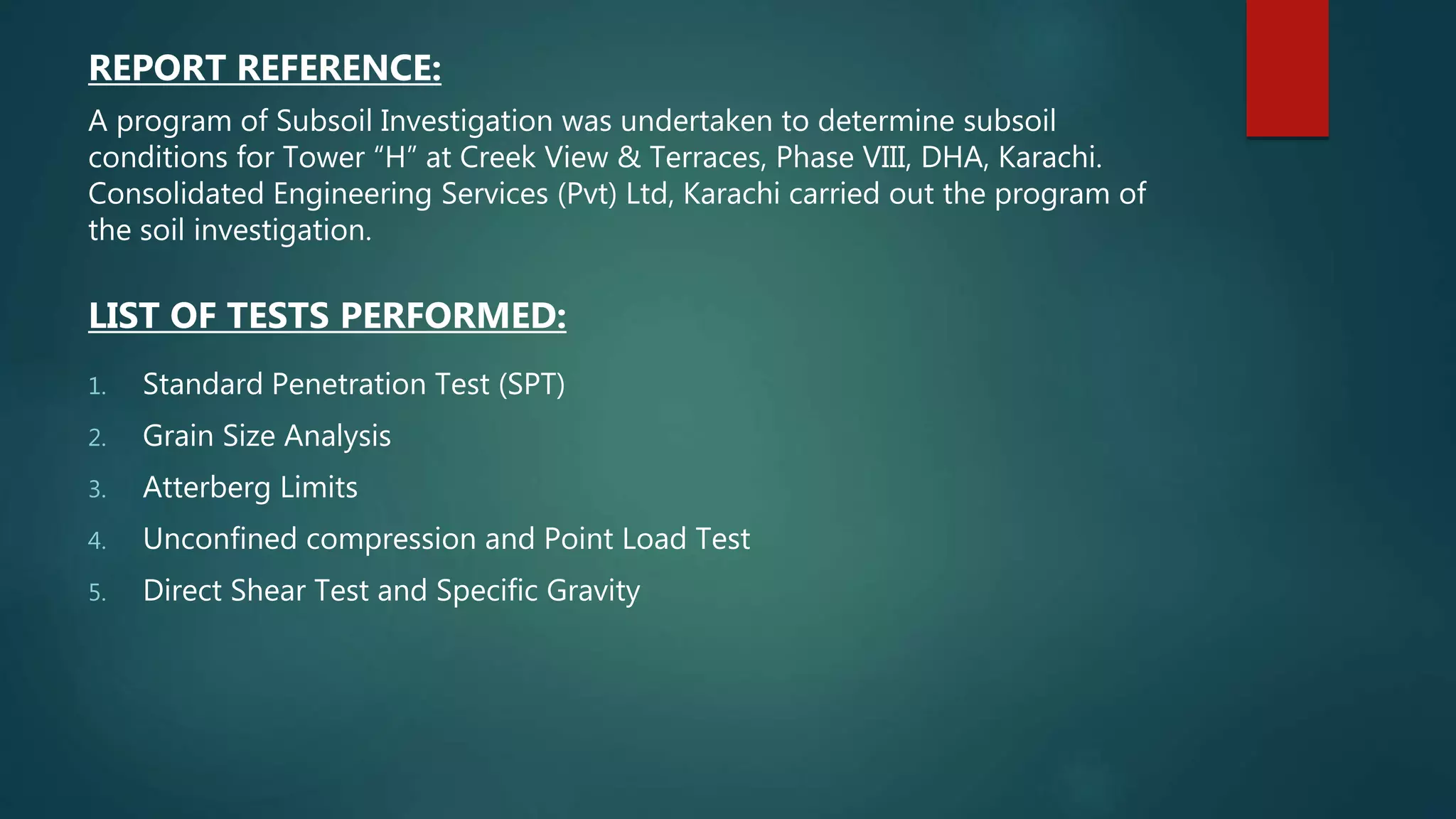

- 2. A program of Subsoil Investigation was undertaken to determine subsoil conditions for Tower “H” at Creek View & Terraces, Phase VIII, DHA, Karachi. Consolidated Engineering Services (Pvt) Ltd, Karachi carried out the program of the soil investigation. LIST OF TESTS PERFORMED: 1. Standard Penetration Test (SPT) 2. Grain Size Analysis 3. Atterberg Limits 4. Unconfined compression and Point Load Test 5. Direct Shear Test and Specific Gravity REPORT REFERENCE:

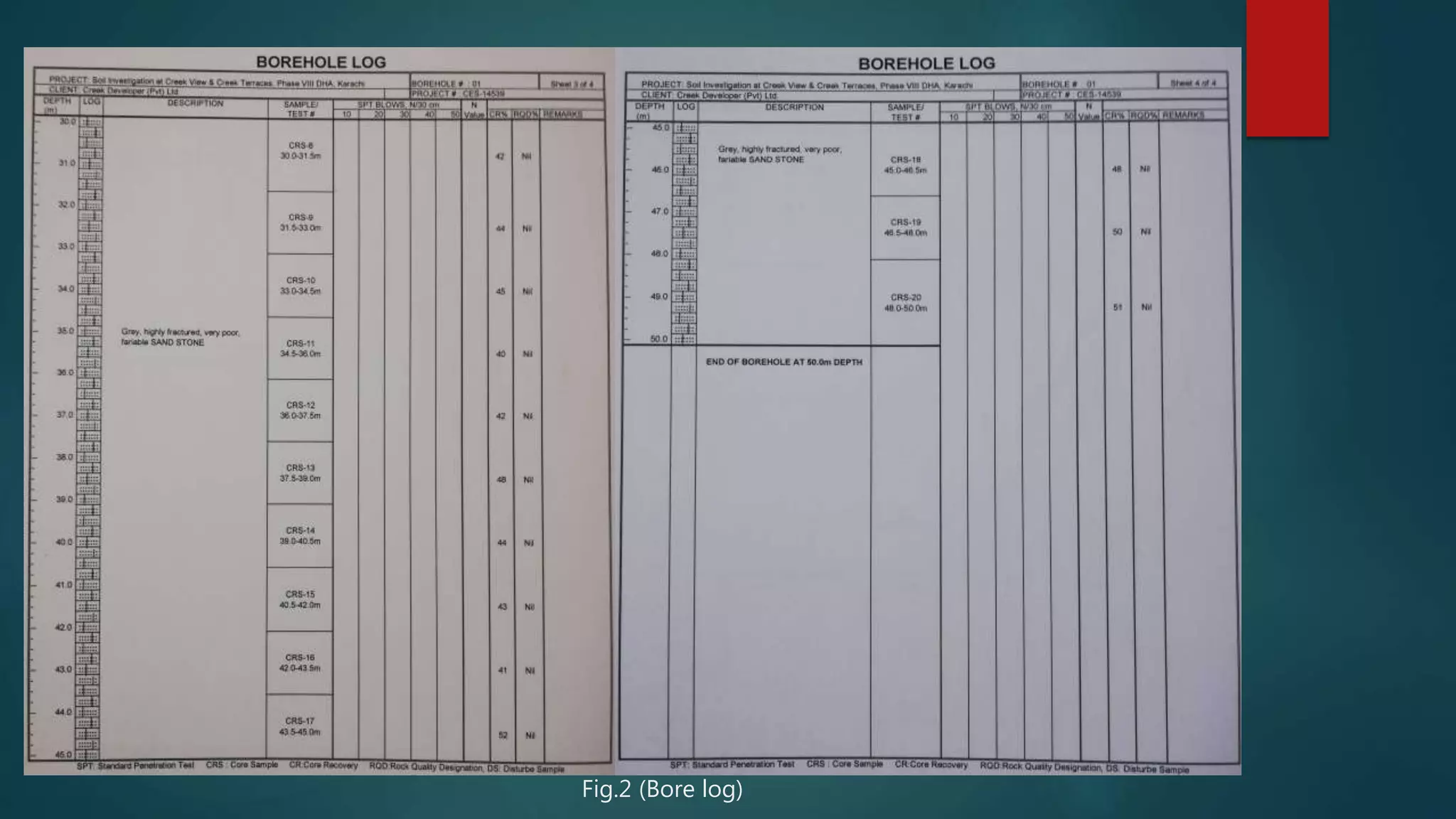

- 3. STANDARD PENETRATION TEST: A total of 4 boreholes were drilled up to 50 m depth. Rotary drilling method was used to advance the borehole to the required depth. SPT was performed at 1.5 m interval by using Donut hammer. Fig.1 (Bore log)

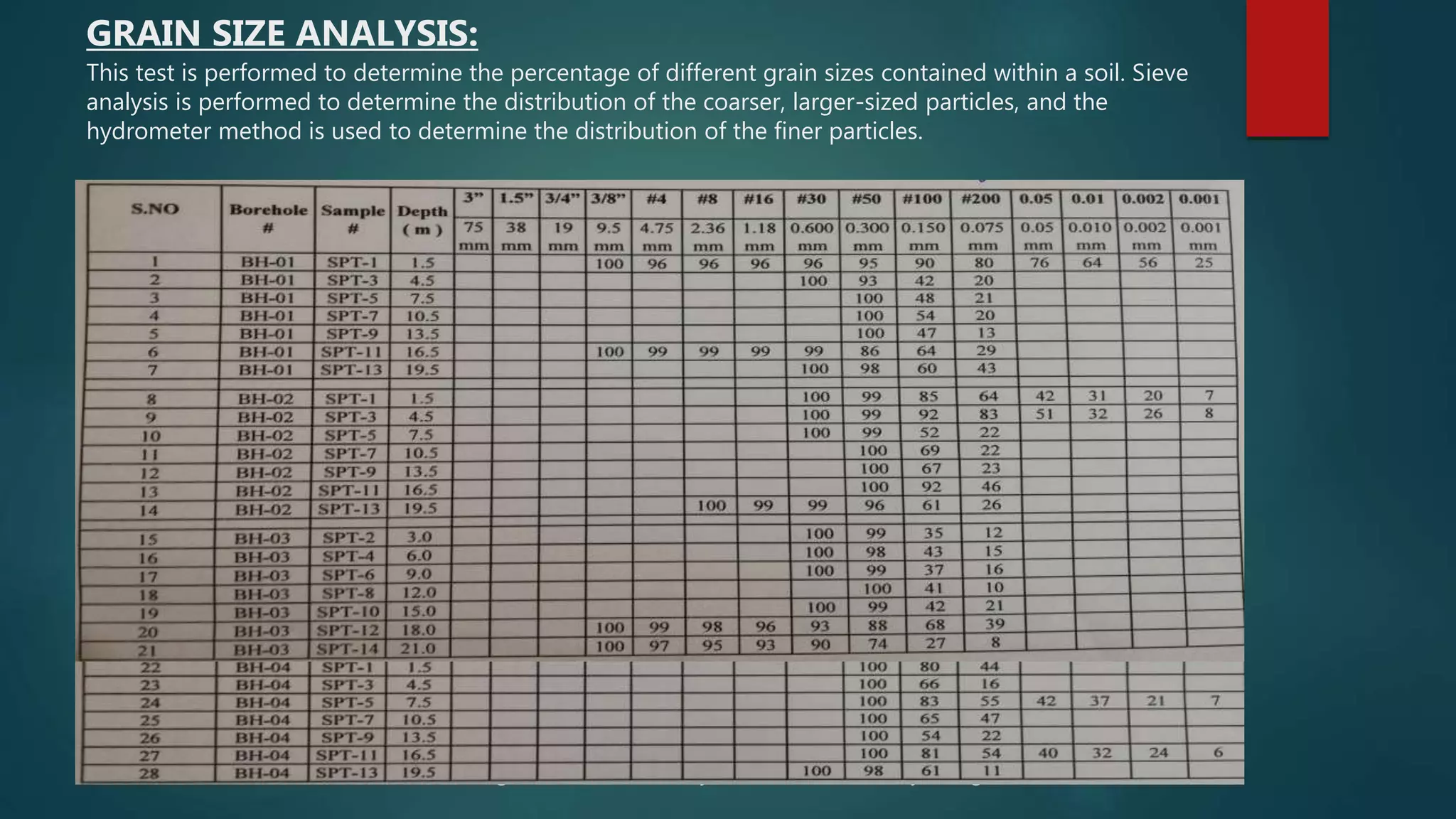

- 5. GRAIN SIZE ANALYSIS: This test is performed to determine the percentage of different grain sizes contained within a soil. Sieve analysis is performed to determine the distribution of the coarser, larger-sized particles, and the hydrometer method is used to determine the distribution of the finer particles. Fig.3 (Grain size Analysis :Percent Finer by Weight)

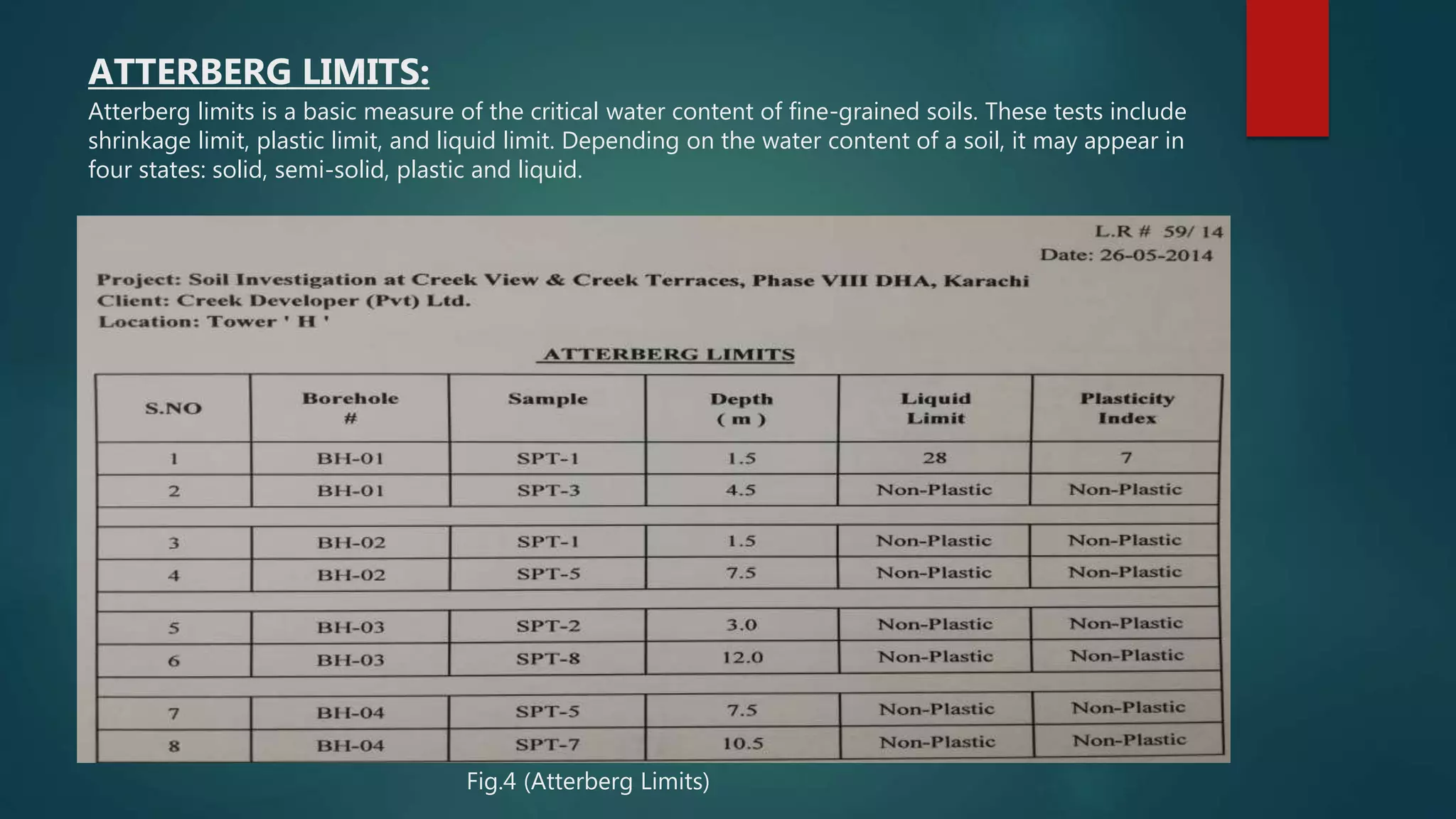

- 6. ATTERBERG LIMITS: Atterberg limits is a basic measure of the critical water content of fine-grained soils. These tests include shrinkage limit, plastic limit, and liquid limit. Depending on the water content of a soil, it may appear in four states: solid, semi-solid, plastic and liquid. Fig.4 (Atterberg Limits)

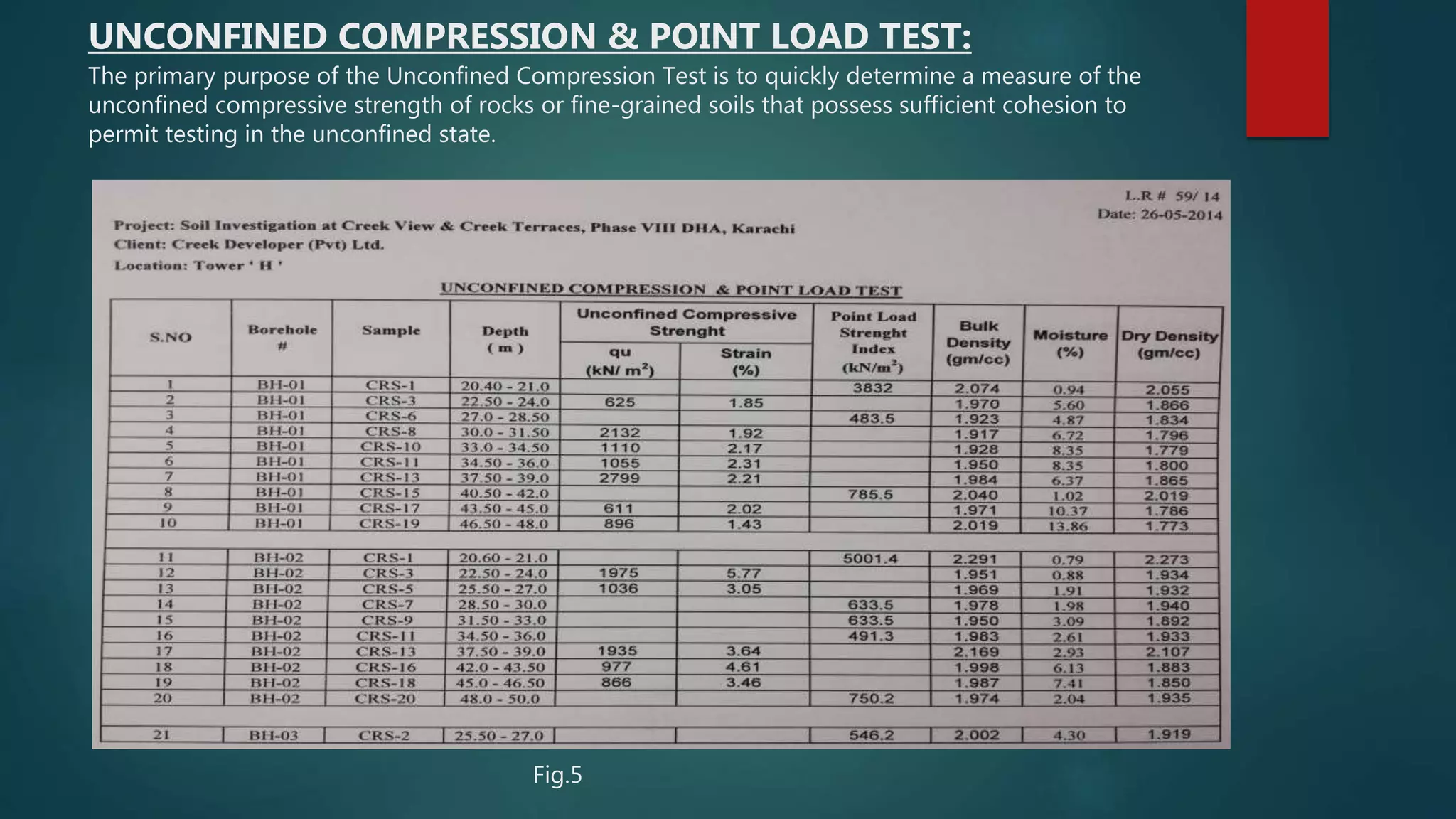

- 7. UNCONFINED COMPRESSION & POINT LOAD TEST: The primary purpose of the Unconfined Compression Test is to quickly determine a measure of the unconfined compressive strength of rocks or fine-grained soils that possess sufficient cohesion to permit testing in the unconfined state. Fig.5

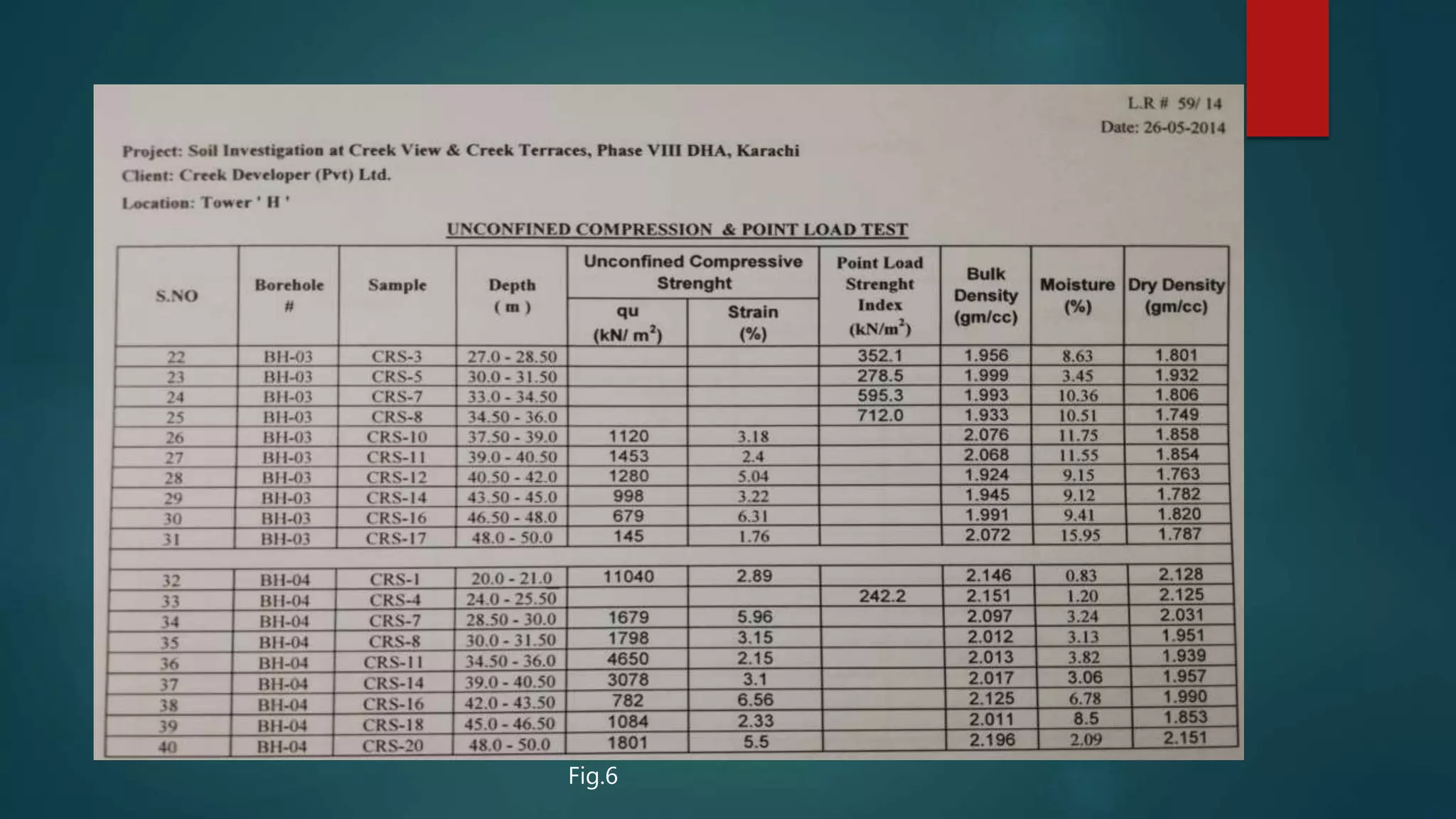

- 8. Fig.6

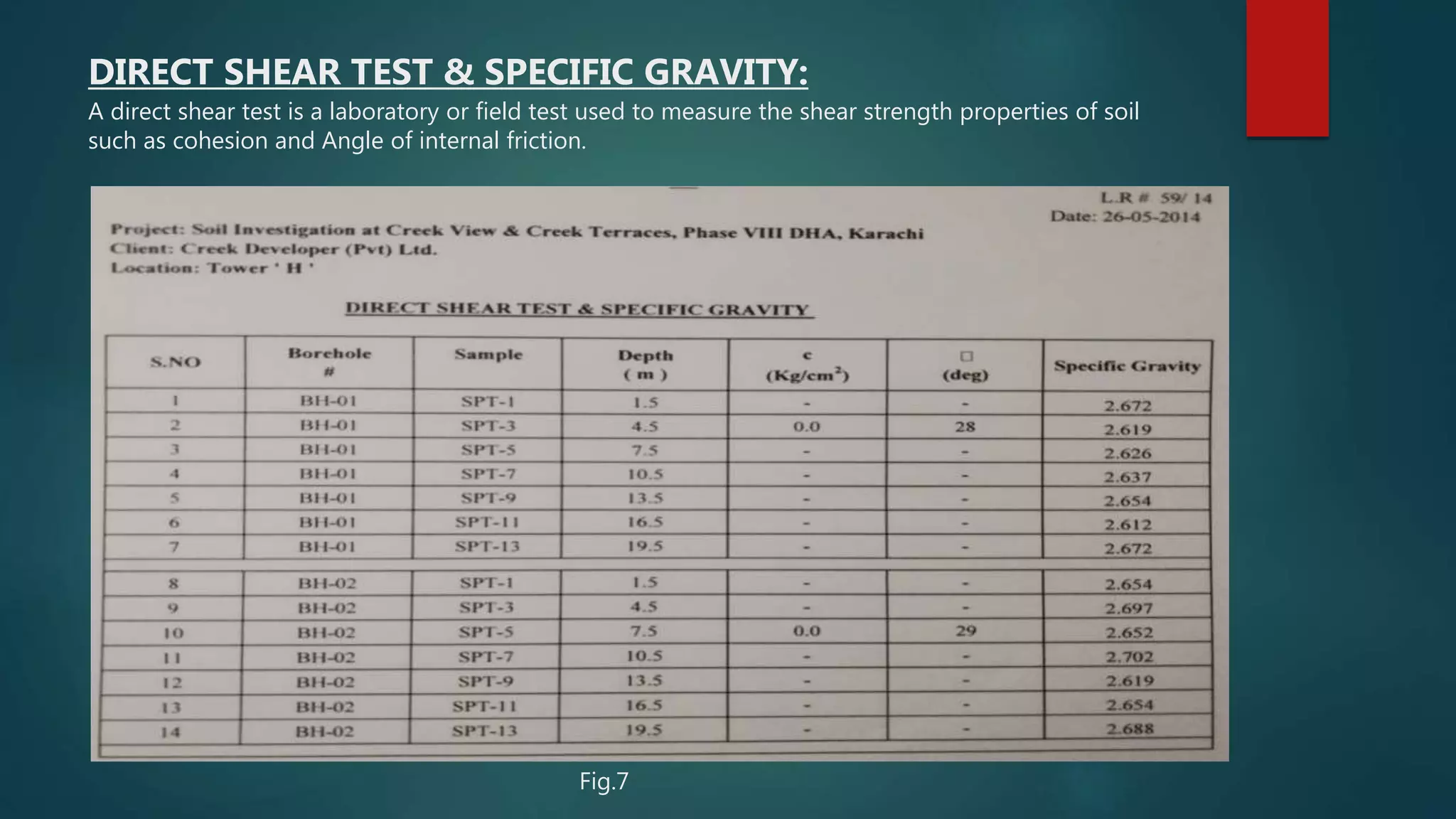

- 9. DIRECT SHEAR TEST & SPECIFIC GRAVITY: A direct shear test is a laboratory or field test used to measure the shear strength properties of soil such as cohesion and Angle of internal friction. Fig.7

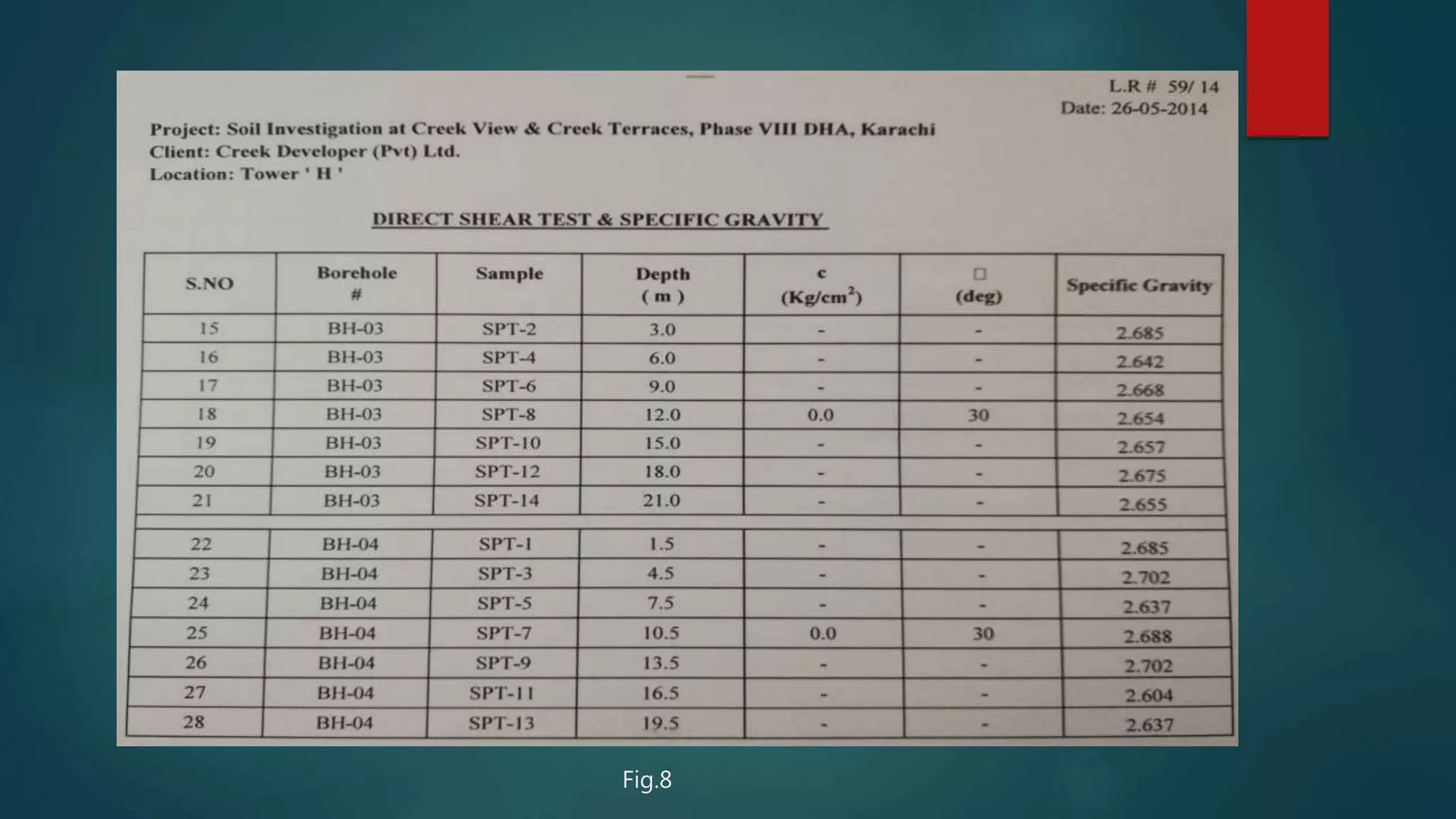

- 10. Fig.8
