1. Smuggling TCP traffic
through HTTP
Dávid Halász
dhalasz@redhat.com

2. About me
Software Engineer at Red Hat in Brno
Working on the ManageIQ UI
and remote consoles
and notifications
and many other stuff
mostly in Ruby
Maintaining the SASS port of PatternFly
@skateman on GitHub
💓💎💓

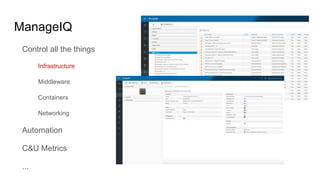

3. ManageIQ
Control all the things
Infrastructure
Middleware
Containers
Networking
Automation
C&U Metrics
...

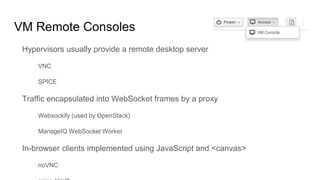

4. VM Remote Consoles
Hypervisors usually provide a remote desktop server
VNC
SPICE
Traffic encapsulated into WebSocket frames by a proxy
Websockify (used by OpenStack)
ManageIQ WebSocket Worker
In-browser clients implemented using JavaScript and <canvas>
noVNC

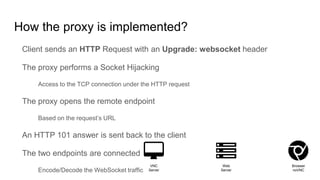

5. How the proxy is implemented?
Client sends an HTTP Request with an Upgrade: websocket header
The proxy performs a Socket Hijacking
Access to the TCP connection under the HTTP request
The proxy opens the remote endpoint
Based on the request’s URL
An HTTP 101 answer is sent back to the client
The two endpoints are connected
Encode/Decode the WebSocket traffic
Browser
noVNC
Web
Server
VNC
Server

6. How the proxy is implemented?
Client sends an HTTP Request with an Upgrade: websocket header
The proxy performs a Socket Hijacking
Access to the TCP connection under the HTTP request
The proxy opens the remote endpoint
Based on the request’s URL
An HTTP 101 answer is sent back to the client
The two endpoints are connected
Encode/Decode the WebSocket traffic
Browser
noVNC
Web
Server
VNC
Server
HTTP Upgrade

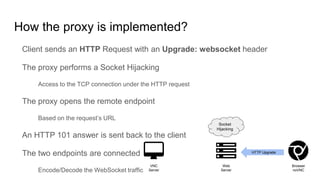

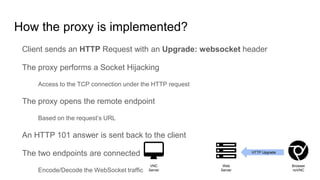

7. How the proxy is implemented?
Client sends an HTTP Request with an Upgrade: websocket header
The proxy performs a Socket Hijacking
Access to the TCP connection under the HTTP request
The proxy opens the remote endpoint
Based on the request’s URL
An HTTP 101 answer is sent back to the client
The two endpoints are connected
Encode/Decode the WebSocket traffic
Browser
noVNC
Web
Server
VNC
Server
HTTP Upgrade
Socket
Hijacking

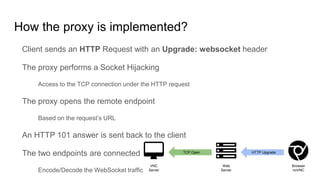

8. How the proxy is implemented?
Client sends an HTTP Request with an Upgrade: websocket header
The proxy performs a Socket Hijacking
Access to the TCP connection under the HTTP request
The proxy opens the remote endpoint
Based on the request’s URL
An HTTP 101 answer is sent back to the client
The two endpoints are connected
Encode/Decode the WebSocket traffic
Browser
noVNC
Web
Server
VNC
Server
HTTP UpgradeTCP Open

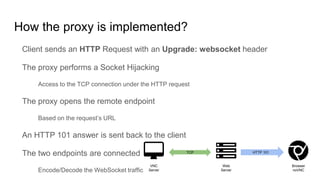

9. How the proxy is implemented?
Client sends an HTTP Request with an Upgrade: websocket header
The proxy performs a Socket Hijacking
Access to the TCP connection under the HTTP request
The proxy opens the remote endpoint
Based on the request’s URL
An HTTP 101 answer is sent back to the client
The two endpoints are connected
Encode/Decode the WebSocket traffic
Browser
noVNC
Web
Server
VNC
Server
TCP HTTP 101

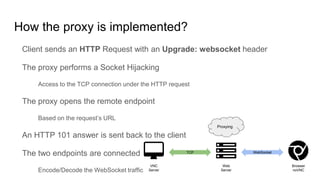

10. How the proxy is implemented?
Client sends an HTTP Request with an Upgrade: websocket header
The proxy performs a Socket Hijacking
Access to the TCP connection under the HTTP request
The proxy opens the remote endpoint
Based on the request’s URL
An HTTP 101 answer is sent back to the client
The two endpoints are connected
Encode/Decode the WebSocket traffic
Browser
noVNC
Web
Server
VNC
Server
TCP WebSocket
Proxying

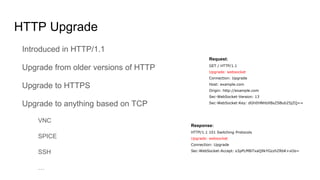

11. HTTP Upgrade
Introduced in HTTP/1.1
Upgrade from older versions of HTTP
Upgrade to HTTPS
Upgrade to anything based on TCP
VNC
SPICE
SSH
…
Request:
GET / HTTP/1.1
Upgrade: websocket
Connection: Upgrade
Host: example.com
Origin: http://example.com
Sec-WebSocket-Version: 13
Sec-WebSocket-Key: dGhlIHNhbXBsZSBub25jZQ==
Response:
HTTP/1.1 101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept: s3pPLMBiTxaQ9kYGzzhZRbK+xOo=

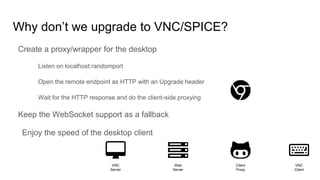

12. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client

13. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
Request

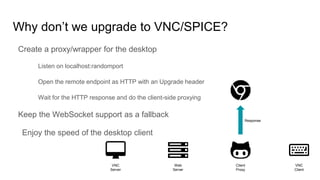

14. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
Response

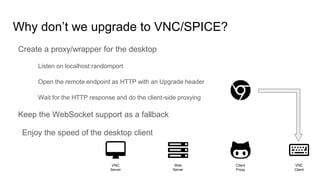

15. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client

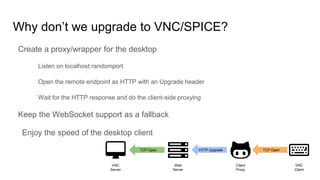

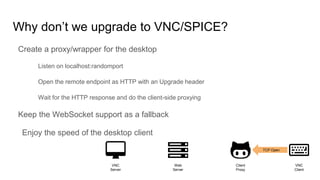

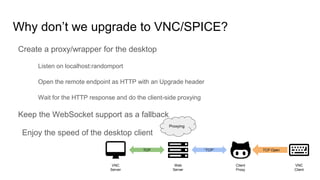

16. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
TCP Open

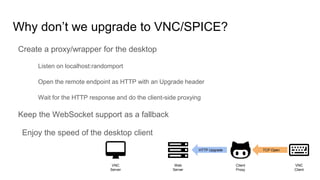

17. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
TCP OpenHTTP Upgrade

18. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
TCP OpenHTTP Upgrade
Socket
Hijacking

19. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
TCP OpenHTTP UpgradeTCP Open

20. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
TCP OpenTCP HTTP 101

21. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
TCP OpenTCP
Proxying
“TCP”

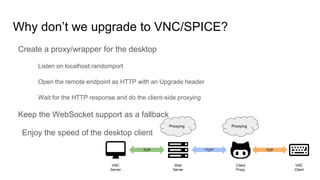

22. Why don’t we upgrade to VNC/SPICE?
Create a proxy/wrapper for the desktop
Listen on localhost:randomport
Open the remote endpoint as HTTP with an Upgrade header
Wait for the HTTP response and do the client-side proxying
Keep the WebSocket support as a fallback
Enjoy the speed of the desktop client
VNC
Server
Web
Server
Client
Proxy
VNC
Client
TCP
Proxying
“TCP” TCP
Proxying

23. Purr
An (incomplete) implementation of the TCP “smuggling”
Server implemented in Ruby using Rack
Client-side proxy
The scary part implemented in Go
Controlled by a browser extension using the Native Messaging API
Extension accessible from Web Applications using a JS library (TODO)
It can “smuggle” anything TCP-based through HTTP
It has a nice logo of a purring cat

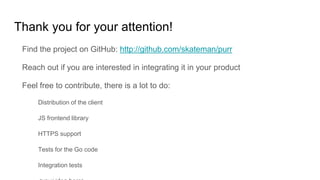

24. Thank you for your attention!
Find the project on GitHub: http://github.com/skateman/purr
Reach out if you are interested in integrating it in your product
Feel free to contribute, there is a lot to do:
Distribution of the client
JS frontend library
HTTPS support
Tests for the Go code
Integration tests
