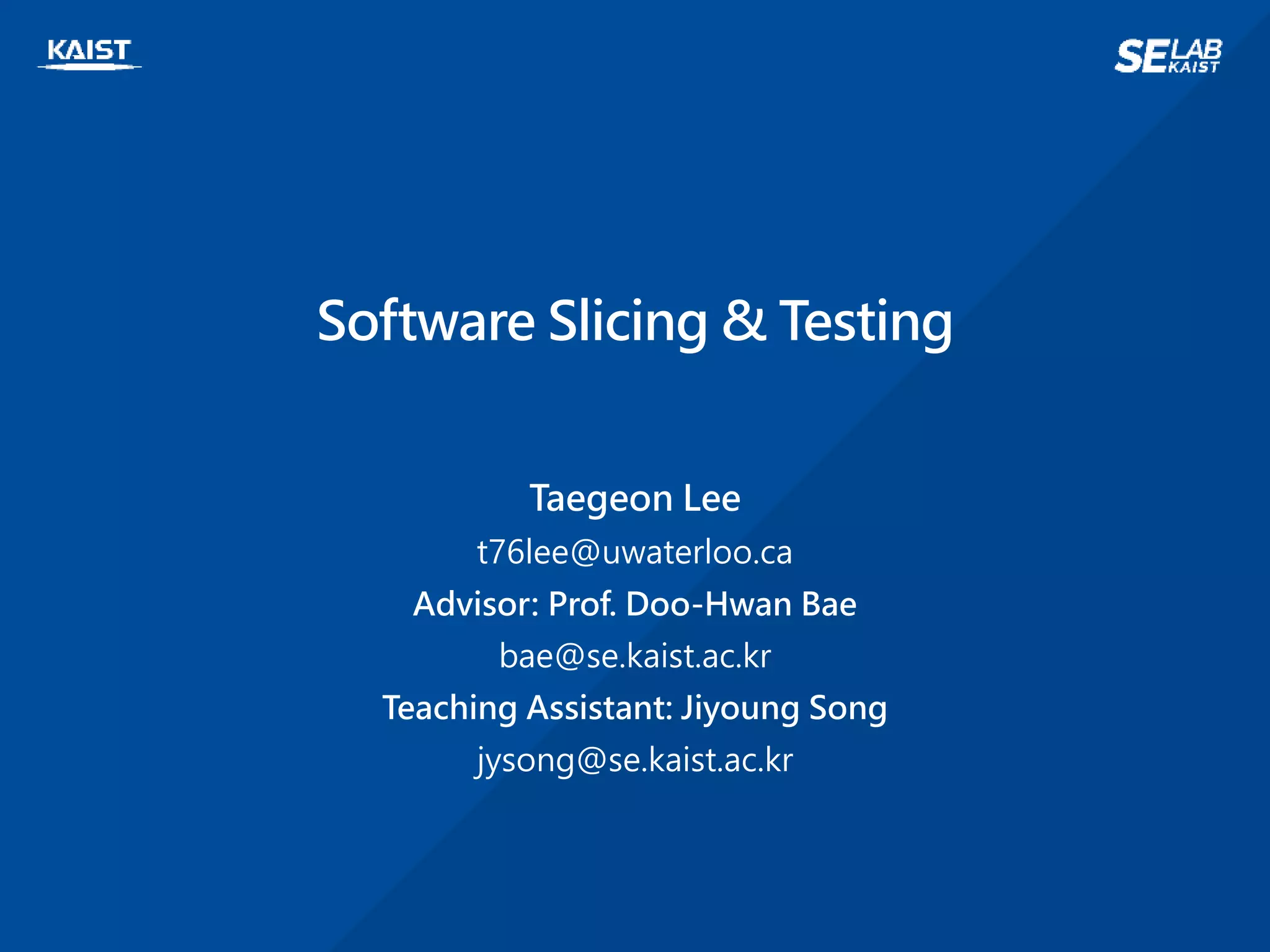

1. Software Slicing & Testing
Taegeon Lee
t76lee@uwaterloo.ca
Advisor: Prof. Doo-Hwan Bae
bae@se.kaist.ac.kr
Teaching Assistant: Jiyoung Song
jysong@se.kaist.ac.kr

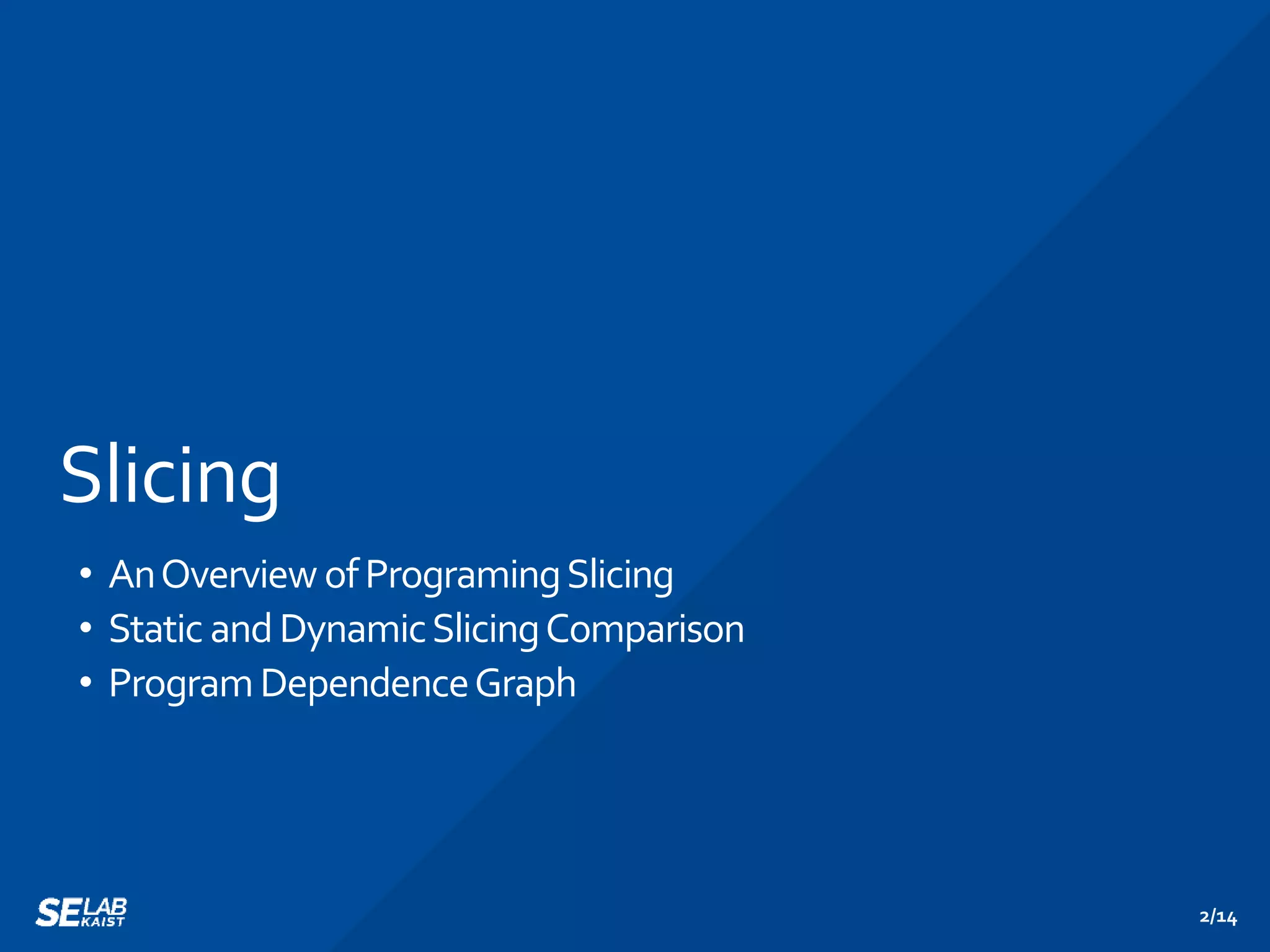

2. Slicing
• AnOverview ofProgramingSlicing
• Static andDynamicSlicingComparison
• ProgramDependenceGraph
2/14

3. Slicing
Introduction Background Overall Approach Methodology Experiments Results Conclusion Discussion
 Programslicingis atechniquefor simplifyingprogramsby focusing on
selectedaspectsof semantics.
 Static,dynamic,conditioned,andamorphous slicingare mainforms of slice.
 Staticslicing
Constructedbydeleting irrelevant partsoftheprogram
Nothingaboutinput
Program dependencegraph canbeused
 Dynamicslicing
Constructaslicewhichexploitedtheinformationavailable abouttheinputwhichcaused
theprogramtogowrong
 There are manyapplicationssuch as debugging,cohesion measurement,
comprehension,maintenance andso on.
3/14Software Slicing & Testing

4. Static and DynamicSlicingComparison
 StaticSlicing
 Considersallpossiblepaths
 Slicingcostischeaper
 Staticallyavailableinformationonly
 Noassumptionsmadeoninput
 Computedsliceis ingeneralinaccurate
 Identifyingminimalslicesisanundecidableproblem
 Resultsmaynotbeuseful
 DynamicSlicing
 Onlyconsidersaspecifiedexecuted path
 Slicesizeissmaller
 Computedonagiveninput
 Usefulforapplicationssuchasdebuggingandtesting
4/14Software Slicing & Testing

5. Slicing
 Program dependence graph
 Statements are nodes, and data and control dependencies are the
edges
 Data dependence graph
Describes in the assignment statements the left value to the right value
dependence relationship
 Control dependence graph
Describes in a program the conditional statements and circular statements with
the statements embedded in them, their control relationship
Statements in the branches of if or while statements are control dependent on
the control predicate
5/14Software Slicing & Testing

6. Program DependenceGraph
6/14Software Slicing & Testing
Cited from http://slideplayer.com/slide/4238936/

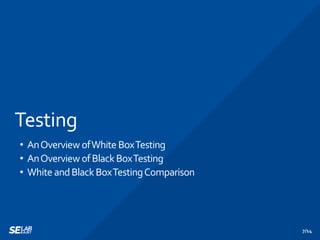

7. Testing
• AnOverview ofWhite BoxTesting
• AnOverview ofBlackBoxTesting
• White andBlackBoxTestingComparison
7/14

8.  White box testing is the testing of a software solution’s
internal coding and infrastructure
 Focuses on security and improves design and usability
White Box Testing
8/14Software Slicing & Testing
Fig) Like see-through box concept
Cited from https://global.rakuten.com/ko/store/hanjo/item/10012725/

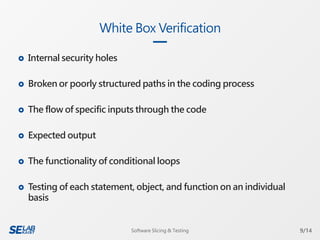

9.  Internal security holes
 Broken or poorly structured paths in the coding process
 The flow of specific inputs through the code
 Expected output
 The functionality of conditional loops
 Testing of each statement, object, and function on an individual
basis
White Box Verification
9/14Software Slicing & Testing

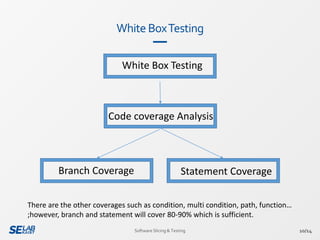

10. White BoxTesting
10/14Software Slicing & Testing
White Box Testing
Code coverage Analysis
Branch Coverage Statement Coverage
There are the other coverages such as condition, multi condition, path, function…
;however, branch and statement will cover 80-90% which is sufficient.

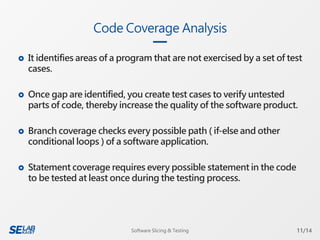

11.  It identifies areas of a program that are not exercised by a set of test
cases.
 Once gap are identified, you create test cases to verify untested
parts of code, thereby increase the quality of the software product.
 Branch coverage checks every possible path ( if-else and other
conditional loops ) of a software application.
 Statement coverage requires every possible statement in the code
to be tested at least once during the testing process.
Code Coverage Analysis
11/14Software Slicing & Testing

12.  Functionality of the software under test is checked without looking
at the internal code structure, implementation details or knowledge
of internal paths of the software.
 Based entirely on the software requirements and specifications
Black Box Testing
12/14Software Slicing & Testing
Cited from https://imgur.com/gallery/EL0jZ8e
Not being able to see the inner workings of the
Software so that only the end-user experience can
be tested

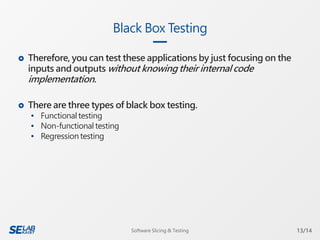

13.  Therefore, you can test these applications by just focusing on the
inputs and outputs without knowing their internal code
implementation.
 There are three types of black box testing.
 Functional testing
 Non-functional testing
 Regression testing
Black Box Testing
13/14Software Slicing & Testing

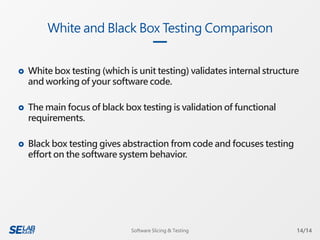

14.  White box testing (which is unit testing) validates internal structure
and working of your software code.
 The main focus of black box testing is validation of functional
requirements.
 Black box testing gives abstraction from code and focuses testing
effort on the software system behavior.
White and Black Box Testing Comparison
14/14Software Slicing & Testing

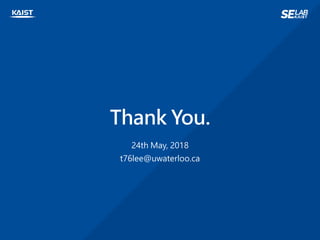

15. Thank You.
24th May, 2018
