1. Skeletal Maturity Indicator
PROF (Dr.) SAIBEL FARISHTA

2. Introduction
 Chronological age is often not sufficient for
assessing the developmental stage and
somatic maturity of the patient.
 The biological age is determined from the
skeletal, dental and morphologic age and
the onset of puberty.
 Due to individual variations in timing, duration
and velocity of growth, skeletal age
assessment is essential in formulating viable
orthodontic treatment plans.

3. Clinical Importance
 To determine the amount of significant facial
cranial growth potential left and potential
vector of facial development.
 To decide the onset of treatment timing and
type of effective treatment.
 To evaluate the treatment prognosis.
 To understand the role of genetics and
environment on the skeletal maturation
pattern.

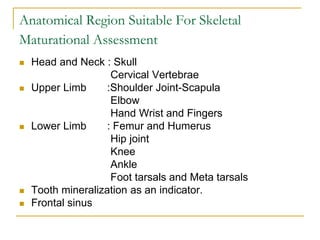

4. Anatomical Region Suitable For Skeletal
Maturational Assessment
 Head and Neck : Skull
Cervical Vertebrae
 Upper Limb :Shoulder Joint-Scapula
Elbow
Hand Wrist and Fingers
 Lower Limb : Femur and Humerus
Hip joint
Knee
Ankle
Foot tarsals and Meta tarsals
 Tooth mineralization as an indicator.
 Frontal sinus

5. Hand Wrist Radiographs
 Assessment of the skeletal age is often made
with the help of a hand radiograph which can
be considered the Biological clock.
 Hand wrist region is made up of numerous
small bones. These bone show a predictable
and scheduled pattern of appearance,
ossification and union from birth to maturity.
Hence, this region is one of the most suited
to study growth.

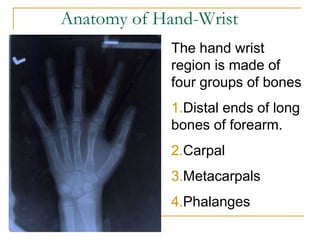

6. Anatomy of Hand-Wrist
The hand wrist
region is made of
four groups of bones
1.Distal ends of long
bones of forearm.
2.Carpal
3.Metacarpals
4.Phalanges

7. Anatomy of skeleton of Hand

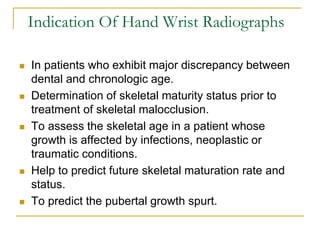

8. Indication Of Hand Wrist Radiographs
 In patients who exhibit major discrepancy between
dental and chronologic age.
 Determination of skeletal maturity status prior to
treatment of skeletal malocclusion.
 To assess the skeletal age in a patient whose
growth is affected by infections, neoplastic or
traumatic conditions.
 Help to predict future skeletal maturation rate and
status.
 To predict the pubertal growth spurt.

9. Methods Of Assessing Skeletal Age
 Bjork ,Grave and Brown method
 Fishman’s skeletal maturity indicators
 Hagg and Taranger method
 Atlas method by Greulich and Pyle

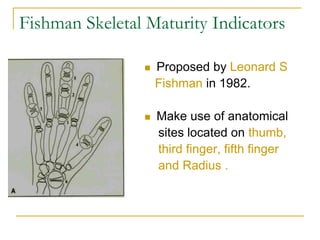

10. Fishman Skeletal Maturity Indicators
 Proposed by Leonard S
Fishman in 1982.
 Make use of anatomical
sites located on thumb,
third finger, fifth finger
and Radius .

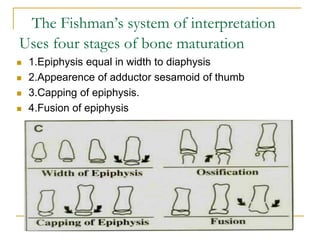

11. The Fishman’s system of interpretation
Uses four stages of bone maturation
 1.Epiphysis equal in width to diaphysis
 2.Appearence of adductor sesamoid of thumb
 3.Capping of epiphysis.
 4.Fusion of epiphysis

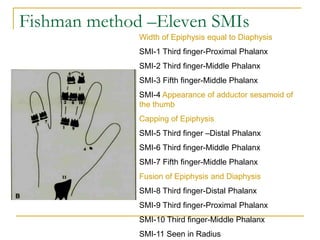

12. Fishman method –Eleven SMIs
Width of Epiphysis equal to Diaphysis
SMI-1 Third finger-Proximal Phalanx
SMI-2 Third finger-Middle Phalanx
SMI-3 Fifth finger-Middle Phalanx
SMI-4 Appearance of adductor sesamoid of
the thumb
Capping of Epiphysis
SMI-5 Third finger –Distal Phalanx
SMI-6 Third finger-Middle Phalanx
SMI-7 Fifth finger-Middle Phalanx
Fusion of Epiphysis and Diaphysis
SMI-8 Third finger-Distal Phalanx
SMI-9 Third finger-Proximal Phalanx
SMI-10 Third finger-Middle Phalanx
SMI-11 Seen in Radius

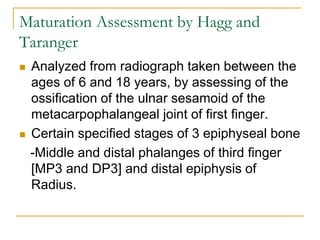

13. Maturation Assessment by Hagg and
Taranger
 Analyzed from radiograph taken between the
ages of 6 and 18 years, by assessing of the
ossification of the ulnar sesamoid of the
metacarpophalangeal joint of first finger.
 Certain specified stages of 3 epiphyseal bone
-Middle and distal phalanges of third finger
[MP3 and DP3] and distal epiphysis of
Radius.

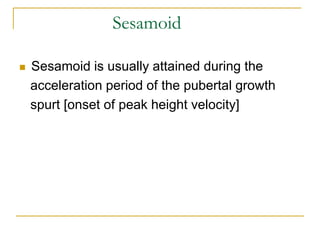

14. Sesamoid
 Sesamoid is usually attained during the
acceleration period of the pubertal growth
spurt [onset of peak height velocity]

15. Modified MP3 Cervical Vertebrae
MP3-F Stage
 Start of the curve of pubertal growth spurt .
 Epiphysis is as wide as metaphysis
 End of epiphysis are tapered and rounded.
 Radiolucent gap [cartilageous epiphyseal growth
plate] between epiphysis and metaphysis is wide.
Initiation stage of cervical vertebrae
C2,C3 and C4 inferior vertebral body
borders are flat.
Superior vertebral borders are tapered
from posterior to anterior [wedge shape]
80-100% of pubertal growth remains.
CVMI-1

16.  Acceleration of the curve of pubertal growth spurt.
 Epiphysis is as wide as metaphysis.
 Distinct medial and lateral border of epiphysis forms
line of demarcation at right angle to distal border.
 Metaphysis begins to show slight undulation.
 Radiolucent gap between metaphysis and epiphysis
is wide.
Acceleration stage of cervical vertebrae.
Concavities are developing in lower
borders of C2 and C3.
Lower border of C4 vertebral body is flat.
C3 and C4 are more rectangular in shape.
65-85% of pubertal growth remains.
MP3-FG Stage CVMI-2

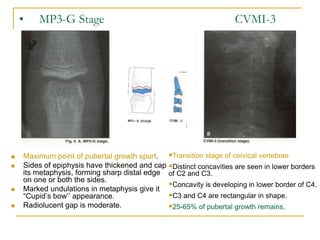

17. • MP3-G Stage CVMI-3
 Maximum point of pubertal growth spurt.
 Sides of epiphysis have thickened and cap
its metaphysis, forming sharp distal edge
on one or both the sides.
 Marked undulations in metaphysis give it
“Cupid’s bow’’ appearance.
 Radiolucent gap is moderate.
Transition stage of cervical vertebrae
Distinct concavities are seen in lower borders
of C2 and C3.
Concavity is developing in lower border of C4.
C3 and C4 are rectangular in shape.
25-65% of pubertal growth remains.

18. MP3-H Stage CVMI-4
 Deceleration of the curve of pubertal growth
spurt.
 Fusion of epiphysis and metaphysis begins.
 Side of epiphysis form obtuse angle to distal
border.
 Epiphysis is beginning to narrow.
 Slight convexity in metaphysis.
 Typical Cupid’s bow appearance is absent .
 Radiolucent gap is narrow.
Deceleration stage of cervical vertebrae.
Distinct concavities are seen in lower
borders of C2, C3 and C4.
C3 and C4 are nearly square in shape.
10-25% of pubertal growth remains.

19. MP3-HI Stage CVMI-5
 Maturation of the curve of pubertal growth spurt
 Superior surface of epiphysis shows smooth
concavity.
 Metaphysis shows smooth, convex surface,
fitting into reciprocal concavity of epiphysis.
 No undulation present in metaphysis.
 Radiolucent gap is insignificant.
Maturation stage of cervical vertebrae.
Accentuated concavities of C2, C3 and C4
inferior vertebral body borders are observed.
C3 and C4 are square in shape.
5-10% of pubertal growth remains.

20. MP3-I Stage CVMI-6
 End of pubertal growth spurt
 Fusion of epiphysis and metaphysis complete.
 No radiolucent gap.
 Dense, radiopaque epiphyseal line forms
integral part of proximal portion of middle
phalanx.
Completion stage of cervical vertebrae.
Deep concavities are present in C2, C3
and C4 inferior vertebral body borders.
C3 and C4 are greater in height than in width.
Pubertal growth is completed.

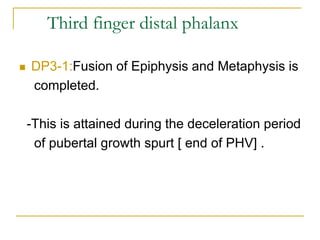

21. Third finger distal phalanx
 DP3-1:Fusion of Epiphysis and Metaphysis is
completed.
-This is attained during the deceleration period
of pubertal growth spurt [ end of PHV] .

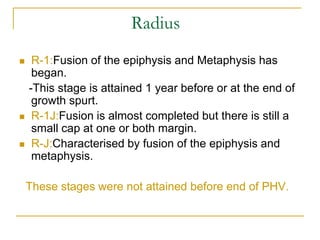

22. Radius
 R-1:Fusion of the epiphysis and Metaphysis has
began.
-This stage is attained 1 year before or at the end of
growth spurt.
 R-1J:Fusion is almost completed but there is still a
small cap at one or both margin.
 R-J:Characterised by fusion of the epiphysis and
metaphysis.
These stages were not attained before end of PHV.

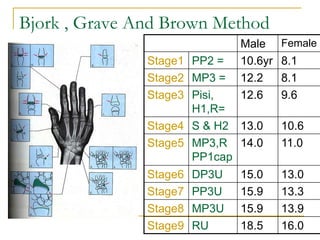

23. Bjork , Grave And Brown Method
Male Female
Stage1 PP2 = 10.6yr 8.1
Stage2 MP3 = 12.2 8.1
Stage3 Pisi,
H1,R=
12.6 9.6
Stage4 S & H2 13.0 10.6
Stage5 MP3,R
PP1cap
14.0 11.0
Stage6 DP3U 15.0 13.0
Stage7 PP3U 15.9 13.3
Stage8 MP3U 15.9 13.9
Stage9 RU 18.5 16.0
