Singly Linked Lists are a type of data structure. In a singly linked list, each node in the list stores the contents and a pointer or reference to the next node in the list. It does not store any pointer or reference to the previous node. ... The last node in a single linked list points to nothing.

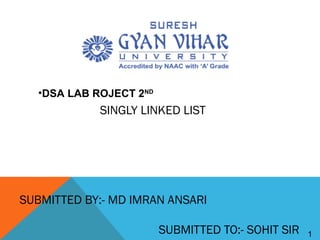

1. 1
SINGLY LINKED LIST
SUBMITTED BY:- MD IMRAN ANSARI
SUBMITTED TO:- SOHIT SIR
•DSA LAB ROJECT 2ND

2. 2
SINGLY LINKED LISTS
 What is a singly-linked list?
 Why linked lists?
 Representation
 Space Analysis
 Creation, Append and Prepend
 Traversal
 Search
 Insertion after and before an element
 Deletion

3. 3
WHAT IS A SINGLY-LINKED LIST?
.
A singly linked list is a dynamic data structure consisting of a sequence of nodes, forming a
linear ordering
Each node stores:
 Element (data object)
 Reference (i.e., address) to the next node
Node:
Singly-linked list:

4. 4
WHY LINKED LISTS?
Linked lists are used to implement many important data structures such as
stacks, queues, graphs, hash tables, etc.
Linked lists are used as components of some data structures. Examples:
B+ trees, skip lists, etc.
LISP An important programming language in artificial intelligence makes
extensive use of linked lists in performing symbolic processing.
Memory management: An important role of operating systems. An
operating system must decide how to allocate and reclaim storage for
processes running on the system. A linked list can be used to keep track
of portions of memory that are available for allocation.
Scrolled lists, components found in graphical user interfaces, can be
implemented using linked lists.

5. 5
REPRESENTATION
We are using a representation in which a linked list has both head and tail references:
public class MyLinkedList{
protected Element head;
protected Element tail;
public final class Element{
Object data;
Element next;
Element(Object obj, Element element){
data = obj;
next = element;
}
public Object getData(){return data;}
public Element getNext(){return next;}
}
// . . .
}

6. 6
TRAVERSAL
Begin at the first node, then follow each next reference until the
traversal condition is satisfied or until you come to the end.
To move an Element reference e from one node to the next use:
Example: Count the number of nodes in a linked list.
public int countNodes(){
int count = 0;
Element e = head;
while(e != null){
count++;
e = e.next;
}
return count;
}
e = e.next;
O(n(

7. 7
SEARCHING
To search for an element, we traverse from head until we locate the object or we reach
the end of the list.
Example: Count the number of nodes with data field equal to a given object.
public int countNodes(Object obj){
int count = 0;
Element e = head;
while(e != null){
if(e.data.equals(obj))
count++;
e = e.next;
}
return count;
}
Complexity is….
• The following reference relationships are useful in searching:
e .n e x t e .n e x t .n e x t e .n e x t .n e x t .n e x t
e .n e x t .d a t a e .n e x t .n e x t .d a t a
e
e .d a t a
However, it is important to ensure that next is not null in such expressions

8. 8
INSERTION AFTER AN ELEMENT
• To insert an object y after a node x:
• Move a reference e from the beginning of the list to node x:
Element e = head;
if(e == null) throw new IllegalArgumentException(“not found”);
while(e != null && !e.data.equals(x)){
e = e.next;
}
if(e == null) throw new IllegalArgumentException(“not found”);
• Create a new node containing y as data and let its next reference refer to the
node after node x:
Element element = new Element(y, e.next);
• Make the next reference of node x refer to node y:
e.next = element;
• If the new node was inserted at the end of the list, update the tail reference:
if(element.next == null) tail = element;
e
e .n e x t
x
e
e .n e x t
x
y
e l e m e n t
e
e .n e x t
x
y
e l e m e n t

9. 9
INSERTION AFTER AN ELEMENT
public void insertAfter(Object obj) {
// create a new node for obj2 and make it refer to the node
// after obj1 node
Element element = new Element(obj, this.next);
// make obj1 node refer to the new node
this.next = element;
// update tail if the new node was inserted at the end
if(this == tail)
tail = next;
}
O(1(
O(n(
• The insertAfter method of the Element class is invoked as:
MyLinkedList.Element e = list.find(obj1);
if(e != null)
e.insertAfter(obj2); // insert obj2 after obj1
else
System.out.println("Element to insert before not found");
• Within the insertAfter method this refers to obj1 node:
• Note: The total complexity of the insert after operation is O(n) because find is O(n)

10. 10
INSERTION BEFORE AN ELEMENT
• To insert an object y before a node x:
• Move a reference previous from the beginning of the list to the node before
node x:
Element e = head, previous;
if(e == null) throw new IllegalArgumentException(“not found”);
while(e != null && ! e.data.equals(x)){
previous = e;
e = e.next;
}
if(e == null) throw new IllegalArgumentException(“not found”);
• Create a new node containing y as data and let its next reference refer to the
node x:
Element element = new Element(y, e);
• Make the next reference of the node before node x refer to node y:
if(e == head)
head = element;
else
previous.next = element;
e
x
p r e v io u s
y
e l e m e n t
e
x
p r e v io u s
y
e l e m e n t
e
x
p r e v io u s

11. 11
INSERTION BEFORE AN ELEMENT
public void insertBefore(Object obj) {
// create a new node for obj2, make this node point to obj1 node
Element element = new Element(obj, this);
if(this == head){
head = element;
return;
}
Element previous = head;
// move previous to node before obj1 node
while(previous.next != this) {
previous = previous.next;
}
previous.next = element; // insert
}
MyLinkedList.Element e = list.find(obj1);
if(e != null)
e.insertBefore(obj2); // insert obj2 before obj1
else
System.out.println("Element to insert before not found");
• The insertBefore method of the Element class is invoked as:
• Within the insertBefore method this refers to obj1 node:
O(n(

12. 12
DELETION
• To delete a node x:
• Move a reference previous from the beginning of the list to the node before
node x:
Element e = head, previous;
if(e == null) throw new IllegalArgumentException(“not found”);
while(e != null && ! e.data.equals(x)){
previous = e;
e = e.next;
}
if(e == null) throw new IllegalArgumentException(“not found”);
• Bypass the node to be deleted:
if(e == head){
if(head.next == null)
head = tail = e = null;
else{
head = head.next;
}
else{
previous.next = e.next;
if(tail == e)
tail = previous;
}
e = null;
e
x
p r e v i o u s
e
x
p r e v io u s

13. 13
DELETION – DELETING FIRST AND LAST ELEMENT
public void extractFirst() {
if(head == null)
throw new IllegalArgumentException("item not found");
head = head.next;
if(head == null)
tail = null;
}
public void extractLast() {
if(tail == null)
throw new IllegalArgumentException("item not found");
if (head == tail)
head = tail = null;
else {
Element previous = head;
while(previous.next != tail)
previous = previous.next;
previous.next = null;
tail = previous;
}
}

14. 14
public void extract(Object obj) {
Element element = head;
Element previous = null;
while(element != null && ! element.data.equals(obj)) {
previous = element;
element = element.next;
}
if(element == null)
throw new IllegalArgumentException("item not found");
if(element == head)
head = element.next;
else
previous.next = element.next;
if(element == tail)
tail = previous;
}
DELETION OF AN ARBITRARY ELEMENT
To delete an element, we use either the extract method of
MyLinkedList or that of the Element inner class.
The MyLinkedList extract method (code similar to that in slide 16):
try{
list.extract(obj1);
} catch(IllegalArgumentException e){
System.out.println("Element not found");
}
• The method is invoked as:

15. 15
public void extract() {
Element element = null;
if(this == head)
head = next;
else{
element = head;
while(element != null && element.next != this){
element = element.next;
}
if(element == null)
throw new InvalidOperationException(“Not found”);
element.next = next;
}
if(this == tail)
tail = element;
}
DELETION OF AN ARBITRARY ELEMENT
The Element extract method invocation and implementation:
MyLinkedList.Element e = list.find(obj1);
if(e != null)
e.extract();
else
System.out.println("Element not found");

16. 16
TIME COMPLEXITY: SINGLY-LINKED LISTS VS. 1D-ARRAYS
Operation ID-Array Complexity Singly-linked list Complexity
Insert at beginning O(n) O(1)
Insert at end O(1) O(1) if the list has tail reference
O(n) if the list has no tail reference
Insert at middle* O(n) O(n)
Delete at beginning O(n) O(1)
Delete at end O(1) O(n)
Delete at middle* O(n):
O(1) access followed by O(n)
shift
O(n):
O(n) search, followed by O(1) delete
Search O(n) linear search
O(log n) Binary search
O(n)
Indexing: What is
the element at a
given position k?
O(1) O(n)
* middle: neither at the beginning nor at the end

17. 17
EXERCISES
Using the Element extract method is less efficient than using the
MyLinkedList extract method. Why?
For the MyLinkedList class, Implement each of the following methods:
String toString()
Element find(Object obj)
void insertAt(int n) //counting the nodes from 1.
void deleteBefore(Object obj) // delete node before obj node
State the complexity of each method.
Which methods are affected if we do not use the tail reference in
MyLinkedList class.
